TRINAMICTMC262两相步进马达驱动方案

TRINAMICTMC262两相步进马达驱动方案

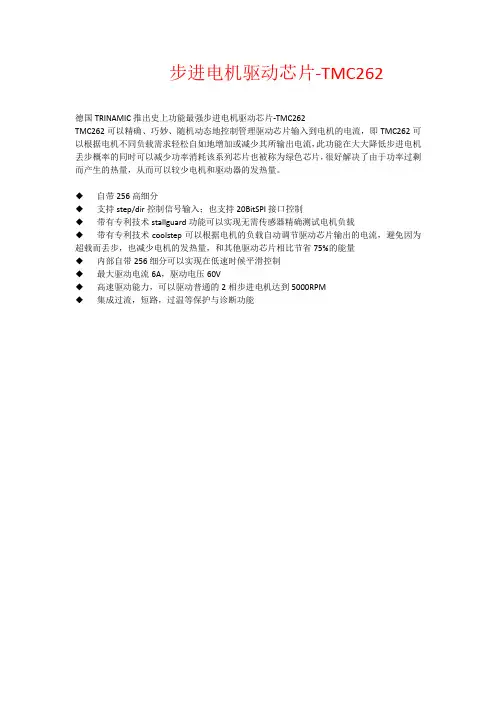

马达驱动马达驱动马达驱动器,具有业界一流的特性,包括高分辨率的微步距,无传感器机械负载测量,负载自适应的功率优化,低谐振斩波工作,标准的 PI和STEP/DIR接口简化了通信.TMC262能驱动四个外接N沟和P沟双MOSFET,马达电流高达8A和60V,主要用在缝纫机,工厂自动化,打印机与扫描仪,办公自动化,医疗设备,液体处理,ATM和POS等.本文介绍了TMC262主要特性和优势,方框图,应用方框图和高压大电流功率级电路图以及评估板TMC262–EVAL主要特性,应用框图,电路图和PCB元件布局图.The TMC262 driver for two-phase stepper motors offers an industry-leading feature set, including high-resolution microstepping, sensorless mechanical load measurement, load-adaptive power optimization, and low-resonance chopper operation. Standard SPI™ and STEP/DIR interfaces simplify communication. The TMC262 drives four external N- and Pchannel dual MOSFETs for motor currents up to 8A and up to 60V. Integrated protection and diagnostic features support robust and reliable operation.High integration, high energy efficiency and small form factor enable miniaturized designs with low external component count for cost-effective and highly competitive solutions.TMC262主要特性和优势:High Current up to 8A Motor current using external (N&P) MOSFETs.Highest Voltage up to 60V DC operating voltageHighest Resolution up to 256 microsteps per full stepSmallest Size 5x5mm QFN32 packageLow Power Dissipation synchronous rectificationEMI-optimized slope & current controlled gate driversProtection & Diagnostics overcurrent, short to GND, overtemperature & undervoltagestallGuard2™ high precision sensorless motor load detectioncoolStep™ load dependent current control for energy savings up to 75%microPlyer™ microstep interpolation for increased smoothness with coarse step inputs.spreadCycle™ high-precision chopper for best current sine wave form and zero crossingTMC262应用:Textile, Sewing MachinesFactory AutomationPrintingLab AutomationLiquid HandlingMedicalOffice AutomationPrinter and ScannerCCTV, SecurityATM, Cash recyclerPOSPumps and ValvesHeliostat ControllerCNC Machines图1.TMC262方框图图2.TMC262功能方框图图3.TMC262应用方框图图4.TMC262采用外接栅极驱动器的高压大电流功率级电路图图5.TMC262采用外接栅极驱动器和短路接地保护的大电流功率级电路图评估板TMC262–EVALEvaluation board for the TMC262 stepper motor driver IC with coolStep评估板TMC262–EVAL主要特性:The TMC262 evaluation board features a TMC262 with external power MOSFETs plus a microcontroller, which allows interfacing to a PC for visualization and control of all parameters. The motor can be operated via the step and direction interface both, using an external source, and using the integrated microcontroller as a step generator.The TMC262-EVAL allows you to explore all functions of the TMC262. The evaluation board comes with a PC software which gives you access to every function of the driver. It comes along with a Step&Direction interface, a RS232 and a USB port. The TMC262-Eval is a complete "plug and play" solution, additionally only a motor, a PC and a power supply are required!评估板TMC262–EVAL亮点
-
current can be set to up to 1A, 2A or up to 4A (soldering jumper) via on-board sense
-EVAL containsTMC262-Evaluation BoardUSB cable for connection to PCsoftware for Windows (downloadable)documentation, board and circuit description and all datasheets (downloadable)图6.评估板TMC262–EVAL外形图图7.评估板TMC262–EVAL应用框图图8.评估板TMC262–EVAL电路图(1)图9.评估板TMC262–EVAL电路图(2)图10.评估板TMC262–EVAL电路图(3)图11.评估板TMC262–EVAL电路图(4)图12.评估板TMC262–EVAL PCB元件布局图详情请见:/tmctechlibcd/integrated_circuits/TMC262/TMC262_datasheet.pdf和/tmctechlibcd/integrated_circuits/TMC260_261_262/TMC262-EVAL/TMC262_EVAL_V10_sch ematic.pdf。
