ASME 热处理工艺卡(模拟)word.doc

2.9 armoured thermocouple shall be fixed by 2 strips separately,
Thickness is 3mm width is 40mm,See the sketch on right.
3.The strips are fixed and tightened by bolts.Three heads of the armoued thermocouple shall be placed and fixed at upper,middle and lower of the vessel separately by one strip.See the sketch on right.
XXX

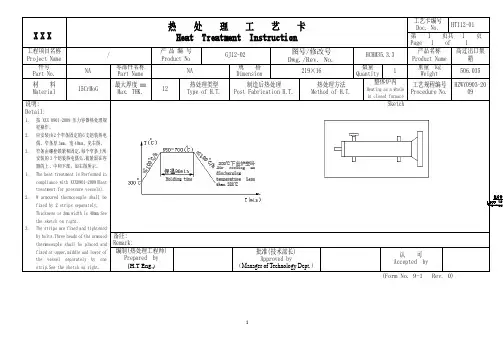

热 处 理 工 艺 卡
Heat Treatment Instruction
工艺卡编号
Doc. No.
HTI12-01
第1页共1页
Page 1of 1
工程项目名称
Project Name
/
产 品 编 号Product No
GJ12-02
图号/修改号
Dwg./Rev. No.
HCHM35.3.3
产品名称
3.窄条由螺栓锁紧和固定，每个窄条上所安装的3个铠装热电偶头，被紧固在容器的上、中和下部，如右图所示。
1.The heat treatment is Performed in compliance with XXX0901-2009(Heattreatment for pressure vessels).
Post Fabrication H.T.
热处理方法
Method of H.T.
整体炉内
Heating as awholein closed furnace
工艺规程编号Procedure No.
HZWY0903-2009
说明:
Detail:
1.按XXX 0901-2009 压力容器热处理规程操作。
2.应安装由2个窄条固定的6支铠装热电偶。窄条厚3mm，宽40mm，见右图。
Product Name
高过出口集箱
件号
Part No.
NA
零部件名称
Pa219×16
数量
Quantity
1
重量 kg Weight
506.035
材 料
Material
15CrMoG
最大厚度 mm
Max. THK.
12
热处理类型
Type of H.T.
制造后热处理
Sketch
备注:
Remark:
编制(热处理工程师)
Prepared by
(H.T Eng.)
批准(技术部长)
Approved by
（Manager of Technology Dept.）
认 可
Accepted by
(Form No. 9-1 Rev. 0)
