三星WD-B1255洗衣机培训手册

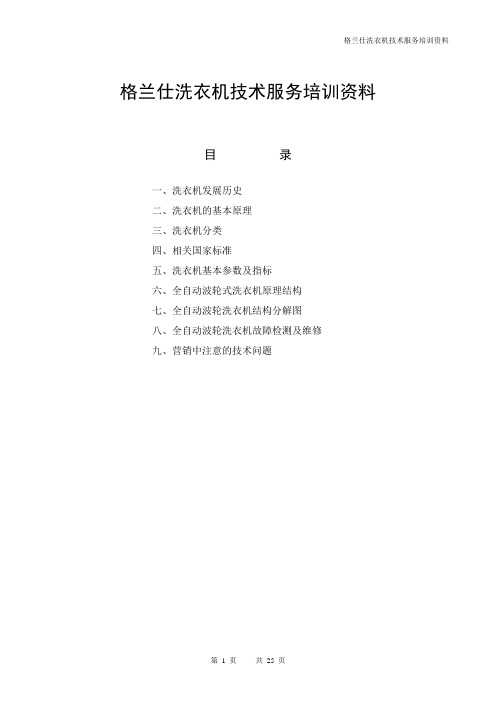

格兰仕洗衣机技术服务培训资料目录一、洗衣机发展历史二、洗衣机的基本原理三、洗衣机分类四、相关国家标准五、洗衣机基本参数及指标六、全自动波轮式洗衣机原理结构七、全自动波轮洗衣机结构分解图八、全自动波轮洗衣机故障检测及维修九、营销中注意的技术问题一、洗衣机发展历史世界第一台洗衣机诞生于十九世纪末的欧洲，是一台木质的人力驱动洗衣机，随着现代化工业的发展，到二十世纪末，全球洗衣机年销量已达5000万台。

中国洗衣机开始于70年代，最早生产单桶洗衣机，80年代后，开始引日本双桶洗衣机，80年代后期，机械程控器控制的全自动洗衣机出现，90年代初，电脑控制的全自动洗衣机逐渐走向市场，同时开始引进欧洲技术在国内生产滚筒式洗衣机，90年代末期，我国洗衣机年销量已达1000万台。

二、洗衣机的基本原理1）洗衣机的洗涤原理是由模拟人工手搓衣物的原理发展而来的。

手工搓洗衣物时，衣物和衣物间、衣物和搓板间、衣物和手间的摩擦力大小适宜，在洗涤液的作用下，将衣物的污垢清洗干净。

洗衣机洗净衣物的过程也很相似，洗涤过程是在化学力和机械力的共同作用下完成的。

实际也是利用洗涤剂中的化学分子团和污垢的亲和力（结合力），再利用机械方式使它们脱离衣物而溶于水中。

2） 波轮洗衣机的洗涤过程① 水流洗涤：在洗衣机波轮刚开始运转时，衣物不动，水流开始相对衣物运动。

②摩擦洗涤：波轮运转后，衣物和水开始相对桶体一起转动，这时，衣物开始和桶内壁，波轮做相对摩擦运动，使衣物开始洗涤并磨损。

② 一般洗衣机洗净率和磨损成反比，衣物洗的越干净，对衣物磨损越大。

所以，有的洗衣机波轮运转时间为0.5s ，就是为了突出水流洗涤。

三、洗衣机分类1．搅拌式全自动洗衣机： 美洲国家，如：美国及周边国家 特点：波轮为高柱式,波轮旋转小于360。

如左图 2．滚筒式洗衣机： 欧洲国家特点：利用滚筒旋转时将衣物带到滚筒上端然后跌落下来的力量对衣物进行洗涤。

3．波轮式洗衣机：亚洲、东南亚地区，由日本设计的，我国洗衣机初期引进的都是日本的。

Pages:1 - 18The information included in this Splendide Repair Manual may change without notice. Please see our web site/service/docs.html for updates, corrections or additions.PRODUCT: WASHER / WASHER-DRYER COMBO MODEL: AW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 1296SOHQGLGH¥5&$)/*$"- &%6$"5*0/(3061 13&4&/5453"*/*/( (6*%&REPAIR MANUALAW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUALPage1. Model & Serial Number Locations (1)2. Top Panel (2)3. Control Panel (3)4. Control Panel Components (4)5. Toe Kick & Drain Motor (6)6. Drum Boot (7)7. Door Switch (8)8. Water Valves (8)9. Heater Assembly (AWD 120 Only) (9)10. Pressure Switch (10)11. Rear Access Panel (10)12. Control Board (11)13. Main Motor (12)14. Fault Codes (13)15. Schematics (14)TABLE OF CONTENTS AW 120 / AW 122 / AW 125AWD 120 / AWD 121 / AWD 129REPAIR MANUAL• The Model and Serial Number Tag is located on the front of the Appliance behind the door (Fig. 1-1). The Model shown is an Fig. 1-1 AW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUALTo remove the Top Panel, first remove the two (2) Phillips screws located at the rear corners of the panel (Fig. 2-1). With the two screws removed lift the rear of the panel up approximately three (3) inches and then slide the panel back, moving it away from the Fig. 2-212AW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUAL• Next, remove the wiring from each Switch and the Program Selector. To remove the Switch wiring simply press the Locking Tab forward and slide the Wiring Connector up and out (Fig. 3-5). Now release the two (2) remaining Control Panel Locking Tabs located on the bottom rear of the Control Panel (Fig. 3-6) and the complete Control Panel Assembly can be removed.Fig. 3-5Fig. 3-6Fig. 3-2 Fig. 3-4Fig. 3-3 • Next, remove the Soap Dispenser by grasping it firmly and sliding it out from its housing (Fig. 3-2). Now, remove the Dispenser Door and Program Guide by lifting out the Hinge Pin (Fig. 3-3) the pin will easily slide up and out. With the Soap Dispenser and Door completely removed you can remove the two (2) remaining Phillips Screws.When re-installing the Control Panel make sure the bottom edge of the Soap Dispenser Housing rests on top of theControl Panel opening as shown in the box of Fig. 3-4.AW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129The Control Panel has three main controls; Push Buttons (A), Knobs (B) and the Program Dial (C).To remove a Push Button (A), first mask the area to protect against damaging the Control Panel, then carefully insert a small screwdriver between the bottom of the Button and the Control Panel (Fig. 4-2), now pry the Button out and off.To remove the Knobs (B) or the Program Dial (C), grasp the firmly and pull straight out toward you.AFig. 4-2REPAIR MANUALFig. 4-1BCBA AFig. 4-4Fig. 4-5 AW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUAL12• To remove the Program Selector, first remove the Program Selector Knob by grasping it firmly and pulling it toward you (Fig. 4-6). With the Knob removed loosen the Phillips Screw and remove the Program Knob Bezel (Fig. 4-7). Now rotate the Program Dial until the half moon cut out lines up with the Program Selector Locking Tab (Fig 4-8).Fig. 4-6Using a small screwdriver push in on the Locking Tab (Fig. 4-9), while holding the Locking Tab in use your other hand to bring the bottom of the Program Selector slightly away from the Mounting Plate, and then remove by sliding it up and off (Fig 4-10). In Fig. 4-11 you can see the four (4) alignment tabs that hold the Program Selector to the Program Selector Mounting Plate. The Program Selector Mounting Plate does not have to be removed in order to remove the Program Selector. The Program Knob Bezel, Program Dial and Program Knob are all keyed to make re-installation easier.Fig. 4-9Fig. 4-10Fig. 4-11AW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUALTo remove the Toe Kick, carefully insert a small screwdriver into each of the three (3) retention clips pushing each clip down and Fig. 5-2Fig. 5-3 Fig. 5-4• With the two Drain Motor screws removed, carefully lay the Washer on its back and remove the four (4) Phillips screws that hold the Bottom Pan to the frame. With the Bottom Pan removed twist the Drain Motor Clockwise to release it from its mounting. To remove the Drain Motor remove the three (3) hose connections and wiring. Fig. 5-5 Fig. 5-6AW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUALFig. 5-5• To remove the Drum Boot (Fig. 6-1) start by removing the Door Boot Spring (Fig. 6-2). The Door Boot Spring is located just under the front lip of the Drum Boot. Using a small screwdriver, slide the screwdriver under the spring and carefully remove it from around the seal. With the Door Boot Spring removed, unseat the Door Boot from the washer door opening (Fig. 6-3). As you remove the Door Boot from the door opening note how the seal will be reseated on the door opening when replaced.TECH NOTE: When reinstalling the Door Boot make sure that the Boot Tab is located at the11:00 O'clock position (Fig. 6-1).Fig. 6-1 Fig. 6-2 Fig. 6-3Fig. 6-4 • With the Door Boot unseated from the door opening remove the Top Panel as described in Section 2. For easier access to the Door Boot Clamp Bolt (Fig. 6-5) remove the Soap Dispenser Housing (Fig. 6-4) as described in Sections 3 and 8. Loosen the Door Boot Clamp Bolt using an 8mm Nut Driver (Fig. 6-6), but do not loosen completely. With the Door Boot Clamp loose you can now remove the Door Boot.TECH TIP: When installing the new Door Boot leave the Boot Clamp loosely fit until you seat the Boot to the Outer Drum, thenAW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129AW 120 / AW 122 / AW 125AWD 120 / AWD 121 / AWD 129Fig. 7-1 Fig. 7-28. WATER VALVESFig. 8-1Fig. 8-2• To remove either Water Valve, first remove its rear mounting screw (Fig. 8-1), then remove the Top Panel as described in Section 2. Then remove the two (2) Phillips screws for the Valve being replaced (Fig. 8-3). When you remove the valve be careful that you also remove the Valve Seal (Fig. 8-2) which may still be inserted into the Dispenser Housing. It will be easier to mount the new Water Valve into the Dispenser Housing if the Valve Seal is already fitted to the Water Valve when replaced.REPAIR MANUALC BB A CDBBA AW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUAL11. REAR ACCESS PANELFig. 10-1Fig. 11-1Fig. 11-2• To remove the Rear Access Panel, remove the seven (7) Phillips screws (Fig. 11-1). With the Rear Access Panel removed you have access to the following components (Fig. 11-2); Water Temperature NTC (A), Main Motor & Belt (B), Drain Hose (C) and Control Board (D).A BDC AW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUAL12. CONTROL BOARDA NTC’s / LED’sProgram Selector ModuleSelector Switches / PotentiometersWater ValvesBlower Motor / Drain MotorMain MotorHeaterTECH NOTE• To remove the Control Board, remove the two (2) T-15 Torx screws located at the rear right corner of the unit. Also remove the plastic cap (A) by prying it off with a small screwdriver (Fig. 12-1). Disconnect the wire harness connections and remove the Control Board through the rear access opening.Fig. 12-1TECH NOTE: Replacement Control Boards DO NOT come with the EEPROM Chip installed. You mustorder the EEPROM Chip which corresponds to the Model Number being serviced separately. Remember to always order the Control Board AND EEPROM Chip. Use care when installing the EEPROM Chip making sure not to bend any of the contact prongs.AAW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUALFig. 13-2 Fig. 13-3A AAW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUALAW 120 / AW 122 / AW 125 AWD 120 / AWD 121 / AWD 129REPAIR MANUAL 15. SCHEMATIC AW 120 / AW 122REPAIR MANUAL。

1引言本篇设计说明书针对全自动滚筒洗衣机的基本整体结构、传动部分、控制部分进行详细的计算说明，并结合数据绘制三维装配图。

采用PLC为基础的主控制电路编制程序。

该设计包括全自动滚筒洗衣机的PLC控制，主要介绍了全自动洗衣机的工作原理，控制系统的PLC的选型和资源的配置，控制系统程序设计与调试，控制系统PLC程序。

传动系统设计，主要包括带轮的设计，滚筒轴系的设计，V带的设计。

2.全自动滚筒洗衣机的总体设计方案2.1滚筒洗衣机的基本结构滚筒洗衣机种类很多，但是通常情况下其大致结构可分为四部分：外观支撑部分、给水排水部分、传动部分、电气控制和操作系统部分。

外观支撑部分主要是滚筒洗衣机的外形框架，给水排水部分主要指洗衣机的给水系统和排水系统，传动部分主要指洗衣机的带传动及滚筒轮系的传动结构，电气控制部分主要指洗衣机依靠各种电器元件及控制器实现的自动控制部分。

个部分具体组成如下：（1）外观部分包括：箱体、后盖、过滤器门、底板等（2）给水排水部分包括：进水管、排水管、储水槽、电磁阀、洗涤剂回收槽等（3）传动部分包括：多频电机、V带、大小带轮、滚筒轴系等（4）控制部分包括：电脑版、电子模块、电磁阀、程控器、温控器、水位压力开关、水加热管、恒温器、电容、定时器等（5）操作部分包括：操作面板、程序标牌、琴键开关、琴键按钮、调温器旋钮、程控器旋钮、指示灯等12.2滚筒洗衣机各部分的设计方案2.2.1主体部分洗涤部分主要由内筒（不锈钢滚筒）、外筒（盛洗涤液用，又称盛水桶）、内筒叉形架、转轴、外筒叉形架、滚动轴承等组成。

（1）内筒及内筒叉形架内筒又称滚筒。

滚筒是滚筒式洗衣机对衣物进行洗涤，洗涤效果有着直接关系。

内筒用厚度为2-3毫米的抛光不锈钢板卷制而成的。

有直径为3.5-5毫米的圆孔，孔与孔之间的距离大约为15-20毫米。

圆孔自内向外冲刷，翻边向外，内壁光滑，以防洗涤时刮伤衣物。

在滚筒内壁沿轴向有三条凸筋，这三条凸筋在洗涤过程中起举升织物的作用。
