Zigbee开关控制器说明书中文

XBee和XBee-PRO OEM RF模块的设计，以ZigBee协议内运作，支持低成本的独特需求，低功耗无线传感器网络工程。

模块只需要最小的功率，就能提供远程设备之间的数据传输的可靠性。

这两个模块内运作的ISM2.4GHz频段，且引脚对引脚相互兼容。

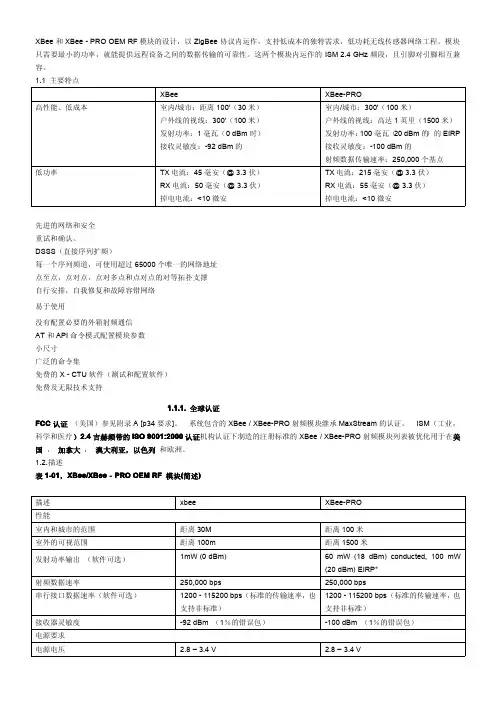

1.1主要特点XBee XBee-PRO高性能、低成本室内/城市：距离100'（30米）户外线的视线：300'（100米）发射功率：1毫瓦（0dBm时）接收灵敏度：-92dBm的室内/城市：300'（100米）户外线的视线：高达1英里（1500米）发射功率：100毫瓦（20dBm的）的EIRP 接收灵敏度：-100dBm的射频数据传输速率：250,000个基点低功率TX电流：45毫安（@3.3伏）RX电流：50毫安（@3.3伏）掉电电流：<10微安TX电流：215毫安（@3.3伏）RX电流：55毫安（@3.3伏）掉电电流：<10微安先进的网络和安全重试和确认。

DSSS（直接序列扩频）每一个序列频道，可使用超过65000个唯一的网络地址点至点，点对点，点对多点和点对点的对等拓扑支撑自行安排，自我修复和故障容错网络易于使用没有配置必要的外箱射频通信AT和API命令模式配置模块参数小尺寸广泛的命令集免费的X-CTU软件（测试和配置软件）免费及无限技术支持1.1.1.全球认证FCC认证（美国）参见附录A[p34要求]。

系统包含的XBee/XBee-PRO射频模块继承MaxStream的认证。

ISM（工业，科学和医疗）2.4吉赫频带的ISO9001:2000认证机构认证下制造的注册标准的XBee/XBee-PRO射频模块列表被优化用于在美国，加拿大，澳大利亚，以色列和欧洲。

1.2.描述表1-01，XBee/XBee‐PRO OEM RF模块(简述)描述xbee XBee-PRO性能室内和城市的范围距离30M距离100米室外的可视范围距离100m距离1500米发射功率输出（软件可选）1mW(0dBm)60mW(18dBm)conducted,100mW(20dBm)EIRP*射频数据速率250,000bps250,000bps串行接口数据速率（软件可选）1200-115200bps（标准的传输速率，也支持非标准）1200-115200bps（标准的传输速率，也支持非标准）接收器灵敏度-92dBm（1％的错误包）-100dBm（1％的错误包）电源要求电源电压 2.8–3.4V 2.8–3.4V工作电流（发送）45mA(@3.3V)If PL=0(10dBm):137mA(@3.3V),139mA(@3.0V)PL=1(12dBm):155mA(@3.3V),153mA(@3.0V)PL=2(14dBm):170mA(@3.3V),171mA(@3.0V)PL=3(16dBm):188mA(@3.3V),195mA(@3.0V)PL=4(18dBm):215mA(@3.3V),227mA(@3.0V)工作电流（接收）50mA(@3.3V)55mA(@3.3V)掉电电流不支持不支持概要操作频段ISM2.4GHz ISM2.4GHz尺寸0.960”x1.087”(2.438cm x2.761cm)0.960”x1.297”(2.438cm x3.294cm)工作温度-40to85o C(industrial)-40to85o C(industrial)天线选择集成带，芯片或U.FL连接器集成带，芯片或U.FL连接器网络与安全支持的网络拓扑点至点，点对多点，对等网络与网孔通道数量（软件可选）16个直接序列通道16个直接序列通道寻址选项PAN编号，通道和地址PAN编号，通道和地址机构认证美国（FCC15.247部分）OUR-XBEE OUR-XBEEPRO加拿大工业部（IC）4214A XBEE4214A XBEEPRO欧盟ce ETSI ETSI(Max.10dBm transmit poweroutput)*当在欧洲运用时：XBee-PRO RF模块必须被配置为运行在一个最大发射功率为10dBm的输出水平。

一．Android软件安装配置，导入项目安装pad驱动测试对应源码是否成功使用无线路由器组建局域网，并将摄像头配置进来ZIGBEE用万用表测出2,3,5口：具体使用：将万用表的开关拨到箭头的地方，然后测线路是否通，如果有响声，即是联通的。

串口线和ZIGBEE连接时对应的点：2口：tx; 3口:rx 5口:GND继电器Vin1连接12伏电源GND2连接地D+5连接智能终端的RS485的左边D-6连接智能终端的RS485的右边使用智能终端的使用：1) 连接电源：PWR：左黑右红，红为5伏电源，黑为底线2）串口线连接PC，进行配置查询： AT+AA_BASE_ADDRESS=1返回结果，0,硬件地址设置地址： AT+AA_BASE_ADDRESS=0，A1108 注意：1108为自己设定的硬件地址（0——F）查询：AT+R_AA_Z_NODE返回结果AT+AA_Z_NODE=C 注：C为协调器设置信道：AT+AA_Z_CHANNEL=11 注：11为自行设定的信道（值为11-26）设组网地址：AT+AA_Z_PAN_ID=1105 注：1105为自行设定的组网地址自此，智能终端设置完成设置ZIGBEE连接电源连接串口线，设置235，黑的是5,黄的是2，绿的是3通过串口线连接PC,进行设置：查询硬件地址：AT+AZ_BASE_ADDRESS=1返回结果0，Z硬件地址设置硬件地址：AT+AZ_BASE_ADDRESS=0，Z1109 注：1109为自行设定的硬件地址（这个地址必须区别于智能终端的硬件地址）设置工作模式：AT+AZ_BASE_WORKMODE=0,2设置为路由器：AT+AZ_Z_NODE=R设置信道：AT+AZ_Z_CHANNEL=11 注：11为上述设置的信道AT+AZ_Z_PAN_ID=1105 注：1105为上述设置的组网地址设置工作模式：AT+AZ_BASE_WORKMODE=0,2将门磁连上：门磁的两头分别连接ZIGBEE的GND和IN两口关于继电器1）继电器就是一个开关2）一个继电器有四对：第一队：AG,A1，A2,;第二队：10,11,12；第三队：13,14,15；第四对：16,17,18。

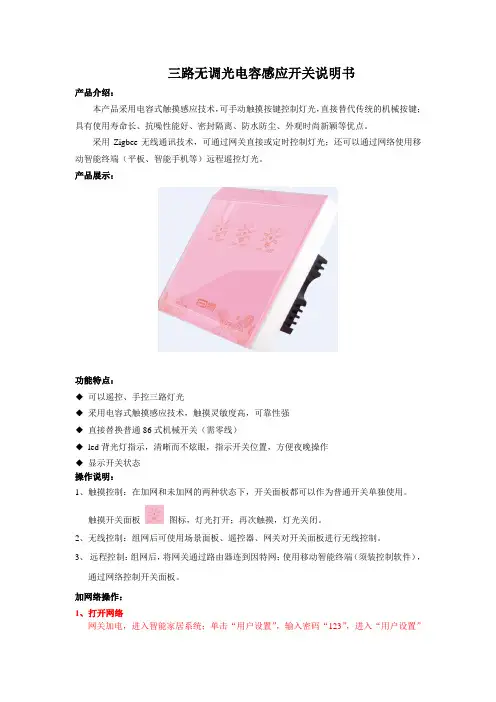

三路无调光电容感应开关说明书产品介绍：本产品采用电容式触摸感应技术，可手动触摸按键控制灯光，直接替代传统的机械按键；具有使用寿命长、抗噪性能好、密封隔离、防水防尘、外观时尚新颖等优点。

采用Zigbee无线通讯技术，可通过网关直接或定时控制灯光；还可以通过网络使用移动智能终端（平板、智能手机等）远程遥控灯光。

产品展示：功能特点：◆可以遥控、手控三路灯光◆采用电容式触摸感应技术，触摸灵敏度高，可靠性强◆直接替换普通86式机械开关（需零线）◆led背光灯指示，清晰而不炫眼，指示开关位置，方便夜晚操作◆显示开关状态操作说明：1、触摸控制：在加网和未加网的两种状态下，开关面板都可以作为普通开关单独使用。

触摸开关面板图标，灯光打开；再次触摸，灯光关闭。

2、无线控制：组网后可使用场景面板、遥控器、网关对开关面板进行无线控制。

3、远程控制：组网后，将网关通过路由器连到因特网；使用移动智能终端（须装控制软件），通过网络控制开关面板。

加网络操作：1、打开网络网关加电，进入智能家居系统；单击“用户设置”，输入密码“123”，进入“用户设置”系统；再单击“工程维护”，输入密码“123456”，进入“工程维护”系统；然后再单击进入“组网设置”系统；最后单击“打开网关网络”和“打开路由网络”。

2、添加设备网络打开后，将电容感应开关玻璃面板拆下，轻触一下位于按键板正下方中间的s2复位按键，即可完成电容感应开关的重加网络操作。

3、关闭网络设备添加完毕后，在“组网设置”系统内单击“刷新”，查询到新添的设备后，关闭网关网络和路由网络。

四、技术参数五、安装要求：需要接零线，原位置直接替换普通86式机械开关即可，参考以下接线图进行接线。

1.接入开关的火线、零线必须在同一个漏电保护器里！（否则漏电保护器将有可能误检为漏电而跳闸。

）2.负载严禁短路，否则会造成开关损坏。

3.安装完成后，请先将玻璃面板安装牢固后，再给开关送电，严禁带电操作。

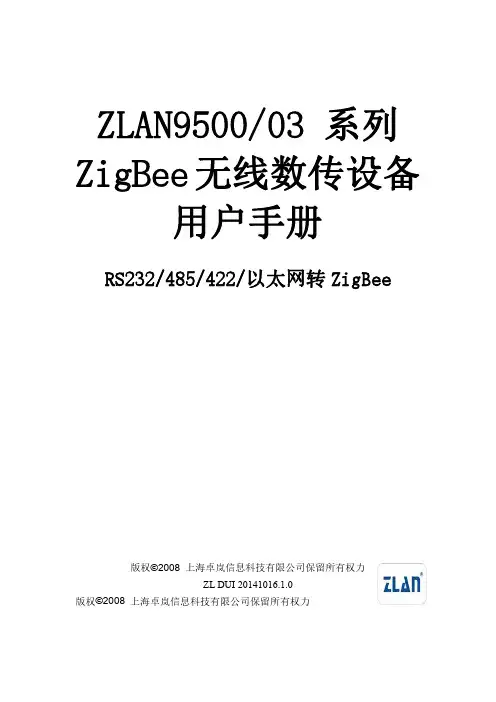

ZLAN9500/03系列ZigBee无线数传设备用户手册RS232/485/422/以太网转ZigBee版权©2008上海卓岚信息科技有限公司保留所有权力ZL DUI20141016.1.0版权©2008上海卓岚信息科技有限公司保留所有权力版本信息对该文档有如下的修改：修改记录日期版本号文档编号修改内容2014-10-16Rev.1ZL DUI20141016.1.0发布版本2016-02-19Rev.2ZL DUI20141016.2.0更新文档2017-5-18Rev.3ZL DUI20141016.3.0增加Zigbee配置2018-5-13Rev.4ZL DUI20141016.3.0修改图片所有权信息未经版权所有者同意，不得将本文档的全部或者部分以纸面或者电子文档的形式重新发布。

本文档只用于辅助读者使用产品，上海卓岚公司不对使用该文档中的信息而引起的损失或者错误负责。

本文档描述的产品和文本正在不断地开发和完善中。

上海卓岚信息科技有限公司有权利在未通知用户的情况下修改本文档。

目录1.概述 (4)2.功能特点 (7)3.技术参数 (7)4.硬件说明 (8)5.Z IG B EE配置 (12)5.1.配置步骤 (12)5.2.参数含义 (13)5.3.注意事项 (15)6.TCP/IP配置 (15)6.1.参数含义 (15)6.2.修改参数方法 (20)6.3.设备搜索 (21)6.4.参数设置 (22)6.5.透传通信 (23)6.6.虚拟串口 (25)6.7.不同工作模式和参数 (28)7.售后服务和技术支持 (32)上海卓岚信息科技有限公司Tel:(021)643251891.概述上海卓岚的ZigBee产品目前分为两大类，一类是串口转ZigBee，型号ZLAN9500，它包含有3种串口形式，即RS232/485/422；另外一类是以太网（TCP/IP）转ZigBee，型号为ZLAN9503，可将ZigBee和互联网进行联通。

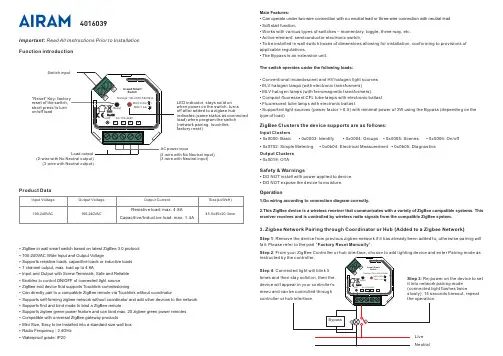

Function introductionImportant: Read All Instructions Prior to Installation •DO NOT install with power applied to device. •DO NOT expose the device to moisture.Safety & WarningsOperation•ZigBee in wall smart switch based on latest ZigBee 3.0 protocol •100-240VAC Wide Input and Output Voltage•Supports resistive loads, capacitive loads or inductive loads •1 channel output, max. load up to 4.8A•Input and Output with Screw Terminals, Safe and Reliable •Enables to control ON/OFF of connected light source•ZigBee end device that supports Touchlink commissioning•Can directly pair to a compatible ZigBee remote via Touchlink without coordinator•Supports self-forming zigbee network without coordinator and add other devices to the network •Supports find and bind mode to bind a ZigBee remote•Supports zigbee green power feature and can bind max. 20 zigbee green power remotes •Compatible with universal ZigBee gateway products•Mini Size, Easy to be Installed into a standard size wall box •Radio Frequency : 2.4GHz •Waterproof grade: IP20Input VoltageOutput VoltageOutput CurrentProduct DataSize(LxWxH)100-240VACResistive load: max. 4.8ACapacitive/Inductive load: max. 1.4A100-240VAC45.5x45x20.3mm1.Do wiring according to connection diagram correctly.Input Clusters •0x0000: Basic• 0x0003: Identify•0x0004: Groups• 0x0005: Scenes• 0x0006: On/off•0x0b04: Electrical Measurement Output Clusters •0x0019: OTAZigBee Clusters the device supports are as follows:2.This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible systems. This receiver receives and is controlled by wireless radio signals from the compatible ZigBee system.•0x0702: Simple Metering •0x0b05: DiagnosticsMain Features:• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead • Soft start function,• Works with various types of switches – momentary, toggle, three-way, etc.• Active element: semiconductor electronic switch,• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations,• The Bypass is an extension unit.The switch operates under the following loads:• Conventional incandescent and HV halogen light sources • ELV halogen lamps (with electronic transformers)• MLV halogen lamps (with ferromagnetic transformers)• Compact fluorescent CFL tube lamps with electronic ballast • Fluorescent tube lamps with electronic ballast• Supported light sources (power factor > 0.5) with minimal power of 3W using the Bypass (depending on the type of load)reset of the switch,short press to turn on/off load(3-wire with Neutral input)(2-wire with No Neutral output)(3-wire with Neutral output)3.Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network )Step 1: Remove the device from previous zigbee network if it has already been added to , otherwise pairing willfail . Please refer to the part "Factory Reset Manually ".Step 2: From your ZigBee Controller or hub interface, choose to add lighting device and enter Pairing mode as Step 4LED indicator, stays solid onwhen power on the switch, turns off after added to a zigbee hub,indicates (same status as connected load) when program the switch (network pairing, touchlink, factory reset)40160394.TouchLink to a Zigbee Remote5.Removed from a Zigbee Network through Coordinator or Hub InterfaceFrom your ZigBee controller or hubinterface, choose to delete or reset thelighting device as instructed. Theconnected light blinks 3 times to indicatesuccessful reset.Step 1: Method 1: Short press“Reset” button (or re-power on: Re-power on theStep 4:Step 2: Bring thepanel within10cm of theStep 3Note: 1) Directly TouchLink (both not added to a ZigBee network), each device can link with 1 remote.2) TouchLink after both added to a ZigBee network, each device can link with max. 30 remotes.3) For Hue Bridge & Amazon Echo Plus, add remote and device to network first then TouchLink.4) After TouchLink, the device can be controlled by the linked remotes.6.Step 2: Short press “Reset.”7.Factory Reset through a Zigbee Remote (Touch Reset)Note: Make sure the device already added to a network, the remote added to the same one or not added to anynetwork.Step 4: There shall be indicationon the remote and connected lightflashes 3 times for successfulStep 2:Bring the remote or touchpanel within 10cm of the lightingdevice.Step 3: SSet the remote or touchpanel into Touch Reset procedureto reset the device, please refer tocorresponding remote or touchpanel manual to learn how.8.Find and Bind ModeStep 2:or touch panel manualStep 3control it thenNote: Make sure the device and remote already added to the same zigbee network.9.Learning to a Zigbee Green Power RemoteStep 2:Step 3LiveNeutral11. Setup a Zigbee Network & Add Other Devices to the Network (No Coordinator Required): Short press “Reset.” 10. Delete Learning to a Zigbee Green Power RemoteStep 2: Step 3Wiring DiagramNotes for the diagrams:L - terminal for live leadN - terminal for neutral leadOut - output terminal of the switch (controlling connected light source)S1 - terminal for switch (has the option of entering the device in inclusion/exclusion mode)COM - terminal for grounding to the switch connected to the switchCompatible load types and recommended values of power for supported loads:Supported external switch types (should be configured by factory setting):1) Push switch (default factory setting)2) Normal On/Off switch (should be configured by factory setting upon request)3) 3-Way switch (should be configured by factory setting upon request)(2) 3-Wire Connection With Neutral Lead The Bypass is a device designed to work with the micro smart dimmer. It should be used in case of connecting LED bulbs or energy saving compact fluorescent lamps. The Bypass prevents flickering of the LED lights and glowing of the turned off compact fluorescent lamps. In the case of 2-wire connection, the Bypass allows to reduce minimum power of load required by the dimmer for correct operation. The Bypass provides powering of the dimmer in case of controlling the low loads of minimum power down to 3W (for cos φ>0.5).(1) 2-Wire Connection With No Neutral LeadNOTE: Switch connected to the S1 terminal activates the basic functionality of the dimmer (turning the lighton/off).Live NeutralWith PUSH LVWith PUSHLive NeutralWith PUSH LV With PUSHNOTE: Switch connected to the S1 terminal activates the basic functionality of the dimmer (turning the light on/off).(4) Multiple Momentary or Push Switches Connection (3) 3-Way Switch Connection 3-Way Switch (SPDT)3-Way Switch (SPDT)With PUSH LVLive Without AC inputLive NeutralNeutral。

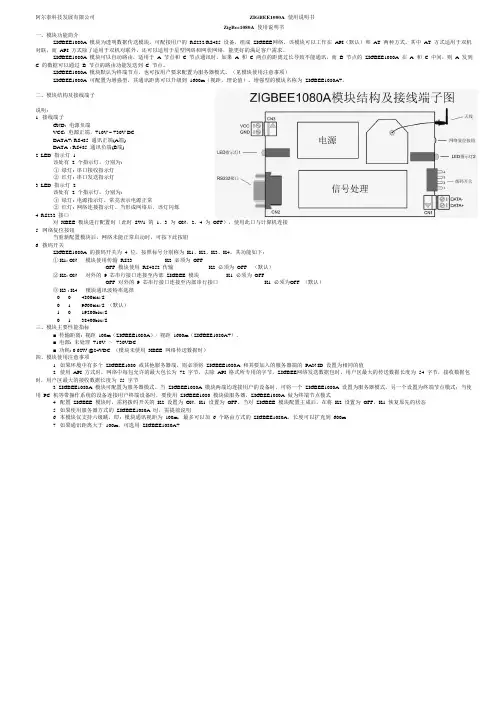

阿尔泰科技发展有限公司 ZIGBEE1080A 使用说明书ZigBee1080A 使用说明书一、模块功能简介ZIGBEE1080A 模块为透明数据传送模块，可配接用户的 RS232/RS485 设备，组成 ZIGBEE 网络。

该模块可以工作在 API （默认）和 AT 两种方式。

其中 AT 方式适用于双机对联，而 API 方式除了适用于双机对联外，还可以适用于星型网络和网状网络，能更好的满足客户需求。

ZIGBEE1080A 模块可以自动路由，适用于 A 节点和 C 节点通讯时，如果 A 和 C 两点的距离过长导致不能通讯，而 B 节点的 ZIGBEE1080A 在 A 和 C 中间，则 A 发到C 的数据可以通过 B 节点的路由功能发送到 C 节点。

ZIGBEE1080A 模块默认为终端节点。

也可按用户要求配置为服务器模式。

（见模块使用注意事项）ZIGBEE1080A 可配置为增强型，其通讯距离可以升级到 1600m （视距，理论值）。

增强型的模块名称为 ZIGBEE1080A+。

二、模块结构及接线端子说明：1. 接线端子GND: 电源负端VCC: 电源正端，+10V ~ +30V DCDATA+: RS485 通讯正端(A 端)DATA-: RS485 通讯负端(B 端)2. LED 指示灯 1该处有 2 个指示灯，分别为:① 绿灯: 串口接收指示灯② 红灯: 串口发送指示灯3. LED 指示灯 2该处有 2 个指示灯，分别为:① 绿灯: 电源指示灯，常亮表示电源正常② 红灯: 网络连接指示灯。

当形成网络后，该灯闪烁4. RS232 接口对 XBEE 模块进行配置时（此时 SW1 的 1、3 为 ON ，2、4 为 OFF ），使用此口与计算机连接5. 网络复位按钮当重新配置模块后，网络未能正常启动时，可按下此按钮6. 拨码开关ZIGBEE1080A 的拨码开关为 4 位，按照标号分别称为 K1、K2、K3、K4。

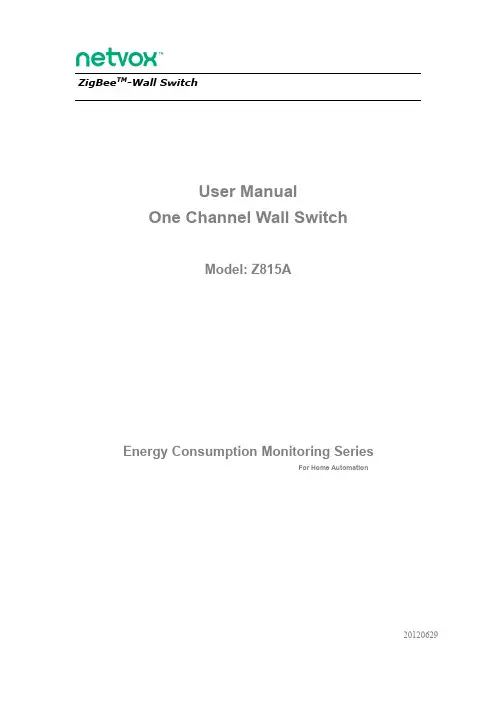

ZigBee TM-Wall SwitchUser ManualOne Channel Wall SwitchModel:Z815AEnergy Consumption Monitoring SeriesFor Home Automation20120629NL in L out Binding keyNetwork indicator Switch button&status lightIntroductionNETVOX Z815A is a ZigBee Home Automation enabled power outlet withpower/energy/current/voltage consumption monitoring.It acts as a router device in the Home Automation profile network.It can be manually switched through a mechanicalon/off switch or switched wirelessly through any paired ZigBee Home Automation enabled switch.Consumption reading can be captured and displayed on ZiG-BUTLER-Netvox application software,or on any3rd party ZigBee enabled in-home display.What is ZigBee?ZigBee is a short range wireless transmission technology which defined for a minimum complexity,low power consumption,low data rate,cost effective wireless solution.ZigBee lies in between wireless markup technology and Bluetooth.ZigBee is based on IEEE802.15.4standard,the mutual co-ordination between thousands of sensors to exchange data.Sensor to sensor or node-to-node communication is achieved through relays of control data between devices with only a fraction of energy use which denoted for highly transmission efficiency.Note:Wireless communication,in some real use cases,can be limited by the signal blockage.Please consult your service provider or place of purchase.Product Specification✓Fully IEEE802.15.4compliant(ZigBee Pro)✓Utilizes2.4GHz ISM band✓85~250VAC,50/60HZ input power✓Resistive load max:8A/250VAC✓Inductive load:1/6HorsePower@250VAC ✓Up to70meters non-obstacle wireless transmission distance✓Simple operation and device configuration ✓Consumption monitoring range125mA to8A, with±1%measurement tolerance✓Wireless:Output Power7dbm(max.)Receiver-101dbm✓Operating Ambient:-10o C to50o C/5~85%RH max.✓Storage Ambient:-40o C to85o CZigBee TM-Two Channes Wall Switch Installation DiagramSetting up the Z815A and networkSetting Up Summary(1)Startup and network association(2)Device paring where applicable(i.e.pair with a ZigBee switch for wireless control).(3)Target device pairing to a collector device for consumption reporting(4)It is ready to be used.S tep1.Startup and Network AssociationTo allow Z815A to function,it must first join to a ZigBee network.When it is given poweredit will automatically start searching for an existed network.So before you give power toZ815A make sure it is within the wireless coverage distance(~70meters or less)andmake sure first you have the permit-join feature enabled either on a coordinator or arouter device in the network so that when Z815A is powered on Z815A will automaticallyjoin to the network.*On how to enable permit-join please refer to the router or coordinator device user manualOperation:Ensure you have detached any electrical loads from Z815A.Step1:Make sure you have open up permit-join function(valid for60seconds)of acoordinator or a router in the network.Step2:Now connect AC power cable to power it.Z815A device will start to search for thenetwork within reach.(Notice:If the network indicator stays solid lit in the beginning,thisindicates that Z815A has previously joined to a network.If so please clear the settingstored in the device.Refer to Restore to factory setting section of the manual.)Step3:if joining is in process,the network indicator on the Z815A will flash then turnnon-flashing.A non-flashing solid light indicates successful otherwise the indicatorstays dark.If unsuccessful remove power from the device and repeat the whole procedureagain.Make sure that the permit-join of a router or coordinator is enabled first.S tep2.Device pairing for On/Off control(binding)To wirelessly control Z815A,it is required to pair with ZigBee enabled on/off/toggle remote controller.If you do not wish to control Z815A with wireless switches,you may skip this step and go to How to use Z815A.You may also utilize ZiG-BUTLER PC-based software to perform this setting.Pairing operation:1.To initiate binding request,hold press binding key for3seconds then release the key(LED flashes once).Z815A will send out pairing request to the air.2.Likewise,do the same to the other device to exchange binding.(refer to the otherdevice user manual for device pairing procedure)When binding is successful the indicator on Z815A will slow flash5times,otherwise quick flashes10times indicating pairing unsuccessful.If successful you should be able to wireless control Z815A.Clear pairing setting:You may remove the pairing between the two or more devices. Unbinding procedure is exactly the same as binding operation.When you repeat the binding process,the two devices will remove the binding information stored.How to use Z815ASoft switchZ815A can switch its output through the button switches.Wireless remote controllerIf the Z815A device is properly paired with a remote controller,you should see the AC outputs responds to on or off instruction wirelessly.Refer to Step2Device Pairing in the previous section.Note that device pairing is not a must feature with Z815A.You may operate it without pairing the device to a remote controller as Z815A already has a manual switch.Power Consumption ReportingWhen the load is attached to the device,the embedded meter reads the supplied current drawn overtime.Z815A reports the readings to a paired target device normally are an in-home display or consumption data logger.Ensure that you go through consumption reporting and configure reporting time interval described in ZiG-BUTLER page otherwise Z815A will not sent consumption reading.Z815A can report the consumption reading to Netvox’s ZiG-BUTLER or to any3rd party in-home display.Power drawn overtime is measured.Current(unit mA),Voltage(unit V),Power(unit W) and Energy(unit Wh).Z815A stores a new value read and updates such value and clears up the er may want to return the reading back to zero when wish.Refer to Return-Zero the Consumption Reading section.Reading accuracyIf the output current is above125mA,the reading accuracy of current,voltage and power is±1%.Current detection range is between125mA to8A.Permit other device to joinZ815A is featured to be a router in the network.It permits other devices to join the network. In normal operation,by default the router device Z815A does not permit any device to join to the network to protect the network from unexpected or unauthorized join attempt.You will need to open up the permit-join manually on Z815A or on other router device to allow new devices to join.Z815A is capable of holding6routers and14end devices.Operation:1.Short press the binding key once.2.The permit join is now enabled for60seconds and the indicator light will flash60times.3.Z815A waits the new device to join in automatically.Please note that the maximumwaiting time to join is60seconds.Repeat the process if you missed the60seconds period.Resetting Power Consumption SummationZ815A updates and stores the last kwh energy reading.In some cases user would wish to return the counter to zero.Same feature can be found in ZiG-BUTLER software with the Recalculate button.Operation:Hold press binding key for20seconds or so until the indicator flashes once then release the key,then within2seconds,short press switch button once.If successful the indicator will flash once.Restore to factory settingZ815A is capable of storing and saving includes network routing information.If you wish to remove Z815A from an exited network,you would need to clear the saved routing information to join to a new network by simply reset the device to restore to the factory setting.Operation:Hold press binding key for15seconds or so until the indicator flashes once then release the key,then within2seconds,short press any switch button once.If successful the indicator will flash once.Soon the device will reboot itself.In so the entire ZigBee network and required informationis cleared.It will enter network search to attempt to join to a network.Refer to network association section of this manual.Summary of Key function and corresponding displayFunction Key DisplayRestore to factory setting Hold press binding key15s then within2spress control buttononce.Flashes once(holdpress binding key)Flashes quickly(switch button once)Permit Join Short press bindingkey once Flashes60times in 60seconds.Resetting power consumption summation Hold press binding key20s then within2sshort press controlbutton once.Flashes once(holdpress binding key)Flashes once(switch button once)Device Pairing Hold press binding key3s.Flashes once Flash5times if successful or it flashes quickly10 timesCustomized customer’s factory default settingAt the time of power recovery from power outage,the device would remain at the default status at the AC output.There are either two status,either restore to the last status before the power outage happened or Off at power restoration.The device is set to one of these statuses at factory level.You can tell us which default setting at the time of purchase order.Clusters of Home Automation for Z815AHome Automation device feature is defined by the endpoint which contains functional clusters.Table1lists clusters for the endpoint of Z815A Netvox ProprietaryTable1:Clusters supported by the endpointCluster for Z815ADevice ID:Mains Power Outlet(0x0009)EndPoint:0x01,0x02,0x03Server side Client sideBasic(0x0000)NoneIdentify(0x0003)Group(0x0004)Scene(0x0005)On/Off(0x0006)Meter(0x0702)(endpoint1)Netvox ProprietaryAttributes of the Basic InformationIdentifier Name Type Range Access Default Mandatory /Optional0x0000ZCLVersion8-bitUnsignedinteger 0x00–0xff Readonly0x03M0x0001ApplicationVersion8-bitUnsignedinteger 0x00–0xff Readonly0x0A O0x0002StackVersion8-bitUnsignedinteger 0x00–0xff Readonly0x2D O0x0003HWVersion8-bitUnsignedinteger 0x00–0xff Readonly0x0A O0x0004ManufacturerName Characterstring 0–32BytesReadonlynetvox O0x0005ModelIdentifier Characterstring 0–32bytes ReadonlyZ815IE3R O0x0006DateCode Characterstring 0–16bytesReadonlyO0x0007PowerSource8-bitEnumeration 0x00–0xff Readonly0x01MTroubleshooting(1)I found that power outlet Z815A is not functioning.We have done the paring to a wireless control device and there is no power connection for the appliances.Please use the method bellow to verify:Test1.Operate the mechanical switch of Z815A and see if the load attached can be turned on and off.Test2.Enable permit join on other router device and see if Z815A LED indicator is also flashing which will last for60seconds together like other routers do.This result implied that Z815A is within the network and receives command from the network no problem.(How to enable permit join,please refer to any ZigBee router device for such feature).Test3.If test1and2items are found working,then what was left is device pairing between Z815A and the control device.Please refer to Step2.Device pairing(binding)of this user manual.Please keep in mind that when device pairing is done twice will actually clear pairing setting instead.If test2item isn’t working,please restore Z815A to factory setting then associate Z815A to the network again.Then perform device pairing.If the problem persists,we would conclude that the device is faulty.Please inform us for ship back procedure.Important Maintenance InstructionsAs the device is not water proof it is recommended to keep the device in a dry place. Liquid and heavy moisture contains minerals that may oxidize the electronic circuitry.In case of liquid spill,please leave the device to completely dry before storing or using.∙Do not use or store the device in a dusty area.Dust may cause electronic parts to destroy.∙Do not use or store the device in an over heated place.Store in a hotter temperature than the suggested maximum temperature may shorten the life span of the device;and may damage the battery and causing the housing to deform.∙Do not use or store the device in a very cold place than the suggested minimum temperature.The water can be condensed inside the device when moving to an area that is higher in temperature.This can severely damage the PCB board and circuitry.This may shorten the life span of the device;damage the battery and cause the housing to deform.∙Do not throw or strongly vibrate the device.This may damage connectivity of the electronic parts and other sensitive components on the PCB board.∙Do not use any strong chemical or washing to cleanse the device.∙Do not use any coloring materials on any removable parts which my cause poor connections and may keep the device from function properly.All the above applies to the purchased products,battery and other packaged items.If any unusable or damaged items are found please return the product to your nearest authorized repairing center.Important NoticeUnder any circumstances without Netvox written approval,copy or redistribute any parts of this document is strongly prohibited.Netvox adhere to product development policy and therefore reserve the right to change and/or add contents to this document without any further notice.Under any circumstances or matters,Netvox is not responsible for data or revenue loss or any indirect additional loss that may arise from special cases or any sudden obligations.This documentation is provided according to the product at the time of purchase.Netvox do not inherent any responsibility and promise or guarantee of the reliability of the document contents–this applies but not limited to market piloting or real use case purposes or otherwise it is legally vox reserve the right to change and/or add contents to this document without any further notice.。

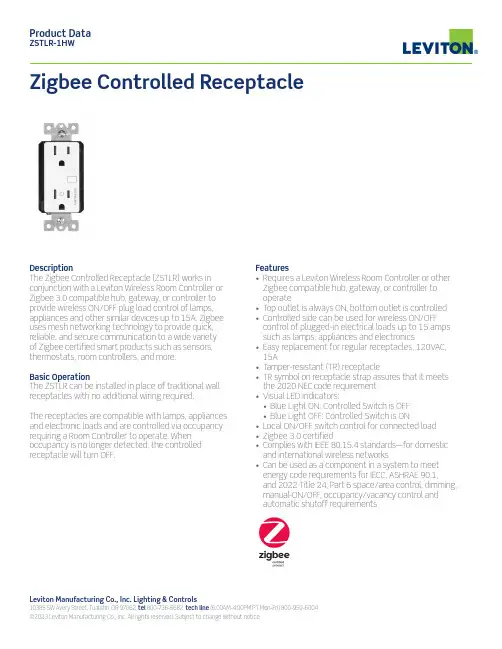

Leviton Manufacturing Co., Inc. Lighting & Controls10385 SW Avery Street, Tualatin, OR 97062 tel 800-736-6682 tech line (6:00AM-4:00PM PT Mon-Fri) 800-959-6004©2023 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.Description The Zigbee Controlled Receptacle (ZSTLR) works in conjunction with a Leviton Wireless Room Controller or Zigbee 3.0 compatible hub, gateway, or controller to provide wireless ON/OFF plug load control of lamps, appliances and other similar devices up to 15A. Zigbee uses mesh networking technology to provide quick, reliable, and secure communication to a wide variety of Zigbee certified smart products such as sensors, thermostats, room controllers, and more.Basic Operation The ZSTLR can be installed in place of traditional wall receptacles with no additional wiring required.The receptacles are compatible with lamps, appliances and electronic loads and are controlled via occupancy requiring a Room Controller to operate. When occupancy is no longer detected, the controlledreceptacle will turn OFF. Product Data ZSTLR-1HWZigbee Controlled ReceptacleFeatures • Requires a Leviton Wireless Room Controller or other Zigbee compatible hub, gateway, or controller to operate • Top outlet is always ON, bottom outlet is controlled • Controlled side can be used for wireless ON/OFF control of plugged-in electrical loads up to 15 amps such as lamps, appliances and electronics • Easy replacement for regular receptacles, 120VAC, 15A • Tamper-resistant (TR) receptacle • T R symbol on receptacle strap assures that it meets the 2020 NEC code requirement • Visual LED indicators:• Blue Light ON: Controlled Switch is OFF • Blue Light OFF: Controlled Switch is ON • Local ON/OFF switch control for connected load • Zigbee 3.0 certified • Complies with IEEE 80.15.4 standards—for domestic and international wireless networks • Can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1, and 2022 Title 24, Part 6 space/area control, dimming, manual-ON/OFF, occupancy/vacancy control andautomatic shutoff requirementsDimensions Wiring DiagramOrdering InformationSpecificationsLES-G-10379C/E23-aa REV JUN 2023Product Data ZSTLR-1HWLeviton Manufacturing Co., Inc. Lighting & Controls10385 Avery Street Tualatin, OR 97062 tel 800-736-6682 tech line (6:00AM-4:00PM PT Monday-Friday) 800-954-6004Leviton Manufacturing Co., Inc. Global Headquarters201 North Service Road, Melville, NY 11747-3138 tel 800-323-8920 tech line (8:00AM-10:00PM ET Mon-Fri, 9:00AM-7:00PM ET Sat, 9:00AM-5:00PM ET Sun) 800-824-3005Visit our website at: /greenmaxdrc©2023 Leviton Manufacturing Co. Inc. All rights reserved. Subject to change without notice.。

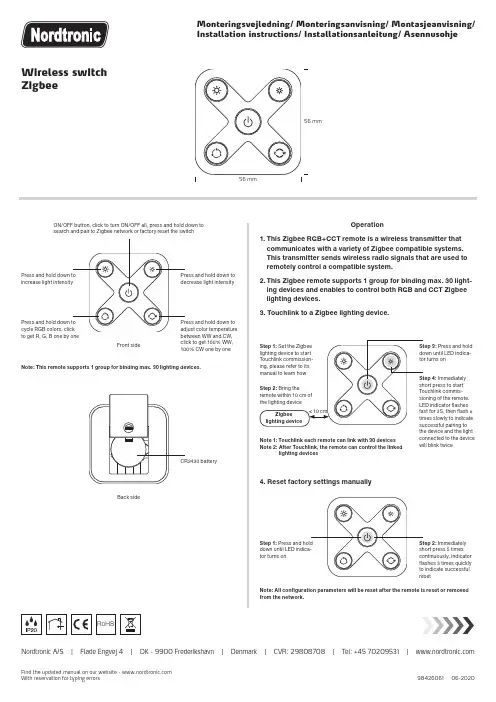

Zigbee98426061 06-2020Find the updated manual on our website - With reservation for typing errorsNor d tronic A/S | Fla d e Engvej 4 | DK - 9900 Fre d erikshavn | Denmark | CVR: 29808708 | Tel: +45 70209531 | www.nor dOperation1. T his Zigbee RGB+CCT remote is a wireless transmitter that communicates with a variety of Zigbee compatible systems. This transmitter sends wireless radio signals that are used to remotely control a compatible system.2. T his Zigbee remote supports 1 group for binding max. 30 light-ing devices and enables to control both RGB and CCT Zigbee lighting devices.3. Touchlink to a Zigbee lighting device.ON/OFF button, click to turn ON/OFF all, press and hold down to search and pair to Zigbee network or factory reset the switchNote 1: T ouchlink each remote can link with 30 devices Note 2: A fter Touchlink, the remote can control the linkedlighting devicesNote: This remote supports 1 group for binding max. 30 lighting devices.Front sideBack sidePress and hold Immediately the device and the light connected to the device will blink twiceclick to get 100% WW, 100% CW one by oneCR2430 battery›››››56 mmRoHS4. Reset factory settings manuallyStep 1:tor turns onNote: All configuration parameters will be reset after the remote is reset or removed from the network.Immediately98426061 06-2020Find the updated manual on our website - With reservation for typing errorsNor d tronic A/S | Fla d e Engvej 4 | DK - 9900 Fre d erikshavn | Denmark | CVR: 29808708 | Tel: +45 70209531 | www.nor dZigbeeNote: Each remote can bind max. 30 lighting devices.5. Remove a Touchlink paired Zigbee lighting device10. S etup a network and add devices to the network(No coordinator or Hub Required)11. How to check whether the remote belongs to a network or not12. Battery power monitor functionThe remote will report battery power value to the coordinator under following situations:6. Factory reset a lighting device (Touch reset)7. Find and bind a Zigbee lighting device8. Find and unbind a Zigbee lighting device9. Clear all find and bind mode paired lighting devicesStep 1: bind mode on the(initiator node) and enable it to find and manualStep 1: bind mode on the(initiator node) and enable it to find and manualStep 6: Add more remotes to the network as you would like.Step 7: Factory reset the lighting devices that you would like to add to the network, refer to their manuals.Step 8: Touchlink to pair the added remotes and lighting devices you would like to add, the devices will be added to the network through Touchlink, refer to their manuals.Short press any button, indicator blinking means the remote has already been added to a network. No blinking of indicator means the remote does not belong to any network.• When powered on.• When short pressing down both brightness button and RGB button simultaneously.• When operating the switch to send data packets (over 4 hours since last operation).• When added to the network by a coordinator.Step 2: tor turns onStep 2: tor turns onStep 1: tor turns onLED indicator turns onPress and hold Short press Press and hold Short press 5 Immediately Set another Immediately RoHS。

©2023Guangzhou ZHIYUAN Electronics Co.,Ltd.ZM32-U 系列ZigBee 模块数据手册ZigBee 模块DS01010101 1.2Date:2023/5/30——————————————概述ZM32-U 系列ZigBee 模块是广州致远电子股份有限公司基于Silicon Labs 公司EFR32系列无线SoC 开发的低功耗、高可靠性的ZigBee 模块，它提供一个完整的基于IEEE802.15.4标准ISM （2.4~2.5GHz ）频段的应用集成方案。

支持ZLGMesh 协议，可快速应用于工业控制、工业数据采集、农业控制、矿区人员定位、智能家居、智能遥控器等场合。

ZM32-U 系列ZigBee 模块，将完整的射频收发电路集成在一个模块上，将无线通讯产品复杂的通讯协议内嵌在内置的SoC 中，化繁为简，大幅简化开发过程，使得用户产品更快的投入市场，增加用户产品的竞争力，更好的把握住先机。

————————————产品应用◆ 工业控制◆ 工业数据采集◆ 农业控制◆ 矿区人员定位◆ 智能家居◆ 智能遥控器—————————————订购信息注：见选型表——————————产品特性◆频率范围：2400~2483.5MHz ◆工作电压：1.71~3.8V ◆接收电流：9.4mA ◆休眠电流：5.0uA ◆发射电流：185mA ◆发射功率：+20dBm ◆接收灵敏度：-103dBm ◆传输速率：250kbps◆IPEX 接口、邮票孔焊盘接口◆ 3.3V 接口电平◆采用UART 通信接口◆支持休眠及唤醒◆温度范围：-40~+85℃修订历史目录1.产品简介 (1)1.1概述 (1)1.2产品命名规则 (1)1.3产品选型 (2)2.外观尺寸 (3)3.引脚定义 (4)4.电气参数 (7)4.1工作条件 (7)4.2工作环境 (7)4.3产品功耗 (7)5.射频参数 (8)6.生产指导 (9)6.1推荐生产回流温度曲线 (9)6.2推荐生产回流温度时间对照表 (9)7.硬件设计参考 (10)7.1最小系统 (10)7.2推荐系统 (10)7.3电源设计 (11)7.4RF设计 (11)7.4.1外接天线使用指导 (11)7.4.2邮票孔天线接口设计指导 (11)7.4.3外接连接器参考尺寸图 (12)7.4.4PCB布板注意事项 (12)8.包装信息 (14)9.免责声明 (15)1.产品简介1.1概述ZM32-U系列ZigBee模块是广州致远电子股份有限公司基于ZM32系列ZigBee模块推出的升级版本，具备更优异的综合性能。

ZigBee单火开关模块使用说明书（送样版）注意事项●请在室内环境使用●为确保您的人身安全，请找专业电工安装●请确认负载类型是否符合本设备要求参考《负载类型表》●金属的开关底盒会影响无线通信距离建议不要使用●无线通信距离会受到室内环境影响如：镜子、金属、电器等产品简介R11W2Z两路智能能灯光模块是一款采用ZigBee无线技术的灯光控制器，它采用了单火线取电技术、且体积小巧，可以安装在普通的开关底盒内。

支持两种类型面板：类型1:输出为常闭或常开(普通翘板式面板)类型2:按下闭合，松手断开(回弹式面板)负载类型表（量产版参数待定）负载类型最小负载功率最大负载功率白帜灯/卤素灯20W300WLED灯12W200W萤光灯14W300W节能灯7W200W如果负载功率小于最小负载功率或灯光负载工作异常，请增加功率稳定器配件，功率稳定器使用方法与负载并联使用，接线如下图：技术规格工作电压AC230V50HZ负载类型请参考负载类型表产品尺寸48*46*18mm工作温度负20~40℃工作湿度5-95%无线频率 2.4GHz无线距离模块通信距离100m指示灯状态备注：模块指示灯上电联网后常亮，有控制信号触发闪烁一次APP删除设备后模块进入快闪模式，任意按键（模块复位按键或者按键面板）可以进入联网慢闪模式设备连接与安装警告:为了您的人身安全，请找专业电工安装步骤三A:设备接线(一路灯光)步骤三B:设备接线(两路灯光)步骤四:接通照明电源(请确保线路无短路及接错)步骤五:配置并添加设备●配置设备模块功能a.配置模块开关回路：模块的回路功能切换需要在设备入网之前配置设置完成。

一路模式：快速按配置按钮按键两次,第三次长按3s以上，切换成功LED快闪三次。

二路模式：快速按配置按钮按键三次,第四次长按3s以上，切换成功LED快闪三次。

b.配置开关面板类型：翘板式面板：出厂默认回弹式：长按配置按钮按键3s以上，切换成功LED快闪三次。

2.4G无线模块WLT2408NZ产品数据手册编号：DSWLT01003 更新日期：2012/04/26 版本：V1.03产品概述WLT2408NZ模块是广州晓网电子出品的WLT系列ZigBee数据传输模块，具备最大8dBm 输出功率，视距传输距离可达500米（@5dbi天线），工作频段2.380GHz~2.500Ghz，除标准ZigBee的16个通道外，还有9个扩展频段，可以有效避开WIFI、蓝牙等其他2.4G信号干扰。

广州晓网电子为WLT2408NZ用户提供mesh对等无线路由协议，无组网延时，采用时间空间权值均衡原则，路由时间短，通讯稳定可靠。

基本参数产品图片输出功率：供电电压：天线接口：数字接口：视距传输距离：功耗：休眠电流工作温度：存储温度：尺寸：-50~+8dBm1.9~3.3VSMA，U.FLUART,GPIO,AD500米@5dbi天线发送峰值电流46.3mA，接收时36.4mA <1uA-40℃至+85℃-40℃至+105℃16×23mm公司简介广州晓网电子科技有限公司是一家专门从事无线通讯方案设计、生产及服务的公司，公司拥有一流的设计团队，运用先进的工作方法，集合无线设计经验，公司拥有业界实用的各种模块，也为客户提供客制化服务。

订货信息WLT2408NZ-S SMA形式天线接头WLT2408NZ-U U.FL形式天线接头WLT2408NZ SDK 无线模块评估板套件，包含两个评估板，搭载的模块为WLT2408NZ-S。

数据手册版权声明本文档提供有关晓网电子产品的信息，并未授予任何知识产权的许可，并未以明示或暗示，或以禁止发言或其它方式授予任何知识产权许可，任何单位和个人未经版权所有者授权不得在任何形式的出版物中摘抄本手册内容。

产品命名规则图1-1 产品命名规则例如：WLT2408NZ-S表示晓网电子模块类的产品，频段为2.4GHz，理论输出功率为﹢8dBm（实际输出为﹢7.7dBm），超小封装，调制方式为ZigBee，外置SMA头的模块。

09.ZG2TU.04841Function introductionImportant: Read All Instructions Prior to Installation Product Data• This device contains a button lithium battery that shall be stored and disposed properly.• DO NOT expose the device to moisture.Safety & WarningsZigBee Wireless Dimmer SwitchProtocol Operation Voltage Transmission Frequency Transmission Range (free field)Protection Type Dimming Range DimensionProtection GradeZigBee 3.03VDC (CR2032)2.4GHz 30m IP200.1%-100%150x38.6x12mmIP20Magnetic BracketNote:Before the first use, please remove the protective film on the battery.Front sideBack side• ZigBee dimmer switch based on ZigBee 3.0• Enables to pair ZigBee lighting devices via touchlink commissioning without coordinator • Supports find and bind mode to pair with ZigBee lighting devices in the same network • Supports 4 groups for binding max. 30 lighting devices • 2.4 GHz global operation• Long battery life mesh technology • Transmission range up to 30m• Compatible with universal ZigBee Gateway products• Compatible with universal single color ZigBee lighting devicesOperation1.This ZigBee Dim remote is a wireless transmitter that communicates with a variety of ZigBee compatible systems. This transmitter sends wireless radio signals that are used to remotely control a compatible system.2.This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control single color ZigBee lighting devices.ZigBee Clusters Supported by This Remote Are As Follows:Input clusters:• Basic • Power Configuration • Identify • DiagnosticsOutput clusters:• Identify • Scenes • Group • On/off • Level control • Otapaired lighting devices paired lighting devicesStep 3:Short press ON button of group was linked to.3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network )5. Removed from a Zigbee Network through Coordinator or Hub Interface6. Factory Reset ManuallyNote: 1) After pairing successfully, the remote information will appear on the controller or hub interface. 2) No remote information will appear on the hub interface if pairing to Philips Hue Bridge. 4. TouchLink to a Zigbee Lighting Device Note: 1) Directly TouchLink (both not added to a ZigBee network), each remote can link with 30 devices. 2) TouchLink after both added to a ZigBee network, each remote can link with max. 30 devices. 3) For Hue Bridge & Amazon Echo Plus, add remote and device to network first then TouchLink. 4) After TouchLink, the remote can control the linked lighting devices.7. Remove a Touchlink Paired ZigBee Lighting Device 8. Factory Reset a Lighting Device (Touch Reset)Note : the device shall be added to a network, the remote added to the same one or not added to any network .Step 1: Remove the remote from previous zigbee network if it has already been added to it, otherwise pairing will fail. Please refer to the part "Factory Reset Manually".Step 2: From your zigbee controller or hub interface, choose to add device or accessory and enter Pairing mode as instructed by the controller.Step 3: Press and hold down until LED indicator turns on.Step 4: Immediately short press to search nearby network, indicator flashes every 1 second, 20 seconds timeout if there is no network. Indicator will then blink 5 times quickly for successful pairing.From your ZigBee controller or hub interface, choose to delete or reset the remote as instructed, indicator flashes 3 times quickly to indicate successful removing.Step 1please refer to its manual to learn how .Step 5start TouchLink removing of the remote .removing .Step 3: Short press ON button of group like to pair the device to.Step 1: Set the zigbee lighting devic to start TouchLink commissioning ,please refer to its manual to learn how .Step 5pairing procedure of the remote.indicate successful pairing to the device.Step 1: indicator turns on.Step 2: Immediately short press 5 times continuously, indicator flashes 3 times quickly to indicate successful reset.Note: All configuration parameters will be reset after the remote is reset or removed from the network.Step 1: Set the zigbee device to start TouchLink commissioning , refer to its manual .Step 4to start Touch Reset of the remote.reset of the device.ZigBee Lighting DeviceZigBee Lighting Device9. Find and Bind a Zigbee Lighting Device10. Find and Unbind a Zigbee Lighting Device 11. Clear All Find and Bind Mode Paired Lighting Devices of a Group 12. Setup a Network & Add Devices to the Network (No Coordinator or Hub Required)Step 5: Add more remotes to the network as you would like .Step 6: Factory reset the lighting devices that you would like to add to the network, refer to their manuals . Step 7: Touchlink to pair the added remotes and lighting devices you would like to add, the devices will be addedto the network through Touchlink, refer to their manuals .Step 2: Short press ON button of group 1/2/3/4 to choose a group that you would like to bind the device to.Step 1:its manual .Step 3:indicator turns on . Step 4fails .Step 2: Press and hold down until LED indicator turns on .Step 1: Short press ON button of group1/2/3/4 t o choose the group that youwould like to unbind all devices .Step 3: Short press 5 times continuously to clear all bound lighting devices with this group. LED indicator flashes 4 times for successful unbinding.Note: Each remote can bind max. 30 lighting devices.Step 2: Short press ON button of group 1/2/3/4 to choose a group that the device already bound to.Step 1:its manual .Step 3:indicator turns on .Step 4fails.Step 3: Step 1lighting device , refer to their manuals Note: Make sure the device and remote already added to the same zigbee network.13. How to Save and Recall Scenes Step 2: Press and hold or button of the 4 groups to adjust a desired brightness for each individual group .Step 1: Make sure that lighting devices Step 3: Press and hold down a scene group at the same time.Step 4: Repeat above 3 steps, and adjust another brightness for each individual group, then press and hold the other scene button (e.g. S2) to save thebrightness for each individual group at the same time.1) Save Scenes2) Recall the Saved ScenesStep 1: Short press button S1/S2 to recall a saved scene for each individual group at the same time .15. How to Check Whether the Remote Belongs to a Network or notActivate the remote by clicking All On/Off button (indicator on), then short press any other buttons except group buttons, indicator blinking 3 times means the remote does not belong to any network, blinking once or twice means it has already been added to a network.14. OTAThe remote supports firmware updating through OTA, and will acquire new firmware from zigbee controller or hub every 10 minutes automatically.16.Battery Power Monitor FunctionThe remote will report battery power value to the coordinator under following situations:• When powered on.• When short pressing both and buttons of group 1 simultaneously.• When operating the switch to send data packets (over 4 hours since last operation).• When added to the network by a coordinator.。

无线控制开关产品说明书
型号
LSZ-101-240-W
LSZ-101-240-B
LSZ-101-240-A
规格参数
该调光开关可独立运行，或者作为Control4系统的控制终端来使用。

它安装于美标底盒上，通过无线 Zigbee信号来与Control4系统进行通信。

其规格参数如下所示：
电源：220-240VAC 50/60Hz
负载能力：220-240VAC时2.5安
通信标准：IEEE 802.15.4，2.4GHz
警告！对该设备不恰当的使用或安装可能导致严重的人员伤亡或财产损失。

警告！若您不能确认火线、零线、负载线与地线，请选择资深电工来进行设备安装。

注意：请勿用此设备控制插座。

重要！任何有悖于本文档相关说明的使用方法所造成的设备损坏将不在产品保修范
围内。

重要！请勿使用电动起子来安装设备。

典型连接示意图
注意：该设备必须连接交流零线以使设备得以工作。

使用四线接线端子来连接电源、开关及负载。

端子接线情况示意见下表及下图。

ZigBee 无线通讯协议，在不改变布线的情况下，即可替换传统开关，实现智能控灯、智能场景、绑定联动等功能。

* 示意图为2路开关，实际按键数目以实物为准。

恢复出厂设置添加 ZigBee 模式设备启动小燕在家 App ，登录进入；点击进入“添加设备”页面；接通开关电源，指示灯闪烁；约10秒后 App 上显示找到新设备。

1.2.3.4.1.2.3.**开关已通电；连续点击任意按键3次后按住该按键直到指示灯闪烁后松开；开关的配网信息被清除，可重新添加。

1.2.3.6543217单火线墙壁开关零火线墙壁开关8模式指示灯说明ZigBee 安装示意图指示灯状态快速闪慢速闪中速闪正在连接附近的家庭中心连接家庭中心成功连接家庭中心失败（每秒闪10下）（每2秒闪1下）（每秒闪4下）安装之前，确保已切断电源；对照后壳孔位完成接线，拧紧接线螺丝：L 孔接火线，N 孔接零线，L1/L2孔接电灯导线;（以2路开关为例）用螺丝将墙壁开关固定在墙壁接线盒中，装回墙壁开关前面板。

负载功率请参见10页附表参数规格。

墙壁开关不同型号存在差异，接线孔位以实物为准。

下载安装 APP在应用商店搜索“小燕在家”或扫描二维码下载小燕在家 APP 。

连接小燕家庭中心后，根据“添加设备”指引添加墙壁开关。

按键按键指示灯指示灯指示灯指示灯指示灯状态白色常亮黄色常亮或熄灭开关状态指示灯说明连接的负载设备通电连接的负载设备断电针对不同路数的墙壁开关，此指示灯具体功能存在差异：例如两路墙壁开关，左上与右上两枚指示灯用于指示开关状态，其余按键指示灯在交互中会闪烁起到操作反馈的作用。

需要配置断电时状态指示灯为熄灭或黄色，可通过快速单击开关上任意的负载按键5次进行切换。

联动功能推荐一键控制多个灯、插座、窗帘。

(在 HomeKit 中，联动功能需满足注意事项二的条件方可使用)火线(L ）零线(N )零线(N )火线(L ）零线(N )指示灯指示灯1.2.3.智能墙壁开关使用说明书凤凰（仅供参考，以设备原厂标注为准）91011121.2.在线客服：https://www.xiaoyan.io/service 服务电话：400-920-2823电子邮件：******************上海小燕科技有限公司上海市浦东新区盛夏路666号E 幢502室联系我们故障情况非保修情况1. 2. 3. 1. 2. 3. 4. 由产品材料、结构及运输过程碰撞导致产品表面破按键或者指示灯失效；无线联网通讯功能失效。

无线开关 E1使用说明书扫码获取Zigbee Install Code重置键长按5s：重置/入网单击：有效通讯距离验证/设备查找功能按键指示灯产品介绍产品中有害物质的名称及含量Aqara无线开关 E1是一款新型无线遥控开关，支持单击、双击、长按三种控制方式，可以任意放置在需要的位置或粘贴安装使用，与网关联动并搭配其他智能设备执行丰富的智能场景。

安装方法有效距离验证：在预选的安装位置，单击设备重置键，网关发出提示音，表明设备与网关之间可以有效通讯。

基本参数产品性能故障表产品型号：WXKG20LM无线连接：Zigbee 执行标准：GB4943.1-2011工作湿度：0~95% RH，无冷凝产品尺寸：45×45×12mm电池型号：CR2032工作温度：-10℃~50℃保修说明本产品售后服务严格依据《中华人民共和国消费者权益保护法》、《中华人民共和国产品质量法》实行售后三包服务，服务内容如下：在三包有效期内，您可以依照本规定免费享受退货、换货、维修的服务，退货、换货、维修应当凭发票办理。

1、2、签收次日起7天内无理由退货（电商购买渠道），由用户承担物流费用；本产品出现《产品性能故障表》所列性能故障的情况，经售后服务中心检测确定后，可以免费享受如下服务。

1、2、3、4、5、未经授权的维修、误用、碰撞、疏忽、滥用、进液、事故、改动、不正确的使用非本产品配件，或撕毁、涂改标贴、防伪标记；已超过三包有效期；因不可抗力造成的损坏；不符合《产品性能故障表》所列性能故障的情况；因人为原因导致本产品及其配件产生《产品性能故障表》所列性能故障。

保修政策因运输过程中需使用包装箱保证产品运输安全，建议您自签收次日起至少保留包装箱30天。

友情提示非保修条例5、6、请不要尝试自行维修本产品，应由授权的专业人士进行此项工作；本产品仅适用于提升家居生活娱乐性，便捷度，以及用于设备状态提醒，如有用户违反产品使用说明及本注意事项，制造商对因此造成的任何风险和财产损失不承担责任。
