SA13CA,TVS瞬变抑制二极管中文资料

TVS瞬态抑制二极管参数1. 介绍瞬态抑制二极管（Transient Voltage Suppressor Diode，简称TVS二极管）是一种用于保护电子电路免受瞬态电压干扰的器件。

它可以有效地抑制过电压和过电流，保护电路中的其他元件不受损坏。

本文将重点介绍TVS瞬态抑制二极管的参数，包括其电气参数、封装参数和可靠性参数。

2. 电气参数2.1 额定电压（Vr）额定电压是指TVS二极管能够正常工作的最大电压。

当电压超过额定电压时，TVS二极管将开始导通，以保护电路免受过电压的影响。

2.2 尖峰脉冲功率（Ppp）尖峰脉冲功率是指TVS二极管能够吸收的瞬态脉冲能量。

它表示了TVS二极管在瞬态电压出现时能够承受的最大功率。

通常情况下，尖峰脉冲功率越大，TVS二极管的抑制能力越强。

2.3 最大反向峰值电流（Ipp）最大反向峰值电流是指TVS二极管能够承受的最大反向电流。

当电路中的电压超过额定电压时，TVS二极管将导通，使电流通过，以保护电路。

最大反向峰值电流越大，TVS二极管的抑制能力越强。

2.4 动态电阻（Rd）动态电阻是指TVS二极管在导通状态下的电阻。

动态电阻越小，TVS二极管的抑制能力越强。

因此，低动态电阻是衡量TVS二极管性能好坏的重要指标之一。

3. 封装参数3.1 封装类型TVS瞬态抑制二极管有多种封装类型可供选择，常见的封装类型有DO-214、SMA、SMB等。

不同的封装类型适用于不同的应用场景。

选择合适的封装类型可以提高电路的可靠性和稳定性。

3.2 封装尺寸封装尺寸是指TVS二极管的外部尺寸。

在进行电路设计时，需要考虑TVS二极管的封装尺寸是否符合电路板的布局要求，以确保TVS二极管能够正确安装在电路板上。

3.3 焊接温度焊接温度是指TVS二极管在焊接过程中所能承受的最高温度。

在进行电路组装时，需要控制焊接温度，避免超过TVS二极管的最大焊接温度，以免影响其性能和可靠性。

4. 可靠性参数4.1 工作温度范围工作温度范围是指TVS二极管能够正常工作的温度范围。

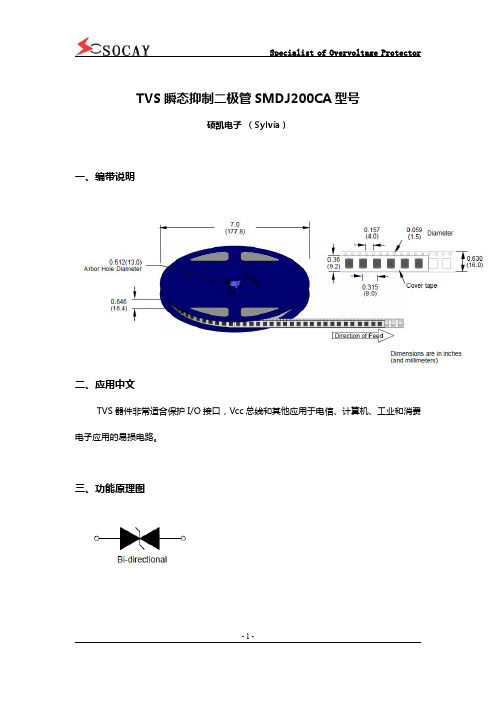

TVS瞬态抑制二极管SMDJ200CA型号硕凯电子（Sylvia）一、编带说明二、应用中文TVS器件非常适合保护I/O接口，Vcc总线和其他应用于电信、计算机、工业和消费电子应用的易损电路。

三、功能原理图四、应用英文TVS devices are ideal for the protection of I/O interfaces,VCC bus and other vulnerable circuits used in Telecom,Computer,Industrial and Consumer electronic applications.五、型号标识六、UL证书编号七、最大额定值Notes:1.Non-repetitive current pulse,per Fig.3and derated above TA=25°C per Fig.2.2.Mounted on5.0mm x5.0mm(0.03mm thick)Copper Pads to each terminal.3.8.3ms single half sine-wave,or equivalent square wave,Duty cycle=4pulses per minutes maximum.4.VF<3.5V for VBR<200V and VF<6.5V for VBR>201V.八、英文特性1.For surface mounted applications in order to optimize board space2.Low leakage3.Uni and Bidirectional unit4.Glass passivated junction5.Low inductance6.Excellent clamping capability7.3000W Peak power capability at10×1000μs waveform Repetition rate(duty cycle):0.01%8.Fast response time:typically less than1.0ps from0Volts to VBR min9.Typical IR less than5μA above12V.10.High Temperature soldering:260°C/40seconds at terminals11.Typical maximum temperature coefficientΔVBR=0.1%×VBR@25°C×ΔT12.Plastic package has Underwriters Laboratory Flammability94V-013.Matte tin lead–free Plated14.Halogen free and RoHS compliant15.Typical failure mode is short from over-specified voltage or current16.Whisker test is conducted based on JEDEC JESD201A per its table4a and4c17.IEC-61000-4-2ESD15kV(Air),8kV(Contact)18.ESD protection of data lines in accordance with IEC61000-4-2 (IEC801-2)19.EFT protection of data lines in accordance with IEC61000-4-4 (IEC801-4)九、曲线特性图十、产品特性1、为表面安装应用优化电路板空间2、低泄漏3、双向单元4、玻璃钝化结5、低电感6、优良的钳位能力7、3000W的峰值功率能力在10×1000μ波形重复率（占空比）：0.01%8、快速响应时间：从0伏特到最小击穿电压通常小于1.0ps9、典型的，在电压高于12V时，反向漏电流小于5μA10、高温焊接：终端260°C/40秒11、典型的最大温度系数△Vbr=0.1%x Vbr@25°C x△T12、塑料包装有保险商实验室可燃性94V-013、无铅镀雾锡14、无卤化，符合RoHS15、典型失效模式是在指定的电压或电流下出现16、晶须测试是基于JEDEC JESD201A每个表4a及4c进行的17、IEC-61000-4-2ESD15kV(空气)，8kV(接触)18、数据线的ESD保护符合IEC61000-4-2(IEC801-2)19、数据线的EFT保护符合IEC61000-4-4(IEC801-4)十一、焊脚参数十二、产品图。

TVS瞬变管SMF22CA型号
硕凯电子（Sylvia）
一、双向产品图
二、产品特性
1、兼容工业标准的SOD-123封装
2、为表面安装应用优化电路板空间
3、低泄漏
4、单向和双向单元
5、玻璃钝化结
6、低电感
7、优良的钳位能力
8、200W的峰值功率能力在10×1000μ波形重复率（占空比）：0.01%
9、快速响应时间：从0伏特到最小击穿电压通常小于1.0ps
10、高温焊接：终端260°C/40秒
11、典型的最大温度系数△Vbr=0.1%x Vbr@25°C x△T
12、塑料包装有保险商实验室可燃性94V-0
13、无铅镀雾锡
14、无卤化，符合RoHS
15、典型失效模式是在指定的电压或电流下出现
16、晶须测试是基于JEDEC JESD201A每个表4a及4c进行的
17、IEC-61000-4-2ESD15kV(空气)，8kV(接触)
18、数据线的ESD保护符合IEC61000-4-2(IEC801-2)
19、数据线的EFT保护符合IEC61000-4-4(IEC801-4)
三、产品应用
TVS器件非常适合保护I/O接口，Vcc总线和其他应用于电信、计算机、工业和消费电子应用的易损电路。

四、脉冲降额曲线
五、产品包装
六、产品标识。

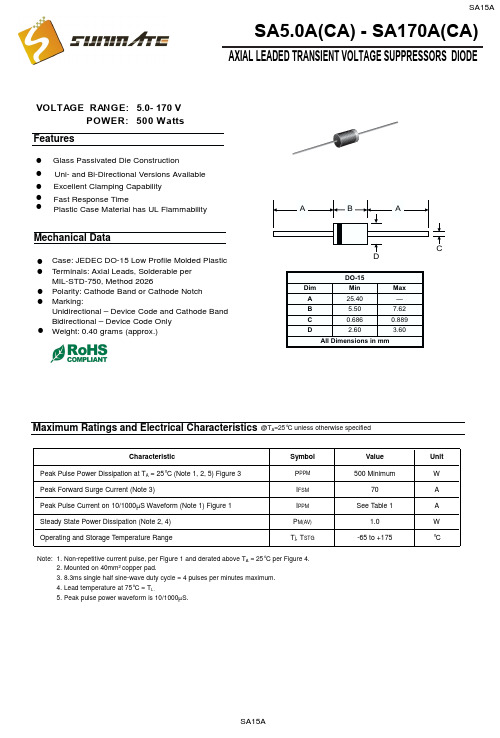

POWER: 500 Wa t VOLTAGE RANGE: 5.0- 17 0 VAXIAL LEADED TRANSIENT VOLTAGE SUPPRESSORS DIODESA5.0A(CA) - SA170A(CA)Glass Passivated Die ConstructionUni- and Bi-Directional Versions AvailableExcellentClamping Capability Fast Response TimePlastic Case Material has UL FlammabilityMechanical DataCase: JEDEC DO-15 Low Profile Molded Plastic Terminals: Axial Leads, Solderable per MIL-STD-750, Method 2026Polarity: Cathode Band or Cathode Notch Marking:Unidirectional – Device Code and Cathode Band Bidirectional – Device Code Only Weight: 0.40 grams (approx.)FeaturesMaximum Ratings and Electrical Characteristics@T A =25°C unless otherwise specifiedCharacteristicSymbol Value Unit Peak Pulse Power Dissipation at T A = 25°C (Note 1, 2, 5) Figure 3P PPM 500 MinimumW Peak Forward Surge Current (Note 3)I FSM 70A Peak Pulse Current on 10/1000µS Waveform (Note 1) Figure 1I PPM See Table 1A Steady State Power Dissipation (Note 2, 4)P M(AV) 1.0W Operating and Storage Temperature RangeT j , T STG-65 to +175°CNote: 1. Non-repetitive current pulse, per Figure 1 and derated above T A = 25°C per Figure 4.2. Mounted on 40mm 2 copper pad.3. 8.3ms single half sine-wave duty cycle = 4 pulses per minutes maximum.4. Lead temperature at 75°C = T L .5. Peak pulse power waveform is 10/1000µS.!!!!!!!!!!29.586.073.771.266.362.758.955.350.0 52.849.144.240.636.834.431.926.925.523.321.720.519.217.916.5 15.37.786.676.40 (uA)R RMW RMW@V leakage Reverse CurrentPulse Peak (A)Vc(V)(mA)BR MAX CurrentMax.BR MIN @I Min.Volgtage Breakdown (V)(BI)(Uni)Voltage Stand-Off Reverse Maximum Clamping V T PP(V)V @I Volgtage Breakdown Test (V)V T Volgtage @I PP SA6.0A SA6.0CA 6.0 7.67 10 10.3 49.5 600.0 SA5.0A SA5.0CA 5.0 7.25 10 9.2 55.4 600.0 SA6.5A SA6.5CA 6.5 7.22 8.30 10 11.2 45.5 400.0 SA7.0A SA7.0CA 7.0 8.95 10 12.0 42.5 150.0 SA7.5A SA7.5CA 7.5 8.33 9.58 1.0 12.9 39.5 50.0 SA8.0A SA8.0CA 8.0 8.89 10.23 1.0 13.6 37.5 25.0 SA8.5A SA8.5CA 8.5 9.44 10.82 1.0 14.4 35.4 10.0 SA9.0A SA9.0CA 9.0 10.0 11.5 1.0 15.4 33.1 5.0 SA10A SA10CA 10 11.1 12.8 1.0 17.0 30.0 3.0SA11A SA11CA 11 12.2 14.0 1.0 18.2 28.0 3.0SA12A SA12CA 12 13.3 1.0 19.9 25.6 3.0SA13A SA13CA 13 14.4 1.0 21.5 23.7 3.0SA14A SA14CA 14 15.6 1.0 23.2 22.0 3.0SA15A SA15CA 15 16.7 1.0 24.4 20.9 3.0SA16A SA16CA 16 17.8 1.0 26.0 19.6 3.0SA17A SA17CA 17 18.9 1.0 27.6 18.5 3.0SA18A SA18CA 18 20.0 1.0 29.2 17.5 3.0SA20A SA20CA 20 22.2 1.0 32.4 15.7 3.0SA22A SA22CA 22 24.4 1.0 35.5 14.4 3.0 SA24A SA24CA 24 26.7 1.0 38.9 13.1 3.0 SA26A SA26CA 26 28.9 1.0 42.1 12.1 3.0 SA28A SA28CA 28 31.1 1.0 45.4 11.2 3.0SA30A SA30CA30 33.3 1.0 48.4 10.5 3.0 SA33A SA33CA 33 36.7 1.0 53.3 9.6 3.0 SA36A SA36CA 36 40.0 1.0 58.1 8.8 3.0 SA40A SA40CA 40 44.4 1.0 64.5 7.9 3.0 SA43A SA43CA 43 47.8 1.0 69.4 7.3 3.0 SA45A SA45CA 45 1.0 72.7 7.0 3.0 SA48A SA48CA 48 53.3 1.0 77.4 6.6 3.0 SA51A SA51CA 51 56.7 1.0 82.4 6.2 3.0SA54ASA54CA 54 60.0 1.0 87.1 5.9 3.0 SA58A SA58CA 58 64.4 1.0 93.6 5.4 3.0 SA60A SA60CA 60 66.7 1.0 96.8 5.3 3.0 SA64A SA64CA 64 71.1 78.6 1.0 103 5.0 3.0 SA70A SA70CA 70 77.8 1.0 113 4.5 3.0 SA75A SA75CA 75 83.0 92.1 1.0 121 4.2 3.0 SA78A SA78CA 78 86.0 95.8 1.0 126 4.0 3.0 SA85A SA85CA 85 94.0 104 1.0 137 3.7 3.0 SA100A SA100CA 100 111 123 1.0 162 3.1 3.0 SA110A SA110CA 110 122 135 1.0 177 2.9 3.0 SA120A SA120CA 120 133 147 1.0 193 2.6 3.0 SA130A SA130CA 130 144 159 1.0 209 2.4 3.0 SA150A SA150CA 150 167 185 1.0 243 2.1 3.0 SA160A SA160CA 160 178 197 1.0 259 2.0 3.0SA170A SA170CA 170 189 209 1.0 275 1.9 3.0TYPERating at = 25 °C ambient temperature unless otherwise specified255075100125150175200100755025T ,AMBIENT TEMPERATURE (°C)Fig.4Pulse Derating CurveA P K P U L S E D E R A T I N G (%P K P W R O R C U R R E N T )2550751001251501752000001.0T ,LEAD TEMPERATURE (°C)Fig.5,Steady State Power DeratingL P ,S T E A D Y S T A T E P O W E R D I S S I P A T I O N (W )d 0.11.0T ,PULSE WIDTH (µs)Fig.3Pulse Rating Curvep 0.1101001.010100100010000P ,P E A K P U L S E P O W E R (k W )P 0123I ,P E A K P U L S E C U R R E N T (%)P p pt,TIME (ms)Fig.1Pulse Waveform110100100010100100010,000V ,REVERSE STANDOFF VOLTAGE (V)Fig.2Typical Junction CapacitanceRWM C ,C A P A C I T A N C E (p F )j。

POWER: 500 Wa t VOLTAGE RANGE: 5.0- 17 0 VAXIAL LEADED TRANSIENT VOLTAGE SUPPRESSORS DIODESA5.0A(CA) - SA170A(CA)Glass Passivated Die ConstructionUni- and Bi-Directional Versions AvailableExcellentClamping Capability Fast Response TimePlastic Case Material has UL FlammabilityMechanical DataCase: JEDEC DO-15 Low Profile Molded Plastic Terminals: Axial Leads, Solderable per MIL-STD-750, Method 2026Polarity: Cathode Band or Cathode Notch Marking:Unidirectional – Device Code and Cathode Band Bidirectional – Device Code Only Weight: 0.40 grams (approx.)FeaturesMaximum Ratings and Electrical Characteristics@T A =25°C unless otherwise specifiedCharacteristicSymbol Value Unit Peak Pulse Power Dissipation at T A = 25°C (Note 1, 2, 5) Figure 3P PPM 500 MinimumW Peak Forward Surge Current (Note 3)I FSM 70A Peak Pulse Current on 10/1000µS Waveform (Note 1) Figure 1I PPM See Table 1A Steady State Power Dissipation (Note 2, 4)P M(AV) 1.0W Operating and Storage Temperature RangeT j , T STG-65 to +175°CNote: 1. Non-repetitive current pulse, per Figure 1 and derated above T A = 25°C per Figure 4.2. Mounted on 40mm 2 copper pad.3. 8.3ms single half sine-wave duty cycle = 4 pulses per minutes maximum.4. Lead temperature at 75°C = T L .5. Peak pulse power waveform is 10/1000µS.!!!!!!!!!!29.586.073.771.266.362.758.955.350.0 52.849.144.240.636.834.431.926.925.523.321.720.519.217.916.5 15.37.786.676.40 (uA)R RMW RMW@V leakage Reverse CurrentPulse Peak (A)Vc(V)(mA)BR MAX CurrentMax.BR MIN @I Min.Volgtage Breakdown (V)(BI)(Uni)Voltage Stand-Off Reverse Maximum Clamping V T PP(V)V @I Volgtage Breakdown Test (V)V T Volgtage @I PP SA6.0A SA6.0CA 6.0 7.67 10 10.3 49.5 600.0 SA5.0A SA5.0CA 5.0 7.25 10 9.2 55.4 600.0 SA6.5A SA6.5CA 6.5 7.22 8.30 10 11.2 45.5 400.0 SA7.0A SA7.0CA 7.0 8.95 10 12.0 42.5 150.0 SA7.5A SA7.5CA 7.5 8.33 9.58 1.0 12.9 39.5 50.0 SA8.0A SA8.0CA 8.0 8.89 10.23 1.0 13.6 37.5 25.0 SA8.5A SA8.5CA 8.5 9.44 10.82 1.0 14.4 35.4 10.0 SA9.0A SA9.0CA 9.0 10.0 11.5 1.0 15.4 33.1 5.0 SA10A SA10CA 10 11.1 12.8 1.0 17.0 30.0 3.0SA11A SA11CA 11 12.2 14.0 1.0 18.2 28.0 3.0SA12A SA12CA 12 13.3 1.0 19.9 25.6 3.0SA13A SA13CA 13 14.4 1.0 21.5 23.7 3.0SA14A SA14CA 14 15.6 1.0 23.2 22.0 3.0SA15A SA15CA 15 16.7 1.0 24.4 20.9 3.0SA16A SA16CA 16 17.8 1.0 26.0 19.6 3.0SA17A SA17CA 17 18.9 1.0 27.6 18.5 3.0SA18A SA18CA 18 20.0 1.0 29.2 17.5 3.0SA20A SA20CA 20 22.2 1.0 32.4 15.7 3.0SA22A SA22CA 22 24.4 1.0 35.5 14.4 3.0 SA24A SA24CA 24 26.7 1.0 38.9 13.1 3.0 SA26A SA26CA 26 28.9 1.0 42.1 12.1 3.0 SA28A SA28CA 28 31.1 1.0 45.4 11.2 3.0SA30A SA30CA30 33.3 1.0 48.4 10.5 3.0 SA33A SA33CA 33 36.7 1.0 53.3 9.6 3.0 SA36A SA36CA 36 40.0 1.0 58.1 8.8 3.0 SA40A SA40CA 40 44.4 1.0 64.5 7.9 3.0 SA43A SA43CA 43 47.8 1.0 69.4 7.3 3.0 SA45A SA45CA 45 1.0 72.7 7.0 3.0 SA48A SA48CA 48 53.3 1.0 77.4 6.6 3.0 SA51A SA51CA 51 56.7 1.0 82.4 6.2 3.0SA54ASA54CA 54 60.0 1.0 87.1 5.9 3.0 SA58A SA58CA 58 64.4 1.0 93.6 5.4 3.0 SA60A SA60CA 60 66.7 1.0 96.8 5.3 3.0 SA64A SA64CA 64 71.1 78.6 1.0 103 5.0 3.0 SA70A SA70CA 70 77.8 1.0 113 4.5 3.0 SA75A SA75CA 75 83.0 92.1 1.0 121 4.2 3.0 SA78A SA78CA 78 86.0 95.8 1.0 126 4.0 3.0 SA85A SA85CA 85 94.0 104 1.0 137 3.7 3.0 SA100A SA100CA 100 111 123 1.0 162 3.1 3.0 SA110A SA110CA 110 122 135 1.0 177 2.9 3.0 SA120A SA120CA 120 133 147 1.0 193 2.6 3.0 SA130A SA130CA 130 144 159 1.0 209 2.4 3.0 SA150A SA150CA 150 167 185 1.0 243 2.1 3.0 SA160A SA160CA 160 178 197 1.0 259 2.0 3.0SA170A SA170CA 170 189 209 1.0 275 1.9 3.0TYPERating at = 25 °C ambient temperature unless otherwise specified255075100125150175200100755025T ,AMBIENT TEMPERATURE (°C)Fig.4Pulse Derating CurveA P K P U L S E D E R A T I N G (%P K P W R O R C U R R E N T )2550751001251501752000001.0T ,LEAD TEMPERATURE (°C)Fig.5,Steady State Power DeratingL P ,S T E A D Y S T A T E P O W E R D I S S I P A T I O N (W )d 0.11.0T ,PULSE WIDTH (µs)Fig.3Pulse Rating Curvep 0.1101001.010100100010000P ,P E A K P U L S E P O W E R (k W )P 0123I ,P E A K P U L S E C U R R E N T (%)P p pt,TIME (ms)Fig.1Pulse Waveform110100100010100100010,000V ,REVERSE STANDOFF VOLTAGE (V)Fig.2Typical Junction CapacitanceRWM C ,C A P A C I T A N C E (p F )j。

SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODESMAJ5.0A(CA) - SMAJ440A(CA)POWER: 400Wa t VOLTAGE RANGE: 5.0 - 440 VSee Page 2Maximum Ratings@ T A = 25°C unless otherwise specifiedNotes:1. Valid provided that terminals are kept at ambient temperature.2. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.3. Unidirectional units only.Glass Passivated Die ConstructionUni- and Bi-Directional Versions Available Excellent Clamping Capability Fast Response TimePlastic Material: UL Flammability Classification Rating 94V-0Mechanical DataCase:SMA, Transfer Molded EpoxyTerminals: Solderable per MIL-STD-202,Method 208Polarity Indicator: Cathode Band(Note: Bi-directional devices have no polarity indicator.)Marking: Date Code and Marking CodeWeight:0.064 grams (approx.)Features!!!!!!!!!!53.345.41.01.010.0 10.010.036.733.333.322.231.128.9 28.926.7 18.917.815.613.311.19.09.08.58.58.08.07.57.06.56.55.0(BI)(Uni)Breakdown Marking Reverse Stand-Off Voltage Voltage Min. @I TBreakdownVoltage Max. @ I TTestCurrentMaximum Clamping Voltage @I PPPeak Pulse Current Reverse Leakage @V RMW(Uni) (Bi)V RMW (V) V BR MIN (V) V BR MAX (V)I T (mA)V C (V) I PP (A) I R (uA) SMAJ5.0 SMAJ5.0C HD TD 6.40 7.55 10.0 9.6 41.7 800.0SMAJ5.0A SMAJ5.0CA HE TE 5.0 6.40 7.25 9.2 43.5 800.0 SMAJ6.0 SMAJ6.0C HF TF 6.0 6.67 8.45 10.0 11.4 35.1 800.0 SMAJ6.0A SMAJ6.0CA HG TG 6.0 6.67 7.67 10.3 38.8 800.0SMAJ6.5 SMAJ6.5C HH TH 7.22 9.14 10.0 12.3 32.5 500.0 SMAJ6.5A SMAJ6.5CA HK TK 7.22 8.30 10.0 11.2 35.7 500.0 SMAJ7.0 SMAJ7.0C HL TL 7.78 9.86 10.0 13.3 30.1 200.0 SMAJ7.0A SMAJ7.0CA HM TM 7.0 7.78 8.95 12.0 33.3 200.0 SMAJ7.5 SMAJ7.5C HN TN 8.33 10.67 1.0 14.3 28.0 100.0 SMAJ7.5A SMAJ7.5CA HP TP 7.5 8.33 9.58 12.9 31.0 100.0 SMAJ8.0 SMAJ8.0C HQ TQ 8.89 11.3 1.0 15.0 26.7 50.0 SMAJ8.0A SMAJ8.0CA HR TR 8.89 10.23 1.0 13.6 29.4 50.0 SMAJ8.5 SMAJ8.5C HS TS 9.44 11.92 15.9 25.2 20.0 SMAJ8.5A SMAJ8.5CA HT TT 9.44 10.82 1.0 14.4 27.8 20.0 SMAJ9.0 SMAJ9.0C HU TU 10.0 12.6 1.0 16.9 23.7 10.0 SMAJ9.0A SMAJ9.0CA HV TV 10.0 11.5 1.0 15.4 26.0 10.0 SMAJ10 SMAJ10C HW TW 10 14.1 1.0 18.8 21.3 5.0 SMAJ10A SMAJ10CA HX TX 10 11.1 12.8 1.0 17.0 23.5 5.0SMAJ11 SMAJ11C HY TY 1112.2 15.4 1.0 20.1 19.9 5.0SMAJ11A SMAJ11CA HZ TZ 1112.2 14.0 1.0 18.2 22.0 5.0SMAJ12 SMAJ12C ID UD 12 16.9 1.0 22.0 18.2 5.0 SMAJ12A SMAJ12CA IE UE 12 13.3 15.3 1.0 19.9 20.1 5.0SMAJ13 SMAJ13C IF UF 13 14.4 18.2 1.0 23.8 16.8 5.0SMAJ13A SMAJ13CA IG UG 13 14.4 16.5 1.0 21.5 18.6 5.0SMAJ14 SMAJ14C IH UH 14 19.8 1.0 25.8 15.5 5.0 SMAJ14A SMAJ14CA IK UK 14 15.6 17.9 1.0 23.2 17.2 5.0SMAJ15 SMAJ15C IL UL 15 16.7 21.1 1.0 26.9 14.9 5.0SMAJ15A SMAJ15CA IM UM 15 16.7 19.2 1.0 24.4 16.4 5.0SMAJ16 SMAJ16C IN UN 16 22.6 1.0 28.8 13.9 5.0 SMAJ16A SMAJ16CA IP UP 16 17.8 20.5 1.0 26.0 15.4 5.0SMAJ17 SMAJ17C IQ UQ 17 23.9 1.0 30.5 13.1 5.0SMAJ17A SMAJ17CA IR UR 17 18.9 21.7 1.0 27.6 14.5 5.0SMAJ18 SMAJ18C IS US 18 20.0 25.3 1.0 32.2 12.4 5.0 SMAJ18A SMAJ18CA IT UT 18 20.0 23.3 1.0 29.2 13.7 5.0SMAJ20 SMAJ20C IU UU 20 28.1 1.0 35.8 11.2 5.0SMAJ20A SMAJ20CA IV UV 20 22.2 25.5 1.0 32.4 12.3 5.0SMAJ22 SMAJ22C IW UW 22 24.4 30.9 1.0 39.4 10.2 5.0 SMAJ22A SMAJ22CA IX UX 22 24.4 28.0 1.0 35.5 11.3 5.0SMAJ24 SMAJ24C IY UY 24 33.8 1.0 43.0 9.3 5.0SMAJ24A SMAJ24CA IZ UZ 24 26.7 30.7 1.0 38.9 10.3 5.0SMAJ26 SMAJ26C JD VD 26 36.6 1.0 46.6 8.6 5.0 SMAJ26A SMAJ26CA JE VE 26 33.2 1.0 42.1 9.5 5.0SMAJ28 SMAJ28C JF VF 28 39.4 1.0 50.0 8.0 5.0SMAJ28A SMAJ28CA JG VG 28 31.1 35.8 1.0 8.8 5.0SMAJ30 SMAJ30C JH VH 30 42.2 1.0 53.5 7.5 5.0 SMAJ30A SMAJ30CA JK VK 30 38.3 1.0 48.4 8.3 5.0SMAJ33 SMAJ33C JL VL 33 46.5 1.0 59.0 6.8 5.0SMAJ33ASMAJ33CAJM VM33 36.7 42.2 1.0 7.5 5.0TYPE(BI)(Uni)Breakdown Marking Reverse Stand-Off Voltage Voltage Min. @I T Breakdown Voltage Max. @ I T Test CurrentMaximum Clamping Voltage @I PPPeak Pulse Current ReverseLeakage@V RMW(Uni)(Bi)V RMW (V) V BR MIN (V)V BR MAX (V)I T (mA)V C (V)I PP (A) I R (uA) 77.4 69.453.3 50.0 50.047.7SMAJ43 SMAJ43C JS VS 4360.5 1.0 76.7 5.2 5.0 SMAJ43A SMAJ43CA JT VT 43 47.8 54.9 1.0 5.8 5.0SMAJ45 SMAJ45C JU VU 45 63.3 1.0 80.3 5.0 5.0SMAJ45CA JV VV 45 57.5 1.0 72.7 5.5 5.0SMAJ45A SMAJ48C JW VW 48 67.5 1.0 85.5 4.7 5.0 SMAJ48A SMAJ48CA JX VX 48 53.3 61.3 1.0 5.2 5.0SMAJ48 94.077.871.196.866.793.687.160.082.456.7 SMAJ51 SMAJ51C JY VY 51 71.8 1.0 91.1 4.4 5.0SMAJ51A SMAJ51CA JZ VZ 51 56.7 65.2 1.0 4.9 5.0SMAJ54 SMAJ54C RD WD 54 76.0 1.0 96.3 4.2 5.0SMAJ54A SMAJ54CA RE WE 54 60.0 69.0 1.0 4.6 5.0SMAJ58 SMAJ58C RF WF 58 64.4 81.6 1.0 103 3.9 5.0SMAJ58A SMAJ58CA RG WG 58 64.4 74.1 1.0 4.3 5.0SMAJ60 SMAJ60C RH WH 60 84.5 1.0 107 3.7 5.0 SMAJ60A SMAJ60CA RK WK 60 66.7 76.7 1.0 4.1 5.0SMAJ64 SMAJ64C RL WL 64 90.1 1.0 114 3.5 5.0SMAJ64A SMAJ64CA RM WM 64 71.1 81.8 1.0 103 3.9 5.0SMAJ70 SMAJ70C RN WN 70 98.6 1.0 125 3.2 5.0 SMAJ70A SMAJ70CA RP WP 70 77.8 89.5 1.0 113 3.5 5.0SMAJ75 SMAJ75C RQ WQ 75 83.0 105.7 1.0 134 3.0 5.0SMAJ75A SMAJ75CA RR WR 75 83.0 95.8 1.0 121 3.3 5.0SMAJ78 SMAJ78C RS WS 78 86.0 109.8 1.0 139 2.9 5.0 SMAJ78A SMAJ78CA RT WT 78 86.0 99.7 1.0 126 3.2 5.0SMAJ85 SMAJ85C RU WU 85 119.2 1.0 151 2.6 5.0SMAJ85A SMAJ85CA RV WV 85 94.0 108.2 1.0 137 2.9 5.0SMAJ90 SMAJ90C RW WW 90 100 126.5 1.0 160 2.5 5.0 SMAJ90A SMAJ90CA RX WX 90 100 115.5 1.0 146 2.7 5.0SMAJ100 SMAJ100C RY WY 100 111 141.0 1.0 179 2.2 5.0SMAJ100A SMAJ100CA RZ WZ 100 111 128.0 1.0 162 2.5 5.0SMAJ110 SMAJ110C SD XD 110 122 154.5 1.0 196 2.0 5.0 SMAJ110A SMAJ110CA SE XE 110 122 140.5 1.0 177 2.3 5.0SMAJ120 SMAJ120C SF XF 120 133 169.0 1.0 214 1.9 5.0SMAJ120A SMAJ120CA SG XG 120 133 153.0 1.0 193 2.1 5.0SMAJ130 SMAJ130C SH XH 130 144 182.5 1.0 231 1.7 5.0 SMAJ130A SMAJ130CA SK XK 130 144 165.5 1.0 209 1.9 5.0SMAJ150 SMAJ150C SL XL 150 167 211.5 1.0 268 1.5 5.0SMAJ150A SMAJ150CA SM XM 150 167 192.5 1.0 243 1.6 5.0SMAJ160 SMAJ160C SN XN 160 178 226.0 1.0 287 1.4 5.0 SMAJ160A SMAJ160CA SP XP 160 178 205.0 1.0 259 1.5 5.0SMAJ170 SMAJ170C SQ XQ 170 189 239.5 1.0 304 1.3 5.0SMAJ170ASMAJ170CASR XR170 189 217.5 1.0 275 1.5 5.0TYPE64.544.440.040.0SMAJ36SMAJ36C JN VN 36 50.7 1.0 64.3 6.2 5.0 SMAJ36A SMAJ36CA JP VP 36 46.0 1.0 58.1 6.9 5.0SMAJ40 SMAJ40C JQ VQ 40 56.3 1.0 71.4 5.6 5.0SMAJ40A SMAJ40CA JR VR 40 44.4 51.1 1.0 6.2 5.0SMAJ180SMAJ180C SSXS 180200 253.8 1.0 321 1.2 5.0 SMAJ180A SMAJ180CA ST XT 180 200 230.4 1.0 290 1.4 5.0SMAJ190 SMAJ190C SU XU 190 211 267.9 1.0 339 1.2 5.0SMAJ190A SMAJ190CA SV XV 190 211 243.2 1.0 306 1.3 5.0SMAJ200 SMAJ200C SW XW 200222 282.0 1.0 356 1.1 5.0 SMAJ200A SMAJ200CA SX XX 200 222 256.0 1.0 322 1.2 5.0SMAJ210 SMAJ210C SY XY 210233 296.1 1.0 375 1.1 5.0SMAJ210A SMAJ210CA SZ XZ 210 233 268.8 1.0 339 1.2 5.0SMAJ220 SMAJ220C ZD YD 220244 310.2 1.0 392 1.0 5.0 SMAJ220A SMAJ220CA ZE YE 220 244 281.6 1.0 355 1.1 5.0SMAJ250 SMAJ250C ZF YF 250278 342.5 1.0 447 0.9 5.0SMAJ250A SMAJ250CA ZG YG 250 278 309.0 1.0 403 1.0 5.0SMAJ300 SMAJ300C ZH YH 300333 411.0 1.0 535 0.7 5.0 SMAJ300A SMAJ300CA ZK YK 300 333 371.0 1.0 484 0.8 5.0SMAJ350 SMAJ350C ZL YL 350389 479.5 1.0 624 0.6 5.0SMAJ350A SMAJ350CA ZM YM 350 389 432.0 1.0 565 0.7 5.0SMAJ400 SMAJ400C ZN YN 400444 548.0 1.0 687 0.6 5.0 SMAJ400A SMAJ400CA ZP YP 400 444 494.0 1.0 645 0.6 5.0SMAJ440 SMAJ440C ZQ YQ 440489 602.8 1.0 786 0.5 5.0SMAJ440A SMAJ440CA ZR YR 440 489 543.0 1.0 710 0.6 5.0(BI)(Uni)Breakdown Marking Reverse Stand-Off Voltage Voltage Min. @I T Breakdown Voltage Max. @ I T Test CurrentMaximum Clamping Voltage @I PPPeak Pulse Current ReverseLeakage@V RMW(Uni)(Bi)V RMW (V)V BR MIN (V)V BR MAX (V)I T (mA)V C (V)I PP (A) I R (uA) TYPERatingsand Characteristic Curves T A =25°C unless otherwise notedSMAJ90A。

TVS瞬变二极管（瞬态电压抑制器）主要特性参数和选用注意事项瞬变二极管是一种二极管形式的高效能保护器件，具有极快的响应时间和相当高的浪涌吸收能力。

当TVS二极管的两端受到反向瞬态过压脉冲时，能以极高的速度把两端间的高阻抗变为低阻抗，以吸收瞬间大电流，并将电压箝制在预定数值，从而有效保护电路中的元器件免受损坏。

本文讲述了TVS器件的主要特性参数和选用注意事项，同时给出了TVS在电路设计中的应用方法。

1 TVS二极管的特性及主要参数1.1 TVS二极管的器件特性在规定的反向应用条件下，TVS二极管对受保护的线路呈高阻抗状态。

当瞬间电压超过其击穿电压时，TVS二极管就会提供一个低阻抗的路径，并通过大电流方式使流向被保护元器件的瞬间电流分流到TVS二极管，同时将受保护元器件两端的电压限制在TVS 的箝制电压。

当过压条件消失后，TVS二极管又恢复到高阻抗状态。

与陶瓷电容相比，TV S可以承受15 kV的电压，但陶瓷贴片电容对高压的承受能力比较弱。

5 kV的冲击就会造成约10％陶瓷电容失效，而到10 kV时，其损坏率将高达到60％。

1.2 TVS二极管的主要参数(1)最小击穿电压VBR当TVS流过规定的电流时，TVS两端的电压称为最小击穿电压，在此区域，TV S呈低阻抗的通路。

在25℃时，低于这个电压，TVS是不会发生雪崩击穿的。

(2)额定反向关断电压VWMVWM是TVS在正常状态时可承受的电压，此电压应大于或等于被保护电路的正常工作电压。

但它又需要尽量与被保护电路的正常工作电压接近，这样才不会在TVS工作以前使整个电路面对过压威胁。

按TVS的VBR与标准值的离散度，可把VBR分为5％和10％两种，对于5％的VBR来说，VWM=0.85VBR腿；而对于10％的VBR来说，VW M=0.81VBR。

(3)最大峰值脉冲电流IPPIPP是TVS在反向状态工作时，在规定的脉冲条件下，器件允许通过的最大脉冲峰值电流。

.SMB8J12CPOWER: 8 00Wa t VOLTAGE RANGE: 5.0 - 40VSMB8J5.0A(CA) - SMB8J40A(CA)(1) Non-repetitive current pulse, per Fig. 3 and derated above T A = 25 °C per Fig. 2(2) Mounted on 0.2 x 0.2" (5.0 x 5.0 mm) copper pads to each terminalSYMBOL VALUE UNIT Peak pulse power dissipation with a 10/1000 µs P PPM 800W Peak pulse current with a 10/1000 µs waveform (1)I PPM See next table APeak forward surge current 8.3 ms single half sine-wave uni-directional only (2) I FSM 100A Operating junction and storage temperature rangeTJ , T STG- 55 to + 150°CFeaturesLow profile packageMaximum Ratings@ T A = 25°C unless otherwise specifiedSURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODECharacteristic!!!!!!Low incremental surge resistanceVery fast response timeExcellent clamping capability Available in uni-directional and bi-directional Glass passivated chip junctionIdeal for automated placement !Case:SMB, Transfer Molded Epoxy Terminals: Solderable per MIL-STD-202,Method 208Polarity Indicator: Cathode Band(Note: Bi-directional devices have no polarity indicator.)Weight:0.1 grams (approx.)Mechanical Data!!!! 1 of 21MR 1MQ 1MP 1MN1MM 1ML 1MK 1MH 1MG 1MF 1ME 1MD 1LZ 1LY 1LX 1LW 1LV 1LU 1LT 1LS 1LR 1LQ 1LP 1LN 1LM 1LL 1LK 1LH 1LG 1LF 1LE 1LD 1KZ 1KY 1KX 1KW 1KV 1KU 1KT 1KS 1KR 1KQ 1KP 1KN 1KM 1KL 1KK 1KH 1KG 1KF 1KE1KD SMB8J8.5ASMB8J40ASMB8J40SMB8J36ASMB8J36SMB8J33ASMB8J33SMB8J30ASMB8J30SMB8J28ASMB8J28SMB8J26ASMB8J26SMB8J24A SMB8J24SMB8J22ASMB8J22SMB8J20ASMB8J20SMB8J18ASMB8J18SMB8J17ASMB8J17SMB8J16ASMB8J16SMB8J15ASMB8J15SMB8J14ASMB8J14SMB8J13ASMB8J13SMB8J12ASMB8J12SMB8J11ASMB8J11SMB8J10ASMB8J10SMB8J9.0ASMB8J9.0SMB8J8.5SMB8J8.0ASMB8J8.0SMB8J7.5ASMB8J7.5SMB8J7.0ASMB8J7.0SMB8J6.5ASMB8J6.5SMB8J6.0ASMB8J6.0SMB8J5.0A SMB8J5.0Notes:(1)Pulse test: t p ≤ 50 ms(2)Surge current waveform per Fig. 3 and derate per Fig. 2(3)All terms and symbols are consistent with ANSI/IEEE C62.35ELECTRICAL CHARACTERISTICS (T A = 25°C unless otherwise noted)DEVICE TYPEDEVICE MARKING CODEBREAKDOWN VOLTAGEV BR (1)(V)TESTCURRENT AT I T (mA)STAND-OFF VOLTAGE V WM(V)MAXIMUM REVERSE LEAKAGE AT V WM I D (µA) (3)MAXIMUM PEAK PULSE SURGE CURRENT I PPM (A) (2)MAXIMUM CLAMPING VOLTAGE ATI PPM V C (V)MIN.MAX.6.407.82 10 5.0 2000 83.3 9.6 6.40 7.25 10 5.0 2000 87.0 9.2 6.678.15 10 6.0 2000 70.2 11.4 6.67 7.37 10 6.0 2000 77.7 10.3 7.22 8.82 10 6.5 1000 65.0 12.3 7.22 7.98 10 6.5 1000 71.4 11.2 44.4 49.1 1.0 40 1.0 12.4 64.544.4 54.3 1.0 40 1.0 11.2 71.440.0 44.2 1.0 36 1.0 13.8 58.1 40.0 48.9 1.0 36 1.0 12.4 64.3 36.7 40.6 1.0 33 1.0 15.0 53.3 36.7 44.9 1.0 33 1.0 13.6 59.0 33.3 36.8 1.0 30 1.0 16.5 48.4 33.3 40.7 1.0 30 1.0 15.0 53.5 31.1 34.4 1.0 28 1.0 17.6 45.4 31.1 38.0 1.0 28 1.0 16.0 50.0 28.9 31.9 1.0 26 1.0 19.0 42.1 28.9 35.3 1.0 26 1.0 17.2 46.6 26.7 29.5 1.0 24 1.0 20.6 38.9 26.7 32.6 1.0 24 1.0 18.6 43.0 24.4 26.9 1.0 22 1.0 22.5 35.5 24.4 29.8 1.0 22 1.0 20.3 39.4 8.89 9.83 1.0 8.0 100 58.8 13.6 7.78 9.51 10 7.0 400 60.2 13.3 7.78 8.60 10 7.0 400 66.7 12.0 17.8 21.8 1.0 16 1.0 27.8 28.8 8.33 10.2 1.0 7.5 200 55.9 14.3 9.44 11.5 1.0 8.5 40 50.3 15.9 8.89 10.9 1.0 8.0 100 53.3 15.0 8.33 9.21 1.0 7.5 200 62.0 12.9 9.44 10.4 1.0 8.5 40 55.6 14.4 10.0 12.2 1.0 9.0 20 47.3 16.9 11.1 13.6 1.0 10 10 42.6 18.8 11.1 12.3 1.0 10 10 47.1 17.0 10.0 11.1 1.0 9.0 20 51.9 15.4 12.2 14.9 1.0 11 5.0 39.8 20.1 12.2 13.5 1.0 11 5.0 44.0 18.2 13.3 16.3 1.0 12 5.0 36.4 22.0 14.4 17.6 1.0 13 1.0 33.6 23.8 14.4 15.9 1.0 13 1.0 37.2 21.5 13.3 14.7 1.0 12 5.0 40.2 19.9 15.6 19.1 1.0 14 1.0 31.0 25.8 15.6 17.2 1.0 14 1.0 34.5 23.2 16.7 20.4 1.0 15 1.0 29.7 26.9 16.7 18.5 1.0 15 1.0 32.8 24.4 18.9 23.1 1.0 17 1.0 26.2 30.518.9 20.9 1.0 17 1.0 29.0 27.6 22.2 27.1 1.0 20 1.035.8 22.3 20.0 22.1 1.0 18 1.0 27.4 29.2 22.2 24.5 1.0 20 1.0 24.7 32.4 20.0 24.4 1.0 18 1.0 24.8 32.2 17.8 19.7 1.0 16 1.0 30.8 26.0 SMB8J5.0C SMB8J5.0CA SMB8J6.0C SMB8J6.0CA SMB8J6.5C SMB8J6.5CA SMB8J40CA SMB8J40C SMB8J36CA SMB8J36C SMB8J33CA SMB8J33C SMB8J30CA SMB8J30C SMB8J28CA SMB8J28C SMB8J26CA SMB8J26C SMB8J24CA SMB8J24C SMB8J22CA SMB8J22C SMB8J8.0CA SMB8J7.0C SMB8J7.0CA SMB8J16C SMB8J7.5C SMB8J8.5C SMB8J8.0C SMB8J7.5CA SMB8J8.5CA SMB8J9.0C SMB8J10C SMB8J10CA SMB8J9.0CA SMB8J11C SMB8J11CA SMB8J12C SMB8J13C SMB8J13CA SMB8J12CA SMB8J14C SMB8J14CA SMB8J15C SMB8J15CA SMB8J17C SMB8J17CA SMB8J20C SMB8J18CA SMB8J20CA SMB8J18C SMB8J16CA 1AD 1AE 1AG 1AK 1CR 1CP 1CN 1CH 1CE 1AR 1AM 1AN 1AS 1AT 1AU 1AY 1AZ 1BD 1BF 1BG 1BE 1BH 1BL 1BM 1BQ 1BR 1BT 1BV 1BS 1AL 1AV 1AX 1CQ 1CM 1CL 1CK 1CG 1CF 1CD 1BZ1BY 1BX 1BW 1BU 1BP 1BK 1AW 1AQ 1AP 1AH 1AF 1BN 2 of 2.SMB8J12C。

TVS（瞬变抑制）二极管参数与选型TVS管的英文名是TRANSIENT VOLTAGE SUPPRESSOR，中文名叫瞬变抑制二极管。

它在承受瞬间高能量脉冲时，能在极短的内由原来的高阻抗状态变为低阻抗，并把电压箝制到特定的水平，从而有效的保护用户的设备和元器件不受损坏。

由于其具有箝位电压低、动作时间快等特点；因此比较适合于多级保护电路的末级保护。

此外也能和其它保护元件配合使用，组成专用的防雷装置。

目录TVS的参数特性TVS的应用TVS和其它浪涌保护元件的区别TVS的选用方法TVS管TVS的参数特性１.TVS特性TVS管是典型的PN结雪崩器件，和普通稳压管的击穿特性差不多。

但这条曲线只反映了TVS特性的一个部分，还必须补充下图所示的特性曲线，才能反映TVS的全部特性。

这是在双踪示波器上观察到的TVS管承受大电流冲击时的电流及电压波形。

图中曲线1是TVS管中的电流波形，它表示流过TVS管的电流由1mA突然上升到峰值，然后按指数规律下降，造成这种电流冲击的原因可能是雷击、过压等。

曲线2是TVS管两端电压的波形，它表示TVS中的电流突然上升时，TVS两端电压也随之上升，但最大只上升到VC值，这个值比击穿电压VBR略大，从而对后面的电路元件起到保护作用。

TVS在电路中和稳压管一样，是反向使用的。

2.参数说明A.击穿电压（VBR）：TVS在此时阻抗骤然降低，处于雪崩击穿状态。

B.测试电流（IT）：TVS的击穿电压VBR在此电流下测量而得。

一般情况下IT 取１mA。

C.反向变位电压（VRWM）：TVS的最大额定直流工作电压,当TVS两端电压继续上升，TVS将处于高阻状态。

此参数也可被认为是所保护电路的工作电压。

D.最大反向漏电流（IR）：在工作电压下测得的流过TVS的最大电流。

E.最大峰值脉冲电流（IPP）：TVS允许流过的最大浪涌电流，它反映了TVS的浪涌抑制能力。

F.最大箝位电压（VC）：当TVS管承受瞬态高能量冲击时，管子中流过大电流，峰值为IPP，端电压由VRWM值上升到VC值就不再上升了，从而实现了保护作用。

MMF5.0A(CA) - MMF170A(CA)VOLTAGE RANGE: 5.0 - 17 0VPOWER: 200Wa t SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODE( cathode ) except for bidirectional MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified.SymbolValueUnitMaximum P PK Dissipation (PW - 10/1000 μs)200W Maximum P PK Dissipation @ Ta = 25 °C (PW - 8/10 μs) (Note 2)P PK 1000W DC Power Dissipation @ Ta = 25 °C (Note 3)P D385mW Derate above 25 °C4.0mW/°C Thermal Resistance, Junction to Ambient (Note 3) R ӨJA 325°C/W Thermal Resistance, Junction to Lead (Note 3) R ӨJL 26°C/W Operating Junction and Storage Temperature RangeT J , T STG-55 to +150°CNotes :(1) Non −repetitive current pulse at Ta = 25°C, per waveform of Fig. 2.(2) Non −repetitive current pulse at Ta = 25°C, per waveform of Fig. 5.(3) Mounted with recommended minimum pad size, DC board FR −4.P PK For surface mounted applications Low profile packageclamping capabilityMounting position: Any cycle):0.01% Polarity: Color band denotes positive end High temperature soldering guaranteed: 260℃/10 seconds, at terminals200W peak pulse power capability with a 10/1000µFeaturesMechanical DataCase: JEDEC SOD-123FL, molded plasticover passivated chipLow incremental surge resistance,excellent swave from,repetition rate (duty !!!!!!!!SOD-123FLDimensions in millimetersWeight: 0.006 ounces, 0.02 gram!MMF58CA MMF54CAMMF51CA MMF64CA MMF60CA MMF70CA MMF75CA MMF78CA MMF85CA MMF90CAMMF100CA MMF110CA MMF120CA MMF130CA MMF150CA MMF160CA MMF170CAMMF170A MMF160A MMF150A MMF130A MMF120A MMF110A MMF100A MMF90AMMF85A MMF78A MMF75A MMF70A MMF64A MMF60A MMF58A MMF54A MMF51A MMF48CAMMF48A MMF45CA MMF45A MMF43CA MMF43A MMF40CAMMF40AMMF36CA MMF36A MMF33CA MMF33A MMF30CA MMF30A MMF28CA MMF28A MMF26CA MMF26A MMF24CA MMF24A MMF22CA MMF22A MMF20CA MMF20A MMF18CA MMF18A MMF17CA MMF17A MMF16CA MMF16A MMF15CA MMF15A MMF14CA MMF14A MMF13CA MMF13A MMF12CA MMF12A MMF11CA MMF11A MMF10CA MMF10A MMF9.0CA MMF9.0A MMF8.5CA MMF8.5A MMF8.0CA MMF8.0A MMF7.5CA MMF7.5A MMF7.0CA MMF7.0A MMF6.5CA MMF6.5A MMF6.0CA MMF6.0A MMF5.0CA MMF5.0A (V)Min Nom Max.(mA)(μA)CurrentLeakage Reverse Max. ReverseMax. Clamping Max. Reverse Test 170189199.00209 1.0 160178187.50197 1.0150167176.00185 1.0130144151.50159 1.0120133140.00147 1.0PR PP PM PK PG PE 110122128.50135 1.010*******.00123 1.0NZ 1617.818.7519.7 1.0(Uni)7.07.788.208.6010KM Working PeakCurrentVoltage at I PP Peak Pulse Voltage(1)Current (3)V RWM I TI R @ V RWM V C I PP(V)(mA)KE 4009.221.7KG 6.0 6.677.027.371040010.319.4KK 6.57.227.607.981025011.217.910012.016.7KP 7.58.338.779.21 1.05012.915.5KR 8.08.899.369.83 1.02513.614.7KT 8.59.449.9210.4 1.01014.413.9KV 9.010.010.5511.1 1.0 5.015.413.0KX 1011.111.7012.3 1.0 2.517.011.8KZ 1112.212.8513.5 1.0 2.518.211.0LE 1213.314.0014.7 1.0 2.519.910.1LG 1314.415.1515.9 1.0 1.021.59.3LK 1415.616.4017.2 1.0 1.023.28.6LM 1516.717.6018.5 1.0 1.024.48.2LP 1.026.07.7LR 1718.919.9020.9 1.0 1.027.67.2LT 1820.021.0022.1 1.0 1.029.2 6.8LV 2022.223.3524.5 1.0 1.032.4 6.2LX 2224.425.6026.9 1.0 1.035.5 5.6LZ 2426.728.1029.5 1.0 1.038.9 5.1ME 2628.930.4031.9 1.0 1.042.1 4..8MG 2831.132.8034.4 1.0 1.045.4 4.4MK 3033.335.1036.8 1.0 1.048.4 4.1MM 3336.738.7040.6 1.0 1.053.3 3.8MP 3640.042.1044.2 1.0 1.058.1 3.4MR 4044.446.8049.1 1.0 1.064.5 3.1MT 4347.850.3052.8 1.0 1.069.4 2.9MV 4550.052.6555.3 1.0 1.072.7 2.8MX 4853.356.1058.9 1.0 1.077.4 2.6MZ 5156.759.7062.7 1.0 1.082.4 2.4NE 5460.063.1566.3 1.0 1.087.1 2.3NG 5864.467.8071.2 1.0 1.093.6 2.1NK 6066.770.2073.7 1.0 1.096.8 1.8NM 6471.174.8578.6 1.0 1.0103 1.7NP 7077.881.9086.0 1.0 1.0113 1.5NR 7583.387.7092.1 1.0 1.0121 1.4NT 7886.791.2595.8 1.0 1.0126 1.4NV 8594.499.20104 1.0 1.0137 1.3NX 90100105.50111 1.0 1.0146 1.21.0162 1.11.0177 1.01.01930.91.02090.81.02430.71.02590.71.02750.6V BR @ I T Breakdown Voltage @ I T Marking (Bi)FM XZTETGTKTMTPTR JR XG XP XB F EXXXT XR XM XK XE JZ JX JV JT JP JM JK JG JE HZ HX HV HT HR HP HM HK HG HE FZ FX FV FT FR FK FG FP TYPE(Uni)(Bi)5.06.40 6.707.0010RATING AND CHARACTERISTIC CURVES ( MMF5.0A - MMF170A )FIG.1 - PULSE DERATING CURVE FIG.2 - 10 x 1000 μs PULSE WAVEFORMTa, AMBIENT TEMPERATURE, ( °C)t, TIME (ms)FIG.3 - STEADY STATE POWER DERATING FIG.4 - PULSE RATING CURVEFIG.5 - 8 x 20 μs PULSE WAVEFORM FIG. 6 - CAPACITANCE VS. WORKING PEAKREVERSE VOLTAGE1000100101110100200C,CAPACITANCE(pF)WORKING PEAK REVERSE VOLTAGE (V) 806040201204.01000010001.03.0102.0100tp, PULSE WIDTHVALUE(%)PEAKPULSEDERATINGIN%OFPEAKPOWERORCURRENTPp,PEAKPOWER(W)1251502550751001751.0msT L, LEAD TEMPERATURE (°C)PD,STEADYSTATEPOWERDISSIPATION(W)t, TIME (μs)%OFPEAKPULSECURRENT。
