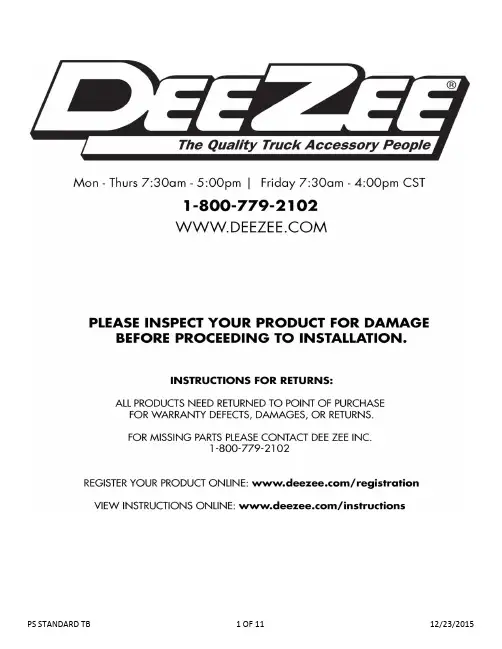

Tool BoxesFor an electronic version of these instructions visit: /instructionsRegister your product online: /registrationThank you for choosing Dee Zee to add function and accessorize your vehicle. Dee Zee has been a staple brand in the truck accessory market since 1977 and we hold a reputation of quality manufacturingbased in America’s Heartland. Our products are born through careful engineering and backed by industryleading warranty programs. We appreciate the opportunity to serve you and your vehicle!Review the instruction pages in their entirety to prepare the required toolsWarning: The included J-Bolts must be used during installation to secure the crossover tool box to the truck bed. Do NOT use self-tapping screws on crossover tool boxes. Self-tapping screws can be used only on chest style tool boxes being installed to the truck bed. Premium J-Bolts for crossover tool boxes are available online at that have more surface area and molded to your truck bed rails. Tie downs designed specifically for Ford aluminum body trucks also are available.The tool box warranty is void if one of these securing methods is not used.Note: Dee Zee tool boxes are NOT air tight. An air-tight seal allows condensation to form inside of the box, causing the contents to be susceptible to mold or rust. Dee Zee boxes feature various bulb seals and foam gaskets on the lid to help resist weather elements. Should the weather stripping become damaged, please contact our customer service for replacement options at: 1-800-779-2102Tool box locks are provided as a theft deterrent and they should always be engaged to prevent easy access to the contents of your tool box when not in use. Contents stored in the tool box are the responsibility of the user and Dee Zee disclaims responsibility of theft. Dee Zee does not insure any loss of contents.Cleaning : To be entitled to all warranty rights offered with the product, Dee Zee tool boxes need to be cleaned regularly with a mild detergent. Do NOT use abrasive cleaners. For stainless steel products, the application of ahigh grade automotive wax is recommended.Note:Please take time to read all of the instruction before beginningthis installation.Note:Unless you are using a Dee Zee premium tool box mountingkit, use J-bolt provided or the WARRANTY IS VOID.DO NOT USE self tapping screws to mount.the criteria of manufacturing a custom-fit product which guarantees it tobe the easiest product to install.Dee Zee Toolbox Installation InstructionsCongratulations on your purchase of a quality Dee Zee product. Dee Zee is recognized as having the highest quality running boards and accessories on the market today. We have earned this reputation by offering our customers a product they can be proud to place on their vehicles. Dee Zee meets allNOTE: NOT ALL TOOL BOX MODELSAlthough a single lid tool box is pictured,COME WITH A TRAY.this instruction works for all cross over boxes.VARIES X1TBTRAY-18A X1 PN 549X2PN 90X2PN 113X2PN 89X2 PN 550X2FGT 12X2WRENCH/RATCHET9/16"TAPEMEASURE13/32" DRILL BIT TOOLS REQUIRED3/8" LOCK WASHER G HVINYL CAP GASKETC D FJ-BOLTTOOL BOX TRAY (OPTIONAL) A BDee Zee Brite Tread Tool Box Installation Instruction3/8" NUT3/8" WASHERETO INSTALL TOOL BOX IN TRUCK BED:Peal the backing covering the adhesive on the gasket [H].Apply the gasket to the underside of the tool box.Place the tool box in the truck and center it on the vehicle. Use a tape measure to check center.Open the lid to make sure there is sufficient clearance for the cab.12Once the tool box is centered, mark and drill the mounting hole for the J-hook.The mounting hole should be near the center of the box, and near the lip of the truck bed railTOP VIEW OF TOOLBOX BODY IN TRUCK BEDNote:After you have marked the location to drill,slide the tool box towards the side you are not Drill a 13/32" hole on each end of the tool box.drilling to make sure Be sure to drill between the edge of the tool box and the bed rail.you don't hit the bedrailwith the drill bit.3HOLE FOR J-BOLT SHOULD BEIN THIS AREALIP OF TRUCK BED RAILUNDER TOOL BOXOnce the holes are drilled, attach the tool box using the J-bolt [C], 3/8" washer [E], 3/8" lock washer [F],and 3/8" nut [D]. Use a 9/16" deep well socket, or a 9/16" wrench to tighten.Once the tool box is secured, place the vinyl cap [G] on the exposed J-bolt threads.MAINTENANCE INSTRUCTIONS:All locks, latches, latching rods, and hinges should be lubricated periodically to assure smoothand proper operation for the life of the tool box.4TOOL BOX LATCH ADJUSTMENTNOTE: TOOL BOX LATCH WAS PRESET AT THE FACTORY. MAKE SURE THE LATCH IS ADJUSTED TO THAT OF YOUR DESIRED SEAL.ALSO, PERIODIC ADJUSTMENT MAY BE NEEDED OVER TIME.PLEASE REFER TO LATCH ADJUSTMENT INSTRUCTION BELOW.1)Keeping the striker plate perpendicular to the lid, adjust the striker location left and right toalign the pin with the latch as shown below. The dot identified by the arrow shows thepreferred location of the striker pin.2)When the striker pin is correctly centered, tighten top bolt to set the location.3)Set the pin depth to ensure that the head will clear the latch.4)Tighten the pin in the lowest location, and close the lid. If the lid is able to move up and downwhen latched, the latch pin needs adjusted. Adjust the pin up the approximate amount the lid is able to move and retighten. Repeat as necessary.。
电梯维修工具使用说明书一、前言电梯作为现代建筑中必不可少的交通工具之一，为了保证电梯的正常运行和安全性，需要定期进行维修和保养。
为此，我们特别研发了一套电梯维修工具，以便维修人员能够更加方便、高效地进行维修工作。
本使用说明书将详细介绍这些维修工具的使用方法和注意事项。
二、维修工具清单在开始使用维修工具之前，请确保已获得以下工具：1. 电梯维修钳：用于拧紧电梯连接件，确保电梯结构的牢固性。
2. 电梯检测仪：用于检测电梯内部电路和信号的正常运行情况。
3. 电梯维修工具包：包含各种螺丝刀、扳手等常用工具，用于维修电梯各个部件。
三、维修工具的使用方法1. 电梯维修钳的使用方法：（1）使用前，请检查维修钳的钳口是否完好，确保无损伤和松动。
（2）根据需要选择合适的钳口大小，并将钳口对齐螺栓或螺母。
（3）用力旋转维修钳，直到螺栓或螺母紧固到位。
（4）使用完毕后，清洁维修钳，并妥善保管。
2. 电梯检测仪的使用方法：（1）插入电梯检测仪的电源线，并将另一端插入电梯的控制主板插座。
（2）打开电梯检测仪的电源开关，并等待片刻，直到仪器自检完成。
（3）根据电梯故障代码手册，查找相应的故障代码，并根据指引检修故障。
（4）使用完毕后，关闭电梯检测仪的电源开关，并断开电源线。
3. 电梯维修工具包的使用方法：（1）根据维修需要，选择合适的工具。
（2）使用螺丝刀拆卸电梯面板上的螺丝，以便进一步进行维修作业。
（3）使用扳手松动或拧紧电梯各个部件，确保其正常运行。
（4）使用完毕后，请清洁并归位各个工具，并妥善保管。
四、维修注意事项1. 请勿将维修工具用于非指定的电梯维修工作，以免引起故障和安全事故。
2. 在使用维修工具前，请确保已经接受过相关的电梯维修培训，熟悉电梯的结构和工作原理。
3. 维修工作时，请注意切勿将手指或其他物体卡入电梯机械结构中，以免造成伤害。
4. 使用维修工具时，请注意工具的正确使用方法，确保安全操作。
5. 使用过程中如发现任何维修工具存在损坏或松动的情况，请立即停止使用，并及时更换或修理。
