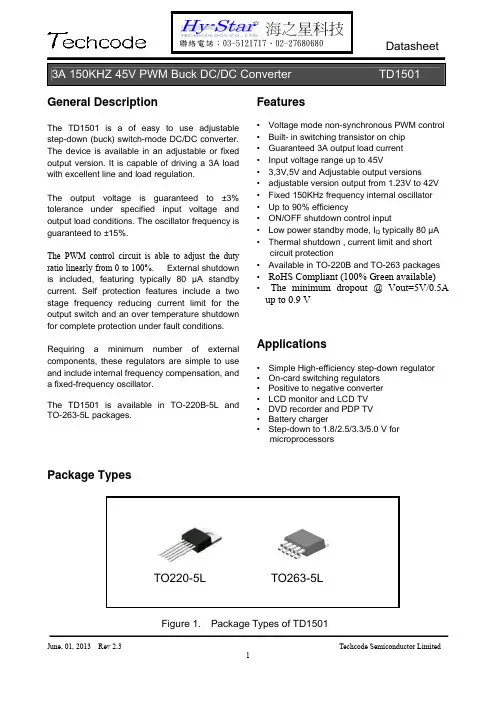

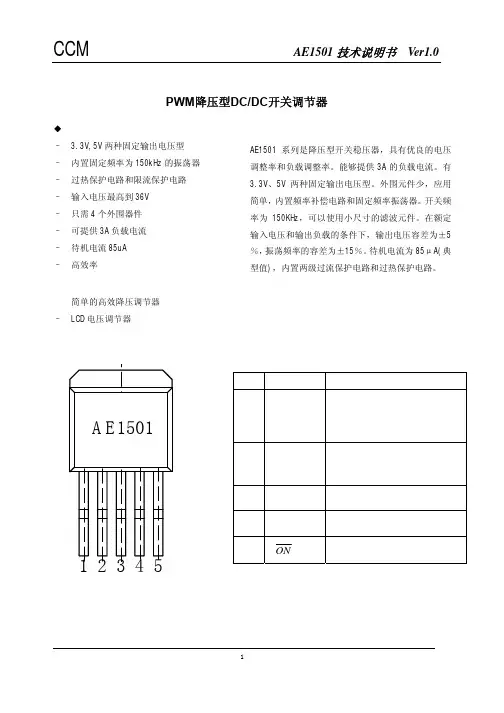

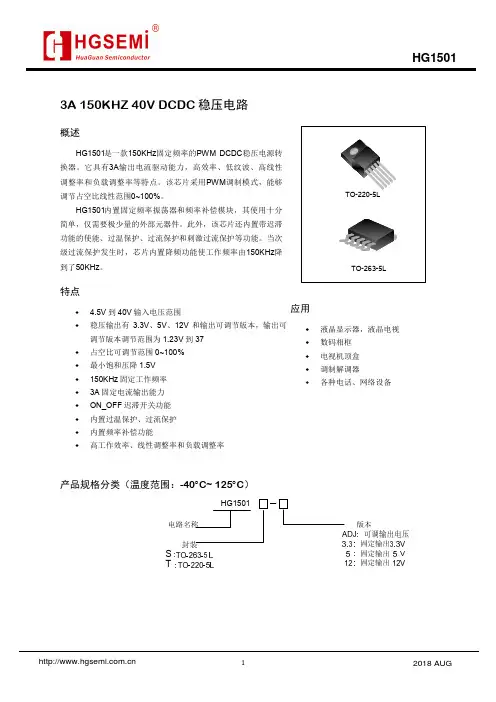

General DescriptionThe TD1501 is a of easy to use adjustable step-down (buck) switch-mode DC/DC converter. The device is available in an adjustable or fixed output version. It is capable of driving a 3A load with excellent line and load regulation.The output voltage is guaranteed to ±3% tolerance under specified input voltage and output load conditions. The oscillator frequency is guaranteed to ±15%.The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. External shutdown is included, featuring typically 80 µA standby current. Self protection features include a two stage frequency reducing current limit for the output switch and an over temperature shutdown for complete protection under fault conditions. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed-frequency oscillator.The TD1501 is available in TO-220B-5L and TO-263-5L packages. Features• Voltage mode non-synchronous PWM control • Built- in switching transistor on chip• Guaranteed 3A output load current• Input voltage range up to 45V• 3,3V,5V and Adjustable output versions• adjustable version output from 1.23V to 42V • Fixed 150KHz frequency internal oscillator• Up to 90% efficiency• ON/OFF shutdown control input• Low power standby mode, I Q typically 80 µA • Thermal shutdown , current limit and short circuit protection• Available in TO-220B and TO-263 packages • RoHS Compliant (100% Green available) • The minimum dropout @ Vout=5V/0.5A up to 0.9 VApplications• Simple High-efficiency step-down regulator• On-card switching regulators• Positive to negative converter• LCD monitor and LCD TV• DVD recorder and PDP TV• Battery charger• Step-down to 1.8/2.5/3.3/5.0 V formicroprocessorsPackage TypesTO220-5LJune, 01, 2013 Rev 2.3 Techcode Semiconductor LimitedPin AssignmentsPin DescriptionsOrdering InformationName DescriptionVin Input supply voltageOutput SwitchingoutputGnd GroundFeedbackOutput voltage feedbackinputON/OFFON/OFF shutdownActive is “Low” or Ground 5 ON/OFF4 Feedback3 Gnd2 Output1 VinGNDTAB ISGNDTO220-5LTO263-5LFunction DescriptionPin Functions+V INThis is the positive input supply for the IC switching regulator. A suitable input bypass capacitor must be present at this pin to minimize voltage transients and to supply the switching currents needed by the regulator.GNDCircuit ground.OutputInternal switch. The voltage at this pin switches between (+V IN – V SAT) and approximately – 0.5V, with a duty cycle of approximately V OUT / V IN. To minimize coupling to sensitive circuitry, the PC board copper area connected to this pin should be kept a minimum.FeedbackSenses the regulated output voltage to complete the feedback loop.ON/OFFAllows the switching regulator circuit to be shutdown using logic level signals thus dropping the total input supply current to approximately 80uA. Pulling this pin below a threshold voltage of approximately 1.3V turns the regulator on, and pulling this pin above 1.3V (up to a maximum of 32V) shuts the regulator down. If this shutdown feature is not needed, the ON /OFF pin can be wired to the ground pin , the regulator will be in the ON condition. The ON /OFF pin should not be left open .Functional Block DiagramFigure 2. Functional Block Diagram of TD1501Typical ApplicationFigure 3. Typical Application of TD1501Absolute Maximum RatingsUnitValueParameter SymbolInput Voltage V IN-0.3 to 45 VFeedback Pin Voltage V FB-0.3 to 40 VEnable Pin Voltage Von-off -0.3 to 40 VOutput Voltage to Ground (Steady State)e V OUT-1 V Power Dissipation P D Internally limited mWOperating Junction Temperature T J150 ºC Storage Temperature T STG-65 to 150 ºCLead Temperature (Soldering, 10 sec) T LEAD260 ºCESD (HBM) V ESD2000 VNote1: Stresses greater than those listed under Maximum Ratings may cause permanent damage tothe device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operation is not implied. Exposure to absolute maximumrating conditions for extended periods may affect reliability.Recommended Operating ConditionsUnitMax.Parameter SymbolMin.Input Voltage V IN 3.6 45 V Operating Junction Temperature T J -40 125 ºC Operating Ambient Temperature T A -40 85 ºCElectrical Characteristics (All Output Voltage Versions)Unless otherwise specified, VIN = 12V for 3.3V, 5V, adjustable version . I LOAD = 0.5A Ta = 25ºC.Symbol ParameterConditionsMin. Typ. Max. UnitV IN Input voltage 4.5 45 VI Q Quiescent current V FB =12V force driver off34mAOutput=0VNo outside circuitV FB =12V force driver off50 uAI LOutput=-1VOutputleakage currentV IN =40V 2 30 mAI STBYStandby quiescentcurrentON/OFF pin=5V, V IN =32V80 200uAFosc Oscillator Frequency 125 150 170 KHz FSCPOscillator Frequency of Short Circuit ProtectWhen current limit occurred and VFB < 0.5V, Ta = 25℃ 10 30 50 KHz V SAT Saturation voltageI OUT =3ANo outside circuitV FB = 0V force driver on 1.16 1.4 V Max. Duty Cycle (ON)V FB = 0V force driver on 100 DCMin. Duty Cycle (OFF) V FB =12V force driver off% V FBFeedback Voltage V IN = 4.5V to 45 V1.21 1.235 1.26VI FB Feedback bias current V FB =1.3V(Adjustable version only)10 50 nAI CL Current LimitPeak Current (V FB =0V) 3.8 5.5 A V IL Low (Regulator ON) 1.30.6V V IH ON/OFF pin logic inputThreshold voltage High (Regulator OFF)2.01.3VI H ON/OFF pin logic input currentV LOGIC =2.5V(OFF)-0.01 uA I L ON/OFF pin input currentV LOGIC =0.5V(ON) -0.1 uA θJC Thermal ResistanceTO220B-5LTO263-5L Junction toCase2.53.5OC/W θJA Thermal Resistance with a copper area of approximately 3 in 2TO220B-5L TO263-5LJunction to Ambient2823OC/WElectrical Characteristics ( Continued )Specifications with boldface type are for full operationg temperature range, the other type are for T J=25O C.Typical Performance CharacteristicsFigure 4. Efficiency vs. Load (Vin=12V)Figure 5. Output Voltage vs. TemperatureFigure 6. Output Saturation Characteristics Figure 7. Switching Frequency vs. TemperatureFigure 9. ON/OFF Pin Voltage Figure 10. ON/OFF Pin Sink CurrentFigure 8. Quiescent Current vs. TemperatureFigure 11. Output Saturation CharacteristicsTypical Application Circuit (3.3V Fixed Output Voltage Version)Output ComponentInput Voltage Inductor(L1)Through HoleElectrolytic(Cout)Surface MountTantalum(Cout)Schottky Diode(D1)4.5V ~ 18V 47uh 470uf/25V 330uf/6.3V 18V ~ 45V 68uh 560uf/25V 330uf/6.3V ref. Table 5Figure 11. Typical Application of TD1501 For 3.3VTable 1. TD1501 Series Buck Regulator Design Procedure For 3.3VTypical Application Circuit (5V Fixed Output Voltage Version)Output ComponentInput Voltage Inductor(L1)Through HoleElectrolytic(Cout)Surface MountTantalum(Cout)Schottky Diode(D1)7V ~ 18V 33uh 330uf/25V 220uf/10V 18V ~ 45V 47uh 470uf/25V 330uf/10V ref. Table 5Figure 12. Typical Application of TD1501 For 5VTable 2. TD1501 Series Buck Regulator Design Procedure For 5VTypical Application Circuit (Adjustable Output Voltage Version)Vout R1 R2 Cf (Optional)3.3V 1.6K 2.7K33nf 5V 3.6K 11K 10nf 9V 6.8K43K 1.5nf 12V 1.5K 13K1nfOutput ComponentOutputVoltage Input Voltage Inductor (L1)Through Hole Electrolytic (Cout) Schottky Diode( D1 )4.5V ~ 18V 47uh 470uf/25V 3.3V 18V ~45V 68uh 560uf/25V 7V ~ 18V 33uh 330uf/25V 5V 18V ~45V 47uh 470uf/25V 12V ~18V 47uh 330uf/25V 9V 18V ~45V 47uh 470uf/25V 15V ~ 18V 47uh 220uf/25V 12V18V ~45V47uh330uf/25Vref. Table 5Figure 13. Typical Application of TD1501 For ADJ Table 3. Vout VS. R1, R2, Cf Select Table Table 4. Typical Application Buck Regulator Design ProcedureSchottky Rectifier Selection GuideVin2A Load Current 3A Load Current(Max) Part Number Package Vendor Part Number Package Vendor B220/A SMB/SMA 1 B320/B/ASMC/B/A 1 SS22 SMA 2,3 SS32 SMC 2,320 V- - - MBRS320 SMC 4- - - SK32 SMC 6- - - IN5820 D0-201AD 6 B230/A SMB 1 B330/B/ASMC/B/A 1 SS23 SMB 2,3 SS33 SMC 2,330 V20BQ030 SMB 4 MBRS330SMC 4,5 MBRS230 SMB 5 SK33 SMC 3,6SK23 SMB 6 IN5821 D0-201AD 2,6B240/A SMB/SMA 1 B340/B/ASMC/B/A 1 SS24 SMB 2,3,5 SS34 SMC 2,3MBRS240 SMB 5 30BQ040SMC 440 V- - - MBRS340TRSMC 4,5- - - SK34 SMC 6- - - IN5822 DC-201AD 6 B250/A SMB/SMA 1 B350/B/ASMC/B/A 1 SS25 SMB 2,3 SS35 SMC 2,350 VSK23 SMB 6 MBRS330SMC 4,5- - - SK35 SMC 3,64A Load Current 5A Load CurrentVin(Max) Part Number Package Vendor Part Number Package Vendor SL42 SMC 2,3 B520C SMC 1- - - SR502 D0-201AD 120 V- - - SB520 D0-201AD 2- - - IN5823 D0-201AD 6 SL43 SMC 2,3 B530C SMC 1- - - SR503 D0-201AD 130 V- - - SB530 D0-201AD 2,- - - SSC53L SMC 3- - - IN5824 D0-201AD 6 SL44 SMC 2,3,5 B540C SMC 1- - - SR504 D0-201AD 1- - - SB540 DC-201AD 240 V- - - SSC54 SMC 3- - - MBRS540T3 SMC 5- - - IN5825 DC-201AD 6- - - B550C SMC 150 V- - - SB550 DC-201AD 2- - - - - -Table 5 Lists some rectifier manufacturers.No. Vendor WebSiteInc. 1 Diodes,2 FairchildSemiconductor Semiconductor 3 GeneralRectifier 4 International5 OnSemiconductor 6 Pan Jit International Table 6 Schottky Diode manufacturers.Application Hints and Layout GuidelinesHeat Sink / Thermal ConsiderationsThe TD1501 is available in two packages, a 5-pin TO-220B/TO220 and a 5-pin surface mount TO-263. The TO-220B/TO220 package needs a heat sink under most conditions. The size of the heatsink depends on the input voltage, the output voltage, the load current and the ambient temperature. The TD1501 junction temperature rises above ambient temperature for a 3A load and different input and output voltages. The data for these curves was taken with the TD1501 (TO-220B/TO220 package) operating as a buck switching regulator in an ambient temperature of 25o C (still air). These temperature rise numbers are all approximate and there are many factors that can affect these temperatures. Higher ambient temperatures require more heat sinking.The TO-263 surface mount package tab is designed to be soldered to the copper on a printed circuit board. The copper and the board are the heat sink for this package and the other heat producing components, such as the catch diode and inductor. The PC board copper area that the package is soldered to should be at least 0.4 in2, and ideally should have 2 or more square inches of 2 oz. Additional copper area improves the thermal characteristics, but with copper areas greater than approximately 6 in2, only small improvements in heat dissipation are realized. If further thermal improvements are needed, double sided, multilayer PC board with large copper areas and/or airflow are recommended.The TD1501 (TO-263 package) junction temperature rise above ambient temperature with a 3A load for various input and output voltages. This data was taken with the circuit operating as a buck switching regulator with all components mounted on a PC board to simulate the junction temperature under actual operating conditions. This curve can be used for a quick check for the approximate junction temperature for various conditions, but be aware that there are many factors that can affect the junction temperature. When load currents higher than 3A are used, double sided or multilayer PC boards with large copper areas and/or airflow might be needed, especially for high ambient temperatures and high output voltages.For the best thermal performance, wide copper traces and generous amounts of printed circuit board copper should be used in the board layout. (Once exception to this is the output (switch) pin, which should not have large areas of copper.) Large areas of copper provide the best transfer of heat (lower thermal resistance) to the surrounding air, and moving air lowers the thermal resistance even further. Output Voltage Ripple and TransientsThe output voltage of a switching power supply will contain a sawtooth ripple voltage at the switcher frequency, typically about 1% of the output voltage, and may also contain short voltage spikes at the peaks of the sawtooth waveform.The output ripple voltage is due mainly to the inductor sawtooth ripple current multiplied by the ESR of the output capacitor.The voltage spikes are present because of the fast switching action of the output switch, and the parasitic inductance of the output filter capacitor, To minimize these voltage spikes, special low inductance capacitors can be used, and their lead lengths must be kept short. Wiring inductance, stray capacitance, as well as the scope probe used to evaluate these transients, all contribute to the amplitude of these spikes.A large value inductor will also result in lower output ripple voltage , but will have a larger physical size,higher series reistance,and/or lower saturation current. An additional small LC filter can be added to the output (as shown in Figure 14) to further reduce the amount of output ripple and transients.Layout GuidelinesAs in any switching regulator, layout is very important. Rapidly switching currents associated with wiring inductance can generate voltage transients which can cause problems. For minimal inductance and ground loops, the wires indicated by heavy lines should be wide printed circuit traces and should be kept as short as possible. For best results, external components should be located as close to the switcher IC as possible using ground plane construction or single point grounding.If open core inductors are used, special care must be taken as to the location and positioning of this type of inductor. Allowing the inductor flux to intersect sensitive feedback, IC groundpath and C OUT wiring can cause problems.When using the adjustable version, special care must be taken as to the location of the feedback resistors and the associated wiring. Physically locate both resistors near the IC, and route the wiring away form the inductor especially an open core type of inductor.Figure 14, Layout Guidelines and Post Ripple FilterTDxxxxxTDxxxxxPackage Information (TO220B-5L)Dimensions In Millimeters Dimensions In Inches SymbolMin. Max. Min. Max.A 0.44 0.47 0.175 0.185b 0.07 0.09 0.027 0.037D 0.84 0.89 0.330 0.350d1 0.10 0.039d2 0.63 0.248E 9.91 10.41 0.390 0.410e 0.16 0.18 0.062 0.072F 0.12 0.13 0.048 0.052H1 0.64 0.250H2 2.08 2.24 0.820 0.880H3 2.39 2.55 0.942 1.002J1 0.27 0.105J2 0.37 0.53 0.147 0.207J3 0.84 0.331Q 0.25 0.30 0.100 0.120Package Information (TO220-5L)Package Information (TO263-5L)Dimensions In Millimeters Dimensions In Inches SymbolMin. Max. Min. Max.A 4.45 4.7 0.175 0.185B 0.71 0.97 0.028 0.038C 0.38 0.76 0.015 0.030C2 1.22 1.32 0.048 0.052D 8.38 8.89 0.330 0.350E 9.91 10.16 0.390 0.410e 1.57 1.85 0.062 0.070F 6.61 7.11 0.260 0.280L - 14.35 - 0.565L2 - 1.27 - 0.050Packing InformationTO263-5L Carrier Tape Outline DimensionsCarrier Tape, Number of Components Per Reel and Reel SizePackage Carrier Width (W) Pitch (P) Part Per Full Reel Reel Size TO263-5L 24.0 ± 0.1mm 4.0 ± 0.1mm 800 PCS 330 ± 2mm。

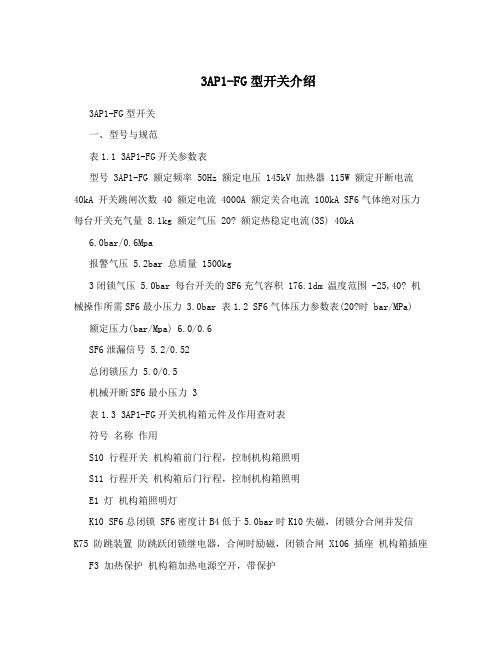

3AP1-FG型开关介绍3AP1-FG型开关一、型号与规范表1.1 3AP1-FG开关参数表型号 3AP1-FG 额定频率 50Hz 额定电压 145kV 加热器 115W 额定开断电流40kA 开关跳闸次数 40 额定电流 4000A 额定关合电流 100kA SF6气体绝对压力每台开关充气量 8.1kg 额定气压 20? 额定热稳定电流(3S) 40kA6.0bar/0.6Mpa报警气压 5.2bar 总质量 1500kg3闭锁气压 5.0bar 每台开关的SF6充气容积 176.1dm 温度范围 -25,40? 机械操作所需SF6最小压力 3.0bar 表1.2 SF6气体压力参数表(20?时 bar/MPa) 额定压力(bar/Mpa) 6.0/0.6SF6泄漏信号 5.2/0.52总闭锁压力 5.0/0.5机械开断SF6最小压力 3表1.3 3AP1-FG开关机构箱元件及作用查对表符号名称作用S10 行程开关机构箱前门行程，控制机构箱照明S11 行程开关机构箱后门行程，控制机构箱照明E1 灯机构箱照明灯K10 SF6总闭锁 SF6密度计B4低于5.0bar时K10失磁，闭锁分合闸并发信K75 防跳装置防跳跃闭锁继电器，合闸时励磁，闭锁合闸 X106 插座机构箱插座F3 加热保护机构箱加热电源空开，带保护F1 马达保护机构箱储能电机电源空开，带保护S8 远程,控制机构箱远方就地操作切换开关Y1 合闸线圈机构箱后门，装合闸顶钮，直接顶合闸脱扣合闸 Y3 分闸线圈机构箱后门，装分闸顶钮1，直接顶分闸脱扣1分闸 Y4 分闸线圈机构箱后门，装分闸顶钮2，直接顶分闸脱扣2分闸 M1 马达机构箱储能电机S9 现场合闸机构箱前门合闸按钮，现场电气回路合闸 S3 现场分闸机构箱前门分闸按钮，现场电气回路分闸 F2 插座和灯保护机构箱插座和灯电源空开，带保护B4 SF6密度计 SF6密度计，检测气体压力并报警、闭锁 P1 计数器开关操作计数器，合闸一次计一次二、3AP1-FG型开关工作特点1. 3AP1型开关是一种采用SF6气体作为绝缘和灭弧介质的自能气吹式户外式高压开关，三相设计,三相共用一套弹簧操作机构，适用于三相自动重合闸。

常用电源7805正5V稳压器(1A)7806正6V稳压器(1A)7808正8V稳压器(1A)7809正9V稳压议(1A)7812正12V稳压器(1A)7815正15V稳压器(1A)7818正18V稳压器(1A)7824正24V稳压器(1A)78L05正5V稳压器(100mA)78L06正6V稳压器(100mA)78L08正8V稳压器(100mA)78L09正9V稳压器(100mA)78L12正12V稳压器(100mA)78L15正15V稳压器(100mA)78L18正18V稳压器(100mA)78L24正24V稳压器(100mA)7905负5V稳压器(1A)7906负6V稳压器(1A)7908负8V稳压器(1A)7909负9V稳压器(1A)7912负12V稳压器(1A)7915负15V稳压器(1A)7918负18V稳压器(1A)7924负24V稳压器(1A)79L05负5V稳压器(100mA)79L06负6V稳压器(100mA)79L08负8V稳压器(100mA)79L09负9V稳压器(100mA)79L12负12V稳压器(100mA)79L15负15V稳压器(100mA)79L18负18V稳压器(100mA)79L24负24V稳压器(100mA)LM105高精度可调4.5V~40V稳压器LM117K 1.2V~37V三端正可调稳压器(1.5A) LM123K5V稳压器(3A)LM133K三端可调-1.2V~-37V稳压器(3.0A) LM138K三端正可调1.2V~32V稳压器(5A)LM150K三端可调1.2V~32V稳压器(3A)LM1575HVT-1212V简易开关电源稳压器(1A)LM1575HVT-1515V简易开关电源稳压器(1A)LM1575HVT-3.3 3.3V简易开关电源稳压器(1A)LM1575HVT-5.05V简易开关电源稳压器(1A)LM1575HVT-ADJ简易开关电源稳压器(1A可调1.23~37) LM1575T-1212V简易开关电源稳压器(1A)LM1575T-1515V简易开关电源稳压器(1A)LM1575T-3.3 3.3V简易开关电源稳压器(1A)LM1575T-5.05V简易开关电源稳压器(1A)LM1575T-ADJ简易开关电源稳压器(1A可调1.23~37) LM2575HVT-1212V简易开关电源稳压器(1A)LM2575HVT-1515V简易开关电源稳压器(1A)LM2575HVT-3.3 3.3V简易开关电源稳压器(1A)LM2575HVT-5.05V简易开关电源稳压器(1A)LM2575HVT-ADJ简易开关电源稳压器(1A可调1.23~37) LM2575T-1212V简易开关电源稳压器(1A)LM2575T-1515V简易开关电源稳压器(1A)LM2575T-3.3 3.3V简易开关电源稳压器(1A)LM2575T-5.05V简易开关电源稳压器(1A)LM2575T-ADJ简易开关电源稳压器(1A可调1.23~37) LM2576HVT-1212V简易开关电源稳压器(3A)LM2576HVT-1515V简易开关电源稳压器(3A)LM2576HVT-3.3 3.3V简易开关电源稳压器(3A)LM2576HVT-5.0 5.0V简易开关电源稳压器(3A)LM2576HVT-ADJ简易开关电源稳压器(3A可调1.23V~37V) LM2576T-1212V简易开关电源稳压器(3A)LM2576T-1515V简易开关电源稳压器(3A)LM2576T-3.3 3.3V简易开关电源稳压器(3A)LM2576T-5.0 5.0V简易开关电源稳压器(3A)LM2576T-ADJ简易开关电源稳压器(3A可调1.23V~37V) LM2930T-5.0 5.0V低压差稳压器LM2930T-8.08.0V低压差稳压器LM2931AZ-5.0 5.0V低压差稳压器(TO-92)LM2931CT3V~29V低压差稳压器(TO-220,5PIN)LM2931T-5.0 5.0V低压差稳压器LM2940CT-1010V低压差稳压器LM2940CT-1212V低压差稳压器LM2940CT-1515V低压差稳压器LM2940CT-5.0 5.0V低压差稳压器LM2940CT-8.08.0V低压差稳压器LM2940CT-9.09.0V低压差稳压器LM305高精度可调4.5V~40V稳压器LM317K 1.2V~37V三端正可调稳压器(1.5A)LM317LZ 1.2V~37V三端正可调稳压器(0.1A)LM317T 1.2V~37V三端正可调稳压器(1.5A)LM323K5V稳压器(3A)LM333K三端可调-1.2V~-37V稳压器(3.0A)LM336-2.5 2.5V精密基准电压源LM336-5.0 5.0V精密基准电压源LM337K三端可调-1.2V~-37V稳压器(1.5A)LM337LZ三端可调-1.2V~-37V稳压器(0.1A)LM337T三端可调-1.2V~-37V稳压器(1.5A)LM338K三端正可调1.2V~32V稳压器(5A)LM338T三端正可调1.2V~32V稳压器(5A)LM350K三端可调1.2V~32V稳压器(3A) LM350T三端可调1.2V~32V稳压器(3A) LM385-1.2 1.2V精密基准电压源LM385-2.5 2.5V精密基准电压源LM399H 6.9999V精密基准电压源LM431ACZ精密可调2.5V~36V基准稳压源LM723高精度可调2V~37V稳压器MC1403 2.5V基准电压源MC34063充电控制器SG3524脉宽调制开关电源控制器TL431精密可调2.5V~36V基准稳压源TL494脉宽调制开关电源控制器TL497频率调制开关电源控制器TL7705电池供电/欠压控制器LT1963AEQ-3.3 3.3V电源SP6205-3.3 3.3V电源TPS60500 1.2V电源SPX3819-1.2 1.2V电源LM2930T-5.0 5.0V低压差稳压器 LM2930T-8.0 8.0V低压差稳压器LM2931AZ-5.0 5.0V低压差稳压器(TO-92) LM2931T-5.0 5.0V低压差稳压器 LM2931CT 3V to 29V低压差稳压器(TO-220,5PIN) LM2940CT-5.0 5.0V低压差稳压器 LM2940CT-8.0 8.0V低压差稳压器 LM2940CT-9.0 9.0V低压差稳压器 LM2940CT-10 10V低压差稳压器 LM2940CT-12 12V低压差稳压器LM2940CT-15 15V低压差稳压器 LM123K 5V稳压器(3A) LM323K 5V稳压器(3A) LM117K 1.2V to 37V三端正可调稳压器(1.5A) LM317LZ 1.2V to 37V三端正可调稳压器(0.1A) LM317T 1.2V to 37V三端正可调稳压器(1.5A) LM317K 1.2V to 37V三端正可调稳压器(1.5A) LM133K 三端可调-1.2V to -37V稳压器(3.0A) LM333K 三端可调-1.2V to -37V稳压器(3.0A) LM337K 三端可调-1.2V to -37V稳压器(1.5A) LM337T 三端可调-1.2V to -37V稳压器(1.5A) LM337LZ 三端可调-1.2V to -37V稳压器(0.1A) LM150K 三端可调1.2V to 32V稳压器(3A) LM350K 三端可调1.2V to 32V稳压器(3A) LM350T 三端可调1.2V to 32V稳压器(3A) LM138K 三端正可调1.2V to 32V稳压器(5A) LM338T 三端正可调1.2V to 32V稳压器(5A) LM338K 三端正可调1.2V to 32V稳压器(5A) LM336-2.5 2.5V精密基准电压源 LM336-5.0 5.0V精密基准电压源 LM385-1.2 1.2V精密基准电压源 LM385-2.5 2.5V精密基准电压源 LM399H 6.9999V精密基准电压源 LM431ACZ 精密可调2.5V to 36V基准稳压源LM723 高精度可调2V to 37V稳压器 LM105 高精度可调4.5V to 40V稳压器 LM305 高精度可调4.5V to 40V稳压器 MC1403 2.5V基准电压源 MC34063 充电控制器 SG3524 脉宽调制开关电源控制器 TL431 精密可调2.5V to 36V基准稳压源 TL494 脉宽调制开关电源控制器 TL497 频率调制开关电源控制器 TL7705 电池供电/欠压控制器7805 正5V稳压器(1A) 7806 正6V稳压器(1A) 7808 正8V稳压器(1A) 7809 正9V稳压议（1A） 7812 正12V稳压器(1A) 7815 正15V稳压器(1A) 7818 正18V稳压器(1A) 7824 正24V稳压器(1A) 7905 负5V稳压器(1A) 7906 负6V稳压器(1A) 7908 负8V稳压器(1A) 7909 负9V稳压器（1A） 7912 负12V稳压器(1A) 7915 负15V稳压器(1A) 7918 负18V稳压器(1A) 7924 负24V稳压器(1A) 78L05 正5V稳压器(100ma) 78L06 正6V稳压器(100ma) 78L08 正8V稳压器(100ma) 78L09 正9V稳压器(100ma) 78L12 正12V稳压器(100ma) 78L15 正15V稳压器(100ma) 78L18 正18V稳压器(100ma) 78L24 正24V稳压器(100ma)线性稳压器件(输入输出电流相等,压降3V以上)型号 稳压(V) 最大输出电流 可替代型号79L05 -5V 100mA79L06 -6V 100mA79L08 -8V 100mALM7805 5V 1A L7805,LM340T5 LM7806 6V 1A L7806LM7808 8V 1A L7808LM7809 9V 1A L7809LM7812 12V 1A L7812,LM340T12 LM7815 15V 1A L7815,LM340T15 LM7818 18V 1A L7815LM7824 24V 1A L7824LM7905 -5V 1A L7905LM7906 -6V 1A L7906,KA7906 LM7908 -8V 1A L7908LM7909 -9V 1A L7909LM7912 -12V 1A L7912LM7915 -15V 1A L7915LM7918 -18V 1A L7918LM7924 -24V 1A L792478L05 5V 100mA78L06 6V 100mA78L08 8V 100ma78L09 9V 100ma78L12 12V 100ma78L15 15V 100ma78L18 18V 100ma78L24 24V 100ma开关稳压器件(电压转换效率高)型号 说明 最大输出电流LM1575T-3.3 3.3V简易开关电源稳压器 1ALM1575T-5.0 5V简易开关电源稳压器 1ALM1575T-12 12V简易开关电源稳压器 1ALM1575T-15 15V简易开关电源稳压器 1ALM1575T-ADJ 简易开关电源稳压器(可调1.23V~37V) 1ALM1575HVT-3.3 3.3V简易开关电源稳压器 1ALM1575HVT-5.0 5V简易开关电源稳压器 1ALM1575HVT-12 12V简易开关电源稳压器 1ALM1575HVT-15 15V简易开关电源稳压器 1ALM1575HVT-ADJ 简易开关电源稳压器(可调1.23V~37V) 1ALM2575T-3.3 3.3V简易开关电源稳压器 1ALM2575T-5.0 5V简易开关电源稳压器 1ALM2575T-12 12V简易开关电源稳压器 1ALM2575T-15 15V简易开关电源稳压器 1ALM2575T-ADJ 简易开关电源稳压器(可调1.23V~ 37V) 1ALM2575HVT-3.3 3.3V简易开关电源稳压器 1ALM2575HVT-5.0 5V简易开关电源稳压器 1ALM2575HVT-12 12V简易开关电源稳压器 1ALM2575HVT-15 15V简易开关电源稳压器 1ALM2575HVT-ADJ 简易开关电源稳压器(可调1.23V~37V) 1ALM2576T-3.3 3.3V简易开关电源稳压器 3ALM2576T-5.0 5.0V简易开关电源稳压器 3ALM2576T-12 12V简易开关电源稳压器 3ALM2576T-15 15V简易开关电源稳压器 3ALM2576T-ADJ 简易开关电源稳压器(可调1.23V~37V) 3ALM2576HVT-3.3 3.3V简易开关电源稳压器 3ALM2576HVT-5.0 5.0V简易开关电源稳压器 3ALM2576HVT-12 12V简易开关电源稳压器 3ALM2576HVT-15 15V简易开关电源稳压器 3ALM2576HVT-ADJ 简易开关电源稳压器(可调1.23V~37V) 3Api。

常用电源芯片第1章DC-DC电源转换器/基准电压源1.1 DC-DC电源转换器1.低噪声电荷泵DC-DC电源转换器AAT3113/AAT31142.低功耗开关型DC-DC电源转换器ADP30003.高效3A开关稳压器AP15014.高效率无电感DC-DC电源转换器FAN56605.小功率极性反转电源转换器ICL76606.高效率DC-DC电源转换控制器IRU30377.高性能降压式DC-DC电源转换器ISL64208.单片降压式开关稳压器L49609.大功率开关稳压器L4970A10.1.5A降压式开关稳压器L497111.2A高效率单片开关稳压器L497812.1A高效率升压/降压式DC-DC电源转换器L597013.1.5A降压式DC-DC电源转换器LM157214.高效率1A降压单片开关稳压器LM1575/LM2575/LM2575HV15.3A降压单片开关稳压器LM2576/LM2576HV16.可调升压开关稳压器LM257717.3A降压开关稳压器LM2596 ,tob_id_492618.高效率5A开关稳压器LM267819.升压式DC-DC电源转换器LM2703/LM270420.电流模式升压式电源转换器LM273321.低噪声升压式电源转换器LM275022.小型75V降压式稳压器LM500723.低功耗升/降压式DC-DC电源转换器LT107324.升压式DC-DC电源转换器LT161525.隔离式开关稳压器LT172526.低功耗升压电荷泵LT175127.大电流高频降压式DC-DC电源转换器LT176528.大电流升压转换器LT193529.高效升压式电荷泵LT193730.高压输入降压式电源转换器LT195631.1.5A升压式电源转换器LT196132.高压升/降压式电源转换器LT343333.单片3A升压式DC-DC电源转换器LT343634.通用升压式DC-DC电源转换器LT346035.高效率低功耗升压式电源转换器LT346436.1.1A升压式DC-DC电源转换器LT346737.大电流高效率升压式DC-DC电源转换器LT378238.微型低功耗电源转换器LTC175439.1.5A单片同步降压式稳压器LTC187540.低噪声高效率降压式电荷泵LTC191141.低噪声电荷泵LTC3200/LTC3200-542.无电感的降压式DC-DC电源转换器LTC325143.双输出/低噪声/降压式电荷泵LTC325244.同步整流/升压式DC-DC电源转换器LTC340145.低功耗同步整流升压式DC-DC电源转换器LTC340246.同步整流降压式DC-DC电源转换器LTC340547.双路同步降压式DC-DC电源转换器LTC340748.高效率同步降压式DC-DC电源转换器LTC341649.微型2A升压式DC-DC电源转换器LTC342650.2A两相电流升压式DC-DC电源转换器LTC342851.单电感升/降压式DC-DC电源转换器LTC344052.大电流升/降压式DC-DC电源转换器LTC344253.1.4A同步升压式DC-DC电源转换器LTC345854.直流同步降压式DC-DC电源转换器LTC370355.双输出降压式同步DC-DC电源转换控制器LTC373656.降压式同步DC-DC电源转换控制器LTC377057.双2相DC-DC电源同步控制器LTC380258.高性能升压式DC-DC电源转换器MAX1513/MAX151459.精简型升压式DC-DC电源转换器MAX1522/MAX1523/MAX152460.高效率40V升压式DC-DC电源转换器MAX1553/MAX155461.高效率升压式LED电压调节器MAX1561/MAX159962.高效率5路输出DC-DC电源转换器MAX156563.双输出升压式DC-DC电源转换器MAX1582/MAX1582Y64.驱动白光LED的升压式DC-DC电源转换器MAX158365.高效率升压式DC-DC电源转换器MAX1642/MAX1643 66.2A降压式开关稳压器MAX164467.高效率升压式DC-DC电源转换器MAX1674/MAX1675/MAX167668.高效率双输出DC-DC电源转换器MAX167769.低噪声1A降压式DC-DC电源转换器MAX1684/MAX168570.高效率升压式DC-DC电源转换器MAX169871.高效率双输出降压式DC-DC电源转换器MAX171572.小体积升压式DC-DC电源转换器MAX1722/MAX1723/MAX172473.输出电流为50mA的降压式电荷泵MAX173074.升/降压式电荷泵MAX175975.高效率多路输出DC-DC电源转换器MAX180076.3A同步整流降压式稳压型MAX1830/MAX183177.双输出开关式LCD电源控制器MAX187878.电流模式升压式DC-DC电源转换器MAX189679.具有复位功能的升压式DC-DC电源转换器MAX194780.高效率PWM降压式稳压器MAX1992/MAX199381.大电流输出升压式DC-DC电源转换器MAX61882.低功耗升压或降压式DC-DC电源转换器MAX62983.PWM升压式DC-DC电源转换器MAX668/MAX66984.大电流PWM降压式开关稳压器MAX724/MAX72685.高效率升压式DC-DC电源转换器MAX756/MAX75786.高效率大电流DC-DC电源转换器MAX761/MAX76287.隔离式DC-DC电源转换器MAX8515/MAX8515A88.高性能24V升压式DC-DC电源转换器MAX872789.升/降压式DC-DC电源转换器MC33063A/MC34063A90.5A升压/降压/反向DC-DC电源转换器MC33167/MC3416791.低噪声无电感电荷泵MCP1252/MCP125392.高频脉宽调制降压稳压器MIC2203 93.大功率DC-DC升压电源转换器MIC229594.单片微型高压开关稳压器NCP1030/NCP103195.低功耗升压式DC-DC电源转换器NCP1400A96.高压DC-DC电源转换器NCP140397.单片微功率高频升压式DC-DC电源转换器NCP141098.同步整流PFM步进式DC-DC电源转换器NCP142199.高效率大电流开关电压调器NCP1442/NCP1443/NCP1444/NCP1445100.新型双模式开关稳压器NCP1501101.高效率大电流输出DC-DC电源转换器NCP1550102.同步降压式DC-DC电源转换器NCP1570103.高效率升压式DC-DC电源转换器NCP5008/NCP5009104.大电流高速稳压器RT9173/RT9173A105.高效率升压式DC-DC电源转换器RT9262/RT9262A106.升压式DC-DC电源转换器SP6644/SP6645107.低功耗升压式DC-DC电源转换器SP6691108.新型高效率DC-DC电源转换器TPS54350109.无电感降压式电荷泵TPS6050x110.高效率升压式电源转换器TPS6101x111.28V恒流白色LED驱动器TPS61042112.具有LDO输出的升压式DC-DC电源转换器TPS6112x113.低噪声同步降压式DC-DC电源转换器TPS6200x114.三路高效率大功率DC-DC电源转换器TPS75003115.高效率DC-DC电源转换器UCC39421/UCC39422116.PWM控制升压式DC-DC电源转换器XC6371117.白光LED驱动专用DC-DC电源转换器XC9116118.500mA同步整流降压式DC-DC电源转换XC9215/XC9216/XC9217 119.稳压输出电荷泵XC9801/XC9802120.高效率升压式电源转换器ZXLB1600 1.2 线性/低压差稳压器121.具有可关断功能的多端稳压器BAXXX122.高压线性稳压器HIP5600123.多路输出稳压器KA7630/KA7631124.三端低压差稳压器LM2937125.可调输出低压差稳压器LM2991126.三端可调稳压器LM117/LM317127.低压降CMOS500mA线性稳压器LP38691/LP38693128.输入电压从12V到450V的可调线性稳压器LR8129.300mA非常低压降稳压器（VLDO）LTC3025130.大电流低压差线性稳压器LX8610131.200mA负输出低压差线性稳压器MAX1735132.150mA低压差线性稳压器MAX8875133.带开关控制的低压差稳压器MC33375134.带有线性调节器的稳压器MC33998135.1.0A低压差固定及可调正稳压器NCP1117136.低静态电流低压差稳压器NCP562/NCP563137.具有使能控制功能的多端稳压器PQxx138.五端可调稳压器SI-3025B/SI-3157B139.400mA低压差线性稳压器SPX2975140.五端线性稳压器STR20xx141.五端线性稳压器STR90xx142.具有复位信号输出的双路输出稳压器TDA8133143.具有复位信号输出的双路输出稳压器TDA8138/TDA8138A 144.带线性稳压器的升压式电源转换器TPS6110x145.低功耗50mA低压降线性稳压器TPS760xx146.高输入电压低压差线性稳压器XC6202147.高速低压差线性稳压器XC6204148.高速低压差线性稳压器XC6209F149.双路高速低压差线性稳压器XC6401 1.3 基准电压源150.新型XFET基准电压源ADR290/ADR291/ADR292/ADR293151.低功耗低压差大输出电流基准电压源MAX610x152.低功耗1.2V基准电压源MAX6120 153.2.5V精密基准电压源MC1403 154.2.5V/4.096V基准电压源MCP1525/MCP1541155.低功耗精密低压降基准电压源REF30xx/REF31xx156.精密基准电压源TL431/KA431/TLV431A第2章AC-DC转换器及控制器1.厚膜开关电源控制器DP104C2.厚膜开关电源控制器DP308P3.DPA-Switch系列高电压功率转换控制器DPA423/DPA424/DPA425/DPA4264.电流型开关电源控制器FA13842/FA13843/FA13844/FA138455.开关电源控制器FA5310/FA53116.PWM开关电源控制器FAN75567.绿色环保的PWM开关电源控制器FAN76018.FPS型开关电源控制器FS6M07652R9.开关电源功率转换器FS6Sxx10.降压型单片AC-DC转换器HV-2405E11.新型反激准谐振变换控制器ICE1QS0112.PWM电源功率转换器KA1M088013.开关电源功率转换器KA2S0680/KA2S088014.电流型开关电源控制器KA38xx15.FPS型开关电源功率转换器KA5H0165R16.FPS型开关电源功率转换器KA5Qxx17.FPS型开关电源功率转换器KA5Sxx18.电流型高速PWM控制器L499019.具有待机功能的PWM初级控制器L599120.低功耗离线式开关电源控制器L659021.LINK SWITCH TN系列电源功率转换器LNK304/LNK305/LNK30622.LINK SWITCH系列电源功率转换器LNK500/LNK501/LNK52023.离线式开关电源控制器M51995A 24.PWM电源控制器M62281P/M62281FP25.高频率电流模式PWM控制器MAX5021/MAX502226.新型PWM开关电源控制器MC4460427.电流模式开关电源控制器MC4460528.低功耗开关电源控制器MC4460829.具有PFC功能的PWM电源控制器ML482430液晶显示器背光灯电源控制器ML487631.离线式电流模式控制器NCP120032.电流模式脉宽调制控制器NCP120533.准谐振式PWM控制器NCP120734.低成本离线式开关电源控制电路NCP121535.低待机能耗开关电源PWM控制器NCP123036.STR系列自动电压切换控制开关STR8xxxx37.大功率厚膜开关电源功率转换器STR-F665438.大功率厚膜开关电源功率转换器STR-G865639.开关电源功率转换器STR-M6511/STR-M652940.离线式开关电源功率转换器STR-S5703/STR-S5707/STR-S570841.离线式开关电源功率转换器STR-S6401/STR-S6401F/STR-S6411/STR- S6411F42.开关电源功率转换器STR-S6513 43.离线式开关电源功率转换器TC33369～TC3337444.高性能PFC与PWM组合控制集成电路TDA16846/TDA1684745.新型开关电源控制器TDA1685046.“绿色”电源控制器TEA1504 447.第二代“绿色”电源控制器TEA150748.新型低功耗“绿色”电源控制器TEA153349.开关电源控制器TL494/KA7500/MB375950.Tiny SwitchⅠ系列功率转换器TNY253、TNY254、TNY2551.Tiny SwitchⅡ系列功率转换器TNY264P～TNY268G52.TOP Switch（Ⅱ）系列离线式功率转换器TOP209～TOP22753.TOP Switch-FX系列功率转换器TOP232/TOP233/TOP23454.TOP Switch-GX系列功率转换器TOP242～TOP25055.开关电源控制器UCX84X56.离线式开关电源功率转换器VIPer12AS/VIPer12ADIP57.新一代高度集成离线式开关电源功率转换器VIPe53第3章功率因数校正控制/节能灯电源控制器1.电子镇流器专用驱动电路BL83012.零电压开关功率因数控制器FAN48223.功率因数校正控制器FAN75274.高电压型EL背光驱动器HV8265.EL场致发光背光驱动器IMP525/IMP5606.高电压型EL背光驱动器/反相器IMP8037.电子镇流器自振荡半桥驱动器IR21568.单片荧光灯镇流器IR21579.调光电子镇流器自振荡半桥驱动器IR215910.卤素灯电子变压器智能控制电路IR216111.具有功率因数校正电路的镇流器电路IR216612.单片荧光灯镇流器IR216713.自适应电子镇流器控制器IR252014.电子镇流器专用控制器KA754115.功率因数校正控制器L656116.过渡模式功率因数校正控制器L656217.集成背景光控制器MAX8709/MAX8709A18.功率因数校正控制器MC33262/MC3426219.固定频率电流模式功率因数校正控制器NCP165320.EL场致发光灯高压驱动器SP440321.功率因数校正控制器TDA4862/TDA486322.有源功率因数校正控制器UC385423.高频自振荡节能灯驱动器电路VK05CFL24.大功率高频自振荡节能灯驱动器电路VK06TL第4章充电控制器1.多功能锂电池线性充电控制器AAT36802.可编程快速电池充电控制器BQ20003.可进行充电速率补偿的锂电池充电管理器BQ20574.锂电池充电管理电路BQ2400x5.单片锂电池线性充电控制器BQ2401xB接口单节锂电池充电控制器BQ2402x7.2A同步开关模式锂电池充电控制器BQ241008.集成PWM开关控制器的快速充电管理器BQ29549.具有电池电量计量功能的充电控制器DS277010.锂电池充电控制器FAN7563/FAN756411.2A线性锂/锂聚合物电池充电控制器ISL629212.锂电池充电控制器LA5621M/LA5621V13.1.5A通用充电控制器LT157114.2A恒流/恒压电池充电控制器LT176915.线性锂电池充电控制器LTC173216.带热调节功能的1A线性锂电池充电控制器LTC173317.线性锂电池充电控制器LTC173418.新型开关电源充电控制器LTC198019.开关模式锂电池充电控制器LTC400220.4A锂电池充电器LTC400621.多用途恒压/恒流充电控制器LTC400822.4.2V锂离子/锂聚合物电池充电控制器LTC405223.可由USB端口供电的锂电池充电控制器LTC405324.小型150mA锂电池充电控制器LTC405425.线性锂电池充电控制器LTC405826.单节锂电池线性充电控制器LTC405927.独立线性锂电池充电控制器LTC406128.镍镉/镍氢电池充电控制器M62256FP29.大电流锂/镍镉/镍氢电池充电控制器MAX150130.锂电池线性充电控制器MAX150731.双输入单节锂电池充电控制器MAX1551/MAX155532.单节锂电池充电控制器MAX167933.小体积锂电池充电控制器MAX1736B接口单节锂电池充电控制器MAX181135.多节锂电池充电控制器MAX187336.双路输入锂电池充电控制器MAX187437.单节锂电池线性充电控制器MAX189838.低成本/多种电池充电控制器MAX190839.开关模式单节锂电池充电控制器MAX1925/MAX192640.快速镍镉/镍氢充电控制器MAX2003A/MAX200341.可编程快速充电控制器MAX712/MAX71342.开关式锂电池充电控制器MAX74543.多功能低成本充电控制器MAX846A44.具有温度调节功能的单节锂电池充电控制器MAX8600/MAX860145.锂电池充电控制器MCP73826/MCP73827/MCP7382846.高精度恒压/恒流充电器控制器MCP73841/MCP73842/MCP73843/MCP7384447.锂电池充电控制器MCP73861/MCP7386248.单节锂电池充电控制器MIC7905049.单节锂电池充电控制器NCP180050.高精度线性锂电池充电控制器VM7205。

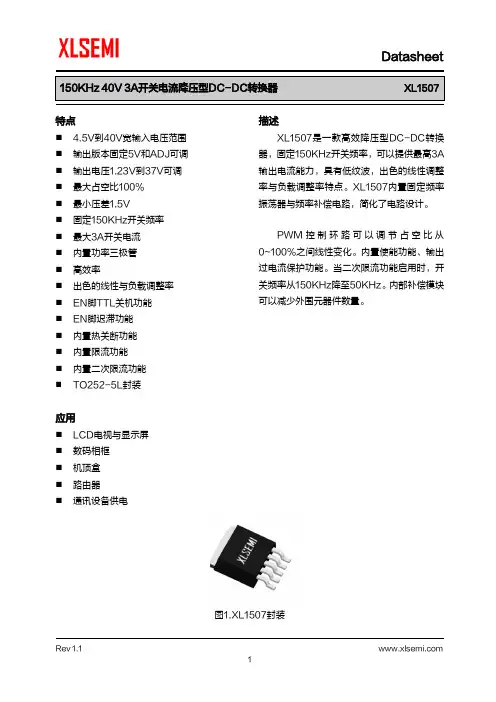

150KHz 40V 3A开关电流降压型DC-DC转换器XL1507特点⏹ 4.5V到40V宽输入电压范围⏹输出版本固定5V和ADJ可调⏹输出电压1.23V到37V可调⏹最大占空比100%⏹最小压差1.5V⏹固定150KHz开关频率⏹最大3A开关电流⏹内置功率三极管⏹高效率⏹出色的线性与负载调整率⏹EN脚TTL关机功能⏹EN脚迟滞功能⏹内置热关断功能⏹内置限流功能⏹内置二次限流功能⏹TO252-5L封装应用⏹LCD电视与显示屏⏹数码相框⏹机顶盒⏹路由器⏹通讯设备供电描述XL1507是一款高效降压型DC-DC转换器，固定150KHz开关频率，可以提供最高3A输出电流能力，具有低纹波，出色的线性调整率与负载调整率特点。

XL1507内置固定频率振荡器与频率补偿电路，简化了电路设计。

PWM控制环路可以调节占空比从0~100%之间线性变化。

内置使能功能、输出过电流保护功能。

当二次限流功能启用时，开关频率从150KHz降至50KHz。

内部补偿模块可以减少外围元器件数量。

图1.XL1507封装150KHz 40V 3A 开关电流降压型DC-DC 转换器 XL1507引脚配置EN GND SW VINFB 12345TO252-5LMetal Tab GND图2. XL1507引脚配置表1.引脚说明引脚号 引脚名称 描述1 VIN 电源输入引脚，支持DC4.5V~40V 宽范围电压操作，需要在VIN 与GND 之间并联电解电容以消除噪声。

2 SW 功率开关输出引脚，SW 是输出功率的开关节点。

3 GND 接地引脚。

4 FB 反馈引脚，通过外部电阻分压网络，检测输出电压进行调整，参考电压为1.23V 。

5 EN使能引脚，低电平工作，高电平关机，悬空时为低电平。

150KHz 40V 3A 开关电流降压型DC-DC 转换器 XL1507方框图EA1.23V ReferenceGNDFB3.3V 1.23VEA COMPOscillator 150KHz3.3V Regulator Start UpLatchCOMP2COMP1DriverThermal ShutdowninENSW220mV 200mV44m ΩCurrent LimitR2R1=2.5K5V R2=7.6KADJ R2=0 R1=OPENSwitch图3. XL1507方框图典型应用XL1507-5.0CIN 470uf 35VC1 105330uf 35VD1 L1 33uh/3A+12VLOAD13524GNDVINFBSWEN ON OFF 5V/3ACOUT 1N5820图4. XL1507系统参数测量电路（12V-5V/3A ）150KHz 40V 3A 开关电流降压型DC-DC 转换器 XL1507订购信息产品型号 打印名称封装方式包装类型 XL1507-ADJE1 XL1507-ADJE1 TO252-5L 2500只每卷 XL1507-5.0E1 XL1507-5.0E1TO252-5L2500只每卷XLSEMI 无铅产品，产品型号带有“E1”后缀的符合RoHS 标准。
