日本ALPS轻触开关可根据需求，从全部49个种类中选择最合适的产品。
在追求安定性、使用温度范围、寿命等高可靠性的电子设备中，轻触开关拥有丰富的应用业绩。
兼顾小型超薄设计与耐久性，而且产品种类齐全，可根据驱动力、操作感、操作方向和贴装方式等不同需求，从49种产品中选择最合适的一款。
产品用途广泛，从移动设备到A V 设备、家电、工业设备、医疗、车用设备等，能满足多样的需求。
一、SKHR 4.5mm方型（按入式）SKHR系列：SKHRAAA010 SKHRABA010 SKHRAHA010主要特点：大幅度提高部件贴装密度的小型按入型。
主要用途：适用于电子化的各种音响设备，办公设备，通讯设备，测量仪器，TV，录像机等各种操作。
二、SKHL 6*3.5mm小型（按入式）SKHL系列：SKHLAAA010 SKHLACA010 SKHLAJA010 SKHLABA010主要特点：为高密度贴装做出贡献的竖型和横型两种型号。
主要用途：适用于电子化的各种音响设备，办公设备，通讯设备，测量仪器，TV，录像机等各种操作。
SKHLADA010 SKHLAKA010 SKHLLAA010 SKHLLBA010SKHLLFA010 SKHLLCA010 SKHLLDA010三、SKHH 6mm方型（按入式）SKHH系列：SKHHAJA010 SKHHALA010 SKHHAQA010 SKHHAKA010主要特点：易使用且有丰富的产品种类而受到好评的6mm方型。
主要用途：适用于电子化的各种音响设备，办公设备，通讯设备，测量仪器，TV，录像机，汽车等各种操作。
SKHHAMA010 SKHHARA010 SKHHCQA010 SKHHCRA010SKHHBV A010 SKHHBWA010 SKHHBY A010 SKHHANA010SKHHAPA010 SKHHBSA010 SKHHDTA010 SKHHDUA010SKHHDHA010 SKHHDJA010 SKHHCW A010 SKHHDAA010SKHHDGA010 SKHHPJA010 SKHHPLA010 SKHHPQA010SKHHPKA010 SKHHPMA010 SKHHPRA010 SKHHQV A010SKHHQWA010 SKHHQY A010 SKHHPNA010 SKHHPPA010SKHHQNA010 SKHHLMA010 SKHHLNA010 SKHHLPA010SKHHLQA010 SKHHLRA010 SKHHLSA010 SKHHLUA010SKHHLVA010 SKHHLWA010 SKHHNHA010 SKHHNJA010 SKHHNKA010四、SKHW 6mm方型防尘型（按入式）SKHW系列：SKHWALA010 SKHWARA010 SKHWAPA010 SKHWAQA010主要特点：独有的防尘结构和敏感的操作感，适应于电子机器。
昆山慧能自动化设备有限公司
轻触开关主要技术参数
轻触开关，使用时轻轻点按开关按钮就可使开关接通，当松开手时开关即断开，其内部结构是靠金属弹片受力弹动来实现通断的。
轻触开关由于体积小重量轻在电器方面得到广泛的应用如：影音产品、数码产品、遥控器、通讯产品、家用电器、安防产品、玩具、电脑产品、医疗器材、汽车按键等等。
封装种类：
1、SMT贴片；
2、DIP插件。
规格：6x6mm、12x12mm、5x5mm、3x6mm
轻触开关主要技术参数
1、环保标准：有RoHS、无卤、以及欧盟等地区对有害物质管控值的限定。
2、额定电流、电压：通常为毫安级，50mA12VDC。
3、操作力度：50gf、100gf、160gf、260gf、320gf、520gf。
4、操作寿命：操作寿命一般与操作力度成反比，拿160gf来说、通常6x6开关可以做到100万次~300万次寿命。
5、工作环境温度：-25摄氏度到+70摄氏度
6、开关行程：0.25mm
昆山慧能自动化设备有限公司。

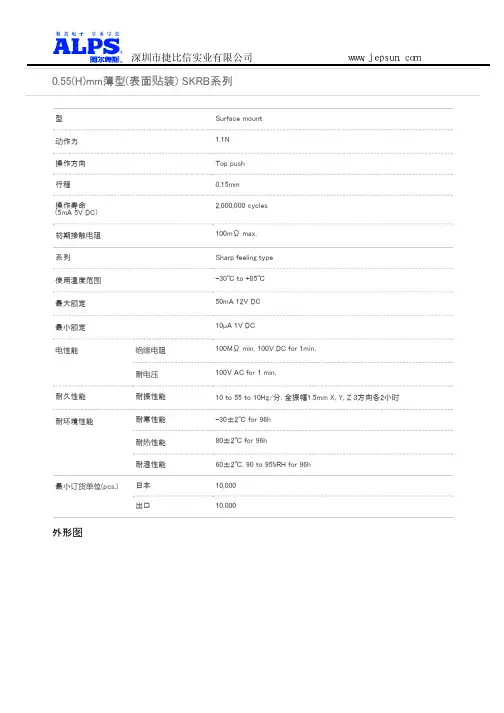

型Surface mount 动作力1.1N 操作方向Top push 行程0.15mm 操作寿命 (5mA 5V DC)2,000,000 cycles 初期接触电阻100mΩ max.系列Sharp feeling type 使用温度范围-30℃ to +85℃最大额定50mA 12V DC 最小额定10µA 1V DC 电性能绝缘电阻100MΩ min. 100V DC for 1min.耐电压100V AC for 1 min.耐久性能耐振性能10 to 55 to 10Hz/分, 全振幅1.5mm X, Y, Z 3方向各2小时耐环境性能耐寒性能-30±2℃ for 96h 耐热性能80±2℃ for 96h 耐湿性能60±2℃, 90 to 95%RH for 96h 最小订货单位(pcs.)日本10,000出口10,000外形图0.55(H)mm薄型(表面贴装) SKRB系列ｗｗｗ．ｊｅｐｓｕｎ．ｃｏｍ深圳市捷比信实业有限公司焊接处尺寸图自开关安装面看电路图包装规格载带梱包数(pcs.)1卷10,0001箱/日本100,0001箱/出口包装100,000载带宽度(mm)12出口包装箱尺寸(mm)395×395×205焊接条件回流焊时1. 加热方式远红外线加热的上下加热方式。
2. 温度测量方式用φ0.1〜φ0.2的CA(K)或CC(T)测量｡位置在焊连接部(铜箔面)测量｡固定方式采用耐热胶带｡3. 温度分布(1) 上述条件,为印刷电路板的零部品表面的温度。
根据电路板的材质,大小,厚度等,电路板温度和开关表面温度会有很大的不同,关于开关表面温度，也请在上述条件内使用。
(2) 根据贴面焊槽的种类,条件不同结果不同,请事先充分进行确认之后使用。
手焊接时项目条件焊接温度350℃ max.连续焊接时间3s max.焊剂斗容量60W max.1. 请勿清洗轻触开关。
微动开关、轻触开关、自锁开关检查基准书
（ISO9001-2015/IATF16949）
1.0目的：
规范微动开关、轻触开关、自锁开关的检验标准，确保检验工作有充分依据。
2.0范围
此标准适用于微动开关、轻触开关、自锁开关检验，其中斜体字部分，因当前测试设备所限，暂不强制要求检验。
3.0职责
质量控制部依据本检验标准进行微动开关、轻触开关、自锁开关检验。
4.0定义
4.1缺陷类别分为：严重缺陷缺陷（CR）、主要缺陷（MA）和次要缺陷（MI）；
4.2严重缺陷（CR）：不符合安全规范或可能对使用者、维护者造成人身危害的缺陷；
4.3主要缺陷（MA）：关键质量特性不合格，影响生产并可能导致故障或降低产品性能的缺陷；
4.4次要缺陷（MI）：一般质量特性不合格，但不影响使用功能及性能的缺陷。
5.0检验条件
5.1光照度：300-400LX(相当于40W日光灯500mm~600mm距离的光源)
5.2检验距离：550mm-650mm
5.3检验人员视力要求在0.8以上
6.0检验标准
备注：
1、力度测试、寿命试验只适用于轻触开关、自锁开关；
2、尺寸、外观、结构以本公司品质部样品为准。
7.0抽样方案与判定标准
外观检验抽样方案按GB/T2828.1-2013标准，正常检验一次抽样方案，一般检验水平Ⅱ，AQL:致命缺陷（CR）=0 重缺陷（MA）=0.65 轻缺陷（MI）=1.5。
尺寸及其他特性测试5-10PCS，0收1退。
取样方式：采取分散取样方式，5箱以内，每箱都应取样；超出10箱，按（5+。
NO：YH091224 产品规格确认书SPECIFICATIONS ACCEPTABILITY客户名称：产品名称：轻触开关本厂型号：客户品号：客户地址：本公司技质部签章客户确认签章日期日期东莞市亚豪电子有限公司地址：东莞市厚街镇陈屋工业区电话：+86-769-85888349传真：+86-769-85893225网址：信箱：806700623@邮编:523942产品规格书六、按触电阻开关闭合接点间的接触电阻应为≤20m。
试验电压DC2-6V，试验电流0.1A。
七、绝缘电阻开关相邻而不相接的接点间以及接点与其它金属件之间的绝缘电阻应为＞100M。
试验电压DC100±15V，测试环境条件20℃，67%。
八、耐压开关相邻而不相接的接点间以及接点与其它金属件之间，应能经受AC250V、1min,漏电流0.5mA，无击穿和飞弧现象。
产品规格书十二、振动频率为10~500Hz，加速度为50.0m/s²,三个互相垂直的轴线方向,每次扫描时间为11min,共5次循环。
外观应无损伤，接触电阻≤20m，电路应能正常通断。
十三、冲击加速度为500m/s²,脉冲持续时间11ms，三个轴线的每个方向上，每个方向三次，共18次。
外观应无损伤，接触电阻≤20m，电路应能正常通断。
十四、高温70℃，72h，在正常大气条件下恢复1h检查。
外观应无损伤；接触电阻≤20m；绝缘电阻应为＞100M；耐压应能经受AC250V、1min,漏电流0.5mA，无击穿和飞弧现象；按力值1.6±0.5N；驱动件强度为朝按压方向施加30N的力，持续15S无损伤，通断正常；接线端应能承受10N轴向拉力的作用10 S，无损伤，通断正常。
十五、低温-25℃，16h，在正常大气条件下恢复1h检查。
外观应无损伤；接触电阻≤20m；绝缘电阻应为＞100M；耐压应能经受AC250V、1min,漏电流0.5mA，无击穿和飞弧现象；按力值1.6±0.5N；驱动件强度为朝按压方向施加30N的力，持续15S无损伤，通断正常；接线端应能承受10N轴向拉力的作用10 S，无损伤，通断正常。
深圳市首韩科技有限公司限位开关深圳市首韩科技有限公司SHENZHEN SHOUHAN TECHNOLOGYCO.,LTDTel:*************Fax:*************客户Customer：产品名称Project：规格型号Part No：贵公司承认印Approal slgnatures料号/Part No.签章/Signatures日期Date:拟制/Drawn 李春风审核/Check 钟华华批准/Approved罗孝金1深圳市首韩科技有限SH-31R 11T1. 一般特性General Characteristics正常温度: 5℃~35℃ 相对湿度: 45%~85% 1.1 额定值(Rating Value): DC 5V 10mA1.2 工作温度(Work Temperature Range): -10℃ ~ 60℃1.3 存贮温度(Store Temperature Range): -20℃ ~ 80℃1.4 正常测试条件(未有特殊说明量测在以下条件进行):General test condition (Tests and measurements shall be made under the following standard conditions unless otherwise specified):RH 气 压: 8,600~10,600帕Temperature: 5℃~35℃ Relative humidity: 45%~85% Air pressure: 8,600~10,600 pa2. 产品外观及尺寸要求 Appearance & Dimension Requirement2.1 产品外形结构紧凑,无配合不良.The structure of product is compact, and assembly of parts has no badness.2.2 产品塑胶部件无严重缩水、披锋、欠注、斑点、破损或变形现象.The plastic parts of product have no serious defects such as very serious shrink, scarcity,fleck, disrepair, transmutation, etc.2.3 产品引脚和外壳无严重氧化、脏污、变形、毛刺或电镀不良.Lead feet and shell have no serious defects such as oxidation, smudge, disrepair, burr, defects on plating.2.4 开关操作顺畅,节奏感强,无明显卡塞现象。
轻触开关alps轻触开关系列alps轻触开关参数代理商家：深圳华桑电子有限公司产品编号SKRAALE010型Surface mount动作力3.92N操作方向Top push行程0.35mm操作寿命(5mA 5V DC) 100,000 cycles初期接触电阻100mΩmax.按钮颜色White系列Sharp feeling type使用温度范围-30℃to +85℃最大额定50mA 12V DC最小额定10μA 1V DC电性能绝缘电阻100MΩmin. 100V DC for 1min.耐电压250V AC for 1 min.耐久性能耐振性能10 to 55 to 10Hz/分, 全振幅1.5mm X, Y, Z 3方向各2小时耐环境性能耐寒性能-30±2℃for 96h耐热性能80±2℃for 96hAlps其他轻触开关的参数系列ALPS轻触开关7.5*7.8*6.5系列SKPRAAE010ALPS轻触开关6.6*6.3*5SKPGACE010，SKPGAAE010,SKPGABE010ALPS轻触开关6*6*5系列SKPMAME010，SKPMANE010，SKPMAPE010，SKPMBHE010ALPS轻触开关4.5*3.55系列SKRTLAE010，SKRTLBE010ALPS小乌龟轻触开关3.5*3.55*1.25系列SKSCLCE010，SKSCLAE010，SKSCLDE010，SKSCLBE010SKSCPCE010，SKSCPAE010，SKSCPDE010，SKSCPBE010ALPS轻触开关4.5*2.6*2.2系列SKSLLAE010，SKSLLBE010ALPS轻触开关6.2*2.55*3.5系列SKSNLAE010ALP轻触开关3.9*2.9*1.55系列SKTDLDE010ALPS轻触开关6.2*6.3*3.1系列SKHUBHE010，SKHUQHE010，SKHUQGE010ALPS轻触开关6.2*6.3*2.5系列SKHUAKE010，SKHUALE010，SKHUAME010SKHUPKE010，SKSUPLE010，SKSUPME010带接地ALPS轻触开关6.2*6.5*3.1系列SKHMQKE010，SKHMQLE010，SKHMQME010ALPS轻触开关6.2*3.4/5.1系列SKRAAWE010，SKRAAKE010，SKRAALE010，SKRAAME010，SKRAAQE010ALPS轻触开关8.5*8.5*3.95系列SKSTAAE010 硅胶柄ALPS轻触开关5.3*5.4*3.85系列SKSUAAE010电子烟专业ALPS轻触开关4.2*3.2系列SKRPABE010，SKRPACE010，SKRPADE010ALPS轻触开关3.9*2.9系列SKRKAEE010，SKRKAHE010，SKRKAGE010ALPS轻触开关3.9*2.7*1.4系列SKSGACE010，SKSGAAE010无接地端子SKSGPCE010，SKSGPAE010带接地ALPS轻触开关2.8*1.9系列SKSVBAE010，SKSVBCE010ALPS轻触开关5.9*2.87系列SKSELAE010ALPS轻触开关6*6*0.9系列SKRNPAE010，SKRNPBE010，SKRNPCE010，SKRNPDE010，SHRNPEE010，SKRNPME010ALPS轻触开关4.1*3.9系列SKSDPBE010，SKSDPCE010ALPS轻触开关5.9*2.87系列SKSKPBE010ALP轻触开关4.3*2.2系列SKTCABE010双重动作力寿命为70W次ALPS轻触开关5.2*5.2系列SKQGAEE010,SKQGAAE010,SKQGACE010 此三款高度为0.8mmSKQGAFE010, SKQGABE010,SKQGADE010,SKQGAKE010此四款的高度为1.5mmALPS7.5*7.5*0.6系列高寿命50W次SKRRAAE010，SKRRABE010，SKRRACE010ALPS轻触开关4.8*4.8*0.55系列SKRBAGE010，SKRBAAE010，SKRBACE010，SKRBAKE010SKRWADE030，SKRW AAE030，轻触开关3.7*3.7*0.35SKSHAAE010，SKSHABE010，轻触开关3.3*2.9*0.35SKRMABE010，SKRMAAE010，轻触开关4.5*4.5*0.4上述alps轻触开关深圳华桑电子均可提供实物图供参考，。

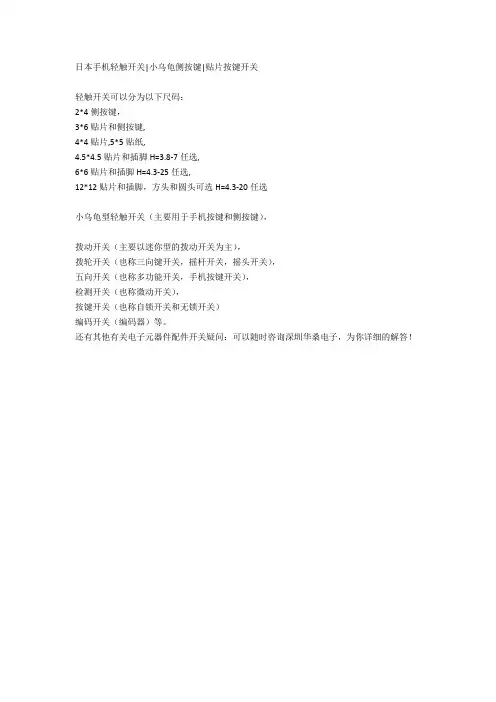

日本手机轻触开关|小乌龟侧按键|贴片按键开关
轻触开关可以分为以下尺码：
2*4侧按键，
3*6贴片和侧按键,
4*4贴片,5*5贴纸,
4.5*4.5贴片和插脚H=3.8-7任选,
6*6贴片和插脚H=4.3-25任选,
12*12贴片和插脚，方头和圆头可选H=4.3-20任选
小乌龟型轻触开关（主要用于手机按键和侧按键），
拨动开关（主要以迷你型的拨动开关为主），
拨轮开关（也称三向键开关，摇杆开关，摇头开关），
五向开关（也称多功能开关，手机按键开关），
检测开关（也称微动开关），
按键开关（也称自锁开关和无锁开关）
编码开关（编码器）等。
还有其他有关电子元器件配件开关疑问：可以随时咨询深圳华桑电子，为你详细的解答！。
1.General specification 基本说明1.1Scope 范围This specification covers the requirements for single key switches which have no keytop(TACT SWITCHES:MECHANICAL CONTACT ). 此规范含盖单推柄和无推柄的轻触开关要求。
1.2Operating Temperature Range 使用温度范围-55 to 125 ℃(normal humidity, normal press).正常湿度，标准压力1.3Storage Temperature Rang 保存温度范围-25 to 85 ℃(normal humidity, normal press).1.4Test Conditions 测试条件Tests and measurements shall be made in the following standard clnditions unless otherwise specified:测试和计量按下列标准条件除非特殊说明Normal temperature (temperature 5 to 35℃) 标准温度Normal humidity (relative humidity 45 to 85%) 正常湿气Normal pressure (pressure860 to 1060 mbars ) 标准压力In case any question arises from the judgement made, tests shall be conducted in the following conditions：Temperature (20±2℃) 温度Relative humidity (65±5%) 相对湿度Pressure (860 to 1060 mbars) 压力2. APPEARNCE, STYLE, AND DIMENSIONS 外形，类型和尺寸2.1Appearance 外形There shall be no defects that affect the serviceability of the product 外形必须无缺陷才不影响产品适用性2.2 Style and Dimensions 类型和尺寸Shall conform to the assembly drawings. 符合装配图3.TYPE OF ACTUATION 动作类型Tactile feedback 轻触返回4. CONTACT ARRANGEMENT 1 poles 1 throws 接触形式1接点1 回路(Details of contact arrangement are given in the assembly drawings).细接点形式在装配图中5. MAXOMUM RATINGS DC 12 V 50 mA 最大额定值APPD CHKD DSGDTD-309XA1/7ZONE SYMB DATE APPD CHKD DSGD6.2Mechanical机械特性Item 项目Test Condition试验条件Requirements规格6.2.1. Actuating Force 动作力Placing the switch such that the direction of switchoperation is vertical and then gradually increasing theload applied to the center of the stem, the maximum loadrequired for the stem to come to a stop shall bemeasured.开关的动作方向为垂直放置开关向推柄中心逐渐增加负荷直到推柄停止时所测量的最大负荷160±30gf6.2.2. Travel 行程Place the switch such that the direction of switch operation isvertical and then apply a static load twice the actuating force tothe center of the stem, the travel distance for the stem to come toa stop shall be measured.开关的动作方向为垂直放置开关,并以双倍动作力的静负荷作用推柄中心,测量推柄从开始到停止的行程距离0.15±0.1mm6.2.3.Return Force 返回力The sample switch is installed such that the direction ofswitch operation is vertical and, upon depression of thestem in its center the whole travel distance ,the force ofthe stem to return to its free position shall be measured.开关的动作方向垂直放置开关，在已有行程的推柄中心向上减小压力，推柄回到自由位置时所测量到的力40gf min6.2.4. Stop Strength 静止强度Placing the switch such that the direction of switchoperation is vertical, a static load of 3 kgf shall beapplied in the direction of stem operation for a period of60 seconds.开关的动作方向为垂直放置开关，在推柄动作方向施加3 KG的静负荷，60秒时间There shall be no sign ofdamage mechanically andelectrically无机械的和电气的损伤迹象6.2.5. Stem Strength 推柄的强度Placing the switch such that the direction of switchoperation is vertical, the maximum force to withstand apull applied oppsite to the direction of stem operationshall be measured.开关的动作方向为垂直放置开关从推柄动作方向反方向施加拉力所测量到的最大承受力3 kgfAPPD CHKD DSGDTD-309XA2/7ZONE SYMB DATE APPD CHKD DSGDTACT SWITCH SPECIFICATION( 轻触开关说明书)6.PERFORMANCE 性能6.1 Electrical 电气Item 项目Test Condition试验条件Requirements 要求6.1.1.Contact Resistance 接触电阻Applying a static load twice the actuating force to thecenter of the stem, measurements shall be made witha 1 kHz small-currentcontact resistance meter.用两倍的动作力作静负载施加于按钮的中心，并用1 千赫小电流接触电阻仪测量100 mΩmax.6.1.2. Insulation Resistance绝缘电阻Measurements shall be made following application ofDC 100 V potintial across terminals and acrossterminals and frame for one minute.在端子之间，端子与外壳之间施加DC100V，一分种100 MΩmin6.1.3. Dielectric Witstanding voltage电气耐压AC250V (50Hz or 60Hz) shall be applied acrossterminals and across terminals and frame for oneminute.在端子与端子之间，端子与外壳之间施加AC250V(50Hz or60Hz)There shall be mo breakdown没有击穿6.1.4. Bounce 抖动Lightly striking the center of the stem at a rateencountered in normal use ( 3 to 4 operations persec ), Bounce shall betested at “ON” and “OFF”在正常使用中(以每秒3-4 次周期)轻轻地在手柄中心加力，在通与断瞬间测试抖动。

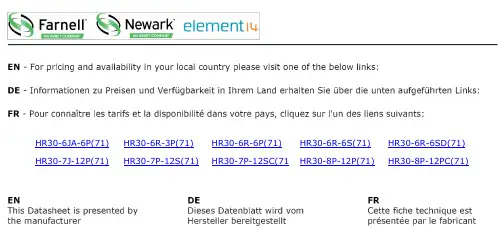

HR30-6JA-6P(71)HR30-6R-3P(71)HR30-6R-6P(71)HR30-6R-6S(71)HR30-6R-6SD(71) HR30-7J-12P(71)HR30-7P-12S(71)HR30-7P-12SC(71HR30-8P-12P(71)HR30-8P-12PC(71)Fig.31Miniature Waterproof Plastic ConnectorsHR30 SeriesFeatures1. Small-size with low profile3, 6 contacts:M aximum outer diameter Ø12.6mm Mated length 32.3mm (from the panel surface)10, 12 contacts: M aximum outer diameter Ø15.5mmMated length 42.1mm (from the panel surface)These small, compact connectors offer unique features available only from Hirose.2. Waterproof constructionIP67 and 68 waterproof construction in the mated state IP67: Left submerged in water at a depth of 1m for 30 minutes IP68: Left submerged in water at a depth of 2m for 14 days3. Push/pull lockWaterproof connectors feature an easy to operate push/pull locks developed with our exclusive technology.4. Light weight3 and 6 contacts: 6g (plug + receptacle)10 and 12 contacts: 9g (plug + receptacle)5. C lamp structureO ur proprietary clamping method allows clamping the cable by simply tightening the cord ring.6. Easy mating operationThe plug can be securely locked while holding it in your hand while mating. (Fig.2)7. Mis-insertion preventionMating portions are polarized to avoid improper mating and connector damage.8. Mating markBoth the plug and the r eceptacle featur e a white index mar k on them which is used to quickly align the two interfaces for proper mating.(Fig.3)9. Complies with the RoHS requirementsIn consider ation of envir onmental issues, we use only materials that comply with the RoHS Directive.Push-pull- single action lockØ15.542.1Ø12.632.33 and 6 pos.10 and 12 pos.Mated dimensionsLock/release operationAlignment marksPolarized interfacePush-pull locking collarFig.1Fig.22015.8eHR30 Series●Miniature Waterproof Plastic ConnectorsProduct SpecifiMaterial / FinishProduct Number StructureHR30 - 6 P A - 6 S C (* *)q w e r t y u i23HR30 Series ●Miniature Waterproof Plastic ConnectorsPlugsCrimp TypeSolder TypeØ15.5A(Fully tightened)Applicablecable diameterBA(Fully tightened)Applicablecable diameterHR30-7P-12SC (71)(Representative example)(Representative example)Shown with contacts installed.HR30-6P-6S (71)4HR30 Series ●Miniature Waterproof Plastic ConnectorsPlug for overmoldsCrimp TypeSolder Type25.9Ø15.5Ø6.4AØBØCHR30-8PB-12PCHR30-6PB-6S5HR30 Series ●Miniature Waterproof Plastic ConnectorsReceptaclesSolder TypeGasketBCADE(Thread)F(Hex nut)123456HR30-6R-6P (71)Through hole TypeHR30-8R-12SD (71)DC A B2Through hole post (0.2∞0.5)E F(Hex nut)GasketCrimp TypeØ11.5Ø1515.59.3GasketM11X1(Thread)13(Hex nut)HR30-7R-12PC (71)Shown with contacts installed.(Representative example)(Representative example)(Representative example)6HR30 Series ●Miniature Waterproof Plastic ConnectorsJacksCrimp TypeSolder Type37.3Ø15(Fully tightened)Applicablecable diameterB(Fully tightened)AApplicablecable diameterHR30-7J-12PC (71)HR30-6J-6P (71)Shown with contacts installed.(Representative example)(Representative example)7HR30 Series ●Miniature Waterproof Plastic ConnectorsJack for overmoldsCrimp TypeSolder TypeØ1523.7Ø6.4ABCHR30-6JB-6PHR30-8JB-12SC8HR30 Series ●Miniature Waterproof Plastic ConnectorsNote :W hen using these caps, do not use the gasket that is normally supplied with the receptacle. The “B” diameter end of the receptacle cap will serve as the gasket.CapsFor ReceptacleFor Plugs 1.40.9ØECØAØBØD11.4CØAØBØDØEHR30-6R-C (71)HR30-6P-C (71)(Representative example)(Representative example)9HR30 Series ●Miniature Waterproof Plastic ConnectorsNote : Use wire size 26 to 30 AWG with a jacket diameter of 1 mm max.Crimp ContactsDiagrams of Connectors in Combination0.82111.151.2A-A cross-sectionAA0.8211AAPlugsHR30-*P-**(71)Caps for Plug HR30-*P-C (71)Receptacles HR30-*R-**(71)JacksHR30-*J-**(71)Caps for Receptacle HR30-*R-C (71)Cap mounting diagramCableCapCapPanelMale contactFemale contactNote 1:P lease use connectors with compatible shell size and number of contacts. If you are using a male contact plug, please also use a corresponding product with a female receptacle and a jack.Note 2:P lease install the applicable crimping contacts when using the crimping style connectors. (Please refer to the manual for wiring work.)Note 3:W hen using the cap on the receptacle side, do not use the gasket that is normally supplied with the receptacle. The Hirose cap has the necessary gasket as part of the cap unit.(Representative example)(Representative example)HR30 Series●Miniature Waterproof Plastic ConnectorsSolder termination fixtureBack shell tightening collar HR30-6P-6S-T01HR30-6R-6P-T01HR30-6P-T02 Applicable ToolsCable Assembly ToolsNote : W iring for soldering or disassembly and assembly of plugs and jacks can be accomplishedmore effi ciently when using the cable assembly tool.Tightening collar for back shellNote: T he code ring tightening collar is used to tighten the cord ring to the specifi ed torque.(Please refer to the manual for assembly procedures.)1011HR30 Series ●Miniature Waterproof Plastic ConnectorsContact Position ArrangementPanel CutoutRemarks: 1. The contact arrangement depicts a view from the wiring side. 2. I nstallation is accomplished by securing the receptacle from the back side of the panel using the supplied hexagonnut. The tightening torque of the hexagon nut should be 0.5 N·m for 3, 6 contacts, and 0.8 N·m for 10, 12 contacts.In addition, in order to prevent loosening, please apply Locktight 263 and Lockprimer 7649 manufactured by Henkel Japan Ltd., Tokyo.12312345661234512456789101211312456789101211312345678910HR30-7P-10SC (71)HR30-7P-12SC (71)HR30-8P-12PC (71)HR30-6P-6P (71)HR30-6P-6S (71)HR30-6P-3S (71)Alignment markAlignment markB+0.05A +0.05 0D +0.05ØC+0.05Receptacle, Board Mounting Through Hole PatternRemark: 1. T he receptacle through hole confi guration depicts a view from the mating side of the connector. 2.The above Δ mark indicates the guide key position. 3.The recommended board maximum thickness :1.2mm. 4. T olerance of +0.03mm is recommended for the plated through hole location. Tolerance of +0.02mm is recommendedfor the plated through hole diameter.7R-12PD8R-12SD6R-6SD 1542630.90.91.521.520.491.351.66-Ø0.656R-6PD 1.561.560.90.91.81.86-Ø0.651234560.90.9Applicable ToolsHR30 Series●Miniature Waterproof Plastic ConnectorsAssembly Procedures12HR30 Series●Miniature Waterproof Plastic Connectors1314HR30 Series ●Miniature Waterproof Plastic ConnectorsPoints to note when using Heat shrink tubingWe recommend that you use shrink tubing over the solder connections in order to protect the soldered wires and to enhance insulation. However, please be careful when applying heat in this area when installing the shrink tube so excess heat does not bleed into or affect the resin parts as shown in the figure below.If the product does become heated beyond the area shown and into the resin parts, please make sure to prevent the following.q D eformation of the C ring. This could result in prevention of locking during mating.wM elting of some parts.To prevent the deformation of the C rings of the receptacles and the jack, we recommend heat to be applied after mating with a compatible plug.C ringShrinkable tubeHeat application area ReceptacleCompatible plugHeat application areaMated dimensionsReceptacleHR30 Series●Miniature Waterproof Plastic Connectors General usage notesPrecautions1. M ake sure the power is off before mating or un-mating the connector.2. W hen mating the connector, push it on with a force of a least 30N.After mating, pull slightly on the connector to check for proper mating and to ensure the connector is fi rmly locked to the receptacle.3. A fter mating the connector, do not apply a force over 30N to the cable in the directions shown by the arrows. Anexcessive load can lead to connector damage.30N max.Panel30N max.30N max.4. T o maintain the waterproof performance, cable clamping force and cable stability, please use a cable within therecommended for cable diameters.Because the performance will differ depending on the cable structure, make sure to check all specifi cations of the cable assembly before use or production.5. P lease assemble and install the connector and components with the specifi ed tightening torque.If the tightening torque is too weak or too strong, loosening or breakage can occur.6.Please contact Hirose if your application requires compliance with the Electrical Appliance and Meterial Safety Act.1516HR30 Series ●Miniature Waterproof Plastic ConnectorsThe characteristics and the specifications contained herein are for reference purpose. Please refer to the latest customer drawings prior to use.The contents of this catalog are current as of date of 08/2015. Contents are subject to change without notice for the purpose of improvements.2-6-3,Nakagawa Chuoh,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN TEL: +81-45-620-3526 Fax: +81-45-591-3726USA:HIROSE ELECTRIC (U.S.A.), INC. SAN JOSE OFFICE 3255 Scott Boulevard, Building 7, Suite 101 Santa Clara, CA 95054Phone : +1-408-253-9640Fax : +1-408-253-9641/us/USA:HIROSE ELECTRIC (U.S.A.), INC. CHICAGO OFFICE 580 Waters Edge Lane, Suite 205 Lombard IL 60148Phone : +1-630-282-6701Mail:********************/us/USA:HIROSE ELECTRIC (U.S.A.), INC. HEADQUARTERS 2688 Westhills Court, Simi Valley, CA 93065-6235Phone : +1-805-522-7958Fax : +1-805-522-3217/us/CHINA:HIROSE ELECTRIC (SHANGHAI) CO.,LTD. BEIJING BRANCH A1001, Ocean International Center, Building 56# East 4th Ring Middle Road, ChaoYang District, Beijing, 100025Phone : +86-10-5165-9332Fax : +86-10-5908-1381/cn/TAIWAN:HIROSE ELECTRIC TAIWAN CO., LTD.103 8F, No.87, Zhengzhou Rd., Taipei Phone : +886-2-2555-7377Fax : +886-2-2555-7350 /tw/GERMANY:HIROSE ELECTRIC EUROPE B.V. GERMAN BRANCH Herzog-Carl-Strasse 4 D-73760 Ostfildern (Scharnhauser Park)Phone : +49-711-4560-02-1Fax : +49-711-4560-02-299/eu/GERMANY:HIROSE ELECTRIC EUROPE B.V. NUERNBERG OFFICE Muggenhofer Str. 136 90429 Nuernberg Phone : +49-911 32 68 89 63Fax : +49-911 32 68 89 69/eu/THE NETHERLANDS:HIROSE ELECTRIC EUROPE B.V.Hogehillweg #8 1101 CC Amsterdam Z-O Phone : +31-20-6557460 Fax : +31-20-6557469/eu/GERMANY:HIROSE ELECTRIC EUROPE B.V. HANOVER OFFICE Bayernstr. 3, Haus C 30855 Langenhagen, Germany Phone : +49-511 97 82 61 30Fax : +49-511 97 82 61 35/eu/USA:HIROSE ELECTRIC (U.S.A.), INC. DETROIT OFFICE (AUTOMOTIVE)17197 N. Laurel Park Drive, Suite 253, Livonia, MI 48152Phone : +1-734-542-9963Fax : +1-734-542-9964/us/FRANCE:HIROSE ELECTRIC EUROPE B.V. PARIS OFFICE Regus La Garenne Colombes,Place de La Belgique, 71 Boulevard National La Garenne Colombes, 92250, France Phone : +33 (0) 1 7082 3170Fax : +33 (1) 7082 3101/eu/UNITED KINGDOM:HIROSE ELECTRIC EUROPE BV (UK BRANCH)4 Newton Court, Kelvin Drive, Knowlhill, Milton Keynes, MK5 8NH Phone : +44-1908 202050Fax : +44-1908 202058/eu/CHINA:HIROSE ELECTRIC (SHANGHAI) CO., LTD.1601, Henderson Metropolitan, NO.300, East Nanjing Road, Huangpu District, Shanghai, China 200001Phone : +86-21-6391-3355Fax : +86-21-6391-3335 /cn/HONG KONG:HIROSE ELECTRIC HONGKONG TRADING CO., LTD.Room 1001, West Wing, Tsim Sha Tsui Centre, 66 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong Phone : +852-2803-5338 Fax : +852-2591-6560/hk/CHINA:HIROSE ELECTRIC TECHNOLOGIES (SHENZHEN) CO., LTD.Room 09-13, 19/F, Office Tower Shun Hing Square, Di Wang Commercial Centre, 5002 Shen Nan Dong Road, Shenzhen City, Guangdong Province, 518008Phone : +86-755-8207-0851Fax : +86-755-8207-0873/cn/SINGAPORE:HIROSE ELECTRIC SINGAPORE PTE. LTD.10 Anson Road #26-16, International Plaza 079903, SingaporePhone : +65-6324-6113 Fax : +65-6324-6123/sg/KOREA:HIROSE KOREA CO., LTD.250, Huimanggongwon-ro, Siheung-si,Gyeonggi-do, Korea, 429-849Phone : +82-31-496-7000,7124Fax : +82-31-496-7100http://www.hirose.co.kr/INDIA:HIROSE ELECTRIC SINGAPORE PTE. LTD. DELHI LIAISON OFFICE Office NO.519, Regus-Green Boulevard, Level5, Tower C, Sec62, Plot B-9A, Block B, Noida, 201301, Uttar Pradesh, India Phone : +91-12-660-8018Fax : +91-120-4804949/sg/THAILAND:HIROSE ELECTRIC SINGAPORE PTE. LTD. BANGKOK OFFICE (REPRESENTATIVE OFFICE)Unit 4703, 47th FL., 1 Empire Tower, South Sathorn Road, Yannawa, Sathorn, Bangkok 10120 Thailand Phone : +66-2-686-1255Fax : +66-2-686-3433/sg/INDIA:HIROSE ELECTRIC SINGAPORE PTE. LTD. BANGALORE LIAISON OFFICE Unit No-403, 4th Floor, No-84, Barton Centre, Mahatma Gandhi (MG) Road, Bangalore 560 001, Karnataka, India Phone : +91-80-4120 1907Fax : +91-80-4120 9908/sg/MALAYSIA:HIROSE ELECTRIC SINGAPORE PTE. LTD.1-10-07, Suntech @ Penang Cybercity (1164),Lintang Mayang Pasir 3,11950, Bayan Baru, Penang, Malaysia.Phone : +604-619-2564 Fax : +604-619-2574/sg/)HR30-8P-C(71)HR30-PC-111HR30-SC-111HR30-8R-12SD(71)HR30-7R-10PC(71 )HR30-6JA-6P(71)HR30-6R-3P(71)HR30-6R-6P(71)HR30-6R-6S(71)HR30-6R-6SD(71) HR30-7J-12P(71)HR30-7P-12S(71)HR30-7P-12SC(71HR30-8P-12P(71)HR30-8P-12PC(71)。
3*6²à°´型号
日期
1.适用范围：本说明书只适用
2.额定电流、电压值：DC
12V
50mA
3.构造：盖板、簧片、按钮、底座等；3.1.形状、尺寸依图面确定.
3.2.外观:各部分应无生锈、裂痕、电镀不良现象.
4.相对湿度:（40℃）≤95%标准状态下测试。
5．使用环境:在-30～85°C环境下使用。
6．电器性能
6．1．接触电阻：100mΩmax;6．2．绝缘电阻：100MΩmin;6．3．耐电压：AC250V 50HZ 1min;6．4．动作力：250gf±30gf;6．6．回流焊适应温度240°C ～260°C；7．电器寿命：30000次;8.材料规格表：详见外形图;9.1.可焊性试验:
方式：焊接脚被浸入锡池约2mm深，温度230±5℃时间3±0.5秒。
结果：浸入的部分80%以上将被锡覆盖方式：温度在260℃的环境下，产品存放2—3分钟取出，待散热后测试其手感、电阻结果：电阻、克力回弹、外形等；均无任何损坏迹象显示。
2010.11.28
6．5．回弹力：1/3;
9.耐焊性;9.2.耐焊性试验：
方式：焊炉焊锡的温度控制在235±5℃，过炉焊接的时间5±1秒于（基板），手焊接的时候温度控制在350±30℃，时间为3±0.5秒但不能对焊接脚施加异常压力。
结果：本体无变形，能满足于电器性能。
9.3.耐高温试验：。
东莞市韩荣电子有限公司文件编号: HY-TS-100115-21. General specification 基本事项基本事项1.1 Switch action : Push-on type S. P . S. T 开关种类 : 轻触开关1.2 Switch rating 最大额定值 : D. C. 12V , 50 mA 1.3 Operation temperature range 使用温度试验范围 : - 20~ + 70ºC 1.4 Preservative temperature range 保存温度范围 : - 40~ + 85ºC1.5 Appearance and dimensions : See outside drawing page外形及尺寸 : 见外形尺寸图(HY-TS-0106078-7) 1.6 Standard condition Unless otherwise specified, the test and measurements shall be 试验、 测定状态 carried out as follows:Ambient temperature 温度: 5 ~ 35ºC Ｒelative humidity 相对湿度: 45 ～ 85％Air pressure 气 压: 86 ～ 106kPa(860～1060mbar)However, if doubt arises on the decision based on the measured V alues under the above-mentioned conditions, the following conditions shall be employed:但是在对判定产生疑义时,按下述状态实施:Ambient temperature 温 度: 20±2ºC Relative humidity 相对湿度: 65±5％Air pressure 气 压: 86 ～ 106kPa(860～1060mbar) 2. Performance 性能性能 2.1 Electrical characteristics 电气性能 No. Item 项目 Test condition试验 条 件 Performance规格 2.1.1Contact resistance 接触电阻 Push force: (Operation force) x 2。
PAGE 2 / 63.1 Auto soldering conditions1) After switches were soldered, please be careful not to clean switches with solvent.2) In the case of using soldering iron, soldering conditions shall be 280℃ max. and 3 sec max.3) After switches were soldered, please be careful not to load the knobs of switchs.3.2 Manual soldering conditionsTemperature : 350 ± 5℃Time : 3 sec max.1) Please keep the received products under conditions of not high temperature, no high humidity and no direct-rays of the and no corrosive gases.2) Our products are strongly recommended to use off within 3 months and are guaranteed the quality for 6 months of maximum period after receiving the products.3) Please put some desiccants after opening off a vinyl pack in order not to enter the damp air and keep the products at the same place of the above-mentioned4) Please be cautious not to give excessive load on the products.5) Please be cautious not to keep the products with high pressure on the push buttons.Single sided copper-clad laminates.Time of immersion Within 5 secSoldering number Within 2 time (But should bring down heat of the first soldering)CONDITIONTACT SWITCH SPECIFICATIONTemperature of solder 255℃ max.Printed wiring board3. SolderingPreheat time60 sec max.Area of flux1/2 max. of P.W.B thickness ITEMDSN CHK APP PAGE 6 / 6Preheat temperature 110℃ max. (Environmental temperature of soldering surface of P.W.B)MODEL No.DJT 1102PAGE4 OF 4K.M.SM.K.JDATE 2006.08.07 4. Safety Keeping ConditionK.Y.IMODEL。
A-158B 3F■种类6mm 方形、12mm 方形具有垂直型、高荷重、镀金型等全系列产品●实现轻快的按触感及高耐久性●备有可用于通用的径向带状部件插入机的带状规格●备有可以在长时间内保持稳定接触和绝缘的镀金型。
●可安装键顶(B32系列)，有凸型柱塞。
注.袋装发货数量100个/袋，定货需100个的整数倍。
符合RoHSA-159B3F轻触式开关B 3F轻触式开关B3F-1022＊B3F-10254.5±0.20.24.5±0.2φ3.50.7.3 3.4 3.43.40.7φ3.54.10.70.7φ3.5B3Fφ3.5A-160A-161B3F0.22.250.30.30.3±0.14.1 1.8±0.16.15±0.20.70.70.1φ3.52.25轻触式开关A-162B3F轻触式开关52-φ1.8±0.054-312.5±0.12-φ1.8±5±2-φ1.8±0.05（定位孔）5±2-φ1.8±0.05（定位孔）印刷基板孔加工尺寸条例TOP VIEW )(单面基板 t=1.6）印刷基板孔加工尺寸条例TOP VIEW )(单面基板 t=1.6)印刷基板孔加工尺寸条例TOP VIEW )(单面基板 t=1.6）印刷基板孔加工尺寸条例TOP VIEW )(单面基板 t=1.6）B 3FB3FA-163轻触式开关B 3FB3F-6002●平型(有接地端子)B3F-6100 B3F-6102●平型(无接地端子)B3F-6020 B3F-6022注.上述的各种机型外型尺寸，没有指定部分的公差为±0.4mm 。
开关本体的端子型号没有表示。
注.带子的方向随机为 面或 面B A 注.带子的方向随机为 面或 面B AB3FA-164轻触式开关B 3F●凸型(无接地端子) B3F-6050 B3F-6052●凸型(有接地端子)B3F-6150 B3F-6152注.上述的各种机型外型尺寸，没有指定部分的公差为±0.4mm 。
轻触开关规格型号参数轻触开关是一种常见的电子元件，广泛应用于各种电子设备和家电中。
它的作用是控制电路的通断，通过触摸开关来实现设备的启动和停止。
轻触开关有许多不同的规格型号和参数，下面将介绍其中几种常见的规格型号。
1. 规格型号：单通道轻触开关这种轻触开关只有一个通道，用于控制单个电路的通断。
它通常由一个触摸面板和一个开关组成，触摸面板上有一个按钮，通过触摸按钮来控制电路的开关状态。
这种轻触开关适用于只需控制一个电路的场景，如灯光的开关控制。
2. 规格型号：双通道轻触开关这种轻触开关有两个通道，可以同时控制两个电路的通断。
它通常由一个触摸面板和两个按钮组成，每个按钮分别控制一个电路的开关状态。
这种轻触开关适用于需要同时控制多个电路的场景，如电视机的开关和音量调节。
3. 规格型号：带指示灯的轻触开关这种轻触开关在触摸面板上还配备了一个指示灯，用于显示电路的开关状态。
当电路通电时，指示灯会亮起；当电路断电时，指示灯会熄灭。
这种轻触开关适用于需要直观显示电路状态的场景，如电源开关。
4. 规格型号：防水防尘轻触开关这种轻触开关具有防水和防尘的特性，适用于户外或潮湿环境中的电子设备。
它采用特殊的材料和结构设计，能够有效阻止水和灰尘进入开关内部，保证开关的正常工作。
这种轻触开关适用于需要在恶劣环境中使用的场景，如汽车的内部控制开关。
轻触开关是现代电子设备不可或缺的元件，不同规格型号的轻触开关可以满足各种不同的需求。
无论是单通道还是双通道，带指示灯还是防水防尘，都能够提供方便、安全、可靠的控制方式。
在选购轻触开关时，需要根据具体的使用场景和需求来选择合适的规格型号，以确保设备的正常运行和长久使用。

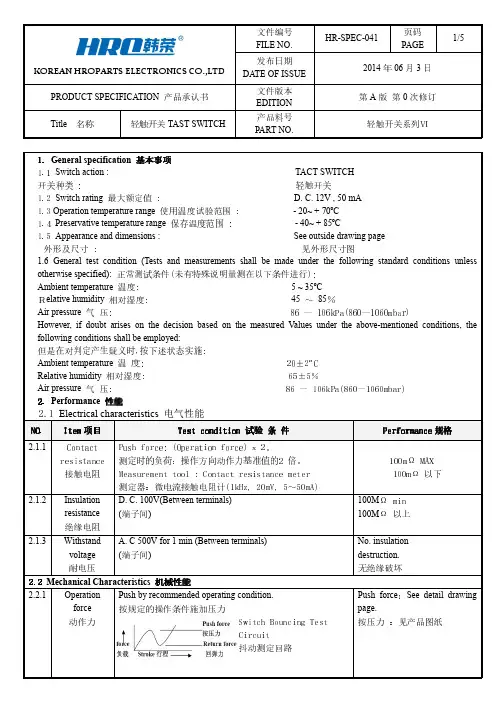

客 户CUSTOMERCUSTOMER客户料号CUSTOMER MODEL：品 名PART NAMEPART NAME型 号本厂工程部审核：ENGINEERING DEPT：文件编号FILE NO.HR-SPEC-001页码PAGE1/5 KOREAN HROPARTS ELECTRONICS CO.,LTD发布日期DA TE OF ISSUE2014年06月3日PRODUCT SPECIFICATION 产品承认书文件版本EDITION第A版第0次修订Title 名称轻触开关TAST SWITCH产品料号PART NO.轻触开关系列I1. General specification基本事项基本事项1.1 Switch action : TACT SWITCH开关种类 : 轻触开关1.2 Switch rating 最大额定值 : D. C. 12V , 50 mA1.3 Operation temperature range 使用温度试验范围 : - 20~ + 70ºC1.4 Preservative temperature range 保存温度范围 : - 40~ + 85ºC1.5 Appearance and dimensions :See outside drawing page外形及尺寸 : 见外形尺寸图1.6 General test condition (Tests and measurements shall be made under the following standard conditions unless otherwise specified): 正常测试条件(未有特殊说明量测在以下条件进行):Ambient temperature 温度: 5 ~ 35ºCＲelative humidity 相对湿度: 45 ～85％Air pressure 气 压: 86 ～ 106kPa(860～1060mbar)However, if doubt arises on the decision based on the measured V alues under the above-mentioned conditions, the following conditions shall be employed:但是在对判定产生疑义时,按下述状态实施:Ambient temperature 温 度: 20±2ºCRelative humidity 相对湿度: 65±5％Air pressure 气 压: 86 ～ 106kPa(860～1060mbar)2. Performance性能性能2.1 Electrical characteristics 电气性能NO.NO. Item项目项目 Test conditionTest condition 试验试验 条件Performance规格规格2.1.1Contactresistance接触电阻Push force: (Operation force) x 2。
测定时的负荷：操作方向动作力基准值的2 倍。
Measurement tool : Contact resistance meter测定器：微电流接触电阻计(1kHz, 20mV, 5～50mA)100mΩ MAX100mΩ 以下2.1.2Insulationresistance绝缘电阻D. C. 100V(Between terminals)(端子间)100MΩ min100MΩ 以上2.1.3 Withstandvoltage耐电压A. C 500V for 1 min (Between terminals)(端子间)No. insulationdestruction.无绝缘破坏2.2.22 Mechanical Characteristics机械性能2.2.1 Operationforce动作力Push by recommended operating condition.按规定的操作条件施加压力Switch Bouncing TestCircuit抖动测定回路Push force：See detail drawingpage.按压力：见产品图纸文件编号FILE NO.HR-SPEC-001 页码PAGE 2/5 KOREAN HROPARTS ELECTRONICS CO.,LTD发布日期DA TE OF ISSUE2014年06月3日PRODUCT SPECIFICATION 产品承认书文件版本EDITION第A版第0次修订Title 名称轻触开关TAST SWITCH产品料号PART NO.轻触开关系列I文件编号FILE NO.HR-SPEC-001页码PAGE3/5 KOREAN HROPARTS ELECTRONICS CO.,LTD发布日期DA TE OF ISSUE2014年06月3日PRODUCT SPECIFICATION 产品承认书文件版本EDITION第A版第0次修订Title 名称轻触开关TAST SWITCH产品料号PART NO.轻触开关系列I2.3 Durability characteristics 耐久性2.3.1Endurance(switching)action)耐久特性（开关寿命）(1) D.C.12V 50mA resistance loadD.C 12V 50mA 电阻负荷(2) Operation speed : 30 times /M动作速度：30次/分(3) Push force : Maximum value ofoperation force按力: 动作力规格值的上限(4) Operation number: 100,000 times动作次数: 10 万Contact resistance 200mΩ max接触电阻 200mΩ以下Bouncing: 10 ms max触点抖动: 10 秒以下Variation rate of operation forceshall be within ±30%to thevaluebefore testing动作力的变化范围在初始值的±30%以内No.2.1.2 and 2.2.2 shallBe satisfied满足2.1.2 和2.2.2 项2.4 Climatic characteristics 耐候性能No. Item项目Test condition试验条件Performance规格2.4.1 Cold test耐寒性(1) Temperature : - 40±2℃温度：- 40±2℃(2) Duration of test: 96h持续时间：96 小时(3) Take off a drop water去掉水珠(4) Standard conditions after test : 1h试验后的放置条件：1 小时Contact resistance200mΩ maxNo. 2.1.2 to 2.1.4 andNo. 2.2.1 to 2.2.2 shallBe satisfied接触电阻200mΩ以下满足2.1.2 到2.1.4 项、2.2.1到2.2.2 项.2.4.2 Heat test耐热性(1) Temperature : 85±2℃温度：85±2℃(2) Duration of test: 96h持续时间：96 小时(3) Standard conditions after test : 1h试验后的放置条件：1 小时Contact resistance 200mΩmaxNo. 2.1.2 to 2.1.4 andNo. 2.2.1 to 2.2.2 shallBe satisfied接触电阻200mΩ以下满足2.1.2 到2.1.4 项2.2.1到2.2.2 项.PRODUCT SPECIFICATION 产品承认书 文件版本 EDITION 第A 版 第0次修订 Title 名称轻触开关TAST SWITCH产品料号 PART NO.轻触开关系列INO.NO. Item 项目项目 Test condition Test condition 试验试验 条 件Perfor Performance mance 规格规格2.4.3Temperaturecycle 温度循环(1) Test cycles :20 cycles试验周期：20 个周期(2) Standard condition after test :1h 试验后的放置条件：1 小时temperature 温度 duration of test持续时间 20±5℃ 1h -40±2℃ 1h 20±5℃ 1h 1 cycle一次 循环 85±5℃1hNo damageElectricalandmechanical 无异常 电气、机械性能2.4.4Humidity test 耐湿性(1) Temperature : 60±2℃ 温度：60±2℃(2) relative humidity: 90~95% 相对温度:90~95%(3) Duration of test: 96h 持续时间：96 小时 (3) Take off a drop water 去掉水珠(4) Standard conditions after test : 1h 试验后的放置条件：1 小时Contact resistance 200m Ω maxNo. 2.1.2 to 2.1.4 and No. 2.2.1 to 2.2.2 shall Be satisfied接触电阻 200m Ω以下满足2.1.2 到2.1.4 项、2.2.1 到2.2.2 项.2.4.5Salt mist 盐雾实验The switch shall be subjusted to a fime mist of salt solution at a temperature of 35±2 for ℃ 24H continuously (salt solution concentration 5±1% by weight) 温度: 35±2 ℃浓度: 5±1% 时间: 24HWithout excessive rust Contact resistance 200m Ω maxPRODUCT SPECIFICATION 产品承认书文件版本EDITION第A版第0次修订Title 名称轻触开关TAST SWITCH 产品料号PART NO.轻触开关系列I3. Precaution注意事项注意事项 3.1 Soldering condition 浸焊条件ITEM项目CONDITION条件Preheat temperature 预热温度110ºC max (Embilomental temperature of soldering surface of P. W. E) 110ºC 以下(印刷基板焊锡面周围的温度)Preheat time 预热时间60 sec, max 60 秒以内Area of flux 助焊剂的面积1/2 max of P. W. B. thickness 印刷基板厚度的1/2 以内Temperature of solder 焊锡温度255ºC max 255ºC 以下Time of immersion 浸焊时间Within 5 sec 5 秒以内Soldering number 浸焊次数Within 2 times (But should bring down heat of the first soldering) 2 次以内(但应把第一次焊锡的温度降下来)Printed wiring board 印刷基板Single sided copper-clad laminates 单面铜箔(1) After switches were soldered, please be careful not to clean switches with solvent开关浸焊后,注意不要用溶剂清洗.(2) In the case of using soldering iron, soldering conditions shall be 350ºC max and 3 sec. max在使用铬铁的情况下,焊锡温度应在350ºC 以下、3 秒以内.(3) Right after switches were soldered; please be careful not to load on the knobs of switches.浸焊后,注意不要在顶部施加负荷.3. 2 Design instructions(设计中应注意的事项)(1) Follow recommended P. W. B. piercing plan in outside drawing page. 印刷基板的安装孔尺寸参见产品图.(2) Design key top as fig. Design inclination of key top 4 deg. max as fig. (Recommended operating condition.)击键部设计如图,击键部倾斜度如图在4 度以内. (参见操作条件).3.3 Note(注意点)(1) Please be cautious not to give excessive static load or shock to switches.注意不要施加超负荷的压力或晃动开关.(2) Please be careful not to pile up P. W. B. after switches were soldered.开关焊接以后,印刷基板注意不要叠放.(3) Preservation under high temperature and high humidity or corrosive gas should be avoidedespecially. When you need to preserve for a long period, do not open the carton.保管时尤其应注意避开高湿高温和有腐蚀性气体的环境.如需长时间保存,请不要打开包装箱.(4) Panasert RH and RH6 shall be used as the standard insert machine (use N type clinch).使用标准插入机器PANASERT 和RH6（使用N 式钉）(5) Preservation under high temperature and high humidity or corrosive gas should be avoided especially, whenyou need to preserve for a long period, do not open the carton.特别注意避免将产品保存在高温、强温度或有腐蚀性气体的地方。
