日本ALPS轻触开关可根据需求，从全部49个种类中选择最合适的产品。
在追求安定性、使用温度范围、寿命等高可靠性的电子设备中，轻触开关拥有丰富的应用业绩。
兼顾小型超薄设计与耐久性，而且产品种类齐全，可根据驱动力、操作感、操作方向和贴装方式等不同需求，从49种产品中选择最合适的一款。
产品用途广泛，从移动设备到A V 设备、家电、工业设备、医疗、车用设备等，能满足多样的需求。
一、SKHR 4.5mm方型（按入式）SKHR系列：SKHRAAA010 SKHRABA010 SKHRAHA010主要特点：大幅度提高部件贴装密度的小型按入型。
主要用途：适用于电子化的各种音响设备，办公设备，通讯设备，测量仪器，TV，录像机等各种操作。
二、SKHL 6*3.5mm小型（按入式）SKHL系列：SKHLAAA010 SKHLACA010 SKHLAJA010 SKHLABA010主要特点：为高密度贴装做出贡献的竖型和横型两种型号。
主要用途：适用于电子化的各种音响设备，办公设备，通讯设备，测量仪器，TV，录像机等各种操作。
SKHLADA010 SKHLAKA010 SKHLLAA010 SKHLLBA010SKHLLFA010 SKHLLCA010 SKHLLDA010三、SKHH 6mm方型（按入式）SKHH系列：SKHHAJA010 SKHHALA010 SKHHAQA010 SKHHAKA010主要特点：易使用且有丰富的产品种类而受到好评的6mm方型。
主要用途：适用于电子化的各种音响设备，办公设备，通讯设备，测量仪器，TV，录像机，汽车等各种操作。
SKHHAMA010 SKHHARA010 SKHHCQA010 SKHHCRA010SKHHBV A010 SKHHBWA010 SKHHBY A010 SKHHANA010SKHHAPA010 SKHHBSA010 SKHHDTA010 SKHHDUA010SKHHDHA010 SKHHDJA010 SKHHCW A010 SKHHDAA010SKHHDGA010 SKHHPJA010 SKHHPLA010 SKHHPQA010SKHHPKA010 SKHHPMA010 SKHHPRA010 SKHHQV A010SKHHQWA010 SKHHQY A010 SKHHPNA010 SKHHPPA010SKHHQNA010 SKHHLMA010 SKHHLNA010 SKHHLPA010SKHHLQA010 SKHHLRA010 SKHHLSA010 SKHHLUA010SKHHLVA010 SKHHLWA010 SKHHNHA010 SKHHNJA010 SKHHNKA010四、SKHW 6mm方型防尘型（按入式）SKHW系列：SKHWALA010 SKHWARA010 SKHWAPA010 SKHWAQA010主要特点：独有的防尘结构和敏感的操作感，适应于电子机器。
｜Dimensions ｜Land Dimensions ｜Circuit Diagram ｜Packing Specifications ｜Soldering Conditions Surface Mount Type TACT Switch™ > SKRP Series > SKRPACE0104.2×3.2mm Compact High Operating Force Type (Surface Mount) SKRP Series｜｜Standard typeTypeSurface mount Operating force2.55N Operating directionTop push Travel0.2mm Operating life(50mA 16V DC)50,000 cyclesInitial contact resistance 500mΩ max.Part number Series Common InfoSKRPACE010Stem color NaturalSeries type Sharp feeling typeOperating temperaturerange -30℃ to +85℃Rating (max.)50mA 16V DCRating (min.)10µA 1V DCElectrical performance Insulationresistance 100MΩ min. 100V DC for 1min.Voltageproof 250V AC for 1 min.Durability Vibration 10 to 55 to 10Hz/min., the amplitude is 1.5mm for all thefrequencies, in the 3 direction of X, Y and Z for 2 hoursrespectivelyEnvironmental performance Cold -30±2℃ for 96hDry heat 80±2℃ for 96hDampheat 60±2℃, 90 to 95%RH for 96hMinimum order unit (pcs.)Japan 4,000Export 4,000DimensionsLand DimensionsViewed from mounting face. Circuit DiagramPacking Specifications TapingNumber of packages (pcs.)1 reel4,0001 case / Japan40,0001 case / export packing40,000Tape width (mm)12Export package measurements (mm)395×395×205Soldering ConditionsCondition for Reflow1. Heating methodDouble heating method with infrared heater.2. Temperature measurementThermocouple 0.1 to 0.2 Φ CA(K) or CC(T) at solder joints (copper foil surface). A heat resisting tape should be used for fix measurement.3. Temperature profile(1) The above temperature shall be measured of the top of switch. There are cases where PC board's temperature greatly differs from that of the switch, depending on the material, size, thickness of PC board's and others. Care, should be taken to prevent the switch's surface temperature from exceeding 260℃.(2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended.Manual SolderingItems ConditionSoldering temperature350℃ max.Duration of soldering3s max.Capacity of soldering iron60W max.1. Do not washing the TACT Switch™.2. Prevent flux penetration from the top side of the TACT switch™.3. Switch terminals and a PC board should not be coated with flux prior to soldering.4. The second soldering should be done after the switch returns to normal temperature.Notes are common to this series/models.1. This site catalog shows only outline specifications. When using the products, pleaseobtain formal specifications for supply.2. Please place purchase orders for taping products per minimum order unit (1 reel or acase).3. For φ330mm diameter reel requirements, please contact us.Inquiries about ProductsInquiryCOPYRIGHT© 2020 ALPS ALPINE CO., LTD。
型Surface mount 动作力1.1N 操作方向Top push 行程0.15mm 操作寿命 (5mA 5V DC)2,000,000 cycles 初期接触电阻100mΩ max.系列Sharp feeling type 使用温度范围-30℃ to +85℃最大额定50mA 12V DC 最小额定10µA 1V DC 电性能绝缘电阻100MΩ min. 100V DC for 1min.耐电压100V AC for 1 min.耐久性能耐振性能10 to 55 to 10Hz/分, 全振幅1.5mm X, Y, Z 3方向各2小时耐环境性能耐寒性能-30±2℃ for 96h 耐热性能80±2℃ for 96h 耐湿性能60±2℃, 90 to 95%RH for 96h 最小订货单位(pcs.)日本10,000出口10,000外形图0.55(H)mm薄型(表面贴装) SKRB系列ｗｗｗ．ｊｅｐｓｕｎ．ｃｏｍ深圳市捷比信实业有限公司焊接处尺寸图自开关安装面看电路图包装规格载带梱包数(pcs.)1卷10,0001箱/日本100,0001箱/出口包装100,000载带宽度(mm)12出口包装箱尺寸(mm)395×395×205焊接条件回流焊时1. 加热方式远红外线加热的上下加热方式。
2. 温度测量方式用φ0.1〜φ0.2的CA(K)或CC(T)测量｡位置在焊连接部(铜箔面)测量｡固定方式采用耐热胶带｡3. 温度分布(1) 上述条件,为印刷电路板的零部品表面的温度。
根据电路板的材质,大小,厚度等,电路板温度和开关表面温度会有很大的不同,关于开关表面温度，也请在上述条件内使用。
(2) 根据贴面焊槽的种类,条件不同结果不同,请事先充分进行确认之后使用。
手焊接时项目条件焊接温度350℃ max.连续焊接时间3s max.焊剂斗容量60W max.1. 请勿清洗轻触开关。
阿尔卑斯轻触开关规格书阿尔卑斯轻触开关规格书1. 引言在今天的科技时代，我们的生活离不开各种各样的电子设备。
而这些设备中很重要的一部分就是开关。
开关作为人与电子设备之间的桥梁，起到了控制电源的开关功能。
在本文中，我将为您介绍一款名为“阿尔卑斯轻触开关”的高质量产品，并详细分析其规格和功能。
2. 阿尔卑斯轻触开关阿尔卑斯轻触开关是一种可靠、稳定的电子开关产品，广泛应用于各种电子设备中。
该开关采用了先进的技术和设计，具有优良的质量和品质。
通过轻触开关，用户可以方便地开关电子设备的电源，实现各种功能。
3. 规格（1）外观设计：阿尔卑斯轻触开关采用了简约、时尚的外观设计，使其能够与各种类型的电子设备相匹配。
外壳采用高品质的材料制作，既提供了良好的外观，又提供了出色的耐用性。
（2）尺寸：该开关具有小巧的尺寸，使其可以方便地安装在各种电子设备上。
尺寸为XXXXX。
（3）触摸灵敏度：阿尔卑斯轻触开关具有高灵敏度的触摸功能，能够准确地识别用户的操作。
用户可以通过轻触开关来启动或关闭设备的电源，实现各种操作。
（4）耐用性：该开关具有优良的耐用性，能够承受长时间的使用和频繁的操作。
其内部结构和材料的选择使其能够在不损坏或失效的情况下经受住各种环境和条件的考验。
（5）电源要求：阿尔卑斯轻触开关适用于各种电源要求，包括直流和交流电源。
其功耗低，能够满足大多数电子设备的要求。
4. 功能（1）开关功能：阿尔卑斯轻触开关作为一款开关产品，其主要功能是控制电子设备的开关。
用户通过轻触开关来实现设备的开启或关闭，方便快捷。
（2）指示功能：该开关还具有指示灯功能，通过指示灯的亮灭来显示设备的开关状态。
这样用户可以直观地了解设备的工作状态，提供了更好的使用体验。
（3）灵活性：阿尔卑斯轻触开关还具有灵活的功能，可以根据用户的需求进行不同的配置和设置。
用户可以通过软件或其他方式对开关的功能进行定制，以满足各种特定的需求。
5. 个人观点和理解阿尔卑斯轻触开关作为一款高质量的开关产品，具有多种规格和功能，可以满足不同用户的需求。
深圳市首韩科技有限公司限位开关深圳市首韩科技有限公司SHENZHEN SHOUHAN TECHNOLOGYCO.,LTDTel:*************Fax:*************客户Customer：产品名称Project：规格型号Part No：贵公司承认印Approal slgnatures料号/Part No.签章/Signatures日期Date:拟制/Drawn 李春风审核/Check 钟华华批准/Approved罗孝金1深圳市首韩科技有限SH-31R 11T1. 一般特性General Characteristics正常温度: 5℃~35℃ 相对湿度: 45%~85% 1.1 额定值(Rating Value): DC 5V 10mA1.2 工作温度(Work Temperature Range): -10℃ ~ 60℃1.3 存贮温度(Store Temperature Range): -20℃ ~ 80℃1.4 正常测试条件(未有特殊说明量测在以下条件进行):General test condition (Tests and measurements shall be made under the following standard conditions unless otherwise specified):RH 气 压: 8,600~10,600帕Temperature: 5℃~35℃ Relative humidity: 45%~85% Air pressure: 8,600~10,600 pa2. 产品外观及尺寸要求 Appearance & Dimension Requirement2.1 产品外形结构紧凑,无配合不良.The structure of product is compact, and assembly of parts has no badness.2.2 产品塑胶部件无严重缩水、披锋、欠注、斑点、破损或变形现象.The plastic parts of product have no serious defects such as very serious shrink, scarcity,fleck, disrepair, transmutation, etc.2.3 产品引脚和外壳无严重氧化、脏污、变形、毛刺或电镀不良.Lead feet and shell have no serious defects such as oxidation, smudge, disrepair, burr, defects on plating.2.4 开关操作顺畅,节奏感强,无明显卡塞现象。
TTY6754 2 KEYS 电容式触摸按键规格书 Ver1.1●产品描述 (2)●产品特色 (2)●产品应用 (2)●封装脚位图 (3)●脚位定义 (4)●AC／DC Characteristics (5)1 Absolute maximum ratings (5)2 D.C. Characteristics (5)3 A.C. Characteristics (5)●输出指示 (6)●功能描述 (6)●注意事项： (7)●应用线路图 (8)●封装说明 (9)●订购信息 (9)●修订记录 (9)●产品描述提供2个触摸感应按键，一对一的Toggle模式输出，提供低功耗模式，可使用于电池应用的产品。
对于防水和抗干扰方面有很优异的表现。
●产品特色工作电压范围：2.7V - 5.5V工作电流： 1.8mA (正常模式)；10 uA (休眠模式) @3.3V2个触摸感应按键持续无按键4秒，进入休眠模式提供一对一的Toggle模式输出，上电初始为高电平输出，每次按键切换输出电平可以经由调整CAP脚的外接电容，调整灵敏度，电容越大灵敏度越高具有防水及水漫成片水珠覆盖在触摸按键面板，按键仍可有效判别●产品应用各种大小家电、娱乐产品。
封装脚位图●脚位定义接脚类型●I COMS输入●O COMS输出●P 电源AC ／DC Characteristics2 D.C. Characteristics（Condition : Ta= 25 ± 3 ℃，RH ≦ 65 %，VDD =＋ 5V ，VSS=0V ）3 A.C. CharacteristicsParameterSymbol Test ConditionsMin Typ Max Unit Operating voltage VDD 2.7 5 5.5 V Operating current I OPR1 VDD=5V- 3 - mA Input low voltage for input and I/O portV IL1 0 - 0.3VDD V Input high voltage for input and I/O portV IH10.7VDD- VDD V Output port source current I OH1 V OH =0.9VDD, @5V - 4 - mA Output port sink currentI OL1V OL =0.1VDD, @5V-8-mAParameterSymbol Test Conditions Min Typ Max Unit System clock f SYS1 OSC @5v- 4 - MHz Low Voltage ResetV lvr2.02.22.4V●输出指示提供2 keys 电容触摸按键，输出是采用一对一的Toggle模式输出。

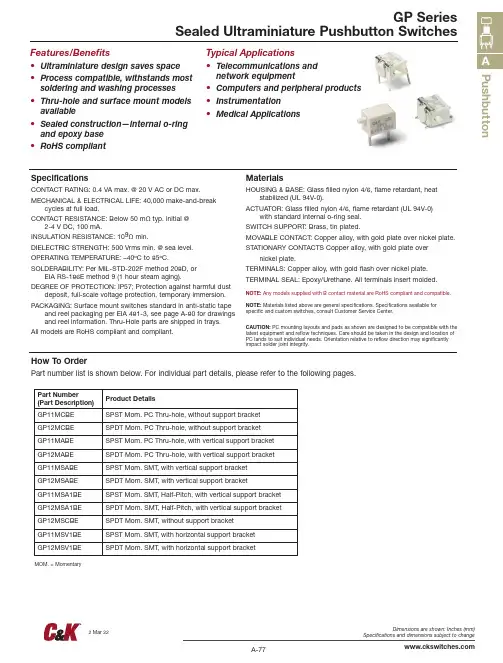

PushbuttonGP SeriesSealed Ultraminiature Pushbutton SwitchesFeatures/Benefits• Ultraminiature design saves space • P rocess compatible, withstands mostsoldering and washing processes • T hru-hole and surface mount models available• S ealed construction—internal o-ringand epoxy base• R oHS compliantTypical Applications• T elecommunications andnetwork equipment• Computers and peripheral products • Instrumentation• Medical ApplicationsSpecificationsCONTACT RATING: 0.4 VA max. @ 20 V AC or DC max.MECHANICAL & ELECTRICAL LIFE: 40,000 make-and-breakcycles at full load.CONTACT RESISTANCE: Below 50 mΩ typ. initial @2-4 V DC, 100 mA.INSULATION RESISTANCE: 109Ω min.DIELECTRIC STRENGTH: 500 Vrms min. @ sea level.OPERATING TEMPERATURE: –40ºC to 85ºC.SOLDERABILITY: Per MIL-STD-202F method 208D, orEIA RS-186E method 9 (1 hour steam aging).DEGREE OF PROTECTION: IP57; Protection against harmful dustdeposit, full-scale voltage protection, temporary immersion.PACKAGING: Surface mount switches standard in anti-static tapeand reel packaging per EIA 481-3, see page A-80 for drawings and reel information. Thru-Hole parts are shipped in trays.All models are RoHS compliant and compliant.MaterialsHOUSING & BASE: Glass filled nylon 4/6, flame retardant, heatstabilized (UL 94V-0).ACTUATOR: Glass filled nylon 4/6, flame retardant (UL 94V-0)with standard internal o-ring seal.SWITCH SUPPORT: Brass, tin plated.MOVABLE CONTACT: Copper alloy, with gold plate over nickel plate.STATIONARY CONTACTS Copper alloy, with gold plate overnickel plate.TERMINALS: Copper alloy, with gold flash over nickel plate.TERMINAL SEAL: Epoxy/Urethane. All terminals insert molded.NOTE: Any models supplied with B contact material are RoHS compliant and compatible.NOTE: Materials listed above are general specifications. Specifications available for specific and custom switches, consult Customer Service Center.CAUTION: PC mounting layouts and pads as shown are designed to be compatible with the latest equipment and reflow techniques. Care should be taken in the design and location of PC lands to suit individual needs. Orientation relative to reflow direction may significantly impact solder joint integrity.How To OrderPart number list is shown below. For individual part details, please refer to the following pages.Part Number (Part Description)Product DetailsGP11MCBE SPST Mom. PC Thru-hole, without support bracket GP12MCBE SPDT Mom. PC Thru-hole, without support bracket GP11MABE SPST Mom. PC Thru-hole, with vertical support bracket GP12MABE SPDT Mom. PC Thru-hole, with vertical support bracket GP11MSABE SPST Mom. SMT, with vertical support bracket GP12MSABE SPDT Mom. SMT, with vertical support bracketGP11MSA1BE SPST Mom. SMT, Half-Pitch, with vertical support bracket GP12MSA1BE SPDT Mom. SMT, Half-Pitch, with vertical support bracket GP12MSCBE SPDT Mom. SMT, without support bracket GP11MSV1BE SPST Mom. SMT, with horizontal support bracket GP12MSV1BESPDT Mom. SMT, with horizontal support bracketMOM. = MomentaryP u s h b u t t o nMOM. = MomentaryGP SeriesGP12 ModelGP12 ModelGP11MCBE SPSTMOM. = MomentaryMOM. = MomentaryP u s h b ut t o nGP SeriesSealed Ultraminiature Pushbutton SwitchesGP11MSA1BE SPSTGP11MSABE SPSTPushbuttonGP SeriesSealed Ultraminiature Pushbutton SwitchesTerminal nos.for reference only.PC MOUNTINGNOTE: Recommended for infrequent use applications onlyFor increased switch mounting strength, order, SV1 termination style with support bracket (see below).MOM. = MomentaryGP11MSV1BE SPSTGP12MSCBE SPDTP u s h b u t t o nGP SeriesSealed Ultraminiature Pushbutton SwitchesGP12MSV1BE GP11MSV1BEø0.059(ø1,50).069(1,76).157(4,00).945(24,00).299(7,60).079(2,00).453(11,51)FEED DIRECTIONFor part numbers GPXXSA1BE, GPXXMSABEFor part numbers GP11MSV1BE, GP12MSV1BEBFor part numbers GP12MSCBEREEL INFORMATIONOUTSIDE DIAMETER 13.00 (330,0)PILOT HOLE .512 (13,0)QUANTITY PER REEL600REEL INFORMATIONOUTSIDE DIAMETER 13.00 (330,0)PILOT HOLE .512 (13,0)QUANTITY PER REEL600REEL INFORMATIONOUTSIDE DIAMETER 13.00 (330,0)PILOT HOLE .512 (13,0)QUANTITY PER REEL600。
