MLH SeriesAll Metal Pressure SensorsDESCRIPTIONMLH Series pressure sensors combine Application Specific Integrated Circuit (ASIC) technology with a media isolated, metal diaphragm design. This digitally compensated sensor offers value and performance, making it the ideal pressure sensing solution for demanding applications. Fully temperature compensated, calibrated and amplified, the MLH is available in 50 psi to 8,000 psi pressure ranges.MLH sensors deliver ±0.25% full scale accuracy Best Fit Straight Line (BFSL) and as low as 2% total error over a temperature range of -40 °C to 125 °C [-40 °F to 257 °F]. Industry standard connectors and process ports are offered for enhanced reliability and user flexibility.The MLH has seven standard output options:A. 0.5 Vdc to 4.5 Vdc ratiometric output from 5 Vdc excitationB. 4 mA to 20 mA current from 9.5 Vdc to 30 Vdc excitationC. 1.0 Vdc to 6.0 Vdc regulated output from 8 Vdc to30 Vdc excitationD. 0.25 Vdc to 10.25 Vdc regulated output from 14 Vdc to30 Vdc excitationE. 0.5 Vdc to 4.5 Vdc regulated output from 7 Vdc to30 Vdc excitationF. 0 mV to 50 mV from 5 Vdc excitationG. 1 Vdc to 5 Vdc output from 8 Vdc to 30 Vdc excitationFEATURES• All metal wetted parts for use in wide variety of fluidapplications• No internal elastomeric seals mean no o-ring compatibilityissues• Amplified outputs eliminate cost of external amplifiers • Input reverse voltage and output short circuit protectionsguard against mis-wiring• Less than 2 ms response time provides accurate, highspeed measurement• Rated IP65 or better for protection from harsh environmentsPOTENTIAL APPLICATIONS • Compressors• Refrigeration and HVAC/R • General industrial • General hydraulics• Multiple transportation applications including braking andalternate fuels • MedicalMLH Series2 /sensingTable 1. Pressure Range Specifications 1(At 25 °C [77 °F] and at rated excitation unless otherwise specified.)psiPressure 50 100 150 200 250 300 500 1000 2000 3000 5000 8000 Proof pressure 150 300 450 600 750 900 1500 2000 4000 6000 7500 12000 Burst pressure 500 1000 1500 2000 2500 3000 5000 10000 20000 30000 30000 30000barPressure 6 10 16 25 40 60 100 160 250 350 500 550 Proof pressure 18 30 48 75 80 120 200 320 500 700 750 825 Burst pressure60 100 160 250 400 600 1000 1600 2068 2068 2068 2068Note:1. Comparable metric units follow same proof and burst specifications.Table 2. Physical and Environmental SpecificationsParameter Characteristic Material in contact with media stainless steel 300 series and Haynes 214 alloy, Hastelloy C22 sensor available (contact factory) Housing material black plastic – Amodel AS-4133 HS – PPA Weight 57.0 g [2.0 oz] (typical for Packard MetriPak and 1/8 NPT port) Shock 100 g peak [11 ms] Vibration MIL-STD-810C, Figure 514.2-5, Curve AK, Table 514.2-V, Random Vibration Test [overall g rms =20.7 min.]Compensated, operating and storage temperature range-40 °C to 125 °C [-40 °F to 257 °F]Table 3. Electrical Specifications (At 25 °C [77 °F] and at rated excitation unless otherwise specified.) Parameter Ratiometric(A)1 Current (B) Regulated(C) Regulated(D) Regulated(E) mV (F) Regulated(G) Zero output 0.5 Vdc4.0 mA1.0 Vdc0.25 Vdc0.5 Vdc0 ±2.5 mV1.0 VdcFull scale span (FSS) 4.0 Vdc (0.5 to 4.5 Vdc) 16 mA (4 to 20 mA) 5.0 Vdc (1.0 to 6.0 Vdc) 10.0 Vdc (0.25 to 10.25 Vdc) 4.0 Vdc (0.5 to4.5 Vdc) 50 mV (0 to 50 mV) 4.0 Vdc (1.0 to 5.0 Vdc)Excitation 5 Vdc (6.0 Vdc max.) 9.5 Vdc to 30.0 Vdc 8.0 Vdc to 30.0 Vdc 14.0 Vdc to 30.0 Vdc 7.0 Vdc to 30.0 Vdc5.0 Vdc (6.0 Vdc max.)8.0 Vdc to 30.0 VdcSupply current 4.0 mA typical (8 mA max.)N/A 5.0 mA typical (17 mA max.)5.0 mA typical (17 mA max.)5.0 mA typical (17 mA max.) 8.0 mA typical (17 mA max.) 5.0 mA typical (17 mA max.)Source (nominal) 1.0 mA N/A 1.0 mA 1.0 mA 1.0 mA N/A 1.0 mA Sink(nominal) 1.0 mA at zero outputN/A 1.0 mA at zero output1.0 mA at zero output1.0 mA at zero outputN/A 1.0 mA at zero outputSupplyrejection ratio 90 db 90 db 90 db 90 db 90 db N/A90 dbOutput impedance25 Ω max.N/A25 Ω max.25 Ω max.25 Ω max.2000 Ω 25 Ω max.Note:1. Maintains ratiometricity at 5 ±0.25 Vdc excitation. Product can tolerate 6 Vdc excitation without damage.All Metal Pressure SensorsHoneywell Sensing and Control 3Table 4. Performance Specifications (At 25 °C [77 °F] and at rated excitation unless otherwise specified.)Parameter Characteristic Response time <2 msAccuracy 1:>100 psi<100 psi±0.25% FSS ±0.50% FSS Total error band 2:Gage:<300 psig>300 psigSeal gage:>300 psisSeal gage without L, M, P termination:100 psis to 299 psis (-40 °C to 85 °C [-40 °F to 185 °F])100 psis to 299 psis (>85 °C to 125 °C [>185 °F to 257 °F])>300 psis (-40 °C to 125 °C [-40 °F to 257 °F])Seal gage with L, M, P termination:100 psis to 299 psis (-40 °C to 65 °C [-40 °F to 149 °F])100 psis to 299 psis (>65 °C to 125 °C [>149 °F to 257 °F])>300 psis (-40 °C to 65 °C [-40 °F to 149 °F])>300 psis (>65 °C to 125 °C [>149 °F to 257 °F])±3% FSS ±2% FSS ±2% FSS ±3% FSS ±10% FSS ±2% FSS ±10% FSS ±15% FSS ±5% FSS ±15% FSS Notes:1. Includes pressure non-linearity (BFSL), pressure hysteresis and non-repeatability. Thermal errors are not included.2. Includes zero error, span error, thermal effect on zero, thermal effect on span, thermal hysteresis, pressure-non-linearity,pressure hysteresis and non-repeatability.1Sensing and Control Honeywell1985 Douglas Drive North Golden Valley, MN 55422 /sensing 008118-5-EN IL50 GLO Printed in USAJanuary 2009Copyright © 2009. Honeywell International Inc. All rights reserved.Figure 2. Mounting Dimensions (For reference only. mm/(in).)Pin and Wire Codes (Option B – Packard)Pin Voltage Current a + Excitation + Excitation b Output - Excitation c Common No ConnectionA variety of pressure ports and electricaltermination connection options are available. Refer to the “How to Order” on previous page for possible combinations. Contact your Honeywell representative for details.WARNINGMISUSE OF DOCUMENTATION• The information presented in this product sheet is forreference only. Do not use this document as a product installation guide.• Complete installation, operation, and maintenanceinformation is provided in the instructions supplied with each product.Failure to comply with these instructions could result in death or serious injury.WARRANTY/REMEDYHoneywell warrants goods of its manufacture as being free of defective materials and faulty workmanship. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your order acknowledgement or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items it finds defective. Theforegoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages.While we provide application assistance personally,through our literature and the Honeywell web site, it is up to the customer to determine the suitability of the product in the application.Specifications may change without notice. Theinformation we supply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use.WARNINGPERSONAL INJURYDO NOT USE these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.Failure to comply with these instructions could result in death or serious injury.SALES AND SERVICEHoneywell serves its customers through a worldwide network of sales offices, representatives and distributors. For application assistance, current specifications, pricing or name of the nearest Authorized Distributor, contact your local sales office or:E-mail:*********************Internet: /sensingPhone and Fax: Asia Pacific +65 6355-2828 +65 6445-3033 Fax Europe +44 (0) 1698 481481 +44 (0) 1698 481676 Fax Latin America +1-305-805-8188 +1-305-883-8257 F ax USA/Canada +1-800-537-6945 +1-815-235-6847 +1-815-235-6545 F ax。
使用说明书DMF-LK系列科氏力质量流量计龙口中隆计控设备有限公司目录第一章概述 (4)1.1工作原理： (5)1.2流量计的技术参数 (7)1.3流量计结构与外形尺寸 (10)1.3.1 变送器外形及机柜开孔尺寸图： (10)1.3.2传感器的外形尺寸图 (11)1.3.3技术性能指标 (14)1.3.4质量流量计的型号与选型 (16)第二章质量流量计的安装与调试 (16)2.1质量流量传感器的安装 (16)2.2传感器与变送器的接线 (19)2.3变送器的接线 (20)2.4仪表的通电和检查 (21)2.5 常见故障的维护 (21)第三章变送器的设置 (22)3.1功能设置 (22)3.1.1用户菜单密码 (22)3.1.2系统菜单密码 (22)3.1.3测量单位的选择 (22)3.1.4小数点位数的选择 (22)3.1.5电流输出的设置 (23)3.1.6频率输出的设置23 3.2仪表面板 (23)3.3 操作界面 (24)3.4 零点校准 (29)第四章防爆 (30)4.1防爆系统的原理 (30)4.2 防爆性能 (30)4.3 防爆性能试验 (30)附录:RS485通讯协议 (31)第一章概述DMF-LK系列质量流量计是根据科里奥利（Coriolis Force）原理，实现流体质量流量的直接精密测量，而无需任何压力、温度、粘度、密度等换算或修正。
其结构是由传感器单元和变送器单元两部分组成。
仪表按本质安全防爆型的国家标准设计与制造，防爆标志为Exdib[ib]IIBT5科里奥利质量流量计能够直接测量流体的质量，具有高精度（0.1%~0.2%），应用范围广(可测量各种非牛顿流体、各种浆液、悬浮液、高粘度流体等)，安装要求低（对仪表的前后直管段要求不高），运行可靠、稳定，维修率低等特点。
本公司保留对该说明书内容修改的权利。
用户使用时以随机发货的说明书为准。
1.1工作原理：当一个位于以P点为旋转中心做旋转运动的管子内的质点做朝向或远离旋转中心的运动时，将产生一贯性力，原理如图1:图1图中质量为δm的质点以匀速v围绕一个固定点P并以角速度ω旋转的管道内移动时，这个质点将获得两个加速度分量：1.法向加速度αr（向心加速度），其量值值等于ω2r，方向朝向P点；2.切向加速度αt（科里奥利加速度），其量值等于2ωv，方向与αr垂直。

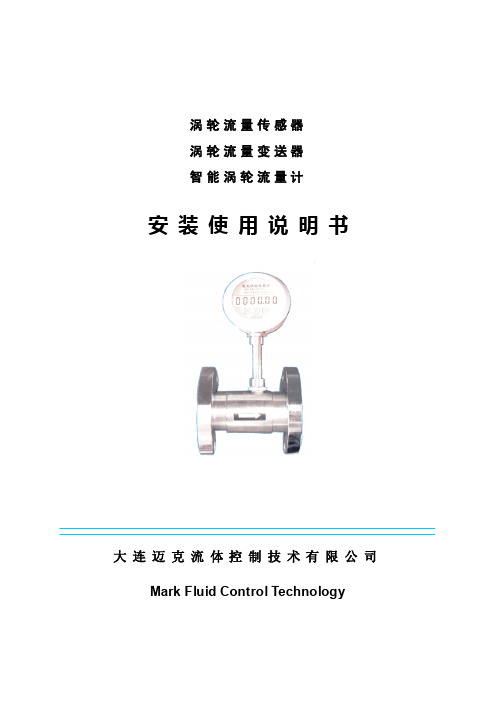

涡轮流量传感器安装使用说明书一、概述涡轮流量传感器（以下简称传感器）基于力矩平衡原理。
传感器具有结构简单、轻巧、精度高、复现性好、反应灵敏，安装维护使用方便等特点，广泛用于石油、化工、冶金、供水、造纸等行业，是流量计量和节能的理想仪表。
选用本产品的防爆型式(ExmIIT6),可在有爆炸危险的环境中使用。
传感器适用于在工作温度下粘度小于5×10-6m2/s的介质，对于粘度大于5×10-6m2/s的液体，要对传感器进行实液标定后使用。
如用户需用特殊形式的传感器，可协商订货，需防爆型传感器时，在订货中加以说明。
(1) 基本参数：见表（一）DN4—DN40口径的传感器为螺纹连接，最大工作压力为6.3Mpa；DN50—DN200口径的传感器为法兰连接, 最大工作压力为2.5Mpa；DN4—DN10口径的传感器带有前后直管段、过滤器。
DN15以上口径的传感器我公司可配套前后直管段。
DN25－DN40口径的传感器也可制作成法兰连接，但需在订货时说明。
(2) 介质温度：-20～＋120℃。
(3) 环境温度：-20～＋55℃。
(4) 供电电源：电压：12V±10%, 电流：≤10mA。
(5) 输出电压幅值：高电平≥8V，低电平≤0.8V。
(6) 传输距离：传感器至显示仪表的距离可达1000m。
2．3．1 安装传感器的安装方式根据规格不同，采用螺纹或法兰连接，安装方式见图（一）、图（二）、图（三），安装尺寸见表（二）。
1.过滤器2.前直管段3.叶轮4.前置放大器5.壳体6.后直管段整表结构图图（一）—4～10传感器结构及安装尺寸示意图1. 壳体 2．前导向件 3．叶轮 4．后导向件 5．前置放大器图（二）—15～40传感器结构及安装尺寸示意图5．前置放大器 6．叶轮 7．轴承 8．轴传感器可能产生的一般故障及消除方法见表(三)，维护周期不应超过半年。
用户遵守说明书的规定进行保管和使用的情况下，从制造厂发货日起一年内，传感器因制造不良以至不能正常工作时，制造厂可免费修理。
产品数据手册 Rev1.0Date:3/03/2015 Data sheets◆ 直接式测量气体质量◆ 宽量程比，可测量低至0.3Nm/s ◆ 响应速快，测量精度高◆ 多参数测量，可测量流量、温度、压力，节省成本 ◆ 无可动部件，不堵塞◆ 安装简单，单点插入，支持不断流、在线带压安装 ◆ 多路输出信号：4-20mA 电流、脉冲输出 ◆ 智能自诊断，降低产品维护成本 ◆ 支持多种通信方式（HART 、Modbus-RTU ）目录1概述 (3)1.1测量原理 (3)1.2 产品概述 (4)2参数 (5)3材料 (8)4 安装 (8)4.1安装直管段要求 (8)4.2流量计插入管道方向选择 (10)5 仪表尺寸和外形结构 (11)5.1仪表尺寸和外形结构 (11)5.2卡套球阀连接流量计的G1/2”焊接基座 (14)5.3 分体式流量计表头 (14)产品数据手册Rev1.0 Date:3/03/2015 Data sheets产品数据手册 Rev1.0Date:3/03/2015Data sheets 1 概述1.1测量原理TGF450系列热式气体质量流量计为恒功率型热式气体质量流量计，基于热传导技术原理，采用牛顿热力学定律，以实现对气体质量流量的测量。
TGF450流量计的测量元件由两个铂电阻传感元件和一个加热元件构成（如图1.1），它们被置于流体中。
测量时，一个传感元件由加热功率为Ｐ的加热元件进行加热，使其温度升至Ｔ1；另一传感元件不被加热，以用于测量介质温度，设为Ｔ2，因此两个传感元件之间将产生温差△Ｔ=Ｔ1－Ｔ2。
当流量为零时，△Ｔ最大，随着流量Ｑ的增大，传感元件的热量被带走，从而温度Ｔ1下降，则△Ｔ减小。
根据牛顿热力学定律，加热功率Ｐ、温差△Ｔ与质量流量Ｑ之间满足下式：Ｐ/△Ｔ＝Ｋ1＋Ｋ2*F(Q)K3上式中Ｋ1、Ｋ2、Ｋ3是与气体物理性质有关的参数, Ｐ为恒定加热功率，△Ｔ为传感元件的温差，F(Q)为质量流量与温差△Ｔ满足的函数关系式，Ｑ为质量流量。
