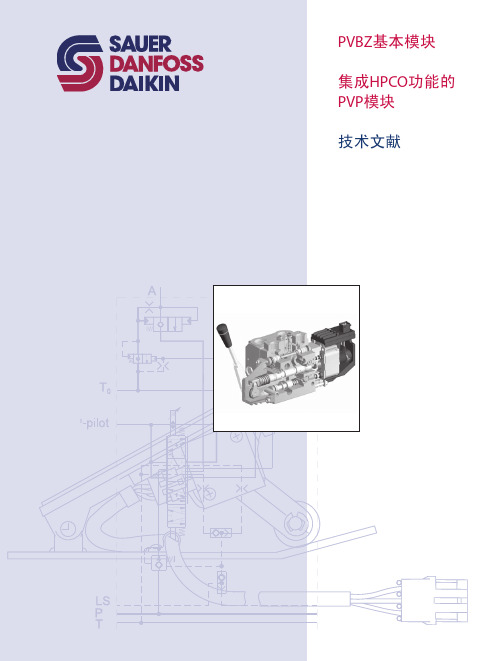

PVBZ基本模块技术文献版本修订历史目录概述 (3)剖视图 (4)功能 (5)技术参数 (6)PVP,泵侧模块-带T0口 (7)PVBZ,工作模块-带T0口 (8)PVB,工作模块-带T0口 (8)PVBZ,标准阀芯 (9)标准 FC- PVBZ阀芯 (电气和机械驱动) (10)标准 PVBZ悬浮阀芯 (电子驱动) (10)PVEH-F电气驱动 (10)PVST, 后端盖 (10)液压原理图 (11)驱动元件 (12)尺寸 (13)订购说明 PVBZ (14)订购说明 HPCO (15)© 2010 Sauer-Danfoss. 版权所有。
萨澳-丹佛斯对目录，说明书和其它出版物中可能存在的错误不负任何责任。
萨澳-丹佛斯有权不预先通知就更改其产品。
这同时也适用于已订购产品，尽管此类更改随后没有任何已认同的说明书中认为是必要的变化。
此资料中的所有商标都归属各自公司。
Sauer-Danfoss和Sauer-Danfoss标志为萨澳-丹佛斯集团商标。
2L1010371 • Rev CA • Jan 2010PVBZ基本模块技术文献PVBZ集成HPCO的PVP PVBZ模块是带有集成液控单向阀的工作模块。
PVBZ模块是为将集成了液控单向阀工作油口的泄露降到最低（低于1 cm3 [0.06 in3]每分钟)的应用而研发的。
PVBZ模块只能与本技术文献中提到的PVB工作模块和PVP泵侧模块结合使用，具有以下特征：• 集成低内泄液控单向阀• 集成热力安全阀• 标准 4/3（三位四通）阀芯• 4/4（四位四通）浮动阀芯• 阀芯可互换PVBZ（带独立回油口T0的PVB）模块是集成HPCO功能的PVG 32。
HPCO功能引导PVG 32阀组中多余的泵流通过HPCO口流到其它地方，如换向阀。
集成HPCO功能的新的PVP泵侧模块只能与本技术文献中提到的PVB、PVBZ和PVST模块配合使用，它具有以下特征：• HPCO功能• 优先保证PVG 32需要的流量• 节省油管概述3 L1010371 • Rev CA • Jan 2010PVBZ基本模块技术文献剖视图剖视图1 溢流阀2 先导油路减压阀3 压力表连接口4 堵头，开芯5 节流口，闭芯6 压力调节阀芯7 堵头，闭芯8 LS 连接口9 T0 连接口10 堵头 - 若T0内置，则移除 (仅157B5130,157B5131, 157B5330 和157B5331 )11 LS 信号12 POC先导阀13 梭阀14 液控单向阀, POC15 主阀芯16 压力补偿器17 梭针18 A和B口的最大油量调节螺钉19 PVE的先导油源20 独立回油口(T0)V310138.A4L1010371 • Rev CA • Jan 2010PVBZ基本模块技术文献功能功能当主阀芯(15)处于中位时，液控单向阀(POC)在弹簧力和工作压力的共同作用下保持关闭，工作压力经过阻尼孔作用于POC(14)的弹簧侧。
