FORUM 论坛装备156 /矿业装备 MINING EQUIPMENT薄煤层综采工作面“三机”选型及应用□ 王宏伟 大同煤矿集团华盛虎峰煤业有限公司1 工作面煤层开采条件工作面煤层厚度为0.86~2.67 m。
平均厚度1.72 m。
采取东部煤层中含有少量泥岩夹矸，南部煤层出现大面积沉陷，中部较稳定，北部煤层厚度较大。
整个采区内断层较少，水文地质相对简单。
采区煤层储量为890万t，可开采储量为782万t，分布较为连续，具有开采价值。
煤层综采工作面的设计长度为200 m，采高在2 m 左右，日常量为0.8万t，年产250万t 左右，采煤机割煤回采率为98%。
采煤机采用双向割煤的作业方式，斜切进刀进行割煤作业。
2 工作面产量计算工作面日开采进度根据设计日产量进行计算：工作面小时割煤量根据四六制作业模式，每个班作业6个小时，开机率以70%进行计算：采煤机采用的是端部双向割煤方式，即割煤方式为两个循环割煤。
经计算每个循环需要40 min，以采煤机割煤速度9 m/min 进行计算，采煤机的小煤炭开采中的采煤机、刮板输送机和液压支架等主要生产设备是保证开采效率的重要因素，尤其是对薄煤层的开采更为重要。
薄煤层较低的开采效率且随着国家对资源回收率要求的进一步提高，原有的生产设备已经不能满足生产需要。
因此，结合开采条件对开采主要设备进行选型，以保证安全、稳定、高效的生产效率已经成为目前需要考虑的重要内容。
基于此，结合某矿将要开采的薄煤层生产条件，对主要生产设备进行了选型并进行了现场应用，为薄煤层设备的选型提供依据。
时割煤量应满足1 225 t/h。
3 工作面设备选型3.1 采煤机目前，国内外采煤机的生产能力已经很高，基本都能满足生产需要。
因此，在满足生产需求的基础上对采煤机的操作简易性、可靠性等方面进行考虑。
德国生产的采煤机具有适应性好、故障率低、可靠性高以及使用寿命长等优点深受企业的欢迎，其生产的采煤机整体稳定性都要比其它企业的要好，更高的稳定性可以避免生产作业过程中的振动，能够更加充分发挥采煤机的截割效率，且在作业过程中，采煤机的组成部件受到的冲击较小，可以有效延长各部件的使用寿命。

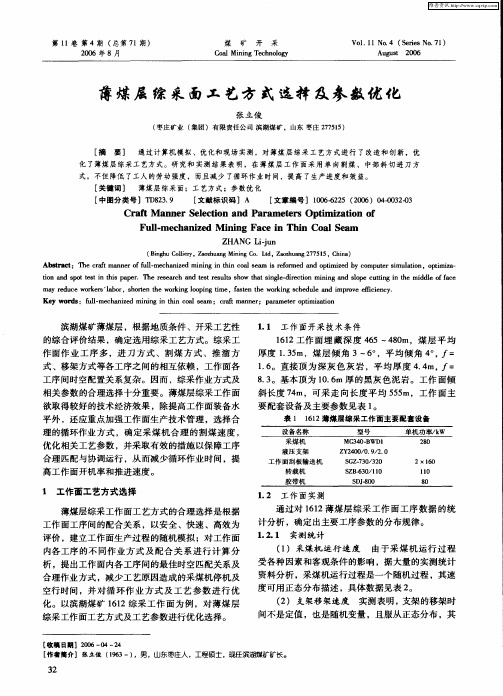

综采工作面采煤参数及采煤工艺的优化摘要：对于煤矿企业而言，主要关注的问题为如何在保证综采工作面安全生产的前提下，最大限度的提升工作面煤炭的开采率，提升所采出煤炭的质量。
经研究可知，决定上述问题的关键因素为工作面对应的采煤工艺和采煤参数。
因此，在实际煤炭开采过程中需根据工作面的地质、煤层等相关条件对采煤参数及采煤工艺进行优化选取。
本文将以某矿工作面为例对其采煤参数和工艺进行优化。
关键词：放顶煤开采;放煤步距;放煤高度;含矸率;为进一步提升综采工作面的煤炭的回收率和煤炭质量，在分析其地质、水文以及煤层等条件的基础上，对所采用的放顶煤开采工艺下对应的放煤高度、放煤步距以及放煤方式进行优化确定，为其他开采工艺下采煤参数及工艺参数的优化确定提供指导。
1采煤参数及工艺参数的优化对于放顶煤开采方式而言，其关键采煤参数及对应工艺参数包括有顶煤的放煤高度、放煤步距以及放煤方式等。
因此，本文将对上述参数进行优化。
1.1 放煤高度的优化确定放煤高度与工作面所选型采煤机的采煤高度相关。
从理论上讲，在放顶开采方式下所选取的放煤高度和采煤高度的和为工作面煤层的平均厚度。
因此，对指定的工作面煤层而言，采煤高度的最优确定即可得到最佳放煤高度。
一般情况下，采高与工作面的通风情况存在一定的关系，二者之间的关系如式（1）所示。
式中:Hg为采煤参数的采高；Qf为综采工作面当前通风设备的供风量，取Qf=23 m3/s;Bz为综采工作面所配置液压支架的最小长度，Bz=7 m;Vf,max为工作面的风速，一般取Vf,max=1.8-2.5 m/s；为根据工作面围岩及设备情况所确定的过风断面系数，取φ=0.6。
将上述参数代入式（1）计算可得，龙家堡煤矿采煤工作面Ⅱ、Ⅲ合采原始煤层对应的最佳采煤高度为2.2-3.04 m。
结合该矿当前所选型液压支架的具体型号为ZF7000/18/35支撑掩护式液压支架，其对应的最高支护高度为3.2 m。
与此同时，结合以往工作面采高参数的选取经验和通风要求，最终确定工作面对应Ⅱ、Ⅲ合采原始煤层的最佳采煤高度为3 m。

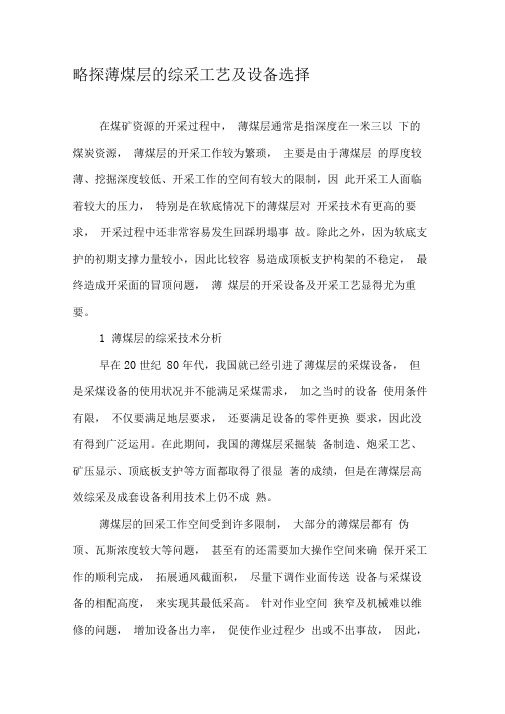

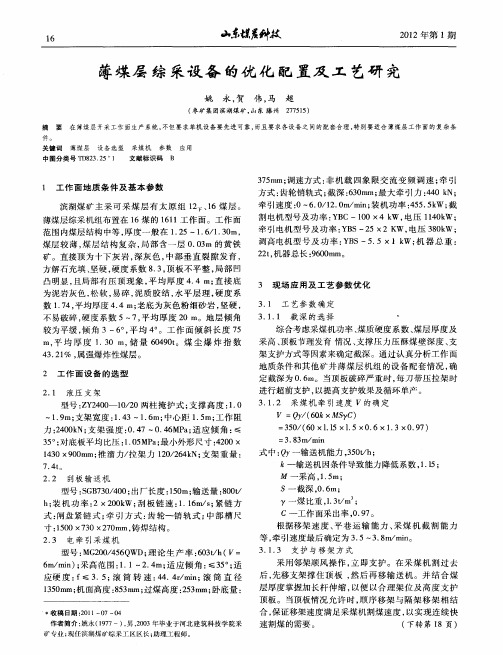

略探薄煤层的综采工艺及设备选择在煤矿资源的开采过程中，薄煤层通常是指深度在一米三以下的煤炭资源，薄煤层的开采工作较为繁琐，主要是由于薄煤层的厚度较薄、挖掘深度较低、开采工作的空间有较大的限制，因此开采工人面临着较大的压力，特别是在软底情况下的薄煤层对开采技术有更高的要求，开采过程中还非常容易发生回踩坍塌事故。
除此之外，因为软底支护的初期支撑力量较小，因此比较容易造成顶板支护构架的不稳定，最终造成开采面的冒顶问题，薄煤层的开采设备及开采工艺显得尤为重要。
1薄煤层的综采技术分析早在20世纪80年代，我国就已经引进了薄煤层的采煤设备，但是采煤设备的使用状况并不能满足采煤需求，加之当时的设备使用条件有限，不仅要满足地层要求，还要满足设备的零件更换要求，因此没有得到广泛运用。
在此期间，我国的薄煤层采掘装备制造、炮采工艺、矿压显示、顶底板支护等方面都取得了很显著的成绩，但是在薄煤层高效综采及成套设备利用技术上仍不成熟。
薄煤层的回采工作空间受到许多限制，大部分的薄煤层都有伪顶、瓦斯浓度较大等问题，甚至有的还需要加大操作空间来确保开采工作的顺利完成，拓展通风截面积，尽量下调作业面传送设备与采煤设备的相配高度，来实现其最低采高。
针对作业空间狭窄及机械难以维修的问题，增加设备出力率，促使作业过程少出或不出事故，因此，薄煤层高效采煤设备及三机配合综采模式的研发开始兴起。
2影响薄煤层作业面的相关因素综采作业面的主要零件就是液压型支架，因此，在选择综采设备的过程中我们需要格外重视支护装置的相关参数对比，特别是支护装置的柔韧性及给底板造成的压力对比，在煤层底板比压处于相对较低的状况时，应尽可能地增加支架上承载人的空间范围及支护构架稳定性。
通过科学分类顶板应该属于二级2 类，同时需要科学安置伪顶，底板还可以细分为三种，属于软基类别，如果薄煤层表面是此类底板，那么应该采用掩护类或者承载掩护类的支架，这种支架在实际运用中已经取得了较为显著的成效。
