LCM检验标准

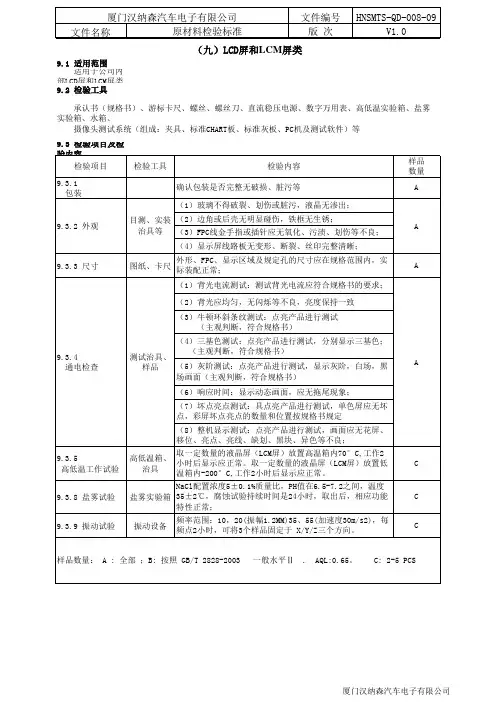

1. Scope:The incoming inspection standards shall be applied to TFT-LCD Modules (hereinafter called "Modules") that supplied by Shanghai Tianma Micro-Electronics Corporation.2. Incoming InspectionThe customer shall inspect the modules within twenty calendar days of the delivery date（the “inspection period）at its own cost. The result of the inspection（acceptance or rejection）shall be recorded in writing, and a copy of this writing will be promptly sent to the seller, If the results of the inspecting from buyer does not send to the seller within twenty calendar days of the delivery date. The modules shall be regards as acceptance.Should the customer fail to notify the seller within the inspection period, the buyers right to reject the modules. Shall be lapsed and the modules shall be deemed to have been accepted by the buyer.3. Inspection Sampling Method3.1. Lot size: Quantity per shipment lot per model3.2. Sampling type: Normal inspection, Single sampling3.3. Inspection level: II3.4. Sampling table: MIL-STD-105D3.5. Acceptable quality level （AQL）Major defect: AQL=0.1Minor defect: AQL=0.654. Inspection Conditions4.1 Ambient conditions:a. Temperature: Room temperature 25±5℃b. Humidity: (60±10) ％RHc. Illumination: Single fluorescent lamp non-directive ( 600 to 800 Lux )4.2 Viewing distanceThe distance between the LCD and the inspector’s eyes shall be at least 30±5㎝. 4.3 Viewing AngleU/D: 45º/45º, L/R: 45º/45º5. Inspection CriteriaPage 2 of 6Defects are classified as major defects and minor defects according to the degree of defectiveness defined herein.5.1 Major defect5.2 Minor defect Item NoItems to be inspectedInspection standard5.2.1Spot Defect Including Black spotWhite spot Pinhole Foreign particle Polarizer dirtFor dark/white spot is definedSize φ(mm)Acceptable Quantityφ≤0.10 Ignore 0.10﹤φ≤0.203 0.20﹤φNot allowed5.2.2Line DefectDefine:Item No Items to be inspected Inspection Standard 5.1.1 All functional defects 1) No display 2) Display abnormally3) Short circuit 4) line defect5.1.2 missing Missing function component5.1.3 CrackGlass CrackPage 3 of 6 IncludingBlack lineWhite lineScratchTouch panel White line Scratch Width(mm)Length(mm)Acceptable Quantity W≤0.03 Ignore0.03﹤W≤0.05L≤5.020.05﹤W Follow 5.2.15.2.3PolarizerDent/BubbleSize φ(mm)Acceptable Quantityφ≤0.2Ignore0.2﹤φ≤0.5 30.5﹤φNot allowed5.2.4 Electrical DotDefectBright and Black dot define:andInspection pattern: Full white﹑Full black﹑Red﹑greenand blue screensItem Acceptable QuantityDark dot defect 2Bright dot defect 0Total Dot 25.2.5 Touch paneldefect1.Corner Fragment:Page 4 of 6Size(mm) Acceptable QuantityX≤3.0mm Y≤3.0mm Z≤TIgnoreT:Glass thickness X: LengthY: WidthZ: thickness2. Side Fragment:Size(mm) Acceptable QuantityX≤5.0mm Y ≤3.0mm Z≤TIgnoreT：Glass thickness X: LengthY: WidthZ: thickness5.2.6 Touch panelspotSize φ(mm)Acceptable Quantityφ≤0.15 Ignore0.15﹤φ≤0.25 30.25﹤φ05.2.7 Touch panelNewton ringCompare with limit sample5.2.8 BezelDirtNo harm WrapSunken No dangerous Broken No harm5.2.9 FPC Broken Not allowed Crease Can't resume is not allowedPage 5 of 6 Note: 1. Dot defect is defined as the defective area of the dot area is larger than50% of the dot area.2.The distance between black dot defects or black and bright dot defectsshould be more than 5mm apart.3. Polarizer bubble is defined as the bubble appears on active display area. Thedefect of polarizer bubble shall be ignored if the polarizer bubble appears on theoutside of active display area.4.Mura is checker by 6% ND filter.5.Foreign particle on the surface of the LCM should be ignore.6. Mechanics specificationAs for the outside dimension, weight of the modules, please refer to product specification for more details7. PrecautionPlease pay attention to the following items when you use the LCD Modules:7-1 Do not twist or bend the module and prevent the unsuitable external force for display module during assembly.7-2 Adopt measures for good heat radiation. Be sure to use the module with in the specified temperature.7-3 Avoid dust or oil mist during assembly.7-4 Following the correct power sequence while operating. Do not apply the invalid signal, otherwise, it will cause improper shut down and damage the module.7-5 Less EMI: it will be more safety and less noise.7-6 Please operate module in suitable temperature. The response time & brightness will drift by different temperature.7-7 Avoid to display the fixed pattern (exclude the white pattern) in a long period, otherwise, it will cause image stains.7-8 Be sure to turn off the power when connection of disconnecting the circuit.7-9 Polarizer scratches easily, please handle it carefully.7-10 Display surface never likes dirt of stains.7-11 A dew drop may lead to destruction. Please wipe off and moisture before using module.7-12 Sudden temperature changes cause condensation, and it will cause polarizer damaged.7-13 High temperature and humidity may degrade performance. Please do not expose the module to the direct sunlight and so on.7-14 Acetic acid or chlorine compounds are not friends with TFT display module.7-15 Static electricity will damage the module, please do not touch the module without any grounded device.7-16 Do not disassemble and reassemble the module by self.7-17 Be careful do not touch the rear side directly.Page 6 of 6 7-18 Not strong vibration or shock. It will cause module broken.7-19 Storage the modules in suitable environment with regular packing.7-20 Be careful or injury from a broken display module.7-21 Please avoid the pressure adding to the surface (front or rear side) of modules, because it will cause the display non-uniformity of other function issue.。

C.S. Dept 2005.10COG制程Pic.1Driver ICFPCACFPassive components(Resist, capacitor)制程管制附:ACF使用及儲存注意事項FPC制程ACF贴附FPC假压FPC本压制程管制管制项目管控点影响检查方式厂内频率温度、时间、压力依据ACF型号设定电讯N/A 首件时确认ACF材料规格已选定电讯N/A 首件时确认ITO偏移量本压后，FPC类有效搭载宽度标准2/3以上，COF/TCP 类有效搭载宽度1/2以上。

（气泡，粒子未变形区视为无效压和搭载面积）电讯显微镜首件：12pcs/次抽检：12pcs/45+-15分钟有效压合宽度>=2/3 电讯显微镜首件：12pcs/次抽检：12pcs/45+-15分钟导电粒子变形率见《FPC 假本压制程管制标准》附图电讯显微镜首件：12pcs/次抽检：12pcs/45+-15分钟搭载面积导电粒子数有效例子数量>=6 电讯显微镜首件：12pcs/次抽检：12pcs/45+-15分钟ITO间粒子堆积ITO间无粒子堆积（见管制标准附图）电讯显微镜首件：12pcs/次抽检：12pcs/45+-15分钟热压头与IC距离>=0.3mm；用显微镜观测FPC根部粒子状况与IC是否有气泡及偏位电讯显微镜每次开机、换线每次调整挡板后每次重装压头后假本压一体披覆胶涂布溢胶1.Silicon 不可超出玻璃边2.Pin 角不可沾Silicon 胶外观 目檢首件：10pcs/次 作业中100%自检Tuffy 胶涂布管制项目管控点影响 检查方式 厂内频率涂胶宽度1.出PIN 断露铜区全部覆盖并超出0.3~3.0mm 2.无露铜区规格为超出玻璃边0.3~3.0mm 外观 目檢首件：10pcs/次/班 作业中100%自检涂胶长度 必须超出对位标记外观目檢首件：10pcs/次 作业中100%自检 溢胶 不可涂上玻璃面 外观 目檢 首件：10pcs/次 作业中100%自检 断胶不可有断线及气泡外观目檢首件：10pcs/次 作业中100%自检贴片Tuffy 胶披覆胶拉焊对位 PIN 脚相互对位偏移不得超过1/3 电讯 目检 全检 拉力0.8kg/cm拉力计首件时确认组装管制项目管控点影响检查方式厂内频率L/G1.脏白点2.赃污3.刮伤4.卡口是否完整外观 目检为主点亮治具 首件/抽检/自检铁框1.是否有锈点2.刮伤露黄外观 目检为主首件/抽检/自检彩膜 1.脏白点 2.赃污3.刮伤4.纤维 外观 目检为主首件/抽检/自检外观所有外观项目外观目检首件/抽检/自检拉 焊贴 片项目检查频率检验标准检验数量检查人员确认人员首件作业首件每班作业5PCS/次作业员技术员/组长抽检作业自检100% 100% 作业员技术员/组长制程抽检1次/2H 12PCS/次IPQC/组长工程员电测管制项目管控点影响检查方式厂内频率静电环有效接地电讯静电环测试记录表作业佩戴玻璃取放不接触PIN端IC面ALL测座清洁无尘布沾酒精，以同一方向擦拭外观1回/批或脏污时电讯依模组检验标准电测每片电测组装。

德信诚培训网
更多免费资料下载请进： 好好学习社区 LCM 首检规范
1.0 目的:
依据液晶制造工艺的分散性，IC 来料电压变异性，定义并规范不同条件生产批次产品首件检查操作要求，避免发生批量性错误，确保每次批量生产产品的电性及外观符合客户要求。

2.0 适用范围:
本公司所有产品。

3.0 职责与权限:
3.1 生产：首件品物料的确认、首件制作、自检及判断、物料首件送检。

3.2 品管：确认物料首件品所用物料、镜检COG/FOC 效果、显示效果及外观尺寸、；监督
确认机台首件的执行情况；工艺首检的确认。

3.3 研发：提供标准样板、测试程序及测架，首件异常的处理。

4.0 名词定义：
4.1 物料首件检查：新工单开始生产、主要物料（IC 、LCD 、FPC 、B/L 、T/P ）更换批次后
的生产、工单生产所制作的前5pcs 产品须经过首件检查，OK 后方可进行批量生产。

4.2 机台首件检查：换型号、换班、转班、调机、停电、异常停机、待料超过2h 后重新
开班首次生产所制作的首片产品必须经过首件检查，OK 后方可进行批量生产。

4.3工艺首件检查：打胶、贴偏光片、等关键工位每次生产之前必须进行工艺首件检查，
OK 后方可进行批量生产。

5.0 工具、设备、环境要求：
5.1 产品资料/图纸/产品样板
5.2 测试架/测试单片机/客户样机
5.3 游标卡尺/目测镜/菲林卡尺。
