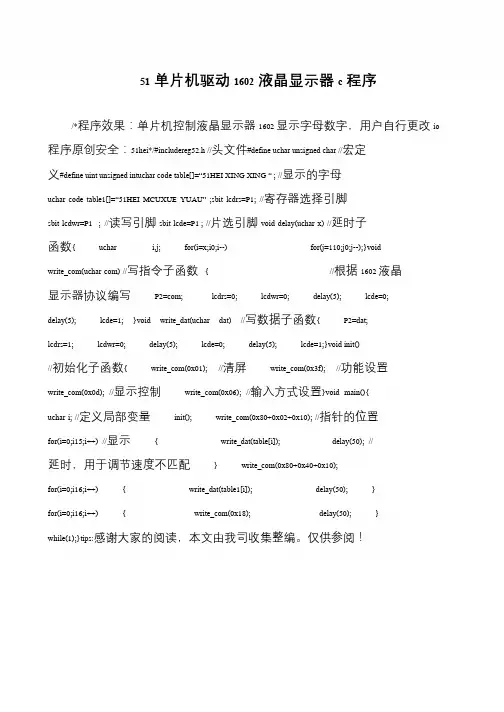

51单片机驱动1602液晶显示器c程序/*程序效果：单片机控制液晶显示器1602 显示字母数字，用户自行更改io程序原创安全：51hei*/#includereg52.h //头文件#define uchar unsigned char //宏定义#define uint unsigned intuchar code table[]=“51HEI XING XING “ ; //显示的字母uchar code table1[]=“51HEI MCUXUE YUAU” ;sbit lcdrs=P1; //寄存器选择引脚sbit lcdwr=P1;//读写引脚sbit lcde=P1 ; //片选引脚void delay(uchar x) //延时子函数{uchar i,j;for(i=x;i0;i--) for(j=110;j0;j--);}void write_com(uchar com) //写指令子函数{ //根据1602 液晶显示器协议编写P2=com; lcdrs=0;lcdwr=0;delay(5);lcde=0; delay(5);lcde=1; }void write_dat(uchar dat) //写数据子函数{P2=dat; lcdrs=1;lcdwr=0;delay(5);lcde=0;delay(5);lcde=1;}void init() //初始化子函数{write_com(0x01); //清屏write_com(0x3f); //功能设置write_com(0x0d); //显示控制write_com(0x06); //输入方式设置}void main(){ uchar i; //定义局部变量init();write_com(0x80+0x02+0x10); //指针的位置for(i=0;i15;i++) //显示{ write_dat(table[i]); delay(50); //延时，用于调节速度不匹配}write_com(0x80+0x40+0x10);for(i=0;i16;i++){ write_dat(table1[i]); delay(50);}for(i=0;i16;i++){ write_com(0x18); delay(50);} while(1);}tips:感谢大家的阅读，本文由我司收集整编。

12864系列点阵型液晶显示模块使用说明书一、OCM12864液晶显示模块概述1.OCM12864液晶显示模块是128×64点阵型液晶显示模块，可显示各种字符及图形，可与CPU直接接口，具有8位标准数据总线、6条控制线及电源线。

采用KS0107控制IC。

2.外观尺寸：113×65×11mm(ocm12864-1), 93×70×10mm(ocm12864-2)78×70×10mm(ocm12864-3)，3.视域尺寸：73.4×38.8mm(ocm12864-1) 70.7×38mm(ocm12864-2),64×44mm(ocm12864-3)4.重量：大约g补充说明：外观尺寸可根据用户的要求进行适度调整。

二、最大工作范围1、逻辑工作电压(Vcc)：4.5～5.5V2、电源地(GND)：0V3、LCD驱动电压(Vee)：0～-10V4、输入电压：Vee～Vdd5、工作温度(Ta)：0～55℃(常温) / -20～70℃（宽温）6、保存温度(Tstg)：-10～65℃三、电气特性(测试条件 Ta=25,Vdd=5.0+/-0.25V)1、输入高电平(Vih)：3.5Vmin2、输入低电平(Vil)：0.55Vmax3、输出高电平(Voh)：3.75Vmin4、输出低电平(Vol)：1.0Vmax5、工作电流：2.0mAmax四、接口说明12864-3A接口说明表五、指令描述1、显示开/关设置CODE：R/W D/I DB7 DB6 DB5 DB4 DB3 DB2DB1 DB0功能：设置屏幕显示开/关。

DB0=H，开显示；DB0=L，关显示。

不影响显示RAM(DD RAM)中的内容。

2、设置显示起始行CODE：R/W D/I DB7 DB6 DB5 DB4 DB3 DB2DB1 DB0功能：执行该命令后，所设置的行将显示在屏幕的第一行。

1602液晶显示汉字程序1602液晶显示汉字程序利用1602显示汉字也不是新鲜的内容，今天不想颓废了。

只是需要自己事先定义一下汉字的字模，就是显示出来的汉子字体结构。

要定义字模就需要知道1602的CG RAM地址和显示字符的地址DD RAM图1：1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1600 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4E 4F第一行第一个字符的地址是( 0x80) ，后面的字符地址以此类推第二行第一个字符的地址为( 0x80 + 0x40)，需要在第一行的基地址后面加上一个偏移量0x40，后面的地址在此基址上再依次加一。

void delay(unsigned int time_i){ int i;for (;tim>0;tim--){for (i=0;i<10;i++);}}void command_out (char out_data) {RW=0;RS=0;EN=1;DB=out_data;EN=0;delay(10);}void OUTD(char out_data){RS=1;RW=0;EN=1;DB= out_data;EN=0;delay(10);}OUTI()是写入指令的函数，OUTD()是写入数据的函数。

如：左上角第一个5*7的显示数据为：0x00,0x01,0x81,0x12,0x24,0x41,0x81,0x10蓝色区域的相应位为1这样就可以写出全部4个5*7点阵的显示数据了，把它封装在一个数组中，如数组，hanzi[]={0x00,0x01,0x81,0x12,0x24,0x41,0x81,0x 10,………………}之后利用命令：OUTI(0X40);for (i=0;i<64;i++){ OUTD(neu[i]);}将这个数组中的数据赋值到1602内部CGRAM 中。

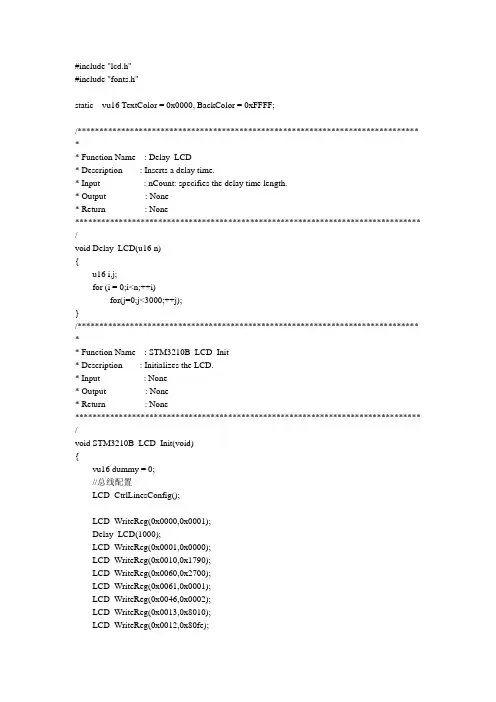

#include "lcd.h"#include "fonts.h"static vu16 TextColor = 0x0000, BackColor = 0xFFFF;/****************************************************************************** ** Function Name : Delay_LCD* Description : Inserts a delay time.* Input : nCount: specifies the delay time length.* Output : None* Return : None******************************************************************************* /void Delay_LCD(u16 n){u16 i,j;for (i = 0;i<n;++i)for(j=0;j<3000;++j);}/****************************************************************************** ** Function Name : STM3210B_LCD_Init* Description : Initializes the LCD.* Input : None* Output : None* Return : None******************************************************************************* /void STM3210B_LCD_Init(void){vu16 dummy = 0;//总线配置LCD_CtrlLinesConfig();LCD_WriteReg(0x0000,0x0001);Delay_LCD(1000);LCD_WriteReg(0x0001,0x0000);LCD_WriteReg(0x0010,0x1790);LCD_WriteReg(0x0060,0x2700);LCD_WriteReg(0x0061,0x0001);LCD_WriteReg(0x0046,0x0002);LCD_WriteReg(0x0013,0x8010);LCD_WriteReg(0x0012,0x80fe);LCD_WriteReg(0x0002,0x0500);LCD_WriteReg(0x0003,0x1030);LCD_WriteReg(0x0030,0x0303);LCD_WriteReg(0x0031,0x0303);LCD_WriteReg(0x0032,0x0303);LCD_WriteReg(0x0033,0x0300);LCD_WriteReg(0x0034,0x0003);LCD_WriteReg(0x0035,0x0303);LCD_WriteReg(0x0036,0x0014);LCD_WriteReg(0x0037,0x0303);LCD_WriteReg(0x0038,0x0303);LCD_WriteReg(0x0039,0x0303);LCD_WriteReg(0x003a,0x0300);LCD_WriteReg(0x003b,0x0003);LCD_WriteReg(0x003c,0x0303);LCD_WriteReg(0x003d,0x1400);LCD_WriteReg(0x0092,0x0200);LCD_WriteReg(0x0093,0x0303);LCD_WriteReg(0x0090,0x080d);LCD_WriteReg(0x0003,0x1018);LCD_WriteReg(0x0007,0x0173);dummy = LCD_ReadReg(0);}/****************************************************************************** ** Function Name : LCD_SetTextColor* Description : Sets the Text color.* Input : - Color: specifies the Text color code RGB(5-6-5).* Output : - TextColor: Text color global variable used by LCD_DrawChar* and LCD_DrawPicture functions.* Return : None******************************************************************************* /void LCD_SetTextColor(vu16 Color){TextColor = Color;}/****************************************************************************** ** Function Name : LCD_SetBackColor* Description : Sets the Background color.* Input : - Color: specifies the Background color code RGB(5-6-5).* Output : - BackColor: Background color global variable used by* LCD_DrawChar and LCD_DrawPicture functions.* Return : None******************************************************************************* /void LCD_SetBackColor(vu16 Color){BackColor = Color;}/****************************************************************************** ** Function Name : LCD_ClearLine* Description : Clears the selected line.* Input : - Line: the Line to be cleared.* This parameter can be one of the following values:* - Linex: where x can be 0..9* Output : None* Return : None******************************************************************************* /void LCD_ClearLine(u8 Line){LCD_DisplayStringLine(Line, " ");}/****************************************************************************** ** Function Name : LCD_Clear* Description : Clears the hole LCD.* Input : Color: the color of the background.* Output : None* Return : None******************************************************************************* /void LCD_Clear(u16 Color){u32 index = 0;LCD_SetCursor(0x00, 0x0000);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */for(index = 0; index < 76800; index++){LCD_WriteRAM(Color);}}/****************************************************************************** ** Function Name : LCD_SetCursor* Description : Sets the cursor position.* Input : - Xpos: specifies the X position.* - Ypos: specifies the Y position.* Output : None* Return : None******************************************************************************* /void LCD_SetCursor(u8 Xpos, u16 Ypos){LCD_WriteReg(R32, Xpos);LCD_WriteReg(R33, Ypos);}/****************************************************************************** ** Function Name : LCD_DrawChar* Description : Draws a character on LCD.* Input : - Xpos: the Line where to display the character shape.* This parameter can be one of the following values:* - Linex: where x can be 0..9* - Ypos: start column address.* - c: pointer to the character data.* Output : None* Return : None******************************************************************************* /void LCD_DrawChar(u8 Xpos, u16 Ypos, uc16 *c){u32 index = 0, i = 0;u8 Xaddress = 0;Xaddress = Xpos;LCD_SetCursor(Xaddress, Ypos);for(index = 0; index < 24; index++){LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */for(i = 0; i < 16; i++){if((c[index] & (1 << i)) == 0x00){LCD_WriteRAM(BackColor);}else{LCD_WriteRAM(TextColor);}}Xaddress++;LCD_SetCursor(Xaddress, Ypos);}}/****************************************************************************** ** Function Name : LCD_DisplayChar* Description : Displays one character (16dots width, 24dots height).* Input : - Line: the Line where to display the character shape .* This parameter can be one of the following values:* - Linex: where x can be 0..9* - Column: start column address.* - Ascii: character ascii code, must be between 0x20 and 0x7E.* Output : None* Return : None******************************************************************************* /void LCD_DisplayChar(u8 Line, u16 Column, u8 Ascii){Ascii -= 32;LCD_DrawChar(Line, Column, &ASCII_Table[Ascii * 24]);}/****************************************************************************** ** Function Name : LCD_DisplayStringLine* Description : Displays a maximum of 20 char on the LCD.* Input : - Line: the Line where to display the character shape .* This parameter can be one of the following values:* - Linex: where x can be 0..9* - *ptr: pointer to string to display on LCD.* Output : None* Return : None******************************************************************************* /void LCD_DisplayStringLine(u8 Line, u8 *ptr){u32 i = 0;u16 refcolumn = 319;//319;while ((*ptr != 0) && (i < 20)) // 20{LCD_DisplayChar(Line, refcolumn, *ptr);refcolumn -= 16;ptr++;i++;}}/****************************************************************************** ** Function Name : LCD_SetDisplayWindow* Description : Sets a display window* Input : - Xpos: specifies the X buttom left position.* - Ypos: specifies the Y buttom left position.* - Height: display window height.* - Width: display window width.* Output : None* Return : None******************************************************************************* /void LCD_SetDisplayWindow(u8 Xpos, u16 Ypos, u8 Height, u16 Width){if(Xpos >= Height){LCD_WriteReg(R80, (Xpos - Height + 1));}else{LCD_WriteReg(R80, 0);}LCD_WriteReg(R81, Xpos);if(Ypos >= Width){LCD_WriteReg(R82, (Ypos - Width + 1));}else{LCD_WriteReg(R82, 0);}/* Vertical GRAM End Address */LCD_WriteReg(R83, Ypos);LCD_SetCursor(Xpos, Ypos);}/****************************************************************************** ** Function Name : LCD_WindowModeDisable* Description : Disables LCD Window mode.* Input : None* Output : None* Return : None******************************************************************************* /void LCD_WindowModeDisable(void){LCD_SetDisplayWindow(239, 0x13F, 240, 320);LCD_WriteReg(R3, 0x1018);}/****************************************************************************** ** Function Name : LCD_DrawLine* Description : Displays a line.* Input : - Xpos: specifies the X position.* - Ypos: specifies the Y position.* - Length: line length.* - Direction: line direction.* This parameter can be one of the following values: Vertical* or Horizontal.* Output : None* Return : None******************************************************************************* /void LCD_DrawLine(u8 Xpos, u16 Ypos, u16 Length, u8 Direction){u32 i = 0;LCD_SetCursor(Xpos, Ypos);if(Direction == Horizontal){LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */for(i = 0; i < Length; i++){LCD_WriteRAM(TextColor);}}else{for(i = 0; i < Length; i++){LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */LCD_WriteRAM(TextColor);Xpos++;LCD_SetCursor(Xpos, Ypos);}}}/****************************************************************************** ** Function Name : LCD_DrawRect* Description : Displays a rectangle.* Input : - Xpos: specifies the X position.* - Ypos: specifies the Y position.* - Height: display rectangle height.* - Width: display rectangle width.* Output : None* Return : None******************************************************************************* /void LCD_DrawRect(u8 Xpos, u16 Ypos, u8 Height, u16 Width){LCD_DrawLine(Xpos, Ypos, Width, Horizontal);LCD_DrawLine((Xpos + Height), Ypos, Width, Horizontal);LCD_DrawLine(Xpos, Ypos, Height, V ertical);LCD_DrawLine(Xpos, (Ypos - Width + 1), Height, Vertical);}/****************************************************************************** ** Function Name : LCD_DrawCircle* Description : Displays a circle.* Input : - Xpos: specifies the X position.* - Ypos: specifies the Y position.* - Height: display rectangle height.* - Width: display rectangle width.* Output : None* Return : None******************************************************************************* /void LCD_DrawCircle(u8 Xpos, u16 Ypos, u16 Radius){s32 D;u32 CurX;u32 CurY;D = 3 - (Radius << 1);CurX = 0;CurY = Radius;while (CurX <= CurY){LCD_SetCursor(Xpos + CurX, Ypos + CurY);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */ LCD_WriteRAM(TextColor);LCD_SetCursor(Xpos + CurX, Ypos - CurY);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */ LCD_WriteRAM(TextColor);LCD_SetCursor(Xpos - CurX, Ypos + CurY);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */ LCD_WriteRAM(TextColor);LCD_SetCursor(Xpos - CurX, Ypos - CurY);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */ LCD_WriteRAM(TextColor);LCD_SetCursor(Xpos + CurY, Ypos + CurX);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */ LCD_WriteRAM(TextColor);LCD_SetCursor(Xpos + CurY, Ypos - CurX);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */ LCD_WriteRAM(TextColor);LCD_SetCursor(Xpos - CurY, Ypos + CurX);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */ LCD_WriteRAM(TextColor);LCD_SetCursor(Xpos - CurY, Ypos - CurX);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */ LCD_WriteRAM(TextColor);if (D < 0){D += (CurX << 2) + 6;}else{D += ((CurX - CurY) << 2) + 10;CurY--;}CurX++;}}/****************************************************************************** ** Function Name : LCD_DrawMonoPict* Description : Displays a monocolor picture.* Input : - Pict: pointer to the picture array.* Output : None* Return : None******************************************************************************* /void LCD_DrawMonoPict(uc32 *Pict){u32 index = 0, i = 0;LCD_SetCursor(0, 319);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */for(index = 0; index < 2400; index++){for(i = 0; i < 32; i++){if((Pict[index] & (1 << i)) == 0x00){LCD_WriteRAM(BackColor);}else{LCD_WriteRAM(TextColor);}}}}/****************************************************************************** ** Function Name : LCD_WriteBMP* Description : Displays a bitmap picture loaded in the internal Flash.* Input : - BmpAddress: Bmp picture address in the internal Flash.* Output : None* Return : None******************************************************************************* /void LCD_WriteBMP(u32 BmpAddress){u32 index = 0, size = 0;size = *(vu16 *) (BmpAddress + 2);size |= (*(vu16 *) (BmpAddress + 4)) << 16;index = *(vu16 *) (BmpAddress + 10);index |= (*(vu16 *) (BmpAddress + 12)) << 16;size = (size - index)/2;BmpAddress += index;LCD_WriteReg(R3, 0x1008);LCD_WriteRAM_Prepare();for(index = 0; index < size; index++){LCD_WriteRAM(*(vu16 *)BmpAddress);BmpAddress += 2;}LCD_WriteReg(R3, 0x1018);}/****************************************************************************** ** Function Name : LCD_WriteReg* Description : Writes to the selected LCD register.* Input : - LCD_Reg: address of the selected register.* - LCD_RegValue: value to write to the selected register.* Output : None* Return : None******************************************************************************* /void LCD_WriteReg(u8 LCD_Reg, u16 LCD_RegValue){GPIOB->BRR = 0x0200; //LCD_NCS_LOW();GPIOB->BRR = 0x0100; //LCD_RS_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOC->ODR = LCD_Reg; //GPIO_Write(LCD_DataPort,LCD_Reg);GPIOB->BRR = 0x0020; //LCD_NWR_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOB->BSRR = 0x0100; //LCD_RS_HIGH();GPIOC->ODR = LCD_RegValue; //GPIO_Write(LCD_DataPort,LCD_RegValue);GPIOB->BRR = 0x0020; //LCD_NWR_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOB->BSRR = 0x0100; //LCD_RS_HIGH();}/****************************************************************************** ** Function Name : LCD_ReadReg* Description : Reads the selected LCD Register.* Input : None* Output : None* Return : LCD Register Value.******************************************************************************* /u16 LCD_ReadReg(u8 LCD_Reg){u16 temp;GPIOB->BRR = 0x0200; //LCD_NCS_LOW();GPIOB->BRR = 0x0100; //LCD_RS_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOC->ODR = LCD_Reg; //GPIO_Write(LCD_DataPort,LCD_Reg);GPIOB->BRR = 0x0020; //LCD_NWR_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOB->BSRR = 0x0100; //LCD_RS_HIGH();LCD_BusIn();GPIOB->BRR = 0x0400; //LCD_NRD_LOW();temp = GPIOC->IDR; //temp=GPIO_ReadInputData(LCD_DataPort);GPIOB->BSRR = 0x0400; //LCD_NRD_HIGH();LCD_BusOut();GPIOB->BSRR = 0x0200; //LCD_NCS_HIGH();return temp;}/****************************************************************************** ** Function Name : LCD_WriteRAM_Prepare* Description : Prepare to write to the LCD RAM.* Input : None* Return : None******************************************************************************* /void LCD_WriteRAM_Prepare(void){GPIOB->BRR = 0x0200; //LCD_NCS_LOW();GPIOB->BRR = 0x0100; //LCD_RS_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOC->ODR = R34; //GPIO_Write(LCD_DataPort,R34);GPIOB->BRR = 0x0020; //LCD_NWR_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOB->BSRR = 0x0100; //LCD_RS_HIGH();GPIOB->BSRR = 0x0200; //LCD_NCS_HIGH();}/****************************************************************************** ** Function Name : LCD_WriteRAM* Description : Writes to the LCD RAM.* Input : - RGB_Code: the pixel color in RGB mode (5-6-5).* Output : None* Return : None******************************************************************************* /void LCD_WriteRAM(u16 RGB_Code){GPIOB->BRR = 0x0200; //LCD_NCS_LOW();GPIOB->BSRR = 0x0100; //LCD_RS_HIGH();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOC->ODR = RGB_Code; //GPIO_Write(LCD_DataPort,RGB_Code);GPIOB->BRR = 0x0020; //LCD_NWR_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOB->BSRR = 0x0100; //LCD_RS_HIGH();GPIOB->BSRR = 0x0200; //LCD_NCS_HIGH();}/****************************************************************************** ** Function Name : LCD_ReadRAM* Description : Reads the LCD RAM.* Input : None* Return : LCD RAM Value.******************************************************************************* /u16 LCD_ReadRAM(void){u16 temp;GPIOB->BRR = 0x0200; //LCD_NCS_LOW();GPIOB->BRR = 0x0100; //LCD_RS_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOC->ODR = R34; //GPIO_Write(LCD_DataPort,R34);GPIOB->BRR = 0x0020; //LCD_NWR_LOW();GPIOB->BSRR = 0x0020; //LCD_NWR_HIGH();GPIOB->BSRR = 0x0100; //LCD_RS_HIGH();LCD_BusIn();GPIOB->BRR = 0x0400; //LCD_NRD_LOW();temp = GPIOC->IDR; //temp=GPIO_ReadInputData(LCD_DataPort);GPIOB->BSRR = 0x0400; //LCD_NRD_HIGH();LCD_BusOut();GPIOB->BSRR = 0x0200; //LCD_NCS_HIGH();return temp;}/****************************************************************************** ** Function Name : LCD_PowerOn* Description : Power on the LCD.* Input : None* Output : None* Return : None******************************************************************************* /void LCD_PowerOn(void){LCD_WriteReg(R16, 0x0000);LCD_WriteReg(R17, 0x0000);LCD_WriteReg(R18, 0x0000);LCD_WriteReg(R19, 0x0000);Delay_LCD(20);LCD_WriteReg(R16, 0x17B0);LCD_WriteReg(R17, 0x0137);Delay_LCD(5);LCD_WriteReg(R18, 0x0139);Delay_LCD(5);LCD_WriteReg(R19, 0x1d00);LCD_WriteReg(R41, 0x0013);Delay_LCD(5);LCD_WriteReg(R7, 0x0173);}/****************************************************************************** ** Function Name : LCD_DisplayOn* Description : Enables the Display.* Input : None* Output : None* Return : None******************************************************************************* /void LCD_DisplayOn(void){LCD_WriteReg(R7, 0x0173);}/****************************************************************************** ** Function Name : LCD_DisplayOff* Description : Disables the Display.* Input : None* Output : None* Return : None******************************************************************************* /void LCD_DisplayOff(void){LCD_WriteReg(R7, 0x0);}/****************************************************************************** ** Function Name : LCD_CtrlLinesConfig* Description : Configures LCD Control lines.Push-Pull mode.* Input : None* Output : None* Return : None*******************************************************************************void LCD_CtrlLinesConfig(void){GPIO_InitTypeDef GPIO_InitStructure;RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB | RCC_APB2Periph_GPIOC , ENABLE);GPIO_InitStructure.GPIO_Pin = GPIO_Pin_9 | GPIO_Pin_5 | GPIO_Pin_8 | GPIO_Pin_10;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_10MHz;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;GPIO_Init(GPIOB, &GPIO_InitStructure);LCD_BusOut();GPIOB->BSRR |= 0x0620;}/****************************************************************************** ** Function Name : LCD_BusIn* Description : Configures the Parallel interface for LCD(PortC)* Input : None* Output : None* Return : None******************************************************************************* /void LCD_BusIn(void){GPIO_InitTypeDef GPIO_InitStructure;GPIO_InitStructure.GPIO_Pin = GPIO_Pin_All;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IPU;GPIO_Init(GPIOC, &GPIO_InitStructure);}/****************************************************************************** ** Function Name : LCD_BusOut* Description : Configures the Parallel interface for LCD(PortC)* Input : None* Output : None* Return : None******************************************************************************* /void LCD_BusOut(void)GPIO_InitTypeDef GPIO_InitStructure;GPIO_InitStructure.GPIO_Pin = GPIO_Pin_All;GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;GPIO_Init(GPIOC, &GPIO_InitStructure);}/****************************************************************************** ** Function Name : LCD_DrawPicture* Description : Displays a 16 color picture.* Input : - picture: pointer to the picture array.* Output : None* Return : None******************************************************************************* /void LCD_DrawPicture(const u8* picture){int index;LCD_SetCursor(0x00, 0x0000);LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */for(index = 0; index < 76800; index++){LCD_WriteRAM(picture[2*index+1]<<8|picture[2*index]);}}。
