钻井业专业词汇英语翻译

顶驱&钻井英文常用词汇表（第一版）盘锦辽河油田天意石油装备有限公司2010年9月一、顶驱英文顶部驱动系统Top drive system 车载钻机truck-mounted rig机械的mechanical 电学的electrical液压的hydraulic 钻井设备drilling equipment 大斜度井high-inclination well 深井deep well丛式定向钻井cluster directional well低温顶驱low-temperature top drive system超深井ultra-deep well 定向井directional well载荷load capacity 工作高度working height电动机motor 功率power转速rotary speed 钻井扭矩drilling torque过载能力over load capacity 卸扣break out上扣make-up 循环压力circulation pressure额定压力rated pressure 电源电压power voltage电源频率power frequency 工作电流working current通风机ventilator 接线箱junction box平衡油缸counterbalance cylinder 盘式刹车disc brake电缆接插件cable connector assembly 主电机main motor液压阀组hydraulic valve block 提环bail鹅颈管gooseneck 油箱tank蓄能器accumulator 齿轮箱gearbox冲管总成wash pipe assembly 液压马达hydraulic motor回转头rotating head 导轨guide beam倾斜油缸tilt cylinder 防松法兰lock flange背钳back-up tong 导向器stabbing guide遥控IBOP upper IBOP 手动IBOP lower IBOP吊环link 吊卡elevator齿轮轴gear shaft 冷却风机Cooling motor交流电机 AC motor 水龙头 Swivel主齿轮 Driving gear 编码器 Encoder散热器 Radiator 油道 Oil passage密封槽Seal groove 轴承 bearing滚轮 Roller 滑套 IBOP actuator shell曲柄 Crank 销pin钳牙tongdies 活塞piston螺栓bolt 黄油grease小车总成 Carriage accessory 气流 Air current风道 Air duct 进风口 Air inlet出风口 Air outlet 梨型环 Pear link卡箍clamping band 键key弹簧spring 倾斜inclination锤hammer 扳wrench钳子pincers 钢丝wire钉子nail 软管hose管线line 挠性接头flexible joint猫卸扣，联接环shackle 油漆paint角钢angle 不锈钢stainless steel电缆cable 钻井水drill water电线wire line 汽油gasoline柴油diesel oil 润滑油lubricating oil黄油嘴grease nozzle 机油machine oil航油aviation fuel 焊条welding electrode台钳bench clamp 剪子，剪刀scissors胶布，橡皮膏adhesive tape 卷尺，皮尺tape measure辅助动力缆 auxiliary power cable 综合缆 comprehensive cable 电磁阀 Solenoid valve 电控房 control house防爆电连接器Explosion-proof electrical connector变频器 variable frequency device 模块module接触器contactor 低压断路器 circuit breaker 继电器relay 接线排termination制冷系统 cooling system 变压器 transformer制动电阻 braking resistance 电抗器 reactor司钻箱driller console 液压泵hydraulic pump液压缸hydraulic cylinder 液压油箱hydraulic oil tank 过滤器filter 单向阀check valve换向阀shuttle valve 溢流阀relief valve减压阀 reducing valve 节流阀throttle valve插装阀plug-in valve 上跳counterbalance浮动floating 旋扣spin零件parts 密封圈o-ring密封衬垫gasket 衬垫，填密packing垫圈washer 锁紧垫圈lock washer螺母nut 滚销roll pin滑环slip ring 挡环retainer接头adapter 短节sub杆rod 联接器connector联管节union 滑轮，（滑轮）槽pulley夹子clamp 心轴mandrel轴shaft 螺钉screw螺丝刀，改锥screwdriver 支承holder支架support 外壳cover插座socket 备件spare parts米M. meter 千米，公里Km. kilometer厘米Cm. centimeter 毫米mm millimeter英寸in inch 英尺ft feet英里mile 升，公升l liter千斤kiloliter 吨ton克g gram 千克，公斤kg kilogram加仑gal gallon 桶bbl barrel长度length 面积area磅pound 体积volume容积measurement 重量weight二、钻井工况词语1）起下钻：trip 起下钻 tight spot 遇阻点trip in 下钻 ream 划眼trip out 起钻 back ream 倒划眼round trip 起下钻 circulate 循环wiper trip 短起下钻（拉井壁） break circulation 顶水眼dry trip （不喷）起钻 wash down last stand 冲洗最后一柱wet trip （喷）起钻 fill 沉沙pill （压水眼）重泥浆 off bottom 提离井底pump slug 打重泥浆 wash down 冲下去pull out of hole(POOH) for bit 起钻换钻头 line pull 大绳拉力change bit 换钻头 makeup torque 上扣扭矩run in hole(RIH) 下钻 normal drag正常阻力What’s bottoms up? 迟到时间是多少？2）钻进：drill 钻进 pump slug（pill）压水眼make hole 钻进 circulate 循环bottoms up 迟到时间 bit 钻头drill collar 钻铤 wiper trip 短起下钻、拉井壁drill pipe 钻杆 open 扩眼drill out 钻水泥塞 ROP=rate of penetration 机械钻速survey 测斜 WOB=weight on bit 钻压deviation 井斜 RPM=revolutions per minute 转速azimuth 方位 SPM=stroke per minute冲数MWD=measure while logging 随钻测量 hook weight 大钩载荷LWD=logging while drilling 随钻测井 run mud over shaker 振动筛跑泥浆MD=measure depth 测量井深 drilling parameter钻井参数TVD=true vertical depth 垂深3）拆迁与安装：rig move 钻机搬迁 truck 卡车sling绳套、吊索 pickup 皮卡shackle “U”型卡子、绳环子 bed truck （带滚筒的）背车chain 链子 lowboy 矮平板拖车boomer 紧链器、紧绳器 highboy高平板拖车hammer 榔头 tractor 拖拉机、牵引车wrench 扳手 back hoe 挖掘机cellar 圆井 slack off 下放rig up 安装 load 装货rig down 拆甩 offload，unload 卸货spud in 开钻 rope 绳子Kelly 方钻杆 rig mobilization 钻机动员mud pump 泥浆泵 rig demobilization 钻机遣散conductor 导管 rig service 保养钻机rotary table 转盘 sleeper 住房foot 英尺（feet 是 foot复数形式） shack 营房diameter 直径 camp 营地inch 英寸 base 基地forklift 叉车 dining room 餐厅crane 吊车 kitchen 厨房boom out 伸扒杆 laundry room 洗衣房boom down 趴扒杆 down 放、下放hold 稳住 trailer 拖车up 起、上提 TD-total depth 总井深protector 护丝 dope 丝扣油lay down drill pipe 甩钻杆 nipple down BOP甩封井器4）健康与安全：HSE-health, safety, environment 健康、安全、环境 hard hat 安全帽condition 状况 first aid kit 急救箱guard 护罩 eye wash station洗眼站stabbing valve 回压凡尔 fire extinguisher 灭火器housekeeping 设备管理 stretcher 担架safety pin 安全销 safety sign 安全标志secure 安全、固定 BOP drill 防喷演习ground 接地 MSDS-material safety deliver sheet 材料安全in good shape 状况良好 alarm 报警goggles 护目镜 runoff 排泄hearing protection 听力保护 certificate 证书safety belts 安全带三、钻井英文钻井装置/钻机drilling equipment 井架mast, derrick钻台drill floor 坡板，井架大门v-door二层台/猴台monkey board 井架底座substructure鼠洞mouse hole, rat hole 人字架gin pole立根盒setback 天车crown block游车travelling block 大钩hook水龙头swivel 动力水龙头power swivel绞车draw works 转盘rotary table方钻杆kelly 滚动轴drum shaft猫头cat head 猫头绳cat line捞绳器sand line 大钳tong动力大钳power tong 安全卡子safety clamp倒链chain block 气动绞车air hoist回压凡尔inside BOP 管子扳手pipe wrench提升短节lifting sub 气测引绳geolograph cable导管架jacket 指梁finger board卡瓦slip 动力卡瓦power slip钻头Bit 钻头水眼bit nozzle金刚石钻头diamond bit 牙轮cone钻头装卸器bit breaker 扩眼器hole opener钻头轴承bit bearing 钻头直径bit diameter钻头寿命bit life 钻头规bit gauge钻头齿bit teeth (type) 钻头磨损bit wear水眼尺寸noggle size 水眼效率noggle efficiency钻具组合drilling assembly 钻杆柱drill strings钻柱drill stem 钻头接头bit sub扶正器stabilizer 钻杆(钻铤)drill pipe(drill collar) 加重钻杆heavy weight drill pipe 配合接头crossover sub减震器shock sub 震击器jars(rotary jars)缓冲器bumper sub 短节，短管pup joint单根（立柱）joint(stand) 套管清刮器casing scraper井壁刮刀wall scraper 锥形铣刀taper milling耐磨短节friction joint 套管扶正器casing centralizer泥浆泵mud pump 双缸泥浆泵duplex slush pump 活塞（气缸）piston(cylinder) 缸套（活塞杆）liner(piston rod) 泥浆水龙带rotary hose 泥浆返出管mud return line立管standpipe 弯接头（三通）elbow(tee)十字接头,十字管cross 上水(吸水)管线suction line泥浆振动筛shale shaker 除砂器desander除泥器desilter 脱气器degasser离心泵centrifugal pump 泥浆搅拌器mud agitator泥浆管线mud line 漏斗hopper泥浆池mud tank 吸入罐suction tank储存池reserve pit 加重泥浆池sludge tank泥浆槽mud ditch 泥浆出口管flow line泥浆泵冲数计量计pump stroke counter 泥浆流量计mud flow meter泥浆重量指示器mud weight indicator 灌泥浆管线fill line混合泵mixing pump 灌注泥浆泵supercharge pump 正循环normal circulation 反循环reverse circulation灌泥浆filling up mud 循环速度circulation rate环形空间annulus 环隙流速annular velocity泥浆返回速度annular return velocity 静水压力hydrostatic pressure泥浆柱mud column 压力损失pressure loss压力冲击surge pressure 井底压力bottom hole pressure 管内压力损失pressure loss in pipe 管内容量volume inside pipe泥浆量mud volume 返出泥浆return mud泥浆液面pit level 泵压pump pressure泵冲数pumping speed 泵效率pump efficiency流量flow rate 泵冲数累计pump count泥浆mud 处理剂，添加剂additive岩屑cuttings 粘度viscosity塑性粘度PV plastic viscosity 屈服点YP yield point固体含量Solid content 含砂量Sand content视粘度（表观粘度）AV apparent viscosity 划眼ream钻杆接头tool joint 丝扣thread母扣（公扣）box (pin) 联接器coupling正规扣REG regular 护丝thread protector上紧tighten 放松loosen泥浆比重，泥浆重量mud weight 泥浆密度mud density泥浆测试mud testing 滤纸filter paper造斜器whipstock 套管射孔器casing perforator钻进drilling 起钻POH.pull out of the hole下钻RIH.run in the hole 起下钻trip短起下钻short trip 扩眼opening划眼reaming 测斜deviation survey完井completion 多层完井multiple completion射孔perforation 安装(拆卸) rig up (down)甩，放倒lay down 坐卡瓦setting slip起卡瓦pulling slip 挂上(门上)吊卡latching elevator 打开吊卡unlatching elevator 切断大绳cut off work line换钻头change bit 纠斜hole straightening上下活动钻杆work the pipe up&down 钻机rig岩心core 取心钻头core bit取心筒core barrel 岩心爪core catcher打捞fishing 井漏lost circulation井涌kick 井喷blow out压井killing a well 卡钻，被卡stuck指重表weight indicator 大钩负荷hook load大气中的重量weight in air 泥浆中的重量weight in mud 井深depth 转盘高度table height方入kelly down 方余kelly up方入井深kelly down depth 垂直深度vertical depth钻压weight on bit 钻头位置bit position转盘转数rotary speed 钻头扭矩bit torque转数revolution 钻速rate of penetration工作压力drilling working pressure 吨—里ratio ton-mile钻头成本drilling cost 上扣扭矩make up torque压力表pressure gauge 钻井记录仪drilling recorder 裸眼open hole, bore hole 直井眼straight well刹车片brake lining 下入工具running tool回接工具tie back tool 离合器clutch传动装置,变速器transmission 涡轮钻具turbo-drill浅层气shallow gas 地层formation总深度total depth 井眼尺寸hole size井壁bore hole wall 井底bottom hole钻井记录drilling log 阻流管汇choke manifold阻流管线choke line 压井管汇kill manifold压井管线kill line 安全阀safety valve闸阀gate valve 蝶阀batterfly valve放泄阀dump valve 套管casing下套管run casing 级，等级grade套管平台casing monkey board 套管大钳casing tong套管吊卡casing elevator 套管接头casing sub套管扶正器centralizer 固井cementing半潜式钻井船semisubmersible drilling unit 水泥cement吊车crane 潜水泵submerged pump锅炉boiler 发电机generator柱塞泵plunger pump 燃料缸fuel oil tank污油缸waist oil tank 船身hull甲板deck 钻井船drilling barge自升式钻井船jack-up type drilling unit 监督supervisor翻译interpreter 钻井队员drilling crew钻井队长drilling foreman 钻井技师tool pusher领班tour tool pusher 司钻driller副司钻asistant driller 井架工derrick man钻台工floor man 钻井工程师drilling engineer 钻井技术员drilling technician 泥浆工程师mud engineer机械工，机工mechanic 装卸工，水手roustabout电焊工welder 吊车工crane operator电工electrician 潜水员diver炊事员cook 大夫doctor材料员material man 平台工程师barge engineer 电报员radio operator 开钻spud-in安装钻机rig up 拆卸钻机rig down。

钻井英语钻井（Drilling）1.Carry out drilling operation in accordance with the drilling program. 按钻井程序进⾏钻井作业。

2.Prepare bell nipple. 准备‘喇叭⼝’。

3.Make up 2 joints of drill pipe. 接两根钻杆。

4.Break out this connection. 卸开该接头。

5.Run hole opener to sea bed. 下扩眼器到海底。

6.Mix gel fluid for drilling conductor hole. 为钻导管配制⾼粘度泥浆。

7.Make up bottom hole assembly (BHA). 组合下部钻具。

8.Check and reset crown-saver on every tour. 每个班都要检查并重新调整天车⽅碰装置。

9.Number stands on trip out and in. 起下钻给⽴柱编号。

10.Pick up BHA and run to seafloor. 将下部钻具下到海底。

11.Pick up stands. 接⽴柱。

12.Don’t drill faster than 15 minutes for 1 stand. 钻进速度别超过15分钟1 个⽴柱。

13.Drop TOTCO. 投（陶特）测斜仪。

14.Fish TOTCO with overshot .⽤打捞筒捞起测斜仪。

15.Resume drilling to T.D. 继续钻进到总井深。

16.Circulate 15 minutes. 循环15分钟。

17.Run in hole. 下钻。

18.Put out of hole. 起钻。

19.Make an inventory of all ring gaskets. 开⼀个所有垫圈的清单。

石油钻井英语行业英语之实用词汇Crane Operator 吊车工Mechanic 机械师Electrician 电气师Repairman 修理工Welder 焊工Radio Operator 电报员Warehouse Man (stock Keeper) 材料员Medic 医生Safety Supervisor 安全监督Interpreter (translator) 翻译Chief Steward 管事Cook 厨师2、作业者及服务公司人员( Operator’s Personnel and Service Company Personnel) Drilling Superintendent 钻井监督Company Man (Operator’s Representative) 公司代表Geologist 地质师Mud Logging Engineer (Mud logger) 泥浆录井工程师Sample Catcher 捞砂工Mud Engineer 泥浆工程师ROV Engineer 潜水工程师Cementer 固井工Cement Engineer 固井工程师Testing Engineer 试油工程师Coring Engineer 取芯工程师Wireline Logging Engineer电测工程师二、主要设备1.钻井设备 (Drilling Equipment): Drawworks 钻井绞车Rotary Table 转盘Bushing 补心Top Drive System (TDS) 顶驱Swivel 水龙头Crown Block 天车Traveling Block 游车Hook 大钩Derrick 井架Pipe Spinning Wrench 钻杆气动扳手Ezy-Torq 液压猫头Elmagco Brake 涡磁刹车Pipe handling Equipment 钻杆移动设备Iron roughneck 铁钻工Pipe Racking System 钻杆排放系统Drill String 钻柱Drilling Sub 钻井短节Fishing Tool 打捞工具Power Tong 动力大钳Air Winch (air tugger) 气动绞车Crown-O-Matic (Crown Saver) 防碰天车2. 泥浆系统 (Mud System) Mud Pump 泥浆泵Shale shaker 振动筛Mud Cleaner 泥浆清洁器Desilter 除泥器Desander 除砂器Degasser 除气器Centrifuge 离心机Mud Agitator 泥浆搅拌器Mud Mixing System 泥浆混合系统Centrifugal Pump 离心泵Standpipe Manifold 立管管汇Rotary Hose 水龙带Bulk Air System and Tank 吹灰系统和灰罐3. 井控设备 (Well Control Equipment): Ram Type Preventor 闸板防喷器Annular Type Preventor 万能防喷器BOP Stack 防喷器组Gate Valve 闸阀Choke and Kill Manifold 阻流压井管汇Remotely Operated Panel 远程控制面板Choke Control Panel 阻流控制面板BOP Handling Equipment 防喷器搬运设备Diverter 转喷器五. 机房(Engine Room)Diesel Engine 柴油机Emergency Generator 应急发电机Water Maker (desalinization unit) 造淡机Air Compressor 空气压缩机Boiler 锅炉Air-conditioning System 空调系统Piping System 管汇系统Generator 发电机Transformer 变压器DC Motor 直流马达AC Motor 交流马达4. 安全设备 (Safety Equipment) Fire Control System 消防控制系统Fire Detection System 火情探测系统Fixed Fire Extinguishing System 固定消防系统Portable Extinguisher 移动灭火器Fire-Fight Equipment 消防设备Foam System 泡沫系统Escape Routes 逃生路线Breathing Apparatus 呼吸器Gas Detection System 气体探测系统Helicopter Facility 直升机设施Sick-Bay (Hospital) 医务室Pollution Control 防污控制5. 其他 ( Others) Cementing Unit 固井装置Well Testing Equipment 试油设备Mud Logging Unit 泥浆录井房Wire Logging Unit 电测装置ROV 潜水器Meter 米Foot 英尺Inch 英寸Day (night) Shift 白(夜)班Crew Change 倒班Position 岗位Penetration (桩腿插桩)入泥Evacuation 撤离Rig (Drilling rig) 钻机, 钻井船Quarters (living quarters, accommodation area) 生活区Drill Floor (Rig floor) 钻台Bridge (Pilot house, Steerwheel house) 驾驶室Control Room 控制室Helideck 直升机甲板Cementing Unit Room 固井泵房Air Compressor Room 空气压缩机房BOP Control Room BOP控制房Radio Room 报房Engine Room 机房Warehouse (Store) 材料库房Paint Room (paint locker) 油漆房库Mud pit 泥浆池Pipe Rack Area 钻杆排放区Pipe Slide 滑道Ramp 坡道Pump Room 泵房Shale Shaker House 振动筛房Coffee Room 咖啡室Mess (dining) Room 餐厅Recreation Room 娱乐房TV RoomChange Room 工衣房Kitchen 厨房三、钻具,井口工具,打捞工具Drill Pipe 钻杆Drill Collar 钻铤Heavy Weight Drill Pipe 加重钻杆Elevator 吊卡Tong 大钳Make-up Tong 上扣大钳Break-out Tong 卸扣大钳Mud Box 泥浆防喷盒Casing Stabbing Board 套管扶正器Slips 卡瓦Spider 卡盘Mouse Hole 小鼠洞(接单根用)Kelly Spinner 方钻杆旋转器Kelly Cock 方钻杆阀Chain Tong 链钳Casing 套管Tubing 油管Drill String 钻柱Jar (drilling jar) 震击器Right Hand Thread 正扣Left Hand Thread 反扣Stabilizer 扶正器Rabit 通管器Liner 尾管Conductor 导管Thread Protector 护丝Stand (钻杆) 立柱Single (钻杆) 单根Joint (钻具) 根Bend 弯头Sub 短节Pup Joint 短钻杆, 短节Connector 接头Bit 钻头Bit Breaker 钻头盒Box 母扣Pin 公扣Hole Opener 开眼钻头Reamer 扩眼钻头Overshot 打捞筒Junk Basket 打捞篮Junk Mill 平头磨鞋Spear 打捞矛Fishing Tap 打捞公锥Cross Over Sub (XO Sub) 转换接头Bottom Hole Assembly (BHA) 下部钻具组合四. 材料和工具Steel 钢Iron 铁Wood 木Chemicals 化学品Cement 水泥Barite 重晶石Potable Water 淡水Fuel 柴油Lubricant (Lube/Lube oil) 润滑油Grease 黄油Ballast Water 压载水Gasoline 汽油Mud 泥浆Additive 添加剂Caustic Soda 烧碱Weight Material 加重材料Oxygen 氧气Nitrogen 痰气Hydrogen Sulphide 二氧化硫Acetylene 乙炔Compressed Air 压缩空气Hydraulic Fluid 液压油Spanner 扳手Hammer 铁锤Screw Driver 螺丝刀Multimeter 万用表Welding Machine 焊机Bar 撬杠Shackle 卸扣Sling (钢丝) 绳套。

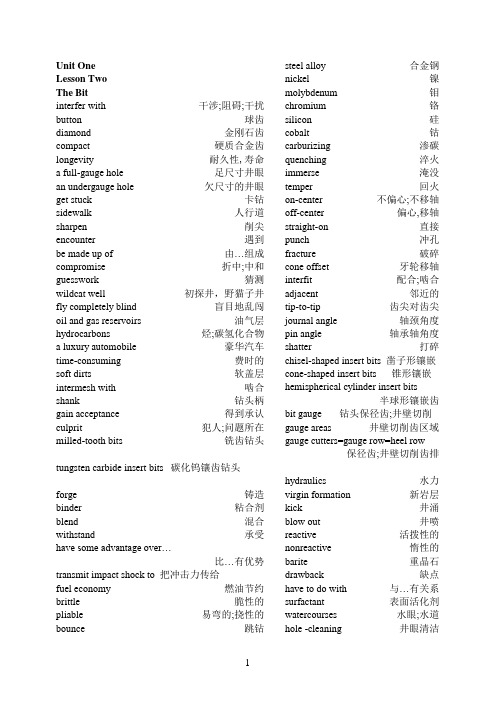

Unit One steel alloy 合金钢Lesson Two nickel 镍The Bit molybdenum 钼interfer with 干涉;阻碍;干扰chromium 铬button 球齿silicon 硅diamond 金刚石齿cobalt 钴compact 硬质合金齿carburizing 渗碳longevity耐久性,寿命quenching 淬火a full-gauge hole 足尺寸井眼immerse 淹没an undergauge hole 欠尺寸的井眼temper 回火get stuck 卡钻on-center 不偏心;不移轴sidewalk 人行道off-center 偏心,移轴sharpen 削尖straight-on 直接encounter 遇到punch 冲孔be made up of 由…组成fracture 破碎compromise 折中;中和cone offset 牙轮移轴guesswork 猜测interfit 配合;啮合wildcat well初探井，野猫子井adjacent 邻近的fly completely blind 盲目地乱闯tip-to-tip 齿尖对齿尖oil and gas reservoirs 油气层journal angle 轴颈角度hydrocarbons烃;碳氢化合物pin angle 轴承轴角度a luxury automobile 豪华汽车shatter 打碎time-consuming 费时的soft dirts软盖层intermesh with 啮合shank钻头柄gain acceptance 得到承认culprit犯人;问题所在milled-tooth bits铣齿钻头tungsten carbide insert bits 碳化钨镶齿钻头hydraulics水力forge 铸造virgin formation 新岩层binder 粘合剂kick 井涌blend 混合blow out 井喷withstand承受reactive 活拨性的nonreactive 惰性的比…有优势barite 重晶石drawback缺点fuel economy 燃油节约have to do with 与…有关系brittle 脆性的surfactant 表面活化剂pliable 易弯的;挠性的watercourses 水眼;水道bounce 跳钻hole -cleaning井眼清洁保径齿;井壁切削齿排transmit impact shock to 把冲击力传给have some advantage over…bit gauge 钻头保径齿;井壁切削gauge areas 井壁切削齿区域chisel-shaped insert bits 凿子形镶嵌cone-shaped insert bits 锥形镶嵌hemispherical cylinder insert bitsgauge cutters=gauge row=heel row半球形镶嵌齿leg of the bit 钻头巴掌velocity 速度jet nozzles喷嘴self-sharpening wear 自行锋利磨损interchangeable 可互换的elongated 延长的center jet 中央喷嘴gauge rounding 背锥面变圆side jet 侧面喷嘴advent 出现;到来spall 剥落outwear 比…耐磨flake off 脱落precision 精确ball bearigns 滚珠轴承optical industry 光学工业roller bearings 滚柱轴承surgical instrument 手术用器件journal bearings 轴颈轴承rarity 稀有程度bearing pin 轴承轴synthesize 合成galling擦伤;磨损graphite 石墨nonsealed bearings 非密封轴承sealed bearings 密封轴承shirttail of the bit 钻头的掌尖thermally stable polycrystilline (TSP)pressure compensator 压力补偿器scratch 刮削diaphragm 隔膜modulus of elasticity 弹性系数,模量bit evaluation 钻头分级评定deform 变形cone skiding 牙轮拖刮foam cushion 泡沫垫thermal conductivity 传热性jam 夹挤aluminum 铝break-in 钻头磨合;试钻igneous(molten) rock 火成岩cone interference 牙轮相互干扰vocanoes 火山岩cone erosion 牙轮腐蚀lava 熔岩;火山岩sedimentary rock 沉积岩cracked cone 破裂的牙轮Brazil 巴西ledge 地层的台肩Venezuela 委内瑞拉migrate 转移gem quality 宝石质量的off-center wear 偏磨transparent 透明的cone offset 牙轮移轴opaque 不透明的stiff drilling assembly 刚直的钻具组合cube-shaped 立方体形的flex 弯曲octahedral 八面体的center coring 钻头中心被掏空dodecahedral 十二面体的tracking problem 钻头齿迹问题monocrystalline 单晶体slam 猛力顿钻shank 钻头柄flank 侧面chipped cutters 被击碎的切削齿matrix 胎体insert loss 镶嵌齿脱落profile 外形;轮廓gritty 粗沙的single-cone profile 单锥体外形frustration 挫折;烦脑double-cone profile 双锥体外形elastomer 人造橡胶,弹性材料pinched bit 挤压变形后向心收缩的钻头heat checking 过热使钻头切削齿龟unfeasible 不可实行的;不可行的聚晶金刚石复合片polycrystalline diamond热稳定聚晶金刚石sandblast paint off a wall 喷沙除漆bradding 牙轮钻头齿撞碎或弯junk sub 打捞工具parabolic profile 抛物线外形flat-crested wear 磨平;平顶磨损concave profile 凹顶外形directional holes 定向井gauge protection 保径面horizontal holes 水平井grid plot 栅格图案circle plot 圆周图案ridge plot 脊背图案bit whirl 钻头偏心回转carat 克拉spiraling action 螺旋形动作flush 冲洗,淹没;与…齐平radial flow 径向流;辐向流pound 砸击overgauge hole 超过尺寸的井shatter 粉碎delaminate 脱层crow's foot 爪形PDC layer PDC 焊层radiate out 向外辐射chunk 大块catalyst metal 催化金属clog 堵塞polycrystalline wafer 聚晶片jet deflection bits 喷射造斜钻头lathe 车床pockets 孔窝eccentric bits 偏心钻头stringer 夹层tight hole problem 卡钻问题splinter 碎片core bit 取芯钻头downhole motor 井底马达sidetracking bit 侧钻钻头turbodrill 涡轮钻permanently 永久地deflect the hole 井眼造斜electrical impulses 电脉冲bent sub 弯接头sound waves 声波stud cutter 支柱切削齿gamma rays 伽玛射线cylinder cutter 长柱切削齿neotron rays 中子射线rake angle 倾角compressive strength 抗压(缩)强度back rake angle 后倾角elasticity 弹力;弹性perpendicular 垂直的plasticity 可塑性aggressiveness 攻击性porosity 多孔性chatter 振动pore pressure 孔隙压力vibration 振动overburden pressure 盖层压力distirbute 分布,分配overlying formations 盖层side rake angle 侧倾角stickness 粘附力optimum 最佳plowing 挖掘porcupine bits 箭猪毛式钻头shearing 剪切critical 危急的;严重的plowed furrow 犁沟crucial 重要的grind the rock 磨碾岩石disintergating 散落millstone 磨石junk slots 岩屑槽slice 切片leach out 沥除;滤去hybrid bits 混合钻头quartzites 石英岩沙粒大小的天然金刚石grit-sized natural diamondsprolong the life of the bit 延长钻头寿innermost cutters 最里面的切削antiwhirl bits 修正偏心回转的钻abrasive cherts 刮磨性硅石石灰cross-pad flow 金刚石镶嵌瓣形流feeder 主流道;高压流道collector 次流道;低压流道drag and twist 刮削与搓捻limestone 石灰岩dolomite 白云岩turbine 涡轮granite 花冈岩bit classification 钻头分类fortify 加强evaluate 评定;评价hemispherical 半球的project 凸出dull bit classification 钻头磨损分级versatile 多面手的ring gauge 环规round to 四舍五入shovel 铁铲;铲hostile 险恶的;敌对的running time 使用时间foolproof 极坚固的positive displacement toolspointers 注意事项increment 增加;增量螺杆钻具;容积式钻具break-even analysis 盈亏平衡分非均质地层diamond-impregnated pad or stud孕镶金刚石瓣或支柱heterogeneous formationsgrade dull bits 磨损后钻头的分。

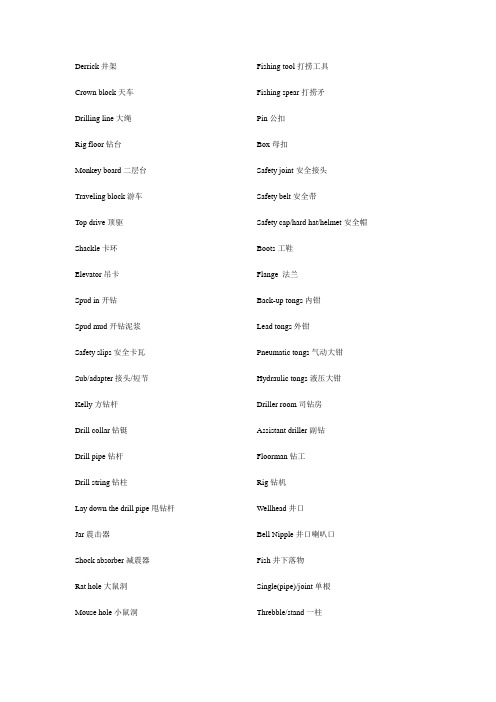

Derrick井架Crown block天车Drilling line大绳Rig floor钻台Monkey board二层台Traveling block游车Top drive顶驱Shackle卡环Elevator吊卡Spud in开钻Spud mud开钻泥浆Safety slips安全卡瓦Sub/adapter接头/短节Kelly方钻杆Drill collar钻铤Drill pipe钻杆Drill string钻柱Lay down the drill pipe甩钻杆Jar震击器Shock absorber减震器Rat hole大鼠洞Mouse hole小鼠洞Fishing tool打捞工具Fishing spear打捞矛Pin公扣Box母扣Safety joint安全接头Safety belt安全带Safety cap/hard hat/helmet安全帽Boots工鞋Flange 法兰Back-up tongs内钳Lead tongs外钳Pneumatic tongs气动大钳Hydraulic tongs液压大钳Driller room司钻房Assistant driller副钻Floorman钻工Rig钻机Wellhead井口Bell Nipple井口喇叭口Fish井下落物Single(pipe)/joint单根Threbble/stand一柱Breaking down/lay down甩单根Make a connection接单根Pneumatic draw works气动绞车Basket吊笼Sling绳套Loosening松开Tightening紧固Change shift换班Tubing hanger油管挂Blowout preventer(BOP)防喷器Accumulator储能器Agitator 搅拌器Ato-muffler消音器Clutch离合器Heavy weight drill pipe(HWDP)加重钻杆Hydraulic valve液压阀Chock line阻流管线Well control manifold井控管汇Pressure relief valve压力释放阀Directional well定向井Conductor隔水套管Casing套管Tubing油管Liner 尾管Run casing下套管Casing size套管尺寸Surface casing表层套管Casing shoe套管靴Casing scraper刮管器Cementing pump固井泵Cementing line固井管线Cementing head水泥头Squeeze cement挤水泥Wait on cementing候凝Cement plug水泥塞Bridge plug桥塞Christmas tree采油树Spanner扳手Hammer锤子Screwdriver改锥Tighten the screw上紧螺丝Loosen the screw松开螺丝Pressure testing试压Leak漏泄Leak off test地漏试验Formation integrity test地漏试验No leaking不漏Electric welding电焊Gas welding气焊Sealing ring密封圈Sidewall井壁Get stuck/sticking卡钻Meet sticking/stick pipe遇卡Free stick解卡Meet resistance遇阻Mud circulation循环泥浆Kick井涌Blowout/gush井喷Lost circulation/lost returns井漏Plugging/sealing堵漏Lost circulation material堵漏材料Lost circulation additives/plugging agent堵漏剂Mud pit泥浆池HI-VIS sweep稠泥浆Mud additive泥浆添加剂Packer封隔器Bit钻头Centralizer/stabilizer扶正器Cuttings岩屑Reaming/redressing划眼Reverse reaming/back reaming/up reaming倒划眼Make-up of string钻具组合Build the pressure憋压Waiting on cement候凝Slurry水泥浆Logging电测Wiper trip通井Coring取芯Coring tool取芯工具Coring bit取芯钻头Formation地层Kill line压井管线Choke line manifold阻流管汇Trip in hole(TIH)/running in hole(RIH)/go in hole(GIH)下钻Pull out of the hole(POOH)起钻Bottom hole assembly(BHA)井底钻具组合Short trip短起Reverse circulation反循环Open the well for gushing放喷Burner燃烧器Hydrogen sulfide/hepatic gas硫化氢Mask防毒面具Measuring tank/trip tank计量罐Separator分离器Desander/sand separator除沙器Shale shaker震动筛Mud pump/slush pump/drilling pump泥浆泵Piston活塞Liner钢套Valve阀门High pressure pipe高压管线Rush to repair抢修Viscosifier增粘剂Diluent稀释剂Stabilizer稳定剂Emulsifying agent乳化剂Disperse agent消油剂Caustic soda烧碱Gravity比重Mud engineer泥浆工程师Geologic engineer地质师Mechanical engineer机械师Drilling engineer钻井工程师Electrical engineer电器师Supervisor监督Captain/shipmaster船长Mudman泥浆工Start pumping开泵Stop pumping停泵Pipe tongs/pipe spanner管钳Thread protector护丝Hose 软管Hook 大钩Ball valve/globe valve球阀Hydrogen氢气Nitrogen氮气Oxygen氧气Overload过载Hatch door舱门Anchor machine锚机Mooring rope带缆绳Anchor chain锚链Fire extinguisher灭火器Fire hydrant消防栓Water tap水龙带Deck甲板Draft line吃水线Helideck飞机甲板Portable water/fresh water淡水Drill water钻井水Ventilation通风设备Thermometer温度计Anemometer风速仪Barometer气压仪Crane boom吊车爬杆Transformer变压器Life boat救生艇Life jacket救生衣Life buoy救生圈Survival suit救生服Safety net安全网Foam fire extinguishing system泡沫灭火系统Co2 hand portable fire extinguisher手提式CO2灭火机Portable dry powder fire extinguish手提式干粉灭火机Fi reman’s suit消防服Stretcher担架First aid kit急救箱First aid equipment急救设备Standby boat值班船Towing line拖缆Jack house升降室Condenser冷凝器Fire drill消防演习BOP drill防喷器演习Abandon drill逃生演习Fire alarm system火灾报警系统Variable load可变载荷Paint油漆Crane吊车Brush刷子Welding rod电焊条Remove rust除锈Unload卸载Drop anchor抛锚Gesture手势Signal信号Range light桅灯Lamp signal灯语Flag signal旗语Broadcast广播Barite重晶石Bentonite土粉Cement水泥Tray托盘Rack架Bundle捆Prevent pollution防污Mop拖布Rag 擦布Tie up带缆Cast off解缆Diesel柴油Generator发电机Motor电机Air condition空调Air compressor空压机Fresh water maker造水机Emergency generator应急发电机Fire pump消防泵Fuel pump燃油泵Mud cycle pump泥浆循环泵Distribution room配电间Submersible pump潜水泵Boiler锅炉Ground connection接地Short circuit短路Air button空气开关Electric shock触电Pliers老虎钳Keep away走开Cubic meter立方Square meter平方Water tank水舱Oil tank油舱Ballast tank压载舱。

石油钻井工程英语词汇（5篇）第一篇：石油钻井工程英语词汇石油钻井工程英语词汇2008-10-15第一章：石油钻井工程英语基础词汇第1 节石油钻井工程基础词汇钻井：drill 定向斜井：directional drilling 欠平衡钻井：under-balance drilling 海上钻井：off-shore drilling 陆地钻井：on-shore drilling 钻头：drill bit 刮刀钻头：drag bit 牙轮钻头：rock bit(镶齿钻头insert bit, 钢齿钻头steel toothed bit)金刚石钻头：diamond bit 取心钻头：coring bit 钻头浮阀：float valve 钻头水眼：bit nozzle(or jet)钻头水眼刺:bit nozzle washed out 钻头规：bit caliper(bit gauge)钻头泥包：bit is balling 钻头钝了，我建议现在起钻：bit is dull.I suggest to POOH now 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China钻铤：DC(drill collar)光钻铤slick drill collar，螺旋钻铤spiral drill collar 钻杆：DP(drill pipe)方钻杆：kelly 公扣：pin end 母扣：box end 内平式连接：IF(internal flash)正规式连接：REG(regular)贯眼式连接：FH(full hole)加重钻杆heavy weight drill pipe 短钻杆pop joint 井下马达：downhole motor 涡轮钻具：turbine 震击器：drilling jar 减震器：absorber 下部钻具组合：BHA（bottom hole assembly）钻具扶正器：stabilizer（string stabilizer, near-bit stabilizer）钻机：drill rig 钻井泥浆：drilling mud 钻井液：drilling fluid 钻井设备：drilling equipment油：oil 原油：crude oil 天然气：nature gas 煤层气：coal-bed gas 石油：petroleum 中国石油（简称）：CNPC （China National Petroleum Corporation）长城钻井（简称）：GWDC(Great Wall Drilling Company)采油：oil production 产油层(目的层)：reservoir(or pay zone)钻进：drilling 调整钻井参数以得到理想的机械钻速：play the drilling parameters to get fast ROP 起钻：POOH(pull out of hole)下钻：RIH(run in hole)下套管：run casing(or RIH with casing)短起下钻：wiper trip 循环泥浆：circulate 泥浆：reverse circulate 中途循环泥浆：break circulation 分段下钻：RIH in stages 通井：control trip 划眼：reaming 倒划眼：back reaming 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 接单根：make connection 滑、割大绳：slip and cut drilling line by ton-mile 保养设备：maintain the equipment 修理设备: repair(or fix)the equipment 保养顶驱：service TDS 保养冲管：lubricate wash pipe 待工日费：standby rate 今天零日费：there is no day rate today(zero day rate today)我可以为您做，但必须收费，请理解I can do for you and I have to charge(back charge)you.Please give me full understanding.不在我的职责范围之内，我要汇报领导，一有消息会马上告诉你It is out of my power and I have to report to my boss.I will let you know as soon as I get news.大鼠洞：rat hole 小鼠洞：mouse hole 钻具错扣：the connections are crossed 钻具粘扣：thread is galled 丝扣坏了：the thread is damaged 起钻错扣：alternate the connections 新钻具或接头磨扣：break in the new tool joint 新钻头磨合：break in the new bit PDC 钻头井底造型：shape the PDC bit跳钻：rough drilling(vibrated drilling, bit is bouncing)蹩钻：rough drilling（drilling torque is abnormally high）缩径：tight hole 起钻遇卡：get overpull 下钻遇阻：set weight 部分漏失：partially lost circulation 全部漏失：totally lost circulation 盲钻：blind drilling 堵水眼：bit jets are blocked 掉水眼：bit jets are lost 憋压：the pressure is built up 卸压：release pressure 试压：pressure test 功能测试：function test 双方独自检查：double check 地质：geology 地质专业人员：geologist 物理：physics 地球物理勘探： geo-physical exploration.测井：logging 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 电测井作业：wireline logging operation 泥浆测井：mud logging 井（副词“好”含意）：well 拓展记忆：井眼：bore hole 油气井：oil&gas well 试井：well test 井下：down-hole 井下作业：down-hole operation 第2 节石油钻井方法基础词汇钻井原理：the principles of drilling 顿钻钻井：percussion drilling，cable-tool drilling 旋转钻井：rotary drilling 大位移井：big distance(or extended)well 侧钻井：sidetracking drilling 水平井：horizontal well 探井：wildcat，wildcat drilling 深井：deep well 浅井：shallow well 老井：maturing well 丛式钻井：cluster well drilling 煤层气井：coal-bed gas well 生产井：production well 报废井：abandoned well 停产井：none-production well 井下情况：downhole condition 第3 节石油钻井技术基础词汇技术规范，技术指标，技术性能：specification 拉伸：tension 拉伸强度：tensile strength 弯曲强度：bending srength 最小屈服强度： minimum torsional strength 应力：stress 压力：pressure 应力点：stress point 压力降：pressure drop 压力梯度：pressure gradient 回压：back pressure 大气压：atmosphere 压差：pressure difference 静液柱压力：static fluid cloumn pressure 地层压力：formation pressure 坍塌压力：collapse pressure 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 破裂压力：fractured pressure 液体：liquid 固体：solid 气体：gas，air 正的：positive 负的：negative 水平的：horizontal 垂直的：vertical 第4 节石油钻井参数基础词汇钻压：WOB（weight on bit）转盘转速：RPM（rotation per minute）泵压：SPP(slurry pump pressure)泵冲：SPM（stroke per minute）排量：FR(flow rate)大钩负荷：hook load 扭矩：torque 反扭矩：reactive torque 钻速：ROP(rate of penetration)顶驱：TDS(top drive system)钻井周期：drilling period 钻井成本：drilling costs 井眼尺寸：hole size 垂深：TVD(total vertical depth)井深：MDD(measured depth)水平位移：horizontal displacement 井斜角：angle(or hole inclination)方位角：azimuth 井眼环空：annulus 第5 节石油钻井作业现场工作人员名称甲方：oil company(operator)钻井承包商：drilling contractor 第三方（分包商）the third party(sub-contractor)钻井经理：drilling manager 监督：supervisor 钻井监督：DSV(drilling supervisor)or Companyman 地质监督：geologist 泥浆工程师：mud engineer 固井工程师：cementing engineer 泥浆录井工：mud logger 钻井队：drilling crew，drilling team 钻井1 班：drilling shift one 总经理：general manager 总工程师：chief engineer 地址：北京市朝阳区东三环中路7号财富中心A座601 邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 项目经理：project manager(country manager)作业经理：operation manager 财务经理：financial manger 会计：accountant平台经理：rig manager 带班队长：tool pusher HSE 监督：HSE officer 司钻：driller 副司钻：assistant driller 井架工：derrick man 钻工：roughneck（or floorman）场地工：roustabout 泥浆工：mudman 发动机工：motorman 机械师：mechanic 电工：electrician 电焊工：welder 司机：driver 吊车司机：crane operator 铲车司机：forklift operator 营房经理：camp boss 医生：doctor 材料员：material man(storekeeper)炊事员：cook 翻译：interpreter 洗衣工：laundry man 厨房服务生：waiter 保安：watchman(or security)机械工程师：mechanic engineer 第6 节石油作业现场常用工具扳手：wrench 螺丝起子：screwdriver 多角螺丝起子：Phlilips screwdriver（cross-headed screwdriver）撬杠：bar 加长撬杠：cheater bar 活动板手：monkey wrench，adjustable wrench 钳子：pliers 钩子：hook 台钳：bench vice 钢挫：file 榔头：hammer 锤击扳手：hammer wrench 搬手：spanner 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 内六角扳手：Allen key 钢锯：hacksaw 砂纸：sandpaper 管钳：pipe tongs(pipe wrench)链钳：chain tong 千斤顶：jack 黄油枪：grease gun 吊车：crane 牵引绳：tag line 电焊条：welding rod 拖拉机：tractor 推土机：bulldozer 硬尺：ruler 游标卡尺：Vernier slide 油漆：paint 铅油：dope 油漆刷：paint brush 铅油刷：dope brush 绝缘胶布：electrical tape 电线：wire 插头：plug 电插座：outlet(receptacle or switchboard)开关：switch 螺栓：bolt 螺帽：nut 垫片：washer 钉子：nail 手电钻：hand drill 钻头：bit 工作台：workbench 工具箱：toolbox 胶水：glue 胶棒：glue bar 护丝：thread protector 手轮：hand wheel 脚轰油门：throttle 联接法兰：coupling flange(or adaptor flange)安全带：safety belt 安全帽：helmet 工作靴：safety boot 工衣：coverall 棉袄：coat 防护眼镜：safety goggle 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 手套：gloves 口罩：mouth mask 围裙：apron 洗眼台：eye washing station 灭火机：fire extinguisher 消防栓：fire-hydrant 水龙头：water tap 消防斧：fire fighting axe 铲子：shovel 手砂轮：emery wheel 左转： turn left 右转： turn right 手势：gesture 信号：signal 垃圾：waste garbage 拖把：mop 接头：sub 配合接头：X-over，cross-over 提升短节：lifting sub 卡瓦：slips 放卡瓦：set slips 母锥：box tap 公锥：taper tap 打捞矛：fishing spear 安全接头：safety sub 柔性短节：flexible joint 井口盖子：wellhead cover 防喷盒：mud box BOP 吊装：BOP trolley(BOP hoist)吊卡：elevator 吊环：elevator links 安全卡瓦：safety clamp(dog collar)钻杆架：pipe rack 水龙头提环：swivel bail 材料房：warehouse 绳卡：bullnose clamp(guy anchor)绳套：sling 吊带：soft sling(belt)卸扣：shackle 吊装工具：lifting gear 维护保养：maintenance 内钳：make-up tong 外钳：break-out tong 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 液压大钳：power tong 液压猫头：E-zy tong 兜绳：mule line 四通阀：four-way valve 三通：Tee 软管：hose 球阀：ball valve 闸板阀：gate valve 单流阀：back valve 灌注泵：supercharge pump 第二章：石油工程常用设备及专业术语第1 节钻井设备部分井架：Derrick(or mast)起（放）井架：erect(lay down)Derrick 底座大梁：sill 钢木基础：mat 铅锤：plumb 水平仪：level 架，台：rack 立根盒：setback area 坡道：V door(or ramp)猫道：catwalk 二层台：monkey-board 圆井盖：cellar cover 天车：crown block 防碰天车：crown-o-matic 天车梁：crown block beam 天车台：water table 游动滑车：traveling block 钻井大绳：drilling line 引绳：guide line 穿大绳：string-in drilling line 金属线，电线：wire，cable 钢丝绳股：strand 截断：cutoff 滑车，滑轮，皮带轮：pulley(hoist)手拉葫芦：hand pulley 吊耳：lifting eye 顶驱：top drive 大钩：hook 大钩弹簧：hook spring 大钩销子：hook pin 大钩锁紧装置：hook locking device 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 大钩悬挂高度：hook height 水龙头：swivel 鹅颈管：gooseneck 冲管：wash pipe 水龙头盘根：swivel packing 钻井水龙带: rotary hose(kelly hose)立管：stand pipe 立管管汇：stand pipe manifold 高压管线：high pressure line 由壬：union 低压管线：low pressure line 传感器：sensor 放压管线：relief line 转盘：Rotary Table 转盘方瓦：master bushing 方补心取出装置：bushing handling tool 方补心：kelly drive bushing 方孔： square opening 小鼠洞：mouse hole 大鼠洞：rat hole 绞车：Drawworks 挂合（摘开）绞车：engage(disengage)drawworks 液压绞车：hydraulic winch 气动绞车：air tugger(air hoist)滚筒： drum(reel)滚筒高速气离合器： high speed clutch 滚筒低速气离合器： low speed clutch 锚头：cathead 液压猫头：E-zy tong 上扣猫头：make up cathead 卸扣猫头：make out cathead 牙嵌离合器：jaw clutch 涡磁刹车：eddy current brake(electromagnetic brake)猫头轴：cathead shaft 猫头绳：cathead line 死绳：dead line 死绳固定器：dead line anchor 间隙：gap 死绳固定器膜片：dead line diaphragm 上扣：make up 上扭矩：torque sth 卸扣，卸开：break out 上紧，固定：tighten（fasten）地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 松开，松扣：loosen 加载：load 卸载：unload 盘式刹车：disc brake 刹车总成：brake assembly 刹车轴：brakeshaft 刹车带：brake band 刹车片：brake block 液压油箱：hydraulic power unit 液动试压泵：hydraulic test pump 液压大钳：hydraulic（power）tong 倒档齿轮：reverse gear 动力扳手：power wrench 吊钳钳头：hinged jaw 钳牙：die 大钳锁销：latch 大钳悬臂：suspension bar平衡重：counterbalance weight 吊钳钳臂：tong arm 第2 节钻井泵类及相关设备泥浆泵：mud pump 活塞：piston 活塞杆：piston rod 活塞皮碗：piston cup 缸套：liner 凡尔体：valve body 凡尔座：valve seat 凡尔箱：pump module 阀弹簧：valve spring 阀杆：valve lever 阀面：valve face 阀帽：valve bonnet 空气包：pulsation damper 充氮气：refill with nitrogen 泥浆泵安全阀：pop-off valve 卸压管线：release line 排出阀：discharge valve 吸入阀：suction valve 上水滤子：screen 油尺：oil-level dipstick 灌注泵：supercharge pump 冷却水泵：cooling pump 潜水泵：submersible pump 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 盘根盒：stuffing box 叶轮：impeller 单向阀：check valve（single-pass valve）安全阀：safety valve 手动阀：manual valve 液动阀：hydraulic valve 拉杆：tie rod，tension bar 压力表：pressure gauge 冲数：strokes 排量：flow rate 80 冲(次)/分：eighty strokes per minute 泥浆罐：mud tank 倒泥浆：transfer mud 循环罐：active tank 储备罐：reserve tank 起下钻罐：trip tank 溢流检查：flow check 沉砂罐：satteling tank 锥形罐：sand trap 震动筛：sahle shaker 筛布：screen 目数：mash 除砂器: desander 除泥器: desilter 离心机： centrifuge 泥浆分配槽：spider box 缓冲罐buffer tank 第3 节与泵操作有关的实用短语没有压力：No pressure 压力过高：The pressure is too high 返回太少：Mud return is too few 水太少：Water is not adequate.抢修：Rush to repair 请看记录：Please check the record 没作记录：No record available 加化学药品：add chemicals 测定比重：measure mud weight(specific gravity)测定失水：measure water loss 泥饼：mud cake 测定切力：measure gel strength 停泵：stop pump 请打手势：Please make a gesture 转动一周：turn round a circle 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 垫高一些：put something under it to raise 抓紧：firmly grasp 抬高：lift it up 拿稳：hold firm 打一下： hit once 往外拉：pull outward 站稳：stand firm 小端：small end 大端：large end 光滑：smooth 粗糙：coarse，rough平面：flat 弯曲：bending 放松：loosen 绷直：stretch tight，draw tight 冷却：cooling 润滑：lubricate 过载：overload 功率不足：power is not enough.第4 节钻台与底座钻台：drilling floor 钻井班组记录：drilling tour record 司钻监视器：driller's monitor 司钻控制台：driller's console 指重表：weight indicator 底座：substructure 井队活动房：trailer 钻台上值班房：doghouse 梯子：ladder 第5 节井控操作与防喷器溢流: kick 溢流征兆: kick sign 气侵：gas cut 井喷：blow-out 1 次井控the primary well control 2 次井控the secondary well control 3 次井控the tertiary well control平衡balance 超平衡over-balance 欠平衡under balance 漏失试验leak-off test 破裂压力fracture pressure 额定压力 rated pressure 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 工作压力 working pressure 防喷器组BOP stack 安装（甩下）防喷器组：nipple up(nipple down)BOP stack 分流器diverter 万能防喷器：annular preventer，bag preventer 单闸板防喷器：single ram preventer 双闸板防喷器：double ram preventer （防喷器）闸板：pipe ram 变芯闸板防喷器variable bore ram 全封式防喷器：blind ram 剪切防喷器：shear ram 内防喷器 Inside BOP 投入式单流阀DIBPV（Drop in blowout preventer valve）分流关线diverter line 节流管汇choke manifold 节流阀choke valve 旁通阀standby valve 调压阀: Pressure regulator 手动节流阀manual choke 远程节流阀remote choke 井口四通drilling spool 变径法兰：adapter flange 液压控制阀 HCR(hydraulic controller)远程控制系统：koomey unit 蓄能器：accmulator 压井管线：kill line 入口：inlet 出口：outlet 简易除气器：poor-boy degasser 真空除气器：vaccum degasser 泥浆池液面纪录仪Pit volume recorder(totallizer)泥浆流动传感仪mud flow sensor 泥浆增量 Pit gains 硫化氢侵入H2S influx 加重材料Weighted material 氮气Nitrogen 乙炔：acetylene 氧气：oxygen 预冲氮气压力Pre-charge nitrogen pressure 地脚螺栓连接Studded connection 法兰连接 Flange connection 箍盘连接Hub connection 演习：drill 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 急救演习：first aid drill 消防演习：fire drill 防喷演习：kick drill 泄压: bleed off pressure 带刻度压力表: calibrated pressure gauge 带刻度容（体）积表: calibrated volume gauge 套管鞋: casing shoe 上部井眼段top hole section 快速钻进地层fast drilling formation 压实地层：consolidated formation 风化地层：weathered formation 钻屑携带能力cuttings carrying capacity 浅层气藏shallow gas 地层破裂formation to break down 压力梯度pressure gradient 地层压力formation pressure 井口压力wellhead pressure 漏失压力leak-off pressure 破裂压力fractured pressure 井底压力BHP(bottom hole pressure)正常压力normal pressure 异常压力abnormal pressure 静液压力hydrostatic pressure 动态压力dynamic pressure 环空压力annular pressure 关井钻杆压力SIDPP(shut in drill pipe pressure)关井套管压力SICP(shut in casingpressure)最大关井套管压力maximum allowable surface pressure, MAASP 最初循环压力 ICP(Initial circulating pressure)循环结束压力FCP(Final circulating pressure)U 形管原理U-tube principle 压井操作killing operation 补救措施remedial actions 关井后循环circulation under well closed in condition cl 离子含量chloride content Dc 指数 Dc exponent 软关井soft shut in 硬关井hard shut in 第1 次循环first circulation 第2 次循环second circulation 压井泥浆比重kill mud weight 抽吸swab 激动surge 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 含气地层gas bearing formation 含气页岩gas bearing shale 安全增量safety margin 记录卡片trip sheet 低循环泵速SCR(slow circulation rate)当量泥浆密度EQD(equivalent mud density)当量循环密度ECD(equivalent circulating density)司钻压井法driller’s method等待压井法wait & weight method 体（容）积法volumetric method 下推压井法bull-heading method 不压井下钻：snub in 第三章：钻井工程作业部分第1 节钻井事故井喷：blow out 井涌：kick 井漏：lost circulation 坍塌，井壁坍塌：cave in(collapse)出砂：sand production 砂桥：sand bridge 台阶：ledge 键槽：keyseat 椭圆井眼：oval shaped hole 卡钻：sticking 填井：pack-hole 封井：packed drilling 井下落物：fish 大幅度活动钻具试图解卡：work the string and try to free it 活动钻具以避免卡钻：move(reciprocate)the string to avoid being stuck.打捞：fishing 鱼头：top of fish 打捞工作：fishing job 侧钻：side-tracking 侧钻井眼：sidetracking hole 水泥窜槽：cement channeling 固井失败：cement failure 防砂：sand control 缓慢开泵并仔细观察返浆情况：slowly start pumping and closely watch the return on the shale shaker 第2 节钻头牙轮钻头：rock bit 刮刀钻头：drag bit 金钢石钻头：diamond bit 地址：北京市朝阳区东三环中路7号财富中心A座601 邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 镶齿钻头： insert bit 铣齿钻头：milled tooth bit 喷射钻头：jet bit 牙轮：cone 钻头装卸器：bit breaker 钻头直径：bit diameter 钻头寿命：bit life 钻头磨损：bit wear 钻头型号：bit type 水眼尺寸：nozzle size 水眼效率：nozzle efficiency 钻头接头：bit sub 第3 节钻具方钻杆：kelly 方钻杆旋扣器：kelly spinner 方钻杆旋塞：kelly cock 钻具：drilling string 钻杆：drill pipe 油管：tube 钻具组合：drilling assembly 扶正器：stabilizer 扩眼器：reamer（hole opener）钻铤：drill collar 无磁钻铤：NMDC(non-magnetic drill collar)加重钻杆：HWDP(heavy weight drill pipe)近钻头扶正器：near-bit stabilizer 震击器：jar 减震器：shock absorber 螺旋钻铤：spiral drill collar 键槽破坏器：key seat reamer 安全接头：safety joint 钻杆刮泥器：drill pipe wiper 泥浆动力钻具：mud motor 钻柱：drill string 涡轮：turbine 涡轮钻具：turbo-drill stem 立根：stand 加厚：upset 内加厚：IU(internal upset)外加厚：EU(external upset)内外加厚：internal-external upset 丝扣：thread 打捞颈：fishing neck 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 母扣：box 公扣：pin 左旋螺纹：left-hand thread 右旋螺纹：right-hand thread 正规接头：regular joint 贯眼接头：full hole joint 内平接头：internal flush joint 护丝：thread protector 快速护丝：easy protector 打捞工具：fishing tool 打捞作业：fishing operation 打捞篮：junk basket 卡瓦打捞筒：overshot 打捞杯：junk sub 牙轮打捞器：cone fisher 套管打捞矛：casing spear 打捞矛：fishing spear 打捞公锥：male tap(fishing nipple)打捞母锥：female tap(fishing socket)倒扣工具：reversing tool(backing-up tool)铣鞋：milling shoe 铣具：milling tool平底铣鞋：flat bottom mill 磁力打捞工具：magnetic fishing tool 打捞钩：fish hook 气动工具：pneumatic tool 减摩短节：friction reduction sub 下套管漂浮接箍：casing floating coupling 轴向加压器：hydraulic axial thruster 第4 节钻井工程地面作业实用词汇与短语方入：kelly-in 方余：kelly-up 开钻：spud in 作业指令：instruction 钻井设计：drilling program 井身结构：well schematic 岩性：lithology 迟到时间：lag time(bottom up)换钻头：change bit 甩钻具：laydown drill pipe 发生故障：break down 安装（拆卸）：rig up(rig down)接头：sub adapter 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 机械手：mechanical arm 铁钻工：iron roughneck 有故障：It fucked up(something is wrong with it)已修好：it has been fixed 马上去：Go there at once 请下去：Please go down 请上来：Please come up 躲开，危险：keep away，danger.请翻译来：Ask interpretor come here，冲洗：wash down 井口：well-head 一根钻杆（单根）：single 三根钻杆组合（立根）：thribble 吊蓝：cage(basket)换班： shift change 第5 节钻井工程井口作业实用词汇与短语喇叭口：bell nipple 出水管：mud return line(flow line)试压杯：cup tester 小心滑倒：wet floor, be careful 不要往井眼内掉东西：never fall down anything inside hole 我来做：Let me do it 带把板手来：Bring a spanner，please 带点密封剂：Bring a little sealant(Teflon)，please 很快就好了：lt will be finshed right away 抬一下：Let's lift it 把绳子给我：Give me the rope，please 不漏：no leakage 电焊： welding 气焊：gas welding 气割：gas cut 栏杆：handrail，gangway rail，railing 蒸汽：vapour 压缩空气：pressurized(compressed)air 注意安全：pay attention tosafety 别动：Don't move，Don't touch.对准：point out exactly.校正：align 裸眼：open hole 第四章：钻井液及相关设备第1节钻井液名称泥浆：mud 钻井液：drilling fluid 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 完井液：completion fluid 修井液：work-over fluid 压井液：killing fluid 射孔液：perforating fluid 隔离液：spacer fluid 泥浆处理：mud treatment 泥浆处理设备：mud treating equipment 饱和盐水泥浆：saturated salt-water mud 油基泥浆：oil-base mud 高粘度泥浆：heavy viscous mud 重泥浆：weighted mud 重泥浆压钻杆：slug drill pipe 起钻倒返泥浆：we have wet pipeduring POOH 重晶石：barite 纯碱：soda ash 高岭土粉：koaline powder 云母片： mica sheet 增粘剂： viscosifier 稀释剂：diluent(thinner)稳定剂：stabilizer(stabilizing agent)烧碱：caustic soda 稀释dilution, thinning 水泥凝固cement setting 第2 节钻井液设备离心泵：centrifugal pump 振动筛跑泥浆：mud overflow shale shaker 筛出：shake out 混合泵：mixing pump 混合漏斗：mixing hopper 搅拌器：mud agitator 泥浆抢：mud gun 岩屑：cuttings 沉淀：settle 沉积物：deposit 吸入：suction 吸入罐：suction pit 泥浆天平：mud balance 游码：slide weight 支点：fulcrum 刀口：edge 调整，校正：adjust 粘度计：viscometer 第3 节钻井液处理剂地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 包，袋：sack 粘土：clay 膨润土，般土：bentonite 钠：sodium 钙：calcium 氯：chloride 氯化钙：calcium chloride 石棉：asbestos 分散：dispersal 表面活性剂：surface-active material 铁络盐：lignite 单宁：tannin 羧甲基纤维素：carboxymethyl celluose CMC 木纤维：xylogen 石灰：lime 二氧化钙：calcium oxide 粉末：powder 薄片：flake 溶解：dissolve 延迟，妨碍：retard 处理剂，添加剂：additives 缓凝剂：retarder 支撑剂：proppant 乳化剂：emulsifier 润湿剂：wetting agent 稳定剂：stabilizing agent 除钙剂：calcium remover 降失水剂：filtration-reducing agent PH 值控制剂：PH control additive 润滑剂：lubricant 消泡剂：defoamer agent 破乳剂：emulsion breaker 洗涤剂：detergent 防膨胀剂：anti-swelling agent 粘土稳定剂：clay stable agent 稀释剂：thinner 封堵剂：plugging agent 抑制剂：inhibition agent 暂堵剂：temporary plugging agent 解堵剂：plugging removal 堵漏剂：LCM(lost circulation material)水敏地层：water-sensitive formation 分散：dispersal 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 水泥浆：cement slurry 流变性：rheological characteristics 稳定性：stability 稠化时间：thickening-time 低密度水泥浆：low-density slurry 油气层保护：reservoir protection 高渗透性：high-permeability 砾石：gravity 悬浮：suspension 固化：solidification.防膨胀：anti-swelling 高凝高粘度：high condensation and viscosity 无毒的：non-poisonous 无荧光：non-fluorescence 钻井液性能参数Specificaitons of Drilling Fluid 含水：water content 密度：density 厚度：thickness 粘度：viscosity 塑性粘度：plastic viscosity 含砂量：sand content 屈服：yield 屈服点：yield point 屈服强度：yield strength 剪切速率：shear rate 剪切强度：shear strength 剪切应力：shear stress 稀释：dilute 适用温度：safe temperature 初始切力：initial gel strength 终切力：ten-min gel strength 触变性：thixotropy 剪切稀释：shear thining 液体浓度:concentration 泥浆柱：mud column 层流：laminar flow 涡流：turbulent flow 气泡：bubble 第五章：钻井相关作业第1节取芯部分岩心：core 取心钻头：core bit 取心筒：core barrel 地址：北京市朝阳区东三环中路7号财富中心A座601 邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 内岩心筒：inner barrel 外岩心筒：outer barrel 岩心爪：core catcher 取心工具：corehandling tools 取心收获率：core recovery rate 取样器：sample blob 取样盒：sample box 样品筒：sample chamber 取样工：sample catcher 取样间隔：sample interval 井壁取心：side-wall coring 井壁取心枪：side-wall coring gun 取芯失败：coring failure 第2 节固井部分固井：cementing 完井：well completion 水泥：cement 井口：wellhead 井口压力：well head pressure 井口回压：back pressure on the well head 套压：casing pressure 导管：conductor 表层套管：surface casing 技术套管：protective casing(intermediatecasing)油层套管：production casing 尾管：liner 尾管悬挂器：liner hanger 通径轨：rabbit 封隔器：packer 联顶节：landing joint 套管柱casing string 套管下部结构(含套管鞋、浮箍)：casing track(including casing shoe, float collar)套管扶正器：centralizer 止退环：stop collar 口袋：pocket(rat hole)环空注水泥作业：top cement job 碰压：bump plug 隔离液：spacer 分级箍：stage collar 水泥粘结强度strength of cement bond 套管钳：casing tongs 套管接箍：casing coupling 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 套管头：casing head 散装水泥：bulk-cement 水泥浆：cement slurry 插管注水泥：stab in cementing 插入密封接头：stab in adapter 分级注水泥：stage cementing 先行水泥浆：lead cement slurry 末端水泥浆：tail cement slurry 促凝剂：accelerator 替浆：displace with mud 水泥面：top of cement 固井管线：chicksan line(cementing line)灰罐：silo(bulk tank)候凝：WOC(wait-on-cement)挤水泥：squeeze cement 水泥塞：plug 第3 节固井水泥浆名称和参数超细水泥浆：ultrafine slurry 普通水泥浆：normal slurry 纤维水泥浆：fiber-reinforced cement slurry 膨胀水泥浆：expanding cement slurry 低密度水泥浆：low-density slurry 水泥体积收缩：cement volume contraction 水泥浆水化期间：cement slurry hydrating period 水泥胶结质量：cement sheath bonding quantity 失水率：the rate of water loss 析水：liberate water 稠化时间：thickening time 凝固强度：cementation strength 渗透性：permeability，膨胀率：expansion rate 压缩强度：compression strength 流动性：mobility 第4 节测井部分电测：wireline logging 测井解释：logging interpretation 随钻测井：LWD(logging while drilling)测井电缆：logging cable 测井工具：logging tool 自然电位测井：spontaneous potential log 感应电测井：induction electrical survey 双感应测井：dual induction-laerolog 中感应测井：medium induction log 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 数字记录：digital record 照相记录：photographic recording 放射性测井：radioactivity log 声波技术：acoustic wave technology 仪器耐温：the temperature resistance of the instrument 仪器耐压：pressure resistance of instrument 油气比：GOR(gas oil ratio)第六章：井下作业常用短语修井：work-over 修井工具：work-over tool 井下操作： down-hole operations.产层污染： pollution of pay zone 增产措施：stimulations 压裂和酸化：fracturing or acidizing 酸化处理：acid treatment 人工压裂：artificial fracturing 重复压裂过程：repetition presses for fracturing，压裂车：fracturing truck sets 压裂后反映：post-fracture response 固体和液体添加泵：solid and liquid additivepump 泵交联： pumping cross link 交联剂： cross-linking agent 排量： discharging 三维压裂： three-dimension fracturing 对压裂参数的监控、分析和解释：real time monitoring，analyzing and interpreting for fracturing operation parameters 压裂操作：fracturing operation 压裂规模：fracturing scale 化学吞吐：chemical disposal 乳化降粘：emulsification declining viscosity 增注：augmented injection.注水：water-injection 裸眼砾石填充完井：bore hole gravel packer completion.开窗铣锥：open-window mill prick，开窗斜向器：open-window inclined implement 碳酸盐岩：carbonate reservoir 第七章：海上钻井作业¨海上钻井：offshore drilling 陆地钻井：on-land drilling 海滩：sea beach 浅海：shallow sea 海底管线：sea-bottom pipe 地址：北京市朝阳区东三环中路7号财富中心A座601邮编：100020 Address: Unit 601, Fortune Plaza Office Tower A, No.7 Dongsanhuan Zhong Rd, Chaoyang District, Beijing 100020, P.R.China 海底电缆铺设：setting cable under sea-bottom 平台安装：platform installation 钻井平台：drilling platform 顺风：tail wind 逆风：against the wind 摄氏零下…度：below…degree centigrade 启锚：weigh anchor 抛锚：drop anchor 拖航：drag 对讲机：intercom，walkie-talkie 上吊茏：Please get on the liftbasket 救生衣：life jacket 晕船：sea sick 控制速度：Control the speed 货已送抵：The goods has arrived 货物验收：Please check and accept the goods 在不远处：Not far from here 不方便：lt's not convenient 有危险：lt's dangerous 防污染：prevent pollution 没情况：Nothing happened.第八章：定向井部分定向井：directional well 造斜点：ＫＯＰ（kick off point）最大井斜角：maximum hole inclination 增斜段：building up section 稳斜段：holding section 降斜段：drop off section 井眼尺寸：hole size 长、中、段半径：long，medium and short radius 裸。

钻井专业英语词汇BASIC ENGLISH1000 FOR DRILLING A WELL一、主-系-表句型（一）主-系-表句型是英语中最常用的句型之一，其结构是:主语+系词+表语。

主要用来表示某人或某物是什么,处在什么状态或是什么样子。

句中的系词be要根据主语的人称而变化。

第一人称单数用am(was),第三人称单数用is(was〕,其它人称都用are或were。

如果把系词be放在主语前边,就变成了疑问句1. 我是司钻,你是钻工。

I?m a driller. You are a roughneck.2.我们是钻工,你们是机工。

We're fIoormen. You are motormen.3.你不是技师。

You are not a tool pusher.4.你们不是司机。

You are not motormen.5.他不在钻台上。

He is not on the drill f1oor.6.他们在泥浆罐上。

They are on the mud tank.7.你是技术员吗? 是的,我是。

Are you a technician? Yes, I am.8.你们是工程师吗? 不, 我们不是。

Are you engineers? N0, we are not. 9.这是什么? What is this?10.这是一个喷射式钻头。

This is a jet bit. 11.这些是什么? What are these?12.这些是接头和配合接头(大小头)。

These are subs and X-overs(crossovers) 13.那些是什么? What are those?14.那些是提升短节。

Those are lift subs. 15.这是卡瓦,对吗?It is a slip,isn't it?16.那些是安全卡瓦和吊卡,对吧? Those are safety slips and elevators, aren?t they? 17.他们是干什么的? What are they?18.他们是我们的领导和参观人员。

Unit OneLesson EightDiesel Engine and Electric Powertransmit 传送internal combustion engine 内燃机fuel-air mixture 燃料-空气混合物keep in mind 记住oxygen 氧气atmosphere 大气rig up 安装钻机shed 棚子yard 码mac hinery 从动装置gears 齿轮sprocket 链轮mechanical transmission 机械传动装置mount 安装couplings 联轴节compound 并车联动机(并车箱) transfer 传送steel shroud(guard) 钢罩surround 包围safeg uar d 保护spray 喷洒lubricant 润滑油;润滑剂moving parts 活动部件entitle 取名为generator 发电机heavy-duty wires 重型电缆electric motors 电动机thermal energy 热能motion 运动transform 改变destroy 毁坏convert 转换take in 吸入piston cylinder 活塞气缸intake valve 进气阀;进气门intake-ports 进气门spark 火花ignite 点火exhaust valve 排气阀;排气门connecting rod=piston rod 连杆crankshaft 曲轴bearings 轴承crankcase 曲轴箱main bearings 主轴承friction 摩擦flywheel 飞轮momentum 动力,动量uniform 均匀; 统一automobile 汽车gasoline 汽油liquefied petroleum gas (LPG) 液化石油气butane 丁烷propane 丙烷natural gas processing plant 天然气处理厂twisting force (torque) 扭力c ompress 压缩transport 运输vapor 蒸气,蒸发flam mab le 易燃的vaporize 蒸发spark plug 火花点火塞high voltage 高电压spark ignition (SI) engine 火花点火动机glow plug 热线点火塞preheat 预热combustion chamber 燃烧室proportion 比例ratio 比率engine throttle 柴油机油门conversely 相反地designer 设计人员regardless of 不管compression ignition ( CI) 压缩点火Fahrenheit( F ) 华氏Celsius( C ) 摄氏fuel injector 燃油喷油器speed up 加速four-stroke-cycle 四冲程循环two-stroke-cycle 二冲程循环top dead center(TDC) 上死点bottom dead center(BDC) 下死点shorten 缩短manual 手册aspirate 自然吸气draw in 吸入suction 吸入natural aspiration 自然吸气reduc ed pressure 减弱压力vacuum 真空1rush in 冲进kilopascal(kPa) 千帕pounds per square inch(psi) 压力单位syringe 注射器needle 针give a shot 注射(打针) vial 小瓶syringe’s plunger 注射器的注塞superc harger 增压器blower 鼓风机blades 叶片;叶轮impeller 叶轮enc lose 围起来turbocharger 涡轮增压器result in 产生结果reciprocate 往复运动intake stroke 吸气冲程fill the vacuum 填补真空compression stroke 压缩冲程firing cycle 发火循环assume 假设;设定power stroke 做功冲程instantaneous push 瞬间推力slug 段塞lugging power 过载功率exhaust stroke 排气冲程valve overlap 气门重叠escaping hot exhaust gas 正在逸出的热废气cross section 剖面图breather 呼吸器rocker arm 摇臂valve cover 气门盖push ro d 推杆passageway 气道;水道;油道c amshaft 凸轮轴c am 凸轮floating oil screen 浮动机油滤网crankshaft counterweight 曲轴平衡块distributor injection pump 分油器喷射泵air intake manifold 进气管汇bolt 螺栓vent 排气,排气口blow-by 漏气buildup 聚集;聚积positive crankcase ventilation valves (PCV)曲轴箱正压通气阀recycling 再循环;重新循环corrosive fume 腐蚀性烟雾sludge formation 泥渣形成combustion cup 燃烧室accumulate 聚积;储集illu str at e 图示spray nozzle 喷嘴tiny droplets 小水珠atomizing 雾化spring-loaded plunger 弹簧加载柱塞precision timing 精密正时系统simultaneously 同时地sc av en ge 扫气trapped air 被圈闭的空气c ylinder 气缸theoretically 理论上地throttle changes 油门变化;节流阀变化preference 爱好distributor 分油器remaining 其余; 余下revolution 一转respond to throttle change 响应油门变化forced-air induction 强迫空气进入unc over 露出release pressure 释放压力momentarily 瞬间地fill the cylinder 充满气缸scavenging efficiency 扫气效率inlet ports 进气门cover the ports 遮住气门V-shape V 型make up 组成;构成cutaway of the piston 活塞的剖面图contain 包括;包含plunger pump 柱塞泵fuel manifold 燃油管汇piston rod 活塞杆dipstick 油尺drain plug 放油塞lubricating oil pan 油底壳counterweight 平衡块oil line to head 通到缸头的机油管scavenging ports 扫气门water line 散热水管线fuel metering rack 燃油计量齿条scavenging air 扫气2eccentric shape 偏心形状elliptical 椭圆的teardrop shape 泪珠形状rocking chair 摇椅d ia gr am 图形figure 图refer to 参考;意指kerosene 煤油crude oil 原油lightweight oil 轻质油specific gravity 比重set standards 制订标准recommend 推荐issue bulletin 发布公报equation 算式;式子c alc ulate 计算property 性能volatility 挥发性carbon residue 积炭viscosity 粘度sulfur content 硫分sediment 沉积物;沉淀flash point 闪点pour point 倾点acid corrosiveness 酸腐蚀ignition quality 自然性cetane number 十六烷值distillation 蒸馏boil away 蒸发掉;煮干volatile fuel 挥发性燃油fuel consumption 燃料消耗orifice 孔板Saybolt viscometer 赛波特粘度计universal size 通用尺寸Saltbolt seconds universal (SSU)赛波特通用粘度秒数plunger and barrel 柱塞和柱塞筒corrode 腐蚀fuel specification 燃料规范abrasive 研磨;刮磨clog 堵塞acc elerate 加速thic ken 变稠gelatin 胶状,白乳胶refiner 炼油厂家reputable supplier 信得过的供应商strive to 努力deter m in e 决定alpha-methyl-naphthalene a-甲基萘hydrocarbon 烃;碳氢化合物tar oil 焦油compression ratio 压缩比actuate 启动fuel injec tor 燃油喷射器ignition-delay period 点火延迟时间crank-angle degree 曲轴转角度injector valve unseat 喷油阀离开阀座deposit 存积gummy substance 胶质leak ag e 溢漏contamination 污染layout 布置main fuel-supply tank 主燃油罐stra iner 粗滤器filter 过滤器day tank 日用罐transfer pump 输油泵force of gravity 重力erec t 竖立disassemble 撤卸elim inate 消除;消灭purge air 吹扫空气vapor loc k 气阻塞vaporize 蒸发gas bubble 气泡c ollapse 破坏;失效;坍塌crush 压碎unvented tank 没有通气孔的油罐bac kflow 回流fill-up line 充满油的管线spew喷出drench 浇淋airborne lint 空气中的绒毛total volume 总容量useful volume 日用燃油量morning dew on the lawn 草坪上的露水settle 沉淀w ithdraw取出shutoff valve 关闭阀foreign particles 杂质stainless steel 不锈钢brass or copper 紫铜350-mesh 50 目(滤网) trash 垃圾;赃物solvent 溶剂paralle l 并联metal spacer 金属垫片sludge 泥渣stationary blades 静止不动的叶片hand primer 手油泵scheduled time 定时restric t 限制metal-edge strainer 金属片缝式粗滤器perforate 射孔;钻孔filter e lement 滤芯disposable 一次性使用的bag filter 袋式(筒式)过滤芯helical springs 螺旋型弹簧velocity 速度insoluble gums 不溶解胶质primary (secondary)filter 一次(二次)过滤cut off fuel flow 切断燃油in good shape 工作状态好impurity 杂质final-stage filter 最后一级过滤virtually 实际上synthetic cloth (化学)合成布料shed lint 掉绒毛stringent environment laws 严格的环保法micropore paper filter 微孔纸滤芯accordion pleats 手风琴的褶spin-on fuel filter 旋上的燃油滤芯resemble 相似gasket 垫子;垫片receptacle 接头;插口water separator 水分离器centrifuge 离心力magnify 扩大the pump stay primed 燃油泵充满燃油lobe 叶片interm esh 相互啮合overflow溢出screw fittings 螺丝接头flared fittings 扩口接头soldered copper fittings 铜焊接头paraffin 石蜡solid wax 固态蜡plugged tees 三通堵头elbow 弯头bends in the line 管线上的弯头unions 由壬(管接头) galvanized pipe 镀锌管leakproof seal 防漏密封by the same token 同样,同样的原因flexible hose 柔性; 挠性come apart 裂开;分开reinforc e 加固;加强braided steel 钢丝编织带booster pump 增压泵bleed- off valve 排气阀expel 驱逐misfire 不爆发;燃烧不好;燃烧延时air knocking 气击(气塞) dissolve 溶解meter the fuel 计量燃油quantity 数量duration 时限coarse 粗的oxygen 氧气multipump injectors 多泵式喷油系统unit fuel injectors 泵-喷嘴式喷油系统distributor injectors 分配器式喷油系统common-rail-or pressure-time injectors共集油管式喷油系统lifter 挺杆groove 凹槽isolate 孤立;单独rack-and-pinion gear 齿条-齿轮系统governor 调速器counterclockwise rotation 反时针旋转vert ic a l 垂直的slot 槽口recessed area 凹面circumference 圆周bevel 倒角,斜面slant 斜角;斜面shrink 收缩regulatory agency (法律) 条规部门emission laws (气体)排放法sophistcated electronic control精密电子控制precise injection timing and metering精确定时喷油和计量油量cam follower 凸轮从动件dow el 销钉4check valve cage 出油阀室spring cage 弹簧室spill deflector 溢流导流套gear retainer 齿轮支撑环control rack 控制齿条pump barrel or bushing 泵筒或泵套quantity 数量continuous fuel flow 连续油流fuel-return line 燃油返回管线air-pockets 气穴;气囊firing order 发火顺序numeric al sequenc e 序号cavity 孔腔delivery valve assembly 输油阀(出油)总成fuel metering control 燃油计量控制系统plunger tappet return spring柱塞挺杆返回弹簧face or end gear ring 端面齿圈tappet assembly 挺杆总成pump operating lever 泵操纵杆hydraulic head 扬程,液压头control sleeve 滑套throttle up 加油lengthen 延长header(common rail) 共集油管interval 时间间隔rack-and-pinion gear 齿条-齿轮装置tw irl 旋转flyw eig ht 飞锤counteract 反作用c oiled spring 盘簧spring-loaded centrifugal governor弹簧承载离心调速器speed droop 转速降from no-load to full-load 从空载到满载hunting 振荡sensitivity 灵敏度isochronous governor 同步调速器mechanical linkage 机械联结promptness 迅速overspeed governor 超速调速器load-limit governor 载荷限制调速器variable-speed governor 变速调速器preset value 预定值from idle to maximum speed 空转到满速speed-limiting governor 限速调速器constant-speed governor 恒速调速器mechanical governor 机械调速器bar-shape yoke 条状支撑盘fuel-regulating mechanism 燃油调节机构speeder spring 调速弹簧two-speed governor 双速调速器direct-acting governor 正作用调速器disadvantage 不利的地方;缺陷furnish 提供hydraulic governor 液压调速器pilot valve 导阀fluctuation 波动compensator 补偿器antic ipate 估计;预计power piston 动力活塞infrequent 频率低;不频繁alternating current 交流电AC generator 交流发电机sluggishly 缓慢地overresponse 响应过激reversible electric motor 双向电动机synchronize 同步schematic 图loading piston 承载活塞restoring lever 复位杆output shaft 输出轴centering screw 定心螺丝compensating land 补偿区(面) control land 控制区(面) solenoid c oils 电磁线圈level adjustment spring 液位调节弹簧adjustable bracket 调节支架two-way switch 双向开关tachometer 转速表frequency meter 频率表reverse-acting actuator 反向致动器fuel modulator 燃油调节器trip 跳闸power spring 强力弹簧latc h 钩锁destructive friction 毁坏性摩擦metal to metal contact 金属对金属摩擦gummy compound 胶质物clearanc e 间隙relief valve 减压阀pick up dirt 夹带赃物;积聚赃物5foreign matter(material) 杂质;外来物sink 下沉utilize 利用c harc oal 木炭filtering element 滤芯interchangeable 互换的oil cooler 机油散热(冷却)器safety shutoff 安全停机flow rate 流量fine-mesh bronze screen 细目铜滤网pressure gauge 压力表bypass valve 旁通阀coolant 冷却液ex it 出口crank throw 曲柄弯polish 抛光adjacent rod bearing 邻近活塞杆轴承wrist pin 活塞销spurt onto the bottom of the piston喷到活塞的底部valve stem 气门杆pushrod guide 推杆导套timing gear train 正时齿轮系统rubbing surface 摩擦表面speed limiter 速度限制器restart lubrication system 预润滑系统pressure up 加压oil pan 油底壳spring-operated explosion cover弹簧作用的防爆门slum shut 砰地一声关上flutter 百叶窗foam 泡沫detergent 清洁剂varnish 积炭residues 残炭dispergent 分散剂suspend 悬浮impurity 杂质sulfur 硫neutralize 中和;稀释identify 辨认,辨别c ertify 证明carbon deposits 积炭observant motorman 警觉的机工radiation 散热ethylene glycol=antifreeze 乙二醇=防冻液corrosion inhibitor 防腐剂chromates 铬盐酸heat exchanger 热交换器hollow tube 空心管surge tank 上水室bottom tank 下水室heat-conductive metal fins 传热金属片moving raw water bath 流动的生水室compactness 紧凑pockets(jackets) around the valve 气门水套pressured cooling system 加压冷却系统optimal operation 最佳运行thermostat 恒温器temperature regulator 温度调节器radiator core 散热器芯air tunnel(air ducts) 风道dead spac e 死角air stagnation 空气滞留automatic shutter 自动百叶窗offset 抵消dissolved mineral 溶解矿物质calcium carbonate (lime) 碳酸钙(石灰质) insulator 隔热材料cast iron 生铁hydrogen sulfide 硫化氢carbon dioxide 二氧化碳decaying leaves and vegetation腐烂的树叶和植物creek or pond 河流或溏堰copper alloy 铜合金silt 淤泥organic material 有机物tension on the belt 皮带绷紧程度the belt slips 皮带打滑airtight 气密的collapse 失效;崩溃enclosure 围住;围栏ventilation 通风account for 占;说明;解释substract 减去debris 残留物closed shell 闭式壳体里engine temperature switch 柴油机温度开关divert 转移;转向immersion heater temperature switch6浸没式加热器温度开关overflow溢流valve guide 气门套管aftercooler 中间冷却器air clearner 空气滤清器oil bath cleaner 油浴式滤清器steel tube with vanes 带有导流片的钢管sw irl 漩涡vacuator valve 排空阀soot 烟灰;烟尘soak 浸泡rap 敲击inner cup and outer cup 内油杯和外油杯entrained oil 夹带的油blockage 堵塞run a swab 抽一抽子scribed line 刻线air leaks 漏气Roots blower 罗茨鼓风机spiraled (helical) rotors 螺旋转子leading edge (travelling edge) of the lobe叶轮前缘(后缘) lock washer 缩紧垫片coupling hub 接箍盘bearing spacer 轴承隔离圈end plates 端面盖板turbine 涡轮modify conventional oil pump改进传统机油泵ambient air inlet 环境空气入口quench 熄灭muffler(exhaust silencer) 消音器tail pipe 尾管two banks of cylinder 两列气缸lessen 减少contract 收缩manometer 压力表condensate trap 冷凝水收集器barking sound 响声baffle plates 缓冲板fibreglass 玻璃纤维diminish 使减少pulsating flow 脉冲流fade out 渐弱;消失accommodate 使适应;容纳cut on a bias 切成斜口noisy puff 冒烟时噪音大stack 烟囱;排气管;通风管starter 启动机hand crank 手摇曲柄timer 计时器ring gear 齿圈circumference 圆周面friction clutch 摩擦离合器solenoid 电磁式启动开关;螺线线圈cutout system 切断系统lead-acid battery 铅-酸电池oxide 氧化物electrolyte 电解液negative terminal 负极终端(接线柱) grounding strap 接地母线pry bars 橇杠set off 爆炸specific weight 比重hydrometer 比重计sphere 小球centerline 中心线scale 刻度electric starter 电动启动机cover band 卡箍pole shoe(laminated) 极阶(层绕) field coil 励磁线圈center bearing 中间轴承bushing 轴套drive housing 传动壳体armature 电枢commutator 整流子brush 电刷commutator end frame 整流子端盖oiler 黄油嘴linkage 拉杆shift lever 操纵杠杆bronze bearing 青铜轴承air-motor starter 风动马达启动机strike the vanes 冲击叶轮engage 挂合disengage 摘开air reservoir 气罐oiler (机油)油雾器malfunction 运行不正常disassemble 拆卸procedure 步骤7hydraulic starter 液压启动机nitrogen gas 氮气high cranking speed 高速盘车recycle 再循环;重复利用charge 蓄压initial cost 初始费用gasoline engine starter 汽油启动机hand cranking 手动盘车hand lever 手动操纵杆get under way 正在运行中release 脱开;释放compressed air starter 压缩空气启动机bar the engine 用橇杠盘动柴油机the rim of the engine’s flywheel 飞轮轮缘worm gear 蜗杆齿轮keep track of 跟踪pulse 脉搏;脉冲respiration 呼吸pyrometer 高温温度表thermometer 温度表alert 机警的exceed 超过dilution 稀释obstruction 障碍stuck 卡住erode a sand bank 冲蚀沙岸sensor 传感器premature wear 提前磨损condense 冷凝thermal shock 热冲击notify 通知generator’s windings 发电机线圈safety shutdown device 安全停车装置overspeed trip device 过速跳闸装置shut off the fuel 截断燃油compound two engines两台柴油机并车运行in high gear 在高速挡运行gear ratios 齿轮比relay 继电器in conjunction with 结合;与…协力remedy a malfunction (补救)排除故障cutoff valve 关断阀shutdown solenoid 停机线圈blowout 井喷air-shutoff valve 空气切断阀fire extinguisher 灭火器displace 移置;挤走alignment 对直;对中thoroughly 彻底put into service 投入使用glaz e 积炭loading switch 负荷开关frictional drag 摩擦拉缸rated running rmp 额定转速spell trouble 招来麻烦take into account 考虑breaker switch 断路开关on the lookout for leaks 监视溢漏keep records of 记录spot abnormal performance见到运行不正常情况light haze 轻微混浊mercury 汞柱become visible 变得看得见bear greatly on the maintenance schedule与维修时间计划有很大关系alternator 交流发电机rec tify 整流copper rotor windings 转子铜线圈commutator bar 整流条at first glance 乍一看segmented ring 断开的滑环retangular loop (四方形) 矩形回路electromagnet 电磁铁magnetic flux 磁通线parallel 平行be composed of 由…组成perpendicular 垂直的;正交的stator 定子stator winding 定子绕组exciter 励磁器armature 电枢laminated disks 叠片(铁心) slip ring 滑环deflect 偏移;偏斜stall 停止不动electromagnetic field 磁场rheostat 变阻器variable resistor 变阻器control hookup 控制线路图scalloped lines 扇贝线top drive 顶驱8assignment switch 负荷分配开关contactor 接触器air throttle 空气节流阀ammeter 电流表reversing switch 反向开关pneumatic controls 气动控制plug-in type 插接式interlock 联锁follow lock-out and tag-out procedures 按照切断电路,挂牌告示的程序进行维修moisture 湿气binding of moving parts 活动部件粘结lintless cloth 不掉毛的织物grooved or streaked commutator带有沟槽或条纹的整流子out of round 失圆pigtail 软线spring shunt 弹簧分路线backup 后备通路frayed shunts 损坏的分路线burned arc chutes 烧坏的走线架terminal strips 接线条come into one’s own 获得应有的信誉solicon-controlled rectifier(SCR)可控硅整流器thyristors 闸流晶体管diode 二极管gate voltage 闸门电压oscilloscope 示波器sine wave 正旋波throttle signal 调节信号gate-control system(闸门电压控制系统)控制级AC bus(common bus) 母线;总线bus bar 汇流排cabinet 控制柜SCR converter SCR转换器reverse current relay 逆功率(电流)继电器keep a close eye on…密切注意emphasize 强调synchronous speed 同步转速generators on line 并网发电机synchronizing panel 同步盘jolt 冲击synchroscope 整步表sense module 传感模块bunkhouse cooling and heating井场宿舍空调和取暖系统9。

钻井⼯程常⽤名词术语英⽂钻探⼯程名词术语Terms of drilling engineering1 主题内容与适⽤范围本标准规定了钻探⼯程中常⽤的名词术语。

本标准适⽤于钻探⽣产、设计、制造、管理、科研、教学、出版以及援外等⽅⾯。

2 基本术语 basic terms2.1 钻探⼯程drilling engineering为探明地下资源地质情况，开采地下矿藏以及其他⽬的所进⾏的钻孔施⼯⼯程。

2.1.1 钻探设备drilling equipment(rig)钻孔施⼯所使⽤的地⾯设备总称。

2.1.2 钻探⼯具drilling tools钻孔施⼯所使⽤的孔内各种机具、以及⼩型地⾯机具的总称。

2.1.3 钻探⼯艺drilling technology钻孔施⼯所采⽤的各种技术⽅法、措施以及施⼯⼯艺过程。

2.2 钻进、钻探drilling钻头钻⼊地层或其他介质形成钻孔的过程称钻进，以探明地下资源及地质情况的钻进称钻探。

2.2.1 取芯钻进.core drilling以采取圆柱状岩矿芯为⽬的的钻进⽅法与过程。

同义词：“岩芯钻进”。

2.2.2 不取芯钻进non-core drilling破碎全部孔底岩⽯的钻进⽅法与过程。

同义词：“⽆岩芯钻进”。

2.2.3 扩孔钻进reaming扩⼤原有钻孔直径或扩⼤某⼀孔段直径的钻进⽅法与过程。

2.3 封孔sealing of hole为防⽌地表⽔和地下含⽔层通过钻孔与有⽤矿体串通，终孔后对钻孔进⾏的⽌⽔封填⼯作。

3 钻探⽅法 drilling methods3.1 固体矿产钻探solid mineral drilling以勘察固体矿产的产状、赋存状态、品位、储量及其他地质形象为⽬的的钻探⼯作。

3.2 ⽔⽂钻探hydro-geological drilling以⽔⽂地质勘察为⽬的的钻探⼯作。

3.3 ⽔井钻探water well drilling以开发利⽤地下⽔资源为⽬的的钻探⼯作。
