佳能LBP系列激光打印机使用指南--------------------------------------------------------------------------------不要认为打印机使用很简单，其实里面有不少学问，仔细看看吧。
一、功能●输出最大为A3+幅面，支持16开、8开A4、A5、B5等各种不同规格尺寸直接输出各种大型表格，并可输出在硫酸纸、名片纸、卡纸等各种介质。
●打印速度16页／分钟。
打印精度1200DPI。
特点是精度高、幅面大，价格低，是需要A3大幅面打印的最实用的选择。
适用于家庭、小型印刷厂制版、电脑打印店和机关学校办公等。
●机器110V电压，英文面板显示。
附带电源线、联机线、英文驱动程序。
二、系统要求●主机要求486以上，使用WIN31/WINNT4/WIN95/WIN98、ME/WIN2000操作系统。
三、打印机的简易操作●本机操作介面为日文，显示均为英文，用户使用一段时间后会逐渐熟悉。
具体操作方法：1、先将下纸盒放入适当的纸张。
（此纸盒为万能纸盒，纸盒下有纸张大小的刻度槽，您可根据需用放入合适的纸张，再旋动左边的绿色旋钮，使纸盒前端的显示尺寸与纸盒所放的纸张尺寸相对应。
如果纸张尺寸与纸盒不对应，请选用手送托盘进纸）2、打开电源开关，打印机面板显示灯全亮一下，定影传动部分工作，定影器加热，整个预热过程45秒钟。
3、预热完毕后，液晶显示（00 READY），联机灯亮（オンライン），此时打印机已进入待机状态，电脑发送打印信号就可正常打印了。
（如果联机灯不亮，打印机将无法接收电脑的打印信号）4、打印机自检：按灭联机灯，按[ユ一テイリティ]＜键→再按[リセット/实行]∨键，打印机将打印一张日文的设置自检页。
按二次[ユ一テイリティ]＜键→再按[リセット/实行]∨键，打印机将打印另外的功能自检页。
5、打印机的按键使用：由于打印机的内部都是英文，用户可根据液晶显示的提示进行调节，一般的选项也可在驱动程序的[属性]里调节。
佳能激光打印机怎么实现远程打印？佳能LBP2900远程打
印的⽅法
通常情况下，局域⽹中只存在⼏台打印机，⽽对于⼤部分局域⽹⽤户⽽⾔，都会使⽤局域⽹络打印机来实现⽂档的打印操作。
今天⼩编为⼤家介绍⼀种简单有效的实现⽹络打印的⽅法，希望对⼤家能有所帮助。
1、⾸先需要将局域⽹⽤于共享的打印机设置为“共享”：打开“控制⾯板”，点击“⽹络和共享中⼼”进⼊。
2、在打开的窗⼝中，点击“更改⾼级共享设置”项。
3、勾选“启⽤⽂件和打印机共享”项，并点击“保存设置”按钮完成打印机的共享操作。
4、从参考资料处获取“打印⼯场”电脑版程序进⾏安装。
5、双击并安装该程序，⾸先需要注册⼀个账户，并进⾏登陆操作。
6、接着运⾏“打印⼯场”程序，在弹出的窗⼝中勾选“⽹络打印机”对应的名称，点击“确定”按钮完成设置。
7、以后就可以使⽤该⽹络打印机来打印本地⽂档啦。
以上就是佳能LBP2900远程打印的⽅法，希望⼤家喜欢，请继续关注。

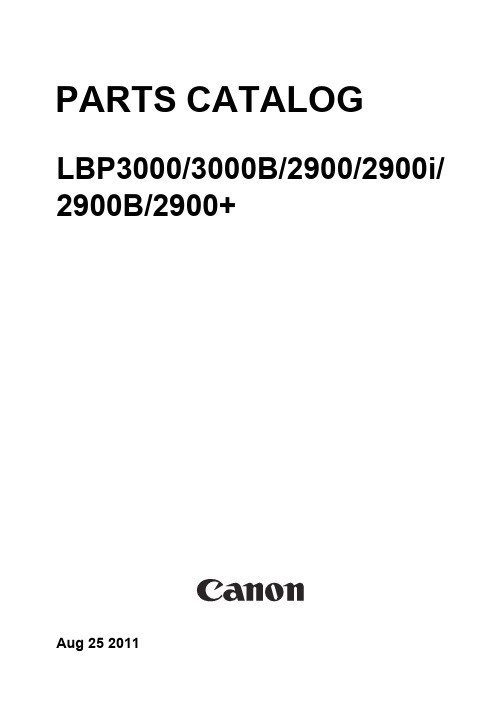

PARTS CATALOGLBP3000/3000B/2900/2900i/ 2900B/2900+Aug 25 2011PREFACEThis Parts Catalog contains listings of parts usedDiagrams are provided with the listings to aid the service technician in identifying clearly, the item to be orderd.Whenever ordering parts, consult this Parts Catalog for all of the information pertaining to each item. Be sure to include, in the Parts Request, the full item description, the item part number, and the quantity.COPYRIGHT (C) 1999 CANON INC.Use of this manual should bestrictly supervised to avoiddisclosure of confidentialinformation.ContentsNUMERICAL INDEXLBP3000/3000B/2900/2900i/2900B/2900+(Numerical Index)........... 1-1 LBP3000/3000B/2900/2900i/2900B/2900+(Parts Catalog)A ASSEMBLY LOCATION DIAGRAM ......................................2-1001ACCESSORIES .....................................................................2-2100EXTERNAL COVERS ............................................................2-4101INTERNAL COMPONENTS 1 ...............................................2-6102INTERNAL COMPONENTS 2 ...............................................2-8103INTERNAL COMPONENTS 3 .............................................2-10104BASE PLATE ASS'Y ............................................................2-12310PAPER PICK-UP ASS'Y ......................................................2-14810FIXING ASS'Y ......................................................................2-16PARTS NUMBER FIGURE&KEY NO.PARTS NUMBERFIGURE&KEY NO.PARTS NUMBERFIGURE&KEY NOFC5-4820-000100-6 FC7-3621-000103-6 FK2-9583-000001-5 FM0-1766-000100-3 NPN001-NPN100-NPN101-NPN102-NPN103-NPN104-RA0-1019-000103-1 RA0-1060-000101-9 RC1-1953-000103-2 RC1-1954-000103-3 RC1-1955-000103-4 RC1-1956-000103-5 RC1-1959-000103-7 RC1-1960-000310-1 RC1-1964-000103-8 RC1-1987-000104-1 RC1-1989-000310-2 RC1-1990-000310-3 RC1-1993-000310-4 RC1-1994-000310-5 RC1-1996-000310-6 RC1-1999-000102-1 RC1-2005-000101-2 RC1-2007-000102-2 RC1-2012-000310-7 RC1-2029-000310-19 RC1-2039-000310-8 RC1-2040-000310-9 RC1-2041-000310-10 RC1-2042-000310-11 RC1-2043-000310-12 RC1-2044-000310-13 RC1-2049-000310-14 RC1-2061-000310-15 RC1-2066-000810-1 RC1-2067-000810-2 RC1-2069-000810-3 RC1-2070-000810-4 RC1-2079-000810-5 RC1-2097-000810-7 RC1-2098-000810-8 RC1-2098-000810-8 RC1-2101-000810-9 RC1-2102-000810-10 RC1-2103-000810-11 RC1-2106-020101-3 RC1-2108-000810-6 RC1-2116-020102-3RC1-2117-000103-9RC1-2120-000102-4RC1-2121-020102-5RC1-2135-000810-12RC1-2139-000810-13RC1-5521-000101-2RC1-5570-000810-21RC1-5571-000810-6RC1-5875-000100-8RC1-6194-000100-1RC1-6199-000100-9RC1-6214-000100-12RC1-6215-000100-7RC1-6217-000100-6RC1-6218-000100-1RC1-6221-000100-8RC1-6223-000103-24RC1-6979-000101-12RC1-6980-000101-13RC2-3004-000100-6RH9-1162-000001-4RH9-1164-000001-5RH9-1166-000001-6RH9-1168-000001-7RH9-1169-000001-8RH9-1170-000001-9RH9-1171-000001-2RK2-0107-000101-4RK2-0108-000310-16RK2-0778-000310-16RK2-0799-000101-4RK2-1025-000001-1RK2-1026-000001-1RK2-1027-000001-1RK2-1136-000001-1RK2-1137-000001-1RK2-1259-000001-1RK2-1260-000001-1RK2-1261-000001-1RK2-1262-000001-1RK2-1302-000001-3RK2-1633-000001-1RK2-1848-000001-1RK2-1863-000001-1RK2-1896-000001-1RK2-2209-000001-1RK2-2210-000001-1RK2-2213-000001-1RK2-2377-000001-1RK2-2830-000001-1RK2-2857-000001-1RL1-0266-000310-17RL1-0268-000310-18RL1-0269-000101-1RL1-0270-000810-14RL1-0274-000103-11RL1-0275-000104-2RL1-0905-000100-2RL1-0908-000100-5RL1-0909-000100-5RM1-0171-000102-6RM1-0634-000103-12RM1-0640-000104-5RM1-0641-000310-RM1-0642-000310-20RM1-0644-000310-21RM1-0645-000310-22RM1-0647-020101-5RM1-0648-000101-6RM1-0650-040810-15RM1-0651-020810-16RM1-0656-040810-15RM1-0658-000101-7RM1-0660-000810-RM1-0661-000810-RM1-0806-050102-7RM1-0807-040101-8RM1-0808-040101-8RM1-0809-000101-10RM1-0810-000101-11RM1-2051-000810-15RM1-2052-020810-15RM1-2086-000810-RM1-2087-010810-RM1-2091-020310-RM1-2092-000810-16RM1-2093-000101-7RM1-2312-000101-10RM1-2313-000101-11RM1-2314-000102-7RM1-2315-000101-8RM1-2316-000101-8RM1-2317-000810-22RM1-2391-000100-4RM1-2393-000100-3RM1-2395-000104-3RM1-2397-000104-4RM1-2399-000100-3RM1-2401-000100-3RM1-3125-000103-25RM1-3126-000103-25RM1-3956-000102-6RM1-4087-000103-25RM1-4088-000103-251-1PARTS NUMBER FIGURE&KEY NO.PARTS NUMBERFIGURE&KEY NO.PARTS NUMBERFIGURE&KEY NORM1-4737-000100-3 RM1-4738-000100-3 RM1-4739-000100-3 RU5-0173-000103-13 RU5-0174-000103-14 RU5-0175-000103-15 RU5-0176-000103-16 RU5-0177-000103-17 RU5-0178-000103-18 RU5-0179-000103-19 RU5-0180-000310-23 RU5-0185-000810-18 RU5-0186-000810-19 RU5-2173-000103-20 RU5-2174-000103-21 RU5-2174-000310-24 RU5-2177-000102-8 RU5-2178-000810-20 VD7-1791-002101-18 VD7-3111-002101-18 XA9-1420-000101-14 XA9-1420-000102-9 XA9-1469-000100-10 XA9-1469-000103-10 XA9-1469-000103-22 XA9-1495-000101-15 XA9-1495-000102-10 XA9-1495-000103-23 XA9-1495-000104-6 XA9-1500-010100-11 XA9-1500-010102-11 XA9-1503-000310-25 XB2-6400-607101-17 XB2-8300-609810-17 XB4-5401-009101-16 XB4-5401-009310-261-2LBP3000/3000B/2900/2900i/2900B/2900+(Parts Catalog)SATERA LBP3000SATERA LBP3000BLASER SHOT LBP3000100V R72-8544-000LLJA OLD TYPE 120V R72-8554-000JLHA OLD TYPE 100V R72-8624-000LPCA NEW TYPE 120V R72-8634-000LPDA NEW TYPE 100V R72-9384-000MABA NEW TYPE 230V EUR R72-8558-000KMXA OLD TYPE 230V ASIA R72-8558-000LMCA OLD TYPE 230V GB R72-8558-000LMDA OLD TYPE 230V AU R72-8558-000LMEA OLD TYPE 230V CN R72-8568-000KMYA OLD TYPE 230V EUR R72-8638-000LPEA NEW TYPE 230V ASIA R72-8638-000LPGA NEW TYPE 230V GB R72-8638-000LPHA NEW TYPELASER SHOT LBP2900LASER SHOT LBP2900i LASER SHOT LBP2900B 230V AU R72-8638-000LPJA NEW TYPE 230V CN R72-8648-000LPFA NEW TYPE 230V EUR R72-8658-000KMKA OLD TYPE 230V GB R72-8658-000LMLA OLD TYPE 230V ASIA R72-8658-000LMMA OLD TYPE 230V AU R72-8658-000LMNA OLD TYPE 230V CN R72-8668-000LMPA OLD TYPE 230V EUR R72-8678-000LPKA NEW TYPE 230V GB R72-8678-000LPLA NEW TYPE 230V ASIA R72-8678-000LPMA NEW TYPE 230V AU R72-8678-000LPNA NEW TYPE 230V CN R72-8688-000LPPA NEW TYPE 230V EUR R72-9048-000LSFA NEW TYPE 230V EUR R72-9388-000LXLA NEW TYPE 230V ASIA R72-9568-000MBGA NEW TYPELASER SHOT LBP2900+MLTA NEW TYPE 230V CN R72-1178-000ContentsA ASSEMBLY LOCATION DIAGRAM...................................................................2-1 001ACCESSORIES..................................................................................................2-2 100EXTERNAL COVERS.........................................................................................2-4 101INTERNAL COMPONENTS 1............................................................................2-6 102INTERNAL COMPONENTS 2............................................................................2-8 103INTERNAL COMPONENTS 3..........................................................................2-10 104BASE PLATE ASS'Y.........................................................................................2-12 310PAPER PICK-UP ASS'Y...................................................................................2-14 810FIXING ASS'Y...................................................................................................2-16FIGURE A2-1FIGURE 0012-2FIGURE & KEY NO.PARTSNUMBERRANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.001NPN RF ACCESSORIES1RK2-1026-0001CD-ROM, USER SOFTWARE JLHA,KMXA,LMCA,LMDA ,LMEA1RK2-1137-0001CD-ROM, USER SOFTWARE KMKA,LMLA,LMMA,LMN A1RK2-1027-0001CD-ROM, USER SOFTWARE KMYA,LMCA,JLHA1RK2-1025-0001CD-ROM, USER SOFTWARE LLJA1RK2-1136-0001CD-ROM, USER SOFTWARE LMMA,LMPA1RK2-1896-0001CD-ROM, USER SOFTWARE LPCA1RK2-2830-0001CD-ROM, USER SOFTWARE LPCA,MABA1RK2-1262-0001CD-ROM, USER SOFTWARE LPDA1RK2-1633-0001CD-ROM, USER SOFTWARE LPEA,LPHA1RK2-1863-0001CD-ROM, USER SOFTWARE LPGA,LPFA1RK2-2213-0001CD-ROM, USER SOFTWARE LPGA,LPJA,LPFA,LPDA1RK2-1261-0001CD-ROM, USER SOFTWARE LPJA1RK2-1260-0001CD-ROM, USER SOFTWARE LPMA,LPPA1RK2-2210-0001CD-ROM, USER SOFTWARE LPMA,LPPA1RK2-1259-0001CD-ROM, USER SOFTWARE LPNA1RK2-2209-0001CD-ROM, USER SOFTWARE LSFA1RK2-1848-0001CD-ROM, USER SOFTWARE LSFA,LPKA,LPLA1RK2-2377-0001CD-ROM, USER SOFTWARE LXLA1RK2-2857-0001CD-ROM, USER SOFTWARE MBGA2RH9-1171-0001WIRE, GROUNDING100V3RK2-1302-0001CABLE, USB NEW TYPE ASIA,CN4RH9-1162-0001POWER CORD, 100V100V5RH9-1164-0001POWER CORD120V JLHA5FK2-9583-0001CORD, POWER120V LPDA6RH9-1166-0001POWER CORD230V CN7RH9-1168-0001POWER CORD230V GB8RH9-1169-0001POWER CORD230V AU9RH9-1170-0001POWER CORD230V ASIA,EUR2-3FIGURE 1002-4FIGURE & KEY NO.PARTSNUMBERRANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.100NPN RF EXTERNAL COVERS1RC1-6194-0001COVER, LEFT EXCEPTLBP3000B,2900B1RC1-6218-0001COVER, LEFT LBP3000B,2900B 2RL1-0905-0001COVER, FRONT3RM1-2399-0001PAPER PICK-UP TRAY ASS'Y LBP29003RM1-4737-0001PAPER PICK-UP TRAY ASS'Y LBP2900B EUR 3RM1-2401-0001PAPER PICK-UP TRAY ASS'Y LBP2900i3RM1-2393-0001PAPER PICK-UP TRAY ASS'Y LBP30003RM1-4738-0001PAPER PICK-UP TRAY ASS'Y LBP3000B3RM1-4739-0001PAPER PICK-UP TRAY ASS'Y LBP2900B ASIA 3FM0-1766-0001PAPER PICK-UP TRAY ASS'Y LBP2900+4RM1-2391-0001FACE-DOWN COVER ASS'Y5RL1-0908-0001RIGHT COVER ASS'Y EXCEPTLBP3000B,2900B5RL1-0909-0001RIGHT COVER ASS'Y LBP3000B,2900B6RC1-6217-0001EMBLEM, LASER SHOT LASER SHOTEXCEPT LBP2900B6RC2-3004-0001EMBLEM, LASER SHOT LASER SHOTLBP2900B 6FC5-4820-0001EMBLEM, SATERA SATERA7RC1-6215-0001COVER, MULTI-PURPOSE, TRAY LBP3000,3000B, LBP2900+8RC1-6221-0001EMBLEM EXCEPTLBP3000B,2900B, LBP2900+8RC1-5875-0001EMBLEM LBP3000,3000B, LBP2900+9RC1-6199-0001PANEL, REAR10XA9-1469-0002SCREW, TP,M3X611XA9-1500-0102SCREW, S, M3X812RC1-6214-0001TRAY, PAPER DELIVERY2-5FIGURE 1012-6FIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.101NPN RF INTERNAL COMPONENTS 11RL1-0269-0001PAD, SEPARATION2RC1-2005-0001SHEET, INSULATING OLD TYPE2RC1-5521-0001SHEET, INSULATING NEW TYPE3RC1-2106-0201GUIDE, AC CABLE4RK2-0107-0001MOTOR, STEPPING, DC OLD TYPE4RK2-0799-0001MOTOR, STEPPING, DC NEW TYPE5RM1-0647-0201TRANSFER GUIDE ASS'Y6RM1-0648-0001SEPARATION PAD ASS'Y7RM1-0658-0001TRANSFER ROLLER ASS'Y OLD TYPE7RM1-2093-0001TRANSFER ROLLER ASS'Y NEW TYPE8RM1-0807-0401POWER SUPPLY ASS'Y OLD TYPE 100V,120V 8RM1-2315-0001POWER SUPPLY ASS'Y NEW TYPE 100V,120V 8RM1-0808-0401POWER SUPPLY ASS'Y OLD TYPE 230V 8RM1-2316-0001POWER SUPPLY ASS'Y NEW TYPE 230V 9RA0-1060-0001SPRING, COMPRESSION10RM1-0809-0001PAPER SENSOR PCB ASS'Y OLD TYPE10RM1-2312-0001PAPER SENSOR PCB ASS'Y NEW TYPE11RM1-0810-0001DELIVERY SENSOR PCB ASS'Y OLD TYPE11RM1-2313-0001DELIVERY SENSOR PCB ASS'Y NEW TYPE12RC1-6979-0001SHEET, BLANKING, L13RC1-6980-0001SHEET, BLANKING, R14XA9-1420-0004SCREW, W/WASHER, M3X815XA9-1495-00012SCREW, RS, M3X616XB4-5401-0092SCREW, TAP, M4X1017XB2-6400-6071SCREW, W/WASHER, M4X6 (S)100V18VD7-1791-002N1FUSE, 125V, 10A OLD TYPE 100V,120V 18VD7-3111-0021FUSE, 125V, 10A NEW TYPE 100V,120VFIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.102NPN RF INTERNAL COMPONENTS 21RC1-1999-000N1CROSSMEMBER, ENGINE CONTROLLER2RC1-2007-0001GUIDE, FLEXIBLE FLAT CABLE3RC1-2116-0201COVER, SCANNER4RC1-2120-0001ARM, SHUTTER5RC1-2121-0201HOLDER, ARM6RM1-0171-0001LASER SCANNER ASS'Y OLD TYPE 6RM1-3956-0001LASER SCANNER ASS'Y NEW TYPE 7RM1-0806-0501ENGINE CONTROL PCB ASS'Y OLD TYPE 7RM1-2314-0001ENGINE CONTROL PCB ASS'Y NEW TYPE 8RU5-2177-0002SPRING, COMPRESSION9XA9-1420-0003SCREW, W/WASHER, M3X810XA9-1495-0008SCREW, RS, M3X611XA9-1500-0104SCREW, S, M3X8FIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.103NPN RF INTERNAL COMPONENTS 3 1RA0-1019-0002BUSHING2RC1-1953-0001BUSHING3RC1-1954-0001BUSHING4RC1-1955-0001CAM, COUPLING5RC1-1956-0001LINK, DOOR6FC7-3621-0001STOPPER7RC1-1959-0001BUSHING8RC1-1964-0001GUIDE, CARTRIDGE, RIGHT 9RC1-2117-0001COVER, SWITCH10XA9-1469-0003SCREW, TP,M3X611RL1-0274-0001HOLDER, DIODE12RM1-0634-0001CARTRIDGE GUIDE LEFT ASS'Y 13RU5-0173-0001GEAR, 159T/90T14RU5-0174-0001GEAR, 117T15RU5-0175-0001GEAR, 108T16RU5-0176-0001GEAR, 129T17RU5-0177-0001GEAR, 27T/18T18RU5-0178-0001GEAR, 73T19RU5-0179-0001GEAR, 66T/25T20RU5-2173-0001SPRING, COMPRESSION21RU5-2174-0001SPRING, COMPRESSION22XA9-1469-0001SCREW, TP,M3X623XA9-1495-0006SCREW, RS, M3X624RC1-6223-0001SHEET, INSULATING25RM1-4087-0001VIDEO CONTROLLER PCB ASS'Y LBP3000 EXPECT CN,LBP3000B25RM1-4088-0001VIDEO CONTROLLER PCB ASS'Y LBP3000 CN LBP2900+25RM1-3125-0001VIDEO CONTROLLER PCB ASS'Y LBP2900 EXCEPT CN,LBP2900i,2900B25RM1-3126-0001VIDEO CONTROLLER PCB ASS'Y LBP2900 CNFIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.104NPN RF BASE PLATE ASS'Y 1RC1-1987-0001BASE PLATE2RL1-0275-0001PLATE, FEED GUIDE3RM1-2395-0001CENTERPLATE GUIDE RAIL ASS'Y 4RM1-2397-0001FEED GUIDE RAIL ASS'Y5RM1-0640-0001LIFTING PLATE ASS'Y6XA9-1495-0002SCREW, RS, M3X6FIGURE & KEY NO.PARTSNUMBERANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.310RM1-0641-0001PAPER PICK-UP ASS'Y OLD TYPE Fig.310RM1-2091-0201PAPER PICK-UP ASS'Y NEW TYPE 1RC1-1960-0001RATCHET2RC1-1989-0001PLATE,TRANSFER GROUNDING,FRONT3RC1-1990-0001BUSHING4RC1-1993-0001SPRING, TORSION5RC1-1994-0001SPRING, TORSION6RC1-1996-0002COVER, PICK-UP CAM OLD TYPE 7RC1-2012-0001SPRING, LEAF8RC1-2039-0002PAD, SUB9RC1-2040-0001FLAG, REGIST. SENSOR10RC1-2041-0001SPRING, TORSION11RC1-2042-0001FLAG, PAPER WIDTH SENSOR12RC1-2043-0001SPRING, TORSION13RC1-2044-0002BUSHING14RC1-2049-0001LEVER, CARTRIDGE DETECT15RC1-2061-0002SPRING, TORSION16RK2-0108-0001SOLENOID OLD TYPE 16RK2-0778-0001SOLENOID NEW TYPE 17RL1-0266-0001ROLLER, PICK-UP18RL1-0268-0001ROLLER, FEED19RC1-2029-0001BASE, PICK-UP ROLLER20RM1-0642-0001FEED CROSSMEMBER ASS'Y21RM1-0644-0001PAPER PICK-UP SHAFT ASS'Y22RM1-0645-0001PAPER PICK-UP GEAR ASS'Y23RU5-0180-0001GEAR, 21T/29T24RU5-2174-0001SPRING, COMPRESSION25XA9-1503-0002SCREW, TAP, M3X626XB4-5401-0091SCREW, TAP, M4X10FIGURE & KEY NO.PARTSNUMBERRANKQ'TY DESCRIPTIONSERIAL NUMBER/REMARKSSVCFig.810RM1-0661-0001FIXING ASS'Y OLD TYPE 230VFig.810RM1-0660-0001FIXING ASS'Y OLD TYPE 100V,120V Fig.810RM1-2086-0001FIXING ASS'Y NEW TYPE 100V,120V Fig.810RM1-2087-0101FIXING ASS'Y NEW TYPE 230V 1RC1-2066-0001PLATE, PRESSURE, LEFT2RC1-2067-0001PLATE, PRESSURE, RIGHT3RC1-2069-0001LEVER, PRESSURE RELEASE, LEFT4RC1-2070-0001LEVER, PRESSURE RELEASE, RIGHT5RC1-2079-0002BUSHING6RC1-2108-0001GUIDE, SEPARATION OLD TYPE6RC1-5571-0001GUIDE, SEPARATION NEW TYPE7RC1-2097-0001GUIDE, ENTRANCE8RC1-2098-0001SPRING, TORSION OLD TYPE8RC1-2098-0002SPRING, TORSION NEW TYPE9RC1-2101-0001LEVER, DELIVERY SENSOR10RC1-2102-0001BUSHING11RC1-2103-0001BUSHING12RC1-2135-0001ROLLER, PRESSURE13RC1-2139-0001BUSHING14RL1-0270-0001ROLLER, FACE-DOWN15RM1-0650-0401FIXING FILM ASS'Y OLD TYPE 100V,120V 15RM1-0656-0401FIXING FILM ASS'Y OLD TYPE 230V15RM1-2051-0001FIXING FILM ASS'Y NEW TYPE 100V,120V 15RM1-2052-0201FIXING FILM ASS'Y NEW TYPE 230V16RM1-0651-0201FIXING COVER ASS'Y OLD TYPE16RM1-2092-0001FIXING COVER ASS'Y NEW TYPE17XB2-8300-6093SCREW, RS, M3X618RU5-0185-0001GEAR, 29T19RU5-0186-0001GEAR, 14T20RU5-2178-0002SPRING, TENSION21RC1-5570-0001FLAG, PAPER WIDTH SENSOR NEW TYPE22RM1-2317-0001SENSOR PCB ASS'Y NEW TYPE2-17Prepared byOIP Service Management CenterCANON INC.。
Printing BookletsPrinting booklets, either 5 ½ x 8 ½, 8 ½ by 7, or 8 ½ x 11, has never been easier. Several of our copiers, placed strategically throughout the organization with one at most physical sites, have this capability. The quickest way to determine whether or not the machine is capable is to look low and to the left.Preparing your DocumentUtilizing WordAny document can be easily turned into a booklet. There is no need toutilize Microsoft Publisher, unless you would like to. You may prepare your document very simply on Microsoft Word using traditional margins; the document must be single sided. The copiers are smart enough:∙ to put the pages in the properorder without performing any paper acrobatics∙ Merge a separate paper type,colored for instance, as a unique cover∙ Print on the front cover, frontinside cover, back insidecover, or back cover, or some combination thereof.Typical Output Paper TrayBooklet Folding TrayUtilizing PublisherIf you have a documentutilizing the native bookletformat within Publisher andthen you select the bookletsettings on the canon copieryour booklet will be printedrather small. Have no fear; byforcing the Published settingsbe used rather than the printdriver settings the bookletshould be printed normally.The ProcessBelow is a step by step process of a common booklet creation task. It is meant to give you an idea of how the basic feature works and a premise to work from if your particular task is different.Our desire is:∙Have a front cover which is a colored sheet of paper∙Print on the front and back covers∙Print in color∙Have the dimensions of 5 ½ x 8 ½∙Have it stapled down the middle, known as saddle stich1.Prepare your document inWord. The text for the front andback cover should be on theirown individual pages.2.Place the documents in thefeeder tray in the proper order;cover sheet, booklet sheets andback cover sheet.3.Log into the copier and choosethe copy option.4.Choose the Select Colorbutton & select the colorfeature that you wouldlike, most likely the autoselection (Color/Black).5.Select the options button to launch the booklet settings.6.Choose the Booklet option.a.The next screen thatappears is the settings forthe booklet copying.b.Part A:i.Booklet scan is tobe used whenyour sourcedocument isprinted with onepage of text perpage, this willlikely be the mostcommon. If youhave the text already printed and staged for the booklet fold, then select the do notbooklet scan.ii.If the source document is not normal letter size, you may change the size and pageorientation if need be by changing the original size. Notice the change button directlybelow the original size graphic on the right side of the screen shot below.c.Part B:i. By selecting the fold & saddle stich opton the final product will be folded and stapled down the middle of the fold on the inside of the booklet, this will likely be the most common selection because who wouldn’twant the copier to do all of the work.ii. To specify the size of the final product, 5 ½ by 8 ½ in our example, we will need to have alayout size of 8 ½ by 11 R, or landscape. The layout size option, righthand section of part B, will need to be changed to landscape letter.iii. If the sheet size is not currently in the machine, you will need to place it in the machineeither in one of the standard drawers or in the manual tray. The machine may prompt for the paper type so that it can handle itappropriately.d. Part B – AddingCoversi. There is much flexibility when it comes to printing, on either side, of the front and/or backcover. The user designates which side of the cover, if any, is printed on.ii. As for the source document, assuming that we have selected all four cover areas to beprint on for simplicity, the first, second, the second from the last, and the last page will be printed on the four cover areas. This is regardless of the number of pages your booklet will entail. If there are not enough pages to print on every page then a blank page will be leftin the booklet and the back cover will have the final text.Part A Part B7.To set up for the cover, selectthe add cover button which willlaunch the paper size screen sothat you can designate the type ofpaper and its location. The manualtray may be the easiest for thecover sheets but it is notmanadatory8.Select the start button tobegin the process. As with anynew project, you may want toprint one booklet to make sure itappears as you would like prior toprinting a mas quantity.Printing as a booklet1.Open the document in its native program; this will generally be Adobe. Do not print it from thebrowser.2.Select a printer that has a booklet maker. The booklet maker option will appear in the 1 sided/2‐sideded/booklet maker dropdown regardless as it is merely a dropdown field. After selecting thebooklet maker, If the booklet button option to the right of the popup is grayed out there is not anattached booklet maker to the selected printer3.If printing an 8 ½ x 11 booklet, you will need to change the output size to 11x17, which will fold into 8½ x 11‐booklet size.4.Depending on how the document was prepared, select for the booklet printing process, popup willappear once the booklet button is selected, either with application settings or with driver settings.。
Canon激光打印机简单说明书Canon激光打印机简单说明书章节一、产品介绍本章节主要介绍Canon激光打印机的基本信息和特点。
1.1 产品概述本款Canon激光打印机系列提供高质量的打印功能，适用于个人用户和小型办公室。
它具有快速打印速度、高分辨率和稳定性等特点，简化了打印任务，提高了工作效率。
1.2 主要特点该打印机系列的主要特点包括：- 高速打印：每分钟可打印多张页面；- 高分辨率：打印出的文档清晰、细腻；- 网络打印：可通过局域网连接多台电脑进行打印；- 操作简便：直观的操作界面，易于使用；- 节能环保：采用先进的节能技术，降低能源消耗。
1.3 产品规格以下是本款Canon激光打印机的基本规格：- 打印速度：每分钟页；- 打印分辨率： dpi；- 打印介质尺寸：A4、A5、B5等；- 连接方式：USB、有线网络等。
章节二、使用前的准备在开始使用Canon激光打印机之前，需要进行一些准备工作。
2.1确认包装内容打开打印机包装盒，确认以下物品是否齐全：- Canon激光打印机本体；- 电源线；- USB数据线；- 安装光盘；- 说明书。
2.2硬件连接将打印机连接到电源，并使用USB数据线将打印机与电脑或网络连接好。
2.3软件安装插入安装光盘，根据提示进行驱动程序和相关软件的安装。
章节三、操作和功能介绍本章节详细介绍Canon激光打印机的各项操作和功能。
3.1 打印操作使用打印机驱动程序进行打印前，确认以下事项：1、打开电脑和打印机电源；2、确认打印机与电脑的连接正常；3、打开需要打印的文件；4、配置打印机的打印参数（如纸张尺寸，打印质量）；5、打印按钮。
3.2 打印设置可以根据需要对打印设置进行调整，例如纸张尺寸、打印质量、双面打印等。
3.3 扫描功能Canon激光打印机还具备扫描功能，用户可通过操作面板或电脑上的扫描软件进行扫描。
3.4 网络打印如果打印机连接到一个局域网，用户可以通过网络将多台电脑连接到打印机进行打印。
LBP佳能2900打印机怎么加墨粉有详细图解1.这款打印是是硒⿎和墨⼀体的，我们先把硒⿎拿出来。
左边有个⼩芯⽚，这个换完粉后记得换新的。
2.2侧⾯有两个螺丝拧下来。
3.另⼀个侧⾯也有两个螺丝，也拧下来4.然后硒⿎就卸成两半了。
呵呵5.拿着上⼀步图⽚⾥的左半部分硒⿎，在侧⾯有⼀个螺丝，也卸掉。
6.然后把⽩⾊的那个东西卸下来，就成了下图这个样⼦。
7.⼩⼼把这个⼩棒棒抽出来，注意，这个⼩棒两头各有⼀个⼩垫⽚，别弄丢了8.抽出⼩棒棒后我们看到⼀个⼑⽚，两⾯有螺丝。
卸掉！9.卸完后门户⼤开了，往⾥⾯加粉吧。
10.我买的是这个牌⼦的粉，天地良⼼我可不是给⼚家作⼴告。
⼚家⼀分钱好处都没给我。
11.买粉的时候送了⼀个这种⼩头，⽤这个加粉很⽅便，呵呵。
12.加完粉了，⼤功告成，在按原步骤装回去。
我就不照了。
装完粉后记得要换硒⿎外⾯的芯⽚，买粉的时候⼀定要⼀起买⼀套，不换芯⽚的话打印机还是显⽰没墨。
END注意事项加粉的时候下⾯多垫点旧报纸之类的，我没有垫结果弄的哪都是，特别不好擦。
?加完粉记得要换芯⽚，芯⽚⽹上也有卖的，⼀套四个，也是分颜⾊的。
1、佳能2900打印机加粉图解如下，可能部分细节的图⽚不是很全⾯，不过重点部分已经说明，请在操作的过程中做好记录就没有问题了。
2、如下图，⽤螺丝⼑拆下硒⿎右侧的两个螺丝，如图5拆下此端的固定盖⼦，然后如图6⽤镊⼦取下左侧的拉⼒弹簧，就可以将硒⿎的⿎⼼取下了3、此时可以看到如下图的样⼦了，⽤平⼝螺丝⼑轻轻的翘下清洁辊，就如下图这样，可以看到刮板和两侧的两个固定铁销⼦（如下图中红圈标注的部分），就是这两个铁销将套⿎的⿎体部分与粉盒部分固定在⼀起，只要⽤尖钉或者其他尖锐的器具将两个铁销从内侧顶出就可以把这硒⿎与粉盒两部分分离了。
4、下图就是硒⿎部分了，铁盖板下⾯就是废粉仓，最好可以在每次加粉的时候清洁废粉仓，这样就可以保证打印质量不会因为废粉溢出⽽受到影响。
清废粉的步骤如下：如如下图将盖板与盖板弹簧从⿎体上取下，如下图将刮板两侧的固定螺丝拆下就可以取下刮板了（如下图），然后我们就可以将⾥⾯的废粉清理掉了，清理好后将刮板、盖板按照刚才取下的步骤安装回去即可。
佳能LBP系列激光打印机自定义纸张设置技巧
二手佳能机器由于操作系统的不同,在WIN2K/XP下自定义纸张设置一般用户无法设定，根据用户的要求，特将我们收集到的设置方法整理出来，以方便二手机器用户。
1、下载一个LBP2810的驱动程序
(http://cweb.canon.jp/drv-upd/lasershot/lswej.html),并运行SETUP.EXE,安装好LBP2810的驱动,然后打开LBP2810的驱动属性里的[高级]里的[打印默认值]
2、点击下面图片中的选项位置,或按电脑键盘的[]Tab]键十二次,再安键盘的[空格键]一次再在下面的对话框中操作添加新的自定义纸张名称和相对应的正确尺寸
3、添加好纸型后，在电脑的系统的佳能机驱动程序的纸张尺寸里就会有这新的自定义纸型，在使用时，纸张要求放置在手动送纸盘中，纸张方向要求是纵向放置，手动送纸盘要求设置在自义纸张尺寸的选项。
（打印机手送托纸盘纸张尺寸的选择：按灭联机灯[オンライン]，按[セットァップ]＞键两下，液晶显示SETUP PAPER JANDLING 后，按[リセット/实行]∨键一下，液晶显示（tray paper size=A4），按[セットァップ]＞键选择自己需要的纸张尺寸，再按[リセット/实行]∨键确定后重新关机开机就可以了。
（如果是特殊尺寸就选择FREE（自定义）再按[リセット/实行]∨键确定）。
CanonLBP2900加HP-2900U+⽹络打印机安装帮助Canon LBP2900安装帮助⽂档⼀、安装前检查⼯作1.系统要求电脑操作系统为WindowsXP或更⾼。
2.打印服务器驱动安装请在电脑桌⾯点击【开始——运⾏——\\10.12.1.30】；按照此路径以此进⼊，\\10.12.1.30\3驱动软件\01打印扫描\HP-2900U+\32Bit双击SetupEx（.exe）按照如下图所⽰【确认】即可。
3.打印机驱动下载请在电脑桌⾯点击【开始——运⾏——\\10.12.1.30】；按照此路径以此进⼊，\\10.12.1.30\3驱动软件\01打印扫描\CANON LBP2900 将LBP2900_R113_V302_Win_x32_ZH_7（.exe）复制到【桌⾯】并解压。
⼆、佳能打印机安装⽅法1.请在电脑桌⾯点击【开始——所有程序——打印服务器软件——佳能专⽤端⼝添加⼯具】；2.选择【⽹络搜索】，点击【下⼀步】；如果已经知道打印服务器的IP也可以⼿动添加；3.通过⽹路搜索，可以搜索出⽹络中的打印服务器，请选择打印服务器，点击【下⼀步】。
质量中⼼打印机IP地址为10.12.9.12，制造中⼼打印机IP地址为10.12.10.11。
4.端⼝添加成功后，请将所使⽤的打印机设置成该端⼝；5.如果打印机列表中没有您所需要的打印机，请点击【添加打印机】；如果您打印机列表中有您所需要的打印机，请选择并点击【下⼀步】，具体步骤可参考本节第14步；6.点击【添加打印机】后会弹出windows添加打印机向导，请点击【下⼀步】；7.将【⾃动检测并安装即插即⽤打印机】选项去掉，选择【连接到此计算机的本地打印机】，点击【下⼀步】；8.请点击【下⼀步】；9.选择佳能打印机驱动，点击【下⼀步】；如电脑中未安装打印机驱动，请选择【从磁盘安装】，并浏览⾄之前下载并解压到【桌⾯】的打印机驱动⽂件，佳能打印机驱动，点击【下⼀步】。
