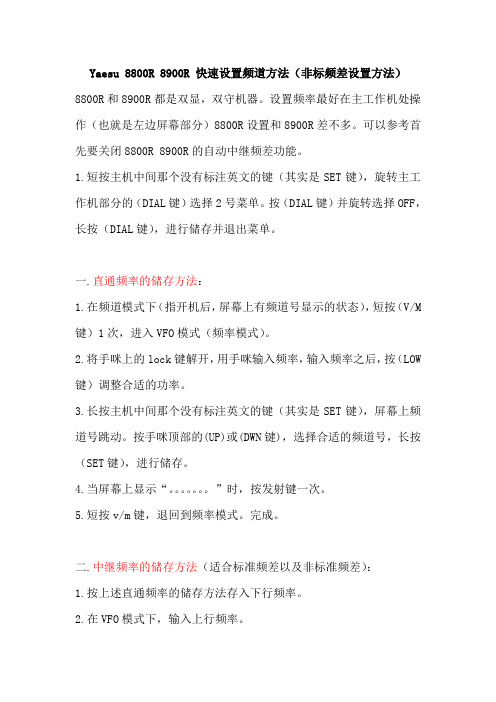

Yaesu 8800R 8900R 快速设置频道方法（非标频差设置方法）8800R和8900R都是双显，双守机器。
设置频率最好在主工作机处操作（也就是左边屏幕部分）8800R设置和8900R差不多。
可以参考首先要关闭8800R 8900R的自动中继频差功能。
1.短按主机中间那个没有标注英文的键（其实是SET键），旋转主工作机部分的（DIAL键）选择2号菜单。
按（DIAL键）并旋转选择OFF，长按（DIAL键），进行储存并退出菜单。
一.直通频率的储存方法：1.在频道模式下（指开机后，屏幕上有频道号显示的状态），短按（V/M 键）1次，进入VFO模式（频率模式）。
2.将手咪上的lock键解开，用手咪输入频率，输入频率之后，按（LOW 键）调整合适的功率。
3.长按主机中间那个没有标注英文的键（其实是SET键），屏幕上频道号跳动。
按手咪顶部的(UP)或(DWN键)，选择合适的频道号，长按（SET键），进行储存。
4.当屏幕上显示“。
”时，按发射键一次。
5.短按v/m键，退回到频率模式。
完成。
二.中继频率的储存方法（适合标准频差以及非标准频差）：1.按上述直通频率的储存方法存入下行频率。
2.在VFO模式下，输入上行频率。
3.长按(SET键)，屏幕上频道号闪烁，按手咪顶部的(UP)或(DWN键)，选择下行频率储存的频道号，长按发射键，同时长按(SET键)，存入上行频率。
4.短按(v/m键)回到频道模式。
(以下操作一定要在频道模式下操纵) 《屏幕上显示下行频率，和-+符号，按手咪后，出现上行频率，松手咪后，返回显示下行频率》5.短按(SET 键)进入机器主菜单。
6.用左边大旋钮（DIAL键）选择40号菜单，短按 (DIAL键)进入40号菜单，用(DIAL键)旋转选择 ENC ，短按(DIAL键)，回到主菜单。
7.用(DIAL键)旋钮选择39号菜单，短按(DIAL键)进入39号菜单，用(DIAL键)旋转选择合适的哑音值，长按(DIAL键)，储存并退出菜单。
Next Generation Rack PDU PlatformSwitched Family – AP8900 SeriesIndustry’s FirstUltra Low-Profile BreakersAvoid space interference with IT equipment andimprove airflow with these low profilebranch-rated, hydraulic-magnetic type breakers Easy to install and space saving solution to secure critical power cordsAPC ExclusiveLocking IEC Connectors•Individual outlet level control for equipment power cycling remotely located equipment, controlling outlet access (i.e. turn off unused outlets), and user-defined equipment power-up sequencing• Active power metering and remote alarming including volts, amps, real power (kW), and energy (kWh) measurements• Comprehensive device, phase, and breaker bank level metering for overload protection, capacity planning purposes, and energy efficiency initiatives• Environmental temperature and humidity sensor input for active monitoring and alarming via the Rack PDU network device• Fully featured network management connectivity capability via web, SNMP, telnet• Field replaceable display and network management module for field service and future upgrade capability• Lowest profile design available in the industry helps avoid space interference with IT equipment and improve airflow efficiency• Redundant internal power supplies provide maximum product reliability •Network flash upgradeable and local USB port for easy firmware updatesModels for North AmericaModels for Europe and Asia Pacific。

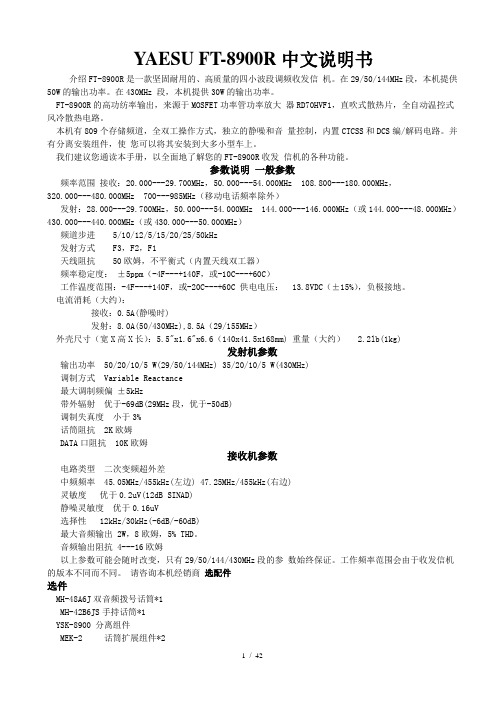

YAESU FT-8900R中文说明书介绍FT-8900R是一款坚固耐用的、高质量的四小波段调频收发信机。
在29/50/144MHz段，本机提供50W的输出功率。
在430MHz 段，本机提供30W的输出功率。
FT-8900R的高功纺率输出，来源于MOSFET功率管功率放大器RD70HVF1，直吹式散热片，全自动温控式风冷散热电路。
本机有809个存储频道，全双工操作方式，独立的静噪和音量控制，内置CTCSS和DCS编/解码电路。
并有分离安装组件，使您可以将其安装到大多小型车上。
我们建议您通读本手册，以全面地了解您的FT-8900R收发信机的各种功能。
参数说明一般参数频率范围接收：20.000---29.700MHz，50.000---54.000MHz 108.800---180.000MHz，320.000---480.000MHz 700---985MHz（移动电话频率除外）发射：28.000---29.700MHz，50.000---54.000MHz 144.000---146.000MHz（或144.000---48.000MHz）430.000---440.000MHz（或430.000---50.000MHz）频道步进 5/10/12/5/15/20/25/50kHz发射方式 F3，F2，F1天线阻抗 50欧姆，不平衡式（内置天线双工器）频率稳定度：±5ppm（-4F---+140F，或-10C---+60C）工作温度范围：-4F---+140F，或-20C---+60C 供电电压： 13.8VDC（±15%），负极接地。
电流消耗（大约）：接收：0.5A(静噪时)发射：8.0A(50/430MHz),8.5A（29/155MHz）外壳尺寸（宽X高X长）：5.5"x1.6"x6.6（140x41.5x168mm) 重量（大约） 2.2lb(1kg)发射机参数输出功率 50/20/10/5 W(29/50/144MHz) 35/20/10/5 W(430MHz)调制方式 Variable Reactance最大调制频偏±5kHz带外辐射优于-69dB(29MHz段，优于-50dB)调制失真度小于3%话筒阻抗 2K欧姆DATA口阻抗 10K欧姆接收机参数电路类型二次变频超外差中频频率 45.05MHz/455kHz(左边) 47.25MHz/455kHz(右边)灵敏度优于0.2uV(12dB SINAD)静噪灵敏度优于0.16uV选择性 12kHz/30kHz(-6dB/-60dB)最大音频输出 2W，8欧姆，5% THD。
车载电台是目前比较常见的无线电通讯设备，如果说手持电台大多数情况下是许多朋友进入无线电领域的入门武器，那么车载电台就是广大爱好者晋级的利器了。
想想看，不同地区的驾车人通过车载电台这个小小的设备，就能实现通联，畅通无阻地交流，这是多么神奇而时尚的事情。
先要提醒大家的是，使用无线电设备，特别是车载电台和基地台这样的大功率发射设备必须经过无线电运动协会和无委会的统一培训、考试，取得会员资格、4级或以上操作证以及电台执照后才可使用，其他情况一律为非法使用大功率无线电设备。
说到车台，市场中的产品五花八门，从上万元的顶级产品、到三两千元的中端产品、还有一千多元的普及机型都有。
二手市场中的车载设备也非常丰富，这里面即有国外淘汰下来的专业设备，也有国内HAM升级后卖掉的入门产品或者业余设备。
如何选择确实让人头疼，这里我们建议大家在没有对电台有较深入了解的情况下最好不要去买那些二手货，因为许多二手货原本都是工作在专用频段的专业机，在二手流入市场之后被人改频到业余段销售，其中部分产品因为改频后有频差，甚至将VCO等元件都更换了。
虽然说合理的改频对机器的性能有一定影响，但是影响一般并不会大到影响使用。
但是有些改造却并不是这样，一些二手台子扩频后容易出现跑频、灵敏度降低等情况，这样就得不偿失了。
废话少说，还是赶紧进入我们今天的主题，市面销售的双段监听车载电台导购，希望能在您选购车载电台时起到一些帮助作用。
品牌的选择在车载电台中，口碑比较好也比较常见的品牌有Motorola、YAESU、ICOM、Kenwood、Alinco等五种，除了一个Motorola是美国货意外，其他四个品牌都来自小日本，看来小日本在电台设计开发制造上还是有相当的技术实力。
其他还有一些进口品牌以及国产品牌，但是因为产品销量较小，在市场中很难看到这里就暂时不提了。
[本帖最后由潇洒6号于07-07-21 06:59 编辑]超级版主版主版主[每日热点]:老款捷达再次改款车价最高下调1.5万元编辑回复本帖举报评分Top潇洒6号黄金长老财产 2769帖子 1671注册 2007-4-26来自 上海|浦东个人主页 | 资料 | 相册发短消息 | 加为好友 4楼 发表于 2007-7-21 06:59在这五个比较常见的品牌中，Motorola 专注于开发专业机市场，因此Motorola 推出的业余设备相对其他四家厂商来说要少的多了。

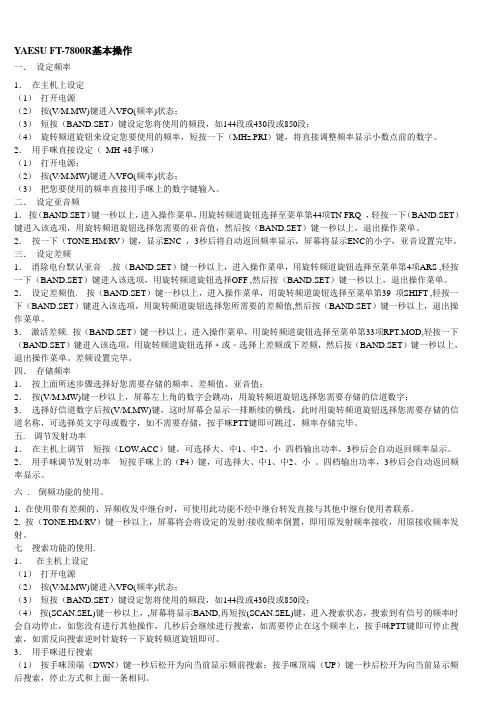

YAESU FT-7800R基本操作一．设定频率1．在主机上设定（1）打开电源（2）按(V/M.MW)键进入VFO(频率)状态；（3）短按（BAND.SET）键设定您将使用的频段，如144段或430段或850段；（4）旋转频道旋钮来设定您要使用的频率，短按一下（MHz.PRI）键，将直接调整频率显示小数点前的数字。
2．用手咪直接设定（MH-48手咪）（1）打开电源；（2）按(V/M.MW)键进入VFO(频率)状态；（3）把您要使用的频率直接用手咪上的数字键输入。
二．设定亚音频1．按（BAND.SET）键一秒以上，进入操作菜单，用旋转频道旋钮选择至菜单第44项TN FRQ ，轻按一下（BAND.SET）键进入该选项，用旋转频道旋钮选择您需要的亚音值，然后按（BAND.SET）键一秒以上，退出操作菜单。
2．按一下（TONE.HM/RV）键，显示ENC ，3秒后将自动返回频率显示，屏幕将显示ENC的小字，亚音设置完毕。
三．设定差频1．消除电台默认亚音.按（BAND.SET）键一秒以上，进入操作菜单，用旋转频道旋钮选择至菜单第4项ARS ,轻按一下（BAND.SET）键进入该选项，用旋转频道旋钮选择OFF ,然后按（BAND.SET）键一秒以上，退出操作菜单。
2．设定差频值. 按（BAND.SET）键一秒以上，进入操作菜单，用旋转频道旋钮选择至菜单第39 项SHIFT ,轻按一下（BAND.SET）键进入该选项，用旋转频道旋钮选择您所需要的差频值,然后按（BAND.SET）键一秒以上，退出操作菜单。
3．激活差频. 按（BAND.SET）键一秒以上，进入操作菜单，用旋转频道旋钮选择至菜单第33项RPT.MOD,轻按一下（BAND.SET）键进入该选项，用旋转频道旋钮选择﹢或﹣选择上差频或下差频，然后按（BAND.SET）键一秒以上，退出操作菜单。
差频设置完毕。
四．存储频率1．按上面所述步骤选择好您需要存储的频率、差频值、亚音值；2．按(V/M.MW)键一秒以上，屏幕左上角的数字会跳动，用旋转频道旋钮选择您需要存储的信道数字；3．选择好信道数字后按(V/M.MW)键，这时屏幕会显示一排断续的横线，此时用旋转频道旋钮选择您需要存储的信道名称，可选择英文字母或数字，如不需要存储，按手咪PTT键即可跳过，频率存储完毕。
APRS网络版51TNC使用手册BH4TDV设计制造2013-6-13网络版NET51TNC是一款专为广大HAM设计制作的功能先进的嵌入式APRS多合一设备。
具有如下基本特点：脱离电脑独立运行、接入网络无需更换路由器集成网关、数字中继、气象站、远程控制等多项功能和GPS接口与一体编解码高效稳定体积小巧、微功耗使用方便，安装接线简单，即插即用NET51TNC价格仅为国外类似产品的1/5，极大降低爱好者参与活动的经济门槛,提高了业余无线电通讯的自动化程度，同时丰富了广大无线电爱好者的活动内容。
请仔细阅读本手册，本手册已包含大部分有关NET51TNC的信息，包括整理总结的各位HAM网友在咨询、购买、使用中，提出的常见问题解答。
手册中没有涉及的问题，欢迎提出，我将尽力帮助你，并逐步更新添加到手册中。
NET51TNC在设计、生产、使用过程中，得到广大HAM的帮助、支持、理解，在此特别表示感谢！注：欢迎提交新问题，但请不要重复提出手册中已有的问题，敬请理解支持。
为方便交流，建了QQ交流群，欢迎加入QQ群号:286692592*********************************目录1、快速安装指导2、硬件配置3、蓝牙安装说明4、气压片安装说明5、工作原理6、固件特性7、前面板8、后面板9、DATA电台接口定义10、温湿度传感器安装说明11、GPS安装说明12、LCD安装说明13、蜂鸣器安装说明14、客户端设置软件15、如何更新固件16、固件升级历史版本说明17、信标自定义信息输入中文指导18、主板局部硬件改善19、常见FAQ快速安装插好电源、网线接家庭路由器电台数据线接电台DATA接口手台连接示意（选配手台数据线）车台连接示意（车台机制数据线标配）快速链接插好网线，电源、电台线即可（仅当数字中继时，可不接网线）注：如连接手台，音量关到底，再稍开一点，解码顺畅即可。
手台链接注意事项：车台DATA不用调整。
Data SheetFUJITSU Storage ETERNUS DX8900 S3 Disk SystemEnterprise Storage with leading scalability in capacity and performanceETERNUS DX - Business-centric Storage Combining leading performance architecture with automated quality of service management the Fujitsu Storage ETERNUS DX series aligns storage resources with business priorities, thus enabling higher system utilization and delivering increased system consolidation capabilities and a faster ROI. Unified scalable entry-level and midrange systems, a seamless family concept enabling system upgrades and ETERNUS SF, the unified management suite across the product line, reduce operational and migration costs. ETERNUS SF provides enterprise-class functionalities in the entry and midrange class and allows flexible disaster recovery and business continuity concepts for the different model sizes, thus decreasing investment costs ETERNUS DX8900 S3The ETERNUS DX8900 S3 disk storage system is purpose-built for biggest enterprises and ideal for the data management of business-critical core applications and the hyper-consolidation of large-scale data centers. ETERNUSDX8900 S3 provides non-disruptive capacity upgrades with up to 4608 disk drives, just by adding disks or complete drive enclosures. Performance of more than 4 million IOPS is provided by configurations based on 2 to 24 controllers and a maximum of 384 front-endports for host connectivity. For simultaneous connection to different network types, FC, FCoE and iSCSI host interfaces can operate in mixed configurations.Tiered storage optimization using a range of SAS, Nearline SAS and SSD drive options lowers the overall total cost of storage. The challenges of data exposure protection are addressed by self-encrypting drives (SED). Flexible and automated management across different quality of service profiles, using different drive types for each application scenario, ensures efficient assignment of system resources matched to the performance priorities of different applications. Highest availability and seamless business continuity is guaranteed by redundant interconnections to the storage array and internal redundant components and completed by transparent failover which ensuresuninterrupted operation in case of an outage.Features & BenefitsModels and architectureETERNUS DX8000 S3 SeriesThe massively scalable Fujitsu Storage ETERNUS DX8000 S3 series, the flagship systems of the ETERNUS DX family are purpose-built for behemoth data centers which require outstanding storage performance and huge capacity paired with enterprise-class resiliency and 99.9999% availability. Its automated quality of service management features guarantee maximum system utilization and contribute to a fast ROI.It is the perfect solution when consolidating data in OLTP and large-scale databases, file services, business-critical applications and business analytics / big data – all into one system. It provides ample headroom for any demanding virtualization environments. Extensive high-availability and disaster recovery capabilities make ETERNUS DX8000 S3 the ideal storage systems for all business-critical data and fit perfectly in private and public cloud environments of large-scale enterprises and service providers.Technical detailsGeneral system informationFrontend EnclosureNo. of controllers 2 - 24No. of host interfaces384 (FC), 192 (iSCSI/FCoE)Maximum Cache Capacity6,144 GBExtreme Cache67.2 TBExtreme Cache Pool38.4 TBMaximum Disk Drives4,608Max. no. of drive enclosures192Supported RAID levels0, 1, 1+0, 5, 5+0, 6Host Interfaces Fibre Channel (16 Gbit/s)iSCSI (10 Gbit/s, 1 Gbit/s)FCoE (10 Gbit/s)Mixed host interfaces YesMax. no. of hosts8,192Maximum Storage Capacity18,432 TBDrive Type 2.5-inch, SAS, 15,000 rpm (600 GB / 300 GB)2.5-inch, SAS, 10,000 rpm (1.8 TB / 1.2 TB / 900 GB / 600 GB / 300 GB)2.5-inch, SAS (self-encrypting), 10,000 rpm (1.2 TB / 900 GB)2.5-inch, SSD (1.92 TB / 960 GB / 1.6 TB / 800 GB / 400 GB)2.5-inch, SSD (self-encrypting) (1.6 TB / 800 GB)3.5-inch, Nearline SAS, 7,200 rpm (8 TB / 6 TB / 4 TB / 2TB)3.5-inch, Nearline SAS (self-encrypting), 7,200 rpm (4 TB)3.5-inch, SSD (1.92 TB / 960 GB / 1.6 TB / 800 GB / 400 GB)3.5-inch, SSD (self-encrypting) (1.6 TB / 800 GB)Note 2.5-inch drives are available only for 2.5-inch drive enclosures and 3.5-inch drives are available only for 3.5-inch driveenclosures.6 TB/ 8 TB Nearline SAS and 1.8 TB SAS drives are Advanced Format drives.Max. no. of SSDs unlimitedMixed 2.5 inch/ 3.5 inch drive enclosures YesDrive interface Serial Attached SCSI (12 Gbit/s)Back-end disk connectivity 4 pair of four-lane x 12 Gbits Serial Attached SCSI buses (SAS3.0 wide) / Controller EnclosureMax. no. of LUNs65,535Max. LUN capacity128 TBNo. of snapshots - max.32,768Max. no. of copy generations512Eco-mode YesPerformanceRandom access performance4M IOPSPerformance managementAutomated Storage Tiering YesQuality of Service YesAutomated QoS YesWide striping YesNote Automation options can be activated via ETERNUS SF SoftwareContinuity managementStorage Cluster YesRemote Copy functionality Synchronous and asynchronousNote Options can be activated via ETERNUS SF SoftwareInformation security managementData confidentiality Self-Encrypting Disk, Controller based Encryption, HTTPS (SSL), One Time Password, RADIUS, SSH Data integrity Cache Protection, Data Block Guard, Disk Drive PatrolAvailability managementFast Recovery YesNon-disruptive maintenance Dedicated Hot Spare, Global Hot SpareNon-disruptive firmware upgrade YesRedundancy RAID Controller, Power supply, FanHot part replacement YesCapacity managementThin Provisioning YesRAID migration YesLUN online expansion w/o interruption YesReporting function YesHot part expansion YesManagementSupported protocols SNMP (version1, 2C, 3), SMI-S 1.6Administration Web-based graphical user interface, CLI (Command Line Interface), ETERNUS SFRemote Support Event notification (E-mail / SNMP / Syslog), Remote maintenanceSupported configurations All major host operating systems, servers and business applicationsDetailed support matrix:/global/support/products/computing/storage/disk/supported-configrationsInstallation specification19” rackmount YesService Area Front: 850 mm (33.5 inch) or moreRear: 850 mm (33.5 inch) or morePower voltage AC 200 - 240 V / AC 200 - 240 VPower frequency50 / 60 HzPower supply efficiency92 % (80 PLUS gold)Maximum Power Consumption AC 200 - 240 V: 97,520 W (99,710 VA)Power phase SingleFrontend Enclosure Controller Enclosure 2.5-inch Drive Enclosure 3.5-inch Drive EnclosureDimensions (W x D x H)482 x 795 x 222 mm19 x 31.3 x 8.7 inch5 U 482 x 809 x 133 mm19 x 31.9 x 5.2 inch3 U482 x 540 x 88 mm19 x 21.3 x 3.5 inch2 U482 x 560 x 88 mm19 x 22 x 3.5 inch2 UWeight64 kg (141 lb)54 kg (119 lb)35 kg (77 lb)35 kg (77 lb) Maximum Power Consumption(AC 200 - 240 V)560 W (590 VA)1,200 W (1,220 VA)430 W (440 VA)340 W (350 VA)EnvironmentMaximum Heat Generation AC 200 - 240 V: 361,180: kJ/hTemperature (operating)10 - 35 °CTemperature (not operating)0 - 50 °CHumidity (operating)20 - 80 % (relative humidity, non-condensing)Humidity (not operating)8 - 80 % (relative humidity, non-condensing)Altitude3,000 m (10,000 ft.)Sound pressure (LpAm)59.5dB(A)Noise notes Measured with single enclosure according to ISO 7779 and declared according to ISO 9296Operating environment FTS 04230 – Guideline for Data Center (installation specification)Operating environment link /dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbeType Frontend Enclosure Controller Enclosure 2.5-inch Drive Enclosure 3.5-inch Drive Enclosure Maximum Heat Generation(AC 200 - 240 V)2,020 kJ/h4,330 kJ/h1,600 kJ/h1,300 kJ/hComplianceProduct safety CSA 60950-1, CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST-RElectromagnetic Compatibility CNS 13438, FCC CFR 47 class A , ICES 003 Class A, EN 55022 Class A, VCCI Class A, AS/NZS CISPR 22 Class A, EN 55024 Electromagnetic Immunity EN 55024CE certification2004/108/EC, 2006/95/EC, 2011/65/ECApprovals CB, CE, C-Tick, FCC, EAC, GS, VCCIEnvironmental compliance RoHS compliant, WEEE compliantCompliance notes There is general compliance with the safety requirements of all European countries and North America. Nationalapprovals required in order to satisfy statutory regulations or for other reasons can be applied for on request. Compliance link /sites/certificatesWarrantyWarranty period 3 yearsWarranty type Onsite warrantyWarranty Terms & Conditions /supportProduct Support Services - the perfect extensionSupport Pack Options Available in major business areas:9x5, Next Business Day Onsite Response Time9x5, 4h Onsite Response Time24x7, 4h Onsite Response TimeRecommended Service24x7, Onsite Response Time: 4hService Lifecycle 5 years after end of product lifeService Weblink /services/product-servicesContactFUJITSU LimitedWebsite: /eternus2016-06-08 WW-ENworldwide project for reducing burdens on the environment.Using our global know-how, we aim to contribute to the creation of a sustainable environment for future generations through IT.Please find further information at http://www./global/about/environmentdelivery subject to availability. Any liability that the data and illustrations are complete, actual or correct is excluded. Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their own purposes may infringe the rights of such owner.。
YAESU FT-10R简易操作说明（BH7MSB）一、按键功能：1、面板正面左侧带橘红色圆点的VOL L键的功能是，按一下进入音量调整（旋动面板右侧的大旋钮）。
接着按一下显示时钟（当然时钟功能打开才有用），再按一下退出时钟。
2、长按面板正面左侧带橘红色圆点的VOL L键进入F头的主菜单，这时旋动面板右侧的大旋钮可选择你所需要进入的菜单，按一下面板右侧中间的向右键进入此菜单功能选择并旋动面板右侧的大旋钮调整所需功能，然后按一下向右键确认，最后按一下带橘红色圆点的VOL L键退出。
3、面板右侧的上下键在正常使用时，用来选择每个频段的如U、V、AM、FM、WFM等。
4、面板顶部按键，左侧PTT发射键。
最右侧的是开关机和锁键，长按开关机按一下锁住按键再按一下退锁。
中间上下键是用来选择快速功能菜单的，F键是用来选择你所需菜单功能的。
二、时钟的启用和调整：启用时钟请进入主菜单，到F9选择ON启用时钟确认后退出菜单。
按VOL L键两次显示屏出现时间，再长按VOL L键进入时间相关设定菜单，这时显示为T1闪烁按向右键一次显示时间，长按向右键时数闪烁，旋转旋钮调整。
按向下键分数闪烁调整好后按向右键确认，然后按VOL L键退出。
要回到频道模式再按一次VOL L键。
三、蓝呀对码：蓝牙模块是按装在面板内的。
按住VOL L键不要松开再按开机键，这时面板显示SF1-COPY RLL1号菜单，请旋转旋钮至7号菜单按PTT键确认后会显示数字，这时再输入你所要使用的蓝呀耳机的码最后再按PTT键确认。
当然这之前蓝呀耳机是关机的。
按下PTT 键后立即打开蓝呀耳机电源记住按住蓝呀耳机电源不要松开当听到你的蓝呀耳机有对码确认声传来（每一种蓝呀耳机的对码确认声都不一样的您自己感觉）就成功了四、常用菜单：主菜单：F8是声控功能设置，F12是调整背光亮度，F24是差频自动开启及关闭，F25是上差或下差设置，F26是调整上差或下差值，F36调整数字哑音DCS码，F38是调整静噪深浅度，F39是调整模拟哑音值，F40是设置哑音开启及关闭，F41是调整频率步进值（在VFO模式下可用），F46是声控发射选择。
SPECIFICATIONSGeneralFrequency Range: RX: 28.000 - 29.700 MHz, 50.000 - 54.000 MHz, 108.000 - 180.000 MHz, 320.000 - 480.000 MHz, 700 - 985 MHz (Cellular Blocked)TX: 28.000 - 29.700 MHz, 50.000 - 54.000 MHz, 144.000 - 146.000 MHz (or 144.000 - 148.000 MHz), 430.000 - 440.000 MHz (or 430.00 - 450.000 MHz)Frequency Steps: 5/10/12.5/15/20/25/50 kHz Operating Modes: F3E, F2D,F2AAntenna Impedance : 50 Ohms, unbalanced (Antenna Duplexer built-in)Frequency Stability: ±5 ppm @ 14° F ~ +140° F (–10 °C ~ +60 °C)Operating Temperature Range: –4° F ~ +140° F (–20 °C ~ +60 °C)Supply Voltage: 13.8 VDC (±15%), negative ground Current Consumption (Approx.): RX: 0.5 A (Squelched)TX: 8.0 A (50/430 MHz), 8.5 A (29/144 MHz)Case Size (W x H x D): 5.5" x 1.6" x 6.6" (140 x 41.5 x 168 mm) (w/o knobs & connectors)Weight (Approx.): 2.2 lb (1 kg)TransmitterPower Output: 50/20/10/5 W (29/50/144 MHz), 35/20/10/5 W (430 MHz)Modulation Type: Variable Reactance Maximum Deviation : ±5 kHzSpurious Radiation : Better than –60 dB(29 MHz: Better than –50 dB)Modulation Distortion : Less than 3%Microphone Impedance : 2 k ΩDATA Jack Impedance : 10 k ΩReceiverCircuit Type: Double-conversion superheterodyne Intermediate Frequencies : 45.05 MHz/450 kHz (Left band), 47.25 MHz/450 kHz (Right band)Sensitivity (for 12dB SINAD): Better than 0.2 µV Squelch Sensitivity: Better than 0.16 µV Selectivity (–6dB/–60dB): 12 kHz/30 kHzMaximum AF Output: 2 W @ 8 Ω for 5% THD AF Output Impedance : 4-16 ΩAbout this brochure: we have made this brochure as comprehensive and factual as possible. We reserve the right, however, to make changes at any time in equipment, optional accessories, specifications, model numbers, and availability. Precise frequency range may be different in some countries. Some accessories shown herein may not be available in some countries. Some information may have been updated since the time of printing; please check with your Authorized Yaesu Dealer for complete details.FT-8900ROPTIONS2006.0605NS(U/E)Printed in JapanB9200396ASpecifications are subject to change without notice, and are guaranteed within the 29, 50,144, and 430 MHz amateur bands only. Frequency ranges will vary according to transceiver version; check with your dealer.P 2 Programmable Key Default function:P 3 Programmable Key Default function: same as TONE key.P 4 Programmable Key:Default function: same as LOW key.PTT Switch:Press to Transmit.FP-1030AFrequency SelectionMain/Sub Band SelectionHyper Memory Selection KeysVolume Knob DIAL Knob (Right Band)Frequency SelectionMain/Sub Band SelectionFor the latest Yaesu news,visit us on the Internet:4-8-8 Nakameguro, Meguro-ku, Tokyo 153-8644, Japan10900 Walker Street, Cypress, CA 90630, U.S.A.Winchester, Hampshire, SO23 0LB, U.K.Kwun Tong, Kowloon, Hong KongFT-8900R■ QUAD BAND OPERATIONThe FT-8900R combines the "traditional" 144/430 MH z local-communications concept with the exciting capability for Sporadic-E or F2 DX on the 29 MHz and 50 MHz bands, for nationwide or worldwide FM communications from your car! The first Amateur Radio FM mobile transceiver providing this capability, the FT-8900R will make you wonder how you got by with a two-band transceiver up to now.■ WIDE FREQUENCY COVERAGEThe FT-8900R provides extended receiver coverage beyond the Amateur bands, so you can keep informed of communication activities in the public safety, commercial, aircraft, and government communications ranges. Included is coverage of 28-29.7 MH z, 50-54 MH z,108-180 MH z, 320-480 MH z, and 700-985 MHz (cellular frequencies are blocked and non-restorable).■ INDEPENDENT TWO-CHANNEL, DUAL RECEIVE AND FULL DUPLEX OPERATION Basically operating as two radios in one, the FT-8900R may be configured in a number of ways. For example, you can set up the "left" side of the rig for operation on 29, 50, 144, or 430 MHz operation, while setting the "right" side to 430 MHz. Or set up the left side on 29/50/144/430 MHz, and the right side on 144 MHz. And, if you like, you can configure your FT-8900R for 144-144 MHz or 430-430 MHz dual receive operation—so you never miss out on the action! The left and right sides have their own Volume and Squelch controls, as well as S-meters, so your operating preferences are never compromised.When six and ten meters are dead, you can still talk around the world with the FT-8900R! The front panel provides easy access to any WIRES ™ (Wide-coverage Internet Repeater Enhancement System) repeater, automatically sending the required single DTMF access code at the beginning of each transmission. And if you're using another Internet linking system, one that requires a DTMF string to being up the link, you can easily configure the FT-8900R to store andsend the required tone sequence, as well.■ HIGH POWER OUTPUTTo get your message through when it counts, the FT-8900R puts out a full 50 Watts of power on the 29/50/144 MHz bands, and 35 Watts on 430 MHz. To ensure thermal stability during long transmissions, a thermal sensor monitors heat sink temperature, engaging the rear panel's cooling fan when needed.OVER 800 MEMORY CHANNELSThe FT-8900R provides a wide variety of memoryresources, including 799 "regular" memories, six "Home" channels for favorite frequencies, five sets of band-edge memories, and six "Hyper Memory" memories, which store complete transceiver operating status, for maximum operating efficiency and convenience. Six-character Alpha-Numeric "Tags" (labels) may be appended to memory channels, affording instant channel identification. No transceiver can compare with the memory capability of the FT-8900R.■ BUILT-IN DUPLEXERUtilizing a single antenna jack, the FT-8900R's leading-edge design includes a high-performance duplexing system, with extensive filtering to allow cross-band full duplex operation.■ LARGE, EASY-TO-READ LIQUIDCRYSTAL DISPLAY (LCD)Affording easy viewing from a wide range of viewing angles, the LCD of the FT-8900R features Yaesu's renowned Omni-Glow ™ display illumination, with four illumination levels available for different environments. You'll marvel at the crystal-clear frequency display and status indicators, whether you’re operating night or day.■ CROSS-BAND REPEAT CAPABILITYFor emergency work, or to extend the range of a hand-held unit, the FT-8900R includes Cross-Band Repeat capability, similar to that pioneered on our popular FT-8100R Dual Band FM Mobile.■ ONE-TOUCH BAND-PATTERN "HYPER MEMORY" FEATURETo save valuable time while operating a transceiver with the versatility of the FT-8900R, the "H yper Memory" feature allows you to store a complete set of configuration data for the two bands on which you're operating. Besides the usual storage of frequency and tone data, Hyper Memory will store such setup parameters as Automatic Repeater Shift status, Packet parameters, Scanning mode, and VFO tracking, avoiding the need to change each of these functions manually on a regular basis.■ VERSATILE SCANNING CAPABILITYThe FT-8900R lets you scan the memories, the entire operating band, or a portion of the band. The transceiver will stop on signals encountered during the scan, allowing you to talk to the station(s) on that frequency, if you like. Duringband scanning, you may even configure the FT-of the bands, especially ten meters.■ 50-TONE CTCSS/104-TONE DCS(DIGITAL CODE SQUELCH) TONE SYSTEMS busy channels. Plus you get Tone Search Scanning, which will scan for the tone being received on an incoming signal, allowing you to match tones quickly when operating on a newrepeater system.■ ARTS ™(AUTO-RANGE TRANSPONDER SYSTEM)Included in the FT-8900R is Yaesu's exclusive ARTS™ feature, which can be critically important in search-and-rescue applications. ARTS ™ provides a "hand-shake" with other ARTS ™-equipped transceivers, and the display indicates if an "Out of Range" conditions exists. The base station (typically a mobile unit like the FT-8900R) can then alert the field unit to move to a better location. A 6-character CW ID memory also is provided, for Morse Code identification of your station every ten minutes during ARTS ™ operation.■ USER-PROGRAMMABLE MICROPHONE KEYSFour programmable keys on the microphone allow you one-touch access to your favorite command functions. The commands available from the microphone replicate the corresponding front panel key functions, and include Band Change, VFO/Memory switching, Home Channel access, 1 MH z frequency steps, Power Output selection, Repeater Reverse, and CTCSS/DCS setup. Customize your microphone for your personal operating style.Default settings for programmable keys:ACC: BAND Key (band selection; press and hold in for 1/2 second to enter Menu mode).P: V/M Key (VFO/Memory switching).P1: TONE Key (repeater access tone setup).P2: LOW Key (transmitter output power selection).■ CONVENIENT REMOTE-HEADMOUNTING CAPABILITY!Having trouble mounting your mobile radio in your compact car? With the FT-8900R and its optional YSK-8900 Separation Kit, mounting is a breeze even in the tightest locations. The YSK-8900 includes a 20 ft (6 m) remote cable and a mounting bracket for the front panel, and the microphone ■ SMART SEARCH ™ AUTOMATIC MEMORY LOADING SYSTEMThe Smart Search ™ feature may be used to load-automatically with no operator intervention-a special memory bank of up to 25 memory channels (per band) on which activity is detected. Smart Search ™ will sweep the band, looking for channels on which activity may be found, and it's ideal when visiting a city for the first time, where you may be unfamiliar with local repeater frequencies.■ EASY SETUP FOR FM SATELLITE OPERATIONFor operating on FM satellites like UO-14, the versatile memory system of the FT-8900R allows you to store a set of uplink and downlink frequencies that account for Doppler shift over the entire horizon-to-horizon pass, allowing you to select the optimum uplink/downlink combination effortlessly.•Automatic Repeater Shift: Automatically sets the repeater shift within the designated repeater sub-bands.•RF Squelch:Opens the squelch at a user-defined S-Meter level.•after long periods of inactivity.•Time-Out Timer (TOT): Prevents "Stuck Microphone" from causing lengthy QRM to others.•Battery Voltage Meter: Lets you know if your battery is getting low.•DTMF Auto-Dial Memory: 16 Memories of up to 16 tones each.•Lock Feature for Front Panel Keys & PTT Switch: Prevents accidental transmission or frequency change.■ CONVENIENT ACCESS TO WIRES ™ ANDOTHER INTERNET-LINKING SYSTEMS AND MUCH, MUCH MORE!HIGH PERFORMANCE29 MHz+144 MHz 29 MHz+430 MHz50 MHz+144 MHz 50 MHz+430 MHz144 MHz+144 MHz144 MHz+430 MHz430 MHz+144 MHz430 MHz+430 MHzFT-8900R VERSATILITYFT-8900RRange In ContactOut of ContactDisplay Shows:Display Shows:Display Shows:•1200/9600 BPS PacketCapability: Connect your TNC using the optional CT-39A Packet Cable.DTMF 0。
