电工学原理及应用(Electrical Engineering)经典双语详解讲义 (4)

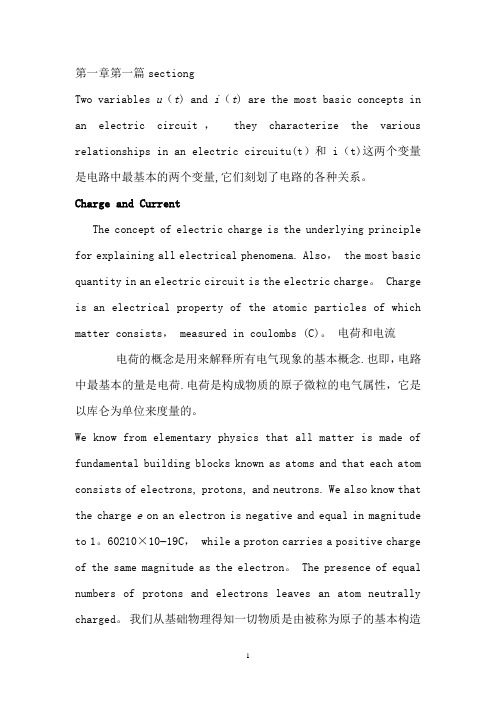

第一章第一篇sectiongTwo variables u（t) and i（t) are the most basic concepts in an electric circuit，they characterize the various relationships in an electric circuitu(t）和i（t)这两个变量是电路中最基本的两个变量,它们刻划了电路的各种关系。

Charge and CurrentThe concept of electric charge is the underlying principle for explaining all electrical phenomena. Also， the most basic quantity in an electric circuit is the electric charge。

Charge is an electrical property of the atomic particles of which matter consists， measured in coulombs (C)。

电荷和电流电荷的概念是用来解释所有电气现象的基本概念.也即，电路中最基本的量是电荷.电荷是构成物质的原子微粒的电气属性，它是以库仑为单位来度量的。

We know from elementary physics that all matter is made of fundamental building blocks known as atoms and that each atom consists of electrons, protons, and neutrons. We also know that the charge e on an electron is negative and equal in magnitude to 1。

专业英语电路基础characterize描绘…的特征，塑造人物，具有….的特征property 性质，财产equal in magnitude to 在数量（数量级）上等同于convert 转换converter 转换器time rate 时间变化率mathematically 从数学上来讲differen tiate v 区分，区别in honor of 为纪念某人name in honor of为纪念某人而以他命名electromotive force （e m f ）电动势voltaic battery 伏打电池，化学电池an element 一个电器元件interpret 口译，解释，说明the potential at point a with respect to point b is点a关于点b的电势Potential difference/voltage 电势差/电压expend 花费，消耗instantaneous 瞬时的，促发的passive sign convention 关联参考方向the law of conservation of energy 能量守恒定律reference polarity 参考极性electron 电子electronic 电子的electric 电的，电动的time-varying 时变的constant-valued 常量的metal lic 金属的be due to 是因为，由于，归功于building block 模块Coulomb库伦，Ampere安培，joule焦耳，Volt伏特，Watt 瓦特，work 功变量u（t），i(t)是电路中最基本的概念。

他们描述了电路中的各种关系。

电荷量的概念是解释电现象的基本原理，电荷量也是电路中最基本的量。

电荷也是构成物质的原子的电器属性，量纲是库伦。

我们从初等物理可以得知所有物质是由基本组成部分原子组成，而原子又包括电子（electron），质子（proton）和中子（neutron）我们都知道电荷e是带负电的电子，在数量上等于1.60210*1019 C, 而质子携带同等电荷量的正电荷，相同数量的质子，电子使原子呈现电中性（neutrally charged）。

电气工程专业英语电路 electric circuit电气工程electrical engineering电机electric machine自然科学physical science电气设备 electrical device电器元件 electrical element正电荷positive charge负电荷negative charge直流direct current交流alternating current电压voltage导体conductor功work电动势electromotiveforce电势差potential difference功率power极性polarity能量守恒定律the law of conservation energy变量variable电阻 resistance电阻率resistivity绝缘体insulator电阻器resistor无源元件passive element常数constant电导conductance短路short circuit开路open circuit线性的linear串联series并联parallel电压降voltage drop等效电阻equivalent resistance电容器capacitor电感器inductor储能元件storage element电场electric field充电 charge放电discharge动态的dynamic电介质dielectric电容capacitance磁场magnetic field电源power supplu变压器transformer电机electric motor线圈coil电感inductance导线conducting wire绕组wingding漏电阻leakage resistance电子系统electronic system结构图block diagram功能模块functional block放大器amplifier滤波器filter整形电路wave-shaping circuit振荡器oscillator增益gain输入阻抗input impedance带宽bandwidth晶体管transistor集成电路integrated circuit电力电子power electronics数字信号处理digital signal-processing 输出装置output device模拟信号analog signal数字信号digital signal传感器transducer采样值sample value模数转换器analog-to-digital converter 频谱frequency content采样频率sampling rate or frequendy 扰动disturbance分立电路discrete circuit数字化信号digitized signal运算放大器operational amplifier有源电路active circuit电子部件electronic unit封装package管脚pin同相端noninverting terminal反相输入inverting input电路图circuit diagram压控电压源voltage-controlled voltage source 开环增益open-loop gain闭环增益closed-loop gain负反馈negative feedback正饱和positive saturation线性区linear region电压跟随器voltage follower等效阻抗equivalent impedance逻辑变量logic variable位bit数字字digital word字节byte半字节nibble与运算AND operation真值表truth table与门AND gate非门NOT gate或门OR gate加号addition sign与非门NANA gate异或运算XOR operation逻辑表达式logic expression二进制binary system正逻辑positive logic负逻辑negative logic参考方向reference direction理想变压器ideal transformer电气绝缘electrical isolation阻抗匹配impedance matching电力electrical pewer绝缘变压器isolating transformer电压互感器voltage transformer电流互感器current transformer原边绕组primary winding工作频率operating frequency配电变压器distribution transformer电力变压器power transformer磁通密度flux density磁场magnetic field铁芯变压器iron-core transformer大功率high-power空芯air-core磁耦合magnetic coupling小功率lower-power励磁损耗magnetizing loss磁滞损耗hysteresis loss涡流eddy current励磁电流exciting current漏磁通leakage flux互磁通 mutual flux线圈coil芯式core form壳式shell form高压绕组high-voltage winding磁链flux linkage电动势electromotive force有效值root mean square value匝数比turns ratio视在功率apparent power匝数the number of turns升压变压器step-up transformer降压变压器step-down transformer电动机motor发电机generator机械能mechanical energy电能electrical energy电磁的electromagnetic直线式电动机linear motor同步电机synchronous machine感应电机induction machine定子stator转子rotor气隙air gap轴shaft电枢armature励磁绕组field winding无功功率reactive power制动状态braking mode稳态steady-state相序phase sequence反响制动plugging滞后电流lagging current励磁电抗magnetizing reactance 启动电流starting current变频器frequency changer感应电势induced voltage逆变器inverter周波变换器cycloconverter换向器commutator自动控制automatic control控制器controller扰动disturbance期望值desired value压力pressure液位liquid level被控变量controlled variable 方框图block diagram传递函数transfer function工程控制process control伺服系统servomechanism流率flow rate加速度acceleration前向通路forward path补偿correction反馈通路feedback path闭环closed-loop开环open-loop输出output增益gain手动调节manual adjustment 变送器transducer误差error控制方式control mode比例控制proportional control 积分控制integral control微分控制derivative control执行元件manipulating element 调节时间setting time残差residual error不确定度uncertainty观测数据observations采样sample算术平均arithmetic average期望值expected value标准偏差standard deviation下限lower range limit上限upper range limit跨度span分辨率resolution死区dead band灵敏度sensitivity阈值threshold可靠性reliability过量程overrange恢复时间recovery time过载overload过量程极限overrange limit漂移drift准确性accuracy误差error重复性repeatability系统误差systemic error再现性reproducibility校准calibration线速度linear velocity角速度angular velocity弧度radian测速仪tachometer增量式编码器incremental encoder定时计数器timed counter稳定性stability接口interface调节器conditioner开关switch执行器actuator电磁阀solenoid valve连续控制系统sequential control system 触点contact常开normally open常闭normally closed限位开关limit switch继电器relay延时继电器time-delay relay接通电流pull-in current开断电流drop-out current电机启动器motor starter接触器contactor自锁触点holding contact整流器rectifier变流器converter逆变器inverter二极管diode阳极anode阴极cathode正向偏置forward biased反向偏置reverse biased阻断block稳压二极管zener diode晶体管transistor集电极collector基极base发射极emitter共发射极common-emitter双向晶闸管triac正半周positive half-cycle触发电流trigger circuit功率容量power capability功率器件power device晶闸管thyristor导通conduction正向阻断 forward-blocking通态on-state关断状态off-state反向击穿电压reverse breakdown voltage 漏电流leakage current电流额定值current rating漏极drain门极gate缓冲电路snubber circuit均流current sharing额定电压rated voltage可控开关controllable switch相控phase-controlled充电器charger工频line-frequency变换器converter整流rectification逆变inversion可逆调速revesible-speed再生制动regenerative barking关断时间turn-off time纯电阻负载pure resistive load脉动ripple感性负载inductance load周期time period带内部直流电动势的负载load witn an internal DC voltage波形waveform换相commutation稳态steady state交流侧AC-side延时角delay angle交点intersection电力系统power system发电厂generating plant发电机generator负荷load输电网transmission nerwork配电网distribution network电electricity天然气natural gas原理图schematic diagram锅炉boiler热效率thermal efficiency风力wind power断路器circuit breaker变电所substation故障fault过电压overvoltage击穿值breakdown value过电流over current可靠性reliability继电器relay触点contact电流互感器current transformer合闸线圈operating coil分闸线圈trip coilCircuit theory is also valuable to students specializing in other branches of the physical science because circuit are a good model for the study of energy system in general,and because of the applied mathematics,physics,and topology involved.电路理论对于专门研究自然科学其他分支的学生来说也十分有价值，因为电路一般可以很好地作为能量系统研究的模型，并且电路理论涉及应用数学、物理学和拓扑学的相关知识。

第二章第一篇To say that we live in an age of electronics is an understatement. From the omnipresent integrated circuit to the equally omnipresent digital computer, we encounter electronic devices and systems on a daily basis. In every aspect of our increasingly technological society— whether it is science, engineering, medicine, music, maintenance, or even espionage—the role of electronics is large, and it is growing.谈论关于我们生活在一个电子学时代的论调是一种空泛的论调。

从无处不在的集成电路到同样无处不在的数字计算机，我们在日常活动中总会遇到电子设备和电子系统。

在我们日益发展的科技社会的方方面面——无论是在科学、工程、医药、音乐、维修方面甚至是在谍报方面——电子学的作用是巨大的，而且还将不断增强。

In general, all of the tasks with which we shall be concerned can be classified as "signal-processing“tasks. Let us explore the meaning of this term一般说来，我们将要涉及到的工作被归结为“信号——处理”工作，让我们来探究这个术语的含义吧。

A signal is any physical variable whose magnitude or variation with time contains information. This information might involve speech and music, as in radio broadcasting, a physical quantity such as the temperature of the air in a room, or numerical data, such as the record of stock market transactions. The physical variables that can carry information in an electrical system are voltage and current. When we speak of "signals", therefore, we refer implicitly to voltages or currents. However, most of the concepts we discuss can be applied directly to systems with different information-carrying variables. Thus, the behavior of a mechanical system (in which force and velocity are the variables) or a hydraulic system (in which pressure and flow rate are the variables) can often be modeled or represented by an equivalent electrical system. An understanding of the behavior of electrical systems, therefore, provides a basis for understanding a much broader range of phenomena. 信号就是其与时间有关的量值或变化包含信息的任何物理变量。
