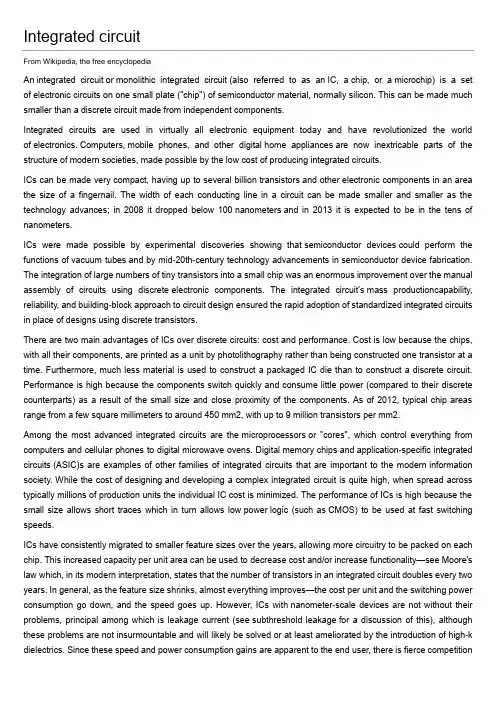

Integrated circuitFrom Wikipedia, the free encyclopediaAn integrated circuit or monolithic integrated circuit (also referred to as an IC, a chip, or a microchip) is a set of electronic circuits on one small plate ("chip") of semiconductor material, normally silicon. This can be made much smaller than a discrete circuit made from independent components.Integrated circuits are used in virtually all electronic equipment today and have revolutionized the world of electronics. Computers, mobile phones, and other digital home appliances are now inextricable parts of the structure of modern societies, made possible by the low cost of producing integrated circuits.ICs can be made very compact, having up to several billion transistors and other electronic components in an area the size of a fingernail. The width of each conducting line in a circuit can be made smaller and smaller as the technology advances; in 2008 it dropped below 100 nanometers and in 2013 it is expected to be in the tens of nanometers.ICs were made possible by experimental discoveries showing that semiconductor devices could perform the functions of vacuum tubes and by mid-20th-century technology advancements in semiconductor device fabrication. The integration of large numbers of tiny transistors into a small chip was an enormous improvement over the manual assembly of circuits using discrete electronic components. The integrated circuit's mass productioncapability, reliability, and building-block approach to circuit design ensured the rapid adoption of standardized integrated circuits in place of designs using discrete transistors.There are two main advantages of ICs over discrete circuits: cost and performance. Cost is low because the chips, with all their components, are printed as a unit by photolithography rather than being constructed one transistor at a time. Furthermore, much less material is used to construct a packaged IC die than to construct a discrete circuit. Performance is high because the components switch quickly and consume little power (compared to their discrete counterparts) as a result of the small size and close proximity of the components. As of 2012, typical chip areas range from a few square millimeters to around 450 mm2, with up to 9 million transistors per mm2.Among the most advanced integrated circuits are the microprocessors or "cores", which control everything from computers and cellular phones to digital microwave ovens. Digital memory chips and application-specific integrated circuits (ASIC)s are examples of other families of integrated circuits that are important to the modern information society. While the cost of designing and developing a complex integrated circuit is quite high, when spread across typically millions of production units the individual IC cost is minimized. The performance of ICs is high because the small size allows short traces which in turn allows low power logic (such as CMOS) to be used at fast switching speeds.ICs have consistently migrated to smaller feature sizes over the years, allowing more circuitry to be packed on each chip. This increased capacity per unit area can be used to decrease cost and/or increase functionality—see Moore's law which, in its modern interpretation, states that the number of transistors in an integrated circuit doubles every two years. In general, as the feature size shrinks, almost everything improves—the cost per unit and the switching power consumption go down, and the speed goes up. However, ICs with nanometer-scale devices are not without their problems, principal among which is leakage current (see subthreshold leakage for a discussion of this), although these problems are not insurmountable and will likely be solved or at least ameliorated by the introduction of high-k dielectrics. Since these speed and power consumption gains are apparent to the end user, there is fierce competitionamong the manufacturers to use finer geometries. This process, and the expected progress over the next few years, is well described by the International Technology Roadmap for Semiconductors (ITRS).In current research projects, integrated circuits are also developed for sensoric applications in medical implants or other bioelectronic devices. Particular sealing strategies have to be taken in such biogenic environments to avoid corrosion or biodegradation of the exposed semiconductor materials. As one of the few materials well established in CMOS technology, titanium nitride (TiN) turned out as exceptionally stable and well suited for electrode applications in medical implants.Integrated circuits can be classified into analog, digital and mixed signal (both analog and digital on the same chip). Digital integrated circuits can contain anywhere from one to millions of logic gates, flip-flops, multiplexers, and other circuits in a few square millimeters. The small size of these circuits allows high speed, low power dissipation, and reduced manufacturing cost compared with board-level integration. These digital ICs, typically microprocessors, DSPs, and micro controllers, work using binary mathematics to process "one" and "zero" signals.Analog ICs, such as sensors, power management circuits, and operational amplifiers, work by processing continuous signals. They perform functions like amplification, active filtering, demodulation, and mixing. Analog ICs ease the burden on circuit designers by having expertly designed analog circuits available instead of designing a difficult analog circuit from scratch.ICs can also combine analog and digital circuits on a single chip to create functions such as A/D converters and D/A converters. Such mixed-signal circuits offer smaller size and lower cost, but must carefully account for signal interference. Modern electronic component distributors often further sub-categorize the huge variety of integrated circuits now available:In the 1980s, programmable logic devices were developed. These devices contain circuits whose logical function and connectivity can be programmed by the user, rather than being fixed by the integrated circuit manufacturer. This allows a single chip to be programmed to implement different LSI-type functions such as logic gates, adders and registers. Current devices called field-programmable gate arrays can now implement tens of thousands of LSI circuits in parallel and operate up to 1.5 GHz.The techniques perfected by the integrated circuits industry over the last three decades have been used to create very small mechanical devices driven by electricity using a technology known as microelectromechanical systems. These devices are used in a variety of commercial and military applications. Example commercial applications include DLP projectors, inkjet printers, and accelerometers used to deploy automobile airbags.In the past, radios could not be fabricated in the same low-cost processes as microprocessors. But since 1998, a large number of radio chips have been developed using CMOS processes. Examples include Intel's DECT cordless phone, or Atheros's 802.11 card.Future developments seem to follow the multi-core multi-microprocessor paradigm, already used by the Intel and AMD dual-core processors. Rapport Inc. and IBM started shipping the KC256 in 2006, a 256-core microprocessor. Intel, as recently as February–August 2011, unveiled a prototype, "not for commercial sale" chip that bears 80 cores. Each core is capable of handling its own task independently of the others. This is in response to the heat-versus-speed limit that is about to be reached using existing transistor technology (see: thermal design power). This design provides a new challenge to chip programming. Parallel programming languages such as the open-source X10 programming language are designed to assist with this task.。

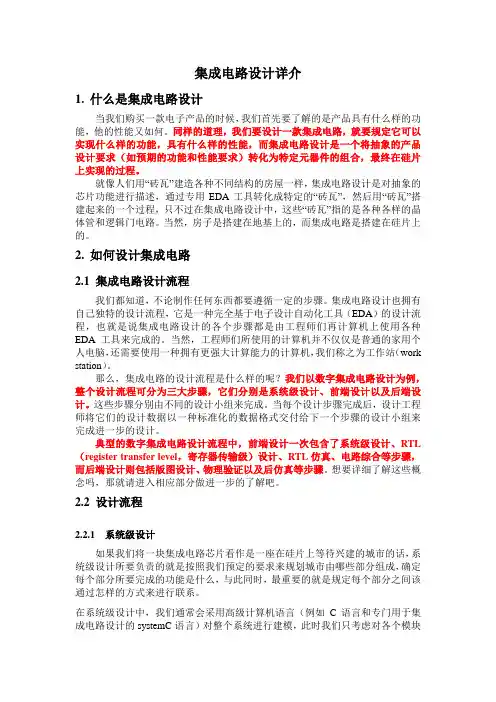

集成电路设计详介1.什么是集成电路设计当我们购买一款电子产品的时候，我们首先要了解的是产品具有什么样的功能，他的性能又如何。
同样的道理，我们要设计一款集成电路，就要规定它可以实现什么样的功能，具有什么样的性能，而集成电路设计是一个将抽象的产品设计要求（如预期的功能和性能要求）转化为特定元器件的组合，最终在硅片上实现的过程。
就像人们用“砖瓦”建造各种不同结构的房屋一样，集成电路设计是对抽象的芯片功能进行描述，通过专用EDA工具转化成特定的“砖瓦”，然后用“砖瓦”搭建起来的一个过程，只不过在集成电路设计中，这些“砖瓦”指的是各种各样的晶体管和逻辑门电路。
当然，房子是搭建在地基上的，而集成电路是搭建在硅片上的。
2.如何设计集成电路集成电路设计流程我们都知道，不论制作任何东西都要遵循一定的步骤。
集成电路设计也拥有自己独特的设计流程，它是一种完全基于电子设计自动化工具（EDA）的设计流程，也就是说集成电路设计的各个步骤都是由工程师们再计算机上使用各种EDA工具来完成的。
当然，工程师们所使用的计算机并不仅仅是普通的家用个人电脑，还需要使用一种拥有更强大计算能力的计算机，我们称之为工作站（work station）。
那么，集成电路的设计流程是什么样的呢？我们以数字集成电路设计为例，整个设计流程可分为三大步骤，它们分别是系统级设计、前端设计以及后端设计。
这些步骤分别由不同的设计小组来完成。
当每个设计步骤完成后，设计工程师将它们的设计数据以一种标准化的数据格式交付给下一个步骤的设计小组来完成进一步的设计。
典型的数字集成电路设计流程中，前端设计一次包含了系统级设计、RTL （register transfer level，寄存器传输级）设计、RTL仿真、电路综合等步骤，而后端设计则包括版图设计、物理验证以及后仿真等步骤。
想要详细了解这些概念吗，那就请进入相应部分做进一步的了解吧。
设计流程系统级设计如果我们将一块集成电路芯片看作是一座在硅片上等待兴建的城市的话，系统级设计所要负责的就是按照我们预定的要求来规划城市由哪些部分组成，确定每个部分所要完成的功能是什么，与此同时，最重要的就是规定每个部分之间该通过怎样的方式来进行联系。
集成电路的基本原理和工作原理集成电路是指通过将多个电子元件（如晶体管、电容器、电阻器等）和互连结构（如金属导线、逻辑门等）集成到单个芯片上，形成一个完整的电路系统。
它是现代电子技术的重要组成部分，广泛应用于计算机、通信、嵌入式系统和各种电子设备中。
本文将介绍集成电路的基本原理和工作原理。
一、集成电路的基本原理集成电路的基本原理是将多个电子元件集成到单个芯片上，并通过金属导线将这些元件互连起来，形成一个完整的电路系统。
通过集成电路的制造工艺，可以将电子元件和互连结构制造到芯片的表面上，从而实现芯片的压缩和轻量化。
常见的集成电路包括数字集成电路（Digital Integrated Circuit，简称DIC）、模拟集成电路（Analog Integrated Circuit，简称AIC）和混合集成电路（Mixed Integrated Circuit，简称MIC）等。
集成电路的基本原理包括以下几个关键要素：1. 材料选择：集成电路芯片的制造材料通常选择硅材料，因为硅材料具有良好的电子特性和热特性，并且易于形成晶体结构。
2. 晶圆制备：集成电路芯片的制造过程通常从硅晶圆开始。
首先，将硅材料熔化，然后通过拉伸和旋转等方法制备成硅晶圆。
3. 掩膜制备：将硅晶圆表面涂覆上光感光阻，并通过光刻机在光感光阻表面形成图案。
然后使用化学溶液将未曝光的部分去除，得到掩膜图案。
4. 传输掩膜：将掩膜图案转移到硅晶圆上，通过掩膜上沉积或蚀刻等方法，在硅晶圆表面形成金属或电子元件。
5. 互连结构制备：通过金属导线、硅氧化物和金属隔离层等材料，形成元件之间的互连结构，实现元件之间的电连接。
6. 封装测试：将芯片放置在封装材料中，通过引脚等结构与外部电路连接，然后进行测试和封装。
集成电路的基本原理通过以上几个关键步骤实现电子元件和互连结构的制备和组装，最终形成一个完整的电路系统。
二、集成电路的工作原理集成电路的工作原理是指通过控制电流和电压在电路系统中的分布和变化，从而实现电子元件的工作和电路系统的功能。
关于集成电路的英语作文英文回答：Integrated circuits, also known as ICs or microchips, are essential components in modern electronic devices. These tiny chips contain thousands or even millions of electronic components such as transistors, resistors, and capacitors, all packed into a small package. They play a crucial role in the functioning of computers, smartphones, televisions, and many other electronic devices.I remember when I first learned about integrated circuits in my electronics class. The professor explained how these chips have revolutionized the electronicsindustry by making devices smaller, faster, and more efficient. It was fascinating to see how a small piece of silicon could contain so much complexity and functionality.One of the most popular uses of integrated circuits is in microprocessors, which are the "brains" of computers andother digital devices. These chips process and execute instructions, allowing us to run software, browse the internet, and perform various tasks on our devices. Without integrated circuits, our modern world would not be possible.Another interesting application of integrated circuitsis in RFID technology. These chips are embedded in products, cards, and even pets to track and identify them. For example, in retail stores, RFID tags on products help with inventory management, while in pets, RFID chips provide a way to locate lost animals.Overall, integrated circuits have transformed the waywe live and work, making our lives more convenient and efficient. They are truly the building blocks of thedigital age.中文回答：集成电路，也被称为IC或微型芯片，在现代电子设备中是不可或缺的组件。
