电视维修手册第一章：电视故障诊断与维修方法一、电视无法开机当电视无法开机时，首先需要检查以下几个方面：1. 电源插头是否插紧：请确保电源插头已经完全插入电视的电源插座，并且插紧。
2. 电源线是否损坏：检查电源线是否有明显的破损或者断裂情况，如有需要更换新的电源线。
3. 电源开关是否打开：确保电源开关已经打开，有些电视可能有独立的电源开关。
如果以上检查都没有问题，但电视仍然无法开机，可能是以下原因之一：1. 电视主板故障：电视主板是电视的核心部件，如果主板损坏，可能导致电视无法正常开机。
此时建议联系专业维修人员进行维修或更换主板。
2. 电源供应故障：电视的电源供应部分可能出现故障，导致电视无法正常供电。
此时建议联系专业维修人员进行维修或更换电源供应部件。
二、电视无法接收信号或画面不清晰当电视无法接收信号或者画面不清晰时，可以按照以下步骤进行故障排除：1. 检查天线连接：确保电视天线线缆连接牢固，没有松动或者断裂。
如果有需要，可以重新连接天线线缆并确保信号良好。
2. 调整天线方向：有时候电视信号不好是由于天线方向不正确导致的。
可以尝试调整天线的方向，找到最佳的信号接收位置。
3. 检查信号源设备：如果电视无法接收到信号，可能是信号源设备的问题。
可以检查信号源设备（如有线电视盒、DVD播放器等）是否正常工作，以及连接线是否完好。
如果以上步骤都没有解决问题，可能是以下原因之一：1. 电视调谐器故障：电视调谐器是接收信号的重要部件，如果调谐器出现故障，可能导致无法接收信号或者画面不清晰。
此时建议联系专业维修人员进行维修或更换调谐器。
2. 信号源设备故障：如果信号源设备本身出现故障，可能导致电视无法正常接收信号。
此时建议检查信号源设备的工作状态，或者联系专业维修人员进行维修。
第二章：常见电视故障及解决方法一、电视画面出现噪点当电视画面出现噪点时，可以尝试以下方法进行故障排除：1. 调整信号源设备：有时候噪点是由于信号源设备输出信号不稳定导致的。

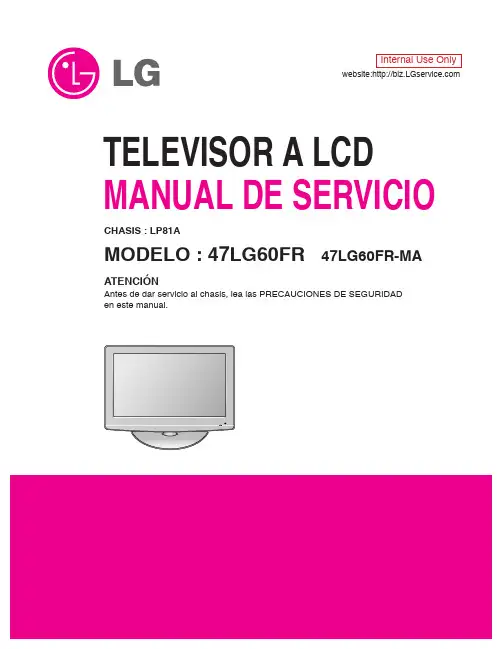

TELEVISOR A LCD MANUAL DE SERVICIOATENCIÓNAntes de dar servicio al chasis, lea las PRECAUCIONES DE SEGURIDADCHASIS : LP81AMODELO : 47LG60FR 47LG60FR-MAwebsite:Internal Use OnlyCONTENIDOCONTENIDO (2)PRECAUCIONES DE SEGURIDAD (3)ESPECIFICACIONES (4)INSTRUCCIÓN DE AJUSTE (11)SOLUCIÓN DE PROBLEMAS (15)DIAGRAMA EN BLOQUE (20)VISTA EN DESPIECE (21)PAGINA DE SVC........................................................................................ESPECIFICACIONESNOTA: las especificaciones que reflejan mejoras en los productos están sujetos a cambios sin previo aviso.4. General Specification(TV)No ItemSpecificationMeasurementResultRemark1.Display Screen Device37" wide Color Display Module Resolution:1366X768(HD)42" wide Color Display Module Resolution:1366X768(HD)/1920*1080(FHD)47" wide Color Display Module Resolution:1366X768(HD)/1920*1080(FHD)52" wide Color Display ModuleResolution:1920X1080(FHD)2. Aspect Ratio 16:93.LCD Module37" TFT WXGA LCD 37" HD MAKER :LPL 42" TFT WXGA LCD 42" HD MAKER :AUO, LPL 47" TFT WXGA LCD 47" HD MAKER :LPL 42" TFT WUXGA LCD 42" FHD MAKER : LPL 47" TFT WUXGA LCD 47" FHD MAKER : LPL 52" TFT WUXGA LCD52" FHD MAKER : SHARP 4. Operating Environment1) Temp. : 0 ~ 40 deg LGE SPEC2) Humidity : 0 ~ 85%5. Storage Environment 1) Temp. : -20 ~ 60 deg2) Humidity : 0 ~ 85 %6.Input VoltageAC100 ~ 240V, 50/60Hz1. Application Range.This spec sheet is applied to the 37"/42"/47"/52" LCD TV used LP81A chassis.2. SpecificationEach part is tested as below without special appointment 2.1 Temperature : 25±5°C(77±9°F), CST : 40±5°C 2.2 Relative Humidity : 65±10%2.3 Power Voltage : Standard input voltage (100~240V@ 50/60Hz)• Standard Voltage of each products is marked by models 2.4 Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM .2.5 The receiver must be operated for about 20 minutes prior to the adjustment.3. Test method3.1 Performance : LGE TV test method followed.3.2 Demanded other specificationSafety : UL, CSA, IEC specification 3.3 EMC : FCC, ICES, IEC specification5. Chrominance & Luminance Specification6. SET Optical Feature6.1. General feature- Measurement Condition: Full white/ Vivid => Measure the black luminance after 30 seconds.- C/R is excepted for PC modeNo Parameter SymbolValueUnit Remark Min Typ1 37 inch(HD)Contrast Ratio Dynamic CR9000:112000:1LPL Surface Luminance, LWH (AV/Component/HDMI)360450Cd/m2white LWH (PC)250Cd/m22 42 inch(HD)Contrast Ratio Dynamic CR9000:112000:1AUO Surface Luminance, LWH (AV/Component/HDMI)360450Cd/m2white LWH(PC)250Cd/m23 42 inch(HD)Contrast Ratio Dynamic CR9000:112000:1LPL Surface Luminance, LWH (AV/Component/HDMI)360450Cd/m2white LWH(PC)250Cd/m24 47 inch(HD)Contrast Ratio Dynamic CR9000:112000:1LPL Surface Luminance, LWH(AV/Component/HDMI)360450Cd/m2white LWH(PC)250Cd/m25 42 inch(FHD)Contrast Ratio Dynamic CR9000:112000:1LPL TBD15000 : 1For 50/60/70 Tool Surface Luminance, LWH(AV/Component/HDMI)360450Cd/m2white LWH(PC)250Cd/m2647 inch(FHD)Contrast Ratio Dynamic CR9000:112000:1LPL TBD15000 : 1For 50/60/70 Tool Surface Luminance, LWH(AV/Component/HDMI)360450Cd/m2white LWH(PC)250Cd/m2752 inch(FHD)Contrast Ratio Dynamic CR9000:112000:1Sharp TBD15000 : 1For 50/60/70 Tool Surface Luminance, LWH(AV/Component/HDMI)320400Cd/m2white LWH(PC)250Cd/m27. Component Video Input (Y, P B, P R)No.SpecificationRemark Resolution H-freq(kHz)V-freq(Hz)Pixekclock1. 720*48015.7359.9413.500SDTV, DVD 480I(525I)2. 720*48015.7560.0013.514SDTV, DVD 480I(525I)3. 720*57615.62550.0013.500SDTV, DVD 576I(625I) 50Hz4. 720*48031.4759.9427.000SDTV480P5. 720*48031.5060.0027.027SDTV480P6. 720*57631.2550.0027.000SDTV 576P 50Hz7. 1280*72044.9659.9474.176HDTV720P8. 1280*72045.0060.0074.250HDTV720P9. 1280*72037.5050.0074.25HDTV 720P 50Hz10. 1920*108028.12550.0074.250HDTV 1080I 50Hz,11. 1920*108033.7259.9474.176HDTV 1080I12. 1920*108033.7560.0074.25HDTV 1080I13. 1920*108056.2550148.5HDTV 1080P141920*108067.43259.94148.350HDTV 1080P151920*108067.560.00148.5HDTV 1080P8. RGB Input (Analog PC)No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz)Proposed Remark1.640*35031.46870.8025.17EGA2720*40031.46970.0828.32DOS3.640*48031.46959.9425.17VESA(VGA)4800*60037.87960.3140VESA(SVGA)51024*76848.3636065VESA(XGA)61280*76847.77659.8779.5VESA(WXGA)71360*76847.7259.79984.75VESA(WXGA)81366*76847.76084.62VESA(WXGA)91280*102463.66859.895109.00SXGA Only FHD 101400*105065.31759.978121.75SXGA Only FHD 111600*120074.53759.869161.00UXGA Only FHD 121920*108066.58759.934138.50WUXGA (Reduced Blanking)Only FHD9. HDMI Input (PC-Spec. out but display correctly at only HDMI/DVI IN 1 via DVI to HDMI cable)No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz)Proposed Remark1.720x40031.46870.0828.322.640x48031.46959.9425.17VESA(VGA)3.800x60037.87960.3140.00VESA(SVGA)41024x76848.36360.0065.00VESA(XGA)51280x76847.77659.8779.5VESA(WXGA)61360x76847.7259.79984.62VESA(WXGA)71366x76847.76084.62VESA(WXGA)81280x102463.59560.0108.875SXGA Only FHD 91400x105065.16060.0122.50SXGA Only FHD 101600x120074.07760.0130.375UXGA Only FHD 111920x108066.64759.988138.625WUXGA Only FHD10. HDMI input ( DTV )No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz)Proposed Remark 1720*48031.4759.9427SDTV 480P Support(not spec) 2720*48031.56027.027SDTV 480P support(not spec) 3720*57631.255027SDTV 576P support(not spec) 41280*72044.9659.9474.176HDTV 720P51280*720456074.25HDTV 720P61280*72037.55074.25HDTV 720P71920*108028.1255074.25HDTV 1080I81920*108033.7259.9474.176HDTV 1080I91920*108033.756074.25HDTV 1080I101920*108056.2550148.5HDTV 1080P111920*108067.43259.94148.350HDTV 1080P121920*108067.560.00148.5HDTV 1080P131920*1080272474.25HDTV 1080P141920*108033.753074.25HDTV 1080PINSTRUCCIÓN DE AJUSTE1. Application RangeThese instructions are applied to all of the LCD TV, LP81AChassis.2. Notice2.1 Because this is not a hot chassis, it is not necessary touse an isolation transformer. However, the use ofisolation transformer will help protect test instrument.2.2 Adjustment must be done in the correct order.2.3 The adjustment must be performed in the circumstance of25±5°C of temperature and 65±10% of relative humidity ifthere is no specific designation.2.4 The input voltage of the receiver must keep 100~220V,50/60Hz.2.5 Before adjustment, execute Heat-Run for 15 minutes atRF no signal.3. Adjustment items3.1 PCB assembly adjustment itemsDownload the MSTAR main software (IC801, Mstar ISP Utility)3.2 SET assembly adjustment itemsDDC Data input.Adjustment of White Balance.Factoring Option Data input 4. PCB assembly adjustment method(Using MSTAR Download program)4.1 S/W program download4.1.1 Preliminary steps(1) Download method 1 (PCB Assy)- HD- FHD(2) Connect the download jig to D-sub jack4.1.2 Download steps(1) Execute ‘ISP Tool’ program in PC, then a main window will be opened(2) Click the connect button and confirm "Dialog Box".(3) Click the Config button and Change speedE2PROM Device setting : over the 350Khz(4) Read and write bin fileClick "(1)Read" tab, and then load download file(XXXX.bin) by clicking "Read".(5).Click "Auto(2)" tab and set as below (6).click "Run(3)".(7).After downloading, check "OK(4)" message.# USB DOWNLOAD1. Put the USB Stick to the USB socket2. Automatically detecting update file in USB StickDouble click3. Select "Start" Button and press "ok" buttonUpdating is staring.4. Finishing the version updating, you have to put out USB stickand "AC Power" off5. After putting "AC Power" on and check updated version onyour TV4.2 ADC ProcessO Required Equipments- Remote controller for adjustment- MSPG-925F Pattern Generator4.2.1 Method of Auto RGB Color Balance- Convert to RGB PC in Input-source- Input the PC 1024x768 @ 60Hz 1/2 Black & White Pattern(MSPG-925F model:60, pattern:54) into RGB- Adjust by commanding AUTO_COLOR_ADJUST(0xF1) 0x00 0x02 instruction.4.2.1.1 Confirmation- We confirm whether "0xF3 (offset), 0xF4 (gain)" address of EEPROM "0xBC" is "0xAA" or not.- If "0xF3", "0xF4" address of EEPROM "0xBC" isn’t "0xAA", we adjust once more- We can confirm the ADC values from "0x06~0x0B" addresses in a page "0xBC"*Manual ADC process using Service Remocon. After enter Service Mode by pushing "ADJ" key, execute "Auto-RGB" by pushing "_" key at "Auto-RGB".4.2.2 Component input ADC4.2.2.1 Component Gain/Offset Adjustment7- Convert to Component in Input-source- Input the Component ( Which has 720p@60Hz YPbPr signal : 100% Color Bar (MSPG-925F Model : 217 / Pattern: 65 ) into Component.- Adjust by commanding AUTO_COLOR_ADJUST (0xF1) 0x00 0x02 instruction4.2.2.2 Confirmation- We confirm whether "0xF3 (offset), 0xF4 (gain)" address of EEPROM "0xBC" is "0xAA" or not.- If "0xF3", "0xF4" address of EEPROM "0xBC" isn’t "0xAA", we adjust once more- We can confirm the ADC values from "0x06~0x0B" addresses in a page "0xBC"*Manual ADC process using Service Remocon. After enter Service Mode by pushing "ADJ" key, execute "Auto-RGB" by pushing "_" key at "Auto-RGB".5. Adjusting the White Balance5.1 Purpose and Principle for adjustment of thecolor temperature-Purpose : Adjust the color temperature to reduce the deviation of the module color temperature.- Principle : To adjust the white balance without the saturation,(Fix the one of R/G/B gain to C0 and decrease the others.)5.2 Adjustment mode : Two modes of Cool and Warm (Medium data is automatically calibrated by the Cool data)O Required Equipments- Remote controller for adjustment- Color Analyzer : CA100+ or CA-210 or same product LCD TV( ch : 9 ),- Auto W/B adjustment instrument(only for Auto adjustment)5.3 Connecting diagram of equipment formeasuring (For Automatic Adjustment)(1) Enter the adjustment mode of DDC- Set command delay time : 50ms- Enter the DDC adjustment mode at the same time heat-- Maintain the DDC adjustment mode with same condition of Heat-run-> Maintain after AC off/on in status of Heat-run pattern display)(2) Release the DDC adjustment mode- Release the adjust mode after AC off/on or std-by off/on in status of finishing the Hear-run mode- Release the Adjust mode when receiving the aging off command(F3 00 00) from adjustment equipment- Need to transmit the aging off command to TV set after finishing the adjustment.- Check DDC adjust mode release by exit key and release DDC adjust mode (3) Enter the adjust mode of white balance- Enter the white balance adjustment mode with aging command(F3, 00, FF)* Luminance min value is 200cd/ß≥in the cool mode( For LCD)6. Adjustment of White Balance• Adjustment mode : Two modes (Cool and Warm)(Medium data is automatically calibrated by the Cool data)• Color analyzer(CA100+, CA210) should be used in the calibrated ch by CS-1000(LCD : CH9, PDP : CH10)• Operate the zero-calibration of the CA100+ or CA-210, then stick sensor to the module when adjusting.• For manual adjustment, it is also possible by the following sequence.1) Select white pattern of heat-run by pressing "POWER ON"key on remote control for adjustment then operate heat run longer than 15 minutes.(If not executed this step, the condition for W/B may be different.)2) Push "Exit" key.3) Change to the AV mode by remote control.(Push front-AV or Input key)4) Input external pattern(85% white pattern)5) Push the ADJ key two times (entering White Balance mode)6) Stick the sensor to the center of the screen and select each items (Red/Green/Blue Gain and Offset) using /(CH +/-) key on R/C..7) Adjust R/ G/ B Gain using /(VOL+/-) key on R/C.8) Adjust two modes (Cool and Warm)(Fix the one of R/G/B and change the others)9) When adjustment is completed, Exit adjustment mode using EXIT key on R/C.SOLUCIÓN DE PROBLEMAS 1. No power1) Symptom1) It is not discharged minutely from the module.2) Light does n ot c ome into the front LED.2) Check process2. No Raster1) Symptom1) No OSD and image occur at screen..2) It maintains the condition where the front LED is green 2) Check process3. Unusual display from RF mode.1) Check process4. Unusual display from rear AV mode.5. Unusual display from Side AV mode.6. Unusual display from Side S-Video mode.7. Unusual display from componen t 1 mode.10. No Sound10-1Symptom1) LED is green.2) Screen display but sound is not output.10-2 Check processDIAGRAMA DE BLOQUEA V 1i nS i d e A V i n (A V 2 n )C om p i nC o m p i nR G i n (D /L )C V B S I N Y /P b /P r I NR /G /B /H S /V S I NC V B S I NL I N E O U T L I N E I N A M P _M U T E R S -232CR x /T x M X 3232R (T u n e r )P C A u d i o i nD I S P L A Y M O D U L EE D I D N V ME D I D N V MH D M I 1H D M I 2H D M I 3U S B T M D S 351P A G H D M I M U XZ o r a n V A D D I S -966X D M P E G D e c o d e r D D R M E M D D R M E M S E R I A L F L A S H M s t a r R o m e o L G E 6891C DT W 9910S u b D e c o d e rN T P 3000A D i g i t a l A u d i o A M PM A I N N V MM C 74H C 4066A u d i o S WL M 324X 4 A M P S E R I A L F L A S HB D 2041P r o t e c t I CE D I D N V M D D C /H D P /C E C T M D S (H D M I i n )D D C /H P D /CE CT M D S (H D M I i n )T M D S (H D M I i n )U S B (A V I /O , D a t a I /O )+5V C V B SO U T656 I NS W _R E S E T P A R T _I 2C P A R T _I 2C S W _R E S E T I 2S O U T L V D S M P E G R X /T XM P E G R E S E T I 2S I N656 I NT M D S (H D M I i n )D D C /H P D /C E CD D C /H P D /CE C [C E C n o t t h r o u g h H D M I M U X , d i r e c t J A C K t o M A I N I C ]D D CD D CD D CU A R T _R x /T xA U D I O _S W L I N E I NL I N E I N L I N E I N Y /P b /P r I NL I N E I NY /C I NL I N E I N E D I D N V MR O M _I 2CD S U B _D D Cx 0.55x 0.55x 0.55x 0.55S _V I D E O _D E TL I N E _M U T EL I N E O U T x 4x 0.55L I N E I NC V B S I NS I F I N T U N E R _I 2C P A R T _I 2C H D M I _S E L(O p t i n )(O p t i n )(O p t i o n )S p k O u t 1W (M o n o )S W _R E S E T T P A 3107D A u d i o A m pCopyright LG Electronics. Inc. All right reserved.Only for training and service purposesC 2008LGE Internal Use Only- 21-VISTA EN DESPIECE300521200800802803550804801122560121510120500121810540840530570830900400THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FORTHE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.INPUT1 : COMP1/2,RS232C,PCTHE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FORTHE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.INPUT2 : CVBS,SIDE AVTHE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FORTHE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.H D M I _S H D M I _SHD_ATNPANEL WAFERTHE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FORTHE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.TUNERTHE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FORTHE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.Audio S/W : COMP1 or SIDE L/RTHE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FORTHE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.00USB/MPEG DECTHE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FORTHE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.DDRSUB - HYNIX : EAN31729202MAIN - QIMONDA : EAN41788501THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FORTHE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.TW9910THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FORTHE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.Apr., 2008 P/NO : MFL41394424Printed in Korea。
液晶显示器维修手册第一章: 引言液晶显示器维修手册是为了帮助用户了解液晶显示器的维修和故障排除方法而编写的。
本手册将提供液晶显示器常见问题的解决方案和处理方法，以确保用户能够迅速恢复屏幕的正常运行。
第二章: 基础知识在进行液晶显示器维修之前，用户需要了解一些基础知识。
液晶显示器是通过液晶技术显示图像的设备。
它是由像素组成的，每个像素都由液晶层和光源背光组成。
用户需要熟悉液晶显示器的组成部分、原理和常见故障类型。
2.1 液晶显示器的组成部分液晶显示器由多个组件组成，包括面板、背光源、控制电路、接口等。
用户需要了解这些组件的功能和相互关系。
2.2 液晶显示器的工作原理液晶显示器的工作原理包括电压控制液晶颗粒来控制光的通过、背光源的照明方式以及图像传输的过程。
用户需要熟悉这些原理，以便更好地进行维修工作。
2.3 常见故障类型液晶显示器常见故障类型包括无法开机、黑屏、色彩失真、图像闪烁等。
用户需要了解每种故障类型的原因和相应的维修方法。
第三章: 维修步骤本章将详细介绍用户在维修液晶显示器时需要采取的步骤。
3.1 故障诊断在开始维修前，用户需要先进行故障诊断。
通过观察、测试和排除法等方法，找出故障产生的原因。
3.2 维修工具和材料准备用户需要准备一些常用的维修工具和材料，如螺丝刀、电压表、焊接工具等。
这些工具和材料在维修过程中起到关键作用。
3.3 维修操作步骤在进行维修操作时，用户需要按照以下步骤进行：1) 关闭电源并拔掉电源线；2) 拆卸外壳以获得维修接触面；3) 检查电源问题，如电源线是否损坏或电源板是否故障；4) 检查信号线或接口问题，确保连接良好；5) 检查背光源是否正常运行；6) 检查控制电路和面板问题；7) 清洁显示屏和其他组件；8) 重新组装并测试修复效果。
第四章: 常见故障与解决方案本章将列举液晶显示器常见的故障情况，并提供相应的解决方案。
4.1 无法开机当液晶显示器无法开机时，可能是由于电源故障、信号线松动或电源线接触不良等原因造成。
电视机调试维修手册一、调试前的准备在进行电视机调试之前，必须进行一系列的准备工作，以确保顺利进行并提高调试效果。
1.1 工具准备（1）螺丝刀：用于拆卸电视机壳体和电路板的螺丝；（2）万用表：用于测量电压、电流和电阻等参数；（3）信号发生器：用于产生各种测试信号，用于调试和测试电视机的各个部分；（4）示波器：用于观察和测量电视信号的波形；（5）烙铁和焊锡：用于焊接和修复电路板上的元件。
1.2 环境准备（1）调试电视机的环境应该干燥、通风，并远离电磁辐射源；（2）调试时应降低工作区域的静电，避免对电视机电路板造成损坏。
二、电视机调试步骤根据电视机的问题，可以按照以下步骤来进行调试。
2.1 电源问题调试（1）检查电源插头和电源线是否连接正常；（2）检查电源开关是否打开，是否有电源指示灯亮起；（3）用万用表测量电源线上的电压，确保电源供应正常。
2.2 图像问题调试（1）检查电视机的图像信号源是否连接正常，如有需要，调整输入信号源；（2）用信号发生器产生测试信号，通过示波器观察信号波形，判断图像处理电路的工作状态；（3）检查电视机的图像调节电路，如亮度、对比度、色彩等调节电路是否正常；（4）检查电视机的扫描电路，如垂直扫描、水平扫描等电路是否正常。
2.3 声音问题调试（1）检查音频信号源是否连接正常，如有需要，调整输入信号源；（2）通过音量调节按钮或遥控器，提高或降低音量，判断音量控制电路是否正常；（3）检查音频输出电路和扬声器，确保声音正常输出。
2.4 遥控问题调试（1）检查电视机的红外接收头是否正常工作；（2）通过万用表测试遥控器的红外发射信号，判断遥控器是否正常。
三、常见故障排除方法在电视机调试过程中，可能会遇到一些常见故障，以下是一些常见故障的排除方法。
3.1 无图像问题排除（1）检查视频信号线是否连接松动或损坏，重新连接或更换信号线；（2）检查视频输入端口是否工作正常，尝试连接其他设备进行测试；（3）检查电视机的图像处理电路，修复或更换故障元件。
