NR电感规格书

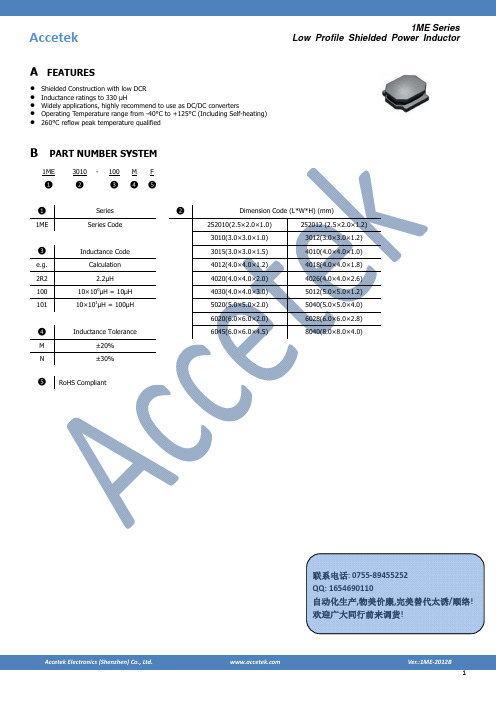

A FEATURES● Shielded Construction with low DCR ● Inductance ratings to 330 µH● Widely applications, highly recommend to use as DC/DC converters● Operating Temperature range from -40°C to +125°C (Including Self-heating) ● 260°C reflow peak temperature qualifiedB PART NUMBER SYSTEM1ME 3010 - 100 M F ❶ ❷❸❹❺❶Series❷Dimension Code (L*W*H) (mm)1ME Series Code 252010(2.5×2.0×1.0) 252012 (2.5×2.0×1.2) 3010(3.0×3.0×1.0) 3012(3.0×3.0×1.2)❸ Inductance Code 3015(3.0×3.0×1.5) 4010(4.0×4.0×1.0)e.g. Calculation4012(4.0×4.0×1.2)4018(4.0×4.0×1.8)2R2 2.2μH 4020(4.0×4.0×2.0) 4026(4.0×4.0×2.6) 100 10×100μH = 10μH 4030(4.0×4.0×3.0) 5012(5.0×5.0×1.2) 101 10×101μH = 100μH 5020(5.0×5.0×2.0) 5040(5.0×5.0×4.0)6020(6.0×6.0×2.0)6028(6.0×6.0×2.8)❹Inductance Tolerance6045(6.0×6.0×4.5) 8040(8.0×8.0×4.0)M ±20% N ±30% ❺ RoHS Compliant联系电话: 0755‐89455252QQ: 1654690110自动化生产,物美价廉,完美替代太诱/顺络! 欢迎广大同行前来调货!C DRAWINGS AND DIMENSIONSXXX = Inductance valueCase SizeDimensions (mm)Fig.ABC maxDE F H ref.I ref.J ref.1ME252010 2.5±0.1 2.0±0.1 1.0 1.5±0.20.8±0.20.8±0.2 2.00.85 0.8 A 1ME252012 2.5±0.1 2.0±0.1 1.2 1.5±0.20.8±0.20.8±0.2 2.00.85 0.8 A 1ME3010 3.0±0.2 3.0±0.2 1.0 2.5±0.20.75±0.2 1.5±0.2 2.70.8 1.5 B 1ME3012 3.0±0.2 3.0±0.2 1.2 2.5±0.20.75±0.2 1.5±0.2 2.70.8 1.5 B 1ME3015 3.0±0.2 3.0±0.2 1.5 2.5±0.20.75±0.2 1.5±0.2 2.70.8 1.5 B 1ME4010 4.0±0.2 4.0±0.2 1.0 3.3±0.20.95±0.2 2.1±0.2 3.7 1.1 1.9 B 1ME4012 4.0±0.2 4.0±0.2 1.2 3.3±0.20.95±0.2 2.1±0.2 3.7 1.1 1.9 B 1ME4018 4.0±0.2 4.0±0.2 1.8 3.3±0.20.95±0.2 2.1±0.2 3.7 1.1 1.9 B 1ME4020 4.0±0.2 4.0±0.2 2.0 3.3±0.20.95±0.2 2.1±0.2 3.7 1.1 1.9 B 1ME4026 4.0±0.2 4.0±0.2 2.6 3.3±0.20.95±0.2 2.1±0.2 3.7 1.1 1.9 B 1ME4030 4.0±0.2 4.0±0.2 3.0 3.3±0.20.95±0.2 2.1±0.2 3.7 1.1 1.9 B 1ME5012 5.0±0.2 5.0±0.2 1.2 4.0±0.2 1.25±0.2 2.5±0.2 4.4 1.5 2.1 C 1ME5020 5.0±0.2 5.0±0.2 2.0 4.0±0.2 1.25±0.2 2.5±0.2 4.2 1.4 2.3 C 1ME5040 5.0±0.2 5.0±0.2 4.0 4.0±0.2 1.25±0.2 2.5±0.2 4.2 1.4 2.3 C 1ME6020 6.0±0.3 6.0±0.3 2.0 4.9±0.2 1.55±0.3 2.9±0.2 5.7 1.7 2.8 B 1ME6028 6.0±0.3 6.0±0.3 2.8 4.9±0.2 1.55±0.3 2.9±0.2 5.7 1.7 2.8 B 1ME6045 6.0±0.3 6.0±0.3 4.5 4.9±0.2 1.55±0.3 2.9±0.2 5.7 1.7 2.8 B 1ME8040 8.0±0.3 8.0±0.3 4.2 6.3±0.2 2.00±0.34.0±0.27.52.23.8 B联系电话: 0755‐89455252QQ: 1654690110自动化生产,物美价廉,完美替代太诱/顺络! 欢迎广大同行前来调货!D SPECIFICATIONSInductance1DCR2Drawing Part Number μH Tolerance Typ.(Ω)Max.(Ω)Irms3(A)Isat4(A) Fig.1ME252010-R47NF 0.47 ±30% 0.047 0.056 2.35 3.35 A 1ME252010-R68NF 0.68 ±30% 0.062 0.074 2.00 2.75 A 1ME252010-1R0NF 1.0 ±30% 0.090 0.108 1.65 2.20 A 1ME252010-1R5NF 1.5 ±30% 0.152 0.182 1.30 2.10 A 1ME252010-2R2NF 2.2 ±30% 0.174 0.209 1.20 1.60 A 1ME252010-3R3MF 3.3 ±20% 0.273 0.328 0.90 1.30 A 1ME252010-4R7MF 4.7 ±20% 0.469 0.563 0.70 1.15 A 1ME252010-6R8MF 6.8 ±20% 0.747 0.896 0.59 0.92 A 1ME252010-100MF 10 ±20% 0.910 1.092 0.50 0.78 A 1ME252012-R47NF 0.47 ±30% 0.047 0.056 2.15 4.27 A 1ME252012-R68NF 0.68 ±30% 0.057 0.068 1.95 3.68 A 1ME252012-1R0NF 1.0 ±30% 0.069 0.083 1.93 2.90 A 1ME252012-1R2NF 1.2 ±30% 0.099 0.119 1.46 2.67 A 1ME252012-1R5MF 1.5 ±20% 0.113 0.136 1.40 2.51 A 1ME252012-2R2MF 2.2 ±20% 0.166 0.199 1.15 2.07 A 1ME252012-2R7MF 2.7 ±20% 0.184 0.221 1.09 1.92 A 1ME252012-3R3MF 3.3 ±20% 0.203 0.244 1.04 1.80 A1ME252012-3R6MF 3.6 ±20% 0.268 0.322 0.90 1.64 A 1ME252012-4R3MF 4.3 ±20% 0.290 0.348 0.87 1.53 A 1ME252012-4R7MF 4.7 ±20% 0.290 0.348 0.84 1.25 A 1ME252012-5R1MF 5.1 ±20% 0.385 0.462 0.75 1.37 A 1ME252012-5R6MF 5.6 ±20% 0.414 0.497 0.73 1.25 A 1ME252012-6R2MF 6.2 ±20% 0.417 0.500 0.73 1.16 A 1ME252012-6R8MF 6.8 ±20% 0.447 0.536 0.69 1.09 A 1ME252012-7R5MF 7.5 ±20% 0.470 0.564 0.68 1.09 A 1ME252012-8R2MF 8.2 ±20% 0.506 0.607 0.65 1.10 A 1ME252012-9R1MF 9.1 ±20% 0.531 0.637 0.62 1.02 A 1ME252012-100MF 10 ±20% 0.531 0.637 0.62 0.88 A 1ME252012-120MF 12 ±20% 0.827 0.992 0.51 0.88 A 1ME252012-150MF 15 ±20% 1.224 1.469 0.42 0.77 A 1ME252012-220MF 22 ±20% 1.520 1.824 0.38 0.59 A 1ME3010-1R0NF 1.0 ±30% 0.065 0.085 1.45 1.40 B 1ME3010-1R5NF 1.5 ±30% 0.080 0.104 1.30 1.27 B 1ME3010-2R2NF 2.2 ±30% 0.110 0.143 1.09 1.15 B 1ME3010-2R7NF 2.7 ±30% 0.130 0.169 1.02 1.00 B 1ME3010-3R3NF 3.3 ±30% 0.145 0.189 0.96 0.97 B 1ME3010-3R6MF 3.6 ±20% 0.165 0.215 0.90 0.95 B 1ME3010-4R7MF 4.7 ±20% 0.225 0.293 0.77 0.75 B 1ME3010-6R8MF 6.8 ±20% 0.305 0.397 0.66 0.55 B0.400 0.520 0.58 0.55 B 1ME3010-100MF 10 ±20%0.505 0.657 0.52 0.43 B 1ME3010-120MF 12 ±20%0.610 0.793 0.47 0.42 B 1ME3010-150MF 15 ±20%0.930 1.209 0.38 0.35 B 1ME3010-220MF 22 ±20%1.080 1.404 0.35 0.30 B 1ME3010-270MF 27 ±20%1.5502.015 0.30 0.29 B 1ME3010-330MF 33 ±20%1.7502.275 0.28 0.28 B 1ME3010-390MF 39 ±20%1.8002.340 0.27 0.23 B 1ME3010-430MF 43 ±20%1.9502.535 0.26 0.22 B 1ME3010-470MF 47 ±20%2.200 2.860 0.25 0.21 B 1ME3010-510MF 51 ±20%2.3203.016 0.24 0.21 B 1ME3010-560MF 56 ±20%1ME3012-R82NF 0.82 ±30% 0.030 0.039 2.47 2.05 B 1ME3012-1R0NF 1.0 ±30% 0.040 0.052 2.20 1.87 B 1ME3012-1R2NF 1.2 ±30% 0.045 0.059 2.01 2.22 B1ME3012-2R2NF 2.2 ±30% 0.075 0.098 1.55 1.20 B 1ME3012-2R4NF 2.4 ±30% 0.068 0.088 1.60 1.15 B 1ME3012-2R7NF 2.7 ±30% 0.085 0.111 1.48 1.14 B 1ME3012-3R3MF 3.3 ±20% 0.100 0.130 1.36 1.05 B 1ME3012-3R9MF 3.9 ±20% 0.145 0.189 1.24 1.00 B 1ME3012-4R7MF 4.7 ±20% 0.120 0.156 1.24 0.90 B 1ME3012-6R8MF 6.8 ±20% 0.190 0.247 0.98 0.75 B 1ME3012-100MF 10 ±20% 0.265 0.345 0.83 0.60 B 1ME3012-120MF 12 ±20% 0.345 0.449 0.73 0.48 B 1ME3012-150MF 15 ±20% 0.360 0.468 0.71 0.45 B 1ME3012-180MF 18 ±20% 0.545 0.709 0.58 0.43 B 1ME3012-220MF 22 ±20% 0.645 0.839 0.53 0.42 B 1ME3012-270MF 27 ±20% 0.870 1.131 0.47 0.36 B 1ME3012-330MF 33 ±20% 0.875 1.138 0.46 0.35 B 1ME3012-360MF 36 ±20% 0.950 1.235 0.44 0.34 B 1ME3012-390MF 39 ±20% 1.330 1.729 0.37 0.30 B 1ME3012-470MF 47 ±20% 1.450 1.885 0.35 0.27 B 1ME3012-680MF 68 ±20% 1.670 2.171 0.33 0.24 B 1ME3012-820MF 82 ±20% 2.540 3.302 0.27 0.17 B 1ME3012-101MF 100 ±20% 2.860 3.718 0.25 0.21 B 1ME3015-1R0NF 1.0 ±30% 0.030 0.039 2.35 2.32 B 1ME3015-1R2NF 1.2 ±30% 0.040 0.052 1.95 2.21 B 1ME3015-1R5NF 1.5 ±30% 0.050 0.065 1.70 2.30 B 1ME3015-1R8NF 1.8 ±30% 0.050 0.065 1.70 1.75 B 1ME3015-2R2NF 2.2 ±30% 0.060 0.078 1.60 1.60 B 1ME3015-2R7NF 2.7 ±30% 0.075 0.098 1.43 1.52 B 1ME3015-3R3MF 3.3 ±20% 0.080 0.104 1.36 1.32 B 1ME3015-3R6MF 3.6 ±20% 0.105 0.137 1.20 1.28 B 1ME3015-4R3MF 4.3 ±20% 0.115 0.150 1.14 1.20 B 1ME3015-4R7MF 4.7 ±20% 0.125 0.163 1.09 1.10 B 1ME3015-5R1MF 5.1 ±20% 0.133 0.173 1.05 1.00 B 1ME3015-6R2MF 6.2 ±20% 0.195 0.254 0.86 1.00 B 1ME3015-6R8MF 6.8 ±20% 0.200 0.260 0.85 0.85 B 1ME3015-100MF 10 ±20% 0.250 0.325 0.77 0.72 B 1ME3015-120MF 12 ±20% 0.320 0.416 0.68 0.70 B 1ME3015-150MF 15 ±20% 0.350 0.455 0.65 0.66 B 1ME3015-180MF 18 ±20% 0.430 0.559 0.59 0.56 B 1ME3015-220MF 22 ±20% 0.460 0.598 0.57 0.52 B 1ME3015-270MF 27 ±20% 0.730 0.949 0.45 0.48 B 1ME3015-330MF 33 ±20% 0.820 1.066 0.43 0.44 B 1ME3015-390MF 39 ±20% 0.995 1.294 0.39 0.41 B 1ME3015-430MF 43 ±20% 1.060 1.378 0.37 0.37 B 1ME3015-470MF 47 ±20% 1.250 1.625 0.35 0.35 B 1ME3015-560MF 56 ±20% 1.280 1.664 0.34 0.33 B 1ME3015-620MF 62 ±20% 1.610 2.093 0.30 0.30 B 1ME3015-680MF 68 ±20% 2.700 3.510 0.23 0.28 B 1ME4010-1R0NT 1.0 ±30% 0.0560.0671.902.00 B 1ME4010-1R5NT 1.5 ±30% 0.0700.084 1.70 1.68 B 1.10 B 0.95 B0.80 B 0.62 B 0.54 B 0.45 B 联系电话: 0755‐89455252QQ: 1654690110 自动化生产,物美价廉,完美替代太诱/顺络!欢迎广大同行前来调货!1ME4012-1R5NF 1.5 ±30% 0.0650.085 1.46 2.10 B 1ME4012-1R8NF 1.8 ±30% 0.0800.104 1.32 2.12 B 1ME4012-2R2NF 2.2 ±30% 0.0800.104 1.32 1.76 B 1ME4012-2R7NF 2.7 ±30% 0.0900.117 1.25 1.90 B 1ME4012-3R3NF 3.3 ±30% 0.110 0.143 1.12 1.72 B 1ME4012-3R6NF 3.6 ±30% 0.110 0.143 1.12 1.20 B 1ME4012-4R3NF 4.3 ±30% 0.140 0.182 1.00 1.58 B 1ME4012-4R7NF 4.7 ±30% 0.125 0.163 1.05 1.15 B 1ME4012-5R1NF 5.1 ±30% 0.155 0.202 0.95 1.55 B 1ME4012-5R6NF 5.6 ±30% 0.140 0.182 1.00 1.00 B 1ME4012-6R8MF 6.8 ±20% 0.198 0.257 0.84 0.85 B0.265 0.345 0.77 0.80 B 1ME4012-100MF 10 ±20%0.290 0.377 0.70 0.66 B 1ME4012-120MF 12 ±20%0.340 0.442 0.64 0.56 B 1ME4012-150MF 15 ±20%0.470 0.611 0.55 0.55 B 1ME4012-180MF 18 ±20%0.587 0.763 0.49 0.46 B 1ME4012-220MF 22 ±20%1ME4012-270MF 27 ±20%0.720 0.936 0.45 0.50 B0.810 1.053 0.42 0.42 B 1ME4012-330MF 33 ±20%1ME4012-360MF 36 ±20%0.900 1.170 0.40 0.40 B1.100 1.430 0.37 0.55 B 1ME4012-390MF 39 ±20%1.100 1.430 0.37 0.35 B 1ME4012-470MF 47 ±20%1.250 1.625 0.33 0.33 B 1ME4012-560MF 56 ±20%1.9502.535 0.27 0.38 B 1ME4012-680MF 68 ±20%2.140 2.782 0.26 0.28 B 1ME4012-820MF 82 ±20%2.210 2.873 0.25 0.25 B 1ME4012-101MF 100 ±20%1ME4018-1R0NF 1.0 ±30% 0.025 0.033 2.00 4.80 B 1ME4018-1R5NF 1.5 ±30% 0.030 0.039 1.80 3.35 B 1ME4018-2R2MF 2.2 ±20% 0.045 0.059 1.65 2.70 B 1ME4018-3R3MF 3.3 ±20% 0.070 0.091 1.23 2.45 B 1ME4018-4R7MF 4.7 ±20% 0.090 0.117 1.20 1.70 B 1ME4018-6R8MF 6.8 ±20% 0.110 0.143 1.06 1.45 B 1ME4018-100MF 10 ±20%0.180 0.234 0.84 1.30 B0.250 0.325 0.65 0.94 B 1ME4018-150MF 15 ±20%0.360 0.468 0.59 0.80 B 1ME4018-220MF 22 ±20%0.530 0.689 0.49 0.56 B 1ME4018-330MF 33 ±20%0.650 0.845 0.42 0.57 B 1ME4018-470MF 47 ±20%1.000 1.300 0.32 0.47 B 1ME4018-680MF 68 ±20%1.7502.275 0.25 0.40 B 1ME4018-101MF 100 ±20%2.5003.250 0.22 0.31 B 1ME4018-151MF 150 ±20%4.0005.200 0.17 0.27 B 1ME4018-221MF 220 ±20%0.029 0.038 2.15 4.78 B 1ME4020-1R0NF 1 ±30%1ME4020-1R2NF 1.2 ±30% 0.029 0.038 2.15 5.10 B 1ME4020-1R5NF 1.5 ±30% 0.035 0.046 1.98 4.45 B 1ME4020-2R2NF 2.2 ±30% 0.040 0.052 1.85 3.40 B 1ME4020-3R3MF 3.3 ±20% 0.070 0.091 1.40 3.20 B 1ME4020-3R6MF 3.6 ±20% 0.055 0.072 1.54 2.80 B 1ME4020-4R7MF 4.7 ±20% 0.075 0.098 1.34 2.35 B 1ME4020-5R1MF 5.1 ±20% 0.085 0.111 1.27 2.30 B 1ME4020-5R6MF 5.6 ±20% 0.090 0.117 1.22 2.20 B 1ME4020-6R2MF 6.2 ±20% 0.115 0.150 1.08 2.15 B 1ME4020-6R8MF 6.8 ±20% 0.125 0.163 1.04 2.20 B 1ME4020-7R5MF 7.5 ±20% 0.115 0.150 1.08 1.85 B 1ME4020-8R2MF 8.2 ±20% 0.125 0.163 1.04 1.75 B0.165 0.215 0.90 1.60 B 1ME4020-100MF 10 ±20%0.175 0.228 0.88 1.50 B 1ME4020-120MF 12 ±20%1ME4020-220MF 22 ±20% 0.350 0.455 0.62 1.05 B 1ME4020-270MF 27 ±20% 0.545 0.709 0.50 1.02 B 1ME4020-330MF 33 ±20% 0.550 0.715 0.49 0.85 B 1ME4020-390MF 39 ±20% 0.650 0.845 0.46 0.82 B 1ME4020-430MF 43 ±20% 0.660 0.858 0.45 0.77 B 1ME4020-470MF 47 ±20% 0.710 0.923 0.44 0.74 B 1ME4020-510MF 51 ±20% 0.750 0.975 0.42 0.70 B 1ME4020-560MF 56 ±20% 0.800 1.040 0.41 0.66 B 1ME4020-620MF 62 ±20% 0.900 1.170 0.39 0.65 B 1ME4020-680MF 68 ±20% 1.060 1.378 0.36 0.61 B 1ME4020-750MF 75 ±20% 1.160 1.508 0.35 0.70 B 1ME4020-820MF 82 ±20% 1.170 1.521 0.34 0.50 B 1ME4020-101MF 100 ±20% 1.550 2.015 0.31 0.48 B 1ME4026-1R2NF 1.2 ±30% 0.030 0.039 2.30 3.10 B 1ME4026-1R5NF 1.5 ±30% 0.030 0.039 2.30 2.40 B 1ME4026-2R2MF 2.2 ±20% 0.040 0.052 2.00 2.10 B 1ME4026-3R3MF 3.3 ±20% 0.050 0.065 1.70 1.80 B 1ME4026-4R7MF 4.7 ±20% 0.055 0.072 1.60 1.45 B 1ME4026-6R8MF 6.8 ±20% 0.065 0.085 1.50 1.30 B 1ME4026-100MF 10 ±20% 0.085 0.111 1.30 1.00 B 1ME4026-150MF 15 ±20% 0.110 0.143 1.10 0.90 B 1ME4026-220MF 22 ±20% 0.165 0.215 0.90 0.60 B 1ME4026-330MF 33 ±20% 0.270 0.351 0.70 0.55 B 1ME4026-470MF 47 ±20% 0.300 0.390 0.65 0.40 B 1ME4030-R91NF 0.91 ±30% 0.013 0.017 4.00 6.25 B 1ME4030-1R2NF 1.2 ±30% 0.015 0.020 3.82 5.80 B 1ME4030-1R5NF 1.5 ±30% 0.020 0.026 3.34 4.84 B 1ME4030-1R8NF 1.8 ±30% 0.028 0.036 3.00 4.80 B 1ME4030-2R2NF 2.2 ±30% 0.030 0.039 2.95 4.40 B 1ME4030-3R3MF 3.3 ±20% 0.040 0.052 2.40 3.30 B 1ME4030-4R3MF 4.3 ±20% 0.055 0.072 2.10 2.95 B 1ME4030-4R7MF 4.7 ±20% 0.060 0.078 2.00 2.90 B 1ME4030-5R6MF 5.6 ±20% 0.065 0.085 1.95 2.60 B 1ME4030-6R8MF 6.8 ±20% 0.090 0.117 1.60 2.75 B 1ME4030-7R5MF 7.5 ±20% 0.085 0.111 1.65 2.20 B 1ME4030-8R2MF 8.2 ±20% 0.090 0.117 1.60 2.10 B 1ME4030-100MF 10 ±20% 0.100 0.130 1.50 1.95 B 1ME4030-120MF 12 ±20% 0.135 0.176 1.30 1.70 B 1ME4030-150MF 15 ±20% 0.190 0.247 1.11 1.65 B 1ME4030-180MF 18 ±20% 0.200 0.260 1.10 1.40 B 1ME4030-220MF 22 ±20% 0.225 0.293 1.00 1.30 B 1ME4030-330MF 33 ±20% 0.330 0.429 0.84 1.10 B 1ME4030-360MF 36 ±20% 0.335 0.436 0.83 1.05 B 1ME4030-390MF 39 ±20% 0.435 0.566 0.73 1.03 B 1ME4030-470MF 47 ±20% 0.445 0.579 0.72 0.95 B 1ME4030-510MF 51 ±20% 0.470 0.611 0.70 0.90 B 1ME4030-560MF 56 ±20% 0.555 0.722 0.65 0.85 B 1ME4030-620MF 62 ±20% 0.585 0.761 0.63 0.80 B 1ME4030-680MF 68 ±20% 0.868 1.128 0.52 0.72 B 1ME4030-750MF 75 ±20% 1.020 1.326 0.48 0.70 B 0.65 B 0.60 B0.55 B4.40 C 3.70 C 联系电话: 0755‐89455252QQ: 1654690110 自动化生产,物美价廉,完美替代太诱/顺络1ME5012-4R7NF 4.7 ±30% 0.164 0.213 1.50 2.20 C1ME5012-6R8MF 6.8 ±20% 0.245 0.319 1.25 1.75 C0.3440.447 1.05 1.40 C 1ME5012-100MF 10 ±20%0.567 0.92 1.25 C0.4361ME5012-150MF 15 ±20%1ME5020-R47NF 0.47 ±30% 0.013 0.017 4.60 6.15 C1ME5020-R75NF 0.75 ±30% 0.017 0.022 4.00 5.50 C1ME5020-1R0NF 1.0 ±30% 0.020 0.026 3.80 4.10 C1ME5020-1R2NF 1.2 ±30% 0.022 0.029 3.55 4.50 C1ME5020-1R5NF 1.5 ±30% 0.026 0.034 3.20 4.10 C1ME5020-2R2NF 2.2 ±30% 0.032 0.042 2.90 3.20 C1ME5020-2R7NF 2.7 ±30% 0.038 0.049 2.70 2.90 C1ME5020-3R0NF 3.0 ±30% 0.038 0.049 2.70 2.55 C1ME5020-3R3NF 3.3 ±30% 0.043 0.056 2.50 2.55 C1ME5020-3R6NF 3.6 ±30% 0.043 0.056 2.50 2.80 C1ME5020-3R9NF 3.9 ±30% 0.043 0.056 2.50 2.30 C1ME5020-4R3MF 4.3 ±20% 0.057 0.074 2.20 2.50 C1ME5020-4R7MF 4.7 ±20% 0.057 0.074 2.20 2.50 C1ME5020-5R1MF 5.1 ±20% 0.064 0.083 2.05 2.25 C1ME5020-5R6MF 5.6 ±20% 0.064 0.083 2.05 2.30 C1ME5020-6R8MF 6.8 ±20% 0.083 0.108 1.80 2.05 C1ME5020-7R5MF 7.5 ±20% 0.090 0.117 1.75 1.85 C1ME5020-8R2MF 8.2 ±20% 0.098 0.127 1.65 1.85 C1ME5020-9R1MF 9.1 ±20% 0.110 0.143 1.55 1.70 C0.1100.143 1.55 1.70 C 1ME5020-100MF 10 ±20%0.182 1.40 1.50 C0.1401ME5020-120MF 12 ±20%0.215 1.25 1.35 C0.1651ME5020-150MF 15 ±20%0.260 1.15 1.25 C0.2001ME5020-180MF 18 ±20%0.294 1.10 1.15 C0.2261ME5020-220MF 22 ±20%1ME5040-1R0NF 1.0 ±30% 0.012 0.016 4.90 7.35 C1ME5040-1R5NF 1.5 ±30% 0.015 0.020 4.30 6.30 C1ME5040-2R2NF 2.2 ±30% 0.019 0.025 3.80 4.90 C1ME5040-2R7NF 2.7 ±30% 0.022 0.029 3.60 4.30 C1ME5040-3R3NF 3.3 ±30% 0.024 0.031 3.40 3.95 C1ME5040-3R9NF 3.9 ±30% 0.027 0.035 3.20 3.55 C1ME5040-4R7NF 4.7 ±30% 0.030 0.039 3.00 3.50 C1ME5040-6R8MF 6.8 ±20% 0.043 0.056 2.50 2.90 C0.083 2.10 2.35 C 1ME5040-100MF 10 ±20%0.0640.0860.112 2.00 2.00 C 1ME5040-150MF 15 ±20%0.168 1.50 1.60 C0.1291ME5040-220MF 22 ±20%0.1880.244 1.20 1.30 C 1ME5040-330MF 33 ±20%0.354 1.00 1.10 C0.2721ME5040-470MF 47 ±20%0.520 0.80 0.90 C 1ME5040-680MF 68 ±20%0.4000.560 0.728 0.70 0.75 C 1ME5040-101MF 100 ±20%1ME6020-R50NF 0.50 ±30% 0.014 0.018 3.30 4.50 B1ME6020-R68NF 0.68 ±30% 0.017 0.022 3.80 6.55 B1ME6020-R82NF 0.82 ±30% 0.017 0.022 3.80 5.30 B1ME6020-1R0NF 1.0 ±30% 0.020 0.026 3.50 4.15 B1ME6020-1R2NF 1.2 ±30% 0.022 0.029 3.20 5.90 B1ME6020-1R5NF 1.5 ±30% 0.022 0.029 3.20 4.25 B1ME6020-1R8NF 1.8 ±30% 0.028 0.036 2.75 4.85 B1ME6020-2R0NF 2.0 ±30% 0.035 0.046 2.60 4.10 B1ME6020-2R2NF 2.2 ±30% 0.028 0.036 3.75 3.75 B1ME6020-2R7NF 2.7 ±30% 0.035 0.046 2.60 3.90 B1ME6020-3R3NF 3.3 ±30% 0.035 0.046 2.60 3.15 B1ME6020-3R9NF 3.9 ±30% 0.049 0.064 2.10 3.25 B1ME6020-5R6NF 5.6 ±30% 0.058 0.075 1.90 2.40 B 1ME6020-6R2NF 6.2 ±30% 0.079 0.103 1.80 2.30 B 1ME6020-6R8NF 6.8 ±30% 0.079 0.103 1.80 2.20 B 1ME6020-8R2NF 8.2 ±30% 0.105 0.137 1.40 2.10 B 1ME6020-100MF 10 ±20% 0.105 0.137 1.40 1.75 B 1ME6020-120MF 12 ±20% 0.120 0.156 1.30 1.45 B 1ME6020-150MF 15 ±20% 0.145 0.189 1.20 1.20 B 1ME6020-180MF 18 ±20% 0.180 0.234 1.08 1.20 B 1ME6020-220MF 22 ±20% 0.204 0.265 1.00 1.05 B 1ME6028-1R0NF 1.0 ±30% 0.010 0.013 5.20 5.75 B 1ME6028-1R5NF 1.5 ±30% 0.013 0.017 4.58 6.00 B 1ME6028-2R2NF 2.2 ±30% 0.020 0.026 3.75 5.10 B 1ME6028-2R7NF 2.7 ±30% 0.020 0.026 3.75 3.80 B 1ME6028-3R3NF 3.3 ±30% 0.025 0.033 3.48 4.15 B 1ME6028-4R7NF 4.7 ±30% 0.030 0.039 3.08 3.00 B 1ME6028-5R1NF 5.1 ±30% 0.043 0.056 2.60 3.20 B 1ME6028-6R2MF 6.2 ±20% 0.047 0.061 2.40 3.05 B 1ME6028-6R8MF 6.8 ±20% 0.047 0.061 2.40 2.60 B 1ME6028-8R2MF 8.2 ±20% 0.055 0.072 2.25 2.30 B 1ME6028-9R1MF 9.1 ±20% 0.074 0.096 2.15 2.55 B 1ME6028-100MF 10 ±20% 0.072 0.094 1.95 2.04 B 1ME6028-120MF 12 ±20% 0.080 0.104 1.85 1.80 B 1ME6028-150MF 15 ±20% 0.125 0.163 1.45 1.75 B 1ME6028-180MF 18 ±20% 0.120 0.156 1.45 1.52 B 1ME6028-220MF 22 ±20% 0.140 0.182 1.40 1.45 B 1ME6028-270MF 27 ±20% 0.155 0.202 1.32 1.50 B 1ME6028-330MF 33 ±20% 0.185 0.241 1.22 1.35 B 1ME6028-360MF 36 ±20% 0.215 0.280 1.13 1.25 B 1ME6028-390MF 39 ±20% 0.225 0.293 1.10 1.25 B 1ME6028-470MF 47 ±20% 0.315 0.410 1.06 1.15 B 1ME6028-680MF 68 ±20% 0.360 0.4680.86 0.90B 1ME6028-750MF 75 ±20% 0.410 0.533 0.81 0.90 B 1ME6028-820MF 82 ±20% 0.500 0.650 0.70 0.80 B 1ME6028-101MF 100 ±20% 0.500 0.650 0.70 0.65 B 1ME6045-R82NF 0.82 ±30% 0.008 0.010 5.90 10.40 B 1ME6045-1R0NF 1.00 ±30% 0.011 0.014 5.14 9.85 B 1ME6045-1R2NF 1.20 ±30% 0.010 0.013 5.40 8.35 B 1ME6045-1R5NF 1.50 ±30% 0.012 0.016 4.95 8.80 B 1ME6045-1R8NF 1.80 ±30% 0.012 0.016 4.95 7.60 B 1ME6045-2R2NF 2.20 ±30% 0.014 0.018 4.60 6.75 B 1ME6045-2R3NF 2.30 ±30% 0.021 0.027 3.50 6.00 B 1ME6045-2R7NF 2.70 ±30% 0.015 0.020 4.30 5.75 B 1ME6045-3R0NF 3.00 ±30% 0.020 0.026 3.80 5.60 B 1ME6045-3R3NF 3.30 ±30% 0.021 0.027 3.70 5.90 B 1ME6045-3R6NF 3.60 ±30% 0.021 0.027 3.70 5.25 B 1ME6045-4R3MF 4.30 ±20% 0.023 0.030 3.50 4.45 B 1ME6045-4R7MF 4.70 ±20% 0.026 0.034 3.30 4.97 B 1ME6045-5R1MF 5.10 ±20% 0.026 0.034 3.30 4.40 B 1ME6045-5R6MF 5.60 ±20% 0.029 0.038 3.15 4.15 B 1ME6045-6R2MF 6.20 ±20% 0.031 0.040 3.00 4.43B1ME6045-6R8MF 6.80 ±20% 0.031 0.040 3.00 3.90 B 1ME6045-7R5MF 7.50 ±20% 0.034 0.044 2.90 3.50 B 1ME6045-8R2MF 8.20 ±20% 0.043 0.056 2.60 3.90 B1ME6045-9R1MF 9.10 ±20% 0.043 0.056 2.60 3.35 B1ME6045-100MF 10.0 ±20% 0.048 0.062 2.453.20 B联系电话: 0755‐89455252 QQ: 1654690110 自动化生产,物美价廉,完美替代太诱/顺络! 欢迎广大同行前来调货!1ME6045-180MF 18.0 ±20% 0.081 0.105 1.85 2.20 B 1ME6045-220MF 22.0 ±20% 0.089 0.116 1.80 2.05 B 1ME6045-270MF 27.0 ±20% 0.102 0.133 1.65 1.90 B 1ME6045-300MF 30.0 ±20% 0.132 0.172 1.50 1.70 B 1ME6045-330MF 33.0 ±20% 0.137 0.178 1.45 1.65 B 1ME6045-360MF 36.0 ±20% 0.173 0.225 1.40 1.62 B 1ME6045-390MF 39.0 ±20% 0.180 0.234 1.25 1.50 B 1ME6045-430MF 43.0 ±20% 0.200 0.260 1.20 1.63 B 1ME6045-470MF 47.0 ±20% 0.200 0.260 1.20 1.40 B 1ME6045-510MF 51.0 ±20% 0.207 0.269 1.15 1.35 B 1ME6045-560MF 56.0 ±20% 0.221 0.287 1.10 1.30 B 1ME6045-620MF 62.0 ±20% 0.235 0.306 1.10 1.25 B 1ME6045-680MF 68.0 ±20% 0.289 0.376 1.00 1.20 B 1ME6045-750MF 75.0 ±20% 0.305 0.397 0.95 1.15 B 1ME6045-820MF 82.0 ±20% 0.341 0.443 0.90 1.05 B 1ME6045-910MF 91.0 ±20% 0.359 0.467 0.85 1.00 B 1ME6045-101MF 100.0 ±20% 0.433 0.563 0.80 0.95 B 1ME6045-121MF 120.0 ±20% 0.484 0.629 0.77 0.85 B1ME6045-151MF 150.0 ±20% 0.580 0.754 0.70 0.80 B 1ME6045-221MF 220.0 ±20% 0.834 1.084 0.59 0.70 B 1ME6045-331MF 330.0 ±20% 1.270 1.651 0.57 0.57 B 1ME8040-R82NF 0.82 ±30% 0.008 0.010 6.30 13.80 B 1ME8040-1R0NF 1.00 ±30% 0.008 0.010 6.30 9.85 B 1ME8040-1R5NF 1.50 ±30% 0.010 0.013 5.65 8.15 B 1ME8040-2R0NF 2.00 ±30% 0.012 0.016 5.15 9.25 B 1ME8040-2R2NF 2.20 ±30% 0.012 0.016 5.15 7.10 B 1ME8040-3R0NF 3.00 ±30% 0.014 0.018 4.70 6.10 B 1ME8040-3R3NF 3.30 ±30% 0.017 0.022 4.40 6.50 B 1ME8040-3R6NF 3.60 ±30% 0.017 0.022 4.35 7.52 B 1ME8040-3R9NF 3.90 ±30% 0.017 0.022 4.35 5.75 B 1ME8040-4R7NF 4.70 ±30% 0.019 0.025 4.10 5.90 B 1ME8040-5R1NF 5.10 ±30% 0.019 0.025 4.05 4.70 B 1ME8040-5R6NF 5.60 ±30% 0.021 0.027 3.85 6.00 B 1ME8040-6R2NF 6.20 ±30% 0.021 0.027 3.85 4.45 B 1ME8040-6R8MF 6.80 ±20% 0.024 0.031 3.60 4.55 B 1ME8040-8R2MF 8.20 ±20% 0.026 0.034 3.45 4.20 B 1ME8040-100MF 10.0 ±20% 0.029 0.038 3.30 3.60 B 1ME8040-150MF 15.0 ±20% 0.047 0.061 2.60 2.95 B 1ME8040-180MF 18.0 ±20% 0.053 0.069 2.40 2.70 B 1ME8040-220MF 22.0 ±20% 0.069 0.090 2.10 2.40 B 1ME8040-270MF 27.0 ±20% 0.078 0.101 2.00 2.15 B 1ME8040-330MF 33.0 ±20% 0.097 0.126 1.80 2.05 B 1ME8040-360MF 36.0 ±20% 0.102 0.133 1.75 2.00 B 1ME8040-390MF 39.0 ±20% 0.107 0.139 1.70 1.95 B 1ME8040-430MF 43.0 ±20% 0.113 0.147 1.65 1.90 B 1ME8040-470MF 47.0 ±20% 0.136 0.177 1.55 1.75 B 1ME8040-510MF 51.0 ±20% 0.142 0.185 1.50 1.70 B 1ME8040-560MF 56.0 ±20% 0.148 0.192 1.45 1.55 B 1ME8040-620MF 62.0 ±20% 0.182 0.237 1.30 1.50 B 1ME8040-680MF 68.0 ±20% 0.196 0.255 1.25 1.45 B 1ME8040-750MF 75.0 ±20% 0.211 0.274 1.20 1.35 B 1ME8040-820MF 82.0 ±20% 0.225 0.293 1.15 1.30 B 1ME8040-910MF 91.0 ±20% 0.272 0.354 1.05 1.20 B 1ME8040-101MF 100.0 ±20% 0.290 0.377 1.00 1.15 B 1ME8040-121MF 120.0 ±20% 0.334 0.434 0.95 1.05 B1ME8040-221MF 220.0 ±20% 0.599 0.779 0.80 0.85 B 1ME8040-331MF 330.0 ±20% 0.889 1.156 0.64 0.68 B1. Inductance measured @ 100KHz, 0.3V at 25°C temperature.2. DCR measured @ 25°C.3. Irms for an approximate 40°C rise from 20°C ambient temperature.4. Isat for approximate 30% roll off at 25°C.5. Specifications subject to change without notice please check our website for latest information.E TAPE AND REEL SPECIFICATIONS220Case Size Parts per ReelReel Dimensions(REF)Tape Dimensions(REF)ABCDEW P P 0P1H T 1ME252010 2000 178 58 13 13 9.08442 1.20.31ME252012 2000 178 58 13 13 9.08442 1.40.31ME3010 2000 178 58 13 13 9.08442 1.40.31ME3012 2000 178 58 13 13 9.08442 1.60.31ME3015 2000 178 58 13 13 9.08442 1.90.31ME4010 4500 330 100 13 19 12.412842 1.60.31ME4012 4500 330 100 13 19 12.412842 1.60.31ME4018 3000 330 100 13 19 12.412842 2.40.31ME4020 3000 330 100 13 19 12.412842 2.40.31ME4026 2000 330 100 13 19 12.412842 3.40.31ME4030 2000 330 100 13 19 12.412842 3.40.31ME5012 4000 330 100 13 22 12.412842 1.60.31ME5020 2500 330 100 13 22 12.412842 3.00.31ME5040 1500 330 100 13 22 12.412842 4.40.31ME6020 2500 330 100 13 22 12.412842 2.50.41ME6028 2000 330 100 13 19 12.412842 3.30.41ME6045 1500 330 100 13 19 12.412842 4.70.41ME80401000330 100 13 22 16.41612424.40.4联系电话: 0755‐89455252 QQ: 1654690110自动化生产,物美价廉,完美替代太诱/顺络! 欢迎广大同行前来调货!1ME SeriesLow Profile Shielded Power InductorAccetek Electronics (Shenzhen) Co., Ltd. Ver.:1ME ‐2012BAccetekF RECOMMENDED SOLDER REFLOW PROFILEProfile Feature Recommended Conditions Average ramp-up rate 3°C/second max. (Tsmax to Tp)PreheatTemperature Min (Ts min ) 100°C Temperature Max (Ts max ) 150°CTime (Ts min to Ts max )(ts) 60-180 seconds Time maintained above:Temperature (T L ) 217°C Time (t L ) 60-150 secondsPeak Temperature (Tp)See Table2Time within 5°C of actual Peak20-40 seconds Temperature (tp)2Ramp-down Rate6°C/second max.Time 25°C to Peak Temperature8 minutes maxPackage Volume mm 3Volume mm 3 Volume mm 3Thickness <350350 - 2000>2000< 1.6mm 260°C 260°C 260°C 1.6mm - 2.5mm260°C 250°C 245°C>2.5mm 250°C 245°C 245°CTable 2Table 11. The above profiles are based on IPC/JEDEC J-STD-020C.2. Exceeding these conditions may cause lowered product reliability.联系电话: 0755‐89455252QQ: 1654690110自动化生产,物美价廉,完美替代太诱/顺络! 欢迎广大同行前来调货!。

LQH2MCN220K02#“#”处为包装规格代号。

＜品名（附包装代号）一览＞
LQH2MCN220K02L、　LQH2MCN220K02B
形状
尺寸 2.0 ±0.2mm
规格
备注事项
Notice (Rated Current)
When Rated Current is applied to the Products, self-generation of heat will rise to
40℃ or less.
参考信息
在1 / 2页
1.　本目录是从株式会社村田制作所网站中下载的。

规格若有变更，或若其中产品停产，请在订购时确认，恕不另行通知。

2.　本目录因没有足够的空间说明详细规格，仅载明标准规格。

因此，在订购产品之前，谨请核准其规格或者办理产品规格表。

URL : /
作成日期：2013/06/27
电感徝-频率特性(标准值)
电感徝-电流特性(标准值)
在2 /
2页
作成日期：2013/06/27本目录因没有足够的空间说明详细规格，仅载明标准规格。

因此，在订购产品之前，谨请核准其规格或者办理产品规格表。

Multilayer Chip Ceramic Inductor – SDCL-D SeriesOperating Temp. : SDCL1005 series: -55℃~+125℃SDCL1608 series: -40℃~+85℃FEATURES●Monolithic structure for high reliability● High self-resonant frequency● Excellent solderability and high heat resistanceAPPLICATIONS●RF circuit in telecommunication and other equipmentsPRODUCT IDENTIFICATIONSHAPE AND DIMENSIONSUnit: mm [inch]Type L W T a SDCL1005[0402]1.0±0.15 [.039±.006]0.5±0.15 [.020±.006]0.5±0.15 [.020±.006]0.25±0.1 [.010±.004]Fig.1SDCL1608 [0603] 1.6±0.15 [.063±.006]0.8±0.15 [.031±.006]0.8±0.15 [.031±.006] 0.3±0.2 [.012±.008]Fig.21.65±0.15 [.065±.006]②External Dimensions (L×W) (mm)1005 [0402] 1.0×0.5 1608 [0603] 1.6×0.8 ① TypeSDCL Chip Ceramic Inductor③ Material Code C ④ Nominal InductanceExample Nominal Value 3N9 3.9nH 10N 10nH R10 100nH※R=小数点，N=nH ⑤Inductance Tolerance S ±0.3nH J ±5%K ±10% ⑥Packing T Tape & Reel⑧Hazardous Substance Free ProductsFSDCL ① 1608② C ③ 10N ④ J ⑤ T⑥ D ⑦ F ⑧ ⑦ Internal Code DFig.1Fig.2规格特性 SPECIFICATIONSSDCL1005-D SeriesPart NumberInductanceMin.QualityFactor L,Q Test Freq. L/Q Typical Q @ Freq. (MHz)Min.Self-resonantFrequency Max. DCResistanceMax. Rated Current1008001000Units nH - MHz - MHz Ω mA Symbol L Q Freq Q S.R.F DCR IrSDCL1005C1N0STDF 1.0±0.3 8 100 11 34 36 10000 0.10 400 SDCL1005C1N1STDF 1.1±0.3 8 100 11 34 36 10000 0.10 400 SDCL1005C1N2STDF 1.2±0.3 8 100 11 34 36 10000 0.10 400 SDCL1005C1N3STDF 1.3±0.3 8 100 11 34 36 10000 0.10 400 SDCL1005C1N5STDF 1.5±0.3 8 100 11 34 36 6000 0.10 300 SDCL1005C1N6STDF 1.6±0.3 8 100 11 32 35 6000 0.10 300 SDCL1005C1N8STDF 1.8±0.3 8 100 11 30 34 6000 0.10 300 SDCL1005C2N0STDF 2.0±0.3 8 100 10 29 33 6000 0.20 300 SDCL1005C2N2STDF 2.2±0.3 8 100 10 29 33 6000 0.20 300 SDCL1005C2N4STDF 2.4±0.3 8 100 10 29 32 6000 0.20 300 SDCL1005C2N7STDF 2.7±0.3 8 100 10 29 32 6000 0.20 300 SDCL1005C3N0STDF 3.0±0.3 8 100 10 29 32 6000 0.20 300 SDCL1005C3N3STDF 3.3±0.3 8 100 10 29 32 6000 0.20 300 SDCL1005C3N6STDF 3.6±0.3 8 100 10 28 31 4000 0.20 300 SDCL1005C3N9STDF 3.9±0.3 8 100 10 28 31 4000 0.20 300 SDCL1005C4N3STDF 4.3±0.3 8 100 10 28 31 4000 0.20 300 SDCL1005C4N7STDF 4.7±0.3 8 100 10 28 31 4000 0.20 300 SDCL1005C5N1STDF 5.1±0.3 8 100 10 28 30 4000 0.30 300 SDCL1005C5N6STDF 5.6±0.3 8 100 10 28 30 4000 0.30 300 SDCL1005C6N2STDF 6.2±0.3 8 100 10 27 30 3900 0.30 300 SDCL1005C6N8□TDF 6.8 8 100 10 27 30 3900 0.30 300 SDCL1005C7N5□TDF 7.5 8 100 10 27 30 3700 0.40 300 SDCL1005C8N2□TDF 8.2 8 100 10 27 30 3600 0.40 300 SDCL1005C9N1□TDF 9.1 8 100 10 27 30 3400 0.40 300 SDCL1005C10N □TDF 10 8 100 10 27 30 3200 0.40 300 SDCL1005C12N □TDF 12 8 100 10 26 29 2700 0.50 300 SDCL1005C15N □TDF 15 8 100 10 26 28 2300 0.50 300 SDCL1005C18N □TDF 18 8 100 10 25 27 2100 0.60 300 SDCL1005C20N □TDF 20 8 100 10 25 26 2000 0.60 300 SDCL1005C22N □TDF 22 8 100 10 25 25 1900 0.60 300 SDCL1005C27N □TDF 27 8 100 10 25 23 1600 0.70 300 SDCL1005C33N □TDF 33 8 100 10 22 22 1300 0.80 200 SDCL1005C39N □TDF 39 8 100 10 22 19 1200 1.00 200 SDCL1005C43N □TDF 43 8 100 10 21 16 1100 1.10 200 SDCL1005C47N □TDF 47 8 100 10 21 16 1000 1.10 200 SDCL1005C56N □TDF 56 8 100 10 18 13 750 1.20 200 SDCL1005C68N □TDF 68 8 100 10 18 9 750 1.40 180 SDCL1005C82N □TDF 82 8 100 10 13 - 750 2.40 150 SDCL1005CR10□TDF 100 8 100 10 12 - 700 2.60 150SDCL1005CR12□TDF 120 8 100 10 - - 600 2.80 150SDCL1005CR15□TDF 150 8 100 10 - - 550 3.20 100 SDCL1005CR18□TDF 180 8 100 10 - - 500 3.70 100 SDCL1005CR22□TDF 220 8 100 12 - - 450 4.00 100 SDCL1005CR27□TDF 270 8 100 12 - - 400 4.50 100 SDCL1005CR30□TDF 300 6 50 12 - - 350 7.00 50 SDCL1005CR33□TDF 330 6 50 8 - - 350 7.00 50 SDCL1005CR36□TDF 360 6 50 8 - - 300 7.50 50※□: Please specify the inductance tolerance code (J=±5%, K=±10%). The product with tolerance less than ±5%, ±10% is also available. Please contact your local sales.SPECIFICATIONS SDCL1608-D SeriesPart Number InductanceMin.QualityFactorL,Q TestFreq.L/Q Typical Q @ Freq. (MHz)Min.Self-resonantFrequencyMax. DCResistanceMax.RatedCurrent 100800 1000Units nH - MHz - MHz ΩmASymbol L Q Freq Q S.R.F DCR IrSDCL1608C1N0STDF 1.0±0.3 8 100 13 70 80 10000 0.05 500 SDCL1608C1N2STDF 1.2±0.3 8 100 13 60 70 10000 0.05 500 SDCL1608C1N5STDF 1.5±0.3 8 100 13 47 68 6000 0.10 500 SDCL1608C1N8STDF 1.8±0.3 8 100 13 45 61 6000 0.10 500 SDCL1608C2N2STDF 2.2±0.3 8 100 13 45 60 6000 0.10 500 SDCL1608C2N7STDF 2.7±0.3 10 100 13 44 55 6000 0.12 500 SDCL1608C3N3STDF 3.3±0.3 10 100 13 43 50 6000 0.15 500 SDCL1608C3N9STDF 3.9±0.3 10 100 13 43 50 6000 0.16 500 SDCL1608C4N7STDF 4.7±0.3 10 100 13 43 50 6000 0.20 500 SDCL1608C5N6STDF 5.6±0.3 10 100 14 42 48 5000 0.25 500 SDCL1608C6N8□TDF 6.8 10 100 1443 50 5000 0.30 500 SDCL1608C8N2□TDF 8.2 10 100 1443 48 4500 0.35 500 SDCL1608C10N□TDF 10 12 100154550 3500 0.40 300 SDCL1608C12N□TDF 12 12 100184850 3000 0.45 300 SDCL1608C15N□TDF 15 12 100184850 2300 0.50 300 SDCL1608C18N□TDF 18 12 100164851 2200 0.55 300 SDCL1608C22N□TDF 22 12 100164548 2000 0.60 300 SDCL1608C27N□TDF 27 12 100164545 1700 0.65 300 SDCL1608C33N□TDF 33 12 100164541 1500 0.70 300 SDCL1608C39N□TDF 39 12 100174048 1400 0.70 300 SDCL1608C47N□TDF 47 12 100173535 1200 0.70 300 SDCL1608C56N□TDF 56 12 100173530 1100 0.75 300 SDCL1608C68N□TDF 68 12 100173020 900 0.85 300 SDCL1608C82N□TDF 82 8 1001522 - 800 1.00 300 SDCL1608CR10□TDF 100 8 1001516 - 700 1.20 300 SDCL1608CR12□TDF* 120 8 50 15 - - 600 1.40 200 SDCL1608CR15□TDF* 150 8 50 15 - - 500 1.60 200 SDCL1608CR18□TDF* 180 8 50 15 - - 400 1.90 200 SDCL1608CR22□TDF* 220 8 50 15 - - 350 2.40 200 SDCL1608CR27□TDF* 270 8 50 16 - - 350 2.60 150 SDCL1608CR33□TDF* 330 8 50 16 - - 350 2.80 150 SDCL1608CR39□TDF* 390 8 50 16 - - 300 3.20 150 SDCL1608CR43□TDF* 430 8 50 16 - - 280 3.40 150 SDCL1608CR47□TDF* 470 8 50 15 - - 250 3.60 150 SDCL1608CR56□TDF* 560 8 50 15 - - 250 4.00 100 SDCL1608CR68□TDF* 680 8 50 15 - - 250 4.50 100※□: Please specify the inductance tolerance code (J=±5%, K=±10%). The product with tolerance less than ±5%, ±10% is also available. Please contact your local sales.※*: The length: 1.65±0.15mm, for others: 1.60±0.15mm.TYPICAL ELECTRICAL CHARACTERISTICSSDCL1005-D TYPE SDCL1005-D TYPEFrequency(MHz)110I n d u c t a n c e (n H )Frequency(MHz)QSDCL1608-D TYPE SDCL1608-D TYPEFrequency(MHz)110I n d u c t a n c e (n H )Frequency(MHz)Q。

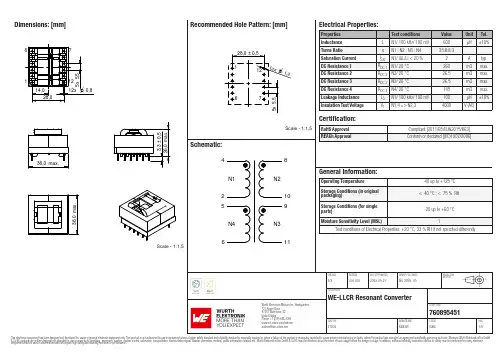

Dimensions: [mm]Scale - 1:1,5760895451760895451T e m p e r a t u r eT T T 760895451Cautions and Warnings:The following conditions apply to all goods within the product series of WE-LLCR ofWürth Elektronik eiSos GmbH & Co. KG:General:•This electronic component is designed and manufactured for use in general electronic equipment.•Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network, etc. where higher safety and reliability are especially required and/or if there is the possibility of direct damage or human injury.•Electronic components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer. •The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions specified in the datasheet are not met, the wire insulation may be damaged or dissolved.•Do not drop or impact the components, as the component may be damaged.•Würth Elektronik products are qualified according to international standards, which are listed in each product reliability report. Würth Elektronik does not warrant any customer qualified product characteristics beyond Würth Elektronik’s specifications, for its validity and sustainability over time.•The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the authority of the customer. All technical specifications for standard products also apply to customer specific products.Product specific:Soldering:•The solder profile must comply with the technical product specifications. All other profiles will void the warranty.•All other soldering methods are at the customers’ own risk.Cleaning and Washing:•Washing agents used during the production to clean the customer application might damage or change the characteristics of the wire insulation, marking or plating. Washing agents may have a negative effect on the long-term functionality of the product. Potting:•If the product is potted in the customer application, the potting material might shrink or expand during and after hardening. Shrinking could lead to an incomplete seal, allowing contaminants into the core. Expansion could damage the component. We recommend a manual inspection after potting to avoid these effects.Storage Conditions:• A storage of Würth Elektronik products for longer than 12 months is not recommended. Within other effects, the terminals may suffer degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of shipment.•Do not expose the components to direct sunlight.•The storage conditions in the original packaging are defined according to DIN EN 61760-2.•The storage conditions stated in the original packaging apply to the storage time and not to the transportation time of the components. Packaging:•The packaging specifications apply only to purchase orders comprising whole packaging units. If the ordered quantity exceeds or is lower than the specified packaging unit, packaging in accordance with the packaging specifications cannot be ensured. Handling:•Violation of the technical product specifications such as exceeding the nominal rated current will void the warranty.•Applying currents with audio-frequency signals may result in audible noise due to the magnetostrictive material properties.•Due to heavy weight of the components, strong forces and high accelerations may have the effect to damage the electrical connection or to harm the circuit board and will void the warranty.•The temperature rise of the component must be taken into consideration. The operating temperature is comprised of ambient temperature and temperature rise of the component.The operating temperature of the component shall not exceed the maximum temperature specified.These cautions and warnings comply with the state of the scientific and technical knowledge and are believed to be accurate and reliable.However, no responsibility is assumed for inaccuracies or incompleteness.Wurth Electronics Midcom Inc. Headquarters121 Airport Drive57201 Watertown, SDUnited StatesPhone: +1 (605) 886-4385CHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODEOl001.0032023-08-21ISO 2768-1mDESCRIPTIONWE-LLCR Resonant ConverterORDER CODE760895451SIZE/TYPE BUSINESS UNIT STATUS PAGEImportant NotesThe following conditions apply to all goods within the product range of Würth Elektronik eiSos GmbH & Co. KG:1. General Customer ResponsibilitySome goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the areas, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The responsibility for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product characteristics described in the product specification is valid and suitable for the respective customer application or not.2. Customer Responsibility related to Specific, in particular Safety-Relevant ApplicationsIt has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime cannot be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications.In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic component. Therefore, customer is cautioned to verify that data sheets are current before placing orders. The current data sheets can be downloaded at .3. Best Care and AttentionAny product-specific notes, cautions and warnings must be strictly observed. Any disregard will result in the loss of warranty.4. Customer Support for Product SpecificationsSome products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve specific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales person in charge should be contacted who will be happy to support in this matter.5. Product R&DDue to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the customer as per Section 1 and 2 remains unaffected.6. Product Life CycleDue to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a standard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product availability expectancy before or when the product for application design-in disposal is considered. The approach named above does not apply in the case of individual agreements deviating from the foregoing for customer-specific products.7. Property RightsAll the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth Elektronik eiSos GmbH & Co. KG. Würth Elektronik eiSos GmbH & Co. KG does not warrant or represent that any license, either expressed or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, application, or process in which Würth Elektronik eiSos GmbH & Co. KG components or services are used.8. General Terms and ConditionsUnless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth Elektronik eiSos Group”, last version available at .Wurth Electronics Midcom Inc. Headquarters121 Airport Drive57201 Watertown, SDUnited StatesPhone: +1 (605) 886-4385CHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODEOl001.0032023-08-21ISO 2768-1mDESCRIPTIONWE-LLCR Resonant ConverterORDER CODE760895451SIZE/TYPE BUSINESS UNIT STATUS PAGE。

0810工字电感规格书
0810工字电感是电子电路中常用的元件之一，主要用于信号的传输和滤波。

它的规格书主要包括以下内容：
1、型号：0810工字电感的型号为“0810”，其中“08”表示电感量，“10”表示电感的高度。

2、电感量：0810工字电感的电感量范围为100nH至10mH，其中最常见的是100nH至1uH。

电感量是衡量电感性能的重要参数之一，它决定了电感对信号的阻碍程度。

3、电阻值：0810工字电感的电阻值范围为1至100欧姆，其中最常见的是1至10欧姆。

电阻值是衡量电感内阻的重要参数之一，它决定了电感在信号传输过程中的能量损耗。

4、温度系数：0810工字电感的温度系数范围为±10%至±20%，其中最常见的是±15%。

温度系数是衡量电感性能稳定性的重要参数之一，它决定了电感在不同温度下的性能变化情况。

5、封装尺寸：0810工字电感的封装尺寸为长×宽×高=8mm×1.0mm×10mm，其中“1.0”表示电感的宽度，“10”表示电感的高度。

封装尺寸是衡量电感安装空间的重要参数之一，它决定了电感在电路板上的占用空间大小。

6、工作温度：0810工字电感的工作温度范围为-55℃至+125℃，其中最常见的是-40℃至+85℃。

工作温度是衡量电感工作环境的重要参数之一，它决定了电感在工作过程中的稳定性。

7、品质因数：0810工字电感的品质因数范围为5至50，其中最常见的是5至20。

品质因数是衡量电感性能的重要参数之一，它决定了电感在信号传输过程中的信号质量。

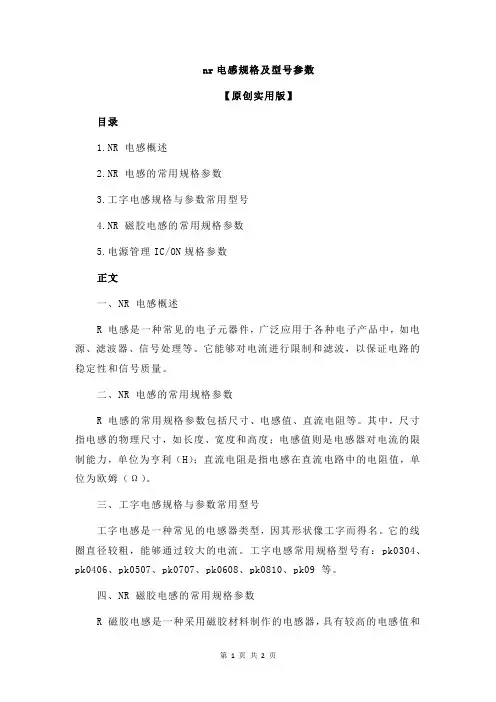

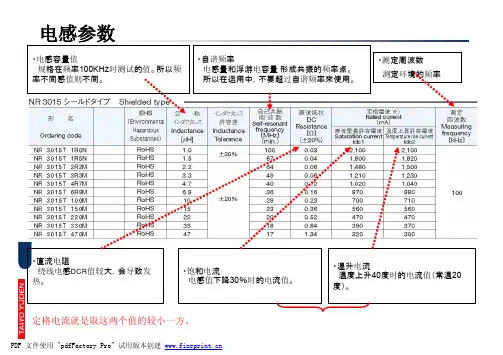

nr电感规格及型号参数【原创实用版】目录1.NR 电感概述2.NR 电感的常用规格参数3.工字电感规格与参数常用型号4.NR 磁胶电感的常用规格参数5.电源管理IC/ON规格参数正文一、NR 电感概述R 电感是一种常见的电子元器件，广泛应用于各种电子产品中，如电源、滤波器、信号处理等。
