贴片一体成型电感规格书

一体成型电感系列封装尺寸图一体成型电感1265系列一体成型电感1265系列产品特点：符合RoHS标准，电感磁屏蔽结构，可适合用于SMD 表面贴装;具备焊锡性及高温耐热性，在高频和高温环境下可保持优良的温升电流及饱和电流的特性;封装方式：卷带包装。

一体成型电感1265系列封装尺寸图应用范围1、适用于高可靠要求的车用，军用，医用，航空航天等行业。

2、适用于电源供应器、个人电脑和其它掌上型电子设备中电源线路上直流对直流整流的应用。

3、应用于工控主板、显卡、平板电脑、笔记本电脑、车载设备、分配电源系统，DC/DC 转换器、LED路灯设备、通讯设备、医疗设备等。

一体成型电感1260系列封装尺寸图一体成型电感1250系列封装尺寸图一体成型电感1050系列一体成型电感1050系列产品为SMD结构设计，电感材质由低耗损合金粉末压铸工艺制成，特点上：低阻抗，无引线端头，寄生电容小，一体成型结构：坚实牢固，产品精准厚度，持久防锈。

在高频和高温环境下可保持优良的温升电流及饱和电流的特性，工作频率覆盖范围广（可高达5MHz以上）。

一体成型电感1050系列封装尺寸图一体成型电感1040系列封装尺寸图一体成型电感0650系列一体成型电感0650系列系列系列产品特点：电感封闭的磁路设计，具备抗电磁干扰强，可避免由于结构造成的超低蜂鸣声及噪音，可高密度安装。

其电感小体积、大电流、低耗损等优势，在高频和高温环境下可保持优良的温升电流及饱和电流的特性。

一体成型电感0650系列封装尺寸图一体成型电感0630系列封装尺寸图一体成型电感0620系列封装尺寸图一体成型电感0530系列一体成型电感0530系列属于一款低电阻、低耗损、小体积、大电流电感元件，其产品符合RoHS标准，SMD表面贴装性设计，可适合回流焊工艺，处理瞬态电流尖峰而不饱和。

目前该产品的用途一般应用于：消费电子、网络交换机、车载仪器、数码产品、工控设备等领域上。

一体成型电感0530系列封装尺寸图一体成型电感0520系列应用于工控主板、显卡、平板电脑、笔记本电脑、车载设备、分配电源系统，DC/DC转换器、LED路灯设备、通讯设备、医疗设备等。

VERH 2D09/2D11/2D14/2D18/3D11/3D14/3D16/3D28/4D14/4D16/4D18/4D28/5D14/5D18/ 5D28/6D28/6D38/8D28/8D38/ 8D43TYPE●FEATURES:Various high power indrctors are superior To be high saturation for surface mounting ●特性:具有高功率、强力高饱和电流、低阻抗、 小型化之特性。

● APPLICATIONS ：Powder supply for VTR,OA equipment Digital camera, LCD television set Notebook PC,portable communicationEquipments, DC/DC converters ,ect. ● 用途:录音机、OA 仪器、数码相机、液晶电视、 笔记型电脑、小型通信机器、DC/DC 变压器 之电源供应等。

● PART NUMBERING SUSTEM(品名系统):● SHAPES AND DIMENSIONS(外形及尺寸):●SPECIFICATION (规格)：mmTYPE(型式) A B C(max) D E F(max) G(ref) VERH2D09 3.2±0.3 3.2±0.3 1.0 3.2±0.3 4.5Max 3.3 1.0 VERH2D11 3.2±0.3 3.2±0.3 1.2 3.2±0.3 4.5Max 3.3 1.0VERH2D14 3.2±0.3 3.2±0.3 1.55 3.2±0.3 4.5Max 3.3 1.0VERH2D18 3.2±0.3 3.2±0.3 2.0 3.2±0.3 4.5Max 3.3 1.0VERH3D11 3.8±0.3 3.8±0.3 1.2 3.6±0.3 3.6±0.3 4.15 1.15 VERH3D14 3.8±0.3 3.8±0.3 1.5 3.6±0.3 3.6±0.3 4.15 1.15VERH3D16 3.8±0.3 3.8±0.3 1.8 3.6±0.3 3.6±0.3 4.15 1.15 VERH3D28 3.8±0.3 3.8±0.3 3.0 3.6±0.3 3.6±0.3 4.15 1.15VERH4D14 4.7±0.3 4.7±0.3 1.5 4.5±0.3 4.5±0.3 6.9 1.5 VERH4D16 4.7±0.3 4.7±0.3 1.8 4.5±0.3 4.5±0.3 6.9 1.5VERH4D18 4.7±0.3 4.7±0.3 2.0 4.5±0.3 4.5±0.3 6.9 1.5 VERH4D28 4.7±0.3 4.7±0.3 3.0 4.5±0.3 4.5±0.3 6.9 1.5VERH5D14 5.7±0.3 5.7±0.3 1.5 5.5±0.3 5.5±0.3 8.2 2.0 VERH5D18 5.7±0.3 5.7±0.3 2.0 5.5±0.3 5.5±0.3 8.2 2.0VERH5D28 5.7±0.3 5.7±0.3 3.0 5.5±0.3 5.5±0.3 8.2 2.0 VERH6D28 6.7±0.3 6.7±0.3 3.0 6.5±0.3 6.5±0.3 9.5 2.0VERH6D38 6.7±0.3 6.7±0.3 4.0 6.5±0.3 6.5±0.3 9.5 2.0 VERH8D28 8.3±0.3 8.3±0.3 3.0 6.3±0.3 1.2±0.3 2.5 --VERH8D38 8.3±0.3 8.3±0.3 4.0 6.3±0.3 1.2±0.3 2.5 -- VERH8D43 8.3±0.3 8.3±0.3 4.5 6.3±0.3 1.2±0.3 2.5 -- Special inquiries besides the above common used types can be met on your requirement超出以上规格的特殊要求也可满足。

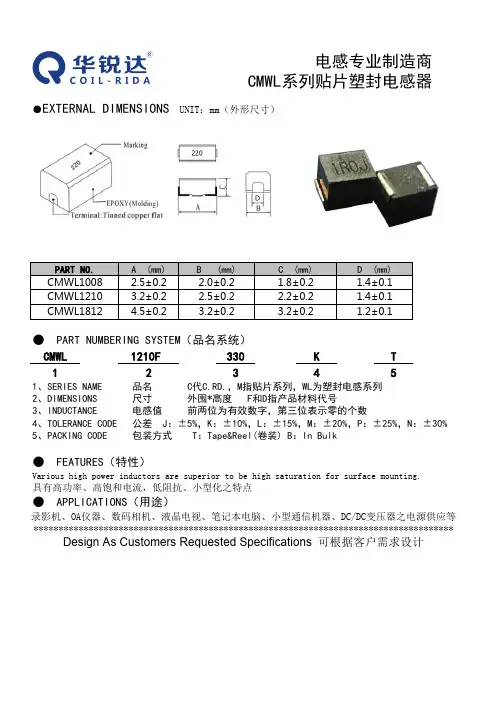

电感专业制造商 CMWL系列贴片塑封电感器
●EXTERNAL DIMENSIONS UNIT：mm（外形尺寸）
●　PART NUMBERING SYSTEM（品名系统）
CMWL1210F 330K T
12345
1、SERIES NAME 品名 C代C.RD.，M指贴片系列，WL为塑封电感系列
2、DIMENSIONS 尺寸 外围*高度 F和D指产品材料代号
3、INDUCTANCE 电感值 前两位为有效数字，第三位表示零的个数
4、TOLERANCE CODE 公差 J：±5%，K：±10%，L：±15%，M：±20%，P：±25%，N：±30%
5、PACKING CODE 包装方式 T：Tape&Reel(卷装) B：In Bulk
● FEATURES（特性）
Various high power inductors are superior to be high saturation for surface mounting.
具有高功率、高饱和电流，低阻抗、小型化之特点
● APPLICATIONS（用途）
录影机、OA仪器、数码相机、液晶电视、笔记本电脑、小型通信机器、DC/DC变压器之电源供应等
************************************************************************************ Design As Customers Requested Specifications可根据客户需求设计
电感专业制造商 CMWL系列贴片塑封电感器。

产品名称：CD贴片功率电感产品特点：产品图片产品图片图型及尺寸参考类 型A B C D ref CD32 3.0±0.3 3.0±0.3 2.1±0.31CD43 4.5±0.3 4.0±0.3 3.2±0.31CD52 5.8±0.3 5.2±0.3 2.1±0.3 1.6CD53 5.8±0.3 5.2±0.3 3.2±0.3 1.6CD54 5.8±0.3 5.2±0.3 4.5±0.3 1.3CD737.8±0.37.0±0.3 3.5±0.3 2.1CD757.8±0.37.0±0.3 5.0±0.3 2.1CD10410.0±0.39.0±0.3 4.0±0.3 2.9CD10510.0±0.39.0±0.35.4±0.32.9LTESTING DC RATED DC uH FREQ.RESISTANCE CURRENT (KHz).(Ω) MAX. A MAX CD32-100K 101000.230.76CD32-120K121000.270.685CD32贴片功率电感参数CD 75 － 221 K (1) (2) (3) (4)编号CD贴片功率电感图型及尺寸( SHAPE AND SIZE) ( 单位 mm )CD贴片功率电感编号表示(1). 编号(Type) : CD32/43/52/53/54/73/75/104/105 ( CD )(2). 尺寸（Size) : 成品外型尺寸（According to size) ( 75 )(3). 电感值(Inductance) : "221"表示220uH（Example: "221"for 220uH) ( 221 )(4). 电感公差（Tolerance) :"M:±20%, "K":±10% , "J":±5% ( K )/index.htm?spm=2013.1.w5002-5830017747.2.EYY36cCD贴片功率电感锰锌大功率电感 1、表面贴装小型功率电感。

Multilayer Chip Ceramic Inductor – SDCL-D SeriesOperating Temp. : SDCL1005 series: -55℃~+125℃SDCL1608 series: -40℃~+85℃FEATURES●Monolithic structure for high reliability● High self-resonant frequency● Excellent solderability and high heat resistanceAPPLICATIONS●RF circuit in telecommunication and other equipmentsPRODUCT IDENTIFICATIONSHAPE AND DIMENSIONSUnit: mm [inch]Type L W T a SDCL1005[0402]1.0±0.15 [.039±.006]0.5±0.15 [.020±.006]0.5±0.15 [.020±.006]0.25±0.1 [.010±.004]Fig.1SDCL1608 [0603] 1.6±0.15 [.063±.006]0.8±0.15 [.031±.006]0.8±0.15 [.031±.006] 0.3±0.2 [.012±.008]Fig.21.65±0.15 [.065±.006]②External Dimensions (L×W) (mm)1005 [0402] 1.0×0.5 1608 [0603] 1.6×0.8 ① TypeSDCL Chip Ceramic Inductor③ Material Code C ④ Nominal InductanceExample Nominal Value 3N9 3.9nH 10N 10nH R10 100nH※R=小数点，N=nH ⑤Inductance Tolerance S ±0.3nH J ±5%K ±10% ⑥Packing T Tape & Reel⑧Hazardous Substance Free ProductsFSDCL ① 1608② C ③ 10N ④ J ⑤ T⑥ D ⑦ F ⑧ ⑦ Internal Code DFig.1Fig.2规格特性 SPECIFICATIONSSDCL1005-D SeriesPart NumberInductanceMin.QualityFactor L,Q Test Freq. L/Q Typical Q @ Freq. (MHz)Min.Self-resonantFrequency Max. DCResistanceMax. Rated Current1008001000Units nH - MHz - MHz Ω mA Symbol L Q Freq Q S.R.F DCR IrSDCL1005C1N0STDF 1.0±0.3 8 100 11 34 36 10000 0.10 400 SDCL1005C1N1STDF 1.1±0.3 8 100 11 34 36 10000 0.10 400 SDCL1005C1N2STDF 1.2±0.3 8 100 11 34 36 10000 0.10 400 SDCL1005C1N3STDF 1.3±0.3 8 100 11 34 36 10000 0.10 400 SDCL1005C1N5STDF 1.5±0.3 8 100 11 34 36 6000 0.10 300 SDCL1005C1N6STDF 1.6±0.3 8 100 11 32 35 6000 0.10 300 SDCL1005C1N8STDF 1.8±0.3 8 100 11 30 34 6000 0.10 300 SDCL1005C2N0STDF 2.0±0.3 8 100 10 29 33 6000 0.20 300 SDCL1005C2N2STDF 2.2±0.3 8 100 10 29 33 6000 0.20 300 SDCL1005C2N4STDF 2.4±0.3 8 100 10 29 32 6000 0.20 300 SDCL1005C2N7STDF 2.7±0.3 8 100 10 29 32 6000 0.20 300 SDCL1005C3N0STDF 3.0±0.3 8 100 10 29 32 6000 0.20 300 SDCL1005C3N3STDF 3.3±0.3 8 100 10 29 32 6000 0.20 300 SDCL1005C3N6STDF 3.6±0.3 8 100 10 28 31 4000 0.20 300 SDCL1005C3N9STDF 3.9±0.3 8 100 10 28 31 4000 0.20 300 SDCL1005C4N3STDF 4.3±0.3 8 100 10 28 31 4000 0.20 300 SDCL1005C4N7STDF 4.7±0.3 8 100 10 28 31 4000 0.20 300 SDCL1005C5N1STDF 5.1±0.3 8 100 10 28 30 4000 0.30 300 SDCL1005C5N6STDF 5.6±0.3 8 100 10 28 30 4000 0.30 300 SDCL1005C6N2STDF 6.2±0.3 8 100 10 27 30 3900 0.30 300 SDCL1005C6N8□TDF 6.8 8 100 10 27 30 3900 0.30 300 SDCL1005C7N5□TDF 7.5 8 100 10 27 30 3700 0.40 300 SDCL1005C8N2□TDF 8.2 8 100 10 27 30 3600 0.40 300 SDCL1005C9N1□TDF 9.1 8 100 10 27 30 3400 0.40 300 SDCL1005C10N □TDF 10 8 100 10 27 30 3200 0.40 300 SDCL1005C12N □TDF 12 8 100 10 26 29 2700 0.50 300 SDCL1005C15N □TDF 15 8 100 10 26 28 2300 0.50 300 SDCL1005C18N □TDF 18 8 100 10 25 27 2100 0.60 300 SDCL1005C20N □TDF 20 8 100 10 25 26 2000 0.60 300 SDCL1005C22N □TDF 22 8 100 10 25 25 1900 0.60 300 SDCL1005C27N □TDF 27 8 100 10 25 23 1600 0.70 300 SDCL1005C33N □TDF 33 8 100 10 22 22 1300 0.80 200 SDCL1005C39N □TDF 39 8 100 10 22 19 1200 1.00 200 SDCL1005C43N □TDF 43 8 100 10 21 16 1100 1.10 200 SDCL1005C47N □TDF 47 8 100 10 21 16 1000 1.10 200 SDCL1005C56N □TDF 56 8 100 10 18 13 750 1.20 200 SDCL1005C68N □TDF 68 8 100 10 18 9 750 1.40 180 SDCL1005C82N □TDF 82 8 100 10 13 - 750 2.40 150 SDCL1005CR10□TDF 100 8 100 10 12 - 700 2.60 150SDCL1005CR12□TDF 120 8 100 10 - - 600 2.80 150SDCL1005CR15□TDF 150 8 100 10 - - 550 3.20 100 SDCL1005CR18□TDF 180 8 100 10 - - 500 3.70 100 SDCL1005CR22□TDF 220 8 100 12 - - 450 4.00 100 SDCL1005CR27□TDF 270 8 100 12 - - 400 4.50 100 SDCL1005CR30□TDF 300 6 50 12 - - 350 7.00 50 SDCL1005CR33□TDF 330 6 50 8 - - 350 7.00 50 SDCL1005CR36□TDF 360 6 50 8 - - 300 7.50 50※□: Please specify the inductance tolerance code (J=±5%, K=±10%). The product with tolerance less than ±5%, ±10% is also available. Please contact your local sales.SPECIFICATIONS SDCL1608-D SeriesPart Number InductanceMin.QualityFactorL,Q TestFreq.L/Q Typical Q @ Freq. (MHz)Min.Self-resonantFrequencyMax. DCResistanceMax.RatedCurrent 100800 1000Units nH - MHz - MHz ΩmASymbol L Q Freq Q S.R.F DCR IrSDCL1608C1N0STDF 1.0±0.3 8 100 13 70 80 10000 0.05 500 SDCL1608C1N2STDF 1.2±0.3 8 100 13 60 70 10000 0.05 500 SDCL1608C1N5STDF 1.5±0.3 8 100 13 47 68 6000 0.10 500 SDCL1608C1N8STDF 1.8±0.3 8 100 13 45 61 6000 0.10 500 SDCL1608C2N2STDF 2.2±0.3 8 100 13 45 60 6000 0.10 500 SDCL1608C2N7STDF 2.7±0.3 10 100 13 44 55 6000 0.12 500 SDCL1608C3N3STDF 3.3±0.3 10 100 13 43 50 6000 0.15 500 SDCL1608C3N9STDF 3.9±0.3 10 100 13 43 50 6000 0.16 500 SDCL1608C4N7STDF 4.7±0.3 10 100 13 43 50 6000 0.20 500 SDCL1608C5N6STDF 5.6±0.3 10 100 14 42 48 5000 0.25 500 SDCL1608C6N8□TDF 6.8 10 100 1443 50 5000 0.30 500 SDCL1608C8N2□TDF 8.2 10 100 1443 48 4500 0.35 500 SDCL1608C10N□TDF 10 12 100154550 3500 0.40 300 SDCL1608C12N□TDF 12 12 100184850 3000 0.45 300 SDCL1608C15N□TDF 15 12 100184850 2300 0.50 300 SDCL1608C18N□TDF 18 12 100164851 2200 0.55 300 SDCL1608C22N□TDF 22 12 100164548 2000 0.60 300 SDCL1608C27N□TDF 27 12 100164545 1700 0.65 300 SDCL1608C33N□TDF 33 12 100164541 1500 0.70 300 SDCL1608C39N□TDF 39 12 100174048 1400 0.70 300 SDCL1608C47N□TDF 47 12 100173535 1200 0.70 300 SDCL1608C56N□TDF 56 12 100173530 1100 0.75 300 SDCL1608C68N□TDF 68 12 100173020 900 0.85 300 SDCL1608C82N□TDF 82 8 1001522 - 800 1.00 300 SDCL1608CR10□TDF 100 8 1001516 - 700 1.20 300 SDCL1608CR12□TDF* 120 8 50 15 - - 600 1.40 200 SDCL1608CR15□TDF* 150 8 50 15 - - 500 1.60 200 SDCL1608CR18□TDF* 180 8 50 15 - - 400 1.90 200 SDCL1608CR22□TDF* 220 8 50 15 - - 350 2.40 200 SDCL1608CR27□TDF* 270 8 50 16 - - 350 2.60 150 SDCL1608CR33□TDF* 330 8 50 16 - - 350 2.80 150 SDCL1608CR39□TDF* 390 8 50 16 - - 300 3.20 150 SDCL1608CR43□TDF* 430 8 50 16 - - 280 3.40 150 SDCL1608CR47□TDF* 470 8 50 15 - - 250 3.60 150 SDCL1608CR56□TDF* 560 8 50 15 - - 250 4.00 100 SDCL1608CR68□TDF* 680 8 50 15 - - 250 4.50 100※□: Please specify the inductance tolerance code (J=±5%, K=±10%). The product with tolerance less than ±5%, ±10% is also available. Please contact your local sales.※*: The length: 1.65±0.15mm, for others: 1.60±0.15mm.TYPICAL ELECTRICAL CHARACTERISTICSSDCL1005-D TYPE SDCL1005-D TYPEFrequency(MHz)110I n d u c t a n c e (n H )Frequency(MHz)QSDCL1608-D TYPE SDCL1608-D TYPEFrequency(MHz)110I n d u c t a n c e (n H )Frequency(MHz)Q。

LVS SeriesLVS series, an automatic assembly power inductor, is shielded with magnetic resin and suitable for the portable DC-DC converter lines.Features Applications● RoHS compliant● Highly accurate dimensions can be mounted automatically. ● Terminals are highly resistant to pull forces.● Highly reliable in environments of sudden temperature change and humidity.● Superior EMI electrical with ultra low radiation comparing to conventional shielded power inductors.● LCD TV, Monitor, Ap Router, STB, Smart Phone, Touch Panel,DSC, Game Console and other electronic devices.Product IdentificationShapes and DimensionsFigure 1Figure 2Recommended PatternDimensions in mmTYPE FIG AB C Max DHIJLVS201610 1 2.0±0.2 1.6±0.2 1.02 0.6 1.8 0.80 0.8 LVS252010 1 2.5±0.2 2.0±0.2 1.02 0.8 2.0 0.85 0.8 LVS252012 1 2.5±0.2 2.0±0.2 1.20 0.8 2.0 0.85 0.8 LVS252012L 1 2.5±0.2 2.0±0.2 1.20 0.8 2.0 0.85 0.8 LVS303010 2 3.0±0.2 3.0±0.2 1.02 1.0 3.0 1.0 1.0 LVS303012 2 3.0±0.2 3.0±0.2 1.20 1.0 3.0 1.0 1.0 LVS3030152 3.0±0.23.0±0.21.50 1.0 3.0 1.0 1.0Shapes and DimensionsFigure 3 Figure 4Recommended Pattern Dimensions in mmMax D E H I J TYPE FIG A B CLVS404018 3 4.0±0.2 4.0±0.2 1.8±0.2 1.3±0.3 3.6 3.7 1.2 1.6LVS505020 4 5.0±0.2 5.0±0.2 2.0±0.2 1.8±0.3 4.0 4.0 1.5 2.1LVS505040 4 5.0±0.2 5.0±0.2 4.0±0.2 1.6±0.3 4.0 4.0 1.5 2.1LVS606020 4 6.0±0.2 6.0±0.2 2.0±0.2 1.7±0.3 5.0 5.7 1.6 3.1LVS606028 3 6.0±0.2 6.0±0.2 2.8±0.2 1.9±0.3 4.8 5.7 1.6 3.1LVS606045 4 6.0±0.2 6.0±0.2 4.5+0.2-0.30 1.8±0.3 5.0 5.7 1.6 3.1LVS808040 4 8.0±0.2 8.0±0.2 4.0±0.2 2.3±0.3 6.3 7.5 2.1 3.8Part NumberInductance(uH)Test Frequency (MHz) Tolerance (±%)RDC (Ω) ±30% Isat (mA)Typ Irms (mA)Typ MarkingLVS201610-1R0□-N 1.0 1 20, 30 0.17 1400 1600 A LVS201610-1R5□-N 1.5 1 20, 30 0.26 1100 1400 B LVS201610-2R2□-N 2.2120, 300.3210001200CLVS201610-3R3□-N 3.3 1 20, 30 0.51 820 900 D LVS201610-4R7□-N 4.7 1 20, 30 0.67 680 800 E LVS201610-5R6□-N 5.6 1 20, 30 0.72 650 800 F LVS201610-6R8□-N 6.8 1 20, 30 0.97 560 700 G LVS201610-100□-N 10 1 20, 30 1.45 470 580 H LVS201610-220□-N 22 1 20, 30 2.90 310 400 I● When ordering, please specify tolerance and packaging codes. ● Tolerance ： T =±30% , M = ±20%● L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV ● RDC : Digital Milliohm Meter Chroma 16502,or equivalent ● Isat & Irms : Agilent/HP4284A, 1MHz 200mV● Isat for Inductance drop 30% from its value without current. ● Irms for a 40℃ rise above 25℃ ambient.● Operating temperature range from -25℃ to 105℃.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current05101520250200400600800100012001400160018002000DC Current(mA)L (u H )Temperature Change vs. DC Current10203040506070809010003006009001200150018002100DC Current(mA)△T (℃)Part NumberInductance(uH)Test Frequency (MHz) Tolerance (±%)RDC (Ω) ±30%Isat (mA)Typ Irms (mA)Typ MarkingLVS252010-1R0□-N 1.0 1 20, 30 0.093 2200 2200 A LVS252010-1R5□-N 1.5 1 20, 30 0.148 1900 1800 B LVS252010-2R2□-N 2.2 1 20, 30 0.178 **** **** C LVS252010-3R3□-N 3.3 1 20, 30 0.286 1220 1340 D LVS252010-4R7□-N 4.7120, 30 0.42110401020ELVS252010-5R6□-N 5.6 1 20, 30 0.481 920 840 F LVS252010-6R8□-N 6.8 1 20, 30 0.598 900 880 G LVS252010-100□-N 10 1 20, 30 0.797 740 820 H LVS252010-220□-N 22 1 20, 30 1.839 500 520 I● When ordering, please specify tolerance and packaging codes. ● Tolerance ： T = ±30% , M = ±20% ● Packaging: Clear tape and reel {standard}.● L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV ● RDC : Digital Milliohm Meter Chroma 16502,or equivalent ● Isat & Irms : Agilent/HP4284A, 1MHz 200mV● Isat for Inductance drop 30% from its value without current. ● Irms for a 40℃ rise above 25℃ ambient.● Operating temperature range from -25℃ to 105℃.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current05101520250300600900120015001800210024002700DC Current(mA)L (u H )Temperature Change vs. DC Current10203040506070800300600900120015001800210024002700DC Current(mA)△T (℃)Part NumberInductance(uH)Test Frequency (MHz) Tolerance (±%)RDC (Ω) ±30%Isat (mA)Typ Irms (mA)Typ MarkingLVS252012-1R0□-N 1.0 1 20, 30 0.105 2800 2200 A LVS252012-1R5□-N 1.5 1 20, 30 0.153 **** **** B LVS252012-2R2□-N 2.2 1 20, 30 0.219 1800 1700 C LVS252012-3R3□-N 3.3 1 20, 30 0.349 1300 1200 D LVS252012-4R7□-N 4.7 1 20, 30 0.507 1100 1040 E LVS252012-5R6□-N 5.6120, 30 0.52511001000FLVS252012-6R8□-N 6.8 1 20, 30 0.760 940 940 G LVS252012-100□-N 10 1 20, 30 0.915 820 840 H LVS252012-220□-N 22 1 20, 30 2.110 550 540 I● When ordering, please specify tolerance and packaging codes. ● Tolerance ： T = ±30% , M = ±20%● L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV ● RDC : Digital Milliohm Meter Chroma 16502,or equivalent ● Isat & Irms : Agilent/HP4284A, 1MHz 200mV● Isat for Inductance drop 30% from its value without current. ● Irms for a 40℃ rise above 25℃ ambient.● Operating temperature range from -25℃ to 105℃.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current051015202503006009001200150018002100240027003000DC Current(mA)L (u H )Temperature Change vs. DC Current01020304050607080030060090012001500180021002400DC Current(mA)△T (℃)Part NumberInductance(uH)Test Frequency (MHz) Tolerance (±%) RDC (Ω) ±30% Isat (mA)Typ Irms (mA)Typ MarkingLVS252012L-1R0□-N 1.0 1 20, 30 0.075 2300 2700 A LVS252012L-1R5□-N 1.5 1 20, 30 0.114 1900 2500 B LVS252012L-2R2□-N 2.2 1 20, 30 0.138 **** **** C LVS252012L-3R3□-N 3.3 1 20, 30 0.215 1300 1700 D LVS252012L-4R7□-N 4.7120, 300.31210001400ELVS252012L-5R6□-N 5.6 1 20, 30 0.393 920 990 F LVS252012L-6R8□-N 6.8 1 20, 30 0.466 890 960 G LVS252012L-100□-N 10 1 20, 30 0.702 730 820 H LVS252012L-220□-N 22 1 20, 30 1.470 490 540 I● When ordering, please specify tolerance and packaging codes. ● Tolerance ： T = ±30% , M = ±20%● L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV ● RDC : Digital Milliohm Meter Chroma 16502,or equivalent ● Isat & Irms : Agilent/HP4284A, 1MHz 200mV● Isat for Inductance drop 30% from its value without current. ● Irms for a 40℃ rise above 25℃ ambient.● Operating temperature range from -25℃ to 105℃.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current051015202503006009001200150018002100240027003000DC Current(mA)L (u H )Temperature Change vs. DC Current0102030405060708003006009001200150018002100240027003000DC Current(mA)△T (℃)Part NumberInductance(uH)Test Frequency (MHz) Tolerance (±%)RDC (Ω) ±30%Isat (mA)Typ Irms (mA)Typ MarkingLVS303010-1R0□-N 1.0 1 20, 30 0.063 1300 2400 1R0 LVS303010-1R5□-N 1.5 1 20, 30 0.077 1100 2200 1R5 LVS303010-2R2□-N 2.2 1 20, 30 0.087 960 2000 2R2 LVS303010-3R3□-N 3.3 1 20, 30 0.127 780 1600 3R3 LVS303010-4R7□-N 4.7 1 20, 30 0.186 650 1300 4R7 LVS303010-6R8□-N 6.8120, 30 0.25356010006R8LVS303010-100□-N 10 1 20, 30 0.353 430 880 100 LVS303010-220□-N 22 1 20, 30 0.693 310 580 220● When ordering, please specify tolerance and packaging codes. ● Tolerance ： T = ±30% , M = ±20%● L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV ● RDC : Digital Milliohm Meter Chroma 16502,or equivalent ● Isat & Irms : Agilent/HP4284A, 1MHz 200mV● Isat for Inductance drop 30% from its value without current. ● Irms for a 40℃ rise above 25℃ ambient.● Operating temperature range from -25℃ to 105℃.Test Instruments ：HP4291A Material/Impedance Analyzer0510*******20040060080010001200140016001800DC Current(mA )I n d u c t a n c e (u H )1020304050607080901004008001200160020002400280032003600DC Current(mA)△T (℃)Part NumberInductance(uH)Test Frequency (MHz) Tolerance (±%)RDC (Ω) ±30%Isat (mA)Typ Irms (mA)Typ MarkingLVS303012-1R0□-N 1.0 1 20, 30 0.048 1600 2500 1R0 LVS303012-1R5□-N 1.5 1 20, 30 0.063 1200 2300 1R5 LVS303012-2R2□-N 2.2 1 20, 30 0.076 1100 2000 2R2 LVS303012-3R3□-N 3.3 1 20, 30 0.102 900 1600 3R3 LVS303012-4R7□-N 4.7 1 20, 30 0.136 750 1500 4R7 LVS303012-6R8□-N 6.8 1 20, 30 0.182 630 1300 6R8 LVS303012-100□-N 10120, 30 0.2755201000100LVS303012-220□-N 22 1 20, 30 0.594 350 650 220● When ordering, please specify tolerance and packaging codes. ● Tolerance ： T = ±30% , M = ±20%● L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV ● RDC : Digital Milliohm Meter Chroma 16502,or equivalent ● Isat & Irms : Agilent/HP4284A, 1MHz 200mV● Isat for Inductance drop 30% from its value without current. ● Irms for a 40℃ rise above 25℃ ambient.● Operating temperature range from -25℃ to 105℃.Test Instruments ：HP4291A Material/Impedance Analyzer051015202502004006008001000120014001600180020002200DC Current(mA )I n d u c t a n c e (u H )Temperature Change vs. DC Current1020304050607080901004008001200160020002400280032003600DC Current(mA)△T (℃)Part NumberInductance(uH)Test Frequency (MHz) Tolerance (±%)RDC (Ω) ±30%Isat (mA)Typ Irms (mA)Typ MarkingLVS303015-1R0□-N 1.0 1 20, 30 0.056 2000 2800 1R0 LVS303015-1R5□-N 1.5 1 20, 30 0.074 1600 2400 1R5 LVS303015-2R2□-N 2.2 1 20, 30 0.079 1200 2300 2R2 LVS303015-3R3□-N 3.3 1 20, 30 0.105 1000 1900 3R3 LVS303015-4R7□-N 4.7 1 20, 30 0.130 900 1600 4R7 LVS303015-6R8□-N 6.8 1 20, 30 0.165 730 1300 6R8 LVS303015-100□-N 10120, 30 0.2066001000100LVS303015-220□-N 22 1 20, 30 0.501 420 650 220● When ordering, please specify tolerance and packaging codes. ● Tolerance ： T = ±30% , M = ±20%● L : Agilent/HP4287A+ Agilent/HP16197A, 1MHz 200mV ● RDC : Digital Milliohm Meter Chroma 16502,or equivalent ● Isat & Irms : Agilent/HP4284A, 1MHz 200mV● Isat for Inductance drop 30% from its value without current. ● Irms for a 40℃ rise above 25℃ ambient.● Operating temperature range from -25℃ to 105℃.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current0510152025030060090012001500180021002400DC Current(mA)L (u H )1R01R52R23R34R76R8100220Temperature Change vs. DC Current1020304050607080901005001000150020002500300035004000DC Current(mA)△T (℃)Part NumberInductance(uH)Test Frequency (KHz) Tolerance (±%) RDC (m Ω) ±20%Isat (A)Typ. Irms (A)Typ. MarkingLVS404018-1R0□-N 1.0 100 30 32 4.10 2.80 1R0 LVS404018-2R2□-N 2.2 100 30 60 2.80 2.50 2R2 LVS404018-3R3□-N 3.3 100 30 70 2.20 2.10 3R3 LVS404018-4R7□-N 4.7 100 30 90 2.00 1.70 4R7 LVS404018-6R8□-N 6.8 10020, 301101.60 1.50 6R8 LVS404018-100□-N 10 100 20, 30 170 1.40 1.20 100 LVS404018-150□-N 15 100 20, 30 250 1.00 1.00 150 LVS404018-220□-N 22 100 20, 30 350 0.90 0.85 220 LVS404018-330□-N 33 100 20, 30 530 0.80 0.70 330 LVS404018-470□-N 47 100 20, 30 720 0.70 0.56 470 LVS404018-680□-N 68 100 20, 30 1000 0.56 0.45 680 LVS404018-101□-N 100 100 20, 30 1500 0.46 0.38 101 LVS404018-151□-N 150 100 20, 30 2500 0.35 0.30 151 LVS404018-221□-N 22010020, 30 40000.280.23221● When ordering, please specify tolerance and packaging codes. ● Tolerance : M = ±20% , T = ±30%● L : Agilent/HP 4284A + Agilent/HP 16334A ,100KHz with 1V. ● Isat & Irms : Agilent/HP 4284A , 100KHz with 1V. ● Rdc : Digital Milliohm Meter Chroma 16502,or equivalent● Isat for Inductance drop 30% from its value without current. ● Irms for a 40°C rise above 25°C ambient.● Operating temperature range from -25°C to 105°C.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current05101520253002468DC Current(A)L (u H )Temperature Change vs. DC Current1020304050607001234DC Current(A)△T (℃)Part NumberInductance(uH)Test Frequency (KHz)Tolerance (±%)RDC (m Ω) ±20%Isat (A)Typ.Irms (A)Typ.MarkingLVS505020-1R0□-N 1.0 100 30 21 5.1 4.0 1R0 LVS505020-1R5□-N 1.5 100 30 26 4.2 3.5 1R5 LVS505020-2R2□-N 2.2 100 30 35 3.4 3.2 2R2 LVS505020-3R3□-N 3.3 100 30 48 3.0 2.8 3R3 LVS505020-4R7□-N 4.7 100 20, 30 60 2.2 2.2 4R7 LVS505020-6R8□-N 6.8 10020, 30902.0 1.8 6R8 LVS505020-100□-N 10 100 20, 30 120 1.6 1.6 100 LVS505020-150□-N 15 100 20, 30 190 1.3 1.2 150 LVS505020-220□-N 22100 20, 30 2601.01.0220● When ordering, please specify tolerance and packaging codes. ● Tolerance : M = ±20% , T = ±30%● L : Agilent/HP 4284A + Agilent/HP 16334A ,100KHz with 1V. ● Isat & Irms : Agilent/HP 4284A , 100KHz with 1V. ● Rdc : Digital Milliohm Meter Chroma 16502,or equivalent● Isat for Inductance drop 30% from its value without current. ● Irms for a 40°C rise above 25°C ambient.● Operating temperature range from -25°C to 105°C.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current05101520250123456DC Current(A)L (u H )1R01006R84R73R32R21R5150220Temperature Change vs. DC Current102030405060012345DC Current(A)△T (℃)Part NumberInductance(uH)Test Frequency (KHz)Tolerance (±%)RDC (m Ω) ±30%Isat (A)Typ.Irms (A)Typ.MarkingLVS505040-1R5□-N 1.5 100 30 16 7.1 4.4 1R5 LVS505040-2R2□-N 2.2 100 30 21 5.7 3.7 2R2 LVS505040-3R3□-N 3.3 100 30 26 4.8 3.5 3R3 LVS505040-4R7□-N 4.7 100 20, 30 32 4.2 3.2 4R7 LVS505040-6R8□-N 6.8 100 20, 30 50 3.3 2.4 6R8 LVS505040-100□-N 10 100 20, 30 60 2.8 2.2 100 LVS505040-150□-N 15 100 20, 30 90 2.3 1.8 150 LVS505040-220□-N 22 100 20, 30 135 1.8 1.4 220 LVS505040-330□-N 33 100 20, 30 190 1.5 1.1 330 LVS505040-470□-N 47 100 20, 30 310 1.2 0.9 470● When ordering, please specify tolerance and packaging codes. ● Tolerance : M = ±20% , T = ±30%● L : Agilent/HP 4284A + Agilent/HP 16334A ,100KHz with 1V. ● Isat & Irms : Agilent/HP 4284A , 100KHz with 1V. ● Rdc : Digital Milliohm Meter Chroma 16502,or equivalent● Isat for Inductance drop 30% from its value without current. ● Irms for a 40°C rise above 25°C ambient.● Operating temperature range from -25°C to 105°C.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance v s. DC Current05101520250246810DC Current(A)L (u H )Temperature Change vs. DC Current0102030405060700123456DC Current(A)△T (℃)Part NumberInductance(uH)Test Frequency (KHz)Tolerance (±%)RDC (m Ω) ±30%Isat (A)Typ.Irms (A)Typ.MarkingLVS606020-R90□-N 0.9 100 30 18 6.3 4.2 R90 LVS606020-1R5□-N 1.5 100 30 26 5.0 3.6 1R5 LVS606020-2R2□-N 2.2 100 30 34 4.2 3.2 2R2 LVS606020-3R3□-N 3.3 100 30 40 3.2 2.7 3R3 LVS606020-4R7□-N 4.7 100 30 58 2.5 2.2 4R7 LVS606020-6R8□-N 6.8 10020, 30852.2 1.8 6R8 LVS606020-100□-N 10 100 20, 30 125 2.0 1.6 100 LVS606020-150□-N 15 100 20, 30 190 1.3 1.3 150 LVS606020-220□-N 22 100 20, 30 2601.11.1220● When ordering, please specify tolerance and packaging codes. ● Tolerance : M = ±20% , T = ±30%● L : Agilent/HP 4284A + Agilent/HP 16334A ,100KHz with 1V. ● Isat & Irms : Agilent/HP 4284A , 100KHz with 1V. ● Rdc : Digital Milliohm Meter Chroma 16502,or equivalent● Isat for Inductance drop 30% from its value without current. ● Irms for a 40°C rise above 25°C ambient.● Operating temperature range from -25°C to 105°C.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current051015202502468DC Current(A)L (u H )Temperature Change vs. DC Current102030405060700123456DC Current(A)△T (℃)Part NumberInductance(uH)Test Frequency (KHz)Tolerance (±%)RDC (m Ω) ±30%Isat (A)Typ.Irms (A)Typ.MarkingLVS606028-1R0□-N 1.0 100 30 13 7.6 5.2 1R0 LVS606028-1R5□-N 1.5 100 30 16 6.3 4.8 1R5 LVS606028-2R2□-N 2.2 100 30 20 5.4 4.0 2R2 LVS606028-3R3□-N 3.3 100 30 28 4.3 3.5 3R3 LVS606028-4R7□-N 4.7 100 20, 30 38 3.7 3.2 4R7 LVS606028-6R0□-N 6.0 100 20, 30 45 3.3 2.8 6R0 LVS606028-6R8□-N 6.8 10020, 3050 3.1 2.7 6R8 LVS606028-100□-N 10 100 20, 30 65 2.5 2.3 100 LVS606028-150□-N 15 100 20, 30952.0 1.8 150 LVS606028-220□-N 22 100 20, 30 135 1.6 1.5 220 LVS606028-330□-N 33 100 20, 30 220 1.3 1.4 330 LVS606028-470□-N 47 100 20, 30 320 1.1 1.0 470 LVS606028-680□-N 68 100 20, 30 420 0.98 0.9 680 LVS606028-101□-N 100 10020, 306000.820.8101● When ordering, please specify tolerance and packaging codes. ● Tolerance : M = ±20% , T = ±30%● L : Agilent/HP 4284A + Agilent/HP 16334A ,100KHz with 1V. ● Isat & Irms : Agilent/HP 4284A , 100KHz with 1V. ● Rdc : Digital Milliohm Meter Chroma 16502,or equivalent● Isat for Inductance drop 30% from its value without current. ● Irms for a 40°C rise above 25°C ambient.● Operating temperature range from -25°C to 105°C.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current05101520250246810DC Current(A)L (u H )Temperature Change vs. DC Current1020304050607001234567DC Current(A)△T (℃)Part NumberInductance(uH)Test Frequency (KHz) Tolerance (±%) RDC (m Ω) ±30%Isat (A)Typ. Irms (A)Typ. MarkingLVS606045-1R0□-N 1.0 100301212.26.51R0LVS606045-1R8□-N 1.8 100 30 17 9.6 5.6 1R8 LVS606045-2R3□-N 2.3 100 30 19 8.8 5.0 2R3 LVS606045-3R0□-N 3.0 100 30 22 7.8 4.4 3R0 LVS606045-4R5□-N 4.5 100 30 31 6.7 3.9 4R5 LVS606045-6R8□-N 6.8 10020, 3043 5.3 3.2 6R8 LVS606045-100□-N 10 100 20, 30 57 4.5 2.7 100 LVS606045-150□-N 15 100 20, 30803.4 2.2 150 LVS606045-220□-N 22 100 20, 30 125 3.0 1.9 220 LVS606045-330□-N 33 100 20, 30 165 2.3 1.4 330 LVS606045-470□-N 47 100 20, 30 245 1.9 1.2 470 LVS606045-680□-N 68 100 20, 30 330 1.6 1.0 680 LVS606045-101□-N 100 10020, 305001.30.8101● When ordering, please specify tolerance and packaging codes. ● Tolerance : M = ±20% , T = ±30%● L : Agilent/HP 4284A + Agilent/HP 16334A ,100KHz with 1V. ● Isat & Irms : Agilent/HP 4284A , 100KHz with 1V. ● Rdc : Digital Milliohm Meter Chroma 16502,or equivalent● Isat for Inductance drop 30% from its value without current. ● Irms for a 40°C rise above 25°C ambient.● Operating temperature range from -25°C to 105°C.Test Instruments ：HP4291A Material/Impedance AnalyzerTemperature Change vs. DC Curent0102030405060708012345678DC Current (A)△T (℃)Part NumberInductance(uH)Test Frequency (KHz) Tolerance (±%) RDC (m Ω) ±30%Isat (A)Typ. Irms (A)Typ. MarkingLVS808040-R90□-N 0.9 100 30 7 13.8 8.05 R90 LVS808040-1R4□-N 1.410030910.87.81R4LVS808040-2R0□-N 2.0 100 30 11 9.6 7.4 2R0 LVS808040-3R3□-N 3.3 100 30 15 7.5 6.0 3R3 LVS808040-4R7□-N 4.7 100 30 18 6 5.5 4R7 LVS808040-6R8□-N 6.8 10020, 3025 5.4 5.1 6R8 LVS808040-100□-N 10 100 20, 30 38 4.3 3.8 100 LVS808040-150□-N 15 100 20, 30 50 3.6 3.2 150 LVS808040-220□-N 22 100 20, 30 80 2.8 2.6 220 LVS808040-330□-N 33 100 20, 301102.3 2.0 330 LVS808040-470□-N 47 100 20, 30 160 1.9 1.75 470 LVS808040-680□-N 68 100 20, 30 240 1.7 1.45 680 LVS808040-101□-N 100 10020, 303401.41.10101● When ordering, please specify tolerance and packaging codes.● Tolerance ： T = ±30% , M = ±20%● L : Agilent/HP4284A+ Agilent/HP16334A, 100KHz ,1V. ● RDC : Digital Milliohm Meter Chroma 16502,or equivalent ● Isat & Irms : Agilent/HP4284A, 100KHz ,1V.● Isat for Inductance drop 30% from its value without current. ● Irms for a 40℃ rise above 25℃ ambient.● Operating temperature range from -25℃ to 105℃.Test Instruments ：HP4291A Material/Impedance AnalyzerInductance vs. DC Current0510********354005101520DC Current(A)L (u H )Temperature Change vs. DC Current10203040506070800246810DC Current(A)△T (℃)Packaging SpecificationsTape DimensionsTape DimensionsFigure 1Figure 2Reel DimensionsReel DimensionsFigure 1Figure 2Dimensions in mmTape DimensionsReel Dimensions Quantity TYPE FigA0B0K0DEF W P P0P2AB CDEPCS / Reel LVS201610 1 1.80 2.20 1.15 1.55 1.75 3.58.1 4 4 2 1806013 14.4 8.4 2000 LVS252010 1 2.30 2.70 1.15 1.55 1.75 3.58.1 4 4 2 1806013 14.4 8.4 2000 LVS252012 1 2.30 2.70 1.30 1.55 1.75 3.58.1 4 4 2 1806013 14.4 8.4 2000 LVS252012L 1 2.30 2.70 1.30 1.55 1.75 3.58.1 4 4 2 1806013 14.4 8.4 2000 LVS303010 1 3.15 3.15 1.10 1.55 1.75 3.58.0 4 4 2 1806013 14.4 8.4 2000 LVS303012 1 3.15 3.15 1.30 1.55 1.75 3.58.0 4 4 2 1806013 14.4 8.4 2000 LVS303015 1 3.30 3.30 1.70 1.55 1.75 3.58.0 4 4 2 1806013 14.4 8.4 2000 LVS404018 2 4.25 4.25 2.10 1.55 1.75 5.5128 4 2 1786013 13.2 - 800 LVS505020 2 5.30 5.30 2.20 1.55 1.75 5.5128 4 2 33010013 17.4 - 2000 LVS505040 2 5.30 5.30 4.40 1.55 1.75 5.5128 4 2 33010013 17.4 - 1500 LVS606020 2 6.20 6.20 2.00 1.55 1.757.51612 4 2 33010013 17.4 - 2000 LVS606028 2 6.20 6.20 3.50 1.55 1.757.51612 4 2 33010013 17.4 - 1500 LVS606045 2 6.50 6.50 4.70 1.55 1.757.51612 4 2 33010013 17.4 - 1000 LVS808040 2 8.50 8.504.30 1.55 1.757.5161242 33010013 17.4 -1000。

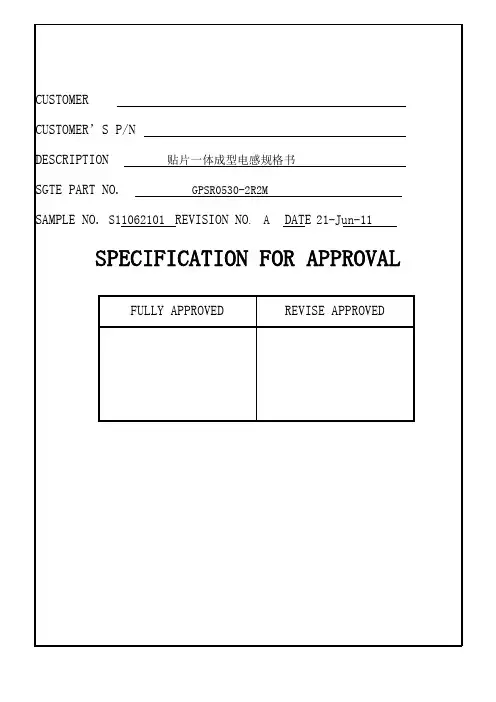

SPECIFICATIONINDEXCOVER PAGE▓SHAPE & DIMENSION…………………….………...........1-8▓ ELECTRICAL CHARACTERISTICS AND EXTERNALTEST REPORT…….……………………………………….2-8▓ELECTRICAL CHARACTERISTICS……………………..3-8▓ELECTRICAL CHARACTERISTICS……………………..4-8▓ ELECTRICAL CHARACTERI STICS……………………..5-8▓PACKING FOR SPECIFICATION…………………………6-8▓GENERAL CHARACTERISTICS………………………….7-8▓THE CONDITION OF REFLOW…………………………..8-8 APPROVED BY CHECKED BY DRAWING BYJesse 6/21Tony6/21Chin6/21SPECIFICATIONCustomers Part Number Item Name DatePower Inductor 21-Jun-11 Gan Tong Part NO. Sample NO. PageGPSR0530-2R2M S1******* 1-8External Dimensions Unit (mm)2R2Coating:uncoloredConnection Recommended Land PatternElectrical SpecificationMeasurementItemUnitToleranceSpecificationTestFrequencyTest InstrumentLuH (±20%)2.2uH ±20% 100KHz/1V LCR Meter Agilent/4284A or Chroma/11300DCR mΩ40mΩ(Max)Chroma /16502I rms Amps4A 100KHz/1V LCR Meter Agilent/4284A+42841Aor Chroma /11300+3302+1320+1320S I sat Amps7A 100KHz/1V‧I rms: Current that causes a 40℃ temperature rise from 25℃ ambient.‧I sat: DC current at which the inductance drops 35% from it’s value without current.‧All test Data is referenced to 25℃ ambient.‧Operating Temperature Range: -25℃ to +125℃A 5.2±0.5B 4.7±0.3C 3.0MaxD ≤0.15E 2.0±0.5F 1.0±0.5G 7.0 REFH 3.0 REFI 2.5 REFTEST REPORTCustomers Part NumberItem Name DatePower Inductor 21-Jun-11Gan Tong Part NO. Sample NO. Revision No.Page GPSR0530-2R2MS1*******A2-8 Electrical CharacteristicItem L0A DCR I rmsI sat Specification 2.2uH 40m Ω 4Amps 7Amps Tolerance±20% Max △T ≦40℃L ≧65%1 2.08 26.26 10.3℃80.8%2 1.95 26.873 2.03 26.54 4 2.01 26.495 1.98 26.386 2.01 26.767 2.15 26.118 2.13 26.349 2.10 26.44 10 2.05 26.58 X2.05 26.48 σ0.070.21External DimensionsItem A B C D E F Specification 5.24.7 3.0 2.0 1.0 Tolerance±0.5 ±0.3 Max ≤0.15 ±0.5 ±0.5 1 5.34 4.78 2.89 0.07 2.03 1.08 2 5.27 4.76 2.88 0.09 2.01 1.10 3 5.30 4.77 2.82 0.08 2.00 1.09 4 5.29 4.75 2.90 0.09 2.04 1.03 5 5.26 4.75 2.88 0.10 2.01 1.05 6 5.23 4.73 2.87 0.06 1.99 1.04 7 5.21 4.76 2.90 0.05 2.05 1.06 8 5.28 4.72 2.86 0.07 2.06 1.12 9 5.24 4.75 2.84 0.05 2.04 1.05 10 5.26 4.73 2.89 0.06 2.00 1.08 X5.274.752.870.072.021.07σ0.04 0.02 0.02 0.02 0.02 0.03Inductance measured at 100KHz/1Vrms.Electrical specifications at 25℃. Humidity 60±10%ELECTRICAL CHARACTERISTICSCustomers Part Number Item Name DatePower Inductor 21-Jun-11Gan Tong Part NO. Sample NO. PageGPSR0530-2R2M S1******* 3-8Inductance VS DC currentIDC L %L0A0A 2.13 100.0%1A 2.12 99.5%2A 2.08 97.7%3A 2.02 94.8%4A 1.95 91.5%5A 1.88 88.3%6A 1.80 84.5%7A 1.72 80.8%8A 1.65 77.5%CONDITTON:100KHz/1.0VrmsELECTRICAL CHARACTERISTICSCustomers Part Number Item Name DatePower Inductor 21-Jun-11 Gan Tong Part NO. Sample NO. Page GPSR0530-2R2M S1******* 4-8DC current VS TemperatureTime L（μН）T（℃）△T(℃)0H 1.77 33.60.5H 1.76 38.1 4.51H 1.76 43.9 10.32H 1.76 43.9 10.33H 1.76 43.9 10.34H 1.76 43.9 10.35H 1.76 43.9 10.3CONDITTON: Load 4A43.9℃33.6℃ELECTRICAL CHARACTERISTICSCustomers Part Number Item Name DatePower Inductor 21-Jun-11 Gan Tong Part NO. Sample NO. Page GPSR0530-2R2M S1******* 5-8Inductance VS FrequencyFREQ. L（μН）1KHZ 2.1510KHZ 2.14100KHZ 2.13500KHZ 2.09800KHZ 2.081000KHZ 2.08PACKING FOR SPECIFICATIONCustomers Part Number Item Name DatePower Inductor 21-Jun-11 Gan Tong Part NO. Sample NO. PageGPSR0530-2R2MS1*******6-8Packaging Information:TYPE A(mm) B(mm) C(mm) D(mm)13´´*12mm 12.0±0.5 100±2 13.5±0.5 330TYPE A B C W PGPSR0530 2000 12 330 12 8GENGRAL CHARACTERISTICSGan Tong Part NO. GPSR0530-2R2M PAGE : 7-8.STORAGE TEMPERATURE：25℃~30℃ HUMIDITY 45~85% RH-30℃～+125℃(CONTAIN HEATING COIL)2.OPERATING TEMPERATURERANGE :3.EXTERNAL APPEARANCE : NO EXTERNAL DEFECTS CAN BE FOUND IN THE VISUAL INSPECTION.4. TERMINAL STRENGTH : NO TERMINAL DETACHMENT SHOULD BE FOUND WHEN THE DEVICE IS PUSHED IN TWO DIRECTIONS OF X AND Y WITHTHE FORCE OF 10.0N FOR 10±2 SECONDS AFTER SOLDERING BETWEEN COPPER PLATE AND THE TERMINALS.(REFERTO FIGURE AT RIGHT)5.HEAT ENDURANCE TEST ：REFER TO Recommended Soldering Temperature Graph.（AT PAGE 2）.6.INSULATING RESISTANCE : THE INSULATION RESISTANCE SHOULD BE OVER 100MΩ WHEN D.C.100V IS APPLIED TO THE WINDING –CORE.MEANWHILE NO STRUCTURE AND ELECTRIC DEFECTS SHOULD BE FOUND FOR 1 MINUTE.7. TEMPERATURE FEATURE：INDUCTANCE COEFFICIENT IS (0～2000)x10-6(-25～+85℃)8. HUMIDITY TEST ：INDUCTANCE DEVIATION IS WITHIN ±5.0% AND NO STRUCTURE AND ELECTRIC DEFECTS CAN BE FOUND AFTER 96 HOURSTEST UNDER THE CONDITIONOF RELATIVE HUMIDITY OF 90～95% AND TEMPERATURE OF 40±2℃. AND 1 HOUR STORAGEUNDER ROOM AMBIENT CONDITIONS AFTER THE DEVICE IS WIPED WITH DRY CLOTH.9. VIBRATION TEST ：INDUCTANCE DEVIATION IS WITHIN ±5.0％ AFTER 1 HOUR SWEEPING VIBRATION IN EACH THREE DIRECTIONS.NAMELY, FREQUENCY IS 10～55～10Hz ANDTHE AMPLITUDE OF 1MINUTE CYCLE IS 1.5mm PP.10.SHOCK TEST : INDUCTANCE DEVIATION IS WITHIN ±5.0% AFTER THE TEST WITH GOM-BLOCK SHOCK TESTING MACHINE,ONCE IN EACHOF THE THREE PERPENDICULAR AXIS DIRECTIONS. THE SHOCK ACCELERATION IS 981m/s2.THE CONDITION OF REFLOWGan Tong Part NO. : GPSR0530-2R2M PAGE : 8-8Wave SolderingHand soldering。

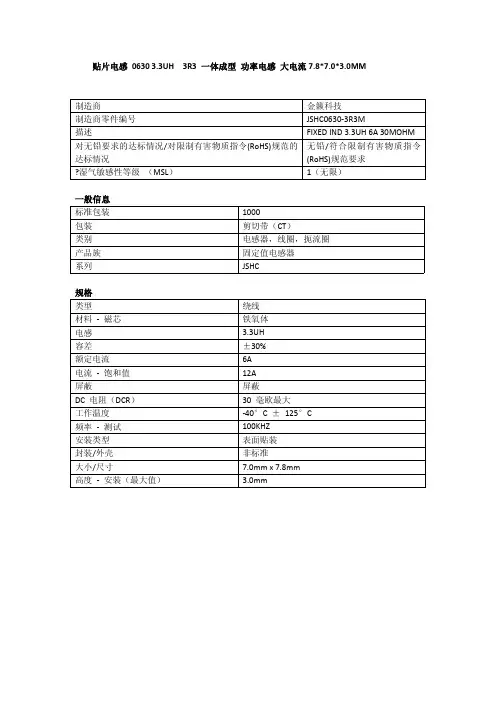

贴片电感06303.3UH3R3一体成型功率电感大电流7.8*7.0*3.0MM
制造商金籁科技
制造商零件编号JSHC0630-3R3M
描述FIXED IND3.3UH6A30MOHM
对无铅要求的达标情况/对限制有害物质指令(RoHS)规范的达标情况无铅/符合限制有害物质指令(RoHS)规范要求
?湿气敏感性等级（MSL）1（无限）
一般信息
标准包装1000
包装剪切带（CT）
类别电感器，线圈，扼流圈
产品族固定值电感器
系列JSHC
规格
类型绕线
材料-磁芯铁氧体
电感 3.3UH
容差±30%
额定电流6A
电流-饱和值12A
屏蔽屏蔽
DC电阻（DCR）30毫欧最大
工作温度-40°C±125°C
频率-测试100KHZ
安装类型表面贴装
封装/外壳非标准
大小/尺寸7.0mm x7.8mm
高度-安装（最大值） 3.0mm。

PRODUCT: Power Inductor SERIES: POHS 252010PACKAGING DIMENSION: [Unit: mm]A 2.5±0.2B 2.0±0.2C 1.0 MAX D0.6±0.2GENERAL SPECIFICATIONS:◎ All testing frequency: 1MHz / 1v ◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -25℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 252012PACKAGING DIMENSION: [Unit: mm]A 2.5±0.2B 2.0±0.2C 1.2 MAX D0.6±0.2GENERAL SPECIFICATIONS:◎ All testing frequency: 1MHz / 1v ◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -25℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 0412PACKAGING DIMENSION: [Unit: mm]A 4.2±0.25B 4.4±0.35C 1.2 MAX D2.0±0.3E0.8±0.3GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -25℃ to +125℃PRODUCT: Power Inductor SERIES: POHS -0402PACKAGING DIMENSION: [Unit: mm]A 4.05±0.25B 4.45±0.25C 2.0 MAX D1.5±0.3E0.8±0.3GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -25℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 0518PACKAGING DIMENSION: [Unit: mm]A 5.2±0.3B 5.4±0.3C 1.8 MAX D2.2±0.3E1.2±0.2GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -25℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 0503PACKAGING DIMENSION: [Unit: mm]A 5.2±0.3B 5.4±0.3C 3.0 MAX D2.2±0.3E1.2±0.2GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -25℃ to +125℃PRODUCT: Power Inductor SERIES: POHS -0618PACKAGING DIMENSION: [Unit: mm]A 6.6±0.3B 7.1±0.3C 1.8 MAX D3.0±0.3E1.6±0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 0618TPACKAGING DIMENSION: [Unit: mm]A 6.6±0.3B 7.1±0.3C 1.8 MAX D3.0±0.3E1.6±0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 0624PACKAGING DIMENSION: [Unit: mm]A 6.6±0.3B 7.1±0.3C 2.4 MAX D3.0±0.3E1.6±0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 0603PACKAGING DIMENSION: [Unit: mm]A 6.6±0.3B 7.1±0.3C 3.0 MAX D3.0±0.3E1.6±0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 0603APACKAGING DIMENSION: [Unit: mm]A 6.6±0.3B 7.1±0.3C 3.0 MAX D3.0±0.3E1.6±0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 063TPACKAGING DIMENSION: [Unit: mm]A 6.6±0.3B 7.1±0.3C 3.0 MAX D3.0±0.3E1.6±0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 063SPACKAGING DIMENSION: [Unit: mm]A 6.6±0.3B 7.1±0.3C 3.0 MAX D3.0±0.3E1.6±0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 63FDPACKAGING DIMENSION: [Unit: mm]A 6.6±0.3B 7.1±0.3C 3.0 MAX D3.0±0.3E1.6±0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 20%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 1040PACKAGING DIMENSION: [Unit: mm]A 10.5 ± 0.5B 11.5 ± 1.0C 4.0 MAX D3.0 ± 0.5E2.5 ± 0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 1040APACKAGING DIMENSION: [Unit: mm]A 10.5 ± 0.5B 11.5 ± 1.0C 4.0 MAX D3.0 ± 0.5E2.5 ± 0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 1040BPACKAGING DIMENSION: [Unit: mm]A 10.5 ± 0.5B 11.5 ± 1.0C 4.0 MAX D3.0 ± 0.5E2.5 ± 0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 1040CPACKAGING DIMENSION: [Unit: mm]A 10.5 ± 0.5B 11.5 ± 1.0C 4.0 MAX D3.0 ± 0.5E2.5 ± 0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 104CTPACKAGING DIMENSION: [Unit: mm]A 10.0 ± 0.3B 11.5 MAXC 4.0 MAX D3.0 ± 0.5E2.5 ± 0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS -104DTPACKAGING DIMENSION: [Unit: mm]A 10.0 ± 0.3B 11.5 MAXC 4.0 MAX D3.0 ± 0.5E2.5 ± 0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 104ETPACKAGING DIMENSION: [Unit: mm]A 10.0 ± 0.3B 11.5 MAXC 4.5 MAX D3.0 ± 0.5E2.5 ± 0.5GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 1235PACKAGING DIMENSION: [Unit: mm]A 12.8 ± 0.5B 13.5 ± 1.0C 3.5 ± 0.5D 3.8 REF E2.5 REFGENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 1250PACKAGING DIMENSION: [Unit: mm]A 12.8 ± 0.5B 13.5 ± 1.0C 5.0 MAX D3.8 REF E2.5 REFGENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 1265PACKAGING DIMENSION: [Unit: mm]A 12.8 ± 0.5B 13.5 ± 1.0C 6.5 MAX D3.8 REF E2.5 REFGENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃PRODUCT: Power Inductor SERIES: POHS 1770PACKAGING DIMENSION: [Unit: mm]A 17.15 MAXB 18.0 ± 0.3C 7.0 MAXD 11.94 ± 0.3E2.11 ± 0.3GENERAL SPECIFICATIONS:◎ All test Data is referenced to 25℃ ambient◎ Typical Heat Rating DC Current would cause an approximately △T of 40℃◎ Typical Saturation DC Current would cause Lo to drop approximately 30%△ Operating Temperature Range: -55℃ to +125℃。

一体成型电感参数
一体成型电感的参数包括电感值、电压容忍度、电流容忍度和频率范围等。

1. 电感值：电感是电流随时间变化而产生的自感现象，其单位是亨利（H）。

一体成型电感的电感值可以根据设计要求进行
选择，常见的数值有微亨（μH）和毫亨（mH）等。

2. 电压容忍度：电感器在工作时会承受一定的电压，电压容忍度是指电感器所能承受的最大电压幅值。

一体成型电感的电压容忍度应根据电路的工作电压和峰值电压来确定。

3. 电流容忍度：电感器在工作时会通过一定大小的电流，电流容忍度是指电感器所能承受的最大电流值。

一体成型电感的电流容忍度应根据电路的工作电流来确定。

4. 频率范围：电感器的电感值在不同的频率下可能会有所变化，一体成型电感的频率范围是指其可靠工作的频率范围。

频率范围的选择应根据电路设计的频率需求来确定。

除了以上参数，一体成型电感还有一些其他的特殊参数，如温度系数、尺寸、导线连接方式等，这些参数根据具体的使用需求来选择。

一体成型电感05系列技术指标
一、额定电流：一体成型电感05系列的额定电流范围通常为0.1A-
5A，具体取决于不同型号的电感。

二、电感值范围：该系列电感的电感值范围通常为100μH-1000mH，
也可以根据客户的要求进行定制。

三、容差：一体成型电感05系列的容差范围一般为±5%-±30%，也
可以根据客户的要求进行定制。

四、工作频率范围：该系列电感的工作频率范围通常为100Hz-1MHz，适用于不同类型的电子设备。

五、耐压：一体成型电感05系列的耐压通常为250Vrms-1500Vrms，
可以根据客户的要求进行调整。

六、温度特性：该系列电感的温度特性通常为-40℃至+85℃，具有良
好的稳定性，适用于各种环境条件。

七、尺寸：一体成型电感05系列的尺寸可以根据客户的要求进行定制，通常为5mm×5mm×2mm至20mm×20mm×10mm不等。

八、包装形式：该系列电感的包装形式通常为贴片式，便于安装和焊接。

九、材料：一体成型电感05系列通常采用高质量的磁性材料和导体
材料制造，以提高电感性能和可靠性。

十、应用领域：一体成型电感05系列广泛应用于电源管理、通信设备、汽车电子、工控设备等领域，可用于滤波、阻抗匹配、储能等电路。

十一、优势：该系列电感具有小尺寸、高效率、低损耗、高可靠性等优点，在电子设备中起到了重要的作用。

以上是一体成型电感05系列的技术指标，这些指标可以满足不同类型的电子设备对电感的需求，并提供高性能和可靠性的支持。

Outline:产品概要▪Small size,high rated current,low DCR.小尺寸,耐大电流，低直流电阻。

▪Lead free product,RoHS compliant.无铅产品，符合RoHS 指令。

▪Carrier tape packing,suitable for SMT process.载带包装，适用于回流焊SMT 工艺。

▪Widely used in buck converter,displayer,laptop,network communication equipment,and etc.广泛应用于升降压转化器，显示器，笔记本电脑，网络通信设备等。

▪Operating temperature :-40℃～+125℃(Including coil’s temperature rise)工作温度：-40℃～+125℃(包含线圈发热)1Appearance and Dimensions (mm)外形尺寸(mm)2Marking3Reference Land Pattern (mm)4Schematic印字标识参考基板尺寸(mm)原理图5.52.53.7215Electrical Characteristics电气特性Part No.Inductance (μH)D.C.R.(mΩ)Saturation current (A)Temperature rise current (A)■All data is tested based on 25℃ambient temperature.所有数据基于环境温度25℃条件下测试。

※1Inductance measure condition at 1kHz,0.25V.电感测试条件为1kHz,0.25V 。

※2Saturation current ：the actual value of DC current when the inductance decrease 20%of its initial value.饱和电流：电感值下降其初始值的20%时所加载的实际直流电流值。
