隔膜泵电气使用说明书

操作 & 维修手册气动双隔膜泵操作手册感谢您选购我公司最经久耐用、功能强大的气动隔膜泵产品。

正确的安装和维护可极大地提高泵的性能并延长泵的使用寿命。

安装和操作泵之前，请阅读下列警告及安全措施。

不遵守这些指南会危及人和财产。

请保管好该操作指南以备将来查询。

警告使用前，请确定泵是否耐介质的腐蚀。

温度、浓度和化学成分的变化，会改变材料的耐腐蚀性。

使用前，请查询材料的安全数据表和化学耐腐蚀性能表。

请确认此设备操作者接受过安全操作程序培训。

危险泵送危险或有毒液体，必须要佩戴防护眼镜及防护服：z如膜片破裂，所泵送的物料可能会进入泵空气侧，并通过消音器排出时,当泵送危险液体时，排气口须远离工作区域和人。

z当物料的液位高于泵的水平位置时（自灌入吸面），应把排气口用管路引出到高于物料液位的高度，从而防止当膜片破裂时液体由于虹吸作用引起喷溅。

危险带压危险：系统带压时，不要清洗或维护泵、管或分配阀，否则会造成严重损害。

z拆卸前，请泄压并拆除供气管线。

危险静电警告：使用非导电版的泵输送易燃物料可能会形成静电。

静电火花可能引起爆炸，并导致人员伤亡。

输送易燃物体或泵在易自燃的环境下使用，请将泵及泵送系统接地。

当泵需接地线时，我们有多种型号的导电版非金属泵可供选择。

请用接地线并确保连接到接地良好的接地端子上。

z固定泵，连接所有接触点，避免震动及产生接触性或静电火花。

有必要定期用欧姆表测量各部件对地的电通性。

z特殊的接地连接，请查询地方建筑规范和电气规程。

z使用带电丝的软管。

z使用正确的通风系统。

z易燃物要远离热源、明火、火花。

z不用时，请密封保存。

警告最高温度只取决于机械应力。

一些化学制品会极大地降低最大安全操作温度。

请咨询工程指导，了解化学防腐性能及温度极限。

z输送高温液体时，一定要用最小供气压力。

警告供气压力过高，会造成泵损毁，人身伤害，财产损失。

警告经过维修保养的泵，重新组装时，一定要正确组装。

注意不能用泵作管道系统的支撑。

零件说明ChemSafe™307气动隔膜泵3A3549F ZH 工业用3/8英寸高纯泵。

仅限专业人员使用。

未获准用于欧洲易爆环境场所。

重要安全说明请阅读本手册中的所有警告和说明。

妥善保存这些说明。

100磅/平方英寸（0.7兆帕，7.0巴）最大供气压力100磅/平方英寸（0.7兆帕，7.0巴）最大流体工作压力PROVEN QUALITY.LEADING TECHNOLOGY.Contents警告 (3)配置编号表格 (6)安装 (8)一般信息 (8)将螺栓旋紧 (8)减少气蚀秘诀 (8)安装泵 (9)系统接地 (10)空气管路 (10)排气通风 (11)流体供应管路 (12)流体出口管路 (12)Operation (13)将螺栓旋紧 (13)首次使用前冲洗泵 (13)起动和调节泵 (13)泄压步骤 (14)关闭泵 (14)维护 (15)维护计划 (15)润滑 (15)拧紧螺纹连接处 (15)冲洗和储存 (15)故障排除 (16)修理 (18)拆卸流体部分 (18)拆卸中心部分 (19)重新装配中心部分 (19)重新安装流体部分 (20)扭矩说明 (22)部件 (24)配件包 (26)尺寸 (27)性能图表 (28)技术数据 (29)23A3549F警告警告以下为针对本设备的设置、使用、接地、维护及修理的警告。

惊叹号标志表示一般性警告，而各种危险标志则表示与特定操作过程有关的危险。

当本手册正文中或警告标记上出现这些符号时，请回头查阅这些警告。

若产品特定的危险标志和警告未出现在本节内，则可能出现在本手册的其他章节。

3A3549F3警告43A3549F警告3A3549F5配置编号表格配置编号表格检查铭牌（ID），查看泵的配置编号。

使用下表定义泵组件。

示例配置编号307PT-P01APT3PTPTPOPT307PT P01A PT3PT PT PO PT泵型号中心部分和空气阀流体盖和歧管阀座阀球隔膜歧管和阀座密封垫泵中心部分和空气阀材料流体盖和歧管307PT3/8英寸PTFE P01A带常温常压空气入口的聚丙烯中心PT3PTFE，常温常压307UH3/8英寸UHMWPE P03A带bspt空气入口的聚丙烯中心PT4PTFE，bsptUH3UHMWPE，常温常压UH4UHMWPE，bspt阀座材料阀球材料隔膜材料歧管和阀座密封材料PT PTFE PT PTFE BN丁腈橡胶PT PTFEEP三元乙丙橡胶PO超模压PTFE63A3549F配置编号表格型号型号泵空气与流体连接螺纹流体盖和歧管球与阀座隔膜歧管密封件24X428‡英制锥螺纹24X427‡3/83/8英英寸PTFE 标准管螺纹PTFE24X504英制锥螺纹24X503标准管螺纹二次成型PTFE/EPDM24X536英制锥螺纹24X537标准管螺纹三元乙丙橡胶24X502英制锥螺纹24X5013/8英寸UHMWPE 标准管螺纹UHMWPTFE丁腈橡胶PTFE‡ 符合 FDA3A3549F 7安装安装一般信息所示的典型安装仅用作系统组件的选择和安装指南。

隔膜式计量泵使用说明书关于本产品说明书（以下简称“说明书”）◆说明书版权属边锋所有；◆说明书与实际产品有不一致的地方，边锋拥有最终解释权；◆说明书是本产品不可分割的一部份，请妥善保管；如果您对说明书的任何内容存在不明或异议，请在购买设备七日内向本公司提出书面异议，否则视为您已经同意、理解并接受说明书的全部内容。

设备使用过程当中，如果您遇到技术问题，欢迎致电：！ 特 别 提 醒用户使用手册 隔膜式计量泵分册1、计量泵使用前请加220#蜗轮蜗杆油或50#齿轮油至油标。

2、计量泵电机接线一定要按照电机铭牌的电压接线（380V或220V）2、计量泵开机之前一定要确保出口管路通畅（阀门全开）。

3、不锈钢管路接头焊接时，切不可把焊渣或杂物掉入管路或阀体内（从而会造成计量泵不出水、压力变小或流量变小）计量泵要停止工作时先关闭计量泵，再关闭出口阀门。

4、出口管路压力一定要高于进口管路压力，如果低于进口压力，一定要加装背压阀，防止产生虹吸。

5、出口管路口径一定要大于或等于，相应计量泵的标配口径。

计量泵标准按装图（供参考）目录一、概述.................................................................................（5）二、结构原理和特性 (5)2.1泵的结构 (5)2.2工作原理 (5)2.3流量调节特性 (6)三、技术数据 (6)3.1参数 (6)3.2流量调节曲线特性图 (6)四、泵的使用 (6)5.1泵运转前的检查及其准备工作 (6)5.2启动 (6)5.3带负荷运转 (6)5.4停机…………………………………………………………………（7）五、泵的维护保养 (7)6.1泵的日常维护 (7)6.2维修保养解拆及装配顺序 (7)六、安装 (8)4.1泵的安装 (8)4.2管路安装 (8)4.3特殊液体对管路通量增加 (9)4.4安装规范(按装图) (9)七、各系列产品装配图 (11)八、故障原因分析及排除方法 (13)九、单向阀总成及装配结构图 (14)一、概述机械隔膜式计量泵主要是往复式计量泵、按泵的缸数可分为单缸、双缸、三缸等多种类型。

2Diaphragm Pump 隔膜泵Specialist in Fluid Transfer致力于流体输送Edition 7 Is SKY-E -E-03-2016E255This manual contains warnings and caution.本手册包含警告和注意事项READ AND RETAIN FOR REFERENCE阅读和保留以供参考INSTRUCTIONS操作指南Operation andMaintenance Manual操作维护手册1警告以下为针对本设备的设置、使用、接地、维护及修理的警告。

惊叹号标志表示一般性警告，而各种危险标志则表示与特定操作过程有关的危险。

当本手册正文中或警告标志上出现这些符号时，请回头查阅这些警告。

若产品特定的危险标志和警告未出现在本节内，则可能出现在本手册的其他章节。

2警告34The electric diaphragm pump is composed of a suction port, a discharge port, a medium chamber and a power assembly. The power assembly is composed of a motor, a crankshaft, a piston and an intermediate shaft 电动隔膜泵由吸入口、排放口、介质室和动力总成构成，动力总成由电机、曲轴、活塞和中间轴构成When the diaphragm pump is working, the left and right diaphragms are driven by the crankshaft and the piston to move left and right隔膜泵工作时，左右膜片均通过曲轴和活塞驱动左右运动The motor drives the crankshaft, the crankshaft drives the piston, the piston pushes the central shaft, and the diaphragm moves to the left. As a result, the volume of the left cavity decreases and the liquid is squeezed out 电机带动曲轴，曲轴驱动活塞，活塞推动中心轴，驱动膜片向左移动，结果是左腔容积减小，液体被挤出。

机械隔膜计量泵（自动加药装置）使用说明书使用前请仔细阅读本说明书，并妥善保管一、综述J xM-IJ XM-II二个系列机械隔膜泵是我厂设计开发的往复式化合物投加泵。

J XM-Ⅰ泵的输送流达500Lh，压力达1.2MPa，取决于泵型号)；J XM一Ⅰ泵的输送流量能力达1400L/h.压力达1MP(取决于泵型号)。

这两个系列泵的特点是机械驱动隔膜，隔膜取消四氟薄膜与橡胶、铁芯复合的结构型式，增大了隔膜行程，冲程调节机构集于可变偏心机构的工作原理，替代了传统的偏心凸轮的有效冲程调节设计形式。

这种设计显著地减小了压力和流量的脉动程度，使流量在10~100%的范围内，稳定性精度可控制在±2%。

1.2、泵的运行原理泵由两大部分组成：动端部分和液力端(泵头)部分。

泵的输出流量取决于传动端的冲程速度，隔膜(泵头)直径和隔膜冲程长度。

在泵运行或停止时，均可以通过凋节冲程调节手轮来改变冲程长度，传动机构根据可变偏心机构原理工作，即电机旋转驱动蜗轮副进行减速，由蜗轮减速部件驱动可变偏心曲轴旋转，可调式偏心曲轴通过连杆将往复式运动传递给隔膜，使隔膜产生挠曲变形。

通过改变连杆上的可变偏心曲轴的位置，就可调转冲程长度。

泵在吸入冲程时，隔膜开始向后运动，泵头内的压力立刻降低；当泵头压力低于吸液管路压力时，吸入口单向阀的阀球被向上“推开”，进口管路中的介质进入泵头腔室内。

当吸液冲程结束时，隔膜运动瞬时停止，泵头内的压力与吸液管路中的压力持平，吸入口单向阀球复位。

泵在排出冲程时隔膜开始向前运动，泵头内的压力立刻升高。

当泵头压力高于排出管路压力时，排出单向阀球被向上“推开”，泵头内的液体进人出液管路，当排出口冲程结束时，隔膜再一次瞬时停止运动。

泵头内的压力与排出管路的压力相同，排出口单向阀球复位，然后再开始下一个循环。

在吸人冲程中，泵头内的压力必须高于物料蒸汽压，如果液体压力低于其气化压力，就会发生气穴现象，影响泵的性能。

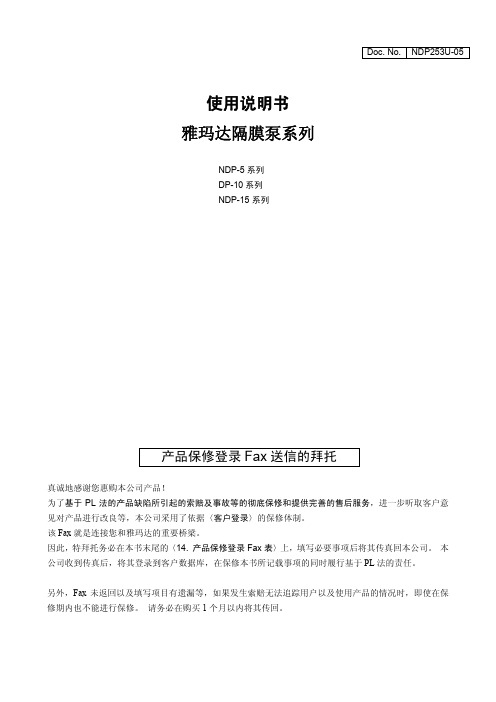

Doc. No. NDP253U-05使用说明书雅玛达隔膜泵系列NDP-5系列DP-10系列NDP-15系列产品保修登录Fax送信的拜托真诚地感谢您惠购本公司产品！为了基于PL法的产品缺陷所引起的索赔及事故等的彻底保修和提供完善的售后服务，进一步听取客户意见对产品进行改良等，本公司采用了依据〈客户登录〉的保修体制。

该Fax就是连接您和雅玛达的重要桥梁。

因此，特拜托务必在本书末尾的〈14. 产品保修登录Fax表〉上，填写必要事项后将其传真回本公司。

本公司收到传真后，将其登录到客户数据库，在保修本书所记载事项的同时履行基于PL法的责任。

另外，Fax未返回以及填写项目有遗漏等，如果发生索赔无法追踪用户以及使用产品的情况时，即使在保修期内也不能进行保修。

请务必在购买1个月以内将其传回。

・前言真诚地感谢您惠购本公司的隔膜泵产品。

本产品采用的是利用压缩空气等的独立切换机构，使隔膜往返运动达到移动液剂等目的的一种容积型泵。

接液体部套管采用了铝合金、不锈钢、铸铁、聚丙烯、氟化树脂、聚缩醛，隔膜采用橡胶类和塑料类的各种材料。

・全注意事项本书记载有安全、正确和有效使用本产品的重要事项。

在使用本产品前请仔细阅读本书，特别是本书起首的〈警告注意事项〉的项目，请在充分理解后使用本产品。

另外，请妥善保管本书，以便使用本产品时随时查阅。

・警告和注意事项为安全使用本产品，请务必遵守以下事项：在本书中，用图表示警告及注意事项。

这些是为了正确使用本产品及使用者其周围的人群造成人身伤害事故和损坏周围物品的防患于未然的一种标识。

其表示方法和含义如下。

请详细阅读并理解其内容。

警告：表示无视该标记而采取错误的操作方法，有导致死亡或重伤的可能。

注意：表示无视该标记而采取错误的操作方法，有导致受伤以及物品损害的可能。

另外，为了表示危害和损害内容，在采用上述标记的同时，使用下图进行表示。

该标记表示禁止的行为（禁止事项）。

标记的旁边表示具体的禁止内容。

操作手册6661AX-X-C内容：操作、安装和维护保养发布日期： 9-11-89修订： １１-１５-10(修订版本：Ｖ)1英寸隔膜泵1:1比例（非金属）在安装、操作或维修该设备之前，请仔细阅读本手册。

雇主有责任向操作人员提供本手册，请保留本手册以备将来参考。

维修服务包参看型号说明表，以便与泵材选项匹配。

637118-C 用于空气段修理（参看第6页）。

637161-XX-C用于流体段修理（参看第4页）。

隔膜泵数据型号 . . . . . . . . . . . . . . . 参看“型号说明表”中“-XXX”泵的类型 . . . . . . . . . . . . 非金属气动双隔膜泵 材料 . . . . . . . . . . . . . . . 参看型号说明表重量 . . 6661A3-,1AF-,1AJ-,1AL- . . . 20.25 lbs(9.19 kgs) 6661AP-,1AR-,1AS-,1AT- . . 20.25 lbs(9.19 kgs) 6661A4-,1AG-,1AK-,1AN- . . 28.5 lbs(12.93 kgs) 6661B3-,1BF-,1BJ-,1BL- . . . . 28.8 lbs(13.06 kgs) 6661BP-,1BR-,1BS-,1BT- . . . 28.8 lbs(13.06 kgs) 6661B4-,1BG-,1BK-,1BN- . . . 37 lbs(16.78 kgs)最大进气压力 . . . . . . . . . . . . . . . . 120 p.s.i.（8.3巴）最大进料压力 . . . . . . . . . . . . . . . . 10 p.s.i.（0.69巴）最大出料压力 . . . . . . . . . . . . . . . . 120 p.s.i.（8.3巴）最大流速（灌注进口）. . . . . . . . . . 47g.p.m.（177.9 l.p.m）排量/循环 @ 100 p.s.i.g. . . . . . . . . . 0.17加仑（0.64升）最大粒径（半固体） . . . . . . . . . . . 1/8”直径（3.2 mm） 最大温度极限（隔膜/球/密封材料）乙丙橡胶/三元乙丙橡胶. . . . - 60° 至 280° F (-51° 至 138° C)热塑性聚酯弹性体® . . . . . . . - 20° 至 150° F (-29° 至 66° C)氯丁(二烯)橡胶 . . . . . . . . . . 0° 至 200° F (-18° 至 93° C)腈 . . . . . . . . . . . . . . . . . . . 10° 至 180° F (-12° 至 82° C)聚丙烯 . . . . . . . . . . . . . . . . 35° 至 175° F (2° 至 79° C)聚氨基甲酸乙酯 . . . . . . . . . 10° 至 150° F (-12° 至 66° C)聚偏氟乙稀(Kynar ®) . . . . . . . 10° 至 200° F (-12° 至 93° C)三道橡胶® . . . . . . . . . . . . . -40° 至 225° F (-40° 至 107° C)聚四氟乙烯 . . . . . . . . . . . . 40° 至 225° F (4° 至 107° C)氟橡胶® . . . . . . . . . . . . . . . -40° 至 350° F (-40° 至 177° C)尺寸数据 . . . . . . . . . . . . . . . . . . . . 参阅第8页噪声级 @ 70 p.s.i - 60 c.p.m ① . . . . . 64.5db(A)②① 用所安装的93110消声器测试。

第1页，共页 64隔膜泵使用说明书专业的真空科技MD 1 VARIO-SP MD 1第2页，共 页 64售后服务： 请联系您当地的经销商或致电+49 9342 808-5500。

尊敬的顾客：VACUUBRAND 隔膜泵会在您的工作中为您提供全面帮助，且长时间不会出现故障。

我们凭借自身累积的多年实际经验，为您提供丰富的应用和安全信息。

请在首次使用隔泵之前仔细阅读本使用说明书。

VACUUBRAND 隔膜泵乃我们丰富的设计、生产和实际操作经验与材料和制造技术最新发现的完美结合。

我们秉承“零缺陷”质量准则：每台隔膜泵在出厂前都经过严格的测试，包括14小时的耐久性测试。

任何故障，即使是很少发生的故障，也能立即发现并消除。

耐久性测试完成后，对每台泵进行测试，必须在达到要求的规范后才能出厂。

我们致力于为客户提供完全满足这一高质量标准的隔膜泵。

虽然这些隔膜泵并不能完全接管您的所有工作，但我们设计、制造和测试它们的目的是确保其能高效、顺利地协助您完成工作。

此致VACUUBRAND GMBH + CO KG商标索引：VACUU•LAN ®（美国注册号3,704,401）、VACUU•BUS ®、VACUU•CONTROL ®、 Peltronic ®、VARIO ®（美国注册号3,833,788）、VACUUBRAND ®（美国注册号3,733,388）以及显示的公司徽标是 VACUUBRAND GMBH + CO KG 在德国和/或其他国家的注册商标。

第3页，共页 64目录安全信息！ (4)重要信息！ (4)一般提示 (6)使用前注意事项 (6)组装和安装设备 (7)环境条件 (10)运行条件 (10)操作期间的安全性 (11)维护和维修 (14)重要信息：设备标记（ATEX） (16)技术数据 (18)沾湿部件 (19)进气温度 (20)缩写 (20)泵零件 (20)更换设备保险丝（仅限MD 1 C/US） (24)更换电路板上的保险丝 (25)（仅限MD 1 VARIO-SP） (25)使用和操作 (27)安装 (27)真空连接（进气口） (28)连接出气口 (29)电气连接 (30)控制MD 1 VARIO-SP (32)运行期间 (37)停机和储存 (39)配件 (40)故障排除 (41)更换隔膜和阀门 (43)检查隔膜和阀门 (46)更换隔膜 (49)更换阀门，安装泵头 (52)维修 - 维护 - 退回 - 校准 (56)质保 (58)健康安全声明 (59)第4页，共 页 64安全信息！重要信息！请妥善保管本手册，确保其完好无损并可供员工随时查阅！ 请在安装或操作设备之前仔细阅读本手册。

400B SERIES ELECTRIC DIAPHRAGM PUMPSOwner’s Operation ManualTable of ContentsThank You!Thank you for your loyalty to the Sotera ® brand of chemical, lubricant, andmixed hydrocarbon transfer pumps. Your safety is important, so pleaseread and thoroughly understand the procedures set forth in this manual.Protect yourself as well as those around you by observing all safetyinstructions and adhering to all danger, warning, and caution symbols.Please save these instructions for future reference and record the model,serial number, and purchase date of your Sotera transfer pump.Please register your Sotera product via/sotera_product_registrationIMPORTANT RETURN POLICYPlease do not return this product to the store. For all warrantyand product questions, please contact Tuthill Customer Service at 1‑800‑634‑2695 (M‑F, 8am‑6pm EST/EDT.)Limited Warranty Policy ............................................................................3Basic Definitions ......................................................................................3About This Manual....................................................................................4Symbols and Definitions ...........................................................................4General Safety Information.......................................................................5Installation Best Practices .......................................................................5Electrical Installation ...............................................................................6Best Operational Practices .......................................................................8Routine Annual Maintenance ....................................................................8Individual Pump Component Removal and Replacement ..........................8Diaphragm/Motor/Gear Assembly .............................................................9Viscosity Correction Chart ......................................................................10Anti‑Drip Nozzle Spout Kit . (11)Diaphragm and Check Valve Orientation Detail ......................................11Troubleshooting Guide ............................................................................12Parts List ...............................................................................................13Model Information . (14)Regulatory Compliance Information (16)Limited Warranty PolicyBasic DefinitionsChemtraveller ®: A compact, low‑profile frame to allow for pump mobility without needing to handle the pump itself.Diaphragm: A flexible membrane constructed of a synthetic rubber used to displace fluid through the pump cavity.IBC Mount: A stainless steel bracket that can be mounted onto the cage of any size IBC tote.Mix-n-Go: A recirculation system design to fit onto a 9" IBC gem cap. Units with this device have the recirculation valve built into the pump. Poise (P): A unit of measurement of dynamic viscosity. For the purpose of this manual, Sotera will utilize the measurement of Centiposes (cP) which is one hundredth of a Poise or one millipascal‑second (mPa‑s).Positive Displacement: Constant volume at a fixed speed, independent of system pressure.Pump-n-Go: Free‑standing pump mobility. Systems with this designation do not have any mounting frames.Recirculation: The process of mixing fluids through the pump without discharging from the container.Suction Lift: The distance below the center line of the pump to lift fluids.Viscosity (V): The measurement of flow fluid or resistance.Wetted Parts: All parts that are touched by the transfered fluid either in part or through immersion.About This ManualFrom initial concept and design through final production, your Sotera product is built to provide years of trouble‑free use. To ensure the safety of yourself and those around you, it is critical that this manual is read in its entirety prior to attempting to install or operate your new purchase. We strongly urge that any installer and operator become familiar with the terms, diagrams, and technical data in this manual and pay close attention to any DANGER, WARNING, CAUTION, or NOTICE information. At Tuthill, your satisfaction with our products is paramount. If you have questions or need assistance with your product, please contact Customer Service at 1‑800‑634‑2695 (M‑F, 8am‑6pm EST/EDT).General DescriptionThe Sotera 400B Series is a self‑priming, positive displacement double action diaphragm pump. It features flow rates up to 13 gallons per minute (13GPM) and is engineered with polypropylene and stainless steel wetted parts, along with seals that are compatible with most agricultural and industrial chemicals as well as lubricants (e.g. those found within power transmission). These wetted materials consist of a polypropylene body and valves, stainless steel fasteners, Hastelloy® check valve springs, Buna‑N, EPDM and Fluorocarbon seals, along with Hytrel® and Santoprene® diaphragms.Sotera utilizes a recognizable naming system where model numbers reference the diaphragm material. Models that begin with ‘SS’ (eg. SS415B) contain Santoprene diaphragms, while models that begin with ‘FR’ (eg. FR410B) contain Hytrel diaphragms. Santoprene is designed for moving agriculture chemicals while Hytrel is used with oils and lubricating fluids. We strongly recommend referring to the Sotera Chemical Resistance Guide foundat to determine proper materials of construction for use with your application.The 400B Series pump is not compatible with strong acids (pH of 3.4 or below), strong bases (pH above 12), non‑diluted flammable liquids with a flash point below 100°F/38°C, or bleach (sodium hypochlorite).• All suction hoses should be reinforced to prevent collapse by system pressure • If there is a possibility of solids or debris within the liquid, at minimum, a 10 mesh screen (0.07") or less needs to be utilized either at the end of the suction pipe or entry into the suction side of the pump. Particles greater than 0.1" will adversely affect pump performance • All suction hoses or pipes must be 1" diameter. Large sizes maybe used as long as it terminates to a 1" diameter at the suctioninlet of the pump• Placement of the suction pipe should terminate 2" from the bottom to avoid particulate contamination unless a 10 mesh in‑line screen is being used as noted• Maximum suction lift capacity is 9 FT (2.7 M) for water at sea level at 70°F. Suction lift for each application will be dependent on the Centipose (cP) of the individual fluid as affected by temperature and elevation• IMPORTANT: Tanks and containers must be vented to prevent collapses • Tighten all non‑metallic fittings to a snug fit to prevent leakage. Damage could occur to the pump if these fittings are over tightened • Do not use the pump as the structural support of the piping system• Be certain the system components are properly supported to prevent stress on the pump parts. As a rule and unless specifically designed into the pump, suction and discharge connections should be flexible to avoid damaging the pump body. Ensure that any connection material is compatible with the substance being transferred through the pump itselfTo maximize performance and longevity of your 400B Series pump, we recommend the following considerations:Installation Best Practices (Suction Side of Pump)• Tuthill strongly recommends grounding the pump and motor priorto any usage • Electrically bonding to a vehicle frame or utilizing a ground circuitfor stationary applications are preferred grounding methods. Alwaysconsult with a licensed electrician for your application • Inspect any and all power and grounding cables prior to each use.Replace if the outer protective jacket has been removed to exposeany wires• For 12V DC non‑explosion proof motors, the power cable terminates with battery clamps that are either red (+) or black (‑); however a ground wire is not included • For 12V DC explosion‑proof motors, in general, neither a ground wire, power cable, or battery clamps are provided. See pages 14‑15 forspecific included components • DO NOT connect the ground wire to the negative post of the DC power sourceElectrical InstallationBLACK−RED+GREEN 23EARTH / CHASSISGROUND• All discharge hoses should be a minimum of 1" diameter. Large sizes may be used as long as it terminates to a 1" diameter at the discharge outlet of the pump • Hoses greater than 20' may be used, however, reduced outlet flow at the end of the hose or nozzle should be expected. Flow is dependent onthe cP of the fluid as affected by temperature and elevation• Always use hoses and accessories that are compatible to the product being transferred. For hoses, as a general practice Tuthill recommends EPDM for agricultural chemical and Nitrile or Buna‑N for petroleum‑based oils and lubricantsInstallation Best Practices (Discharge Side of Pump)Utilizing the diagram above, proceed with the following connections:1. Ground connection (green clamp or eyelet)2. Negative connection (black clamp)3. Power connection (red clamp)AC Power• 115V AC, 60Hz, 2.5 amps, 1/4 Hp (185 watts) motor, standard non‑explosion proof• 115V AC, 60Hz, 2.5 amps, 1/4 Hp (185 watts) motor, explosion proof uL listedAvailable AC Voltage ClassesDC Power (continued)• All non‑explosion proof 12V DC models come with a preinstalled power wire. 12V DC models will have a 30 amp fuse holder and fuse • 12V DC and 24V DC explosion‑proof models will not have a power cord installed but may include a power cable separately, depending onmodel configuration• All non‑explosion proof 110V AC models come with a preinstalled power cable. These models will terminate with a type B (3 pin) grounded, 15A plug that is compatible with type B sockets • 110V AC explosion‑proof models will not have a power cord installed but may include a power cable separately, depending on model configuration as outlined on pages 14‑15Routine Maintenance Schedule1. Always check oil level by the sight glass prior to any fluid transfer. The ideal oil level should be at the mid line or halfway point of both site glasses. Add SAE 30W oil as needed to maintain thenecessary level 2. Inspect all external Torx(r) head screws are tight. If any screws appear to be loose, torque to 75 in‑lbs3. Inspect all motor flange hex head bolts are tight. If any bolts appear to be loose, torque to 50 in‑lbs4. Either annually or after 500 hours of usage, drain the existingSAE 30W weight oil through a site glass port and replace withapproximately 16 oz of the same oilRegular maintenance is critical to maintaining performance and extending the life of your 400B Series pump.• Always turn off the transfer pump and disconnect from a power source prior to servicing • Always flush the pump completely prior to any service or disassembly. Tuthill recommends the use of water for flushing agricultural and industrial chemicals. For petroleum‑based products such as oils and lubricants, flushing with diesel fuel is acceptable • DO NOT PRESSURIZE THE FLUSHING FLUID. Damage to the pump will occur. Instead, submerge the suction tube or inlet adapter in the flushing fluid, then operate the pump as normal for approximately 15‑30 seconds or until the flushing fluid returns to its initial color. Allow the pump to air dry prior to any service • DO NOT SUBMERGE THE ENTIRE PUMP OR ELECTRICAL MOTOR IN THE FLUSHING FLUID, ONLY THE SUCTION TUBE OR INLET ADAPTER • Do not allow chemicals, lubricants, or oils to remain in the internal pump cavity for any extended period of time. Crystallization or a glum could become present, adversely affecting pump performance • Tuthill highly recommends flushing the pump after each use to avoid ‘dry out’ and contamination between fluid transfers• The interior pump cavity is filled with SAE 30W oil by the factory in order to lubricate the internal gear drive mechanism and yoke assembly. Certain pump repairs will require the draining of this fluid. If necessary, remove one of the site caps found on the exterior of the pump body and drain the oil through this port. Replace with new SAE 30W oil after repairs are completed through the same port. Tuthill recommends 16 oz of oil to be placed inside the cavity or until level is halfway within the site glassBest Operational PracticesMotor with Gear Assembly Removal1. Position the pump with the sight caps downward2. Remove the four (4) screws holding this assembly and lift upward3. Replace with new motor and gear assembly as supplied by TuthillGear Assembly Removal1. Remove motor as noted above2. Remove six (6) screws and key holding the gear pack assembly on the motor shaft3. Replace with new assembly, install new screws, and key1. Turn the pump on its side by which the diaphragm to be repaired is facing upward while the opposite diaphragm is facing downward2. Remove the eight (8) diaphragm cover screws. This will require a Torx T30 bit3. Remove the cover and turn it over to expose the inner side to avoid any contamination. The cover will have a gasket seal. It is highly recommended that this seal be replaced during this repair4. Remove the four (4) retainer screws with a Phillips #2 screwdriver.These screws have a seated O‑ring. It is recommended to replace boththe screws and O‑ring during this repair5. Remove the diaphragm assembly by pulling on the four edge corners ofthe diaphragm itself, being careful to not tear or curl the diaphragm.If necessary, pulling on the check valve assemblies is acceptable. Donot use any tools to pry the diaphragm off the pump body as this coulddamage the surface of the pump. Be sure to retain the four (4) checkballs that are within the cavity of the pump. These may be removedwith the diaphragm6. Install new diaphragm assembly in the same orientation as the one that was removed. Important that the check balls are seated prior tothe diaphragm assembly placement7. Insert the four (4) Phillips head screws and tighten to 35 in‑lbs8. Install the diaphragm cover with installed gasket. It is important to hand start all external screws prior to driving to a torque specification of 75 in‑lbsDiaphragm Assembly ReplacementBoth the diaphragms and check valve assemblies can be serviced without removing the oil from the interior pump body cavity. It is important that only one(1) assembly be serviced at a time. Avoid any possible contamination of the oil within the internal pump cavity during this repair.ProcedureInternal Mechanical Components (Bearing Plate, Yoke, and Drive Shaft Assembly)1. Remove motor and gear assembly from pump cavity2. Drain oil from interior cavity through this opening3. Remove four (4) screws holding bearing plate4. Remove bearing plate, allowing for the thrust plate to be removed as well5. Remove drive shaft, bearing, bearing ring, and yoke assembly.IMPORTANT: the yoke assembly is under pressure by two springs.Do not attempt to repair, only replace with factory authorized parts6. Assemble in reverse orderFLOW IN GALLONS PER MINUTE (GPM)LENGTH OF 1" ID DISCHARGE HOSE (METERS) L E NGTHOF1"IDD IS CHARGEHOS E(F EET)FLOW IN LITERS PER MINUTE (LPM)7.6022.715.137.930.35345.460.645403530252015105500206410814121613.712.210.79.17.66.14.631.515.20HYTREL (PETROLEUM)• Gear Oil [GL‑1 to GL‑5]• Hydraulic Oil[HL, HM, HR]• Motor Oil • 000 Greases SANTOPRENE (CHEMICAL)• Crop Oil • Detergents • Liquid Fertilizers [UAN 28‑32]• Mild Acids • Pesticides • Soaps • WaterViscosity Correction Chart225 cps(30 wt Oil @ 78°F)Notes:1. SUCTION LOSSES: Test pump was mounted on a 55 gallon drum of oil, 1/2 full. A Sotera 1" suction pipe was used. A longer or smaller diameter inlet pipe will lower the flow rate.2. VERTICAL HEAD LOSSES: Test hose was horizontal with pump. Add 3feet of hose for each 1 foot of vertical rise. 3. OTHER LOSSES: Elbows, quick‑disconnects, swivels, and check valves in outlet or inlet hoses will restrict the flow. Add the estimated length of hose for each component used.Fluid Compatibility by Diaphragm (Typical)308 cps(30 wt Oil @ 69°F)560 cps(30 wt Oil @ 56°F)665 cps (30 wt Oil @ 49°F)2420cps (30 wt Oil @ 22°F)Anti-Drip Nozzle Spout Kit 400KTF0237For use with Norwesco and other nozzles with a 1 3/16" outside diameter. Installation1. If there is a raised plastic notch on the nozzle, carefully remove itwith a file before installing the anti‑drip spout2. Apply soapy water to the end to aid in the installation. Place theanti‑drip spout on the nozzle as shown at right. Tap the spout with a rubber mallet until it is fully engaged. The space between the end of the spout and the bend in the nozzle should be slightly more than1 3/4" when pressed fully into placeProper UsePlace the nozzle into the container to be filled BEFORE turning the pump on.After pumping, shut off the valve handle then gently shake the nozzle BEFORE removing it from the container. The spout will open when it senses pressure greater than 1 psi. Flow restriction will be minimal. Diaphragm and Check Valve Orientation DetailNozzle1 3/4" Ball (4)Cross and Spring,Bottom HolesDate InformationTroubleshooting Guide179181456789101112131415181991716B16A32928272625242322211920400B Series Model Information1Always refer to the Sotera Chemical Resistance Guide (), 2Refer to the Sotera Technical Data Sheet, Suction table, Inlet Configuration column for more details, 3Non-UL w/ static wire fuel hose, 4Refer to the Sotera Technical Data Sheet, Version column for specific 400B Series Model Information400B Series Model Information (continued)1Always refer to the Sotera Chemical Resistance Guide (), 2Telescoping Poly Suction Pipe (23" to 40"), 3EPDM Hose, 4Refer to page 14, Accessory Configurator tableTuthill Fort Wayne8825 Aviation DriveFort Wayne, Indiana 46809 USAP (800) 634‑2695(+01) 260‑747‑7524F (800) 866‑4681 | | Regulatory Compliance InformationThe “400B CE” Series pumps comply with the European Directive 2006/42/EC Machinery DirectiveThe following standards were used to verify conformance:EN 809:1998 +A:2009 ‑ Pumps and pump units for liquids – common safety requirementsEN ISO 12100:2010 – Safety of machinery – basic concepts, general principal for designDirective 2014/30/EU – Electromagnetic compatibilityEN 61000‑6‑4:2007 / +A1:2011 – General standard for industrial environmentsDirective 2011/65/EU – Restrictions of the use of certain hazardous substances in electrical and electronic equipment Specific models of the 400 Series pumps feature UL/cUL listed electric motors. Check your model versus the MODEL / ACCESSORIES / CONFIGURATION INFORMATION table (page 14‑15) to determine how your particular pump is equipped.。
