LGCRP/BTC Ryu, Duk HyunLRB-PS-CY2402003-07-16 0ApprovedDescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A3P R O D U C T S P E C I F I C A T I O NRechargeable Lithium Ion Battery Model : ICR18650 A3 2400mAhREVISIONDATE ORIGINATOR REASON FOR CHANGE 0 2004-07-16Ryu, Duk HyunOriginal ReleasePrepared Reviewed Approved Ryu, Duk HyunJung, Jae HanKim, Soo RyoungDate :’04. 07. 16. Date : ’03. 07. 16.Date : ’04. 07. 16.20 YOIDO-DONG YOUNGDUNGPO-GU,SEOUL 150-721, KOREATEL : (82) 2-3773-3599, 3659 FAX : (82) 2-3773-7005LGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A31. ScopeThis product specification defines the requirements of the rechargeable lithium ion battery to be supplied to the customer by LG Chem, Ltd. Should there be any additional information required by the customer, customers are advised to contact LG Chem, Ltd. before selecting a solution.2. Description and Model2.1 Description : Rechargeable Lithium Ion Battery2.2 Model : ICR18650 A33. Technical Information3.1 Capacity Nominal : 2430 mAh (by standard charge and discharge)Minimum : 2380 mAh3.2 Nominal V oltage : Average 3.7 V3.3 Standard Charge : Constant Current and Constant V oltage (CC/CV)mACurrent =1200V oltage = 4.2 VEnd Current = 50 mA3.4 Max. Charge Current : 2400 mA3.5 Standard Discharge : Constant Current (CC)Current = 480 mAEnd V oltage = 3.0 V3.6 Max. Discharge Current : 4800 mA (for continuous discharge)3.7 Weight : Approx. 46.1 g3.8 Operating Temperature Charge :0 to 45 o CDischarge : -20 to 60 o C3.9 Storage Temperature 1 month : -20 to 60 o C3 months : -20 to 45 o C1 year : -20 to 20 o CLGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A34. Cell DimensionsDiameter : 18.3 ± 0.1 mm ( Max. 18.4 mm )Height : 64.9 ± 0.2 mm ( Max. 65.1 mm )5. AppearancesThere shall be no such defects as deep scratch, crack, rust, discoloration or leakage, which may adversely affect the commercial value of the cell.6. Characteristics6.1 Standard ChargeUnless otherwise specified, “Standard Charge” shall consist of charging at constant current of 1200mA. The cell shall then be charged at constant voltage of 4.2V while tapering the charge current. Charging shall be terminated when the charging current has tapered to 50mA. For test purposes, charging shall be performed at 23ºC ± 2ºC.6.2 Standard Discharge“Standard Discharge” shall consist of discharging at a constant current of 480mA to 3.0V.Discharging is to be performed at 23 ºC ± 2 ºC unless otherwise noted (such as capacity versus temperature).6.3 Initial CapacityCells shall be charged per 6.1 and discharged per 6.2 within 1 hour after full charge. Initial capacity shall meet the following requirement.Initial Capacity ≥ 2380 mAh6.4 Cycle LifeCells shall be charged at constant current of 1200mA to 4.2V with end current of 50mA. Cells shall be discharged at constant current of 1200mA to 3.0V. Cells are to rest 10 minutes after charge and20 minutes after discharge. A cycle is defined as one charge and one discharge. Discharge capacityshall be measured per 6.1 and 6.2 after 300 cycles.Discharge capacity (301th Cycle) ≥80 % (of minimum capacity in 3.1)6.5 Initial AC ImpedanceLGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A3Initial AC impedance is measured at 1kHz after standard charge.Initial AC Impedance ≤ 90 mΩ (with PTC)6.6 Temperature Dependency of CapacityCells shall be charged per 6.1 at 23ºC ± 2ºC and discharged per 6.2 at the following temperatures.Relative capacity at each temperature shall meet the following.Charge Temp. Discharge Temperature-10ºC0ºC 23ºC 60ºC23ºC70 % 90 % 100 % 95 %6.7 Storage CharacteristicsCells shall be charged per 6.1 and stored in a temperature-controlled environment at 23ºC ± 2ºC for30 days. After storage, cells shall be discharged per 6.2 to obtain the remaining capacity.Remaining capacity ≥90 % (of minimum capacity in 3.1)6.8 Cell V oltage (as of shipment)V oltage range : 3.7 ~ 3.9 V7. Mechanical Characteristics7.1 Drop TestTest method : Cells charged per 6.1 are dropped onto an wooden floor from 4 feet height for 3 cycles, where each cycle consists of 3 drops, 2 drops from each cell terminal and1drop from the side of cell can (Total number of drops = 9). After test, cells aredischarged per 6.2 and cycled per 6.1 and 6.2 for 3 cycles to obtain recoveredcapacity.Criteria : No leakage, Capacity recovery rate ≥ 80 %7.2 Vibration TestTest method : Cells charged per 6.1 are vibrated for 90 minutes per each of the three mutually perpendicular axis (x, y, z) with an amplitude of 0.8mm, frequency of 10Hz to55Hz and sweep of 1Hz change per minute. After test, cells are discharged per6.2 and cycled per 6.1 and 6.2 for 3 cycles to obtain recovered capacity.Criteria : No leakage, Capacity recovery rate ≥ 80 %LGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A38. Environmental Test8.1 High Temperature Storage TestTest method : Cells are charged per 6.1 and stored in a temperature-controlled environment at 60ºC for 1 week. After test, cells are discharged per 6.2 and cycled per 6.4 for 3cycles to obtain recovered capacity.Criteria : No leakage, Capacity recovery rate ≥ 80 %8.2 High Temperature and High Humidity TestTest method : Cells are charged per 6.1 and stored at 60ºC (95% RH) for 168 hours. After test, cells are discharged per 6.2 and cycled per 6.4 for 3 cycles to obtain recoveredcapacity.Criteria : No leakage, No rust, Capacity recovery rate ≥ 80 %8.3 Thermal Shock TestTest method : 65ºC (8Hrs) ← 3hrs →-20ºC (8Hrs) for 8 cycles with cells charged per 6.1.After test, cells are discharged per 6.2 and cycled per 6.4 for 3 cycles to obtainrecovered capacity.Criteria : No leakage, Capacity recovery rate ≥ 80 %9. Safety Test9.1 Abnormal Charge TestTest method : Cells are discharged per 6.2, then charged at constant current of 7200mA and constant voltage of 4.2V while tapering the charge current. Charging is continuedfor 48 hours (Per UL1642).Criteria : No rupture, No fire9.2 External Short-circuiting TestTest method : Cells are charged per 6.1, and the positive and negative terminal is connected bya 100mΩ-wire for 1 hour (Per UL1642).Criteria : No rupture, No fire9.3 Overdischarge TestTest method : Cells are discharged at constant current of 480mA to 250% of the minimum capacity (Per UL1642).Criteria : No rupture, No fireLGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A39.4 Nail TestTest method : A nail (diameter : 2.5~5mm) is penetrated vertically through the center of cells charged per 6.1 and left for 6 hours.Criteria : No rupture, No fire9.5 Heating TestTest method : Cells are charged per 6.1 and heated in a circulating air oven at a rate of 5ºC per minute to 150ºC. At 150ºC, oven is to remain for 10 minutes before test isdiscontinued (Per UL1642).Criteria : No rupture, No fire9.6 Impact TestTest method : Cells charged per 6.1 are impacted with their longitudinal axis parallel to the flat surface and perpendicular to the longitudinal axis of the 15.8mm diameter bar(Per UL1642).Criteria : No rupture, No fire9.7 Crush TestTest method : Cells charged per 6.1 are crushed with their longitudinal axis parallel to the flat surface of the crushing apparatus (Per UL1642).Criteria : No rupture, No fire10. Standard Test ConditionsUnless otherwise specified, all tests stated in this Product Specification are conducted at temperature 23±2ºC and humidity 65 ± 20 %RH.11. Product LiabilityThe coverage of LG Chem, Ltd. is for the cell itself, while the customer assumes the liability of the product including the cell and its protection circuit.12. WarrantyAs long as the cell is treated in accordance with this Product Specification and/or Proper Use and Handling, LG Chem, Ltd. warrants that the cell should be free from any defect for a period of 1 year from date of manufacturing.LGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0 Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A3The warranty set forth above or described in Proper Use and Handling excludes a defect which is not related to manufacturing on the cell.13. OthersAny matter not included in this specification shall be conferred between the both parties.This document shall replace the document bearing a former revision index, and customers are kindly requested to destroy the former document in possession.LGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0 Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A3Fig 1. Dimensional Drawing of ICR18650 A3。
文件修订履历版次修订内容修订页次修订日期A/00初版发行无无R&D-D-18650HP-Fe 2007-4-170011李鑫郑荣鹏张建文Edition PagesApprovedCheckedDesigned电芯型号: 18650HP-Fe Cell Type: 18650HP-FeDocument NoEffective dateforLithium-ion Rechargeable CellSpecification锂离子电芯规格书6.1 Standard Test Conditions 标准测试条件6.3 Quick Charge Method 快速充电制式8. Environment Characteristic 环境性能This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.2该规格书为比克公司企业标准,未经授权,不可翻印,传播.13. Consultation 技术咨询14. Requirement for Safety Assurance 安全保证要求12.2.2 Discharging 放电12.2.3 Storage Recommendation 储存条件12. Precautions and Safety Instructions 安全守则12.1 Standard cell Precaution 电芯防范措施12.2 Cell Operation Instruction 电芯使用说明12.2.1 Charging 充电10. Shipment 出货11. Warranty 质量保证4. Construction 电芯结构5. Specification 标准6. Test Conditions 测试条件7. Electrical Characteristics 电性能6.2 Standard Charge Method 标准充电制式9. Safety Test 安全测试Contents 目录1. Preface 前言2. Description 说明3. Cell Size电芯尺寸2.3 Designation 名称:BAK——— 18 650 HP ——— Fe ① ② ③ ④ ⑤①：Indicates the manufacturing plant 代表厂家名称The letter "BAK" difines ShenZhen BAK Battery Co., LTD. "BAK"代表深圳市比克电池有限公司②：Indicates the diameter of cell 代表电芯直径 18=18mm③：Indicates the overall height of cell 代表电芯高度 650=65mm④：Indicates the performance of celll 代表电池性能 The letter "HP" difines high power cell "HP"代表高功率⑤ ：Indicates the property of the cell 代表电池性能 The letter "Fe" difines LiFePO4 series cathode "Fe"代表以LiFePO4为正极材料体系对于图形结构的详细资讯,请参阅图A.A cell is made of cathode,anode,seperator,can and header.电芯由正极,负极,隔膜,壳体和盖板组成.Figure AThis spec manual is the enterprise standard of BAK , without authorization, any pirate or circulation is prohibited.31. Preface 前言This Product Specification describes the technique requirements,test procedure and precaution notes ofprismatic type Lithium-ion Rechargeable cell to be supplied to customer by Shenzhen BAK Battery Co., LTD.该规格书为比克公司企业标准,未经授权,不可翻印,传播.本标准规定了由深圳市比克电池有限公司生产的锂离子电芯的技术要求,测试方法及注意事项.2. Description 说明2.1 Product 产品: Lithium-ion Rechargeable cell 锂离子可充性电芯2.2 Model (Type) 电芯型号: 18650HP-Fe3. Cell Size 电芯尺寸4. ConstructionFor details,please refer to Figure A.This spec manual is the enterprise standard of BAK , without authorization, any pirate or circulation is prohibited.45.9 Charging Time充电时间8.0hours0.2C 5rate 5.13 Specific Power 额定功率>70W 5.11 Max Continuous Discharge current 最大持续放电电流20A 5.12 Pulse Discharge at 10 Sec 脉冲放电电流40A 5.10 Charge Method 充电方式Recommended standard charge method 建议标准充电方式2C 5mA to 3.60V CC/CV70min Recommended quick charge method 建议快速充电方式5C 5mA to 3.60V CC/CV30min该规格书为比克公司企业标准,未经授权,不可翻印,传播.5. Specification 标准Item 项目Specification 标准Remark 备注5.3 Internal Impedance 交流内阻≤18m ΩBy AC 1 kHZ 5.4 Nominal Voltage 标称电压 3.20 V From 3.60 V to 2.00V5.6 End-of-charge Voltage 充电截止电压3.60V±0.05V 5.5 Cell Weight 电芯重量35±2g Discharging Temperature 放电温度-30～45℃Ambient temperature.Cell skin temperature not exceed 80℃5.7 End-of-charge Current 充电截止电流0.02C 5A At CV mode 5.8 End-of-discharge Voltage 放电截止电压 2.00 V 5.16 Shelf Life 保质期1yearTypical value from ship stateover 500 cycles10C 5A Continual Discharge ( 100% DOD)5.14 Cycle Life 循环性能5.15 Operating Temperature Range操作温度范围Charging Temperature 充电温度0～45℃Ambient temperature.Cell skin temperature must be <65℃.5.17 Appearance 外观Without break, scratch, distortion, contamination, leakage and so on 无破裂、划痕、变形、污迹、电解液泄露等5.1 Typical Capacity 典型容量1100mAh0.2C 5rate discharge capacity5.2 Mininum Capacity 最小容量1050mAh Storage Temperature 存储温度 -30～45℃Recommended temperature range for long term storage is –10 ~ +20°若无特别要求，此规格书上的产品测试条件均为温度：20℃±5℃，湿度：65%±20% RH.6.2 Standard Charge Method 标准充电制式The "Standard Charge" means charging the Cell at a constant current of 2C 5A until the voltage is 3.6V, then charged at a constant voltage of 3.6V until its current is less than 0.02C 5A.“标准充电”即在环境温度为20℃±5℃的条件下,先以恒定电流2C 5A 充电至3.6V,再以3.6V 的恒压充电至电流小于0.02C 5A.6.3 Quick Charge Method 快速充电制式The "Quick Charge" means charging the Cell at a constant current of 5C 5A until the voltage is 3.6V, then charged at a constant voltage of 3.6V until its current is less than0.02C 5A.“快速充电”即在环境温度为20℃±5℃的条件下,先以恒定电流5C 5A 充电至3.6V,再以3.6V 的恒压充电至电流小于0.02C 5A.This spec manual is the enterprise standard of BAK , without authorization, any pirate or circulation is prohibited.5the discharging time is not less than 5min.放电时间不低于5min.6. Test Conditions 测试条件6.1 Standard Test Conditions 标准测试条件Unless otherwise specified, all tests stated in this Product Specification are conducted at temperature 20℃±5℃ and humidity 65%±20% RH.该规格书为比克公司企业标准,未经授权,不可翻印,传播.7. Electrical Characteristics 电性能Test Item 测试项目Test Method 测试方法Criteria 检验标准7.1 Discharge Performance (0.2C 5A) 0.2C 5A 放电性能 A cell is charged in accordance with 6.2 or 6.3, and then stored in an ambient temperature of 20℃±5℃for 0.5h ～1h, finally discharged to cut-off voltage at a constant current of 0.2C 5A.电芯按6.2或6.3规定充电后，在环境温度为20℃±5℃的条件下搁置0.5h ～1h,而后以0.2C 5A 电流放电到终止电压.the discharging time is not less than 5h.放电时间不低于5h.7.2 DischargePerformance (10C 5A) 10C 5A 放电性能A cell is charged in accordance with 6.2 or 6.3, and then stored in an ambient temperature of 20℃±5℃for 0.5h ～1h, finally discharged to cut-off voltage at a constant current of 1.0C 5A电芯按6.2或6.3规定充电后在环境温度为20℃±5℃的条件下搁置0.5h ～1h,而后以10C 5A 电流放电到终止电压.8. Environment Characteristic 环境性能This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.67.6 Cycle Life 循环寿命A cell is charged in accordance with 6.2,and stored for 0.5h ～1h,then discharged to cut-off voltage,after that, stored 0.5h ～1h prior to next charge-discharge cycle.The cell shall be continuously charged and discharged for 300 times.电芯按6.2规定充电,而后搁置0.5～1h,然后以0.2C 5A 电流放电至终止电压,放电结束后,搁置0.5～1h,再进行下一次充放电循环,连续进行充放电循环500次.capacity retention ≥80%容量保持率≥80%该规格书为比克公司企业标准,未经授权,不可翻印,传播.Test Item 测试项目Test Method 测试方法Criteria 检验标准8.1 ConstantTemperature and Humidity恒定湿热性能A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of 40±2℃(90～95%RH ) for48h,then placed in room temperature for 2h. After that,check its appearance prior to being discharged to cut-off voltage at a constant current of 1C 5A.电芯按6.2或6.3规定充电结束后,将电芯放入40±2℃(90～95%RH)的恒温恒湿箱中搁置48h 后,将电芯取出在室温下搁置2h,目测电芯外观,再以1C 5A 电流放电至终止电压．1.no distorsion,no rust,no fume,no explosion;2.the discharging time is not less than 36min.1.电芯外观应无变形,锈蚀,冒烟或爆炸;2.放电时间应不低于36min.7.5 Charge(Capacity) Retention 荷电保持能力A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of 20℃±5℃ for 28d,then discharged to cut-off voltage at a constant current of 0.2C 5A.电芯按6.2或6.3规定充电结束后,在环境温度为20℃±5℃条件下,将电芯搁置28天,再以0.2C 5A 电流放电至终止电压.Retention:90%C 5Ah 容量保持率:90%C 5Ah 7.3 High Temperature Performance 高温性能A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of 55℃±2℃ for 2h,then discharged to cut-off voltage at a constant current of 1.0C 5A. Afterthat,fetch out the cell and place it in the ambient temperature of 20℃±5℃ for 2h, then check its appearance.电芯按6.2或6.3规定充电结束后,将电芯放入55℃±2℃的高温箱中恒温2h,然后以1.0C 5A 电流放电至终止电压,实验结束后,将电芯取出在环境温度为20℃±5℃的条件下搁置2h,然后目测电芯外观．1.the discharging time is not less than 51min;2.no distortion,no rupture.1.放电时间不低于51min;2.电芯外观无变形,无爆裂.7.4 Low Temperature Performance 低温性能A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of -20℃±2℃ for 16h ～24h,then discharged to cut-off voltage at a constant current of 0.2C 5A.After that,fetch out the cell and place it in the ambienttemperature of 20℃±5℃ for 2h, then check its appearance.电芯按6.2或6.3规定充电结束后,将电芯放入-20℃±2℃的低温箱中恒温16～24h,然后以0.2C 5A 电流放电至终止电压,实验结束后,将电芯取出在环境温度为20℃±5℃的条件下搁置2h,然后目测电芯外观．1.the discharging time is not less than 3h;2.no distortion,no ruptu 1.放电时间不低于3h;2.电芯外观无变形,无爆裂.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.7A cell is charged in accordance with 6.2 or 6.3,then installed onto the vibration desk with clamps.Equipment parameters of frequency and amplitude are as follows(the frequency is to be varied at the rate of 1oct/min between 10 and 55 herts,and repeat vibration for 30min.The cell is to be tested in three mutually perpendicular directions): frequency:10Hz~30Hz amplitude: 0.38mm frequency:30Hz~55Hz amplitude: 0.19mm电芯按6.2或6.3的规定充电结束后,将电芯用夹具安装在振动台的台面上，按下面的振动频率和对应的振幅调整好实验设备.X,Y,Z 三个方向每个方向上从10～55Hz 循环扫频振动30min ，扫频速率为1oct/min:振动频率：10Hz ～30Hz 位移幅值(单振幅)：0.38mm;振动频率：30Hz ～55Hz 位移幅值(单振幅)：0.19mm. 1.no scratch,no leakage, no fume,no explosion;2.the voltage is min3.2V.1.电芯外观应无明显损伤，漏液，冒烟或爆炸； 2.单体电芯电压不低于3.2V.8.2 Vibration Test 振动测试该规格书为比克公司企业标准,未经授权,不可翻印,传播.8.4 Drop test 自由跌落A cell is charged in accordance with 8.3,then dropped from a height of 1000mm to a wooden board(18-20mm thick) which is placed on the concrete ground.Cells shall be dropped in each of three mutuallyperpendicular directions.Total drop times are 6.After that,the cell is discharged to cut-off voltage at CC of 1C 5A,then repeat charge & discharge at a current of 1C 5A until the discharge time is not less than 51min,the cycle times should be not more than 3.电芯按8.3的规定试验结束后,将电芯样品由高度为1000mm 的位置自由跌落到置于水泥地面上的18-20mm 厚的木板上，从X,Y,Z 正负方向(六个方向)每个方向自由跌落1次.自由跌落结束后,将电芯以1C 5A 电流放电至终止电压,然后以1C 5A 的电流进行充放电循环,直至放电时间不低于51min,即可终止充放电循环,充放电循环次数应不多于3次.no leakage,no fume,no explosion.电芯应不漏液，冒烟或爆炸8.3 Shock Test 碰撞测试A cell is tested in accordance with 8.2,then secured to the testing machine by means of rigid mount which supports all mounting surfaces of the cell. Each cell shall be subjected to a total of three shocks of equal magnitude. The shocks are to be applied in each of three mutually perpendicular directions.The acceleration and impulse time are as follows:acceleration of impulse peakvalue:100m/s2,shock frequency:40~80times/min,impulse lasting time:16min,shock times:1000±10电芯按8.2的规定试验结束后,将电池分别按X,Y,Z 三个互相垂直轴通过夹具固定在振动台面上,按下述要求调好加速度,脉冲持续时间进行碰撞实验:脉冲峰值加速度:100m/s2,每min 碰撞次数:40～80,脉冲持续时间:16ms,碰撞次数：1000±10.1.no scratch,no leakage,no fume,no explosion;2.the voltage is min3.2V.1.电芯外观应无明显损伤，漏液，冒烟或爆炸；2.单体电芯电压不低于3.2V.All below tests are carried out on the equipments with foreced ventilation and explosion-proof device.Before test all cells are charged in accordance with 6.2 or 6.3, and stored 24h prior to testing.下述试验应在有强制排风条件及防爆措施的装置内进行,在试验前所有的电芯都按6.2或6.3规定充电,并搁置24h 后,再进行以下试验.This spec manual is the enterprise standard of Bak, without authorization, any pirate or circulation is prohibited.89.2 Crush Testing挤压测试A cell is to be placed on the crush flat, the axis is parallel to the crush flat ,it is to be crushed between two flat surfaces.Crushing force is approximately 13 KN and hold for 1 min 电芯放在挤压设备的两个挤压表面之间，圆柱电芯轴平行于挤压平面，逐渐增加压力至13 kN ，保持压力1min.no fire,no explosion 电芯不起火,不爆炸9.1 Impact Test 重物冲击9.2 Heating Test 热冲击该规格书为比克公司企业标准,未经授权,不可翻印,传播.no fire,no explosion 电芯不起火,不爆炸A cell is to be placed on the impact flat.A 10 kg weight is to be dropped from a height of 1m onto the cell, the distortion is allowed.将电芯放在冲击台上,将10kg 重锤自1m 高度自由落下,冲击电芯,电芯允许发生变形.A cell is to be heated in a circulating air oven. Thetemperature of the oven is to be raised at a rate of 5℃±2℃per minute to a temperature of 130℃±2℃ and remain for 30min at that temperature before the test is discontinued.将电芯放在电热鼓风干燥箱中,温度以5℃±2℃/min 的速率由室温升至130℃±2℃并保持30min.no fire,no explosion 电芯不起火,不爆炸9.5 Nail penetration test 针刺测试 A cell is to be penetrated completely the center of the largest side at the speed of 20-40mm per second by a Φ3.0mm stainless steel nail and hold for 1 min.将接有热电偶的电芯置于通风橱中,用 Φ3.0mm 的不锈钢针以20-40mm/s 的速度刺透电芯最大表面的中心位置，并保持1min1.no fire,no explosion2.Max.temp.< 150℃1.电芯不起火,不爆炸2.最高温度<150℃9.3 overcharge test （3C/10V) 过充电9. Safety Test 安全测试Test Item 测试项目Test Method 测试方法Criteria 检验标准A cell is discharged to cut-off voltage at CC of 1C5A.then it is to be subjected to CC/CV power by connecting its positive &negative terminal, then set the current as 3C 5A,the voltage as 10V,after that,Charge the cell up to 10V at CC of 3C 5A ,until that last 7h at the voltage of 10V or the voltage is no more increased.先将电池以0.2C 5A 放电至终止电压,然后将电芯正负极连接于恒压电源,调节电流至3C 5A,电压为10V,然后对电芯以3C 5A 充电,直到输出电压不低于10V,持续充电7h 或电压不再增大.no fire,no explosion 电芯不起火,不爆炸9.4 Short-circuit test 短路测试A Cell is to be short-circuited by connecting the positive and negative terminals of the cell with copper wire having a maximum resistance load of 50m Ω.Monitor its temperature while testing,the cell is to be discharged until the cell case temperature has returned to be 10℃ less then peak temperature.将接有热电偶的电芯置于通风橱中,用铜线短路其正负极(线路总电阻不大于50毫欧),实验过程中监视电芯温度变化,当电芯温度下降到比峰值低约10℃时,结束实验.1.no fire,no explosion2.Max.temp.< 150℃1.电芯不起火,不爆炸2.最高温度<150℃The remaining capacity before charging shall be changed depending on the storage time and conditions.单体电芯按3.20～3.40V的充电电压或客户要求出货,电芯出货后充电前的剩余容量取决于储存时间和条件.自出货之日起.电芯的保质期限依合同而定.但是,在此期限内,如果非比克公司的制程原因而是客户的误用造成的电芯质量问题,比克公司不承诺免费更换.＞ BAK will not be responsible for trouble occurred by handling outside of the precautions in instructions.比克公司对违反安全守则操作所产生的问题不承担任何责任.＞ BAK will not be responsible for trouble occurred by matching electric circuit, cell pack and charger. 比克公司对与电路,电池组,充电器搭配使用所产生的问题不承担任何责任.＞ BAK will be exempt from warrantee any defect cells during assembling after acceptance.出货后客户在电芯组装过程中产生的不良电芯不在比克公司质量保证的范围之列.安全守则：不要将电芯暴露在极热或有火星的环境中.不要将电芯短路,过充或过放.不要使电芯承受过重的机械冲击.不要将电芯浸入海水或水中,或者使其吸湿.不要颠倒电芯的正负极.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited. 9该规格书为比克公司企业标准,未经授权,不可翻印,传播.b. Do not short circuit, over-charge or over-discharge the cell.c. Do not subject the cell to strong mechanical shocks.d. Do not immerse the cell in water or sea water, or get it wet..e. Do not reverse the polarity of the cell for any reason.Note 2. BAK will take no responsibility for any accident when the cell is used under other conditions than those described in this Document.注释2.在该文件说明的条件之外使用该电芯而产生的事故,比克公司不承担任何责任.12.1 Standard cell Precaution 电芯防范措施a. Do not expose the cell to extreme heat or flame.Lithium-Ion rechargeable batteries subject to abusive conditions can cause damage to the cell and/or personal injury. Please read and observe the standard cell precautions below before using utilization.滥用锂离子充电电芯可能会造成电芯的损害或人身的伤害.在使用锂离子充电电芯以前,请仔细阅读以下的Note 1. The customer is required to contact BAK in advance, if and when the customer needs other applications or operating conditions than those described in this document.注释1.如果客户需要将电芯在该文件之外的条件下操作或应用,请先咨询比克公司相关事宜.occurs within this period, BAK won’t replace a new cell for free as long as the problem is not due to the failure of BAK manufacturing process or is due to customer’s abuse or misuse.12. Precautions and Safety Instructions 安全守则10. Shipment 出货The Cell shall be shipped in voltage range of 3.20 ~ 3.40 V or in accordance with customers' requirement.11. Warranty 质量保证The Warranty period of cell is made according to business contract,However, even though the problem不要拆卸或修整电芯.h. Do not handle or store with metallic like necklaces, coins or hairpins, etc.不要和项链,硬币或发夹等金属物品放置在一起.i. Do not use the cell with conspicuous damage or deformation.不要使电芯受到明显的损害或变形.j. Do not connect cell to the plug socket or car-cigarette-plug.不要将电芯与插座连接.k. Do not make the direct soldering onto a cell.不要直接焊接电芯.不要直接接触泄漏的电芯.不要将电芯用于其它设备.不要将锂离子电芯混合使用.o. Do not use or leave the cell under the blazing sun (or in heated car by sunshine).不要将电芯放置在太阳光直射的地方.将电芯放置在远离儿童的地方.q. Do not drive a nail into the cell, strike it by hammer or tread it.不要针刺,锤打或践踏电芯.不要撞击或投掷电芯.电芯充电温度范围为0℃～45℃.c. Maintain charge voltage at 3.60V for 3.0 hours (recommended for maximum capacity).恒压3.6V 充电3小时（最大容量）.* Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) cell charge controller.使用恒压恒流锂离子电芯充电器.* Do not continue to charge cell over specified time.不要超过标准时间持续充电.a. Recommended cut-off voltage to 2.0V. Recommended max discharge current is 20A建议放电终止电压为2.0V,建议最大恒流放电电流为20A.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited. 10a. Charge the cell in a temperature range of 0°C to + 45°C.b. Charge the cell at a constant current of 0.5C until 3.60V is attained. Charge rates greater than 5C are NOT recommended. (C : Rated Capacity of cell)以0.5C 的电流恒流充电至3.60V.超过5C 的电流建议不要使用（C ：标称容量）该规格书为比克公司企业标准,未经授权,不可翻印,传播.12.2.2. Discharging 放电p. Keep cell away from children.r. Do not give cell impact or fling it.12.2 cell Operation Instruction 电芯使用说明12.2.1. Charging 充电f. Do not disassemble or modify the cell.l. Do not touch a leaked cell directly.m. Do not use for other equipment.n. Do not use Lithium-ion cell in mixture.b. For maximum performance, discharge the cell in a temperature range of –30°C to + 45°C.为了达到较好的性能,电芯的放电温度范围为–30℃ ～ + 45℃.12.2.3. Storage Recommendations 储存建议a.Storage Temperature and Humidity 储存温度和湿度• Storage the cell at temperature of –30 ~ 45°C, low humidity and no corrosive gas atmosphere.电芯应储存在温度范围为–30 ～45℃,低湿度和不含腐蚀性气体的环境中.• No press on the cell不要让电芯承担任何压力.b. Long Period Storage 长期存放• In case of long period storage (more than 3 months), storage the cell at temperature range of –10 ~+20°C, low humidity, no corrosive gas atmosphere.如果要长时间存放(超过3个月),电芯应存储在温度范围为–10～20℃,低湿度和不含腐蚀性气体的环境中.• No press on the cell不要让电芯承受任何压力.13.Consultation 技术咨询As to the obscurity, contact the following.Shenzhen BAK Battery Co., Ltd.BAK Industrial Park on Kuichong Street, Longgang District, shenzhen.Tel No.: 86—755—89770369Fax No.: 86—755—89770224如有疑问，请按以下方式咨询：厂址：深圳市比克电池有限公司－深圳市龙岗区葵涌街道比克工业园14.Requirement for Safety Assurance 安全保证要求For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell with BAK in advance.And consult about the high rate current, rapid charge and special application in the same way.为了安全起见,如有设备设计,锂离子电芯系统保护电路或高电流,快速充电和其它方面的特殊应用,请先咨询比克公司相关事宜.该规格书为比克公司企业标准,未经授权,不可翻印,传播.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation isprohibited. 11Annex 附件:This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.该规格书为比克公司企业标准,未经授权,不可翻印,传播.Figure2.Typical 25℃ Discharge Curve at Various Discharge CurrentsFigure1.Charge and Discharge Curve1.81.922.12.22.32.42.52.62.72.82.933.13.23.33.43.53.63.73.8010020030040050060070080090010001100Capacity （mAh ）V o l t a g e （V ）Charge:CC/CV,2A,3.60V,20-25℃Discharge:CC,10A,2.00V,20-25℃1.81.922.12.22.32.42.52.62.72.82.933.13.23.33.43.53.63.73.8V o l t a g e (V )This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited. 该规格书为比克公司企业标准,未经授权,不可翻印,传播.Figure3. Cycle Life Performance ,100% DOD(10A Continual Discharge )0%10%20%30%40%50%60%70%80%90%100%110%050100150200250300350400450500Cycle number C a p a c i t y r a t i o。

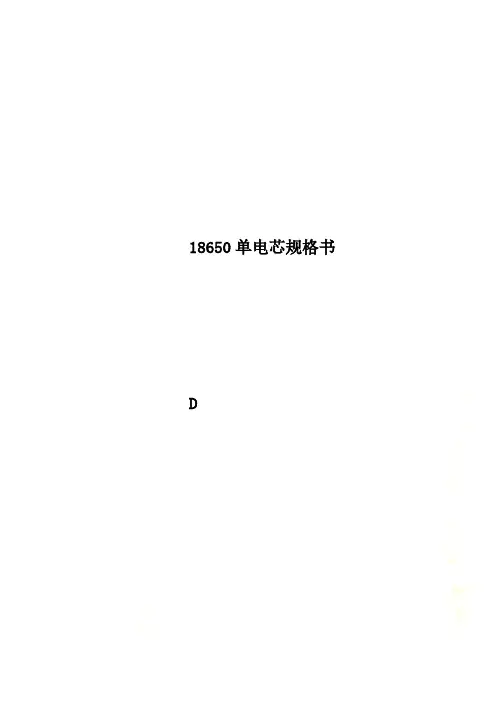

18650单电芯规格书DBATTERY CO., LTD. DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 1 of 8DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 2 of 81.0基本特性Basic performance型号Model BJ18650P外壳材质Can 镀镍钢Nickel-plated steel 标称容量NominalCapacity，（.2C5A）1300mAh额定电压Nominal 3.70V 充电截止电压Max 4.20 V 放电终止电压 2.80V 最大充电电流Max.Charge Current1C5A标准持续放电流10C5A（最最大瞬间放电电流Max. DischargeCurent20 C5A电池最大直径（光壳）18.5mm 电池最大高度（光壳）66mm 电池重量(Approx.) 约36g 内阻（Max, at ≤16mΩ充电方法标准0.2C5A×快速Quick 1 C5A×操作温度充电Charge 0℃～45℃32o F～放电-20℃～2.0 外形图figure2.1结构图StructureOperating贮存Storage -10℃～45℃3.0 主要放电曲线Mainly capability graphBJ18650P-1300mAh 15C Discharge Cruve BJ18650P-1300mAh 1C Charge CruveBJ18650P-1300mAh 13C Cycle Life BJ18650P-1300mAh -20℃Discharge CruveDOC NO.: QR-WI-733-003-002/A REV. : APAGE: 3 of 84.0 电池性能Characteristic若没有特别说明，电池在做各项试验前，均需在86KPa～106 KPa大气压，环境温度20℃±5℃，相对湿度为45％～75％的条件下，以0.2C5A恒流放电至终止电压2.8V，并在收到产品两周内进行以下试验。
18650（3600mah）规格书（标准书）文件名称产品型号修改记录产品型号目录1 适用范围 (4)2 引用标准 (4)3 定义........................................ .. (4)3.1 手机用电池battery for cellular phone ..... . (4) 3.2 充电限制电压 limited charge voltage ............... .. (4)3.3 额定容量 rated capacity ........................... .. (4)3.4 标称电压 nominal voltage (4)3.5 终止电压 cut-off voltage (4)4 技术参数 (4)4.1 电芯参数表 (4)4.2 主要参数表 (5)4.3 保护板参数表 (5)5 要求 (5)5.1 测试条件 (5)5.2 测量仪表与设备要求 (6)5.3 外观 (6)5.4 充电制式 (6)5.5 20℃放电性能 (6)5.6 高温性能 (6)5.7 低温性能 (6)5.8 荷电保持能力 (6)5.9 循环寿命 (7)5.10 环境适应性 (7)5.11 安全保护性能 (7)5.12 电池完全完全充电后内阻 (8)6 运输、贮存 (8)7 安全规程及使用说明 (8)8 特殊要求 (8)9 PCB原理图，电芯基本特性及外形图 (9)10 电芯充放电曲线图11 成品电池尺寸图产品型号1 适用范围本规格书适用于可充电锂离子电池产品的定义、要求、测试方法、质量评定程序及标志、包装、运输、贮存。
用户请务必严格按照规格书中的测试或使用方法进行测试或使用，如对表中的测试项目或测试方法有异议，请与供应方协商解决2 引用标准下列标准所包含的条文，通过在本规范中引用而构成为本规范的条文。
GB/T 2828-1987 逐批检查计数抽样程序及抽样表（适用于连续批的检查）GB/T 2829-1987 周期检查计数抽样程序及抽样表（适用于生产过程稳定性的检查）GB/T 2900.11-1988 蓄电池名词术语3 定义本规范采用GB/T 2900.11 中规定的术语和下列定义。
1Preface 前言Maximum allowable charge andHigh-LowNO. 序号ITEM 项目6 Package picture包装图片Small box big box pallet(50pcs cells in a small box, 6 small boxes in a big box)7 Guaranteed and product liability 保质期及产品责任Guaranteed from the date of delivery is the first six months保质期是从出厂日期开始起6个月8Warning and cautions in handling the lithium-ion cell电芯使用时警告事项及注意事项To prevent the possibility of the cell from leaking, heating, explosion, please observe the following precautions:为防止电芯可能发生泄露，发热，爆炸，请注意以下预防措施：Don’t immerse the cell in water.严禁将电芯浸入水中。
保存不用时，应放置在阴凉干燥的环境中。

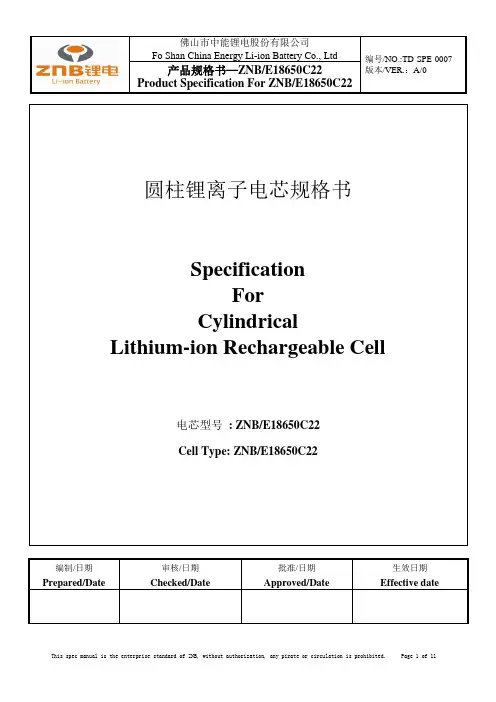

Caution小心If the cell leaks and the electrolyte get into your eyes, don’t wipe eyes, instead, thoroughly rinse the版本V ersionThis spec manual is the enterprise standard of ZNB, without authorization, any pirate or circulation is prohibited. Page 11 of 11。
18650编辑词条B添加义项?18650型锂电是电子产品中比较常用的锂电池，常在笔记本电脑的电池中作为电芯使用。
其型号的定义法则为：如18650型，即指电池的直径为18mm，长度为65mm，圆柱体型的电池。
基本信息中文名称18650••电压一般为3.7V•性质较常用的锂电池••使用方向18650型锂电是电子产品中比较常用的锂电池，常在笔记本电脑的电池中作为电芯使用。
其型号的定义法则为：如18650型，即指电池的直径为18mm，长度为65mm，圆柱体型的电池。
锂是一种金属元素，为什么我们要把他叫锂电池呢？因为它的正极是以“钴酸锂”为正极材料的电池，当然现在市场上有很多的电池，有磷酸铁锂，锰酸锂等为正极材料的电池。
编辑本段一般配置钴酸锂18650单节标称电压一般为：3.7V充电电压一般为：4.20V最小放电终止电压一般为： 2.75V最大充电终止电压：4.20V (三洋、三星、松下最新出的大容量18650充电终止电压为4.35V)直径：18±0.2mm高度：65±2.0mm容量：1000mAh以上（目前已知最高的是松下的3100mAh）目前全球生产此型号锂电池最大的厂商有日本的三洋（已被松下收购）、松下、三星、索尼等，索尼公司就曾为臭名昭著的笔记本电池爆炸事件而大伤脑筋过。
磷酸铁锂18650单节标称电压一般为：3.2V充电电压一般为：3.6V最小放电终止电压一般为： 2V 最大充电终止电压：3.65V直径：18±0.2mm高度：65±2.0mm容量：比钴酸锂的18650要小，常见1500mah磷酸锂铁版的和钴酸锂相比有一下优点：1：更安全，过冲过放都不会造成爆炸、漏液2：寿命更长，正常使用能循环1000次以上3：大倍率，2C充电10C放电，不会发烫、爆炸、漏液，不会影响寿命但是磷酸铁锂版18650单体电压低，多用于大电流工作的电器。
动力形圆柱锂离子电池以26650为主，因为与18650相比有更大的容量。
锂离子电池规格书SpecificationForLithium-ion Rechargeable Battery电芯型号: N18650CNPCell Type : N18650CNPDocument No P/PR03/PB-D-N18650CNP revised date 2018-5-3 Version A/01 Pages 13 Approved Checked Designed李艳斌邱沫马奇会Contents 目录1Preface前言2Definition定义2.1Standard charge method 标准充电方式2.2Standard discharge method 标准放电方式2.3Nominal capacity 标称容量3Cell type and dimension电芯型号及尺寸3.1Description and type 电芯说明及型号3.2Cell dimension电芯尺寸4Battery characteristics电池特性5Technical requirements技术要求5.1Battery usage conditions 电池使用环境5.2Battery testing conditions 电池实验环境5.3Requirement of the testing equipment 测量仪表要求5.4Electrochemical characteristics 电化学特性5.5Environmental characteristics 环境适应性能5.6Safety characteristics 安全性能6Package picture包装图片7Shipment出货8Warranty质量保证9Storage and shipment requirement存储及运输要求10Warning and cautions in handling the lithium-ion battery电池使用时警告事项及注意事项11The restriction of the use of hazardous substances有害物质控制要求12Contact information联系方式13Version history修订履历1Preface前言This specification describes the type, dimension, performance, technical characteristics, warnings and cautions of the lithium-ion rechargeable battery. The specification only applies to N18650CNP fresh batterys supplied by Shenzhen BAK Power Battery Co., Ltd.本标准描述了圆柱型锂离子电池的型号、尺寸、特性、技术要求及注意事项。
1.适用范围本规格书规定了深圳市汇业电子有限公司向客户提供的18650 (1100mAh)圆柱型锂离子电池的技术参数及测试标准。
2.种类型号2.1种类：圆柱型锂离子二次电池2.2 型号：1 86501-1100mAh3.参考标准此规范参考GB/T18287-2000、UL1642及IEC61960—1：2000等技术标准规范编制。
4. 注意事项4.1在测试或使用电池之前，请仔细阅读本规格书，以防止不当操作引起电池功能失效、发热、漏液、起火甚至爆炸；4.2 对电池进行充放电测试时，请使用锂离子电池专用测试设备，严禁使用普通恒流恒压源等不能限压限流设备对电池进行充放电，以避免电池被过充过放而引起电池功能失效或发生危险；4.3对电池充放电或将电池装入设备时，注意不要将电池正负极反置，否则将会使电池发生过充过放，导致电池严重失效甚至发生爆炸等危险；4.4不要直接对电池进行焊接，严禁对电池进行分解；4.5不要把电池同项链、发夹、硬币或螺丝等金属品一起放在兜中或包中，也不要把电池同上述物品一起储存，严禁用金属等导电材料直接连接电池正负极而使电池发生短路；4.6禁止敲击、抛掷或踩踏电池，更不要将电池放入洗衣机或高压容器内；4.7请勿将电池靠近热源，如火、加热器等，不要在烈日下或在温度超过60℃的条件下使用或存放电池，否则可能会引起电池发热、起火及功能失效等；4.8不要将电池弄湿或将电池投入水中，暂不使用时，请放置在低温干燥的环境中；4.9使用、测试或存放电池时，如发现电池有变热、散发气味、变色、变形或其它反常时，请立即停止使用或测试，设法隔离电池并远离；4.10如电池漏液并不慎将电解液溅入眼睛，不要揉擦你的眼睛，立刻用干净的水清洗，严重时请去医院就医，如皮肤或衣物溅上电解液，则需马上用清水清洗干净。
5.6. 测试条件7. 外观外表清洁，无机械损伤、漏夜、锈蚀；另表面有必须的产品标识。
8. 性能9. 包装电池在包装时需处于半充满状态,包装箱外应标明产品名称、型号、标称电压、数量、毛重、出厂日期及相应等级的内阻、容量。
迪比科18650电芯规格书
江西迪比科股份有限公司（DBK）是以高科技绿色新能源为先导，带动产业集群发展的创新引领性企业，成立于2013年，位于江西省抚州市，占地面积385亩，目标产值200亿元。
公司具有动力电池和储能系统领域完整的研发、制造能力，拥有材料电芯、模组、电池管理系统、电池包的全产业链核心技术。
公司致力打造绿色新能源科技产品，回报社会，使员工和企业共同成长。
江西迪比科股份有限公司成功研发圆柱型锂离子电池18650型号3500mAh
此次展会重点展出圆柱型锂离子电池18650-3500mAh，江西迪比科成功开发圆柱型锂离子电池18650型号3500mAh容量(现行业内18650批量在2600mAh左右)，并于2018年开始投入生产。
正极材料采用高镍三元为基材、依次外包为纳米材料、石墨烯等的核壳技术，使克容量超出200mAh/g的同时可倍率放电，热失控温度由原来的190℃左右提升到近300℃。
作为业内领先的动力电池企业，比克电池始终关注产品的创新升级，不断追求安全、能量密度等电芯核心性能的持续提升。
本次展会中比克展出的重点产品是日前刚刚上市的18650-3.0Ah比克高能芯，这款电芯代表了目前国内18650体系单体电芯最高能量密度。
比克18650-3.0Ah高能芯产品采用先进的全自动生产线，已在郑州中牟的比克产业园实现量产，产能达6.5GWh，日产可达200万颗，目前已投入市场应用。
18650单电芯规格书BATTERY CO., LTD. DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 1 of 8Specification Approval Sheet (cylinder Cell) 产品规格确认书（圆柱电池）Model/型号：ZZ18650Capacity/容量：1500mAhVoltage/电压：3.7V制定（Prepared By）审核（CheckedBy）批准（ApprovedBy）DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 2 of 81.0基本特性Basic performance型号Model BJ18650P 外壳材质Can Material 镀镍钢Nickel-plated 标称容量NominalCapacity，（0.2C5A）1300mAh额定电压Nominal 3.70V 充电截止电压Max 4.20 V 放电终止电压 2.80V 最大充电电流Max.Charge Current1C5A标准持续放电流10C5A最大瞬间放电电流Max. Discharge Curent20 C5A电池最大直径（光壳）18.5电池最大高度（光壳）66mm 电池重量(Approx.) 约36g 内阻（Max, at 1000Hz.）≤16mΩ充电方法Charge 标准0.2C5A×快速 1 C5A×操作温度Operating Temperature 充电Charge0℃～45℃放电Discharge-20℃～60℃贮存Storage-10℃～45℃2.0 外形图figure2.1结构图Structure3.0 主要放电曲线Mainly capability graphBJ18650P-1300mAh 15C Discharge Cruve BJ18650P-1300mAh 1C Charge CruveBJ18650P-1300mAh 13C Cycle Life BJ18650P-1300mAh -20℃Discharge CruveDOC NO.: QR-WI-733-003-002/A REV. : APAGE: 3 of 84.0 电池性能Characteristic若没有特别说明，电池在做各项试验前，均需在86KPa～106 KPa大气压，环境温度20℃±5℃，相对湿度为45％～75％的条件下，以0.2C5A恒流放电至终止电压2.8V，并在收到产品两周内进行以下试验。
Without special instructions, the following tests should be done under the condition of : temperature(20℃±5℃), atmospheric pressure (86KPa～106 Kpa), relative humidity (45％～75％), and the tests should be done within two weeks after receiving the products.一些术语的定义：the definitions of some nomenclatures of this specification标准充电：在环境温度20℃±5℃的条件下，以0.2C5A 充电，当电池端电压达到充电截止电压时，改为恒压充电，直到充电电流小于或等于0.01C5A后停止充电。
standard Charge: Charge with current 0.2C5A tolimit charge voltage under the condition of 20℃±5℃surrounding t emperature, then change to chargewith constant voltage till the current less than or equalto 0.01 C5A.4.1电化学性能Electrical Characteristic序号NO. 项目Item标准Standard测试方法Test Method1常温放电性能DischargeCharacteristicsA）1C5A≥1hB）10C5A≥5.4minC）15C5A≥3.2min在1标准大气压，环境温度20℃±5℃，相对湿度为45％～75％的条件下，电池标准充电后（以下若没有特别说明，均在此条件下放置，皆按此充电方式），搁置30min，分别以1C5A、10C5A、15C5A进行放电至终止电压，循环三次，当有一次达到标准，即达到标准要求（下同）。
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 25℃±5℃and 45％～75％RH, then rest for 30min and discharge at1C5A、10C5A、10C5A to the discharge cut-off voltage respectively.Charge/discharge cycle can be conducted for 3 times before meeting the Standards（the same below）2 常温荷电保持能力NormalStorage放电时间≥255minDischargeTime≥255min电池标准充电后，开路放置28天，再以0.2C5A放电至终止电压。
Store for 28 daysafter standardcharged, thendischarge at 0.2C5Ato the dischargecut-off voltage.3 循环寿命Cycle Life 循环300次后放电时间≥3.23minDischargeTime≥3.23min1C5A/13C5A放电至终止电压，搁置30min，以此模式循环300次Conduct 1C5A/13C5A cycle for 300times and measure finalcapacity.DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 4 of 84.2安全性能Safety Characteristic 序号N O. 项目Item标准Standard测试方法Test Method1 过充性能Overcharge不爆炸、不起火No fire、Noexplosion电池标准充电后，以3C5A电流充电至4.8V,然后转恒压充电至截至电流0.01C5A时终止。
Standard charge. Charge at 3C5A to 4.8V, then change tocharge with constant voltagetill the current less than orequal to 0.01 C5A. Observethe variation of the battery’sappearance2 过放性能OverDischarge不起火、不爆炸No fire、Noexplosion电池标准充电后，以1C5A进行放电至终止电压，然后用10Ω的电阻将电池正负极相连，搁置14天。
Standard charged. Discharge at1C5A to discharge cut-offvoltage and then connect thepositive and negativeterminals with a resistor of10Ω for 14 days.43常温短路性能ShortCircuitatRoomTemperature不爆炸、不起火最高温度<150℃No fireNoexplosionMax.temperature<150℃电池标准充电后，置于防爆玻璃罩中直接短路其正负极（线路总电阻不大于50mΩ），当电池温度下降到比峰值约低10 ℃时试验结束。
观察电池的温度及外观变化。
Standardcharged. Keep the batteryinto a ventilation cabinet andshort-circuit the positive andnegative terminals directly(general resistance shall beless than or equal to 50mΩ).Stop the test when thetemperature falls to value10 ℃lower than the peakvalue. Observe the variationof the battery’s appearanceand temperature.4 挤压测试Crush不着火不爆炸No fire andnoexplosion挤压测试前电池用0.2C充满电，搁置24小时。
从径向挤压压力达到13KN。
Charge at 0.2C,and then leavefor 24hrs, The crushing wascontinued until a force of3000 lb (13 kN)DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 5 of 85 重物冲击性能Impact 不爆炸、不起火No fireNoexplosion电池标准充电后，放在平面上，并与热电偶相连，将一直径为15.8mm的棒放在电池高度方向中间位置，让重量9.1kg的重物从610mm高度自由垂落至冲击台面。
Standard charge. Keep thebattery connected with athermocouple and put it on aimpaction platform, place a15.8mm diameter bar acrossthe center of the biggestsurface, then let a 9.1kgheavy hammer self fall off tothe platform from a height of610mm. Observe thevariation of the battery’sappearance.6 热冲击安全性能Hot Oven 不起火、不爆炸No fire、Noexplosion电池标准充电后，放置于热箱中，并与热电偶相连，温度以（5 ℃±2 ℃）/min的速率升至130 ℃±2 ℃并保温30Min。
