ICR18650NH锂电池电芯规格书(英文)

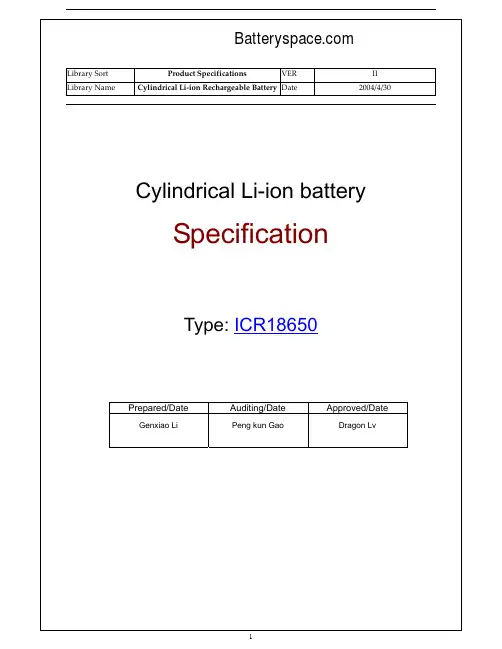

Library Sort Product Specifications VER IILibrary Name Cylindrical Li‐ion Rechargeable Battery Date 2004/4/30Cylindrical Li-ion batterySpecificationType: ICR18650Prepared/Date Auditing/Date Approved/Date Genxiao Li Peng kun Gao Dragon LvLibrary Sort Product Specifications VER II Library Name Cylindrical Li‐ion Rechargeable Battery Date 2004/4/301.PerformanceTest item Test conditions Requirements(1)Outside Appearance Visual check No abnormal stain,Deformation nor damage(2) Standard test conditions Measurements are carried out at 20±5℃and relative humidity of 65±20% without other specified condition.Accuracy of voltmeters and ammeters used in test is equal to or better than the grade 0.5.(3) Standard charge Battery is charged continuously at the constant current of 0.5 I t end at voltage of 4.2V, then charge at the constant voltage of 4.2V until the end current of 20mA after Pre-discharge at the constant current of 0.2 I t until the end voltage of 2.75V/cell(4) Fast charge Charge shall be conducted continuously at theconstant current of 1500mA until the end voltage of4.2V, then charge at the constant voltage of 4.2Vuntil the end current of 20mA after Pre-dischargementioned in Item (2).(5)Open-circuitvoltage (OCV)≥3.75V(6)Rated Capacity Discharge duration of the charged battery specifiedin Item (3) shall be measured at 0.2 I t mA until theend voltage of 2.75V/cell, after rest for 0.25 hour.If the discharge duration does not reach thespecified value, the test may be repeated up to threetimes in total.Rated capacity:≥100%C5mAh（7）Capacity high-rate discharge Discharge duration of the charged battery specifiedin Item (3) shall be measured at 1500mA until the endvoltage of 2.75V/cell, after rest for 0.25 hour. Ifthe discharge duration does not reach the specifiedvalue, the test may be repeated up to three times intotal.Discharge capacity:≥90%C5mAh(8) Cycle Life (20℃) Carry out cycles (1500mA CC/CV(4.2V), discharge atthe constant current of 1500mA after rest for 0.25hour) at20± 2℃. The test end until the dischargecapacity ＜60%C5mAh≥300 cyclesLibrary Sort Product Specifications VER II Library Name Cylindrical Li‐ion Rechargeable Battery Date 2004/4/30(9)Low temperature discharge 1)charge shall be conducted at Item (3)；2)Thebattery shall be stored under -20℃±2℃ for 16h～24h；3)Discharge shall be conducted at the constantcurrent of 0.2I t mA until the end voltage of2.75V/cell；Discharge capacity：≥60%C5mAh2 Mechanical testTest Item Test Conditions Requirements(1)Vibration Test Vibrate test sample for 90minutes each at roomtemperature after rated charge.Amplitude: 0.38mm(10-30Hz)；0.19mm（30-55Hz）Frequency: 10-55Hz(1oct/min)Direction: X, YThen measure resistance, voltage of battery andcheck outside appearance.No rupture, fire, smoke,Nor critical damage≧90% C5mAh(2) Drop Test Drop 100% charged test sample from 1m above ontoconcrete board with more than 5cm thickness two timeseach for every direction at room temperature.Then measure rated capacity and checks outsideappearance. No rupture, fire, smoke, Nor critical damage≧90% C5mAh3 Safety evaluationTest Item Test Conditions Requirements(1) Hot Oven Test The charged battery is to be heated in a gravityconvection or circulating air oven. The temperatureof the oven is to be raised at a rate of 5±2℃ perminute. The oven is to remain for 30 minutes at 150±2℃ before the test is discontinued.No fire, Nor explosion(2)Short Circuit Test After fast charge at 20±2℃, Connect batteryterminals with electric wire ( electric resistance:50mΩor less ). And stop the test when thetemperature of battery is 10℃lower than peaktemperature.No fire, Nor explosion(3) Overcharge Test After discharged at 1 I t mA and end at 2.75V, thebattery shall be charged at 3 I t mA current with avoltage limit of 4.6V.No fire, Nor explosion(4)Dip test The charged battery shall be dipped in water for 24hin an ambient temperature of 20℃±5℃.No fire, Nor explosionLibrary Sort Product Specifications VER IILibrary Name Cylindrical Li‐ion Rechargeable Battery Date 2004/4/304 Charge State of Battery before shipmentTo be determined.(Recommendation Approx. 3.75 – 3.85V 30% charge)5 Duration of guarantee the productWe can keep on the quality in six month.6 Handling precautions on Lithium Ion Rechargeable BatteryTo assure product safety, describe the following precautions in the instruction manual of the equipment.! Danger-When charging the battery, use dedicated chargers and follow the specified conditions.-Use the battery only in the specified equipment.-Do not connect battery directly to an electric outlet or cigarette lighter charger.-Do not heat or throw battery into a fire.-Do not use, leave battery close to fire or inside of a car where temperature may be above 60℃. Also do not charge / discharge in such conditions.-Do not immerse, throw, and wet battery in water/ seawater.-Do not put batteries in your pockets or a bag together with metal objects such as necklaces.Hairpins, coins, or screws. Do not store batteries with such objects.-Do not short circuit the (+) and (-) terminals with other metals.-Do not place battery in a device with the (+) and (-) in the wrong way around.-Do not pierce battery with a sharp object such as a needle.-Do not hit with a hammer, step on or throw or drop to cause strong shock.-Do not disassemble or modify the battery.-Do not solder a battery directly.-Do not use a battery with serious scar or deformation.! Warning-Do not put battery into a microware oven, dryer, or high-pressure container.-Do not use battery with dry cells and other primary batteries, or batteries of a different package, type, or brand.-Stop charging the battery if charging is not completed within the specified time.-Stop using the battery if abnormal heat, odor, discoloration, deformation or abnormal condition is detectedDuring use, charge, or storage.-Keep away from fire immediately when leakage or foul odor is detected.-If liquid leaks onto your skin or clothes, wash well with fresh water immediately.If liquid leaking from the battery gets into your eyes, do not rub your eyes. Wash them well with clean water and go to see a doctor immediately.! Caution-Store batteries out of reach of children so that they are not accidentally swallowed.Library Sort Product Specifications VER IILibrary Name Cylindrical Li‐ion Rechargeable Battery Date 2004/4/30-If younger children use the battery, their guardians should explain the proper handling. -Before using the battery, be sure to read the user’s manual and cautions on handling thoroughly.-Thoroughly read the user’s manual for the charger before charging the battery.-For information on installing and removing from equipment, thoroughly read the user’s manual for the specific equipment.-Batteries have life cycles. If the time that the battery powers equipment becomes much shorter than usual, the battery life is at an end. Replace the battery with a new same one.-Remove a battery whose life cycle has expired from equipment immediately.-When the battery is thrown away, be sure it is non-conducting by applying vinyl tape to the (+) and (-) terminals.-When not using battery for an extended period, remove it from the equipment and store ina place with low humidity and low temperature.-While the battery pack is charged, used and stored, keep it away from objects or materials with static electric charges.-If the terminals of the battery become dirty, wipe with a dry clothe before using the battery. -The battery can be used within the following temperature ranges. Do not exceed these ranges.Charge temperature range : 0℃ to 45℃Discharge temperature range : -20℃ to 60℃(When using equipment)。

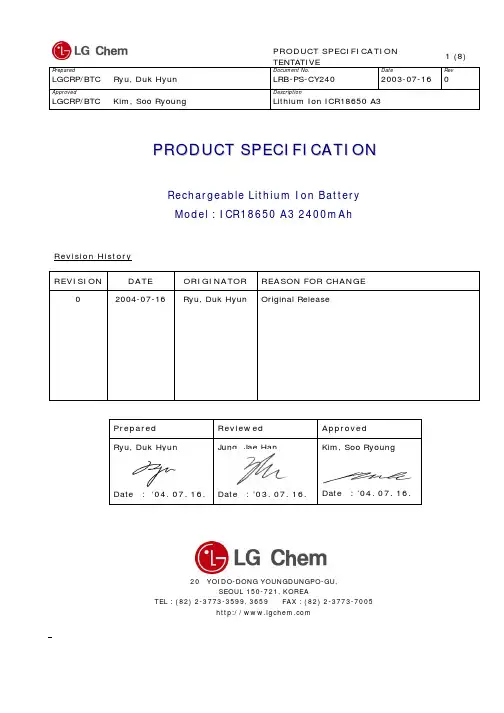

LGCRP/BTC Ryu, Duk HyunLRB-PS-CY2402003-07-16 0ApprovedDescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A3P R O D U C T S P E C I F I C A T I O NRechargeable Lithium Ion Battery Model : ICR18650 A3 2400mAhREVISIONDATE ORIGINATOR REASON FOR CHANGE 0 2004-07-16Ryu, Duk HyunOriginal ReleasePrepared Reviewed Approved Ryu, Duk HyunJung, Jae HanKim, Soo RyoungDate :’04. 07. 16. Date : ’03. 07. 16.Date : ’04. 07. 16.20 YOIDO-DONG YOUNGDUNGPO-GU,SEOUL 150-721, KOREATEL : (82) 2-3773-3599, 3659 FAX : (82) 2-3773-7005LGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A31. ScopeThis product specification defines the requirements of the rechargeable lithium ion battery to be supplied to the customer by LG Chem, Ltd. Should there be any additional information required by the customer, customers are advised to contact LG Chem, Ltd. before selecting a solution.2. Description and Model2.1 Description : Rechargeable Lithium Ion Battery2.2 Model : ICR18650 A33. Technical Information3.1 Capacity Nominal : 2430 mAh (by standard charge and discharge)Minimum : 2380 mAh3.2 Nominal V oltage : Average 3.7 V3.3 Standard Charge : Constant Current and Constant V oltage (CC/CV)mACurrent =1200V oltage = 4.2 VEnd Current = 50 mA3.4 Max. Charge Current : 2400 mA3.5 Standard Discharge : Constant Current (CC)Current = 480 mAEnd V oltage = 3.0 V3.6 Max. Discharge Current : 4800 mA (for continuous discharge)3.7 Weight : Approx. 46.1 g3.8 Operating Temperature Charge :0 to 45 o CDischarge : -20 to 60 o C3.9 Storage Temperature 1 month : -20 to 60 o C3 months : -20 to 45 o C1 year : -20 to 20 o CLGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A34. Cell DimensionsDiameter : 18.3 ± 0.1 mm ( Max. 18.4 mm )Height : 64.9 ± 0.2 mm ( Max. 65.1 mm )5. AppearancesThere shall be no such defects as deep scratch, crack, rust, discoloration or leakage, which may adversely affect the commercial value of the cell.6. Characteristics6.1 Standard ChargeUnless otherwise specified, “Standard Charge” shall consist of charging at constant current of 1200mA. The cell shall then be charged at constant voltage of 4.2V while tapering the charge current. Charging shall be terminated when the charging current has tapered to 50mA. For test purposes, charging shall be performed at 23ºC ± 2ºC.6.2 Standard Discharge“Standard Discharge” shall consist of discharging at a constant current of 480mA to 3.0V.Discharging is to be performed at 23 ºC ± 2 ºC unless otherwise noted (such as capacity versus temperature).6.3 Initial CapacityCells shall be charged per 6.1 and discharged per 6.2 within 1 hour after full charge. Initial capacity shall meet the following requirement.Initial Capacity ≥ 2380 mAh6.4 Cycle LifeCells shall be charged at constant current of 1200mA to 4.2V with end current of 50mA. Cells shall be discharged at constant current of 1200mA to 3.0V. Cells are to rest 10 minutes after charge and20 minutes after discharge. A cycle is defined as one charge and one discharge. Discharge capacityshall be measured per 6.1 and 6.2 after 300 cycles.Discharge capacity (301th Cycle) ≥80 % (of minimum capacity in 3.1)6.5 Initial AC ImpedanceLGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A3Initial AC impedance is measured at 1kHz after standard charge.Initial AC Impedance ≤ 90 mΩ (with PTC)6.6 Temperature Dependency of CapacityCells shall be charged per 6.1 at 23ºC ± 2ºC and discharged per 6.2 at the following temperatures.Relative capacity at each temperature shall meet the following.Charge Temp. Discharge Temperature-10ºC0ºC 23ºC 60ºC23ºC70 % 90 % 100 % 95 %6.7 Storage CharacteristicsCells shall be charged per 6.1 and stored in a temperature-controlled environment at 23ºC ± 2ºC for30 days. After storage, cells shall be discharged per 6.2 to obtain the remaining capacity.Remaining capacity ≥90 % (of minimum capacity in 3.1)6.8 Cell V oltage (as of shipment)V oltage range : 3.7 ~ 3.9 V7. Mechanical Characteristics7.1 Drop TestTest method : Cells charged per 6.1 are dropped onto an wooden floor from 4 feet height for 3 cycles, where each cycle consists of 3 drops, 2 drops from each cell terminal and1drop from the side of cell can (Total number of drops = 9). After test, cells aredischarged per 6.2 and cycled per 6.1 and 6.2 for 3 cycles to obtain recoveredcapacity.Criteria : No leakage, Capacity recovery rate ≥ 80 %7.2 Vibration TestTest method : Cells charged per 6.1 are vibrated for 90 minutes per each of the three mutually perpendicular axis (x, y, z) with an amplitude of 0.8mm, frequency of 10Hz to55Hz and sweep of 1Hz change per minute. After test, cells are discharged per6.2 and cycled per 6.1 and 6.2 for 3 cycles to obtain recovered capacity.Criteria : No leakage, Capacity recovery rate ≥ 80 %LGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A38. Environmental Test8.1 High Temperature Storage TestTest method : Cells are charged per 6.1 and stored in a temperature-controlled environment at 60ºC for 1 week. After test, cells are discharged per 6.2 and cycled per 6.4 for 3cycles to obtain recovered capacity.Criteria : No leakage, Capacity recovery rate ≥ 80 %8.2 High Temperature and High Humidity TestTest method : Cells are charged per 6.1 and stored at 60ºC (95% RH) for 168 hours. After test, cells are discharged per 6.2 and cycled per 6.4 for 3 cycles to obtain recoveredcapacity.Criteria : No leakage, No rust, Capacity recovery rate ≥ 80 %8.3 Thermal Shock TestTest method : 65ºC (8Hrs) ← 3hrs →-20ºC (8Hrs) for 8 cycles with cells charged per 6.1.After test, cells are discharged per 6.2 and cycled per 6.4 for 3 cycles to obtainrecovered capacity.Criteria : No leakage, Capacity recovery rate ≥ 80 %9. Safety Test9.1 Abnormal Charge TestTest method : Cells are discharged per 6.2, then charged at constant current of 7200mA and constant voltage of 4.2V while tapering the charge current. Charging is continuedfor 48 hours (Per UL1642).Criteria : No rupture, No fire9.2 External Short-circuiting TestTest method : Cells are charged per 6.1, and the positive and negative terminal is connected bya 100mΩ-wire for 1 hour (Per UL1642).Criteria : No rupture, No fire9.3 Overdischarge TestTest method : Cells are discharged at constant current of 480mA to 250% of the minimum capacity (Per UL1642).Criteria : No rupture, No fireLGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A39.4 Nail TestTest method : A nail (diameter : 2.5~5mm) is penetrated vertically through the center of cells charged per 6.1 and left for 6 hours.Criteria : No rupture, No fire9.5 Heating TestTest method : Cells are charged per 6.1 and heated in a circulating air oven at a rate of 5ºC per minute to 150ºC. At 150ºC, oven is to remain for 10 minutes before test isdiscontinued (Per UL1642).Criteria : No rupture, No fire9.6 Impact TestTest method : Cells charged per 6.1 are impacted with their longitudinal axis parallel to the flat surface and perpendicular to the longitudinal axis of the 15.8mm diameter bar(Per UL1642).Criteria : No rupture, No fire9.7 Crush TestTest method : Cells charged per 6.1 are crushed with their longitudinal axis parallel to the flat surface of the crushing apparatus (Per UL1642).Criteria : No rupture, No fire10. Standard Test ConditionsUnless otherwise specified, all tests stated in this Product Specification are conducted at temperature 23±2ºC and humidity 65 ± 20 %RH.11. Product LiabilityThe coverage of LG Chem, Ltd. is for the cell itself, while the customer assumes the liability of the product including the cell and its protection circuit.12. WarrantyAs long as the cell is treated in accordance with this Product Specification and/or Proper Use and Handling, LG Chem, Ltd. warrants that the cell should be free from any defect for a period of 1 year from date of manufacturing.LGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0 Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A3The warranty set forth above or described in Proper Use and Handling excludes a defect which is not related to manufacturing on the cell.13. OthersAny matter not included in this specification shall be conferred between the both parties.This document shall replace the document bearing a former revision index, and customers are kindly requested to destroy the former document in possession.LGCRP/BTC Ryu, Duk Hyun LRB-PS-CY240 2003-07-16 0 Approved DescriptionLGCRP/BTC Kim, Soo Ryoung Lithium Ion ICR18650 A3Fig 1. Dimensional Drawing of ICR18650 A3。

18650单电芯规格书BATTERY CO., LTD. DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 1 of 8Specification Approval Sheet (cylinder Cell) 产品规格确认书（圆柱电池）Model/型号：ZZ18650Capacity/容量：1500mAhVoltage/电压：3.7V制定（Prepared By）审核（CheckedBy）批准（ApprovedBy）DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 2 of 81.0基本特性Basic performance型号Model BJ18650P 外壳材质Can Material 镀镍钢Nickel-plated 标称容量NominalCapacity，（0.2C5A）1300mAh额定电压Nominal 3.70V 充电截止电压Max 4.20 V 放电终止电压 2.80V 最大充电电流Max.Charge Current1C5A标准持续放电流10C5A最大瞬间放电电流Max. Discharge Curent20 C5A电池最大直径（光壳）18.5电池最大高度（光壳）66mm 电池重量(Approx.) 约36g 内阻（Max, at 1000Hz.）≤16mΩ充电方法Charge 标准0.2C5A×快速 1 C5A×操作温度Operating Temperature 充电Charge0℃～45℃放电Discharge-20℃～60℃贮存Storage-10℃～45℃2.0 外形图figure2.1结构图Structure3.0 主要放电曲线Mainly capability graphBJ18650P-1300mAh 15C Discharge Cruve BJ18650P-1300mAh 1C Charge CruveBJ18650P-1300mAh 13C Cycle Life BJ18650P-1300mAh -20℃Discharge CruveDOC NO.: QR-WI-733-003-002/A REV. : APAGE: 3 of 84.0 电池性能Characteristic若没有特别说明，电池在做各项试验前，均需在86KPa～106 KPa大气压，环境温度20℃±5℃，相对湿度为45％～75％的条件下，以0.2C5A恒流放电至终止电压2.8V，并在收到产品两周内进行以下试验。

History of revision 版本更改历史记录Contents 目录1．Scope 适用范围 (4)2．Adopted Standard引用标准 (4)3．Electrical Characteristics电气特性 (4)4．Battery Performances Test Criterion 电池性能测试规范 (5)5.1 Appearance 外观 (5)5.2 Measurement Apparatus 测试设备 (5)5.3 Testing Condition 测试条件 (6)5.4 Reliability Test 可靠性测试 (6)5．Shipment 运输 (8)6．Storage 贮存 (8)7．Package and Marking包装与标志 (8)8.1 Package 包装 (8)8.2 Marking 标志 (8)8．Protection Circuit 保护电路 (9)9.1 Schematic of the PCB 保护板原理图 (9)9.2 PCM BOM....................................................................................................................................9.3 PCM Parameter PCM参数 (9)9．Outline Drawing 外形图纸 (10)10．Appendix 附录 (11)3.7 Instructions and Safety Requirement 使用说明和安全规程 (11)3.7.1 Recommending Usage推荐使用事项 (11)3.7.2 Hazard Warning危险警告 (11)3.7.3 Warning 警告 (12)3.7.4 Cautions 注意事项 (13)10.2 Quality Evaluation Programme 质量评定 (14)10.3 Environment Protection 环保要求 (14)10.4 Others 其他事项 (14)1．Scope 适用范围This description defines the general requirements for the battery’s rating parameter, electrical requirement, safety requirement, environmental compatibility, test and judgment, usage instructions, safety regulation, quality evaluation and packaging, marking, storage, shipment and handling, which cellular phone battery with 523450AR-850mAh rechargeable battery cell, adapted for Digital products.本规格书描述电池之标称参数、电气特性、安全性能、环境适应性及其实验和判定、使用说明和安全规程、质量评定及包装、标志、贮存、运输等。

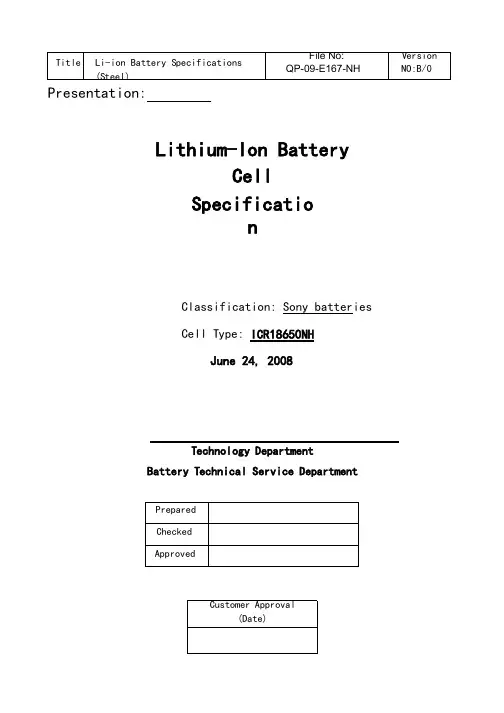

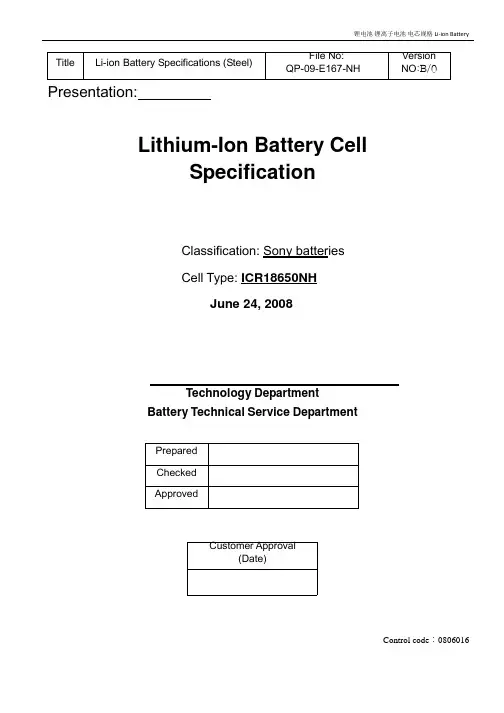

Title Li-ion Battery Specifications (Steel)File No:QP-09-E167-NHVersionNO:B/0Presentation:Lithium-Ion Battery CellSpecificationClassification: Sony batteriesCell Type: ICR18650NHJune 24, 2008Technology DepartmentBattery Technical Service DepartmentPreparedCheckedApprovedCustomer Approval(Date)Control code：0806016RevisionDateOriginatorDescriptionB/02008-6-24Engineering CenterOriginal ReleaseTitleLi-ion Battery Specifications (Steel)Revision HistoryFile No: QP-09-E167-NHVersion NO :B/0ICR18650NHEngineering CenterItem Specification Remarks4.1Typical capacity2600mAh0.2 C5A discharge 4.2Minimum Capacity2500mAh4.2 Nominal Voltage8.4V4.3 Discharging Voltage (Min)7.4V4.4 Charging Voltage (Max.)8.4±0.1V4.5 Charging Current（Std.）0.5 C5A4.6 Discharging Current（Std.）0.2 C5A4.7 Charging Current (Fast） 1 C5A0 ~ 40°C, <95%RH4.8 Discharging Current（Fast） 1 C5A4.9 Discharging Current（Max.） 2 C5A4.10 Internal Impedance≤200mΩ4.11 Weight100±2.0g4.12 Outline dimension (seefigure)widthφ38±0.2mm(Including PVC) Length68±0.5mm4.13 Battery cell storage and transportation environment and temperature rangesMin 1 Month-20 ~ +60°C, <75%RH*Initial status of cell 3.80V and50% of charge, the capacity lostduring shipment < 20%.Capacity recover rate > 80%. Min 3 Months-20 ~ +45°C, <75%RH*Min 12 Months-20 ~ +25°C, <75%RH*Title Li-ion Battery Specifications (Steel)Page1/111. ScopeThis Specification is applied to rechargeable lithium ion battery cell of the following mentioned type for various applications in mobile communication devices and portable power systems.2. Cell Classification and Type2.1 Cell Classification：Lithium Ion Battery Cell2.2 Cell Type：ICR18650NH3. StandardThe specification is based on the technical specification of GB/T18287-2000 、UL1642 and IEC61960.4. Nominal SpecificationFile No:QP-09-E167-NHVersion NO:B/0ICR18650NH Engineering Center5. Electrical CharacteristicsItem Test Method Performances5.1 Full Charge5.2 Capacity5.3 Cycle life5.4 Capacity retention The charger supplies 1C constant current until batteryvoltage reaches 8.4V ，then be changed at constantvoltage of 8.4V while tapering the charge current to lessthan or equal to 0.01 C. Charging time is 3.0 hours in all.①Within 1 hour after fully charged, discharged at 0.2Ccontinuously down to 7.4V.②Within 1 hour after fully charged, discharge at 1Ccontinuously down to 7.4V.A battery unit shall be repeated 300 charge/dischargecycles, charged at CC-CV (0.5 C - 4.2V) for 3. 0 hours,discharged at 0.5C continuously down to 7.4V Cut-offVoltage. Measure discharge capacity.CHINENG guarantee that the residual capacity of 2cells in series without circuitry is over than 80% after300 cycles.(Capacity testing after 300 cycles will be performed undercondition of 0.5C charging and 0.2C discharging)After fully charged, stored for 28 days at 20°C, then for 1hour between 20°C to 25°C and continuously dischargeat 1C to 7.4V.More than 300minMore than 54min≥80% capacityCapacity retention rate ≥85%※Minimun CapacityThe minimum capacity is in the specifications table. The term refers to the capacity when the charged cells are discharged to the cut-off voltage for 5 hours at 20°C±5°C.※Typical CapacityTypical capacity refers to the median value of the capacity when a battery cell is discharged to the cut-off voltage with the current of 0.2 C at 20°C±5°C.※Limit Charge VoltageCharged cells with constant current to reach a voltage value, then keep the voltage constant and continue to charge them. The voltage is referred to as limited charge voltage. The value is 4.2V.※Cut-off VoltageCut-off Voltage Refers to the end voltage when a battery cell is discharged to reach. The value is 7.4V.File No:QP-09-E167-NHVersion NO:B/0ICR18650NH Engineering Center6. Temperature AdaptabilityItem Test Method Performances6.1 Capacity at different temperature6.2 Discharge at constant temperature /humidity6.3 Vibration6.4 Shock6.5 Free fall Measure capacity with constant discharge current of0.2 C to 7.4V cut-off at each temperature aftercomplete charge at 20℃.Percentage as an index of the capacity compared with100% at 20℃.Keep the battery at 40℃and 90%RH,goal is 95%, for 48 hrs and then discharge at 1C to7.4V Cut-off Voltage.The battery cell will be vibrated 10 sine sweeps inthree mutually perpendicular directions with amplitudeof 0.19-0.38mm and changing frequency between 10and 55Hz. The rate of scanning frequency is from 10H Zto 55 H Z with the rate of 1 H Z per min.The battery cell shall be accelerated 1000 times at100m/s2 for durations of 16mS.The battery cell will be dropped free one time in threemutually perpendicular directions from the height of1.0m onto a hard board with the thickness of 20mm.Minimum capacity:60% at -20℃80% at 0℃95% at 55℃The battery cell shall notrupture, smoke, catch fire,vent or leak. The time ofdischarge is no less than 36min.The battery cell shall notrupture, smoke, catch fire,vent or leak. The voltage isno less than 3.6V.The battery cell shall notrupture, smoke, catch fire,vent or leak.The battery cell shall notrupture, smoke, catch fire,vent or leak.7. Safety CharacteristicsItem Test Method Performances7.1 Short Circuit 7.2 Over charge The battery cell is to be short-circuited by connectingthe positive and negative terminals of the battery withan external load of less than 100 mΩuntil thesurface temperature decrease 10 degree from thehighest point.The battery cell charged completely will be chargedcontinuously for 8hrs with the external power supply ofthe limit voltage of 4.6V and the current of 3A.The battery cell shall be nofire, somke or explosion.The battery cell shall be nofire, smoke or explosion.File No:QP-09-E167-NHVersion NO:B/0ICR18650NH Engineering Center7.3 Over discharge 7.4 Crush7.5 Impact7.6 Heating After complete charge, the battery cell will bedischarged to end voltage. Then connect withexternal load of 30Ωdischarge for 24hrs.A charged battery cell is to be crushed between twoflat surfaces. The force for the crushing is to beapplied by a hydraulic ram with a 1.25 inch (32mm)diameter piston. The crushing is to be continueduntil a pressure reading of 17.2Mpa is reached onthe hydraulic ram, applied force of 13kN.Once themaximum pressure has been obtained it is to bereleased.Drop a 10kg hammer from a height of 1m onto thecell that is placed on a flat surface. (The largestsurface of the battery cell shall be perpendicular tothe flat surface.)Place the battery cell in an oven. The temperatureof the oven is to be raised at a rate of 5℃±2℃/minto a temperature of 130 ℃±2 ℃, and remain for30min at that temperature.The battery cell shall notrupture, smoke, catch fire,vent or leak.The battery cell shall notrupture or catch fire.Deformation of the battery cellis allowed, but there shall beno fire or explosion.The battery cell shall be no fireor explosion.8．Standard Test Conditions8.1 Test ConditionUnless otherwise specified, all tests stated in this Product Specifications shall be conducted under the following atmosphere condition:Temperature: 15℃– 35℃; Relative Humidity: 45% – 75%;Atmospheric Pressure: 86kPa – 106kPa.8.2 Measuring meters & Instruments8.2.1 Voltmeter should have a precision of ±0.5% or higher. Its internal impedance should not be less than 10kΩ/V.8.2.2 Ammeter should have a precision of ±0.5% or higher.8.2.3 Hour-meter should have a precision of ±0.1% or higher.8.2.4 Thermometer should have a precision of ±0.5℃or higher.8.2.5 The current of a constant-current supply should be stable and adjustable. Its variation shall be within ±1% during thecharging and discharging process.8.2.6 The voltage of a constant- voltage supply should be stable and adjustable. Its variation shall be within ±0.5%.File No: Version NO:B/0ICR18650NH Engineering Center9. Design and ConstructionThe design, structure and dimension of the battery cell are shown on the attached drawing（see figure）.10. AppearanceThere shall be no practical damage such as conspicuous liquid electrolyte leakage, flaw electrolyte leakage, rust, dirt, and deformation. The battery cell must have marketability.11. Packing and Shipping cells①Inspection Before Shipment of the battery cells•Inspect voltage, internal impedance and capacity and protection circuit function before shipment.Minimum aging period should be more than 4 weeks from date of manufacturing.Outgoing Inspection Report should be come with Shipment.②Packing and Shipping cells•During transportation, must use appropriate package to protect the cell from damage. We recommend the original package method, whenever need during transportation.•The cells should be shipped with half-charged state and during transportation. Avoid mechanical shock, crush, sun radiation and shower. Should be shipped by truck, train, ship or airplane etc.Date code on the cells and box:- On the cell: Manufacturing date should be marked on the PVC sleeve, not on the can.- On the box: Manufacturing date and shipping date should be marked. Manufacturing date should be complied with cells.③Abnormal cell•Don’t use abnormal cells which have damages caused by stress, drop, short, or leakage of electrolyte.12. Precautions on Charge use①Charge•A battery cell must be charged with constant current-constant voltage.•In case of ICR18650NH, charge current must be below 2C /cell.•Charge voltage must be less than 4.25V/cell.②Discharge•Discharge current must be below 2C /cell.•Discharge temperature range should be -20~55°C.•Discharge end voltage must be over 7.4V/cell.③Required protection functionsHave protection circuit functionality which is described below inside battery pack, to insure safety of battery cell in case of misuse.File No: Version NO:B/0ICR18650NH Engineering CenterNO Items Requirements1ProtectionFunctions(For reference)Over Charge detection voltage.17±0.025V2Over Charge release voltage.16.6±0.050V3Excess discharge detection voltage.10±0.08V4Excess discharge release voltage12±0.10V5Over current protection(OCP) 3.0 A④PrecautionsPrecautions on Battery Pack Design•Fix cells with mold case by rib, tape, glue etc., but don’t make damage cells (especially in sealing part) by rib or sharp part of mold case. In case the battery pack is struck by hard shock or vibration, the battery pack has possibility to cause leakage, smoke, or explosion.•It is recommended that the protection device such as PTC（e.g. VTP210.VTP170）or thermal fuse（e.g. TA1，TA2）should be used to protect the battery from the abnormality of equipment.13. Storage Condition①Recommended Storage Temperature and Humidity• Store the battery cell at temperature range -5℃~+35℃，relative humidity of less than 75% and no corrosive gas atmosphere. Keep far away from fire or heat.②Long Period Storage• In case of long period storage (more than 3 months), store the battery cell at temperature range -5~+25°C, less than 75% humidity, no corrosive gas atmosphere. And in this case, charge/discharge condition of one full cycle, and store the battery at 3.8V/cell.•When storing the cell over one year, charge the cell at least once a year.•No condensation on the cell.File No: Version NO:B/0ICR18650NH Engineering CenterTitle Li-ion Battery Specifications (Steel)Page7/1114. Exemption from Warrantee•CHINENG will not be responsible for trouble occurred by handling outside of the precautions in this specification.•CHINENG will not be responsible for trouble occurred by matching electric circuit, battery pack, terminal and charger. In case of any problem, an analysis must be conducted to determine the cause of failure.•CHINENG will not be responsible for any fault resulted from battery pack assembly such as welding etc.after acceptance of cells.15. Safety InstructionProhibition Points and HandleThe battery cell includes the flammable objects such as the organic solvent. If the handling is missed there will bepossibility that the battery cell ruptures, flames or hot, or it will cause the deterioration or damage of battery cell. Pleaseobserve the following prohibitive matters. And also, add the protection device the equipment for fear that the troublewould affect the battery cell by the abnormality of equipment. In addition, mention the following matters as “Pr ohibitionPoints on Hand le” in the instruction manual of the equipment.16. Warranty Period of BatteryThe warranty period of a battery cell is for 12 months after shipment. However, even within the warranty periodCHINENG will only be responsible for defect of cells related to manufacturing process. Any other problem causedby malfunction of the equipment or unsuitable use of the cell will not be covered under this warranty.File No: Version NO:B/0ICR18650NH Engineering CenterTitle Li-ion Battery Specifications (Steel)Page8/11 Danger！1. Disassemble and Reconstruction“Do not disassemble or reconstruct battery”The battery pack has safety function and protection circuit to avoid the danger. If they have serous damage, it will cause the generating heat, smoke, rupture or flame.2. Short-circuit“Don not short-circuit battery cellDo not connect + and – terminals with metals (such as wire). Do not carry or store the battery cell with metal objects (such as wire, or hairpins). If the battery cell is short-circuited excessive large current will flow and then the generating heat, smoke, rupture or flame will occur. And also, it causes generating heat at metals.3. Incineration and Heating“Do not incinerate or heat the battery cell”These occur the melting of insulator, damage of gas release vent or safety function, or ignition on electrolyte. Above mentioned matters cause the generating heat, smoke, rupture or flame.4. Use nearby Heated Place“Do not use or leave battery nearby fire, stove or heated place (more than 80°C)”In case that separator made of polymer is melted by high temperature, the internal short-circuit occurs in individual cells and then it causes the generating heat, smoke, rupture or flame. In addition, do not use the battery cell under the heated place (more than 80°C).5. Immersion“Do not immerse the battery in water or sea water, or get it we t”If the protection circuit included in the battery cell is broken, the battery cell will be charged at extreme current or voltage and the abnormal chemical reaction occurs in it. And then it causes the generating heat, smoke, rupture or flame.6. Charge nearby Heated Place“Do Not charge battery nearby the fire or under the blazing su n”If the protection circuit to avoid the danger works under high temperature or it is broken, the battery cell will be charged at abnormal current (or voltage) and abnormal chemical reaction will occur. It causes the generating heat, smoke, rupture or flame.7. Charger and Charge Condition“Do use the specified charger and observe charging requirement”If the battery cell is charged with unspecified condition (under high temperature over the regulated value, excessive high voltage or current over regulated value, or remodeled charger), there are cases that it will be overcharged or the abnormal chemical reaction will occur in cells. It causes the generating heat, smoke, rupture or flame.File No: Version NO:B/0ICR18650NH Engineering Center8. Penetration“Don to drive a nail into the battery, stick it by hammer, or tread it”As the battery cell might be broken or deformed and then it will be short-circuited, it causes the generating heat, smoke, rupture or flame.9. Impact“Do Not give battery impact or throw it”The impact might cause leakage, heat, smoke, rupture, and/or fire of cell in the battery. And also if the protection circuit in the battery cell is broken, the battery will be charged abnormal voltage or current, and abnormal chemical reaction might occur. It might cause leakage, heat, smoke, rupture, and/or fire.10. Deformation“Do not use the battery cell with conspicuous damage or deforma tion”It causes the generating heat, smoke, rupture or flame.11. Soldering“Do not make the direct soldering on battery ce ll”As the insulator is melted by heat or the gas release vent (or safety function) is broken, it causes the generating heat, smoke, rupture or flame.12. Reverse Charge and Over-discharge“Do not reverse polarity (and terminals)”On charging, the battery cell is reverse-charged and abnormal chemical reaction occurs. And also, there may be case that unexpected large current flows on discharging. These cause the generating heat, smoke, rupture or flame.13. Reversed Polarity Use“Do not reverse-charge or reverse-connec t”The battery cell has polarity. In case the battery cell is not connected with charger or equipment smoothly, do not force them and do check polarity of battery. If the battery cell is connected to opposite polarity with charger, it will be reverse-charged and abnormal chemical reaction will occur. It causes the generating heat, smoke, rupture or flame.14. Inappropriate Use For Other Equipment“Do not use battery cell for other equipme nt”If the battery cell is used for unspecified equipment, it will deteriorate its performance and cycle-life. At worst, abnormal current will flow or battery may generate heat, smoke, rupture or flame.15. Leakage“Do not touch leaked battery ce ll”Do not touch your eyes but wash them immediately, and then see a doctor if leaked electrotype is into your eyes. If pay no attention to your eyes, it will cause eye disease.File No: Version NO:B/0ICR18650NH Engineering CenterWarning！1. Mixed Use“Do not use lithium ion battery cell in mix ture”Do not use lithium ion battery cell with the primary batteries or secondary batteries whose capacity or kinds or maker is different. If do that, the battery cell will be discharged or charged excessively in use. And it may cause the generating heat, smoke, rupture or flame because of the abnormal chemical reaction in cells.2. Ingestion“Keep the battery cell away from babies”Keep the little battery cell out of the reach of babies in order to avoid troubles by Swallowing. In case of swallowing the battery, see a doctor immediately.3. Charging Time“Do not continue to charge battery cell over specified time”If the battery cell is not finished charging over regulated time, let it stop charging. There is possibility that the battery cell might generate heat, smoke, rupture or flame.4. Storage“Do not get into a microwave or a high pressure cont ainer”It causes the generating heat, smoke, rupture or flame because of a sudden heat or damage of sealing condition of battery cell.5. Leakage“Do not use a leaked battery cell narby fire”If the liquid leaks from the battery cell (or the battery gives out bad smell), let the battery cell leave from flammable objects immediately. Unless do that, the electrolyte leaked from battery cell will catch fire and it will cause the smoke, flame or rupture of it.6. Rust, Charging color and Deformation“Do not use an abnormal battery ce ll”In case the battery cell has bad smell or is generated its changing color or deformation or causes something wrong in using (includes charging and storage). Let it take out from equipment or charger and do not use it. If an abnormal battery cell is used, it will generate heat, smoke, rupture or flame.File No: Version NO:B/0ICR18650NH Engineering CenterCaution！1. Use under strong sunshineDo not use or leave the battery cell under the blazing sun (or in heated car by sunshine). The battery cell may generate heat, smoke or flame. And also, it might cause the deterioration of battery cell’s characteristics or cycle life.2. Static ElectricityThe battery pack has the protection circuit to avoid the danger. Do not use nearby the place where generates static electricity (more than 100V) which gives damage to the protection circuit. If the protection circuit were broken, the battery cell would hide danger.3. Charging Temperature RangeCharging temperature range is regulated between 0°C and 40°C. Do not charge the battery cell out of recommended temperature range. Charging out of recommended range might cause the generating heat or serous damage of battery cell.And also, if might cause the deterioration of battery cell’s characteristics and cycle life.4. ManualPlease read the manual before using the battery cell and keep it after reading.5. Charging methodPlease read the manual of specified charger about charging method.6. First time useWhen the battery cell has rust, bad smell or something abnormal at first-time using, do not use the equipment and go to bring the battery cell to the shop which it was bought.7. LeakageIf the skin or cloth is smeared with liquid form the battery cell, wash with fresh water. It may cause the skin inflammation.File No: Version NO:B/0ICR18650NH Engineering Center Remarks1Heightφ19±0.2mm (Including PVC)2Widthφ38±0.2mm (Including PVC)3Length68±0.5mm4Case SteelFile No:Version NO:B/0ICR18650NH Engineering Center QP-09-E167-NH。

Product Specification for Lithium-ion Rechargeable Cell 锂离子电芯产品规格书Cell Model: WX12I3250电芯型号：WX12I3250Table of Contents目录1. Purpose 目的 (3)2. Scope 适用范围 (3)3.Battery description 电池描述 (3)4. Battery Specification 电池规格 (3)5. Appearance and Dimension 电芯外观尺寸 (5)6. Standard Test Conditions 标准测试环境 (5)7. Performances and Test Method 电池性能及测试方法 (5)7.1 Explanation of terminology 术语解释 (5)7.2 Electrochemistry performance 电性能参数 (6)7.3 Safety Performances 安全性能 (7)8. Shipment 运输 (9)9. Warning and Cautions 警告及注意事项 (9)1. Purpose 目的The specification sheet is designed to build up and improve Co.,Ltd technical documentation so as to instruct production and product shipment and consequently guarantee product quality. At the same time, it is convenient for to confirm product specifications with customers and finally reach an agreement.为建立健全的公司技术资料，确保产品质量，用于指导产品生产、出货。

18650（3600mah）规格书（标准书）文件名称产品型号修改记录产品型号目录1 适用范围 (4)2 引用标准 (4)3 定义........................................ .. (4)3.1 手机用电池battery for cellular phone ..... . (4) 3.2 充电限制电压 limited charge voltage ............... .. (4)3.3 额定容量 rated capacity ........................... .. (4)3.4 标称电压 nominal voltage (4)3.5 终止电压 cut-off voltage (4)4 技术参数 (4)4.1 电芯参数表 (4)4.2 主要参数表 (5)4.3 保护板参数表 (5)5 要求 (5)5.1 测试条件 (5)5.2 测量仪表与设备要求 (6)5.3 外观 (6)5.4 充电制式 (6)5.5 20℃放电性能 (6)5.6 高温性能 (6)5.7 低温性能 (6)5.8 荷电保持能力 (6)5.9 循环寿命 (7)5.10 环境适应性 (7)5.11 安全保护性能 (7)5.12 电池完全完全充电后内阻 (8)6 运输、贮存 (8)7 安全规程及使用说明 (8)8 特殊要求 (8)9 PCB原理图，电芯基本特性及外形图 (9)10 电芯充放电曲线图11 成品电池尺寸图产品型号1 适用范围本规格书适用于可充电锂离子电池产品的定义、要求、测试方法、质量评定程序及标志、包装、运输、贮存。

用户请务必严格按照规格书中的测试或使用方法进行测试或使用，如对表中的测试项目或测试方法有异议，请与供应方协商解决2 引用标准下列标准所包含的条文，通过在本规范中引用而构成为本规范的条文。

GB/T 2828-1987 逐批检查计数抽样程序及抽样表（适用于连续批的检查）GB/T 2829-1987 周期检查计数抽样程序及抽样表（适用于生产过程稳定性的检查）GB/T 2900.11-1988 蓄电池名词术语3 定义本规范采用GB/T 2900.11 中规定的术语和下列定义。

锂离子电池规格书SpecificationForLithium-ion Rechargeable Battery电芯型号: N18650CNPCell Type : N18650CNPDocument No P/PR03/PB-D-N18650CNP revised date 2018-5-3 Version A/01 Pages 13 Approved Checked Designed李艳斌邱沫马奇会Contents 目录1Preface前言2Definition定义2.1Standard charge method 标准充电方式2.2Standard discharge method 标准放电方式2.3Nominal capacity 标称容量3Cell type and dimension电芯型号及尺寸3.1Description and type 电芯说明及型号3.2Cell dimension电芯尺寸4Battery characteristics电池特性5Technical requirements技术要求5.1Battery usage conditions 电池使用环境5.2Battery testing conditions 电池实验环境5.3Requirement of the testing equipment 测量仪表要求5.4Electrochemical characteristics 电化学特性5.5Environmental characteristics 环境适应性能5.6Safety characteristics 安全性能6Package picture包装图片7Shipment出货8Warranty质量保证9Storage and shipment requirement存储及运输要求10Warning and cautions in handling the lithium-ion battery电池使用时警告事项及注意事项11The restriction of the use of hazardous substances有害物质控制要求12Contact information联系方式13Version history修订履历1Preface前言This specification describes the type, dimension, performance, technical characteristics, warnings and cautions of the lithium-ion rechargeable battery. The specification only applies to N18650CNP fresh batterys supplied by Shenzhen BAK Power Battery Co., Ltd.本标准描述了圆柱型锂离子电池的型号、尺寸、特性、技术要求及注意事项。

锂电池特性分析ICR18650Spec PRODUCT SPECIFICATION1. Customer :2. Product : Cylindrical Lithium Ion Cell3. SDI Model : ICR18650-204. Buyer Model5. Received MarkingD ivisionSignatureD ate//////6. Date of application (DD/MM/YY) : / /7. Supplier : SAMSUNG SDI Co., Ltd.Mobile Energy Business Team1. ScopeThis Product Specification has been prepared to specify the rechargeable lithium-ion cell ('Cell') to be supplied to the customer by Samsung SDI Co., Ltd.2. Description and Model2.1 Description Cell (lithium-ion rechargeable cell)2.2 Model ICR18650-203. Ratings3.1 Nominal Capacity 2000mAh3.2 Charging Voltage4.2 V3.3 Nominal Voltage 3.7 V (from4.2 V to 2.75 V)3.4 Charging Method CC-CV (constant voltage with limited current)3.5 Charging Current Standard charge : 1000mARapid charge : 2000mA3.6 Charging Time Standard charge : 3 hoursRapid charge : 2.25 hours3.7 Max. Charge Current 2000mA3.8 Max. Discharge Current 3300mA3.9 Discharge Cut-off Voltage 2.75 V3.10 Cell Weight Approx. 44.0 g3.11 Cell Dimension Height(max.) : 65.00 mmDiameter(max.) : Φ18.25 mm3.12 Operating Temperature Charge 0 ~ 45℃Discharge -20 ~60℃3.13 Storage Temperature 1 year -20~20℃(*1)3 month -20~45℃(*1)1 month -20~60℃(*1)Note (1): If the Cell is kept as ex-factory status(50% of charge),the Capacity Recovery Rate is more than 80%.4. Outline DimensionsSee the attachment.(Fig. 1)5. AppearanceThere shall be no such defect as scratch, rust, discoloration, leakage which may adversely affect commercial value of the Cell.6. Standard test conditions6.1 Environmental ConditionsUnless otherwise specified, all tests stated in this specification are conducted at temperature 23±5℃and humidity 65±20%.6.2 Measuring Equipment(1) Ammeter and voltmeterThe ammeter and voltmeter should have an accuracy ofthe grade 0.5 or higher.(2) Slide caliperThe slide caliper should have 0.05 mm scale.(3) Impedance meterThe impedance meter with AC 1kHz should be used.7. Characteristics7.1 Standard ChargeThis "Standard Charge" means charging the Cell with charge current1000mA with constant voltage 4.2V at 23℃for 3hours.7.2 Initial capacityThe initial capacity is the initial discharge capacity of the Cell, which is measured with discharge current of 400mA with 2.75V cut-off at 23℃within 1 hour after the Standard Charge.Initial Capacity ≥1950mAh7.3 Cycle LifeEach cycle is an interval between the charge (charge current 1000mA) and the discharge (discharge current 2000mA) with 2.75V cut-off.Capacity after 299cycles and plus 1 day, measured under the same condition in 7.2Capacity ≥1400mAh7.4 Initial internal impedanceInitial internal impedance measured at 1kHz after Standard Charge.Initial internal impedance ≤100m?7.5 Temperature Dependence of Discharge CapacityCapacity comparison at each temperature, measured with discharge constant current 1000mA with 2.75V cut-off after the Standard Charge isas follows.C h arg e tem p eratu reD isch arg e tem p eratu re23℃-10℃0℃23℃45℃R elativ e cap acity50%80%100%100%Note: If charge temperature and discharge temperature are not the same,the interval for temperature's change is 3 hours.Percentage as an index of the capacity at 23℃is 100% ( 1950mAh).7.6 Temperature Dependence of Charge CapacityCapacity comparison at each temperature, measured with discharge constant current 1000mA with 2.75V cut-off after the Standard Charge isas follows.Note: If charge temperature and discharge temperature are not the same,the interval for temperature's change is 3 hours.Percentage as an index of the capacity at 23℃is 100% ( 1950mAh).7.7 Storage CharacteristicsCapacity after 30 days storage at 23℃from the Standard Charge,measured with discharge current 1000mA with 2.75V cut-off at 23℃.Capacity Retention(after the storage) ≥1600mAh7.8 Status of the cell as of ex-factoryThe cell should be shipped in 50% charged state. In this case, OCV is from 3.65V to 3.85V.8. Mechanical Characteristics8.1 Drop TestTest method:Cell(as of shipment or full charged) drop onto the oak-board(thickness: ≥30mm) from 1.5m height at a random direction 6 times.Criteria: No leakageRecovery rate(*2) ≥90%8.2 Vibration TestTest method:Cell(as of shipment) is vibrated for 90minutes along 2 mutuallyperpendicular axes with total excursion of 1.6mm and withfrequency cycling between 10Hz and 55Hz by 1Hz/min.Criteria: No leakageRecovery rate (*2) ≥90%Note(2): Recovery rate is measured by the condition of 7.2 afterleaving cells at 23℃for 3hours.9. Safety9.1 Overcharge TestTest method:To charge the fully charged Cell with 12V and 2.0A at 23℃for 2.5 hours. Criteria: No fire, and no explosion.9.2 External Short-circuiting TestTest method:To short-circuit the Cell charged 4.2V by connecting positive andnegative terminal by less than 50mΩwire for 3hours.Criteria: No fire, and no explosion.9.3 Reverse Charge TestTest method:To charge the Cell with charge current 2.0A by -12V for 2.5hours.Criteria: No fire, and no explosion.9.4 Thermal Ramp TestTest method:To heat up the Cell charged at 4.2V at a rate 5℃per minute up to130℃and keeping the state for 120 minutes.Criteria: No fire, and no explosion.10. WarrantySamsung SDI will be responsible for replacing the cell against defectsor poor workmanship for 1 year from the date of shipping. Any other problem caused by malfunction of the equipment or mix-use of the cell is not under this warranty.The warranty set forth above or described in Proper Use and Handling excludes a defect which is not related to manufacturing of the Cell.11. Others11.1 Storage for a long timeIf the Cell is kept for a long time(3 months or more), It is stronglyrecommended that the Cell is preserved at dry and low-temperature. 11.2 OtherAny matters that specifications does not have, should be confer withbetween the both parties.12. PackagingSee Fig.2,Package DrawingFig. 1 Outline Dimensions of ICR18650-20 Unit : mmMax. 18.25Max. 65.0Fig 2. Package Drawing Master carton (200PCS)TBare cellProper Use and Handling of Lithium Ion CellsSee Before Using lithium-ion cellSupplied bySAMSUNG SDI Co., Ltd.1 GeneralThis Document has been prepared to describe the appropriate cautions and Prohibitions, which the customer should take or employ when the customer uses and handles the lithium ion cell (Cell) to be manufactured and supplied by Samsung SDI Co., Ltd., in order to obtain optimum performance and safety. 2. Charging2.1 Charging currentCharging current should be less than maximum charge current specifiedin the Product Specification.2.2 Charging voltageCharging should be done by voltage less than that specified inthe Product Specification.2.3 Charging timeContinuous charging under appropriate voltage does not cause any loss of characteristics. However, the charge timer is recommended to be installed from a safety consideration, which shuts off further charging at time specified in the Product Specification.2.4 Charging temperatureThe Cell should be charged within a range of specified temperatures inthe Product Specification.2.5 Inverse chargingThe Cell should be connected, confirming that its poles are correctly aligned. Inverse charging should be strictly prohibited. If the Cell is connected improperly, it may be damaged.3. Discharging3.1 Discharging3.1.1 The Cell should be discharged at less than maximum discharge current specified in the Product Specification.3.2 Discharging temperature3.2.1 The Cell should be discharged within a range of specified temperatures specified in the Product Specification.3.2.2 Otherwise, it may cause loss of characteristics.3.3 Over-discharging3.3.1 The system should equip with a device to prevent further discharging exceeding discharging cut-off voltage specified in the Product Specification.(over-discharging)3.3.2 Over-discharging may cause loss of performance, characteristics, of battery function.3.3.3 Over-discharging may occur by self-discharge if the battery is left fora very long time without any use.3.3.4 The charger should equip with a device to detect Cell's voltage andto determine recharging procedures.4. Storage4.1 Storage conditions4.1.1 The Cell should be stored within a range of temperatures specifiedin the Product Specification.4.1.2 Otherwise, it may cause loss of characteristics, leakage and/or rust.4.2 Long-term storage4.2.1 The Cell should be used within a short period after charging because long-term storage may cause loss of capacity by self-discharging.4.2.2. If long-term storage is necessary, the Cell should be stored at lower voltage within a range specified in the Product Specification,because storage at higher voltage may cause loss of characteristics. 5. Cycle life 5.1 Cycle life performance5.1.1 The cell can be charged/discharged repeatedly up to times specifiedin the Produce Specification with a certain level of capacity alsospecified in the Product Specification.5.1.2 Cycle life may be determined by conditions of charging, discharging, operating temperature and/or storage.6. Design of System6.1 Connection between the Cell and the battery6.1.1 The Cell should not be soldered directly with leads.6.1.2 Otherwise, it may cause damage of component, such as separatorand insulator, by heat generation.6.2 Positioning the battery in the System6.2.1 The battery should be positioned as possible as far from heat sourcesand high temperature components.6.2.2 Otherwise, it may cause loss of characteristics.6.3 Mechanical shock protection of the battery6.3.1 The battery should equip with appropriate shock absorbers in orderto minimize shock.6.3.2 Otherwise, it may cause shape distortion, leakage, heat generationand/or rupture.6.4 Short-circuit protection of the Cell6.4.1 The Cell equips with an insulating sleeve to protect short-circuitwhich may occur during transportation, battery assembly and /orsystem operation.6.4.2 If the Cell's sleeve is damaged by some cause such as outside impact,it may cause short-circuit with some wiring inside the battery.6.5 Connection between the battery and charger/system6.5.1 The battery should be designed to be connected only to the specified charger and system.6.5.2 A reverse connection of the battery, even in the specified system, should be avoided by employing special battery design such asa special terminals.7. Battery Pack Assembly7.1 Prohibition of usage of damaged Cell7.1.1 The Cell should be inspected visually before battery assembly.7.1.2 The Cell should not be used if sleeve-damage, can-distortion and/or electrolyte-smell is detected.7.2 Transportation7.2.1 If the Cell is necessary to transported to order place, such as the battery manufacturer, careful precautions should be taken to avoidCell's damage.8. Others8.1 Disassembly8.1.1 The Cell should not be dismantled from the battery pack.8.1.2 Internal short-circuit caused by disassembly may lead to heat generation and/or venting.8.1.3 When the electrolyte is coming in contact with the skin or eyes, flush immediately with fresh water and seek medical advice.8.2 Short-circuiting8.2.1 Short-circuit results in very high current which leads to heat generation.8.2.2 An appropriate circuitry should be employed to protect accidental short-circuiting.8.3 Incineration8.3.1 Incinerating and disposing of the Cell in fire are strictly prohibited, because it may cause rupture.8.4 Immersion8.4.1 Soaking the Cell in water is strictly prohibited, because it may cause for the melt of components to damage functions.8.5 Mixing use8.5.1 Different types of cell, or same types but different manufacturer's cell may lead to cell rupture or damage to system due to different cell's characteristics.8.6 Battery exchange8.6.1 Although the Cell contains no environmentally hazardous component, such as lead or cadmium. the battery should be disposed according to the local regulations when it is disposed.8.6.2 The Cell should be disposed with a discharged state to avoid heat generation by an inadvertent short-circuit" CAUTION - The Battery used in this device may present arisk of fire or chemical burn if mistreated. Do not disassemble,heat above 100℃or incinerate. Replace battery with Samsung SDI battery only. Use of another battery may present a ris k of fire or explosion. Disposeof used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire."。

CUSTOMER NO:Specification Approval Sheet规格确认书MODEL /型号: 18650（2600mAh 3.7V ）Prepared By/Date 编 制/日 期Checked By/Date 审 核/日 期Approved By/Date 批 准/日 期杨小莹/2012-5-16Customer Approval 客户确认Signature/签 字Date/日 期Company Name/公司名称Company Stamp/公司印章Amendment Records/修正记录Revision 版本Description/记述Prepared by编制Approved by批准Date/日期A FirstPublish 杨小莹Content/目录2. Model/型号Page 43.Cell Specification/电芯规格说明Page 4/54. Battery/Cell performance test Criteria/电池性能标准Page 6 4.1 Appearance inspection by visual/外观目测Page 6 4.2 Environmental test condition/外界环境条件Page6 4.3 Electrical characteristics/电气特性Page 6/7 4.4 Mechanical characteristics/机械特性Page 74.5 Safety performance/安全性能Page 85. Cell initial Dimensions/电芯初始尺寸Page 96. CAUTIONS IN USE(谨慎使用)Page 107. Period of Warranty/保质期Page 108. Storage of the Batteries/电池的存放Page 109. Other The Chemical Reaction/其它化学反应Page 1010. Note/注释Page 10 2. Model/型号Page 41 Scope/适用范围This specification is applies to describe the related Battery product in this Specification and the Battery/cell supplied by CTECHI only.本说明书只适用于描述本规格书中相关的产品。

圆柱型锂离子电芯规格书PRODUCT SPECIFICATIONCylindrical Lithium-ion Cell电芯型号: LR1865AMSignature 签名Date 日期Company Name ：公 司 名 称Customer Approval 客 户 认 同Company Stamp ：公 司 印 章Prepared By首 发Checked By 核 对 QA 质量确认 Approved By 批 准Model: LR1865AM适用范围The product specification describes the requirement of the Cylindrical Lithium-ion Cell to be supplied to the customer by Tianjin Lishen Battery J/S Co., Ltd. Should there be any additional information required by the customer, customer are advised to contact Tianjin Lishen Battery J/S Co., Ltd..本规格书规定了由天津力神电池股份有限公司生产的圆柱型锂离子电芯的技术要求，测试方法及注意事项，如需获取本规格书以外的技术要求，请与力神电池股份有限公司联系相关事宜。

2 DESCRIPTION AND MODEL 型号及说明2.1 Description 说明 : Cylindrical Lithium Ion Cell 圆柱型锂离子电芯2.2 Model 电芯型号 : LR1865AM3 GENERAL SPECIFICATIONS 常规指标3.1 Nominal Capacity 标称容量 1100mAh (at 0.55A Discharge 0.55A放电)Minimum Capacity 最低容量 1000mAh (at 0.55A Discharge 0.55A 放电)3.2 Charging Voltage 充电电压 3.60V±0.05V3.3 Average working Voltage 标称电压 3.20V@0.55A3.4 Standard Charge Method 标准充电方式 Constant Current and Constant Voltage (CC/CV)先恒流充电再恒压充电Current 电流 0.55AVoltage 电压 3.6VEnd Current 终止电流 20mA±5mA3.5 Maximum Charge Current 最大充电电流 1.5A3.6 Standard Discharge 标准放电方式 Constant Current 恒流放电 (CC)Current 电流 0.55AEnd Voltage 终止电压 2.0V3.7 Maximum Discharge Current 最大放电电流 25A3.8 Cycle Life 循环寿命 1000th cycle >60% of 4th Capacity (1.5A/10A at 25℃)1000 次循环>60%第四次循环容量 (25℃，1.5A充电/10A放电) 750th cycle >60% of 4th Capacity (1.5A/10A at 45℃)750 次循环>60%第四次循环容量 (45℃，1.5A充电/10A放电) 500th cycle >60% of 4th Capacity (1.5A/10A at 60℃)500 次循环>60%第四次循环容量 (60℃，1.5A充电/10A放电)外形尺寸（单位：mm）Dimension: Diameter 18.4mm (max), Height 65.1mm (max). Refer to the attached drawing 3.电芯尺寸：直径 18.4mm（最大），高度65.15mm（最大），参考附图3。
