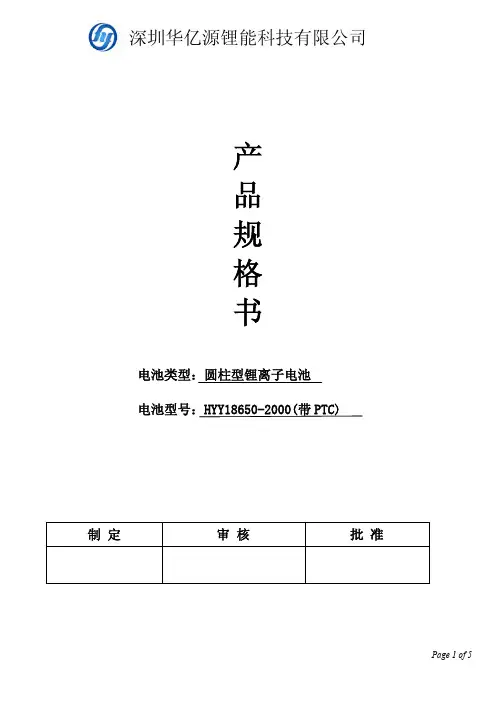

18650电池规格书

产品规格书电池类型：圆柱型锂离子电池电池型号：HYY18650-2000(带PTC)制 定 审 核 批 准3.0 电池性能3.1电化学性能序号项目标准测试方法1 常温放电性能放电容量/标称容量×100％A）0.2C5A ≥100％B）0.5C5A ≥98％C）1C5A ≥95％在1标准大气压，环境温度25℃±2℃，相对湿度为35％～85％的条件下，电池0.5C标准充电后（以下若没有特别说明，均在此条件下放置，皆按此充电方式），搁置10min，分别以0.2C5A、0.5C5A、1C5A、进行放电至下限电压2.75V，循环三次，当有一次达到标准，即达到标准要求（下同）。

2 常温荷电保持能力剩余容量≥标称容量*85％恢复容量≥标称容量*90％开路电压减小率≤3％内阻增加率≤20％测量电池的初始状态和初始容量，电池标准充电后，开路放置28天，测量电池最终状态；以0.2C5A放电至2.75V，测量电池的剩余容量；0.5C/0.2C测量电池的恢复容量。

可循环三次，当有一次达到标准，即达到标准要求。

1.0 基本特性型号18650-2000外壳材质镀镍钢标称容量（0.2C5A）2000mAh 额定电压 3.7V最大充电电压 4.2 V放电截至电压 2.75V最大充电电流 1 C5A最大放电电流 1 C5A 电池直径（包PVC套）≤18.40mm电池高度（包PVC套） ≤65.30mm电池重量(Approx.) ≤45.2g内阻（Max, at 1000Hz.）≤60 mΩ(充电态)标准0.5 C5A×7.5hrs充电方法(CC/CV) 快速 1 C5A×2.5hrs.放电方法标准0.2 C5A×6 hrs.充电0℃～45℃放电-10℃～50℃操作温度贮存-20℃～25℃2.0 外形图3 循环寿命容量≥标称容量*80％测量电池的初始状态和初始容量，0.5C/0.2C循环300次后测量电池的最终状态。

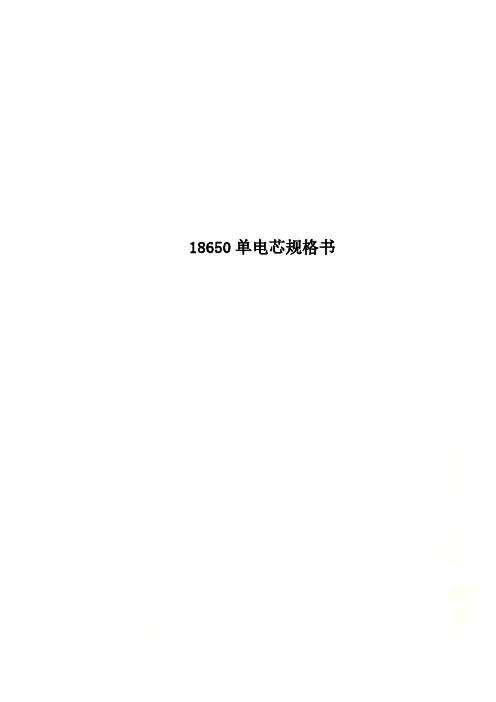

18650单电芯规格书BATTERY CO., LTD. DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 1 of 8Specification Approval Sheet (cylinder Cell) 产品规格确认书（圆柱电池）Model/型号：ZZ18650Capacity/容量：1500mAhVoltage/电压：3.7V制定（Prepared By）审核（CheckedBy）批准（ApprovedBy）DOC NO.: QR-WI-733-003-002/A REV. : APAGE: 2 of 81.0基本特性Basic performance型号Model BJ18650P 外壳材质Can Material 镀镍钢Nickel-plated 标称容量NominalCapacity，（0.2C5A）1300mAh额定电压Nominal 3.70V 充电截止电压Max 4.20 V 放电终止电压 2.80V 最大充电电流Max.Charge Current1C5A标准持续放电流10C5A最大瞬间放电电流Max. Discharge Curent20 C5A电池最大直径（光壳）18.5电池最大高度（光壳）66mm 电池重量(Approx.) 约36g 内阻（Max, at 1000Hz.）≤16mΩ充电方法Charge 标准0.2C5A×快速 1 C5A×操作温度Operating Temperature 充电Charge0℃～45℃放电Discharge-20℃～60℃贮存Storage-10℃～45℃2.0 外形图figure2.1结构图Structure3.0 主要放电曲线Mainly capability graphBJ18650P-1300mAh 15C Discharge Cruve BJ18650P-1300mAh 1C Charge CruveBJ18650P-1300mAh 13C Cycle Life BJ18650P-1300mAh -20℃Discharge CruveDOC NO.: QR-WI-733-003-002/A REV. : APAGE: 3 of 84.0 电池性能Characteristic若没有特别说明，电池在做各项试验前，均需在86KPa～106 KPa大气压，环境温度20℃±5℃，相对湿度为45％～75％的条件下，以0.2C5A恒流放电至终止电压2.8V，并在收到产品两周内进行以下试验。

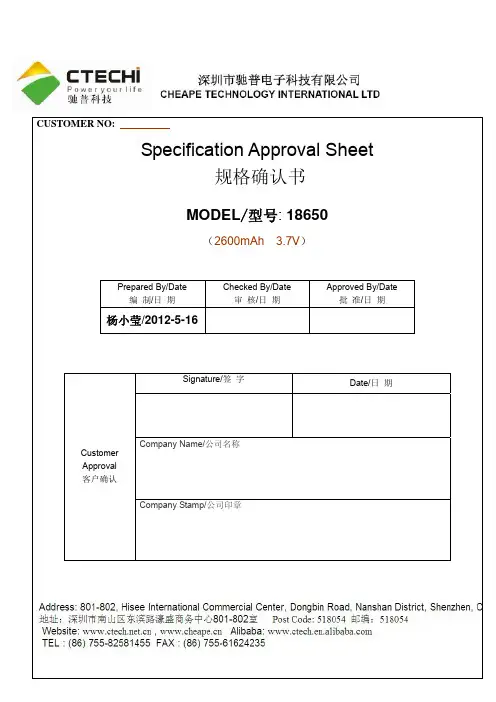

CUSTOMER NO:Specification Approval Sheet规格确认书MODEL /型号: 18650（2600mAh 3.7V ）Prepared By/Date 编 制/日 期Checked By/Date 审 核/日 期Approved By/Date 批 准/日 期杨小莹/2012-5-16Customer Approval 客户确认Signature/签 字Date/日 期Company Name/公司名称Company Stamp/公司印章Amendment Records/修正记录Revision 版本Description/记述Prepared by编制Approved by批准Date/日期A FirstPublish 杨小莹Content/目录2. Model/型号Page 43.Cell Specification/电芯规格说明Page 4/54. Battery/Cell performance test Criteria/电池性能标准Page 6 4.1 Appearance inspection by visual/外观目测Page 6 4.2 Environmental test condition/外界环境条件Page6 4.3 Electrical characteristics/电气特性Page 6/7 4.4 Mechanical characteristics/机械特性Page 74.5 Safety performance/安全性能Page 85. Cell initial Dimensions/电芯初始尺寸Page 96. CAUTIONS IN USE(谨慎使用)Page 107. Period of Warranty/保质期Page 108. Storage of the Batteries/电池的存放Page 109. Other The Chemical Reaction/其它化学反应Page 1010. Note/注释Page 10 2. Model/型号Page 41 Scope/适用范围This specification is applies to describe the related Battery product in this Specification and the Battery/cell supplied by CTECHI only.本说明书只适用于描述本规格书中相关的产品。

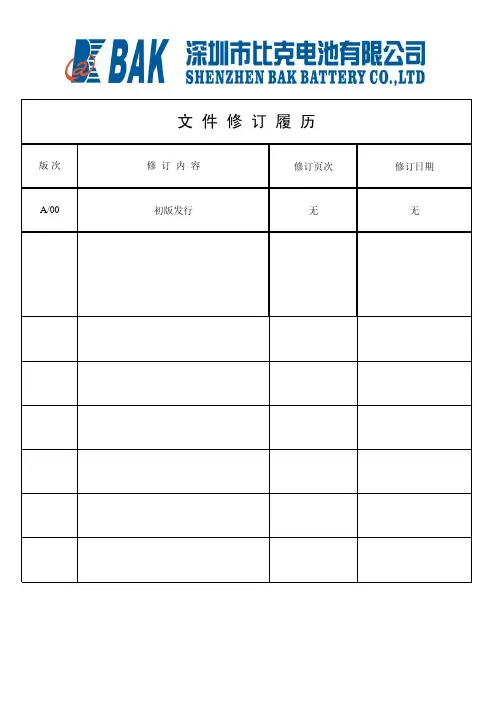

文件修订履历版次修订内容修订页次修订日期A/00初版发行无无R&D-D-18650HP-Fe 2007-4-170011李鑫郑荣鹏张建文Edition PagesApprovedCheckedDesigned电芯型号: 18650HP-Fe Cell Type: 18650HP-FeDocument NoEffective dateforLithium-ion Rechargeable CellSpecification锂离子电芯规格书6.1 Standard Test Conditions 标准测试条件6.3 Quick Charge Method 快速充电制式8. Environment Characteristic 环境性能This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.2该规格书为比克公司企业标准,未经授权,不可翻印,传播.13. Consultation 技术咨询14. Requirement for Safety Assurance 安全保证要求12.2.2 Discharging 放电12.2.3 Storage Recommendation 储存条件12. Precautions and Safety Instructions 安全守则12.1 Standard cell Precaution 电芯防范措施12.2 Cell Operation Instruction 电芯使用说明12.2.1 Charging 充电10. Shipment 出货11. Warranty 质量保证4. Construction 电芯结构5. Specification 标准6. Test Conditions 测试条件7. Electrical Characteristics 电性能6.2 Standard Charge Method 标准充电制式9. Safety Test 安全测试Contents 目录1. Preface 前言2. Description 说明3. Cell Size电芯尺寸2.3 Designation 名称:BAK——— 18 650 HP ——— Fe ① ② ③ ④ ⑤①：Indicates the manufacturing plant 代表厂家名称The letter "BAK" difines ShenZhen BAK Battery Co., LTD. "BAK"代表深圳市比克电池有限公司②：Indicates the diameter of cell 代表电芯直径 18=18mm③：Indicates the overall height of cell 代表电芯高度 650=65mm④：Indicates the performance of celll 代表电池性能 The letter "HP" difines high power cell "HP"代表高功率⑤ ：Indicates the property of the cell 代表电池性能 The letter "Fe" difines LiFePO4 series cathode "Fe"代表以LiFePO4为正极材料体系对于图形结构的详细资讯,请参阅图A.A cell is made of cathode,anode,seperator,can and header.电芯由正极,负极,隔膜,壳体和盖板组成.Figure AThis spec manual is the enterprise standard of BAK , without authorization, any pirate or circulation is prohibited.31. Preface 前言This Product Specification describes the technique requirements,test procedure and precaution notes ofprismatic type Lithium-ion Rechargeable cell to be supplied to customer by Shenzhen BAK Battery Co., LTD.该规格书为比克公司企业标准,未经授权,不可翻印,传播.本标准规定了由深圳市比克电池有限公司生产的锂离子电芯的技术要求,测试方法及注意事项.2. Description 说明2.1 Product 产品: Lithium-ion Rechargeable cell 锂离子可充性电芯2.2 Model (Type) 电芯型号: 18650HP-Fe3. Cell Size 电芯尺寸4. ConstructionFor details,please refer to Figure A.This spec manual is the enterprise standard of BAK , without authorization, any pirate or circulation is prohibited.45.9 Charging Time充电时间8.0hours0.2C 5rate 5.13 Specific Power 额定功率>70W 5.11 Max Continuous Discharge current 最大持续放电电流20A 5.12 Pulse Discharge at 10 Sec 脉冲放电电流40A 5.10 Charge Method 充电方式Recommended standard charge method 建议标准充电方式2C 5mA to 3.60V CC/CV70min Recommended quick charge method 建议快速充电方式5C 5mA to 3.60V CC/CV30min该规格书为比克公司企业标准,未经授权,不可翻印,传播.5. Specification 标准Item 项目Specification 标准Remark 备注5.3 Internal Impedance 交流内阻≤18m ΩBy AC 1 kHZ 5.4 Nominal Voltage 标称电压 3.20 V From 3.60 V to 2.00V5.6 End-of-charge Voltage 充电截止电压3.60V±0.05V 5.5 Cell Weight 电芯重量35±2g Discharging Temperature 放电温度-30～45℃Ambient temperature.Cell skin temperature not exceed 80℃5.7 End-of-charge Current 充电截止电流0.02C 5A At CV mode 5.8 End-of-discharge Voltage 放电截止电压 2.00 V 5.16 Shelf Life 保质期1yearTypical value from ship stateover 500 cycles10C 5A Continual Discharge ( 100% DOD)5.14 Cycle Life 循环性能5.15 Operating Temperature Range操作温度范围Charging Temperature 充电温度0～45℃Ambient temperature.Cell skin temperature must be <65℃.5.17 Appearance 外观Without break, scratch, distortion, contamination, leakage and so on 无破裂、划痕、变形、污迹、电解液泄露等5.1 Typical Capacity 典型容量1100mAh0.2C 5rate discharge capacity5.2 Mininum Capacity 最小容量1050mAh Storage Temperature 存储温度 -30～45℃Recommended temperature range for long term storage is –10 ~ +20°若无特别要求，此规格书上的产品测试条件均为温度：20℃±5℃，湿度：65%±20% RH.6.2 Standard Charge Method 标准充电制式The "Standard Charge" means charging the Cell at a constant current of 2C 5A until the voltage is 3.6V, then charged at a constant voltage of 3.6V until its current is less than 0.02C 5A.“标准充电”即在环境温度为20℃±5℃的条件下,先以恒定电流2C 5A 充电至3.6V,再以3.6V 的恒压充电至电流小于0.02C 5A.6.3 Quick Charge Method 快速充电制式The "Quick Charge" means charging the Cell at a constant current of 5C 5A until the voltage is 3.6V, then charged at a constant voltage of 3.6V until its current is less than0.02C 5A.“快速充电”即在环境温度为20℃±5℃的条件下,先以恒定电流5C 5A 充电至3.6V,再以3.6V 的恒压充电至电流小于0.02C 5A.This spec manual is the enterprise standard of BAK , without authorization, any pirate or circulation is prohibited.5the discharging time is not less than 5min.放电时间不低于5min.6. Test Conditions 测试条件6.1 Standard Test Conditions 标准测试条件Unless otherwise specified, all tests stated in this Product Specification are conducted at temperature 20℃±5℃ and humidity 65%±20% RH.该规格书为比克公司企业标准,未经授权,不可翻印,传播.7. Electrical Characteristics 电性能Test Item 测试项目Test Method 测试方法Criteria 检验标准7.1 Discharge Performance (0.2C 5A) 0.2C 5A 放电性能 A cell is charged in accordance with 6.2 or 6.3, and then stored in an ambient temperature of 20℃±5℃for 0.5h ～1h, finally discharged to cut-off voltage at a constant current of 0.2C 5A.电芯按6.2或6.3规定充电后，在环境温度为20℃±5℃的条件下搁置0.5h ～1h,而后以0.2C 5A 电流放电到终止电压.the discharging time is not less than 5h.放电时间不低于5h.7.2 DischargePerformance (10C 5A) 10C 5A 放电性能A cell is charged in accordance with 6.2 or 6.3, and then stored in an ambient temperature of 20℃±5℃for 0.5h ～1h, finally discharged to cut-off voltage at a constant current of 1.0C 5A电芯按6.2或6.3规定充电后在环境温度为20℃±5℃的条件下搁置0.5h ～1h,而后以10C 5A 电流放电到终止电压.8. Environment Characteristic 环境性能This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.67.6 Cycle Life 循环寿命A cell is charged in accordance with 6.2,and stored for 0.5h ～1h,then discharged to cut-off voltage,after that, stored 0.5h ～1h prior to next charge-discharge cycle.The cell shall be continuously charged and discharged for 300 times.电芯按6.2规定充电,而后搁置0.5～1h,然后以0.2C 5A 电流放电至终止电压,放电结束后,搁置0.5～1h,再进行下一次充放电循环,连续进行充放电循环500次.capacity retention ≥80%容量保持率≥80%该规格书为比克公司企业标准,未经授权,不可翻印,传播.Test Item 测试项目Test Method 测试方法Criteria 检验标准8.1 ConstantTemperature and Humidity恒定湿热性能A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of 40±2℃(90～95%RH ) for48h,then placed in room temperature for 2h. After that,check its appearance prior to being discharged to cut-off voltage at a constant current of 1C 5A.电芯按6.2或6.3规定充电结束后,将电芯放入40±2℃(90～95%RH)的恒温恒湿箱中搁置48h 后,将电芯取出在室温下搁置2h,目测电芯外观,再以1C 5A 电流放电至终止电压．1.no distorsion,no rust,no fume,no explosion;2.the discharging time is not less than 36min.1.电芯外观应无变形,锈蚀,冒烟或爆炸;2.放电时间应不低于36min.7.5 Charge(Capacity) Retention 荷电保持能力A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of 20℃±5℃ for 28d,then discharged to cut-off voltage at a constant current of 0.2C 5A.电芯按6.2或6.3规定充电结束后,在环境温度为20℃±5℃条件下,将电芯搁置28天,再以0.2C 5A 电流放电至终止电压.Retention:90%C 5Ah 容量保持率:90%C 5Ah 7.3 High Temperature Performance 高温性能A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of 55℃±2℃ for 2h,then discharged to cut-off voltage at a constant current of 1.0C 5A. Afterthat,fetch out the cell and place it in the ambient temperature of 20℃±5℃ for 2h, then check its appearance.电芯按6.2或6.3规定充电结束后,将电芯放入55℃±2℃的高温箱中恒温2h,然后以1.0C 5A 电流放电至终止电压,实验结束后,将电芯取出在环境温度为20℃±5℃的条件下搁置2h,然后目测电芯外观．1.the discharging time is not less than 51min;2.no distortion,no rupture.1.放电时间不低于51min;2.电芯外观无变形,无爆裂.7.4 Low Temperature Performance 低温性能A cell is charged in accordance with 6.2 or 6.3,and stored in an ambient temperature of -20℃±2℃ for 16h ～24h,then discharged to cut-off voltage at a constant current of 0.2C 5A.After that,fetch out the cell and place it in the ambienttemperature of 20℃±5℃ for 2h, then check its appearance.电芯按6.2或6.3规定充电结束后,将电芯放入-20℃±2℃的低温箱中恒温16～24h,然后以0.2C 5A 电流放电至终止电压,实验结束后,将电芯取出在环境温度为20℃±5℃的条件下搁置2h,然后目测电芯外观．1.the discharging time is not less than 3h;2.no distortion,no ruptu 1.放电时间不低于3h;2.电芯外观无变形,无爆裂.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.7A cell is charged in accordance with 6.2 or 6.3,then installed onto the vibration desk with clamps.Equipment parameters of frequency and amplitude are as follows(the frequency is to be varied at the rate of 1oct/min between 10 and 55 herts,and repeat vibration for 30min.The cell is to be tested in three mutually perpendicular directions): frequency:10Hz~30Hz amplitude: 0.38mm frequency:30Hz~55Hz amplitude: 0.19mm电芯按6.2或6.3的规定充电结束后,将电芯用夹具安装在振动台的台面上，按下面的振动频率和对应的振幅调整好实验设备.X,Y,Z 三个方向每个方向上从10～55Hz 循环扫频振动30min ，扫频速率为1oct/min:振动频率：10Hz ～30Hz 位移幅值(单振幅)：0.38mm;振动频率：30Hz ～55Hz 位移幅值(单振幅)：0.19mm. 1.no scratch,no leakage, no fume,no explosion;2.the voltage is min3.2V.1.电芯外观应无明显损伤，漏液，冒烟或爆炸； 2.单体电芯电压不低于3.2V.8.2 Vibration Test 振动测试该规格书为比克公司企业标准,未经授权,不可翻印,传播.8.4 Drop test 自由跌落A cell is charged in accordance with 8.3,then dropped from a height of 1000mm to a wooden board(18-20mm thick) which is placed on the concrete ground.Cells shall be dropped in each of three mutuallyperpendicular directions.Total drop times are 6.After that,the cell is discharged to cut-off voltage at CC of 1C 5A,then repeat charge & discharge at a current of 1C 5A until the discharge time is not less than 51min,the cycle times should be not more than 3.电芯按8.3的规定试验结束后,将电芯样品由高度为1000mm 的位置自由跌落到置于水泥地面上的18-20mm 厚的木板上，从X,Y,Z 正负方向(六个方向)每个方向自由跌落1次.自由跌落结束后,将电芯以1C 5A 电流放电至终止电压,然后以1C 5A 的电流进行充放电循环,直至放电时间不低于51min,即可终止充放电循环,充放电循环次数应不多于3次.no leakage,no fume,no explosion.电芯应不漏液，冒烟或爆炸8.3 Shock Test 碰撞测试A cell is tested in accordance with 8.2,then secured to the testing machine by means of rigid mount which supports all mounting surfaces of the cell. Each cell shall be subjected to a total of three shocks of equal magnitude. The shocks are to be applied in each of three mutually perpendicular directions.The acceleration and impulse time are as follows:acceleration of impulse peakvalue:100m/s2,shock frequency:40~80times/min,impulse lasting time:16min,shock times:1000±10电芯按8.2的规定试验结束后,将电池分别按X,Y,Z 三个互相垂直轴通过夹具固定在振动台面上,按下述要求调好加速度,脉冲持续时间进行碰撞实验:脉冲峰值加速度:100m/s2,每min 碰撞次数:40～80,脉冲持续时间:16ms,碰撞次数：1000±10.1.no scratch,no leakage,no fume,no explosion;2.the voltage is min3.2V.1.电芯外观应无明显损伤，漏液，冒烟或爆炸；2.单体电芯电压不低于3.2V.All below tests are carried out on the equipments with foreced ventilation and explosion-proof device.Before test all cells are charged in accordance with 6.2 or 6.3, and stored 24h prior to testing.下述试验应在有强制排风条件及防爆措施的装置内进行,在试验前所有的电芯都按6.2或6.3规定充电,并搁置24h 后,再进行以下试验.This spec manual is the enterprise standard of Bak, without authorization, any pirate or circulation is prohibited.89.2 Crush Testing挤压测试A cell is to be placed on the crush flat, the axis is parallel to the crush flat ,it is to be crushed between two flat surfaces.Crushing force is approximately 13 KN and hold for 1 min 电芯放在挤压设备的两个挤压表面之间，圆柱电芯轴平行于挤压平面，逐渐增加压力至13 kN ，保持压力1min.no fire,no explosion 电芯不起火,不爆炸9.1 Impact Test 重物冲击9.2 Heating Test 热冲击该规格书为比克公司企业标准,未经授权,不可翻印,传播.no fire,no explosion 电芯不起火,不爆炸A cell is to be placed on the impact flat.A 10 kg weight is to be dropped from a height of 1m onto the cell, the distortion is allowed.将电芯放在冲击台上,将10kg 重锤自1m 高度自由落下,冲击电芯,电芯允许发生变形.A cell is to be heated in a circulating air oven. Thetemperature of the oven is to be raised at a rate of 5℃±2℃per minute to a temperature of 130℃±2℃ and remain for 30min at that temperature before the test is discontinued.将电芯放在电热鼓风干燥箱中,温度以5℃±2℃/min 的速率由室温升至130℃±2℃并保持30min.no fire,no explosion 电芯不起火,不爆炸9.5 Nail penetration test 针刺测试 A cell is to be penetrated completely the center of the largest side at the speed of 20-40mm per second by a Φ3.0mm stainless steel nail and hold for 1 min.将接有热电偶的电芯置于通风橱中,用 Φ3.0mm 的不锈钢针以20-40mm/s 的速度刺透电芯最大表面的中心位置，并保持1min1.no fire,no explosion2.Max.temp.< 150℃1.电芯不起火,不爆炸2.最高温度<150℃9.3 overcharge test （3C/10V) 过充电9. Safety Test 安全测试Test Item 测试项目Test Method 测试方法Criteria 检验标准A cell is discharged to cut-off voltage at CC of 1C5A.then it is to be subjected to CC/CV power by connecting its positive &negative terminal, then set the current as 3C 5A,the voltage as 10V,after that,Charge the cell up to 10V at CC of 3C 5A ,until that last 7h at the voltage of 10V or the voltage is no more increased.先将电池以0.2C 5A 放电至终止电压,然后将电芯正负极连接于恒压电源,调节电流至3C 5A,电压为10V,然后对电芯以3C 5A 充电,直到输出电压不低于10V,持续充电7h 或电压不再增大.no fire,no explosion 电芯不起火,不爆炸9.4 Short-circuit test 短路测试A Cell is to be short-circuited by connecting the positive and negative terminals of the cell with copper wire having a maximum resistance load of 50m Ω.Monitor its temperature while testing,the cell is to be discharged until the cell case temperature has returned to be 10℃ less then peak temperature.将接有热电偶的电芯置于通风橱中,用铜线短路其正负极(线路总电阻不大于50毫欧),实验过程中监视电芯温度变化,当电芯温度下降到比峰值低约10℃时,结束实验.1.no fire,no explosion2.Max.temp.< 150℃1.电芯不起火,不爆炸2.最高温度<150℃The remaining capacity before charging shall be changed depending on the storage time and conditions.单体电芯按3.20～3.40V的充电电压或客户要求出货,电芯出货后充电前的剩余容量取决于储存时间和条件.自出货之日起.电芯的保质期限依合同而定.但是,在此期限内,如果非比克公司的制程原因而是客户的误用造成的电芯质量问题,比克公司不承诺免费更换.＞ BAK will not be responsible for trouble occurred by handling outside of the precautions in instructions.比克公司对违反安全守则操作所产生的问题不承担任何责任.＞ BAK will not be responsible for trouble occurred by matching electric circuit, cell pack and charger. 比克公司对与电路,电池组,充电器搭配使用所产生的问题不承担任何责任.＞ BAK will be exempt from warrantee any defect cells during assembling after acceptance.出货后客户在电芯组装过程中产生的不良电芯不在比克公司质量保证的范围之列.安全守则：不要将电芯暴露在极热或有火星的环境中.不要将电芯短路,过充或过放.不要使电芯承受过重的机械冲击.不要将电芯浸入海水或水中,或者使其吸湿.不要颠倒电芯的正负极.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited. 9该规格书为比克公司企业标准,未经授权,不可翻印,传播.b. Do not short circuit, over-charge or over-discharge the cell.c. Do not subject the cell to strong mechanical shocks.d. Do not immerse the cell in water or sea water, or get it wet..e. Do not reverse the polarity of the cell for any reason.Note 2. BAK will take no responsibility for any accident when the cell is used under other conditions than those described in this Document.注释2.在该文件说明的条件之外使用该电芯而产生的事故,比克公司不承担任何责任.12.1 Standard cell Precaution 电芯防范措施a. Do not expose the cell to extreme heat or flame.Lithium-Ion rechargeable batteries subject to abusive conditions can cause damage to the cell and/or personal injury. Please read and observe the standard cell precautions below before using utilization.滥用锂离子充电电芯可能会造成电芯的损害或人身的伤害.在使用锂离子充电电芯以前,请仔细阅读以下的Note 1. The customer is required to contact BAK in advance, if and when the customer needs other applications or operating conditions than those described in this document.注释1.如果客户需要将电芯在该文件之外的条件下操作或应用,请先咨询比克公司相关事宜.occurs within this period, BAK won’t replace a new cell for free as long as the problem is not due to the failure of BAK manufacturing process or is due to customer’s abuse or misuse.12. Precautions and Safety Instructions 安全守则10. Shipment 出货The Cell shall be shipped in voltage range of 3.20 ~ 3.40 V or in accordance with customers' requirement.11. Warranty 质量保证The Warranty period of cell is made according to business contract,However, even though the problem不要拆卸或修整电芯.h. Do not handle or store with metallic like necklaces, coins or hairpins, etc.不要和项链,硬币或发夹等金属物品放置在一起.i. Do not use the cell with conspicuous damage or deformation.不要使电芯受到明显的损害或变形.j. Do not connect cell to the plug socket or car-cigarette-plug.不要将电芯与插座连接.k. Do not make the direct soldering onto a cell.不要直接焊接电芯.不要直接接触泄漏的电芯.不要将电芯用于其它设备.不要将锂离子电芯混合使用.o. Do not use or leave the cell under the blazing sun (or in heated car by sunshine).不要将电芯放置在太阳光直射的地方.将电芯放置在远离儿童的地方.q. Do not drive a nail into the cell, strike it by hammer or tread it.不要针刺,锤打或践踏电芯.不要撞击或投掷电芯.电芯充电温度范围为0℃～45℃.c. Maintain charge voltage at 3.60V for 3.0 hours (recommended for maximum capacity).恒压3.6V 充电3小时（最大容量）.* Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) cell charge controller.使用恒压恒流锂离子电芯充电器.* Do not continue to charge cell over specified time.不要超过标准时间持续充电.a. Recommended cut-off voltage to 2.0V. Recommended max discharge current is 20A建议放电终止电压为2.0V,建议最大恒流放电电流为20A.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited. 10a. Charge the cell in a temperature range of 0°C to + 45°C.b. Charge the cell at a constant current of 0.5C until 3.60V is attained. Charge rates greater than 5C are NOT recommended. (C : Rated Capacity of cell)以0.5C 的电流恒流充电至3.60V.超过5C 的电流建议不要使用（C ：标称容量）该规格书为比克公司企业标准,未经授权,不可翻印,传播.12.2.2. Discharging 放电p. Keep cell away from children.r. Do not give cell impact or fling it.12.2 cell Operation Instruction 电芯使用说明12.2.1. Charging 充电f. Do not disassemble or modify the cell.l. Do not touch a leaked cell directly.m. Do not use for other equipment.n. Do not use Lithium-ion cell in mixture.b. For maximum performance, discharge the cell in a temperature range of –30°C to + 45°C.为了达到较好的性能,电芯的放电温度范围为–30℃ ～ + 45℃.12.2.3. Storage Recommendations 储存建议a.Storage Temperature and Humidity 储存温度和湿度• Storage the cell at temperature of –30 ~ 45°C, low humidity and no corrosive gas atmosphere.电芯应储存在温度范围为–30 ～45℃,低湿度和不含腐蚀性气体的环境中.• No press on the cell不要让电芯承担任何压力.b. Long Period Storage 长期存放• In case of long period storage (more than 3 months), storage the cell at temperature range of –10 ~+20°C, low humidity, no corrosive gas atmosphere.如果要长时间存放(超过3个月),电芯应存储在温度范围为–10～20℃,低湿度和不含腐蚀性气体的环境中.• No press on the cell不要让电芯承受任何压力.13.Consultation 技术咨询As to the obscurity, contact the following.Shenzhen BAK Battery Co., Ltd.BAK Industrial Park on Kuichong Street, Longgang District, shenzhen.Tel No.: 86—755—89770369Fax No.: 86—755—89770224如有疑问，请按以下方式咨询：厂址：深圳市比克电池有限公司－深圳市龙岗区葵涌街道比克工业园14.Requirement for Safety Assurance 安全保证要求For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell with BAK in advance.And consult about the high rate current, rapid charge and special application in the same way.为了安全起见,如有设备设计,锂离子电芯系统保护电路或高电流,快速充电和其它方面的特殊应用,请先咨询比克公司相关事宜.该规格书为比克公司企业标准,未经授权,不可翻印,传播.This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation isprohibited. 11Annex 附件:This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited.该规格书为比克公司企业标准,未经授权,不可翻印,传播.Figure2.Typical 25℃ Discharge Curve at Various Discharge CurrentsFigure1.Charge and Discharge Curve1.81.922.12.22.32.42.52.62.72.82.933.13.23.33.43.53.63.73.8010020030040050060070080090010001100Capacity （mAh ）V o l t a g e （V ）Charge:CC/CV,2A,3.60V,20-25℃Discharge:CC,10A,2.00V,20-25℃1.81.922.12.22.32.42.52.62.72.82.933.13.23.33.43.53.63.73.8V o l t a g e (V )This spec manual is the enterprise standard of BAK, without authorization, any pirate or circulation is prohibited. 该规格书为比克公司企业标准,未经授权,不可翻印,传播.Figure3. Cycle Life Performance ,100% DOD(10A Continual Discharge )0%10%20%30%40%50%60%70%80%90%100%110%050100150200250300350400450500Cycle number C a p a c i t y r a t i o。

Specification for Li-ion Rechargeable cylindrical battery圆柱锂离子电池规格书MODEL/型号: 18650-2200mAh1.0 SPECIFICATIONS基本特性2.0 CONFIGURATION外形图DiameterHeight3.0 The definitions of some nomenclatures of this specification标准中的一些术语的定义：（1）Standard Charge: Charge with current 0.5C5A to limit charge voltage 4.2V under the condition of 25℃±5℃surrounding temperature, then change to charge with constant voltage till the current less than or equal to 0.01 C5A.标准充电：在环境温度20℃±5℃的条件下，以0.5C5A充电，当电池端电压达到充电限制电压4.2V时，改为恒压充电，直到充电电流小于或等于0.01C5A后停止充电（2）Initial State: The initial appearance, open-circuit voltage and internal resistance of battery.初始状态：电池的初始外观、开路电压、交流内阻。

（3）Final State: The final appearance, open-circuit voltage and internal resistance of battery.最终状态：电池的最终外观、开路电压、交流内阻。

（4）Residual Capacity: After a specific testing program, the first discharge capacity of battery.剩余容量：电池经过特定的检测程序后的首次放电容量。

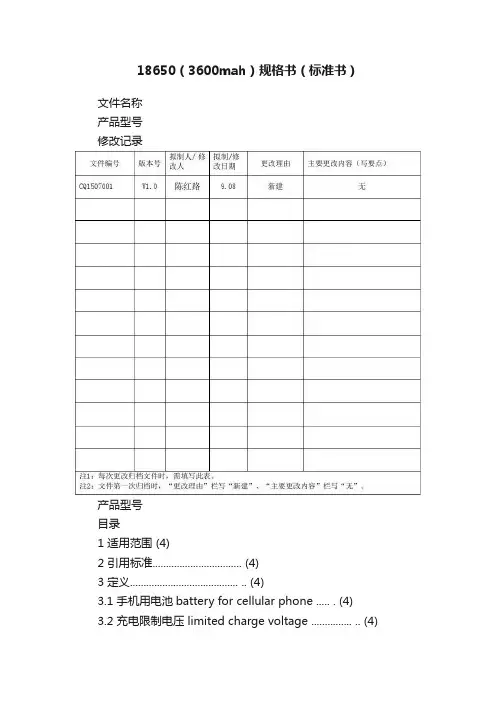

18650（3600mah）规格书（标准书）文件名称产品型号修改记录产品型号目录1 适用范围 (4)2 引用标准 (4)3 定义........................................ .. (4)3.1 手机用电池battery for cellular phone ..... . (4) 3.2 充电限制电压 limited charge voltage ............... .. (4)3.3 额定容量 rated capacity ........................... .. (4)3.4 标称电压 nominal voltage (4)3.5 终止电压 cut-off voltage (4)4 技术参数 (4)4.1 电芯参数表 (4)4.2 主要参数表 (5)4.3 保护板参数表 (5)5 要求 (5)5.1 测试条件 (5)5.2 测量仪表与设备要求 (6)5.3 外观 (6)5.4 充电制式 (6)5.5 20℃放电性能 (6)5.6 高温性能 (6)5.7 低温性能 (6)5.8 荷电保持能力 (6)5.9 循环寿命 (7)5.10 环境适应性 (7)5.11 安全保护性能 (7)5.12 电池完全完全充电后内阻 (8)6 运输、贮存 (8)7 安全规程及使用说明 (8)8 特殊要求 (8)9 PCB原理图，电芯基本特性及外形图 (9)10 电芯充放电曲线图11 成品电池尺寸图产品型号1 适用范围本规格书适用于可充电锂离子电池产品的定义、要求、测试方法、质量评定程序及标志、包装、运输、贮存。

用户请务必严格按照规格书中的测试或使用方法进行测试或使用，如对表中的测试项目或测试方法有异议，请与供应方协商解决2 引用标准下列标准所包含的条文，通过在本规范中引用而构成为本规范的条文。

GB/T 2828-1987 逐批检查计数抽样程序及抽样表（适用于连续批的检查）GB/T 2829-1987 周期检查计数抽样程序及抽样表（适用于生产过程稳定性的检查）GB/T 2900.11-1988 蓄电池名词术语3 定义本规范采用GB/T 2900.11 中规定的术语和下列定义。

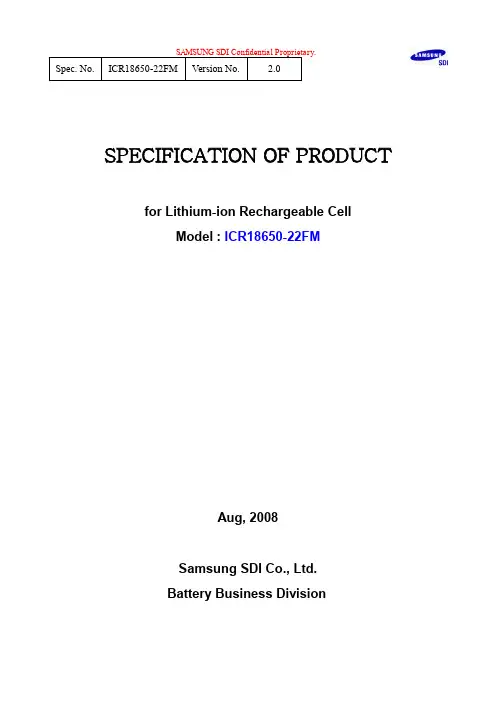

SPECIFICATION OF PRODUCTfor Lithium-ion Rechargeable CellModel : ICR18650-22FMAug, 2008Samsung SDI Co., Ltd.Battery Business DivisionHistory of Revisions1. ScopeThis product specification has been prepared to specify the rechargeable lithium-ion cell ('cell') to be supplied to the customer by Samsung SDI Co., Ltd.2. Description and Model2.1 Description Cell (lithium-ion rechargeable cell)2.2 Model ICR18650-22FM3. Nominal SpecificationsNote (1): If the cell is kept as ex-factory status(50% of charge),the capacity recovery rate is more than 80%.4. Outline DimensionsSee the attachment(Fig. 1)5. AppearanceThere shall be no such defects as scratch, rust, discoloration, leakage whichmay adversely affect commercial value of the cell.6. Standard Test Conditions6.1 Environmental ConditionsUnless otherwise specified, all tests stated in this specification areconducted at temperature 25±5℃and humidity 65±20%.6.2 Measuring Equipment(1) Ammeter and VoltmeterThe ammeter and voltmeter should have an accuracy of the grade 0.5 or higher.(2) Slide caliperThe slide caliper should have 0.05 mm scale.(3) Impedance meterThe impedance meter with AC 1kHz should be used.7. Characteristics7.1 Standard ChargeThis "Standard Charge" means charging the cell with charge current1100mA and constant voltage 4.2V at 25℃for 3hours.7.2 Standard Discharge CapacityThe standard discharge capacity is the initial discharge capacity of the cell, which is measured with discharge current of 440mA with 2.75V cut-off at 25℃within 1 hour after the Standard charge.Standard Discharge Capacity ≥2150mAh7.3 Initial internal impedanceInitial internal impedance measured at AC 1kHz after Standard charge.Initial internal impedance ≤100mΩ7.4 Temperature Dependence of Discharge CapacityDischarge capacity comparison at each temperature, measured with dischargeconstant current 1100mA and 2.75V cut-off with follow temperature after the standard charging at 25℃.Note: If charge temperature and discharge temperature is not the same,the interval for temperature change is 3 hours.Percentage as an index of the Standard discharge capacity(=2150mAh) is 100%.7.5 Temperature Dependence of Charge CapacityCapacity comparison at each temperature, measured with dischargeconstant current 1000mA and 2.75V cut-off at 25℃after the Standard charge isas follow temperature.Note: If charge temperature and discharge temperature is not the same,the interval for temperature change is 3 hours.Percentage as an index of the Standard discharge capacity(=2150mAh) is 100%.7.6 Charge Rate CapabilitiesDischarge capacity is measured with constant current 440mA and 2.75V cut-offafter the cell is charged with 4.2V as follows.Note: Percentage as an index of the capacity at 25℃(=2150mAh) is 100%.7.7 Discharge Rate CapabilitiesDischarge capacity is measured with the various currents in under table and 2.75Vcut-off after the standard charge.Note: Percentage as an index of the capacity at 25℃(=2150mAh) is 100%.7.8 Cycle LifeEach cycle is an interval between the charge (charge current 1760mA) and thedischarge (discharge current 2200mA) with 2.75V cut-off. Capacityafter 299cycles and plus 1 day, measured under the same condition in 7.2Capacity ≥1500mAh7.9 Storage CharacteristicsCapacity after storage for 30days at 25℃after the Standard charged,measured with discharge current 1100mA with 2.75V cut-off at 25℃.Capacity retention(after the storage) ≥1720mAh7.10 Status of the cell as of ex-factoryThe cell should be shipped in 50% charged state.8. Mechanical Characteristics8.1 Drop TestTest method: Cell(as of shipment or full charged) drop onto the oak-board(thickness:≥30mm) from 4feet height at a random direction 6 times.Criteria: No leakage8.2 Vibration TestTest method: Cell(as of shipment) is vibrated along 2 mutuallyperpendicular axes with total excursion of 1.6mm and withfrequency cycling between 10Hz and 55Hz by 1Hz/min.Criteria: No leakage9. Safety10.1 Overcharge TestTest method: To charge the standard charged cell with 12V and 2200mA at 25℃for 2.5 hours.Criteria: No fire, and no explosion.10.2 External Short-circuit TestTest method: To short-circuit the standard charged cell by connecting positive and negative terminal by less than 50mΩwire for 3 hours.Criteria: No fire, and no explosion.10.3 Reverse Charge TestTest method: To charge reversely the standard charged cell with charge current2200mA for 2.5 hours.Criteria: No fire, and no explosion.10.4 Heating TestTest method: To heat the standard charged cell at heating rate of 5℃per minute up to 130℃and keep the cell in oven for 60 minutes.Criteria: No fire, and no explosion.10. WarrantySamsung SDI will be responsible for replacing the cell against defects or poor workmanship for 15month from the date of shipping. Any other problems caused by malfunction of the equipment or unsuitable use of the cell are not under this warranty.The warranty set forth in proper use, handling conditions described above,and excludes in the case of a defect which is not related to manufacturing of the cell.11. Others12.1 Storage for a long timeIf the cell is kept for a long time(3months or more), It is strongly recommendedthat the cell is preserved at dry and low-temperature.12.2 OtherAny matters that specifications does not have, should be conferred withbetween the both parties.12. PackagingSee Fig.2,Package DrawingFig. 1 Outline Dimensions of ICR18650-22FMUnit : mm Max. 18.4 Max. 65.0Fig 2. Package DrawingProper Use and Handling of Lithium Ion CellsSee before using lithium-ion cellSupplied bySamsung SDIEM1. GeneralThis document has been prepared to describe the appropriate cautions and prohibitions, which the customer should take or employ when the customer usesand handles the lithium ion cell to be manufactured and supplied by Samsung SDIEM in order to obtain optimum performance and safety.2. Charging2.1 Charging currentCharging current should be less than maximum charge current specified inthe product specification.2.2 Charging voltageCharging should be done by voltage less than that specified inthe product specification.2.3 Charging timeContinuous charging under appropriate voltage does not cause any loss ofcharacteristics. However, the charge timer is recommended to be installedfrom a safety consideration, which shuts off further charging at time specifiedin the product specification.2.4 Charging temperatureThe cell should be charged within a range of specified temperatures inthe product specification.2.5 Reverse chargingThe cell should be connected, confirming that its poles are correctly aligned.Inverse charging should be strictly prohibited. If the cell is connectedimproperly, it may be damaged.3. Discharging3.1 Discharging3.1.1 The cell should be discharged at less than maximum discharge currentspecified in the product specification.3.2 Discharging temperature3.2.1 The cell should be discharged within a range of temperatures specified inthe product specification.3.2.2 Otherwise, it may cause loss of characteristics.3.3 Over-discharging3.3.1 The system should be equipped with a device to prevent further dischargingexceeding discharging cut-off voltage specified in the productspecification.(over-discharging)3.3.2 Over-discharging may cause loss of performance, characteristics, ofbattery function.3.3.3 Over-discharging may occur by self-discharge if the battery is left fora very long time without any use.3.3.4 The charger should be equipped with a device to detect cell voltage and todetermine recharging procedures.4. Storage4.1 Storage conditions4.1.1 The cell should be stored within a range of temperatures specifiedin the product specification.4.1.2 Otherwise, it may cause loss of characteristics, leakage and/or rust.4.2 Long-term storage4.2.1 The cell should be used within a short period after charging becauselong-term storage may cause loss of capacity by self-discharging.4.2.2. If long-term storage is necessary, the cell should be stored at lowervoltage within a range specified in the product specification, becausestorage at higher voltage may cause loss of characteristics.5. Cycle life5.1 Cycle life performance5.1.1 The cell can be charged/discharged repeatedly up to times specified inthe produce specification with a certain level of capacity also specifiedin the product specification.5.1.2 Cycle life may be determined by conditions of charging, discharging,operating temperature and/or storage.6. Design of System6.1 Connection between the cell and the battery6.1.1 The cell should not be soldered directly with leads. Namely, the cellshould be welded with leads on its terminal and then be soldered withwire or leads to soldered lead.6.1.2 Otherwise, it may cause damage of component, such as separator andinsulator, by heat generation.6.2 Positioning the battery in the System6.2.1 The battery should be positioned as possible as far from heat sourcesand high temperature components.6.2.2 Otherwise, it may cause loss of characteristics.6.3 Mechanical shock protection of the battery6.3.1 The battery should be equipped with appropriate shock absorbers in order tominimize shock.6.3.2 Otherwise, it may cause shape distortion, leakage, heat generationand/or rupture.6.4 Short-circuit protection of the cell6.4.1 The cell is equipped with an insulating sleeve to protect short-circuit whichmay occur during transportation, battery assembly and /or systemoperation.6.4.2 If the cell sleeve is damaged by some causes such as outside impact,it may cause short-circuit with some wiring inside the battery.6.5 Connection between the battery and charger/system6.5.1 The battery should be designed to be connected only to the specifiedcharger and system.6.5.2 A reverse connection of the battery, even in the specified system,should be avoided by employing special battery design such asa special terminals.7. Battery Pack Assembly7.1 Prohibition of usage of damaged cell7.1.1 The cell should be inspected visually before battery assembly.7.1.2 The cell should not be used if sleeve-damage, can-distortion and/orelectrolyte-smell is detected.7.2 Transportation7.2.1 If the cell is necessary to transport to order place, such as thebattery manufacturer, careful precautions should be taken to avoiddamage of cell.8. Others8.1 Disassembly8.1.1 The cell should not be dismantled from the battery pack.8.1.2 Internal short-circuit caused by disassembly may lead to heat generationand/or venting.8.1.3 When the electrolyte is coming in contact with the skin or eyes,wash immediately with fresh water and seek medical advice.8.2 Short-circuiting8.2.1 Short-circuit results in very high current which leads to heat generation.8.2.2 An appropriate circuitry should be employed to protect accidentalshort-circuiting.8.3 Incineration8.3.1 Incinerating and disposing of the cell in fire are strictly prohibited,because it may cause rupture.8.4 Immersion8.4.1 Soaking the cell in water is strictly prohibited, because it may causemelt of components to damaged to functions.8.5 Mixing use8.5.1 Different types of cell, or same types but different manufacturer's cellmay lead to cell rupture or damage to system due to the differentcharacteristics of cell.8.6 Battery disposal8.6.1 Although the cell contains no environmentally hazardous component,such as lead or cadmium. the battery should be disposed according tothe local regulations when it is disposed.8.6.2 The cell should be disposed with a discharged state to avoid heat generationby an inadvertent short-circuit.8.7 Caution - The Battery used in this device may present a risk of fire or chemical burn ifmistreated. Do not disassemble, heat above 100℃or incinerate. Replacebattery with Samsung SDI battery only. Use of another battery may present a riskof fire or explosion. Dispose of used battery promptly. Keep away from children.Do not disassemble and do not dispose of in fire.8.8 AttachedSystem Pack Quality Guideline8-8-1 The battery pack’s consumption current.- Sleep Mode: Under 250uA.- Shut Down Mode: Under 10uA (under 2.5V).8-8-2 SOC 0%- Any bank voltage in SOC 0% of Pack should be higher than 3.0V.(Discharging Cut-off Voltage)8-8-3 Operating Charging Voltage of a cell.- Normal operating voltage of cell is 4.20V.- Max operating voltage of cell is 4.25V.8-8-4 No continuous charge- Charge cut-off condition : Cut-off Current is higher than 1/20C(Charging method: CC-CV)- Initial recharging condition : Remaining Capacity is lower than 90% or Voltageis lower than 4.10V8-8-5 Pre-charging function- Pre-charge function should be implemented to prevent abnormal high ratecharging after deep discharge.- Pre-charging condition :Operation: less than 3.0VCharging current : Under 150mA/Cell.(Continuous)Pre-charge stop (Normal Charge Start) : All cells reach 3.0V8-8-6 Cell voltage monitoring system.- The system (Charger or Pack) should equip a device to monitor each cellvoltage and to stop charging if a cell imbalance happened.8-8-7 The battery pack should have warning system for over temperature, over voltage, over current, and unexpected events would be harm to system. If battery facesharsh condition such as over temperature, Battery pack should control FET-offdirectly.8-8-8 Mechanical guides.- PCBA and Cell stack should have heat insulation material between them. (Suchas plastic barrier which is giving air isolation or non-thermal conductivematerial.)- B+ and B- wire connection should not be crossed each other. Do not make wirewhich had the voltage difference more than 4.0V get together.- The material such as double sided tape and rubber which are used in batterypack should be verified for its flammabilityHandling Precaution and Prohibitions of Lithium Ion & Lithium Ion PolymerRechargeable Cells and BatteriesInaccurate handling of lithium ion and lithium ion polymer rechargeable battery may cause leakage, heat, smoke, an explosion, or fire.This could cause deterioration of performance or failure. Please be sure to follow instructions carefully.1.1 StorageStore the battery at low temperature (below 20℃is recommended), low humidity, no dust and no corrosive gas atmosphere.1.2 Safety precaution and prohibitionsTo assure product safety, describe the following precautions in the instruction manual of theapplication.[ Danger!]■Electrical misusageUse dedicated charger.Use or charge the battery only in the dedicated application.Don't charge the battery by an electric outlet directly or a cigarette lighter charger.Don't charge the battery reversely.■Environmental misusageDon't leave the battery near the fire or a heated source.Don't throw the battery into the fire.Don't leave, charge or use the battery in a car or similar place where inside of temperature may be over 60℃.Don't immerse, throw, wet the battery in water / seawater.■othersDon't fold the battery cased with laminated film such as pouch and Polymer.Don't store the battery in a pocket or a bag together with metallic objects such as keys, necklaces, hairpins, coins, or screws.Don't short circuit (+) and (-) terminals with metallic object intentionally.Don't pierce the battery with a sharp object such as a needle, screw drivers.Don't heat partial area of the battery with heated objects such as soldering iron.Don't hit with heavy objects such as a hammer, weight.Don't step on the battery and throw or drop the battery on the hard floor to avoid mechanical hock.Don't disassemble the battery or modify the battery design including electric circuit.Don't solder on the battery directly.Don't use seriously scared or deformed battery.Don't put the battery into a microwave oven, dryer ,or high-pressure container.Don't use or assemble the battery with other makers' batteries, different types and/or models of batteries such as dry batteries, nickel-metal hydride batteries, or nickel-cadmium batteries.Don't use or assemble old and new batteries together.[ Warning! ]Stop charging the battery if charging isn't completed within the specified time.Stop using the battery if the battery becomes abnormally hot, order, discoloration, deformation, orabnormal conditions is detected during use, charge, or storage.Keep away from fire immediately when leakage or foul odors are detected. If liquid leaks onto your skin or cloths, wash well with fresh water immediately.If liquid leaking from the battery gets into your eyes, don't rub your eyes and wash them with clean water and go to see a doctor immediately.If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.The battery can be used within the following temperature ranges. Don't exceed these ranges.Charge temperature ranges : 0℃~ 45℃Discharge Temperature ranges : -20℃~ 60℃Store the battery at temperature below 60℃Cover terminals with proper insulating tape before disposal.[ Caution! ]■Electrical misusageBattery must be charge with constant current-constant voltage (CC/CV).Charge current must be controlled by specified value in Cell specification.Cut-off Voltage of charging must be 4.2V.Charger must stop charging battery by detecting either charging time or cur rent specified in Cell’s specification.Discharge current must be controlled by specified value in Cell’s specification.Cut-off Voltage of discharging must be over 2.5V.■othersKeep the battery away from babies and children to avoid any accidents such as swallow.If younger children use the battery, their guardians should explain the proper handling method and precaution before using.Before using the battery, be sure to read the user's manual and precaution of it's handling.Before using charger, be sure to read the user's manual of the charger.Before installing and removing the battery from application, be sure to read user's manual of the application.Replace the battery when using time of battery becomes much shorter than usual.Cover terminals with insulating tape before proper disposal.If the battery is needed to be stored for an long period, battery should be removed from the application and stored in a place where humidity and temperature are low.While the battery is charged, used and stored, keep it away from object materials with static electric chargers.Safety Handling Procedure for the Transporter■Quarantine : Packages that are crushed, punctured or torn open to reveal contents should not be transported. Such packages should be isolated until the shipper has been consulted,provided instructions and, if appropriate, arranged to have the product inspected andrepacked.■Spilled Product : In the event that damage to packaging results in the release of cells or batteries, the spilled products should be promptly collected and segregated and the shippershould be contacted for instructions.Design of positioning the battery pack in application and charger To prevent the deterioration of the battery performance caused by heat, battery shall be positioned away from the area where heat is generated in the application and the charger.Design of the Battery PackBe sure adopting proper safe device such as PTC specified type or model in Cell Specification.If you intend to adopt different safety device which is not specified in Cell Specification, please contact Samsung SDI to investigate any potential safety problem.Be sure designing 2nd protective devices such as PTC & PCM at the same time to protect Celljust in case one protective device is fault.Please contact following offices when you need any help including safety concerns.Samsung SDI Emergency Contact Information■Samsung SDI Headquarter.575 Shin-dong, Youngtong-gu, Suwon, Kyunggi-doTel:(+82)31-210-7114 Fax:(+82)31-8006-3689■Samsung SDI Chonan factory.508, Sungsung-Dong, Chonan City, Chungchongnam-Do, KoreaTel:(+82)41-560-3669 Fax:(+82)41-560-3697■Samsung SDI America office.18600 Broadwick Street Rancho Dominguez CA 90220Tel:(+1)310-900-5205 Fax:(+1)310-537-1033■Samsung SDI Taiwan office.Rm. 3010, 30F., 333, Keelung Rd. Sec. 1, Taipei, TaiwanTel:(+886)2-2728-8469 Fax:(+886)2-2728-8480。

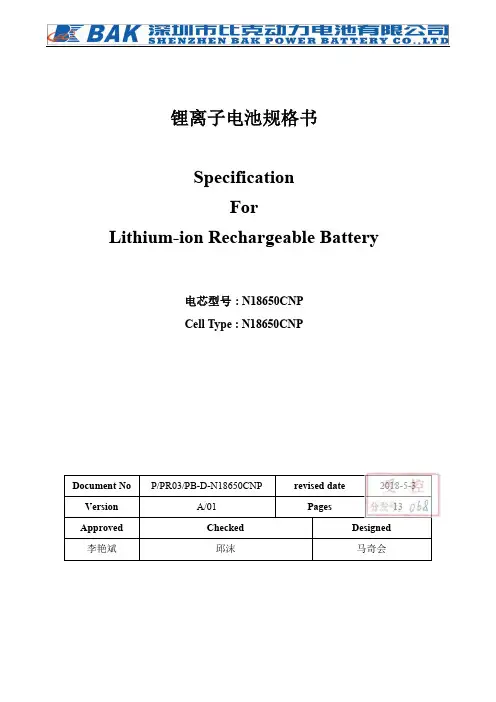

锂离子电池规格书SpecificationForLithium-ion Rechargeable Battery电芯型号: N18650CNPCell Type : N18650CNPDocument No P/PR03/PB-D-N18650CNP revised date 2018-5-3 Version A/01 Pages 13 Approved Checked Designed李艳斌邱沫马奇会Contents 目录1Preface前言2Definition定义2.1Standard charge method 标准充电方式2.2Standard discharge method 标准放电方式2.3Nominal capacity 标称容量3Cell type and dimension电芯型号及尺寸3.1Description and type 电芯说明及型号3.2Cell dimension电芯尺寸4Battery characteristics电池特性5Technical requirements技术要求5.1Battery usage conditions 电池使用环境5.2Battery testing conditions 电池实验环境5.3Requirement of the testing equipment 测量仪表要求5.4Electrochemical characteristics 电化学特性5.5Environmental characteristics 环境适应性能5.6Safety characteristics 安全性能6Package picture包装图片7Shipment出货8Warranty质量保证9Storage and shipment requirement存储及运输要求10Warning and cautions in handling the lithium-ion battery电池使用时警告事项及注意事项11The restriction of the use of hazardous substances有害物质控制要求12Contact information联系方式13Version history修订履历1Preface前言This specification describes the type, dimension, performance, technical characteristics, warnings and cautions of the lithium-ion rechargeable battery. The specification only applies to N18650CNP fresh batterys supplied by Shenzhen BAK Power Battery Co., Ltd.本标准描述了圆柱型锂离子电池的型号、尺寸、特性、技术要求及注意事项。

广东力科新能源有限公司Guangdong Pow-Tech New Power Co.,Ltd.Technical Data Sheet技术规格书CONFIDENTIALCustomer:Model Name: INR18650F1LBattery P/N:Client P/N: T8210Description: Rechargeable Lithium-ion Battery PackPrincipal/制定 Checked/审核 Approval/批准袁春华 晋文章 王友伟 Customer Approval客户回签地址:深圳市福田区上梅林中康路卓越梅林中心广场南区A座903室。

ADD:Room903, Tower A,ZhuoyueMeilin central square（South district）,Zhongkang Road, Shangmeilin area, Futian District, Shenzhen.工厂: 东莞市寮步镇横坑石岭工业区横东三路9号。

Factory:No.9,Hengdong 3 Road,HengkengShiling industry Zone,liaobu Town, Dongguan.Revision History修订履历No. Revision/版本 Date/日期 Revision Content/修订内容 Principal/制定 1 A0 2020-09-26 First issue 袁春华2 A1 2020-10-10 1，更新NTC为10KΩ±1%/B33802，更新装配图袁春华TABLE OF CONTENTS目录1. A pplication适用范围 (4)2. B attery Pack Overview 电池组概述 (4)3. B attery pack outline dimensions电池组外形尺寸 (5)4. B attery pack Specifications 电池组规格 (6)5. P CBA Protect Function保护功能 (7)6. S chematic电路原理图 (8)7. P CB Layout PCB板图 (8)8. K ey Electronic Components 关键元器件 (9)9. B attery Electronic Characteristics电性能特性 (9)10.Reliability Test可靠性测试 (10)11.Packaging包装 (12)12.Handling Precautions and Guideline操作及注意事项 (12)13.Warnings使用警告 (13)14.Warranty period保质期 (13)15.Remarks备注 (14)1.Application适用范围The specification is applicable to Guangdong Pow-Tech New Power Co., Ltd. with basic performance, technical requirement, testing method, warning and caution of the rechargeable Lithium-ion battery.本规格书规定了可充电锂离子电池的基本性能、技术要求、测试方法及注意事项，本标准只适用于广东力科新能源有限公司。

1.适用范围本规格书规定了深圳市汇业电子有限公司向客户提供的18650 (1100mAh)圆柱型锂离子电池的技术参数及测试标准。

2.种类型号2.1种类：圆柱型锂离子二次电池2.2 型号：1 86501-1100mAh3.参考标准此规范参考GB/T18287-2000、UL1642及IEC61960—1：2000等技术标准规范编制。

4. 注意事项4.1在测试或使用电池之前，请仔细阅读本规格书，以防止不当操作引起电池功能失效、发热、漏液、起火甚至爆炸；4.2 对电池进行充放电测试时，请使用锂离子电池专用测试设备，严禁使用普通恒流恒压源等不能限压限流设备对电池进行充放电，以避免电池被过充过放而引起电池功能失效或发生危险；4.3对电池充放电或将电池装入设备时，注意不要将电池正负极反置，否则将会使电池发生过充过放，导致电池严重失效甚至发生爆炸等危险；4.4不要直接对电池进行焊接，严禁对电池进行分解；4.5不要把电池同项链、发夹、硬币或螺丝等金属品一起放在兜中或包中，也不要把电池同上述物品一起储存，严禁用金属等导电材料直接连接电池正负极而使电池发生短路；4.6禁止敲击、抛掷或踩踏电池，更不要将电池放入洗衣机或高压容器内；4.7请勿将电池靠近热源，如火、加热器等，不要在烈日下或在温度超过60℃的条件下使用或存放电池，否则可能会引起电池发热、起火及功能失效等；4.8不要将电池弄湿或将电池投入水中，暂不使用时，请放置在低温干燥的环境中；4.9使用、测试或存放电池时，如发现电池有变热、散发气味、变色、变形或其它反常时，请立即停止使用或测试，设法隔离电池并远离；4.10如电池漏液并不慎将电解液溅入眼睛，不要揉擦你的眼睛，立刻用干净的水清洗，严重时请去医院就医，如皮肤或衣物溅上电解液，则需马上用清水清洗干净。

5.6. 测试条件7. 外观外表清洁，无机械损伤、漏夜、锈蚀；另表面有必须的产品标识。

8. 性能9. 包装电池在包装时需处于半充满状态,包装箱外应标明产品名称、型号、标称电压、数量、毛重、出厂日期及相应等级的内阻、容量。

创明新能源股份有限公司锂离子二次电池规格书高能倍率圆柱型电池CMICR18650F2P-2000mAh编制审核批准宇妍赵悠曼程建良2013-09-18发布2013-09-18生效1.适用范围本规格书规定了创明新能源股份有限公司向客户提供的CMICR18650F2P(2000mAh)圆柱型锂离子电池的技术参数及测试标准。

该参数及标准的拟定，主要参照GB/T18287-2013《移动电话用锂离子蓄电池及蓄电池组总规范》。

2.型号类别2.1类别：圆柱型锂离子二次电池2.2型号：CMICR18650F2P-2000mAh3.基本规格及性能3.1容量标称容量：2000mAh(0.2C放电至3.0V)最低容量：1950mAh(0.2C放电至3.0V)3.2标称电压 3.6V3.3电池内阻≤20mΩ3.4放电终止电压 3.0V3.5充电上限电压4.20±0.05V 3.6标准充电电流0.2C3.7快速充电电流1C3.8标准放电电流0.2C3.9最大持续放电电流10C3.10最大瞬间放电电流20C(<200ms) 3.11电池重量44.0±1g3.12最大尺寸直径(φ):18.6mm 高度(H):65.3mm3.13工作温度充电：0~45℃；放电：-10~60℃3.14贮存温度1个月内：-5~45℃6个月内：0~45℃4.测试条件实验和测量要在标准温度(23±2)℃及标准湿度(65±20)%的条件下进行。

4.1标准充电0.2C恒流恒压充电(CC/CV)至上限电压4.20+/-0.05V，然后以0.02C电流截止；4.2标准放电以0.2C恒流放电至3.0V电压截止5.性能5.1电性能项目测试程序标准5.1.1标称电压电池按4.1充满电后，按0.2C放电过程的平均工作电压. 3.6V 5.1.2放电性能电池按4.1充满电后，以0.2C恒流放电到3.0V。

≥292min5.1.3循环寿命常规寿命在环境温度23±2℃的条件下，以0.5C先恒流充电至上限电压4.20+/-0.05V，再恒压充电至0.02C截止电流；搁置10min后以1C放电至3.0V，放电结束后搁置10min后进行下一个循环，直至连续两次放电容量为首次的80%，则认为寿命终止。
