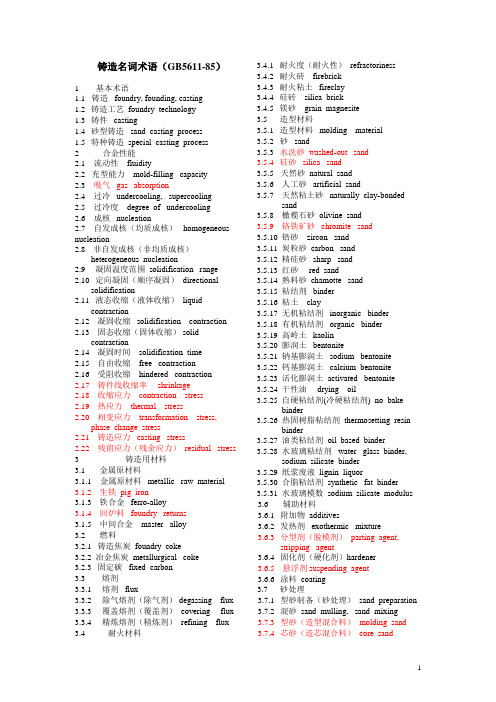

铸造名词术语（GB5611-85）1 基本术语1.1 铸造 foundry, founding, casting1.2铸造工艺 foundry technology1.3铸件 casting1.4砂型铸造 sand casting process1.5特种铸造 special casting process 2合金性能2.1 流动性 fluidity2.2 充型能力 mold-filling capacity2.3 吸气 gas absorption2.4 过冷 undercooling, supercooling2.5 过冷度 degree of undercooling2.6 成核 nucleation2.7 自发成核（均质成核） homogeneous nucleation2.8非自发成核（非均质成核）heterogeneous nucleation2.9凝固温度范围 solidification range2.10定向凝固（顺序凝固） directionalsolidification2.11液态收缩（液体收缩） liquidcontraction2.12凝固收缩 solidification contraction 2.13固态收缩（固体收缩） solidcontraction2.14凝固时间 solidification time2.15自由收缩 free contraction2.16受阻收缩 hindered contraction2.17铸件线收缩率 shrinkage2.18收缩应力 contraction stress2.19热应力 thermal stress2.20相变应力 transformation stress,phase change stress2.21铸造应力 casting stress2.22残留应力（残余应力） residual stress 3铸造用材料3.1金属原材料3.1.1 金属原材料 metallic raw material 3.1.2生铁 pig iron3.1.3铁合金 ferro-alloy3.1.4回炉料 foundry returns3.1.5中间合金 master alloy3.2燃料3.2.1铸造焦炭 foundry coke3.2.2冶金焦炭 metallurgical coke3.2.3固定碳 fixed carbon3.3熔剂3.3.1 熔剂 flux3.3.2 除气熔剂（除气剂） degassing flux 3.3.3 覆盖熔剂（覆盖剂） covering flux 3.3.4 精炼熔剂（精炼剂） refining flux 3.4耐火材料3.4.1耐火度（耐火性） refractoriness3.4.2耐火砖 firebrick3.4.3耐火粘土 fireclay3.4.4硅砖 silica brick3.4.5镁砂 grain magnesite3.5 造型材料3.5.1 造型材料 molding material3.5.2 砂 sand3.5.3水洗砂 washed-out sand3.5.4 硅砂 silica sand3.5.5天然砂 natural sand3.5.6人工砂 artificial sand3.5.7天然粘土砂 naturally clay-bondedsand3.5.8橄榄石砂 olivine sand3.5.9铬铁矿砂 chromite sand3.5.10锆砂 zircon sand3.5.11炭粒砂 carbon sand3.5.12精硅砂 sharp sand3.5.13红砂 red sand3.5.14熟料砂 chamotte sand3.5.15粘结剂 binder3.5.16粘土 clay3.5.17无机粘结剂 inorganic binder3.5.18有机粘结剂 organic binder3.5.19高岭土 kaolin3.5.20膨润土 bentonite3.5.21钠基膨润土 sodium bentonite3.5.22钙基膨润土 calcium bentonite3.5.23活化膨润土 activated bentonite3.5.24干性油 drying oil3.5.25自硬粘结剂(冷硬粘结剂) no bakebinder3.5.26热固树脂粘结剂 thermosetting resinbinder3.5.27油类粘结剂 oil based binder3.5.28水玻璃粘结剂 water glass binder,sodium silicate binder3.5.29纸浆废液 lignin liquor3.5.30合脂粘结剂 synthetic fat binder3.5.31水玻璃模数 sodium silicate modulus 3.6辅助材料3.6.1附加物 additives3.6.2发热剂 exothermic mixture3.6.3分型剂（脱模剂） parting agent,stripping agent3.6.4固化剂（硬化剂）hardener3.6.5悬浮剂suspending agent3.6.6涂料 coating3.7砂处理3.7.1型砂制备（砂处理） sand preparation 3.7.2混砂 sand mulling, sand mixing3.7.3型砂（造型混合料） molding sand 3.7.4芯砂（造芯混合料） core sand3.7.5合成砂 synthetic sand3.7.6自硬砂 self-hardening sand3.7.7水玻璃砂 sodium silicate-bonded sand 3.7.8覆膜砂 precoated sand3.7.9烂砂泥（麻泥） loam3.7.10调匀砂 temper sand3.7.11面砂 facing sand3.7.12背砂（填充砂） backing sand3.7.13单一砂 unit sand3.7.14含泥量 clay content3.7.15含水量 moisture content3.7.16旧砂 floor sand3.7.17枯砂（焦砂） burnt sand3.7.18废砂 waste sand3.7.19热砂 hot sand3.7.20松砂 aeration , sand-cutting3.7.21筛分（筛析） screen analysis3.7.22旧砂处理 sand reconditioning3.7.23旧砂再生 sand reclamation3.7.24沉降分选 elutriation, decantation3.8型砂性能及试验3.8.1 型砂试验 sand testing3.8.2 透气性 permeability3.8.3流动性 flowability3.8.4型砂强度 sand strength3.8.5湿强度 green strength3.8.6干强度 dry strength3.8.7耐用性（复用性） durability3.8.8砂型（芯）硬度 mold hardness3.8.9热变形 hot deformation3.8.10残留强度 retained strength3.8.11热强度 hot strength3.8.12韧性 toughness3.8.13发气率（发气速度） gas evolution rate 3.8.14发气性（发气量）gas evolution3.8.15吸湿性 moisture absorption3.8.16落砂性 knock-out capability3.8.17潰散性 collapsibility3.8.18胶质价 colloid index3.8.19破碎指数 shatter index3.9砂处理设备3.9.1热气流烘砂装置 hot pneumatic tubedrier3.9.2混砂机 sand muller, sand mixer3.9.3松砂机 aerator, sand cutter3.9.4冷却提升机 cooling elevator,coolevator3.9.5筛砂机 riddle3.9.6磁力滚筒 magnetic separator3.9.7旧砂再生设备 sand reclamation3.9.8气力输送装置 pneumatic tubeconveyor4铸造合金4.1铸铁4.1.1 铸铁 cast iron4.1.2 铸铁石墨形态 morphology of graphite in cast iron4.1.3 灰铸铁（灰口铸铁） gray cast iron 4.1.4 白口铸铁 white cast iron4.1.5 麻口铸铁 mottled cast iron4.1.6共晶度 degree of saturation4.1.7碳当量 carbon equivalent4.1.8片状石墨 flake graphite4.1.9初生石墨 primary graphite4.1.10孕育铸铁 inoculated cast iron4.1.11球墨铸铁 spheroidal graphite castiron, nodular graphite iron, ductileiron4.1.12球状石墨 spheroidal graphite,nodular graphite4.1.13可锻铸铁 malleable cast iron4.1.14黑心可锻铸铁 black heart malleablecast iron4.1.15珠光体可锻铸铁 pearlitic malleablecast iron4.1.16铁素体可锻铸铁 ferritic malleablecast iron4.1.17白心可锻铸铁 white heart malleablecast iron4.1.18团絮石墨 tempered graphite4.1.19冷硬铸铁（激冷铸铁） chilled iron 4.1.20耐磨铸铁 wear resisting cast iron4.1.21耐热铸铁 heat resisting cast iron4.1.22耐酸铸铁 acid resisting cast iron4.1.23高硅铸铁 high silicon cast iron4.1.24蠕墨铸铁 vermicular cast iron,compacted graphite cast iron4.1.25蠕虫状石墨 vermicular graphite4.1.26合金铸铁 alloy cast iron4.2铸钢4.2.1 铸钢 cast steel4.2.2 炭素铸钢 carbon cast iron4.2.3 低合金铸钢 low alloy cast steel4.2.4 高锰钢 high manganese steel4.2.5铁素体钢 ferritic steel4.3铸造非铁合金4.3.1 青铜 bronze4.3.2 铅青铜 lead bronze4.3.3 铝青铜 aluminum bronze4.3.4 黄铜 brass4.3.5铝铜合金 aluminum-copper alloy4.3.6铝镁合金 aluminum-magnesium alloy 4.3.7铝硅合金 aluminum-silicon alloy4.3.8镁合金 magnesium alloy4.3.9轴承合金（减摩合金） bearing metal,antifrictional metal4.3.10巴氏合金 babbitt alloy4.3.11钛合金 titanium alloy5熔炼工艺及设备5.1熔炼基本术语5.1.1 熔化（熔炼） melting5.1.2 重熔 remelting5.1.3 炉料 charge5.1.4 熔化率 melting rate5.1.5 炉料计算 charge calculation5.1.6 双联熔炼 duplexing5.1.7 元素烧损（元素烧损率） melting losses of various chemical elements5.1.8 熔炼损耗（烧损） total melting loss 5.1.9还原气氛 reducing atmosphere5.1.10氧化气氛 oxidizing atmosphere5.1.11惰性气体 inert gas5.1.12碱度（碱性指数） index of basicity 5.1.13碱性渣 basic slag5.1.14酸性渣 acid slag5.1.15精炼 refining5.1.16遗传性 heredity5.2铸铁熔炼5.2.1 风口比 tuyere ratio5.2.2 有效高度 effective height5.2.3 送风强度 blast intensity5.2.4预热送风 hot blast5.2.5底焦 coke bed5.2.6层焦 coke split5.2.7隔焦（结力焦） buffer coke charge 5.2.8炉衬 furnace lining5.2.9碱性炉衬 basic lining5.2.10酸性炉衬 acid lining5.2.11棚料 bridging5.2.12熔池 bath5.2.13吸碳 carbon pick-up5.2.14铁焦比（焦比） iron-coke ratio5.2.15出渣 deslagging5.2.16打炉 cupola drop5.3铸钢5.3.1 氧化熔炼法 oxidizing melting5.3.2 不氧化熔炼法 dead melting5.3.3 真空熔炼 vacuum refining5.3.4 电渣熔炼 electro-slag melting5.3.5 熔渣 slag5.3.6 沉渣 sludge5.3.7 浮渣 dross, cinder5.3.8 氧化期（沸腾期） oxidizing stage, boil5.3.9还原期 deoxidizing stage, blockingstage5.3.10还原渣 reducing slag5.3.11氧化渣 oxidizing slag5.3.12白渣 white slag5.3.13脱氧 deoxidation5.3.14扒渣 slagging- off5.3.15脱碳 decarburization 5.3.16脱硫 desulphurization5.3.17脱磷 dephosphorization5.3.18增碳 recarburizing5.3.19脱氧剂 deoxidizer5.4非铁金属熔炼5.4.1 挥发损耗 volatilizing losses5.4.2 静置 stewing, holding5.4.3 吹氮 nitrogen flushing5.5熔炼设备5.5.1 冲天炉 cupola5.5.2 水冷冲天炉 water-cooled cupola5.5.3热风冲天炉 hot-blast cupola5.5.4湿法除尘器 wet cap5.5.5炉缸 cupola well5.5.6前炉 forehearth5.5.7冲天炉加料机 cupola chargingmachine5.5.8爬式加料机 skip hoist5.5.9电磁配铁称 electro-magnetic weighingbalancer5.5.10电磁盘 electromagnetic chuck5.5.11电弧炉（直接电弧炉） arc furnace,direct arc furnace5.5.12感应电炉 electric induction furnace 5.5.13电渣炉 electroslag furnace5.5.14电磁搅拌electromagnetic agitation5.5.15浇包 ladle5.5.16摇包 shaking ladle5.5.17底注包 bottom pouring ladle5.5.18保温炉holding furnace5.5.19坩埚炉crucible furnace5.6熔融金属处理5.6.1孕育 inoculation5.6.2多孔塞法 porous plug process5.6.3变质 modification5.6.4墨化剂 graphitizer5.6.5过热 superheating5.6.6石墨球化处理 nodularizing treatmentof graphite5.6.7碳当量仪eutectometer5.6.8三角试块 wedge test-piece5.6.9真空除气vacuum degassing5.7浇注5.7.1浇注 pouring5.7.2保护气氛浇注 pouring under controlledatmosphere5.7.3浇注速度 pouring rate5.7.4浇注温度 pouring temperature5.7.5浇注时间 pouring time5.7.6浇注位置 pouring position5.7.7型内孕育 inmold inoculation5.7.8压铁 weight5.7.9捣冒口 churning, pumping5.7.10点冒口（补注） teeming5.7.11浸入式高温计 immersion pyremeter 5.7.12补炉 patching5.7.13炉龄（炉衬寿命） campaign6工艺设计及工艺装备6.1工艺设计6.1.1 铸造工艺设计 mold design6.1.2 铸造工艺装备设计 foundry tools design6.1.3 铸造工艺图 foundry molding drawing 6.1.4 铸件图（毛坯图） drawing of rough casting6.1.5起模斜度（拔模斜度） pattern draft 6.1.6收缩余量shrinkage allowance6.1.7工艺补正量 molding allowance6.1.8加工余量 machining allowance6.1.9吃砂量 mold thickness6.1.10补贴 pad6.1.11分型负数 joint allowance6.1.12铸件尺寸公差 dimensional toleranceof casting6.1.13铸件重量公差 weight allowance ofcasting6.1.14铸件加工基准面 reference face formachining of casting6.1.15铸件表面粗糙度 surface roughness ofcasting6.2浇冒口系统6.2.1 浇注系统（浇口） gating system, running system6.2.2封闭式浇注系统 choked runningsystem, pressurized gating system6.2.3半封闭式浇注系统 enlarged runnersystem6.2.4开放式浇注系统 unchoked runningsystem, non-pressurized gating system 6.2.5浇口盆（外浇口） pouring basin6.2.6浇口杯 pouring cup6.2.7浇口塞 blanking-off plug6.2.8直浇道 sprue6.2.9直浇道窝 sprue base6.2.10横浇道 runner6.2.11筛网芯（滤网芯） strainer core6.2.12内浇道 ingate6.2.13离心集渣浇注系统 whirl gate, dirttrap system6.2.14顶注式浇注系统 top gating system 6.2.15底注式浇注系统 bottom gatingsystem6.2.16阶梯式浇注系统 step gating system 6.2.17雨淋浇口 shower gate6.2.18缝隙浇口 slot gate6.2.19压边浇口 lip runner, kiss runner6.2.20牛角式浇口 horn gate6.2.21热节 hot spot6.2.22冒口 riser, feeder heed 6.2.23冒口效率 riser efficiency6.2.24明冒口 open riser6.2.25暗冒口 blind riser6.2.26侧冒口（边冒口） side riser6.2.27压力冒口 pressure riser6.2.28大气压力冒口 atmospheric riser6.2.29发气压力冒口（气弹冒口）gas-delivered pressure riser6.2.30透气砂芯 pencil core6.2.31冒口颈 riser neck6.2.32冒口根 riser pad6.2.33保温冒口套 heat insulating feedersleeve6.2.34发热冒口套 exothermic feeder sleeve 6.2.35补缩距离 feeding distance, feedingzone6.2.36易割冒口 knock-off head6.2.37易割片（易割芯片） washburn core 6.3模样6.3.1铸造工艺装备 foundry tools andequipment6.3.2模样（铸模，模） pattern6.3.3母模 master pattern6.3.4金属模 metal pattern6.3.5骨架模 skeleton pattern6.3.6石膏模 plaster pattern6.3.7塑料模 plastic pattern6.3.8整体模 one-piece pattern6.3.9分开模 parted pattern, split pattern 6.3.10活块 loose piece6.3.11模板 pattern plate6.3.12模底板 pattern mounting plate6.3.13单面模板 single face pattern plate 6.3.14双面模板 match plate6.3.15放样（伸图） hot dimensionaldrawing6.3.16缩尺（模样工缩尺） shrinkage rule,pattern-maker’s rule6.4芯盒6.4.1 芯盒 core box6.4.2 脱落式芯盒 troughed core box6.4.3下芯量具 core setting scale6.4.4下芯夹具 core jig6.4.5烘芯板 core drying plate6.5砂箱6.5.1 砂箱 flask, molding box6.5.2 箱带（箱挡） flask bar, cross bar 6.5.3 脱箱 snap flask6.5.4 套箱 mold jacket6.5.5套销 hollow pin, stub pin7造型及造芯7.1造型7.1.1造型 molding7.1.2型腔 mold cavity7.1.3铸型（型） mold7.1.4砂型 sand mold7.1.5上型（上箱） cope, top part7.1.6下型（下箱） drag, bottom part7.1.7手工造型 hand molding7.1.8机器造型 machine molding7.1.9自动化造型 automatic molding7.1.10分型面 mold joint7.1.11有箱造型 flask molding7.1.12两箱造型 two-part molding7.1.13三箱造型 three-part molding7.1.14不平分型面 stepped joint7.1.15无箱造型 flaskless molding7.1.16脱箱造型 removable flask molding 7.1.17地坑造型 pit molding7.1.18刮板造型 sweep molding7.1.19抛砂造型 impeller ramming, sandslinging molding7.1.20组芯造型 core assembly molding7.1.21假箱造型 oddside molding7.1.22微震压实造型 vibratory squeezingmolding7.1.23高压造型 high pressure molding7.1.24湿砂型（湿型，潮型） green sandmold7.1.25砂型烘干 mold drying7.1.26干砂型（干型）dry sand mold7.1.27表面烘干型 skin dried mold7.1.28烂砂泥型 loam mold7.1.29砂床 bed7.1.30过渡角 transition angle7.1.31吊砂 cod7.1.32砂钩 lifter7.1.33负压造型（真空密封造型） vacuummolding7.1.34流态砂造型 fluid sand molding7.1.35漏模 pattern stripping7.1.36填砂 mold-filling7.1.37紧实（紧砂，舂砂） ramming7.1.38震实 jolt ramming7.1.39压实 squeezing ramming7.1.40紧实度 degree of ramming7.1.41二氧化碳法造型 CO2 process7.1.42自硬砂造型 self-hardening sandmolding7.1.43塞砂 tucking7.1.44刮砂 strike-off7.1.45造型生产线 molding line7.1.46刷水 swabbing7.1.47敲模 rapping7.1.48起模（拔模） stripping7.1.49扎出气孔 venting7.1.50排气道 venting channel7.1.51修型 patching 7.1.52冷铁 densener, chill7.1.53外冷铁 surface densener7.1.54内冷铁 internal densener7.1.55验型（验箱） trial closing7.1.56合型（合箱，组型） moldassembling, closing7.2造芯7.2.1造芯（制芯） core making7.2.2芯（芯子） core7.2.3 芯骨 core rod, core scab7.2.4 油砂芯 oil sand core7.2.5 预制芯 embeded core, ram up core 7.2.6 芯头 core print7.2.7芯座 core print7.2.8芯头斜度 core print taper7.2.9芯头间隙 core print clearance 7.2.10壳芯 shell core7.2.11烘芯 core baking7.2.12通气蜡线 vent wax7.2.13冷芯盒法 cold box process7.2.14热芯盒法 hot box process7.2.15芯撑 chaplet7.3造型工具7.3.1 造型工具 hand tools of molding 7.3.2 压勺 heart and spoon7.3.3 提沟 cleaner7.3.4 双头铜勺（秋叶） double ended radius sleeker7.3.5镘刀 trowel7.4造型及造芯设备7.4.1 造型机 molding machine7.4.2 压实造型机 squeezing molding machine7.4.3 震击台 bumper7.4.4 振动台 vibrating table7.4.5微震压实造型机 vibratory squeezer 7.4.6震实造型机 jolt molding machine 7.4.7高压造型机 high pressure moldingmachine7.4.8射压造型机 shooting and squeezingmolding machine7.4.9多触头造型机 equalizing pistonsqueezer7.4.10抛砂机 sand slinger7.4.11起模机 drawing machine7.4.12射砂机 core shooter7.4.13挤芯机 core extruder7.4.14铸型输送机 mold conveyor8铸件落砂及清理8.1落砂及清理8.1.1 落砂 shake-out, knock-out8.1.2 除芯 decoring8.1.3 噴砂清理 sand blasting8.1.4 抛丸清理 shot blasting8.1.5 水力清砂 hydraulic cleaning8.1.6 水砂清砂 hydraulic blast8.1.7清理 cleaning, fettling8.1.8清砂 cleaning8.1.9火焰表面清理 scarfing8.1.10清铲 chipping8.1.11化学清砂 chemical cleaning8.1.12精整 dressing and finishing8.1.13落砂机 knock-out machine8.1.14抛丸清理机 shot blast machine8.1.15清理滚筒 tumbling barrel8.1.16抛丸落砂清理设备 shot blastreclaiming equipment8.1.17悬挂式磨轮 swing frame grinder8.2修补及矫正8.2.1 矫正 coining, straightening8.2.2 焊补 repair welding8.2.3 渗补 impregnation9特种铸造9.1金属型铸造9.1.1 金属型铸造 permanent mold casting, gravity die casting9.1.2 金属型 metal mold9.1.3 金属芯 metal core9.1.4 覆砂金属型 sand-lined metal mold 9.1.5 排气塞 venting plug9.1.6 排气槽 air vent9.1.7 龟裂 heat checking9.1.8 金属型铸造机 gravity die casting machine9.2压力铸造9.2.1压力铸造（压铸） die casting,pressure die casting9.2.2压铸型 die-casting die, die9.2.3动型 moving die, ejector die half9.2.4定型 fixed die, cover die half9.2.5合型力 clamping force , die lockingforce9.2.6压室 pressure chamber9.2.7鹅颈管 gooseneck9.2.8分流器 spreader, sprue spreader9.2.9顶杆 ejector pin9.2.10溢流槽 overflow well9.2.11压射冲头（压室） injection piston,plunger9.2.12压射比压 injection pressure9.2.13压射速度 injection speed9.2.14保压时间 dwell time9.2.15真空压铸 evacuated die casting,vacuum die casting9.2.16充氧压铸 pore-free die casting9.2.17双冲头压铸（精速密压铸）acurad(accurate?) die casting9.2.18压铸机 die casting machine 9.2.19冷室压铸机 cold chamber die castingmachine9.2.20热室压铸机 hot chamber die castingmachine9.2.21镶铸法 insert process9.3离心铸造9.3.1离心铸造 true centrifugal casting9.3.2半离心铸造 semi-centrifugal casting 9.3.3离心浇注 centrifugal pressure casting,centrifuge casting9.3.4双金属离心铸造 bimetal centrifugalcasting9.3.5离心铸造机 centrifugal castingmachine9.4熔模铸造9.4.1 失模铸造 lost pattern casting9.4.2熔模铸造（失蜡铸造） fusible patternmolding, lost-wax molding9.4.3压制熔模 fusible pattern injection9.4.4压型 pattern die9.4.5熔模 fusible pattern9.4.6盐模salt pattern9.4.7蜡模 wax-pattern9.4.8模组 pattern assembly9.4.9熔模涂料（浆料） slurry9.4.10面层涂料 investment precoat9.4.11撒砂 stuccoing9.4.12脱蜡 dewaxing9.4.13熔烧 sintering9.5壳型铸造9.5.1壳型铸造 shell molding9.5.2结壳时间 investing time9.5.3结壳温度 investing temperature9.5.4硬化温度 curing temperature9.5.5硬化时间 curing time9.6其它铸造方法9.6.1 陶瓷型铸造 ceramic molding9.6.2 陶瓷型浆料 ceramic slurry9.6.3灌浆 paste pouring9.6.4喷烧 torch firing9.6.5低压铸造 low-pressure die casting9.6.6充型压力 mold filling pressure9.6.7保压压力 dwell pressure9.6.8升液管 stalk9.6.9真空吸铸 suction casting9.6.10差压铸造（反压铸造） counter-pressure casting9.6.11实型铸造 full mold process, cavitylesscasting9.6.12泡沫塑料模 styrofoam pattern9.6.13磁型铸造（磁丸铸造） magnetic shotmolding process9.6.14凝壳铸造 slush casting9.6.15石膏型铸造 plaster molding9.6.16连续铸造 continuous casting10 铸件质量及铸件缺陷10.1 铸件质量基本术语10.1.1铸件检验 inspection of casting10.1.2铸件质量分析 quality analysis ofcasting10.1.3铸件外观质量 visual quality ofcasting10.1.4铸件内在质量 internal quality ofcasting10.1.5铸件使用性能 service ability ofcasting10.1.6单铸试块 separated test bar ofcasting10.1.7附铸试块 test lug10.1.8缺陷铸件 defective casting10.1.9废品 reject10.1.10无损检验（无损探伤）nondestructive inspection10.1.11破坏性试验 destructive testing10.2多肉类缺陷10.2.1飞翅（飞边） joint flash10.2.2毛刺 veining10.2.3抬型（抬箱） cope raise , raised mold 10.2.4胀箱 swell10.2.5冲砂 erosion, cut, wash10.2.6掉砂 drop, crush10.2.7外渗物（外渗豆） sweat10.3孔洞类缺陷10.3.1 气孔 blow hole10.3.2 针孔 pinhole10.3.3 缩孔 shrinkage10.3.4缩松 dispersed shrinkage10.3.5疏松（显微缩松） porositymicroshrinkage10.4裂纹、冷隔类缺陷10.4.1冷裂 cold cracking10.4.2热裂 hot tearing10.4.3热处理裂纹 heat treatment crack 10.4.4白点（发裂） flake10.4.5冷隔 cold shut, cold lap10.4.6浇注断流 interrupted pour10.5表面缺陷10.5.1 鼠尾 rat-tail10.5.2 沟漕 buckle10.5.3 夹砂结疤（夹砂） scab10.5.4机械粘砂（渗透粘砂） metalpenetration10.5.5化学粘砂（烧结粘砂）burn-on10.5.6表面粗糙 rough surface10.5.7皱皮 elephant skin10.5.8缩陷 depression10.6残缺类缺陷10.6.1 浇不到 misrun 10.6.2 未浇满 poured short10.6.3 跑火 run-out, bleeding10.6.4 型漏（漏箱）run-out, bleeding 10.6.5损伤（机械损伤）damage10.7形状及重量差错类缺陷10.7.1 拉长exaggeration of dimension 10.7.2 超重 over-weight10.7.3 变形 distortion, warping10.7.4 错型（错箱） shift10.7.5 错芯 core shift10.7.6 偏芯（漂芯） core raised, corelift 10.8夹杂类缺陷10.8.1 夹杂物 inclusion10.8.2 冷豆 cold shot10.8.3 内渗物（内渗豆） internal sweat 10.8.4 渣气孔 scum, slag-blow hole 10.8.5 砂眼 sand inclusion10.9性能、成分、组织不合格10.9.1 亮皮 pearlite layer10.9.2 菜花头 cauli-flowering10.9.3 石墨飘浮 carbon floatation10.9.4 石墨集结 kish graphite spot 10.9.5 组织粗大 open grain structure 10.9.6 偏析 segregation10.9.7 硬点 hard spot10.9.8 反白口 inverse chill10.9.9 球化不良 under-nodularizing 10.9.10 球化衰退 degradated spheroidisation10.9.11 脱碳 decarburization定位点 anchor point凸轮轴 tumbling shaft曲轴 crank shaft主轴 principal shaft镗杆, 铣刀轴, 刀杆轴, 刀具轴 cutter spindle 曲轴箱 crankcase日常用语重要特征 critical feature(关键部位)。
地暖辅材专业中英文对照地暖辅材是指在地暖系统安装过程中所需要使用的材料和设备。
地暖辅材主要包括地暖管材、地暖辅材管件、地暖钉、地暖支架、地暖绝缘材料等。
它们是地暖系统安装过程中不可或缺的重要组成部分。
地暖辅材种类繁多，每种材料都有其独特的特点和用途。
下面将对地暖辅材的种类、特点和用途进行详细介绍。
一、地暖管材地暖管材是用于输送热水或其他加热介质的管道，它是地暖系统中最基本的组成部分。
地暖管材主要有PVC地暖管、PE地暖管、铝塑复合管等。
1. PVC地暖管PVC地暖管是一种以聚氯乙烯树脂为原料加工制成的管道。
它具有耐腐蚀、耐热、耐压、耐磨损等特点，适用于地暖系统中输送温水或热水。
2. PE地暖管PE地暖管是一种以聚乙烯为原料加工而成的管道。
它具有耐腐蚀、耐高温、柔韧性好等特点，适用于地暖系统中输送温水或热水。
3. 铝塑复合管铝塑复合管是一种由铝层和塑料层复合而成的管道。
它既具有铝的坚固性和耐腐蚀性，又具有塑料的柔韧性和耐高温性能，适用于地暖系统中输送温水或热水。
二、地暖辅材管件地暖辅材管件是用于连接地暖管材的部件，它包括弯头、三通、四通、变径管等。
地暖辅材管件主要有PVC管件、PE管件、铜管件等。
1. PVC管件PVC管件是一种以聚氯乙烯为原料加工而成的管道连接部件。
它具有耐腐蚀、耐热、耐压等特点，适用于地暖系统中连接PVC地暖管。
2. PE管件PE管件是一种以聚乙烯为原料加工而成的管道连接部件。
它具有耐腐蚀、耐高温、柔韧性好等特点，适用于地暖系统中连接PE地暖管。
3. 铜管件铜管件是一种以铜为原料加工而成的管道连接部件。
它具有良好的导热性和耐腐蚀性，适用于地暖系统中连接铝塑复合管。
三、地暖钉地暖钉是用于固定地暖管材的部件，它可以有效防止地暖管材的移位和漏水。
地暖钉主要有塑料地暖钉、钢地暖钉等。
1. 塑料地暖钉塑料地暖钉是一种以塑料为原料制成的固定地暖管材的部件。
它具有耐腐蚀、耐高温、抗压等特点，适用于地暖系统中固定PVC地暖管和PE地暖管。
铸造名词术语（GB5611-85）1 基本术语1.1 铸造 foundry, founding, casting1.2铸造工艺 foundry technology1.3铸件 casting1.4砂型铸造 sand casting process1.5特种铸造 special casting process2合金性能2.1 流动性 fluidity2.2 充型能力 mold-filling capacity2.3 吸气 gas absorption2.4 过冷 undercooling, supercooling2.5 过冷度 degree of undercooling2.6 成核 nucleation2.7 自发成核（均质成核） homogeneous nucleation2.8非自发成核（非均质成核） heterogeneousnucleation2.9凝固温度范围 solidification range2.10定向凝固（顺序凝固） directionalsolidification2.11液态收缩（液体收缩） liquid contraction 2.12凝固收缩 solidification contraction2.13固态收缩（固体收缩） solid contraction 2.14凝固时间 solidification time2.15自由收缩 free contraction2.16受阻收缩 hindered contraction2.17铸件线收缩率 shrinkage2.18收缩应力 contraction stress2.19热应力 thermal stress2.20相变应力 transformation stress, phasechange stress2.21铸造应力 casting stress2.22残留应力（残余应力） residual stress3铸造用材料3.1金属原材料3.1.1 金属原材料 metallic raw material3.1.2生铁 pig iron3.1.3铁合金 ferro-alloy3.1.4回炉料 foundry returns3.1.5中间合金 master alloy3.2燃料3.2.1铸造焦炭 foundry coke3.2.2冶金焦炭 metallurgical coke3.2.3固定碳 fixed carbon3.3熔剂3.3.1 熔剂 flux3.3.2 除气熔剂（除气剂） degassing flux 3.3.3 覆盖熔剂（覆盖剂） covering flux 3.3.4 精炼熔剂（精炼剂） refining flux 3.4耐火材料3.4.1耐火度（耐火性） refractoriness3.4.2耐火砖 firebrick3.4.3耐火粘土 fireclay3.4.4硅砖 silica brick3.4.5镁砂 grain magnesite3.5 造型材料3.5.1 造型材料 molding material3.5.2 砂 sand3.5.3 水洗砂 washed-out sand3.5.4 硅砂 silica sand3.5.5天然砂 natural sand3.5.6人工砂 artificial sand3.5.7天然粘土砂 naturally clay-bonded sand 3.5.8橄榄石砂 olivine sand3.5.9铬铁矿砂 chromite sand3.5.10锆砂 zircon sand3.5.11炭粒砂 carbon sand3.5.12精硅砂 sharp sand3.5.13红砂 red sand3.5.14熟料砂 chamotte sand3.5.15粘结剂 binder3.5.16粘土 clay3.5.17无机粘结剂 inorganic binder3.5.18有机粘结剂 organic binder3.5.19高岭土 kaolin3.5.20膨润土 bentonite3.5.21钠基膨润土 sodium bentonite3.5.22钙基膨润土 calcium bentonite3.5.23活化膨润土 activated bentonite3.5.24干性油 drying oil3.5.25自硬粘结剂(冷硬粘结剂) no bakebinder3.5.26热固树脂粘结剂 thermosetting resinbinder3.5.27油类粘结剂 oil based binder3.5.28水玻璃粘结剂 water glass binder,sodium silicate binder3.5.29纸浆废液 lignin liquor3.5.30合脂粘结剂 synthetic fat binder3.5.31水玻璃模数 sodium silicate modulus 3.6辅助材料3.6.1附加物 additives3.6.2发热剂 exothermic mixture3.6.3分型剂（脱模剂） parting agent,stripping agent3.6.4固化剂（硬化剂）hardener3.6.5悬浮剂suspending agent3.6.6涂料 coating3.7砂处理3.7.1型砂制备（砂处理） sand preparation 3.7.2混砂 sand mulling, sand mixing3.7.3型砂（造型混合料） molding sand 3.7.4芯砂（造芯混合料） core sand3.7.5合成砂 synthetic sand3.7.6自硬砂 self-hardening sand3.7.7水玻璃砂 sodium silicate-bonded sand 3.7.8覆膜砂 precoated sand3.7.9烂砂泥（麻泥） loam3.7.10调匀砂 temper sand3.7.11面砂 facing sand3.7.12背砂（填充砂） backing sand3.7.13单一砂 unit sand3.7.14含泥量 clay content3.7.15含水量 moisture content3.7.16旧砂 floor sand3.7.17枯砂（焦砂） burnt sand3.7.18废砂 waste sand3.7.19热砂 hot sand3.7.20松砂 aeration , sand-cutting3.7.21筛分（筛析） screen analysis3.7.22旧砂处理 sand reconditioning3.7.23旧砂再生 sand reclamation3.7.24沉降分选 elutriation, decantation3.8型砂性能及试验3.8.1 型砂试验 sand testing3.8.2 透气性 permeability3.8.3 流动性 flowability3.8.4型砂强度 sand strength3.8.5湿强度 green strength3.8.6干强度 dry strength3.8.7耐用性（复用性） durability3.8.8砂型（芯）硬度 mold hardness3.8.9热变形 hot deformation3.8.10残留强度 retained strength3.8.11热强度 hot strength3.8.12韧性 toughness3.8.13发气率（发气速度） gas evolution rate 3.8.14发气性（发气量） gas evolution3.8.15吸湿性 moisture absorption3.8.16落砂性 knock-out capability3.8.17潰散性 collapsibility3.8.18胶质价 colloid index3.8.19破碎指数 shatter index3.9砂处理设备3.9.1热气流烘砂装置 hot pneumatic tubedrier3.9.2混砂机 sand muller, sand mixer 3.9.3松砂机 aerator, sand cutter3.9.4冷却提升机 cooling elevator,coolevator3.9.5筛砂机 riddle3.9.6磁力滚筒 magnetic separator3.9.7旧砂再生设备 sand reclamation3.9.8气力输送装置 pneumatic tube conveyor 4铸造合金4.1铸铁4.1.1 铸铁 cast iron4.1.2 铸铁石墨形态 morphology of graphite in cast iron4.1.3 灰铸铁（灰口铸铁） gray cast iron 4.1.4 白口铸铁 white cast iron4.1.5 麻口铸铁 mottled cast iron4.1.6共晶度 degree of saturation4.1.7碳当量 carbon equivalent4.1.8片状石墨 flake graphite4.1.9初生石墨 primary graphite4.1.10孕育铸铁 inoculated cast iron4.1.11球墨铸铁 spheroidal graphite cast iron,nodular graphite iron, ductile iron4.1.12球状石墨 spheroidal graphite, nodulargraphite4.1.13可锻铸铁 malleable cast iron4.1.14黑心可锻铸铁 black heart malleablecast iron4.1.15珠光体可锻铸铁 pearlitic malleablecast iron4.1.16铁素体可锻铸铁 ferritic malleable castiron4.1.17白心可锻铸铁 white heart malleablecast iron4.1.18团絮石墨 tempered graphite4.1.19冷硬铸铁（激冷铸铁） chilled iron 4.1.20耐磨铸铁 wear resisting cast iron4.1.21耐热铸铁 heat resisting cast iron4.1.22耐酸铸铁 acid resisting cast iron4.1.23高硅铸铁 high silicon cast iron4.1.24蠕墨铸铁 vermicular cast iron,compacted graphite cast iron4.1.25蠕虫状石墨 vermicular graphite4.1.26合金铸铁 alloy cast iron4.2铸钢4.2.1 铸钢 cast steel4.2.2 炭素铸钢 carbon cast iron4.2.3 低合金铸钢 low alloy cast steel4.2.4 高锰钢 high manganese steel4.2.5铁素体钢 ferritic steel4.3铸造非铁合金4.3.1 青铜 bronze4.3.2 铅青铜 lead bronze4.3.3 铝青铜 aluminum bronze4.3.4 黄铜 brass4.3.5铝铜合金 aluminum-copper alloy4.3.6铝镁合金 aluminum-magnesium alloy 4.3.7铝硅合金 aluminum-silicon alloy4.3.8镁合金 magnesium alloy4.3.9轴承合金（减摩合金） bearing metal,antifrictional metal4.3.10巴氏合金 babbitt alloy4.3.11钛合金 titanium alloy5熔炼工艺及设备5.1熔炼基本术语5.1.1 熔化（熔炼） melting5.1.2 重熔 remelting5.1.3 炉料 charge5.1.4 熔化率 melting rate5.1.5 炉料计算 charge calculation5.1.6 双联熔炼 duplexing5.1.7 元素烧损（元素烧损率） melting losses of various chemical elements5.1.8 熔炼损耗（烧损） total melting loss 5.1.9还原气氛 reducing atmosphere5.1.10氧化气氛 oxidizing atmosphere5.1.11惰性气体 inert gas5.1.12碱度（碱性指数） index of basicity 5.1.13碱性渣 basic slag5.1.14酸性渣 acid slag5.1.15精炼 refining5.1.16遗传性 heredity5.2铸铁熔炼5.2.1 风口比 tuyere ratio5.2.2 有效高度 effective height5.2.3 送风强度 blast intensity5.2.4预热送风 hot blast5.2.5底焦 coke bed5.2.6层焦 coke split5.2.7隔焦（结力焦） buffer coke charge 5.2.8炉衬 furnace lining5.2.9碱性炉衬 basic lining5.2.10酸性炉衬 acid lining5.2.11棚料 bridging5.2.12熔池 bath5.2.13吸碳 carbon pick-up5.2.14铁焦比（焦比） iron-coke ratio5.2.15出渣 deslagging5.2.16打炉 cupola drop5.3铸钢5.3.1 氧化熔炼法 oxidizing melting 5.3.2 不氧化熔炼法 dead melting5.3.3 真空熔炼 vacuum refining5.3.4 电渣熔炼 electro-slag melting5.3.5 熔渣 slag5.3.6 沉渣 sludge5.3.7 浮渣 dross, cinder5.3.8 氧化期（沸腾期） oxidizing stage, boil5.3.9还原期 deoxidizing stage, blockingstage5.3.10还原渣 reducing slag5.3.11氧化渣 oxidizing slag5.3.12白渣 white slag5.3.13脱氧 deoxidation5.3.14扒渣 slagging- off5.3.15脱碳 decarburization5.3.16脱硫 desulphurization5.3.17脱磷 dephosphorization5.3.18增碳 recarburizing5.3.19脱氧剂 deoxidizer5.4非铁金属熔炼5.4.1 挥发损耗volatilizing losses5.4.2 静置 stewing, holding5.4.3 吹氮 nitrogen flushing5.5熔炼设备5.5.1 冲天炉 cupola5.5.2 水冷冲天炉 water-cooled cupola5.5.3热风冲天炉 hot-blast cupola5.5.4湿法除尘器 wet cap5.5.5炉缸 cupola well5.5.6前炉 forehearth5.5.7冲天炉加料机 cupola charging machine 5.5.8爬式加料机 skip hoist5.5.9电磁配铁称 electro-magnetic weighingbalancer5.5.10电磁盘 electromagnetic chuck5.5.11电弧炉（直接电弧炉） arc furnace,direct arc furnace5.5.12感应电炉 electric induction furnace 5.5.13电渣炉 electroslag furnace5.5.14电磁搅拌electromagnetic agitation5.5.15浇包 ladle5.5.16摇包 shaking ladle5.5.17底注包 bottom pouring ladle5.5.18保温炉holding furnace5.5.19坩埚炉crucible furnace5.6熔融金属处理5.6.1孕育 inoculation5.6.2多孔塞法 porous plug process5.6.3变质 modification5.6.4墨化剂 graphitizer5.6.5过热 superheating5.6.6石墨球化处理 nodularizing treatment ofgraphite5.6.7碳当量仪eutectometer5.6.8三角试块 wedge test-piece5.6.9真空除气vacuum degassing5.7浇注5.7.1浇注 pouring5.7.2保护气氛浇注 pouring under controlledatmosphere5.7.3浇注速度 pouring rate5.7.4浇注温度 pouring temperature5.7.5浇注时间 pouring time5.7.6浇注位置 pouring position5.7.7型内孕育 inmold inoculation5.7.8压铁 weight5.7.9捣冒口 churning, pumping5.7.10点冒口（补注） teeming5.7.11浸入式高温计 immersion pyremeter5.7.12补炉 patching5.7.13炉龄（炉衬寿命） campaign6工艺设计及工艺装备6.1工艺设计6.1.1 铸造工艺设计 mold design6.1.2 铸造工艺装备设计 foundry tools design 6.1.3 铸造工艺图 foundry molding drawing 6.1.4 铸件图（毛坯图） drawing of rough casting6.1.5起模斜度（拔模斜度） pattern draft6.1.6收缩余量shrinkage allowance6.1.7工艺补正量 molding allowance6.1.8加工余量 machining allowance6.1.9吃砂量 mold thickness6.1.10补贴 pad6.1.11分型负数 joint allowance6.1.12铸件尺寸公差 dimensional tolerance ofcasting6.1.13铸件重量公差 weight allowance ofcasting6.1.14铸件加工基准面 reference face formachining of casting6.1.15铸件表面粗糙度 surface roughness ofcasting6.2浇冒口系统6.2.1 浇注系统（浇口） gating system, running system6.2.2封闭式浇注系统 choked running system,pressurized gating system6.2.3半封闭式浇注系统 enlarged runnersystem 6.2.4开放式浇注系统 unchoked runningsystem, non-pressurized gating system 6.2.5浇口盆（外浇口） pouring basin6.2.6浇口杯 pouring cup6.2.7浇口塞 blanking-off plug6.2.8直浇道 sprue6.2.9直浇道窝 sprue base6.2.10横浇道 runner6.2.11筛网芯（滤网芯） strainer core6.2.12内浇道 ingate6.2.13离心集渣浇注系统 whirl gate, dirttrap system6.2.14顶注式浇注系统 top gating system6.2.15底注式浇注系统 bottom gating system 6.2.16阶梯式浇注系统 step gating system6.2.17雨淋浇口 shower gate6.2.18缝隙浇口 slot gate6.2.19压边浇口 lip runner, kiss runner6.2.20牛角式浇口 horn gate6.2.21热节 hot spot6.2.22冒口 riser, feeder heed6.2.23冒口效率 riser efficiency6.2.24明冒口 open riser6.2.25暗冒口 blind riser6.2.26侧冒口（边冒口） side riser6.2.27压力冒口 pressure riser6.2.28大气压力冒口 atmospheric riser6.2.29发气压力冒口（气弹冒口）gas-deliveredpressure riser6.2.30透气砂芯 pencil core6.2.31冒口颈 riser neck6.2.32冒口根 riser pad6.2.33保温冒口套 heat insulating feedersleeve6.2.34发热冒口套 exothermic feeder sleeve 6.2.35补缩距离 feeding distance, feedingzone6.2.36易割冒口 knock-off head6.2.37易割片（易割芯片） washburn core6.3模样6.3.1铸造工艺装备 foundry tools andequipment6.3.2模样（铸模，模） pattern6.3.3母模 master pattern6.3.4金属模 metal pattern6.3.5骨架模 skeleton pattern6.3.6石膏模 plaster pattern6.3.7塑料模 plastic pattern6.3.8整体模 one-piece pattern6.3.9分开模 parted pattern, split pattern6.3.10活块 loose piece6.3.11模板 pattern plate6.3.12模底板 pattern mounting plate6.3.13单面模板 single face pattern plate6.3.14双面模板 match plate6.3.15放样（伸图） hot dimensional drawing 6.3.16缩尺（模样工缩尺） shrinkage rule,pattern-maker’s rule6.4芯盒6.4.1 芯盒 core box6.4.2 脱落式芯盒 troughed core box6.4.3下芯量具 core setting scale6.4.4下芯夹具 core jig6.4.5烘芯板 core drying plate6.5砂箱6.5.1 砂箱 flask, molding box6.5.2 箱带（箱挡） flask bar, cross bar6.5.3 脱箱 snap flask6.5.4 套箱 mold jacket6.5.5套销 hollow pin, stub pin7造型及造芯7.1造型7.1.1造型 molding7.1.2型腔 mold cavity7.1.3铸型（型） mold7.1.4砂型 sand mold7.1.5上型（上箱） cope, top part7.1.6下型（下箱） drag, bottom part7.1.7手工造型 hand molding7.1.8机器造型 machine molding7.1.9自动化造型automatic molding7.1.10分型面 mold joint7.1.11有箱造型 flask molding7.1.12两箱造型 two-part molding7.1.13三箱造型 three-part molding7.1.14不平分型面 stepped joint7.1.15无箱造型 flaskless molding7.1.16脱箱造型 removable flask molding 7.1.17地坑造型 pit molding7.1.18刮板造型 sweep molding7.1.19抛砂造型 impeller ramming, sandslinging molding7.1.20组芯造型 core assembly molding7.1.21假箱造型 oddside molding7.1.22微震压实造型 vibratory squeezingmolding7.1.23高压造型 high pressure molding7.1.24湿砂型（湿型，潮型） green sand mold 7.1.25砂型烘干 mold drying7.1.26干砂型（干型）dry sand mold 7.1.27表面烘干型 skin dried mold7.1.28烂砂泥型 loam mold7.1.29砂床 bed7.1.30过渡角 transition angle7.1.31吊砂 cod7.1.32砂钩 lifter7.1.33负压造型（真空密封造型） vacuummolding7.1.34流态砂造型 fluid sand molding7.1.35漏模 pattern stripping7.1.36填砂 mold-filling7.1.37紧实（紧砂，舂砂） ramming7.1.38震实 jolt ramming7.1.39压实 squeezing ramming7.1.40紧实度 degree of ramming7.1.41二氧化碳法造型 CO2 process7.1.42自硬砂造型 self-hardening sandmolding7.1.43塞砂 tucking7.1.44刮砂 strike-off7.1.45造型生产线 molding line7.1.46刷水 swabbing7.1.47敲模 rapping7.1.48起模（拔模） stripping7.1.49扎出气孔 venting7.1.50排气道 venting channel7.1.51修型 patching7.1.52冷铁 densener, chill7.1.53外冷铁 surface densener7.1.54内冷铁 internal densener7.1.55验型（验箱） trial closing7.1.56合型（合箱，组型） mold assembling,closing7.2造芯7.2.1造芯（制芯） core making7.2.2芯（芯子） core7.2.3 芯骨 core rod, core scab7.2.4 油砂芯 oil sand core7.2.5 预制芯 embeded core, ram up core7.2.6 芯头 core print7.2.7芯座 core print7.2.8芯头斜度 core print taper7.2.9芯头间隙 core print clearance7.2.10壳芯 shell core7.2.11烘芯 core baking7.2.12通气蜡线 vent wax7.2.13冷芯盒法 cold box process7.2.14热芯盒法 hot box process7.2.15芯撑 chaplet7.3造型工具7.3.1 造型工具 hand tools of molding7.3.2 压勺 heart and spoon7.3.3 提沟 cleaner7.3.4 双头铜勺（秋叶） double ended radius sleeker7.3.5镘刀 trowel7.4造型及造芯设备7.4.1 造型机 molding machine7.4.2 压实造型机 squeezing molding machine7.4.3 震击台 bumper7.4.4 振动台 vibrating table7.4.5微震压实造型机 vibratory squeezer7.4.6震实造型机 jolt molding machine7.4.7高压造型机 high pressure moldingmachine7.4.8射压造型机 shooting and squeezingmolding machine7.4.9多触头造型机 equalizing pistonsqueezer7.4.10抛砂机 sand slinger7.4.11起模机 drawing machine7.4.12射砂机 core shooter7.4.13挤芯机 core extruder7.4.14铸型输送机 mold conveyor8铸件落砂及清理8.1落砂及清理8.1.1 落砂 shake-out, knock-out8.1.2 除芯 decoring8.1.3 噴砂清理 sand blasting8.1.4 抛丸清理 shot blasting8.1.5 水力清砂 hydraulic cleaning8.1.6 水砂清砂 hydraulic blast8.1.7清理 cleaning, fettling8.1.8清砂 cleaning8.1.9火焰表面清理 scarfing8.1.10清铲 chipping8.1.11化学清砂 chemical cleaning8.1.12精整 dressing and finishing8.1.13落砂机 knock-out machine8.1.14抛丸清理机 shot blast machine8.1.15清理滚筒 tumbling barrel8.1.16抛丸落砂清理设备 shot blast reclaimingequipment8.1.17悬挂式磨轮 swing frame grinder8.2修补及矫正8.2.1 矫正 coining, straightening8.2.2 焊补 repair welding8.2.3 渗补 impregnation9特种铸造9.1金属型铸造9.1.1 金属型铸造 permanent mold casting, gravity die casting9.1.2 金属型 metal mold9.1.3 金属芯 metal core9.1.4 覆砂金属型 sand-lined metal mold 9.1.5 排气塞 venting plug9.1.6 排气槽 air vent9.1.7 龟裂 heat checking9.1.8 金属型铸造机 gravity die casting machine9.2压力铸造9.2.1压力铸造（压铸） die casting, pressuredie casting9.2.2压铸型 die-casting die, die9.2.3动型 moving die, ejector die half9.2.4定型 fixed die, cover die half9.2.5合型力 clamping force , die lockingforce9.2.6压室 pressure chamber9.2.7鹅颈管 gooseneck9.2.8分流器 spreader, sprue spreader9.2.9顶杆 ejector pin9.2.10溢流槽 overflow well9.2.11压射冲头（压室） injection piston,plunger9.2.12压射比压 injection pressure9.2.13压射速度 injection speed9.2.14保压时间 dwell time9.2.15真空压铸 evacuated die casting,vacuum die casting9.2.16充氧压铸 pore-free die casting9.2.17双冲头压铸（精速密压铸）acurad(accurate?) die casting9.2.18压铸机 die casting machine9.2.19冷室压铸机 cold chamber die castingmachine9.2.20热室压铸机 hot chamber die castingmachine9.2.21镶铸法 insert process9.3离心铸造9.3.1离心铸造 true centrifugal casting9.3.2半离心铸造 semi-centrifugal casting9.3.3离心浇注 centrifugal pressure casting,centrifuge casting9.3.4双金属离心铸造 bimetal centrifugalcasting9.3.5离心铸造机 centrifugal casting machine 9.4熔模铸造9.4.1 失模铸造 lost pattern casting9.4.2熔模铸造（失蜡铸造） fusible patternmolding, lost-wax molding9.4.3压制熔模 fusible pattern injection9.4.4压型 pattern die9.4.5熔模 fusible pattern9.4.6盐模salt pattern9.4.7蜡模 wax-pattern9.4.8模组 pattern assembly9.4.9熔模涂料（浆料） slurry9.4.10面层涂料 investment precoat9.4.11撒砂 stuccoing9.4.12脱蜡 dewaxing9.4.13熔烧 sintering9.5壳型铸造9.5.1壳型铸造 shell molding9.5.2结壳时间 investing time9.5.3结壳温度 investing temperature9.5.4硬化温度 curing temperature9.5.5硬化时间 curing time9.6其它铸造方法9.6.1 陶瓷型铸造 ceramic molding9.6.2 陶瓷型浆料 ceramic slurry9.6.3灌浆 paste pouring9.6.4喷烧 torch firing9.6.5低压铸造 low-pressure die casting9.6.6充型压力 mold filling pressure9.6.7保压压力 dwell pressure9.6.8升液管 stalk9.6.9真空吸铸 suction casting9.6.10差压铸造（反压铸造） counter-pressurecasting9.6.11实型铸造 full mold process, cavitylesscasting9.6.12泡沫塑料模 styrofoam pattern9.6.13磁型铸造（磁丸铸造） magnetic shotmolding process9.6.14凝壳铸造 slush casting9.6.15石膏型铸造 plaster molding9.6.16连续铸造 continuous casting10 铸件质量及铸件缺陷10.1 铸件质量基本术语10.1.1铸件检验 inspection of casting10.1.2铸件质量分析 quality analysis ofcasting10.1.3铸件外观质量 visual quality of casting 10.1.4铸件内在质量 internal quality ofcasting10.1.5铸件使用性能 service ability of casting 10.1.6单铸试块 separated test bar of casting 10.1.7附铸试块 test lug 10.1.8缺陷铸件 defective casting10.1.9废品 reject10.1.10无损检验（无损探伤） nondestructiveinspection10.1.11破坏性试验 destructive testing10.2多肉类缺陷10.2.1飞翅（飞边） joint flash10.2.2毛刺 veining10.2.3抬型（抬箱） cope raise , raised mold 10.2.4胀箱 swell10.2.5冲砂 erosion, cut, wash10.2.6掉砂 drop, crush10.2.7外渗物（外渗豆） sweat10.3孔洞类缺陷10.3.1 气孔 blow hole10.3.2 针孔 pinhole10.3.3 缩孔 shrinkage10.3.4缩松 dispersed shrinkage10.3.5疏松（显微缩松） porositymicroshrinkage10.4裂纹、冷隔类缺陷10.4.1冷裂 cold cracking10.4.2热裂 hot tearing10.4.3热处理裂纹 heat treatment crack10.4.4白点（发裂） flake10.4.5冷隔 cold shut, cold lap10.4.6浇注断流 interrupted pour10.5表面缺陷10.5.1 鼠尾 rat-tail10.5.2 沟漕 buckle10.5.3 夹砂结疤（夹砂） scab10.5.4机械粘砂（渗透粘砂） metal penetration 10.5.5化学粘砂（烧结粘砂）burn-on10.5.6表面粗糙 rough surface10.5.7皱皮 elephant skin10.5.8缩陷 depression10.6残缺类缺陷10.6.1 浇不到 misrun10.6.2 未浇满 poured short10.6.3 跑火 run-out, bleeding10.6.4 型漏（漏箱）run-out, bleeding10.6.5损伤（机械损伤）damage10.7形状及重量差错类缺陷10.7.1 拉长 exaggeration of dimension10.7.2 超重 over-weight10.7.3 变形 distortion, warping10.7.4 错型（错箱） shift10.7.5 错芯 core shift10.7.6 偏芯（漂芯） core raised, corelift 10.8夹杂类缺陷10.8.1 夹杂物 inclusion10.8.2 冷豆 cold shot10.8.3 内渗物（内渗豆） internal sweat 10.8.4 渣气孔 scum, slag-blow hole10.8.5 砂眼 sand inclusion10.9性能、成分、组织不合格10.9.1 亮皮 pearlite layer10.9.2 菜花头 cauli-flowering10.9.3 石墨飘浮 carbon floatation10.9.4 石墨集结 kish graphite spot10.9.5 组织粗大 open grain structure10.9.6 偏析 segregation10.9.7 硬点 hard spot10.9.8 反白口 inverse chill10.9.9 球化不良 under-nodularizing10.9.10 球化衰退 degradated spheroidisation 10.9.11 脱碳 decarburization。
• Fire resistant • Butt splice closure • Heat-shrink technology • Hinging trays• Superior fiber managementFOSC 400 FR fire resistant fiber optic splice closures are made with a flame retardant material and can be used for splices in cable vaults and equipment (non-residential) buildings.Available in B4 and D5 sizes, FOSC 400 flame retardant closures have an easy-to-use mechanical clamping system for the dome-to-base seal. Cable ports are sealed with heat-shrink tubing installed with a hot-air gun. One size of cable seal can be used on any size or type of cable, in any round port and on any closure. New cables can be installed without disturbing existing cables or splices.FOSC 400 closures are truly versatile and reliable platforms for any fiber optic cable terminations – outside and inside.FOSC 400 FRFlame Retardant Fiber Optic Splice ClosureFlash Test ValveClosure will hold four splice trays 6Terminations for cable strength members and bond wires7(150)Optional basket available for storing slack loose bu er tubes, stranded fiber, and ribbon(180)21 (540)(Cable seals add 4 (100) to length)Optional ground feed-through lugRound ports for cables.20 - 0.75(5 - 190)Oval port for two cables 0.4 - 1.0 (10 - 25)Mechanical dome-to-base seal9.5 10.2(240)Flash test valveOptional basket to store slack loose bu er tubes or ribbon. (Store slack stranded fiber on bottom organizer tray.)Closure will hold eight splice trays(Six with optional basket, four with “tall” basket)(260)28 (710)(Cable seals add 4 (100) to length)Five round ports for cables 0.20-1.25 (5 - 32)Optional groundfeed-through lugsOval ports for two cables 0.4-1.0(10-25)Mechanicaldome-to-base sealTerminations for cable strength members and bond wires.AccessoriesCABLE SEALS: FOSC-ACC-CABLE-SEAL-1-AB Cable seal for any round port on any FOSC 400 closure.a - Is cable blocking required? (B - blocking, N - none)b - T - tubular sleeve, W - wraparound sleeve.SPLICE TRAYS: FOSC-ACC-A-TRAY-BB a - Closure size(“D” for D5 or “B” for B4)bb - Capacity of each splice tray. B4 closure options are 12, 16, or 24D5 closures options are 36, 48 or 72 “NT” indicates no tray.See FOSC Closure Ordering Guide for further details on splice trays and modules.SLACK STORAGE BASKETSFOSC -ACC-B-Basket: Baskets are used to store slack ribbon or excess buffer tubes.FOSC-ACC-D-Basket: (occupies two tray spaces)FOSC-ACC-D-Basket-Tall: (occupies four tray spaces)Sizes and Specifications (dimensions shown in inches/millimeters)FOSC 400 B4 ClosureFOSC 400 D5 ClosureSizes and Specifications (dimensions shown in inches)*Varies with splice type. Capacity shown is for most commonly used mechanical splices.** Use Tall Basket for 864 fiber cable and above.FOSC 400 - __ __ /FR - __ __ - __ - __ __ __Complete closure including all components to terminate and seal two cable ends in oval port.SizeB4 or D5Capacity of each splice trayB4 closure options are 12, 16 or 24 D5 closure options are 36, 48 or 72. NT = indicates no trays Valve for flash testing included with all FR closures.External groundingG - ground lug(s) providedN - noneCable blocking is Not available with these closures.Number of trays pre-installed in closure. Standard options are 0 or 1.Ordering InformationVisit our website or contact your local CommScope representative for more information.© 2015 CommScope, Inc. All rights reserved.FOSC and all trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope, Inc. This document is for planning purposes only and is not intended to modify or supplement any specifications or warranties。
PROYER 400 发热保温冒口套
Exothermic and Insulating Sleeve for Foundry
China Foundry Consumables(Qingdao) Co.,Ltd No.717 West Hongkong Road Jiaozhou City Qingdao Tel:+86 (0) 532 85212718 Fax:+86（0）532-85212719 中福铸造材料（青岛）有限公司 青岛胶州市香港西路717号 电话：+86（0）532-85212718 简介：
Proyer 400 发热保温冒口套由多种原料经过特定工艺制成，具有中强发热、优良保温的特点。
冒口形状有直桶、缩颈、斜颈等。
适用于各种牌号的铸钢、铸铁件。
可以应用于各种造型工艺。
其中缩颈式冒口除了有优良的发热保温性能外，还可以大大减小冒口切割和打磨的面积，降低清理成本；斜颈式冒口在具备上述两种形式冒口性能外，主要应用在铸件倾斜表面上，如破碎机的砸臼壁和破碎壁。
供货状态下的技术参数如下：
性质：中强发热、低密度，确保在铸件凝固时有卓越的补缩性能。
颜色：褐黄色 密度：0.7 g/cc 特点：
z 选用优质原料和科学配比精心制成，发热中强，不对钢水产生激冷作用，保温性能好。
z 耐火度高，冒口不涨大变形。
发气量低，透气性好。
z 完善的原料和产品检测体系确保产品质量稳定性好。
z 可以根据客户不同生产工艺提供使用方案。
z
强度好，能过满足树脂自硬砂、水玻璃砂等造型工艺的要求。
使用：
1． 根据具体铸件计算其模数、需要的补缩液量和补缩距离。
2． 计算出所需冒口的模数、液量和数量。
3． 从附表中选择合适型号的冒口。
其中有效模数为该冒口套在正常情况下能够达到的最大模数，几何模数
为同尺寸砂型冒口的模数。
PROYER 400 发热保温冒口套
Exothermic and Insulating Sleeve for Foundry
China Foundry Consumables(Qingdao) Co.,Ltd No.717 West Hongkong Road Jiaozhou City Qingdao Tel:+86 (0) 532 85212718 Fax:+86（0）532-85212719 中福铸造材料（青岛）有限公司 青岛胶州市香港西路717号 电话：+86（0）532-85212718
Proyer 400 发热保温直桶式冒口参数表
冒口规格 几何模数cm 有效模数cm 容积cc Do (mm) do (mm) H (mm) 包装
（个/包）
150x150 2.50 3.58 2649 195 150 150 4 180x180 3.00 4.29 4578 230 180 180 4 200x200 3.33 4.77 6280 250 200 200 4 225x225 3.75 5.36 8942 275 225 225 4 250x250 4.17 6.04 12266 305 250 250 4 275x275 4.58 6.65 16326 330 275 275 1 300x300 5.00 7.25 21195 360 300 300 1 325x163 4.07 5.90 13515 385 325 163 1
5.42 7.85 26948 385 325 326 350x175 4.38
6.13 16828 415 350 175 1
5.83 8.17 33657 415 350 350 375x188 4.69
6.57 20753 440 375 188 1
6.25 8.75 41369 440 375 374 400x200 5.00
7.00 25120 465 400 200 1 6.67
9.33
50240
465
400
400
Proyer 400 发热保温缩颈式冒口参数表
规格 几何模数 有效模数 各部尺寸 mm 容积 包装 Proyer400 RND cm Cm
Du
N Do do H
h dm3 个/包150 2.66 3.86 1308019315018668 2.81 4 180 3.06 4.44 1358822217521283 4.27 4 200 3.48 5.04 15010025020023892 6.27 4 225 3.83 5.76 162110276225278100 9.37 4 250 4.39 6.15 183125308253296110 12.55 4 275 4.82 6.75 205137338275330120 16.62 1 300 5.23 7.32 210145360300360136 21.34 1 350 3.34 4.68 235180410350155150 9.04 1 400 3.69 5.17 260205452400170170 12.77 1 500 4.40 6.16
310
250
560500
200
200
23.10
1
PROYER 400 发热保温冒口套
Exothermic and Insulating Sleeve for Foundry
China Foundry Consumables(Qingdao) Co.,Ltd No.717 West Hongkong Road Jiaozhou City Qingdao Tel:+86 (0) 532 85212718 Fax:+86（0）532-85212719 中福铸造材料（青岛）有限公司 青岛胶州市香港西路717号 电话：+86（0）532-85212718
Proyer 400 发热保温斜颈式冒口参数表
规格 几何模
数
有效模数 各部名义尺寸 mm 容积
包装 Proyer400 AND cm
cm do T(max)T(min)H h
N dm3 个/包 150 3.13 4.23 154.2 22.0 18.0 307.4 207.8 75.3 5.23 4 180 3.51 4.74 178.1 22.0 18.0 309.4 195.9 86.3 6.94 4 200 3.86 5.20 203.2 28.0 22.0 304.8 204.7 101.6 8.73 4 225 4.27 5.76 231.5 28.0 22.0 314.1 176.3 113.6 11.55 4 250 4.60 6.21 256.3 31.5 23.5 316.1 158.3 102.3 14.06 4 300 5.15 6.95 308.3 34.0 26.0 311.9 141.3 120.6 19.38 1 350 5.75
7.76 362.0 37.5 27.5 325.0
119.8
137.6
27.14
1
储运： 小心轻放。
存放于阴凉、干燥、通风处。
切忌受潮和受热，使用前才能打开内包装。
保质期：12个月
声明：该资料是我公司目前所掌握的上述产品的技术性能。
本公司不承担任何由于选择和使用本产品不当而造
成的损失，产品质量问题引起的索赔仅限于换货。
