赛默飞(thermofisher)X2 ICP-MS 电感耦合等离子体质谱技术参数品牌：赛默飞(thermofisher) 型号：X2 价格（含税价）：120万 1 货物名称：电感耦合等离子体质谱仪 2 生产地：德国 3主要用途：适用于应用领域广泛的各种样品的元素分析和同位素分析任务，包括生活饮用水、食品和（血液）生物样品等。
4 工作条件： 3.1 温度: 15℃～30℃ 3.2 相对湿度: ＜80％ 3.3 电源：220 V (±10％)，单相，50Hz (±1％) 5 电感耦合等离子体质谱主要技术指标5.1仪器硬件要求 5.1.1 雾化器：PFA-ST MicroFlow雾化器。
5.1.2 雾化室：小体积的撞击球或旋流型雾化室。
*5.1.3 接口：拥有两种不同类型的接口技术，截取锥口径必须>0.6 mm。
5.1.4 质量流量计：有等离子体气，辅助气，雾化气三路质量流量计 *5.1.5 ICP 源：固体晶体稳频RF 发生器，频率27.12 MHz，稳定性<±0.01% 5.1.6 RF功率稳定性<0.01% *5.1.7 真空系统：要求从大气压开始抽至可工作的真空度的时间小于30分-8钟。
滑动阀关闭后，静态真空度维持在<6×10mbar(滑阀关闭)，要求提供证明文件。
5.1.8 离子光学：离轴四极杆质谱仪系统。
*5.1.9 四极杆：纯Mo质四极杆。
*5.1.10 质谱仪要求是的免拆洗系统，透镜系统（包括提取透镜和偏转透镜或其它透镜组件以及碰撞反应池）均为免维护清洗，且非消耗品，在使用过程中无需任何定期清洗维护工作。
5.1.11 如果仪器的离子透镜以及碰撞反应池组件需要定期维护或定期更换，请提供额外的离子透镜组或者碰撞反应池组件备品至少1套，以满足仪器日常分析不停机工作的需要。
5.1.12 等离子体炬位调整: 由计算机三维(X,Y, Z 方向)控制。
费斯托真空发生器型号：526102 VN-05-H-T2-PI2-VI2-RI2 526104 VN-05-H-T2-PI2-VI2-RO1 193569 VN-05-H-T2-PQ1-VQ1-RO1 526100 VN-05-H-T2-PQ1-VQ1-RQ1 193498 VN-05-H-T3-PI4-VI4-RI4 193507 VN-05-H-T3-PI4-VI4-RO1 537225 VN-05-H-T3-PI4-VI4-RO1-A 193526 VN-05-H-T3-PQ2-V A4-RO1 193516 VN-05-H-T3-PQ2-V A4-RQ2 193488 VN-05-H-T3-PQ2-VQ2-RO1 532620 VN-05-H-T3-PQ2-VQ2-RO1-A 193478 VN-05-H-T3-PQ2-VQ2-RQ2 536796 VN-05-H-T4-PQ2-VQ2-O1-P 536797 VN-05-H-T4-PQ2-VQ2-O2-P 193580 VN-05-M-I2-PQ1-VQ1 193587 VN-05-M-I2-PQ1-VT1 193552 VN-05-M-I3-PQ2-VQ2 532624 VN-05-M-I3-PQ2-VQ2-A 193555 VN-05-M-I3-PQ2-VT2 526110 VN-05-M-T2-PI2-VI2-RI2 526112 VN-05-M-T2-PI2-VI2-RO1 526108 VN-05-M-T2-PQ1-VQ1-RO1 526106 VN-05-M-T2-PQ1-VQ1-RQ1 193544 VN-05-M-T3-PI4-VI4-RI4 193548 VN-05-M-T3-PI4-VI4-RO1 193540 VN-05-M-T3-PQ2-VQ2-RO1 193536 VN-05-M-T3-PQ2-VQ2-RQ2 526116 VN-05-L-T2-PI2-VI2-RI2 526118 VN-05-L-T2-PI2-VI2-RO1 193595 VN-05-L-T2-PQ1-VQ1-RO1 526114 VN-05-L-T2-PQ1-VQ1-RQ1 193581 VN-05-L-T3-PI4-VI4-RI4 193590 VN-05-L-T3-PI4-VI4-RO1 537226 VN-05-L-T3-PI4-VI4-RO1-A 193609 VN-05-L-T3-PQ2-V A4-RO1 193599 VN-05-L-T3-PQ2-V A4-RQ2 193571 VN-05-L-T3-PQ2-VQ2-RO1 193561 VN-05-L-T3-PQ2-VQ2-RQ2 536798 VN-05-L-T4-PQ2-VQ2-O1-P 536799 VN-05-L-T4-PQ2-VQ2-O2-P 193635 VN-05-N-I3-PQ2-VQ2 532625 VN-05-N-I3-PQ2-VQ2-A 193637 VN-05-N-I3-PQ2-VT2193627 VN-05-N-T3-PI4-VI4-RI4 193631 VN-05-N-T3-PI4-VI4-RO1 193623 VN-05-N-T3-PQ2-VQ2-RO1 193619 VN-05-N-T3-PQ2-VQ2-RQ2 526103 VN-07-H-T2-PI2-VI2-RI2 526105 VN-07-H-T2-PI2-VI2-RO1 193570 VN-07-H-T2-PQ1-VQ1-RO1 526101 VN-07-H-T2-PQ1-VQ1-RQ1 193499 VN-07-H-T3-PI4-VI4-RI4 193508 VN-07-H-T3-PI4-VI4-RO1 532632 VN-07-H-T3-PI4-VI4-RO1-A 193527 VN-07-H-T3-PQ2-V A4-RO1 193517 VN-07-H-T3-PQ2-V A4-RQ2 193489 VN-07-H-T3-PQ2-VQ2-RO1 532628 VN-07-H-T3-PQ2-VQ2-RO1-A 193479 VN-07-H-T3-PQ2-VQ2-RQ2 536800 VN-07-H-T4-PQ2-VQ2-O1-P 536801 VN-07-H-T4-PQ2-VQ2-O2-P 193586 VN-07-M-I2-PQ1-VQ1 193588 VN-07-M-I2-PQ1-VT1 193553 VN-07-M-I3-PQ2-VQ2 532634 VN-07-M-I3-PQ2-VQ2-A 193556 VN-07-M-I3-PQ2-VT2 526111 VN-07-M-T2-PI2-VI2-RI2 526113 VN-07-M-T2-PI2-VI2-RO1 526109 VN-07-M-T2-PQ1-VQ1-RO1 526107 VN-07-M-T2-PQ1-VQ1-RQ1 193545 VN-07-M-T3-PI4-VI4-RI4 193549 VN-07-M-T3-PI4-VI4-RO1 193541 VN-07-M-T3-PQ2-VQ2-RO1 193537 VN-07-M-T3-PQ2-VQ2-RQ2 193582 VN-07-L-T3-PI4-VI4-RI4 193591 VN-07-L-T3-PI4-VI4-RO1 532633 VN-07-L-T3-PI4-VI4-RO1-A 193610 VN-07-L-T3-PQ2-V A4-RO1 193600 VN-07-L-T3-PQ2-V A4-RQ2 193572 VN-07-L-T3-PQ2-VQ2-RO1 532629 VN-07-L-T3-PQ2-VQ2-RO1-A 193562 VN-07-L-T3-PQ2-VQ2-RQ2 536802 VN-07-L-T4-PQ2-VQ2-O1-P 536803 VN-07-L-T4-PQ2-VQ2-O2-P 532635 VN-07-N-I3-PQ2-VQ2-A 193500 VN-10-H-T3-PI4-VI4-RI4 193509 VN-10-H-T3-PI4-VI4-RO1193528 VN-10-H-T3-PQ2-V A4-RO1 193518 VN-10-H-T3-PQ2-V A4-RQ2 193490 VN-10-H-T3-PQ2-VQ2-RO1 532638 VN-10-H-T3-PQ2-VQ2-RO1-A 193480 VN-10-H-T3-PQ2-VQ2-RQ2 549252 VN-10-H-T4-PQ2-V A5-RO2 526153 VN-10-H-T4-PQ2-V A5-RQ3 536804 VN-10-H-T4-PQ2-VQ2-O1-P 536805 VN-10-H-T4-PQ2-VQ2-O2-P 549251 VN-10-H-T4-PQ2-VQ3-RO2 526147 VN-10-H-T4-PQ2-VQ3-RQ3 193554 VN-10-M-I3-PQ2-VQ2 543315 VN-10-L-T3-PI4-V A4-RO1 193583 VN-10-L-T3-PI4-VI4-RI4 193592 VN-10-L-T3-PI4-VI4-RO1 532643 VN-10-L-T3-PI4-VI4-RO1-A 193611 VN-10-L-T3-PQ2-V A4-RO1 193601 VN-10-L-T3-PQ2-V A4-RQ2 193573 VN-10-L-T3-PQ2-VQ2-RO1 532639 VN-10-L-T3-PQ2-VQ2-RO1-A 193563 VN-10-L-T3-PQ2-VQ2-RQ2 549254 VN-10-L-T4-PQ2-V A5-RO2 526163 VN-10-L-T4-PQ2-V A5-RQ3 536806 VN-10-L-T4-PQ2-VQ2-O1-P 536807 VN-10-L-T4-PQ2-VQ2-O2-P 549253 VN-10-L-T4-PQ2-VQ3-RO2 526157 VN-10-L-T4-PQ2-VQ3-RQ3 193502 VN-14-H-T4-PI4-VI5-RI5 547705 VN-14-H-T4-PI4-VI5-RO2 532719 VN-14-H-T4-PI5-VI5-RO2-A 547706 VN-14-H-T4-PQ2-V A5-RO2 193520 VN-14-H-T4-PQ2-V A5-RQ3 547707 VN-14-H-T4-PQ2-VQ3-RO2 193482 VN-14-H-T4-PQ2-VQ3-RQ3 532646 VN-14-H-T4-PQ3-VQ3-RO2-A 193585 VN-14-L-T4-PI4-VI5-RI5 547708 VN-14-L-T4-PI4-VI5-RO2 532720 VN-14-L-T4-PI5-VI5-RO2-A 547709 VN-14-L-T4-PQ2-V A5-RO2 193603 VN-14-L-T4-PQ2-V A5-RQ3 547710 VN-14-L-T4-PQ2-VQ3-RO2 193565 VN-14-L-T4-PQ2-VQ3-RQ3 532647 VN-14-L-T4-PQ3-VQ3-RO2-A526145 VN-20-H-T6-PQ4-V A5-RO2 193495 VN-20-H-T6-PQ4-VQ5-RO2 526131 VN-20-L-T6-PI5-VI6-RO2 526135 VN-20-L-T6-PQ4-V A5-RO2 193578 VN-20-L-T6-PQ4-VQ5-RO2 526142 VN-30-H-T6-PI5-VI6-RO2 526146 VN-30-H-T6-PQ4-V A5-RO2 193497 VN-30-H-T6-PQ4-VQ5-RO2 526132 VN-30-L-T6-PI5-VI6-RO2 526136 VN-30-L-T6-PQ4-V A5-RO2费斯托气缸DNCB-32- -PPV-ADNCB-32-25-PPV-ADNCB-32-40-PPV-ADNCB-32-50-PPV-ADNCB-32-80-PPV-ADNCB-32-100-PPV-ADNCB-32-125-PPV-ADNCB-32-160-PPV-ADNCB-32-200-PPV-ADNCB-32-250-PPV-ADNCB-32-320-PPV-ADNCB-32-400-PPV-ADNCB-32-500-PPV-ADNCB-40- -PPV-ADNCB-40-25-PPV-ADNCB-40-40-PPV-ADNCB-40-80-PPV-A DNCB-40-100-PPV-A DNCB-40-125-PPV-A DNCB-40-160-PPV-A DNCB-40-200-PPV-A DNCB-40-250-PPV-A DNCB-40-320-PPV-A DNCB-40-400-PPV-A DNCB-40-500-PPV-A DNCB-50- -PPV-A DNCB-50-25-PPV-A DNCB-50-40-PPV-A DNCB-50-50-PPV-A DNCB-50-80-PPV-A DNCB-50-100-PPV-A DNCB-50-125-PPV-A DNCB-50-160-PPV-A DNCB-50-200-PPV-A DNCB-50-250-PPV-A DNCB-50-320-PPV-A DNCB-50-400-PPV-A DNCB-50-500-PPV-A DNCB-63- -PPV-ADNCB-63-40-PPV-A DNCB-63-50-PPV-A DNCB-63-80-PPV-A DNCB-63-100-PPV-A DNCB-63-125-PPV-A DNCB-63-160-PPV-A DNCB-63-200-PPV-A DNCB-63-250-PPV-A DNCB-63-320-PPV-A DNCB-63-400-PPV-A DNCB-63-500-PPV-A DNCB-80- -PPV-A DNCB-80-25-PPV-A DNCB-80-40-PPV-A DNCB-80-50-PPV-A DNCB-80-80-PPV-A DNCB-80-100-PPV-A DNCB-80-125-PPV-A DNCB-80-160-PPV-A DNCB-80-200-PPV-A DNCB-80-250-PPV-A DNCB-80-320-PPV-A DNCB-80-400-PPV-ADNCB-100- -PPV-A DNCB-100-25-PPV-A DNCB-100-40-PPV-A DNCB-100-50-PPV-A DNCB-100-80-PPV-A DNCB-100-100-PPV-A DNCB-100-125-PPV-A DNCB-100-160-PPV-A DNCB-100-200-PPV-A DNCB-100-250-PPV-A DNCB-100-320-PPV-A DNCB-100-400-PPV-A DNCB-100-500-PPV-A 德国FESTO标准气缸：DNC-32-25-PPVDNC-32-25-PPV-A DNC-32-40-PPVDNC-32-40-PPV-A DNC-32-50-PPVDNC-32-50-PPV-A DNC-32-80-PPVDNC-32-80-PPV-A DNC-32-100-PPVDNC-32-125-PPV DNC-32-125-PPV-A DNC-32-160-PPV DNC-32-160-PPV-A DNC-32-200-PPV DNC-32-200-PPV-A DNC-32-250-PPV DNC-32-250-PPV-A DNC-32-320-PPV DNC-32-320-PPV-A DNC-32-400-PPV DNC-32-400-PPV-A DNC-32-500-PPV DNC-32-500-PPV-A DNC-40- -PPV-A DNC-40-25-PPV DNC-40-25-PPV-A DNC-40-40-PPV DNC-40-40-PPV-A DNC-40-50-PPV DNC-40-50-PPV-A DNC-40-80-PPV DNC-40-80-PPV-ADNC-40-100-PPV-A DNC-40-125-PPV DNC-40-125-PPV-A DNC-40-160-PPV DNC-40-160-PPV-A DNC-40-200-PPV DNC-40-200-PPV-A DNC-40-250-PPV DNC-40-250-PPV-A DNC-40-320-PPV DNC-40-320-PPV-A DNC-40-400-PPV DNC-40-400-PPV-A DNC-40-500-PPV DNC-40-500-PPV-A DNC-50-25-PPV DNC-50-25-PPV-A DNC-50-40-PPV DNC-50-40-PPV-A DNC-50-50-PPV DNC-50-50-PPV-A DNC-50-80-PPV DNC-50-80-PPV-ADNC-50-100-PPV-A DNC-50-125-PPV DNC-50-125-PPV-A DNC-50-160-PPV DNC-50-160-PPV-A DNC-50-200-PPV DNC-50-200-PPV-A DNC-50-250-PPV DNC-50-250-PPV-A DNC-50-320-PPV DNC-50-320-PPV-A DNC-50-400-PPV DNC-50-400-PPV-A DNC-50-500-PPV DNC-63-25-PPV DNC-63-25-PPV-A DNC-63-40-PPV DNC-63-40-PPV-A DNC-63-50-PPV DNC-63-50-PPV-A DNC-63-80-PPV DNC-63-80-PPV-A DNC-63-100-PPVDNC-63-125-PPV DNC-63-125-PPV-A DNC-63-160-PPV DNC-63-160-PPV-A DNC-63-200-PPV DNC-63-200-PPV-A DNC-63-250-PPV DNC-63-250-PPV-A DNC-63-320-PPV DNC-63-320-PPV-A DNC-63-400-PPV DNC-63-400-PPV-A DNC-63-500-PPV DNC-63-500-PPV-A DNC-80-25-PPV DNC-80-25-PPV-A DNC-80-40-PPV DNC-80-40-PPV-A DNC-80-50-PPV DNC-80-50-PPV-A DNC-80-80-PPV DNC-80-80-PPV-A DNC-80-100-PPVDNC-80-125-PPV DNC-80-125-PPV-A DNC-80-160-PPV DNC-80-160-PPV-A DNC-80-200-PPV DNC-80-200-PPV-A DNC-80-250-PPV DNC-80-250-PPV-A DNC-80-320-PPV DNC-80-320-PPV-A DNC-80-400-PPV DNC-80-400-PPV-A DNC-80-500-PPV DNC-80-500-PPV-A DNC-100-25-PPV DNC-100-25-PPV-A DNC-100-40-PPV DNC-100-40-PPV-A DNC-100-50-PPV DNC-100-50-PPV-A DNC-100-80-PPV DNC-100-80-PPV-A DNC-100-100-PPVDNC-100-125-PPV DNC-100-125-PPV-A DNC-100-160-PPV DNC-100-160-PPV-A DNC-100-200-PPV DNC-100-200-PPV-A DNC-100-250-PPV DNC-100-250-PPV-A DNC-100-320-PPV DNC-100-320-PPV-A DNC-100-400-PPV DNC-100-400-PPV-A DNC-100-500-PPV DNC-100-500-PPV-A DNC-125-25-PPV DNC-125-25-PPV-A DNC-125-40-PPV DNC-125-40-PPV-A DNC-125-50-PPV DNC-125-50-PPV-A DNC-125-80-PPV DNC-125-80-PPV-A DNC-125-100-PPVDNC-125-125-PPVDNC-125-125-PPV-A DNC-125-160-PPVDNC-125-160-PPV-A DNC-125-200-PPVDNC-125-200-PPV-A DNC-125-250-PPVDNC-125-250-PPV-A DNC-125-320-PPVDNC-125-320-PPV-A DNC-125-400-PPVDNC-125-400-PPV-A DNC-125-500-PPVDNC-125-500-PPV-A DNC-32- -PPV-A-C180 DNC-32-50-PPV-A-C180 DNC-32-80-PPV-A-C180 DNC-32-100-PPV-A-C180 DNC-32-125-PPV-A-C180 DNC-32-160-PPV-A-C180 DNC-32-200-PPV-A-C180 DNC-32-250-PPV-A-C180 DNC-32-320-PPV-A-C180DNC-40-50-PPV-A-C180 DNC-40-80-PPV-A-C180 DNC-40-100-PPV-A-C180 DNC-40-125-PPV-A-C180 DNC-40-160-PPV-A-C180 DNC-40-200-PPV-A-C180 DNC-40-250-PPV-A-C180 DNC-40-320-PPV-A-C180 DNC-50- -PPV-A-C180 DNC-50-50-PPV-A-C180 DNC-50-80-PPV-A-C180 DNC-50-100-PPV-A-C180 DNC-50-125-PPV-A-C180 DNC-50-160-PPV-A-C180 DNC-50-200-PPV-A-C180 DNC-50-250-PPV-A-C180 DNC-50-320-PPV-A-C180 DNC-63- -PPV-A-C180 DNC-63-50-PPV-A-C180 DNC-63-80-PPV-A-C180 DNC-63-100-PPV-A-C180 DNC-63-125-PPV-A-C180 DNC-63-160-PPV-A-C180DNC-63-250-PPV-A-C180 DNC-63-320-PPV-A-C180 DNC-80- -PPV-A-C180 DNC-80-50-PPV-A-C180 DNC-80-80-PPV-A-C180 DNC-80-100-PPV-A-C180 DNC-80-125-PPV-A-C180 DNC-80-160-PPV-A-C180 DNC-80-200-PPV-A-C180 DNC-80-250-PPV-A-C180 DNC-80-320-PPV-A-C180 DNC-100- -PPV-A-C180 DNC-100-50-PPV-A-C180 DNC-100-80-PPV-A-C180 DNC-100-100-PPV-A-C180 DNC-100-125-PPV-A-C180 DNC-100-160-PPV-A-C180 DNC-100-200-PPV-A-C180 DNC-100-250-PPV-A-C180 DNC-100-320-PPV-A- DNC-32-25-PPVDNC-32-25-PPV-ADNC-32-40-PPVDNC-32-50-PPV DNC-32-50-PPV-A DNC-32-80-PPV DNC-32-80-PPV-A DNC-32-100-PPV DNC-32-100-PPV-A DNC-32-125-PPV DNC-32-125-PPV-A DNC-32-160-PPV DNC-32-160-PPV-A DNC-32-200-PPV DNC-32-200-PPV-A DNC-32-250-PPV DNC-32-250-PPV-A DNC-32-320-PPV DNC-32-320-PPV-A DNC-32-400-PPV DNC-32-400-PPV-A DNC-32-500-PPV DNC-32-500-PPV-A DNC-40-25-PPV DNC-40-25-PPV-A DNC-40-40-PPVDNC-40-50-PPV DNC-40-50-PPV-A DNC-40-80-PPV DNC-40-80-PPV-A DNC-40-100-PPV DNC-40-100-PPV-A DNC-40-125-PPV DNC-40-125-PPV-A DNC-40-160-PPV DNC-40-160-PPV-A DNC-40-200-PPV DNC-40-200-PPV-A DNC-40-250-PPV DNC-40-250-PPV-A DNC-40-320-PPV DNC-40-320-PPV-A DNC-40-400-PPV双DNC-40-400-PPV-A DNC-40-500-PPV DNC-40-500-PPV-A DNC-50-25-PPV DNC-50-25-PPV-A DNC-50-40-PPVDNC-50-50-PPV DNC-50-50-PPV-A DNC-50-80-PPV DNC-50-80-PPV-A DNC-50-100-PPV DNC-50-100-PPV-A DNC-50-125-PPV DNC-50-125-PPV-A DNC-50-160-PPV DNC-50-160-PPV-A DNC-50-200-PPV DNC-50-200-PPV-A DNC-50-250-PPV DNC-50-250-PPV-A DNC-50-320-PPV DNC-50-320-PPV-A DNC-50-400-PPV DNC-50-400-PPV-A DNC-50-500-PPV DNC-50-500-PPV-A DNC-63-25-PPV DNC-63-25-PPV-A DNC-63-40-PPVDNC-63-50-PPV DNC-63-50-PPV-A DNC-63-80-PPV DNC-63-80-PPV-A DNC-63-100-PPV DNC-63-100-PPV-A DNC-63-125-PPV DNC-63-125-PPV-A DNC-63-160-PPV DNC-63-160-PPV-A DNC-63-200-PPV DNC-63-200-PPV-A DNC-63-250-PPV DNC-63-250-PPV-A DNC-63-320-PPV DNC-63-320-PPV-A DNC-63-400-PPV DNC-63-400-PPV-A DNC-63-500-PPV DNC-63-500-PPV-A DNC-80-25-PPV DNC-80-25-PPV-A DNC-80-40-PPVDNC-80-50-PPV DNC-80-50-PPV-A DNC-80-80-PPV DNC-80-80-PPV-A DNC-80-100-PPV DNC-80-100-PPV-A DNC-80-125-PPV DNC-80-125-PPV-A DNC-80-160-PPV DNC-80-160-PPV-A DNC-80-200-PPV DNC-80-200-PPV-A DNC-80-250-PPV DNC-80-250-PPV-A DNC-80-320-PPV DNC-80-320-PPV-A DNC-80-400-PPV DNC-80-400-PPV-A DNC-80-500-PPV DNC-80-500-PPV-A DNC-100-25-PPV DNC-100-25-PPV-A DNC-100-40-PPVDNC-100-50-PPV DNC-100-50-PPV-A DNC-100-80-PPV DNC-100-80-PPV-A DNC-100-100-PPV DNC-100-100-PPV-A DNC-100-125-PPV DNC-100-125-PPV-A DNC-100-160-PPV DNC-100-160-PPV-A DNC-100-200-PPV DNC-100-250-PPV DNC-100-250-PPV-A DNC-100-320-PPV DNC-100-320-PPV-A DNC-100-400-PPV DNC-100-400-PPV-A DNC-100-500-PPV DNC-100-500-PPV-A DNC-125-25-PPV DNC-125-25-PPV-A DNC-125-40-PPV DNC-125-40-PPV-ADNC-125-50-PPV-ADNC-125-80-PPVDNC-125-80-PPV-ADNC-125-100-PPVDNC-125-100-PPV-A DNC-125-125-PPVDNC-125-125-PPV-A DNC-125-160-PPVDNC-125-160-PPV-A DNC-125-200-PPVDNC-125-200-PPV-A DNC-125-250-PPVDNC-125-250-PPV-A DNC-125-320-PPVDNC-125-320-PPV-A DNC-125-400-PPVDNC-125-400-PPV-A DNC-125-500-PPVDNC-125-500-PPV-A DNC-32-50-PPV-ADNC-32-80-PPV-A-C180 DNC-32-100-PPV-A-C180 DNC-32-125-PPV-A-C180DNC-32-200-PPV-A-C180 DNC-32-250-PPV-A-C180 DNC-32-320-PPV-A-C180 DNC-40- -PPV-A-C180 DNC-40-50-PPV-A-C180 DNC-40-80-PPV-A-C180 DNC-40-100-PPV-A-C180 DNC-40-125-PPV-A-C180 DNC-40-160-PPV-A-C180 DNC-40-200-PPV-A-C180 DNC-40-250-PPV-A-C180 DNC-40-320-PPV-A-C180 DNC-50- -PPV-A-C180 DNC-50-50-PPV-A-C180 DNC-50-80-PPV-A-C180 DNC-50-100-PPV-A-C180 DNC-50-125-PPV-A-C180 DNC-50-160-PPV-A-C180 DNC-50-200-PPV-A-C180 DNC-50-250-PPV-A-C180 DNC-50-320-PPV-A-C180 DNC-63- -PPV-A-C180 DNC-63-50-PPV-A-C180DNC-63-100-PPV-A-C180 DNC-63-125-PPV-A-C180 DNC-63-160-PPV-A-C180 DNC-63-200-PPV-A-C180 DNC-63-250-PPV-A-C180 DNC-63-320-PPV-A-C180 DNC-80- -PPV-A-C180 DNC-80-50-PPV-A-C180 DNC-80-80-PPV-A-C180 DNC-80-100-PPV-A-C180 DNC-80-125-PPV-A-C180 DNC-80-160-PPV-A-C180 DNC-80-200-PPV-A-C180 DNC-80-250-PPV-A-C180 DNC-80-320-PPV-A-C180 DNC-100- -PPV-A-C180 DNC-100-50-PPV-A-C180 DNC-100-80-PPV-A-C180 DNC-100-100-PPV-A-C180 DNC-100-125-PPV-A-C180 DNC-100-160-PPV-A-C180 DNC-100-200-PPV-A-C180 DNC-100-250-PPV-A-C180费斯托真空元件DNG-160- -PPV-ADNG-160- -PPV-A-S2 DNG-160- -PPV-A-S6 DNG-200- -PPV-ADNG-200- -PPV-A-S2 DNG-200- -PPV-A-S6 DNG-250- -PPV-ADNG-250- -PPV-A-S2 DNG-250- -PPV-A-S6 DNG-320- -PPV-ADNG-320- -PPV-A-S2 DNG-320- -PPV-A-S6 DNGZK-160- -PPV-A DNGZK-160- -PPV-A-S6 DNGZK-200- -PPV-A DNGZK-200- -PPV-A-S6 DNG-32- -PPV-ADNG-32- -PPV-A-S2 DNG-32- -PPV-A-S3 DNG-32- -PPV-A-S6 DNG-32- -PPV-A-S8 DNG-32-25-PPV-ADNG-32-50-PPV-A DNG-32-80-PPV-A DNG-32-100-PPV-A DNG-32-125-PPV-A DNG-32-160-PPV-A DNG-32-200-PPV-A DNG-32-250-PPV-A DNG-32-320-PPV-A DNG-32-400-PPV-A DNG-32-500-PPV-A DNG-40- -PPV-A DNG-40- -PPV-A-S2 DNG-40- -PPV-A-S3 DNG-40- -PPV-A-S6 DNG-40- -PPV-A-S8 DNG-40-25-PPV-A DNG-40-40-PPV-A DNG-40-50-PPV-A DNG-40-80-PPV-A DNG-40-100-PPV-A DNG-40-125-PPV-A DNG-40-160-PPV-A DNG-40-200-PPV-ADNG-40-320-PPV-A DNG-40-400-PPV-A DNG-40-500-PPV-A DNG-50- -PPV- DNG-50- -PPV-A-S6 DNG-50- -PPV-A-S8 DNG-50-25-PPV-A DNG-50-40-PPV-A DNG-50-50-PPV-A DNG-50-80-PPV-A DNG-50-100-PPV-A DNG-50-125-PPV-A DNG-50-160-PPV-A DNG-50-200-PPV-A DNG-50-250-PPV-A DNG-50-320-PPV-A DNG-50-400-PPV-A DNG-50-500-PPV-A DNG-63- -PPV-A DNG-63- -PPV-A-S2 DNG-63- -PPV-A-S3 DNG-63- -PPV-A-S6 DNG-63- -PPV-A-S8DNG-63-40-PPV-A DNG-63-50-PPV-A DNG-63-80-PPV-A DNG-63-100-PPV-A DNG-63-125-PPV-A DNG-63-160-PPV-A DNG-63-200-PPV-A DNG-63-250-PPV-A DNG-63-320-PPV-A DNG-63-400-PPV-A DNG-63-500-PPV-A DNG-80- -PPV-A DNG-80- -PPV-A-S2 DNG-80- -PPV-A-S3 DNG-80- -PPV-A-S6 DNG-80- -PPV-A-S8 DNG-80-25-PPV-A DNG-80-40-PPV-A DNG-80-50-PPV-A DNG-80-80-PPV-A DNG-80-100-PPV-A DNG-80-125-PPV-A DNG-80-160-PPV-ADNG-80-250-PPV-A DNG-80-320-PPV-A DNG-80-400-PPV-A DNG-80-500-PPV-A 5DNG-100- -PPV-A DNG-100- -PPV-A-S2 DNG-100- -PPV-A-S3 DNG-100- -PPV-A-S6 DNG-100- -PPV-A-S8 DNG-100-25-PPV-A DNG-100-40-PPV-A DNG-100-50-PPV-A DNG-100-80-PPV-A DNG-100-100-PPV-A DNG-100-125-PPV-A DNG-100-160-PPV-A DNG-100-200-PPV-A DNG-100-250-PPV-A DNG-100-320-PPV-A DNG-100-400-PPV-A DNG-100-500-PPV-A DNG-125- -PPV-A DNG-125- -PPV-A-S2DNG-125- -PPV-A-S6 DNG-125- -PPV-A-S8 DNG-125-25-PPV-A DNG-125-40-PPV-A DNG-125-50-PPV-A DNG-125-80-PPV-A DNG-125-100-PPV-A DNG-125-125-PPV-A DNG-125-160-PPV-A DNG-125-200-PPV-A DNG-125-250-PPV-A DNG-125-320-PPV-A DNG-125-400-PPV-A DNG-125-500-PPV-A DNG-160- -PPV-A-S3 DNG-160- -PPV-A-S8 DNG-200- -PPV-A-S3 DNG-200- -PPV-A-S8 DNG-250- -PPV-A-S3 DNG-250- -PPV-A-S8 DNG-320- -PPV-A-S3 DNG-320- -PPV-A-S8 DNGL-32- -PPV-ADNGL-32- -PPV-A-S6 DNGL-40- -PPV-A DNGL-40- -PPV-A-S2 DNGL-40- -PPV-A-S6 DNGL-50- -PPV-A DNGL-50- -PPV-A-S2 DNGL-50- -PPV-A-S6 DNGL-63- -PPV-A DNGL-63- -PPV-A-S2 DNGL-63- -PPV-A-S6 DNGL-80- -PPV-A DNGL-80- -PPV-A-S2 DNGL-80- -PPV-A-S6 DNGL-100- -PPV-A DNGL-100- -PPV-A-S2 DNGL-100- -PPV-A-S6 DNGLZ-32- -PPV-A DNGLZ-32- -PPV-A-S6 DNGLZ-40- -PPV-A DNGLZ-40- -PPV-A-S6 DNGLZ-50- -PPV-A DNGLZ-50- -PPV-A-S6 DNGLZ-63- -PPV-ADNGLZ-80- -PPV-A DNGLZ-80- -PPV-A-S6 DNGLZ-100- -PPV-A DNGLZ-100- -PPV-A-S6 DNGZK-32- -PPV-A DNGZK-32- -PPV-A-S3 DNGZK-32- -PPV-A-S6 DNGZK-32- -PPV-A-S8 DNGZK-32-40-PPV-A DNGZK-32-50-PPV-A DNGZK-32-80-PPV-A DNGZK-32-100-PPV-A DNGZK-32-125-PPV-A DNGZK-32-160-PPV-A DNGZK-32-200-PPV-A DNGZK-32-250-PPV-A DNGZK-32-320-PPV-A DNGZK-32-400-PPV-A DNGZK-32-500-PPV-A DNGZK-40- -PPV-A DNGZK-40- -PPV-A-S3 DNGZK-40- -PPV-A-S6 DNGZK-40- -PPV-A-S8DNGZK-40-50-PPV-A DNGZK-40-80-PPV-A DNGZK-40-100-PPV-A DNGZK-40-125-PPV-A DNGZK-40-160-PPV-A DNGZK-40-200-PPV-A DNGZK-40-250-PPV-A DNGZK-40-320-PPV-A DNGZK-40-400-PPV-A DNGZK-40-500-PPV-A DNGZK-50- -PPV-A DNGZK-50- -PPV-A-S3 DNGZK-50- -PPV-A-S6 DNGZK-50- -PPV-A-S8 DNGZK-50-40-PPV-A DNGZK-50-50-PPV-A DNGZK-50-80-PPV-A DNGZK-50-100-PPV-A DNGZK-50-125-PPV-A DNGZK-50-160-PPV-A DNGZK-50-200-PPV-A DNGZK-50-250-PPV-A DNGZK-50-320-PPV-ADNGZK-50-500-PPV-A DNGZK-63- -PPV-A DNGZK-63- -PPV-A-S3 DNGZK-63- -PPV-A-S6 DNGZK-63- -PPV-A-S8 DNGZK-63-40-PPV-A DNGZK-63-50-PPV-A DNGZK-63-80-PPV-A DNGZK-63-100-PPV-A DNGZK-63-125-PPV-A DNGZK-63-160-PPV-A DNGZK-63-200-PPV-A DNGZK-63-250-PPV-A DNGZK-63-320-PPV-A DNGZK-63-400-PPV-A DNGZK-63-500-PPV-A DNGZK-80- -PPV-A DNGZK-80- -PPV-A-S3 DNGZK-80- -PPV-A-S6 DNGZK-80- -PPV-A-S8 DNGZK-80-50-PPV-A DNGZK-80-80-PPV-A DNGZK-80-100-PPV-ADNGZK-80-160-PPV-A DNGZK-80-200-PPV-A DNGZK-80-250-PPV-A DNGZK-80-320-PPV-A DNGZK-80-400-PPV-A DNGZK-80-500-PPV-A DNGZK-100- -PPV-A DNGZK-100- -PPV-A-S3 DNGZK-100- -PPV-A-S6 DNGZK-100- -PPV-A-S8 DNGZK-100-50-PPV-A DNGZK-100-80-PPV-A DNGZK-100-100-PPV-A DNGZK-100-125-PPV-A DNGZK-100-160-PPV-A DNGZK-100-200-PPV-A DNGZK-100-250-PPV-A DNGZK-100-320-PPV-A DNGZK-100-400-PPV-A DNGZK-100-500-PPV-A DNGZK-125- -PPV-A DNGZK-125- -PPV-A-S3 DNGZK-125- -PPV-A-S6DNGZK-160- -PPV-A-S3 DNGZK-160- -PPV-A-S8 DNGZK-200- -PPV-A-S3 DNGZK-200- -PPV-A-S8 DGP-18- -PPV-A-B1 DGP-25- -PPV-A-B DGP-25-250-PPV-A-B DGP-25-400-PPV-A-B DGP-25-500-PPV-A-B DGP-25-1000-PPV-A-B DGP-32- -PPV-A-B DGP-32-250-PPV-A-B DGP-32-400-PPV-A-B DGP-32-500-PPV-A-B DGP-32-1000-PPV-A-B DGP-40- -PPV-A-B DGP-40-250-PPV-A-B DGP-40-400-PPV-A-B DGP-40-500-PPV-A-B DGP-40-1000-PPV-A-B DGP-50- -PPV-A-B DGP-63- -PPV-A-B DGP-80- -PPV-A-BDGPL-25- -PPV-A-GF-BDGPL-25-250-PPV-A-B-KFDGPL-25-400-PPV-A-B-KFDGPL-25-500-PPV-A-B-KFDGPL-25-1000-PPV-A-B-KFDGPL-32- -PPV-A-GF-BDGPL-32-250-PPV-A-B-KFDGPL-32-400-PPV-A-B-KFDGPL-32-500-PPV-A-B-KFDGPL-32-1000-PPV-A-B-KFDGPL-40-250-PPV-A-B-KFDGPL-40-400-PPV-A-B-KFDGPL-40-500-PPV-A-B-KFDGPL-40-1000-PPV-A-B-KFDGPL-50- -PPV-A-GF-BDGPL-63- -PPV-A-GF-BDGPL-63- -PPV-A-KF-BDGPL-80- -PPV-A-KF-BFESTO气缸带活塞杆的气缸和派生形式，符合一个或多个产品标准.ADN系列、ADNP系列、AEN 系列、CDC 系列、DNC系列、DNCB系列、DNG系列、DNGL系列、DNGLZ系列、DNGZK系列、DNGZS系列、DSBF系列、DSN系列、DSNU系列、DSNUP系列、ESN系列、ESNU系列等标准气缸，欢迎来电咨询订购。
Solenoid valves,to NAMURSubject to change –2013/092 Internet:/catalogue/...Solenoid valves,to NAMURProduct range overview1)Can be changed to 3/2-way function by exchanging the seal plate 2)Single solenoid and double solenoid directional control valves2013/09–Subject to change 3Internet:/catalogue/...Solenoid valves,to NAMURProduct range overview TypeSolenoid coilOperating voltage range Ignition protection type Page/Internet[V DC][V AC]nA =Non-sparking m =Encapsulationia =IntrinsicallysafeNVF3-…-EXMSFG-…-OD 1),MSFW-…-OD 1)12,24,42,4824,42,48,110,230,240–––6MSFG-…-EX 1),MSFW-…-EX 1)2424,110,230 ––MSFG-…-M-EX 1),MSFW-…-M-EX 1)2424,110,230––NVF3-…-IA-EXIncluded in the scope of delivery24–––MFHMSFG-…-OD 1),MSFW-…-OD 1)12,24,42,4824,42,48,110,230,240–––14MN1HMSFG-…-OD 1),MSFW-…-OD 1)24110,230–––18MGTBHIncluded in the scope of delivery24110,230–––22VSNB-…-A1Included in the scope of delivery24––––28VSNB-…-P2MDH-.…-PI 1)24110,230–––1)Solenoid coil must be ordered separatelySubject to change –2013/094 Internet:/catalogue/...Solenoid valves NVF3,to NAMURPeripheralsoverview22013/09–Subject to change 5Internet:/catalogue/...Solenoid valves NVF3,to NAMURPeripherals overviewSolenoid valves and accessoriesBrief descriptionPage/Internet Solenoid valves1NVF3-MOH-5/2K-¼-EX Solenoid valve for F solenoid coil62NVF3-MOH-5/2K-¼-IA-EXSolenoid valve mounted with intrinsically safe solenoid coil,ignition protection type ia =intrinsically safeAccessories 3Coding pin Included in the scope of delivery–4Seal plateFor changing the valve function,included in the scope of delivery –5Solenoid coil MSFG-...-M-EXand MSFW-...-M-EXIgnition protection type m =encapsulation 106Solenoid coil MSFG-...-EXand MSFW-...-EXIgnition protection type nA =non-sparking7Illuminating seal MF-LD For indicating the switching status 8Plug socket MSSD-F-M16Insert can be repositioned by 180°.Ignition protection type nA =non-sparking for solenoid coil in item 69Plug socket with cable KMF Insert can be repositioned by 180°aJ Plug socket MSSD-V-M16Insert can be repositioned by 180°.Ignition protection type ia =intrinsically safe for solenoid coil in item 2aAInscription labels KMC/F/V-BZFor identifying the plug socketsSubject to change –2013/096 Internet:/catalogue/...Solenoid valves NVF3,to NAMURTechnical dataGeneral technical dataSolenoid valve with F coil of choiceSolenoid valve with mounted solenoid coilValve function 5/2-way or 3/2-way,single solenoid Conforms to VDI/VDE 3845(NAMUR)Width [mm]53DesignDisk seat Sealing principle Soft Actuation type ElectricReset method Mechanical spring Type of control PilotedDirection of flow Non-reversible Exhaust function Flow controlManual override Detenting,non-detenting Type of mounting On manifold rail Mounting position Any Non-overlapping No Vent connection Internal Nominal size [mm]7Standard nominal flow rate 1>2,2>3[l/min]900Exhaust air return 2>4[l/min]150b value 0.33C value [l/sbar]4.2Pneumatic connection 1,3,5G ¼2,4Port pattern as per NAMUR Pilot exhaust port 84M5Product weight[g]2803502013/09–Subject to change 7Internet:/catalogue/...Solenoid valves NVF3,to NAMURTechnical dataOperating and environmental conditionsSolenoid valve with F coil of choiceSolenoid valve with mounted solenoid coilOperating mediumCompressed air in accordance with ISO 8573-1:2010[7:4:4]Note on operating/pilot medium Operation with lubricated medium possible (in which case lubricated operation will always be required)Operating pressure [bar]2…10Ambient temperature [°C]–5…+40Temperature of medium [°C]–5…+40ATEX category for gasII 2G Explosion ignition protection type for gas c T6ATEX category for dustII 2D Explosion ignition protection type for dust[°C]40Explosion-proof temperature rating–5°C <=Ta <=+40°C Explosion protection certification outside the EU–EPL Db (RU)–EPL Dc (RU)–EPL Gb (RU)–EPL Gc (RU)CE markingTo EU Explosion Protection Directive (ATEX)Corrosion resistance class CRC11)1)Corrosion resistance class 1according to Festo standard 940 070Components subject to low corrosion stress.Transport and storage protection.Parts that do not have primarily decorative surface requirements,e.g.in internal areas that are not visible or behind covers.Electrical dataSolenoid valve with F coil of choiceSolenoid valve with mounted solenoid coil Electrical connection Plug,3-pin or cable,3-wire Cable,3-wire Operating voltage range [V DC]12,24,42,4824±10%[V AC]24,42,48,110,230,240at 50...60Hz –Coil characteristics,24V DC [W]–0.8Max.input power [W]– 1.46Max.input voltage [V]–48Max.input current [A]–0.487Effective inductance –Negligibly low Effective capacitance–Negligibly lowProtection class to EN 60529IP65with plug socket IP65with plug socket Switching time on [ms]5050Switching time off[ms]100100Subject to change –2013/098 Internet:/catalogue/...Solenoid valves NVF3,to NAMURTechnical data Materials1Housing Anodised die-cast aluminium 2SealsNBRContains PWIS (paint-wetting impairment substances)Sample circuit 5/2-way valve3/2-way valve with the option of exhaust airreturn2013/09–Subject to change 9Internet:/catalogue/...Solenoid valves NVF3,to NAMURTechnical dataType B1B2B3_0.1B4_0.1B5_0.1B6D1D2∅D3H1H2H3_0.15H4_0.15H5_0.1H6_0.1NVF3-…3731193 6.522G ¼ 5.5M5102.48847241246Type H7_0.15H8_0.15H9H10L1_0.2L2_0.15L3_0.1L4L5L6L7L8L9L10NVF3-…2523136.4153533227.776.54912.584.757.285.357.8Ordering data –ValvesSolenoid valve without solenoid coil 1)Solenoid valve mounted with intrinsically safe solenoid coilPart No.Type Part No.Type 535987NVF3-MOH-5/2-K-¼-EX535988NVF3-MOH-5/2-K-¼-IA-EX1)Solenoid coil must be ordered separately 10,Explosion-proof solenoid coil 11Subject to change –2013/0910 Internet:/catalogue/...Solenoid valves NVF3,to NAMURAccessories1)Scope of delivery 35piecesSolenoid valves NVF3,to NAMUR Accessories for ATEX environmentF solenoidmoulded-inSolenoid valves MFH,MN1H,MGTBH,to NAMUR overviewPeripheralsSolenoid valves MFH,MN1H,MGTBH,to NAMURPeripherals overviewSolenoid valves and accessoriesBrief description Page/Internet Solenoid valves1MFH-5/2K-FR-NA Basic valve with pilot valve for F solenoid coil142MN1H-5/2K-FR-NA Basic valve with pilot valve for N1solenoid coil183MGTBH-5/2K-FR-…-NA Basic valve with pilot valve,solenoid coil and plug socket22Pilot valves4MGTBH-3/2-1.2-…Pilot valve with solenoid coil and push-in fitting25Accessories5Coding pin Included in the scope of delivery–6Seal plate For changing the valve function,included in the scope of delivery–7Solenoid coil MSFG-...-OD/MSFW-...-OD178Illuminating seal MF-LD For indicating the switching status9Plug socket MSSD-F Insert can be repositioned by180°aJ Plug socket with cable KMF Insert can be repositioned by180°aA Solenoid coil MSN1G/MSN1W21aB Illuminating seal MC-LD For indicating the switching statusaC Plug socket with cable KMCaD Plug socket MSSD-CaE Manual override AHB17aF Inscription labels KMC/F/V-BZ For identifying the plug socketsaG Inscription labels IBS-9x17For identifying the valvesSolenoid valves MFH,to NAMURTechnical dataGeneral technical dataValve function5/2-way or3/2-way,single solenoid Design Piston spool valveSealing principle SoftActuation type ElectricReset method Mechanical springType of control PilotedDirection of flow ReversibleExhaust function Flow controlWidth[mm]44.5Nominal size[mm]8Standard nominal flow rate 1>2,1>4[l/min]1,0002>3,4>5[l/min]1,100 Exhaust air return2>4[l/min]140b value0.25C value[l/sbar]3Pneumatic connection1,3,5G¼2,4Port pattern as per NAMURMounting position AnyManual override DetentingOperating and environmental conditionsOperating medium Compressed air in accordance with ISO8573-1:2010[7:–:–]Pilot medium Compressed air in accordance with ISO8573-1:2010[7:4:4]Operating pressure[bar]2 (10)Pilot pressure[bar]2 (10)Temperature of medium[°C]–10…+60Ambient temperature[°C]–5…+40Conforms to VDI/VDE3845(NAMUR)Protection class IP65To IEC60529Switching time on[ms]20Switching time off[ms]90Corrosion resistance class CRC1)31)Corrosion resistance class3according to Festo standard940070Components subject to high corrosion stress.External visible parts in direct contact with industrial atmospheres or media such as solvents and cleaning agents,with a predominantly functional requirement for the surface.Solenoid valves MFH,to NAMURTechnical dataMaterials1Housing–2Seals NBR3End cap–Sample circuit5/2-way valve3/2-way valve with the option of exhaust airreturnSolenoid valves MFH,to NAMURTechnical dataType B1B2B3B4B5B6B7B8B9D1D2D3H1H2H3H4∅MFH-…44.5321621 3.51302012.25G¼M5 5.5x4703872 Type H5H6H7L1L2L3L4L5L6L7L8L9L10L11L12 MFH-…15.712101110.610054.544.0555.51720 1.524128.75128Ordering data–ValveSolenoid valve without solenoid coil1)Part No.Type183973MFH-5/2K-FR-NA1)Solenoid coil must be ordered separately 17Solenoid valves MFH,to NAMUR Accessories1)Scope of delivery35piecesSolenoid valves MN1H,to NAMURTechnical dataGeneral technical dataValve function5/2-way or3/2-way,single solenoid Design Piston spool valveSealing principle SoftActuation type ElectricReset method Mechanical springType of control PilotedDirection of flow ReversibleExhaust function Flow controlWidth[mm]44.5Nominal size[mm]8Standard nominal flow rate 1>2,1>4[l/min]1,0002>3,4>5[l/min]1,100 Exhaust air return2>4[l/min]140b value0.25C value[l/sbar]3Pneumatic connection1,3,5G¼2,4Port pattern as per NAMURVent connection InternalMounting position AnyManual override DetentingOperating and environmental conditionsOperating medium Compressed air in accordance with ISO8573-1:2010[7:–:–]Pilot medium Compressed air in accordance with ISO8573-1:2010[7:4:4]Operating pressure[bar]2 (10)Pilot pressure[bar]2 (10)Temperature of medium[°C]–5…+50Ambient temperature[°C]–5…+50Conforms to VDI/VDE3845(NAMUR)Protection class IP65To IEC60529Certification Germanischer LloydElectrical connection Plug,square design to DIN43650Switching time on[ms]20Switching time off[ms]90Corrosion resistance class CRC1)31)Corrosion resistance class3according to Festo standard940070Components subject to high corrosion stress.External visible parts in direct contact with industrial atmospheres or media such as solvents and cleaning agents,with a predominantly functional requirement for the surface.Solenoid valves MN1H,to NAMURTechnical dataMaterials1Housing–2Seals NBR3End cap–Sample circuit5/2-way valve3/2-way valve with the option of exhaust airreturnSolenoid valves MN1H,to NAMURTechnical dataType B1B2B3B4B5B6B7B8B9D1D2D3H1H2H3H4H5∅MN1H-…44.5321621 3.51302012.25G¼M5 5.5x470387215.7 Type H6H7H8H9L1L2L3L4L5L6L7L8L9L10L11L12 MN1H-…121068610611310054.544.0555.51720 1.524128.75128Ordering data–ValveSolenoid valve without solenoid coil1)Part No.Type183974MN1H-5/2K-FR-NA1)Solenoid coil must be ordered separately 21Solenoid valves MN1H,to NAMUR Accessories1)Scope of delivery35pieces2)Scope of delivery20piecesSolenoid valves MGTBH,to NAMUR Technical dataGeneral technical data MGTBH-5/2K-FR-NA24V DC MGTBH-5/2K-FR-110AC-NA110V ACMGTBH-5/2K-FR-230AC-NA230V ACValve function5/2-way,single solenoidConforms to VDI/VDE3845(NAMUR)Width[mm]44.53535 Design Piston spool valveSealing principle SoftActuation type ElectricReset method Mechanical springType of control PilotedDirection of flow ReversibleExhaust function Flow controlManual override DetentingVent connection InternalNominal size[mm]8Standard nominal flow rate[l/min]400b value0.25C value[l/sbar]3 1.1 1.1 Pneumatic connection Sub-baseMounting position AnyManual override DetentingOperating and environmental conditions MGTBH-5/2K-FR-NA24V DC MGTBH-5/2K-FR-110AC-NA110V ACMGTBH-5/2K-FR-230AC-NA230V ACOperating medium Compressed air in accordance with ISO8573-1:2010[7:–:–]Pilot medium Compressed air in accordance with ISO8573-1:2010[7:–:–]Operating pressure range[bar]2 (8)Pilot pressure[bar]2 (10)Ambient temperature[°C]–20…+60Temperature of medium[°C]–20…+60CE marking(see declaration of conformity)–To EU Low Voltage Directive To EU Low Voltage Directive Corrosion resistance class CRC1)31)Corrosion resistance class3according to Festo standard940070Components subject to high corrosion stress.External visible parts in direct contact with industrial atmospheres or media such as solvents and cleaning agents,with a predominantly functional requirement for the surface.Solenoid valves MGTBH,to NAMUR Technical dataElectrical data MGTBH-5/2K-FR-NA24V DC MGTBH-5/2K-FR-110AC-NA110V ACMGTBH-5/2K-FR-230AC-NA230V ACElectrical connection M20x1.5socket with screw terminalCoil characteristics Alternating current AC[V]–110230 Pull power50/60Hz[VA]–55Holding power50/60Hz[VA]– 3.7 3.7 Protection class IP65To IEC60529Switching time on[ms]20Switching time off[ms]90Permissible frequency fluctuations[%]–±10Permissible voltage fluctuations[%]–±10Materials1Housing–2Seals NBR3End cap–Sample circuit5/2-way valve3/2-way valve with the option of exhaust airreturnSolenoid valves MGTBH,to NAMURTechnical dataH1H2H3H4H5 Type B1B2B3B4B5B6B7B9D1D2D3∅MGTBH-…44.5321621 3.51359.75G¼M5 5.5x475387215.7 Type H6H7H8L1L2L3L4L5L6L7L8L9L10L11L12L13 MGTBH-…121098813910054.544.0555.51720 1.524128.75125.880Solenoid valves MGTBH,to NAMURTechnical dataOrdering data–ValveSolenoid valve with solenoid coil and plug socket1)Operating voltage Part No.Type24V DC183978MGTBH-5/2K-FR-NA110V AC188400MGTBH-5/2K-FR-110AC-NA230V AC188401MGTBH-5/2K-FR-230AC-NA1)Individual pilot valve,with solenoid coil and plug socket 25Ordering data–AccessoriesOperating voltage Cable length Part No.TypeManual override Technical data Internet:ahb ––157651AHB-MD/MF/MVInscription labels Technical data Internet:ibs ––18182IBS-9x201)1)Scope of delivery20piecesSolenoid valves VSNB,to NAMURPeripherals overviewaGSolenoid valves VSNB,to NAMURPeripherals overviewSolenoid valves and accessoriesBrief description Page/Internet Basic valves1VSNB-F-B52-…-P2Basic valve,double solenoid282VSNB-F-M52-…-P2Basic valve,single solenoid283VSNB-FC-M52-…-P2Basic valve,single solenoid with changeable seal28Solenoid valves4VSNB-FC-M52-…Single solenoid valve with changeable seal,optionally with24V DC pilot control orwith Ex-ia pilot control315VSNB-F-B52-…Double solenoid valve,optionally with24V DC pilot control or with Ex-ia pilotcontrol316VSNB-F-M52-…Single solenoid valve,optionally with24V DC pilot control or with Ex-ia pilot control31Pilot valves7MGXiAH Ex-ia pilot valve with cable connection mgxiah8MGXDH Ex-d pilot valve with cable connection mgxdh9MD-3/2-…-P1EX-ia pilot valve with plug pattern type A mdaJ MDH-3/2-…-P1Pilot valve with plug pattern type A37 AccessoriesaA Control plateVAOP The control plate enables a basic valve to be switched by means of a pneumaticsignal38aB Plug socket with cableKMCConnecting cables for pilot valves with plug pattern type A38 aC Plug socket Plug socket for pilot valve with plug pattern type A38 aD Seal plate For changing the valve function from3/2-way to5/2-way,included in the scope ofdelivery–aE O rings Included in the scope of delivery–aF Push-in fittingQSFor connecting compressed air tubing with standard O.D.qs aG Silencer–uSolenoid valves VSNB,to NAMURTechnical dataGeneral technical dataVSNB-F-B52-G14-P2VSNB-FC-M52-M-G14-P2VSNB-F-M52-M-G14-P25/2-way,single solenoid Valve function5/2-way,double solenoid5/2-way and3/2-way,singlesolenoidPneumatic connection1G¼G¼G¼2Sub-base Sub-base Sub-base3G¼G¼G¼4Sub-base Sub-base Sub-base5G¼G¼G¼Vent connection M5Design Piston spool valveExhaust function Flow controlWidth[mm]44.5Mounting position AnyType of mounting On sub-baseDuty cycle[%]100Sealing principle SoftNon-overlapping YesReset method–Mechanical spring Mechanical spring Actuation type–––Direction of flow Non-reversibleProduct weight[g]350Switching time off[ms]–100100Switching time on[ms]–3030Changeover time[ms]30––Nominal size[mm]8Standard nominal flow rate[l/min]950Solenoid valves VSNB,to NAMURTechnical dataOperating and environmental conditions VSNB-F-B52-G14-P2VSNB-FC-M52-M-G14-P2VSNB-F-M52-M-G14-P2 Operating medium Compressed air in accordance with ISO8573-1:2010[7:4:4]Pilot medium Compressed air in accordance with ISO8573-1:2010[7:–:–]Note on operating/pilot medium Operation with lubricated medium possible(in which case lubricated operation will always be required) Operating pressure[bar] 2.5 (8)Pilot pressure[bar] 2.5 (8)Temperature of medium[°C]–10…+60Ambient temperature[°C]–10…+60Conforms to VDI/VDE3845(NAMUR)Corrosion resistance class CRC1)21)Corrosion resistance class2according to Festo standard940070 Components subject to moderate corrosion stress.Externally visible parts with primarily decorative surface requirements which are in direct contactwith a normal industrial environment or media such as coolants or lubricating agents.MaterialsSectional viewSolenoid valves1Housing Anodised wrought aluminium alloy2Seals NBR–Screws High-alloy stainless steel–Note on materials Contains PWIS(paint-wetting impairment substances),RoHS-compliantSolenoid valves VSNB,to NAMURTechnical dataBasic valve,single solenoid B1B2B3B4B5B6D1D2D3H2H3H4∅VSNB-FC-M52-M-G14-P244.532521 3.51G¼M5 5.6387.527.7 VSNB-F-M52-M-G14-P244.532521 3.51G¼M5 5.6387.527.7Basic valve,double solenoidVSNB-F-B52-G14-P244.532521 3.51G¼M5 5.6387.527.7 Basic valve,single solenoid H5H6L1L2L3L4L5L7L8L10L11VSNB-FC-M52-M-G14-P215.726.798867433.752420 1.5128.75 VSNB-F-M52-M-G14-P215.726.798867433.752420 1.5128.75Basic valve,double solenoidVSNB-F-B52-G14-P215.726.798867433.752420 1.5128.75Solenoid valves VSNB,to NAMURTechnical dataGeneral technical dataVSNB-FC-M52-MH-G14-1A1VSNB-F-M52-MH-G14-1A1VSNB-F-B52-H-G14-1A15/2-way,single solenoid5/2-way,double solenoid Valve function5/2-way and3/2-way,singlesolenoidPneumatic connection1G¼2Sub-base3G¼4Sub-base5G¼Vent connection M5Design Piston spool valveExhaust function Flow controlWidth[mm]44.5Mounting position AnyType of mounting On sub-baseDuty cycle[%]100Sealing principle SoftNon-overlapping YesReset method Mechanical spring–Actuation type ElectricManual override Non-detenting,detentingType of control PilotedDirection of flow Non-reversibleProduct weight[g]510656Nominal size[mm]8Standard nominal flow rate[l/min]950Solenoid valves VSNB,to NAMURTechnical dataOperating and environmental conditions VSNB-FC-M52-MH-G14-1A1VSNB-F-M52-MH-G14-1A1VSNB-F-B52-H-G14-1A1 Operating medium Compressed air in accordance with ISO8573-1:2010[7:4:4]Pilot medium Compressed air in accordance with ISO8573-1:2010[7:–:–]Note on operating/pilot medium Operation with lubricated medium possible(in which case lubricated operation will always be required) Protection class IP65Operating pressure[bar] 2.5 (8)Pilot pressure[bar] 2.5 (8)Temperature of medium[°C]–10…+60Ambient temperature[°C]–10…+60Conforms to VDI/VDE3845(NAMUR)Corrosion resistance class CRC1)21)Corrosion resistance class2according to Festo standard940070 Components subject to moderate corrosion stress.Externally visible parts with primarily decorative surface requirements which are in direct contactwith a normal industrial environment or media such as coolants or lubricating agents.Electrical data VSNB-FC-M52-MH-G14-1A1VSNB-F-M52-MH-G14-1A1VSNB-F-B52-H-G14-1A1 Electrical connection To DIN EN175301-803Type ACoil characteristics[V DC]24[W] 2.1[%]–15/10Permissible voltagefluctuationsProtection class IP65Switching time On[ms]3030–Off[ms]100100–[ms]––30ChangeoverMaterialsSectional viewSolenoid valves1Housing Anodised wrought aluminium alloy2Seals NBR,HNBR–Screws High-alloy stainless steel–Note on materials Contains PWIS(paint-wetting impairment substances),RoHS-compliantSolenoid valves VSNB,to NAMURTechnical dataGeneral technical dataVSNB-F-B52-G14-1A1-Ex4A VSNB-FC-M52-M-G14-1A1-Ex4A VSNB-F-M52-M-G14-1A1-Ex4A Valve function5/2-way,double solenoid5/2-way and3/2-way,single5/2-way,single solenoidsolenoidPneumatic connection1G¼G¼G¼2Sub-base Sub-base Sub-base3M5M5M54Sub-base Sub-base Sub-base5G¼G¼G¼Vent connection M5Design Piston spool valveExhaust function Flow controlWidth[mm]44.5Mounting position AnyType of mounting On sub-baseDuty cycle[%]100Sealing principle SoftNon-overlapping YesReset method–Mechanical spring Mechanical springActuation type ElectricManual override NoneType of control PilotedDirection of flow Non-reversibleProduct weight[g]740560560Nominal size[mm]8Standard nominal flow rate[l/min]950Operating and environmental conditions VSNB-F-B52-G14-1A1-Ex4A VSNB-FC-M52-M-G14-1A1-Ex4A VSNB-F-M52-M-G14-1A1-Ex4A Operating medium Compressed air in accordance with ISO8573-1:2010[7:4:4]Pilot medium Compressed air in accordance with ISO8573-1:2010[7:–:–]Note on operating/pilot medium Operation with lubricated medium possible(in which case lubricated operation will always be required) Protection class IP65Operating pressure[bar] 2.5 (8)Pilot pressure[bar] 2.5 (8)Temperature of medium[°C]–10…+60Conforms to VDI/VDE3845(NAMUR)Corrosion resistance class CRC1)21)Corrosion resistance class2according to Festo standard940070 Components subject to moderate corrosion stress.Externally visible parts with primarily decorative surface requirements which are in direct contactwith a normal industrial environment or media such as coolants or lubricating agents.Solenoid valves VSNB,to NAMURTechnical dataATEXVSNB-F-B52-G14-1A1-Ex4A VSNB-FC-M52-M-G14-1A1-Ex4A VSNB-F-M52-M-G14-1A1-Ex4A ATEX category for gas II2GExplosion ignition protection type for gas Ex ia IIC T6XATEX category for dust II2DExplosion ignition protection type for dust Ex tD A21IP65T80°C X[°C]-20°C<=Ta<=+50°CExplosion-proof temperatureratingCertificate issuing authority PTB09ATEX2043CE marking(see declaration of conformity)To EU Explosion Protection Directive(ATEX)Electrical dataElectrical connection To DIN EN175301-803With socketType A[mA]27Required currentconsumptionMax.input power Pi[W] 1.6Max.input voltage Ui[V]28Max.input current Ii[mA]115Effective internal inductance NegligibleEffective internal capacitanceSwitching time Off[ms]–160160On[ms]–3030[ms]30––ChangeoverMaterialsSectional viewSolenoid valves1Housing Anodised wrought aluminium alloy2Seals NBR,HNBR–Screws High-alloy stainless steel–Note on materials Contains PWIS(paint-wetting impairment substances),RoHS-compliantSolenoid valves VSNB,to NAMURTechnical dataType B7B8H1H7H8L6L9L10L11L12VSNB-FC-M52-MH-G14-1A130574.370102.555115.154943.539 VSNB-F-M52-MH-G14-1A1Type with explosion-proof coil B7B8H1H7H8L6L9L10L11L12VSNB-F-M52-M-G14-1A1-Ex4A30581.57411555116.854948.638.5 VSNB-FC-M52-M-G14-1A1-Ex4ASolenoid valves VSNB,to NAMURTechnical dataType B7B8H1H7H8L13L14L15 VSNB-F-B52-H-G14-1A130574.370102.5132.387165 Type with explosion-proof coil B7B8H1H7H8L13L14L15 VSNB-F-B52-G14-1A1-Ex4A30581.574115135.797.2174.2Solenoid valves VSNB,to NAMUR Technical dataSolenoid valves VSNB,to NAMURAccessoriesDimensions and ordering dataB1B2D1D2H1H2L1L2Weight Part No.Type[g]2921G x M415 5.621921547025VAOP-C2-P2。

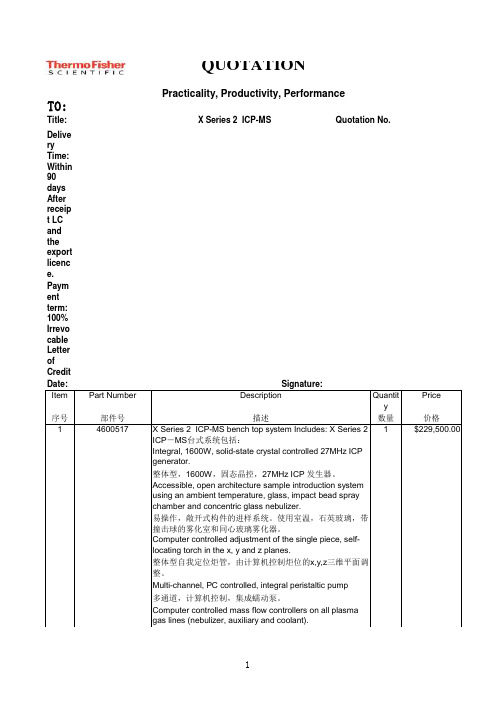

Delive ry Time:Within 90days After receip t LC and the export licenc e.Paym ent term:100%Irrevo cable Letter of CreditItem Part Number Description Quantit yPrice 序号部件号描述数量价格X Series 2 ICP-MS bench top system Includes: X Series 2ICP －MS 台式系统包括：Integral, 1600W, solid-state crystal controlled 27MHz ICP generator.整体型，1600W ，固态晶控，27MHz ICP 发生器。
