OLED2.4寸显示屏 液晶屏 规格书

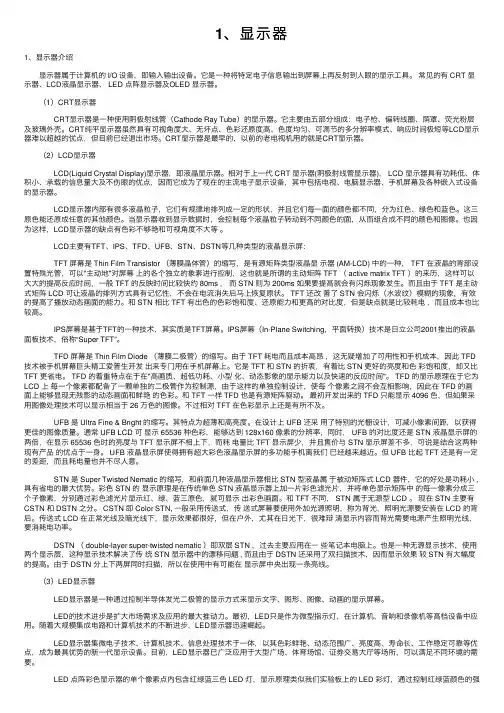

1、显⽰器1、显⽰器介绍 显⽰器属于计算机的 I/O 设备，即输⼊输出设备。

它是⼀种将特定电⼦信息输出到屏幕上再反射到⼈眼的显⽰⼯具。

常见的有 CRT 显⽰器、LCD液晶显⽰器、 LED 点阵显⽰器及OLED 显⽰器。

（1）CRT显⽰器 CRT显⽰器是⼀种使⽤阴极射线管（Cathode Ray Tube）的显⽰器。

它主要由五部分组成：电⼦枪、偏转线圈、荫罩、荧光粉层及玻璃外壳。

CRT纯平显⽰器虽然具有可视⾓度⼤、⽆坏点、⾊彩还原度⾼、⾊度均匀、可凋节的多分辨率模式、响应时间极短等LCD显⽰器难以超越的优点，但⽬前已经退出市场。

CRT显⽰器是最早的，以前的⽼电视机⽤的就是CRT显⽰器。

（2）LCD显⽰器 LCD(Liquid Crystal Display)显⽰器，即液晶显⽰器。

相对于上⼀代 CRT 显⽰器(阴极射线管显⽰器)， LCD 显⽰器具有功耗低、体积⼩、承载的信息量⼤及不伤眼的优点，因⽽它成为了现在的主流电⼦显⽰设备，其中包括电视、电脑显⽰器、⼿机屏幕及各种嵌⼊式设备的显⽰器。

LCD显⽰器内部有很多液晶粒⼦，它们有规律地排列成⼀定的形状，并且它们每⼀⾯的颜⾊都不同，分为红⾊、绿⾊和蓝⾊。

这三原⾊能还原成任意的其他颜⾊。

当显⽰器收到显⽰数据时，会控制每个液晶粒⼦转动到不同颜⾊的⾯，从⽽组合成不同的颜⾊和图像。

也因为这样，LCD显⽰器的缺点有⾊彩不够艳和可视⾓度不⼤等。

LCD主要有TFT、IPS、TFD、UFB、STN、DSTN等⼏种类型的液晶显⽰屏： TFT 屏幕是 Thin Film Transistor （薄膜晶体管）的缩写，是有源矩阵类型液晶显⽰器 (AM-LCD) 中的⼀种， TFT 在液晶的背部设置特殊光管，可以"主动地"对屏幕上的各个独⽴的象素进⾏控制，这也就是所谓的主动矩阵 TFT （ active matrix TFT ）的来历，这样可以⼤⼤的提⾼反应时间，⼀般 TFT 的反映时间⽐较快约 80ms ，⽽ STN 则为 200ms 如果要提⾼就会有闪烁现象发⽣。

、结构尺寸StructureSize 一5V 供电5V IO 电平二、接口定义Pin Assignment(P2&P3)序号（No.）定义（SYMBOL ）说明（Description ）1VCC3.3数字电路电源电压Power Supply for Logic Circuit 2VCC3.3数字电路电源电压Power Supply for Logic Circuit 3EN 模块13v OLED 供电使能信号，高有效OLE Panel Power Enable Signal active High to Enable ，默认内部弱上拉，可不接。

4GND 数字电路电源地Ground of Logic Circuit 5CS 片选信号Chip Select 低有效，6RES 复位信号Power Reset 低有效，需IO 引脚控制7D/C 数据与命令控制信号Data/Command Control 高为数据，低为命令。

需IO 引脚控制8GND 数字电路电源地Ground of Logic Circuit 9SCLK SPI 时钟信号Serial Clock of SPI 。

需IO 引脚控制10SDIN SPI 输入信号Serial Data of SPI 。

需IO 引脚控制ＯＬＥＤ２．４寸１３０９＿３．３Ｖ一、产品介绍General SpecificationsDiagonal Size尺寸 2.4”Color颜色Yellow、Green、Blue、WhiteType类型MonochromePixel Number分辨率128x64Module Size(mm)模组尺寸62.1×53.3×9Active Size(mm)显示区域55.01×27.49Driver IC驱动IC SSD1309Interface接口4_Wire SPISupply Voltage供电电压 3.3VVoltage Range建议电压范围 1.65V~3.3VMax Voltage最大极限电压4VMin Voltage最小极限电压 1.65VView Angle视角>160degree全视角Contrast对比度>10000:1Brightness(cd/m2)亮度（绿色）120(Typ)@13V（20000Hours）Power功耗由点亮的像素决定30%像素点亮<260mw50%像素点亮<345mw100%像素点亮（实际使用中用不到）<515mwBrightness(cd/m2)（黄色）80(Typ)@13V（15000Hours）Power功耗由点亮的像素决定30%像素点亮<260mw50%像素点亮<380mw100%像素点亮（实际使用中用不到）<590mwBrightness(cd/m2)（白色）80(Typ)@13V（30000Hours）Power功耗由点亮的像素决定30%像素点亮<300mw50%像素点亮<440mw100%像素点亮（实际使用中用不到）<690mwBrightness(cd/m2)（蓝色）80(Typ)@13V（15000Hours）Power功耗由点亮的像素决定30%像素点亮<325mw50%像素点亮<470mw100%像素点亮（实际使用中用不到）<720mwWeight(g)重量8.6Assembly连接方式10Pin1.0mm FPC Connector and2.54mm Metal pins四、SPI接口特性SPI Timing Characteristics。

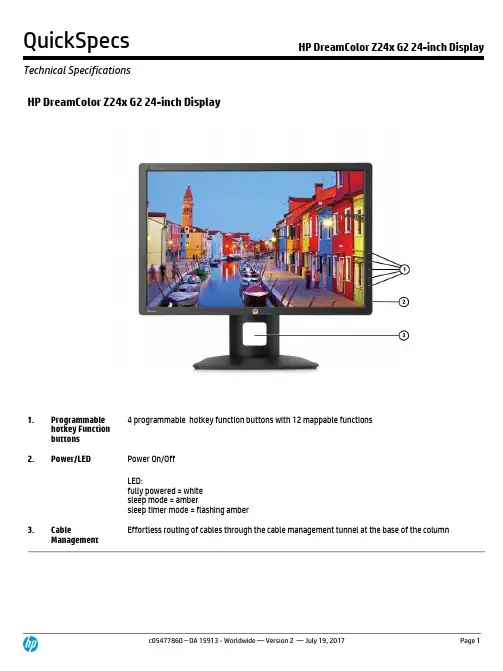

HP DreamColor Z24x G2 24-inch Display1. Programmablehotkey Functionbuttons4 programmable hotkey function buttons with 12 mappable functions 2. Power/LED Power On/OffLED:fully powered = whitesleep mode = ambersleep timer mode = flashing amber3. CableManagement Effortless routing of cables through the cable management tunnel at the base of the columnRear Side 1. Security Lock Slot 1. 2- USB 3.01. Power Switch2. Power Cable Connector3. DisplayPort™ 1.2 (input)4. DVI-D5. HDMI 1.46. DisplayPort™ 1.2 (output)7. Audio out (analog)8. 1- USB 3.0 (upstream)9. 2- USB 3.0 (downstream)Models:1JR59A4Panel Type 24-inch IPS Gen 2, LED BacklitViewable Image Area(diagonal)60,96 cm (24 in) widescreen; diagonally measuredPanel Active Area(W x H)52 x 32,56 cm (20.47 × 12.81 in.)Panel Type Gen 2 IPS (Gen 2 technology, also called AH-IPS, enables lower powerconsumption)Resolution 1920 × 1200 @ 60 HzAspect Ratio 16:10Viewing Angle (typical) Up to 178° horizontal/178° vertical (10:1 minimum contrast ratio)Brightness (typical)* 350 cd/m²Contrast Ratio (typical)* 1,000:1Dynamic Contrast Ratio (typical)* 5,000,000:1Response Time (typical)* 6 ms gray-to-grayPixel Pitch 0.270 mmBacklight Lamp Life(to half brightness)30,000 hours minimumColor Support** 10-bit (8+2 FRC), up to 1.07 billion colorsColor Gamut 100% of sRGB, 100% of BT.709, 99% of AdobeRGB, 97% of DCI-P3*All performance specifications represent the typical specifications provided by HP's componentmanufacturers; actual performance may vary either higher or lower.** With the use of FRC technology.User Controls On Screen Display(OSD)User Controls Color Space, Video Input, Image Control, PIP Control, Language, Management, Menu and Message Control, Information, Factory ResetMonitor Control Buttons or Switches Master power switch (rear), secondary power, 5 programmable OSD/function buttonsUser-Assignable Function Buttons Yes, 4Languages10 (English, Spanish, German, French, Italian, Netherlands,Portuguese, Japanese, T-Chinese and S-Chinese)Color Management Factory Color Calibrated Yes (sRGB, BT.709, Adobe RGB) Color Space / Subsampling Support RGB 4:4:4, YC B C R 4:4:4, YC B C R 4:2:2 RGB Channel Adjust Yes, GainUser Calibration Support Host software (Windows or macOS) External Calibration InstrumentSupportX-Rite i1Display Pro, Klein K10-ASignal Interface/ Performance Horizontal Frequency24-80 kHzVertical Frequency24-60 HzNative Resolution1920 × 1200 @ 60 Hz Preset VESA Graphic Modes (non-interlaced)640 × 480 @ 60Hz800 × 600 @ 60 Hz1024 × 768 @ 60 Hz1280 × 720 @ 60 Hz1280 × 960 @ 60 Hz1280 × 1024 @ 60 Hz1440 × 900 @ 60 Hz1600 × 1200 @ 60 Hz1680 × 1050 @ 60 Hz1920 ×1080 @ 60 Hz1920 × 1200 @ 60 Hz Maximum Pixel Clock Speed170 MHzAnti-Glare YesFlicker Free YesDefault Color Temperature D65 (6504K)VIDEO/OTHER INPUTSConnector Types DisplayPort™(1) DisplayPort™ 1.2 (1 input and 1 output)HDMI (1) HDMI 1.4DVI-D (1) Single LinkHDCP support Yes, all video inputsAudio (1) Audio out (analog)USB PortSpecificationsUSB Version 3.0USB Hub YesDownstream Ports 4 PortsUpstream Ports 1 PortCables Included Video Cables Included(1) DVI-D 1,8 m (5.9 ft), (1) DisplayPort™1,8 m (5.9 ft) USB Cable Included (1) USB 3.0 1,8 m (5.9 ft)POWERPower Power Supply InternalInput Power90 - 265 VAC at 45 - 63 HzENERGY STAR® Power118.57 WTypical Power213.5 WMaximum Power354.18 WEnergy Saving/Standby Mode0.5 WPower Cable Length1,9 m (6.2 ft)DIMENSIONS AND WEIGHTMechanical Dimensions (W x D x H) Unpacked w/stand(highest setting) 55,94 x 23,8 x 52,5 cm (22 x 9.4 x 20.7 in)Unpacked w/o stand (head only) 55,94 x 6,65 x 36,5 cm (22 x 2.6 x 14.4 in)Packaged 66 x 45 x 30,1 cm(26 x 17.7 x 11.8 in) Weight Head Only 4,73 kg (10.4 lb)Unpacked 6,98 kg (15.4 lb)Packaged8,98 kg (19.7 lb)MONITOR FEATURESPlug and Play YesColor Black4-Way Comfort Adjust Easily adjust the display in height, tilt, swivel and pivot formaximum comfort.Integrated Quick Release9An easy-to-use, VESA-compliant, LCD monitor mounting solutionthat allows you to quickly and securely attach an LCD monitor toa variety of stands, brackets, arms or wall mounts.Cable Management Enhanced cable management for easy concealment of power,video and USB cables. Effortless routing of cables through thecable management tunnel at the base of the column.Detachable Stand Yes, ships detachedTilt Range–5° to + 20° verticalSwivel Range45°L to 45°RDisplay height adjustment:Adjustment Range: 151 mmMinimum (desk to bottom of display): 16 mm Maximum (desk to bottom of display): 167 mmPivot Rotation YesVESA Mounting Yes, 100 mm with integrated mountSecurity Lock-Ready YesPicture-in-Picture,Picture-by-PictureYesENVIRONMENTALSpecifications Temperature - Operating5° to 35° C (41° to 95° F)Temperature - Non-operating –20° to 60° C (-4° to 140° F)Humidity - Operating 20% to 80% Relative Humidity non-condensingHumidity - Non-operating 5% to 95%, 38.7° C max wet-bulbAltitude - Operating 0 to 5,000 m (0 to 16,404 ft)Altitude – Non-operating 0 to 12,192 m (0 to 40,000 ft)White LED Backlights YesCCFL Panel NoArsenic-Free Display Glass YesLow Halogen4Yes (except cables)Mercury-Free Display Backlights YesOPTIONS(Each sold separately)HP USB Graphics Adapter—Part number NL571AAEnables connection of up to six simultaneous displays to helpyou boost productivity and multi-task across several openapplications. Use one Adapter to bridge between a notebook ordesktop PC and second monitor or use multiple Adapters toconnect several displays to each other.HP Thin Client Mount Kit—Part number E5J35AAAttach your HP Thin Client or USDT PC to the back of select HP ZDisplays and maintain optimal ergonomic adjustability with theHP Thin Client Mount Kit. Simply mount an HP Thin Client to theKit’s VESA plate, slide it into place on the back of an HP Z24i,Z27i or Z30i IPS Display stand, and you’re ready to go.HP LCD Speaker Bar—Part number NQ576AA Powered directly by the monitor or the PC, the Speaker Bar seamlessly attaches to the monitor's lower bezel to bring full audio support to select HP LCD monitors. Features include dual speakers with full sound range and external jack for headphones. Sold separately.HP Integrated Work Center Stand - USDT / Thin Clients —Part numbers E8H16AA/AT (black and meteorite),LH526AA/AT (black and silver).8HP Integrated Work Center Stand - USDT / Thin Clients - The HP Integrated Work Center Stand is designed to help maximize the use of limited desk space without compromising performance or productivity by accommodating an HP Ultra-slim Desktop PC or an HP Thin Client, and most HP 17 to 24-inch1 diagonal LCD monitors, with VESA standard mounting brackets.HP Integrated Work Center Stand for Small Form Factors v3 —Part number F2P06AA7Maximize your available work space with the stylish and innovative HP Integrated Work Center for Small Form Factors v3 (HP IWC SFF v3), designed to match the newest HP PC designs. Create a customized "all-in-one" solution by combining an HP Small Form Factor (SFF) Business Desktop PC or Workstation with an LED monitor up to 24 diagonal inches.HP Single Monitor Arm—Part number BT861AA The flexible design of the HP Single Monitor Arm provides a seemingly endless range of display adjustments with an amazing 13 inches of lift, 50 degrees of tilt, and 360 degrees of pan and rotation – all at your fingertips -- helping you stay comfortable and productive throughout the day.HP Adjustable Dual Display Stand—Part Number AW664AA Premium space-saving dual screen solution provides access to more monitor real estate and makes it possible to manage multiple applications simultaneously. Weight adjustable for dual monitors from 17-24”. Rotate displays into portrait/landscape positions.HP Display and Notebook II Stand—Part number E8G00AA Quickly and easily create a comfortable workspace for your notebook or notebook and docking station and an external display with the HP Display and Notebook II Stand, which brings your notebook PC, docking station, and display up off the desk.HP Adjustable Display Stand—Part number AW663AA Turn your HP Business Notebook into a desktop solution supporting up to a 24 inch display. A dual-hinged, smooth-motion display stand allows for greater depth, height and tilt adjustment for maximum comfort.HP DisplayPort™ Cable Kit —Part number VN567AA Connects a DisplayPort™ connector on an HP Business Desktop computer to a DisplayPort™ connector on a monitor.HP Business PC Security Lock Kit—Part number PV606AA Attaches to the rear of the PC with a six-foot steel cable that can be used to secure a PC or peripherals such as mice, keyboards, monitors or USB security devices to protect them against unauthorized removal by physically connecting the system to an anchor point.WHAT’S IN THE BOX?What’s in the box?Monitor and Accessories HP DreamColor Z24x G2 24-inch Display, AC power cord, USB3.0 cable, DVI-D cable, DisplayPort™ 1.2 cableDocumentation DVD documentation kit, factory calibration reportOther Software included HP DreamColor CalibrationUser Guide Languages English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch,Finnish, French, German, Greek, Hungarian, Italian, Japanese,Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese,Russian, Slovenian, Spanish, Swedish and Turkish.Warranty Languages English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch,Finnish, French, German, Greek, Hungarian, Italian, Japanese,Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese,Russian, Slovenian, Spanish, Swedish and Turkish.Country of Origin ChinaCERTIFICATION AND COMPLIANCECertification and Compliance Microsoft WHQL Certification (Windows 10, Windows 8 and Windows 7), ENERGY STAR® 7 Certified, SmartWay Transport Partnership (NA only)Compatibility Compatible with platforms using the VESA standard video modes. Recommended for use with HP products.Service and Warranty Protected by HP, including a 3 year standard limited warranty. Optional HP Care Pack Services are extended service contracts that extend your protection beyond the standard warranties.6Zero Bright Dot Policy* Yes*The HP Pixel Policy allows no bright sub-pixel defects for this display. For complete details, see /us-en/document/c00288895.Copyright © 2017 HP Development Company, L.P.The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.1.ENERGY STAR® power is measured with factory defaults, brightness at ENERGY STAR® level of 200 cd/m2 and with no USB loads.2.Default Power is measured with factory defaults, including factory default brightness and USB ports loaded at 25% of maximum.3.Maximum Power is measured with monitor at maximum brightness and with USB ports loaded at 100% of maximum.4.External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not beLow Halogen.5.EPEAT® Gold where HP registers commercial display products. See for registration status in your country.6.Service levels and response times for HP Care Pack Services may vary depending on your geographic location. Service starts from dateof hardware purchase. Restrictions and limitations apply. See /go/cpc for details.7.17 to 24-inch diagonal monitors need to meet supported weight limits of 6 to 12.1 lbs. (2.7 to 5.5 kg).8.The Integrated Work Center Stand has been designed to support 17 to 24-inch diagonal HP LCD monitors from 2.3 kg to 5.2 kg (5.07 lbsto 11.24 lbs).9.The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted. Because mountingsurfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws). HP recommends that you consult with a qualified engineering, architectural or construction professional to determine the appropriate type and quantity of mounting fasteners required for your application and to ensure that your mounting solution is properly installed to support applied loads.QuickSpecsHP DreamColor Z24x G2 24-inch Display Technical Specifications c05477860 – DA 15913 - Worldwide — Version 2 — July 19, 2017 Page 11。

所有細節一覽無遺，完成所有工作當出現細節差異時，本款 23.8 英寸吋（對角線）FHD 顯示器可顯示您所需的清晰度，讓您專注於任務。

得力於豐富的 99% sRGB 色彩深度和 IPS 技術，您將在各種寬視角看到清晰、鮮豔的色彩。

舒適地工作藉由在 HP Display Center 中逐步驟完成人體工學設定指南 (Ergonomic Setup Guide)，輕鬆用最佳化的 4 向可調整性找出全天工作的舒適性，讓您用最舒適的姿勢發揮最高工作效率。

顯示器配備無閃爍技術、75Hz 刷新率 和內建始終啟用藍光濾片的HP Eye Ease，有助於雙眼保持舒適。

直覺地連線善用靈活的連線能力及設定，依您所需工作。

使用直觀的 Joypad OSD 按鈕輕鬆瀏覽螢幕上的設定時，可用於快速且輕易連接裝置的連接埠觸手可及。

激發靈感的設計用為您打造的顯示器，助力在全世界享受桌面娛樂。

優雅高效率的設計和 3 側窄邊框可提升和最大化辦公室空間。

使用包含回收塑料和金屬的顯示器除了外觀賞心悅目外，使用感覺更良好。

此外，還可使用配對的配件生態系統自訂您的空間並提高您的生產力。

HP Sales Central規格顯示器尺寸 (對角線)23.8"顯示器類型IPS 長寬比16:9解析度 (原始)全高畫質 (FHD) (1920 x 1080)畫素間距0.27 x 0.27 公釐顯示器色彩支援最多高達 16.7 億種色彩亮度250 nits 對比率1000:1HP E24 G5 FHD 顯示器 (6N6E9AA)從 2022/6/13 起開始供應概要重新定義焦點HP E24 G5 FHD 顯示器經過精心設計，可提供清晰的視覺效果、個人化舒適度和真正的靈活性，重新定義舒適性，讓您與最佳狀態之間沒有任何隔閡。

本款顯示器時尚且以地球永續為考量的設計理念，非常適合辦公室和家用。

定價NT$6,182.001231456回應時間5 毫秒 GtG（帶過壓驅動）顯示功能螢幕上的控制項；防眩目；高度調整/傾斜/旋轉/樞轉；HP Eye Ease傾斜-5 到 +23°高度調整範圍150 公釐每吋像素 (ppi)93 ppi螢幕處理防眩光旋轉角度±45°低藍光是，HP Eye Ease（TÜV 低藍光硬體解決方案認證）轉軸±90°VESA 安裝作業100 公釐 x 100 公釐面板位元深度8 位元（6 位元 + FRC）曲率平板式HDCP是，DisplayPort™ 和 HDMIDisplayPort™1 個 DisplayPort™ 1.2 連接埠HDMI1 個 HDMI 1.4 連接埠USB Type-A 連接埠4 個 SuperSpeed USB Type-A 5Gbps 傳輸速率（1 個充電連接埠）USB b（集線器啟用）1 個 USB-B 連接埠電源消耗量53 W（最大）、22 W（一般）、0.5 W（待機）取得 ENERGY STAR 認證符合 ENERGY STAR® 標準永續性影響規格低鹵；內包裝箱紙漿模塑防撞墊採用 100% 永續及可回收來源；外部包裝盒和緩衝包裝來自 100% 永續性來源和可回收材料；包含海洋回收塑料；80% 來自於資訊科技設備的封閉再生循環塑膠；至少25% 回收金屬最小尺寸 (寬 x 深 x 高)53.94 x 4.7 x 32.26 公分（不帶鉸鏈）；53.94 x 7.5 x 32.26 公分（帶鉸鏈）(不含底座)3尺寸 (含支架) (寬 x 深 x 高)53.94 x 21.1 x 50.7 公分重量5.4 公斤UPC 編號196786300561包裝尺寸（寬 x 深 x 高）62.1 x 14 x 40 公分包裝重量7.6 公斤製造商保固3 年有限保固。

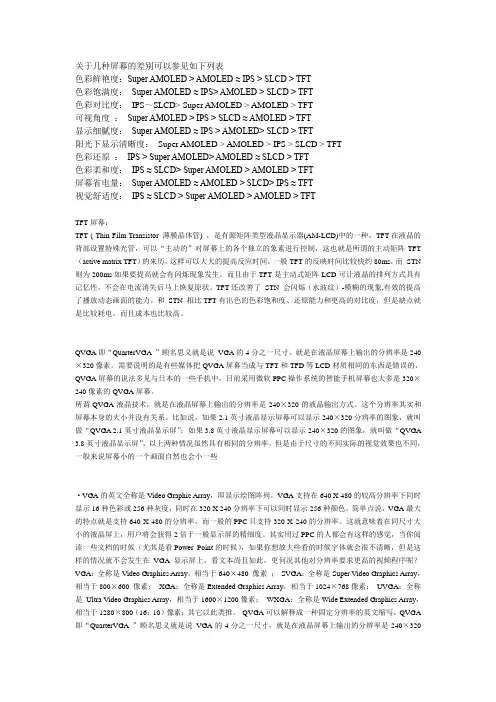

关于几种屏幕的差别可以参见如下列表色彩鲜艳度：Super AMOLED > AMOLED ≈ IPS > SLCD > TFT色彩饱满度：Super AMOLED ≈ IPS> AMOLED > SLCD > TFT色彩对比度：IPS～SLCD> Super AMOLED > AMOLED > TFT可视角度：Super AMOLED > IPS > SLCD ≈ AMOLED > TFT显示细腻度：Super AMOLED ≈ IPS > AMOLED> SLCD > TFT阳光下显示清晰度：Super AMOLED > AMOLED > IPS > SLCD > TFT色彩还原：IPS > Super AMOLED> AMOLED ≈ SLCD > TFT色彩柔和度：IPS ≈ SLCD> Super AMOLED > AMOLED > TFT屏幕省电量：Super AMOLED ≈ AMOLED > SLCD> IPS ≈ TFT视觉舒适度：IPS ≈ SLCD > Super AMOLED > AMOLED > TFTTFT屏幕：TFT ( Thin Film Transistor 薄膜晶体管) ，是有源矩阵类型液晶显示器(AM-LCD)中的一种，TFT在液晶的背部设置特殊光管，可以“主动的”对屏幕上的各个独立的象素进行控制，这也就是所谓的主动矩阵TFT （active matrix TFT）的来历，这样可以大大的提高反应时间，一般TFT的反映时间比较快约80ms，而STN 则为200ms如果要提高就会有闪烁现象发生。

而且由于TFT是主动式矩阵LCD可让液晶的排列方式具有记忆性，不会在电流消失后马上恢复原状。

TFT还改善了STN 会闪烁（水波纹）-模糊的现象,有效的提高了播放动态画面的能力。

转 CRT、LCD、PDP、OLED等显示技术对比目前CRT、LCD、PDP、OLED等显示技术对比一、CRT显示器显像管显示器件又称CRT(Cathode-RayTube：阴极射线管)。

CRT作为当前使用最普遍的显示器件在画面清晰度、亮度、显示速度、对比度、彩色还原质量等方面暂时具有独一无二的优势。

CRT发明至今已有1 00多年历史,而彩色CRT自1 950年问世至今亦有50多年了。

到目前为止,CRT已经历球面、平面直角、柱面、纯平面等几代产品。

CRT的基本参数主要是指亮度、分辨率、对比度及色域。

近50年来,平均亮度提高了50倍,其综合性能是迄今为止任何其他显示器件所不及的。

CRT技术虽然已趋成熟,但仍在继续发展,如屏幕超大尺寸及全平面化,工作特性向高亮度及对比度综合BCP发展。

50英寸的大屏幕CRT点距已达到0.63mm,以支持1 92 0×1 080像素的HDTV显示需求。

尽管在各种显示器件中,CRT的性能价格比最好,综合性能也最佳,但是CRT的缺点也是显而易见的。

首先CRT固有的物理结构限制了它向更广的显示领域发展；其次CRT不仅体积和耗电量大,辐射问题也一直困惑着使用者。

为此，生产CRT的公司还在继续完善他们的工艺，如：CRT显示器的厚度减少，即朝着短项"short-neck"发展，阴极、聚焦栅、透镜、荧光粉、偏转线圈、网格过滤器以及显示器中其它的组件仍在不断改进，其目的是提供更出色的显示效果。

厂家也一直努力把CRT显示器的调节控制改进得更为简便，更易于用户理解和操作，CRT显示器技术仍在不断改进，且向绿色环保发展。

二、LCD显示器平板显示器虽然种类很多,但是目前占据统治地位的仍是液晶显示器。

液晶显示器(LCD)无论是在技术发展速度方面,还是在市场占有量方面,在平板显示器中均遥遥领先。

液晶显示器(LCD)是目前唯一在亮度、对比度、色彩、功耗、寿命、体积、重量等综合性能方面全面赶上和超过CRT的平板显示器件。

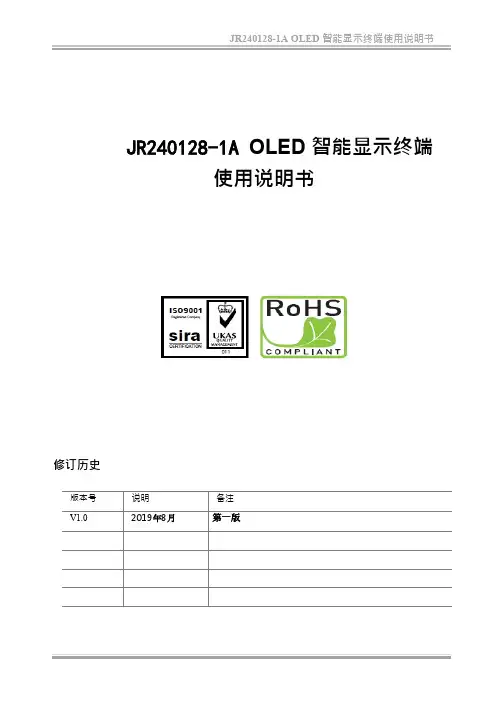

JR240128-1A OLED 智能显示终端使用说明书JR240128-1A OLED 智能显示终端使用说明书修订历史版本号说明备注V1.0 2019年8月第一版目录1. 产品简介………………………………………………………………… （3）2. 结构尺寸图……………………………………………………………… （4）3. 电气参数………………………………………………………………… （5）4. 接口说明…………………………………………………………… （6～7） 4.1 用户接口…………………………………………………………… （6） 4.2 通讯端口…………………………………………………………… （7）5. 指令集……………………………………………………………… （8～19） 5.1 指令结构………………………………………………………………(8) 5.2 指令集说明 …………………………………………………………（9） 5.3 系统类指令集表………………………………………………（10～12） 5.4 图形绘制类指令集表…………………………………………（13～15） 5.5 文字显示类指令集表………………………………………… 5.6 图像显示类指令集表…………………………………………6. 使用注意事项………………………………………………………（20～22）（１６～１７）（１８～１９）JR240128-1A OLED 智能显示终端使用说明书1.智能型 16 灰阶OLED 终端简介JR240128-1A是深圳市吉润实业有限公司在广泛汲取了众多客户要求和建议的基础上，采用32 位RSIC-MCU 开发的一款易使用的3.37寸OLED屏智能终端，可以直接和具有UART/RS232/SPI 等串行接口的MCU（如51 单片机、AVR、PIC、DSP、ARM、工控机等）连接。

用户只需通过串口向终端发简单的命令，就可以实现绘图和显示功能，用户代码中无需进行繁琐的计算和操作。

液晶显示器主要的部件和参数解释(1)液晶面板液晶面板是液晶显示器的主要组件，占去了液晶显示近80%的成本。

目前世界上拥有面板制造技术的厂家并不多，只有SHARP（夏普）、SANYO（三洋）、三星、LG-Philips、台湾的友达等厂商拥有核心技术，大多数液晶显示器都是用它们的面板来组装生产的。

面板的质量和身价目前分为三档：日本的三洋、夏普属于一档，多被采用在高端的产品上，如：sony,优派，纯净界等,价格也相对高昂；韩国的三星、LG 与Philips属于二级，多数使用在搭配品牌机出售的显示器上；友达等台湾厂商则属于第三档，也是低端液晶经常采用的面板。

(2)坏点所谓的坏点是液晶面板上，不能正常显示像素点的统称。

液晶面板是由众多显示点组成，靠每个显示点上的液晶物质在电信号控制下改变透光同状态完成的。

在1024×768分辨率下，液晶板共有786432个显示点，如此多的点很难完全保证个别会出现问题。

但以目前技术水平来看如果将有坏点的液晶面板报废，相信液晶显示也只能是橱窗中的天价商品了，因此，坏点的多少成为了面板的分级时的主要据。

厂商一般会避开坏点分割液晶板，把没有坏点或者极少坏点的液晶面板以较高的价格出售，而坏点数目比较多的则低价卖给小厂生产成廉价的产品。

目前主要的分级标准为：面板厂商标准：韩系厂商，3个以下为A级日系厂商，5个以下为A级台系厂商，8个以下为A级主流液晶显示器品牌准：AA级：无任何坏点的LCD显示器为AA级。

A级：3个坏点以下，其中亮点不超过一个，且亮点不在屏幕中央区内。

B级：3个坏点以下，其中亮点不超过二个，且亮点不在屏幕中央区内。

(3)关键指标：对比度液晶面板制造时选用的控制IC、滤光片和定向膜等配件，与面板的对比度有关，对一般用户而言，对比度能够达到350:1就足够了，但在专业领域这样的对比度平还不能满足用户的需求。

相对CRT显示器轻易达到500：1甚至更高的对比度而言。

触摸屏2.4寸液晶规格书SPECIFICATION FORTFT LCD MODULEMODEL NO: DST2401PH CUSTOMER:(2.41 INCH SINGLE TFT MODULE)This module uses ROHS material Customer Approval:ISSUED DATE: 2008/06/17RECORDS OF REVISIONDATE REF.PAGEPARAGRAPHDRAWING No. REVISEDNo.SUMMARY REMARK2008/06/17 ALL A FIRST ISSUE Contents1 Introduction-------------------------------------------- 42 General specification------------------------------------- 53 Mechanical drawing-------------------------------------- 64 Absolute maximum ratings--------------------------------- 75 Typical Electrical characteristics-----------------------------76 B/L Characteristics-------------------------------------- 77 Optical characteristics ------------------------------------88 Interface Pin Function------------------------------------ 119 Block diagram ------------------------------------------1210 Caution -----------------------------------------------1311 LCM quality criteria---------------------------------------1312 Packing method-----------------------------------------191. Introduction1.1 Scope of applicationThis specification applies to the Negative type TFT transmissive dotmatrix LCD module that is supplied by SHENZHEN DISPLAYSUNOPTECH TECHNOLOGY CO., LTD. This LCD module should be designed for mobile phone use.LCD specification: Duty 1/320, Dots 240xRGBx320.As to basic specification of the driver IC, refer to the IC (ILI9325)specification and data book.All material & processing of the LCD module should be Lead Free.TFT features:Single display structure (thickness Max3.0mm):2.41 TFT MODULE+FPC+BL+TP;Transmissive Negative Type LCD240 dot-segment and 320 dot-common outputs; FULL 262k Color TFT LCD ;One bare chip with gold bump (COG) TECH;16BITS 80 parallel series interface;1.3 Applications:Mobile phone2. General specificationvalueUNIT ITEM StandardLCD type TFT Negative Transmissive --- Number of Dots 240(RGB)*320 DotsDot Pitch(W*H) 0.153*0.153 mmActive Area 36.72*48.96 mmGlass Area(W*H) 40.52*57.46 mmLCD duty 1/240LCD bias /Viewing Direction 12 O’clockControll IC ILI9325Module42.72*60.26*3.0 mmSize(W*H*T)APPROX.WEIGHT TBD g Back Light White LED 3. Mechanical drawing4. Absolute Maximum RatingsITEM SYMBOL MIN MAX UNITS Power Supply Voltage (1) VDD-0.3 +4.0 V Power Supply Voltage (2) VGH +9.0 +16.5 V Power Supply Voltage (3) VGL-16.5 -4.0 V Input Voltage VI -0.3 VDD+0.3 V Operating Temperature Topr-20 70 Storage Temperature Tstg-30 80 ℃NOTENotes:1. If the LSI is used above these absolute maximum ratings,it may become permanently damaged. Using the LSI within the following electrical characteristics limit is strongly recommended for normal operation. If these electrical characteristic conditions are also exceeded, the LSI will malfunction and cause poor reliability.2. VDD, G ND must be maintained3.DC characteristics and AC characteristics of shipping chips and shipping wafer are guaranteed at 85℃.5. Typical Electrical CharacteristicsITEM SYMBOL CONDITIONSMIN TYP MAX UNITSVGH 9.0 -- 16.5TFT LCDVGL At 25℃-16.5 -- -4Power-supply voltageFor LCDVDD-GND - 2.8 3.3V IH “High” level0.8VDD ― VDD Input voltage for LCDV IL “Low” levelGND ― 0.2VDD VSupply current forLCDVDD VDD =2.8V ―-- 14 mANote 1: The supply voltage for VLCD has to be adjusted by software.6. B/L CharacteristicsPARAMETER SYMBO L MIN TYP MAX UNITSCONDITION Lamp Voltage V L -- 3.2 3.3 V Back Light-- 3200 -- -- Cd/㎡Each ILED=15mA※ LEDs in 4- parallel of B/L module ※ PWM control.7. Optical CharacteristicsSPECIFICATIONSITEMSYMBOL CONDITIONSMIN.TYP.MAXUNIT NOTEBrightness B 150 220 -- cd/m 2 Contrast Ratio CR 100 120 -- -- Response TimeTr+Tf -- 25 40 msX R-- 0.593 RedY R 0.333 X G--0.314 Green Y G0.545 X B-- 0.138 BlueY B 0.160 X W-- 0.314 CIEColorcoordinate WhiteY W Viewingnormal angle 0.345X θ+ 40 -- -- Hor.X θ? 40 -- -- Y θ+35 -- --Viewing AngleVer.Y θ?Center CR>=10 15 Deg.UniformityUn8085%Note 2: Definition of contrast ratio CR: Note 3: Definition of response time (T R, T F)8. Interface Pin FunctionNO. SYMBOL Description I/O1 DB0 Data Bus I/O2 DB1 Data Bus I/O3 DB2 Data Bus I/O4 DB3 Data Bus I/O5 GND1 GND POWER SUPPLY6 VCC1 A Power supply for the internal logic circuit POWERSUPPLY7 /CS Chip selection input pin: Active "L"8 RS LCD registor selector I9 /WR Write I10 /RD Read I11 NC -----I12 X+ Touch panel interface-13 Y+ Touch panel interface-14 X- Touch panel interface-15 Y- Touch panel interface-16 LEDA Backlight positive input pin-17 LEDK1 Backlight negative input pin-18 LEDK2 Backlight negative input pin-19 LEDK3 Backlight negative input pin-20 LEDK4 Backlight negative input pin-21 NC ------I22 DB4 Data Bus I/O23 DB8 Data Bus I/O24 DB9 Data Bus I/O25 DB10 Data Bus I/O26 DB11 Data Bus I/O27 DB12 Data Bus I/O28 DB13 Data Bus I/O29 DB14 Data Bus I/O30 DB15 Data Bus I/O31 /RESET Reset signal: Active “L”I32 VCI A Power supply for step-up circuit and power supply circuit POWER SUPPLY33 VCC2 A Power supply for the internal logic circuit POWER SUPPLY34 GND GND POWER SUPPLY35 DB5 Data Bus I/O36 DB6 Data Bus I/O37 DB7 Data Bus I/O9. Block DiagramRESETWR,RD,RS DB0-DB15 GNDVCI,VCC,IOVCC CS10. Caution10.1 Handling of LCM. Be sure to ground the body when handling the LCM.. Don’t give external shock. Don’t apply excessive force on the surface.. Liquid in LCD is hazardous substance. Must not lick and swallow.When the liquid is attach to your hand, skin, cloth etc. Wash it outthoroughly and immediately.. Don’t operate it above the absolute maximum rating.. Don’t disassemble the LCM10.2 Storage.Store in an ambient temperature of 5℃ to 45℃,and in a relative humidity of 40% to 60%. Don’t expose to sunlight or intensive ultraviolet rays. Storage in a clean environment, free from dust, active gas, and solvent.. Store in anti-static electricity container.. Store without any physical load.11.LCM Quality Criteria11.1 RELIABILITY TESTNO ITEM CONDITION STANDARD1 High temp. Storage 70℃, 48hrs No function failure detected.2 Low temp. Storage -20℃, 48hrs No function failure detected.3 High temp. & High60℃, 90%, 48hrs No function failure detected.humidity operation4 H igh temp. Operation 60℃, 48hrs No function failure detected.5 Low temp. Operation -10℃, 48hrs No function failure detected.6 Thermal shock -20℃, 30min~70℃, 30min,No function failure detected.10 cycles.The reliability items will be fully performed in new sample qualification.The reliability status will be tested as monitor during mass production. The individual reliability test shall be managed by lot. Moreover, the individual reliability item shall be decided accordingreliability plan.11.2VISUAL ＆ ELECTRONIC INSPECTION STANDARD11.2.1Inspection conditionsTest and measurement are performed under the following conditions, unless otherwise specified.Test conditions:Temperature 20+/-15℃Humidity 65+/-20% RHPressure 860~1060 hPa(mm bar)Viewing Angle: Normal to the Front Surface Fluorescent lamp: 20w; viewing distance 30~50cm 20 WM Power Lamp Normal line Upper PolarizerGlassBottom Polarizer11.2.2 DefinitionA Zone: Effective ViewingB Zone: Non-effective Viewing11.2.3 Quality Level:According to: ANSI Z 1.4 NORMAL LEVEL II Major Minor0.40 0.65ITEMMajorDots Open, short, missDots Pinhole, deformationColor tone Color unevenness, refer to limited sampleSolderingappearanceCold solder,MinorPolarizing plate Black spot, white spot, scratch, crackCriteria (functional items) Number 1234ItemsNon operationalMiss operatingMissing dotContrast irregularCriteria（mm）FailFailFailRefer to the limited sample4.05.0ScratchSoldering appearance1.0 scratch for LCD2.0 Scratch for PCBFollow the requirements of IPC-060 for the soldering quality. Length Width AcceptableL<2.0 W≤0.01 IgnoreL≥5.0 W≤0.01 3L≥3.0 0.01<="" p="">W> 0.05 0Length Width AcceptableL>3.0 0L≤3.00.5<w≤3.0< p="">1L>3.0 1L≤3.0 W≤0.5 311.3 Safety instructions:10.3.1If the LCD panel breaks, be careful not to get the liquid crystal to touch you skin.10.3.2 If the liquid crystal touches your skin or clothes, please wash it off immediately by usingsoap and water.11.4 Handling10.4.1 Avoid static electricity which can damage the LSI.10.4.2 Do not remove the panel or frame from the module.10.4.3 The polarizing plate of the display is very fragile. So, please handle it very carefully.10.4.4 Do not wipe the polarizing plate with a dry cloth, as it may easily scratch the surface the plate.10.4.5 Do not use ketonic solvent & aromatic solvent. Use a soft cloth soaked with a cleaning naphtha solvent.10.4.6 The color tone of display and background on LCD has the possibility to be changed in thestorage temperature range.10.4.7 Pay attention to the working environment, as the element may be destroyed by static electricity.--Be sure to ground human body and electric appliance during work.--Avoid working in a dry environment to minimize the generations of static electricity.--Static electricity may be generated when the protective film is fast peeled off.11.5 Operation instructions:It is recommended to drive the LCD within the specified voltage limits, try to adjust the operating voltage for the optimal contrast, the color and contrast of LCD panel will varies at differenttemperature, adjust the operating voltage for the optimal contrast.The response time of the LC fluid is considerably longer response at low temperatures than that in the normal operating temperature range.Do not operate the LCD at the environments over the specified conditions, this may cause damage on the LCD and shorten the lifetime.11.6 Storage instructions:10.6.1Keep the LCD panel at a temperature of 15℃~35℃ and at a relative humidity of 65% or less for long-term storage.10.6.2 Keep the LCD panel away from high temperature (>40℃) and high humidity (>80%)environment for long-term storage.10.6.3 Store away from direct sunlight and fluorescent light for long term storage, store the LCDpanel in a dark place or cover it with black clothes, avoid to cover something or make marks on part of the LCD panel when exposing to light for long time.10.6.4 Do not store the LCD panels in the environments over the specified storage conditions.12. Packing method</w≤3.0<>。

In/On-Cell/OGS屏幕全面解析深圳鸿佳科技专注于中小尺寸TFT液晶显示屏、LCD液晶显示模块、触摸屏的研发、设计、生产和销售。

产品涵盖了TN、HTN、STN、FSTN、TFT、OLED、触摸屏等系列；其中TFT液晶屏主要有：1.77寸、2.0寸、2.0寸横屏、2.2寸、2.4寸、2.8寸、3.2寸、3.5寸、3.97寸、4.3寸、5寸、5.6寸、7寸、9.7寸、10.1寸等；黑白液晶屏主要有：字符、图形、中文字库等标准或非标准模块。

产品广泛应用于仪器仪表、医疗设备、电力设备、通讯设备、家用电器、工业控制、消费电子、POS 机、手持设备等多个领域。

关于屏幕概念的炒作，从之前的IPS、AMOLED、SLCD的面板之争，到现在清一色标榜自己是OGS全贴合屏幕，如何如何轻薄、透光、图像“浮现”在屏幕上，苹果则貌似更为“高端”，传出了In-cell/On-cell的概念。

煮机做这期关于OGS/In-Cell/On-Cell屏幕的科普，力求通俗易懂，望以最简单的方式让大家了解真相。

要彻底了解In-Cell/On-Cell/OGS等等屏幕，就得先知道屏幕的基本结构组成。

从上到下，屏幕的基本结构分为三层，保护玻璃（最上面橙黄色标注了Cover glass的部分），触控层（图中一点点淡蓝色虚线，标注了X、Y的部分)，显示面板。

保护玻璃没什么好说的，康宁大猩猩玻璃就是。

触控层的话，就是由ITO触控薄膜和ITO玻璃基板组成。

显示面板可细分的程度高，这里只大致排列下：从上到下，分别是上玻璃基板（粉红色标注了Color filiter的区域，即彩色滤光基板），液晶层（蓝条），下玻璃基板（粉红色标注了Array的区域，即薄膜电晶体基板）。

最后，还需要指出的是，保护玻璃/触控层与显示面板之间，一般贴合技术会形成一层空气（即图中标注了Bonding的金黄色区域），如果采用全贴合技术去除这层空气，屏幕反光会大大减少，点亮屏幕时就显得更为通透，熄屏时更加黑沉，没有灰白的观感。

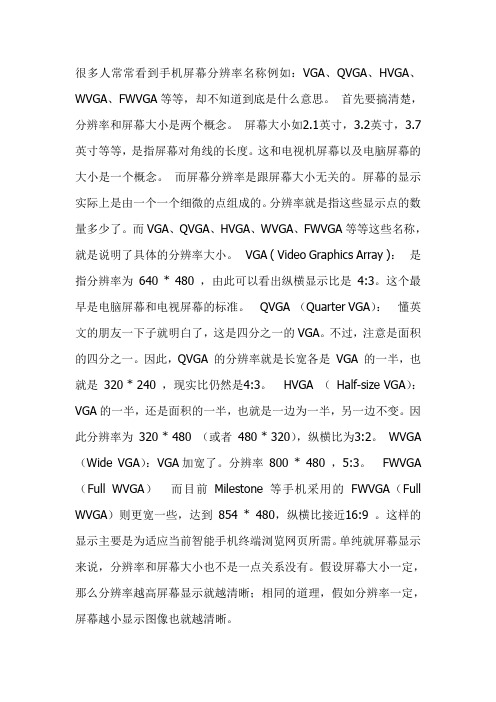

很多人常常看到手机屏幕分辨率名称例如：VGA、QVGA、HVGA、WVGA、FWVGA等等，却不知道到底是什么意思。

首先要搞清楚，分辨率和屏幕大小是两个概念。

屏幕大小如2.1英寸，3.2英寸，3.7英寸等等，是指屏幕对角线的长度。

这和电视机屏幕以及电脑屏幕的大小是一个概念。

而屏幕分辨率是跟屏幕大小无关的。

屏幕的显示实际上是由一个一个细微的点组成的。

分辨率就是指这些显示点的数量多少了。

而VGA、QVGA、HVGA、WVGA、FWVGA等等这些名称，就是说明了具体的分辨率大小。

VGA ( Video Graphics Array )：是指分辨率为640 * 480 ，由此可以看出纵横显示比是4:3。

这个最早是电脑屏幕和电视屏幕的标准。

QVGA （Quarter VGA）：懂英文的朋友一下子就明白了，这是四分之一的VGA。

不过，注意是面积的四分之一。

因此，QVGA 的分辨率就是长宽各是VGA 的一半，也就是320 * 240 ，现实比仍然是4:3。

HVGA （Half-size VGA）：VGA的一半，还是面积的一半，也就是一边为一半，另一边不变。

因此分辨率为320 * 480 （或者480 * 320），纵横比为3:2。

WVGA （Wide VGA）：VGA加宽了。

分辨率800 * 480 ，5:3。

FWVGA （Full WVGA）而目前Milestone等手机采用的FWVGA（Full WVGA）则更宽一些，达到854 * 480，纵横比接近16:9 。

这样的显示主要是为适应当前智能手机终端浏览网页所需。

单纯就屏幕显示来说，分辨率和屏幕大小也不是一点关系没有。

假设屏幕大小一定，那么分辨率越高屏幕显示就越清晰；相同的道理，假如分辨率一定，屏幕越小显示图像也就越清晰。

我们常用的手机屏幕采用的是同笔记本一样的液晶屏，液晶屏幕的分辨率都是固定的，每一个点就是一个像素。

而且手机分辨率并不是指屏幕大小，而且也可以说和屏幕本身的大小没有关系。

手机液晶屏种类解析手机液晶屏种类详解手机液晶屏的种类能够分为: STN屏幕 TFT屏幕 TFD屏幕 UFB屏幕 OLED 屏幕随着彩屏的逐步普遍，手机屏幕的材质也越来越显得重要。

手机的彩色屏幕因为LCD品质和研发技术不同而有所差异，其种类大致有TFT 、TFD、UFB、STN 和OLED几种。

一样来说能显示的颜色越多越能显示复杂的图象，画面的层次也更丰富。

除去上面这几大类LCD外，还能在一些手机上看到其他的一些LCD，比如日本SHARP的GF屏幕和CG〔连续结晶硅〕。

两种相比较属于完全不同的种类，GF 为STN的改良，能够提高的亮度，而CG那么是高精度优质LCD能够达到QVGA 〔240×320〕像素规格的辨论率。

UFB、STN、TFT比较STN是早期彩屏的要紧器件，最初只能显示256色，尽管通过技术改造能够显示4096色甚至65536色，只是现在一样的STN仍旧是256色的，优点是：价格低，能耗小。

TFT的亮度好，对比度高，层次感强，颜色鲜艳。

缺点是比较耗电，成本较高。

UFB是专门为移动和PDA设计的显示屏，它的特点是：超薄，高亮度。

能够显示65536色，辨论率能够达到128×160的辨论率。

UFB显示屏采纳的是专门的光栅设计，能够减小像素间距，获得更佳的图片质量。

UFB结合了STN和TFT的优点：耗电比TFT少，价格和STN差不多。

相关术语：手机液晶屏幕STN〔Super Twisted Nematic〕屏幕，又称为超扭曲向列型液晶显示屏幕。

在传统单色液晶显示器上加入了彩色滤光片，并将单色显示矩阵中的每一像素分成三个像素，分别通过彩色滤光片显示红、绿、蓝三原色，以此达到显示彩色的作用，颜色以淡绿色为和橘色为主。

STN屏幕属于反射式LCD，它的好处是功耗小，但在比较暗的环境中清晰度较差。

STN也是我们接触得最多的材质类型，目前要紧有CSTN和DSTN之分，它属于被动矩阵式LCD器件，因此功耗小、省电，但么应时刻较慢，为200毫秒。

2.4寸LCD屏多功能显示武汉工程大学继续教育学院毕业设计［论文］题目基于 51 单片机的 TFT 屏多功能显示设计专班姓业级名机电一体化工程 11 级 03 班张明波熊杰指导教师2014 年11 月 15 日第 1 页共 38 页目录一、设计要求与方案设计................................... 4 （一）设计要求 ........................................ 4 （二）电路设计 . (4)二、相关软件的介绍...................................... 5 （一）字体取模软件 .................................... 5 （二）图片取模软件 (6)（三）KEIL 软件的使用.................................. 7 三、硬件电路设计与实现.................................. 11 （一）电路整体设计框图与整体原理图 ................... 11 （二）STC 主控制器模块................................ 12 （三）DS1302 实时时钟模块 ............................. 13 （四）DHT11 温、湿度测量模块 .......................... 14 （五）TFT 彩屏显示模块................................15 （六）移动电源模块 ................................... 16 （七）译码器、按键、蜂鸣器模块....................... 16 四、程序设计思路与实现.................................. 17 （一）TFT 驱动层.. (17)（二）API 层......................................... 19 （三）DHT11 温湿度检测 (23)第 2 页共 38 页（四）DS1302 实时时钟................................. 26 （五）按键检测 ....................................... 28 （六）应用层 .. (30)结论 ................................................... 38 致谢 ...................................................39 参考文献 (39)---------------百度云盘有具体资料----------------------------/doc/121206939.html,/s/1o6IAy7K-------------- 第 3 页共 38 页基于 51 单片机的 TFT 屏多功能显示设计作者：张明波摘要： MCS-51 作为入门式的 8 位单片机，还是应用广泛的一种。

笔记本液晶屏材质种类介绍现在的笔记本液晶屏种类有哪些?不同材质的屏幕有什么区别?以下是店铺为你精心整理的笔记本液晶屏材质种类介绍，希望你喜欢。

笔记本液晶屏材质种类笔记本液晶屏从做工和材料上分为LCD(狭义的)和LED两种，OLED因为是不同的显示技术，所以OLED笔记本屏幕不在比较范围。

笔记本LCD屏和LED屏的区别LCD液晶显示器是Liquid Crystal Display 的简称，LCD的构造是在两片平行的玻璃基板当中放置液晶盒，下基板玻璃上设置TFT(薄膜晶体管)，上基板玻璃上设置彩色滤光片，通过TFT上的信号与电压改变来控制液晶分子的转动方向，从而达到控制每个像素点偏振光出射与否而达到显示目的。

优点：显示面板薄(平板型结构)，电磁辐射小，被动显示型(无眩光，有助于眼睛健康)，显示信息量大，易于彩色化，寿命长(这种器件几乎没有什么劣化问题，因此寿命极长，但是液晶背光寿命有限)。

缺点：色彩不够艳丽。

LED是Light Emitting Diode 的简称，含义是发光二极管，是一种能够将电能转化为可见光的固态的半导体器件，它可以直接把电转化为光，而且LED显示器更加省电，更加耐用，使用寿命长，亮度高而发热少，而且是属于环保型绿色照明光源，而且它的做工技术更高!LCD液晶显示屏按照控制方式不同可分为被动矩阵式LCD及主动矩阵式LCD两种。

被动矩阵式LCD：被动矩阵式LCD在亮度及可视角方面受到较大的限制，反应速度也较慢。

由于画面质量方面的问题，使得这种显示设备不利于发展为桌面型显示器。

被动矩阵式LCD又可分为TN-LCD(Twisted Nematic-LCD，扭曲向列LCD)、STN-LCD(Super TN-LCD，超扭曲向列LCD)和DSTN-LCD(Double layer STN-LCD，双层超扭曲向列LCD)。

主动矩阵式LCD：目前应用比较广泛的主动矩阵式LCD，也称TFT-LCD(Thin Film Transistor-LCD，薄膜晶体管LCD)。
