3.5寸TFT液晶规格书

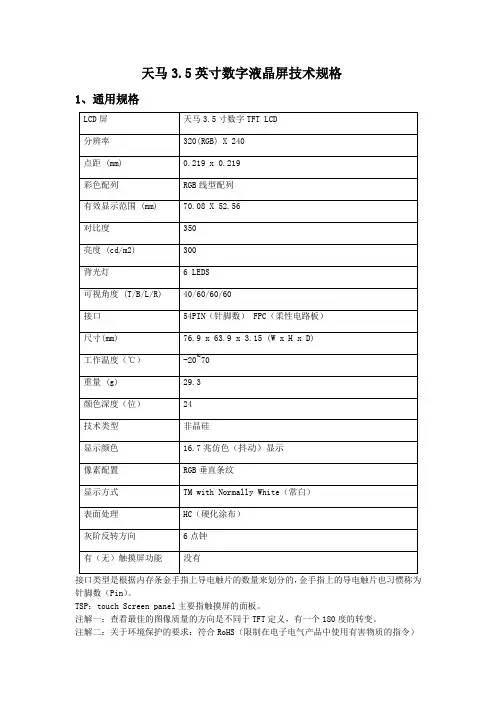

天马3.5英寸数字液晶屏技术规格1、通用规格接口类型是根据内存条金手指上导电触片的数量来划分的，金手指上的导电触片也习惯称为针脚数（Pin）。

TSP：touch Screen panel主要指触摸屏的面板。

注解一：查看最佳的图像质量的方向是不同于TFT定义，有一个180度的转变。

注解二：关于环境保护的要求：符合RoHS（限制在电子电气产品中使用有害物质的指令）注解三:LCM重量公差：±5％AS13LCM35D驱动板技术规格AS13LCM35D工作原理图图中名词解释Decoder：解码器，译码器VR（voltage regulation）：电压调节（调压）MCU（Microprogrammed Control Unit）：微程序控制器AS13LCM35D接口定义J3插座定义AS13LCM35D连接线示意图3、绝对最大额定参数（Absolute Maximum Ratings）3.1操作TFT-LCD面板（Driving TFT LCD Panel）4、电特性（Electrical Characteristics）4.1操作TFT-LCD面板（Driving TFT LCD Panel）GND=0V，Ta=25℃4.2控制背光（Driving Backlight）注解一：下图显示的LED背光连接。

注解二：一个LED：IF=20毫安，VF= 3.2V注解三：最小的LED寿命：20,000小时6、光学特性（Optical Characteristics）6.1光学鉴定（Optical Specification）Ta=25℃实验条件（Test Conditions）1. VF= 3.2V，IF = 20mA下的LED电流，环境温度为25℃。

2. 测试系统是指注解1和注解2。

注解一：光学测量系统的定义。

在黑暗的房间，应测量的光学特性。

运行5分钟后，测量的光学性质在液晶屏幕的中心点。

所有输入端子的液晶面板必须是地面测量时面板的中心区域。

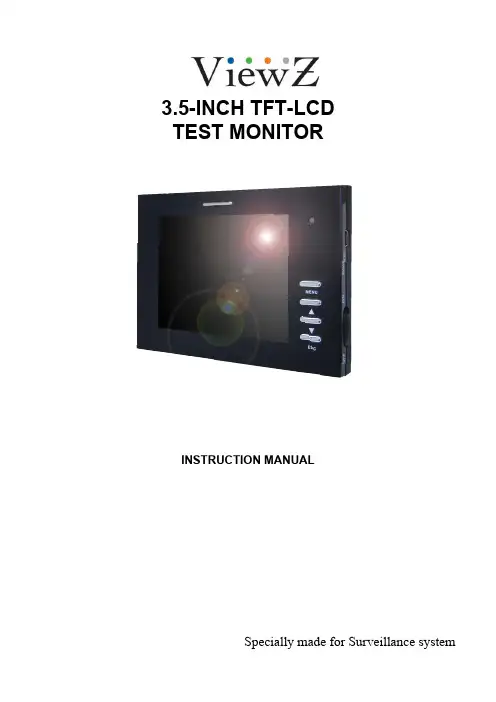

3.5-INCH TFT-LCDTEST MONITORINSTRUCTION MANUALSpecially made for Surveillance systemPlease read the following items before use.●Dear customers, thanks for using this product, we sincerely hope our products can bring you convenience, and before start to use it, please pay attention to the following items.And please keep it after reading the safety notice.1）Forbidden to use in the high temperature environment especially not allowed in hi-temperature bathroom, the most suitable working temperature for this product is approximate 0-60℃If something breaks down, please turn off the monitor, and take out the batteries, or pull out the plug of the charger. When product leaks smoke 、exception smell or other exception matter . If continue using, it may cause fire disaster or suffer shockDon’t redo or knock down the machine (Do not open the case ), if the machine breaks down or the case gets broken. Please don’t continue using ,otherwise it may cause the fire disaster or suffer shock.2）Don’t redo、heat up、over-tweak or drag the connection wire, and please don’t put heavy object on the connection wire, otherwise it may damage the wire, and cause fire disaster or suffer shock. when wire damaged, please contact the local wholesaler to change.3）Please don’t place the product in disbalance place, otherwise it may make the machine drop to get damage.4）Please use the dominated batteries, and when fixing the batteries, please do in accordance with demonstration.Please don’t heat up 、redo or knock down the battery, please don’t drop the battery or make it get hit, please don’t place the battery in the metal container. Use the dominated charger to charge the battery. any fails from the above case may cause battery explosion or leak, thereby cause the fire disaster or body harmness.5）Please use the dominated battery or AC charger. Please don’t use it at the voltage beyond the fixed range.6）If battery leaks, and the liquid comes into your eyes、skin or clothes, please wash the position touched, if necessary, please contact the doctor or dial the emergent number.7）When plug get damaged or it’s loosen when inserted into the socket, please don’t use the AC charger, otherwise it may cause fire disaster or suffer shock.8）Clean the monitor. and when not used for a long time, please take out the batteries, or pull out the plug, otherwise it may cause fire disaster or suffer shock.9）When charging finished, please pull out the plug from the socket, otherwise fire disaster may happen.10）Keep the product away from water or other liquid, otherwise there may be danger of fire disaster or shock.In order to keep your safety, please use the adapter we supplied (Regarding the damages caused by using adapters from other supplier, we are not responsible to it).11）Don’t set the machine in the place of bared sunshine.12）In order to keep it away from damage by dropping or bumping at sharp object, Please place the machine in the place where the children can not reach,When the battery’s working time is apparently shorter than new one, please change the battery.13）The machine will get heat after long time working, it belongs to normal phenomenon.14）Please don’t place the charger in the place of much dust or intensity vibration、extreme humidity or high temperature (for example: under the bare sunshine or beside the heater )15）The available voltage for the charger is AC 110~240 V / 50/60 Hz. Plug standard is various from different environment; when purchase this product, please consult relevant department to confirm the suitable plug standard. 16）During charging, the batteries and charger will get heat, it belongs to normal phenomenon, but not malfunction. If possible, please charge the battery in aeration area.Battery and power supplyThe following items state the right way to use batteries and the way to extend its lifespan Using the batteries in incorrect way will shorten its lifespan or cause to leak、overheat、fire or explode.●Battery comes out from factory with no power. Please charge it before use. and put it into the battery box whe n don’tuse it.Battery usage notice-If leaving the battery to be idle, it will lose electricity gradually. Please charge it at 1-2 day early before use·When battery in idle status, turn off the monitor, it’s a way to extend the lifespan.·The performance will reduce when battery in low temperature environment; battery can’t work normally in cold condition. place a fully charged battery in warm place. Don’t place battery close to heater or hand-warming articles.Charging Notice·Please put the batteries into the machine,and then connect the charger well.this product adopts IC to conduct electrical source management.when fit on the battery,it will conduct auto-inspection(the red light flash 2 times),if battery goes worng,the red light flash quickly;if working normally,the LED indicator light keep red.if fully charged,the red light will go out.10 minutes more charging again it’s a way to check if the charged battery is full or not.The charge time will extend if the surrounding temperature lower than 10℃ or higher than 35℃,please don’t charge the battery in the place where temperature is higher than 40℃;it stops charging when temperature under 0 ℃.it’s not allowed to charge the fully charged battery again,and you don’t have to wait to charge until the el ectricity totally runs out.·It’a normal phenomenon that battery gets heat when charge over or after use.Battery’s lifespanIn normal temperature,users can charge battery for 300 times.when the working time of consuming its full capacity apparently decrease,users need to change the battery.Storage·If long time no use after fully charged, the battery’s perfermance will weaken.·If don’t use this machine for a long time,please take the batteries ou t,and store them in a dry place，moreover the store temperature should between 15℃ and 25℃.Please don’t place it in extremely high or low temperature area.Attention:battery usage notice-Don’t transport or store the battery together with necklace、barrette and other metal object.·Don’t throw the battery into fire to heat up.·Don’t knock down or redo the battery.·Please use the dominated charger to charge.·Deal with the batteries discarded.·Don’t drop the battery or make it suffer intense vibration.·Please keep it away from water.·Please keep its connection terminal clean.·It’s the normal phenomenon that the battery and machine get heat after long time working.Alternating Current Adapter·Please just use the adapter dominated for this machine,if use other kind of adapter may cause matters to the machine. ·AC adapter for indoor use.·Make sure that DC plug connect to the monitor firmly.·Please turn off the monitor before pull out the plug.·Don’t use it in other devices.·Don’t knock it down yourself.·Don’t place it in high temperature or humidy area.·Please don’t let it suffer intense shake·It’s a normal phenomenon that the adapter buzzs or get heat when using.·If adapter cause wireless interference,please reset the antenna.Product UseIn order to make sure of the normal working,please don’t let the machine get hit or shake.Electric interferenceThis product may cause interference to the medical and aviatic devices.before you use it in the hospital or airport,please consult the hospital the airline company.Liquid crystalIf screen suffered damage,please avoid to touch the liquid crystal.if any case of the following happens,please do as we show.·If liquid crystal gets to your skin,please clean the position with cloth,then daub some soap and then wash it.·If liquid crystal comes into your eyes, please flush the eye with water more than 15minutes,and then ask for help from doctor.·If drink the liquid crystal by mistake,please gargle with water,and drink much water to help throw up,and then consult the doctor.Debug The MachineBefore start to monitor the important spot,please adjust the machine to make sure of its normal working.we are not responsible to any damage or benefit loss caused by product’s malfunction.ClaimSpecification subject to change without notice, we have the final explaination right to do a explaination to this manual. ·The screen is made from high precise technology,still there would be brightness dot or color abnormity on screen sometimes.it’s the normal phenomenon to this kind of LCD,but not failure.·When fall acrosse wireless interference( such as magnetic field、static or circuit noise),the abnormity display may happen.AccessoryPower Charger 1pcWall mount bracket 1pc1.2V AA nickel-hydrogen battery 4pcsA V cable #1( video input) : 1pcAv cable #2 (video output): 1pcWrist strap 1 pcUsers’manual 1pcWarranty card 1pcAppearance and function illustrationMenu adjustmentBrightness Brightness adjustment: Users can change the brightness and darkness of image by adjusting the parameter according to his personal requirement. Firstly, press MENU key to enter main menu interface, and then press “▲”key or “▼”key to confirm this submenu, then press “▲”or “▼”to adjust the brightness and darkness of image. Press ESC key to exist main menu.Contrast Contrast adjustment: Users can change the contrast of image by adjusting the parameter according to his personal requirement. Firstly, press MENU key to enter main menu interface, press MENU key to select downwards(moving the yellow cursor to this submenu),and then press “▲”key or “▼”key to confirm this submenu, in the end press “▲”or “▼”to adjust the contrast of image. Press ESC key to exist main menu.Saturation Saturation adjustment: Users can change the saturation of image by adjusting the parameter according to his personal requirement. Firstly, press MENU key to enter main menu interface, press MENU key to selectdo wnwards(moving the yellow cursor to this submenu),and then press “▲”key or “▼”key to confirm this submenu, in the end, press “▲”or “▼”to adjust the saturation of image. Press ESC key to exist main menu.Sharpness Sharpness: Users can change the sharpness of image by adjusting the parameter according to his personal requirement. Firstly, press MENU key to enter main menu interface, press MENU key to select downwards(moving the yellow cursor to this submenu),and then press “▲”key or “▼”key to confirm this submenu, in the end, press “▲”or “▼”to adjust the sharpness of image. Press ESC key to exist main menu.V olume V olume adjustment: Users can change the volume of image by adjusting the parameter according to his personal requirement. Firstly, press MENU key to enter main menu interface, press MENU key to select downwards(moving the yellow cursor to this submenu),and then press “▲”key or “▼”key to confirm this submenu, then press “▲”or “▼”to adjust the volume of image. Press ESC key to exist main menu.Language English / Italian / ChineseInstallation Illustration Battery fixing1.Product fixing methodUsers have four methods to fix this product, you can choose the accessories supplied to fix according to the various situation.⑴Portable: APut it on your arms by using the wrist strap.(this method is usually suitable to outdoor working or or indoor camera lens adjustment in construction field)⑵ Portable: BHanging the machine at your waist.（3） Fixing on wall :Fix the machine on wall by using the wall bracket.（4）Normal MethodOpen the multi-function bracket to stand the machine on the table-board.2.OPERATION1、Put the batteries into machine according to the direction marked with “+” “-”.2、Insert the A V cable 1 (including power output cable) to the jack in position 9of the illustration. And then connect the red RCA connecter to video signal port, and the white one to audio port.3、Switch the power switch to “ON” side.4、If you need to output A V signal , insert A V cable 2 to the jack in position 10 of the illustration. Yellow cable for video output, white one for audio output.5、If powerless, you can charge it as it’s working. Conn ect the charger to position 7 of the illustration.6、When the image comes to be normal, you can adjust it by key 3、4、5 and 6.showed in the illustration.SpecificationTrouble shootingBefore calling for repair, please refer to this section to see whether you can solve it by yourself; if you need help, please contact our after sale service centre or our wholesaler.。

Product SpecificationsCustomerDescription 3.45” TFT LCD ModuleModel Name SGC035COM—54PINDate 2008/6/13Doc. No.Revision BCustomer ApprovalDateThe above signature represents that the product specifications, testing regulation, and warranty in the specifications are acceptedEngineeringCheck Date Prepared DateDoris2008/6/13CONTENTSNo. ITEM PAGE0 RECORD OF REVISION 31 SUMMARY 42 FEATURES 43 GENERAL SPECIFICATIONS 44 ABSOLUTE MAXIMUM RATINGS 45 ELECTRICAL CHARACTERISTICS 56 DC CHARATERISTICS 67 AC CHARACTERISTICS 6~108 OPTICAL CHARATERISTIC 119 TOUCH PANEL 14~1510 INTERFACE 16~1911 BLOCK DIAGRAM 2012 QUALITY ASSURANCE 2113 OUTLINE DRAWING 2214 PACKAGE INFORMATION 2315 PRECAUTIONS 24~26RECORD OF REVISIONSRevision Date Page DescriptionA 2008/2/12 all New CreationB 2008/6/13 18 LCM PIN Definition1. SUMMARYThis technical specification applies to 3.45“color TFT-LCD panel. The 3.45“ color TFT-LCD panel is designed for GPS, camcorder, digital camera application and other electronic products which require high quality flat panel displays. This module follows RoHS.2. FEATURESHigh Resolution: 230,400 Dots (320 RGB x 240). SGC 035COM—54PIN is atransmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) asswitching devices. This product is composed of a TFT LCD panel, driver ICs, FPC, backlight unit and touch panel.,3. GENERAL SPECIFICATIONSParameter Specifications Unit Screen size 3.45(Diagonal) InchDisplay Format 320 RGB x 240 DotActive area 70.08(H) x 52.56(V) mmDot size 73x 219 umPixel Configuration RGB-Stripe Outline dimension 76.9(W) x 63.9(H) x 3.3(D) mm Display Mode Normally white/Transmissive Surface Treatment Haze 20% Display Garmut NTSC 60% Input Interface Digital 24-bit RGB/SERIALRGB/CCIR656/CCIR601Weight (31) g View Angle direction 6 o’clockOperation -20~70 ℃Temperature RangeStorage -30~80 ℃4. ABSOLUTE MAXIMUM RATINGSItem Symbol Condition Min. Max. Unit Remark Power Voltage DVDD,AVDD GND=0 -0.3 5.0 V Input SignalVoltage V in GND=0 -0.3 VDD+0.3 VNOTE Logic OutputVoltageV OUT GND=0 -0.3 VDD+0.3 V NOTENote: Device is subject to be damaged permanently if stresses beyond those absolute maximum ratings listed above1. Temp. ≤ 60℃, 90% RH MAX.Temp. ＞ 60℃, Absolute humidity shall be less than 90% RH at 60℃2.5. ELECTRICAL CHARACTERISTICS 5.1. Operating conditions:Parameter SymbolRatingMin. Typ. Max.Unit ConditionPower Voltage VCC 3.0 3.3 3.6 V Digital Operation CurrentIcc 8.6 mA Gate On Power VGH 14 15 18 V Gate Off Power VGL -11-10 -8V Vcom High Voltage VcomH 3.7 V Note1 Vcom low VoltageVcomL-1.6VNote1Vcom level max VcomA 6 VNote1. VcomH& VcomL ：Adjust the color with gamma data. Vp-p should be higher then4V.(Option 5V)Note: Please power on following the sequence VCC Æ VDD5.2 LED driving conditionsParameter Symbol Min. Typ. Max. Unit Remark LED current- 20 - m A Power Consumption - 400 420 mW LED voltage VBL+ 18.619.8 21 V Note 1 LED Life Time - (50,000)- - HrNote 2,3Note 1 : There are 1 Groups LEDILEDNote 2 : Ta = 25℃Note 3 : Brightess to be decreased to 50% of the initial value深圳宏辉成液晶显示有限公司/6. DC CHARATERISTICSParameter SymbolRatingUnit Condition Min. Typ. Max.Low level input voltage V IL 0-0.3VCCVHight level input voltage V IH0.7VCC-VCC V7. AC CHARATERISTICSDigital Parallal RGB interfaceSignal Item Symbol Min Typ Max UnitFrequency Tosc - 156 - ns Dclk High Time Tch - 78 - nsLow Time Tcl - 78 - nsDataSetup Time Tsu 12 - - nsHold Time Thd 12 - - nsPeriod TH - 408 - Tosc Pulse Width THS 5 30 - ToscHsyncBack-Porch Thb 38 ToscDisplay Period TEP - 320 - ToscHsync-den time THE 36 68 88 TsocFront-Porch Thf - 20 - ToscPeriod Tv - 262 - THPulse Width Tvs 1 3 5 TH Vsync Back-Porch Tvb - 15 - TH Display Period Tvd - 240 - THFront-Porch Tvf 2 4 - TH1. Thp + Thb = 68, the user is make up by yourself.2. Tv = Tvs + Tvb + Tvd + Tvf , the user is make up by yourself.3.When SYNC mode is used,1st data start from 68th Dclk after Hsync fallingDigital Serial RGB interfaceSignal Item Symbol Min Typ Max Unit Frequency Tosc - 52 - ns Dclk High Time Tch - 78 - ns Low Time Tcl - 78 - nsData Setup Time Tsu 12 - - nsHold Time Thd 12 - - nsPeriod TH - 1224 - Tosc Pulse Width THS 5 90 - ToscHsyncBack-Porch Thb 114 ToscDisplay Period TEP - 960 - Tosc Hsync-den time THE 108 204 264Front-Porch Thf - 60 - ToscPeriod Tv - 262 - THPulse Width Tvs 1 3 5 THVsync Back-Porch Tvb - 15 - THDisplay Period Tvd - 240 - THFront-Porch Tvf 2 4 - TH Note: 1. Thp + Thb = 204, the user is make up by yourself.2. Tv = Tvs + Tvb + Tvd + Tvf , the user is make up by yourself.3. When SYNC mode is used,1st data start from 204th Dclk after Hsync fallinCCIR601/656 InterfaceSignalData Setup Time Tsu 12 - - ns Hold Time Thd 12 - - ns深圳宏辉成液晶显示有限公司/[_//f+--------------------H " "'= 1560--------------------+jInvalid Data Inva l i d Da t a018,0"'=DOTCLK In va li d DataIn v a l i d Data]---...t--f------------H018, =1440-------------+jslrL//RR[7:0]In va lid DataIn va l i d Dataf---- t.<sP = HBP[6:0]'4+STH[1:0'1-- *. - ----------- IH0,se = 128--- --- ----.!Figure1 CCIR601 Horizontal Timing深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648Doc. No.SEL[2:0] = 100- 111, NTSCVSYNC HSYNCRR[7:0]tveP = VBP[6:0]DL1DL2DL3IDL2391DL240I---ODD Field VSYNCEVEN FieldHSYNCRR[7:0]tvsP= VBP[6:0] + 1·IODD FieldI IDL1DL2DL3IDL2391DL240ISEL[2:0] = 100- 111, PAL, PALM=OEVEN VSYNCHSYNCRR[7:0]tvsP= VBP[6:0]DL1DL2DL3IDL2791DL280IODD Field VSYNCEVEN Fi l eHSYNCRR[7:0]tvsP= VBP[6:0] + 1·IODD FieldI IDL1DL2DL3IDL2791DL280ISEL[2:0] = 100 - 111, PAL, PALM=1EVEN VSYNCHSYNCRR[7:0]tveP= VBP[6:0]DL1DL2DL3IDL2871DL288 1ODD Field VSYNCEVEN Fi l eHSYNCI深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648IRR[7:0]lvsP= VBP[6 0] + 1·IDL1DL2DL3IDL287 1DL288 1Figure1CCIR601 Vertical Timing深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648Figure2 CCIR656 Horizontal Timing深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648Figure2 CCIR656 Vertical Timing深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648Figure 3Digital RGB NTSC mode Vertical Data Format for 262THH cycle = 1224tHBP = 204HDISP = 960t HFP = 60DOTCLKHSYNCPixel DataDumm yD0D1----------D 957 D 958 D 959Dum mya ) Horizontal Data Transaction Tim ing V cycle = 262 Lines t VBP = 18VSYNC VDISP = 240 Lines t VFP = 4HSYNC Line 0 b ) Vertical Data Transaction Tim ing Line 239深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648Figure 3 Data Transaction Timing in Serial RGB (8 bit) Interface (SYNC Mode)深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648Figure3 Data Transaction Timing in Serial RGB (8 bit) Interface (DE Mode)深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648Figure3Data Transaction Timing in Parallel RGB (24 bit) Interface (SYNC Mode)深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648Figure4 Data Transaction Timing in Parallel RGB (24 bit) Interface (DE Mode)7.1.1 Standby ON/OFF Control LQ35NC211 has a power ON/OFF sequence control function. When STB pin is pulled L,blank data is outputted for 5-frames first, form the falling edge of the following VSYNC signal. The blank data would be gray level 255 for normally white LC.Figure5 Standby ON/OFF Control 7.1.2 Clock and Sync waveforms深圳宏辉成液晶显示有限公司 /手机 : 133 166 766 58 MSN: lcd.sales@ QQ：1378107648Figure6 CLK and IHS timing waveformTV FTC LTH B7.2 Reset Timing ChartThe RESET input must be held at least 1ms after power is stable8. OPTICAL CHARATERISTICTa=25±2℃, ILED=20mA Item Symbol Condition Min. Typ. Max. Unit Remark Response timeTr θ=0°、Φ=0°Tf- 10 ms- 15 msNote 3,5 Contrast ratio CRAt optimizedviewing angle300 400 - - Note 4,5 Color ChromaticityWhiteRedGreenBlueWxθ=0°、Φ=0WyRxθ=0°、Φ=0RyGxθ=0°、Φ=0GyBxθ=0°、Φ=0By(0.26) (0.31) (0.36) Note 2,6,7(0.28) (0.33) (0.38)Hor.ΘR(50) (60)Viewing angleΘL CR≧10(50) (60)Deg. Note 1Ver.ΦT(40) (50)ΦB(45) (55)Brightness - - 180 200 - cd/m2Center ofdisplayTa=25±2℃, I L=20mANote 1: Definition of viewing angle rangeFig. 8-1 Definition of viewing angleNote 2: Test equipment setup:After stabilizing and leaving the panel alone at a driven temperature for 10 minutes, the measurement should be executed. Measurement should be executed in a stable, windless, and dark room. Optical specifications are measured by Topcon BM-7 luminance meter 1.0° field of view at a distance of 50cm and normal direction.Fig. 8-2 Optical measurement system setupNote 3: Definition of Response time:The response time is defined as the LCD optical switching time interval between “White” state and“Black” state. Rise time, Tr, is the time between photo detector output intensity changed from 90﹪to 10﹪. And fall time, Tf, is the time between photo detector output intensity changedfrom10﹪to 90﹪.Note 4: Definition of contrast ratio:The contrast ratio is defined as the following expression.Contrast ratio (CR)= Luminance measured when LCD on the “White” stateLuminance measured when LCD on the “Black” stateNote 5: White Vi = V i50 ± 1.5VBlack Vi = Vi50 ± 2.0V“±” means that the analog input signal swings in phase with VCOM signal. “±” means that the analog input signal swings out of phase with VCOM signal.The 100% transmission is defined as the transmission of LCD panel when all the input terminals of module are electrically opened.Note 6: Definition of color chromaticity (CIE 1931)Color coordinates measured at the center point of LCDNote 7: Measured at the center area of the panel when all the input terminals of LCD panel are electrically opened.Brightness (min)Note 8 : Uniformity (U) = x 100%Brightness (max)9. TOUCH PANELNA10. INTERFACE10.1. LCM PIN DefinitionPin Symbol I/O Function Remark1 LED- I Backlight LED Ground2 LED- I Backlight LED Ground3 LED+ I Backlight LED Power4 LED+ I Backlight LED Power5 Y1 I Top electrode ,6 X1 I Right electrode7 NC Not Use8 /RESET - Hardware Reset9 SPENA I SPI Interface Data Enable Signal Note 310 SPCLK I SPI Interface Data Clock Note 311 SPDAT I SPI Interface Data Note 312 B0 I Blue Data Bit 013 B1 I Blue Data Bit 114 B2 I Blue Data Bit 215 B3 I Blue Data Bit 316 B4 I Blue Data Bit 417 B5 I Blue Data Bit 518 B6 I Blue Data Bit 619 B7 I Blue Data Bit 720 G0 I Green Data Bit021 G1 I Green Data Bit122 G2 I Green Data Bit223 G3 I Green Data Bit324 G4 I Green Data Bit425 G5 I Green Data Bit526 G6 I Green Data Bit627 G7 I Green Data Bit728 R0 I Red Data Bit0 /DX0 Note 429 R1 I Red Data Bit1 /DX1 Note 430 R2 I Red Data Bit2 /DX2 Note 431 R3 I Red Data Bit3 /DX3 Note 432 R4 I Red Data Bit4 /DX4 Note 4Control the input data format /floatingControl the input data formatControl the input data formatNot UseData Enable Input54 AVSS INote:1. The mode control (SEL2) not use ,it can’t control CCIR601 interface , If not use CCIR601 ,itcan floating.2. For digital RGB input data format, both SYNC mode and DE+SYNC mode are supported. If DEsignal is fixed low, SYNC mode is used. Otherwise, DE+SYNC mode is used.Suggest used SYNC mode!!Suggest the DE signal usually pull low.3. usually pull high.4. IF select serial RGB or CCIR601/656 input mode is selected,only DX0-DX7 used,and the other short to GND, Onlyselected serial RGB、CCIR601/656 interface,DX BUS will enable,Digital input mode DX0 is LSB and DX7 is MSB.5. Control the input data formatDoc. No.10.2 SPI timing CharacteristicsFigure8 SPI read、write timingFigure9 SPI timingFigure10 SPI Reference program10.3 SPI Register DescriptionWill be showing on Application Note From Chihsin .10.4 Basic Display Color and Gray ScaleColorRedMSB LSBInput Color DataGreenMSB LSBBlueMSBLSBR7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0BasicColorsBlack Red(255) Green(255) Blue(255)CyanMagenta Yellow White 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 0 0 0 1 1 1 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 1 1 1 0 0 0 1 1 1 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 1 1 1 1 1RedRed(0) Dark Red(1) Red(2) :Red(253) Red(254)Red(255) Bright0 0 0 0 0 0 0 0 0 : : : 1 1 1 1 1 1 1 1 10 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 : : : : : : : 1 1 1 0 1 0 0 1 1 1 1 0 0 0 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 : : : 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 : : : 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 : : : 0 0 0 0 0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0 : : : : : 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0GreenGreen(0) Dark 0 0 0 Green(1) 0 0 0 Green(2) 0 0 0:: : : Green(253) 0 0 0 Green(254) 0 0 0 Green(255)Bright 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 : : : : : : : 0 0 0 0 0 1 1 0 0 0 0 0 1 1 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 : : : 1 1 1 1 1 1 1 1 1 0 0 0 0 0 1 0 1 0 : : : 1 0 1 1 1 0 1 1 1 0 0 0 0 0 0 0 0 0 : : : 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 : : : : : 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0Blue Blue(0) Dark Blue(1) Blue(2): Blue(253)Blue(254)Blue(255) Bright0 0 0 0 0 0 0 0 0 : : : 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 : : : : : : : 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 : : : 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 : : : 0 0 0 0 0 0 00 0 0 0 0 0 0 0 0 : : : 1 1 1 1 1 1 10 0 0 0 0 0 0 0 0 1 0 0 0 1 0 : : : : : 1 1 1 0 1 1 1 1 1 0 1 1 1 1 111. BLOCK DIAGRAMCUSTOMER’S SYSTEMDigital24-bits,CCIR656, CCIR601,SERIAL SPCLK, SPDAT, Hsync, Vsync, DCLK12. QUALITY ASSURANCENo. Test Items Test Condition REMARK 1 High Temperature Storage Test Ta=80℃ Dry 240h 2 Low Temperature Storage Test Ta=-30℃ Dry 240h 3 High Temperature Operation Test Ta=70℃ Dry 240h 4 Low Temperature Operation Test Ta=-20℃ Dry 240h5High Temperature and High HumidityOperation TestTa=60℃ 90%RH 240h6 Electro Static Discharge Test7 Shock Test (non-operating)8 Vibration Test (non-operating) Panel surface / top case. Contact / Air ：±6KV / ±8KV ，150pF ，330ΩShock Level : 100GWaveform : Half Sinusoidal WaveShock Time : 6msNumber of Shocks : 3 times for each ±X, ±Y, ±Z direction Frequency range: 10Hz ~ 550HzStoke ：1.3mmSweep : 1.5G, 33.3~400HzVibration : Sinusoidal Wave, 1Hrsfor X,YZ direction.Non-operating9 Thermal Shock Test-20℃(0.5h) ~ 70℃(0.5h) / 100cycles***** T a = Ambient TemperatureNote:1. The test samples have recovery time for 2 hours at room temperature before the function check. In the standard conditions, there is no display function NG issue occurred.2. All the cosmetic specifications are judged before the reliability stress.Doc. No.13. OUTLINE DRAWING Rev: BPage: 27 of 30Date: 2008/6/13ITO Film:Sheet Resistance 200~900ΩITO Glass:Sheet Resistance 200~900ΩSurface hardness MIN. 3H此區顯示為 lable 的貼附範圍lable 的實際大小則依據B L specComponent H=1.5mmX2 Y1Y2 X1 +Kapton1DATEDATEDATE 2007-11-192007-11-19TITLE:8Doc. No.14.PACKAGE INFORMATION Rev: BPage: 28 of 30Date: 2008/6/132APPROVED DATEE奇信電子股份有限公司DWG. NO.: HS-P-03450915QH011CHECKED DATE REV.:UNIT: SCALE:SHEET:DESIGNER Lake Chao DATE 01/15"07SIEZ: A2PART NO.: 09150190-001:1 1/14 5DRAWER Lake Chao7DATE 01/15"078TITLE:包材圖15 RECAUTIONSPlease pay attention to the following when you use this TFT LCD module.15.1 MOUNTING PRECAUTIONS(1) You must mount a module using arranged in four corners or four sides.(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is notapplied to the module.And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.(3) Please attach a transparent protective plate to the surface in order to protect the polarizer.Transparent protective plate should have sufficient strength in order to the resist external force.(4) You should adopt radiation structure to satisfy the temperature specification.(5) Acetic acid type and chlorine type materials for the cover case are not describe becausethe former generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break by electro-chemical reaction.(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harderthan HB pencil lead. And please do not rub with dust clothes with chemical treatment.Do not touch the surface of polarizer for bare hand or greasy cloth. (Some cosmetics are determined to the polarizer)(7) When the surface becomes dusty, please wipe gently with adsorbent cotton or other softmaterials like chamois soaks with petroleum benzene. Normal-hexane is recommended for cleaning the adhesives used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizercauses deformations and color fading.(9) Do not open the case because inside circuits do not have sufficient strength.15.2 OPERATING PRECAUTIONS(1) The spike noise causes the mis-operation of circuits. It should be lower than followingvoltage：V=±200mV(Over and under shoot voltage)(2) Response time depends on the temperature. (In lower temperature, it becomes longer.)(3) Brightness depends on the temperature. (In lower temperature, it becomes lower)And in lower temperature, response time (required time that brightness is stable after turned on) becomes longer.(4) Be careful for condensation at sudden temperature change. Condensation makes damageto polarizer or electrical contacted parts. And after fading condensation, smear or spot will occur.(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.(6) Module has high frequency circuits. Sufficient suppression to the electromagneticinterference shall be done by system manufacturers. Grounding and shielding methods may be important to minimize the interference.15.3 ELECTROSTATIC DISCHARGE CONTROLSince a module is composed of electronic circuits, it is not strong to electrostatic discharge.Make certain that treatment persons are connected to ground through wristband etc. And don’t touch interface pin directly.15.4 PRECAUTIONS FOR STRONG LIGHT EXPOSUREStrong light exposure causes degradation of polarizer and color filter.15.5 STORAGE When storing modules as spares for a long time, the following precautions are necessary. (1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature between 5℃ and 35℃ at normal humidity. (2) The polarizer surface should not come in contact with any other object. It is recommended that they be stored in the container in which they were shipped. 15.6 HANDLING PRECAUTIONS FOR PROTECTION FILM (1) When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-blown equipment or in such a condition, etc. (2) The protection film is attached to the polarizer with a small amount of glue. Is apt to remain on the polarizer.Please carefully peel off the protection film without rubbing it against the polarizer. (3) When the module with protection film attached is stored for a long time, sometimes there remains a very small amount of glue still on the polarizer after the protection film is peeled off. (4) You can remove the glue easily. When the glue remains on the polarizer surface or its vestige is recognized, please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-hexane. 15.7 Cautions for installing and assembling Bezel edge must be positioned in the area between the Active area and View area. The bezel may press the touch screen and cause activation if the edge touches the active area. A gap of approximately 0.5mm is needed between the bezel and the top electrode. It may cause unexpected activation if the gap is too narrow. There is a tolerance of 0.2 to 0.3mm for the outside dimensions of the touch panel and tail. A gap must be made to absorb the tolerance in the case and connector.。

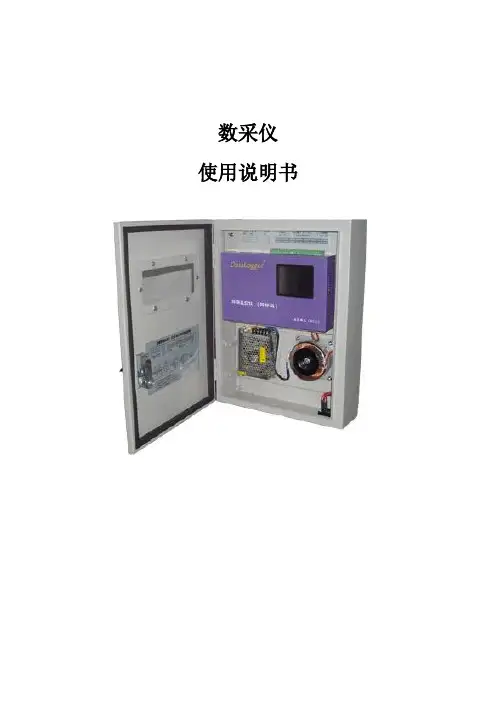

数采仪使用说明书目录1 前言........................................................................................................................................... ３1。

1 概述................................................................................................................................. ３1.2 功能特点............................................................................................................................ ３1。

3 技术指标......................................................................................................................... ４2 安装和接线说明....................................................................................................................... ５2.1 接线图................................................................................................................................ ５2。

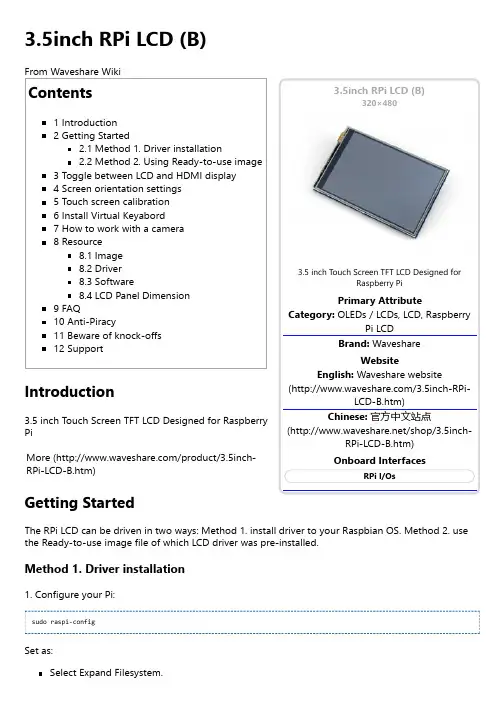

320×480Boot Option -> Desktop Autologin (may differ depending on Raspbian revision)2. Copy the driver (choose the driver according to your OS) into your OS then Run the following commands:tar xvf LCD-show-*.tar.gzcd LCD-show/Install the driver and it toggles the mode to LCD display: Note: Net work connection is required while installing driver to your Pi, or else the touch won't work properly.chmod +x LCD35B-show./LCD35B-showNote: this LCD won't work after apt-get upgrade, in such cases, please edit the config.txt file in the SD card and remove this statement: dtoverlay=ads78463. After system rebooting, the RPi LCD is ready to use.Method 2. Using Ready-to-use imageThe image file with pre-installed driver is located in the IMAGE directory of the CD, or you can download it from #Image. Extract the .7z file and you will get an .img file. Write the image to your micro SD card (How to write an image to a micro SD card for your Pi? See RPi Image Installation Guides for more details). Then insert the card to your Pi, power up and enjoy it.Toggle between LCD and HDMI displayOnce this LCD is enabled, meanwhile the default settings for HDMI are changed. If you want to use another HDMI monitor, please run the following command:cd LCD-show/./LCD-hdmiThis toggles the mode to LCD display:./LCD35B-showScreen orientation settingsAfter touch driver installed, the screen orientation can be set by these commands:0 degree rotationcd LCD-show/./LCD35B-show 090 degree rotationcd LCD-show/./LCD35B-show 90180 degree rotationcd LCD-show/./LCD35B-show 180270 degree rotationcd LCD-show/./LCD35B-show 270Touch screen calibrationThis LCD can be calibrated using a program called xinput_calibrator which is pre-installed on the CD image. However, it was not pre-installed on original Raspbian OS. So in this case, you should get and install the program manually withsudo apt-get install -y xinput-calibratorEnter the following commands for touch screen calibration:sudo DISPLAY=:0.0 xinput_calibratoror select Menu -> Preferences -> Calibrate Touchscreen.After running these commands, there will be a prompt for four-point calibration shown in the LCD screen. Click the points one by one to finish the touch calibration. Then, the new calibration data will be displayed in the terminal, as shows below. Please get these data for future use.Doing dynamic recalibration:Setting new calibration data: 3919, 208, 236, 3913Enter the following command to edit 99-calibration.conf:sudo nano /etc/X11/xorg.conf.d/99-calibration.confThen, the old calibration data will be displayed in the terminal:Section "InputClass"Identifier "calibration"MatchProduct "ADS7846 Touchscreen"Option "Calibration" "160 3723 3896 181"Option "SwapAxes" "1"EndSectionModify the calibration data to the new calibration data displayed above):Section "InputClass"Identifier "calibration"MatchProduct "ADS7846 Touchscreen"Option "Calibration" "3919 208 236 3913"Option "SwapAxes" "1"EndSectionPress the keys Ctrl+X, and select the option Y to save the modification.The modification will be valid after rebooting the system. Enter the following command for system reboot:sudo rebootNotices: In case of inaccurate touch, please perform screen calibration again and reboot the system.Install Virtual Keyabord1. Install matchbox-keyboardsudo apt-get install updatesudo apt-get install matchbox-keyboardsudo nano /usr/bin/toggle-matchbox-keyboard.sh2. Copy the statements below to toggle-matchbox-keyboard.sh and save.#!/bin/bash#This script toggle the virtual keyboardPID=`pidof matchbox-keyboard`if [ ! -e $PID ]; thenkillall matchbox-keyboardelsematchbox-keyboard -s 50 extended&fi3. Execute the commands:sudo chmod +x /usr/bin/toggle-matchbox-keyboard.shsudo mkdir /usr/local/share/applicationssudo nano /usr/local/share/applications/toggle-matchbox-keyboard.desktop4. Copy the statements to toggle-matchbox-keyboard.desktop and save.[Desktop Entry]Name=Toggle Matchbox KeyboardComment=Toggle Matchbox Keyboard`Exec=toggle-matchbox-keyboard.shType=ApplicationIcon=matchbox-keyboard.pngCategories=Panel;Utility;MBX-MB-INPUT-MECHANSIM=True5. Execute commands as below. Note that you need to use "Pi " user permission instead of root to execute this commandnano ~/.config/lxpanel/LXDE-pi/panels/panel6. Find the statement which is similar to below: (It maybe different in different version)Plugin {type = launchbarConfig {Button {id=lxde-screenlock.desktop}Button {id=lxde-logout.desktop}}7. Append these statements to add an button option:Button {id=/usr/local/share/applications/toggle-matchbox-keyboard.desktop}8. reboot your Raspberry Pi. If the virtual keyboard is installed correctly, you can find that there is a keyboard icon on the left of the barsudo rebootHow to work with a camera1. Select "Enable Camera" -> "<YES>"sudo raspi-config2. Copy the Camera driver to the OS of Pi then:unzip camera.zipcd camerasudo chmod 777 Camerasudo cp update\ camera/95-stmpe.rules /etc/udev/rules.d/3. Create a file called wheezy.list.sudo nano /etc/apt/sources.list.d/wheezy.listAppend:deb /raspbian wheezy mainExit with save.4. Create a file called 10defaultRelease.sudo nano /etc/apt/apt.conf.d/10defaultReleaseAppend:APT::Default-release \"stable";Exit with save.5. Create a file called libsdl.sudo nano /etc/apt/preferences.d/libsdlAppend:Package: libsdl1.2debianPin: release n=jessiePin-Priority: -10Package: libsdl1.2debianPin: release n=wheezyPin-Priority: 900Exit with save.6. Last, execute the commands:sudo apt-get updatesudo apt-get -y --force-yes install libsdl1.2debian/wheezysudo apt-get install evtest tslib libts-bin xinputsudo apt-get install python-pipsudo apt-get install python2.7-devsudo pip install picamera==1.10sudo rebootsudo TSLIB_FBDEVICE=/dev/fb1 TSLIB_TSDEVICE=/dev/input/touchscreen ts_calibrateCamera will be enabled by the steps above.ResourceUser manual (/w/upload/3/3e/RPi-LCD-User-Manual.pdf) ImageDescription: if you felt hard to install driver, try the image with driver pre-installed.[Collapse][Collapse]LCD35B-161122.7z (https:///open?id=0BxFRtACVZx9fNlhjMVN5SDVERW8)DriverIf the touch screen doesn't work properly, please install the driver: LCD-show-170703.tar.gz, but not LCD-show-161112.tar.gz.LCD-show-170703.tar.gz (network connection is required while installing)(/w/upload/0/00/LCD-show-170703.tar.gz)LCD-show-161112.tar.gz (/w/upload/4/4b/LCD-show-161112.tar.gz)SoftwarePanasonic SDFormatter (/w/upload/d/d7/Panasonic_SDFormatter.zip)Win32DiskImager (/w/upload/7/76/Win32DiskImager.zip)PuTTY (/w/upload/5/56/Putty.zip)LCD Panel Dimension3.5inch RPi LCD (B) panel dimension (/w/upload/2/2f/3.5inch-rpi-lcd-b-panel-dimension.pdf)FAQQuestion:Why does the touchscreen not work well?Answer:Now, we only provide touch screen drivers for Raspbian and Ubuntu Mate. How to install the driver? See:#Method_1._Driver_installationQuestion:Why does the image in the CD not work on my Pi?Answer:The image in the CD may differ depending on batches, however, some Images are just available for Pi 2 (or before, but not for Pi 3). In such cases you can download the latest version from Raspberry Pi website (https:///downloads/raspbian/) and install the driver. See:#Method_1._Driver_installationMake sure the hardware connection is correct and connects fine.Make sure you've written the image to your SD card using the software File:Win32DiskImager.zip rather then just copy and paste.It is strongly recommended to use a stand-alone 5V/2A power adapter, because the USB port of PC might not have enough power to support the Pi and LCD.。

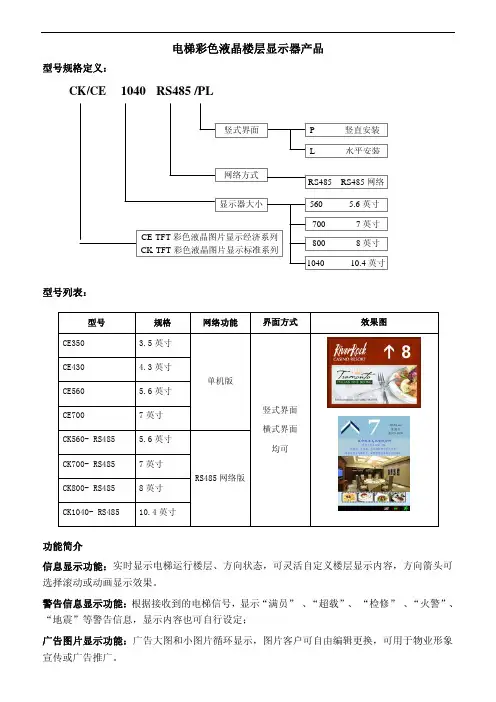

电梯彩色液晶楼层显示器产品型号规格定义：型号列表：功能简介信息显示功能：实时显示电梯运行楼层、方向状态，可灵活自定义楼层显示内容，方向箭头可选择滚动或动画显示效果。

警告信息显示功能：根据接收到的电梯信号，显示“满员” 、“超载”、 “检修” 、“火警”、“地震”等警告信息，显示内容也可自行设定；广告图片显示功能：广告大图和小图片循环显示，图片客户可自由编辑更换，可用于物业形象宣传或广告推广。

型号 规格 网络功能界面方式效果图CE350 3.5英寸 CE430 4.3英寸CE560 5.6英寸 CE700 7英寸 单机版CK560- RS485 5.6英寸CK700- RS485 7英寸CK800- RS485 8英寸 CK1040- RS48510.4英寸RS485网络版竖式界面 横式界面均可CK/CE 1040RS485 /PL资讯显示功能：个性化的用户界面及客户LOGO显示，日期、时间、星期等信息，具备时间、日期、星期校准功能。

播放内容远程更新功能：在网络支持下可实现在监控中心远程更换图片文件及客户LOGO等内容，并可实现远程时钟同步校准。

（注：需RS-485网络支持）。

文字信息小区广播功能：每款液晶层显器可选配小区广播功能，可由物业管理机构面向电梯乘客集中发布文字管理信息，包括“天气预报”、“新闻”、“公告或股市指数”等文字信息。

（注：需RS485网络支持）。

节电运行功能：当电梯停止运行到一定时间，照明关闭，显示器将自动关闭背光，以满足节约能源需要，同时延长背光灯使用寿命。

电梯正常启动运行，显示器立即恢复正常显示。

用户也可根据实际情况，利用亮度调节功能，设定合理的亮度，以延长背光寿命。

液晶显示界面液晶显示界面用户可自己进行自由编辑。

标准接口示意图接口说明：楼层并行或串行信号输入：B0～B5方向信号输入：B6上行、B7下行电梯运行状态输入：满员FULL、超载OVERLOAD、检修MAINTENANCE、火警FIRE （在CK560和CK700，B10,B11作RS485远距离串行通讯接口） 用户通过软件编辑接口：USB 标准接口示意图(CK800,CK1040)接口说明：楼层并行或串行信号输入：B0～B5 方向信号输入：B6上行、B7下行电梯特殊状态输入：B8～B14 满员FULL、超载OVERLOAD、检修MAINTENANCE、火警FIRE RS485远距离串行通讯接口: A B 用户通过软件编辑接口：USB 主要技术参数RS-485网络及文字信息小区广播功能通过电梯随行电缆中的双绞通信线和机房到控制中心的双绞线，以及RS-485网络模块可以型号CK560CK700 CK800 CK1040 液晶屏规格 5.6英寸 7英寸 8英寸 10.4英寸 分辨率（dot） 600×480 800×480 800×600 800×600 像素尺寸（mm） 0.176×0.1760.19×0.19 0.2×0.2 0.26×0.26 有效显示面积 (mm）112×84 152×91 160×120 210×158 横向视角（度） －70～70 －70～70 －70～70 －75～75 纵向视角（度） －50～60 －50～50 －50～70 －50～60 亮度 （cd/m 2） 200 300 250 300 对比度 (CR) 300:1300:1300:1450:1电源电压 DC10～24V信号接口：并行信号： 信号电压DC12V-24V，共阳或共阴，带光电隔离；编码方式：二进制、BCD 码、格雷码、七段码等。

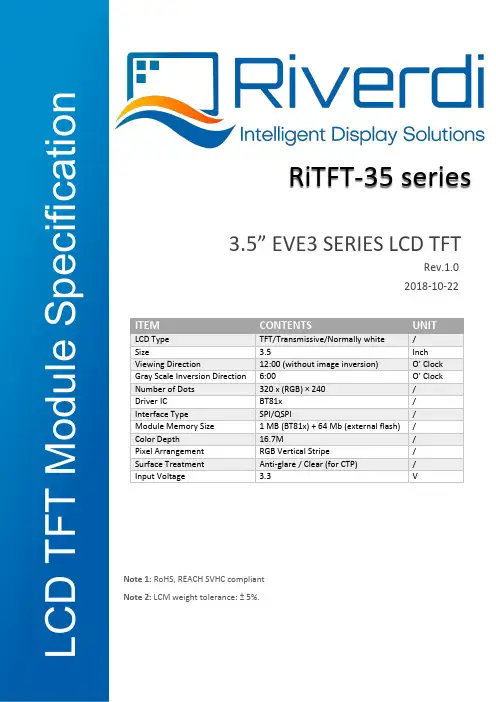

ITEMCONTENTSUNITLCD Type TFT/Transmissive/Normally white / Size3.5Inch Viewing Direction12:00 (without image inversion) O’ Clock Gray Scale Inversion Direction 6:00O’ Clock Number of Dots 320 x (RGB) × 240 / Driver ICBT81x / Interface TypeSPI/QSPI/ Module Memory Size 1 MB (BT81x) + 64 Mb (external flash) / Color Depth16.7M/ Pixel Arrangement RGB Vertical Stripe/ Surface Treatment Anti-glare / Clear (for CTP) / Input Voltage3.3V3.5” EVE3 SERIES LCD TFTRiTFT-35 seriesRev.1.0 2018-10-22L C D T F T M o d u l e S p e c i f i c a t i o nNote 1: RoHS, REACH SVHC compliant Note 2: LCM weight tolerance: ± 5%.CONTENTS (2)1 MODULE CLASSIFICATION INFORMATION (3)2 ASSEMBLY GUIDE - INTEGRATION (3)2.1 Mounting frame (4)3 MODULE DRAWING (4)4 ABSOLUTE MAXIMUM RATINGS (5)5 ELECTRICAL CHARACTERISTICS (5)6 BACKLIGHT CHARACTERISTICS (5)7 ELECTRO-OPTICAL CHARACTERISTICS (5)8 INTERFACE DESCRIPTION (7)9 BT8x CONTROLLER SPECIFICATIONS (8)9.1 Serial host interface (8)9.2 Block Diagram (8)9.3 Host interface SPI mode 0 (9)9.4 Backlight driver block diagram (9)10 LCD TIMING CHARACTERISTICS (9)10.1 Clock and data input time diagram (9)10.2 Parallel RGB timing table (11)11 TOUCH SCREEN PANEL SPECIFICATIONS (11)11.1 Electrical characteristics (11)11.1.1 For capacitive touch panel (11)11.1.2 For resistive touch panel (12)11.2 Mechanical characteristics (12)11.2.1 For capacitive touch panel (12)11.2.2 For resistive touch panel (13)12 INSPECTION (13)12.1 Inspection condition (13)12.2 Inspection standard (14)13 RELIABILITY TEST (17)14 LEGAL INFORMATION (18)1. BRAND RV – Riverdi2. PRODUCT TYPE T – TFT StandardF – TFT Custom3. DISPLAY SIZE 35– 3.5”4. MODEL SERIAL NO. A (A-Z)5. RESOLUTION H– 320x240 px6. INTERFACE B – TFT + Controller BT81x7. FRAME N – No FrameF – Mounting Frame8. BACKLIGHT TYPE W – LED White9. TOUCH PANEL N – No Touch PanelR – Resistive Touch Panel C – Capacitive Touch Panel10. VERSION 00(00-99)RiTFT-35-RES RVT35AHBNWR00 BT816, resistive touch panelRiTFT-35-CAP RVT35AHBNWC00 BT815, capacitive touch panelRiTFT-35-FR RVT35AHBFWN00 BT816, no touch panel, mounting frame RiTFT-35-RES-FR RVT35AHBFWR00 BT816, resistive touch panel, mounting frame RiTFT-35-CAP-FR RVT35AHBFWC00 BT815, capacitive touch panel, mounting frame2.1Mounting frameFor dimension s 3.5”, 4.3”, 5.0” and 7.0” the product with mounting frame version is available. Thanks to the four catches attached to the side, frame provides strong assembly to the surface by mounting element (like the screw, see Figure 3). The frames are specially designed to fit Riverdi products perfectly. The diameter of the mounting hole is 3.5mm.Figure 1. Mounting frameRiTFT-35 series3MODULE DRAWING `` RiTFT-35© 2018 Riverdi Page 4 of 24 RiTFT-35 seriesRiTFT-35-FR© 2018 Riverdi Page 5 of 24 RiTFT-35 seriesRiTFT-35-CAP© 2018 Riverdi Page 6 of 24 RiTFT-35-CAP-FR© 2018 Riverdi Page 7 of 24 RiTFT-35-RES© 2018 Riverdi Page 8 of 24 RiTFT-35-RES-FR© 2018 Riverdi Page 9 of 24 4ABSOLUTE MAXIMUM RATINGSPARAMETER SYMBOL MIN MAX UNITSupply Voltage for Logic VDD 0 4.0 V Supply Voltage for LED Inverter BLVDD 0 7.0 VInput Voltage for Logic VIN 0 4.0 VLED forward current (each LED) IF - 25 mA Operating Temperature T OP-20 70 °C PARAMETER SYMBOL MIN TYP MAX UNIT NOTES Supply Voltage For Module VDD 3.0 3.3 3.6 VInput Voltage for LED Inverter BLVDD 2.8 5.0 5.5 VLED Backlight Current IDD backlight- 150 187 mA BLVDD=3.3V LED Backlight Current IDD backlight- 93 117 mA BLVDD=5V Input Voltage ' H ' level V IH0.7VDD - VDD VInput Voltage ' L ' level V IL0 - 0.2VDD VInput Current I In TBD mAInput Current for module with CTP I InC TBD mAITEM SYMBOL MIN TYP MAX UNIT Voltage for LED backlight V l- 19.2 20.4 V Current for LED backlight I l- 20 25 mA LED Life Time - 30000 50000 - HrsLNote 1. Contrast Ratio(CR) is defined mathematically as below, for more information see Figure .Contrast Ratio =Average Surface Luminance with all white pixels (P1,P2,P3,P4,P5) Average Surface Luminance with all black pixels (P1,P2,P3,P4,P5)Note 2. Surface luminance is the LCD surface from the surface with all pixels displaying white. For more information, see Figure .Lv = Average Surface Luminance with all white pixels (P1, P2, P3, P4, P5)Note 3.The uniformity in surface luminance δ WHITE is determined by measuring luminance at each test position 1 through 5, and then dividing the maximum luminance of 5 points luminance by minimum luminance of 5 points luminance. For more information, see Figure .δ WHITE =Minimum Surface Luminance with all white pixels (P1,P2,P3,P4,P5) Maximum Surface Luminance with all white pixels (P1,P2,P3,P4,P5)Note 4. Response time is the time required for the display to transition from white to black (Rise Time, Tr) and from black to white (Decay Time, Tf). For additional information see FIG 1. The test equipment is Autronic-Melchers’s ConoScope series.Note 5.CIE (x, y) chromaticity, the x, y value is determined by measuring luminance at each test position 1 through 5, and then make average value.Note 6. Viewing angle is the angle at which the contrast ratio is greater than 2. For TFT module the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see Figure .Note 7. For viewing angle and response time testing, the testing data is based on Autronic-Melchers’s ConoScope series. Instruments for Contrast Ratio, Surface Luminance, Luminance Uniformity, CIE the test data is based on TOPCON’s BM-5 photo detector.Note 8. For TFT module, Gray scale reverse occurs in the direction of panel viewing angle.Figure 2. The definition of response timeFigure 3. Measuring method for Contrast ratio, surface luminance, Luminance uniformity, CIE (x, y) chromaticityFigure 4.The definition of viewing angle8INTERFACE DESCRIPTION9BT8x CONTROLLER SPECIFICATIONSBT8x or EVE3 (Embedded Video Engine 3) simplifies the system architecture for advanced human machine interfaces (HMIs) by providing functionality for display, audio, and touch as well as an object oriented architecture approach that extends from display creation to the rendering of the graphics.9.1Serial host interfaceFigure 5.SPI interface connection Figure 6. QSPI interface connectionSPI Interface– the SPI slave interface operates up to 30MHz.Only SPI mode 0 is supported. The SPI interface is selected by default (MODE pin is internally pulled low by 47k resistor).9.2Block DiagramFigure 7.. BT8x Block diagram9.3Host interface SPI mode 0Figure 8. SPI timing diagramFor more information about BT8x controller please go to official BT8x website.https:///Products/ICs/BT81X.html9.4Backlight driver block diagramBacklight enable signal is internally connected to BT8x Backlight control pin. This pin is controlled by two BT8x’s registers. One of them specifies the PWM output frequency, second one specifies the duty cycle. Refer to BT8x datasheet for more information.Figure 9. Backlight driver block diagram10LCD TIMING CHARACTERISTICS10.1Clock and data input time diagramFigure 10. DE mode timing diagramBT8xFigure 11. SYNC mode timing diagramFigure 12. Timing diagram10.2Parallel RGB timing tableTiming parameter (VDD=3.3V, GND=0V, Ta=25˚C)PARAMETER SYMBOL MIN TYP MAX UNIT CONDITION CLK Clock Time T clk 1/Max(F CLK) - 1/Min(F CLK) ns -11TOUCH SCREEN PANEL SPECIFICATIONS11.1Electrical characteristicsNote: Avoid operating with hard or sharp material such as a ball point pen or a mechanical pencil except a polyacetal pen (tip R0.8mm or less) or a fingerITEM VALUE UNIT REMARKMin. Typ. Max.Linearity - - 1.5 % Analog X and Y directions Terminal Resistance 200 - 900 ΩX100 - 600 ΩY11.2Mechanical characteristicsNote 1: Force test condition, Input DC 5V on X direction, Drop off Polyacetal Stylus (R0.8), until output voltage stabilize, then get the R8.0mm Silicon rubber and do finger Activation force test. Next step, 9 points.Note 2: Measurement surface area conditions, Scratch 100,000 times straight line on the film with a stylus change every 20,000 times with Force: 250gf, Speed: 60mm/sec by R0.8 polaceteal stylus.Note 3: Pitting test, Pit 1, 000, 000 times on the film with R0.8 silicon rubber with Force: 250gf and Speed: 2 times/sec.Note 1: Force test condition, Input DC 5V on X direction, drop off Polyacetal Stylus (R0.8), until output voltage stabilize, then get the R8.0mm Silicon rubber and do finger Activation force test. Next step, 9 points.ITEM VALUE UNIT REMARKMin. Typ. Max.12INSPECTIONStandard acceptance/rejection criteria for TFT module.12.1Inspection conditionAmbient conditions:•Temperature: 25±°C•Humidity: (60±10) %RH•Illumination: Single fluorescent lamp non-directive (300 to 700 lux)Viewing distance:35±5cm between inspector bare eye and LCD.Viewing Angle:U/D: 45°/45°, L/R 45°/45°12.2Inspection standard Item Criterion Black spots, whitespots, light leakage,Foreign Particle(round Type)D=(x+y)2*Spots density: 10 mmSize < 5”Average Diameter Qualified QtyD < 0.2 mm Ignored0.2 mm < D < 0.3 mm 30.3 mm < D < 0.5 mm 20.5 mm < D 0Size >= 5”Average Diameter Qualified Qty D<0.2 mm Ignored0.2 mm < D < 0.3 mm 40.3 mm < D < 0.5 mm 20.5 mm < D 0Clear spotsSize >= 5”Average Diameter Qualified Qty D<0.2 mmIgnored 0.2 mm < D < 0.3 mm 4 0.3 mm < D < 0.5 mm 2 0.5 mm < D*Spots density: 10 mm Size < 5”Average Diameter Qualified Qty D < 0.2 mmIgnored 0.2 mm < D < 0.3 mm 3 0.3 mm < D < 0.5 mm 2 0.5 mm < D 0Polarizer bubblesSize < 5”Average Diameter Qualified Qty D < 0.2 mmIgnored 0.2 mm < D < 0.5 mm 3 0.5 mm < D < 1 mm 2 1 mm < D 0 Total Q’ty 3Size >= 5”Average Diameter Qualified Qty D<0.25 mmIgnored 0.25 mm < D < 0.5 mm 3 0.5 mm < D 0Electrical Dot DefectSize < 5”itemQualified Qty Black do defect 4 Bright dot defect 2 Total Dot 5Size >= 5”itemQualified Qty Black do defect 5 Bright dot defect 2 Total Dot 5Touch panel spotSize < 5”Average Diameter Qualified QtyD < 0.2 mm Ignored0.2 mm < D < 0.4 mm 50.4 mm < D < 0.5 mm 213RELIABILITY TESTNO. TEST ITEM TEST CONDITION REMARKS1 High Temperature Storage 80±2°C/240hours Note 22 Low Temperature Storage -30±2°C/240hours Note 1,2Note 1: Without water condensation.Note 2:The function test shall be conducted after 2 hours storage at the room temperature and humidity after removed from the test chamber.14LEGAL INFORMATIONRiverdi makes no warranty, either expressed or implied with respect to any product, and specifically disclaims all other warranties, including, without limitation, warranties for merchantability, non-infringement and fitness for any particular purpose. Information about device are the property of Riverdi and may be the subject of patents pending or granted. It is not allowed to copy or disclosed this document without prior written permission.Riverdi endeavors to ensure that the all contained information in this document are correct but does not accept liability for any error or omission. Riverdi products are in developing process and published information may be not up to date. Riverdi reserves the right to update and makes changes to Specifications or written material without prior notice at any time. It is important to check the current position with Riverdi.Images and graphics used in this document are only for illustrative the purpose. All images and graphics are possible to be displayed on the range products of Riverdi, however the quality may vary. Riverdi is no liable to the buyer or to any third part for any indirect, incidental, special, consequential, punitive or exemplary damages (including without limitation lost profits, lost savings, or loss of business opportunity) relating to any product, service provided or to be provided by Riverdi, or the use or inability to use the same, even if Riverdi has been advised of the possibility of such damages.Riverdi products are not fault tolerant nor designed, manufactured or intended for use or resale as on line control equipment in hazardous environments requiring fail – safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life support machines or weapons systems in which the failure of the product could lead directly to death, personal injury or severe physical or environmental damage (‘High Risk Activities’). Riverdi and its suppliers specifically disclaim any expressed or implied warranty of fitness for High Risk Activities. Using Riverdi products and devices in 'High Risk Activities' and in any other application is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Riverdi from any and all damages, claims or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Riverdi intellectual property rights.。

3.5寸液晶屏带触摸宽温

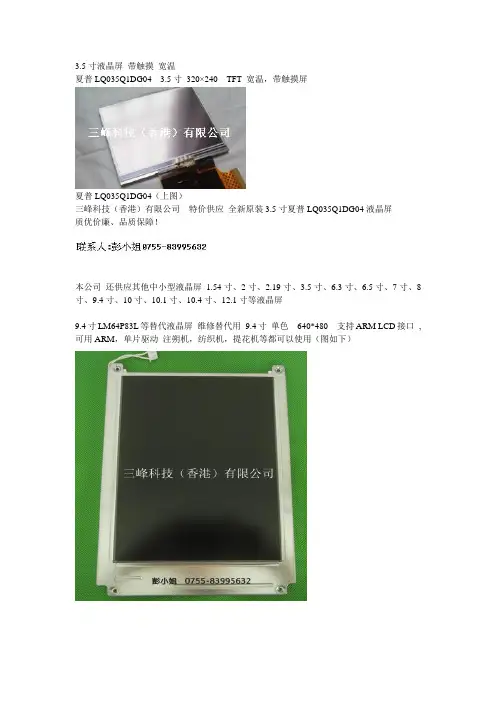

夏普LQ035Q1DG04 3.5寸320×240 TFT 宽温，带触摸屏
夏普LQ035Q1DG04（上图）
三峰科技（香港）有限公司特价供应全新原装3.5寸夏普LQ035Q1DG04液晶屏
质优价廉、品质保障！
本公司还供应其他中小型液晶屏1.54寸、2寸、2.19寸、3.5寸、6.3寸、6.5寸、7寸、8寸、9.4寸、10寸、10.1寸、10.4寸、12.1寸等液晶屏
9.4寸LM64P83L等替代液晶屏维修替代用9.4寸单色640*480 支持ARM LCD接口,可用ARM，单片驱动注朔机，纺织机，提花机等都可以使用（图如下）
10.4寸夏普LM100SS1T522 迈瑞BC3000上用10.4寸800*600 伪彩双扫描DSTN接口用于工业显示以及工业设备维修、医疗设备维修等领域（图如下）
需了解其它尺寸液晶屏可咨询我们。

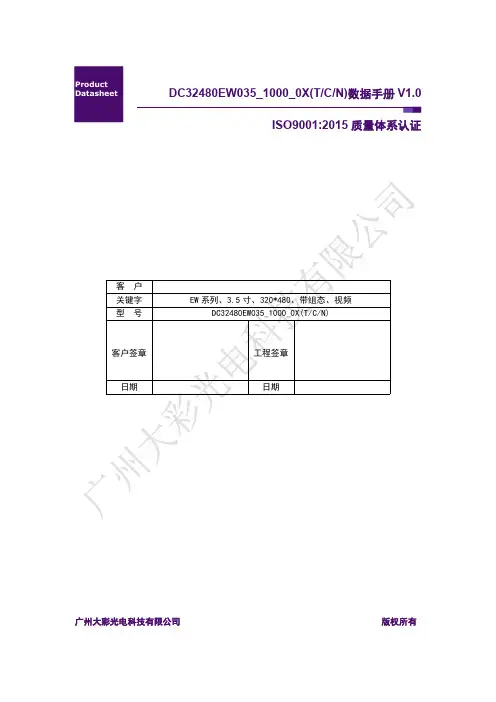

DC32480EW035_1000_0X(T/C/N)数据手册V1.0ISO9001:2015质量体系认证广州大彩光电科技有限公司版权所有版本记录版本日期修改原因页面撰写人审核人V1.02022/03/23创建文档all林绍佳刘启鑫销售与服务广州大彩光电科技有限公司电话：************-601传真：************Email：*************（咨询和支持服务）网站：地址：广州黄埔区（科学城）玉树工业园C栋3楼网络零售官方旗舰店：目录1.硬件介绍 (1)1.1产品外观 (1)1.2硬件配置 (1)1.3调试工具 (2)2.产品规格 (3)3.产品尺寸 (5)4.引脚定义 (6)5.可靠性测试 (7)5.1ESD测试 (7)5.1.1执行标准 (7)5.1.2测试环境 (7)5.1.3测试数据 (8)5.2高低温老化测试 (8)5.2.1测试环境 (8)5.2.2测试数据 (8)5.3群脉冲测试 (9)5.3.1执行标准 (9)5.3.2测试环境 (9)5.3.3测试数据 (9)6.产品定义 (10)7.协议配置 (11)8.LUA脚本配置 (12)9.包装与物理尺寸 (13)10.产品架构 (14)11.开发软件 (15)11.1什么是虚拟串口屏 (15)11.2Keil与虚拟串口屏绑定调试 (16)12.开发文档 (17)13.免责声明 (18)1.硬件介绍本章节主要介绍产品的一些外观参考图、硬件配置图和调试所需工具。

1.1产品外观以下为该尺寸不同型号的外观参考图，如图1-1、图1-2和图1-3所示。

注：未涉及到结构工艺修改或布局大改动，硬件可靠性方面的变更迭代，公司不予对外发起变更，具体以收到的实物为准。

图1-1 3.5寸电阻触摸参考图图1-2 3.5寸电容触摸参考图图1-3 3.5寸无触摸参考图1.2硬件配置以下为该产品硬件配置参考图，如图1-4所示。

图1-4硬件配置图1.3调试工具以下为该产品调试工具参考图，如图1-5所示。

UCTRONICS 3.5 Inches HDMI TFT LCD Touch Screen DisplayModel：B01061.IntroductionUCTRONICS 3.5" HDMI TFT LCD display module is designed for Raspberry Pi 2 /Pi 3 Model B / B+ and can also be used on other hardware platforms which have HDMI display interface. The 3.5" screen is the same size as the standard Raspberry Pi model B/B+, and well mates with these Raspberry Pi boards. With its touch screen and split audio from the HDMI input, it is ideal for portable devices and multimedia projects, and it is a replacement for a heavy and bulky HDMI monitor, keyboard and mice. The highlight of this display module, it supports high frame rate videos playback compared to its SPI LCD counterpart. LCD screen backlight can be turned off by the tiny onboard button if needed.2.Specification3.Hardware installationFigure 1 Figure 2The Figure 1 shows the display module pin out and dimension.Connect the 3.5 inch HDMI LCD to the Raspberry Pi board like the Figure 2 shows,Step1 Align the pin 1 of the edge connector between the LCD display and Raspberry pi board,Step2 Connect the HDMI interface with the HDMI adapter board.Step3 Power on the Raspberry Pi board and make sure the internet is connected properly.4.Download and install driverThe driver includes the settings of the Raspbain OS resolution and touch screen support. The LCD driver has been already installed in the Micro SD card shipped with the bundle kit that includes a Micro SD card. Otherwise users have to install the driver manually with the following steps for a clean system.Step1 Expand the Micro SD cardsudo raspi-config then choose Advanced Operations -> Expand Filesystem and hit Yes. Then go to Finish and you need to run sudo reboot to reboot your Raspberry Pi.Step2 Update your Raspberry Pi systemsudo apt-get updateStep3 Download the driver packagesudo git clone https:///UCTRONICS/UCTRONICS_LCD35_HDMI_RPI.gitStep4Come in the UCTRONICS_LCD35_HDMI_RPIcd UCTRONICS_LCD35_HDMI_RPIStep5 Get run permissionssudo chmod +x UCTRONICS_hdmi_backupsudo chmod +x UCTRONICS_hdmi_installsudo chmod +x UCTRONICS_hdmi_restoreStep6 Backup datasudo ./UCTRONICS_hdmi_backupStep7 install the UCTRONICS LCD35 HDMI driversudo ./UCTRONICS_hdmi_installWait for 2~3 minutes, the system will be installed and restarted automatically.If you want to reuse the pre-installation system, you can use the below commandsudo ./UCTRONICS_hdmi_restoreIf you don’t want to run those commands to install the LCD driver, we also provide ready to use system image file “UCTRONICS_LCD35_HDMI.img". Please click the following link to download the system image file:/LCD35/image/UCTRONICS_LCD35_HDMI.imgCheck the following link to install the win32diskimager tool in your computer. Then write the image file into the Micro SD card.https:///projects/win32diskimager/5.Add more functions to the LCD5.1. Install calibration software for calibrationcd UCTRONICS_LCD35_HDMI_RPIsudo unzip Xinput-calibrator_0.7.5-1_armhf.zipcd xinput-calibrator_0.7.5-1_armhf/sudo dpkg -i -B xinput-calibrator_0.7.5-1_armhf.deb5.2. Install virtual keyboardStep1 Execute the following commands to install the corresponding softwaresudo apt-get updatesudo apt-get install matchbox-keyboardsudo nano /usr/bin/toggle-matchbox-keyboard.shStep2 Copy the following contents to toggle box - keyboard. sh, save the exit#!/bin/bash#This script toggle the virtual keyboardPID=pidof matchbox-keyboardif [ ! -e $PID ]; thenkillall matchbox-keyboardelsematchbox-keyboard -s 50 extended&fiStep3 Execute the following commandsudo chmod +x /usr/bin/toggle-matchbox-keyboard.shsudo mkdir /usr/local/share/applicationssudo nano /usr/local/share/applications/toggle-matchbox-keyboard.desktopStep4 Copy the following contents to toggle - matchbox - keyboard. Desktop, save exit[Desktop Entry]Name=Toggle Matchbox KeyboardComment=Toggle Matchbox Keyboard`Exec=toggle-matchbox-keyboard.shType=ApplicationIcon=matchbox-keyboard.pngCategories=Panel;Utility;MBX-MB-INPUT-MECHANSIM=TrueStep5 To perform the following command, note that this step must use the "PI" user permission, and if the administrator privileges are used, the file will not be foundnano ~/.config/lxpanel/LXDE-pi/panels/panel Step6 Find similar commands (different versions of ICONS may differ)Plugin {type = launchbarConfig {Button {id=lxde-screenlock.desktop}Button {id=lxde-logout.desktop}}Step7 Add the following code to add a Button itemButton {id=/usr/local/share/applications/toggle-matchbox-keyboard.desktop}Step8 To restart the system with the following command, you can see a virtual keyboard icon in the top left corner sudo reboot5.3. How to add new ICON to desktop?If it's just a folder, add it directly to the desktop.If it is an executable, follow these steps:Step1: choose the Directory Tree -> / -> usr -> share ->applications folderStep2: choose a icon you want to linkStep3: choose edit -> create link... ->Desktop ->OK6.Contact usIf need any further support, feel free to contact us.Website: Email: *********************Tel: +86 025 ********。

深圳市宏辉成科技有限公司Shenzhen SGC Techno logy Co, LtdSPECIFI CA TIONFORLCD M OD ULE手机：133 166 766 58 邮箱：lcd.sales@Customer:Product Model:Sample code:The specification of “TBD” should refer to the measured value of sample . If there is difference between the design specification and measured value, we naturally shall negotiate and agree to solution with customer.手机： 邮件：!P S(o zmShenzhen SGC Techno logy Co LtdRevision HistorvVers i on Contents Date NoteA Original2010.01.06Shenzhen SGC Techno logy Co, LtdContents©All Rights Reserved3/26REV.AShenzhen SGC Techno logy Co, Ltd1 Numbering System(1)(2) (3) (4)(5) (6) (7) 8NoDefinitionSpecifications(1)TFT LCMProductor No.KD ---- Wintektion technologiy Co.,Ltd(2)Display monitor opposite angle line sizeUnit :mm or mmm (size <10 inch: takes two integers ; size >=10 inch: takes three integers )(3)Productor TypesD ---- Digital photo frame / DVD G ----GPS M ----MPP ----Mobil-Phone(4)Productor Development Series No.By two figures characters expression from 01 to99(5)Interface PIN NumberBy two figures characters expression from 01 to99(6)With Touch Panel Or NotT----With T/PN----Without T/P(7)LCD TypeA----AUO M----CMO C----CPT P----PVI L----LG W----Wintek H----HSD T----T opply Y----Hydis I----Hitach S----Sharp(8)Productor Development edition No.By The English litters : A 1~ Z9©All Rights Reserved5/26REV.AShenzhen SGC Techno logy Co, Ltd2 ScopeThis specification applies to the TFT LCD module which is designed and manufactured by LCM Factory of Shenzhen Wintektion Technology Co.,Ltd.It is capable of using 262k colors mode 24bit parallel bi-directional interface.3 Normative ReferenceGB/T4619-1996Liquid Crystal Display Test MethodGB/T2424 Basic environmental Testing Procedures for Electric and Electronic Products.GB/T2423 Basic Testing Procedures for Electric and Electronic Products IEC61747-1 SIXTH PARTGB2828`2829-87 National Standard of PRC4 Definitions4.1 Definitions of VopThe definitions of threshold voltage Vth1, Vth2 the following typical waveforms are applied on liquid crystal by the method of equalized voltage for each duty and bias.selected waveform non-selected waveformVth1: The voltage which the brightness of segment indicates 50% ofsaturated value on the conditions of selected waveform(f f =80Hz, =10 =270 at 25 )Vth2: The voltage which the brightness of segment indicates 50% ofsaturated value on the conditions of non-selected waveform(f f =80Hz, =10 =270 at 25 )Vop: (Vth1(50%)+Vth2(50%))/2(f f =80Hz,=10=270 at 25 )4.2 Definition of Response Time Tr, TdTr: The time required which the brightness of segment becomes 10% from 100% when waveform is switched to selected one from non-selected one. (f f =80Hz, Φ=10°θ=270°at 25 )Shenzhen SGC Techno logy Co, Ltd Td: The time required which the brightness of segment©All Rights Reserved7/26REV.AShenzhen SGC Techno logy Co, Ltdbecomes 90% from 10% when waveform is switched to selected one from selected one. (f f =80Hz, Φ=10°θ=270°at 25 )4.3 Definition of Contrast Ratio CrCr=A/BA: Segments brightness in case of non-selected waveform B: Segments brightness in case of selected waveform4.4 Definition of Angle and Viewing RangeAngular Graph: Constrast RatioSuch as:Viewing Angle Range:80(Cr>2) Horizontal 70(Cr>2) Vertical5 Technology Specifications5.1 FeatureShenzhen SGC Techno logy Co, Ltd This single-display module is suitable for use in Multidedia Player products.Shenzhen SGC Techno logy Co, LtdThe LCD adopts one backlight with High brightness 6-lamps white LED.1) Construction: 3.5 color TFT-LCD ,White LED backlight, FPC.2) LCD:2.1 Amorphous-TFT3.5-inch display, transmissive, normally white type.2.2 320(RGB) 240dots Matrix.2.3 Narrow-contact ledge technique.2.4 LCD Driver IC: NT39016D 1.3) Low cross talk by frame rate modulation.4) 262K Color ,24bit RGB interface.5) Video signal interface: Parallel RGB .5.2 Mechanical SpecificationsItem SpecificationsUnit Dimensional outline 76.9(W) ×63.9(H)×3.2 (T) mm TP outline mmTP(V.A)mmTP(A.A)mmActive area 70.08(W) ×52.56 (H) mmPixel size 219(W) ×219(H) umResolution 320(RGB) 240 pixel 5.3 Absolute Max. Rating©All Rights Reserved9/26REV.AShenzhen SGC Techno logy Co, Ltd5.4 Electrical CharacteristicsDC Electr i cal Charact e r isticsD CE l ec t r ica l C h arac t e ri s t i cs Vt:TeslCond i tíon:VDIÞVDDP=3.3V I VDD A:51GN O:GNO A::GND P:0T A 25t) r cuígít a l cì(Fo r lhe dìFe thol V F8 0.55 .6 O. V O CiU C op.V ωrren 20mAβj5 Shenzhen SGC Techno logy Co Ltd5.5 Optical specificationsn e opUC3l Ch;l mctensocs sho berrasureo m d3ft( room A 1t er 5 mmutes o ef30αthe oP1J cal propo""ÐS aro f Y asurod 3t 00or poont of LCD scn:>o n _ AII np t 'ITI onals LCD par I mustbe g n._nd when me aMSTlf1g e center area of the paneLPh o O tectorF cldTFT -L CO Mod ule τhc cc:nte>" of tt C 3crccnCon a 5t Ra tioLum nan<::e C h lO maUCUY t .um U nlT onmty R esoαls e "P rr Pho1.0 d et< ::to r S R -3A B M-7ANote 2" oe nitionof Ni ng ar Ie r:a nge :m d meas -e rr sy mviow íng ang n asurod 31 tt C r po.n t of ttlo LCD by CC OSCOPE( 90--80)φ-00" 1:?_ o -dock dlfect n=180φ=o / > I7-""7'" τC ;1";T - q =270.;:) o'clock dlred íonF Ig 1 Definition of931E@AI I Rights Reserved 9/6 REV AShenzhen SGC Techno logy Co, Ltd5.6 LED back light specification (6 White Chips)Item Symbol Condition Min Typ Max Unit Forward Voltage Vf lf=20mA - 19.2 - V Uniformity (with L/G) B p lf=20mA 80 - - % Luminance for LCD L V If=20mA3600-cd/m2 LED CIRCUITShenzhen SGC Techno logy Co, LtdKDOS5G6-5 T-Al5.71nterface Pin Connections@A I/RightsRes ved11126REV.AShenzhen SGC Techno logy Co, Ltd6 Signal timing diagram and Circuit block diagram6.1 Circuit block diagram6.2 SignalTiming Diagram6.2.1Power ON SequenceP owerO n f SeqL nce03 6-54N T-AlTo p r even t I C frω1)power reset fa l lhe r lsl IImeσ01dlglal power supply V DD.s h ou l:l be n trol lV h n t he spec iFl ca tio o. fe r10the"A C Cha raa eris t1c l.o r the de II t im.eas e'00VD D PST n\'i rt t1)V Il IlVDDV IlIl PS T O (.h!..".."" )-l f \JV D D@AII Rights Reserved1Y26REV.At7f 深圳市宏辉成科技有限公司Shenzhen SGC Techno logy Co, LtdW'INT lC l r N Ei6.2.2Ser i a l mode t imi ng &c l ockKD036G6-6T-Al 3.Wir e T im i n g D i a g r a mV SDv - S N3I ! ul _---- f ' s A Y αC 1m 3 i s 1 !\ 1 l ! .\ I i I \ l r " \_J...-\J JT6.2.3 Se r i a l T r a n sm i ss i o n mode3-W ìr e Se r ìa l P ort Int erface (D efau l t R eglste r M ap)3.W i r e Cornmand F o rmalNT30016 s I h o 3-w l o 50 I tas m nu1afion lotfaeo lor aJ Itlo ωc lion am or$01.3.W i ro mmu C i ωn be lJi.ároc t øl ßl co troll t7f 100 "rwr b In I(I9SS i Nη9016 :J W . ire gn lJlnaωDS a "S l svo l11Cld o'for aB tho timo . and Wi ll nOI $Uoa nyωmmand 10 tho 3-Wio bus its ! Und read modo 3-W ìro I wi B flI tum lhe dat íl d un lS O" rolur llGd dala $uld b & 1 al tho r is 001 SPCK tornal ωntronor . O ata 1n Ih9 i.Z 13$0'w l bQ nor ω b'f 3-W @ no durlng writo oporation . a nd sho d bQ ignor r i ng rωd o ration $0.Ouring road opor a: \IlX t mal ntr I ÐrUkI tSPDA pinunc r -Hi.Z ph il!l o" aln &9". 10 thosoction 01-3-'11110 nmlng agram" l or tho d aU l .50Ad d fllSS {S :O ] Oa :0]SPEN8SPDASK1 ν'26 @AII Rights Reserved REV.A aTV::::fI C l K V : .. .- _L LL JL_JI_ m----L JL_ L l "wawy610N 3-Wlre Command rma :l 11 \ 03 6-54N T-Al6.2.3D EM ode T imingVe r t ica l T i m ing Oi ag r a "(DE M o de)A\\ . '!?" _..... J ?U L F . .. ......._... -ι•!>J;. -- .. --@- J _d ...'+;. :!1lE ......"" .h l-ru--l---y- 7-深圳市宏辉成科技有限公司Shenzhen SGC Techno logy Co, Ltd7 Initial code880 /-30 120hrs70 /-20 120hrs (operating60 ,90% RH, 96Hrs-30 (30Min ) 25 (5Min)80 (30Min)(conversion time, : 5 sec ) 20©All Rights Reserved17/26REV.A深圳市宏辉成科技有限公司Shenzhen SGC Techno logy Co, Ltd150 ( according to die if exist)Free faller movement for eachside cording angle (75cmHigh 6 sides 2 angle 210. Inspection standardD 0.10.1 D 0.15D 0.151 ν'26@AII Rights Reserved REV.A©All Rights Reserved 19/26 REV.AD 0.1 0.1 D 0.15 0.15 D 0.20 D 0.20 0.015 L 2.0 0.015 W1.0 0.025 WD 0.05 xC-STN : if D 0.1 , unqualified0.015 1.00.015 W 2.01.00.025 WD 0.050.015 , unqualified深圳市宏辉成科技有限公司Shenzhen SGC Techno logy Co, LtdComponentLeak Solder©All Rights Reserved21/26REV.A深圳市宏辉成科技有限公司Shenzhen SGC Techno logy Co, Ltd1/3 of solder side ofcomponent, reject1 Rolling strake with visual inspection,forbid2 Differentness of color in viewing areawith visual inspection ( full white redgreen blue), forbidDisplayinspection , forbid1 ν'26@AII Rights Reserved REV.AColor Of 10 CIECoordinatex ywhite±0.05 ±0.05 Red±0.05±0.05Green ±0.05 ±0.05Blue ±0.05 ±0.05 According to the specification or sample customer have approvedDrive LCD under normalcondition, 25 Φ =0 θ =0Test white red green blue with DMS Record11 BrightnessIn accord with product specificationDrive condition is according to specificationMeasure location is in Follow Picture3 Adjust brightness instrument tozero , burrow against the surface of LCD , press “measure” , record when the display is steady.(YOKOGAWA-3298)12CR (Max)According to specification Measure locationAccording to product specification Measure instrument ( DMS-501 )13Response time According to specification According to product specification Measure instrument ( DMS-501 )14Viewing angleVibration15 RingFrequency 16 Of FPC Bend According to specificationCompare with thesample customer supply According to the use of product( main FPC offoldaway cellphone 6thousand )According to product specification Measure instrument ( DMS-501 )Compare with the sample customer supply when assemble Measure instrument Bend angle : 150° Fix FPC in the casement when customer supply。

Yellow Video 1Yellow Video 2AUX VideoSource Camera Input1) AUX Video Source operation is controlled by Video Source (Monitor will stay in Stand-By mode unless video source is detected).2) Camera Input functions same as AUX but when Camera Signal is detected it overrides AUX source.VIDEO IN RCA (V1)- AUX Video input (DVD, MP4 etc.) This circuit is secondary andso it will be over written when Camera video is sensed.Black - Chassis GroundBackUp Camera RCA (V2)- Video input for camera (priority) This circuit switches automatically when video is sensed by powering up the reverse cameraImage 3)The Camera may not have sufficient back light for it to capture a clear image. Check to make sure that the vehicle reverse lamps are turning On when the vehicle is shifted into reverse.Image 1)The Camera may be receiving too much light into the lens. This is normally due to a poorly adjusted camera which may be capturing too much direct sunlight. Adjustcamera so that it does not capture too much sunlight.Image 2)The Camera may have excessive amount of dust/ dirt/ grime, using a mild detergent clean the camera lens and retest.Mirror / Standard Image Button (located at the right side lower position) :Press once to select between mirror/standard image.6. T rouble ShootingStand-Alone BackUp Monitor (3.5-inch)Owner's Manual BM354S。

3.5inch TFT Touch ShieldUser ManualOVERVIEWThis product is 3.5-inch resistive screen module with a resolution 320x480. It has an internal controller allowing to draw on the display geometric figures, text and pictures by using correspondent functions available via SPI communication interface.STM32 and Arduino examples are provided for easy porting.PARAMETERSLCD Type: TFTLCD Interface: SPILCD Controller: ILI9486Touch Screen Controller: XPT2046Touch Screen Type: ResistiveResolution: 320x480 (Pixel)Color Gradation Exponent: 65536INTERFACESymbol Arduino PIN STM32 PIN Description 5V 5V 5V 5V power inputGND GND GND GroundSCLK D13 PA5 SPI clockMISO D12 PA6 SPI data inputMOSI D11 PA7 SPI data outputLCD_CS D10 PB6 LCD chip selectLCD_RST D8 PA9 LCD resetLCD_DC D7 PA8 LCD data/commandselectionHOW TO USEHARDWARE CONFIGURATION•If there is ICSP interface on Arduino board, set the SPI Config switch onto ICSP position.(default)•If Arduino board has no ICSP interface, set the SPI Config switch onto the position that SCLK\D13, MISO\D12, MOSI\D11EXAMPLESWe provide Arduino UNO examples and XNUCLEO-F103RB examples for this screen.ARDUINO EXAMPLES1.Download the examples: 3.5inch TFT Touch Shield code.7z, and copy the libraries which arein Arduino\lib folder of examples to the libraries folder which is under the installationdirectory of Arduino IDE.2.Before running the LCD_ShowBMP code, copy the pictures which is in the PIC folder to SDcard.3.Open the LCD_ShowBMP project with Arduino IDE, download to Arduino board.4.The Touch code use four sets of calibration values, could support painting operation in fourdirections. There are five colors which could be selected on the right. The size of paintbrush is 9 pixels by default. Users can also click the AD on screen to calibrate:Please use the stylus click the cross on the screen. The cross will always move until thescreen adjustment is completed.5.Following the prompt, click the red sign “+” one by one to finish the calibration.STM32 EXAMPLES1.Before running the code that display image. copy the pictures which is in the PIC folder toSD card. Then insert the LCD to NUCLEO or XNUCLEO board.2.Open the project with MDK, download to the NUCLEO or XNUCLEO development board.3.The LCD will first show some common functions: Draw dots, draw dotted line and solid line,rectangle, filled rectangle, circle and solid circle. Every figure keeps for 3s. You can change the size of dot, the width of lines and the size of the circles.4.The Touch code use four sets of calibration values, could support painting operation in fourdirections. There are five colors which could be selected on the right. The size of paintbrush is 9 pixels by default. Users can also click the AD on screen to calibrate:Please use the stylus click the cross on the screen. The cross will always move until thescreen adjustment is completed.5.Following the prompt, click the red “+” one by one to finish the calibration.Note:Image: 320x480, 24bit, bmp.SD card: FAT。
