Digital self-coherent detection

格式：pdf
大小：677.59 KB
文档页数：12

Xiang Liu1*

, S. Chandrasekhar1

, and Andreas Leven2

Bell Laboratories, Alcatel-Lucent, 791 Holmdel-Keyport Road, Holmdel, New Jersey 07733, USA

Bell Laboratories, Alcatel-Lucent, 600-700 Mountain Avenue, Murray Hill, New Jersey 07974, USA

* Corresponding author: xliu20@alcatel-lucent.com

Abstract: We review recent progresses on digital self-coherent detection of

differential phase-shift keyed (DPSK) signal using orthogonal differential

direct detection followed by high-speed analog-to-digital conversion and

digital signal processing (DSP). Techniques such as data-aided multi-

symbol phase estimation for receiver sensitivity enhancement, unified

detection scheme for multi-level DPSK signals, and optical field

reconstruction are described. The availability of signal field information

brings the possibility to compensate for some linear and nonlinear

transmission impairments through further DSP. An adaptive DSP algorithm

for simultaneous electronic polarization de-multiplexing and polarization-

mode dispersion compensation is also presented.

OCIS codes: (060.1660) Coherent communications; (060.5060) Phase modulation; (060.2330)

Fiber optics communication.

References and links

1. R. C. Giles and K. C. Reichmann, "Optical self-homodyne DPSK transmission at 1-Gbit/s and 2-Gbit/s over

86km of fiber," Electron. Lett. 23, 1180-1181 (1987).

2. C. Xu, X. Liu, and X. Wei, “Differential phase-shift keying for high spectral efficiency optical transmissions,” IEEE J. Sel. Top. Quantum Electron. 10, 281 – 293 (2004).

3. A. H. Gnauck and P. J. Winzer, “Optical phase-shift-keyed transmission,” J. Lightwave Technol. 23, 115-

130 (2005).

4. K.-P. Ho, Phase-modulated optical communication systems, (Springer, New York, 2005).

5. F. Derr, “Coherent optical QPSK intradyne system: Concept and digital receiver realization,” J. Lightwave

Technol. 10, 1290-1296 (1992).

6. M. Taylor, “Coherent detection method using DSP for demodulation of signal and subsequent equalization

of propagation impairments,” IEEE Photon. Technol. Lett. 16, 674–676 (2004).

7. R. Noe, “PLL-free synchronous QPSK polarization multiplex/diversity receiver concept with digital I&Q

baseband processing,” IEEE Photon. Technol. Lett. 17, 887-889 (2005).

8. K. Kikuchi, “Phase-diversity homodyne detection of multilevel optical modulation with digital carrier phase

estimation,” IEEE J. Sel. Top. Quantum Electron. 11, 563-570 (2006).

9. M. Nazarathy, Y. Yadin, M. Orenstein, Y. Lize, L. Christen, and A. Willner, " Enhanced Self-Coherent

Optical Decision-Feedback-Aided Detection of Multi-Symbol M-DPSK/PolSK in Particular 8-

DPSK/BPolSK at 40 Gbps," in Optical Fiber Communication Conference and Exposition and The National

Fiber Optic Engineers Conference, OSA Technical Digest Series (CD) (Optical Society of America, 2007),

paper JWA43. http://www.opticsinfobase.org/abstract.cfm?URI=OFC-2007-JWA43.

10. M. Nazarathy, X. Liu, L. Christen, Y. Lize, and A. Willner, “Self-coherent decision-feedback-directed 40

Gbps DQPSK Receiver,” IEEE Photon. Technol. Lett. 19, 828-839 (2007).

11. M. Nazarathy, X. Liu, L. Christen, Y. Lize, and A. Wilner, “Self-coherent optical detection of multisymbol

differential phase-shift-keyed transmission ,” J. Lightwave Technol. (accepted for publication).

12. N. Kikuchi, K. Mandai, S. Sasaki and K. Sekine, “Proposal and first experimental demonstration of digital

incoherent optical field detector for chromatic dispersion compensation,” in Proceedings of European

Conference on Optical Communications 2006, Post-deadline Paper Th4.4.4.

13. X. Liu and X. Wei, " Electronic Dispersion Compensation Based on Optical Field Reconstruction with

Orthogonal Differential Direct-Detection and Digital Signal Processing," in Optical Fiber Communication

Conference and Exposition and The National Fiber Optic Engineers Conference, OSA Technical Digest

Series (CD) (Optical Society of America, 2007), paper OTuA6. http://www.opticsinfobase.org/abstract.cfm?URI=OFC-2007-OTuA6.

14. G. Charlet, J. Renaudier, M. Salsi, H. Mardoyan, P. Tran, and S. Bigo, " Efficient Mitigation of Fiber

Impairments in an Ultra-Long Haul Transmission of 40Gbit/s Polarization-Multiplexed Data, by Digital

Processing in a Coherent Receiver," in Optical Fiber Communication Conference and Exposition and The

#87880 - $15.00 USDReceived 25 Sep 2007; revised 26 Nov 2007; accepted 26 Nov 2007; published 9 Jan 2008

（完整版）自动控制专业英语词汇

自动控制专业英语词汇（一）

acceleration transducer 加速度传感器

acceptance testing 验收测试

accessibility 可及性

accumulated error 累积误差

AC-DC-AC frequency converter 交-直-交变频器

AC (alternating current) electric drive 交流电子传动active

attitude stabilization 主动姿态稳定

actuator 驱动器，执行机构

adaline 线性适应元

adaptation layer 适应层

adaptive telemeter system 适应遥测系统

adjoint operator 伴随算子

admissible error 容许误差

aggregation matrix 集结矩阵

AHP (analytic hierarchy process) 层次分析法

amplifying element 放大环节

analog-digital conversion 模数转换

annunciator 信号器

antenna pointing control 天线指向控制

anti-integral windup 抗积分饱卷

aperiodic decomposition 非周期分解

a posteriori estimate 后验估计

approximate reasoning 近似推理

a priori estimate 先验估计

articulated robot 关节型机器人

assignment problem 配置问题，分配问题

associative memory model 联想记忆模型 associatron 联想机

asymptotic stability 渐进稳定性

attained pose drift 实际位姿漂移

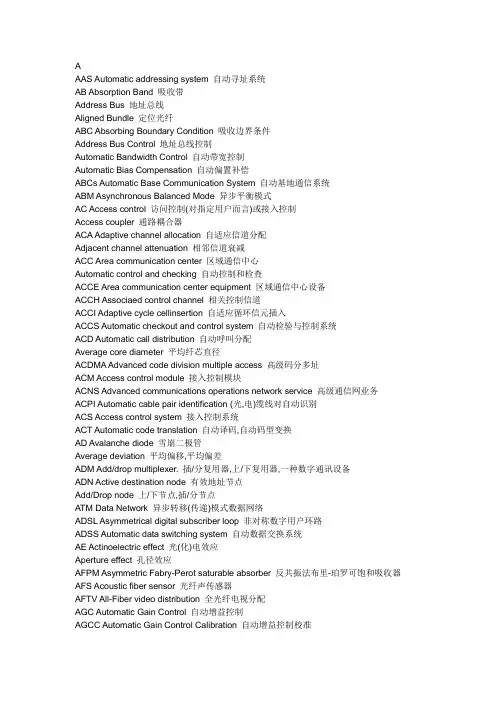

光纤中英文缩略语对照
