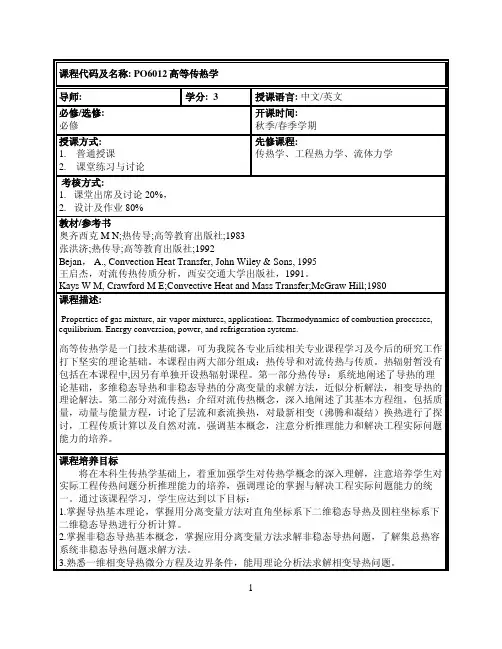

12《PO6012高等传热学》课程教学大纲课程名称：高等传热学课程代码：PO6012学分/学时：3学分/51学时课程开课学期：春、秋季开课适用专业：热能与动力工程、航空航天、核工程、机械工程、船舶与海洋工程先修课程：传热学、工程热力学、流体力学开课单位：机械与动力工程学院一、课程性质和教学目标（需明确各教学环节对人才培养目标的贡献，专业人才培养目标中的知识、能力和素质见附表）课程介绍：高等传热学是一门技术基础课，可为我院各专业后续相关专业课程学习及今后的研究工作打下坚实的理论基础。
本课程由两大部分组成：热传导和对流传热与传质。
热辐射暂没有包括在本课程中,因另有单独开设热辐射课程。
第一部分热传导：系统地阐述了导热的理论基础，多维稳态导热和非稳态导热的分离变量的求解方法，近似分析解法，相变导热的理论解法。
第二部分对流传热：介绍对流传热概念，深入地阐述了其基本方程组，包括质量，动量与能量方程，讨论了层流和紊流换热，对最新相变（沸腾和凝结）换热进行了探讨，工程传质计算以及自然对流。
强调基本概念，注意分析推理能力和解决工程实际问题能力的培养。
教学目标：将在本科生传热学基础上，着重加强学生对传热学概念的深入理解，注意培养学生对实际工程传热问题分析推理能力的培养，强调理论的掌握与解决工程实际问题能力的统一。
通过该课程学习，学生应达到以下目标：1.掌握导热基本理论，掌握用分离变量方法对直角坐标系下二维稳态导热及圆柱坐标系下二维稳态导热进行分析计算。
2.掌握非稳态导热基本概念，掌握应用分离变量方法求解非稳态导热问题，了解集总热容系统非稳态导热问题求解方法。
3.熟悉一维相变导热微分方程及边界条件，能用理论分析法求解相变导热问题。
4.熟悉对流过程中边界层动量及能量积分方程，掌握管内以及外掠物体层流流动和换热理论分析解法及积分解法。
5.掌握沸腾与凝结换热机理，并能够对热管等相变换热器性能进行分析。
6.了解紊流基本概念，掌握圆管内及外掠平壁紊流换热理论，了解紊流模型，尤其对两方程模型有一清晰认识。
