无线网桥顾名思义就是无线网络的桥接, 它利用无线传输方式实现在两个或多个网络之间搭起通信的桥梁; 无线网桥从通信机制上分为电路型网桥和数据型网桥传输数据数据型网桥传输速率根据采用的标准不同, 无线网桥传输标准常采用如下:802.11b;802.11g、802.11a802.11n,802.11b标准的数据速率是11Mbps, 在保持足够的数据传输带宽的前提下, 802.11b一般能够提供4Mbps到6Mbps的实际数据速率;而802.11g、 802.11a标准的无线网桥都具备54Mbps的传输带宽, 其实际数据速率可达802.11b的5倍左右,当前经过turb和Super模式最高可达108Mbps的传输带宽;802.11n一般能够提供150Mbps到600Mbps的传输速率。
电路型网桥传输速率根据调制方式和带宽不同决定, PTP C400 可达64Mbps, PTP C500可达90MBPS,PTP C600可达150Mbps; 能够配置电信级的E1,E3,STM-1接口点对点方式点对点型( PTP) , 即”直接传输”。
无线网桥设备可用来连接分点对点无线组网别位于不同建筑物中两个固定的网络。
它们一般由一对桥接器和一对天线组成。
两个天线必须相对定向放置, 室外的天线与室内的桥接器之间用电缆相连, 而桥接器与网络之间则是物理连接由于无线网桥往往由于构建网络时的特殊要求, 很难就近找到供电。
因此, 具有PoE(以太网供电)能力就非常重要, 如能够支持802.3af国际标准的以太网供电, 能够经过5类线为网桥提供12V 的直流电源。
一般网桥都能够经过Web方式来进行管理, 或者经过SNMP方式管理。
它还具有先进的链路完整性检测能力, 当其作为AP使用的时候, 能够自动检测上联的以太网连接是否工作正常, 一旦发现上联线路断线, 就会自动断开与其连接的无线工作站, 这样被断开的工作站能够及时被发现, 并搜寻其它可用的AP, 明显地提高了网络连接的可靠性, 而且也为及时锁定并排除问题提供了方便。

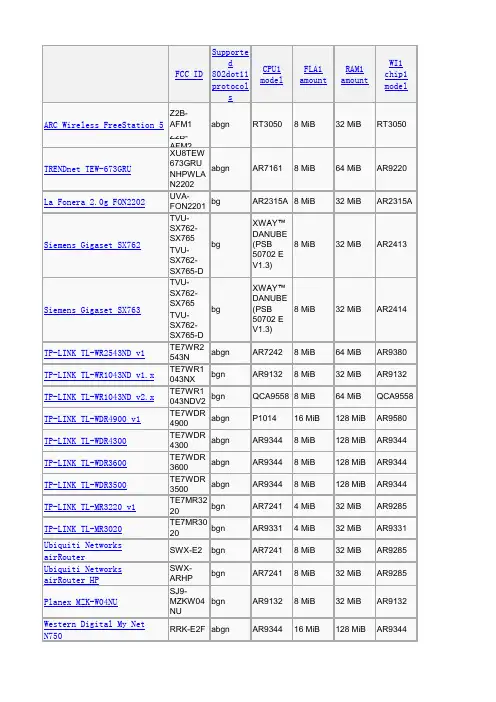

TP-link(以下均是)TL-WR641G Athreos AR2316 + Marvell 88E6060 TL-WR641G+ Athreos AR2318 + Marvell 88E6060 TL-WR642G Athreos AR2316 + Marvell 88E6060 TL-WR642G+ Athreos AR2318 + Marvell 88E6060 TL-WN610G Athreos AR2414TL-WN620G Athreos AR5523TL-WN650G Athreos AR2414TL-WN651G Athreos AR2414TL-WN660G Athreos AR2414TL-WN612AG Athreos AR5414TL-WN652AG Athreos AR5414TL-WN653AG Athreos AR5414TL-WN662AG Athreos AR5414TL-WR541G Athreos AR2413 + Marvell 801012 TL-WR541G+ Athreos AR2317 + Marvell 88E6060 TL-WR542G Athreos AR2317 + Marvell 88E6060 TL-WA501G Athreos AR2315 + Realtek RTL8201 TL-WN510G Athreos AR2413TL-WN550G Athreos AR2413TL-WN551G Athreos AR2413TL-WN321G Ralink RT2571WTL-WN321G Ralink RT2571WTL-WN560G Athreos AR2413TL-WN512AG Athreos AR5413TL-WN552AG Athreos AR5413TL-WN553AG Athreos AR5413TL-WN562AG Athreos AR5413TL-ANT2402A N/ATL-ANT2405C N/ATL-ANT2406A N/ATL-ANT2409A N/ATL-ANT2414A N/ATD-8610 Annex A) Broadcom BCM6338 + BCM6301TD-8610 Annex B) Broadcom BCM6338 + BCM6301TD-8810 (Annex A) Broadcom BCM6338 + BCM6301TD-8810 (Annex B) Broadcom BCM6338 + BCM6301TD-8811 (Annex A) Broadcom BCM6338 + BCM6301TD-8811 (Annex B) Broadcom BCM6338 + BCM6301TD-8840 (Annex A) Broadcom BCM6338 + BCM6301TD-8840 (Annex B) Broadcom BCM6338 + BCM6301TD-8841 (Annex A) Broadcom BCM6338 + BCM6301TD-8841 (Annex B) Broadcom BCM6338 + BCM6301TL-W8910G Atheros AR2413TL-W8920G Atheros AR2414TL-R402M Marvell 88E6218TL-R460 Marvell 88E6218TL-R860 Marvell 88E6218+Marvell 88E6060(Switch)TL-R860+ Marvell 88E6218 is42s16400B-7TL 内存64MB EN29LV160AB 闪存2MB S29AL908D70TE102不明芯片TL-R480T Intel FWIXP420BB (CPU) + Marvell 88E6063 (Switch)TL-R4000 Intel FWIXP420BB (CPU) + Marvell 88E6063 (Switch)TL-R480T+ Intel FWIXP420BB (CPU) + Marvell 88E6063 (Switch)TL-R488T Intel FWIXP425BD (CPU) + Marvell 88E6063 (Switch)TL-R4000+ Intel FWIXP425BD (CPU) +Marvell 88E6063 (Switch)TL-SG3109 Marvell 88E6185 (MAC) + 88E1145 (PHY) + 88E6218 (CPU)TL-SG3216 Marvell 98DX160 (MAC) + 88E1145 + 88E1111 + 88E1112 (PHY) + 88E6218 (CPU)TL-SG3224 Marvell 98DX240 (MAC) + 88E1145 + 88E1111 + 88E1112 (PHY) + 88E6218 (CPU)TL-SG3248 Marvell 98DX26x (MAC) + 88E1145 + 88E1111 + 88E1112 (PHY) + 88E6218 (CPU)TL-SL3428 Marvell 88E6185 + 88E6095 (MAC) + 88E1111 (PHY) + 88E6218 (CPU)TL-SL3452 Marvell 88E6185 + 88E6095 (MAC) + 88E1111 (PHY) + 88E6218 (CPU)TL-SG2109WEB Marvell 88E6182 (MAC) + 88E1145 (PHY) + 88E6218 (CPU)TL-SG2216WEB Marvell 98DX162 (MAC) + 88E1145 + 88E1111 + 88E1112 (PHY) + 88E6218 (CPU)TL-SG2224WEB Marvell 98DX242 (MAC) + 88E1145 + 88E1111 + 88E1112 (PHY) + 88E6218 (CPU)TL-SG2248WEB Marvell 98DX262 (MAC) + 88E1145 + 88E1111 + 88E1112 (PHY) + 88E6218 (CPU)TL-SL2210WEB Marvell 88E6092 (MAC) + 88E1111 (PHY) + 88E6218 (CPU)TL-SL2218WEB Marvell 88E6092 (MAC) + 88E1111 (PHY) + 88E6218 (CPU)TL-SL2428WEB Marvell 88E6182 + 88E6092 (MAC) + 88E1111 (PHY) + 88E6218 (CPU)TL-SL2452WEB Marvell 88E6182 + 88E6092 (MAC) + 88E1111 (PHY) + 88E6218 (CPU)TL-SG1005D Vitesse VSC7385TL-SG1008D Vitesse VSC7388TL-SG1008 Vitesse VSC7388TL-SG1016 Vitesse VSC7389 (MAC) + VSC8538 (PHY)TL-SG1016 Marvell 98DX161 (MAC) + 88E1149 (PHY)TL-SG1016D Marvell 98DX161 (MAC) + 88E1149 (PHY)TL-SG1024 Vitesse VSC7390 (MAC) + VSC8538 (PHY)TL-SG1024 Marvell 98DX241 (MAC) + 88E1149 (PHY)TL-SL1109 Realtek RTL8310 (MAC) + RTL8208B (PHY)TL-SL1117 Realtek RTL8318 (MAC) + RTL8208B (PHY)TL-SL1226 Realtek RTL8326(MAC)+ RTL8208-VF(PHY)+ Cicada CIS8201(PHY) TL-SL1351 Marvell 88E6182 + 88E6092 (MAC) + 88E1111 (PHY) + 88E6218 (CPU) TL-SF1005D Realtek RTL8305SCTL-SF1005D Marvell 88E6060TL-SF1008D Realtek RTL8309SBTL-SF1016D Realtek RTL8309SBTL-SF1016 Realtek RTL8316B (MAC) + RTL8208(PHY)TL-SF1016 Realtek RTL8316B (MAC) + RTL8208(PHY)TL-SF1024 Realtek RTL8324 (MAC) + RTL8208B (PHY)TL-SF1048 Realtek RTL8326 (MAC) + RTL8208-VF(PHY)TL-SM201CM Altima AC101TL-SM201CS Altima AC101TL-SM311LM N/ATL-SM311LS N/ATR-966D Realtek RTL8305SCTR-965DA Realtek RTL8305SCTR-965DB Realtek RTL8305SCTR-932D Realtek RTL8305SCTR-962D Realtek RTL8305SCTG-3269 Realtek RTL8169SCTG-3201 Marvell 88E8001TF-3239D Realtek RTL8139DTF-3239DL Realtek RTL8139DTF-5239 Realtek RTL8139CLTM-IP5600 Motorola PCI 3 (Si3052+Si3007)TM-EC5658V Intel MD5660 + MD4450 + MD1724。
