压力开关说明书

双簧机械压力开关调节说明书双簧机械压力开关是一种常用的压力控制装置。

其作用是监测压力，当压力达到一定设定值时，开启或关闭电路。

这种开关特别适用于工业、农业和家庭设备中，需要对压力进行监测和控制的场合。

本文将详细介绍双簧机械压力开关的调节方法。

1. 调节压力范围首先，我们需要设计和调整双簧机械压力开关的压力范围。

压力范围的选择取决于所监测的对象的性质和压力大小。

假设我们要监测某个压缩空气罐内的压力，首先要知道该罐的压力最高可以达到多少，然后设置开关的开关量。

这里需要注意的是，双簧机械压力开关的压力范围是可调的。

我们可以通过旋转调节螺母调整最小压力值，并通过旋转调整螺柱调整最高压力值。

2. 调节压力差除了压力范围，我们还需要调节压力差。

压力差是指在压力测量过程中，开关的下限压力和上限压力之间的差值。

这种差异通常可调，以保证开关闭合的准确性。

要调节此参数，我们可以使用压力表来测量压力，并通过旋转调整螺柱或螺母来调整压力差值。

3. 连接电路调整好的双簧机械压力开关需要连接电路，以便于监控和控制压力。

我们可以根据设备的工作需求来设计电路。

电路的安装需要注意的是，在使用中请避免过度施加力量，以免机械部件损坏。

4. 维护和保养在使用中，双簧机械压力开关需要定期进行维护和保养。

首先，要确保机械部件清洁和润滑，以保证其正常运转。

其次，需要检查电路的连接情况和电路电源的稳定性，以确保其正常工作。

如果发现机械故障，请立即维修或更换。

综上所述，双簧机械压力开关是一种可靠的压力控制装置。

正确地调整其参数不仅能确保设备的稳定运行，还能延长其使用寿命。

使用过程中，我们需要定期进行检查和维护，以保证其正常工作。

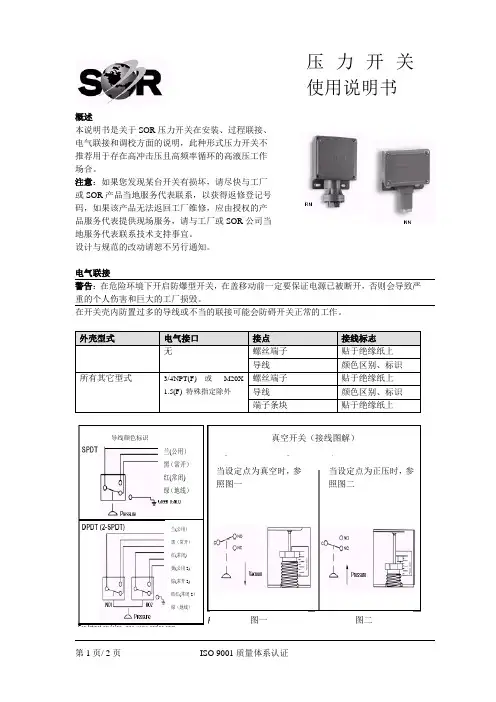

概述本说明书是关于SOR 压力开关在安装、过程联接、 电气联接和调校方面的说明，此种形式压力开关不 推荐用于存在高冲击压且高频率循环的高液压工作 场合。

注意：如果您发现某台开关有损坏，请尽快与工厂 或SOR 产品当地服务代表联系，以获得返修登记号 码，如果该产品无法返回工厂维修，应由授权的产 品服务代表提供现场服务，请与工厂或SOR 公司当 地服务代表联系技术支持事宜。

设计与规范的改动请恕不另行通知。

电气联接警告：在危险环境下开启防爆型开关，在盖移动前一定要保证电源已被断开，否则会导致严重的个人伤害和巨大的工厂损毁。

在开关壳内防置过多的导线或不当的联接可能会防碍开关正常的工作。

外壳型式 电气接口 接点 接线标志无螺丝端子 贴于绝缘纸上 导线颜色区别、标识 所有其它型式3/4NPT(F) 或 M20X 1.5(F) 特殊指定除外螺丝端子 贴于绝缘纸上 导线 颜色区别、标识 端子条块贴于绝缘纸上第1页/ 2页 ISO 9001质量体系认证真空开关（接线图解）当设定点为真空时，参照图一 当设定点为正压时，参照图二图一图二兰(公用） 黑（常开） 红(常闭) 绿（地线）兰(公用） 黑（常开） 红(常闭) 黄(公用2) 棕(常开2) 桔红(常闭2） 绿（地线）导线颜色标识压力开关 使用说明书安装1.用两个适当长度的1/4英寸螺栓，牢固地将开关外壳通过安装孔与仪表架或安装柱装配在一起。

2.不推荐通压力接口或电气接口的在线安装。

3.建议安装位置为电气接口竖直向下，以避免收集冷凝液，尽管如此，开关仍可全位置安装。

保证导线的电气性能符合所有应用的国家和场合，并且根据相关国家和场合的安全要求安装产品。

过程联接采用两个扳手安全地将引压管与压力接口联接：一个扳手夹住六角形压力接口，另一个扳手旋紧引压管或管接头。

重要：小心勿使压力接口松，压力接头从壳体上脱落。

警告：将外壳安装平板表面可能会导致外壳受到扭力，从而使压力开关不能正常工作。

P r e s s u r e s w i t c h e s5ApplicationsAir compressors, water pumps, booster pumps, firefighting equipment, or oil supply equipment .TIVAL pressure switches of the FF 4 series are suitable for a wide range of applications.For example they can be utilized for:n Monitoring and controlling the pressure of liquid or gaseous media in pipelines, tanks, vats, pressure vessels and apparatus.n Applications in process control, cooling, pneumatics and hydraulics.n Pressure monitoring of cooling circuits and lubrication systems on various types of machinery.nAutomatic switching of pump and compressor motors for supplying water to dwellings, booster pumps, firefighting equipment and on compressed air systems.DescriptionThe pressure of the monitored medium operates against a flat diaphragm,b ellows or plunger (depending on pressure range). A system of levers and springs work on a snapaction cascade switch of high vibration resistance, ensuring flutterfree switching. With no pressure on the diaphragm contact 1-2 is closed. This can be used as an …ON“ signal for a pump or compressor motor.If pressure exceeds the upper switchingpoint, contact 1-2 opens and contact 1-4 closes. The connected motor will be switched off. Contact 1-4 is often used to indicate the …off“ condition.Contact 1-2 will close again, when the pressure on the diaphragm hasd ropped below the set lower switchpoint. Upper and lower switch points can be adjusted independently of each other using a screwdriver. The two switch points are indicated on the scale inside the unit.Change-over contact with manual reset min.:If the pressure drops below the set value, contact 1-4 opens and contact 1-2 closes and locks. When the pressure has risen above the set value, thec ontact can be unlocked with the manual reset button.Change-over contact with manual reset max.:If the pressure rises above the set value, contact 1-2 opens and contact 1-4 closes and locks. When the pressure has dropped below the set value, the contact can be unlocked with the manual reset button.Pressure connection, pressure sensing element, switch mechanism ande lectrical terminals are fitted on a die-cast aluminum-alloy base. The scale and switch are protected against environmental effects by an impact-resistant, transparent polycarbonate cover, (CTI 200-225) and can be lead-sealed.Included in standard units: Rubber grommet with orifice for cable e ntry, pressure connector …Y“, made out of plastic for demineralised watera pplications.Options upon request:n G old flashed contacts n C able gland M 20for protection IP 65n V iton diaphragm for aggressive media n M anual resetn G L - approved versionn U L / CSA - approved version n A TEX - approved version n V dS - approved versionFF 4-2, FF 4-4, FF 4-8, FF 4-16, FF 4-32103 mm5,5 mm40 mm 14 mm50 mm 84,5 mm77,5 mm151 mm75,5 mm 40,5 mmaFF 4-12, FF 4-30, FF 4-60,FF 4-120, FF 4-250103 mm5,5 mm40 mm 14 mm 50 mm 84,5 mm77,5 mm151 mm75,5 mm 40,5 mm57 mmControl pressure switch FF 4-... DAY Upper Lower Smallestswitch pt. switch pt. diff.*adjustable (bar) adjustable (bar) (bar) pressure (bar)0,11 ... 2 0,04 ... 1,89 0,07 0,110,22 ... 4 0,07 ... 3,75 0,15 0,250,5 ... 8 0,2 ... 7,5 0,3 0,5FF 4-10 DAY0,7 ... 10 0,3 ... 9,2 0,4 0,8FF 4-16 DAY 1 ... 16 0,4 ... 15 0,6 1Control pressure switch FF 4-... AAG / PAHUpper Lower Smallestswitch pt.switch pt.diff.*adjustable (bar)adjustable (bar)(bar)1 ... 120,5 ... 11,20,50,84 ... 30 1 ... 26,41,83,6High pressure switch with plastic plunger.Throttle is fitted as standard on these units. This must be removed for use with viscous media.Pressure connector: H (G 3/8“ Female thread, DIN 1725/2), stainless steel. VDE 0660, IEC 337-1, IEC 553-1Control pressure switch FF 4-... with manual reset Upper Lower Smallestswitch pt. switch pt. diff.adjustable (bar) adjustable (bar) (bar)0,11 ... 2 0,20,04 ... 1,89 0,10,22 ... 4 0,50,07 ... 3,75 0,20,5 ... 8 1,00,2 ... 7,5 0,41 ... 16 2,0Control pressure switch FF 444-... with UL / CSA-approval Upper Lower Smallestswitch pt. switch pt. diff.*adjustable (psi) adjustable (psi) (psi)3 ... 58 1 ... 54 2 415 ... 232 6 ... 217 9 14116 ... 870 58 ... 754 58 116P r e s s u r e s w i t c h e s10Media compatibility guideAccessoriesP r e s s u r e s w i t c h e s11Circuit diagramsChange-over contactwith manual reset min.Change-over contactwith manual reset max.Change-over contact DimensionsThrottle for FF 4-2 up to 32weight : ~ 3 g Order No.: 1011002Throttle screw for FF 4-12/30/60/120/250weight: ~ 3 g (stainless steel)Order No.: 10110035,5 mm6 mm4 mm G 3/8”G 1/2”Gauge fittingSteel, G 3/8” - G 1/2”, Type: H 124-114weight: ~ 18 g Order No.: 1071004P r e s s u r e s w i t c h e s12Pressure diagramsCharts show the smallest adjustable differential.Example per figure FF 4-4: If upper setting is at 3.25 bar, lower setting can be adjusted between 0.07and 3.0 bar (see arrows in the drawing).P r e s s u r e s w i t c h e s13Pressure diagrams。

Operating InstructionsforDisplay Pressure SwitchModel: PSDPSDWe don’t accept warranty and liability claims neither upon this publication nor incase of improper treatment of the described products.The document may contain technical inaccuracies and typographical errors. Thecontent will be revised on a regular basis. These changes will be implemented inlater versions. The described products can be improved and changed at any timewithout prior notice.© CopyrightAll rights reserved.1. Contents1. Contents (2)2. Note (3)3. Instrument Inspection (3)4. Regulation Use (3)5. Operating Principle (4)6. Mechanical Connection (4)7. Electrical Connection (5)7.1 Output signal / supply voltage (5)8. Operating menu (6)9. Type label description (8)10. Technical Information (8)11. Terminology (11)12. Order Codes (13)13. Dimensions (13)14. EU Declaration of Conformance (14)Manufactured and sold by:Kobold Messring GmbHNordring 22-24D-65719 HofheimTel.: +49(0)6192-2990Fax: +49(0)6192-23398E-Mail:******************Internet: page 2 PSD K02/0118PSD 2. NotePlease read these operating instructions before unpacking and putting the unitinto operation. Follow the instructions precisely as described herein.The devices are only to be used, maintained and serviced by persons familiarwith these operating instructions and in accordance with local regulationsapplying to Health & Safety and prevention of accidents.When used in machines, the measuring unit should be used only when themachines fulfil the EC-machine guidelines.3. Instrument InspectionInstruments are inspected before shipping and sent out in perfect condition.Should damage to a device be visible, we recommend a thorough inspection ofthe delivery packaging. In case of damage, please inform your parcel service /forwarding agent immediately, since they are responsible for damages duringtransit.Scope of delivery:The standard delivery includes:∙Display Pressure Switch model: PSD∙Operating Instructions4. Regulation UseAny use of the Display Pressure Switch, model: PSD, which exceeds themanufacturer’s specification, may invalidate its warranty. Therefore, any resultingdamage is not the responsibility of the manufacturer. The user assumes all riskfor such usage.PSD K02/0118 page 3PSDpage 4 PSD K02/01185. Operating PrincipleKOBOLD is a leading international supplier of high quality sensors and monitoringinstruments among other things for measurement of pressure and temperature.The PSD is the ideal combination of pressure switch and transmitter with apressure display. The parameters can be set on the device. The settings incombination with a comprehensive set of options make the PSD suitable for awide range of demanding applications.6. MechanicalConnectionPSDPSD K02/0118 page 57. ElectricalConnection7.1 Output signal / supply voltageOutput I SUPPLY U SUPPLY4...20 mA ≤ 30 mA 15...30 VDC0...10 VDC ≤ 30 mA 15...30 VDCSwitching output functionsPSDpage 6 PSD K02/01188. OperatingmenuPSDPSD K02/0118page 7Parameter Name Standard setting (accessory ZS)Value range Short nameSwitch point SP1 (hysteresis mode) Upper switch point FH1 (window mode) 75% measuring range SP1>RP1 FH1>FL1 hysteresis ≥1% FSSP1 Reset point RP1 (hysteresis mode) Lower switch point FL1 (window mode) 25% measuring range RP1<SP1 FL1<FH1 hysteresis ≥ 1% FSRP1 Switch point SP2 (hysteresis mode) Upper switch point FH2 (window mode) 75% measuring range SP2>RP2 FH2>FL2 hysteresis ≥ 1% FSSP2 Reset point RP2 (hysteresis mode) Lower switch point FL2 (window mode) 25% measuring range RP2<SP2 FL2<FH2 hysteresis ≥ 1% FSRP2 Switch point delay time SP1 (hysteresismode) Switch point delay time FH1 (windowmode)0 0...99.99 s dS1 Switch point delay time RP1 (hysteresismode) Switch point delay time FL1 (windowmode)0 0...99.99 s dR1 Switch point delay time SP2 (hysteresismode) Switch point delay time FH2 (windowmode)0 0...99.99 s dS2 Switch point delay time RP2 (hysteresismode) Switch point delay time FL2 (windowmode)0 0...99.99 s dR2 Functions switching output 1 Hysteresis, closer (Hno) Hysteresis NO (Hno), hysteresis NC (Hnc), window NO (Fno), window NC (Fnc)ou1 Functions switching output 2 Hysteresis, closer (Hno) Hysteresis NO (Hno), hysteresis NC (Hnc), window NO (Fno), window NC (Fnc)ou2 Pressure units bar bar, psi, MPa, kPa, mWC uniMeasuring range adjustment 100 % nominal pressure 50…100% nominal pressure P-EPDamping (analogue output) 0.01 s 0.01…3.00 s (time constant) dAADisplay rotation no no, yes (180°) disrDisplay mode Current pressure value Pressure value:current, highest, lowest, display offCurrent value:decimal places selectable (max. 3)disDisplay update 2 1, 2, 5, 20 Hz duPdPSDpage 8 PSD K02/01189.Type label description10. Technical InformationMeasuring principle: thin film on steelMeasuring range: -1...+1.5 to 0...600 bar-14.5...+22 to 0...7500 psiadjustable 50...100 % FSOutput signal: 4...20 mA0...10 V DC, switchable mA or VSwitching output: 2 transistors PNPAccuracy@ 25° C typ.: ±0.5 % FS typ.Media temperature: -25° C...+85° CAmbient temperature: -25° C...+85° CPressure unit for display: bar, psi, MPa, kPa, m WC, mm WCElectrical dataOutput/supply voltage: 4...20 mA: 24 or 0-10 V DC /24 (15...30) V DCSwitch-on-delay: typ. 200 msInverse-polarity protection,Short-circuit strength@ 25° C during 5 min.; integratedCurrent consumption: ≤30 mAPSDPSD K02/0118 page 9Environmental conditionsMedia temperature: -25° C...+85° CAmbient temperature: -25° C...+85° C Protection 1): IP65Humidity: max. 95% relativeVibration: 10 g (10...2000 Hz)Shock: 50 g/ 3 ms1) see electrical connectionAnalogue outputOutput signal: switchable 4-20 mA or 0-10 V DCAccuracy: TEB 2) @ -25 °C...+85° C[% FS typ.] ± 1.75accuracy @ +25° C[% FS typ.] ±0.5NLH 2) @ +25° C (BSL)[% FS typ.] ±0.2TC 2) zero point and span[% FS typ.] ±0.03long term stability 1 year[% FS typ.] ±0.1Current limiting output signal: 4-20 mA (overload)0...10 V DC : <40 mA (short-circuit)Damping (rise-time): 0.01...3.00 s/10...90% nominal pressureSwitching outputAccuracy: accuracy@ +25° C[% FS typ.] ± 0.5TEB 2) @ -25 °C...+85° C[% FS typ.] ± 1.0accuracy @ +25° Clong term stability 1 year[% FS typ.] ±0.3Adjustment range ofswitchpoints: 0...100% FSSwitching hysteresis: ≥ 1% FS switchpoint reset pointSwitching resistance: ≤ 3 ΩOutput function: hysteresis, window; normally open (NO),normally closed (NC)Switching current: ≤ 0.5 A each switching outputCurrent limiting: ≤ 2 A each switching outputSwitching frequency: max. 200 HzDelay time: 0...99.99 s2) see »Terminology«PSDpage 10 PSD K02/0118 DisplayDisplay: 4-digit 7-segment display 180 °flippable with disable functionstandard decimal places:≤9: 3 decimal places10...99: 2 decimal places100...999: 1 decimal placeSwitching status indication: 2 LED, redOperation: with 3 buttons and menu navigation according to VDMA 24574-1Display reduction: 0.1 % FSDisplay range: -3...103% FSSetting parameters: see table “Parameter”Mechanical dataSensor (wetted parts) 1.452 (AISI630)Pressure connection(wetted parts): 1.452 (AISI630)Housing: steel, die cast metal galvanised,display housing plasticConnection: G¼ male,adapter can be ordered as separate item Sealing: FPMMale electrical plug: PA-plug M12x1.5 pinMounting torque: 15...20 NmHousing alignment: display 335 ° rotatable, max. 2.5 Nmelectrical connection 343° rotatable, max. 5 Nm Pressure peakdamping element: ø 0.4 mmWeight: ~189 g11. TerminologyNon-linearityThe largest deviation from the effective characteristic line of an ideal reference line. The reference line can be defined as a limit point adjustment, a BSL or a BSL through 0.Specifications: Non-linearity, HysteresisBSL through ZeroAs an additional requirement for the minimum value adjustment, the BSLthrough zero (also BSL/0) must go straight through zero or the origin.Specifications: Accuracy NLH (BSL through zero)BSL Best Straight LineThe reference line according to the BSL or the minimum value adjustment is placed in such a way that the maximum positive and negative deviations are as small as possible.Specifications: Non-linearity, HysteresisSpecifications: Accuracy NLH (BSL)NLH Non-linearity and HysteresisLargest deviation from the ideal characteristic line (BSL, BSL/0 or limit point). In pressure measuring instruments, the non-linearity and pressure hysteresis are given together at a constant temperature.Temperature Coefficient TCChange of measured value for zero point and span as a result of changes in temperatureLong-term Stability Long-term DriftThe change of accuracy due to aging under certain reference conditions during a certain period of time, typically 1 year.TEB Total Error BandTotal error (root from sum of the square of the deviations) due to measurement deviations (accuracy) and temperature influence (temperature coefficient TC). The temperature influence is usually given in the information across a range larger than that given in the standard (-10 ... +60 °C). Whilst DIN 16086 also continues to add to the long-term stability over a year, the information is subject to ex-works conditions for obvious reasons.12. Order CodesExample: PSD-4 3 3 R2 B4 4Model VersionElectricalconnectionMaterial ConnectionMeasuring range *[bar]OptionSpecialversionPSD-4 = 2x PNP switching output, analogue output 4-20 mA3 = M12 plug, 24 (15-30) V DC3 = FPMo-ring,st. steel connection R2 = G¼ maleA1 = -1...1.5 A4 = -1...9 B6 = 0...6 B7 = 0...10 B8 = 0...16 B9 = 0...25 C2 = 0 (100)C3 = 0...160 C4 = 0...250 C5 = 0 (400)4 = pressure peak damping element D = 0.4 mm0 = none Y = special version (specify in clear text)* Other ranges on request13. Dimensions[mm]PSD PSD...R2...14. EU Declaration of ConformanceWe, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product:Display Pressure Switch Model: PSDto which this declaration relates is in conformity with the standards noted below: EN 61000-6-2: 2006 Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environmentsEN 61000-6-3:2007 + A1:2010 Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for residential, commercial and light-industrial environmentsAlso the following EC guidelines are fulfilled:Directive2014/30/EU EMC2011/65/EU RoHS (category 9)Hofheim, 12. Febr. 2018H. Peters M. WenzelGeneral Manager Proxy Holder。
