助力德国炼油厂监测加氢转化炉 - 菲力尔FLIR光学气体红外热像仪

第六感可视化不可见的气体挽救生命，化险为夷一处设施可能拥有数以千计的接头和配件需要定期检查，但事实上只有不到百分之一的部件会发生泄漏。

使用传统的“嗅探器”进行测试需耗费大量的时间和精力。

从天然气开采到石油化工作业和发电，各公司通过在其泄漏检测和维修(LDAR)计划中纳入FLIR光学气体成像技术，每年节约价值超过1000万美元的产量损失。

清晰地看见碳氢化合物泄漏光学气体成像红外热像仪给予您发现不可 见气体逃逸问题的超凡能力，因此您能够比 使用嗅探器更快速、更可靠地发现逃逸性 泄漏。

借助GF系列热像仪，您能够发现并记录导致产量损失、收入损失、罚款和安全风险的气体泄漏。

检测难以发觉的CO2泄漏发现钢铁厂泄漏事件轻松发现SF6泄漏检测R-124压缩机泄漏如需了解更多信息，敬请访问/OGI追踪泄漏至源头GF 系列光学气体成像红外热像仪能够快速、精确、安全地检测天然气、SF 6和CO 2泄漏，无需关闭系统或接触部件。

肉眼不可见的气体泄漏在透过光学气体红外热像仪观察时呈烟雾状，使得泄漏极易被发现——即使从较远距离处。

借助FLIR 光学气体成像红外热像仪，您能够：• 从安全距离处快速扫描大片区域• 调查难以接触的接头和配件• 提高环境法规的符合性• 利用温度测量功能检查机电系统的故障迹象泄漏的压力计捕捉到气体泄漏泄漏在热图像上清晰可见可见光图像红外图像高灵敏度模式从安全距离处快速扫描宽广的区域手持式热像仪如果您需要检测大片工作区域的工业气体或化学品泄漏，手持式光学气体成像红外热像仪有助于您快速、高效地解决问题。

GFx320、GF306和GF346热像仪采用符合人体工学的设计，使您能够全天舒适轻松地检查分布于多个场地的所有部件。

这几款热像仪具有温度校准功能，可增强气体化合物与背景场景之间的对比度。

GF 系列手持式热像仪完美适用于：• 天然气井场• 变电站• 发电机组• 化学处理工厂• 制造厂有用配件随需而变的灵活系统没有第二家红外热像仪制造商像FLIR Systems 一样能提供如此品类齐全的附件。

OPTICAL GAS IMAGING Infrared Cameras for Gas Leak DetectionMAKE INVISIBLE GASES VISIBLESAVE LIVES, REVENUE, AND THE DAY A facility can have thousands of connections and fittings that require regular inspection, but the reality is less than one percent of these components will ever leak. Testing them all with a traditional “sniffer” takes a great deal of time and effort.From natural gas extraction to petrochemical operations and power generation, companies have saved more than $10 million annually in lost product by including FLIR optical gas imaging in their leak detection and repair (LDAR) programs.METHANE AND HYDROCARBONSScan thousands of connections for natural gas(methane) and other hydrocarbon leaks quickly and froma safe distance to avoid regulatory violations, fines, andlost revenue.SULFUR HEXAFLUORIDE (SF6)Scan substation circuit breakers for sulfur hexafluoride(SF6) leaks at a safe distance from high-voltage areas,without the need to shut down operations.HYDROGEN (CO2 TRACER GAS)Imaging the tracer gas, CO2, with an optical gas cameraallows operators of hydrogen-cooled generators toefficiently find hydrogen leaks.CARBON DIOXIDE (CO2)Prevent shut-downs by detecting carbon dioxide(CO2) leaks early in chemical production, manufacturing, andEnhanced Oil Recovery programs.CARBON MONOXIDE (CO)Protect workers and the environment from toxic levelsof carbon monoxide (CO) by pinpointing leaks quicklyand efficiently.REFRIGERANTSFind leaks early to avoid interruptions in operations,prevent the loss of perishable products, and limit theenvironmental impact of toxic refrigerants.SPOT HARD-TO-FIND CO2 LEAKSSEE HYDROCARBON LEAKS CLEARLY FIND LEAKS AT STEEL PLANTSFIND SF6 LEAKS EASILYDETECT R-124 COMPRESSOR LEAKSDETECT LEAKS FROM HYDROGEN-COOLED GENERATORSOptical gas imaging cameras give you the power to spot invisible gases as they escape, so you can find fugitive emissions faster and more reliably than with sniffer detectors. With a FLIR GF-Series camera, you can document gas leaks that leadto lost product, lost revenue, fines, and safety hazards.TRACK LEAKS TO THEIR SOURCEThe GF-Series optical gas imaging cameras can detect natural gas, SF6, and CO2 leaks quickly, accurately, and safely without the need to shut down systems, or the need for contact with the components. Gas leaks that are invisible to the naked eye look like smoke on infrared optical gas imaging cameras, making them easy to see – even from a distance.WITH FLIR OPTICAL GAS IMAGERS, YOU CAN:• Scan broad areas quickly, from a safe distance• Survey hard-to-reach connections and fittings• Improve compliance with environmental regulations• Check electro-mechanical systems for signs of failure, using temperature measurement capability A LEAKING PRESSURE GAUGECAPTURED GAS LEAKLEAK IS CLEARLY VISIBLE ON THE THERMAL IMAGEHANDHELD CAMERASWhen you need to survey large work areas for industrial gas or chemical leaks, a handheldoptical gas imaging camera can help you get the job done quickly and efficiently. Camerassuch as the GFx320, GF306, and GF346 allow you to check every component throughoutmultiple sites, and are ergonomically designed for comfortable, all-day use. These camerasalso offer features such as temperature calibration for improved contrast between the gascompound and the background scene.HELPFUL ACCESSORIESFLEXIBLE SYSTEMS THAT MEETYOUR CHANGING NEEDSNo other thermal imaging camera manufacturer offersa wider range of accessories than FLIR Systems.Hundreds of accessories are available to customize ourcameras for a wide variety of imaging and measurementapplications. From a comprehensive range of lenses,through LCD screens, to remote control devices,everything is available to tailor your camera to yourspecific application.FIXED CAMERASHave a need for continuous monitoring or automated leak detection in criticalareas? With thermal imaging cameras such as the G300a, G300pt, andA6604, you can constantly monitor vital gas pipelines and installations inremote or difficult to access zones. You will immediately see if a dangerousand costly gas leak appears. Monitoring is performed from a safe distancewithout the need to send technicians into potentially dangerous areas.GF-SERIES HANDHELD CAMERAS ARE IDEAL FOR:• Chemical processing plants• Manufacturing plants• Natural gas wellsites• Electrical substations• Power generatorsG300A, G300PT, AND THE A6604 CAMERASARE IDEAL FOR:• Offshore oil platforms• Natural gas processing plants• Biogas generation plants• Petrochemical facilities• High value well sites• Underground storage facilities• Critical pipeline crossingsVISIBLE IMAGE INFRARED IMAGE HIGH SENSITIVITY MODE Scan broad areas quickly, from a safe distanceThe FLIR GF304 detects refrigerant gas leaks without interrupting or shutting down operations. Most modern refrigerants are organofluorine compounds, and while they are not ozone-depleting, some blends contain Volatile Organic Compounds (VOCs). Refrigerants are used in a variety of systems, including food production, pharmaceutical storage, and air conditioning.• R 22• R 125• R 134A • R 143A• R 245fa • R 404A • R 407C • R 410A• R 417A • R 422A • R 507AThe FLIR GF306 detects sulfur hexafluoride (SF 6) – used to insulate high voltage circuit breakers – as well as the industrial refrigerant and fertilizer anhydrous ammonia (NH 3). SF 6 is a potent greenhouse gas, with a global warming potential that’s 22,000 times greater than CO 2 over a 100-year period. By detecting and repairing SF 6 leaks, energy producers can avoid costly damage to circuit breakers while protecting the environment.A/C COMPRESSOR - INFRARED IMAGEHIGH SENSITIVITY MODECOMMON SF 6 PLUMBING LEAKSF 6 LEAKING FROM CIRCUIT BREAKERGF304 CAMERAS ARE IDEAL FOR:• Food production, storage, and retail • Automotive production and repair • Air conditioning• Pharmaceutical production, transport, and storageGF306 CAMERAS ARE IDEAL FOR:• Utilities • Ammonia plants• Industrial refrigeration systemsFLIRGF306FLIRGF304REFRIGERANTSSULFER HEXAFLUORIDE AND AMMONIAGF306 DETECTS THE FOLLOWING GASES:GF304 DETECTS THE FOLLOWING REFRIGERANT GASES:• A cetic acid • A cetyl chloride • A llyl bromide • A llyl chloride • A llyl fluoride • A nhydrous ammonia • B romomethane • C hlorine dioxide • E thyl cyanoacrylate (superglue)• E thylene • F reon-12• H ydrazine • M ethylsilane• M ethyl ethyl ketone (MEK)• M ethyl vinyl ketone • P ropenal • P ropene • S ulfur hexafluoride • T etrahydrofuran • T richloroethylene • U ranyl fluoride • V inyl chloride • V inyl cyanideThe GFx320 and GF320 detect methane emissions from the production, transportation, and use of oil and natural gas. They allow you to survey large areas up to nine-times faster than with traditional gas sniffer methods. These OGI cameras also offer highly accurate temperature measurements, so inspectors can assess and improve thermal contrast between the gas cloud and the background.• M ethane • M ethanol • P ropane • B enzene • E thane • P ropylene • E thanol • P entane• 1-Pentene• I soprene• B utane• E thylbenzene• M EK• M IBK• T oluene• O ctane• H eptane• X ylene• E thylene• H exaneINTRINSICALLY SAFEThe FLIR GFx320 allows you to quickly detect and visualize fugitive natural gas emissions while maintaining safety inside hazardous locations. This Intrinsically Safe OGI camera is third-party certified for use in Class I Div II safety areas. The GFx320 is verified to meet sensitivity standards defined in the US EPA’s OOOOa methane rule and meets reporting requirements by tagging each recording withGPS data. By finding leaks and fixing them quickly, your company can protect the environment while avoiding product losses and the cost of regulatory fines.GFx320: SAFETY ZONE COMPLIANTAt offshore rigs, well sites, and production plants,there’s often a risk of gas collecting and ignitingwith a stray spark or hot surface. Working in theseareas requires special clothing and equipment – if it’spossible at all.The oil and gas industry has long awaited a gasdetection solution such as the GFx320, because itsIntrinsically Safe designation allows the user to workconfidently and focus on the job at hand.THE GFx320 HAS THE FOLLOWINGCERTIFICATIONS:ATEX/IECEx, Ex ic nC op is IIC T4 Gc II 3 GANSI/ISA-12.12.01-2013, Class I Division 2CSA 22.2 No. 213, Class 1 Division 2THE GFx320 AND GF320 ARE IDEAL FOR:• O ffshore platforms• L iquid natural gas shipping terminals• O il refineries• N atural gas wellheads and processing plants• C ompressor stations• B io-gas and power generation plantsMETHANE LEAK AT NATURAL GAS FACILITY SITENATURAL GAS LEAK ON COMPRESSOR VALVEVENTING STORAGE TANK PRESSURE RELIEF VALVEMETHANE & HYDROCARBONS FLIR GFx320FLIR GF320THE GFx320/GF320 DETECT MORETHAN 400 GASES, INCLUDING:NEW!The GF343 lets you see CO2 leaks quickly and accurately, whether the gas is the result of a production process, part of an Enhanced Oil Recovery program, or being used as a tracer gas for hydrogen. CO2 is a primary greenhouse gas, with emissions resulting not only from the combustion of fossil fuels but also from industrial processes, oil production, and manufacturing. Reliable non-contact CO2 detection allows plants to inspect equipment while it is still online in the course of normal operations, avoiding unplanned outages. It also helps keep operations safe while moving towards carbon-neutral capture and storage operations.The FLIR GF346 exposes invisible, odorless carbon monoxide (CO) emissions from a safe distance. CO leaking from vent stacks or pipes can be deadly, especially if the gas is allowed to collect in an enclosed area. The GF346 can quickly scan broad areas and pinpoint even small leaks from several meters away, increasing worker safety and protecting the environment.• A cetonitrile• A cetyl cyanide • A rsine• B romine isocyanate • B utyl isocyanide • C hlorine isocyanate • C hlorodimethylsilane • C yanogen bromide • D ichloromethylsilane • E thenone• E thyl thiocyanate• G ermane• H exyl isocyanide• K etene• M ethyl thiocyanate• N itrous oxide• S ilanevSPOT HARD-TO-FIND CO2 LEAKSSEE MORE WITH HIGH SENSITIVITY MODE (HSM)VENTING FROM BLAST FURNACELEAKING FLANGEGF343 CAMERAS ARE IDEAL FOR:• Enhanced Oil Recovery programs• Hydrogen-cooled power generators• Carbon capture systems• Ethanol producers• Industrial tightness testingGF346 CAMERAS ARE IDEAL FOR:• Steel industry• Bulk chemicals manufacturing• Packaging systems• Petrochemical industryCARBON DIOXIDECARBON MONOXIDE FLIR GF343FLIR GF346GF346 DETECTS CARBON MONOXIDEAND THE FOLLOWING GASES:ImagingSpecifications GFx320GF320GF304GF306GF343GF346Primary Gas Seen Methane (CH4)Methane (CH4)Refrigerants Sulfur hexafluoride (SF6) / Ammonia (NH3)Carbon dioxide (CO2)Carbon monoxide (CO)Detector Type Cooled InSb Cooled InSb Cooled QWIP Cooled QWIP Cooled InSb Cooled InSb Spectral Range 3.2 – 3.4 µm 3.2 – 3.4 µm8.0 – 8.6 µm10.3 – 10.7 µm 4.0 – 4.4 µm 4.52 – 4.67 µm Resolution320 x 240320 x 240Total Pixels76,80076,800Hazardous Location Certifications ATEX/IECEx, Ex ic nC op is IIC T4 Gc II 3 G ANSI/ISA-12.12.01-2013, Class I Division 2 CSA 22.2 No. 213, Class 1 Division 2Thermal Sensitivity<15 mK at 30°C (86°F)<15 mK at 30°C (86°F)Accuracy±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)*±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)* Temperature Range-20°C to 350°C (-4°F to 662°F)–20°C to 250°C (–4°F to 482°F)-40°C to 500°C (-40°F to 932°F)Not calibrated for temperature measurement–20°C to 300°C (–4°F to 572°F) Lenses14.5° (38 mm), 24° (23 mm)Standard: 24° × 18°; Optional: 14.5°, 6°Standard: 24° × 18°; Optional: 14.5°Standard: 14.5° × 10.8°; Optional: 24°Standard: 24° × 18°; Optional: 14.5°Standard: 24° × 18°; Optional: 14.5°, 6°Zoom1-8x continuous digital zoom1-8x continuous digital zoomFocus Manual Auto and manual Auto and manualColor LCD Monitor 4.3 in., 800 x 480 pixels 4.3 in., 800 x 480 pixelsAdjustable Viewfinder Tiltable OLED, 800 x 480 pixels Tiltable OLED, 800 x 480 pixelsVideo Camera w/Lamp 3.2 MP 3.2 MPLaser Spot Activated by dedicated button Activated by dedicated buttonVideo Out HDMI HDMIAnalysisSpotmeters10*10*Area Boxes 5 (min./max./avg.)* 5 (min./max./avg.)*Profiles 5 (min./max./avg.)* 5 (min./max./avg.)*Delta T Delta temperature between measurement functions or reference temperature*Delta temperature between measurement functions or reference temperature*AnnotationGPS Location data automatically added to images Location data automatically added to imagesFile StorageRadiometric JPEG14-bit measurement data included14-bit measurement data includedRadiometric IR Video15 Hz direct to memory card15 Hz direct to memory cardMPEG Recording RTP/MPEG4RTP/MPEG4SPECIFICATIONS*GF343 is not calibrated for temperature measurement.NEW!INFRARED TRAINING CENTERThe Premier Infrared Camera User Educational & Training ResourceYour professionalism drives you to know everything you can about your business; that’s why you’ll want to get the most out of your GF-Series camera.FLIR cameras are easy to use and intuitive, but only expert training will give you the knowledge and skills to wringevery last bit of capability from your investment. An Infrared Training Center (ITC) certificate is proof of your expertise in operating your camera and interpreting the thermal information it provides.During the three-day ITC Optical Gas Imaging certification course, you’ll learn how to set up and operate FLIR GF-Series cameras, which gases these cameras can see, and how environmental conditions affect gas leak detection, all while earning 2.0 IACET CEUs. Training includes classroom instruction and lab time covering basic inspection procedures, permitting requirements, safety practices, and more.For full course descriptions, updated schedules, and more information,visit the itc website at: or call 1.866.872.4647.ITC COURSES PROVIDE:• I ndustry-leading, high-quality interactive instruction • T he most qualified international instructors • T he most extensive hands-on laboratories • I SO 9001-registered• O ptional online training coursesOTHER ITC COURSES INCLUDE:• OOOOa Fugitive Emissions Monitoring (U.S. Only)• Thermography Fundamentals • General Thermography Primer• Level I, Level II, and Level III Thermography • IR Electrical Inspection • IR Mechanical inspectionAttend classes at our training center, locally at one of our regional classes, or in your facility with our on-site service.THE PROFESSIONAL GUIDESEE OPTICAL GAS IMAGING IN ACTION, ACCESS CASE STUDIES, AND MUCH MOREGain a greater understanding of OGI technology and how it can help you find and repair gas leaks with FLIR’s content-rich iBook, Optical Gas Imaging: The Professional Guide. This guide provides an in-depth look at OGI and infrared, through technical explanations, videos, and animations. You’ll get expert tips for maximizing OGI surveys and see how different industries use OGI cameras to save time, money, and the environment.Get the iBook at /OGIFLIR TOOLS MOBILEIMPORT, PROCESS, AND SHARE DATA QUICKLY WITH THE FREE APPGet the word out straight from the field with FLIR Tools Mobile for Apple ® and Android ™. Connect your smartphone or tablet to your GF-Series camera, then use the app to transfer video from the camera, tack on more measurement spots, add text, change palettes, add notes, and generate a PDF. Email video and findings to colleagues and customers in no time. Upload to Dropbox or accounts, or use the app to display images on-site to those who need to know immediately.FLIR Tools Mobile also lets you stream live video from your GF-Series, plus take remote control of GF-Series functions, including focus, level, span, and many other modes. This functionality is perfect when you need to place the camera off on its own for monitoring or safety reasons, or need to share live imaging with others nearby.OPTICAL GAS IMAGING:Key Features:• W irelessly import images from the camera’s SD card • S tream live video• R emotely control & record images and video• A nalyze & tune radiometric images - measure temperatures • C reate PDF reports with text & custom logos• S hare images & reports using email, , or DropboxEquipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Imagery for illustration purposes only. Specifications are subject to change without notice. For the most up-to-date specs, visit our website: . ©2017 FLIR Systems, Inc. All other brand and product names are trademarks of FLIR Systems, Incorporated. 17-2691-INS-OGI/OGI NASDAQ: FLIRBOSTONFLIR Systems, Inc. 9 Townsend West Nashua, NH 03063 USAPH: +1 866.477.3687PORTLANDCorporate Headquarters FLIR Systems, Inc.27700 SW Parkway Ave.Wilsonville, OR 97070USAPH: +1 866.477.3687EUROPE FLIR Systems Luxemburgstraat 22321 Meer BelgiumPH : +32 (0) 3665 5100HONG KONGFLIR Systems Co., Ltd Rm 1613-16, Tower II Grand Central Plaza 138 Shatin Rural Committee Road Shatin, New Territories Hong KongTEL: +852 2792 8955LATIN AMERICA FLIR Systems Brasil Av. Antonio Bardella, 320Sorocaba, SP 18052-852BrasilTEL: +55 15 3238 7080CANADAFLIR Systems, Ltd.920 Shelton Ct.Burlington, ON L7L 5K6CanadaPH: +1 800.613.0507call 866.477.3687 to speak with a FLIR Specialist.。

FLIR K33 & K53消防用红外热像仪设计简约的高性能、高性价比产品FLIR推出的两款全新K33和K53热像仪在保留FLIR热销的K系列热像仪产品可靠成像清晰度和性能的同时，在价格和易于操作性方面更甚一筹。

其搭载FLIR FSX™灵活场景增强功能，能在热图像中强化突出结构信息，获得更优视觉与定位。

K33和K53热像仪能够轻松穿透浓烟密布和漆黑的环境，提升环境感知力，帮助救援人员在奋勇直前、灭火救灾和拯救生命之时增强自信心和安全感。

简便的开关操作简便的操作使您能够心无旁骛，专心眼前的作业。

一键式按钮设计允许操作人员戴手套启动摄像仪开始工作。

轻轻扣动触发按钮，可定格K33显示屏上的图像，或捕捉K53上的静态图像或动态视频，便于日后查阅。

卓越的成像分辨率如今，搭载FLIR Kx5系列独具卓越成像分辨率的产品设计更趋于简约。

K33热像仪的分辨率为240×180，K53热像仪的分辨率为320×240像素。

搭载FSX™灵活场景增强功能，呈现鲜活的画质明亮的4英寸液晶显示大屏以及内置FSX灵活现场增强功能有助于呈现更清晰的热图像细节，帮助消防员轻松定位方向。

60Hz帧速支持实时拍摄。

经济实惠FLIR提供种类众多的经济型、高性能热像仪，帮助你无预算压力地将热像仪产品成为日常的必备工具。

*出众的质保服务FLIR提供独有的2-5-10保修，包括两年整机保修、五年电池保留和十年探测器保修。

* 价格可能会有变化。

规格如果获取FLIR 办事处的完整列表，请访问 。

©2016 FLIR Systems, Inc. 所有其他品牌和产品名称商标归FLIR 所有。

图片仅作说明之用。

FLIR 中国公司总部前视红外光电科技(上海) 有限公司160712 K 33/K 53 D a t a s h e e t S C N。

什么是红外热像仪？菲力尔全新FLIR T500系列红外热像仪详细介绍作为一款高科技的产品
红外热像仪越来越广泛地被应用于各个行业
好的，接下来我们就一起来了解下
什么是红外热像仪
红外热像科技在军民两方面都有应用，最开始起源于军用，逐渐转为民用。

在民用中一般叫热像仪，主要用于研发或工业检测与设备维护中，在防火、夜视以及安防中也有广泛应用。

热像仪是利用红外探测器和光学成像物镜接受被测目标的红外辐射能量分布图形反映到红外探测器的光敏元件上，从而获得红外热像图，这种热像图与物体表面的热分布场相对应。

通俗地讲热像仪就是将物体发出的不可见红外能量转变为可见的热图像。

热图像的上面的不同颜色代表被测物体的不同温度。

相信小伙伴们看到这里还是对热像仪充满了好奇，那么作为善解人意的小助手怎么会不给烧友们来个案例呢？准备接着吧！
今天要跟大家分享的是连续2017年和2018年两年获得德国红点奖最高荣誉——最佳设计奖（Best of the Best）的菲力尔全新FLIR T500系列红外热像仪。

该系列目前拥有两款型号，分别是T530和T540红外热像仪。

除了拥有出众的美学设计外，它还拥有操作舒适、精准高效、性能出色等优点，并且具备专业人士精确查找热点和排除潜在故障所需的一切特性。

接下来为大家详细介绍下它的优点与特性，希望了解更多细节后，能为您的工作或生活有所帮助。

FLIR T500系列红外热像仪的主要特性。

FLIR G300 a 和 G300 pt进行连续气体监控的光学气体热像仪FLIR G300 ptFLIR G300 a 世界第六感OGI红外热像仪配备TCP/IP方位/俯仰云台23光学气体(OGI )红外热像仪广泛应用于各种工业环境，如：炼油厂、天然气加工厂、海上平台、化工/石化行业、沼气厂和发电厂。

经济高效OGI 红外热像仪可在较远距离对代价昂贵的气体泄漏事故进行快速、高效的定位，以达到改进效率的目的。

还可以通过快速扫描大范围区域来减少检测时间，期间无需中断工业生产。

OGI 红外热像仪可通过非接触模式在安全距离检测泄露气体。

这样可降低检测人员接触无形和具有潜在危害或爆炸性化学品的风险。

OGI 热像仪还便于扫描传统方式难于接近的感兴趣区域。

您可以获取完整的图片，能即刻排除无需采取措施的区域。

这意味着您能节省大量的时间与人力。

许多挥发性有机物(VOC )对人体健康或环境有害，通常受到政府的限制。

使用OGI 红外热像仪能够检测并记录非常小的气体泄漏现象。

FLIR 的光学气体热像仪能将泄漏气体可视化并锁定其泄漏位置，无需关停生产操作。

安装此红外热像仪后，可对遥远区域或较难接近位置安装的设备进行连续扫描。

所谓连续监控是指一旦发生危险或代价高昂的气体泄漏事故时，您可立即发现并采取及时措施。

针对气体泄漏进行连续监控的光学气体热像仪世界第六感FLIR G300 aFLIR G300 a红外热像仪需要安装在外壳内。

安装完成后，它们一直面向同一方向。

FLIR G300 pt则配有一个相当稳固的方位/俯仰云台。

方便安装集成FLIR G300 a红外热像仪可简单安在到外壳中，能满足特定的应用需求。

制冷式探测器显示最细微的温差FLIR G300 a和FLIR G300 pt 也包含一个制冷式锑化铟探测器，生成320 x 240像素的热图像。

需要高气体灵敏度的用户可优先选择兼具低光圈数和低气体灵敏度性能，能够检少量气体泄漏的FLIR G300 a或FLIR G300 pt。

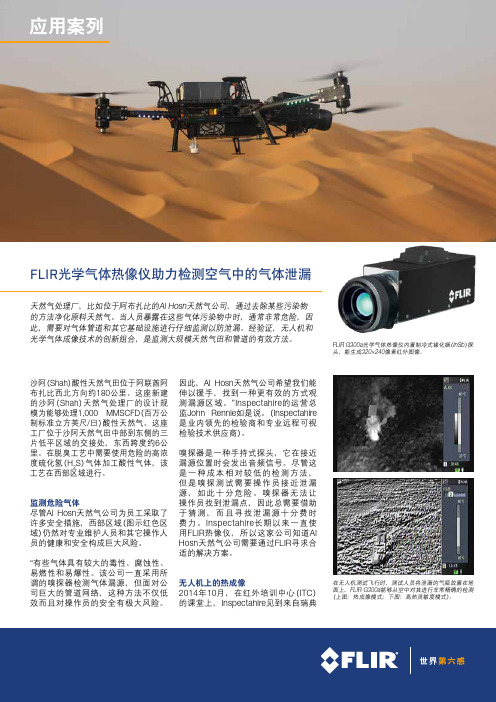

沙阿(Shah )酸性天然气田位于阿联酋阿布扎比西北方向约180公里。

这座新建的沙阿(Shah )天然气处理厂的设计规模为能够处理1,000 MMSCFD (百万公制标准立方英尺/日)酸性天然气。

这座工厂位于沙阿天然气田中部到东侧的三片低平区域的交接处，东西跨度约6公里。

在脱臭工艺中需要使用危险的高浓度硫化氢(H 2S )气体加工酸性气体，该工艺在西部区域进行。

监测危险气体尽管Al Hosn 天然气公司为员工采取了许多安全措施，西部区域(图示红色区域)仍然对专业维护人员和其它操作人员的健康和安全构成巨大风险。

“有些气体具有较大的毒性、腐蚀性、易燃性和易爆性。

该公司一直采用所谓的嗅探器检测气体漏源，但面对公司巨大的管道网络，这种方法不仅低效而且对操作员的安全有极大风险。

因此，Al Hosn 天然气公司希望我们能伸以援手，找到一种更有效的方式观测漏源区域。

”Inspectahire 的运营总监Joh n Rennie 如是说。

(Inspectahire 是业内领先的检验商和专业远程可视检验技术供应商)。

嗅探器是一种手持式探头，它在接近漏源位置时会发出音频信号。

尽管这是一种成本相对较低的检测方法，但是嗅探测试需要操作员接近泄漏源，如此十分危险。

嗅探器无法让操作员找到泄漏点，因此总需要借助于猜测，而且寻找泄漏源十分费时费力。

Inspectahire 长期以来一直使用FLIR 热像仪，所以这家公司知道AlHosn 天然气公司需要通过FLIR 寻求合适的解决方案。

无人机上的热成像2014年10月，在红外培训中心(ITC )的课堂上，Inspectahire见到来自瑞典天然气处理厂，比如位于阿布扎比的Al Hosn 天然气公司，通过去除某些污染物的方法净化原料天然气。

当人员暴露在这些气体污染物中时，通常非常危险，因此，需要对气体管道和其它基础设施进行仔细监测以防泄漏。

经验证，无人机和光学气体成像技术的创新组合，是监测大规模天然气田和管道的有效方法。

光学气体成像（OGI）用红外热像仪最全汇总在过去几十年，红外热像仪已经彻底引发许多行业的维护革命，在减少环境破坏中也发挥了非常重要作用。

工厂气体泄漏不仅危害环境，而且也耗费企业大量的资金。

对此，FLIR 已经推出了一系列的气体泄漏检测应用红外热像仪，能检测包括VOC（挥发性有机化合物）气体在内的很多气体。

光学气体成像用红外热像仪，能够在不停止作业的情况下让您“看”见气体，并迅速锁定泄漏点。

它可以让工作人员在安全距离以外检测气体，大大保证了安全性，并且相对于传统的“嗅探器”技术，效率也会大大提高。

目前可应用在石油化工、天然气、电力、环保执法等领域。

红外热像仪根据波长的不同，可以检测出多达几十种气体，这就要求企业需要根据自身需求选择合适的红外热像仪型号。

本期内容谱盟光电整理了菲力尔光学气体成像（OGI）用红外热像仪所有型号，希望能够对您有所帮助。

一、FLIR GF304制冷剂的光学气体成像FLIR GF304是一款气体成像型红外热像仪，专用于在不停止作业的情况下检测制冷剂。

制冷剂普遍应用于全球食品生产、存储及销售所使用的工业制冷系统中。

制冷剂还用于化学、制药和汽车业以及空调系统。

为保持商品的凉爽状态，工业制冷系统的持续运行就变得非常重要。

此外，制冷剂更换或充装也是一项耗费金钱的工作。

尽管制冷剂在许多行业中都起着重要作用，但它可能危害环境，地方法律法规可能对其做了限用规定。

这就是快捷检漏是重中之重的原因所在。

二、FLIR GF306专为六氟化硫（SF6）和氨气而设计FLIR GF306能够在不断开高压设备电源或停止作业的情况下显示并准确找到SF6和氨气的泄漏点。

这款便携式热像仪能够在安全距离以外检测泄漏，大大保证了操作人员的安全，此外，其还能够对危害环境的气体进行跟踪，具有环保效益。

在电力行业中，将SF6作为绝缘气体和淬火介质用于气体绝缘变电站和断路器，氨气产生于氨厂，主要用于化肥生产。

三、FLIR GF309穿透火焰检测加热炉FLIR GF309红外热像仪应用于工业炉窑、化学加热器和燃煤锅炉的高温检测，作业过程无需中断。

应用案例Inspectahire长期以来一直使用红外热像仪检测危险气体泄漏。

专业工程师团队进行支持。

他们的专业知识服务领域涵盖各种陆上和近海设备与资产，并适用于所有环境——包括恶劣和危险环境。

Inspectahire所有先进检测解决方案都是根据ISO 9001最佳方法的要求来实施。

石油和天然气工业在北海和世界各地，Inspectahire 在石油和天然气工业深耕三十年，在该领域积累了丰富的专业知识。

安全和成本是今天的近海石油和天然气工业最关心的两大问题。

Inspectahire深知这一点，并致力于通过使用最先进的技术来应对这些挑战。

Inspectahire总经理Cailean Forrester评论道：“在探索排放检测的最佳技术方面，近海石油和天然气工业颇有前瞻性。

这些排放可能会影响他们的资产安全、盈利性和环境影响。

Inspectahire努力为所有远程监测场景寻找和提供最好的技术解决方案。

”安全和经济性对于每个石油和天然气开采工厂来说，危险的气体泄漏都是一个问题。

这不仅因为有些气体会破坏环境，还因为泄漏会给公司造成巨大经济损失。

在近海石油和天然气工业，Inspectahire 借助FLIR GF320光学气体红外热像仪进行维护检查和碳氢化合物泄漏检测Inspectahire成立于1981年，是世界各地许多行业公司的专业远程可视化检测技术和解决方案领先的国际性供应商。

在各种最先进技术的支持下，Inspectahire帮助客户管理其资产的安全、盈利性和环境影响。

如果该公司有碳氢化合物无组织排放检测的任务，FLIR GF320光学气体红外热像仪（OGI）可谓他们的首选技术设备。

借助红外热像仪，Inspectahire可以在难以进入或危险场地轻松检测气体泄漏FLIR GF320光学气体红外热像仪（OGI）。

应用案例小泄漏会变成大泄漏，这就是为什么进行早期检测很重要的原因。

比如激光探测器或泄漏嗅探器。

FLIR从手柄着手对Exx系列红外热像仪进行了重新设计，旨在提供任何手枪式握柄热像仪的最佳性能、分辨率与灵敏度全新的Exx系列热像仪配备有多种功能，有助于用户及早检测到水气入侵、气体泄漏及其它楼宇缺陷，将问题 消灭在萌芽状态。

FLIR Exx系列红外热像仪特性：• 高达161,472个测量点• UltraMax®处理，获得4倍像素分辨率• 最佳的MSX®增强技术• 激光测距仪改善自动调焦性能，提供距离与屏幕区 域面积测量*• 更大的4英寸显示器，亮度比之前高出33%• 高响应性的新界面• 改善的组织与报告选项*仅限E85/E95工作的智能帮手Exx 系列配有众多高性能特征，能快速检测与报告隐藏的建筑缺陷：优异的温度灵敏度；明亮、醒目的屏幕图像、灵敏对焦，以及快速响应的用户界面。

更简易地屏幕导航• 快速响应电容式触摸屏• 升级的用户界面(GUI )简化了操作流程，提高了操作体验• 屏幕和菜单的重新设计使操作更有逻辑性一流的性能记录与报告问题• 通过METERLiNK ®嵌入温湿度计数据• 通过Wi-Fi 上传照片并报告关键问题• 通过声音、文本信息进行图像注释屏幕显示 草图、GPS 标记与罗盘功能• 通过FLIR Tools+软件实现增强型图像分析与报告功能手柄采用人机工程学新设计，手感舒适锂离子电池，更长的使用时间色彩鲜明的4英寸光学结合PCAP 触摸屏扬声器回放声音注释用作声音注释的麦克风防划伤Dragontrail TM保护玻璃FLIR Exx 系列 ™E75 | E85 | E95激光提供距离测量与精确的自动调焦功能激光指示器提供可视化导引42°视场角，通过单一镜头测量更广区域明亮的LED照明灯改善昏暗区域的图像清晰度500万像素数码相机靠近热探测器，可获得优异的MSX®增强效果单独的自动调焦与图像记录按钮经久耐用设计，为辛勤的专业人士打造这一平滑的设计并非华而不实。
