Solder Heat resistance--Solder Dip焊锡耐热性

  • 格式：pdf
  • 大小：93.34 KB
  • 文档页数：4

TEST REPORT
Reliability Laboratory Report No.: HAXXXX/20XX
Page: 1 of 4 Date: April 9, 20XX
Signed for and on behalf of SGS TAIWAN Ltd.
Terence Hsieh
Asst. Manager
Client title
Client address
The following merchandise was submitted and identified by the vendor as: Product Description: sample description (EX connector, resistor…..) Style/Item No.: Style(model)/ No.1~No.5 Manufacturer/Vendor: Client title Quantity:
Total 5 piece(s) Testing Period: Apr. 6, 20XX to Apr. 6, 20XX
We have tested the submitted sample(s) as requested and the following results were obtained: Test Required ： (According to client’s test specification, please see following sheets in detail.)
1. Resistance to Soldering Heat Test
Test Results:
- PLEASE SEE ATTACHED SHEETS -
TEST REPORT
Reliability Laboratory Report No.: HAXXXX/20XX
Page: 2 of 4 1. Resistance to Soldering Heat by Solder Dip: Test Equipment:
Name Brand Model Serial No.
Solderability Tester Multicore MUST II PLUS 9652 Materials:
Name Brand Designation Chemical Composition
Solder SENJU M705E Sn/3.0Ag/0.5Cu
Flux Sharemate SM/NA (Unactivated)25 wt% of Colophony in 75wt% of 2-propanol
Lab Environmental Conditions: Ambient temperature: 25±3℃
Relative humidity: 55±20%RH
Test Method/ Specification:
Test Method: Reference to MIL-STD-202G Method 210F Condition B
Sample Condition: See below item marked “●”,
● As-received condition Specimen shall be cleaned (Immersed in a neutral organic solvent at room temperature and dried in air)
Type of Flux: Unactivated
Solder Composition: Sn/3.0Ag/0.5Cu
Test Temperature: 260±5℃ Immersion Angle: 90 o
Immersion/Emersion Rate: 25±6 mm/s
Immersion Depth: Terminations shall be immersed to within 1.27 mm of the component body
or to the seating plane (whichever is further from the component body)
Dwell Time: 10±1 seconds
* Leads should be immersed in the flux for 5 to 10 seconds before soldering. * If flux used, all leads shall have all visible flux residues removed by alcohol before examination.
Number of Heat Cycles: 1 time(s)
Test Requirement: Examine the appearance of specimens visually before and after this test.
Note: The component shall be placed on the FR-4 mounting board during test.
TEST REPORT
Reliability Laboratory Report No.: HAXXXX/20XX
Page: 3 of 4 Specimen:
Style/Item No.:
Style(model)/ No.1~No.5 Quantity: Total 5 piece(s) Test Result:
TEST REPORT
Reliability Laboratory Report No.: HAXXXX/20XX
Page: 4 of 4 Test Photos:
1. Appearance of specimen-- (Style(model))
2. Testing area of specimen
3. Resistance to Soldering Heat by Solder Dip
4. Resistance to Soldering Heat by Solder Dip
5. Final Inspection-- Resistance to Soldering Heat by Solder Dip
6. Final Inspection--
Resistance to Soldering Heat by Solder Dip ─ ─ ─ The End of Test Report ─ ─ ─。

合集下载

无铅化电子产品可靠度试验

无铅化电子产品可靠度试验


SGS Confidential
15
Reliability Tests for Lead-free E&E Products
沾錫能力試驗—沾錫天平法 J-STD-002B Method E/ F
Environmental Testing & Reliability Lab
SGS Confidential
Reflow Profile Comparisons (Sample) SnPb versus Pb-free
Time in Minutes
Environmental Testing & Reliability Lab
SGS Confidential
9
Reliability Tests for Lead-free E&E Products
1
Reliability Tests for Lead-free E&E Products
電子產品無鉛化會遇到什麼問題？
料件耐熱溫度須提升 表面處理變更：沾錫性、相容性及可靠度須 行評估
焊錫材料標準化、疲勞耐久及可靠 度須行評估
迴焊溫度最適化
表面處理變更：沾錫性、相容性 及可靠度須行評估
選擇合適的電路板材
Peak：260℃
Pre-heating Zone
3℃ ～ 6℃/s
Soldering Zone
Heating Time
Environmental Testing & Reliability Lab
SGS Confidential
19
Reliability Tests for Lead-free E&E Products
电位器规格书

电位器规格书

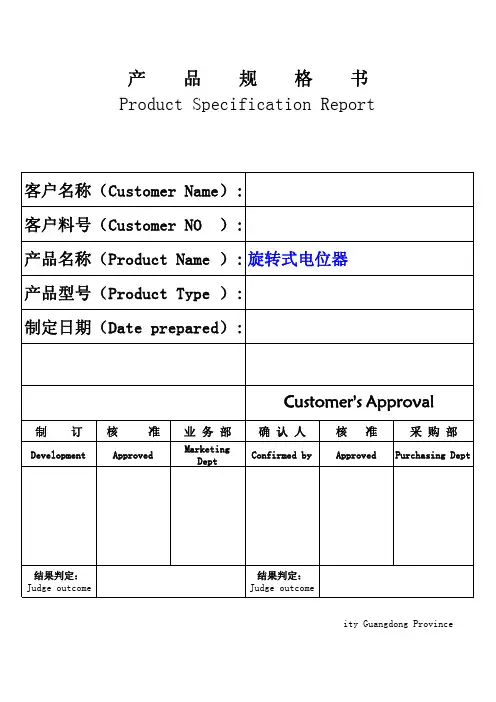

制 订核 准业 务 部确 认 人核 准采 购 部Development Approved MarketingDept Confirmed by Approved Purchasing Dept结果判定：Judge outcome 结果判定：Judge outcomeity Guangdong Province制定日期（Date prepared）:客户料号（Customer NO ）:产品名称（Product Name ）:产品型号（Product Type ）:Customer's Approval旋转式电位器客户名称（Customer Name）:产 品 规 格 书Product Specification Report产品系列 NO:公司名称 CO. Name:型号名称 Model Name:Max. Operation Voltage最高工作电压■10,000 □Other (Cycles Min.)核 准ApprovedRotational Life 旋转寿命Solder dip:浸锡Preheating condition: Surface temperature of thesubstrate shall be settled within 100℃ in one min.预热: 基板表面温度100℃以下，1分钟内。
