fluke使用说明书

2011 年 5 月(Simplified Chinese)© 2011 Fluke Corporation. 版权所有。

荷兰印刷。

规格如有更改，恕不另行通知。

所有产品名称均为其所属公司的商标。

ScopeMeter 190 Series IIFluke 190-062, -102, -104, -202, -204, -502用户手册上 册有限保修及服务范围在正常使用与维修情况下，Fluke 保证每一产品均无材料和工艺问题。

自发货之日算起，测试工具保修期为三年，附件保修期为一年。

零配件及产品修理与维护的保修期为 90 天。

此保修仅限于原始购买者或 Fluke 指定经销商的产品使用客户；而不适用于保险丝和普通电池，或任何 Fluke 认为因错误使用、改装、疏忽或因事故或非正常条件下操作或处理而导致损坏的产品。

在 90 天内，Fluke 保证软件运行符合其功能规范，并且保证软件正确记录于完好无损的介质上。

Fluke 不保证软件毫无差错或无操作中断情况。

Fluke 指定经销商只能向产品使用客户对新的或未使用过的产品提供保修，而无权以 Fluke 的名义扩充或更改保修内容。

从 Fluke 指定的销售渠道或按相应国际价格购买的产品可以得到保修。

当产品在一个国家购买而要在另一个国家修理时，Fluke 保留向客户收取修理／更换零配件费用的权利。

对于在保修期内送回 Fluke 指定的维修中心，要求按原价退款或者免费维修或更换的有故障产品，Fluke 的保修义务是有限的。

要获得保修服务，请就近联系 Fluke 指定的维修中心，或在附上故障说明、邮费和预付保险（目的地交货价）后，将产品寄往最近的 Fluke 指定的维修中心。

Fluke 对运输中可能出现的损坏情况不承担责任。

产品在维修后，将寄回给客户，邮费预付（目的地交货价）。

如果 Fluke 确定产品故障是由于错误使用、改装、事故或非正常情况下使用或操作造成的，Fluke 将提供维修费用预算并在得到认可后方进行维修。

fluke相序表说明书
Fluke相序表是一种用于检测三相电源相序的仪器。

以下是Fluke相序表的简要使用说明：
1. 开启电源：首先，打开Fluke相序表的电源开关。

2. 连接测试线：将测试线连接到Fluke相序表的对应端口上。

通常情况下，测试线一端为鳄鱼夹，可用于直接夹住电源线，另一端为插入式插头，可插入到Fluke相序表的对应插孔中。

3. 选择相序模式：根据需要检测的电源类型（如单相或三相），在Fluke相序表的面板上选择相应的模式。

4. 开始测试：按下Fluke相序表上的“运行”或“开始”按钮，仪器将开始检测电源的相序。

5. 读取结果：Fluke相序表将根据检测到的相序给出相应的指示。

例如，如果检测到正相序，仪器可能会显示绿灯；如果检测到逆相序，则可能会显示红灯。

6. 结束测试：完成相序检测后，关闭Fluke相序表的电源开关，并从电源和测试线上取下测试线。

7. 注意事项：在测试过程中，请确保电源处于断开状态或确保您有资格进行带电操作。

同时，避免在潮湿的环境中使用Fluke相序表。

为获得更准确的结果和确保仪器的正常工作，建议您遵循Fluke相序表的维护和保养建议。

同时，详细的使用说明和规格可能会因不同型号而有所不同，建议参考随仪器提供的用户手册或联系制造商以获取更准确的信息。

fluke使用说明书福禄克flukedtx系列(dtx-1800,dtx-1200,dtx-lt)简单操作步骤说明:一、福禄克测试仪初始化步骤：1、充电：产品主机、辅机分别用电源适配器充电，直至电池显示灯转为绿色；2、设置语言：操作方式：将flukedtx系列产品主机旋钮转回至“setup”档位，按右下角绿色按钮开机；采用↓箭头；选上第三条“instrumentsetting”（本机设置）按“enter”步入参数设置，首先采用→箭头，按一下；步入第二个页面，↓箭头挑选最后一项language按“enter”步入;↓箭头挑选最后一项chinese按“enter”挑选。

将语言选择成中文后才展开以下操作方式。

3、自校准：取flukedtx系列产品cat6a/classea永久链路适配器，装在主机上，辅机装上cat6a/classea通道适配器。

然后将永久链路适配器末端插在cat6a/classea通道适配器上；打开辅机电源，辅机自检后，“pass”灯亮后熄灭，显示辅机正常。

“specialfunctions”档位，关上主机电源，表明主机、辅机软件、硬件和测试标准的版本（辅机信息只有当辅机开机并和主机相连接时才表明），自测后表明操作界面，挑选第一项“设置基准”后（例如看错用“exit”选择退出重复），按“enter”键和“test”键已经开始自校准，表明“设置基准已完成”表明自校准顺利顺利完成。

二、设置福禄克测试仪基本参数操作：将flukedtx系列产品主机旋钮转至“setup”档位，使用“↑↓”来选择第三条“仪器值设置”，按“enter”进入参数设置，可以按“←→”翻页，用“↑↓”选择你所需设置的参数，按enter进入参数修改，用“↑↓”选择你所需采用的参数设置，选好后按enter选定并完成参数设置。

1、新机第一次采用须要设置的参数，以后不须要修改。

（将旋钮转回至“setup”档位，采用↓箭头；选上第三条：仪器设置值按enter步入如果回到上一级恳请按exit）：1)线缆标识码来源：（一般使用自动递增，会使电缆标识的最后一个字符在每一次保存测试时递增一般不用更改）2)图形数据存储：（就是）（否）通常情况下挑选（就是）3)当前文件夹：default可以按enter进入修改其名称（你想要的名字）4)结果存放位置：（使用默认值“内部存储器”假如有内存卡的话也可以选择“内存卡”）5)按→进入第2个设置页面，操作员：youname按enter进入按f3删除原来的字符“←→↑↓”来选择你要的字符选好后按enter确定11)长度单位：通常情况下挑选米（m）2、新机不须要设置使用原机器默认值的参数：1)电源停用超时：预设30分钟2)背光超时：预设1分钟3)可以听音：预设就是4)电源线频率：默认50hz5)数字格式：预设就是00.06)将旋钮转至“setup”档位选择双绞线按enter进入后nvp不用修改7)光纤里面的设置，在测试双绞线是不须修改3、采用过程中经常须要改动的参数：将旋钮转至“setup”档位，选择双绞线，按enter进入：线缆类型：按enter进入后按↑↓选择你要测试的线缆类型例如我要测试超5类的双绞线在按enter进入后选择utp按enter↑↓选择“cat5eutp”按enter返回。

福禄克Fluke热成像仪Ti40美国福禄克 Fluke Ti40 热成像仪为工程师和专业技术人员的维护和生产工作带来更多选择Fluke Ti40系列产品几乎可完成任何热像测量工作,福禄克FlukeTi40热成像仪配备有一个 160 x 120 探测器,温度灵敏度高达0.08 ºC (NETD),Ti40热成像仪可提供高分辨率图像,即使最细微的温度差别也无法逃脱它的眼睛.该系列产品使用极为方便,设计采用 Windows® CE 菜单结构,故障排查功能更为丰富,Ti40热成像仪允许在测量现场进行快速分析.FT系列产品采用最新的IR-Fusion™技术, IR-Fusion可捕获可见光图像和红外图像,让IR图像分析变得不再神秘.它可以帮助更好的识别和报告可疑组件,可在第一时间完成完成维修工作.详情请查看位于本页内容导航部分的IR-Fusion选项.福禄克 Fluke Ti40 热成像仪的应用领域•预防性维护 – 在电气和机械问题导致设备故障前及时发现问题•工业维护 – 检查维修情况,保证维修工作顺利完成•质量控制 – 检查设备原型,优化热管理设计•过程监控 – 实时监控,确保操作高效安全完成福禄克 Fluke Ti40 热成像仪的技术参数成像性能 热图像可视角度 (FOV)* 23º 水平 x 17º 竖直温度分辨率 0.1℃最小聚焦距离* 0.15 m热灵敏度 (NETD) Ti45: ≤0.08 °C @30 °CTi40: ≤0.09 °C @ 30 °C探测器数据获取 /60 Hz/30 Hz图形频率聚焦 SmartFocus; 用一个手指即可进行连续对焦操作IR 数字变焦 Ti45: 2xTi40: -探测器类型 160 x 120焦平面阵列, 氧化钒 (VOx) 非致冷微热辐射仪光谱波段 8 µm ~ 14 µm 数字图像增强 自动全时增强 可见光 (仅限于Fusion 型号)照相机本身操作模式 Ti45: 全热/全可见光或热-可见光混合图像.画中画Ti40: 全热/全可见光.使用SmartView 软件可提供热-可见光混合图像.画中画 可见光照相机 1280 x 1024 像素, 全彩 可见光数字变焦 Ti45: 2xTi40: -温度测量校准温度范围Ti45: -20 ˚C ~ 600 ˚C (-4 ~ 1112 ºF)，3档Ti40: -20 ˚C ~ 350 ˚C (-4 ~ 662 ºF)，2档 量程 1 T i45: -20 ˚C ~ 100 ˚C (-4 ~ 212 ºF) Ti40: -20 ˚C ~ 100 ˚C (-4 ~ 212 ºF) 量程 2 T i45: -20 ˚C ~ 350 ˚C (-4 ~ 662 ºF) Ti40: -20 ˚C ~ 350 ˚C (-4 ~ 662 ºF) 量程 3 T i45: 250 ˚C ~ 600 ˚C (32 ~ 662 ºF) Ti40: - 可选 - 高温 Ti45: 最高 1200 ˚C (2192 ºF) Ti40: - 量程 4 T i45: 500 ˚C ~ 1200 ˚C (932 ~ 2192 ºF) Ti40: - 准确度 ±2°C 或 2 % (取较大值)测量模式Ti45: 中心点, 中心框 (面积 最小/最大, 平均), 可移动点/光盒,用户自行设定区域/文本注释,等温线, 自动热点/冷点检测, 可见颜色报警上限和下限Ti40: 中心点, 中心框 (面积 最小/最大, 平均), 更多升级选项请咨询Fluke 公司发射率校正 0.1 ~ 1.0 (0.01 增量)图像显示数字显示 5" 大屏幕高分辨率数字显示屏 LCD 背光 彩色LCD,可在阳光下读数视频输出RS170 EIA/NTSC 或 CCIR/PAL 复合视频色板 灰度, 反向灰度, 蓝红, 高对比度, 热金属色, 铁虹, 琥珀色, 反向琥珀可选镜头54 mm Telephoto 镜头高精度Germanium 镜头 可视角度 (FOV) 9º 水平 x 6º 垂直 空间分辨率(IFOV) 0.94 mrad 最小聚焦距离* 0.6 m10.5 mm 广角镜头 高分辨率 Germanium 镜头 可视角度 (FOV) 42 º 水平 x 32 º 竖直 温度分辨率 0.1℃最小焦聚距离 0.3 m图像和数据存储存储介质 小型闪卡可保存1000多幅IR图像 (512 MB 标准卡，更高容量供选择)可支持的文件格式包括14 bit 测量数据. 可导出 JPEG, BMP, PCX, PNG, PSD.接口和软件 接口包括小型闪卡读卡器在内软件SmartView; 包括全部分析和报表制作软件在内.激光 (仅限于IR-Fusion 型号) 分类 II级激光瞄准当热和可见光图像混合时,屏幕上可以看到激光点控制和调整 设置控制 日期/时间, 温度单位 C/F, 语言, 标度, LCD 亮度 (高/中/低)图像控制 Level, span, 自动调整 (连续/手动)屏幕指示器电池状态, 目标发射率, 背景温度和实时时钟电源 电池类型 智能锂电池, 可充电, 现场即可更换电池使用时间连续使用3个小时 (带有IR-Fusion的型号为2个小时 )电池充电 2 个通过常用AC插座充电的智能充电器AC 操作 AC 转换器 110/220 VAC, 50/60 Hz (仅限于Ti45)节电设计 自动关闭和睡眠模式 (用户可自己设定)环境和机械设计 工作温度 -20℃to +50℃（-4°F to 122 °F)保存温度 -40 °C ~ +70 °C (-40 °F ~ 158 °F)相对湿度 使用和贮存为10% ~ 95%, 无冷凝防水防尘 IP54重量(包括电池在内)1.95 kg (4.3 lbs)照相机尺寸 (HxWxD)162 x 262 x 101 mm (6.5" x 10.5" x 4.0")其他 保修1 年福禄克 Fluke Ti40 热成像仪的附件Fluke Ti40-20 IR FlexCam热像仪 所有型号均带有: •坚固耐用的工具包•2组可充电电池•电池充电器•AC 转换器 (仅限于Ti45型号)•视频电缆•512 MB 闪卡，提供更多选择•小型闪卡读卡器和USB电缆•PCMCIA 小型闪卡读卡器•背带•SmartView 报表制作和分析软件CD •用户手册CDFluke Ti40FT-20 IR FlexCam 热像仪和 IR-Fusion Fluke Ti45-20 IR FlexCam 热像仪Fluke Ti45FT-20 IR FlexCam 热像仪和 IR-Fusion 福禄克 Fluke Ti40 热成像仪的选件镜头 Ti4X 系列可提供10.5mm, 20mm和 54mm镜头,使用 Use the Configurator可查看如何进行组合使用IR-Fusion Ti4X系列的每一种型号均包括20mm镜头和IR-Fusion 技术.高温 Ti4X的部分型号可包括温度选件,读数最高可达1200 °C (2192 °F)。

fluke289C万用表使用说明书
1、熟悉表盘上各符号的意义及各个旋钮和选择开关的主要作用，进行机械调零，根据被测量的种类及大小，选择转换开关的挡位及量程，找出对应的刻度线。

选择表笔插孔的位置。

2、关于插孔和转换开关的使用，根据测试目的选择插孔或转换开关的位置，由于使用时测量电压，电流和电阻等交替的进行，一定不要忘记换档。

切不可用测量电流或测量电阻的档位去测电压。

如果用直流电流或电阻去测量220的交流电压，万用表则会立刻烧坏。

万用表有红、黑笔，一般红表笔为“+”，黑笔为“-”，表笔插放万用表插孔时须严格按颜色和正负插入。

如果位置接反或接错，将会有测试错误或烧坏表头的可能性。

测直流电压或直流电流时，切忌注意正负极性。

测电流时，表笔与电路串联；测电压时，表笔与电路并联。

3、如何正确读数，万用表使用前应检查指针是否在零七八碎位上，如不指零位，可调正表盖上的机械调节器，手动调至零位。

万用表有多条标尺，一定要认清对应的读数标尺，不能把交流和直流标尺任意混用。

一般情况下万用表同一测量项目有多个量程，例如直流电压量1V，10V，15V，25V，100V，500V等，量程选择应使指针满刻度的2-3附近。

测试验电阻时，应将指针指向该档中心电阴值附近，这样才能尽量确保测量准确无误差。

注意事项：
1、在测电流、电压时，不能带电换量程
2、选择量程时，要先选大的，后选小的，尽量使被测值接近于量程
3、测电阻时，不能带电测量。

因为测量电阻时，万用表由内部电池供电，如果带电测量相当于接入一个额外的电源，可能损坏表头。

4、用毕，应使转换开关在交流电压最大挡位或空挡上。

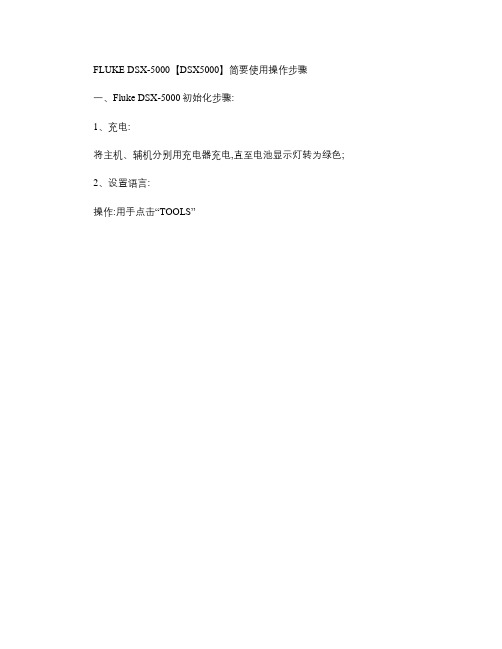

FLUKE DSX-5000【DSX5000】简要使用操作步骤一、Fluke DSX-5000初始化步骤:1、充电:将主机、辅机分别用充电器充电,直至电池显示灯转为绿色;2、设置语言:操作:用手点击“TOOLS”点击第六条“langueage”(语言,将语言选择成中文后才进行以下操作。

3、自校准:工具点击设置参照取Cat6A/Class EA永久链路适配器,装在主机上,辅机装上Cat6A/Class EA通道适配器。

然后将永久链路适配器末端插在Cat6A/Class EA通道适配器上;打开辅机电源,辅机自检后,“PASS”灯亮后熄灭,显示辅机正常。

打开主机电源,点击“工具”,显示设置参照、诊断、版本信息、电池状态、内存状态、语言、时间日期等。

点击“设置参照”按测试(或者白色TEST按钮开始自校准,显示“已完成设置参照”说明自校准成功完成。

二、Fluke DSX-5000设置参数:操作:点击工具,用手拖动选择要修改参数。

按上面图标返回。

1、新机第一次使用需要设置参数,以后就不需要更改了。

2、电池状态:显示电量。

3、时间:输入现在的日期时间格式。

4、长度:选择M或者FT。

(通常国内为M5、超时期限:选择背光时间,和电源关闭时间。

6、可听见的音频:开就可以听见声音,关闭则无。

7、电源频率:50Hz,60Hz。

8、显示屏:设置显示屏亮度。

三、Fluke DSX-5000设置参数:1、根据需求确定测试标准和电缆类型:通道测试还是永久链路测试?是CAT5E 还是CAT6还是其他?2、关机后将测试标准对应的适配器安装在主机、辅机上,如选择“TIACat6Channel”通道测试标准时,主机安装“DSX-CHA004”通道适配器,如选择“TIA Cat6P ERM.LINK”永久链路测试标准时,主辅机各安装一个“DSX-PLA004S”永久链路适配器。

3、新建一个测试项目;点击项目,出现项目栏目,点击出现测试设置,点击电缆类型。
