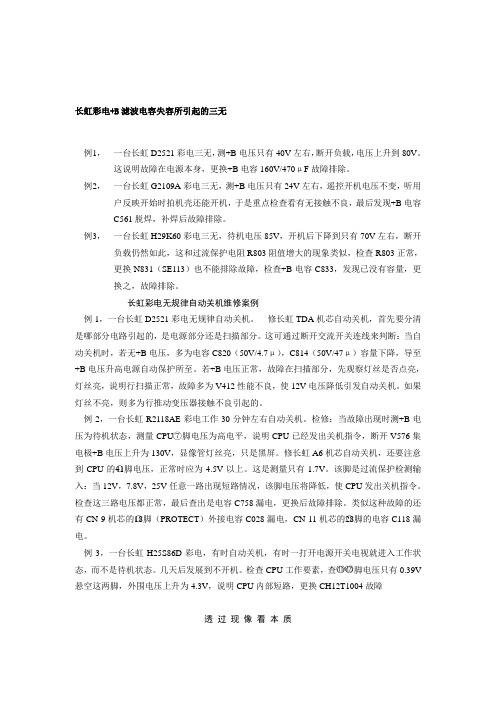

长虹彩电+B 滤波电容失容所引起的三无例1， 一台长虹D2521彩电三无，测+B 电压只有40V 左右，断开负载，电压上升到80V 。
这说明故障在电源本身，更换+B 电容160V/470μF 故障排除。
例2， 一台长虹G2109A 彩电三无，测+B 电压只有24V 左右，遥控开机电压不变，听用户反映开始时拍机壳还能开机，于是重点检查看有无接触不良，最后发现+B 电容C561脱焊，补焊后故障排除。
例3， 一台长虹H29K60彩电三无，待机电压85V ，开机后下降到只有70V 左右，断开负载仍然如此，这和过流保护电阻R803阻值增大的现象类似，检查R803正常，更换N831（SE113）也不能排除故障，检查+B 电容C833，发现已没有容量，更换之，故障排除。
长虹彩电无规律自动关机维修案例例1，一台长虹D2521彩电无规律自动关机。
修长虹TDA 机芯自动关机，首先要分清是哪部分电路引起的，是电源部分还是扫描部分。
这可通过断开交流开关连线来判断：当自动关机时，若无+B 电压，多为电容C820（50V/4.7μ），C814（50V/47μ）容量下降，导至+B 电压升高电源自动保护所至。
若+B 电压正常，故障在扫描部分，先观察灯丝是否点亮，灯丝亮，说明行扫描正常，故障多为V412性能不良，使12V 电压降低引发自动关机。
如果灯丝不亮，则多为行推动变压器接触不良引起的。
例2，一台长虹R2118AE 彩电工作30分钟左右自动关机。
检修：当故障出现时测+B 电压为待机状态，测量CPU ⑦脚电压为高电平，说明CPU 已经发出关机指令，断开V576集电极+B 电压上升为130V ，显像管灯丝亮，只是黑屏。
修长虹A6机芯自动关机，还要注意到CPU 的○41脚电压，正常时应为4.5V 以上。
这是测量只有1.7V 。
该脚是过流保护检测输入：当12V ，7.8V ，25V 任意一路出现短路情况，该脚电压将降低，使CPU 发出关机指令。
机型机芯旧组件组件组件1名称板号JUT6.690.001JUT6.690.002主板JUT7.820.083-2JUT6.691.001JUT6.690.007Y 板（R ）JUT7.820.088JUT6.691.002JUT6.691.008Y 板（G ）JUT7.820.089JUT6.691.003JUT6.691.009Y 板（B ）JUT7.820.090JUT6.691.004JUT6.691.010VM 功放板（R)JUT7.820.151JUT6.691.005JUT6.691.011VM 功放板（G)JUT7.820.152JUT6.691.006JUT6.691.012VM 功放板（B)JUT7.820.153JUT6.692.001JUT6.692.002电源板JUT7.820.081-1JUT6.693.001JUT6.693.003前AV 板JUT7.820.145-1JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.001JUT6.695.002遥控板JUT7.820.091JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.697.001JUT6.697.006KZ 板JUT7.820.144JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.004感应头固定板JUT7.820.103JUT6.690.001JUT6.690.002主板JUT7.820.083-2JUT6.691.001JUT6.690.007Y 板（R ）JUT7.820.088JUT6.691.002JUT6.691.008Y 板（G ）JUT7.820.089JUT6.691.003JUT6.691.009Y 板（B ）JUT7.820.090JUT6.691.004JUT6.691.010VM 功放板（R)JUT7.820.151JUT6.691.005JUT6.691.011VM 功放板（G)JUT7.820.152JUT6.691.006JUT6.691.012VM 功放板（B)JUT7.820.153JUT6.692.001JUT6.692.002电源板JUT7.820.081-1JUT6.693.001JUT6.693.003前AV 板JUT7.820.145-1JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.001JUT6.695.002遥控板JUT7.820.091JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.697.001JUT6.697.006KZ 板JUT7.820.144JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.690.001JUT6.690.002主板JUT7.820.083-2JUT6.691.004JUT6.691.010VM 功放板（R)JUT7.820.151JUT6.691.005JUT6.691.011VM 功放板（G)JUT7.820.15243EP8951EP89PE-5PE-5JUT6.691.037JUT6.691.036Y 板（B ）JUT7.820.184JUT6.692.001JUT6.692.002电源板JUT7.820.081-1JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.693.014JUT6.693.009前AV 板JUT7.820.237JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.018JUT6.695.017遥控板JUT7.820.167JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.697.014感应头固定板JUT7.820.103JUT6.690.001JUT6.690.002主板JUT7.820.083-2JUT6.691.004JUT6.691.010VM 功放板（R)JUT7.820.151JUT6.691.005JUT6.691.011VM 功放板（G)JUT7.820.152JUT6.691.006JUT6.691.012VM 功放板（B)JUT7.820.153JUT6.691.033JUT6.691.032Y 板（R ）JUT7.820.182JUT6.691.035JUT6.691.034Y 板（G ）JUT7.820.183JUT6.691.037JUT6.691.036Y 板（B ）JUT7.820.184JUT6.692.001JUT6.692.002电源板JUT7.820.081-1JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.693.014JUT6.693.009前AV 板JUT7.820.237JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.018JUT6.695.017遥控板JUT7.820.167JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.697.014感应头固定板JUT7.820.103JUT6.697.025JUT6.697.024KZ 板JUT7.820.165JUT6.690.001JUT6.690.002主板JUT7.820.083-2JUT6.691.004JUT6.691.010VM 功放板（R)JUT7.820.151JUT6.691.005JUT6.691.011VM 功放板（G)JUT7.820.152JUT6.691.006JUT6.691.012VM 功放板（B)JUT7.820.15338EP9143EP91PE-5PE-5JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.693.014JUT6.693.009前AV 板JUT7.820.237JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.001JUT6.695.002遥控板JUT7.820.091JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.004感应头固定板JUT7.820.103JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.697.087JUT6.697.086KZ 板JUT7.820.171/172JUT6.690.001JUT6.690.002主板JUT7.820.083-2JUT6.691.001JUT6.690.007Y 板（R ）JUT7.820.088JUT6.691.002JUT6.691.008Y 板（G ）JUT7.820.089JUT6.691.003JUT6.691.009Y 板（B ）JUT7.820.090JUT6.691.004JUT6.691.010VM 功放板（R)JUT7.820.151JUT6.691.005JUT6.691.011VM 功放板（G)JUT7.820.152JUT6.691.006JUT6.691.012VM 功放板（B)JUT7.820.153JUT6.692.001JUT6.692.002电源板JUT7.820.081-1JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.693.014JUT6.693.009前AV 板JUT7.820.237JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.001JUT6.695.002遥控板JUT7.820.091JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.697.029感应头固定板JUT7.820.103JUT6.697.087JUT6.697.086KZ 板JUT7.820.171/172JUT6.690.001JUT6.690.002主板JUT7.820.083-2JUT6.691.004JUT6.691.010VM 功放板（R)JUT7.820.151JUT6.691.005JUT6.691.011VM 功放板（G)JUT7.820.152JUT6.691.006JUT6.691.012VM 功放板（B)JUT7.820.15343EP9051EP90PE-5PE-5JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.693.014JUT6.693.009前AV 板JUT7.820.237JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.001JUT6.695.002遥控板JUT7.820.091JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.697.026JUT6.697.015KZ 板JUT7.820.185JUT6.697.027JUT6.697.016指示灯板JUT7.820.186JUT6.690.001JUT6.690.002主板JUT7.820.083-2JUT6.691.004JUT6.691.010VM 功放板（R)JUT7.820.151JUT6.691.005JUT6.691.011VM 功放板（G)JUT7.820.152JUT6.691.006JUT6.691.012VM 功放板（B)JUT7.820.153JUT6.691.033JUT6.691.032Y 板（R ）JUT7.820.182JUT6.691.035JUT6.691.034Y 板（G ）JUT7.820.183JUT6.691.037JUT6.691.036Y 板（B ）JUT7.820.184JUT6.692.001JUT6.692.002电源板JUT7.820.081-1JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.693.014JUT6.693.009前AV 板JUT7.820.237JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.001JUT6.695.002遥控板JUT7.820.091JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.004感应头固定板JUT7.820.103JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.697.026JUT6.697.015KZ 板JUT7.820.185JUT6.697.027JUT6.697.016指示灯板JUT7.820.186JUT6.690.001JUT6.690.002主板JUT7.820.083-2JUT6.691.004JUT6.691.010VM 功放板（R)JUT7.820.151JUT6.691.005JUT6.691.011VM 功放板（G)JUT7.820.15240EP11W 43EP11W PE-5PE-5JUT6.691.037JUT6.691.036Y 板（B ）JUT7.820.184JUT6.692.001JUT6.692.002电源板JUT7.820.081-1JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.693.030JUT6.693.029前AV 板JUT7.820.166JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.001JUT6.695.002遥控板JUT7.820.091JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.004感应头固定板JUT7.820.103JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.697.049JUT6.697.048KZ 板JUT7.820.287JUT6.692.001JUT6.692.002电源板JUT7.820.081-1JUT6.693.001JUT6.693.003前AV 板JUT7.820.145-1JUT6.693.002JUT6.693.004AV 板JUT7.820.084-1JUT6.672.294JUT6.694.012会聚板JUT7.820.203-3JUT6.695.001JUT6.695.002遥控板JUT7.820.091JUT6.696.001JUT6.696.002扫描板JUT7.820.082-1JUT6.697.001JUT6.697.006KZ 板JUT7.820.144JUT6.672.202JUT6.697.002图文板JUT7.820.087JUT6.672.200JUT6.697.003FB 板JUT7.820.085JUT6.697.004感应头固定板JUT7.820.10351EP89HPJUT6.697.029感应头固定板JUT7.820.103JUT6.690.004JUT6.690.003主板JUT7.820.101-5JUT6.691.017或JUT6.691.074JUT6.691.016或JUT6.691.073Y 板（R ）JUT7.820.114-2或JUT7.820.318JUT6.691.019或JUT6.691.076JUT6.691.018或JUT6.691.075Y 板（G ）JUT7.820.112-2或JUT7.820.316JUT6.691.021或JUT6.691.078JUT6.691.020或JUT6.691.077Y 板（B ）JUT7.820.113-2或JUT7.820.317JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.004JUT6.692.003电源板JUT7.820.324JUT6.693.008JUT6.693.007前AV 板JUT7.820.100-643EP41W 43EP9CHD3851PE-5PE-5PDT-3JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.013JUT6.697.012KZ 板JUT7.820.173-1JUT6.697.014感应头固定板JUT7.820.103JUT6.690.004JUT6.690.003主板JUT7.820.101-5JUT6.691.021或JUT6.691.078JUT6.691.020或JUT6.691.077Y 板（B ）JUT7.820.113-2或JUT7.820.317JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.004JUT6.692.003电源板JUT7.820.324JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.036JUT6.693.035前AV 板JUT7.820.100-4JUT6.693.011JUT6.693.026前AV 板JUT7.820.100-4JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.004JUT6.695.003遥控板JUT7.820.010-2JUT6.696.004或JUT6.696.014-1JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-2或JUT7.820.377JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.014感应头固定板JUT7.820.103JUT6.697.062JUT6.697.061KZ 板JUT7.820.108-1JUT6.690.004-2JUT6.690.003主板JUT7.820.101-5JUT6.691.017或JUT6.691.074JUT6.691.016或JUT6.691.073Y 板（R ）JUT7.820.114-2或JUT7.820.318JUT6.691.019或JUT6.691.076JUT6.691.018或JUT6.691.075Y 板（G ）JUT7.820.112-2或JUT7.820.316JUT6.691.021或JUT6.691.078JUT6.691.020或JUT6.691.077Y 板（B ）JUT7.820.113-2或JUT7.820.317JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.004JUT6.692.003电源板JUT7.820.324JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.022JUT6.693.021前AV 板JUT7.820.100-5或JUT7.820.100-8JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.004JUT6.695.003遥控板JUT7.820.010-2JUT6.696.004或JUT6.696.014-1JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-2或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5CHD4351CHD3891PDT-3PDT-3JUT6.690.004-2JUT6.690.003主板JUT7.820.101-5JUT6.691.029或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.691.060JUT6.691.058VM 功放板（R)JUT7.820.142JUT6.691.061JUT6.691.059VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.692.004-1JUT6.692.003电源板JUT7.820.324JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.022JUT6.693.021前AV 板JUT7.820.100-5或JUT7.820.100-8JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.696.004-1或JUT6.696.014-3JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-2或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.028JUT6.697.045KY 板JUT7.820.099-3和JUT7.820.099-2JUT6.697.029感应头固定板JUT7.820.103JUT6.690.004-2JUT6.690.003主板JUT7.820.101-5JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.004JUT6.692.003电源板JUT7.820.324JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.022JUT6.693.021前AV 板JUT7.820.100-5或JUT7.820.100-8JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.019JUT6.695.020指示灯板JUT7.820.188-1JUT6.696.004或JUT6.696.014-1JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-2或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.014感应头固定板JUT7.820.103JUT6.697.050JUT6.697.051K 板JUT7.820.187-1JUT6.690.004-2JUT6.690.003主板JUT7.820.101-5JUT6.691.028-1或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-3或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-1或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.691.061JUT6.691.059VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.692.004-1JUT6.692.003电源板JUT7.820.324CHD4395PDT-3CHD4311W PDT-3JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.696.004-1或JUT6.696.014-3JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-2或JUT7.820.377JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.019JUT6.697.037KZ 板JUT7.820.099-3和JUT7.820.099-2JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.697.028JUT6.697.045KY 板JUT7.820.099-3和JUT7.820.099-2JUT6.697.029感应头固定板JUT7.820.103JUT6.690.004-2JUT6.690.003主板JUT7.820.101-5JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.691.028或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.691.060JUT6.691.058VM 功放板（R)JUT7.820.142JUT6.691.061JUT6.691.059VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.692.004-1JUT6.692.003电源板JUT7.820.324JUT6.693.022JUT6.693.021前AV 板JUT7.820.100-5或JUT7.820.100-8JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.696.004-1或JUT6.696.014-3JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-2或JUT7.820.377JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.019JUT6.697.037KZ 板JUT7.820.099-3和JUT7.820.099-2JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.697.028JUT6.697.045KY 板JUT7.820.099-3和JUT7.820.099-2JUT6.697.029感应头固定板JUT7.820.103JUT6.690.004-2JUT6.690.003主板JUT7.820.101-5JUT6.691.017或JUT6.691.074JUT6.691.016或JUT6.691.073Y 板（R ）JUT7.820.114-2或JUT7.820.318JUT6.691.019或JUT6.691.076JUT6.691.018或JUT6.691.075Y 板（G ）JUT7.820.112-2或JUT7.820.316JUT6.691.021或JUT6.691.078JUT6.691.020或JUT6.691.077Y 板（B ）JUT7.820.113-2或JUT7.820.317JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.004JUT6.692.003电源板JUT7.820.324JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2CHD4391CHD4390PDT-3PDT-3JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.062JUT6.697.061KZ 板JUT7.820.108-1JUT6.690.004-2JUT6.690.003主板JUT7.820.101-5JUT6.691.017或JUT6.691.074JUT6.691.016或JUT6.691.073Y 板（R ）JUT7.820.114-2或JUT7.820.318JUT6.691.019或JUT6.691.076JUT6.691.018或JUT6.691.075Y 板（G ）JUT7.820.112-2或JUT7.820.316JUT6.691.021或JUT6.691.078JUT6.691.020或JUT6.691.077Y 板（B ）JUT7.820.113-2或JUT7.820.317JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.004JUT6.692.003电源板JUT7.820.324JUT6.693.022JUT6.693.021前AV 板JUT7.820.100-5或JUT7.820.100-8JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.004JUT6.695.003遥控板JUT7.820.010-2JUT6.695.019JUT6.695.020指示灯板JUT7.820.188-1JUT6.696.004-3JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-5或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.014感应头固定板JUT7.820.103JUT6.697.050JUT6.697.051K 板JUT7.820.187-1JUT6.690.005JUT6.690.008主板JUT7.820.101-5JUT6.691.013或JUT6.691.074JUT6.691.052或JUT6.691.073Y 板（R ）JUT7.820.114-3或JUT7.820.318JUT6.691.014或JUT6.691.076JUT6.691.053或JUT6.691.075Y 板（G ）JUT7.820.113-3S 或JUT7.820.316JUT6.691.015或JUT6.691.078JUT6.691.054或JUT6.691.077Y 板（B ）JUT7.820.113-3或JUT7.820.317JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.006JUT6.692.008电源板JUT7.820.323JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.010前AV 板JUT7.820.100-5或JUT7.820.100-8JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.695.006JUT6.695.028指示灯板JUT7.820.205-1JUT6.696.004或JUT6.696.014-2JUT6.696.007扫描板JUT7.820.018-5或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2HP4375/CHD4375CHD4011W PDT-3PDT-3JUT6.697.029感应头固定板JUT7.820.103JUT6.697.030K 板JUT7.820.204-1JUT6.697.069FB 板JUT7.820.109-5JUT6.690.005JUT6.690.008主板JUT7.820.101-5JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.691.038或JUT6.691.076JUT6.691.039或JUT6.691.075Y 板（G ）JUT7.820.112-2或JUT7.820.316JUT6.691.040或JUT6.691.078JUT6.691.041或JUT6.691.077Y 板（B ）JUT7.820.113-2或JUT7.820.317JUT6.691.042或JUT6.691.074JUT6.691.043或JUT6.691.073Y 板（R ）JUT7.820.114-2或JUT7.820.318JUT6.692.006JUT6.692.008电源板JUT7.820.323JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.010前AV 板JUT7.820.100-5或JUT7.820.100-8JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.695.006JUT6.695.028指示灯板JUT7.820.205-1JUT6.696.004或JUT6.696.014-2JUT6.696.007扫描板JUT7.820.018-5或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.697.017JUT6.697.030K 板JUT7.820.204-1JUT6.697.018FB 板JUT7.820.109-5JUT6.697.029感应头固定板JUT7.820.103JUT6.697.030K 板JUT7.820.204-1JUT6.690.005JUT6.690.008主板JUT7.820.101-5JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.691.028-1或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-2或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-1或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.692.006-1JUT6.692.009电源板JUT7.820.323JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.010前AV 板JUT7.820.100-5或JUT7.820.100-8JUT6.694.004会聚板JUT7.820.278JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1HP5175/CHD5175HP4890/CHD4890PDT-3PDT-3JUT6.697.018FB 板JUT7.820.109-5JUT6.697.019JUT6.697.037KZ 板JUT7.820.099-3和JUT7.820.099-2JUT6.697.028JUT6.697.045KY 板JUT7.820.099-3和JUT7.820.099-2JUT6.697.029感应头固定板JUT7.820.103JUT6.697.069FB 板JUT7.820.109-5JUT6.690.005JUT6.690.008主板JUT7.820.101-5JUT6.691.017或JUT6.691.074JUT6.691.016或JUT6.691.073Y 板（R ）JUT7.820.114-2或JUT7.820.318JUT6.691.019或JUT6.691.076JUT6.691.018或JUT6.691.075Y 板（G ）JUT7.820.112-2或JUT7.820.316JUT6.691.021或JUT6.691.078JUT6.691.020或JUT6.691.077Y 板（B ）JUT7.820.113-2或JUT7.820.317JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.006JUT6.692.008电源板JUT7.820.323JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.008JUT6.693.007前AV 板JUT7.820.100-6JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.004JUT6.695.003遥控板JUT7.820.010-2JUT6.695.016JUT6.695.015指示灯板JUT7.820.176-A 或JUT7.820.176-1JUT6.696.004或JUT6.696.014-2JUT6.696.007扫描板JUT7.820.018-5或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.697.014感应头固定板JUT7.820.103JUT6.697.018FB 板JUT7.820.109-5JUT6.697.023JUT6.697.022KZ 板JUT7.820.175JUT6.697.069FB 板JUT7.820.109-5JUT6.690.005JUT6.690.008主板JUT7.820.101-5JUT6.691.017或JUT6.691.074JUT6.691.016或JUT6.691.073Y 板（R ）JUT7.820.114-2或JUT7.820.318JUT6.691.019或JUT6.691.076JUT6.691.018或JUT6.691.075Y 板（G ）JUT7.820.112-2或JUT7.820.316JUT6.691.021或JUT6.691.078JUT6.691.020或JUT6.691.077Y 板（B ）JUT7.820.113-2或JUT7.820.317JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.006JUT6.692.008电源板JUT7.820.323JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.008JUT6.693.007前AV 板JUT7.820.100-6JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2HP38C1/CHD38C1HP38A1/CHD38A1PDT-3PDT-3JUT6.696.004或JUT6.696.014-2JUT6.696.007扫描板JUT7.820.018-5或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.697.014感应头固定板JUT7.820.103JUT6.697.018FB 板JUT7.820.109-5JUT6.697.040JUT6.697.039KZ 板JUT7.820.174-1JUT6.697.069FB 板JUT7.820.109-5JUT6.690.005-1JUT6.690.008主板JUT7.820.101-5JUT6.691.028或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-1或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.692.004-1JUT6.692.003电源板JUT7.820.324JUT6.693.012前AV 板JUT7.820.100-3JUT6.693.013JUT6.693.018AV 板JUT7.820.020-5JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.696.004-1或JUT6.696.014-3JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-2或JUT7.820.377JUT6.697.019JUT6.697.037KZ 板JUT7.820.099-3和JUT7.820.099-2JUT6.697.020FB 板JUT7.820.109-5JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.697.028JUT6.697.045KY 板JUT7.820.099-3和JUT7.820.099-2JUT6.697.029感应头固定板JUT7.820.103JUT6.690.005-1JUT6.690.008主板JUT7.820.101-5JUT6.691.028-1或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-2或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-1或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.692.004-2JUT6.692.003电源板JUT7.820.324JUT6.693.012前AV 板JUT7.820.100-3JUT6.693.013JUT6.693.018AV 板JUT7.820.020-5JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.696.004-1或JUT6.696.014-3JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-2或JUT7.820.377JUT6.697.019JUT6.697.037KZ 板JUT7.820.099-3和JUT7.820.099-2JUT6.697.020FB 板JUT7.820.109-5JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.697.028JUT6.697.045KY 板JUT7.820.099-3和JUT7.820.099-2KP4395KP5195PDT-3PDT-3JUT6.690.013JUT6.690.012主板JUT7.820.206-1JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.691.028-1或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-3或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-1或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.692.015JUT6.692.014电源板JUT7.820.324JUT6.693.034JUT6.693.033AV 板JUT7.820.291-2JUT6.693.036JUT6.693.035前AV 板JUT7.820.100-8JUT6.694.004会聚板JUT7.820.278JUT6.696.004-1或JUT6.696.014-3JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-2或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.055JUT6.697.054KZ 板JUT7.820.290-2JUT6.697.057JUT6.697.056电源转换板JUT7.820.239-3JUT6.697.060JUT6.697.058DPF 功能板（解码板）JUT7.820.255-2JUT6.690.013-1JUT6.690.012-1主板JUT7.820.206-1JUT6.691.017或JUT6.691.074JUT6.691.016或JUT6.691.073Y 板（R ）JUT7.820.114-2或JUT7.820.318JUT6.691.019或JUT6.691.076JUT6.691.018或JUT6.691.075Y 板（G ）JUT7.820.112-2或JUT7.820.316JUT6.691.021或JUT6.691.078JUT6.691.020或JUT6.691.077Y 板（B ）JUT7.820.113-2或JUT7.820.317JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.692.011JUT6.692.012DVD 电源板JUT7.820.106JUT6.692.015-1JUT6.692.014-1电源板JUT7.820.324JUT6.693.027JUT6.693.028前AV 板JUT7.820.243-1JUT6.693.052JUT6.693.051AV 板JUT7.820.261-1JUT6.695.019JUT6.695.020指示灯板JUT7.820.188-1JUT6.696.004或JUT6.696.014JUT6.696.003或JUT6.696.013扫描板JUT7.820.018-5或JUT7.820.377JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.672.234JUT6.697.011FB 板JUT7.820.109-5JUT6.697.014感应头固定板JUT7.820.103JUT6.697.046JUT6.697.047K 板JUT7.820.242JUT6.690.015JUT6.690.014主板JUT7.820.072-2JUT6.691.025-1JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1CHD5195CHD5116W PDT-3PDT-3JUT6.691.028-3或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-5或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-3或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.692.004-5JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.042前AV 板JUT7.820.149JUT6.694.008会聚板JUT7.820.060JUT6.695.005-1遥控板JUT7.820.010-1JUT6.695.022JUT6.695.021指示灯板JUT7.820.076-1JUT6.696.004-2JUT7.820.018-2或JUT7.820.377JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.697.066JUT6.697.065KZ 板JUT7.820.053-3JUT6.697.068JUT6.697.067FB 板JUT7.820.064JUT6.690.015JUT6.690.014主板JUT7.820.072-2JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.691.028-3或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-5或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-3或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.691.060JUT6.691.058VM 功放板（R)JUT7.820.142JUT6.692.004-5JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.042前AV 板JUT7.820.149JUT6.694.008会聚板JUT7.820.060JUT6.695.005-1遥控板JUT7.820.010-1JUT6.695.022JUT6.695.021指示灯板JUT7.820.076-1JUT6.696.004-2JUT7.820.018-2或JUT7.820.377JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.697.066JUT6.697.065KZ 板JUT7.820.053-3JUT6.697.068JUT6.697.067FB 板JUT7.820.064JUT6.690.015JUT6.690.014主板JUT7.820.072-2JUT6.691.025-1JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.691.028-3或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-5或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-3或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317HP7088HP6188PDT-3PDT-3JUT6.692.004-5JUT6.693.006JUT6.693.005AV 板JUT7.820.020-5JUT6.693.042前AV 板JUT7.820.149JUT6.694.008会聚板JUT7.820.060JUT6.695.005-1遥控板JUT7.820.010-1JUT6.695.022JUT6.695.021指示灯板JUT7.820.076-1JUT6.696.004-2JUT7.820.018-2或JUT7.820.377JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.697.066JUT6.697.065KZ 板JUT7.820.053-3JUT6.697.068JUT6.697.067FB 板JUT7.820.064JUT6.691.013或JUT6.691.074JUT6.691.052或JUT6.691.073Y 板（R ）JUT7.820.114-3或JUT7.820.318JUT6.691.014或JUT6.691.076JUT6.691.053或JUT6.691.075Y 板（G ）JUT7.820.113-3S 或JUT7.820.316JUT6.691.015或JUT6.691.078JUT6.691.054或JUT6.691.077Y 板（B ）JUT7.820.113-3或JUT7.820.317电源板JUT7.820.116-2JUT6.672.360JUT6.694.003会聚板JUT7.820.203-1或JUT7.820.203-2JUT6.672.359JUT6.697.077CPU 板JUT7.820.308-2JUT6.672.112VFD 板JUT7.820.077-1JUT6.697.071JUT6.697.070KZ 板JUT7.820.148JUT6.690.017JUT6.690.016主板JUT7.820.101-2S 或JUT70820.101- 2JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025-1JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.691.028-2或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-4或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-2或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.692.004-4JUT6.692.003电源板JUT7.820.324JUT6.693.012前AV 板JUT7.820.100-3JUT6.693.046JUT6.693.045AV 板JUT7.820.163或JUT7.820.163-1JUT6.694.010JUT6.694.009会聚板JUT7.820.071-1JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.696.004或JUT6.696.014-2JUT6.696.007扫描板JUT7.820.018-5或JUT7.820.377JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.672.177JUT6.697.073JUT6.697.072FB 板JUT7.820.048-1JUT6.690.017JUT6.690.016主板JUT7.820.101-2S 或JUT70820.101- 2CHD4388/CHD5188HPW6588JP5195PDT-3PDT-3PDT-3JUT6.691.025-1JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.691.028-2或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-4或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-2或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.692.004-4JUT6.692.003电源板JUT7.820.324JUT6.693.044JUT6.693.043前AV 板JUT7.820.149JUT6.693.046JUT6.693.045AV 板JUT7.820.163或JUT7.820.163-1JUT6.694.010JUT6.694.009会聚板JUT7.820.071-1JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.696.004或JUT6.696.014-2JUT6.696.007扫描板JUT7.820.018-5或JUT7.820.377JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.697.071JUT6.697.070KZ 板JUT7.820.148JUT6.672.177JUT6.697.073JUT6.697.072FB 板JUT7.820.048-1JUT6.690.017JUT6.690.016主板JUT7.820.101-2S 或JUT70820.101- 2JUT6.691.023JUT6.691.022VM 功放板（R)JUT7.820.142JUT6.691.025-1JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JUT6.691.027JUT6.691.026VM 功放板（B)JUT7.820.141-1JUT6.691.028-2或JUT6.691.074JUT6.691.055或JUT6.691.073Y 板（R ）JUT7.820.024-1或JUT7.820.318JUT6.691.029-4或JUT6.691.076JUT6.691.056或JUT6.691.075Y 板（G ）JUT7.820.023-1或JUT7.820.316JUT6.691.030-2或JUT6.691.078JUT6.691.057或JUT6.691.077Y 板（B ）JUT7.820.025-1或JUT7.820.317JUT6.692.004-4JUT6.692.003电源板JUT7.820.324JUT6.693.044-1JUT6.693.043前AV 板JUT7.820.149JUT6.693.046JUT6.693.045AV 板JUT7.820.163或JUT7.820.163-1JUT6.695.005JUT6.695.011遥控板JUT7.820.010-1JUT6.695.022JUT6.695.021指示灯板JUT7.820.076-1JUT6.696.004或JUT6.696.014-2JUT6.696.007扫描板JUT7.820.018-5或JUT7.820.377JUT6.697.005JUT6.697.007信号处理板JUT7.820.098JUT6.672.045JUT6.697.021CPU 板JUT7.820.021-2JUT6.672.177JUT6.697.073JUT6.697.072FB 板JUT7.820.048-1JUT6.697.080感应头固定板JUT7.820.103JUT6.697.082JUT6.697.081KZ 板JUT7.820.162JUT6.690.017JUT6.690.016主板JUT7.820.101-2S 或JUT70820.101- 2JUT6.691.025-1JUT6.691.024VM 功放板（G)JUT7.820.121或JUT7.820.121-1JP5185JP5625PDT-3PDT-3。

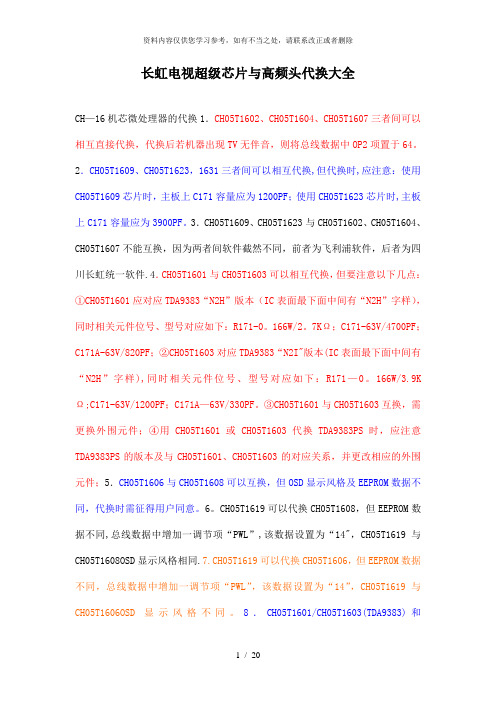

长虹电视超级芯片与高频头代换大全CH—16机芯微处理器的代换1．CH05T1602、CH05T1604、CH05T1607三者间可以相互直接代换，代换后若机器出现TV无伴音，则将总线数据中OP2项置于64。
2．CH05T1609、CH05T1623，1631三者间可以相互代换,但代换时,应注意：使用CH05T1609芯片时，主板上C171容量应为1200PF；使用CH05T1623芯片时,主板上C171容量应为3900PF。
3．CH05T1609、CH05T1623与CH05T1602、CH05T1604、CH05T1607不能互换，因为两者间软件截然不同，前者为飞利浦软件，后者为四川长虹统一软件.4．CH05T1601与CH05T1603可以相互代换，但要注意以下几点：①CH05T1601应对应TDA9383“N2H”版本（IC表面最下面中间有“N2H”字样），同时相关元件位号、型号对应如下：R171-0。
166W/2。
7KΩ；C171-63V/4700PF；C171A-63V/820PF；②CH05T1603对应TDA9383“N2I"版本(IC表面最下面中间有“N2H”字样),同时相关元件位号、型号对应如下：R171—0。
166W/3.9K Ω;C171-63V/1200PF；C171A—63V/330PF。
③CH05T1601与CH05T1603互换，需更换外围元件；④用CH05T1601或CH05T1603代换TDA9383PS时，应注意TDA9383PS的版本及与CH05T1601、CH05T1603的对应关系，并更改相应的外围元件；5．CH05T1606与CH05T1608可以互换，但OSD显示风格及EEPROM数据不同，代换时需征得用户同意。
6。
CH05T1619可以代换CH05T1608，但EEPROM数据不同,总线数据中增加一调节项“PWL”,该数据设置为“14"，CH05T1619与CH05T1608OSD显示风格相同.7.CH05T1619可以代换CH05T1606，但EEPROM数据不同，总线数据中增加一调节项“PWL”，该数据设置为“14”，CH05T1619与CH05T1606OSD显示风格不同。

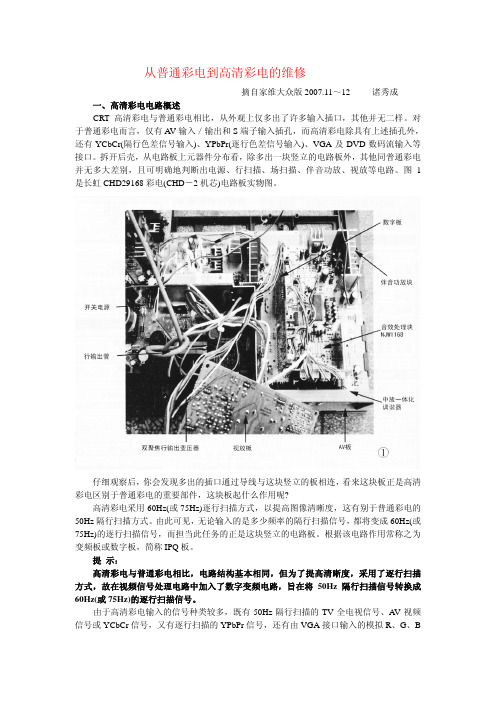

从普通彩电到高清彩电的维修摘自家维大众版2007.11～12 诸秀成一、高清彩电电路概述CRT高清彩电与普通彩电相比，从外观上仅多出了许多输入插口，其他并无二样。
对于普通彩电而言，仅有A V输入／输出和S端子输入插孔，而高清彩电除具有上述插孔外，还有YCbCr(隔行色差信号输入)、YPbPr(逐行色差信号输入)、VGA及DVD数码流输入等接口。
拆开后壳，从电路板上元器件分布看，除多出一块竖立的电路板外，其他同普通彩电并无多大差别，且可明确地判断出电源、行扫描、场扫描、伴音功放、视放等电路。
图1是长虹CHD29168彩电(CHD－2机芯)电路板实物图。
仔细观察后，你会发现多出的插口通过导线与这块竖立的板相连，看来这块板正是高清彩电区别于普通彩电的重要部件，这块板起什么作用呢?高清彩电采用60Hz(或75Hz)逐行扫描方式，以提高图像清晰度，这有别于普通彩电的50Hz隔行扫描方式。
由此可见，无论输入的是多少频率的隔行扫描信号，都将变成60Hz(或75Hz)的逐行扫描信号，而担当此任务的正是这块竖立的电路板。
根据该电路作用常称之为变频板或数字板，简称IPQ板。
提示：高清彩电与普通彩电相比，电路结构基本相同，但为了提高清晰度，采用了逐行扫描方式，故在视频信号处理电路中加入了数字变频电路，旨在将50Hz隔行扫描信号转换成60Hz(或75Hz)的逐行扫描信号。
由于高清彩电输入的信号种类较多，既有50Hz隔行扫描的TV全电视信号、A V视频信号或YCbCr信号，又有逐行扫描的YPbPr信号，还有由VGA接口输入的模拟R、G、B信号，所以数字板应设有相应电路分别针对各类信号的特点进行变换处理，既保证最终信号格式的统一，又保证行、场扫描同步进行，各类输入信号流程如图2所示。
从图2中不难看出，数字板的核心任务是数字变频及扫描格式变换。
提示：在高清彩电中，TV／A V信号、Y／C信号及Y、Cb、Cr信号均要通过数字变频处理，转换为逐行扫描的亮度、色度信号；VGA－R、VGA－G、VGA－B信号与YPbPr信号虽不进行隔行转逐行处理，但要进行格式识别同步信号分离与ADC转换等处理。
长虹CH-16机芯介绍及总线调试方法及代表机型总线数据表—、机芯介绍长虹CH—16机芯是长虹公司2001年引进菲利浦公司超级芯片——TDA9370开发的一种电视机芯。
该机芯的电视小信号处理、CPU、TV/A V切换开关，波段切换开关等电路都集成在一块芯片TDA9370内部。
使电路结构更加流畅。
外部调试点无乎为零。
大大地提高了整机的可靠性，也使维修更加方便，广泛装配21、25、29、34英寸电视机。
二、适用机型长虹的CH—16机芯的电视机，最初都用“SF”来代表“CH-16”机芯。
主要机型有：SF2115、SF2198、SF2139、SF2598、SF2515、SF2915、SF2998、SF3498F、HY29S86、PF2198、PF2598、PF2998、SF2939等三、CH-16机芯彩电I 2C总线系统的调整方法(1) 进入维修状的方法将本机音量减至最小，使用K16型遥控器（K16C、K16D、K16H）或K3型遥控器（K3A、K3D、K3E等），按住静音键不放，此时荧光屏上出现红色的“静音X”字样。
紧接着按本机键中的“菜单键”，屏幕上出现红色的“S”字符，表示本机已经进入维修状态。
（注有时按本机面板控制键中的“菜单键”有时需要多停留几秒钟）。
(2) 选项与调整进入“S”状态以后，按压遥控器或本机节目选择键可选择所需调整的项目。
按压遥控器或本机音量键调整总线数据。
（3）调试完毕，遥控关机，即可退出“S”状态，并自动关机。
（一）小屏幕机芯总线数据参考机型有SF2198、SF2139、PF2198等21英寸小屏幕电视机项目释义数据（十六进制）预置范围备注OPT1 选项1 FC 0-FF 功能选择，不能随意更改OPT2 选项2 6C 0-FF 同上OPT3 选项3 F2 0-FF 同上OPT4 选项4 4E 0-FF 同上A VG 20 0-3FVS 场线性23 0-3FSC 15 0-3F5V A 50Hz场幅23 0-3F5VSH 50Hz帧中心16 0-3F5HS 50Hz行中心1A 0-3F50V 字符中心位置37 0-3FRCUT 红截止1F 0-3FGCUT 绿截止1F 0-3FRDRV 红激励20 0-3FGDRV 绿激励20 0-3FBDRV 兰激励20 0-3FAGC AGC设定14 0-3F音量00 音量最小25 0-3F 可影响声音的变化音量25 通常音量35 0-3F亮度50 通常亮度1C 0-3F亮度99 最高亮度设置3F 0-3F对比度50 对比度适中值20 0-3F对对度99 最大对比度设置3F 0-3F色饱和99 最大色饱和度3F 0-3FYDEL 亮度信号延迟0D 0-0FCL 彩色预置09 0-0FPODE 模式选择10 0-1F（二）SF3498总线数据表项目释义数据（十六进制）预置范围备注OP1 选项1 FE 0-FF 功能性选选择OP2 选项2 48 0-FF 同上OP3 选项3 C6 0-FF 同上A VG 28 0-3FVX00 19 0-3FVS 场线性23 0-3FSC 帧线性20 0-3F5V A 50Hz场幅19 0-3F5VSH 50Hz场中心23 0-3F5HA 行幅2A 0-3F5HS 50Hz行中心20 0-3F5EW 枕校1F 0-3F50V 字符上下位置3F 0-3FHP 行补偿2C 0-3FTC 四角补偿20 0-3FVCP 帧补偿30 0-3FBCP 2B 0-3FHB 20 0-3FRCUT 红截止21 0-3FGCUT 绿截止24 0-3FRDRV 红驱动15 0-3FGDRV 绿驱动18 0-3FBDRV 兰驱动20 0-3FAGC AGC设定16 0-3FVOL 音量28 0-3F音量00 最小音量39 0-3F 可影响声音变化音量25 中间音量3C 0-3F亮度50 通常亮度设置1F 0-33 可影响整机亮度亮度99 最高亮度设置33 0-3F对比度50 通常对比度0C 0-3F对比度99 最大对比度3F 0-3F彩色99 色饱和度最大3F 0-3F 可能引起无彩IF0 20 0-3FYDEL 亮度延迟00 0-0FCL 对比度预置0B 0-0FPODE 模式选择10 0-1FCH-16机芯概述及检修提示CH-16机芯是在菲利浦公司研究开发的超大规模集成电路TDA9370的基础上开发的另一种电视机芯。
长虹数字板(IPQ)代换资料汇总1长虹CHD-2机芯彩电数字板的RGB混合处理电路维修资料长虹CHD-2机芯数字板的维修长虹数字板(IPQ)代换资料汇总长虹CHD-2机芯彩电数字板的RGB混合处理电路维修资料长虹CHD-2机芯数字板的维修长虹CHD-2机芯数字板信号处理流程图长虹CHD-5机芯数字板信号流程长虹数字板(IPQ)代换资料汇总1．采用CHD-5 机芯，IPQ 板号：（JUC7.820.967-2/3 ），机型：CHD2915、CHD2918、CHD2983、CHD2988、CHD2992、CHD2992(A)、CHD2919、CHD2998、CHD2998(A)、CHD3415、CHD3415(A)、CHD3418、CHD3488 等使用的主要集成电路：NV320P变频处理、TDA9332 显示、行场信号处理、M37225/CH19T05002 微处理器、VPC3230D 视频处理、TDA9178 画质处理。
——此机芯数字板可以直接互换。
2 ．采用CHD-1 机芯，IPQ 板号：（JUC7.820.991-1），机型：CHD2990/CHD2990(A)、CHD2995 （部分）、CHD29181、CHD3490/CHD3490(A) 、CHD3495 、CHD3215、CHD3615 等使用的主要集成电路：PW1230/1235 变频处理、TDA9332 显示、行场信号处理、VPC3230D 视频处理、M37281/CH19T0302 微处理器。
——此机芯数字板可以互换但要注意画中画功能。
3．采用CHD-2 机芯，IPQ 板号：（JUC7.820.1305-1 ），机型：CHD2917DV、CHD29100C、CHD34100C、CHD25155、CHD29155、CHD29156(F19)、CHD34156(F19)、CHD29158、CHD29168、CHD29S18(F19)、CHD34155。
长虹平板电视机芯-机型进总线方法对照表长虹平板电视机芯—机型对照表产品线机芯机型LCD LP01CHD-TM150A1LCD LP03CHD-TM150E3.CHD-TM181B3.CHD-TM201B3.CHDTM201B3C.CHD-TM201E3.CHD-W170B3LCD LP06CHD-W300C6.CHD-W300D6.CHD-W300E6.CHD-W300E6N.CHD-W320C6.CHD-W320C6LLCD LS07CHD-TD150F7.CHD-TD170F7.CHD-W170F7.CHD- W170F7P.CHD-TM150F7P.CHD-TD201F7.CHD-TM201F7.CHD-TM201F7P.LT1512.LT1712.LT2012.LT2612.LT2712LT2619.LT2719.LT2088.LT2788LCD LS08CHD-W260F8.CHD-W270F8.CHD-W320F8.CHD-370F8.CHD-W270F8P.CHD-W320F8P.CHD-W370F8P.CHD-TD270F8.CHD-TD320F8.CHD-TD370F8.LT2618.LT3218.LT3718.LT4018.LT4219B.LT3718P.LT4018P.LT5520LCDLP09LT4219.LT4619.LT3718H.LT4720H.LT4719H.LT4219P.LT 4619P.LT4266.LT4219H.LT4099.LT4299.LT4699.LT4233 LCDLS10LT3212.LT3712.LT3288.LT3788.LT4288.LT3219P.LT3719P.LT4028LCDLS12LT32600.LT37600.LT40600.LT42600.LT47600.LT4219P( L04).L T4619(L04).LT47588.LT37700.LT42700.LT47700 .LT32866.LT37866 LCD LS15LT3212(L01).LT32700.LT26700.LT26600.LT19600LCDLT16LT52700FHD.LT42866FHD.LT47866FHD.LT42866DR.LT47866DR.LT42900FHD.LT46900FHD.LT52900FHD.LT4219FHD( L05).L T4719FHD(L05)LCDLS19LDTV32866.LDTV42700FHD.32LT810HDI.42LT810HDI.SST - 32DMB.SST42DMB.LDTV42866FHD.LDTV47700FHD.LDTV478 66FHD.LDTV42866U.LDTV47866U.LDTV47700U.LCD LS20LT32900.LT37900FHDLCD LS20A LT32876.LT40876FHD.LT42876FHD.LT42710FHD.LT47710FHD.LT37876FHD.LT42700(L06).LT47700(L06).LT32866R.LT37866R.ITV42866(L03).IYV47866(L03)LT32900(L08).LT42900FHD(L08).LT46900FHD(L08).LT52900FHD(L08).LT47866FHD(L03) LT32876FHDLCD LS23 LT32710、LT37710, LT19610 、LT22610 、LT26610, LT19620、LT22620 、LT26620、LT32620, LT19629 、LT22629 、LT26629、LT32629LCD LS26LT24610 LT24610X,LT26729,LT32729,LT37729、LT40729F,LT42729F,LT46729F,LT42710FLCD LS29LT24720F LT24720FX 、LT32710(LS15)LCDLS30LT24610(L18),LT24610X(L18),LT26630(L22),LT26630X(L22),LT32630(L22),LT32630X(L22),LT32920E,,ITV32920E,LT32630(L22),LT32630X(L22),LT42630F(L22),LTLCD LM32LT32710(L23),LT32719,LT37710X(L23),冠捷LS02LT26518、LT32518、LT32528、LT42518F、LT42528F、LT47冠捷LS03LT19518、LT19528、LT22518、LT22528、LT26518、LT2652冠捷LS05LT26518冠捷LS06LT32518，LT32528DLS04LDTV26810U、LDTV32810U、LDTV42810U、LDTV32876、LDTV40876F、LDTV42876FPDPPP06PT4206.PT4206(B).PT4206(C).PT4206H.PT4208.PT4208 (L).PDP PS08PT4209.PT4216.PT4216H.PT4218.PT5016.PT6520 PDP PP09PT4266.PT5066.PT5066(P01)PDP PS10PT4288.PT4228PDPPS12PT32600.PT32700.PT42600.PT42600NHD.PT4288(P02) PDP PS13PT42700WHD.PT50600.PT60600.PT6520FHDPDP PT16PT50700.PT42900NHD.PT50900FHDPDP PS19PDTV42700NHD.PDTV50700WHDPDPPS22PT32900NHD.PT37618NHD.PT32618.PT37618.PT32700D PDP PM24PT42818NHD,PT50818PDP PS26PT42638NHD,PT50638PDP PS27i ITV42738NHD,ITV42738NHDX,ITV50738PDP PS30i ITV42738X(P18),ITV50738X(P18),ITV50738X(P19),3DTV50738,3DTV58938FS(P18),3DTV63738FS(P18)PDPPS30PT42638NHDX(P15),PT42638NHDX(P17),PT42658,PT5063 8X(P15),,PT50638X(P17),,PT50658AOC进总线方法在TV模式下将音量减到0，按住遥控静音键3钞后再按本机菜单键，进入工厂菜单后会有标志“M”出现，在通过工厂模式第11项进入D模式后，左上角会显示DMENU设计模式，在工厂模式M的INDEX2下，通过P+/P-键选择到“PANEL SEL”，再通过V+ -选择屏参。
