Mode No: VPT-CL011H03W
ADD:3-F ,No.12 Bldy ,Longwangmiao lndususty
Zone.Baishixia
FuyongStreet.Shenzhen,Guangdong,China
Phone:+86-755-61148611
Fax:+86-755-61148622 V-Photron Technology Co. Ltd. 偉富創光電科技有限公司
FEATURES
▉ Lamp Warranty : 1 years product warranty
▉ Long Operating Life : 50,000+ Hours (5.7+ Years) ▉ Low power consumption, energy saving ▉ Safety Assurance: RoHS compliant ▉ Easy installation, compatible with socket.
▉Radiation free, no UV nor IR lights lights, best to be
use as display light for paintings, photos or products, prevent color change and damage on displayed goods.
▉ Solid-State : Fast Turn-On, No Power Surge ▉ Low heat, excellent heat sink design, does not heat up as traditional Halogen bulb, help to save on air conditioning expenses.
OUTLINE DIMENSION
Benefits
▉ Clean Light: Constant
Light Output, No Halation
▉Eco-Friendly:No Mercury,
No Lead Content
▉ Easy Installation: instant
replacement in type fixtures
▉ Reduces Light Pollution,
“Dark Skies” Initiative Compatible
▉ Higher Efficacy: LEDs
Are 10 Times More Efficient than Incandescent Lighting ▉ Major Energy Savings: Up to
80% over Incandescents
Mode No: VPT-CL011H03W
ADD:3-F ,No.12 Bldy ,Longwangmiao lndususty Zone.Baishixia
FuyongStreet.Shenzhen,Guangdong,China
Phone:+86-755-61148611 Fax:+86-755-61148622 E-mail:sales@
Website:http://www.v-photron. com
V-Photron Technology Co. Ltd. 偉富創光電科技有限公司
Specifications
▉Input Voltage:AC110-240V
▉ LED Color: 2700K -3000K, 4500K -5500K 6000K- 6500K ▉ Ambient Operating Temperature Range: -20°C to +40°C ▉ Power consumption: 3W ▉ Light source: High Power LED ▉LED Qty(pcs):1pcs
Application
▉ Home ▉ Restaurant
▉ Store ▉ Hotel ▉ Bank ▉ Office
Precautions
Make sure that power is switched off before connecting or disconnecting fixture.
NOTE
▉ These models are for use with standard ON/OFF switches only,not with a dimmer .Use with a
dimmer, relay or other current / voltage control circuit device will VOID WARRANTY.
▉ Turn OFF the power from fixture before installation.
▉ If the current light fixture has a cover in front, please remove it for better optic and heat exchange. ▉ Not suitable for high temperature and moisture area. ▉ User should be cautioned not to stare at the light. The bright light can damage eyes.
Luminaire Photometric Report Polar Candela Distrbution
Item No ：VPT-CL011H03W Color Temperature:3500K-4500K
Flux (lm)：160-200lm Power consumption: 3W。

合集下载

LED灯产品规格说明书

LED灯产品规格说明书

Address: 3F Building 3, Landwind Industrial Zone, Shiyan Town,ModelPictureDiscriptionSize (LxW)mmLED Q'ty (pcs)Power (W)Voltage&FrequencyColor&KelvinLuminousFlux(lm)Unit price (100-1000pcs)(USD) Unit price>1000pcs)(USD)XH-LPR120-5WAl frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter120mm Cut diameter 105mm 25PCSSMD2835 LEDs5WAC85-265V 50-60Hz warm white/white 2800-7000K400-450 4.44 4.23XH-LPR145-8W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter145mm Cut diameter 130mm 40PCSSMD2835 LEDs8WAC85-265V 50-60Hz warm white/white 2800-7000K650-700 6.89 6.56XH-LPR160-9W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter160mm Cut diameter 145mm 45PCSSMD2835 LEDs9WAC85-265V 50-60Hz warm white/white 2800-7000K750-8007.447.09XH-LPR180-12W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter180mm Cut diameter 160mm 60PCSSMD2835 LEDs12WAC85-265V 50-60Hz warm white/white2800-7000K950-10008.117.72XH-LPR200-14W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter200mm Cut diameter 180mm 70PCSSMD2835 LEDs14WAC85-265V 50-60Hz warm white/white2800-7000K1100-11509.118.68XH-LPR220-16W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter220mm Cut diameter 200mm 80PCSSMD2835 LEDs16WAC85-265V 50-60Hz warm white/white2800-7000K1250-130010.449.95XH-LPR225-18W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter250mm Cut diameter 205mm 90PCSSMD2835 LEDs18WAC85-265V 50-60Hz warm white/white2800-7000K1450-140010.6710.16XH-LPR240-20W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter240mm Cut diameter 220mm 100PCSSMD2835 LEDs20WAC85-265V 50-60Hz warm white/white2800-7000K1650-170012.3311.75XH-LPR300-24W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter300mm Cut diameter 280mm120PCSSMD2835 LEDs24WAC85-265V 50-60Hz warm white/white2800-7000K1950-200015.6714.92ModelPictureDiscriptionSize(LxW)mmLED Q'ty (pcs)Power (W)Voltage&FrequencyColor&KelvinLuminousFlux(lm)Unit price (100-1000pcs)(USD) Unit price>1000pcs)(USD)XH-LPS110-5WAl frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter110x110mm Cut diameter 90x90mm 20PCSSMD2835 LEDs5WAC85-265V 50-60Hz warm white/white 2800-7000K400-450 4.67 4.44XH-LPS160-12W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter160x160mm Cut diameter 140x140mm 60PCSSMD2835 LEDs12WAC85-265V 50-60Hz warm white/white2800-7000K950-10008.337.94XH-LPS180-12W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter180x180mm Cut diameter 160x160mm 60PCSSMD2835 LEDs12WAC85-265V 50-60Hz warm white/white2800-7000K950-10008.568.15XH-LPS200-14W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter200x200mm Cut diameter 180x180mm 72PCSSMD2835 LEDs14WAC85-265V 50-60Hz warm white/white2800-7000K1100-11509.679.21XH-LPS220-16W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter220x220mm Cut diameter 200x200mm 80PCSSMD2835 LEDs16WAC85-265V 50-60Hz warm white/white2800-7000K1250-130010.8910.37XH-LPS240-16W Al frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter240x240mm Cut diameter 180x180mm80PCSSMD2835 LEDs16WAC85-265V 50-60Hz warm white/white2800-7000K1250-130012.3311.75Square Ultra thin LED Downlight seriesRound Ultra thin LED Downlight seriesXINGHUO LED TECH LIMITEDTel : 0086-0755-********-805 Fax: 0086-0755-********Web:Email:**************MSN:**************************:johnzuo88Bao'an District, Shenzhen, China 518108Ultra thin LED Downlight catalogue with pricelistXH-LPS300-20WAl frame+arylic coverTaiwan Original Chi Mei light panelguide,transparent rate 90%Diameter300x300mmCut diameter280x280mm100PCSSMD2835 LEDs20WAC85-265V50-60Hzwarm white/white2800-7000K1650-170015.6714.92Note: 1.LED light source:LumenMax SMD2835 LEDs, 20-22lm/pc LEDs CRI>802.Warranty: 3years3. Price Term: EXW Shenzhen5.Lead time: 3-5 working days for samples, 12-15days for large quantity6.Validity: 30days, the final price should be confirmed with Xinghuo LED7.The MOQ is 100pcs ( No requirements for new customers)Company Name:Account No.:Bank Code: SWIFT Code: Bank address: 004HSBCHKHHHKHHSBC, No. 1 Queen’s Road Central, Central, Hong Kong4. Certification: CE, ROHS, Erp approvedBy T/T payment in advance, kindly write the company name correctly.XINGHUO LED TECH LIMITED561-718396-838。

2025led灯珠 规格书

2025led灯珠 规格书

2025led灯珠规格书摘要：一、LED 灯珠简介1.LED 灯珠的发展历程2.LED 灯珠的分类及应用领域3.LED 灯珠的优势二、2025LED 灯珠的技术参数1.产品规格2.发光性能3.工作电压与电流4.光通量与光效5.色温与显色指数6.寿命与可靠性三、2025LED 灯珠的性能特点1.高亮度2.低能耗3.高光效4.出色的显色性5.长寿命6.环保无污染四、2025LED 灯珠的应用领域1.室内照明2.商业照明3.工业照明4.户外照明5.汽车照明6.显示屏与装饰照明五、2025LED 灯珠的发展趋势与展望1.技术的不断进步2.国家政策的支持3.市场需求的扩大4.行业竞争格局5.绿色照明的推广正文：随着科技的快速发展，LED 灯珠已经成为照明行业的主流产品。

2025LED 灯珠作为新一代的LED 产品，凭借其出色的性能和广泛的应用领域，受到了业界的广泛关注。

首先，我们来了解一下LED 灯珠的发展历程。

LED 灯珠起源于20 世纪60 年代，经过几十年的发展，已经成为照明行业的一种重要光源。

从刚开始的指示灯到现在的照明光源，LED 灯珠的发展经历了几个阶段，包括蓝光LED、绿光LED、白光LED 等。

接下来，我们详细了解一下2025LED 灯珠的技术参数。

首先，产品规格方面，2025LED 灯珠具有较高的尺寸和体积，可以提供更大的发光面积。

其次，发光性能方面，2025LED 灯珠的亮度、色温、显色指数等指标均达到了较高的水平。

工作电压与电流方面，2025LED 灯珠的工作电压较低，电流较大，可以降低能耗，提高光效。

光通量与光效方面，2025LED 灯珠的光通量较高，光效也达到了很高的水平。

色温与显色指数方面，2025LED 灯珠具有多种色温可选，显色指数也达到了Ra>80 的优异水平。

寿命与可靠性方面，2025LED 灯珠的寿命达到了数万小时，可靠性得到了极大的提高。

2025LED 灯珠具有许多性能特点，如高亮度、低能耗、高光效、出色的显色性、长寿命和环保无污染等。

led筒灯产品规格说明书

led筒灯产品规格说明书

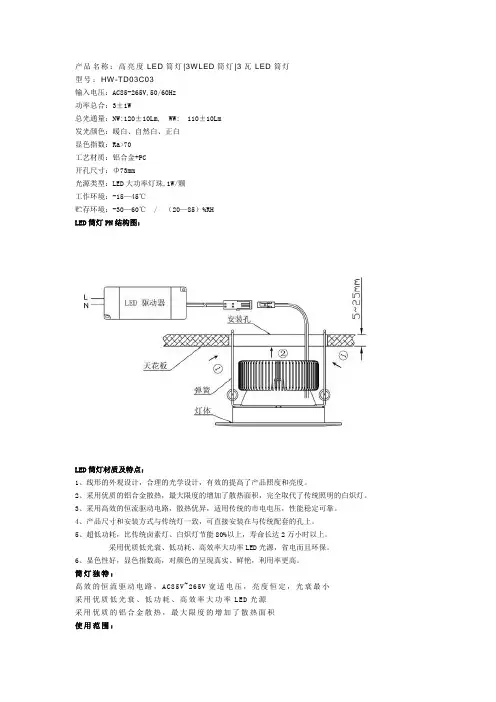

产品名称：高亮度LED筒灯|3W LED筒灯|3瓦LED筒灯型号：HW-TD03C03输入电压：AC85-265V,50/60Hz功率总合：3±1W总光通量：NW:120±10Lm,WW: 110±10Lm发光颜色：暖白、自然白、正白显色指数：Ra>70工艺材质：铝合金+PC开孔尺寸：Φ73mm光源类型：LED大功率灯珠,1W/颗工作环境：-15—45℃贮存环境：-30—60℃/ （20—85）%RHLED筒灯PN结构图：LED筒灯材质及特点：1、线形的外观设计，合理的光学设计，有效的提高了产品照度和亮度。
