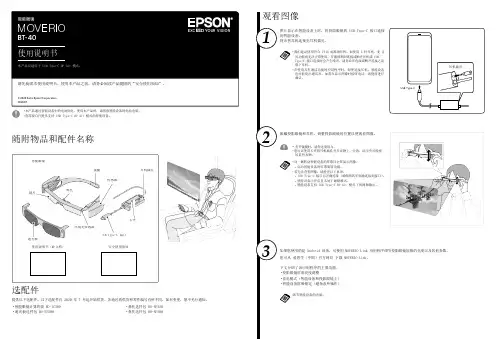

图片显示在智能设备上时，将投影眼镜的 USB Type-C 接口连接到智能设备。
将市售耳机连接至耳机插孔。
• 我们建议使用符合 CTIA 标准的耳机。
如使用 3 针耳机，麦 克风功能将无法正常使用。
在播放期间连接或断开耳机或 USB Type-C 接口连接时会产生噪音，请务必在连接或断开连接之前取下耳机。
• 在使用具有通话功能的应用程序时，即使连接耳机，智能设备也可能发出通话音。
如需在显示图像时接听电话，请提前进行确认。
• 本产品通过智能设备中的电池供电。
使用本产品时，请留意智能设备的电池电量。
• 您需要自行提供支持 USB Type-C DP Alt 模式的智能设备。

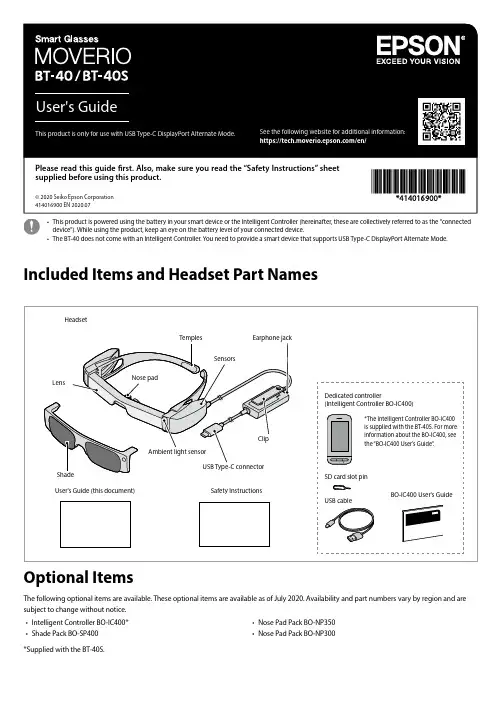

随附物品和配件名称选配件提供以下选配件。
以下选配件自 2020 年 7 月起开始供货。
各地区的供货和零件编号有所不同，如有变更，恕不另行通知。
佩戴投影眼镜和耳机，调整投影眼镜的位置以便观看图像。
• 打开镜腿时，请勿过度用力。
• 您可以使用卡夹将耳机插孔夹在衣物上。
注意，此卡夹可能损坏某些衣物。
• 向一侧转动智能设备的屏幕以全屏显示图像。
- 启动智能设备的屏幕旋转功能。
• 若无法查看图像，请检查以下事项。
- USB Type-C 接口已正确连接（确保将其牢固地连接到接口）。
- 智能设备已开启且未处于睡眠模式。
- 智能设备支持 USB Type-C DP Alt 模式下的视频输出。
如果您使用的是 Android 设备，可使用 MOVERIO Link 应用程序调节投影眼镜屏幕的亮度以及其他参数。
您可从 爱普生（中国）官方网站 下载 MOVERIO Link 。
下文介绍了该应用程序的主要功能。
• 投影眼镜屏幕亮度调整• 省电模式（智能设备和投影眼镜上） • 智能设备屏幕锁定（避免意外操作）调节智能设备的音量。
• 智能眼镜计算终端 BO-IC300 • 遮光板选件包 BO-SP300• 鼻托选件包 BO-NP350 • 鼻托选件包 BO-NP300安全使用须知遮光板使用说明书（此文档） USB Type-C 接口环境光传感器卡夹镜片鼻托传感器耳机插孔镜腿智能眼镜BT-40 投影眼镜规格型号 BT-40 (H969A) 显示方式 Si-OLED面板尺寸 0.453" 宽面板 (16:9) 分辨率 1920 x 1080 视角 约 34 度（对角）虚拟屏幕尺寸 60" 支持（虚拟观看距离 2.5 m [8.2 英尺 ]） 色彩重现 24 位色（约 16,770,000 色）接口USB Type-C ，4 针微型插孔（带有 CTIA 标准麦克风的耳机）*1 外部尺寸（宽 x 深 x 高）194 × 164 × 41 mm （7.6 × 6.5 × 1.6 英寸）（不含遮光板） 质量约 165 g （5.8 盎司） 不含遮光板、线缆等约 95 g （3.4 盎司）耳机输出 最大电压为 150 mVrms 或更高具有宽带特性的电压为 75 mVrms 或更高传感器磁力计 / 加速计传感器 / 陀螺传感器 / 环境光传感器 运行温度 / 湿度 5 至 35° C （41 至 95° F ），湿度为 20 到 80%（无凝水） 保存温度 / 湿度 -10 至 60° C （14 至 140° F ），湿度为 10 到 90%（无凝水） 防水 IPX2（USB 端口除外）可靠性使用寿命20,000 小时（基于我们的评估条件 *2。
前 言 森兰变频节能器的用户朋友 您好！ 感谢您选用森兰SB61Z系列注塑机专用变频节能器。
森兰SB61Z系列变频节能器由高性能数字处理器DSP控制，功能齐全，操作简便，并严格按照GB/T 12668.2－2002标准研制开发。
SB61Z系列变频节能器适用于各种液压传动控制的定量泵注塑机，根据注塑机不同的工作阶段所需的压力和流量的不同，相应的调整油泵的输出功率，达到节能的目的，节能效果显著。
森兰SB61Z系列变频节能器安装操作虽然简单，但误操作可能会引起意外事故，缩短变频节能器寿命，降低其性能，因此在使用前将使用手册交给变频节能器操作员，请其务必仔细熟读使用手册，掌握正确使用方法并请妥善保管使用手册，以便能长久使用。
本系列变频节能器采用最新的无速度传感器矢量控制模式，如果在使用中有不明之处，或者未能发挥其优良性能时，请仔细参阅使用手册，将有助于正确使用变频节能器。
目 录 第一章概述1.1 变频节能器交货时的注意事项------------------------------------1-1 1.2 型号说明---------------------------------------------------------------1-1 1.3 变频节能器的铭牌---------------------------------------------------1-1 1.4 产品的保修------------------------------------------------------------1-2 1.5 安全注意事项---------------------------------------------------------1-2第二章变频节能器的安装与配线2.1 变频节能器的安装---------------------------------------------------2-1 2.2 变频节能器的配线---------------------------------------------------2-5 2.3 变频节能器基本配线图---------------------------------------------2-7第三章变频节能器操作说明3.1 操作面板外观---------------------------------------------------------3-1 3.2 按键功能说明---------------------------------------------------------3-2 3.3 变频节能器显示内容说明------------------------------------------3-2 3.4 运行操作方法---------------------------------------------------------3-2 3.5 变频节能器控制模式------------------------------------------------3-3 3.6 变频节能器频率设定模式------------------------------------------3-3 3.7 变频节能器操作面板显示状态------------------------------------3-3 3.8 变频节能器操作面板操作------------------------------------------3-4 3.9 变频节能器外控端子操作------------------------------------------3-5 3.10 用户密码功能---------------------------------------------------------3-5第四章标准规范4.1 型号规格---------------------------------------------------------------4-1 4.2 公共规范---------------------------------------------------------------4-1 4.3 外型尺寸---------------------------------------------------------------4-2第五章功能参数表5.1功能参数表说明------------------------------------------------------5-15.2 功能参数表------------------------------------------------------------5-2第六章详细功能说明6.1基本功能组F0--------------------------------------------------------6-1 6.2 V/F控制功能组F1---------------------------------------------------6-8 6.3 矢量控制功能组F2--------------------------------------------------6-16 6.4 模拟给定功能组F3--------------------------------------------------6-18 6.5 辅助功能组F4--------------------------------------------------------6-20 6.6 端子功能组F5--------------------------------------------------------6-25 6.7 辅助频率功能组F6--------------------------------------------------6-34 6.8 简易PLC控制功能组F7-------------------------------------------6-40 6.9 过程PID功能组F8--------------------------------------------------6-45 6.10 通讯参数功能组F9--------------------------------------------------6-52 6.11 显示功能组FA--------------------------------------------------------6-53 6.12 厂家功能组Fb--------------------------------------------------------6-56 6.13 上位机显示功能Fc--------------------------------------------------6-57第七章变频节能器的维护7.1 日常检查与维护------------------------------------------------------7-2 7.2 定期维护---------------------------------------------------------------7-2 7.3 零部件更换------------------------------------------------------------7-3第八章故障处理8.1 变频节能器故障处理------------------------------------------------8-1 8.2 变频节能器防干扰措施---------------------------------------------8-3第九章外围设备9.1 外围设备连接图------------------------------------------------------9-1 9.2 选配件说明------------------------------------------------------------9-2第一章概述1.1 变频节能器交货时的注意事项用户拆除森兰SB61Z系列变频节能器包装箱时，请认真确认。
风机、水泵变频调速节能分析来源:希望森兰科技股份有限公司发布时间:2005-03-15 点击次数:671 能源是国家重要的物质基础，能源的供需矛盾已成为制约我国社会主义经济建设的主要因素之一。
在能源问题上国务院提出“节约与开发并重”的方针，就是依靠技术进步，把节约能源以解决能源问题作为我国重要的技术经济政策。
据不完全统计，全国风机、水泵、压缩机就有1500万台电动机，用电量占全国总发电量的40～50%，这些电动机大多在低的电能利用率下运行，只要将这些电动机电能利用率提高10～15%，全年可节电300亿kW以上。
根据火电设计规程SDJ-79规定，燃煤锅炉的送、引风机的风量裕度分别为5%和5%～10%，风压裕度分别为10%和10%～15%。
设计过程中很难计算管网的阻力、并考虑到长期运行过程中发生的各种问题，通常总是把系统的最大风量和风压裕度作为选型的依据，但风机的型号和系列是有限的，往往选取不到合适的风机型号时就往上靠，裕度大于20～30%比较常见。
因此这些风机运行时，只有靠调节风门或风道挡板的开度来满足生产工艺对风量的要求。
风机和水泵的机械特性均为平方转矩特性，水泵运行时，靠阀门的开度调节流量来满足供水要求，工况与风机相似，靠调节风门、风道档板或阀门的开度来调节风机风量，水泵流量的方法、称为节流调节，在节流调节过程中，风机或水泵固有特性不变、仅仅靠关小风门、挡板或阀门的开度，人为地增加管路的阻力，由此增大管路系统的损失，不利于风机，水泵的节能运行。
采用调速控制装置，通过改变风机水泵转速，从而改变风机风量，水泵流量以适应生产工艺的需要，这种调节方式称为风机水泵的调速控制。
风机、水泵以调速控制方式运行能耗最省，综合效益最高。
交流电机的调速方式有多种、变频调速是高效的最佳调速方案，它可以实现，风机水泵的无级调速，并可方便地组成闭环控制系统、实现恒压或恒流量控制。
一、风机水泵变频调速的节电原理：如图示为离心风机水泵的风压、（水压）H-风量（流量）Q曲线特性图：n1-代表风机水泵在额定转速运行时的特性；n2-代表风机水泵降速运行在n2转速时的特性；R1-代表风机水泵管路阻力最小时的阻力特性；R2-代表风机水泵管路阻力增大到某一数组时的阻力特性。
变频器在风机调速系统中的应用摘要：该文介绍了风机变频调速的驱动机理和运行特性，说明其具有改善电机工作状态，节能降耗的优良性能，从而降低相关企业的运行成本。
关键词：风机变频调速节能Abstract：This paper introduces the mechanism and operation characteristics of VVVF, that can improve the motor working state, the excellent performance of saving energy and reducing consumption, reduce the operating costs of enterprises.Keywords：VVVF energy saving风机设备在工矿企业中得到广泛应用。
传统的控制方式是不管生产过程对风量的需求量，风机始终处于额定工作状态恒速运转，输出恒定的风量，并通过调节挡风板或风门的开度来改变风量或流量的大小。
这种控制方式虽然简单易行，但从节能的角度来看是不经济的。
统计显示，生产成本的7%～25%被消耗在挡风板或风门及其维护上，造成了大量的能源浪费和设备损耗，同时使控制精度也受到限制，影响产品质量和生产效率。
采用变频器驱动风机设备运行，通过改变风机转速来调节流量的方案，可以大大降低功率损耗，延长设备使用寿命，达到系统高效运行的目的。
1 风机变频调速的驱动机理随着变频技术的日益成熟，变频器在风机控制系统中的应用也越来越多，甚至许多厂家都生产有廉价的风机专用变频器以供择用。
交流异步电机的转速为n=(60f(1-s))/p，当磁极对数p和转差频率s恒定时，电机转速n只与电源频率f成正比，只要改变电源频率f即可改变电动机的转速。
当电源频率f在0～50Hz的范围内变化时，电动机转速就在0～nN之间调节。
变频器就是通过改变电动机电源频率来实现速度调节的，是理想高效的调速手段。
