L78L33ACZTR中文资料

  • 格式：pdf
  • 大小：452.24 KB
  • 文档页数：24

1/24July 2003s OUTPUT CURRENT UP TO 100mAsOUTPUT VOLTAGES OF 3.3;5;6;8;9;10;12;15;18;20;24Vs THERMAL OVERLOAD PROTECTION s SHORT CIRCUIT PROTECTIONsNO EXTERNAL COMPONENTS ARE REQUIREDsAVAILABLE IN EITHER ±5%(AC)OR ±10%(C)SELECTIONDESCRIPTIONThe L78L00series of three-terminal positive regulators employ internal current limiting and thermal shutdown,making them essentially indestructible.If adequate heat-sink is provided,they can deliver up to 100mA output current.They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation.In addition,they can be used with power pass elements to make high-current voltage regulators.The L78L00series used as Zener diode/resistor combination replacement,offers an effective output impedance improvement of typically twoorders of magnitude,along with lower quiescent current and lower noise.L78L00SERIESPOSITIVE VOLTAGEREGULATORSL78L00SERIES2/24ABSOLUTE MAXIMUM RATINGS(*)Our SO-8package used for Voltage Regulators is modified internally to have pins 2,3,6and 7electrically communed to the die attach flag.This particular frame decreases the total thermal resistance of the package and increasesits ability to dissipate power when an appro-priate area of copper on the printed circuit board is available for heat-sinking.The external dimensions are the same as for the standard SO-8.THERMAL DATA(*)Considering 6cm of copper Board heat-sinkTEST CIRCUITSCONNECTION DIAGRAM (top view)SymbolParameter²Value UnitV I DC Input VoltageV O =3.3to 9V 30V V O =12to 15V 35V O =18to 24V40I O Output Current 100mA P tot Power DissipationInternally Limited (*)T stg Storage Temperature Range-40to 150°C T opOperating Junction Temperature Range for L78L00C,L78L00AC 0to 125°C for L78L00AB-40to 125Symbol ParameterSO-8TO-92SOT-89Unit R thj-case Thermal Resistance Junction-case Max 2015°C/W R thj-ambThermal Resistance Junction-ambientMax55(*)200°C/WL78L00SERIES ORDERING CODESTYPE SO-8(TUBE)*TO-92(TUBE)**SOT-89(T&R)OUTPUT VOLTAGE L78L33C L78L33CD L78L33CZ 3.3VL78L33AC L78L33ACD L78L33ACZ L78L33ACUTR 3.3VL78L33AB L78L33ABD L78L33ABZ L78L33ABUTR 3.3VL78L05C L78L05CD L78L05CZ5VL78L05AC L78L05ACD L78L05ACZ L78L05ACUTR5VL78L05AB L78L05ABD L78L05ABZ L78L05ABUTR5VL78L06C L78L06CD L78L06CZ6VL78L06AC L78L06ACD L78L06ACZ L78L06ACUTR6VL78L06AB L78L06ABD L78L06ABZ L78L06ABUTR6VL78L08C L78L08CD L78L08CZ8VL78L08AC L78L08ACD L78L08ACZ L78L08ACUTR8VL78L08AB L78L08ABD L78L08ABZ L78L08ABUTR8VL78L09C L78L09CD L78L09CZ9VL78L09AC L78L09ACD L78L09ACZ L78L09ACUTR9VL78L09AB L78L09ABD L78L09ABZ L78L09ABUTR9VL78L10C L78L10CD L78L10CZ10VL78L10AC L78L10ACD L78L10ACZ L78L10ACUTR10VL78L10AB L78L10ABD L78L10ABZ L78L10ABUTR10VL78L12C L78L12CD L78L12CZ12VL78L12AC L78L12ACD L78L12ACZ L78L12ACUTR12VL78L12AB L78L12ABD L78L12ABZ L78L12ABUTR12VL78L15C L78L15CD L78L15CZ15VL78L15AC L78L15ACD L78L15ACZ L78L15ACUTR15VL78L15AB L78L15ABD L78L15ABZ L78L15ABUTR15VL78L18C L78L18CD L78L18CZ18VL78L18AC L78L18ACD L78L18ACZ L78L18ACUTR18VL78L18AB L78L18ABD L78L18ABZ L78L18ABUTR18VL78L20C L78L20CD L78L20CZ20VL78L20AC L78L20ACD L78L20ACZ L78L20ACUTR20VL78L20AB L78L20ABD L78L20ABZ L78L20ABUTR20VL78L24C L78L24CD L78L24CZ24VL78L24AC L78L24ACD L78L24ACZ L78L24ACUTR24VL78L24AB L78L24ABD L78L24ABZ L78L24ABUTR24V(*)Available in Tape&Reel with the suffix"13TR".(**)Available in Ammopak with the suffix"-AP"or in Tape&Reel with the suffix"TR".3/24L78L00SERIES4/24ELECTRICAL CHARACTERISTICS OF L78L33C (refer to the test circuits,T J =0to 125°C,V I =8.3V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L05C (refer to the test circuits,T J =0to 125°C,V I =10V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 3.036 3.33.564V V O Output Voltage I O =1to 40mA V I =5.3to 20V 2.97 3.63VI O =1to 70mA V I =8.3V2.973.63∆V O Line Regulation V I =5.3to 20V T J =25°C 150mV V I =6.3to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =6.3to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =6.3to 16.3V f =120Hz I O =40mAT J =25°C4149dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 4.655.4V V O Output Voltage I O =1to 40mA V I =7to 20V 4.5 5.5VI O =1to 70mA V I =10V4.55.5∆V O Line Regulation V I =8.5to 20V T J =25°C 200mV V I =9to 20V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =8to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =9to 20V f =120Hz I O =40mAT J =25°C4049dB V dDropout Voltage1.7VL78L00SERIES5/24ELECTRICAL CHARACTERISTICS OF L78L06C (refer to the test circuits,T J =0to 125°C,V I =12V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L08C (refer to the test circuits,T J =0to 125°C,V I =14V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 5.5266.48V V O Output Voltage I O =1to 40mA V I =8.5to 20V 5.4 6.6VI O =1to 70mA V I =12V5.46.6∆V O Line Regulation V I =8.5to 20V T J =25°C 200mV V I =9to 20V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =8to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C50µV SVR Supply Voltage Rejection V I =9to 20V f =120Hz I O =40mAT J =25°C3846dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 7.3688.64V V O Output Voltage I O =1to 40mA V I =10.5to 23V 7.28.8VI O =1to 70mA V I =14V7.28.8∆V O Line Regulation V I =10.5to 23V T J =25°C 200mV V I =11to 23V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =11to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3645dB V dDropout Voltage1.7VL78L00SERIES6/24ELECTRICAL CHARACTERISTICS OF L78L09C (refer to the test circuits,T J =0to 125°C,V I =15V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L10C (refer to the test circuits,T J =0to 125°C,V I =16V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 8.2899.72V V O Output Voltage I O =1to 40mA V I =11.5to 23V 8.19.9VI O =1to 70mA V I =15V8.19.9∆V O Line Regulation V I =11.5to 23V T J =25°C 250mV V I =12to 23V T J =25°C 200∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =12to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C70µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3644dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 9.21010.8V V O Output Voltage I O =1to 40mA V I =12.5to 23V 911VI O =1to 70mA V I =16V911∆V O Line Regulation V I =12.5to 23V T J =25°C 230mV V I =13to 23V T J =25°C 170∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =13to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =14to 23V f =120Hz I O =40mAT J =25°C3745dB V dDropout Voltage1.7VL78L00SERIES7/24ELECTRICAL CHARACTERISTICS OF L78L12C (refer to the test circuits,T J =0to 125°C,V I =19V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L15C (refer to the test circuits,T J =0to 125°C,V I =23V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 11.11212.9V V O Output Voltage I O =1to 40mA V I =14.5to 27V 10.813.2VI O =1to 70mA V I =19V10.813.2∆V O Line Regulation V I =14.5to 27V T J =25°C 250mV V I =16to 27V T J =25°C 200∆V O Load Regulation I O =1to 100mA T J =25°C 100mV I O =1to 40mA T J =25°C50I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =16to 27V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C80µV SVR Supply Voltage Rejection V I =15to 25V f =120Hz I O =40mAT J =25°C3642dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 13.81516.2V V O Output Voltage I O =1to 40mA V I =17.5to 30V 13.516.5VI O =1to 70mA V I =23V13.516.5∆V O Line Regulation V I =17.5to 30V T J =25°C 300mV V I =20to 30V T J =25°C 250∆V O Load Regulation I O =1to 100mA T J =25°C 150mV I O =1to 40mA T J =25°C75I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =20to 30V 1.5eN Output Noise Voltage B =10Hz to 100KHzT J =25°C90µV SVR Supply Voltage Rejection V I =18.5to 28.5V f =120Hz I O =40mA T J =25°C3339dB V dDropout Voltage1.7VL78L00SERIES8/24ELECTRICAL CHARACTERISTICS OF L78L18C (refer to the test circuits,T J =0to 125°C,V I =27V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L20C (refer to the test circuits,T J =0to 125°C,V I =29V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 16.61819.4V V O Output Voltage I O =1to 40mA V I =22to 33V 16.219.8VI O =1to 70mA V I =27V16.219.8∆V O Line Regulation V I =22to 33V T J =25°C 320mV V I =22to 33V T J =25°C 270∆V O Load Regulation I O =1to 100mA T J =25°C 170mV I O =1to 40mA T J =25°C85I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =23to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =23to 33V f =120Hz I O =40mAT J =25°C3238dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 18.42021.6V V O Output Voltage I O =1to 40mA V I =24to 33V 1822VI O =1to 70mA V I =29V1822∆V O Line Regulation V I =22.5to 34V T J =25°C 330mV V I =24to 34V T J =25°C 280∆V O Load Regulation I O =1to 100mA T J =25°C 180mV I O =1to 40mA T J =25°C90I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =25to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =25to 35V f =120Hz I O =40mAT J =25°C3138dB V dDropout Voltage1.7VL78L00SERIES9/24ELECTRICAL CHARACTERISTICS OF L78L24C (refer to the test circuits,T J =0to 125°C,V I =33V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L33AB AND L78L33AC(refer to the test circuits,V I =8.3V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L33AC,T J =-40to 125°C for L78L33AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 22.12425.9V V O Output Voltage I O =1to 40mA V I =27to 38V 21.626.4VI O =1to 70mA V I =33V21.626.4∆V O Line Regulation V I =27to 38V T J =25°C 350mV V I =28to 38V T J =25°C 300∆V O Load Regulation I O =1to 100mA T J =25°C 200mV I O =1to 40mA T J =25°C100I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =28to 38V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C200µV SVR Supply Voltage Rejection V I =29to 35V f =120Hz I O =40mAT J =25°C3037dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 3.168 3.33.432V V O Output Voltage I O =1to 40mA V I =5.3to 20V 3.135 3.465VI O =1to 70mA V I =8.3V3.1353.465∆V O Line Regulation V I =5.3to 20V T J =25°C 150mV V I =6.3to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =6.3to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =6.3to 16.3V f =120Hz I O =40mAT J =25°C4149dB V dDropout Voltage1.7VL78L00SERIES10/24ELECTRICAL CHARACTERISTICS OF L78L05AB AND L78L05AC (refer to the test circuits,V I =10V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L05AC,T J =-40to 125°C for L78L05AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L06AB AND L78L06AC (refer to the test circuits,V I =12V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L06AC,T J =-40to 125°C for L78L06AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 4.855.2V V O Output Voltage I O =1to 40mA V I =7to 20V 4.75 5.25VI O =1to 70mA V I =10V4.755.25∆V O Line Regulation V I =7to 20V T J =25°C 150mV V I =8to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =8to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =8to 18V f =120Hz I O =40mAT J =25°C4149dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 5.7666.24V V O Output Voltage I O =1to 40mA V I =8.5to 20V 5.7 6.3VI O =1to 70mA V I =12V5.76.3∆V O Line Regulation V I =8.5to 20V T J =25°C 150mV V I =9to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =9to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C50µV SVR Supply Voltage Rejection V I =9to 20V f =120Hz I O =40mAT J =25°C3946dB V dDropout Voltage1.7V11/24ELECTRICAL CHARACTERISTICS OF L78L08AB AND L78L08AC (refer to the test circuits,V I =14V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L08AC,T J =-40to 125°C for L78L08AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L09AB AND L78L09AC (refer to the test circuits,V I =15V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L09AC,T J =-40to 125°C for L78L09AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 7.6888.32V V O Output Voltage I O =1to 40mA V I =10.5to 23V 7.68.4VI O =1to 70mA V I =14V7.68.4∆V O Line Regulation V I =10.5to 23V T J =25°C 175mV V I =11to 23V T J =25°C 125∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =11to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3745dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 8.6499.36V V O Output Voltage I O =1to 40mA V I =11.5to 23V 8.559.45VI O =1to 70mA V I =15V8.559.45∆V O Line Regulation V I =11.5to 23V T J =25°C 225mV V I =12to 23V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =12to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C70µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3744dB V dDropout Voltage1.7V12/24ELECTRICAL CHARACTERISTICS OF L78L10AB AND L78L10AC (refer to the test circuits,V I =16V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L10AC,T J =-40to 125°C for L78L10AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L12AB AND L78L12AC (refer to the test circuits,V I =19V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L12AC,T J =-40to 125°C for L78L12AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 9.61010.4V V O Output Voltage I O =1to 40mA V I =12.5to 23V 9.510.5VI O =1to 70mA V I =16V9.510.5∆V O Line Regulation V I =12.5to 23V T J =25°C 230mV V I =13to 23V T J =25°C 170∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =13to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =14to 23V f =120Hz I O =40mAT J =25°C3745dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 11.51212.5V V O Output Voltage I O =1to 40mA V I =14.5to 27V 11.412.6VI O =1to 70mA V I =19V11.412.6∆V O Line Regulation V I =14.5to 27V T J =25°C 250mV V I =16to 27V T J =25°C 200∆V O Load Regulation I O =1to 100mA T J =25°C 100mV I O =1to 40mA T J =25°C50I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =16to 27V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C80µV SVR Supply Voltage Rejection V I =15to 25V f =120Hz I O =40mAT J =25°C3742dB V dDropout Voltage1.7V13/24ELECTRICAL CHARACTERISTICS OF L78L15AB AND L78L15AC (refer to the test circuits,V I =19V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L15AC,T J =-40to 125°C for L78L15AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L18AB AND L78L18AC(refer to the test circuits,V I =27V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L18AC,T J =-40to 125°C for L78L18AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 14.41515.6V V O Output Voltage I O =1to 40mA V I =17.5to 30V 14.2515.75VI O =1to 70mA V I =23V14.2515.75∆V O Line Regulation V I =17.5to 30V T J =25°C 300mV V I =20to 30V T J =25°C 250∆V O Load Regulation I O =1to 100mA T J =25°C 150mV I O =1to 40mA T J =25°C75I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =20to 30V 1.5eN Output Noise Voltage B =10Hz to 100KHzT J =25°C90µV SVR Supply Voltage Rejection V I =18.5to 28.5V f =120Hz I O =40mA T J =25°C3439dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 17.31818.7V V O Output Voltage I O =1to 40mA V I =22to 33V 17.118.9VI O =1to 70mA V I =27V17.118.9∆V O Line Regulation V I =22to 33V T J =25°C 320mV V I =22to 33V T J =25°C 270∆V O Load Regulation I O =1to 100mA T J =25°C 170mV I O =1to 40mA T J =25°C85I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =23to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =23to 33V f =120Hz I O =40mAT J =25°C3338dB V dDropout Voltage1.7V14/24ELECTRICAL CHARACTERISTICS OF L78L20AB AND L78L20AC (refer to the test circuits,V I =29V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L20AC,T J =-40to 125°C for L78L20AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L24AB AND L78L24AC (refer to the test circuits,V I =27V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L24AC,T J =-40to 125°C for L78L24AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 19.22020.8V V O Output Voltage I O =1to 40mA V I =24to 33V 1921VI O =1to 70mA V I =29V1921∆V O Line Regulation V I =22.5to 34V T J =25°C 330mV V I =24to 34V T J =25°C 280∆V O Load Regulation I O =1to 100mA T J =25°C 180mV I O =1to 40mA T J =25°C90I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =25to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =25to 35V f =120Hz I O =40mAT J =25°C3238dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 232425V V O Output Voltage I O =1to 40mA V I =27to 38V 22.825.2VI O =1to 70mA V I =33V22.825.2∆V O Line Regulation V I =27to 38V T J =25°C 350mV V I =28to 38V T J =25°C 300∆V O Load Regulation I O =1to 100mA T J =25°C 200mV I O =1to 40mA T J =25°C100I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =28to 38V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C200µV SVR Supply Voltage Rejection V I =23to 33V f =120Hz I O =40mAT J =25°C3137dB V dDropout Voltage1.7VFigure1:L78L05/12Output Voltage vs Ambient TemperatureFigure2:L78L05/12/24Load Characteristics Figure3:L78L05/12/24Thermal Shutdown Figure4:L78L05/12Quiescent Current vs Output CurrentFigure5:L78L05Quiescent Current vs Input VoltageFigure6:L78L05/12/24OutputCharacteristics15/24Figure7:L78L05/12/24Ripple Rejection Figure8:L78L05Dropout Characteristics Figure9:L78L00Series Short Circuit OutputCurrent16/2417/24TYPICAL APPLICATIONSTable 10:High Output Current Short Circuit ProtectedFigure 11:Edit Boost CircuitFigure 12:CurrentRegulatorFigure13:Adjustable OutputRegulator18/24Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.© The ST logo is a registered trademark of STMicroelectronics© 2003 STMicroelectronics - Printed in Italy - All Rights ReservedSTMicroelectronics GROUP OF COMPANIESAustralia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.© 24/24。

合集下载

78L系列稳压芯片资料

78L系列稳压芯片资料

1/24July 2003s OUTPUT CURRENT UP TO 100mAsOUTPUT VOLTAGES OF 3.3;5;6;8;9;10;12;15;18;20;24Vs THERMAL OVERLOAD PROTECTION s SHORT CIRCUIT PROTECTIONsNO EXTERNAL COMPONENTS ARE REQUIREDsAVAILABLE IN EITHER ±5%(AC)OR ±10%(C)SELECTIONDESCRIPTIONThe L78L00series of three-terminal positive regulators employ internal current limiting and thermal shutdown,making them essentially indestructible.If adequate heat-sink is provided,they can deliver up to 100mA output current.They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation.In addition,they can be used with power pass elements to make high-current voltage regulators.The L78L00series used as Zener diode/resistor combination replacement,offers an effective output impedance improvement of typically twoorders of magnitude,along with lower quiescent current and lower noise.L78L00SERIESPOSITIVE VOLTAGEREGULATORSL78L00SERIES2/24ABSOLUTE MAXIMUM RATINGS(*)Our SO-8package used for Voltage Regulators is modified internally to have pins 2,3,6and 7electrically communed to the die attach flag.This particular frame decreases the total thermal resistance of the package and increasesits ability to dissipate power when an appro-priate area of copper on the printed circuit board is available for heat-sinking.The external dimensions are the same as for the standard SO-8.THERMAL DATA(*)Considering 6cm of copper Board heat-sinkTEST CIRCUITSCONNECTION DIAGRAM (top view)SymbolParameter²Value UnitV I DC Input VoltageV O =3.3to 9V 30V V O =12to 15V 35V O =18to 24V40I O Output Current 100mA P tot Power DissipationInternally Limited (*)T stg Storage Temperature Range-40to 150°C T opOperating Junction Temperature Range for L78L00C,L78L00AC 0to 125°C for L78L00AB-40to 125Symbol ParameterSO-8TO-92SOT-89Unit R thj-case Thermal Resistance Junction-case Max 2015°C/W R thj-ambThermal Resistance Junction-ambientMax55(*)200°C/WL78L00SERIES ORDERING CODESTYPE SO-8(TUBE)*TO-92(TUBE)**SOT-89(T&R)OUTPUT VOLTAGE L78L33C L78L33CD L78L33CZ 3.3VL78L33AC L78L33ACD L78L33ACZ L78L33ACUTR 3.3VL78L33AB L78L33ABD L78L33ABZ L78L33ABUTR 3.3VL78L05C L78L05CD L78L05CZ5VL78L05AC L78L05ACD L78L05ACZ L78L05ACUTR5VL78L05AB L78L05ABD L78L05ABZ L78L05ABUTR5VL78L06C L78L06CD L78L06CZ6VL78L06AC L78L06ACD L78L06ACZ L78L06ACUTR6VL78L06AB L78L06ABD L78L06ABZ L78L06ABUTR6VL78L08C L78L08CD L78L08CZ8VL78L08AC L78L08ACD L78L08ACZ L78L08ACUTR8VL78L08AB L78L08ABD L78L08ABZ L78L08ABUTR8VL78L09C L78L09CD L78L09CZ9VL78L09AC L78L09ACD L78L09ACZ L78L09ACUTR9VL78L09AB L78L09ABD L78L09ABZ L78L09ABUTR9VL78L10C L78L10CD L78L10CZ10VL78L10AC L78L10ACD L78L10ACZ L78L10ACUTR10VL78L10AB L78L10ABD L78L10ABZ L78L10ABUTR10VL78L12C L78L12CD L78L12CZ12VL78L12AC L78L12ACD L78L12ACZ L78L12ACUTR12VL78L12AB L78L12ABD L78L12ABZ L78L12ABUTR12VL78L15C L78L15CD L78L15CZ15VL78L15AC L78L15ACD L78L15ACZ L78L15ACUTR15VL78L15AB L78L15ABD L78L15ABZ L78L15ABUTR15VL78L18C L78L18CD L78L18CZ18VL78L18AC L78L18ACD L78L18ACZ L78L18ACUTR18VL78L18AB L78L18ABD L78L18ABZ L78L18ABUTR18VL78L20C L78L20CD L78L20CZ20VL78L20AC L78L20ACD L78L20ACZ L78L20ACUTR20VL78L20AB L78L20ABD L78L20ABZ L78L20ABUTR20VL78L24C L78L24CD L78L24CZ24VL78L24AC L78L24ACD L78L24ACZ L78L24ACUTR24VL78L24AB L78L24ABD L78L24ABZ L78L24ABUTR24V(*)Available in Tape&Reel with the suffix"13TR".(**)Available in Ammopak with the suffix"-AP"or in Tape&Reel with the suffix"TR".3/24L78L00SERIES4/24ELECTRICAL CHARACTERISTICS OF L78L33C (refer to the test circuits,T J =0to 125°C,V I =8.3V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L05C (refer to the test circuits,T J =0to 125°C,V I =10V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 3.036 3.33.564V V O Output Voltage I O =1to 40mA V I =5.3to 20V 2.97 3.63VI O =1to 70mA V I =8.3V2.973.63∆V O Line Regulation V I =5.3to 20V T J =25°C 150mV V I =6.3to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =6.3to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =6.3to 16.3V f =120Hz I O =40mAT J =25°C4149dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 4.655.4V V O Output Voltage I O =1to 40mA V I =7to 20V 4.5 5.5VI O =1to 70mA V I =10V4.55.5∆V O Line Regulation V I =8.5to 20V T J =25°C 200mV V I =9to 20V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =8to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =9to 20V f =120Hz I O =40mAT J =25°C4049dB V dDropout Voltage1.7VL78L00SERIES5/24ELECTRICAL CHARACTERISTICS OF L78L06C (refer to the test circuits,T J =0to 125°C,V I =12V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L08C (refer to the test circuits,T J =0to 125°C,V I =14V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 5.5266.48V V O Output Voltage I O =1to 40mA V I =8.5to 20V 5.4 6.6VI O =1to 70mA V I =12V5.46.6∆V O Line Regulation V I =8.5to 20V T J =25°C 200mV V I =9to 20V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =8to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C50µV SVR Supply Voltage Rejection V I =9to 20V f =120Hz I O =40mAT J =25°C3846dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 7.3688.64V V O Output Voltage I O =1to 40mA V I =10.5to 23V 7.28.8VI O =1to 70mA V I =14V7.28.8∆V O Line Regulation V I =10.5to 23V T J =25°C 200mV V I =11to 23V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =11to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3645dB V dDropout Voltage1.7VL78L00SERIES6/24ELECTRICAL CHARACTERISTICS OF L78L09C (refer to the test circuits,T J =0to 125°C,V I =15V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L10C (refer to the test circuits,T J =0to 125°C,V I =16V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 8.2899.72V V O Output Voltage I O =1to 40mA V I =11.5to 23V 8.19.9VI O =1to 70mA V I =15V8.19.9∆V O Line Regulation V I =11.5to 23V T J =25°C 250mV V I =12to 23V T J =25°C 200∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =12to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C70µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3644dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 9.21010.8V V O Output Voltage I O =1to 40mA V I =12.5to 23V 911VI O =1to 70mA V I =16V911∆V O Line Regulation V I =12.5to 23V T J =25°C 230mV V I =13to 23V T J =25°C 170∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =13to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =14to 23V f =120Hz I O =40mAT J =25°C3745dB V dDropout Voltage1.7VL78L00SERIES7/24ELECTRICAL CHARACTERISTICS OF L78L12C (refer to the test circuits,T J =0to 125°C,V I =19V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L15C (refer to the test circuits,T J =0to 125°C,V I =23V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 11.11212.9V V O Output Voltage I O =1to 40mA V I =14.5to 27V 10.813.2VI O =1to 70mA V I =19V10.813.2∆V O Line Regulation V I =14.5to 27V T J =25°C 250mV V I =16to 27V T J =25°C 200∆V O Load Regulation I O =1to 100mA T J =25°C 100mV I O =1to 40mA T J =25°C50I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =16to 27V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C80µV SVR Supply Voltage Rejection V I =15to 25V f =120Hz I O =40mAT J =25°C3642dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 13.81516.2V V O Output Voltage I O =1to 40mA V I =17.5to 30V 13.516.5VI O =1to 70mA V I =23V13.516.5∆V O Line Regulation V I =17.5to 30V T J =25°C 300mV V I =20to 30V T J =25°C 250∆V O Load Regulation I O =1to 100mA T J =25°C 150mV I O =1to 40mA T J =25°C75I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =20to 30V 1.5eN Output Noise Voltage B =10Hz to 100KHzT J =25°C90µV SVR Supply Voltage Rejection V I =18.5to 28.5V f =120Hz I O =40mA T J =25°C3339dB V dDropout Voltage1.7VL78L00SERIES8/24ELECTRICAL CHARACTERISTICS OF L78L18C (refer to the test circuits,T J =0to 125°C,V I =27V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L20C (refer to the test circuits,T J =0to 125°C,V I =29V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 16.61819.4V V O Output Voltage I O =1to 40mA V I =22to 33V 16.219.8VI O =1to 70mA V I =27V16.219.8∆V O Line Regulation V I =22to 33V T J =25°C 320mV V I =22to 33V T J =25°C 270∆V O Load Regulation I O =1to 100mA T J =25°C 170mV I O =1to 40mA T J =25°C85I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =23to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =23to 33V f =120Hz I O =40mAT J =25°C3238dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 18.42021.6V V O Output Voltage I O =1to 40mA V I =24to 33V 1822VI O =1to 70mA V I =29V1822∆V O Line Regulation V I =22.5to 34V T J =25°C 330mV V I =24to 34V T J =25°C 280∆V O Load Regulation I O =1to 100mA T J =25°C 180mV I O =1to 40mA T J =25°C90I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =25to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =25to 35V f =120Hz I O =40mAT J =25°C3138dB V dDropout Voltage1.7VL78L00SERIES9/24ELECTRICAL CHARACTERISTICS OF L78L24C (refer to the test circuits,T J =0to 125°C,V I =33V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L33AB AND L78L33AC(refer to the test circuits,V I =8.3V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L33AC,T J =-40to 125°C for L78L33AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 22.12425.9V V O Output Voltage I O =1to 40mA V I =27to 38V 21.626.4VI O =1to 70mA V I =33V21.626.4∆V O Line Regulation V I =27to 38V T J =25°C 350mV V I =28to 38V T J =25°C 300∆V O Load Regulation I O =1to 100mA T J =25°C 200mV I O =1to 40mA T J =25°C100I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =28to 38V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C200µV SVR Supply Voltage Rejection V I =29to 35V f =120Hz I O =40mAT J =25°C3037dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 3.168 3.33.432V V O Output Voltage I O =1to 40mA V I =5.3to 20V 3.135 3.465VI O =1to 70mA V I =8.3V3.1353.465∆V O Line Regulation V I =5.3to 20V T J =25°C 150mV V I =6.3to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =6.3to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =6.3to 16.3V f =120Hz I O =40mAT J =25°C4149dB V dDropout Voltage1.7VL78L00SERIES10/24ELECTRICAL CHARACTERISTICS OF L78L05AB AND L78L05AC (refer to the test circuits,V I =10V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L05AC,T J =-40to 125°C for L78L05AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L06AB AND L78L06AC (refer to the test circuits,V I =12V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L06AC,T J =-40to 125°C for L78L06AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 4.855.2V V O Output Voltage I O =1to 40mA V I =7to 20V 4.75 5.25VI O =1to 70mA V I =10V4.755.25∆V O Line Regulation V I =7to 20V T J =25°C 150mV V I =8to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =8to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =8to 18V f =120Hz I O =40mAT J =25°C4149dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 5.7666.24V V O Output Voltage I O =1to 40mA V I =8.5to 20V 5.7 6.3VI O =1to 70mA V I =12V5.76.3∆V O Line Regulation V I =8.5to 20V T J =25°C 150mV V I =9to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =9to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C50µV SVR Supply Voltage Rejection V I =9to 20V f =120Hz I O =40mAT J =25°C3946dB V dDropout Voltage1.7V11/24ELECTRICAL CHARACTERISTICS OF L78L08AB AND L78L08AC (refer to the test circuits,V I =14V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L08AC,T J =-40to 125°C for L78L08AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L09AB AND L78L09AC (refer to the test circuits,V I =15V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L09AC,T J =-40to 125°C for L78L09AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 7.6888.32V V O Output Voltage I O =1to 40mA V I =10.5to 23V 7.68.4VI O =1to 70mA V I =14V7.68.4∆V O Line Regulation V I =10.5to 23V T J =25°C 175mV V I =11to 23V T J =25°C 125∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =11to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3745dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 8.6499.36V V O Output Voltage I O =1to 40mA V I =11.5to 23V 8.559.45VI O =1to 70mA V I =15V8.559.45∆V O Line Regulation V I =11.5to 23V T J =25°C 225mV V I =12to 23V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =12to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C70µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3744dB V dDropout Voltage1.7V12/24ELECTRICAL CHARACTERISTICS OF L78L10AB AND L78L10AC (refer to the test circuits,V I =16V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L10AC,T J =-40to 125°C for L78L10AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L12AB AND L78L12AC (refer to the test circuits,V I =19V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L12AC,T J =-40to 125°C for L78L12AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 9.61010.4V V O Output Voltage I O =1to 40mA V I =12.5to 23V 9.510.5VI O =1to 70mA V I =16V9.510.5∆V O Line Regulation V I =12.5to 23V T J =25°C 230mV V I =13to 23V T J =25°C 170∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =13to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =14to 23V f =120Hz I O =40mAT J =25°C3745dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 11.51212.5V V O Output Voltage I O =1to 40mA V I =14.5to 27V 11.412.6VI O =1to 70mA V I =19V11.412.6∆V O Line Regulation V I =14.5to 27V T J =25°C 250mV V I =16to 27V T J =25°C 200∆V O Load Regulation I O =1to 100mA T J =25°C 100mV I O =1to 40mA T J =25°C50I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =16to 27V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C80µV SVR Supply Voltage Rejection V I =15to 25V f =120Hz I O =40mAT J =25°C3742dB V dDropout Voltage1.7V13/24ELECTRICAL CHARACTERISTICS OF L78L15AB AND L78L15AC (refer to the test circuits,V I =19V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L15AC,T J =-40to 125°C for L78L15AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L18AB AND L78L18AC(refer to the test circuits,V I =27V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L18AC,T J =-40to 125°C for L78L18AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 14.41515.6V V O Output Voltage I O =1to 40mA V I =17.5to 30V 14.2515.75VI O =1to 70mA V I =23V14.2515.75∆V O Line Regulation V I =17.5to 30V T J =25°C 300mV V I =20to 30V T J =25°C 250∆V O Load Regulation I O =1to 100mA T J =25°C 150mV I O =1to 40mA T J =25°C75I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =20to 30V 1.5eN Output Noise Voltage B =10Hz to 100KHzT J =25°C90µV SVR Supply Voltage Rejection V I =18.5to 28.5V f =120Hz I O =40mA T J =25°C3439dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 17.31818.7V V O Output Voltage I O =1to 40mA V I =22to 33V 17.118.9VI O =1to 70mA V I =27V17.118.9∆V O Line Regulation V I =22to 33V T J =25°C 320mV V I =22to 33V T J =25°C 270∆V O Load Regulation I O =1to 100mA T J =25°C 170mV I O =1to 40mA T J =25°C85I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =23to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =23to 33V f =120Hz I O =40mAT J =25°C3338dB V dDropout Voltage1.7V14/24ELECTRICAL CHARACTERISTICS OF L78L20AB AND L78L20AC (refer to the test circuits,V I =29V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L20AC,T J =-40to 125°C for L78L20AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L24AB AND L78L24AC (refer to the test circuits,V I =27V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L24AC,T J =-40to 125°C for L78L24AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 19.22020.8V V O Output Voltage I O =1to 40mA V I =24to 33V 1921VI O =1to 70mA V I =29V1921∆V O Line Regulation V I =22.5to 34V T J =25°C 330mV V I =24to 34V T J =25°C 280∆V O Load Regulation I O =1to 100mA T J =25°C 180mV I O =1to 40mA T J =25°C90I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =25to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =25to 35V f =120Hz I O =40mAT J =25°C3238dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 232425V V O Output Voltage I O =1to 40mA V I =27to 38V 22.825.2VI O =1to 70mA V I =33V22.825.2∆V O Line Regulation V I =27to 38V T J =25°C 350mV V I =28to 38V T J =25°C 300∆V O Load Regulation I O =1to 100mA T J =25°C 200mV I O =1to 40mA T J =25°C100I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =28to 38V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C200µV SVR Supply Voltage Rejection V I =23to 33V f =120Hz I O =40mAT J =25°C3137dB V dDropout Voltage1.7VFigure1:L78L05/12Output Voltage vs Ambient TemperatureFigure2:L78L05/12/24Load Characteristics Figure3:L78L05/12/24Thermal Shutdown Figure4:L78L05/12Quiescent Current vs Output CurrentFigure5:L78L05Quiescent Current vs Input VoltageFigure6:L78L05/12/24OutputCharacteristics15/24Figure7:L78L05/12/24Ripple Rejection Figure8:L78L05Dropout Characteristics Figure9:L78L00Series Short Circuit OutputCurrent16/2417/24TYPICAL APPLICATIONSTable 10:High Output Current Short Circuit ProtectedFigure 11:Edit Boost CircuitFigure 12:CurrentRegulatorFigure13:Adjustable OutputRegulator18/24Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.© The ST logo is a registered trademark of STMicroelectronics© 2003 STMicroelectronics - Printed in Italy - All Rights ReservedSTMicroelectronics GROUP OF COMPANIESAustralia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.© 24/24。

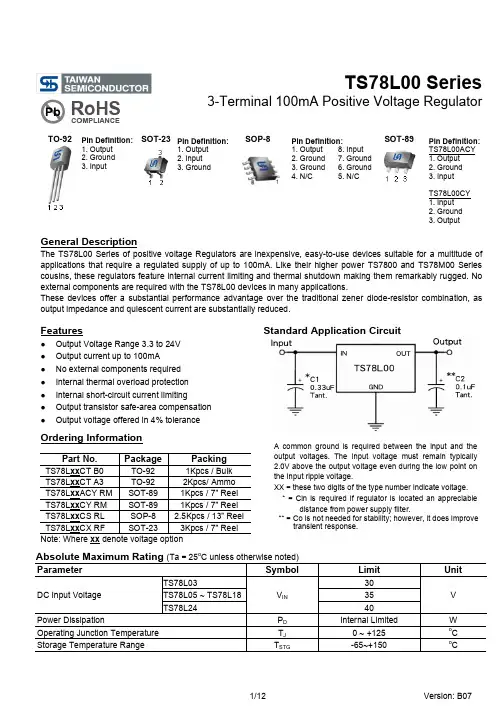

TS78L03CSRL中文资料

TS78L03CSRL中文资料


--
50
Load Regulation Quiescent Current
REGload Tj=25oC 5mA≤Iout≤100mA
--
12
5mA≤Iout≤40mA
--
4
Iq
Iout=0, Tj=25oC
--
3
Quiescent Current Change Output Noise Voltage
General Description
The TS78L00 Series of positive voltage Regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100mA. Like their higher power TS7800 and TS78M00 Series cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the TS78L00 devices in many applications. These devices offer a substantial performance advantage over the traditional zener diode-resistor combination, as output impedance and quiescent current are substantially reduced.

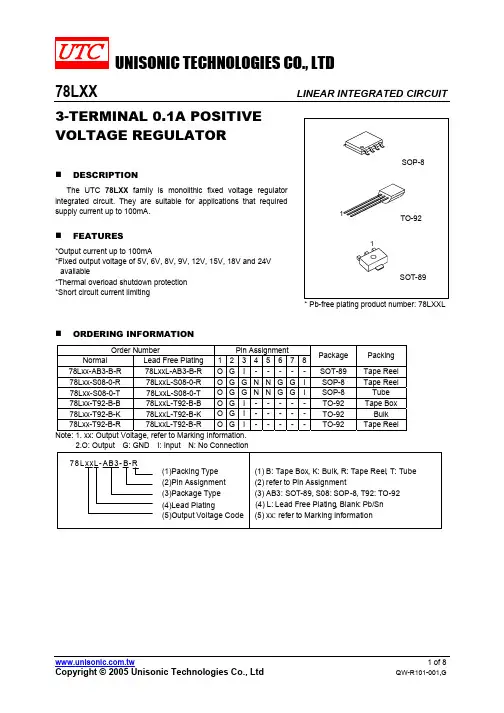

78LxxL-AB3-B-R中文资料

78LxxL-AB3-B-R中文资料

UNISONIC TECHNOLOGIES CO., LTD78LXX LINEAR INTEGRATED CIRCUIT3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORDESCRIPTIONThe UTC 78LXX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 100mA.FEATURES*Output current up to 100mA*Fixed output voltage of 5V, 6V, 8V, 9V, 12V, 15V, 18V and 24V available*Thermal overload shutdown protection *Short circuit current limiting* Pb-free plating product number: 78LXXLORDERING INFORMATIONOrder Number Pin AssignmentNormal Lead Free Plating 12345678Package Packing 78Lxx-AB3-B-R 78LxxL-AB3-B-RO G I -----SOT-89 Tape Reel 78Lxx-S08-0-R 78LxxL-S08-0-RO G G N N G G I SOP-8 Tape Reel 78Lxx-S08-0-T 78LxxL-S08-0-TO G G N N G G I SOP-8 Tube 78Lxx-T92-B-B 78LxxL-T92-B-BO G I -----TO-92 Tape Box 78Lxx-T92-B-K 78LxxL-T92-B-KO G I -----TO-92 Bulk 78Lxx-T92-B-R 78LxxL-T92-B-RO G I -----TO-92 Tape ReelNote: 1. xx: Output Voltage, refer to Marking Information.MARKING INFORMATIONABSOLUTE MAXIMUM RATINGS PARAMETER SYMBOL RATINGS UNITV OUT =5~9V 30Input voltage V OUT =12~24V V IN35V Output Current I OUT 100 mA SOP-8 300TO-92 625Power Dissipation SOT-89 P D 350mW Junction Temperature T J +125 °C Operating Temperature T OPR -20~+85 °C Storage Temperature T STG -40~+150 °CNote 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.Absolute maximum ratings are stress ratings only and functional device operation is not implied.2. The device is guaranteed to meet performance specification within 0℃~+70 ℃operating temperature range and assured by design from -20℃~+85℃ELECTRICAL CHARACTERISTICS For UTC78L05 (V IN =10V, I OUT =40mA, 0°C <T J <125°C, C1=0.33uF, Co=0.1uF, unless otherwise specified)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITT J =25°C 4.80 5.0 5.20 V7V ≦V IN ≦20V,I OUT =1mA-40mA 4.75 5.25 VOutput Voltage V OUT 7V ≦V IN ≦V MAX ,I OUT =1mA-70mA 4.75 5.25 V (note 2)T J =25°C,I OUT =1mA-100mA 11 60 mVLoad Regulation V OUTT J =25°C,I OUT =1mA-40mA5.0 30 mV 7V ≦V IN ≦20V,T J =25°C 8 150 mVLine regulation V OUT8V ≦V IN ≦20V,T J =25°C 6 100 mVQuiescent Current ∆I Q V IN =10V,I OUT =0mA,T J =25°C 2.0 5.5 mA8V ≦V IN ≦20V 1.5 mAQuiescent Current Change ∆I Q1mA ≦V IN ≦40mA 0.1 mA Output Noise Voltage eN 10Hz ≦f ≦100kHz 40 uVTemperature coefficient of V OUT ∆V O /∆T I OUT =5mA -0.65 mV/°CRipple Rejection RR 8V ≦V IN ≦20V,f=120Hz,T J =25°C41 80 dB Dropout Voltage V D T J =25°C 1.7 VFor UTC78L06 (V IN =12V, I OUT =40mA, 0°C <T J <125°C, C1=0.33uF, Co=0.1uF, unless otherwise specified)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITT J =25°C 5.76 6.0 6.24 V8.5V ≦V IN ≦20V,I OUT =1mA-40mA 5.70 6.30 VOutput Voltage V OUT 8.5V ≦V IN ≦V MAX , I OUT =1mA-70mA 5.70 6.30 V(note 2)T J =25°C,I OUT =1mA-100mA 12.8 80 mVLoad Regulation V OUTT J =25°C,I OUT =1mA-70mA 5.8 40 mV 8.5V ≦V IN ≦20V,T J =25°C 64 175 mVLine regulation V OUT9V ≦V IN ≦20V,T J =25°C 54 125 mVQuiescent Current ∆I Q V IN =12V,I OUT =0mA,T J =25°C 3.9 6.0 mA9V ≦V IN ≦20V 1.5 mAQuiescent Current Change ∆I Q1mA ≦V IN ≦40mA 0.1 mA Output Noise Voltage eN 10Hz ≦f ≦100kHz 49 uVTemperature coefficient of V OUT ∆V O /∆T I OUT =5mA 0.75 mV/°C Ripple Rejection RR 10V ≦V IN ≦20V,f=120Hz, T J =25°C 40 46 dB Dropout Voltage V D T J =25°C 1.7 VELECTRICAL CHARACTERISTICS (Cont.)For UTC78L08 (V IN =14V, I OUT =40mA, 0°C<T J <125°C, C1=0.33uF, Co=0.1uF, unless otherwise specified)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITT J =25°C 7.68 8.0 8.32 V 10.5V ≦V IN ≦23V,I OUT =1mA-40mA 7.60 8.40 V Output Voltage V OUT 10.5V ≦V IN ≦V MAX , I OUT =1mA-70mA 7.60 8.40 V(note 2)T J =25°C,I OUT =1mA-100mA 15 80 mVLoad RegulationV OUT T J =25°C,I OUT =1mA-70mA 8.0 40 mV10.5V ≦V IN ≦23V,T J =25°C10 175 mV Line regulationV OUT 11V ≦V IN ≦23V,T J =25°C 8 125 mVQuiescent Current ∆I Q V IN =14V,I OUT =0mA,TJ=25°C 2.0 5.5 mA11V ≦V IN ≦23V 1.5 mAQuiescent Current Change ∆I Q1mA ≦V IN ≦40mA 0.1 mA Output Noise Voltage eN 10Hz ≦f ≦100kHz 49 uVTemperature coefficient of V o ∆V O /∆T I OUT =5mA 0.75 mV/°CRipple RejectionRR 11V ≦V IN ≦23V,f=120Hz,T J =25°C 3970 dB Dropout Voltage V D T J =25°C 1.7 VFor UTC78L09 (V IN =15V, I OUT =40mA, 0°C <T J <125°C, C1=0.33uF, Co=0.1uF, unless otherwise specified)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITT J =25°C 8.64 9.0 9.36 V11.5V ≦V IN ≦24V,I OUT =1mA-40mA 8.55 9.45 V Output Voltage V OUT 11.5V ≦V IN ≦V MAX , I OUT =1mA-70mA 8.55 9.45 V(note 2)T J =25°C,I OUT =1mA-100mA 20 90 mVLoad Regulation V OUTT J =25°C,I OUT =1mA-40mA 10 45 mV 11.5V ≦V IN ≦24V,T J =25°C 90 200 mVLine regulation V OUT13V ≦V IN ≦24V,T J =25°C 100 150 mV Quiescent Current ∆I Q V IN =15V,I OUT =0mA,T J =25°C 2.0 6.0 mA13V ≦V IN ≦24V 1.5 mAQuiescent Current Change ∆I Q1mA ≦V IN ≦40mA 0.1 mA Output Noise Voltage V N 10Hz ≦f ≦100kHz 49 uVTemperature coefficient of V OUT ∆V O /∆T I OUT =5mA 0.75 mV/°CRipple Rejection RR 12V ≦V IN ≦23V,f=120Hz,T J =25°C3844 dB Dropout Voltage V D T J =25°C 1.7 VFor UTC78L12 (V IN =19V, I OUT =40mA, 0°C <T J <125°C, C1=0.33uF, Co=0.1uF, unless otherwise specified)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITT J =25°C 11.52 12.0 12.48 V14.5V ≦V IN ≦27V,I OUT =1mA-40mA 11.40 12.60 VOutput Voltage V OUT 14.5V ≦V IN ≦V MAX , I OUT =1mA-70mA 11.40 12.60 V(note 2)T J =25°C,I OUT =1mA-100mA 25 150 mVLoad Regulation V OUTT J =25°C,I OUT =1mA-40mA12 75 mV 14.5V ≦V IN ≦27V,T J =25°C 25 300 mVLine regulation V OUT16V ≦V IN ≦=27V,T J =25°C 20 250 mVQuiescent Current ∆I Q V IN =19V,I OUT =0mA,T J =25°C 2.0 6.0 mA16V ≦V IN ≦27V 1.5 mAQuiescent Current Change ∆I Q1mA ≦V IN ≦40mA 0.1 mA Output Noise Voltage eN 10Hz ≦f ≦100kHz 80 uVTemperature coefficient of V OUT ∆V O /∆T I OUT 5mA -1.0 mV/°C Ripple Rejection RR 15V ≦V IN ≦25V,f=120Hz,T J =25°C 3765 dB Dropout Voltage V D T J =25°C 1.7 VELECTRICAL CHARACTERISTICS (Cont.)For UTC78L15 (V IN =23V, I OUT =40mA, 0°C <T J <125°C, C1=0.33uF, Co=0.1uF, unless otherwise specified)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITT J =25°C 14.40 15.0 15.60 V 17.5V ≦V IN ≦30V,I OUT =1mA-40mA 14.25 15.75 V Output Voltage V OUT 17.5V ≦V IN ≦V MAX , I OUT =1mA-70mA 14.25 15.75 V(note 2)T J =25°C,I OUT =1mA-100mA 20 150 mVLoad Regulation V OUTT j =25°C,I OUT =1mA-70mA25 150 mV 17.5V ≦V IN ≦30V,T J =25°C 25 150 mVLine regulation V OUT20V ≦V IN ≦30V,T J =25°C 15 75 mVQuiescent Current ∆I Q V IN =23V,I OUT =0mA,T J =25°C 2.2 6.5 mA20V ≦V IN ≦30V 1.5 mAQuiescent Current Change ∆I Q1mA ≦V IN ≦40mA 0.1 mA Output Noise Voltage eN 10Hz ≦f ≦100kHz 90 uVTemperature coefficient of V OUT ∆V O /∆T I OUT =5mA -1.3 mV/°CRipple Rejection RR 18.5V ≦V IN ≦28.5V,f=120Hz, T J =25°C 3463 dB Dropout Voltage V D T J =25°C 1.7 VFor UTC78L18 (V IN =27V,I OUT =40mA,0°C<T J <125°C,C1=0.33uF,Co=0.1uF,unless otherwise specified)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITT J =25°C 17.28 18.0 18.72 V21V ≦V IN ≦33V,I OUT =1mA-40mA 17.10 18.90 VOutput Voltage V OUT 21V ≦V IN ≦V MAX ,I OUT =1mA-70mA 17.10 18.90 V(note 2)T J =25°C,I OUT =1mA-100mA 30 170 mVLoad Regulation V OUTT J =25°C,I OUT =1mA-40mA 15 85 mV 21V ≦V IN ≦33V,T J =25°C 145 300 mVLine regulation V OUT22V ≦V IN ≦33V,T J =25°C 135 250 mV Quiescent Current ∆I Q V IN =27V,I OUT =0mA,T J =25°C 2.0 6.0 mA21V ≦V IN ≦33V 1.5 mAQuiescent Current Change ∆I Q1mA ≦V IN ≦40mA 0.1 mA Output Noise Voltage eN 10Hz ≦f ≦100kHz 150 uVTemperature coefficient of V OUT ∆V O /∆T I OUT =5mA -1.8 mV/°CRipple Rejection RR 23V ≦V IN ≦33V,f=120Hz,T J =25°C3448 dB Dropout Voltage V D T J =25°C 1.7 VFor UTC78L24 (V IN =33V,I OUT =40mA,0°C <T J <125°C,C1=0.33uF,Co=0.1uF,unless otherwise specified)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITT J =25°C 23.04 24.0 24.96 V27V ≦V IN ≦38V,I OUT =1mA-40mA 22.8 25.2 VOutput Voltage V OUT 27V ≦V IN ≦V MAX , I OUT =1mA-70mA 22.8 25.2 V(note 2)T J =25°C,I OUT =1mA-100mA 40 200 mVLoad Regulation△V OUT T J =25°C,I OUT =1mA-40mA 20 100 mV 27V ≦V IN ≦38V,T J =25°C 160 300 mVLine regulation△V OUT 28V ≦V IN ≦38V,T J =25°C 150 250 mVQuiescent Current ∆I Q V IN =33V,I OUT =0mA,T J =25°C 2.2 6.0 mA27V ≦V IN ≦38V 1.5 mAQuiescent Current Change ∆I Q1mA ≦V IN ≦40mA 0.1 mA Output Noise Voltage eN 10Hz ≦f ≦100kHz 200 uVTemperature coefficient of V OUT ∆V O /∆T I OUT 5mA -2.0 mV/°C Ripple Rejection RR 27V ≦V IN ≦38V,f=120Hz,T J =25°C 3445 dB Dropout Voltage V D T J =25°C 1.7 V Note 1.The Maximum steady state usable output current is dependent on input voltage, heat sinking, lead length ofthe package and copper pattern of PCB. 2.Power dissipation<0.5WAPPLICATION CIRCUITNote 1.To specify an output voltage, substitute voltage value for "XX".2.Bypass capacitors are recommended for optimum stability and transient response and should be located as close as possible to the regulators.TEST CIRCUITINPUTZ1TYPICAL CHARACTERISTICSFig.1 Ambient temperature vs. PowerdissipationFig.2 UTC78L05 Output Voltage vs.Ambient temperature255075100Ambient Temperature(℃)P o w e r D i s s i a p t i o n (m W )Ambient Temperature(℃)-5050100Fig.3 UTC78L12 Output Voltage vs. AmbienttemperatureAmbient Temperature (℃)-505010011.7Fig.4 Output Characteristics(Ip=0mA,T J =25℃)11.811.912.012.1O u t p u t V o l a t g e (V )Input Voltage(V)10203040O u t p u t V o l t a g e (V )0105152025Fig.6 Short Circuit output current(T J =25℃)Fig.5 UTC78L05 Dropout Characteristics(T J =25℃)54.14.5O u t p u t V o l t a g e (V )Input Voltage(V)6.06.57.0I oU T=0m A I o UT =40m A I o UT =100m Ainput-outputVoltage difference (V)10203040S h o r t c i r c u i t C u r r e n t (m A )100200300400500TYPICAL CHARACTERISTICS(Cont.)Fig.7 UTC78L12/24 quiescent current vsoutput current (T J =25℃)Fig.8 UTC78L05 Quiescent Current vs. Input Voltage (I OUT =0mA,T J =25℃)Output Current (mA)0208040601001.92.02.12.22.32.42.52.62.7Q u i e s c e n t Cu r r e n t (m A )Input Voltage(V)10203040Fig.9 Peak Output Current vs Dropout Voltage DifferenceInput-output voltage difference(V)10203040P e a k O u t p u t C u r r e n t (m A )100200300400Fig.10 Dropout Voltage25501001.01.52.02.5Junction Temperature (℃)I n p u tO u t p u t D i f f e r e n ti o n a l (V )0.575125。

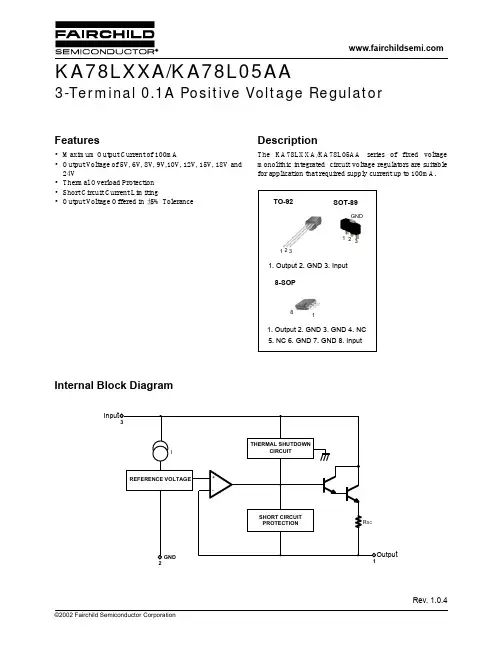

KA78L05AAZ中文资料

KA78L05AAZ中文资料

©2002 Fairchild Semiconductor CorporationRev. 1.0.4Features•Maximum Output Current of 100mA•Output V oltage of 5V , 6V , 8V , 9V ,10V , 12V , 15V , 18V and 24V•Thermal Overload Protection •Short Circuit Current Limiting•Output V oltage Offered in ±5% ToleranceDescriptionThe KA78LXXA/KA78L05AA series of fixed voltage monolithic integrated circuit voltage regulators are suitable for application that required supply current up to 100mA.TO-921. Output2. GND3. Input 8-SOP1. Output2. GND3. GND4. NC5. NC6. GND7. GND8. Input11SOT-891GND23238KA78LXXA/KA78L05AA3-Terminal 0.1A Positive Voltage RegulatorKA78LXXA/KA78L05AA2Absolute Maximum RatingsElectrical Characteristics(KA78L05A)(V I = 10V, I O = 40mA, 0°C ≤ T J ≤ 125°C, C I = 0.33µF, C O = 0.1µF, unless otherwise specified. (Note1)Note:1.The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2.Power dissipation P D ≤ 0.75W.ParameterSymbol Value Unit Input Voltage (for V O = 5V, 8V)(for V O = 12V to 18V)(for V O = 24VV I303540V V V Operating Junction Temperature Range T J 0 ~ +150°C Storage Temperature RangeT STG-65 ~ +150°CParameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 4.8 5.0 5.2V Line Regulation (Note1)∆V O T J = 25°C 7V ≤ V I ≤ 20V -8150mV 8V ≤ V I ≤ 20V -6100mV Load Regulation (Note1)∆V OT J = 25°C 1mA ≤ I O ≤ 100mA -1160mV 1mA ≤ I O ≤ 40mA - 5.030mV Output Voltage V O 7V ≤ V I ≤ 20V1mA ≤ I O ≤ 40mA -- 5.25V 7V ≤V I ≤ V MAX (Note 2)1mA ≤ I O ≤ 70mA 4.75- 5.25V Quiescent Current I Q T J = 25°C - 2.0 5.5mA Quiescent Current Changewith line ∆I Q 8V ≤V I ≤ 20V -- 1.5mA with load∆I Q 1mA ≤ I O ≤ 40 mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤ 100kHz -40-µV/Vo Temperature Coefficient of V O ∆V O /∆T I O = 5mA--0.65-mV/°C Ripple Rejection RR f = 120Hz, 8V ≤ V I ≤ 18V, T J = 25°C 4180-dB Dropout VoltageV DT J = 25°C- 1.7-VKA78LXXA/KA78L05AA3Electrical Characteristics(KA78L06A) (Continued)(V I = 12V, I O = 40mA, 0°C ≤ T J ≤ 125°C, C I = 0.33µF, C O = 0.1µF, unless otherwise specified. (Note 1)Note:1.The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2.Power dissipation P D ≤ 0.75W.Parameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 5.75 6.0 6.25V Line Regulation (Note1)∆V O T J = 25°C 8.5V ≤ V I ≤ 20V -64175mV 9V ≤ V I ≤ 20V -54125mV Load Regulation (Note1)∆V O T J = 25°C1mA ≤ I O ≤ 100mA -12.880mV 1mA ≤ I O ≤ 70mA - 5.840mV Output Voltage V O 8.5 ≤ V I ≤ 20V, 1mA ≤ I O ≤ 40mA 5.7- 6.3V 8.5 ≤ V I ≤ V MAX (Note), 1mA ≤ I O ≤ 70mA 5.7- 6.3V Quiescent CurrentI Q T J = 25°C -- 5.5mA T J = 125°C - 3.9 6.0mA Quiescent Current Change with line ∆I Q 9 ≤ V I ≤ 20V -- 1.5mA with load ∆I Q 1mA ≤ I O ≤ 40mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤ 100kHz -40-µV/Vo Temperature Coefficient of V O ∆V O /∆TI O = 5mA-0.75-mV/ °C Ripple Rejection RR f = 120Hz, 10V ≤ V I ≤ 20V, T J = 25°C 4046-dB Dropout VoltageV DT J = 25°C- 1.7-VKA78LXXA/KA78L05AA4Electrical Characteristics(KA78L08A) (Continued)(V I = 14V, I O = 40mA, 0°C ≤ T J ≤ 125°C, C I = 0.33µF, C O = 0.1µF, unless otherwise specified. (Note 1)Note:1.The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2.Power dissipation P D ≤ 0.75W.Parameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 7.78.08.3V Line Regulation (Note1)∆V O T J = 25°C 10.5V ≤ V I ≤ 23V -10175mV 11V ≤ V I ≤ 23V -8125mV Load Regulation (Note1)∆V OT J = 25°C1mA ≤ I O ≤ 100mA -1580mV 1mA ≤ I O ≤ 40mA -8.040mV Output Voltage V O 10.5V ≤ V I ≤ 23V 1mA ≤ I O ≤ 40mA7.6-8.4V 10.5V ≤ V I ≤ V MAX (Note 2)1mA ≤ I O ≤ 70mA7.6-8.4V Quiescent Current I Q T J = 25°C - 2.0 5.5mA Quiescent Current Changewith line ∆I Q 11V ≤ V I ≤ 23V -- 1.5mA with load∆I Q 1mA ≤ I O ≤ 40mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤100kHz -60-µV/Vo Temperature Coefficient of V O ∆V O /∆T I O = 5mA--0.8-mV/°C Ripple Rejection RR f = 120Hz, 11V ≤ V I ≤ 21V, T J = 25°C 3970-dB Dropout VoltageV DT J = 25°C- 1.7-VKA78LXXA/KA78L05AA5Electrical Characteristics(KA78L09A) (Continued)(V I = 15V, I O = 40mA, 0°C ≤ T J ≤ 125°C, C I = 0.33µF, C O = 0.1µF, unless otherwise specified. (Note 1)Note:1.The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2.Power dissipation P D ≤ 0.75W.Parameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 8.649.09.36V Line Regulation (Note1)∆V O T J = 25°C 11.5V ≤ V I ≤ 24V -90200mV 13V ≤ V I ≤ 24V -100150mV Load Regulation (Note1)∆V OT J = 25°C1mA ≤ I O ≤ 100mA -2090mV 1mA ≤ I O ≤ 40mA -1045mV Output Voltage V O 11.5V ≤ V I ≤ 24V 1mA ≤ I O ≤ 40mA8.55-9.45V 11.5V ≤ V I ≤ V MAX (Note 2)1mA ≤ I O ≤ 70mA8.55-9.45V Quiescent Current I Q T J = 25°C - 2.1 6.0mA Quiescent Current Changewith line ∆I Q 13V ≤ V I ≤ 24V -- 1.5mA with load∆I Q 1mA ≤ I O ≤ 40mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤ 100kHz -70-µV/Vo Temperature Coefficient of V O ∆V O /∆T I O = 5mA--0.9-mV/ °C Ripple Rejection RR f = 120Hz, 12V ≤ V I ≤ 22V, T J = 25°C 3844-dB Dropout VoltageV DT J = 25°C- 1.7-VKA78LXXA/KA78L05AA6Electrical Characteristics(KA78L10A) (Continued)(V I = 16V, I O = 40mA, 0 °C ≤ T J ≤ 125 °C, C I = 0.33 µF, C O = 0.1µF, unless otherwise specified. (Note 1)Notes:1.The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2.Power dissipation P D ≤ 0.75W.Parameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 9.610.010.4V Line Regulation (Note1)∆V O T J = 25°C 12.5 ≤ V I ≤ 25V -100220mV 14V ≤ V I ≤ 25V -100170mV Load Regulation (Note1)∆V OT J = 25°C1mA ≤ I O ≤ 100mA -2094mV 1mA ≤ I O ≤ 70mA-1047mVOutput VoltageV O12.5V ≤ V I ≤ 25V, 1mA ≤ I O ≤ 40mA9.5-10.5V 12.5V ≤ V I ≤ V MAX (Note2)1mA ≤ I O ≤ 70mA 9.5-10.5Quiescent Current I Q T J = 25°C -- 6.0mA T J =125°C - 4.2 6.5Quiescent Current Changewith line ∆I Q 12.5 ≤ V I ≤ 25V -- 1.5mA with load∆I Q 1mA ≤ I O ≤ 40mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤ 100kHz -74-µV/Vo Temperature Coefficient of V O ∆V O /∆T I O = 5mA-0.95-mV/ °C Ripple Rejection RR f = 120Hz, 15V ≤ V I ≤ 25V, T J = 25°C 3843-dB Dropout VoltageV DT J = 25°C-1.7-VKA78LXXA/KA78L05AA7Electrical Characteristics(KA78L12A) (Continued)(V I = 19V, I O = 40mA, 0°C ≤ T J ≤ 125°C, C I = 0.33 µF, C O = 0.1µF, unless otherwise specified. (Note 1)Note:1.The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2.Power dissipation P D ≤ 0.75W.Parameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 11.51212.5V Line Regulation (Note1)∆V O T J = 25°C 14.5V ≤ V I ≤ 27V -20250mV 16V ≤ V I ≤ 27V -15200mV Load Regulation (Note1)∆V OT J = 25°C1mA ≤ I O ≤ 100mA -20100mV 1mA ≤ I O ≤ 40mA-1050mV Output Voltage V O 14.5V ≤ V I ≤ 27V 1mA ≤ I O ≤ 40mA11.4-12.6V 14.5V ≤ V I ≤ V MAX (Note 2)1mA ≤ I O ≤ 70mA 11.4-12.6V Quiescent Current I Q T J = 25°C - 2.1 6.0mA Quiescent Current Changewith line ∆I Q 16V ≤ V I ≤ 27V -- 1.5mA with load∆I Q 1mA ≤ I O ≤ 40mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤ 100kHz -80-µV/Vo Temperature Coefficient of V O ∆V O /∆T I O = 5mA--1.0-mV/ °C Ripple Rejection RR f = 120Hz, 15V ≤ V I ≤ 25V, T J = 25°C 3765-dB Dropout VoltageV DT J = 25°C- 1.7-VKA78LXXA/KA78L05AA8Electrical Characteristics(KA78L15A) (Continued)(V I = 23V, I O = 40mA, 0°C ≤ T J ≤ 125°C, C I = 0.33 µF, C O = 0.1µF, unless otherwise specified. (Note 1)Note:1.The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2.Power dissipation P D ≤ 0.75W.Parameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 14.41515.6V Line Regulation (Note1)∆V O T J = 25°C 17.5V ≤ V I ≤ 30V -25300mV 20V ≤ V I ≤ 30V -20250mV Load Regulation (Note1)∆V OT J = 25°C 1mA ≤ I O ≤ 100mA -25150mV 1mA ≤ I O ≤ 40mA -1275mV Output Voltage V O 17.5V ≤ V I ≤ 30V1mA ≤ I O ≤ 40mA 14.25-15.75V 17.5V ≤ V I ≤ V MAX (Note 2)1mA ≤ I O ≤ 70mA 14.25-15.75V Quiescent Current I Q T J = 25°C - 2.1 6.0mA Quiescent Current Changewith line ∆I Q 20V ≤ V I ≤ 30V -- 1.5mA with load∆I Q 1mA ≤ I O ≤ 40mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤ 100kHz -90-µV/Vo Temperature Coefficient of V O ∆V O /∆TI O = 5mA--1.3-mV/°C Ripple Rejection RR f = 120Hz, 18.5V ≤ V I ≤ 28.5V, T J = 25°C 3460-dB Dropout VoltageV DT J = 25°C- 1.7-VKA78LXXA/KA78L05AA9Electrical Characteristics(KA78L18A) (Continued)(V I = 27V, I O = 40mA, 0°C ≤ T J ≤ 125°C, C I = 0.33 µF, C O = 0.1µF, unless otherwise specified. (Note 1)Note:1.The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2.Power dissipation P D ≤ 0.75W.Parameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 17.31818.7V Line Regulation (Note1)∆V O T J = 25°C 21V ≤ V I ≤ 33V -145300mV 22V ≤ V I ≤ 33V -135250mV Load Regulation (Note1)∆V OT J = 25°C 1mA ≤ I O ≤100mA -30170mV 1mA ≤ I O ≤ 40mA -1585mV Output Voltage V O 21V ≤ V I ≤ 33V1mA ≤ I O ≤ 40mA 17.1-18.9V 21V ≤ V I ≤ V MAX (Note 2)1mA ≤ I O ≤ 70mA 17.1-18.9V Quiescent Current I Q T J = 25°C - 2.2 6.0mA Quiescent Current Changewith line ∆I Q 21V ≤ V I ≤ 33V -- 1.5mA with load∆I Q 1mA ≤ I O ≤ 40mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤ 100kHz -150-µV/Vo Temperature Coefficient of V O ∆V O /∆T I O = 5mA--1.8-mV/°C Ripple Rejection RR f = 120Hz, 23V ≤ V I ≤ 33V, T J = 25°C 3448-dB Dropout VoltageV DT J = 25°C- 1.7-VKA78LXXA/KA78L05AA10Electrical Characteristics(KA78L24A) (Continued)(V I = 33V, I O = 40mA, 0°C ≤ T J ≤ 125°C, C I = 0.33 µF, C O = 0.1µF, unless otherwise specified. (Note 1)Note:1.The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2.Power dissipation P D ≤ 0.75W.Parameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 232425V Line Regulation (Note1)∆V O T J = 25°C 27V ≤ V I ≤ 38V -160300mV 28V ≤ V I ≤ 38V -150250mV Load Regulation (Note1)∆V OT J = 25°C 1mA ≤ I O ≤ 100mA -40200mV 1mA ≤ I O ≤ 40mA -20100mV Output Voltage V O 27V ≤ V I ≤ 38V1mA ≤ I O ≤ 40mA 22.8-25.2V 27V ≤ V I ≤ V MAX (Note 2)1mA ≤ I O ≤ 70mA 22.8-25.2V Quiescent Current I Q T J = 25°C - 2.2 6.0mA Quiescent Current Changewith line ∆I Q 28V ≤ V I ≤ 38V -- 1.5mA with load∆I Q 1mA ≤ I O ≤ 40mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤ 100kHz -200-µV/Vo Temperature Coefficient of V O ∆V O /∆T I O = 5mA--2.0-mV/°C Ripple Rejection RR f = 120Hz, 28V ≤ V I ≤ 38V, T J = 25°C 3445-dB Dropout VoltageV DT J = 25°C- 1.7-V11Absolute Maximum RatingsElectrical Characteristics(KA78L05AA) (Continued)(V I = 10V, I O = 40mA, 0°C ≤ T J ≤ 125°C, C I = 0.33 µF, C O = 0.1µF, unless otherwise specified. (Note 1)Note:1. The maximum steady state usable output current and input voltage are very dependent on the heat sinking and/or lead lengthof the package. The data above represent pulse test conditions with junction temperature as indicated at the initiation of tests.2. Power dissipation P D ≤ 0.75W.ParameterSymbol Value Unit Input Voltage (for V O = 5V, 8V)(for V O = 12V to 18V)(for V O = 24VV I 303540V V V Operating Junction Temperature Range T J 0 ~ +150°C Storage Temperature RangeT STG-65 ~ +150°CParameter Symbol ConditionsMin.Typ.Max.Unit Output Voltage V O T J = 25°C 4.9 5.0 5.1V Line Regulation (Note1)∆V O T J = 25°C 7V ≤ V I ≤ 20V -8150mV 8V ≤ V I ≤ 20V -6100mV Load Regulation (Note1)∆V OT J = 25°C 1mA ≤ I O ≤ 100mA -1150mV 1mA ≤ I O ≤ 40mA - 5.025mV Output Voltage V O 7V ≤V I ≤20V1mA ≤ I O ≤ 40mA -- 5.15V 7V ≤V I ≤ V MAX (Note 2)1mA ≤ I O ≤ 70mA 4.85- 5.15V Quiescent Current I Q T J = 25°C - 2.0 5.5mA Quiescent Current Changewith line ∆I Q 8V ≤V I ≤ 20V -- 1.5mA with load∆I Q 1mA ≤ I O ≤ 40 mA--0.1mA Output Noise Voltage V N T A = 25°C, 10Hz ≤ f ≤ 100kHz -40-µV/Vo Temperature Coefficient of V O ∆V O /∆T I O = 5mA--0.65-mV/°C Ripple Rejection RR f = 120Hz, 8V ≤ V I ≤ 18V, T J = 25°C 4180-dB Dropout VoltageV DT J = 25°C- 1.7-VTypical Application’( )’ : 8SOP TypeNotes:1.To specify an output voltage, substitute voltage value for “XX”.2.Bypass Capacitors are recommend for optimum stability and transient response and should be located as close as possibleto the regulator12Mechanical DimensionsPackageDimensions in millimetersTO-9213PackageDimensions in millimeters8-SOP14PackageDimensions in millimetersSOT-89157/2/02 0.0m 001Stock#DSxxxxxxxx2002 Fairchild Semiconductor CorporationLIFE SUPPORT POLICYFAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein:1.Life support devices or systems are devices or systemswhich, (a) are intended for surgical implant into the body, or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can bereasonably expected to result in a significant injury of the user.2. A critical component in any component of a life supportdevice or system whose failure to perform can bereasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.DISCLAIMERFAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANYLIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.Ordering InformationProduct Number PackageOutput Voltage ToleranceOperating TemperatureKA78L05AZ TO-925%0 ~ +125 °CKA78L06AZ KA78L08AZ KA78L09AZ KA78L10AZ KA78L12AZ KA78L15AZ KA78L18AZ KA78L24AZ KA78L05AD 8-SOPKA78L08AD KA78L12AD KA78L05AM SOT-89KA78L08AM KA78L12AM KA78L05AAZTO-922%。
