200mA Positive Voltage Regulator200mA Positive Voltage RegulatorGeneral Description• The TCI LM 78LXX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 100mA.• The LM78L is available in TO-92, TO-92L, SOT-89, SOT-223 and SOP-8 packages. .Features Applications• Output Current up to 200mA• Fixed output voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V and 24V available• Thermal overload shutdown protection • Short circuit current limiting • RoHS ComplianceOrdering InformationSOT-89SOP-8TO-92SOT-223• Consumer Electronics• Microprocessor Power Supply • Mother BoardTO-92LLM78LMPin ConfigurationBlock DiagramOutline: Z TO-92Outline: H SOT-223Outline: K SOT-89Outline: S8SOP-8Outline: LZ TO-92LLM78LMAbsolute Maximum RatingsSymbolDescriptionRatingsUnitV OUT =5~9V 30 VV IN Input VoltageV OUT =12~24V 35I OUT Output Current 200 mASOP-8 300 SOT-223 350 SOT-89 350 TO-92 500 P D Power Dissipation TO-92L 500mW T OPROperating Junction Temperature Range-20 ~ 150 ° C T STGStorage Temperature Range-55 ~ 150° CNote: Absolute maximum ratings are those values beyond which the device could be permanently damaged.Absolute maximum ratings are stress ratings only and functional device operation is not implied. Electrical CharacteristicsFor LM78LM05 (V IN =10V, I OUT =40mA, 0° C<T J <125° C, C1=0.33µF, C O =0.1µF, unless otherwise specified)LM78LM05Symbol Description Min.Typ.Max.Unit Test Conditions4.805.0 5.20 V T J =25℃4.75 -5.25 V 7V ≤V IN ≤20V, I OUT =1mA-40mAV OUTOutput Voltage4.75 -5.25 V7V ≤V IN ≤V MAX , I OUT =1mA-200mAPower Dissipation<0.5W- 11 60 mV T J =25℃, 1mA ≤I OUT ≤100mA∆V OUT Load Regulation- 5.0 30 mV T J =25℃, 1mA ≤I OUT ≤40mA - 8 150 mV T J =25℃, 7V ≤V IN ≤20V∆V OUT Line Regulation- 6 100 mV T J =25℃, 8V ≤V IN ≤20VI Q Quiescent Current - 2.0 5.5 mA- - 1.5 mA 8V ≤V IN ≤20V∆I Q Quiescent Current Change- - 0.1 mA 1mA ≤I IN ≤40mAeN Output Noise Voltage - 40 - µV 10Hz ≤f ≤100KHz∆V O /∆T Temperature coefficient of V OUT - -0.65- mV/℃I OUT =5mA RR Ripple Rejection 41 80 - dB 8V ≤V IN ≤20V, f=120Hz, T J =25℃V DDropout Voltage - 1.7 - V T J =25℃LM78LMFor LM78LM06 (V IN =12V, I OUT =40mA, 0° C<T J <125° C, C1=0.33µF, C O =0.1µF, unless otherwise specified)LM78LM06Symbol Description Min.Typ.Max.Unit Test Conditions5.766.0 6.24 V T J =25℃5.70 -6.30 V 8.5V ≤V IN ≤20V, I OUT =1mA-40mAV OUTOutput Voltage5.70 -6.30 V8.5V ≤V IN ≤V MAX , I OUT =1mA-200mA, Power Dissipation<0.5W- 12.8 80 mV T J =25℃, 1mA ≤I OUT ≤100mA∆V OUT Load Regulation- 5.8 40 mV T J =25℃, 1mA ≤I OUT ≤70mA - 64 175 mV T J =25℃, 8.5V ≤V IN ≤20V∆V OUT Line Regulation- 54 125 mV T J =25℃, 9V ≤V IN ≤20VI Q Quiescent Current - 3.9 6.0 mA- - 1.5 mA 9V ≤V IN ≤20V∆I QQuiescent Current Change- - 0.1 mA 1mA ≤I IN ≤40mAeN Output Noise Voltage - 49 - µV 10Hz ≤f ≤100KHz∆V O /∆T Temperature coefficient of V OUT - -0.75- mV/℃I OUT =5mA RR Ripple Rejection 40 46 - dB 10V ≤V IN ≤20V, f=120Hz, T J =25℃V D Dropout Voltage - 1.7 - V T J =25℃For LM78LM08 (V IN =14V, I OUT =40mA, 0° C<T J <125° C, C1=0.33µF, C O =0.1µF, unless otherwise specified)LM78LM08Symbol Description Min.Typ.Max.Unit Test Conditions7.68 8.0 8.32 V T J =25℃7.60 - 8.40 V 10.5V ≤V IN ≤23V, I OUT =1mA-40mAV OUTOutput Voltage7.60 - 8.40 V10.5V ≤V IN ≤V MAX , I OUT =1mA-200mAPower Dissipation<0.5W- 15 80 mV T J =25℃, 1mA ≤I OUT ≤100mA∆V OUT Load Regulation- 8.0 40 mV T J =25℃, 1mA ≤I OUT ≤70mA - 10 175 mV T J =25℃, 10.5V ≤V IN ≤23V∆V OUT Line Regulation- 8 125 mV T J =25℃, 11V ≤V IN ≤23VI Q Quiescent Current - 2.0 5.5 mA- - 1.5 mA 11V ≤V IN ≤23V∆I Q Quiescent Current Change- - 0.1 mA 1mA ≤I IN ≤40mAeN Output Noise Voltage - 49 - µV 10Hz ≤f ≤100KHz∆V O /∆T Temperature coefficient of V OUT - -0.75- mV/℃I OUT =5mA RR Ripple Rejection 39 70 - dB 11V ≤V IN ≤23V, f=120Hz, T J =25℃ V D Dropout Voltage - 1.7 - V T J =25℃LM78LMFor LM78LM09 (V IN =15V, I OUT =40mA, 0° C<T J <125° C, C1=0.33µF, C O =0.1µF, unless otherwise specified)LM78LM09Symbol Description Min.Typ.Max.Unit Test Conditions8.64 9.0 9.36 V T J =25℃8.55 - 9.45 V 11.5V ≤V IN ≤24V, I OUT =1mA-40mAV OUTOutput Voltage8.55 - 9.45 V11.5V ≤V IN ≤V MAX , I OUT =1mA-200mA, Power Dissipation<0.5W- 20 90 mV T J =25℃, 1mA ≤I OUT ≤100mA∆V OUT Load Regulation- 10 45 mV T J =25℃, 1mA ≤I OUT ≤40mA - 90 200 mV T J =25℃, 11.5V ≤V IN ≤24V∆V OUT Line Regulation- 100 150 mV T J =25℃, 13V ≤V IN ≤24VI Q Quiescent Current - 2.0 6.0 mA- - 1.5 mA 13V ≤V IN ≤24V∆I QQuiescent Current Change- - 0.1 mA 1mA ≤I IN ≤40mAeN Output Noise Voltage - 49 - µV 10Hz ≤f ≤100KHz∆V O /∆T Temperature coefficient of V OUT - -0.75- mV/℃I OUT =5mA RR Ripple Rejection 38 44 - dB 12V ≤V IN ≤23V, f=120Hz, T J =25℃ V D Dropout Voltage - 1.7 - V T J =25℃For LM78LM10 (V IN =16V, I OUT =40mA, 0° C<T J <125° C, C1=0.33µF, C O =0.1µF, unless otherwise specified)LM78LM10Symbol Description Min.Typ.Max.Unit Test Conditions9.6 10.0 10.4 V T J =25℃9.5 - 10.5 V 12.5V ≤V IN ≤23V, I OUT =1mA-40mAV OUTOutput Voltage9.5 - 10.5 V12.5V ≤V IN ≤V MAX , I OUT =1mA-200mA, Power Dissipation<0.5W- 20 94 mV T J =25℃, 1mA ≤I OUT ≤100mA∆V OUT Load Regulation- 10 47 mV T J =25℃, 1mA ≤I OUT ≤70mA - 100 200 mV T J =25℃, 12.5V ≤V IN ≤23V∆V OUT Line Regulation- 100 170 mV T J =25℃, 14V ≤V IN ≤23VI Q Quiescent Current - 4.2 6.5 mA- - 1.5 mA 12.5V ≤V IN ≤23V∆I Q Quiescent Current Change- - 0.1 mA 1mA ≤I IN ≤40mAeN Output Noise Voltage - 74 - µV 10Hz ≤f ≤100KHz∆V O /∆T Temperature coefficient of V OUT - -0.95- mV/℃I OUT =5mA RR Ripple Rejection 38 43 - dB 15V ≤V IN ≤23V, f=120Hz, T J =25℃V D Dropout Voltage - 1.7 - V T J =25℃LM78LM For LM78LM12 (V IN=19V, I OUT=40mA, 0° C<T J<125° C, C1=0.33µF, C O=0.1µF, unless otherwise specified)LM78LM12Symbol DescriptionMin. Typ. Max.Unit Test Conditions11.52 12.00 12.48 V T J=25℃11.40 - 12.60 V 14.5V≤V IN≤27V, I OUT=1mA-40mAV OUT Output Voltage11.40 - 12.60 V14.5V≤V IN≤V MAX, I OUT=1mA-200mA, Power Dissipation<0.5W- 25 150 mV T J=25℃, 1mA≤I OUT≤100mA ∆V OUT Load Regulation- 12 75 mV T J=25℃, 1mA≤I OUT≤40mA- 25 300 mV T J=25℃, 14.5V≤V IN≤27V∆V OUT Line Regulation- 20 250 mV T J=25℃, 16V≤V IN≤27VI Q Quiescent Current - 2.0 6.0 mA- - 1.5 mA 16V≤V IN≤27V ∆I Q Quiescent Current Change- - 0.1 mA 1mA≤I IN≤40mA eN Output Noise Voltage - 80 - µV 10Hz≤f≤100KHz∆V O/∆T Temperature coefficient of V OUT - -1.0 - mV/℃I OUT=5mARR Ripple Rejection 37 65 - dB 15V≤V IN≤25V, f=120Hz, T J=25℃V D Dropout Voltage - 1.7 - V T J=25℃For LM78LM15 (V IN=23V, I OUT=40mA, 0° C<T J<125° C, C1=0.33µF, C O=0.1µF, unless otherwise specified)LM78LM15Symbol DescriptionMin. Typ. Max.Unit Test Conditions14.40 15.00 15.60 V T J=25℃14.25 - 15.75 V 17.5V≤V IN≤30V, I OUT=1mA-40mAV OUT Output Voltage14.25 - 15.75 V17.5V≤V IN≤V MAX, I OUT=1mA-200mA, Power Dissipation<0.5W- 20 150 mV T J=25℃, 1mA≤I OUT≤100mA ∆V OUT Load Regulation- 25 150 mV T J=25℃, 1mA≤I OUT≤70mA- 25 150 mV T J=25℃, 17.5V≤V IN≤30V ∆V OUT Line Regulation- 15 75 mV T J=25℃, 20V≤V IN≤30VI Q Quiescent Current - 2.2 6.5 mA- - 1.5 mA 20V≤V IN≤30V∆I Q Quiescent Current Change- - 0.1 mA 1mA≤I IN≤40mAeN Output Noise Voltage - 90 - µV 10Hz≤f≤100KHz∆V O/∆T Temperature coefficient of V OUT - -1.3 - mV/℃I OUT=5mARR Ripple Rejection 34 63 - dB 18.5V≤V IN≤28.5V, f=120Hz,T J=25℃V D Dropout Voltage - 1.7 - V T J=25℃LM78LM For LM78LM18 (V IN=27V, I OUT=40mA, 0° C<T J<125° C, C1=0.33µF, C O=0.1µF, unless otherwise specified)LM78LM18Symbol DescriptionMin. Typ. Max.Unit Test Conditions17.28 18.00 18.72 V T J=25℃17.10 - 18.90 V 21V≤V IN≤33V, I OUT=1mA-40mAV OUT Output Voltage17.10 - 18.90 V21V≤V IN≤V MAX, I OUT=1mA-200mA, Power Dissipation<0.5W- 30 170 mV T J=25℃, 1mA≤I OUT≤100mA ∆V OUT Load Regulation- 15 85 mV T J=25℃, 1mA≤I OUT≤40mA- 145 300 mV T J=25℃, 21V≤V IN≤33V∆V OUT Line Regulation- 135 250 mV T J=25℃, 22V≤V IN≤33VI Q Quiescent Current - 2.0 6.0 mA- - 1.5 mA 21V≤V IN≤33V∆I Q Quiescent Current Change- - 0.1 mA 1mA≤I IN≤40mAeN Output Noise Voltage - 150 - µV 10Hz≤f≤100KHz∆V O/∆T Temperature coefficient of V OUT - -1.8 - mV/℃I OUT=5mARR Ripple Rejection 34 48 - dB 23V≤V IN≤33V, f=120Hz, T J=25℃V D Dropout Voltage - 1.7 - V T J=25℃For LM78LM24 (V IN=33V, I OUT=40mA, 0° C<T J<125° C, C1=0.33µF, C O=0.1µF, unless otherwise specified)LM78LM24Symbol DescriptionMin. Typ. Max.Unit Test Conditions23.04 24.00 24.96 V T J=25℃22.80- 25.20 V 27V≤V IN≤38V, I OUT=1mA-40mAV OUT Output Voltage22.80 - 25.20 V27V≤V IN≤V MAX, I OUT=1mA-200mA, Power Dissipation<0.5W- 40 200 mV T J=25℃, 1mA≤I OUT≤100mA ∆V OUT Load Regulation- 20 100 mV T J=25℃, 1mA≤I OUT≤40mA- 160 300 mV T J=25℃, 27V≤V IN≤38V ∆V OUT Line Regulation- 150 250 mV T J=25℃, 28V≤V IN≤38V I Q Quiescent Current - 2.2 6.0 mA- - 1.5 mA 27V≤V IN≤38V∆I Q Quiescent Current Change- - 0.1 mA 1mA≤I IN≤40mAeN Output Noise Voltage - 200 - µV 10Hz≤f≤100KHz∆V O/∆T Temperature coefficient ofV OUT- -2.0 - mV/℃I OUT=5mARR Ripple Rejection 34 45 - dB 27V≤V IN≤38V, f=120Hz, T J=25℃V D Dropout Voltage - 1.7 - V T J=25℃Note: The maximum steady state usable output current is dependent on input voltage, heat sinking, lead length of the package and copper pattern of PCB. The data above represent pulse test conditions with junctiontemperatures specified at the initiation of test.LM78LMFig.1- Ambient temperature vs. Power dissipationAmbient Temperature (℃)Fig.2- LM78LM05 Output Voltage vs.Ambient TemperatureAmbient Temperature (℃)Fig.3- LM78LM12 Output Voltage vs.Ambient TemperatureAmbient Temperature (℃)Fig.4- Output Characteristics(I OUT=0mA, Tj=25℃)Input Voltage (V) Typical Characteristics CurvesPowerDissipation(mW)OutputVoltage(V)OutputVoltage(V)OutputVoltage(V)LM78LMFig.6- Short Circuit Output Current(Tj=25℃)Input-Output Voltage Difference (V)Fig.5- LM78LM05 Dropout Characteristics(Tj=25℃)Input Voltage (V)Fig.7- LM78L12/24 Quiescent Current vs.Output Current (Tj=25℃)Output Current (mA)Fig.8- LM78LM05 Quiescent Current vs. Input Voltage (Iout=0mA, Tj=25℃)Input Voltage (V)Typical Characteristics Curves (Continued)S h o r t C i r c u i t C u r r e n t (m A )O u t p u t V o l t a g e (V )Q u i e s c e n t C u r r e n t (m A )Q u i e s c e n t C u r r e n t (m A )LM78LMFig.9- Peak Output Current vs. Dropout Voltage DifferenceInput-Output Voltage Difference (V)Typical Characteristics Curves (Continued)Typical ApplicationP e a k O u t p u t C u r r e n t (m A )LM78LM Dimensions in mm (inches)TO-92LM78LMTO-92LLM78LMSOT-89LM78LMSOT-223LM78LM How to contact us:。

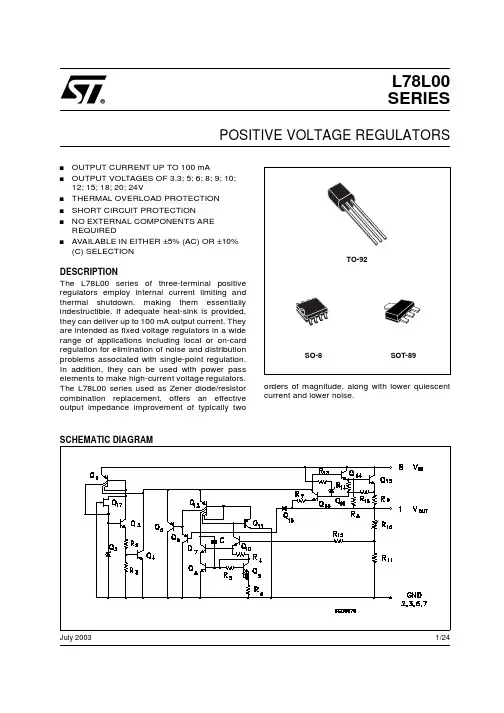

1/24July 2003s OUTPUT CURRENT UP TO 100mAsOUTPUT VOLTAGES OF 3.3;5;6;8;9;10;12;15;18;20;24Vs THERMAL OVERLOAD PROTECTION s SHORT CIRCUIT PROTECTIONsNO EXTERNAL COMPONENTS ARE REQUIREDsAVAILABLE IN EITHER ±5%(AC)OR ±10%(C)SELECTIONDESCRIPTIONThe L78L00series of three-terminal positive regulators employ internal current limiting and thermal shutdown,making them essentially indestructible.If adequate heat-sink is provided,they can deliver up to 100mA output current.They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation.In addition,they can be used with power pass elements to make high-current voltage regulators.The L78L00series used as Zener diode/resistor combination replacement,offers an effective output impedance improvement of typically twoorders of magnitude,along with lower quiescent current and lower noise.L78L00SERIESPOSITIVE VOLTAGEREGULATORSL78L00SERIES2/24ABSOLUTE MAXIMUM RATINGS(*)Our SO-8package used for Voltage Regulators is modified internally to have pins 2,3,6and 7electrically communed to the die attach flag.This particular frame decreases the total thermal resistance of the package and increasesits ability to dissipate power when an appro-priate area of copper on the printed circuit board is available for heat-sinking.The external dimensions are the same as for the standard SO-8.THERMAL DATA(*)Considering 6cm of copper Board heat-sinkTEST CIRCUITSCONNECTION DIAGRAM (top view)SymbolParameter²Value UnitV I DC Input VoltageV O =3.3to 9V 30V V O =12to 15V 35V O =18to 24V40I O Output Current 100mA P tot Power DissipationInternally Limited (*)T stg Storage Temperature Range-40to 150°C T opOperating Junction Temperature Range for L78L00C,L78L00AC 0to 125°C for L78L00AB-40to 125Symbol ParameterSO-8TO-92SOT-89Unit R thj-case Thermal Resistance Junction-case Max 2015°C/W R thj-ambThermal Resistance Junction-ambientMax55(*)200°C/WL78L00SERIES ORDERING CODESTYPE SO-8(TUBE)*TO-92(TUBE)**SOT-89(T&R)OUTPUT VOLTAGE L78L33C L78L33CD L78L33CZ 3.3VL78L33AC L78L33ACD L78L33ACZ L78L33ACUTR 3.3VL78L33AB L78L33ABD L78L33ABZ L78L33ABUTR 3.3VL78L05C L78L05CD L78L05CZ5VL78L05AC L78L05ACD L78L05ACZ L78L05ACUTR5VL78L05AB L78L05ABD L78L05ABZ L78L05ABUTR5VL78L06C L78L06CD L78L06CZ6VL78L06AC L78L06ACD L78L06ACZ L78L06ACUTR6VL78L06AB L78L06ABD L78L06ABZ L78L06ABUTR6VL78L08C L78L08CD L78L08CZ8VL78L08AC L78L08ACD L78L08ACZ L78L08ACUTR8VL78L08AB L78L08ABD L78L08ABZ L78L08ABUTR8VL78L09C L78L09CD L78L09CZ9VL78L09AC L78L09ACD L78L09ACZ L78L09ACUTR9VL78L09AB L78L09ABD L78L09ABZ L78L09ABUTR9VL78L10C L78L10CD L78L10CZ10VL78L10AC L78L10ACD L78L10ACZ L78L10ACUTR10VL78L10AB L78L10ABD L78L10ABZ L78L10ABUTR10VL78L12C L78L12CD L78L12CZ12VL78L12AC L78L12ACD L78L12ACZ L78L12ACUTR12VL78L12AB L78L12ABD L78L12ABZ L78L12ABUTR12VL78L15C L78L15CD L78L15CZ15VL78L15AC L78L15ACD L78L15ACZ L78L15ACUTR15VL78L15AB L78L15ABD L78L15ABZ L78L15ABUTR15VL78L18C L78L18CD L78L18CZ18VL78L18AC L78L18ACD L78L18ACZ L78L18ACUTR18VL78L18AB L78L18ABD L78L18ABZ L78L18ABUTR18VL78L20C L78L20CD L78L20CZ20VL78L20AC L78L20ACD L78L20ACZ L78L20ACUTR20VL78L20AB L78L20ABD L78L20ABZ L78L20ABUTR20VL78L24C L78L24CD L78L24CZ24VL78L24AC L78L24ACD L78L24ACZ L78L24ACUTR24VL78L24AB L78L24ABD L78L24ABZ L78L24ABUTR24V(*)Available in Tape&Reel with the suffix"13TR".(**)Available in Ammopak with the suffix"-AP"or in Tape&Reel with the suffix"TR".3/24L78L00SERIES4/24ELECTRICAL CHARACTERISTICS OF L78L33C (refer to the test circuits,T J =0to 125°C,V I =8.3V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L05C (refer to the test circuits,T J =0to 125°C,V I =10V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 3.036 3.33.564V V O Output Voltage I O =1to 40mA V I =5.3to 20V 2.97 3.63VI O =1to 70mA V I =8.3V2.973.63∆V O Line Regulation V I =5.3to 20V T J =25°C 150mV V I =6.3to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =6.3to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =6.3to 16.3V f =120Hz I O =40mAT J =25°C4149dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 4.655.4V V O Output Voltage I O =1to 40mA V I =7to 20V 4.5 5.5VI O =1to 70mA V I =10V4.55.5∆V O Line Regulation V I =8.5to 20V T J =25°C 200mV V I =9to 20V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =8to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =9to 20V f =120Hz I O =40mAT J =25°C4049dB V dDropout Voltage1.7VL78L00SERIES5/24ELECTRICAL CHARACTERISTICS OF L78L06C (refer to the test circuits,T J =0to 125°C,V I =12V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L08C (refer to the test circuits,T J =0to 125°C,V I =14V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 5.5266.48V V O Output Voltage I O =1to 40mA V I =8.5to 20V 5.4 6.6VI O =1to 70mA V I =12V5.46.6∆V O Line Regulation V I =8.5to 20V T J =25°C 200mV V I =9to 20V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =8to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C50µV SVR Supply Voltage Rejection V I =9to 20V f =120Hz I O =40mAT J =25°C3846dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 7.3688.64V V O Output Voltage I O =1to 40mA V I =10.5to 23V 7.28.8VI O =1to 70mA V I =14V7.28.8∆V O Line Regulation V I =10.5to 23V T J =25°C 200mV V I =11to 23V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =11to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3645dB V dDropout Voltage1.7VL78L00SERIES6/24ELECTRICAL CHARACTERISTICS OF L78L09C (refer to the test circuits,T J =0to 125°C,V I =15V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L10C (refer to the test circuits,T J =0to 125°C,V I =16V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 8.2899.72V V O Output Voltage I O =1to 40mA V I =11.5to 23V 8.19.9VI O =1to 70mA V I =15V8.19.9∆V O Line Regulation V I =11.5to 23V T J =25°C 250mV V I =12to 23V T J =25°C 200∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =12to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C70µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3644dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 9.21010.8V V O Output Voltage I O =1to 40mA V I =12.5to 23V 911VI O =1to 70mA V I =16V911∆V O Line Regulation V I =12.5to 23V T J =25°C 230mV V I =13to 23V T J =25°C 170∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =13to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =14to 23V f =120Hz I O =40mAT J =25°C3745dB V dDropout Voltage1.7VL78L00SERIES7/24ELECTRICAL CHARACTERISTICS OF L78L12C (refer to the test circuits,T J =0to 125°C,V I =19V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L15C (refer to the test circuits,T J =0to 125°C,V I =23V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 11.11212.9V V O Output Voltage I O =1to 40mA V I =14.5to 27V 10.813.2VI O =1to 70mA V I =19V10.813.2∆V O Line Regulation V I =14.5to 27V T J =25°C 250mV V I =16to 27V T J =25°C 200∆V O Load Regulation I O =1to 100mA T J =25°C 100mV I O =1to 40mA T J =25°C50I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =16to 27V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C80µV SVR Supply Voltage Rejection V I =15to 25V f =120Hz I O =40mAT J =25°C3642dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 13.81516.2V V O Output Voltage I O =1to 40mA V I =17.5to 30V 13.516.5VI O =1to 70mA V I =23V13.516.5∆V O Line Regulation V I =17.5to 30V T J =25°C 300mV V I =20to 30V T J =25°C 250∆V O Load Regulation I O =1to 100mA T J =25°C 150mV I O =1to 40mA T J =25°C75I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =20to 30V 1.5eN Output Noise Voltage B =10Hz to 100KHzT J =25°C90µV SVR Supply Voltage Rejection V I =18.5to 28.5V f =120Hz I O =40mA T J =25°C3339dB V dDropout Voltage1.7VL78L00SERIES8/24ELECTRICAL CHARACTERISTICS OF L78L18C (refer to the test circuits,T J =0to 125°C,V I =27V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L20C (refer to the test circuits,T J =0to 125°C,V I =29V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 16.61819.4V V O Output Voltage I O =1to 40mA V I =22to 33V 16.219.8VI O =1to 70mA V I =27V16.219.8∆V O Line Regulation V I =22to 33V T J =25°C 320mV V I =22to 33V T J =25°C 270∆V O Load Regulation I O =1to 100mA T J =25°C 170mV I O =1to 40mA T J =25°C85I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =23to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =23to 33V f =120Hz I O =40mAT J =25°C3238dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 18.42021.6V V O Output Voltage I O =1to 40mA V I =24to 33V 1822VI O =1to 70mA V I =29V1822∆V O Line Regulation V I =22.5to 34V T J =25°C 330mV V I =24to 34V T J =25°C 280∆V O Load Regulation I O =1to 100mA T J =25°C 180mV I O =1to 40mA T J =25°C90I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =25to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =25to 35V f =120Hz I O =40mAT J =25°C3138dB V dDropout Voltage1.7VL78L00SERIES9/24ELECTRICAL CHARACTERISTICS OF L78L24C (refer to the test circuits,T J =0to 125°C,V I =33V,I O =40mA,C I =0.33µF,C O =0.1µF unless otherwise specified).ELECTRICAL CHARACTERISTICS OF L78L33AB AND L78L33AC(refer to the test circuits,V I =8.3V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L33AC,T J =-40to 125°C for L78L33AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 22.12425.9V V O Output Voltage I O =1to 40mA V I =27to 38V 21.626.4VI O =1to 70mA V I =33V21.626.4∆V O Line Regulation V I =27to 38V T J =25°C 350mV V I =28to 38V T J =25°C 300∆V O Load Regulation I O =1to 100mA T J =25°C 200mV I O =1to 40mA T J =25°C100I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.2mA V I =28to 38V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C200µV SVR Supply Voltage Rejection V I =29to 35V f =120Hz I O =40mAT J =25°C3037dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 3.168 3.33.432V V O Output Voltage I O =1to 40mA V I =5.3to 20V 3.135 3.465VI O =1to 70mA V I =8.3V3.1353.465∆V O Line Regulation V I =5.3to 20V T J =25°C 150mV V I =6.3to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =6.3to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =6.3to 16.3V f =120Hz I O =40mAT J =25°C4149dB V dDropout Voltage1.7VL78L00SERIES10/24ELECTRICAL CHARACTERISTICS OF L78L05AB AND L78L05AC (refer to the test circuits,V I =10V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L05AC,T J =-40to 125°C for L78L05AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L06AB AND L78L06AC (refer to the test circuits,V I =12V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L06AC,T J =-40to 125°C for L78L06AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 4.855.2V V O Output Voltage I O =1to 40mA V I =7to 20V 4.75 5.25VI O =1to 70mA V I =10V4.755.25∆V O Line Regulation V I =7to 20V T J =25°C 150mV V I =8to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =8to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C40µV SVR Supply Voltage Rejection V I =8to 18V f =120Hz I O =40mAT J =25°C4149dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 5.7666.24V V O Output Voltage I O =1to 40mA V I =8.5to 20V 5.7 6.3VI O =1to 70mA V I =12V5.76.3∆V O Line Regulation V I =8.5to 20V T J =25°C 150mV V I =9to 20V T J =25°C 100∆V O Load Regulation I O =1to 100mA T J =25°C 60mV I O =1to 40mA T J =25°C30I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =9to 20V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C50µV SVR Supply Voltage Rejection V I =9to 20V f =120Hz I O =40mAT J =25°C3946dB V dDropout Voltage1.7V11/24ELECTRICAL CHARACTERISTICS OF L78L08AB AND L78L08AC (refer to the test circuits,V I =14V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L08AC,T J =-40to 125°C for L78L08AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L09AB AND L78L09AC (refer to the test circuits,V I =15V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L09AC,T J =-40to 125°C for L78L09AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 7.6888.32V V O Output Voltage I O =1to 40mA V I =10.5to 23V 7.68.4VI O =1to 70mA V I =14V7.68.4∆V O Line Regulation V I =10.5to 23V T J =25°C 175mV V I =11to 23V T J =25°C 125∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =11to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3745dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 8.6499.36V V O Output Voltage I O =1to 40mA V I =11.5to 23V 8.559.45VI O =1to 70mA V I =15V8.559.45∆V O Line Regulation V I =11.5to 23V T J =25°C 225mV V I =12to 23V T J =25°C 150∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =12to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C70µV SVR Supply Voltage Rejection V I =12to 23V f =120Hz I O =40mAT J =25°C3744dB V dDropout Voltage1.7V12/24ELECTRICAL CHARACTERISTICS OF L78L10AB AND L78L10AC (refer to the test circuits,V I =16V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L10AC,T J =-40to 125°C for L78L10AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L12AB AND L78L12AC (refer to the test circuits,V I =19V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L12AC,T J =-40to 125°C for L78L12AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 9.61010.4V V O Output Voltage I O =1to 40mA V I =12.5to 23V 9.510.5VI O =1to 70mA V I =16V9.510.5∆V O Line Regulation V I =12.5to 23V T J =25°C 230mV V I =13to 23V T J =25°C 170∆V O Load Regulation I O =1to 100mA T J =25°C 80mV I O =1to 40mA T J =25°C40I d Quiescent Current T J =25°C 6mA T J =125°C 5.5mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =13to 23V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C60µV SVR Supply Voltage Rejection V I =14to 23V f =120Hz I O =40mAT J =25°C3745dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 11.51212.5V V O Output Voltage I O =1to 40mA V I =14.5to 27V 11.412.6VI O =1to 70mA V I =19V11.412.6∆V O Line Regulation V I =14.5to 27V T J =25°C 250mV V I =16to 27V T J =25°C 200∆V O Load Regulation I O =1to 100mA T J =25°C 100mV I O =1to 40mA T J =25°C50I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =16to 27V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C80µV SVR Supply Voltage Rejection V I =15to 25V f =120Hz I O =40mAT J =25°C3742dB V dDropout Voltage1.7V13/24ELECTRICAL CHARACTERISTICS OF L78L15AB AND L78L15AC (refer to the test circuits,V I =19V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L15AC,T J =-40to 125°C for L78L15AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L18AB AND L78L18AC(refer to the test circuits,V I =27V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L18AC,T J =-40to 125°C for L78L18AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 14.41515.6V V O Output Voltage I O =1to 40mA V I =17.5to 30V 14.2515.75VI O =1to 70mA V I =23V14.2515.75∆V O Line Regulation V I =17.5to 30V T J =25°C 300mV V I =20to 30V T J =25°C 250∆V O Load Regulation I O =1to 100mA T J =25°C 150mV I O =1to 40mA T J =25°C75I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =20to 30V 1.5eN Output Noise Voltage B =10Hz to 100KHzT J =25°C90µV SVR Supply Voltage Rejection V I =18.5to 28.5V f =120Hz I O =40mA T J =25°C3439dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 17.31818.7V V O Output Voltage I O =1to 40mA V I =22to 33V 17.118.9VI O =1to 70mA V I =27V17.118.9∆V O Line Regulation V I =22to 33V T J =25°C 320mV V I =22to 33V T J =25°C 270∆V O Load Regulation I O =1to 100mA T J =25°C 170mV I O =1to 40mA T J =25°C85I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =23to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =23to 33V f =120Hz I O =40mAT J =25°C3338dB V dDropout Voltage1.7V14/24ELECTRICAL CHARACTERISTICS OF L78L20AB AND L78L20AC (refer to the test circuits,V I =29V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L20AC,T J =-40to 125°C for L78L20AB,unless otherwise specified)ELECTRICAL CHARACTERISTICS OF L78L24AB AND L78L24AC (refer to the test circuits,V I =27V,I O =40mA,C I =0.33µF,C O =0.1µF,T J =0to 125°C for L78L24AC,T J =-40to 125°C for L78L24AB,unless otherwise specified)Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 19.22020.8V V O Output Voltage I O =1to 40mA V I =24to 33V 1921VI O =1to 70mA V I =29V1921∆V O Line Regulation V I =22.5to 34V T J =25°C 330mV V I =24to 34V T J =25°C 280∆V O Load Regulation I O =1to 100mA T J =25°C 180mV I O =1to 40mA T J =25°C90I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =25to 33V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C120µV SVR Supply Voltage Rejection V I =25to 35V f =120Hz I O =40mAT J =25°C3238dB V dDropout Voltage1.7V Symbol ParameterTest ConditionsMin.Typ.Max.Unit V O Output Voltage T J =25°C 232425V V O Output Voltage I O =1to 40mA V I =27to 38V 22.825.2VI O =1to 70mA V I =33V22.825.2∆V O Line Regulation V I =27to 38V T J =25°C 350mV V I =28to 38V T J =25°C 300∆V O Load Regulation I O =1to 100mA T J =25°C 200mV I O =1to 40mA T J =25°C100I d Quiescent Current T J =25°C 6.5mA T J =125°C 6mA ∆I d Quiescent Current Change I O =1to 40mA 0.1mA V I =28to 38V 1.5eN Output Noise Voltage B =10Hz to 100KHz T J =25°C200µV SVR Supply Voltage Rejection V I =23to 33V f =120Hz I O =40mAT J =25°C3137dB V dDropout Voltage1.7VFigure1:L78L05/12Output Voltage vs Ambient TemperatureFigure2:L78L05/12/24Load Characteristics Figure3:L78L05/12/24Thermal Shutdown Figure4:L78L05/12Quiescent Current vs Output CurrentFigure5:L78L05Quiescent Current vs Input VoltageFigure6:L78L05/12/24OutputCharacteristics15/24Figure7:L78L05/12/24Ripple Rejection Figure8:L78L05Dropout Characteristics Figure9:L78L00Series Short Circuit OutputCurrent16/2417/24TYPICAL APPLICATIONSTable 10:High Output Current Short Circuit ProtectedFigure 11:Edit Boost CircuitFigure 12:CurrentRegulatorFigure13:Adjustable OutputRegulator18/24Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.© The ST logo is a registered trademark of STMicroelectronics© 2003 STMicroelectronics - Printed in Italy - All Rights ReservedSTMicroelectronics GROUP OF COMPANIESAustralia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.© 24/24。

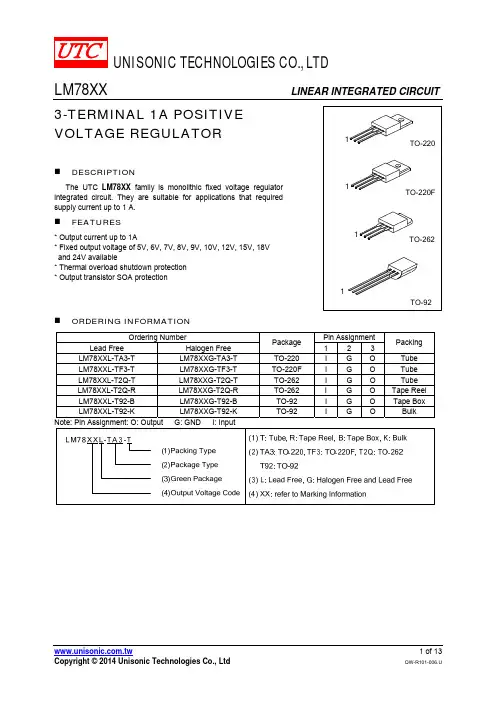

LM78M12中⽂资料LM341/LM78MXX Series3-Terminal Positive Voltage RegulatorsGeneral DescriptionThe LM341and LM78MXX series of three-terminal positive voltage regulators employ built-in current limiting,thermal shutdown,and safe-operating area protection which makes them virtually immune to damage from output overloads.With adequate heatsinking,they can deliver in excess of 0.5A output current.Typical applications would include local (on-card)regulators which can eliminate the noise and de-graded performance associated with single-point regulation.Featuresn Output current in excess of 0.5A n No external componentsn Internal thermal overload protection n Internal short circuit current-limitingn Output transistor safe-area compensationnAvailable in TO-220,TO-39,and TO-252D-PAK packagesn Output voltages of 5V,12V,and 15VConnection DiagramsTO-39Metal Can Package (H)DS010484-5Bottom ViewOrder Number LM78M05CH,LM78M12CH or LM78M15CHSee NS Package Number H03ATO-220Power Package (T)DS010484-6Top ViewOrder Number LM341T-5.0,LM341T-12,LM341T-15,LM78M05CT,LM78M12CT or LM78M15CTSee NS Package Number T03BTO-252DS010484-19Top ViewOrder Number LM78M05CDT See NS Package Number TD03BJuly 1999LM341/LM78MXX Series 3-Terminal Positive Voltage Regulators1999National Semiconductor Corporation /doc/96ef4d46852458fb770b5641.htmlAbsolute Maximum Ratings(Note1)If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.Lead Temperature(Soldering,10seconds)TO-39Package(H)300?C TO-220Package(T)260?C Storage Temperature Range?65?C to+150?C Operating Junction TemperatureRange?40?C to+125?C Power Dissipation(Note2)Internally Limited Input Voltage5V≤V O≤15V35V ESD Susceptibility TBDElectrical CharacteristicsLimits in standard typeface are for T J=25?C,and limits in boldface type apply over the?40?C to+125?C operating temperature range.Limits are guaranteed by production testing or correlation techniques using standard Statistical Quality Control(SQC) methods.LM341-5.0,LM78M05CUnless otherwise specified:V IN=10V,C IN=0.33µF,C O=0.1µFSymbol Parameter Conditions Min Typ Max Units V O Output Voltage I L=500mA 4.8 5.0 5.2V5mA≤I L≤500mA 4.75 5.0 5.25P D≤7.5W,7.5V≤V IN≤20VV R LINE Line Regulation7.2V≤V IN≤25V I L=100mA50mVI L=500mA100V R LOAD Load Regulation5mA≤I L≤500mA100I Q Quiescent Current I L=500mA410.0mA ?I Q Quiescent Current Change5mA≤I L≤500mA0.57.5V≤V IN≤25V,I L=500mA 1.0V n Output Noise Voltage f=10Hz to100kHz40µVElectrical CharacteristicsLimits in standard typeface are for T J=25?C,and limits in boldface type apply over the?40?C to+125?C operating temperature range.Limits are guaranteed by production testing or correlation techniques using standard Statistical Quality Control(SQC) methods.(Continued)LM341-12,LM78M12CUnless otherwise specified:V IN=19V,C IN=0.33µF,C O=0.1µFSymbol Parameter Conditions Min Typ Max UnitsV O Output Voltage I L=500mA11.51212.5V5mA≤I L≤500mA11.41212.6P D≤7.5W,14.8V≤V IN≤27VV R LINE Line Regulation14.5V≤V IN≤30V I L=100mA120mVI L=500mA240V R LOAD Load Regulation5mA≤I L≤500mA240I Q Quiescent Current I L=500mA410.0mAI Q Quiescent Current Change5mA≤I L≤500mA0.514.8V≤V IN≤30V,I L=500mA 1.0V n Output Noise Voltage f=10Hz to100kHz75µVRipple Rejection f=120Hz,I L=500mA69dBV IN Input Voltage Required I L=500mA17.6V to Maintain Line RegulationV O Long Term Stability I L=500mA60mV/khrs Note1:Absolute maximum ratings indicate limits beyond which damage to the component may occur.Electrical specifications do not apply when operating the de-vice outside of its rated operating conditions.Note2:The typical thermal resistance of the three package types is:T(TO-220)package:θ(JA)=60?C/W,θ(JC)=5?C/WH(TO-39)package:θ(JA)=120?C/W,θ(JC)=18?C/WDT(TO-252)package:θ(JA)=92?C/W,θ(JC)=10?C/W3/doc/96ef4d46852458fb770b5641.htmlSchematic DiagramDS010484-1 /doc/96ef4d46852458fb770b5641.html 4 Typical Performance CharacteristicsPeak Output CurrentDS010484-10Ripple RejectionDS010484-11Ripple RejectionDS010484-12Dropout VoltageDS010484-13Output Voltage(Normalizedto1V at T J=25?C)DS010484-14Quiescent CurrentDS010484-15/doc/96ef4d46852458fb770b5641.html 5Typical Performance Characteristics(Continued)Design ConsiderationsThe LM78MXX/LM341XX fixed voltage regulator series has built-in thermal overload protection which prevents the de-vice from being damaged due to excessive junction tem-perature.The regulators also contain internal short-circuit protection which limits the maximum output current,and safe-area pro-tection for the pass transistor which reduces the short-circuit current as the voltage across the pass transistor is in-creased.Although the internal power dissipation is automatically lim-ited,the maximum junction temperature of the device must be kept below +125?C in order to meet data sheet specifica-tions.An adequate heatsink should be provided to assure this limit is not exceeded under worst-case operating condi-tions (maximum input voltage and load current)if reliable performance is to be obtained).1.0Heatsink ConsiderationsWhen an integrated circuit operates with appreciable cur-rent,its junction temperature is elevated.It is important to quantify its thermal limits in order to achieve acceptable per-formance and reliability.This limit is determined by summing the individual parts consisting of a series of temperature rises from the semiconductor junction to the operating envi-ronment.A one-dimension steady-state model of conduction heat transfer is demonstrated in The heat generated at thedevice junction flows through the die to the die attach pad,through the lead frame to the surrounding case material,to the printed circuit board,and eventually to the ambient envi-ronment.Below is a list of variables that may affect the ther-mal resistance and in turn the need for a heatsink.R θJC (Component Variables)R θCA (Application Variables)Leadframe Size &Material Mounting Pad Size,Material,&LocationNo.of Conduction Pins Placement of Mounting Pad Die SizePCB Size &Material Die Attach MaterialTraces Length &WidthMolding Compound Size and MaterialAdjacent Heat Sources Volume of Air Air FlowAmbient Temperature Shape of Mounting PadQuiescent CurrentDS010484-16Output ImpedanceDS010484-17Line Transient Response DS010484-7Load Transient ResponseDS010484-8/doc/96ef4d46852458fb770b5641.html6Design Considerations(Continued)The LM78MXX/LM341XX regulators have internal thermal shutdown to protect the device from over-heating.Under all possible operating conditions,the junction temperature of the LM78MXX/LM341XX must be within the range of 0?C to 125?C.A heatsink may be required depending on the maxi-mum power dissipation and maximum ambient temperature of the application.To determine if a heatsink is needed,the power dissipated by the regulator,P D ,must be calculated:I IN =I L +I GP D =(V IN ?V OUT )I L +V IN I Gshows the voltages and currents which are present in the circuit.The next parameter which must be calculated is the maxi-mum allowable temperature rise,T R (max):θJA =TR (max)/P D If the maximum allowable value for θJA ?C/w is found to be ≥60?C/W for TO-220package or ≥92?C/W for TO-252pack-age,no heatsink is needed since the package alone will dis-sipate enough heat to satisfy these requirements.If the cal-culated value for θJA fall below these limits,a heatsink is required.As a design aid,Table 1shows the value of the θJA of TO-252for different heatsink area.The copper patterns that we used to measure these θJA are shown at the end of the Application Note Section.reflects the same test results as what are in the Table 1shows the maximum allowable power dissipation vs.ambi-ent temperature for theTO-252device.shows the maximum allowable power dissipation vs.copper area (in 2)for the TO-252device.Please see AN1028for power enhancement techniques to be used with TO-252package.TABLE 1.θJA Different Heatsink AreaLayoutCopper AreaThermal Resistance Top Sice (in 2)*Bottom Side (in 2)(θJA ,?C/W)TO-25210.0123010320.06608730.306040.5305450.7605261047700.284800.470900.6631000.857110157120.0660.06689130.1750.17572140.2840.28461150.3920.39255160.50.553*Tab of device attached to topside copperDS010484-23FIGURE 1.Cross-sectional view of Integrated Circuit Mounted on a printed circuit board.Note that the case temperature is measured at the point where the leadscontact with the mounting pad surface DS010484-24FIGURE 2.Power Dissipation Diagram/doc/96ef4d46852458fb770b5641.html 7Design Considerations(Continued)Typical ApplicationDS010484-20FIGURE 3.θJA vs.2oz Copper Area for TO-252DS010484-22FIGURE 4.Maximum Allowable Power Dissipation vs.Ambient Temperature for TO-252DS010484-21FIGURE 5.Maximum Allowable Power Dissipation vs.2oz.Copper Area for TO-252DS010484-9*Required if regulator input is more than 4inches from input filter capacitor (or if no input filter capacitor is used).**Optional for improved transient response./doc/96ef4d46852458fb770b5641.html 8 Physical Dimensions inches(millimeters)unless otherwise notedTO-39Metal Can Package(H)Order Number LM78M05CH,LM78M12CH or LM78M15CHNS Package Number H03A9/doc/96ef4d46852458fb770b5641.htmlPhysical Dimensions inches(millimeters)unless otherwise noted(Continued)TO-220Power Package(T)Order Number LM341T-5.0,LM341T-12,LM341T-15,LM78M05CT,LM78M12CT or LM78M15CT NS Package Number T03B/doc/96ef4d46852458fb770b5641.html 10Physical Dimensionsinches (millimeters)unless otherwise noted (Continued)LIFE SUPPORT POLICYNATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION.As used herein:1.Life support devices or systems are devices or systems which,(a)are intended for surgical implant into the body,or (b)support or sustain life,and whose failure to perform when properly used in accordance with instructions for use provided in the labeling,can be reasonably expected to result in a significant injury to the user.2.A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system,or to affect its safety or effectiveness.National Semiconductor Corporation AmericasTel:1-800-272-9959Fax:1-800-737-7018Email:support@/doc/96ef4d46852458fb770b5641.htmlNational Semiconductor EuropeFax:+49(0)180-5308586Email:europe.support@/doc/96ef4d46852458fb770b5641.htmlDeutsch Tel:+49(0)180-5308585English Tel:+49(0)180-5327832Fran?ais Tel:+49(0)180-5329358Italiano Tel:+49(0)180-5341680National Semiconductor Asia Pacific Customer Response Group Tel:65-2544466Fax:65-2504466Email:sea.support@/doc/96ef4d46852458fb770b5641.htmlNational Semiconductor Japan Ltd.Tel:81-3-5639-7560Fax:81-3-5639-7507/doc/96ef4d46852458fb770b5641.htmlTO-252Order Number LM78M05CDT NS Package Number TD03BLM341/LM78MXX Series 3-Terminal Positive Voltage RegulatorsNational does not assume any responsibility for use of any circuitry described,no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry andspecifications.。
