康明斯柴油发电机组技术规范书1 技术规范1. 总则1.1本设备技术规范书适用于****期工程2×600MW国产超临界燃煤机组工程的柴油发电机组,它提出了该设备的功能设计、结构、性能、安装和试验等方面的技术要求。
1.2 买方在本技术规范书中提出了最低限度的技术要求，并未规定所有的技术要求和适用的标准，卖方应提供一套满足本技术规范书和所列标准要求的高质量产品及其相应服务。
1.3 卖方如对本技术规范书有偏差(无论多少或微小)都必须清楚地表示在本技术规范书的附件13“差异表”中。
否则买方将认为卖方完全接受和同意本技术规范书的要求。
1.4 本设备技术规范书所使用的标准如遇与卖方所执行的标准不一致时，按较高标准执行。
1.5 本设备技术规范书经买、卖双方确认后作为订货合同的技术附件，与合同正文具有同等法律效力。
1.6 本设备规范书未尽事宜，由买卖双方协商确定。
2 工程概况参见商务部分3 设计和运行条件3.1 系统概况和相关设备每台机组设置一台柴油发电机作为本单元机组的应急保安电源，与柴油发电机组配套的附属设备应包括控制、保护等设备。
3.2 工程主要原始资料3.2.1气象资料气压历年平均大气压力: 1013.3 hpa气温历年平均气温 15.5?极端最高气温 41.2?极端最低气温 -22.2?历年平均最高气温 20.4?历年平均最低气温 11.4?最热月(7月)平均最高气温 32.5?- 1 -最冷月(1月)平均最低气温 6.3?湿度历年平均水汽压 14.9 hpa历年最大水汽压 40.2 hpa历年最小水汽压 0 hpa历年平均相对湿度 72%历年最小相对湿度 2%耐地震能力地面水平加速度: 0.2g。
地面垂直加速度: 0.1g。
正弦共振三周波，安全系数1.67以上。
历年平均大风日数 7.5 d历年平均雷暴日数 26.6 d历年平均降水日数 105.9 d历年平均雾日数 17.3 d历年最大积雪深度 35 cm历年最大冻土深度 13 cm地面平均温度 17.5?地面最高温度 79.8?地面最低温度 -23.6? (9)海拔高度:不超过1000m。
285GF/CS 250KW (750KVA)◆燃油及润滑油：可使用中国0#轻柴油；机油必须为国际标准之15W/40-CF级或CF以上，建议采用进口产品康明斯专用机油（蓝至尊）。
◆过滤系统：采用干式筒型空气滤清器及壳式柴油滤清器和机油滤清器，所有滤清器可以更换。
◆机组结构：机组采用一体式结构，底座选用高强度钢材料制作，柴油机及发电机底部与底座加设防震装置。
◆通信协议：提供对外开放的楼宇管理接口和免费开放的协议,包括所有控制所需的文本源代码,并负责所供设备端口的调试开通,并能与火灾报警系统和个人手机系统连接通讯（用户选择）。
◆充电系统：机组设有市电供应之充电器及自身带动的充电机。
◆随机配件：消声器总成两只，弯管接头两只，法兰及垫片两套，锥度接头两只，随机资料一套，弹性波纹管两条，喷油器升程调整工具一套，蓄电池连接线三根，滤清器拆装工具一套。
◆调试服务：派专业技师调试发电机组至正常运行交付使用。
◆机组报价：每台含税价含运费人民币189000元)。
◆电缆报价：（60m）240平方4+1国标，680元一米，含税价（40800元）◆日用油箱报价：（2立方）含税价（2400元）◆发电机组电览线安装发电机消声器安装工费报价：不含税（6000元）◆交货期:（待定）本报价不包含内容1)环保工程（如防噪声工程等）。
2)机器安装所需材料、土木工程。
三包规定◆供方机器保修期一年或2000个工作小时，先满为届。
需方必须严格按康明斯柴油机的操作规程要求，正确操作、保养和使用机器，保证机器不缺水、不缺油，柴油不含水份；机油必须使用康明斯机油或同等质量的进口机油。
滤清器必须选用弗列加产品。
机器运行不能超负荷。
250kva柴油发电机组技术参数【原创实用版】目录一、柴油发电机组概述二、250kva 柴油发电机组的主要技术参数1.机组型号2.额定电压3.额定电流4.额定频率5.额定功率因素6.稳态电压调整率7.瞬态电压调整率8.电压稳定时间9.电压波动率10.稳态频率调整率11.瞬态频率调整率12.频率稳定时间13.柴油发电机组海拔高度14.柴油发电机组相对湿度15.柴油发电机组环境温度16.柴油发电机组电源电压17.柴油发电机组触点输出电流18.柴油发电机组超速保护19.柴油发电机组低油压20.柴油发电机组油温21.柴油发电机组水温正文一、柴油发电机组概述柴油发电机组是一种以柴油为燃料，通过燃烧柴油来产生动力，驱动发电机发电的设备。
柴油发电机组具有起动容易、燃料经济、功率范围广、操作简单等优点，被广泛应用于工矿企业、农业生产、电力供应等领域。
二、250kva 柴油发电机组的主要技术参数1.机组型号：根据不同品牌和生产厂家，250kva 柴油发电机组的具体型号会有所不同。
2.额定电压：250kva 柴油发电机组的额定电压一般为 400v。
3.额定电流：250kva 柴油发电机组的额定电流一般为 180a。
4.额定频率：250kva 柴油发电机组的额定频率一般为 50hz。
5.额定功率因素：250kva 柴油发电机组的额定功率因素一般为cos0.8（滞后）。
6.稳态电压调整率：250kva 柴油发电机组的稳态电压调整率一般为1%。
7.瞬态电压调整率：250kva 柴油发电机组的瞬态电压调整率一般为-15%~20%。
8.电压稳定时间：250kva 柴油发电机组的电压稳定时间一般为1.5sec。
9.电压波动率：250kva 柴油发电机组的电压波动率一般为 1.0%。
10.稳态频率调整率：250kva 柴油发电机组的稳态频率调整率一般为3%。
11.瞬态频率调整率：250kva 柴油发电机组的瞬态频率调整率一般为10%。

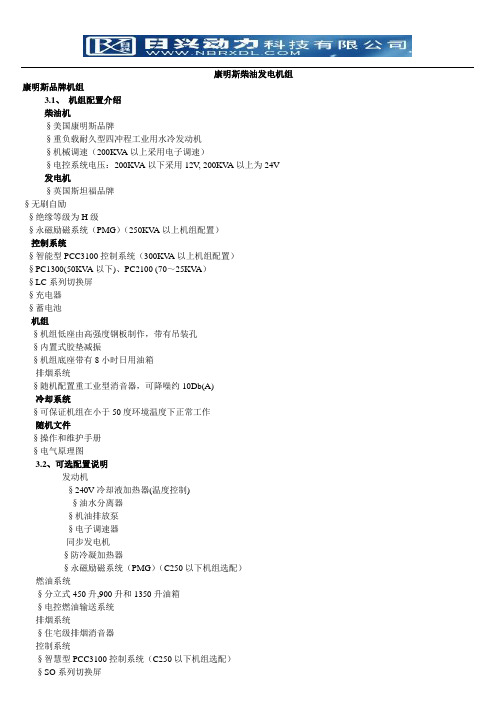

康明斯柴油发电机组康明斯品牌机组3.1、机组配置介绍柴油机§美国康明斯品牌§重负载耐久型四冲程工业用水冷发动机§机械调速（200KV A以上采用电子调速）§电控系统电压：200KVA以下采用12V, 200KV A以上为24V发电机§英国斯坦福品牌§无刷自励§绝缘等级为H级§永磁励磁系统（PMG）（250KV A以上机组配置）控制系统§智能型PCC3100控制系统（300KV A以上机组配置）§PC1300(50KV A以下)、PC2100 (70～25KV A）§LC系列切换屏§充电器§蓄电池机组§机组低座由高强度钢板制作，带有吊装孔§内置式胶垫减振§机组底座带有8小时日用油箱排烟系统§随机配置重工业型消音器，可降噪约10Db(A)冷却系统§可保证机组在小于50度环境温度下正常工作随机文件§操作和维护手册§电气原理图3.2、可选配置说明发动机§240V冷却液加热器(温度控制)§油水分离器§机油排放泵§电子调速器同步发电机§防冷凝加热器§永磁励磁系统（PMG）（C250以下机组选配）燃油系统§分立式450升,900升和1350升油箱§电控燃油输送系统排烟系统§住宅级排烟消音器控制系统§智慧型PCC3100控制系统（C250以下机组选配）§SO系列切换屏§MC系列并车屏其它选件§工具箱⑴全新概念的PCC数码控制屏◆以微处理器为核心◆调压、调速、控制及保护系统集成一体化◆极佳的瞬态反应及静态性能◆能一次承担全负载投入，电压频率快速恢复正常◆胜任电信、医疗等系统之非线性负载◆康明斯电力系统发电机组独有⑵自动切换柜：完成市电与发电、发电与发电之间的切换。
-;HA?DIBasic technical dataNumber of cylinders.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .12 Cylinder arrangement ... ... ... ... ... ... ... ... ... ... ... ... ... ... 60° Vee Cycle. ... ... ... ... ... ... ... ... ... ... ... ..4 stroke, compression ignition Induction system... ... ... ... ... ... ... ... ... ... ... ... ... ...Turbocharged Compression ratio. ... ... ... ... ... ... ... ... ... ... ... ... ..13,6:1 nominal Bore... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 160 mm Stroke ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 190 mm Cubic capacity... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..45.842 litres Direction of rotation... ... ... ... ...Anti-clockwise viewed on flywheel Firing order ... ... ... ... ... ... ...1A,6B,5A,2B,3A,4B,6A,1B,2A,5B.4A,3B Cylinder 1 furthest from flywheelCylinders designated ‘A’ are on the left side of the engine when viewed from the front (opposite end to flywheel)Total weight Electrounit (engine only)4012TAG1A/2A(dry).. ... ... ... ... ... ... ... ... ... ... ... ... ... ... 4400 kg 4012TAG1A/2A(wet) ... ... ... ... ... ... ... ... ... ... ... ... ... ... 4604 kg Overall dimensions ... ... ... ... ... ... ... ... ... ... ... ...Height 2118 mm .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..Length 2731 mm .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ....Width 1723 mm Moment of inertia.. ... ... ... ... ... ... ... ... ... ... ... .Engine 9.73 kgm2 .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ..Flywheel 9.57 kgm2 Cyclic irregularity for engine/flywheel (Prime power):4012TAG1A ... 1500 rev/min ... ... ... ... ... ... ... ... ... ... ... ... 1,714 4012TAG2A ... 1500 rev/min ... ... ... ... ... ... ... ... ... ... ... ... 1,669RatingsSteady state speed stability at constant load. ... ... ... ... ...± 0,25% Electrical ratings are based on average alternator efficiency and are for guidance only (0,8 power factor being used). Operating pointEngine speed. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...1500 rev/min Static injection timing.. ... ... ... ... ... ... ... See engine number plate Cooling water exit temperature.. ... ... ... ... ... ... ... ... ... ... .<98 °C Fuel dataTo conform to BS2869 class A1, A2.PerformanceSound pressure level 1500 rev/min ... ... ... ... ... ... ...106/112 dBA Note:All data based on operation to ISO 3046/1, BS 5514 and DIN 6271 standard reference conditions.Test conditionsAir temperature... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...25 °C Barometric pressure... ... ... ... ... ... ... ... ... ... ... ... ... ... ...100 kPa Relative humidity ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... (30)Air inlet restriction at maximum power (nominal)... ... ... ... 2,5 kPa Exhaust back pressure (nominal)... ... ... ... ... ... ... ... ... ... 3,0 kPa4000 Series 4012TAG1A 4012TAG2AGeneral installation 4012TAG1ADesignation Units50Hz 1500 rev/min60Hz 1800 rev/min ContinuousBaseloadPrimePowerStandbyMaximumContinuousBaseloadPrimePowerStandbyMaximumGross engine power kWb94211781292---Fan power kWm42---Net engine power kWm90011361250---BMEP gross bar1620,522,5---Combustion air flow m3/min7695105---Exhaust gas temperature max (after turbo)°C435460470---Exhaust gas flow max (after turbo)m3/min257---Boost pressure ratio-2,73,223,53---Mechanical efficiency%899192---Overall thermal efficiency%424342---Friction power and pumping losses kWm120---Mean piston speed m/s9,5---Engine coolant flow (min)l/s17---Typical Genset Electrical Output 0,8 pf 25 °C (100 kPa)kVA108013631500---kWe86410911200---Assumed alternator efficiency%96---Diesel Engine - ElectrounitGeneral installation 4012TAG2ANote:Not to be used for CHP design purposes. (Indicative figures only). Consult Perkins Engines Co. Ltd. Assumes complete combustion.Continuous Baseload rating Power available for continuous full load operation. Prime Power rating is available for unlimited hours per year with a variable load of which the average engine load factor is 80% of the published prime power rating, incorporation of a 10% overload for 1 hour in every 12 hours of operation which is permitted. Standby Power rating is for the supply of emergency power at variable load for the duration of the non-availability of the mains power supply. NO OVERLOAD capacity is available at this rating. Engines must not be allowed to have facilities for parallel operation with the mains supply. This rating should be applied only when reliable mains power is available. Should this not be the case then refer to Prime Power rating. A standby rated engine should be sized for an average load factor of 80% based on published standby rating for 500 operating hours per year. Standby ratings should never be applied except in true emergency power failure conditions.DesignationUnits 50Hz 1500 rev/min60Hz 1800 rev/minContinuous BaseloadPrime Power Standby Maximum Continuous BaseloadPrime Power Standby MaximumGross engine power kWb 103712961422---Fan power kWm 42---Net engine power kWm 99512541380---BMEP gross bar 18,122,624,8---Combustion air flowm 3/min 83,6106110---Exhaust gas temperature max (after turbo)°C 442472483---Exhaust gas flow max (after turbo)m 3/min 285---Boost pressure ratio -2,83,533,84---Mechanical efficiency %889292---Overall thermal efficiency%424241---Friction power and pumping losses kWm 120---Mean piston speed m/s 9,5---Engine coolant flowl/s 17---Typical Genset Electrical Output 0,8 pf 25 °C (100 kPa)kVA 119415051656---kWe 95512041325---Assumed alternator efficiency%96---Energy balanceNote:Not to be used for CHP design purposes. (Indicative figures only). Consult Perkins Engines Co Ltd. Assumes complete combustion. 4012TAG1A4012TAG2A Units1500 rev/min1800 rev/min ContinuousBaseloadPrimePowerStandbyMaximumContinuousBaseloadPrimePowerStandbyMaximumEnergy in fuel kWt223827703117---Energy in power output (gross) kWb94211781292---Energy to cooling fan kWm424242---Energy in power output (net)kWm90011361250---Energy to exhaust kWt680760924---Energy to coolant and oil kWt353434465---Energy to radiation kWt4495100---Energy to charge coolers kWt219303336---Units1500 rev/min1800 rev/min ContinuousBaseloadPrimePowerStandbyMaximumContinuousBaseloadPrimePowerStandbyMaximumEnergy in fuel kWt244430783477---Energy in power output (gross) kWb103712961422---Energy to cooling fan kWm424242---Energy in power output (net)kWm99512541380---Energy to exhaust kWt7508771013---Energy to coolant and oil kWt372464511---Energy to radiation kWt4995108---Energy to charge coolers kWt236346423---Cooling systemRecommended coolant: 50% inhibited ethylene glycol or 50% inhibited propylene glycol and 50% clean fresh water. For combined heat and power systems and where there is no likelihood of ambient temperatures below 10 °C then clean ‘soft’ water may be used, treated with 1% by volume of Perkins inhibitor in the cooling system. The inhibitor is available in bottles under Perkins Part No. 21825 735.Nominal jacket water pressure in crankcase. ... ... ... ... ... .1,7 bar The following is a guide based on ambient air conditions of 52 °C on a Perkins supplied radiator.Total coolant capacity:Electrounit (engine only) ... ... ... ... ... ... ... ... ... ... ... ... ... 73 litres ElectropaK (engine/radiator) . ... ... ... ... ... ... ... ... ... ... ..235 litres Pressure cap setting.. ... ... ... ... ... ... ... ... ... ... ... ... ... ...0,69 bar Fan. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...Incorporated in radiator Diameter ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 1524 mm pusher) Ambient cooling clearance (open ElectropaK Prime power) based on air temperature at fan 3 °C above ambient.4012TAG1A4012TAG2ACoolant pump speed andmethod of drive.. ... ... ... ... ... ... ... ... ... ... ... 1,4 x e rev/min gear Maximum static pressure head on pumpabove engine crank centre line.. ... ... ... ... ... ... ... ... ... ... ... ..7 m Maximum external permissible restrictionto coolant pump flow.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... .20 kPa Thermostat operating range... ... ... ... ... ... ... ... ... ... ... ..71-85 °C Shutdown switch setting ... ... ... ... ... ... ... ... ... ... ... 101 °C rising Coolant immersion heater capacity ... ... ... ... ... ... ... ... ..4 kW x 2 *4012TAG2A **4012TAG1A Lubrication systemRecommended lubricating oil to conform with the specification of API CG4 15W/40 .Lubricating oil capacity:Sump maximum.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 159 litres Sump minimum... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 136 litres Lubricating oil temperature maximum to bearings.. ... ... ... 105 °C Lubricating oil pressure:at 80 °C temperature to bearing gallery (minimum) ... ... 0,34 MPa 4012TAG1A4012TAG2A*Typical after 250 hoursSump drain plug tapping size.. ... ... ... ... ... ... ... ... ... ... ... ... ..G1 Oil pump speed and method of drive..1,4 x e rev/min, gear driven Oil pump flow 1500 rev/min. ... ... ... ... ... ... ... ... ... ...6,0 litres/sec Shutdown switch setting.. ... ... ... ... ... ... ... ... ... ...1,93 bar falling Normal operating anglesFore and aft. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...5°Side tilt ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... (10)Maximum additional restriction (duct allowance) to cooling airflow (Prime power) and resultant minimum airflowAmbient clearance 50% glycol Duct allowancemm H20Min airflowm3/minrev/min rev/min rev/min 150018001500180015001800 52 °C52 °20-1872-Maximum additional restriction (duct allowance) to cooling airflow (Prime power) and resultant minimum airflowAmbient clearance 50% glycol Duct allowancemm H20Min airflowm3/minrev/min rev/min rev/min 150018001500180015001800 52 °C52 °20-1872-Jacket cooling water data Units1500rev/min1800rev/minCoolant flow 4012TAG1A/2A l/s17,0-Coolant exit temperature (max)°C98-Coolant entry temperature (min)°C70-Coolant entry temperature (max) *°C85-Coolant entry temperature (max)**°C88-Oil consumptionPrime PowerUnits1500rev/min1800rev/min After running-in*g/kWhr0,50-Oil flow rate from pump I/s6,0-Oil consumptionPrime PowerUnits1500rev/min1800rev/min After running-in*g/kWhr0,51-Oil flow rate from pump I/s6,0-Fuel systemRecommended fuel... ..To conform to BS2869 1998 Class A1, A2 Type of injection system ... ... ... ... ... ... ... ... ... ... ..Direct injection Fuel injection pump... ... ... ... ... ... ... ... ... .Combined unit injector Fuel injector... ... ... ... ... ... ... ... ... ... ... ... .Combined unit injector Fuel injector opening pressure.. ... ... ... ... ... ... ... ... ... ... .234 bar Fuel lift pump. ... ... ... ... ... ... ... ... ... ... ... ... ... .Tuthill TCH 1-089 Delivery/hour at 1500 rev/min... ... ... ... ... ... ... ... ... ... .1020 litres Heat retained in fuel to tank . ... ... ... ... ... ... ... ... ... ... ... ..9,5 kW Temperature of fuel at lift pump to be less than ... ... ... ... ... 58 °C Fuel lift pump pressure.. ... ... ... ... ... ... ... ... ... ... ... ... ... ..3,0 bar Fuel lift pump maximum suction head... ... ... ... ... ... ... ... ... 2,5 m Fuel lift pump maximum pressure head (see Installation Manual) Fuel filter spacing.. ... ... ... ... ... ... ... ... ... ... ... ... ... ..10 microns) Governor type... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .Electronic Torque at the governor output shaft.. ... ... ... ... ... ... ... 1,631 kgm Static injection timing ... ... ... ... ... ... ... .See engine number plate Tolerance on fuel consumption. ... ... ... ... ... .To ISO 8528-1 1993 4012TAG1A4012TAG2A Induction systemMaximum air intake restriction of engine:Clean filter.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 127 mm H20 Dirty filter ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 380 mm H20 Air filter type... ... ... ... ... ... ... ... ... ... ... ... ... ...4998-00-00 MF&T Exhaust systemMaximum back pressure for total system.Exhaust outlet flange size.. ... ... ... ... ... ... .2 x 254 mm (table ‘D’) For recommended pipe sizes, refer to the Installation Manual. Electrical systemType... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...Insulated return Alternator ... ... ... ... ... ... ... ... ... ... 24 volts with integral regulator Alternator output. ... ... ...40 amps at a stabilised output 28 volts at20 °C ambient Starter motor.. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .. 24 volts Starter motor power ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...16,4 kW Number of teeth on flywheel... ... ... ... ... ... ... ... ... ... ... ... ... ..156 Number of teeth on starter motor... ... ... ... ... ... ... ... ... ... ... (12)Minimum cranking speed at (0 °C). ... ... ... ... ... ... ... .120 rev/min Pull-in current of each starter motor solenoid... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .30 amps at 24 volts Hold-in current of each starter motor solenoid... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...9 amps at 24 volts Engine stop solenoid.. ... ... ... ... ... ... ... ... ... ... ... ... ... ...24 volts Pull-in current of stop solenoid... ... ... ... ... ... .60 amps at 24 volts Hold-in current of stop solenoid.. ... ... ... ... ... 1,1 amps at 24 voltsFuel consumption (gross)Designation g/kWh Litres/hr rev/min1500180015001800 At Standby Max power rating203-309-At Prime Power rating199-276-At Continuous Baseload rating197-218-At 75% of Prime Power rating195-203-At 50% of Prime Power rating194-134-At 25% of Prime power rating207-72-Fuel consumption (gross)Designation g/kWh Litres/hr rev/min1500180015001800 At Standby Max power rating206-345-At Prime Power rating201-306-At Continuous Baseload rating197-240-At 75% of Prime Power rating197-225-At 50% of Prime Power rating195-149-At 25% of Prime power rating207-79-Designation Units1500rev/min1800rev/min 4012TAG1A mmH20949-4012TAG2A mmH20612-Engine mountingPosition of centre of gravity (wet engine) forward from rearface of crankcase .. ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...771 mm Engine vertical centre line above crankshaft centre line ... .38 mm Maximum additional load applied to flywheel due to all rotating components ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .850 kgStarting requirementsNotes:l Battery capacity is defined by the 20 hour rate at 0 °C.lThe oil specification should be for the minimum ambient temperature as the oil will not be warmed by the immersion heater.lBreakaway current is dependent on battery capacity available. Cables should be capable of handling the transient current which may be up to double the steady cranking current.TemperaturerangeRange Down to 0 °C(32 °F)Oil:Starter:Battery:Max breakaway current:Cranking current:Aids:Starter cable size:Maximum length:API CG4 15W/402 x 24V4 x 12 volts x 286 Ah 1600 amps 810 ampsNot necessary 120 mm 26mGA DrawingLoad acceptance (cold)4012TAG1A1500 rev/min4012TAG2A1500 rev/minAbove complies with requirements of Classifications 3 & 4 of ISO 8528-12 and G2 operating limits stated in ISO 8528-5.The above figures were obtained under test conditions as follows:Engine block temperature.. ... ... ... ... ... ..45 °C Alternator efficiency ... ... ... ... ... ... ... ... ... 96%Minimum ambient temperature.. ... ... ... ..10 °C Isochronous GoverningUnder Frequency Roll Off (UFRO) set to 1 Hz below rated frequency Typical alternator inertia. ... ... ... ... ... .50 Kgm 2All tests were conducted using an engine which was installed and serviced to Perkins Engines Company Limited recommendations.Initial load applicationwhen engine reaches rated speed(15 seconds max after engine starts to crank)2nd Load applicationImmediately after engine has recovered to rated speed(5 seconds after initial load application)Prime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time secondsPrime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time seconds63715/686< -10537422/405< -105Initial load applicationwhen engine reaches rated speed(15 seconds max after engine starts to crank)2nd Load applicationImmediately after engine has recovered to rated speed(5 seconds after initial load application)Prime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time secondsPrime power%Load kWm/kWe Nett Transient frequency deviation%Frequency recovery time seconds57715/686< -10543539/518< -105Noise levelsThe figures for total noise levels are typical for an engine running at Prime Power rating in a semi-reverberant environment and measured at a distance of one metre from the periphery of the engine.Octave analysisThe following histograms show an octave band analysis at the position of the maximum noise level.Total noise levelSound pressure level re: -20 x 10-6 paSpeed 1500 rev/min......Ambient noise level 84 dBA.Octave analysis performed at the position of maximum noise.4012TAG1A4012TAG2APOSITION 11500 rev/min 106 - dBA1800 rev/min ------- dBA1500 rev/min 106 - dBA1800 rev/min ------- dBAPOSITION 21500 rev/min 108 - dBA 1800 rev/min ------- dBA 1500 rev/min 108 - dBA 1800 rev/min ------- dBA POSITION 3 1500 rev/min 111 - dBA 1800 rev/min ------- dBA 1500 rev/min 111 - dBA 1800 rev/min ------- dBA POSITION 4 1500 rev/min 111 - dBA 1800 rev/min ------- dBA 1500 rev/min 111 - dBA 1800 rev/min ------- dBA 4012TAG1A 4012TAG2A 4012TAG1A 4012TAG2A 4012TAG1A 4012TAG2A4012TAG1A4012TAG2A POSITION 71500 rev/min 108 - dBA 1800 rev/min ------- dBA 1500 rev/min 108 - dBA 1800 rev/min ------- dBA POSITION 6 1500 rev/min 112 - dBA 1800 rev/min ------- dBA 1500 rev/min 112 - dBA 1800 rev/min ------- dBA POSITION 5 1500 rev/min 112 - dBA 1800 rev/min ------- dBA 1500 rev/min 112 - dBA 1800 rev/min ------- dBA 4012TAG14012TAG24012TAG14012TAG24012TAG1A4012TAG2AFR4012TAG1A4012TAG2AThe information given on technical data sheets are for standard ratings only. For ratings other than shown contact Perkins Engines Company Limited, Stafford.Notes-;HA?DI All information in the document is substantially correct at the time of printing but may be subsequently altered by the company.Distributed by 4000 Series4012TAG1A 4012TAG2A P u bl i c a t i o n N o . T S L 4253, I s s u e 3, J a n u a r y 2003. P r i n t e d i n E n g l a n d . © P e r k i n s E n g i n e s C o m p a n y L i m i t e d .Perkins Engines Company Limited Stafford ST16 3UB United Kingdom Telephone +44 (0)1785 223141Fax +44 (0)1785 。
250kw东风康明斯柴油发电机组技术参数
机组型号YZ250C生产厂家翼中动力
常用功率（kw）250备用功率（kw）292
额定输出电流（A）450 频率（Hz）50
输出电压（V）400/230转速（rpm）1500
功率因数COSΦ=0.8（滞后）机组燃油耗(g/Kw*h)193
相数/线数三相四线噪声（LP7m）95db
外型尺寸（mm）2800*1000*1500重量（kg）2000
柴油机品牌东风康明斯发动机有限公司
型号QSM11-G2 冷却启动强制水冷循环中冷方式水中冷启动方式24V直流电启动进气方式增压中冷气缸数 6
汽缸总排量（L）10.8供油方式电喷
气缸排列方式直列燃油型号国产0#轻柴油调速方式电子调速机油型号WD/40
缸径×行程（mm）125*147压缩比16.3:1。
____________________________________________________________________________________________
D.N Power 柴油发电机组技术参数：DNLS-250
★机组特点
●D.N Power 柴油发电机组的配套动力和发电机分别是新加坡侨海动力集团生产的 LLS 发动机和D.N Power 交流发电机。
●配备24 v 直流发电机和蓄电池
●交流发电机为无刷自励，防护等级IP23，绝缘等级H 级 ●40℃散热器作为标准，50℃是可选的 ●配备的油箱容量可连续运行8小时 ●可选的开架式机组和静音式机组
●产品通过ISO9001:2000国际质量体系认证，和过欧盟CE 认证 ●所有发电机组在发布市场之前都是经过严格的测试,包括50%负载, 负载75%,100%的负载,110%的负载和所有保护功能(超速停车、 高水温、低油压等）
★柴油发电机组主要技术数据
50Hz@1500RPM, 220V/380V, 3-Phase 4-Wire. (可根据客户特殊要求进行更改)
●主用功率： 发电机组能够在24小时之内连续运行的最大功率称之为主用功率。
●备用功率： 每12个小时之内有1个小时可在主用功率的基础上超载10%。
★ 开架/静音 尺寸/重量
外形尺寸: 3500x1120x1650mm (LxWxH) 外形尺寸: 3600x1300x2100mm (LxWxH) 重量: 2800 Kg 重量: 3400 Kg
★柴油发动机技术参数
★控制面板说明。
重庆康明斯船用发电机组技术规格书项目：设备型号：RX250-1500D船东：设计方：船厂：供应商：宁波北仑日兴动力科技有限公司本公司生产的船用柴油发电机组按中国船级社“钢质海船入级建造规范”生产。
经中国船级社上海分社检验和发证。
本技术协议只适用于250KW船用柴油发电机组技术协议。
1．机组情况：本机组采用中美合资重庆康明斯发动机有限公司生产的船用柴油机，美国独资无锡新时代交流发电机有限公司生产的船用交流发电机，公共底盘采用特殊工艺处理框架式结构。
联轴器为弹性钢片联接方式为单支承。
本机组具有体积小、油耗低、结构紧凑、重量轻、基本无振动、使用寿命长、保养简捷等优点。
2．机组工作环境：2.1环境温度：≤45℃2.2海水温度：≤32℃2.3相对湿度：60％2.4绝对大气压：100kPa2.5海拔高度：50 m2.6排气背压：≤45mmHg（建议新机时不超过30 mmHg）2.7前倾：15°2.8后倾：15°2.9横摇：22.5°2.10船舶正常航运中所产生的振动和冲击2.11适合凝雾、盐雾、油雾。
3．本机组主要技术规格3.1机组型号：CCFJ250-1500D3KCST3.2额定功率：250KW/312.5KVA功率修正：本机组在环境温度45℃时无修正。
当环境温度超过45℃后每上升11℃，功率下降2％。
本机组在海水温度32℃时无修正，当入口海水温度超过32℃后每上升2℃功率下降1％。
3.3额定电流：451A3.4额定电压：AC400V3.5功率因数：0.8（滞后）3.6频率：50HZ3.7相数：三相三线制3.8起动方式：DC24V电起动3.9额定转速：1500r.p.m.3.10调速型式：DC24V康明斯EFC电子调速器3.11机组过载能力：机组每次运行12小时期间允许以额定功率110％负载运行1/2小时。
全年累计运行不超过60小时。
3.12稳态电压调整率：±2%3.13瞬态电压调整率：-15%，+20%3.14稳态电压波动率：0.5％3.15瞬态电压恢复时间：≤2s3.16稳态频率调整率：0-5％（根据具体实际情况调整）3.17稳态频率波动率：±0.5％3.18瞬态频率调整率：10％3.19瞬态频率恢复时间：≤5s3.20机组电气系统相间绝缘不低于2兆欧3.21二台机组允许并联运行3.22机组重量：约2640Kg3.23机组外形尺寸L×W×H（高度指到排气弯管）：3400×1200×2200mm（具体以图纸为准）4．机组结构组成4.1船用柴油机4.1.1柴油机型号：NTA855-G2（M）4.1.2柴油机形式：直列、6缸、四冲程废气涡轮增压、中冷。
4.1.3额定功率：283KW/379BHP 功率修正：环境温度>45℃后每升高11℃功率下浮2%。
海水温度>32℃每升高2℃功率下降1%（符合ISO3046标准）4.1.4额定转速：1500r.p.m.4.1.5气缸直径×活塞行程：140×152mm4.1.6总排量：14L4.1.7压缩比：14.5 : 1O4.1.8进气阻力：正常运行时-空气滤清器清洁时：≤10in H24.1.9进气流量：≥420L/S4.1.10排气温度：（涡轮后）510℃±10％4.1.11排气流量：996L/S4.1.12冷却方式：淡水为闭式冷却，海水为开式冷却（带热交换器，膨胀水箱）4.1.13淡水容量：55L±10%4.1.14海水进口温度：32℃O4.1.15海水进口阻力：≤1.5inH24.1.16海水流量：≥280L/min4.1.17燃油系统型式：PT系统燃油系统4.1.18调速器型式：Cummins EFC电子调速器4.1.19额定功时燃油耗：211g/KW.h±5%（燃油比重1:0.844，热值42780KJ）4.1.20最大机油耗：0.06g/KW.h±5%4.1.21机油容量：29－37L±5％（低位－高位）4.1.22启动方式：DC24V电起动。
蓄电池容量：建议200A·h（6Q195或6Q210）4.1.23燃油牌号：国产轻柴油0#或-10#（GB252-87）4.1.24润滑油牌号：SAECE.CF级15W/404.1.25冷却液：50％清洁水＋50％乙烯乙二醇+适量单位的DCA4防腐剂4.2 船用发电机4.2.1发电机：HCM4F4.2.2发电机型式：无刷、恒压、同步4.2.3额定功率：270KW/337.5KVA4.2.4额定电压：AC400V4.2.5额定电流：487A4.2.6频率：50HZ4.2.7功率因数：0.8（滞后）4.2.8额定转速：1500r.p.m.4.2.9绝缘等级：H级4.2.10防护等级：IP234.2.11抗干扰标准：N级4.2.12冷却方式：开路冷却（轴带风扇）4.2.13负载型式：对称负载4.2.14波形：负载电流呈正弦波，线电压波形畸变率≤5%4.2.15稳态电压调整率（发电机从空载到额定负载时）：≤±2%4.2.16瞬态调压率：+20%、-15%（60%INcos∮≤0.4）此指标为台位试验时使用4.2.17励磁及调压方式：励磁系统，MX341自动调压器4.2.18并车运行状态：下垂补偿装置4.2.19工作制式：连续S14.3联轴器联轴器为弹性钢片联接（单支承）。
柴油机与发电机为同一中心线4.4公共底盘本公共底盘为框架式结构，经回火热定型及特殊工艺处理，以保证纵、横平面在船规规定值内，以利机组正常工作。
4.5减震垫减震垫安装在柴油机、发电机底脚与公共底架之间，机组的公共底盘与船上的支架为钢性联接。
4.6伺服系统本机组伺服系统采用DC24V手动电位器安装在发电机控制屏上，对柴油机进行任意升、降速操纵。
4.7机旁仪表箱4.7.1本机组仪表箱集调整、操纵、监测于一体。
仪表箱内装有EFC电子调速器的电子调速控制板及电路控制板。
柴油机的启动、怠速和额定转速只用一只电路开关，一只启动开关及一只升、降开关来控制。
速度的微调用电动电位器。
4.8 安全保护装置本机组具有冷却水高温，滑油低压灯光报警（与自动停车同步）5. 机组运行各项数值：5.1冷却水正常工作温度 82-93℃±3%预报警温度 94-96℃±1%停车温度 100-101℃±2%5.2滑油压力正常工作压力32-45Psi ±3%怠速工作压力≥18Psi ±3%预报警压力 15Psi ±2%停车压力 12Psi ±2%5.3超速报警及停车：1695r.p.m.或1725r.p.m.即额定转速的113%或115%，根据需要求调整本机组由中国船级社上海分社认可，检验并发证。
在机组铭牌上标有“CCS”钢印。
6. 标准供货范围6.1 柴油机6.1.1柴油机基本件和运动部件6.1.2冷却系统：海水泵（皮带传动）、淡水泵、热交换器、膨胀水箱、水滤器。
首次起动用DCA4（已加在水滤器内）6.1.3润滑系统：机油泵、油底盘、油标尺、机油滤器、机油冷却器。
6.1.4进气系统：空气滤清器、空气进气阻力指示、中冷器。
6.1.5排气系统：排气总管（干式）、增压器、增压器弯管、膨胀节6.1.6燃油系统：DC24V燃油电磁阀、PT燃油泵、燃油滤器，喷油器总成、浮子油箱、油水分离器（散件）进.回油软管：L=500mm.回油管L=650mm（已装在浮子油箱）油水分离器进油软管L=400mm。
6.1.7电气系统：双线制，手动频率微调电位器（散供）、DC24V充电发电机、DC24V起动电动机6.1.8机旁仪表箱及延伸接线合（一体式）装有EFC电子调控制板。
工作电原为DC24C.仪表箱表已装有：油压表，油温表，水温表，电池电压表，转速表及计时器，原装进口（英国深海520）自动模块。
（含电源，手动，自动起机触点和动作）。
机组动行指示，淡水高温报警，淡水温度过高停机指示，滑油低压报警，滑油压力过低停机指示。
电池电压低报警，超速停机指示，发电机绕组高温报警指示。
以上8个运行信号指示另需提供远视触点（去集控室）触点容量为5A，无源，常闭。
常开触点各壹付。
遥监、遥控信号：（去驾驶台）机组运行指示、机组综合报警指示。
另需输出遥控信号（去集控室）遥控启动（以机旁启动为主、安装转换开关）遥控停机（以机旁停机为主、安装转换开关）6.2 发电机6.2.1发电机本机基本件6.2.2励磁发电机6.2.3旋转整流器6.2.4 MX341自动调压器6.2.5并车用下垂补偿装置6.2.6防冷凝加热器AC220V，80-120W．6.2.7定子绕组高温报警，一备一用共2套。
6.3 其它类：减震垫、框架式公共底盘机旁接线盒6.4 技术文件6.4.1 EFC电子调速器、柴油机、发电机、发电机组保养使用说明。
（每机两套）6.4.2机组外形安装图（含排气、海水、燃油等各接口、坐标及安装尺寸）6.4.3柴油机、发电机、柴油发电机组CCS船检证书，柴油机无须设置高压泄漏报警装置。
本公司提供CCS批文的复印件。
6.4.4提供符合IMO要求的证书.6.4.5随机康明斯专用工具箱每机壹套（清单件附页）6.4.6柴油机的滑油、冷却液使用说明书6.4.7机组仪表箱原理图及布线图。
7．其他：7.1机组进行台位试验时，传真告之船厂派员来工厂进行验收。
传真发出日起三天内不见回音作自动放弃。
船厂去工厂验收的费用由船厂自理。
7.2如在技术上另有约定，供需双方另书写购货合同和供货技术协议作为本供货合同和技术协议的补充，与合同及本技术协议具有同等法律责任。
康明斯（N、K系列）发动机工具清单1、套筒头（四方1/2”）：7/16”、1/2”、9/16”、5/8”、11/16”、3/4”、13/16”、7/8”、15/16”、1”、1-1/16”、1-1/8”，共12件2、长套筒头（四方3/8”）：1/4”、5/16”、3/8”、7/16”、1/2”、9/16”、5/8”,共7件3、重型套筒头（四方3/4”）：7/8”、1-1/16”、1-1/8”、1-5/16”,共4件4、万向套筒头（四方3/8”）：1/2”、9/16”、5/8”,共3件5、套筒摇手：3/8”方头，共1件6、套筒接杆：3/8”× 3/8”×6”、1/2”× 1/2”×5”、3/4”× 3/4”×3”、1/2”×3/8”×1”,共4件7、内六角扳手：3/32”、5/32”、3/16”、7/32”、1/4”、5/16”,共6件8、开口梅花扳手：3/8”×3/8”、7/16”×7/16”、1/2”×1/2”、9/16”×9/16”、5/8”×5/8”、11/16”×11/16”、3/4”×3/4”、13/16”×13/16”、7/8”×7/8”、15/16”×15/16”、1”×1”,共11件9、梅花弯扳手：7/16”×1/2”、11/16”×5/8”,共2件10、棘轮扳手：1/2”，共1件11、塞尺：0.28、0.36、0.38、0.46、0.58、0.68、0.69，共7件。
