JT850人体感应芯片规格书

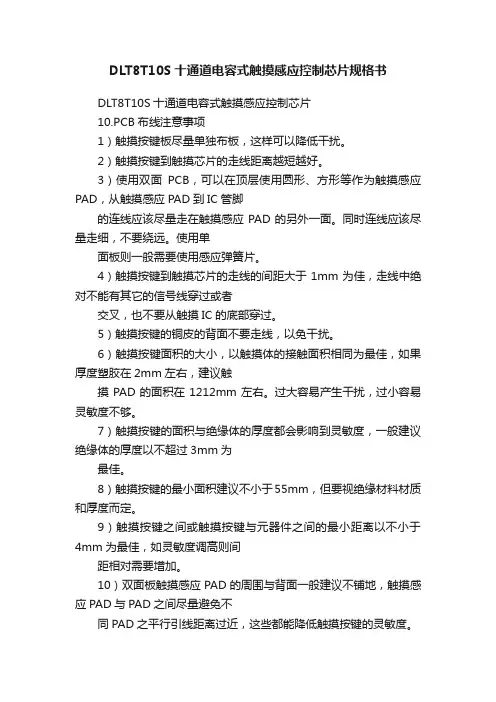

规格说明书DLT8T10 十通道电容式触摸感应控制芯片触摸行业最强资源集成：内置3路PWM版本V1.5目录1. 概述 (3)2. 特性简介 (3)3. 管脚描述 (4)4. 封装(SOP16) (4)5. 绝对最大值 (6)6. 参考应用电路 (6)6.1: BCD码（二进制编码）输出方式 (7)6.2: 点对点输出方式 (7)6.3: ADC电压输出方式 (8)6.4: 频率输出方式 (9)6.5: IIC输出方式 (10)1. 概述DLT8T10是深圳市杰力科创电子有限公司优势产品。

本产品的特点和优势：◆本产品为电容式的触摸感应专用IC◆本产品最多可做10个触摸按键◆可在有介质（如玻璃、亚克力、塑料、陶瓷等）隔离保护的情况下实现触摸功能，安全性高◆也可直接触摸金属等导电部件◆应用电路简单，外围器件少，加工方便，成本低◆本产品经过多年类型客户的检验，稳定性和抗干扰能力等各方面表现优秀，目前已广泛使用于：消费电子、数码产品、安防产品、便携式产品、LED灯具控制、智能开关，智能控制面板等电子产品2. 特性简介●典型工作电压：2.4V~5.5V●工作频率：内置4MHz（RC）●内置上电复位(POR)●内置低电压复位(LVR)●内置稳压电路(LDO)3. 管脚描述表1 管脚描述4. 封装(SOP16)图一DLT8T10-SOP16脚位图图2 DLT8T10-SOP16封装图5. 绝对最大值表2 绝对最大值6. 参考应用电路（注意：凡是没有使用的触摸端口，接地即可）本芯片专门为功能复杂、体积小的应用方案而设计，可以设计的方案无数，以适应客户的各种特定要求，以下提供部分电路供参考，方便客户选型。

其他具体方案，请咨询杰力科创公司业务人员。

方式一：BCD码（二进制编码）输出方式方式二：点对点输出方式方式三：ADC（电压输出）输出方式方式四：频率（不同按键输出不同的频率）输出方式方式五：IIC输出方式方式六：LED灯控方案，例如：1路分档调光，1路无极调光，1路滑动调光、2路分档调光、2路无极调光调色温、2路滑动调光调色温、3路彩灯调光、恒压调光、恒流调光……方式六：其他定制方案6.1: BCD码（二进制编码）输出方式（一个触摸通道对应一个触摸感应PAD，同时对应一个BCD编码信息）说明：此方案适用于：可以根据需要灵活变动按键定义，对I/O口的资源有相当的限制。

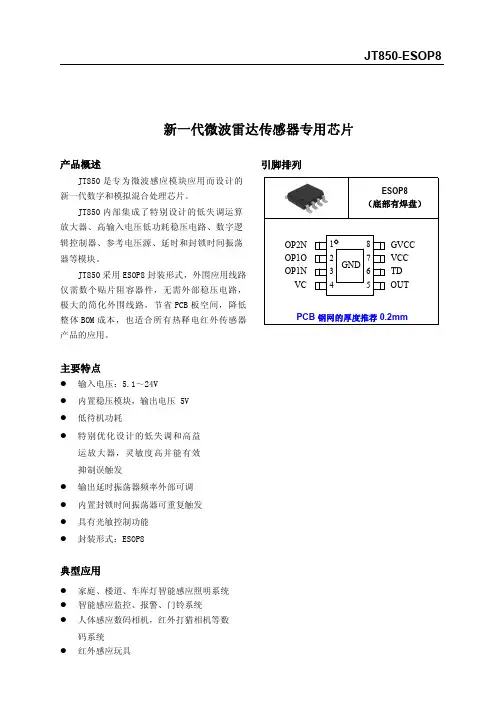

新一代微波雷达传感器专用芯片产品概述JT850是专为微波感应模块应用而设计的新一代数字和模拟混合处理芯片。

JT850内部集成了特别设计的低失调运算放大器、高输入电压低功耗稳压电路、数字逻辑控制器、参考电压源、延时和封锁时间振荡器等模块。

JT850采用ESOP8封装形式，外围应用线路仅需数个贴片阻容器件，无需外部稳压电路，极大的简化外围线路，节省PCB板空间，降低整体BOM成本，也适合所有热释电红外传感器产品的应用。

主要特点●输入电压：5.1～24V●内置稳压模块，输出电压5V●低待机功耗●特别优化设计的低失调和高益运放大器，灵敏度高并能有效抑制误触发●输出延时振荡器频率外部可调●内置封锁时间振荡器可重复触发●具有光敏控制功能●封装形式：ESOP8典型应用●家庭、楼道、车库灯智能感应照明系统●智能感应监控、报警、门铃系统●人体感应数码相机，红外打猎相机等数码系统●红外感应玩具引脚排列123OP2NOP1OOP1N引脚功能序号符号功能描述1OP2N 运放2输入2OP1O 运放1输出3OP1N 运放1输入4VC 禁止触发端，VC>0.2GVCC 时允许触发，VC<0.2GVCC 时禁止触发5OUT 控制信号输出端6TD 延时时间调节端7VCC 电源端8GVCC 稳压输出端9GND接地端（底部焊盘）电路功能框图图 1.电路功能框图OPO OPIV CV CC GV CCGNDOUTTDJT850-ESOP8最大额定值参数说明符号数值范围单位输入电源电压VCC –0.3～26V 其他引脚电压VIO –0.3～6.0V工作温度TOPR －20～70贮存温度TSTG－50～125注意：如果器件运行条件超过上述各项最大额定值，可能对器件造成永久性损坏。

上述参数仅是运行条件的极大值，我们不建议器件在该规范范围外运行。

如果器件长时间工作在绝对最大极限条件下，其稳定性可能会受到影响。

电特性（除特别说明外，V CC =12V ，T A =+25°C ）参数说明符号测试条件最小值典型值最大值单位电源电压V CC 5.124V 静态电流I CC 30μA GVCC 输出电压GV CC 5.0V GVCC 输出电流I GVCC GV CC =4.5V30mA 输入失调电压V OS 50mV 输入失调电流I OS 50nA 开环电压增益A VO1R L =1.5M 60dB 共模抑制比CMRR R L =1.5M60dB 内部固定增益G A 40dB 运放输出高电平V YH R L =500K 4.0V 运放输出低电平V YL 0.5V OUT 端输出高电平电流I OH V OH =0.8GV CC 10mA OUT 端输出低电平电流I OL V OL =0.2GV CC10mA 封锁时间T LOCK1.522.5S℃℃典型应用线路图功能描述JT850内置稳压电路，输入电压最高可达24V，输出电压5.0V，输出电流能为30mA，可以为PIR 供电。

PRESSURE TRANSDUCERS WITH AMP.PA-850■FEATURES■MODEL NUMBER DESIGNATIONPA-850 - 102 R - N R2Series namePressure reference Rated pressure rangeG：GaugeV：Gauge (Vacuum)R：CompoundA：Absolute102：0 ~ 100 kPa352：0 ~ 350 kPa103：0 ~ 1000 kPa102：0 ~ − 100 kPa102：− 100 ~ 100 kPa302：− 100 ~ 300 kPa102：0 ~ 100 kPa absFittingR2：R 1/4 with M 5 female screwGF：G 3/8 with flash diaphragmG2：G 1/4 with M 5 female screwSwitch output interfaceN：NPN open collector(Upper limit mode)P：PNP open collector(Upper limit mode)※Please refer to the LIST OF MODEL NUMBERS when placing orders.●High corrosion resistance and drip-proof constructionPressure port attachment made of SUS 316LProven IP-65 grade gauge body (IP-65 in accordance with IEC)●Stand ard prod uct provid es both a switch output(hysteresis adjustable) and an analog output●Absolute pressure type and compound pressure typewhich can control negative to positive pressure with onlya single pressure gauge are all in line●Three standard types of joint are providedR2 : R 1/4 (M 5 female screw)GF : G 3/8 with flash diaphragmG2 : G 1/4 (M 5 female screw)■LIST OF MODEL NUMBERS※Verify the above model numbers when placing orders.PA-850PRESSURE TRANSDUCERS WITH AMP .■STANDARD SPECIFICATIONS※1　An “O” ring provided.（G 3/8 : P18、G 1/4 : P15）● Unless otherwise specified, the specs are defined at an ambient temperature of 25±5 °C and excitation voltage of 12 V DC.PA-850PRESSURE TRANSDUCERS WITH AMP .■ENVIRONMENTAL CHARACTERISTICS●Configurations of joint R2 (R1/4) type●Configurations of joint GF (G 3/8) type●Configurations of joint G2 (G 1/4) type■OUTLINE DIMENSIONS Unless otherwise specified, tolerance : ± 0.5 (Unit: mm) PA-850PRESSURE TRANSDUCERS WITH AMP.Extra care should be taken with the diaphragm part. Do not touch the diaphragm directly to avoid damaging the diaphragm.ShieldS.OutputA.Output Power B Common ShieldS.OutputCommon A.Output Power BOFF－ pressurepressureON OFF－vacuunON OFFON OFFON PA-850PRESSURE TRANSDUCERS WITH AMP .■INTERNAL ELECTRICAL SCHEMATICS● NPN output● PA-850-102V● PA-850-＊＊＊G● PA-850-＊＊＊R● PA-850-＊＊＊A● PNP output■SWITCH OUTPUT SCHEMATICSTurns on at the set pressure and turns off at the set pressure minus the hysteresis.※Adjustable hysteresis。

WT8509功放芯片说明书V1.00 Note：WAYTRONIC ELECTRONIC CO.,LTD.reserves the right to change this document without prior rmation provided by WAYTRONIC is believed to be accurate and reliable.However,WAYTRONIC makes no warranty for any errors which may appear in this document.Contact WAYTRONIC to obtain the latest version of device specifications before placing your orders.No responsibility is assumed by WAYTRONIC for any infringement of patent or other rights of third parties which may result from its use.In addition,WAYTRONIC products are not authorized for use as critical components inWT8509输出功率D 类模式输出功率-AB 类模式QDD=8.5V ,THD+N=10%VDD=8.5V,THD+N=10%RL=8Ω 4.20W RL=8Ω 4.00V RL=4Ω8.50W RL=4Ω8.00WVDD=5.0V,THD+N=1%VDD=5.0V,THD+N=10%RL=8Ω 1.5W RL=8Ω 1.30W RL=4Ω 2.65W RL=4Ω 3.00W ・工作电压范围2.5-9.2V・优异的”噗呲-咔嗒"(pop-noise)张音抑制能力・无需滤波的class-D 结构・D 类模式高达90%的效率・高的电源抑制比(PSRR):在217Hz 下为-80dB ・快速的启动时间(200ms)・低静态电流(3mA)・低关断电流(<0.1uA)・过流保护,短路保护和过热保护・符合Rohs 标准的无铅封装应用:・多媒体音箱・扩音器序号符号描述SD 掉电控制管脚，低电平芯片关闭，高电平芯片开启ABD AB 类/D 类切换选择，L 选择AB 类模式，H 选择D 类模式IN+音频输入正端IN-音频输入负端VDD 电源V0+正向音频输出VO-反向音频输出GND地WT8509是一款高效率，超低EMI ,AB 类D 类模式可切换的8.0W 单声道音频放大器。

高精度数字电容传感芯片MDC04产品手册（V3.4）©敏源传感科技有限公司2021/07目录1.产品简介 (1)1.1概述与应用 (1)1.2特性 (1)1.3功能框图 (1)2.引脚配置及功能 (2)2.1引脚列表 (2)2.2应用电路 (3)2.2.1单总线接口方式 (3)2.2.2I²C接口方式 (4)3.技术规格 (4)3.1电气特性 (4)3.1.1.绝对最大额定值 (5)3.1.2.非易失性存储器特性 (5)3.2.单总线接口时序 (5)3.3.I2C接口时序 (6)4.电路描述 (7)4.1.电容转换 (7)4.1.1.偏置电容和测量范围配置以及通道选择 (8)4.1.2.偏置电容设置寄存器Cos (8)4.1.3.系统配置寄存器Cfg (9)4.1.4.系统状态寄存器 (9)4.2.温度转换 (10)5.循环冗余校验（CRC）计算 (10)6.单总线通信接口 (11)6.1.单总线寄存器访问 (11)6.2.复位 (12)6.3.ROM指令 (14)6.4.功能指令 (15)6.5.MDC04运行示例 (17)6.5.1.示例1 (17)6.5.2.示例2 (18)7.I²C通信接口 (19)7.1.I2C寄存器访问 (19)7.2.读写指令 (19)7.3.操作与通信 (20)7.3.1.上电及通信起始 (20)7.3.2.开始测量 (20)7.3.3.单字节读和写指令 (21)7.3.4.设定配置寄存器指令 (22)7.3.5.读取状态寄存器和配置寄存器指令 (22)7.3.6.复位状态寄存器指令 (22)7.3.7.偏置电容、反馈电容和通道选择寄存器访问 (23)7.3.8.单次测量模式指令 (23)7.3.9.连续测量模式指令 (24)7.3.10.单次和连续测量模式下读取数据 (24)7.3.11.停止连续测量模式指令 (25)7.3.12.复位 (25)7.3.13.寄存器保存和恢复指令 (26)7.3.14.自动配置偏置电容指令 (26)8.封装 (28)附录一：不同电容测量范围的配置 (29)1.产品简介1.1 概述与应用电容型传感芯片MDC04是高集成度的数字模拟混合信号传感集成电路，芯片直接与被测物附近的差分电容极板相连，利用不同物质介电常数的区别，通过放大、数字转换、补偿计算电容的微小变化来实现物质成分的传感。

2021.8SC01B单键电容触摸感应芯片(智能马桶人体感应、液位检测)1.概览1.1概述SC01B 是单键电容触摸感应器，它可以通过任何非导电介质（如玻璃和塑料）来感应电容变化。

通过设置，SC01B 可以应用于普通触摸按键开关、智能马桶人体感应、水位检测。

1.2特性◇普通按键应用。

◇智能马桶人体感应应用。

◇水位检测应用。

◇保持自动校正，无需外部干预◇按键输出经过完全消抖处理◇并行一对一输出◇2.5V ~6.0V 工作电压◇符合RoHS 指令的环保SOP8封装1.3应用◇替代机械开关，门禁按键，灯控开关◇玩具和互动游戏的人机接口◇密封键盘面板◇金属触摸按键◇马桶着座感应器◇洗地机清水箱液体检测◇各种容器水箱液位检测◇净水器设备液体检测1.4封装SC01B 采用SOP8封装图1-1：封装简图1234V M O C1.5管脚表1-1：管脚汇总管脚顺序名称类型功能1GND Pwr电源地2CMOD I/O接电荷收集电容3CDC I/O接灵敏度电容4CIN1I/O触摸检测端5CIN2I/O触摸检测端6OUT OD感应按键输出7MD I/O模式设置端8VDD Pwr电源管脚类型I CMOS输入I/O CMOS输入/输出OD NMOS开漏输出Pwr电源/地1.6管脚说明VDD,GND电源正负输入端。

CMOD电荷收集电容输入端，接固定值的电容，和灵敏度无关。

CDC接灵敏度电容，电容范围是最小5pf，最大100pf。

根据使用环境选择合适的电容值，数值越小，灵敏度越高。

CIN1感应电容的输入检测端口。

当用于智能马桶人体感应及液位检测应用时，接固定电容作为比较参考电容；当用于普通按键锁存输出应用时，接触摸按键输入。

CIN2感应电容的输入检测端口。

当用于智能马桶人体感应及液位检测应用时，接触摸按键输入；当用于普通按键检测功能时，管脚悬空。

OUT触摸输出端口。

端口内部结构为带上拉电阻的NMOS开漏输出，输出弱高或强低电平，有效电平是强低电平。
