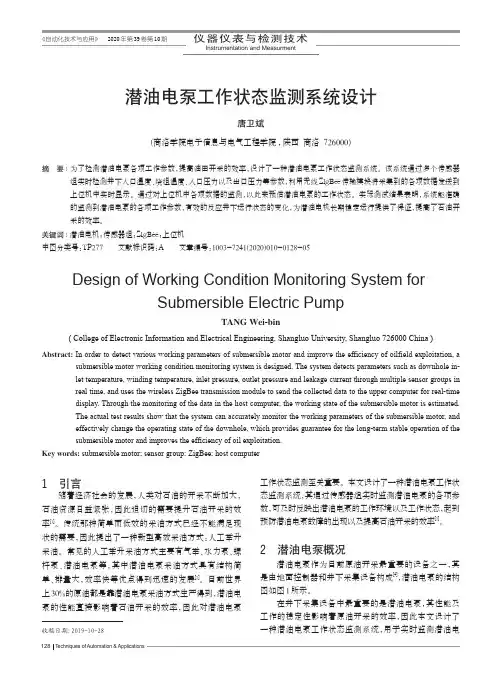

Techniques of Automation &Applications潜油电泵工作状态监测系统设计唐卫斌(商洛学院电子信息与电气工程学院,陕西商洛726000)摘要:为了检测潜油电泵各项工作参数，提高油田开采的效率，设计了一种潜油电泵工作状态监测系统。
该系统通过多个传感器组实时检测井下入口温度、绕组温度、入口压力以及出口压力等参数，利用无线ZigBee 传输模块将采集到的各项数据发送到上位机中实时显示。
通过对上位机中各项数据的监测，以此来预估潜油电泵的工作状态。
实际测试结果表明，系统能准确的监测到潜油电泵的各项工作参数，有效的反应井下运行状态的变化，为潜油电机长期稳定运行提供了保证，提高了石油开采的效率。
关键词:潜油电机;传感器组;ZigBee;上位机中图分类号：TP277文献标识码:A文章编号:1003-7241(2020)010-0128-05Design of Working Condition Monitoring System forSubmersible Electric PumpTANG Wei -bin(College of Electronic Information and Electrical Engineering,Shangluo University,Shangluo 726000China )Abstract:In order to detect various working parameters of submersible motor and improve the efficiency of oilfield exploitation,asubmersible motor working condition monitoring system is designed.The system detects parameters such as downhole in-let temperature,winding temperature,inlet pressure,outlet pressure and leakage current through multiple sensor groups in real time,and uses the wireless ZigBee transmission module to send the collected data to the upper computer for real-time display.Through the monitoring of the data in the host computer,the working state of the submersible motor is estimated.The actual test results show that the system can accurately monitor the working parameters of the submersible motor,and effectively change the operating state of the downhole,which provides guarantee for the long-term stable operation of the submersible motor and improves the efficiency of oil exploitation.Key words:submersible motor;sensor group;ZigBee;host computer收稿日期:2019-10-281引言随着经济社会的发展，人类对石油的开采不断加大，石油资源日益紧张，因此迫切的需要提升石油开采的效率[1]。
