Specifications and Ordering InformationPart Number 141194-01Rev. T (12/12)Bently Nevada* Asset Condition Monitoring 3300 XL 8mm Proximity Transducer SystemDescription The 3300 XL 8 mm Proximity Transducer System consists of: ∙ One 3300 XL 8 mm probe,∙ One 3300 XL extension cable 1, and ∙ One 3300 XL Proximitor * Sensor 2. The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor * reference and speed measurements 3.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metre system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual componentsEach 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable 4 with other non-XL 3300 series 5 mm and 8 mm transducer system components 5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space 6,7.Proximitor SensorThe 3300 XL Proximitor Sensor incorporates numerous improvements overprevious designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs. The mounting base for either option provideselectrical isolation and eliminates the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity. The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.Proximity Probe and Extension CableThe 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip. You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc* cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.ConnectorsThe 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc* connectors. These connectors require only finger-tight torque (the connectors will "click" when tight), and the specially-engineered locking mechanism prevents the connectors from loosening. These connectors require no special tools for installation or removal.You can order the 3300 XL 8 mm probes and extension cables with connector protectors already installed. We can also supply connector protectors separately for field installations (such as when an application must run the cable through restrictive conduit). We recommend connector protectors for all installations to provide increased environmental protection8.Extended Temperature Range ApplicationsAn extended temperature range (ETR) probe and ETR extension cable are available for applications in which either the probe lead or extension cable may exceed the standard 177 ︒C (350 ︒F) temperature specification. The ETR probe has an extended temperature rating for up to 218 ︒C (425 ︒F). The ETR extension cable rating is up to 260 ︒C (500 ︒F). Both the ETR probe and cable are compatible with standard temperature probes and cables, for example, you can utilize an ETR probe with the 330130 extension cable. The ETR system uses the standard 3300 XL Proximitor Sensor. Note that when you use any ETR component as part of your system, the ETR component limits the system accuracy to the accuracy of the ETR system. Description Notes:1.1-metre systems do not use an extension cable.2.Proximitor sensors are supplied by default from thefactory calibrated to AISI 4140 steel. Calibration toother target materials is available upon request.3.Consult Bently Nevada* Applications Note,Considerations when using Eddy Current ProximityProbes for Overspeed Protection Applications, whenconsidering this transducer system for tachometer or overspeed measurements.4.3300 XL 8 mm components are both electrically andphysically interchangeable with non-XL 3300 5 mmand 8 mm components. Although the packaging ofthe 3300 XL Proximitor Sensor differs from itspredecessor, its design fits in the same 4-holemounting pattern when used with the 4-holemounting base, and will fit within the same mounting space specifications (when minimum permissiblecable bend radius is observed).5.Mixing XL and non-XL 3300-series 5 mm and 8 mmsystem components limits system performance to the specifications for the non-XL 3300 5 mm and 8 mmTransducer System.6.The 3300-series 5 mm probe (refer to Specificationsand Ordering Information p/n 141605-01) usessmaller physical packaging, but does not reduce theside view clearances or tip-to-tip spacingrequirements as compared to an 8 mm probe. It isused when physical (not electrical) constraintspreclude the use of an 8 mm probe. When yourapplication requires narrow side view probes, use the 3300 NSv* Proximity Transducer System (refer toSpecifications and Ordering Information p/n 147385-01).7.8 mm probes provide a thicker encapsulation of theprobe coil in the molded PPS plastic probe tip. Thisresults in a more rugged probe. The larger diameterof the probe body also provides a stronger, morerobust case. We recommend that you use 8 mmprobes when possible to provide optimal robustnessagainst physical abuse.8.Each 3300 XL extension cable includes silicone tapethat you can use instead of connector protectors. We do not recommend silicone tape for applications that will expose the probe-to-extension cable connectionto turbine oil.Specifications and Ordering InformationSpecificationsUnless otherwise noted, the following specifications are for a 3300 XL 8 mm Proximitor Sensor, extension cable and 8 mm probe between +18 ︒C and +27 ︒C (+64 ︒F to +80 ︒F), with a -24 Vdc power supply, a 10 kΩ load, an AISI 4140 steel target, and a probe gapped at 1.27 mm (50 mils). Performance characteristics apply to systems that consist solely of 3300 XL 8 mm components. The system accuracy and interchangeability specifications do not apply to transducer systems that are calibrated to any target other than our AISI 4140 steel target.ElectricalProximitorSensor InputAccepts one non-contacting3300-series 5 mm, 3300 8 mm or3300 XL 8 mm Proximity Probeand Extension Cable.PowerRequires -17.5 Vdc to -26 Vdcwithout barriers at 12 mAmaximum consumption, -23 Vdcto -26 Vdc with barriers.Operation at a more positivevoltage than -23.5 Vdc can resultin reduced linear range.SupplySensitivityLess than 2 mV change in outputvoltage per volt change in inputvoltage.OutputResistance50 ΩNominal ProbeDC ResistanceResistance (R PROBE) from CenterConductor to Outer ConductorProbe Length R PROBE (Ω)0.5 7.45± 0.501.0 7.59 ± 0.501.5 7.73± 0.502.0 7.88 ± 0.503.0 8.17 ± 0.605.0 8.73± 0.709.0 9.87 ± 0.90 NominalExtension CableDC ResistanceResistance (R CORE) from CenterConductor to Center ConductorLength of ExtensionCable (m)R CORE (Ω)3.0 0.66± 0.103.5 0.77 ± 0.124.0 0.88± 0.134.5 0.99 ± 0.156.0 1.32± 0.217.0 1.54± 0.237.5 1.65 ± 0.258.0 1.76± 0.268.5 1.87 ± 0.28Resistance (R JACKET) from OuterConductor to Outer ConductorLength of ExtensionCable (m)R JACKET (Ω)3.0 0.20± 0.043.5 0.23 ± 0.054.0 0.26± 0.054.5 0.30 ± 0.066.0 0.39± 0.087.0 0.46± 0.097.5 0.49 ± 0.108.0 0.53± 0.118.5 0.56 ± 0.11Specifications and Ordering InformationExtension CableCapacitance69.9 pF/m (21.3 pF/ft) typical Field Wiring0.2 to 1.5 mm2(16 to 24 AWG) .Recommend using 3-conductorshielded triad cable and tinnedfield wiring. Maximum length of305 metres (1,000 feet) betweenthe 3300 XL Proximitor Sensorand the monitor. See thefrequency response graphs inthrough Figure 13 (pages 28 and29) for signal rolloff at highfrequencies when using longerfield wiring lengths.Linear Range2 mm (80 mils). Linear rangebegins at approximately 0.25 mm(10 mils) from target and is from0.25 to 2.3 mm (10 to 90 mils)(approximately –1 to –17 Vdc). RecommendedGap Setting forRadial Vibration-9Vdc [approximately 1.27 mm(50 mils)]IncrementalScale Factor(ISF)Standard 5-or 1- metreSystem:7.87 V/mm (200 mV/mil) ± 5%including interchangeability errorwhen measured in increments of0.25 mm (10 mils) over the 80 millinear range from 0 °C to +45 °C(+32 °F to +113 °F).Standard9-metreSystem:7.87 V/mm (200 mV/mil) ± 6.5%including interchangeability errorwhen measured in increments of0.25 mm (10 mils) over the 80 millinear range from 0 °C to +45 °C(+32 °F to +113 °F).ExtendedTemperatureRange (ETR)for 5- and9-MetreSystems:7.87 V/mm (200 mV/mil) ± 6.5%including interchangeability errorwhen measured in increments of0.25 mm (10 mils) over the 80 millinear range from 0 °C to +45 °C(+32 °F to +113 °F).Deviation from best fit straight line (DSL)Standard 5-or 1-metreSystem:Less than ±0.025 mm (±1 mil) withcomponents at 0 °C to +45 °C(+32 °F to +113 °F).Standard9-metreSystem:Less than ±0.038 mm (±1.5 mil)with components at 0 °C to +45°C (+32 °F to +113 °F).ExtendedTemperatureRange 5 and9-metreSystems:Less than ±0.038 mm (±1.5 mil)with components at 0 °C to +45°C (+32 °F to +113 °F). PerformanceOver ExtendedTemperaturesStandard 5-or 1-metreSystem:Over a probe temperature rangeof –35 °C to +120 °C (-31 °F to+248 °F) with the Proximitorsensor and extension cablebetween 0 °C to +45°C (+32 °F to+113 °F), the ISF remains within±10% of 7.87 V/mm (200 mV/mil)and the DSL remains within±0.076 mm (±3 mils).Specifications and Ordering InformationOver a Proximitor sensor andextension cable temperaturerange of –35 °C to +65 °C (-31 °Fto +149 °F) with the probebetween 0 °C to +45 °C (+32 °F to+113 °F), the ISF remains within±10% of 7.87 V/mm (200 mV/mil)and the DSL remains within±0.076 mm (±3 mils).Standard9-metreSystem:Over a probe temperature rangeof –35 °C to +120 °C (-31 °F to+248 °F) with the Proximitorsensor and extension cablebetween 0 °C to +45°C (+32 °F to+113 °F), the ISF remains within±18% of 7.87 V/mm (200 mV/mil)and the DSL remains within±0.152 mm (±6 mils).Over a Proximitor sensor andextension cable temperaturerange of –35 °C to +65 °C (-31 °Fto +149 °F) with the probebetween 0 °C to +45 °C (+32 °F to+113 °F), the ISF remains within±18% of 7.87 V/mm (200 mV/mil)and the DSL remains within±0.152 mm (±6 mils).ExtendedTemperatureRange 5 and9-metreSystems:Over a probe and extension cabletemperature range of –35 °C to+260 °C (-31 °F to +500 °F) withthe Proximitor sensor between 0°C to +45 °C (+32 °F to +113 °F),the ISF remains within ±18% of7.87 V/mm (200 mV/mil) and theDSL remains within ±0.152 mm(±6 mils).FrequencyResponse(0 to 10 kHz), +0, -3 dB, with up to305 metres (1000 feet) of fieldwiring. MinimumTarget Size15.2 mm (0.6 in) diameter (flattarget)Shaft DiameterMinimum:50.8 mm (2 in)RecommendedMinimum:76.2 mm (3 in)When gapped at the center of thelinear range, the interactionbetween two separate transducersystems (cross-talk) will be lessthan 50 mV on shaft diameters ofat least 50 mm (2 in) or greater.You should take care to maintainminimum separation oftransducer tips, generally at least40 mm (1.6 in) for axial positionmeasurements or 38 mm (1.5 in)for radial vibration measurementsto limit cross-talk to 50 mV or less.Radial vibration or positionmeasurements on shaftdiameters smaller than 76.2 mm(3 in) will generally change thescale factor.Effects of 60 HzMagnetic Fieldsup to 300 GaussOutput Voltage in Mil pp/Gauss Gap(mil)5- or1-metreProximitorSensor9-metreProximitorSensorProbeExt.Cable10 0.0119 0.0247 0.0004 0.000450 0.0131 0.0323 0.0014 0.001490 0.0133 0.0348 0.0045 0.0045Specifications and Ordering InformationSpecifications and Ordering InformationCompliance and CertificationsEMCEuropean Community Directives: EMC Directive 2004/108/EC Standards:EN61000-6-2 EN61000-6-4MaritimeABS 2009 Steel Vessels Rules 1-1-4/7.7, 4-8-3/1.11.1, 4-9-7/13Hazardous Area ApprovalsNote: Multiple approvals for hazardous areas certified byCanadian Standards Association (C/US) in North America and by Baseefa for Europe and IEC Ex.Field Wiring Limitations:Type Approval: Gas GroupCapacitance(µF)Inductance (mH)L/R Ratio (μH/Ω)ATEX and IEC Zone 0/1IIC 0.078 0.99 29.2IIB 0.645 7.41 117.0IIA 2.144 15.6 234.0 CSA Div 1A &B 0.070 1.0 29.2C 0.600 5.0 117.0D 2.09 11.0 234.0CSA Div 2 All 0.460 100.0 N/A North America3300 XL Proximitor Sensor and probe, ia:Ex ia IIC T4/T5; Class I Zone 0 or Class 1; Groups A, B, C, and D, Class II, Groups E, F and G, Class III when installed with intrinsically safe zener barriers per drawing 141092 or when installed with galvanic isolators.3300 XL Proximitor Sensor and probe, nA:Ex nA IIC T4/T5 Class I Zone 2 or Class I, Division 2, Groups A, B, C, and D, when installed without barriers per drawing 140979. T 5 @ T a = -35 ︒C to +85 ︒C. T4 @ Ta= -51 ︒C to +100 ︒C.Europe3300 XL Proximitor Sensor, ia :II 1 G EEx ia IIC T4/T5 when installed per drawing 141092.3300 XL Proximitor Sensor, nA:II 3 G Ex nA II T4/T5 when installed per drawing 140979. T5 @ Ta= -35 ︒C to +85 ︒C T4 @ Ta= -51 ︒C to +100 ︒C3300 XL 8mm probe, ia: II 1 G EEx ia IIC, Temperature Classification per Table 1 when installed per drawing 142491. 3300 XL 8mm probe, nA:II 3 G EEx nA II, Temperature Classification per Table 1 when installed per drawing 142491.Brazil3300 XLProximitorSensor, ia:BR-Ex ia IIC T4(-51°C ≤ Ta ≤ +100°C)BR-Ex ia IIC T5(-35°C ≤ Ta ≤ +85°C)Terminal J1Terminal J2Ui= -28V Ii= 140mA Pi= 0.91W Ci = 0 FLi =0 H Uα= -28V Iα= 140mA Pα= 0.91W Ci = 0 FLi =0 .7 mHApplicable for Part numbers:330180, 330980, 330780, 330850,330878.3300 XL8mm and3300 5mmEddy CurrentProbes, ia:BR-Ex ia IIC TemperatureClassification per Table 1.Ui = -28V Ci = 0 FIi = 140 mA Li = 0 HPi = 0.91 WIEC Ex3300 XLProximitorSensor, ia:Ex ia IIC T4 (-51°C ≤ Ta ≤ +100°C) /T5 (-35ºC ≤ Ta ≤ +85ºC)Ui= -28V Ci = 0Ii= 140mA Li =10µHPi= 0.84W3300 XLProximitorSensor, nA:Ex nA II T4 (-51°C ≤ Ta ≤ +100°C) /T5 (-35°C ≤ Ta ≤ +85°C)Ui = -28V3300 XL8mm and3300 5mmEddy CurrentProbes, ia:Ex ia IIC TemperatureClassification per Table 1.Ui = -28V Ci = 1.5 nFIi = 140 mA Li = 200 µHPi = 0.84 W3300 XL8mm and3300 5mmEddy CurrentProbes, nA:Ex nA II for Zone 2 TemperatureClassification per Table 1.Table 1: Probe Temperature ClassificationTemperatureClassificationAmbient Temperature(Probe Only)T1 -51ºC to +232ºCT2 -51ºC to +177ºCT3 -51ºC to +120ºCT4 -51ºC to +80ºCT5 -51ºC to +40ºCHazardous AreaConditions ofSafe Use:ATEX:Follow the conditions of safe useincluded on the Declaration ofConformance sent with eachproduct.CanadianStandardsAssociation(CSA):Division 1 (Intrinsically safe):Install per Bently Nevada drawing141092.Division 2 (non-Incendive): Installper Bently Nevada drawing140979.Specifications and Ordering InformationIECEx:Zone 0 (Intrinsically safe): TheProximitor Sensor must beinstalled to minimize the risk ofimpact or friction with othermetallic surfaces.Zone 2 (non-Incendive): Theprobe must be supplied from avoltage-limited source. MechanicalProbe TipMaterialPolyphenylene sulfide (PPS). Probe CaseMaterialAISI 303 or 304 stainless steel(SST).Probe CableSpecificationsStandardcable:75Ω triaxial, fluoroethylenepropylene (FEP) insulated probecable in the following total probelengths: 0.5, 1, 1.5, 2, 3, 5, or 9metres.ExtendedTemperatureRange cable:75Ω triaxial, perfluoroalkoxy (PFA)insulated probe cable in thefollowing total probe lengths: 0.5,1, 1.5, 2, 5, or 9 metres.Armor(optional onboth):Flexible AISI 302 or 304 SST withFEP outer jacket.Tensile Strength(MaximumRated):330 N (75 lbf) probe case to probelead.270 N (60 lbf) at probe lead toextension cable connectors.ConnectorMaterial:Gold-plated brass or gold-platedberyllium copper.Probe CaseTorque:Probe TypeMaximumRatedRecommended Standardforward-mountedprobes33.9 N∙m(300 in∙lbf)11.2 N∙m(100 in∙lbf) Standard forward-mount probes -first three threads22.6 N∙m(200 in∙lbf)7.5 N∙m(66 in∙lbf)Reverse-mountprobes22.6 N∙m(200 in∙lbf)7.5 N∙m(66 in∙lbf)Extension CableMaterialStandardcable:75Ω triaxial, fluoroethylenepropylene (FEP) insulated.ExtendedTemperatureRange cable:75Ω triaxial, perfluoroalkoxy (PFA)insulated.MinimumCable BendRadius:25.4 mm (1.0 in)Note: 3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8mm components when minimum permissible cable bendradius is observed..Specifications and Ordering InformationConnectorMaterial:Gold-plated brass or gold-platedberyllium copper.MaximumConnectorTorque:0.565 N∙m (5 in∙lbf) Connector-to-connectorrecommendedtorque:Connector Type Tightening Instructions Two 3300 XL gold"click" typeconnectorsFinger tightOne non-XL stainlesssteel connector and one 3300 XLconnector Finger tight plus 1/8 turnusing pliersProximitorSensor MaterialA308 aluminumConnectorMaterial:Gold-plated brass or gold-platedberyllium copper.System Length5 or 9 metres (including extensioncable) or 1 metre (probe only). Total SystemMass (Typical)0.7 kg (1.5 lbm)Probe:323 g (11.4 oz)ExtensionCable:34 g/m (0.4 oz/ft)ArmoredExtensionCable:103 g/m (1.5 oz/ft)ProximitorSensor:246 g (8.67 oz) Environmental LimitsProbe Temperature RangeOperating andStorageTemperatureStandardProbe:-51 °C to +177 °C (-60 °F to +350°F)ExtendedTemperatureRange Probe:-51 °C to +218 °C (-60 °F to+425°F) for the probe tip; -51 °C to+260 °C (-60 °F to +500 °F) for theprobe cable and connector. Note: Exposing the probe to temperatures below –34 ︒C (-30 ︒F) may cause premature failure of the pressure seal. Probe Pressure3300 XL 8 mm probes aredesigned to seal differentialpressure between the probe tipand case. The probe sealingmaterial consists of a Viton®O-ring. Probes are not pressuretested prior to shipment. Contactour custom design department ifyou require a test of the pressureseal for your application.Note: It is the responsibility of the customer or user to ensure that all liquids and gases are contained and safelycontrolled should leakage occur from a proximity probe.In addition, solutions with high or low pH values mayerode the tip assembly of the probe causing medialeakage into surrounding areas. Bently Nevada, Inc. willnot be held responsible for any damages resulting fromleaking 3300 XL 8 mm proximity probes. In addition, 3300XL 8 mm proximity probes will not be replaced under theservice plan due to probe leakage.Specifications and Ordering InformationExtension Cable Temperature Range Operating andStorageTemperatureStandardCable:-51 °C to +177 °C (-60 °F to +350°F)ExtendedTemperatureRange Cable:-51 °C to +260 °C (-60 °F to +500°F)Proximitor Sensor Temperature Range OperatingTemperature-51 °C to +100 °C (-60 °F to +212°F)StorageTemperature-51 °C to +105 °C (-60 °F to +221°F)RelativeHumidityLess than a 3% change inAverage Scale Factor (ASF) whentested in 93% humidity inaccordance with IEC standard68-2-3 for up to 56 days. PatentsComponents or proceduresdescribed in one or more of thefollowing patents apply to thisproduct: 5,016,343; 5,126,664;5,351,588; and 5,685,884.Specifications and Ordering InformationOrdering Information Probes3300 XL 8 mm Proximity Probes:330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor2330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor2Part Number-AXX-BXX-CXX-DXX-EXXA:Unthreaded Length OptionNote: Unthreaded length must be at least 0.8 inches less than the case length.Order in increments of 0.1 inLength configurations:Maximum unthreaded length: 8.8 inMinimum unthreaded length: 0.0 inExample:0 4 = 0.4 inB:Overall Case Length OptionOrder in increments of 0.1 inThreaded length configurations:Maximum case length: 9.6 inMinimum case length: 0.8 inExample:2 4 = 2.4 inC:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metre (4.9 feet)2 0 2.0 metres (6.6 feet)3 0 3.0 metres (9.8 feet)5 0 5.0 metres (16.4 feet)9 09.0 metres (29.5 feet)Notes: 3-metre length option is only available on 330101 probes, and are designed for use with the 9-metre Proximitorsensor only.5-metre probes are designed for use with the 5-metreProximitor sensor only.D:Connector and Cable-Type Option0 1Miniature coaxial ClickLocconnector with connectorprotector, standard cable0 2 Miniature coaxial ClickLocconnector, standard cable1 1Miniature coaxial ClickLocconnector with connectorprotector, FluidLoc cable1 2Miniature coaxial ClickLocconnector, FluidLoc cable E:Agency Approval Option0 0 Notrequired0 5 MultipleApprovals 3300 XL 8 mm Proximity Probes, Metric: 330103 3300 XL 8 mm Probe, M10 x 1 thread, without armor2330104 3300 XL 8 mm Probe, M10 x 1 thread, with armor2Part Number-AXX-BXX-CXX-DXX-EXXA:Unthreaded Length OptionNote: Unthreaded length must be at least 20 mm less than the case length.Order in increments of 10 mm.Length configuration:Maximum unthreaded length: 230mmMinimum unthreaded length: 0 mmExample:0 6 = 60 mmB:Overall Case Length OptionOrder in increments of 10 mm.Metric thread configurations:Maximum length: 250 mmMinimum length: 20 mmExample:0 6 = 60 mmC:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metres (4.9 feet)2 0 2.0 metres (6.6 feet)5 0 5.0 metres (16.4 feet)Note: 5-metre probes are designed for use with the 5-metre Proximitor sensor only.9 09.0 metres (29.5 feet)D: Connector and Cable-Type Option0 1 Miniature coaxial ClickLocconnector with connectorprotector, standard cable0 2 MiniaturecoaxialClickLocconnector, standard cable1 1 MiniaturecoaxialClickLocconnector with connectorprotector, FluidLoc cable1 2 MiniaturecoaxialClickLocconnector, FluidLoc cable E:Agency Approval Option0 0 Not required0 5 MultipleApprovalsSpecifications and Ordering Information3300 XL 8 mm Reverse Mount Probes330105-02-12-CXX-DXX-EXX, 3/8-24 UNF threads2 330106-05-30-CXX-DXX-EXX, M10 x 1 threads2Option DescriptionsC:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metre (4.9 feet)2 0 2.0 metres (6.6 feet)5 0 5.0 metres (16.4 feet)Note: 5-metre probes are designed for use with the 5-metre Proximitor sensor only.9 09.0 metres (29.5 feet)D: Connector Option0 2 MiniatureClickLoccoaxialconnector1 2 MiniatureClickLoccoaxialconnector, FluidLoc cable Note: The FluidLoc cable option –12 is not necessary on the vast majority of 330105 and 330106 installations due to thepresence of the probe sleeve. Consider carefully theapplication before ordering the FluidLoc cable option forthese probes.E:Agency Approval Option0 0 Notrequired0 5 MultipleApprovals 3300 XL 8 mm Proximity Probes, Smooth Case: 330140 3300 XL 8 mm Probe without armor1330141 3300 XL 8 mm Probe with armor1Part Number-AXX-BXX-CXX-DXXOption DescriptionsA:Overall Case Length OptionOrder in increments of 0.1 inLength configurations:Maximum length: 9.6 inMinimum length: 0.8 inExample:2 4 = 2.4 inB:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metres (4.9 feet)2 0 2.0 metres (6.6 feet)5 0 5.0 metres (16.4 feet)Note: 5-metre probes are designed for use with the 5-metre Proximitor sensor only.9 09.0 metres (29.5 feet) C:Connector and Cable-Type Option0 1 MiniaturecoaxialClickLocconnector with connectorprotector, standard cable0 2 MiniaturecoaxialClickLocconnector, standard cable1 1 MiniaturecoaxialClickLocconnector with connectorprotector, FluidLoc cable1 2 MiniaturecoaxialClickLocconnector, FluidLoc cable D:Agency Approval Option0 0 Not required0 5 MultipleApprovals 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes:330191 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, without armor330192 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, with armorPart Number-AXX-BXX-CXX-DXXA:Unthreaded Length OptionNote: Unthreaded length must be at least 0.8 inches less than the case length.Order in increments of 0.1 inLength configurations:Maximum unthreaded length: 8.8 inMinimum unthreaded length: 0.0 inExample:1 5 = 1.5 inB:Overall Case Length OptionOrder in increments of 0.5 inThreaded length configurations:Maximum case length: 9.6 inMinimum case length: 0.8 inExample:2 5 = 2.5 inC:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metre (4.9 feet)2 0 2.0 metres (6.6 feet)5 0 5.0 metres (16.4 feet)Note: 5-metre probes are designed for use with the 5-metre Proximitor sensor only.9 09.0 metres (29.5 feet)D:Agency Approval Option0 0 Notrequired0 5 MultipleApprovalsSpecifications and Ordering Information。
DescriptionAccessories contribute to a reliable transducer system. Installing proximity probes during outages usually requiresone or more mounting accessories to help simplify the task.3300XL Transducer AccessoriesDatasheetBently Nevada Machinery Condition Monitoring145668Rev.HThese accessories allow you to quickly and efficiently install proximity probes and route the associated cables out of the machine case. These parts also help shield the cables from electrical noise and adverse environmental conditions. Having the proper mounting hardware on-site during the probe installation saves time and money for those responsible for the project.Junction boxesJunction boxes are normally mounted on or near the exterior of a machine case and enclose electrical connections in weatherproof or explosion-proof environments. Sealtite™ flexible conduit Flexible conduit routes probe cables safely to the sensor housing and then back to the monitors. The conduit protects transducer wiring from damage that splashing liquids or accidental contact with other equipment can cause.Sealtite flexible conduit consists of a galvanized steel core with an extruded thermoplastic cover. Pipe fittings are made of steel with a zinc-plated, chromate finish and are compatible with fittings found on our watertight equipment enclosuresProbe mounting bracketsProbe mounting brackets attach internally mounted proximity probes to the machine case. S upplied mounting bolts attach the bracket to the bearing or other location inside the machine casing. The bracket holds the probe and allows for adjustment of the probe tip relative to the observed surface.For most installations, use the standard 137492 non-clamping aluminum probe bracket. When using the 137491 brackets for 3/8-inch diameter smooth case probes, tightening the bolts will compress the probe hole around the probe and lock the probe into its preset gapped position. If your application requires additional electrical isolation from the mounting location (as in some generator and electric motor bearing locations), use the 27474 phenolic probe bracket. These mounting brackets are compatible with our 3300 and 3300 XL proximity probe systems, including 5 mm, 8 mm and NSv™ probes.To ensure that the brackets screws remain fastened within the machine, secure the screws with safety wire. Each mounting bracket includes special screws with holes drilled for safety wire.Cable SealThe optional 10076 Cable Seal is mainly for use in cable routing applications. It restrains the coaxial cable from movement, prevents abrasion, and provides splash protection. One end of the cable seal has a 1/4-18 NPT thread that allows you to thread it into a 4190-36 Adapter.The cable seal has an aluminum body and an oil-resistant, slit grommet so that you can install it over armored or non-armored cable without removing the connectors. AdapterThe optional 4190 Adapter attaches a junction box to the machine case. It also allows mounting of the proximity probe in some instances.The adapter offers a variety of threads and configurations. A dapter threads and configurations that are not listed in this data sheet may be available. P lease contact your sales representative for more information. Explosion-proof fittingsExplosion-proof fittings provide seals for housings in Division 1 and in Zone 0 and 1 hazardous areas. The fittings include sealing compound, packing fiber, and the appropriate adapter. Fitting kits are available. Refer to Explosion-Proof Fittings on page 6 for details and part numbers.Low-pressure cable sealThe 43501 Low-Pressure Cable Seal provides egress for up to 4 75Ω and/or 95Ω 3300XL, 3300 and 7200 cables, or up to 2 25mm DE or 50mmDE transducer cables, through a single hole in a machine case or other barrier.The cable seal is constructed of 303 stainless steel and a molded silicon rubber grommet and prevents leakage of fluids along the outer jacket of the cable. The seal has threads on both ends and fits into a tapped hole on the machine case or barrier. External pipe threads enable the seal to mate to conduit or housings. You can use the low-pressure cable seal only with non-armored cables. Its design seals pressures up to 345 kPa (50 psi) when properly installed.High-Temperature Cable TiesThe 173873 high-temperature cable tie is an economical alternative to metal brackets in high-temperature applications. These cable ties are molded from VICTREX® PEEK™ polymer for multiple uses in extreme environments up to +180°C (+356°F).SpecificationsJunction BoxesCylindrical Junction Box P/N 03818016 ComponentsMain body and blankcoverDimensionsOverall Height76 mm (3.0 in)Body Diameter89 mm (3.5 in)Hub-to-Hub121 mm (4.75 in) Base to Hub Center16 mm (0.64 in) Fittings3/4-14 NPT5 placesMaterial AluminumOptional Extension for 03818016 P/N 03818022ComponentsMain body Dimensions (Extensiononly)Overall Height93mm (3.7 in)Body Diameter90mm (3.6 in)Hub-to-Hub (flats)91 mm (3.6 in)Total ExtendedHeight150 mm (5.90 in) Material Aluminum Rectangular Junction Box P/N 03818065 ComponentsMain body and cover Dimensions Overall Height27.9 mm (1.10 in) Width of Body38.1 mm (1.50 in) Length of Body95.3 mm (3.75 in) Fittings1/2-14 NPT2 places Material Aluminum Rectangular Junction Box P/N 03818066 ComponentsMain body and cover Dimensions Overall Height61.0 mm (2.40 in) Width of Body44.5 mm (1.75 in) Length of Body102 mm (4.00 in) Fittings3/4-14 NPT2 places Material Aluminum Sealtite Flexible Conduit Components Refer to Figure 4.Fitting Options1/2-14 NPT3/4-14 NPTLength As ordered BracketsClamp Mounting Bracket for 3/8-inch diameter smooth body probesDimensions Refer to Figure 5.Mounting Screw Thread Size Options 10-24 UNC-2A M5 x 0.8-6gMaterial AluminumNon-Clamping Mounting Bracket for threaded case probesDimensions Refer to Figure 6. Mounting Screw Thread Size10-24 UNC-2Aor M5 x 0.8-6g Material Aluminum Probe Lock NutThread Sizes 3/8-24 UNF-2B M10 x 1-6HFeatures Lock nut with holes to attachsafety wire.Cable Seal (P/N 10076) Components Refer to Figure 7Overall length (assembled)35mm (1.4 inches) in tightened conditionAdaptersFeatures Refer to Figure 8 4190-01Dimensions Internal Diameter9.53 mm (0.375 in) Internal thread type1/4-18 NPT External thread type1/2-14 NPT Overall Length38.1 mm (1.50 in) 4190-03Internal Diameter11.1 mm (0.437 in) Internal thread type1/4-18 NPT External thread type3/4-14 NPT Overall Length46.0 mm (1.81 in) 4190-04Internal Diameter7.14 mm (0.281 in) Internal thread type1/4-28 UNF-2B External thread type1/2-14 NPT Overall Length38.1 mm (1.50 in) 4190-06Internal Diameter10.3 mm (0.406 in) Internal thread type3/8-24 UNF-2B External thread type1/2-14 NPT Overall Length38.1 mm (1.50 in) 4190-16Internal Diameter10.3 mm (0.406 in) Internal thread type3/8-24 UNF-2B External thread type3/4-14 NPT Overall Length46.0 mm (1.81 in) 4190-20Internal Diameter16.7 mm (0.656 in) Internal thread type5/8-18 UNF-2B External thread type3/4-14 NPT Overall Length46.0 mm (1.81 in)4190-34Internal Diameter7.14 mm (0.281 in) Internal thread type1/4-28 UNF-2B External thread type3/4-14 NPT Overall Length56.1 mm (2.21 in) 4190-36Internal Diameter10.3 mm (0.406 in) Internal thread type1/4-18 NPT3/8-24 UNF-2B External thread type3/4-14 NPT Overall Length56.1 mm (2.21 in) Material304 Stainless Steel Explosion-Proof Fittings29368-01 Optional Fitting KitKit contains the following:03818056Hazardous area ¾” sealing fitting,conduit04576120 4 OZ adhesive sealant20892-02fiber seal03839246.750” aluminum plug72340 Fitting KitKit contains the following:03839246.750” aluminum plug 038500213/4 to 1/2 reducer thread fitting 49871-01cable grip assembly 03839153grommet sealing 250-312 ring 03839154grommet sealing 312-375 ring 20892-02fiber seal038180563/4 conduit fitting 03839155ring cable fitting 045761278 OZ adhesive sealant 04576120 4 OZ adhesive sealant 04760000string tag labelFeaturesRefer to Figure 9.Dimensions03818055Conduit size1/2-14 NPT Overall Length69.9 mm (2.75 in) Width49.3 mm (1.94 in) Min. turn radius63.5 mm (2.50 in) 03818056Conduit size3/4-14 NPT Overall Length69.9 mm (2.75 in) Width49.3 mm (1.94 in) Min. turn radius63.5 mm (2.50 in) 03818058Conduit size1-1/4 NPT Overall Length102 mm (4.00 in) Width54.1 mm (2.13 in) Min. turn radius57.2 mm (2.25 in) Material AluminumLow Pressure Cable SealDimensions Refer to Figure 10 Fitting Options1/2-14 NPT3/4-14 NPTHigh Temperature Cable TiesTemperature Up to +180°C (+356°F)Material VICTREX PEEK polymerOrdering InformationFor the detailed listing of country and product specific approvals, refer to the Approvals Quick Reference Guide (108M1756) available from .Sealtite Flexible Conduit3/4-14 NPT assembly Minimum length: 1 foot Maximum length: 99 feet Example: 0 1 = 1 foot9 9 = 99 feetAluminum Clamp Mounting Bracket for 3/8-inch Diameter Smooth Body Probes137491-AXXAluminum Non-ClampingMounting Bracket for Threaded Case Probes137492-AXXThe -0 1 and –0 2 option are supplied with two 10-24 UNC-2A mounting screws with safety wire holes. The -0 3 and -0 4 options are supplied with two M5 x 0.8-6g mounting screws with safety wireholes.Phenolic Mounting Bracket27474-AXXThe -0 1 and -0 2 options are supplied with two 10-24 UNC-2A mounting screws with safety wire holes. The -0 3 and -0 4 options are supplied with two M5 x 0.8-6g mounting screws with safety wire holes. The dimensions are identical to the aluminum mounting bracket 137492.Cable Seal10076-AXX0 150 Ω, without armor0275/95 Ω, without armor0 375/95 Ω, with armor0 450 Ω, with armorAdapter4190-AXXXX See Specifications section for dimension details.Additional sizes and configurationsavailable in both standard product andspecial modifications. Contact yourlocal sales representative for details. Low Pressure Cable Seal43501 – AXX – BXX - CXXJunction Boxes03818016Cylindrical Junction Box. 03818022Optional Extension for CylindricalJunction Box.03818065Rectangular Junction Box.Dimensions (W x L x D) 38.1mm x95.3mm x 29.7mm (1.10in x 1.50in x3.75in x 1.10in).03818066Rectangular Junction Box.Dimensions (W x L x D) 44.5mm x102mm x 61.0mm (1.75in x 4.00in x61.0in).Explosion-Proof Fittings038180551/2-14 NPT Fitting 038180563/4-14 NPT Fitting 03818057 1 to 11½ NPT Fitting 038180581¼ to 11½ NPT FittingProbe Lock Nuts043010073/8-24 UNF-2B. 04301008M10 x 1-6H. Accessories for Low Pressure Cable Seal04490104Punch tool kit for solid grommetoption.43574-04Replacement grommet. For up to 4cables.43575-04Replacement washerField Wiring021730062-conductor, twisted, shielded 18AWG (1.0 mm2).021730083-conductor, twisted, shielded 22AWG (0.5 mm2).021730093-conductor, twisted, shielded 18AWG (1.0 mm2).Use 2-conductor cable with velocitytransducers. U se 3-conductor cablewith Proximitor Sensors and interfacemodules. Specify number of feet whenordering.High Temperature Cable Ties 173873Bag of 50 Multiple-Use VICTREX PEEK Polymer Cable ties. For extreme environments up to+180°C (+356°F). One or more sizes/quantities available(?), including 7 inches long. Electrical Isolator19094-017200 Proximitor Sensor and Interface Module Isolator. P rovides electrical isolation for the 7200 Proximitor Sensor, velocity to displacement converters, and accelerometer interface modules.Graphs and FiguresAll dimensions shown in millimeters (inches) except as noted.1. Junction Box (03818016)2. Low Pressure Cable Seal (43501-02-04-02)3. High Temperature Cable Ties (173873)4. 3300 XL 8mm Probe (330101)5. Probe Mounting Brackets (137492-01)6. Connector Protectors (40113-02)7. Flexible Conduit (14848)8. Machine Case9. Machine ShaftFigure 1: Typical Internal Mounting Arrangement for an XY Proximity Probe Application1. 1. 121 (4.75) Typ.2. 2. 89 (3.50) Dia.3. 3. 90 (3.55) Dia.Figure 2: Cylindrical Junction Box and Optional ExtensionFigure 3: Junction BoxFigure 4: Sealtite™ Flexible Conduit1. 1. 5.11 (0.201) Dia.Figure 5: Clamping Aluminum Probe Bracket1. 5.11 (0.201) Dia.Figure 6: Non-Clamping Aluminum Probe Bracket1. 3/4 Hex2. 1/4 NPTFigure 7: Cable Seal1. Internal Diameter2. Internal Thread3. External Thread4. 4. 1-1/8 HexFigure 8: 4190 Adapter - 304 stainless steel (-34 Shown)Copyright 2020 Baker Hughes Company. All rights reserved.Bently Nevada and Orbit Logo are registered trademarks of Bently Nevada, a Baker Hughes Business, in the United States and other countries. The Baker Hughes l ogo is a trademark of Baker Hughes Company. All other product and company names are trademarks of their respective holders. Use of the trademarks does not imply any affiliation with or endorsement by the respective holders.Baker Hughes provides this information on an “as is” basis for general information purposes. Baker Hughes does not make any representation as to the accuracy or completeness of the information and makes no warranties of any kind, specific, implied or oral, to the fullest extent permissible by law, including those of merchantability and fitness for a particular purpose or use. Baker Hughes hereby disclaims any and all liability for any direct, indirect, consequential or special d amages, claims for lost profits, or third party claims arising from the use of the information, whether a claim is asserted in contract, tort, or otherwise. Baker Hughes reserves the right to make changes in specifications and features shown herein, or discontinue the product described at any time without notice or obligation. Contact your Baker Hughes representative for the most current information.The information contained in this document is the property of Baker Hughes and its affiliates; and is subject to change without prior notice. It is being supplied as a service to our customers and may not be altered or its content repackaged without t he express written consent of Baker Hughes. This product or associated products may be covered by one or more patents. See /legal.1631 Bently Parkway South, Minden, Nevada USA 89423Phone: 1.775.782.3611 or 1.800.227.5514 (US only)。

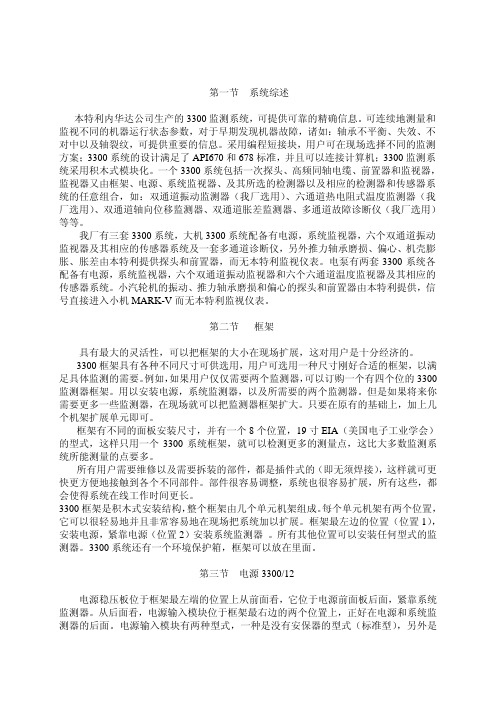

本特利探头及卡件介绍本特利内华达的电涡流传感器。
用于大多数涡流机械的永久监测，它们测量实际的轴运动，这是反映机器受力的可靠指标。
3300 XL 8 mm 电涡流传感器系统：这种电涡流传感器系统提供最大80 mils (2 mm)线性范围和200 mV/mil的输出。
它在大多数机械监测应用中用于径向振动、轴向（侧向）位移、转速和相位(Keyphasor® )测量，并符合美国石油协会标准670第4版的要求。
有多种螺纹尺寸、探头配置和安装附件可供选择。
3300 XL 11 mm 电涡流传感器系统：这种电涡流传感器系统专门用于当我们8 mm传感器的80 mil (2 mm)线性范围不能满足要求时的场合。
11 mm 电涡流传感器系统提供最大180 mils (4 mm)的线性范围和100 mV/mil的输出，主要用于要求大线性范围的轴向（测向）位移、转速、差胀以及往复式压缩机活塞杆位置（下落）测量。
有多种螺纹尺寸、探头配置和安装附件可供选择。
3300 5 mm / 8 mm 电涡流传感器系统：这种电涡流传感器系统是我们的3300 XL 8 mm 系统的前一代产品，我们推荐在所有新的和备件应用中使用3300 XL 8 mm系统。
8 mm XL 探头、电缆和前置器和旧的 3300 系列产品具有互换性。
当8 mm探头的端部直径和相应的螺纹尺寸不适用时，也可以使用5 mm探头。
有多种螺纹尺寸、探头配置和安装附件可供选择。
3300 XL NSv™ 电涡流传感器系统：这种电涡流传感器系统具有5mm端部直径和60 mils (1.5 mm)的更短线性范围，适用于被测靶面区域小、侧视或沉孔间隙减小以及其它限制使用我们标准的 5 mm / 8 mm 电涡流传感器的情况。
3300 16 mm 高温电涡流传感器系统：这种电涡流传感器系统用于最高350℃ (662°F)的高温环境，如温度超过我们标准电涡流探头和电缆能够承受的极限的某些燃气和蒸汽轮机应用。
Specifications and Ordering InformationPart Number 141194-01Rev. T (12/12)Bently Nevada* Asset Condition Monitoring 3300 XL 8mm Proximity Transducer SystemDescription The 3300 XL 8 mm Proximity Transducer System consists of: ∙ One 3300 XL 8 mm probe,∙ One 3300 XL extension cable 1, and ∙ One 3300 XL Proximitor * Sensor 2. The system provides an output voltage that is directly proportional to thedistance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor * reference and speed measurements 3.The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metre system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual componentsEach 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable 4 with other non-XL 3300 series 5 mm and 8 mm transducer system components 5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space 6,7.Proximitor SensorThe 3300 XL Proximitor Sensor incorporates numerous improvements overprevious designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs. The mounting base for either option provideselectrical isolation and eliminates the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity. The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.Proximity Probe and Extension CableThe 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc* molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc* design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip. You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc* cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.ConnectorsThe 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc* connectors. These connectors require only finger-tight torque (the connectors will "click" when tight), and the specially-engineered locking mechanism prevents the connectors from loosening. These connectors require no special tools for installation or removal.You can order the 3300 XL 8 mm probes and extension cables with connector protectors already installed. We can also supply connector protectors separately for field installations (such as when an application must run the cable through restrictive conduit). We recommend connector protectors for all installations to provide increased environmental protection8.Extended Temperature Range ApplicationsAn extended temperature range (ETR) probe and ETR extension cable are available for applications in which either the probe lead or extension cable may exceed the standard 177 ︒C (350 ︒F) temperature specification. The ETR probe has an extended temperature rating for up to 218 ︒C (425 ︒F). The ETR extension cable rating is up to 260 ︒C (500 ︒F). Both the ETR probe and cable are compatible with standard temperature probes and cables, for example, you can utilize an ETR probe with the 330130 extension cable. The ETR system uses the standard 3300 XL Proximitor Sensor. Note that when you use any ETR component as part of your system, the ETR component limits the system accuracy to the accuracy of the ETR system. Description Notes:1.1-metre systems do not use an extension cable.2.Proximitor sensors are supplied by default from thefactory calibrated to AISI 4140 steel. Calibration toother target materials is available upon request.3.Consult Bently Nevada* Applications Note,Considerations when using Eddy Current ProximityProbes for Overspeed Protection Applications, whenconsidering this transducer system for tachometer or overspeed measurements.4.3300 XL 8 mm components are both electrically andphysically interchangeable with non-XL 3300 5 mmand 8 mm components. Although the packaging ofthe 3300 XL Proximitor Sensor differs from itspredecessor, its design fits in the same 4-holemounting pattern when used with the 4-holemounting base, and will fit within the same mounting space specifications (when minimum permissiblecable bend radius is observed).5.Mixing XL and non-XL 3300-series 5 mm and 8 mmsystem components limits system performance to the specifications for the non-XL 3300 5 mm and 8 mmTransducer System.6.The 3300-series 5 mm probe (refer to Specificationsand Ordering Information p/n 141605-01) usessmaller physical packaging, but does not reduce theside view clearances or tip-to-tip spacingrequirements as compared to an 8 mm probe. It isused when physical (not electrical) constraintspreclude the use of an 8 mm probe. When yourapplication requires narrow side view probes, use the 3300 NSv* Proximity Transducer System (refer toSpecifications and Ordering Information p/n 147385-01).7.8 mm probes provide a thicker encapsulation of theprobe coil in the molded PPS plastic probe tip. Thisresults in a more rugged probe. The larger diameterof the probe body also provides a stronger, morerobust case. We recommend that you use 8 mmprobes when possible to provide optimal robustnessagainst physical abuse.8.Each 3300 XL extension cable includes silicone tapethat you can use instead of connector protectors. We do not recommend silicone tape for applications that will expose the probe-to-extension cable connectionto turbine oil.Specifications and Ordering InformationSpecificationsUnless otherwise noted, the following specifications are for a 3300 XL 8 mm Proximitor Sensor, extension cable and 8 mm probe between +18 ︒C and +27 ︒C (+64 ︒F to +80 ︒F), with a -24 Vdc power supply, a 10 kΩ load, an AISI 4140 steel target, and a probe gapped at 1.27 mm (50 mils). Performance characteristics apply to systems that consist solely of 3300 XL 8 mm components. The system accuracy and interchangeability specifications do not apply to transducer systems that are calibrated to any target other than our AISI 4140 steel target.ElectricalProximitorSensor InputAccepts one non-contacting3300-series 5 mm, 3300 8 mm or3300 XL 8 mm Proximity Probeand Extension Cable.PowerRequires -17.5 Vdc to -26 Vdcwithout barriers at 12 mAmaximum consumption, -23 Vdcto -26 Vdc with barriers.Operation at a more positivevoltage than -23.5 Vdc can resultin reduced linear range.SupplySensitivityLess than 2 mV change in outputvoltage per volt change in inputvoltage.OutputResistance50 ΩNominal ProbeDC ResistanceResistance (R PROBE) from CenterConductor to Outer ConductorProbe Length R PROBE (Ω)0.5 7.45± 0.501.0 7.59 ± 0.501.5 7.73± 0.502.0 7.88 ± 0.503.0 8.17 ± 0.605.0 8.73± 0.709.0 9.87 ± 0.90 NominalExtension CableDC ResistanceResistance (R CORE) from CenterConductor to Center ConductorLength of ExtensionCable (m)R CORE (Ω)3.0 0.66± 0.103.5 0.77 ± 0.124.0 0.88± 0.134.5 0.99 ± 0.156.0 1.32± 0.217.0 1.54± 0.237.5 1.65 ± 0.258.0 1.76± 0.268.5 1.87 ± 0.28Resistance (R JACKET) from OuterConductor to Outer ConductorLength of ExtensionCable (m)R JACKET (Ω)3.0 0.20± 0.043.5 0.23 ± 0.054.0 0.26± 0.054.5 0.30 ± 0.066.0 0.39± 0.087.0 0.46± 0.097.5 0.49 ± 0.108.0 0.53± 0.118.5 0.56 ± 0.11Specifications and Ordering InformationExtension CableCapacitance69.9 pF/m (21.3 pF/ft) typical Field Wiring0.2 to 1.5 mm2(16 to 24 AWG) .Recommend using 3-conductorshielded triad cable and tinnedfield wiring. Maximum length of305 metres (1,000 feet) betweenthe 3300 XL Proximitor Sensorand the monitor. See thefrequency response graphs inthrough Figure 13 (pages 28 and29) for signal rolloff at highfrequencies when using longerfield wiring lengths.Linear Range2 mm (80 mils). Linear rangebegins at approximately 0.25 mm(10 mils) from target and is from0.25 to 2.3 mm (10 to 90 mils)(approximately –1 to –17 Vdc). RecommendedGap Setting forRadial Vibration-9Vdc [approximately 1.27 mm(50 mils)]IncrementalScale Factor(ISF)Standard 5-or 1- metreSystem:7.87 V/mm (200 mV/mil) ± 5%including interchangeability errorwhen measured in increments of0.25 mm (10 mils) over the 80 millinear range from 0 °C to +45 °C(+32 °F to +113 °F).Standard9-metreSystem:7.87 V/mm (200 mV/mil) ± 6.5%including interchangeability errorwhen measured in increments of0.25 mm (10 mils) over the 80 millinear range from 0 °C to +45 °C(+32 °F to +113 °F).ExtendedTemperatureRange (ETR)for 5- and9-MetreSystems:7.87 V/mm (200 mV/mil) ± 6.5%including interchangeability errorwhen measured in increments of0.25 mm (10 mils) over the 80 millinear range from 0 °C to +45 °C(+32 °F to +113 °F).Deviation from best fit straight line (DSL)Standard 5-or 1-metreSystem:Less than ±0.025 mm (±1 mil) withcomponents at 0 °C to +45 °C(+32 °F to +113 °F).Standard9-metreSystem:Less than ±0.038 mm (±1.5 mil)with components at 0 °C to +45°C (+32 °F to +113 °F).ExtendedTemperatureRange 5 and9-metreSystems:Less than ±0.038 mm (±1.5 mil)with components at 0 °C to +45°C (+32 °F to +113 °F). PerformanceOver ExtendedTemperaturesStandard 5-or 1-metreSystem:Over a probe temperature rangeof –35 °C to +120 °C (-31 °F to+248 °F) with the Proximitorsensor and extension cablebetween 0 °C to +45°C (+32 °F to+113 °F), the ISF remains within±10% of 7.87 V/mm (200 mV/mil)and the DSL remains within±0.076 mm (±3 mils).Specifications and Ordering InformationOver a Proximitor sensor andextension cable temperaturerange of –35 °C to +65 °C (-31 °Fto +149 °F) with the probebetween 0 °C to +45 °C (+32 °F to+113 °F), the ISF remains within±10% of 7.87 V/mm (200 mV/mil)and the DSL remains within±0.076 mm (±3 mils).Standard9-metreSystem:Over a probe temperature rangeof –35 °C to +120 °C (-31 °F to+248 °F) with the Proximitorsensor and extension cablebetween 0 °C to +45°C (+32 °F to+113 °F), the ISF remains within±18% of 7.87 V/mm (200 mV/mil)and the DSL remains within±0.152 mm (±6 mils).Over a Proximitor sensor andextension cable temperaturerange of –35 °C to +65 °C (-31 °Fto +149 °F) with the probebetween 0 °C to +45 °C (+32 °F to+113 °F), the ISF remains within±18% of 7.87 V/mm (200 mV/mil)and the DSL remains within±0.152 mm (±6 mils).ExtendedTemperatureRange 5 and9-metreSystems:Over a probe and extension cabletemperature range of –35 °C to+260 °C (-31 °F to +500 °F) withthe Proximitor sensor between 0°C to +45 °C (+32 °F to +113 °F),the ISF remains within ±18% of7.87 V/mm (200 mV/mil) and theDSL remains within ±0.152 mm(±6 mils).FrequencyResponse(0 to 10 kHz), +0, -3 dB, with up to305 metres (1000 feet) of fieldwiring. MinimumTarget Size15.2 mm (0.6 in) diameter (flattarget)Shaft DiameterMinimum:50.8 mm (2 in)RecommendedMinimum:76.2 mm (3 in)When gapped at the center of thelinear range, the interactionbetween two separate transducersystems (cross-talk) will be lessthan 50 mV on shaft diameters ofat least 50 mm (2 in) or greater.You should take care to maintainminimum separation oftransducer tips, generally at least40 mm (1.6 in) for axial positionmeasurements or 38 mm (1.5 in)for radial vibration measurementsto limit cross-talk to 50 mV or less.Radial vibration or positionmeasurements on shaftdiameters smaller than 76.2 mm(3 in) will generally change thescale factor.Effects of 60 HzMagnetic Fieldsup to 300 GaussOutput Voltage in Mil pp/Gauss Gap(mil)5- or1-metreProximitorSensor9-metreProximitorSensorProbeExt.Cable10 0.0119 0.0247 0.0004 0.000450 0.0131 0.0323 0.0014 0.001490 0.0133 0.0348 0.0045 0.0045Specifications and Ordering InformationSpecifications and Ordering InformationCompliance and CertificationsEMCEuropean Community Directives: EMC Directive 2004/108/EC Standards:EN61000-6-2 EN61000-6-4MaritimeABS 2009 Steel Vessels Rules 1-1-4/7.7, 4-8-3/1.11.1, 4-9-7/13Hazardous Area ApprovalsNote: Multiple approvals for hazardous areas certified byCanadian Standards Association (C/US) in North America and by Baseefa for Europe and IEC Ex.Field Wiring Limitations:Type Approval: Gas GroupCapacitance(µF)Inductance (mH)L/R Ratio (μH/Ω)ATEX and IEC Zone 0/1IIC 0.078 0.99 29.2IIB 0.645 7.41 117.0IIA 2.144 15.6 234.0 CSA Div 1A &B 0.070 1.0 29.2C 0.600 5.0 117.0D 2.09 11.0 234.0CSA Div 2 All 0.460 100.0 N/A North America3300 XL Proximitor Sensor and probe, ia:Ex ia IIC T4/T5; Class I Zone 0 or Class 1; Groups A, B, C, and D, Class II, Groups E, F and G, Class III when installed with intrinsically safe zener barriers per drawing 141092 or when installed with galvanic isolators.3300 XL Proximitor Sensor and probe, nA:Ex nA IIC T4/T5 Class I Zone 2 or Class I, Division 2, Groups A, B, C, and D, when installed without barriers per drawing 140979. T 5 @ T a = -35 ︒C to +85 ︒C. T4 @ Ta= -51 ︒C to +100 ︒C.Europe3300 XL Proximitor Sensor, ia :II 1 G EEx ia IIC T4/T5 when installed per drawing 141092.3300 XL Proximitor Sensor, nA:II 3 G Ex nA II T4/T5 when installed per drawing 140979. T5 @ Ta= -35 ︒C to +85 ︒C T4 @ Ta= -51 ︒C to +100 ︒C3300 XL 8mm probe, ia: II 1 G EEx ia IIC, Temperature Classification per Table 1 when installed per drawing 142491. 3300 XL 8mm probe, nA:II 3 G EEx nA II, Temperature Classification per Table 1 when installed per drawing 142491.Brazil3300 XLProximitorSensor, ia:BR-Ex ia IIC T4(-51°C ≤ Ta ≤ +100°C)BR-Ex ia IIC T5(-35°C ≤ Ta ≤ +85°C)Terminal J1Terminal J2Ui= -28V Ii= 140mA Pi= 0.91W Ci = 0 FLi =0 H Uα= -28V Iα= 140mA Pα= 0.91W Ci = 0 FLi =0 .7 mHApplicable for Part numbers:330180, 330980, 330780, 330850,330878.3300 XL8mm and3300 5mmEddy CurrentProbes, ia:BR-Ex ia IIC TemperatureClassification per Table 1.Ui = -28V Ci = 0 FIi = 140 mA Li = 0 HPi = 0.91 WIEC Ex3300 XLProximitorSensor, ia:Ex ia IIC T4 (-51°C ≤ Ta ≤ +100°C) /T5 (-35ºC ≤ Ta ≤ +85ºC)Ui= -28V Ci = 0Ii= 140mA Li =10µHPi= 0.84W3300 XLProximitorSensor, nA:Ex nA II T4 (-51°C ≤ Ta ≤ +100°C) /T5 (-35°C ≤ Ta ≤ +85°C)Ui = -28V3300 XL8mm and3300 5mmEddy CurrentProbes, ia:Ex ia IIC TemperatureClassification per Table 1.Ui = -28V Ci = 1.5 nFIi = 140 mA Li = 200 µHPi = 0.84 W3300 XL8mm and3300 5mmEddy CurrentProbes, nA:Ex nA II for Zone 2 TemperatureClassification per Table 1.Table 1: Probe Temperature ClassificationTemperatureClassificationAmbient Temperature(Probe Only)T1 -51ºC to +232ºCT2 -51ºC to +177ºCT3 -51ºC to +120ºCT4 -51ºC to +80ºCT5 -51ºC to +40ºCHazardous AreaConditions ofSafe Use:ATEX:Follow the conditions of safe useincluded on the Declaration ofConformance sent with eachproduct.CanadianStandardsAssociation(CSA):Division 1 (Intrinsically safe):Install per Bently Nevada drawing141092.Division 2 (non-Incendive): Installper Bently Nevada drawing140979.Specifications and Ordering InformationIECEx:Zone 0 (Intrinsically safe): TheProximitor Sensor must beinstalled to minimize the risk ofimpact or friction with othermetallic surfaces.Zone 2 (non-Incendive): Theprobe must be supplied from avoltage-limited source. MechanicalProbe TipMaterialPolyphenylene sulfide (PPS). Probe CaseMaterialAISI 303 or 304 stainless steel(SST).Probe CableSpecificationsStandardcable:75Ω triaxial, fluoroethylenepropylene (FEP) insulated probecable in the following total probelengths: 0.5, 1, 1.5, 2, 3, 5, or 9metres.ExtendedTemperatureRange cable:75Ω triaxial, perfluoroalkoxy (PFA)insulated probe cable in thefollowing total probe lengths: 0.5,1, 1.5, 2, 5, or 9 metres.Armor(optional onboth):Flexible AISI 302 or 304 SST withFEP outer jacket.Tensile Strength(MaximumRated):330 N (75 lbf) probe case to probelead.270 N (60 lbf) at probe lead toextension cable connectors.ConnectorMaterial:Gold-plated brass or gold-platedberyllium copper.Probe CaseTorque:Probe TypeMaximumRatedRecommended Standardforward-mountedprobes33.9 N∙m(300 in∙lbf)11.2 N∙m(100 in∙lbf) Standard forward-mount probes -first three threads22.6 N∙m(200 in∙lbf)7.5 N∙m(66 in∙lbf)Reverse-mountprobes22.6 N∙m(200 in∙lbf)7.5 N∙m(66 in∙lbf)Extension CableMaterialStandardcable:75Ω triaxial, fluoroethylenepropylene (FEP) insulated.ExtendedTemperatureRange cable:75Ω triaxial, perfluoroalkoxy (PFA)insulated.MinimumCable BendRadius:25.4 mm (1.0 in)Note: 3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8mm components when minimum permissible cable bendradius is observed..Specifications and Ordering InformationConnectorMaterial:Gold-plated brass or gold-platedberyllium copper.MaximumConnectorTorque:0.565 N∙m (5 in∙lbf) Connector-to-connectorrecommendedtorque:Connector Type Tightening Instructions Two 3300 XL gold"click" typeconnectorsFinger tightOne non-XL stainlesssteel connector and one 3300 XLconnector Finger tight plus 1/8 turnusing pliersProximitorSensor MaterialA308 aluminumConnectorMaterial:Gold-plated brass or gold-platedberyllium copper.System Length5 or 9 metres (including extensioncable) or 1 metre (probe only). Total SystemMass (Typical)0.7 kg (1.5 lbm)Probe:323 g (11.4 oz)ExtensionCable:34 g/m (0.4 oz/ft)ArmoredExtensionCable:103 g/m (1.5 oz/ft)ProximitorSensor:246 g (8.67 oz) Environmental LimitsProbe Temperature RangeOperating andStorageTemperatureStandardProbe:-51 °C to +177 °C (-60 °F to +350°F)ExtendedTemperatureRange Probe:-51 °C to +218 °C (-60 °F to+425°F) for the probe tip; -51 °C to+260 °C (-60 °F to +500 °F) for theprobe cable and connector. Note: Exposing the probe to temperatures below –34 ︒C (-30 ︒F) may cause premature failure of the pressure seal. Probe Pressure3300 XL 8 mm probes aredesigned to seal differentialpressure between the probe tipand case. The probe sealingmaterial consists of a Viton®O-ring. Probes are not pressuretested prior to shipment. Contactour custom design department ifyou require a test of the pressureseal for your application.Note: It is the responsibility of the customer or user to ensure that all liquids and gases are contained and safelycontrolled should leakage occur from a proximity probe.In addition, solutions with high or low pH values mayerode the tip assembly of the probe causing medialeakage into surrounding areas. Bently Nevada, Inc. willnot be held responsible for any damages resulting fromleaking 3300 XL 8 mm proximity probes. In addition, 3300XL 8 mm proximity probes will not be replaced under theservice plan due to probe leakage.Specifications and Ordering InformationExtension Cable Temperature Range Operating andStorageTemperatureStandardCable:-51 °C to +177 °C (-60 °F to +350°F)ExtendedTemperatureRange Cable:-51 °C to +260 °C (-60 °F to +500°F)Proximitor Sensor Temperature Range OperatingTemperature-51 °C to +100 °C (-60 °F to +212°F)StorageTemperature-51 °C to +105 °C (-60 °F to +221°F)RelativeHumidityLess than a 3% change inAverage Scale Factor (ASF) whentested in 93% humidity inaccordance with IEC standard68-2-3 for up to 56 days. PatentsComponents or proceduresdescribed in one or more of thefollowing patents apply to thisproduct: 5,016,343; 5,126,664;5,351,588; and 5,685,884.Specifications and Ordering InformationOrdering Information Probes3300 XL 8 mm Proximity Probes:330101 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor2330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor2Part Number-AXX-BXX-CXX-DXX-EXXA:Unthreaded Length OptionNote: Unthreaded length must be at least 0.8 inches less than the case length.Order in increments of 0.1 inLength configurations:Maximum unthreaded length: 8.8 inMinimum unthreaded length: 0.0 inExample:0 4 = 0.4 inB:Overall Case Length OptionOrder in increments of 0.1 inThreaded length configurations:Maximum case length: 9.6 inMinimum case length: 0.8 inExample:2 4 = 2.4 inC:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metre (4.9 feet)2 0 2.0 metres (6.6 feet)3 0 3.0 metres (9.8 feet)5 0 5.0 metres (16.4 feet)9 09.0 metres (29.5 feet)Notes: 3-metre length option is only available on 330101 probes, and are designed for use with the 9-metre Proximitorsensor only.5-metre probes are designed for use with the 5-metreProximitor sensor only.D:Connector and Cable-Type Option0 1Miniature coaxial ClickLocconnector with connectorprotector, standard cable0 2 Miniature coaxial ClickLocconnector, standard cable1 1Miniature coaxial ClickLocconnector with connectorprotector, FluidLoc cable1 2Miniature coaxial ClickLocconnector, FluidLoc cable E:Agency Approval Option0 0 Notrequired0 5 MultipleApprovals 3300 XL 8 mm Proximity Probes, Metric: 330103 3300 XL 8 mm Probe, M10 x 1 thread, without armor2330104 3300 XL 8 mm Probe, M10 x 1 thread, with armor2Part Number-AXX-BXX-CXX-DXX-EXXA:Unthreaded Length OptionNote: Unthreaded length must be at least 20 mm less than the case length.Order in increments of 10 mm.Length configuration:Maximum unthreaded length: 230mmMinimum unthreaded length: 0 mmExample:0 6 = 60 mmB:Overall Case Length OptionOrder in increments of 10 mm.Metric thread configurations:Maximum length: 250 mmMinimum length: 20 mmExample:0 6 = 60 mmC:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metres (4.9 feet)2 0 2.0 metres (6.6 feet)5 0 5.0 metres (16.4 feet)Note: 5-metre probes are designed for use with the 5-metre Proximitor sensor only.9 09.0 metres (29.5 feet)D: Connector and Cable-Type Option0 1 Miniature coaxial ClickLocconnector with connectorprotector, standard cable0 2 MiniaturecoaxialClickLocconnector, standard cable1 1 MiniaturecoaxialClickLocconnector with connectorprotector, FluidLoc cable1 2 MiniaturecoaxialClickLocconnector, FluidLoc cable E:Agency Approval Option0 0 Not required0 5 MultipleApprovalsSpecifications and Ordering Information3300 XL 8 mm Reverse Mount Probes330105-02-12-CXX-DXX-EXX, 3/8-24 UNF threads2 330106-05-30-CXX-DXX-EXX, M10 x 1 threads2Option DescriptionsC:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metre (4.9 feet)2 0 2.0 metres (6.6 feet)5 0 5.0 metres (16.4 feet)Note: 5-metre probes are designed for use with the 5-metre Proximitor sensor only.9 09.0 metres (29.5 feet)D: Connector Option0 2 MiniatureClickLoccoaxialconnector1 2 MiniatureClickLoccoaxialconnector, FluidLoc cable Note: The FluidLoc cable option –12 is not necessary on the vast majority of 330105 and 330106 installations due to thepresence of the probe sleeve. Consider carefully theapplication before ordering the FluidLoc cable option forthese probes.E:Agency Approval Option0 0 Notrequired0 5 MultipleApprovals 3300 XL 8 mm Proximity Probes, Smooth Case: 330140 3300 XL 8 mm Probe without armor1330141 3300 XL 8 mm Probe with armor1Part Number-AXX-BXX-CXX-DXXOption DescriptionsA:Overall Case Length OptionOrder in increments of 0.1 inLength configurations:Maximum length: 9.6 inMinimum length: 0.8 inExample:2 4 = 2.4 inB:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metres (4.9 feet)2 0 2.0 metres (6.6 feet)5 0 5.0 metres (16.4 feet)Note: 5-metre probes are designed for use with the 5-metre Proximitor sensor only.9 09.0 metres (29.5 feet) C:Connector and Cable-Type Option0 1 MiniaturecoaxialClickLocconnector with connectorprotector, standard cable0 2 MiniaturecoaxialClickLocconnector, standard cable1 1 MiniaturecoaxialClickLocconnector with connectorprotector, FluidLoc cable1 2 MiniaturecoaxialClickLocconnector, FluidLoc cable D:Agency Approval Option0 0 Not required0 5 MultipleApprovals 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes:330191 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, without armor330192 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, with armorPart Number-AXX-BXX-CXX-DXXA:Unthreaded Length OptionNote: Unthreaded length must be at least 0.8 inches less than the case length.Order in increments of 0.1 inLength configurations:Maximum unthreaded length: 8.8 inMinimum unthreaded length: 0.0 inExample:1 5 = 1.5 inB:Overall Case Length OptionOrder in increments of 0.5 inThreaded length configurations:Maximum case length: 9.6 inMinimum case length: 0.8 inExample:2 5 = 2.5 inC:Total Length Option0 50.5 metre (1.6 feet)1 0 1.0 metre (3.3 feet)1 5 1.5 metre (4.9 feet)2 0 2.0 metres (6.6 feet)5 0 5.0 metres (16.4 feet)Note: 5-metre probes are designed for use with the 5-metre Proximitor sensor only.9 09.0 metres (29.5 feet)D:Agency Approval Option0 0 Notrequired0 5 MultipleApprovalsSpecifications and Ordering Information。
本特利电涡流传感器传感器常见问题解决方法美国BENTLY本特利电涡流传感器本特利内华达的电涡流传感器。
用于大多数涡流机械的长期监测，它们测量实际的轴运动，这是反映机器受力的牢靠指标。
3300 XL 8 mm 电涡流传感器系统：这种电涡流传感器系统供应大80 mils （2 mm）线性范围和200 mV/mil的输出。
它在大多数机械监测应用中用于径向振动、轴向（侧向）位移、转速和相位（Keyphasor ）测量，并符合美国石油协会标准670第4版的要求。
有多种螺纹尺寸、探头配置和安装附件可供选择。
3300 XL 11 mm 电涡流传感器系统：这种电涡流传感器系统专门用于当我们8 mm传感器的80 mil （2 mm）线性范围不能充分要求时的场合。
11 mm 电涡流传感器系统供应大180 mils （4 mm）的线性范围和100 mV/mil的输出，紧要用于要求大线性范围的轴向（测向）位移、转速、差胀以及往复式压缩机活塞杆位置（下落）测量。
有多种螺纹尺寸、探头配置和安装附件可供选择。
3300 5mm/8mm 电涡流传感器系统：这种电涡流传感器系统是我们的3300 XL 8 mm 系统的前一代产品，我们推举在全部新的和备件应用中使用3300 XL 8 mm系统。
8 mm XL 探头、电缆和前置器和旧的 3300 系列产品具有互换性。
当8 mm探头的端部直径和相应的螺纹尺寸不适用时，也可以使用5 mm探头。
有多种螺纹尺寸、探头配置和安装附件可供选择。
3300 XL NSv 电涡流传感器系统：这种电涡流传感器系统具有5mm端部直径和60 mils （1.5 mm）的更短线性范围，适用于被测靶面区域小、侧视或沉孔间隙减小以及其它限制使用我们标准的 5 mm / 8 mm 电涡流传感器的情况。
3300 16 mm 高温电涡流传感器系统：这种电涡流传感器系统用于350℃ （662F）的高温环境，如温度超过我们标准电涡流探头和电缆能够承受的极限的某些燃气和蒸汽轮机应用。
