2011款QH系列点阵式红外智能高速球型摄像机3

TA T-9000IR采用最新一代点阵式大功率红外灯，发现距离可达150-180米•红外灯采用分组控制，可以进行远近灯切换，无光晕现象•红外灯亮度调节，满足更多场景的需求•红外灯采用特有的散热技术，有效延长红外灯的使用寿命•全金属双层结构，散热性能优良•摄像机安装方便快捷，不用拆卸红外灯板•采用高性能优质步进电机，运转平稳无抖动，晃动•特有的看门狗功能，定时检测红外高速球运行状态，防止死机现象，并保存用户设置•强大的中英文OSD 功能，用户更简易的掌握功能设置，使用更便捷•转动速度0.1-280°/秒可调•水平360度连续旋转，垂直旋转范围0-90°•支持128个预置位，预置位精度高•八组预置位巡航轨迹，每组可巡视16个预置位•预制点间扫描速度1-64 等级可设置，每个预置位停留时间1-60 秒可设置•支持4组花样扫描，每组最多可以保存400个动作•支持SONY、三星、LG、CNB一体化摄像机（可为用户定制摄像机协议）•支持菜单修改通讯波特率、地址、协议，操作方便灵活•比例变倍，云台按变倍深度逐渐降低云台速度，确保图像清晰平衡，达到最佳效果•内置多种控制协议，支持PELCO_D/P自动识别•断电信息保护和内置浪涌、雷击保护装置•强大的联动报警。

支持2路报警信号输入、1路报警开关输出TA T-096M型号TAT-096M成像器材1/3”SONY第二代超感光度CCD水平解析度 480TVLines最低照度0.01Lux/F1.2,0Lux/IR ON信号系统PAL/NTSC红外灯功率 2W红外灯 30米镜头接口CS增益控制AGC ON/OFF电子快门1/60-1/100000sec(NTSC),1/50-100000sec(PAL) 镜头规格6mm/8mm/12mm/16mm/25mm可选镜头类型固定光圈白平衡 ATW/AWC可选。

默认ATW信噪比>50db视频输出1Vp-p Composite Video/75 Ohms电源DC 12.0V±2V防护等级IP65工作温度-30℃~50℃TA T-DZ211SM型号TAT-DZ211SM成像器材1/3”SONY第二代超感光度CCD水平解析度 480TVLines最低照度0.01Lux/F1.2,0Lux/IR ON信号系统PAL/NTSC红外灯功率2W红外灯 60米镜头接口CS增益控制AGC ON/OFF电子快门1/60-1/100000sec(NTSC),1/50-100000sec(PAL) 镜头规格6mm/8mm/12mm/16mm/25mm可选镜头类型固定光圈白平衡ATW/AWC可选。

智能智能 高速高速 红外红外 球形摄像机使用说明智能高速红外球智能高速红外球形形摄像机摄像机使用说明使用说明一、产品概述产品概述1.1.高性能日夜转换功能高性能日夜转换功能高性能日夜转换功能摄像机摄像机摄像机机芯机芯机芯：：本机采用的低照度摄像机具有日夜转换功能，摄像机实时监测被摄象景物照度，摄像机在低照度时自动转换为夜间红外模式，提高夜间感光监视能力；到白天自动转换为彩色模式。

2.2.采用最新的采用最新的DSP 优化算法优化算法：：使用精密步进电机驱动，，使起动、制动快速平顺。

反应灵敏、定位准确、运转平稳、操控自如。

3.3.高效率高效率高效率红外红外LED 辅助光源辅助光源：：本机装配了两组高效率红外LED 光源，采用隔离的光源仓和摄像机仓结构，保证了摄像机不被光源串扰。

内部集成自动调光电路, 平均功耗比非调光产品降低25%，平均寿命比非调光产品延长25%。

采用最新的调光软件，摄像机自动适应环境明暗和目标远近的变化，在低照度时自动转为夜间红外模式，同时开启红外LED 辅助光源。

自动调光：摄像机根据景物照度自适应调整红外LED 发光强弱，在0LUX 环境照度下，摄像机能清晰观察2米-100米范围内的景物。

手动调光：操作者可以手动调整红外LED 发光强弱，满足对特殊场景的摄象要求。

预置位记忆调光：操作者可以手动调整红外LED 发光强弱，通过保存预置位将此参数记忆在存储器中，用户可以保存227个这样的场景，已备随时调出清晰的图象。

4.4.具有掉电记忆功能具有掉电记忆功能具有掉电记忆功能：：本产品可任意设置227个预置位和8个巡视组。

5.5.具有具有4防区自动报警定位追踪能力防区自动报警定位追踪能力：：实现了真正意义上的全方位、全天候、高清晰、智能化监视。

6.6.便捷拨码便捷拨码便捷拨码：：采用方便独特的外置拨码设置。

7.7.低功耗低功耗低功耗：：满负载（含全方位云台、SONY 摄像机，大功率红外LED 光源）峰值电流3A。

DS-2DE7A232IW-AEB(T5)2 MP 32× IR Network Speed DomeHikvision DS-2DE7A232IW-AEB(T5) 2 MP 32× IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 32× optical zoom lens, the camera offers more details over expansive areas.This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.⏹1/2.8" progressive scan CMOS⏹High quality imaging with 2 MP resolution⏹Excellent low-light performance withpowered-by-DarkFighter technology⏹Audio visual alarm: The white flashing light and audible warning can be triggered by certain events⏹32× optical zoom and 16× digital zoom provide close up views over expansive areas⏹Expansive night view with up to 200 m IR distance⏹Focuses on human and vehicle targets classification based on deep learning⏹Face capture: Up to 5 faces captured at the same time⏹DORIThe DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.DORI Detect Observe Recognize IdentifyDefinition25 px/m63 px/m125 px/m250 px/m Distance (Tele)2200 m (7217.8 ft)873 m (2864.2 ft) 440 m (1443.6 ft)220 m (721.8 ft)⏹SpecificationCameraImage Sensor 1/2.8" progressive scan CMOSMax. Resolution 1920 × 1080Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR Shutter Speed 1/1 s to 1/30000 sSlow Shutter YesDay & Night IR cut filterZoom 32x optical, 16x digitalLensFocal Length 4.8 mm to 153 mmZoom Speed Approx. 4.8 sFOV Horizontal field of view: 50.8° to 2.6° (wide-tele), Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view:57.4° to 3° (wide-tele)Aperture Max. F1.6Focus Auto, semi-auto, manualIlluminatorSupplement Light Type IRSupplement Light Range IR Distance: up to 200 mPTZMovement Range (Pan) 360°Movement Range (Tilt) -15° to 90° (auto flip)Pan Speed Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/sTilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/sProportional Pan YesPresets 300Patrol Scan 8 patrols, up to 32 presets for each patrolPattern Scan 4 pattern scansPower-off Memory YesPark Action Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D Positioning YesPTZ Status Display YesPreset Freezing YesScheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux outputVideoMain Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEGVideo Bit Rate 32 kbps to 16384 kbpsH.264 Type Baseline Profile/Main Profile/High ProfileH.265 Type Main ProfileScalable Video Coding (SVC) H.264 and H.265 encodingRegion of Interest (ROI) 8 fixed regions for each streamAudioAudio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCMAudio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHzEnvironment Noise Filtering YesNetworkNetwork Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, WebsocketsAPI Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUPSimultaneous Live View Up to 20 channelsUser/Host Up to 32 users, 3 user levels: administrator, operator, and userSecurity Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)Client iVMS-4200, HikCentral Pro, Hik-Connect Web Browser IE11, Chrome 57+, Firefox 52+, Safari 11+ ImageDay/Night Switch Day, Night, Auto, ScheduleImage Enhancement BLC, HLC, 3D DNRWide Dynamic Range (WDR) 120 dBDefog Digital defogImage Stabilization EISRegional Exposure YesRegional Focus YesImage Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browserPrivacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable SNR > 52 dBInterfaceEthernet Interface 1 RJ45 10M/100M self-adaptive Ethernet portOn-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Alarm 2 inputs, 1 outputAudio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;1 output (line out), line level, output impedance: 600 ΩReset YesBuilt-in Speaker 1 built-in speaker with effective distance reaching max. 30 metersEventBasic Event Motion detection, video tampering alarm, exception, alarm input and outputSmart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detectionSmart Tracking Manual tracking, auto-trackingAlarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)Deep Learning FunctionFace Capture Detects up to 5 faces simultaneously.Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the facePerimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)GeneralPower 24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater); Hi-PoEOperating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) Demist YesMaterial ADC12Dimension Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")Weight Approx. 5 kg (11.03 lb.)ApprovalProtection IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protectionEMC FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)SafetyUL (UL 62368-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)⏹Typical ApplicationHikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.This model has NO SPECIFIC PROTECTION.LevelDescriptionTop-level protectionHikvision products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more.Moderate protectionHikvision products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.No specific protectionHikvision products at this level are equipped for use in areas where no specific anti-corrosion protection is needed.⏹Available Model DS-2DE7A232IW-AEB(T5)⏹Dimension⏹Accessory⏹IncludedDS-1602ZJ ⏹OptionalDS-1681ZJ DS-1667ZJ DS-1660ZJ DS-1604ZJ-BOX-POLEDS-1661ZJDS-1663ZJ DS-1673ZJ DS-1619ZJ DS-1682ZJ DS-1604ZJDS-1662ZJ DS-1604ZJ-BOX-CORNERDS-1604ZJ-box*DS-1673ZJ should be used with DS-1661ZJ or DS-1662ZJ.。

ICIP-PANO-A0073-in-1 2 Megapixel Indoor/Outdoor Bullet IR Network Camera●Three 1/2.8” 2 Megapixel progressive scan STARVIS™ CMOS●H.265+ & H.265 dual-stream encoding ●Max 25/30fps@4096x832●Support 180-degree panoramic view●Day/Night(ICR), 3DNR, AWB, AGC, BLC,WDR ●Max. IR LEDs length 30m●Micro SD memory, IP67, IK10,PoE+True Day/NightA day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.Starlight TechnologyFeatured with Starlight Technology, the camera is ideal for applications with challenging light conditions. Its low light performance delivers usable video with minimal ambient light. Even in extreme low light conditions, Starlight Technology is capable of delivering color images in nearly complete darkness.Wide Dynamic RangeEmbedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.IC Realtime's unique 3 lens camera provides added flexibility for capturing wide area surveillance. Meet theICIP-PANO-A007. With three 2MP I-Sniper sensors working in unison, this camera creates a panoramic, 180° overview, allowing the camera to replace multiple single sensor cameras at a lower overall cost. Each sensor is the latest I-Sniper gen2 chipset which provides vibrant color at the lowest levels of illumination, and strong WDR capabilities.Beyond this, the camera also supports the line of Advanced Intelligence notifications, including Tripwire, Intrusion, Missing and Added object. Future proof as well, this camera supports 3 video streams as well as H.264 and H.265 compressioncapabilities. Ideal applications for this camera include parking lots, schools, resorts and hotels.Intelligent Video System (IVS)With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved videosurveillance. The camera provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwireanalytics, allowing the camera to detect when a predetermined line has been crossed, ideal for business intelligence, workforce optimization, and actionable intelligence.Smart IRWith IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).Protection (IP67, IK10, wide voltage)The camera's outstanding reliability, unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 rating, making it suitable for indoor or outdoor environments. The camera complies with an IK10 vandalresistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in). It also features ±25% input voltage tolerance, allowing it to operate under unstable power supply conditions. Its 6KV lightning rating provides protection from the effects of a lightning strike.System OverviewFunctionsTechnical SpecificationImage Sensor Three 1/2.8” 2 Megapixel progressive scan CMOS Effective Pixels 4096(H)x832(V)RAM/ROM 1024MB/128MB Scanning System ProgressiveElectronic Shutter Speed Auto/Manual, 1/3~1/100000s Minimum Illumination 0.007Lux/F1.8( Color,1/3s,30IRE)0.05Lux/F1.8( Color,1/30s,30IRE)0Lux/F1.8(IR on)S/N Ratio More than 50dBIR Distance Distance up to 30m(98ft)IR On/Off Control Auto/ Manual IR LEDs8Lens Type Fixed Mount Type Board-in Focal Length 3.6mm Max. Aperture F1.8Angle of View H: 180˚, V:44˚ Optical Zoom N/A Focus Control Fixed Close Focus Distance N/A DORI DistanceLens Detect Observe Recognize Identify W171ft69ft33ft16ftLensCameraPan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚Pan/Tilt/RotationIVSTripwire, Intrusion, Object Abandoned/Missing Advanced Intelligent FunctionsHeat Map, E-PTZIntelligenceCompression H.265+/H.265/H.264+/H.264Streaming Capability 3 StreamsResolution4096×832/3840×780/2560×520/1280x260/1024X208Frame RateMain Stream: 4096x832(1~25/30fps)Sub Stream: 1024X208 (1 ~ 25/30fps)Third Stream: 1280x260 (1 ~ 25/30fps)Bit Rate Control CBR/VBRBit Rate H.265: 4Kbps~ 10Mbps H.264: 8Kbps~ 16Mbps Day/Night Auto(ICR) / Color / B/W BLC Mode BLC / HLC / WDR(120dB)White Balance Auto/Natural/Street Lamp/Outdoor/Manual Gain Control Auto/Manual Noise Reduction 3D DNRMotion Detection Off / On (4 Zone, Rectangle)Region of InterestOff / On (4 Zone)VideoElectronic Image Stabilization (EIS)N/A Smart IR Support Defog N/A Digital Zoom 16xFlip 0° / 90° / 180° / 270°MirrorOff / OnPrivacy MaskingOff / On (4 Area, Rectangle)CompressionN/AAudioEthernet RJ-45 (10/100Base-T)Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC P;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour ;802.1x;Multicast;ICMP;IGMP;SNMP InteroperabilityONVIF, PSIA, CGI Streaming Method Unicast / Multicast Max. User Access 10 Users/20 UsersEdge Storage NAS(Network Attached Storage) Local PC for instant recording Micro SD Card 128GB Web ViewerIE, Chrome, Firefox, Safari Management Software SmartICRSS, DSS Smart PhoneIOS, AndroidNetworkCertificationsCE: (EN 60950:2000); UL:UL60950-1; FCC: FCC Part 15 Subpart BCertificationsVideo Interface 1 Port(For adjustment only)Audio Interface1/1 channel In/Out RS485N/AAlarm2 channel In: 5mA 5VDC1 channel Out: 1A 30VDC / 0.5A 50VACInterfacePower Supply AC24V, PoE+ (802.3at)(Class 4)Power Consumption<23WElectricalOperating Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH Storage Conditions -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH Ingress Protection IP67Vandal ResistanceIK10EnvironmentalCasing MetalDimensions 298.3mm×172.5mm×120.5mm Net Weight 2.60kg(5.73lb)Gross Weight3.41 kg(7.52lb)ConstructionAccessories Dimensions (mm/in)。

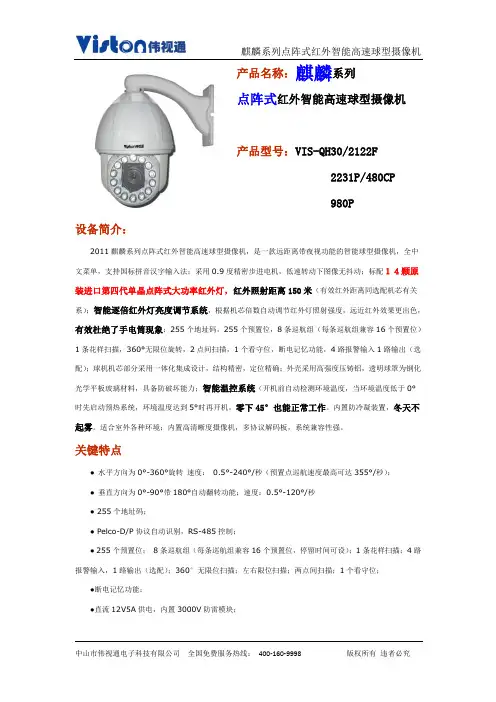

产品名称：麒麟系列点阵式红外智能高速球型摄像机产品型号：VIS-QH30/2122F2231P/480CP980P设备简介：2011麒麟系列点阵式红外智能高速球型摄像机，是一款远距离带夜视功能的智能球型摄像机，全中文菜单，支持国标拼音汉字输入法；采用0.9度精密步进电机，低速转动下图像无抖动；标配１４颗原装进口第四代单晶点阵式大功率红外灯，红外照射距离150米（有效红外距离同选配机芯有关系）；智能逐倍红外灯亮度调节系统，根据机芯倍数自动调节红外灯照射强度，远近红外效果更出色，有效杜绝了手电筒现象；255个地址码，255个预置位，8条巡航组（每条巡航组兼容16个预置位）1条花样扫描，360°无限位旋转，2点间扫描，1个看守位，断电记忆功能，4路报警输入1路输出（选配）；球机机芯部分采用一体化集成设计，结构精密，定位精确；外壳采用高强度压铸铝，透明球罩为钢化光学平板玻璃材料，具备防破坏能力；智能温控系统（开机前自动检测环境温度，当环境温度低于0°时先启动预热系统，环境温度达到5°时再开机。

零下45°也能正常工作。

内置防冷凝装置，冬天不起雾。

适合室外各种环境；内置高清晰度摄像机，多协议解码板，系统兼容性强。

关键特点● 水平方向为0°-360°旋转速度：0.5°-240°/秒（预置点巡航速度最高可达355°/秒）；● 垂直方向为0°-90°带180°自动翻转功能；速度：0.5°-120°/秒● 255个地址码；● Pelco-D/P协议自动识别，RS-485控制；● 255个预置位；8条巡航组（每条巡航组兼容16个预置位，停留时间可设）；1条花样扫描；4路报警输入，1路输出（选配）；360°无限位扫描；左右限位扫描；两点间扫描；1个看守位；●断电记忆功能；●直流12V5A供电，内置3000V防雷模块；产品规格型号VIS-QH30VIS-QH2122P VIS-QH2231P VIS-QH480CP 红外灯规格8颗第四代单晶点阵式大功率红外灯有效红外距离100M 150M 150M 150M图像感应器1/4'' SONY CCD 1/4" High SensitivityCCD Ⅱ1/4" sony Inch,Interline TransferCCD1/4'' SONY Exview Had CCD视频输出 1.0V[p-p] 75 Ω水平清晰420TVL 彩色580 TV Lines黑白650 TV Lines彩色540 TV Lines黑白570 TV Lines480TVL信噪比≥ 48dB ≥ 50dB≥ 50dB≥ 50dB最低照度0.01Lux彩色 1Lux(30IRE)黑白0.25Lux(30IRE)彩色：0.6 Lux(50IRE) 黑白：0.1Lux(50 IRE)0.7Lux(黑白)光圈范围F1.6—3.4. F1.6—3.4 F1.6—3.2 F1.4—3.0 .对焦自动 / 手动自动 / 手动自动 / 手动自动 / 手动焦距f3.9~85.8mm f=3.6-79.2mm f=3.84-88.4mm f=4.1mm～73.8mm 倍率30X 22X*10 23 X* 10 18X*12背光补偿开 / 关白平衡自动控制方式RS485预置点255个巡视轨迹8条花样扫描1条报警联动4路输入，1路输出（选配）看守位能1个左右旋转范围360 °连续旋转左右速度0.5 °-240° / 秒上下旋转范围0 °— 90 °上下速度0.5 °-120° / 秒自动翻转180°自动翻转防结雾保护有外壳防护等级IP65电源输入DC12V / 25W功率25W、加热器打开45W工作温度-30 ℃— + 50 ℃重量约 4Kg选配附件：吊装支架VIS-ZJ1 壁装支架VIS-ZJ2 室外球机专用电源VIS-DY1（DC12V5A）。

海康威视摄像机前端设备型号参数快速查询：IMB standardization office【IMB 5AB- IMBK 08- IMB 2C】一、快球设备1 DS-2AF1-611 6寸18倍彩色模拟高速球（SONY 机芯）2 6寸18倍彩色日夜型模拟高速球（SONY 机芯）3 DS-2AF1-615 6寸26倍彩色日夜型模拟高速球（SONY 机芯)4 6寸36倍彩色日夜型模拟高速球（SONY 机芯）5 DS-2AF1-612 6寸22倍彩色模拟高速球6 DS-2AF1-614 6寸23倍彩色日夜型模拟高速球7 DS-2AF1-616 6寸30倍彩色日夜型模拟高速球8 DS-2AF1-601 6寸18倍彩色模拟室内高速球（SONY 机芯）9 6寸18倍彩色日夜型模拟室内高速球（SONY 机芯）10 DS-2AF1-605 6寸26倍彩色日夜型模拟室内高速球（SONY 机芯)11 DS-2AF1-607 6寸36倍彩色日夜型模拟室内高速球（SONY 机芯）12 6寸22倍彩色模拟室内高速球13 DS-2AF1-604 6寸23倍彩色日夜型模拟室内高速球14 DS-2AF1-606 6寸30倍彩色日夜型模拟室内高速球15 DS-2AF1-401 4”10倍彩色日夜型室内模拟高速球16 DS-2AF1-402 4”10倍彩色日夜型室内模拟高速球（SONY 机芯)17 4”手动变焦彩色日夜型室内球（ P/T功能）二、IP快球设备1 6寸18倍彩色网络高速球（SONY 机芯)2 DS-2DF1-613 6寸18倍彩色日夜型网络高速球（SONY 机芯)3 DS-2DF1-615 6寸26倍彩色日夜型网络高速球（SONY 机芯)4 DS-2DF1-617 6寸36倍彩色日夜型网络高速球（SONY 机芯)5 DS-2DF1-612 6寸22倍彩色网络高速球6 6寸23倍彩色日夜型网络高速球7 DS-2DF1-616 6寸30倍彩色日夜型网络高速球8 DS-2DF1-601 6寸18倍彩色网络室内高速球（SONY 机芯）9 DS-2DF1-603 6寸18倍彩色日夜型网络室内高速球（SONY 机芯）10 DS-2DF1-605 6寸26倍彩色日夜型网络室内高速球（SONY 机芯)11 6寸36倍彩色日夜型网络室内高速球（SONY 机芯）12 DS-2DF1-602 6寸22倍彩色网络室内高速球13 DS-2DF1-604 6寸23倍彩色日夜型网络室内高速球14 DS-2DF1-606 6寸30倍彩色日夜型网络室内高速球15 DS-2DF1-401 4”10倍彩色日夜型室内网络高速球16 DS-2DF1-402 4”10倍彩色日夜型室内网络高速球（SONY 机芯)17 DS-2DF1-301 4”手动变焦彩色日夜型室内网络球18 DS-2DF1-401E 4”10倍彩色日夜型室内网络高速球有POE功能19 DS-2DF1-402E 4”10倍彩色日夜型室内网络高速球（SONY 机芯) 有POE功能20 4”手动变焦彩色日夜型室内网络球（ P/T功能）有POE功能三、经济型彩色摄像机1 1/3” SONY CCD枪式彩色摄像机 420线2 DS--2CC102P-A "1/3” SONY CCD枪式彩色摄像机 420线,DC12V/AC24V"3 DS--2CC112P 1/3” SONY CCD枪式彩色摄像机 480线4 DS--2CC112P-A 1/3” SONY CCD枪式彩色摄像机 480线 DC12V/AC24V5 DS--2CC192P 1/3” SONY CCD枪式彩色摄像机 530线6 DS--2CC192P-A 1/3” SONY CCD枪式彩色摄像机 530线DC12V/AC24V7 1/3” SONY CCD半球彩色摄像机 420线8 DS--2CC512P 1/3”SONY CCD半球彩色摄像机 480线9 DS--2CC592P 1/3”SONY CCD半球彩色摄像机 530线四、彩色摄像机1 DS--2CC191P-A 1/3” SONY CCD 日夜型枪式彩色摄像机 540线DC12V/AC24V?2 1/3” SONY CCD 日夜型枪式彩色摄像机 540/600线 DC12V/AC24V?3 DS--2CC194P-A 1/3” SONY CCD 日夜型枪式彩色摄像机 540/600线 DC12V/AC24V?4 DS--2CC194P-C 1/3” SONY CCD 日夜型枪式彩色摄像机 540/600线 AC220V5 DS--2CC195P-A "1/3""SONY Exview CCD日夜型超高解超低照度摄像机 540/600线 DC12V/AC24V"6 1/3” SONY CCD，日夜型超高解超宽动态摄像机 540/600线 DC12V/AC24V?7 DS--2CC593P-A 1/3” SONY CCD，手动变焦大镜头半球彩色摄像机 540线 DC12V/AC24V?五、网络摄像机1 1/3” SONY CCD420线枪型网络摄像机2 DS-2CD802PF 1/3” SONY CCD420线枪型网络摄像机，带SD卡接口3 DS-2CD812P 1/3” SONY CCD480线枪型网络摄像机4 DS-2CD812PF 1/3” SONY CCD480线枪型网络摄像机，带SD卡接口5 DS-2CD892P 1/3” SONY CCD540线枪型网络摄像机6 DS-2CD892PF 1/3” SONY CCD540线枪型网络摄像机，带SD卡接口7 DS-2CD832 CMOS35万像数枪型网络摄像机8 DS-2CD832F CMOS35万像数枪型网络摄像机，带SD卡接口9 CMOS200万像数枪型网络摄像机10 DS-2CD852F CMOS200万像数枪型网络摄像机，带SD卡接口11 1/3” SONY CCD420线10米红外枪型网络摄像机12 DS-2CD802P-IR3 1/3” SONY CCD420线30米红外枪型网络摄像机13 DS-2CD812P-IR1 1/3” SONY CCD480线10米红外枪型网络摄像机14 1/3” SONY CCD480线30米红外枪型网络摄像机六、无线网络摄像机1 DS-2CD802PF-W 1/3” SONY CCD420线10米红外枪型网络摄像机，带SD卡接口，10/100BaseTEther net2 1/3” SONY CCD480线10米红外枪型网络摄像机，带SD卡接口，10/100BaseTEther net七、红外摄像机1 1/3” SONY CCD420线10米枪型红外摄像机2 DS-2CC112P-IR1 1/3” SONY CCD480线10米枪型红外摄像机3 DS-2CC192P-IR1 1/3” SONY CCD540线10米枪型红外摄像机4 1/3” SONY CCD420线30米枪型红外摄像机5 DS-2CC112P-IR3 1/3” SONY CCD480线30米枪型红外摄像机61/3” SONY CCD540线30米枪型红外摄像机7 DS--2CC502P-IR1 1/3” SONY CCD红外半球彩色摄像机 420线 10米8 DS--2CC512P-IR1 1/3” SONY CCD红外半球彩色摄像机 480线 10米9 1/3” SONY CCD红外半球彩色摄像机 420线 30米10 DS--2CC512P-IR3 1/3” SONY CCD红外半球彩色摄像机 480线 30米八、ATM专用摄像机1 1/3” SONY CCD420线迷你摄像机2 DS-2CC112P-MM 1/3” SONY CCD480线迷你摄像机3 DS-2CC502P-DG1 1/3” SONY CCD420线针孔摄像机4 1/3” SONY CCD480线针孔摄像机5 DS-2CC502P-DG2 1/3” SONY CCD420线广角摄像机6 DS-2CC512P-DG2 1/3” SONY CCD480线广角摄像机九、防暴专用摄像机1 DS-2CC502P-FB 1/3” SON Y CCD420线防暴半球摄像机?2 1/3” SONY CCD480线防暴半球摄像机?3 DS-2CC592P-FB 1/3” SONY CCD540线防暴半球摄像机十、电梯专用摄像机?1 DS-2CC502P-FD1 1/3” SONY CCD420线飞碟摄像机2 1/3” SONY CCD420线飞碟摄像机3 DS-2CC512P-FD1 1/3” SONY CCD480线飞碟摄像机4 DS-2CC512P-FD2 1/3” SONY CCD480线飞碟摄像机。

产品名称: 彩色红外防水摄像机产品型号: DV-868产品说明:外观专利号:200730009820.8*独特的豪华型专利外观，防止起雾。

*自带万向安装支架和安装盒，从支架内穿线。

*外置30颗φ5台湾鼎元芯片IR LED。

*镜头和LED 分离型设计，杜绝反光。

产品名称: 多段式变焦变光同步一体机产品型号: DV-898产品说明:外观专利号:200830115394.0*专利外观，大器之作；*行业首创，智能多段式变焦变光同步一体机。

*14颗40mil台湾鼎元芯片大功率LED加28颗φ8 LED,红外有效距离可达120 米。

*LED电路板采用2.2mm厚铝基板，独创的脉冲驱动方式，强力散热风扇与LED同步，高效解决散热问题。

*内置242倍高解进口机芯或22倍国产机芯。

产品名称: 智能光型夜视彩色防水摄像机产品型号: DV-860产品说明:*增强型彩色红外夜视摄像机，双翼红外灯设计，高效能低热耗；*48φ8+24φ5 红外灯，有效红外距离可达60米；*可做外调功能机型，4-9mm镜头，自动对焦，键控和线控两种控制方式。

*可做带有IR-CUT双滤光片切换机型，白天色彩真实、晚上夜视效果更佳。

*可做智能光系列机型：白光灯与红外灯结合，还原夜视真实色彩。

*人体移动侦测功能，当侦测有人体移动时白光灯自动开启（智能光系列带此功能）。

产品名称: 智能光型夜视彩色防水摄像机产品型号: DV-866产品说明:外观专利号:200830348327.3*自主研发，专利产品，外形独特美观，室内外通用。

*标配16mm高清晰度红外镜头。

*可做外调功能机型，4-9mm镜头，自动对焦，键控和线控两种控制方式。

*可做带有IR-CUT双滤光片切换机型，白天色彩真实、晚上夜视效果更佳。

*可做智能光系列机型：白光灯与红外灯结合，还原夜视真实色彩。

*人体移动侦测功能，当侦测有人体移动时白光灯自动开启（智能光系列带此功能）。

产品名称: 彩色红外防水摄像机产品型号: DV-822产品说明:*全球最小的25米红外夜视摄像机，口径仅为40mm *超小型外观设计，内出线连体支架*防尘、防水等级外IP66，室内外通用*8粒高亮度食人鱼LED，红外距离可达25m*恒流电路，高效的热电分离设计，保证LED使用寿命产品名称: 飞碟型摄像机产品型号: DV-808产品说明:*全金属外壳，小巧美观。

BQC805E-AHD激光红外高速球产品概述：◆标配AHD机芯，最大960P输出；◆下拉式英文菜单，可设置预置位巡航、上电动作、空闲动作等操作；◆2颗台湾原装激光灯+8颗点阵红外灯，分3组自动调光控制；◆独特的大透镜设计，在不增加单灯电流的前提下提高光源利用率，使红外距离达到200米。

◆常州运控电机+杭州全盛滑环+台湾先锋皮带+日本原装线材+海康专属模具厂定制私模+小耳朵电源。

球机概述：云台参数水平转动360度俯仰转动90度水平控制速度0.05º-240º/秒俯仰控制速度0.05º-60º/秒预置位速度水平：240°/秒俯仰：60°/秒预置位数量255个输入/输出接口复合视频接口BNC控制信号格式自识别波特率，协议电源接口电源接线电气参数电源适配器DC12V/4A红外参数6个红外LED灯，2个台湾原装激光灯红外距离180m功率18W净重 5.5kg结构参数材质全金属压铸铝包装材料纸箱+环保纸浆保护托安装支架默认壁装，可选吊装配套附件说明书（x1）、保修卡（x1）、合格证（x1）、支架、电源、六角扳手（x1）环境工作温度-30ºC ～ +60ºC存储温度-20°~ 60°工作湿度20%~ 90%存储湿度20%~ 80%防护等级IP66，内置浪涌及雷击保护装置机芯概述：解晰度1280*720 1280*960摄像元件SONY IMX238信噪比> 47dB动态范围73.3dB镜头18倍光学变焦(4.8-88mm)VIDEO AF聚焦范围0.01m(广角) / 1.0m(远距)视角49.6°(广角) ~ 2.5°(远距)最低照度彩色0.1/黑白0.01LUX视频输出复合视频输出1.0Vp-p(75欧姆/BNC)控制方式标准9PIN输出通信协议VISCA,波特率：9600bps PELCO-D,波特率菜单显示中文、英文聚焦模式自动 / 手动 / 键控电子快门自动 / 手动 1/15 ~ 1/10000秒增益控制自动/手动1~7级调节(5~30db)白平衡自动识别码0-255位夜间模式彩转黑电源DC12V ± 20%尺寸86(长)×50(宽)×57(高)mm 双滤光片切换内置IR-CUT可选自动/白天/夜晚。

200万30倍中文大华高清红外一体化云台网络摄像机-红外灯200米DH-PTZ1182C-IRB-N大华DH-NVR0404DS-S200W中文中性红外高清网络智能高速球型摄像机SD6982A-HN大华200万像素高速网络红外球DH-SD6982A-HN 参数/型号 DH-SD6982A-HN 摄像机图像传感器 1/2.8"SONY CMOS 总像素约248万像素水平解析度≥1000TVL 视频制式P:1920*1080(25fps)，1280*720(25fps) N:1920*1080(30fps)，1280*720(30fps) 最低照度彩色：0.05Lux@F1.6黑白：0.005Lux@F1.6 0Lux（红外灯开启）增益控制自动/手动信噪比大于50dB 白平衡自动/手动/跟踪/室外/室内/室外自动/钠灯自动/钠灯宽动态支持数字降噪支持图像稳定支持电子快门 1/1 - 1/30000s 数字变倍 16x（最大320x）隐私保护开/关(同一画面可设置8块隐私区域,共可设置24块隐私区域) 日夜模式自动ICR滤光片彩转黑镜头焦距 4.7mm - 94.0mm 光学倍率 20倍光圈值 F1.6 - F3.5 视场角55.4°- 2.9° 功能红外灯控制自动/近灯/远灯/关闭红外灯距离≥100米旋转范围水平：0°～360°连续旋转垂直：-10°～90° 自动翻转180°后连续监视旋转速度键控:水平0.1°～160°/秒;垂直0.1°～120°/秒预置点：水平240°/秒;垂直200°/秒预置点 255个自动模式支持8条自动巡航、5条自动巡迹、5条自动线扫云台功能支持空闲动作，支持三维定位，支持人性化的焦距/速度自动匹配功能视频压缩 H.264/M-JPEG 图像分辨率主码流（1920*1080、1280*960、1280*720）辅码流（D1）音频压缩 G.711/PCM 语音对讲支持网络协议 TCP/IP,HTTP,DDNS,DHCP,NTP,PPPoE,FTP,SMTP,RTSP,RTP 多码流支持 SD卡支持用户管理最大支持6个用户,多级用户权限管理故障检测网络断开检测,IP冲突检测,编码器状态检测,存储卡状态检测,存储空间检测输入/输出模拟视频输出 1.0Vpp/75Ω,NTSC或PAL,BNC接口网络接口 1路10/100BaseT以太网，RJ45接口报警接口 2路输入/1路输出（标配）7路输入/2路输出（选配），报警时可联动预置点/自动巡航/自动巡迹/开关量输出控制接口 RS485，支持云台控制和在线升级一般规范电源 AC 24V/2.2A（±10%）（含红外控制电路）功耗 17W/ 35W（红外灯、加热器同时开启）工作环境温度-40~60℃；湿度＜90% 防护等级 IP66，4000V防雷、防浪涌和防突波保护，符合GB/T17626.5 4级标准产品尺寸Φ229.6(mm)×381(mm) 重量 7kg 可选支架DH-69FB;DH-65FD130W红外高清网络智能高速球型摄像机DH-SD6980-HN目录价：10000。
