27寸屏规格书

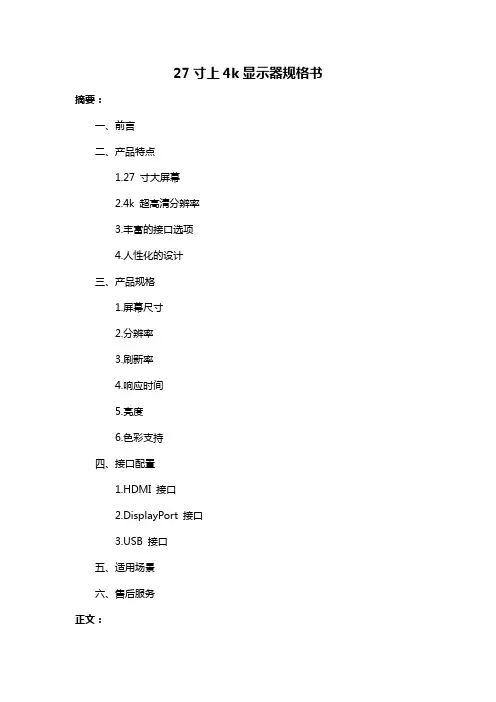

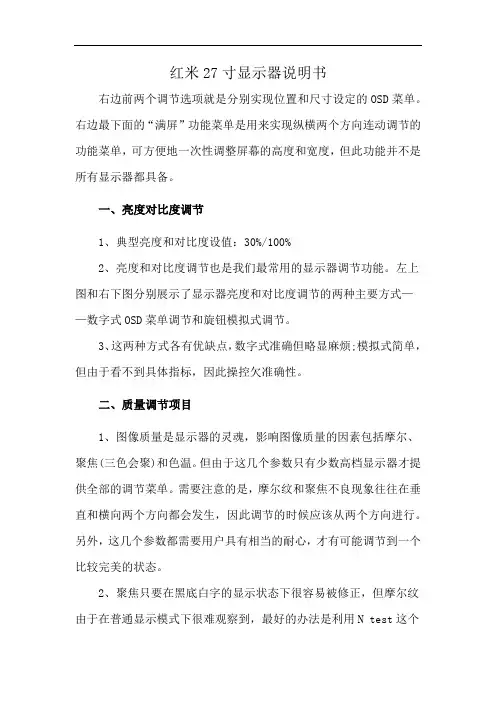

27寸上4k显示器规格书摘要：一、前言二、产品特点1.27 寸大屏幕2.4k 超高清分辨率3.丰富的接口选项4.人性化的设计三、产品规格1.屏幕尺寸2.分辨率3.刷新率4.响应时间5.亮度6.色彩支持四、接口配置1.HDMI 接口2.DisplayPort 接口B 接口五、适用场景六、售后服务正文：【前言】随着科技的不断发展，人们对于显示器的需求也越来越高。

为了满足广大用户的需求，我们推出了这款27 寸4k 显示器，旨在为用户带来更好的视觉体验。

【产品特点】1.27 寸大屏幕：这款显示器拥有27 寸的大屏幕，可以提供更加宽广的视野，让您在工作或娱乐时都能享受到舒适的视觉体验。

2.4k 超高清分辨率：这款显示器的分辨率高达4k，可以提供更加细腻、清晰的画质，让您沉浸在视觉的盛宴中。

3.丰富的接口选项：这款显示器配备了多种接口，包括HDMI、DisplayPort 和USB 接口，可以满足您多种设备的连接需求。

4.人性化的设计：这款显示器采用人性化的设计，底座可调节，让您可以根据自己的需要调整显示器的角度，提高使用舒适度。

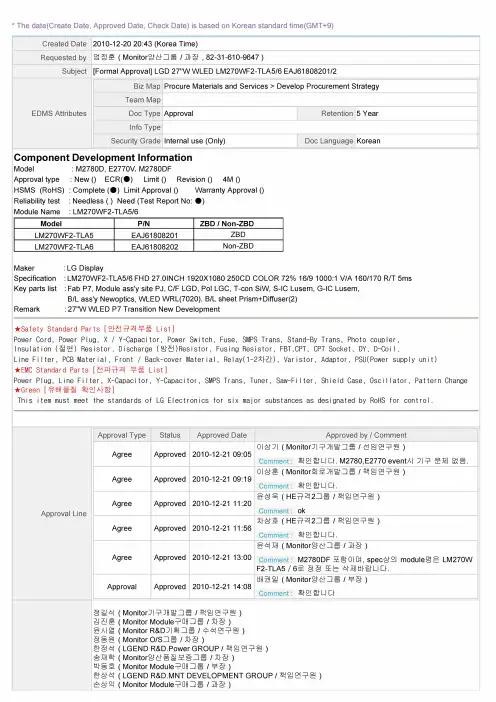

【产品规格】1.屏幕尺寸：27 寸2.分辨率：4k（3840x2160）3.刷新率：60Hz4.响应时间：1ms5.亮度：350cd/m6.色彩支持：100%sRGB【接口配置】1.HDMI 接口：支持HDMI2.0，可以连接电脑、游戏机、播放器等多种设备。

2.DisplayPort 接口：支持DisplayPort 1.2，提供更高的传输速度和更好的画质。

B 接口：提供USB 3.0 接口，方便连接U 盘、移动硬盘等设备。

【适用场景】这款显示器适用于多种场景，包括办公、设计、游戏、影视等，可以满足不同用户的需求。

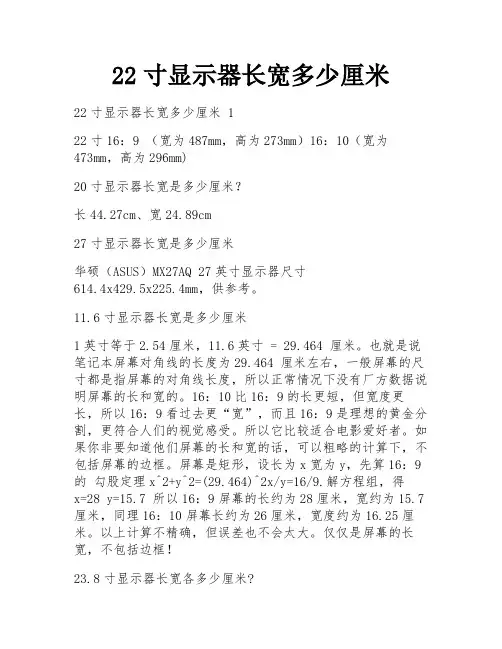

22寸显示器长宽多少厘米22寸显示器长宽多少厘米 122寸16：9 （宽为487mm，高为273mm）16：10（宽为473mm，高为296mm)20寸显示器长宽是多少厘米？长44.27cm、宽24.89cm27寸显示器长宽是多少厘米华硕（ASUS）MX27AQ 27英寸显示器尺寸614.4x429.5x225.4mm，供参考。

11.6寸显示器长宽是多少厘米1英寸等于2.54厘米，11.6英寸 = 29.464 厘米。

也就是说笔记本屏幕对角线的长度为29.464 厘米左右，一般屏幕的尺寸都是指屏幕的对角线长度，所以正常情况下没有厂方数据说明屏幕的长和宽的。

16：10比16：9的长更短，但宽度更长，所以16：9看过去更“宽”，而且16：9是理想的黄金分割，更符合人们的视觉感受。

所以它比较适合电影爱好者。

如果你非要知道他们屏幕的长和宽的话，可以粗略的计算下，不包括屏幕的边框。

屏幕是矩形，设长为x宽为y，先算16：9的勾股定理x^2+y^2=(29.464)^2x/y=16/9.解方程组，得x=28 y=15.7 所以16：9屏幕的长约为28厘米，宽约为15.7厘米，同理16：10屏幕长约为26厘米，宽度约为16.25厘米。

以上计算不精确，但误差也不会太大。

仅仅是屏幕的长宽，不包括边框！23.8寸显示器长宽各多少厘米?23.8寸显示器,指的是你显示器的液晶屏对角线长度是23.8英寸.(边框不算).16:9的23.8寸显示器,高=29.65厘米,宽=52.71厘米授人以鱼不如授人以渔,我来告诉你怎么算.1英寸=2.54厘米23.8寸显示器,指的是你显示器的液晶屏对角线长度是23.8英寸.(边框不算)。

显示器的尺寸大可视面积就是显示器可以显示图形的最大范围；显像管的大小通常以对角线的长度来衡量，显示面积都会小于显示管的大小。

显示面积用长与高的乘积来表示，通常人们也用屏幕可见部分的对角线长度来表示。

15英寸显示器的可视范围在13.8英寸左右，17英寸显示器的可视区域大多在15~16英寸之间，19英寸显示器可视区域达到18寸英寸左右。

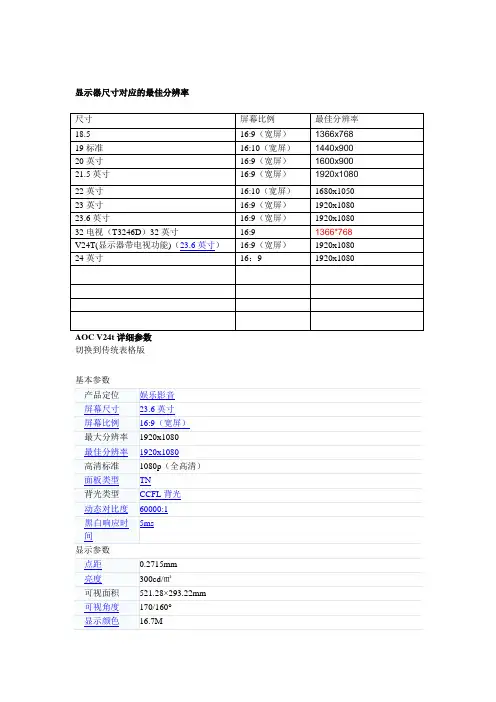

显示器尺寸对应的最佳分辨率AOC V24t详细参数到传统表格版基本参数显示参数面板控制接口外观设计其它显示器附件保修信息基本参数•产品定•屏幕尺•屏幕比•最大分•最佳分•高清标•面板类•背光类•动态对•黑白响显示参数•点距：•亮度：•可视面•可视角•显示颜•扫描频•垂直：•带宽：面板控制•控制方•语言菜萄牙语接口•视频接•其它接外观设计•机身颜•外观设•产品尺•668ו产品重•7.5kg •底座功•音箱：•壁挂：其它•电视功•HDCP：•电源性•消耗功•待机:•安规认•其它性•其它特•获得E •上市时显示器附件•包装清•底座•电源线•信号线•保修卡•电子光保修信息•保修政•质保时•质保备•客服电•电话备•详细内大陆地器保修何一个上门维修服务AOC V27t详细参数切换到传统表格版基本参数显示参数面板控制接口外观设计其它显示器附件保修信息基本参数•产品定位：娱乐影音•屏幕尺寸：27英寸•屏幕比例：16:9（宽屏）•最佳分辨率：1920x1080•面板类型：TN•背光类型：CCFL背光•动态对比度：60000:1•黑白响应时间：5ms •灰阶响应时间：3ms显示参数•点距：0.3114mm•亮度：300cd/㎡•可视面积：597.89×336.31mm •可视角度：170/160°•显示颜色：16.7M•扫描频率：水平：40-80KHz •垂直：55-75Hz•带宽：148.5MHz面板控制•控制方式：按键•语言菜单：英文，德语，法语，意大利语，西班牙语，俄语，葡萄牙语，土耳其语，简体中文接口•视频接口：D-Sub（VGA），HDMI，色差，S端子•其它接口：USB，TV，音频输入，音频输出，复合信号CVBS, 耳机接口外观设计•机身颜色：黑色•外观设计：超薄设计，最薄处2.5cm•产品尺寸：680×546×262mm（包含底座）•758×612×121mm（包装）•产品重量：7.9kg（净重）•10.7kg（毛重）•底座功能：倾斜•音箱：内置音箱（2×3W）•壁挂：支持壁挂其它•电视功能：支持电视功能•HDCP：支持HDCP•电源性能：90-240V交流, 50/60Hz •消耗功率：最大:60W•待机:5W•安规认证：CCC, CB, CE, GOST，EPA •其它性能：倾斜：-3-10°•其它特点：Eco Mode 5种亮度情景模式•获得EPEAT金奖•上市时间：2009年06月显示器附件•包装清单：显示器主机 x1 •底座 x1•电源线 x1•信号线 x1•保修卡 x1•电子光盘说明书 x1保修信息•保修政策：全国联保，享受三包服务•质保时间：3年•质保备注：整机1月内包换，2年免费上门，3年免费全保•客服电话：400-887-8007•电话备注：8:00-22:00•详细内容：在中国大陆（不包括香港、澳门特别政区）购买并在大陆地区使用的显示器，出现保修范围内的硬件故障时，凭显示器保修证正本和购机发票到“冠捷国内维修站一览表”中的任何一个维修站均可享受1个月包换，2年在规定的城市地区免费上门维修服务，3年免费保修（包含CRT及LCD面板）的123保修服务AOC T3246D详细参数切换到传统表格版基本参数图像参数音效参数电视接口其他参数电视附件保修信息基本参数•产品定位：高清电视机•屏幕尺寸：32英寸•屏幕比例：16:9•分辨率：1366*768•背光灯寿命：50000小时•最佳观看距离：1.8～2.5米图像参数•支持格式：720p（高清）•水平视角：176度•垂直视角：176度•接收制式：PAL•图像特点：色温：冷色/暖色/标准•梳状滤波器：2D comb filter音效参数•音效特点：声音系统：D/K，B/G，I电视接口•HDMI接口：2*HDMI•其他接口：2×AV•1×YPbPr•1×Side S-video•1×USB（JPEG图片和MP3音乐）•1×RCA with audio其他参数•外观设计：屏幕倾斜：左右15度•机身尺寸：含底座：778.5×553.5×250mm •不含底座：778.5×509.2×79.9mm•包装尺寸：884×691×175mm•机身重量：9.8kg•包装重量：12.5kg•其它性能：PC 输入(选择)：•信号输入：Analog: D-Sub 15 pin•PnP 兼容性•建议使用分辨率：Analog: 1360×768（60Hz）•音频输入：立体声迷你耳机接口（3.5ø）•音频输出: L/R•喇叭（内置）: 5W×2•立体声迷你耳机接口（3.5ø）电视附件•包装清单：电视机身 x1 •遥控器 x1•遥控器电池 x1•使用说明书 x1•保修卡 x1•电源线 x1保修信息•保修政策：全国联保，享受三包服务•质保时间：1年•质保备注：整机1年，液晶屏3年•客服电话：800-858-1777•电话备注：24小时电话服务•详细内容：AOC电视产品自售出之日起（凭有效发票或购机凭证）在全面执行国家“三包”规定“整机免费保修一年”的基础上，2007年10月1日以后购买的机器，液晶屏保修三年，如果不能提供购机发票或购机相关凭证或发票记载不清、不准确，我司将以该机器的生产日期（生产日期见电视机后壳条形码标签）为准计算保修时间，AOC e950S详细参数切换到传统表格版基本参数显示参数面板控制接口外观设计其它显示器附件保修信息基本参数•产品类型：LED显示器•产品定位：经济实用•屏幕尺寸：19英寸•屏幕比例：16:10（宽屏）•最大分辨率：1440x900 •最佳分辨率：1440x900•面板类型：TN•背光类型：LED背光•动态对比度：2000万:1•黑白响应时间：5ms显示参数•点距：0.2835mm•亮度：250cd/㎡•可视面积：408.24×255.15mm •可视角度：170/160°•显示颜色：16.7M•扫描频率：水平：30-60KHz •垂直：50-75Hz•带宽：136.75MHz面板控制•控制方式：按键•语言菜单：英文，德语，法语，意大利语，西班牙语，俄语，葡萄牙语，土耳其语，简体中文接口•视频接口：D-Sub（VGA）外观设计•机身颜色：黑色•外观设计：超薄造型设计，时尚金属拉丝外观•产品尺寸：443.2×367.2×175mm•493×377×108mm（包装）•产品重量：3.03kg（净重）• 3.95kg（毛重）•底座功能：倾斜•壁挂：75×75mm其它•电源性能：90-240V交流, 50/60Hz•消耗功率：最大:22W•待机:0.5W•安规认证：BSMI ,cCSAus, FCC, CE, CCC, EPA,China RoHS, Win7•其它性能：倾斜：-4-17°•其它特点：DCB活彩技术, 5种增彩模式•Eco Mode 5种亮度情景模式，4:3/宽屏一键切换功能•上市时间：2010年04月显示器附件•包装清单：显示器主机 x1•底座 x1•电源线 x1•信号线 x1•保修卡 x1•电子光盘说明书 x1保修信息•保修政策：全国联保，享受三包服务•质保时间：3年•质保备注：整机1月内包换，2年免费上门，3年免费全保•客服电话：400-887-8007•电话备注：8:00-22:00•详细内容：在中国大陆（不包括香港、澳门特别政区）购买并在大陆地区使用的显示器，出现保修范围内的硬件故障时，凭显示器保修证正本和购机发票到“冠捷国内维修站一览表”中的任何一个维修站均可享受1个月包换，2年在规定的城市地区免费上门维修服务，3年免费保修（包含CRT及LCD面板）的123保修服务AOC e950Sw详细参数切换到传统表格版基本参数显示参数接口外观设计其它显示器附件保修信息基本参数•产品类型：LED显示器•产品定位：经济实用•屏幕尺寸：18.5英寸•屏幕比例：16:9（宽屏）•最大分辨率：1366x768 •最佳分辨率：1366x768•面板类型：TN•背光类型：LED背光•动态对比度：2000万:1•黑白响应时间：5ms显示参数•点距：0.3mm•亮度：250cd/㎡•可视面积：409.8×230.4mm •可视角度：170/160°•显示颜色：16.7M•带宽：85.5MHz接口•视频接口：D-Sub（VGA）外观设计•机身颜色：黑色•产品尺寸：444.35×342×175mm •496×356×110mm（包装）•产品重量：2.63kg（净重）• 3.55kg（毛重）•壁挂：75×75mm其它•电源性能：90-240V交流, 50/60Hz •消耗功率：最大:20W•待机:0.5W•上市时间：2010年04月显示器附件•包装清单：显示器主机 x1 •底座 x1•电源线 x1•信号线 x1•保修卡 x1•电子光盘说明书 x1保修信息•保修政策：全国联保，享受三包服务•质保时间：3年•质保备注：整机1月内包换，2年免费上门，3年免费全保•客服电话：400-887-8007•电话备注：8:00-22:00•详细内容：在中国大陆（不包括香港、澳门特别政区）购买并在大陆地区使用的显示器，出现保修范围内的硬件故障时，凭显示器保修证正本和购机发票到“冠捷国内维修站一览表”中的任何一个维修站均可享受1个月包换，2年在规定的城市地区免费上门维修服务，3年免费保修（包含CRT及LCD面板）的123保修服务。

显示器尺寸对应的最佳分辨率AOC V24t详细参数切换到传统表格版基本参数显示参数面板控制接口其它显示器附件保修信息基本参数•产品定位：娱乐影音•屏幕尺寸：23.6英寸•屏幕比例：16:9（宽屏）•最大分辨率：1920x1080 •最佳分辨率：1920x1080•高清标准：1080p（全高清）•面板类型：TN•背光类型：CCFL背光•动态对比度：60000:1•黑白响应时间：5ms显示参数•点距：0.2715mm•亮度：300cd/㎡•可视面积：521.28×293.22mm •可视角度：170/160°•显示颜色：16.7M•扫描频率：水平：30-80KHz 垂直：55-75Hz•带宽：148.5MHz面板控制•控制方式：按键•语言菜单：英文，德语，法语，意大利语，西班牙语，俄语，葡萄牙语，土耳其语，简体中文接口•视频接口：D-Sub（VGA），HDMI，色差，S端子，复合信号CVBS •其它接口：TV，音频输出外观设计•机身颜色：黑色烤漆，银色底座•外观设计：超薄设计，最薄处2.5cm•产品尺寸：595.4×483.54×220.13mm（包含底座）668×565×117mm（包装）•产品重量：5.5kg（净重）7.5kg（毛重）•底座功能：倾斜•音箱：内置音箱（2×2.5W）•壁挂：100×100mm其它•电视功能：支持电视功能•HDCP：支持HDCP•电源性能：90~240V交流, 50/60Hz External Adapter •消耗功率：最大:60W待机:1W•安规认证：CCC, CB, CE, GOST，EPA•其它性能：仰角：-3-10度•其它特点：Eco Mode 5种亮度情景模式获得EPEA T金奖•上市时间：2009年06月显示器附件•包装清单：显示器主机 x1 底座 x1电源线 x1信号线 x1保修卡 x1电子光盘说明书 x1保修信息•保修政策：全国联保，享受三包服务•质保时间：3年•质保备注：整机1月内包换，2年免费上门，3年免费全保•客服电话：400-887-8007•电话备注：8:00-22:00•详细内容：在中国大陆（不包括香港、澳门特别政区）购买并在大陆地区使用的显示器，出现保修范围内的硬件故障时，凭显示器保修证正本和购机发票到“冠捷国内维修站一览表”中的任何一个维修站均可享受1个月包换，2年在规定的城市地区免费上门维修服务，3年免费保修（包含CRT及LCD面板）的123保修服务。

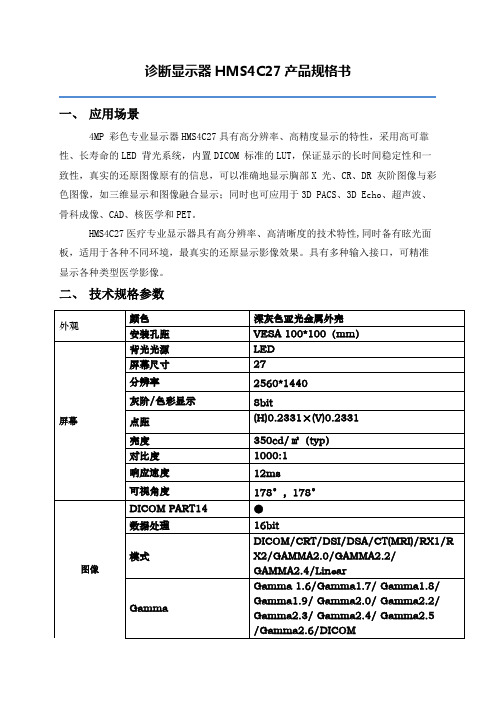

诊断显示器HMS4C27产品规格书
一、应用场景
4MP 彩色专业显示器HMS4C27具有高分辨率、高精度显示的特性，采用高可靠性、长寿命的LED 背光系统，内置DICOM 标准的LUT，保证显示的长时间稳定性和一致性，真实的还原图像原有的信息，可以准确地显示胸部X 光、CR、DR 灰阶图像与彩色图像，如三维显示和图像融合显示；同时也可应用于3D PACS、3D Echo、超声波、骨科成像、CAD、核医学和PET。

HMS4C27医疗专业显示器具有高分辨率、高清晰度的技术特性,同时备有眩光面板，适用于各种不同环境，最真实的还原显示影像效果。

具有多种输入接口，可精准显示各种类型医学影像。

二、技术规格参数
Page 2 of 2。

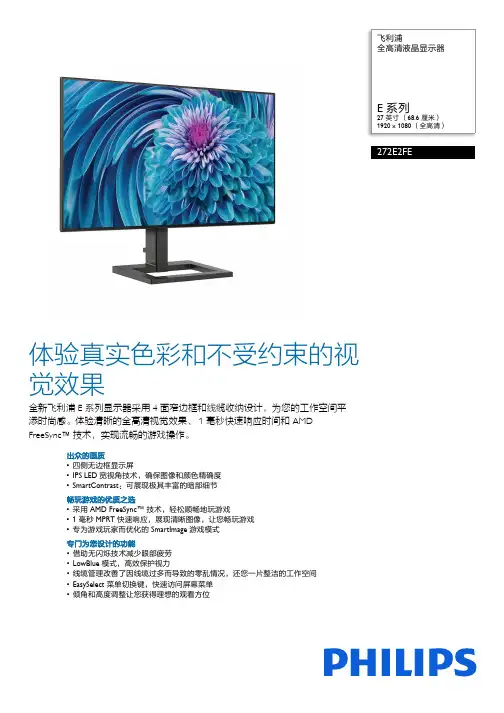

飞利浦全高清液晶显示器E 系列27 英寸（68.6 厘米）1920 x 1080（全高清）272E2FE体验真实色彩和不受约束的视觉效果全新飞利浦 E 系列显示器采用 4 面窄边框和线缆收纳设计，为您的工作空间平添时尚感。

体验清晰的全高清视觉效果、1 毫秒快速响应时间和 AMDFreeSync™ 技术，实现流畅的游戏操作。

出众的画质•四侧无边框显示屏•IPS LED宽视角技术，确保图像和颜色精确度•SmartContrast：可展现极其丰富的暗部细节畅玩游戏的优质之选•采用 AMD FreeSync™ 技术，轻松顺畅地玩游戏•1 毫秒 MPRT 快速响应，展现清晰图像，让您畅玩游戏•专为游戏玩家而优化的 SmartImage 游戏模式专门为您设计的功能•借助无闪烁技术减少眼部疲劳•LowBlue 模式，高效保护视力•线缆管理改善了因线缆过多而导致的零乱情况，还您一片整洁的工作空间•EasySelect 菜单切换键，快速访问屏幕菜单•倾角和高度调整让您获得理想的观看方位产品亮点四侧无边框这款几乎无边框的显示屏采用 4 面窄边框设计，外观简约，为您提供广阔的观赏体验。

提高您的工作效率，让您专注于具有无缝视觉效果的生动图像。

即使在枢轴模式下设置多个显示器，也可在不受任何干扰的情况下为您呈现宽广视角。

IPS技术IPS 显示屏采用可带给您 178/178 度超宽视角的先进技术，几乎可在任何角度观看显示屏。

与标准 TN 面板不同，IPS 显示屏可带给您色彩艳丽、极为清晰的图像，不仅适合观看照片、电影和网页浏览，而且适合要求始终确保颜色精确度和恒定亮度的专业应用领域。

超流畅的游戏体验玩游戏时绝对不希望出现游戏设置卡滞或画面不连续的情况。

此全新飞利浦显示器确保不会出现这些问题。

采用 AMDFreeSync™ 技术，它几乎可以任意帧速率提供流畅、无伪影性能，获得流畅的快速刷新和超快响应时间。

1 毫秒 MPRT 快速响应MPRT （动态画面响应时间）是一种更直观的描述响应时间的方式，它直接指从看到模糊噪声到清晰通透图像的持续时间。
