Impulse(霍尼韦尔) X4 系列使用说明书

Honeywell WEBs-N4 Installation GuideVersion 4.9.0.198September 2020Table of ContentsA BOUT THIS G UIDE (3)D OCUMENTATION (3)S YSTEM R EQUIREMENT FOR WEB STATION-N4 (3)Operating System & Software Dependencies (4)Using Web Launcher with Niagara 4.9 (5)WEB STATION-N4I NSTALLATION P ROCEDURE (6)About this GuideThis document is part of the WEBStation-N4 documentation library. WEBStation-N4 software is distributed via the Honeywell Buildings Forum. The platform requirements needed are mentioned in WEBs N4.9.0.198 Software Release Bulletin.For the latest product data, visit or Honeywell Building Controls.NOTE: This version of Honeywell WEBs-N4.9.0.198 is compatible with Spyder Model 5, CIPer Model 10, and WEB-8000 controllers. CIPer Model 30 and CIPer Model 50 controllers are not compatible with this release. DocumentationEach view/dialog is provided with a Help button. Click the Help button to open a help window, that explains the functionality of the displayed view. Alternatively, each view has a help page which can be opened by pressing the F1 key on the keyboard or navigate to Help tab in menu items and click Help On View.Refer the Honeywell Buildings Forum Documents for all latest WEBs-N4 product related documentation. System Requirement for WEBstation-N4IMPORTANT NOTEN4.9 supports only 64-bit installations. So, installing N4.9 will generate a new host ID, if you made a 32-bit in-stallation in the previous N4.X versions. Be sure to transfer your Niagara Workbench license from your previous32-bit host ID to your new 64-bit host ID.To use Lon devices with station running in Windows, use LON tunneling with JACE or use LON/IP.Operating System & Software DependenciesWEBs-N4 is supported on the following listed Microsoft Windows operating systems. The application installation in-cludes Oracle’s Java Runtime Environ ment (JRE) and does not depend on any other software to run.Using Web Launcher with Niagara 4.9Web Launcher 20.1.3 was recently revamped for N4.9 to include essential software dependencies updates along with critical defect fixes. This version of Web Launcher has Java version 8 update 252 and certificate management has been updated to work with N4.9 along with any legacy or prospective release. Prior to using Web Launcher with N4.9, customer should update Web Launcher accordingly (see steps below).How to update Web Launcher?Web Launcher has a feature to check for updates over the internet and prompts the user when a new version is avail-able in the cloud. However, existing version of Web Launcher has a bug that prevents a smooth update. Users will be required to perform a fresh install by downloading the latest version from the cloud via the station web Login page. Click on the Niagara Web Launcher Installer link on the station's Web Launcher Web Page, which can be reached via the link on the Login page itself. Once the download is successful, click on the msi file and follow the installation wiz-ard. You do not have to uninstall the older version. The new installation will automatically update to the latest version.WEBstation-N4 Installation Procedure1.Double click the executable file (Installer_x64.exe)The WEBStation-N4 Installation Program window opens, showing information such as build version, date etc.Click Next to proceed the installation.2.Click Yes to agree with the End User License Agreement [EULA] and Next to continue the installation.Or Click No to cancel the installation.3.The installer loads C:\Honeywell\WEBStation-N4-4.9.0.198 path by default. If this path does not exist,the installer displays warning message, Click Yes to create the folder. Click Next to continue installation.4.If you do not wish to install the WEBStation-N4 in the default directory, click Browse to change the path,and click Next to continue.NOTE: If you are performing a new installation, the installer prompts you to set a system passphrase for en-cryption purposes, as shown in the following image.The system passphrase is used to protect sensitive information stored on all WEBs systems, and on the SD card in WEB-8000 controllers. The system passphrase i s assigned as the file passphrase for “portable files, such as backups and station copies, and is used to encrypt those files. During operations in which you transfer encrypted files to a system (restoring backups, transferring a station, etc.) you are prompted to sup-ply the file passphrase, if it doesn’t match the system passphrase. The system passphrase defaults to the factory default platform password.During commissioning, you will be prompted to change the default system passphrase.NOTE: It is important to remember the system passphrase and keep it safe. If you lose the system pass-phrase, you will lose access to encrypted data. To change the system passphrase, use the Platform Admin-istration tool.5.Niagara Deamon User Home directory is used to store Niagara Deamon user’s data and to run Niagarastations. By default, the directory is created under C:\ProgramData\Niagara4.9\Webs as shown below.If this path does not exist, the installer displays warning message, requesting to create the folder. Click Yes to continuee the Browse option to change default folder location, if desired.Or Click Next to continue.7.Check the options to install Desktop Shortcuts, if needed. Click Next to run the installation.8.After completing of the installation, the installer displays message “WEBStation-N4 installation iscomplete".9.Check the required options and click Finish to complete the installation process.10.Once the installation is finished, license get installed automatically. Click Continue to run WEBstation-N4.WEBs-N4 Workbench opens as shown below.。

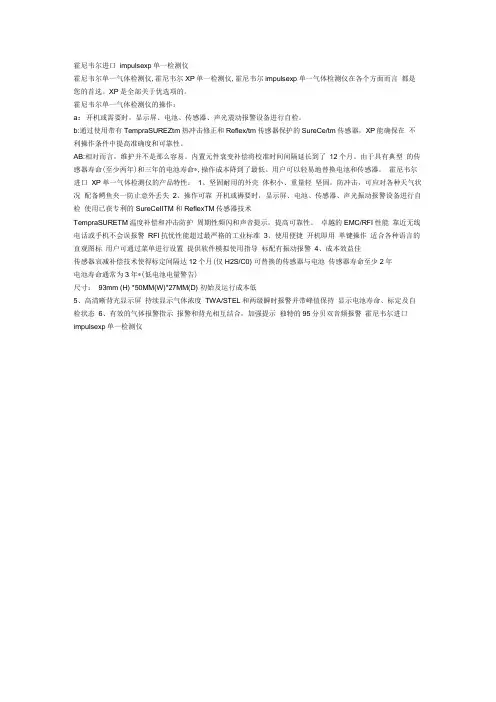

霍尼韦尔进口impulsexp单一检测仪霍尼韦尔单一气体检测仪,霍尼韦尔XP单一检测仪,霍尼韦尔impulsexp单一气体检测仪在各个方面而言都是您的首选。

XP是全部关于优选项的。

霍尼韦尔单一气体检测仪的操作：a：开机或需要时，显示屏、电池、传感器、声光震动报警设备进行自检。

b:通过使用带有TempraSUREZtm热冲击修正和Reflex/tm传感器保护的SureCe/tm传感器，XP能确保在不利操作条件中提高准确度和可靠性。

AB:相对而言，维护并不是那么容易。

内置元件衰变补偿将校准时间间隔延长到了12个月。

由于具有典型的传感器寿命(至少两年)和三年的电池寿命*,操作成本降到了最低。

用户可以轻易地替换电池和传感器。

霍尼韦尔进口XP单一气体检测仪的产品特性：1、坚固耐用的外壳体积小、重量轻坚固，防冲击，可应对各种天气状况配备鳄鱼夹一防止意外丢失2、操作可靠开机或褥要时，显示屏、电池、传感器、声光振动报警设备进行自检使用已获专利的SureCeIITM和ReflexTM传感器技术TempraSURETM温度补偿和冲击防护周期性频闪和声音提示，提高可靠性。

卓越的EMC/RFI性能靠近无线电话或手机不会误报警RFI抗忧性能超过最严格的工业标准3、使用便捷开机即用单键操作适合各种语言的直观图标用户可通过菜单进行设置提供软件模拟使用指导标配有振动报警4、成本效益佳传感器哀减补偿技术使得标定间隔达12个月(仅H2S/C0) 可替换的传感器与电池传感器寿命至少2年电池寿命通常为3年*(低电池电量警告)尺寸：93mm (H) *50MM(W)*27MM(D) 初始及运行成本低5、高清晰背光显示屏持续显示气体浓度TWA/STEL和两级瞬时报警并带峰值保持显示电池寿命、标定及自检状态6、有效的气体报警指示报警和背光相互结合，加强提示独特的95分贝双音频报警霍尼韦尔进口impulsexp单一检测仪公司相关产品：霍尼韦尔进口XP单一气体检测仪、霍尼韦尔四合一气体检测仪、加拿大BW气体检测仪、加拿大BW多功能气体检测仪、正压式空气呼吸器、送风式空气呼吸器、自吸式10米长管空气呼吸器、固定式气体泄漏报警器、家用天然气泄漏报警器、救援三脚架、消防救援三脚架、井口爬梯、防坠器、有限空间作业设备等。

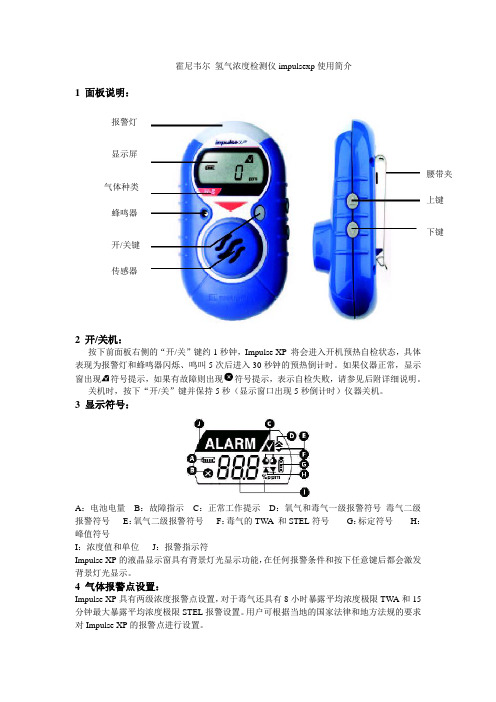

霍尼韦尔 氢气浓度检测仪impulsexp 使用简介1 面板说明：2 开/关机：按下前面板右侧的“开/关”键约1秒钟，Impulse XP 将会进入开机预热自检状态，具体表现为报警灯和蜂鸣器闪烁、鸣叫5次后进入30秒钟的预热倒计时。

如果仪器正常，显示窗出现符号提示，如果有故障则出现符号提示，表示自检失败，请参见后附详细说明。

关机时，按下“开/关”键并保持5秒（显示窗口出现5秒倒计时）仪器关机。

3 显示符号：A ：电池电量B ：故障指示C ：正常工作提示D ：氧气和毒气一级报警符号 毒气二级报警符号E ：氧气二级报警符号F ：毒气的TW A 和STEL 符号G ：标定符号H ：峰值符号I ：浓度值和单位 J ：报警指示符Impulse XP 的液晶显示窗具有背景灯光显示功能，在任何报警条件和按下任意键后都会激发背景灯光显示。

4 气体报警点设置：Impulse XP 具有两级浓度报警点设置，对于毒气还具有8小时暴露平均浓度极限TW A 和15分钟最大暴露平均浓度极限STEL 报警设置。

用户可根据当地的国家法律和地方法规的要求对Impulse XP 的报警点进行设置。

出厂设置如下：（英国标准）气体类型量程一级报警点二级报警点TWA报警点STEL报警点氧气0-30%vol 23.5%vol 19.5%vol ------- ------一氧化碳0-1000ppm 35ppm 100ppm 35ppm 400ppm 硫化氢0-250ppm 10ppm 15ppm 10ppm 15ppm 氢气0-1000ppm 100ppm 500ppm ------- ------ 二氧化氮0-150ppm 3ppm 5ppm 3ppm 5ppm 氯气0-50ppm 0.5ppm 1ppm 0.5ppm 1ppm 二氧化硫0-150ppm 2ppm 5ppm 2ppm 5ppm 氢氰酸0-100ppm 5ppm 10ppm 5ppm 10ppm 氨气0-100ppm 25ppm 50ppm 25ppm 35ppm 报警描述：报警类型显示声音报警灯光报警振动报警一级报警每秒3声每秒闪烁3次每秒两次二级报警每秒5声每秒闪烁5次每秒两次STEL报警每秒5声每秒闪烁5次每秒两次TW A报警每秒5声每秒闪烁5次每秒两次5 峰值，TWA和STEL显示模式：a. 正常显示b. TW A/STEL显示模式c. 峰值显示STEL模式TWA 模式如果想清除峰值，则在屏幕显示峰值时，按下“开/关”键一次，清除当前峰值并返回到正常的检测状态。

THE NEEDSEvides Waterbedrijf required measurement of turbidity and flow to monitor water quality in the distribution network and manage the network. Until recently, this data had been recorded manually and analysed with outdated equipment. This process no longer fitted with the strategic pillar “digitising primary processes” which was an important aim of the Netherlands water provider. Evides Waterbedrijf developed an all-in-one measuring device which allowed them to make all distribution network measurements. During the measurement process, turbidity, flow and GPS location were all recorded and logged in real-time from the field. This data could be used to determine water quality of the distribution network, assess the effectiveness of previously implemented drainage actions and continue to optimise drainage plans. The process being largely automated. The flow meter was part of the total standpipe solution which was lightweight and easy to dismantle in the field.THE SOLUTIONTo support the needs of EvidesWaterbedrijf, Honeywell Smart Energyoffered their Q4000 electromagneticmeter as part of the standpipe solution.Featuring high quality design andengineering, Honeywell’s Q4000electromagnetic water meter is builtfor maintaining highly accurateperformance and lasting durabilityin demanding environments.With an unrestricted flow tube with nomoving parts and a 10-year batterylife, the Q4000 offers unrivalledperformance for an electromagneticwater meter. Delivering consistentaccuracy over a wide flow-ratemeasuring range, the meter can beadapted to suit either predominantlyhigh or low flow rates, and is ideal fordistribution network applications.The Q4000 is a high-performingelectromagnetic meter, ideal for networkmanagement and leakage monitoring.HON EYWELL’SW A TER M ETERCase StudySupports Accurate Real-Time Distribution Network AnalysisGood quality water supply is provided for the entire population in the Netherlands. Water consumption is one of the lowest in developed countries at 128 litres per capita per day and water leakage in the distribution network is one of the lowest in the world at only 6%.The Q4000 water meter forms part of the total standpipe solution.The Q4000 from Honeywell Smart Energy is a high-performing electromagnetic meter, ideal for bulk flow metering applications such as network management and leakage monitoring.-It has a fast continuous sampling rate, providing highly accurate and reliable measurement.-The Q4000’s extremely tough stainless steel constructionensures a long working life, while its lightweight body makes storage, transportation and installation both simpler and safer.-With an unrestricted flow tube, the Q4000 ensures minimal pressureABOUT EVIDES WATERBEDRIJFEvides Waterbedrijf supplies safe and clean drinking water 24 hours a day, 365 days a year to 2.5 millioncustomers and the business community in Zeeland, in the South West of Holland and the Brabantse Wal.Additionally, Evides Waterbedrijf offers tailor-made industrial water services to large industrial customers in the Netherlands, Belgium and Germany.THE BENEFITSloss, even at the highest flowrates, resulting in reduced network system pressures, helping to prevent leakage from burst pipes. -A large, bright and easy-to-read LCD, showing volume and instantaneous flow rate, is ideal for real-time network control and water management. -With the Q4000’s 10-yearcontinuous battery life and no need for calibration, expensive regular maintenance is a thing of the past. -With bi-directional pulse outputs, the Q4000 provides dependable connectivity to critical water management systems including AMR and data logging devices.All rights reserved.The company’s policy is one of continuous product improvement and the right is reserved to modify the specifications contained herein without notice. These products have been manufactured with current technology and in accordance with the applicable referenced standards.SS-20-2 ENG | 02/20© 2020 Honeywell International Inc.For more informationElster Water Metering Ltd130 Camford Way Sundon Park, Luton Bedfordshire, LU3 3AN United Kingdom T +44 1582 846400F +44 1582 564728*************************。

霍尼韦尔说明书霍尼韦尔说明书简介霍尼韦尔（Honeywell）是一家全球领先的多元化科技和制造公司，总部位于美国，成立于1906年。

公司的业务涵盖航空航天、楼宇技术、性能材料、可持续性解决方案和安全解决方案等领域。

霍尼韦尔以其创新的技术、高品质的产品和可靠的性能享誉全球。

本文档旨在向用户提供关于霍尼韦尔产品的说明，并介绍如何正确使用和维护这些产品。

产品列表1. 霍尼韦尔智能温控器* 产品名称：霍尼韦尔智能温控器* 产品型号：TH9320WF5003* 产品特点：- 可与智能手机和智能家居系统连接，实现远程控制- 可编程设置温度和计划，提高能源效率- 大屏幕显示温度和湿度等信息* 使用说明：1. 将温控器与电源连接，并按照说明书设置温度和计划。

2. 下载并安装霍尼韦尔智能手机应用。

3. 打开应用，按照提示添加温控器设备。

4. 连接温控器和手机，即可实现远程控制。

2. 霍尼韦尔空气净化器* 产品名称：霍尼韦尔空气净化器* 产品型号：HFD-120-Q* 产品特点：- 高效过滤空气中的颗粒物和有害物质- 自动检测空气质量，并自动调整清洁模式- 低噪音设计，不影响正常生活* 使用说明：1. 将空气净化器放置在需要净化的房间内，并连接电源。

2. 按下电源开关，启动空气净化器。

3. 空气净化器将自动检测空气质量，并根据需要调整清洁模式。

4. 定期更换空气净化器中的滤网，以确保最佳的净化效果。

常见问题与解答Q1：为什么温控器无法连接智能手机？A：请确保智能手机和温控器处于相同的Wi-Fi网络下，并且已经下载并安装了霍尼韦尔智能手机应用。

如果问题仍然存在，请尝试重新连接温控器。

Q2：空气净化器何时需要更换滤网？A：根据使用环境和空气质量，滤网的寿命可能会有所不同。

一般建议每3至6个月更换一次滤网，或者根据空气净化器上的指示灯提示更换。

维护与保养为了保证霍尼韦尔产品的正常运行和延长使用寿命，以下是一些维护与保养的建议：1. 定期检查产品的电源和连接线，确保其无损坏和松动。

USER AND MAINTENANCE MANUAL SAA VERSIONWarnings and Cautions Contacting Honeywell AnalyticsWARNINGS AND CAUTIONS• Substitution of any components may impair intrinsic safety.se only approved memory cards, part # 2566-0435, which are available from HoneywellCrocodile ClipFrontBottomRightLeftBattery Holder13. Alarm Level 1 IconAlarm Level 2 Icon(for flammable and toxic) 14. Zero Calibration Icon Span Calibration Icon The LCD display has a backlight that will operate automatically whenever an alarm occurs, and also whenever any button is pressed. To turn on the backlight while staying in the measuring mode in a low light area, press the UP or DOWN button once.1314When “no” is selected, the recorded STEL and TWA values will be used as initial STEL and TWA values for the current session. When “YES” is selected, the STEL and TWA values will be cleared.2-1-3. CHECKING THE MEMORY CARDThe detector will check the memory card in the memory card slot. When a properly formatted FAT16 memory card with a data full condition is detected, a “Data Fu” message will be displayed followed by a “Delete no” prompt. (When a properly formatted FAT16 memory card is not full of data, the “Data Fu” message and the “Delete no” prompt willnot be displayed).Press the UP or DOWN buttons to scroll to “no” or “YES” and press theselect.When “no” is selected, the detector keeps the current data file and the Data Logging iconwill not be displayed in the measuring mode which indicates that no data is being logged. When “Yes” is selected, the detector deletes the current data file and creates a new filefor data logging. The Data Logging icon will be displayed in the measuring mode whichThe Data Logging icon will not be displayed in the measuringmode which indicates that no data is being logged.2-1-4. POWER-UP SELF-TESTThe detector will beep and perform a power-up Self-Test. If the detector passes the Self-Test, the Test Pass icon is displayed. If the Test Fail icon is displayed and the Test Pass icon blinks with 1 beep and 1 flash every 5 seconds, then the detector has failed the Self-Test (See Section 3-1 Performing a Self-Test).2-1-5. CHECKING THE CALIBRATION DUE DATEThe detector checks the calibration due date stored in the detector after the Power-UpSelf-Test. When the number of days remaining until calibration is due reaches zero, a "CAL2-2. TURNING THE DETECTOR OFFTo turn off the detector, press and hold theA countdown will be displayed for 5 seconds, and then the detector will beep and turn off.• D isplay the level 1 (flammable and toxic low, O2 excess) and level 2 (flammable and toxic high, O2 deficiency) alarm set points• Display the STEL and TWA alarm set points (for CO & H2S only)Level 1Level 2STEL TWA*Examples shown for default settings of each gas for the MiniMAX4 series.Test Pass Test FailSelf-Test Result Display Audible AlarmPass NoneFail 1 beepevery 5 secondsAdditionally, the detector will periodically check its batteries, electronic circuit and sensors. If it passes, the Test Pass icon will be displayed. If it fails, the Test Fail icon will be displayed and the Test Pass icon will blink with 1 beep and 1 flash every 5 seconds. Note: If the Self-Test has failed, repeat the Self-Test. If a second failure occurs, contact3-3. GAS ALARMSThe detector has two levels of instantaneous gas alarms, of which the level 2 (flammable and toxic high, O2 deficiency) alarm is more urgent than the level 1 (flammable and toxic low, O2 excess) alarm for flammable and toxic. The Oimportant. It also has a 15-minute STEL alarm and an 8-hour TWA alarm for the carbon monoxide and hydrogen sulfide sensors.Note: STEL (Short Term Exposure Limit) and TWA (Time-Weighted Average) comply with relevant agency standards.If an alarm occurs, the icons blink and relevant alarm level icons, (Level 1 for flammable and toxic, and O2 excess), (Level 2 for flammable and toxic), (O(STEL), or (TWA) will be displayed according to the alarm level for the gas type in question.* Examples shown for default settings of each gas for the MiniMAX4 series.Note: In latching alarm mode, once an alarm occurs, the audible, visual and vibrating alarms continue to operate even after the atmospheric hazard has cleared. By pressing the ON/OFF button, the alarm will be cleared (after the atmospheric hazard has cleared). Any subsequent alarm will reactivate the audible, visual and vibrating alarms.it is not already on. The exposure status can be scrolled through in the order of( ), Low Peak ( ), ( ), and ( ), followed byDate, and Current Time by pressing the UP button or in reverse order by pressing the High PeakLow PeakSTELTWA* Examples shown for the status review for the MiniMAX4 seriesis low and needs replacing by generating a beep and flashing the alarm LED once every 5 seconds. Also, the Test Fail icon will be displayed and the Low Battery icon and Test Pass icon will blink alternately. When the battery is finally exhausted, the Test Fail icon and Low Battery icon will blink simultaneously with seven beeps and “bAttEry oFF” will be displayed. Pressing the ON/OFFif card is installed. When a properly formatted blank memory card is detected, the Data Logging icon will be displayed in the measuring mode which indicates that data is beingWhen the memory card becomes full in the measuring mode,the detector will stop data logging and the Data Logging icon will blink which indicates that no data is being logged.Note: The detector cannot format the memory card.Warning: The detector ignores the write-protect feature of the SD memory card.Warning: When the Data Logging icon is either blinking or not displayed, it indicates that no data is being logged.To install or remove the memory card, see Section 6-2 Installing or Removing the Memory Card.4. CALIBRATIONWhen “no” is selected, the calibration will be aborted. When “YES” is selected, the calibration will be performed.• When the ZERO calibration has been completed successfully for all sensors, the Test Pass icon will blink for 5 seconds.• I f the ZERO calibration fails for one or more sensors, the detector will give a single beep and a single flash and both the Test Pass icon and Test Fail icon will blink for 5 seconds.• If the ZERO calibration fails for all sensors, the detector will give a single beep and a single flash and only the Test Fail icon will blink for 5 seconds.All Pass Some Pass/Fail All FailNote: If any sensor has failed, repeat the ZERO calibration ensuring that the detector is in fresh air. If a second failure occurs, contact Honeywell Analytics or their agent.Warning: Under proper calibration procedures, repetitive calibration failures could indicate that the sensor is either approaching its end of life, or it has been seriously contaminated, or both.4-3. SPAN CALIBRATION (FOR FLAMMABLE AND TOXIC SENSORS ONLY) Calibrate the detector at least every 6 months (CH4, CO, H S), depending on use and exposure to contaminants. User can perform the SPAN calibration with 4 gases at the same time or with a single gas. When SPAN calibration is performed with a single gas,ON/OFFValveGas TubeFlow Adaptor Carry out the ZERO calibration procedure as described in Section 4-2 Zero Calibration(Span Calibration for Oxygen).nly if the ZERO calibration is successful can a SPAN calibration be performed.t the end of the ZERO calibration procedure, the ON/OFF button must be pressed and held continuously for 5 seconds in order to proceed to SPAN calibration while the Test Pass icon is still blinking. If pass code protection is activated proceed to Section 4-3-1 Pass Code Input, otherwise proceed to Section 4-3-2 Span Gas Information.f no actions are performed at the end of the zero calibration the detector will return to4-3-1. PASS CODE INPUTIf the Pass Code Protection feature has been activated, the detector prompts the user to Press the UP or DOWNand hold the UP orON/OFF button to enter the pass code.Note: If the user fails to input the correct pass code 3 times consecutively, the detector will return to measuring mode.Note: For lost pass code, contact Honeywell Analytics or their agent.Only the gas label and SPAN gas concentration of the flammable and/or toxic sensor(s) that passed the ZERO calibration will be shown on the LCD display.4-3-3. SPAN GAS SETTINGThe SPAN gas information will be displayed.• T he span gas concentration can be changed by pressing theseconds during the display of the span gas information.• T he user can adjust the value with theSelect Exp Gas Change Concentrationfrom 50 to 40 %LEL4-3-4. GAS SEARCH AND COUNTDOWNFor SPAN calibration, apply the gas to the detector when the SPAN Calibration icon blinks. The detector will monitor sensor signals for supplied gas.Gas SearchingThe detector detects gas and executes SPAN calibrationNote: If no gas is detected within 30 seconds, the detector will give a single beep and a single flash, indicate an error “Err” for all gases on the LCD display, blink the Test Fail iconfor 5 seconds, and then exit calibration mode.No gas detected4-3-5. SPAN CALIBRATION RESULTIf one or more gases are detected, the detector will display the SPAN calibration results after the countdown.• W hen the SPAN calibration has been completed successfully for all sensors, the Test Pass icon will blink for 5 seconds.f the SPAN calibration has failed for some sensor(s), the detector will give a single beep and a single flash and indicate an error “Err” for the gas type in question on the LCD display. Both the Test Pass icon and the Test Fail icon will blink for 5 seconds.f the SPAN calibration has failed for all sensors, the detector will give a single beep and a single flash and indicate an error “Err” for all gases on the LCD display. The Test Fail icon will blink for 5 seconds.Note: If the span calibration fails, the calibration of failed sensor(s) will remain as it was beforeAll Pass Some Pass/Fail All FailAfter SPAN calibration, the detector saves the successful SPAN calibration value(s) and exits SPAN calibration mode unless the ON/OFF button is pressed and held within 5 seconds. If the ON/OFF button is pressed and held for 5 seconds while the Test Pass icon and/or Test Fail icon are still blinking (depending on the calibration result), the detector will save successful SPAN calibration value(s) and repeat the SPAN calibration procedure.for 3 seconds to enter the set-up mode. The detector will generate a single beep, display the icon, generate a beep, and then enter the set-up mode. If the Pass Code Protection feature has been activated, the detector prompts the user to enter the pass code. (See Section 4-3-1 Pass Code Input.)Note: If the user fails to input the correct pass code 3 times consecutively, the detector will return to measuring mode5-2. CHANGING THE DETECTOR SETThe set-up mode menu structure is shown in Appendix A (A-3, A-4, A-5, and A-6).In set-up mode, pressing theON/OFF button selects the function, so that the displayed value or status may be changed.Turn 90Note: Periodically inspect the battery holder terminal contacts for build up of dirt. Remove any debris using soft cloth and industrial alcohol.Card SlotMemory CardNote: The data contacts side faces upwards6-3. CLEANINGWarning: Do not use solvents, soap, polishes and any product containing silicon compounds to clean the detector as these can cause damage to the sensors.• Clean the exterior of the detector with a clean damp cloth.• Clean the sensor grilles with a soft brush.< UP >to increaseor < DOWN >to decrease the value---------------------< ON/OFF >Fail (all)Fail (some)Zero Cal.Success (all)Set Span Gas Concentration Span Gas Information Span GasSearch SpanCalibration20 seconds countdownwith zero calibration icon blinkingwait for 10 seconds< ON/OFF > for 5 secondswhile " " is blinking for 5 secondsspan gas search for up to 30 seconds 60 seconds countdownwith span calibration icon blinkingCalibrationFoundFail (all)Fail (some)Success (all)Search Span Calibrationspan gas searchfor up to 30 seconds 60 seconds countdownwith span calibration icon blinkingDetectedFailSpan Cal.Success < Continued from SpanGas Information>Setting O 2 Excess/Alarm 1 Setting Alarm 1Set O 2 Defi-ciency/Alarm 2O 2 Deficiency/Alarm 2 Setting Set STEL Alarm STEL Alarm Setting TWA Alarm Setting Set TWA Alarm < UP > or < DOWN >< UP > or < DOWN >< UP > or < DOWN >< UP > or < DOWN >< UP > or < DOWN >Signals< UP > or < DOWNPass CodeSetting< UP > or < DOWN >Interval< UP > or < DOWN Date Setting< UP > or < DOWN< UP > or < DOWN >LEL / VolSetting< UP > or < DOWN > Correction Factor Setting< UP > or < DOWN > Cal Due DateSetting< UP > or < DOWNUser ID NoSetting< UP > or < DOWN(on / off) (on / off)UP > or < DOWN >。

X4的操作步骤
(1)、按住开/关键2秒钟，仪器开机
(2)、执行自检
接下来屏幕显示如下：
·显示一级报警点（可燃气和有毒气，氧气高浓度报警） ·显示二级报警点（可燃气和有毒气，氧气低浓度报警） ·显示STEL 和TWA 报警点（只对一氧化碳和硫化氢）
当按下开/关键后，仪器将检查传感器，电路，电池，声音，灯光，振动报警。

仪器将执行如下：（1）显示所有的数字和字符提示信息
（2）检查声音，灯光，振动报警 （3）检查电池，电路和传感器
(3)、自检是否通过
另外，仪器将会定期的检查电池，电路和传感器。

！注意：如果自检失败，应重新进行自检，如果再次失败请联系当地代理/服务商。

(4)、进入测量模式
(5)、解除报警
自检通过
正常显示
报警提示符号将
警符号（一级）
报警提示符号将
警符号（二级）
(6)、关机
修改报警值步骤
（1）、打开仪器至正常显示 （2）、同时按住上/下键，直到声音响起后松手
（3）、再按上键或下键选择到报警值界面 （4）、再按开关键，选择需要设置的气体
（5）、按上键或下键进行报警值的设置
（5）都设置完了，等20秒仪器自动回到检测模式
如何装电池。

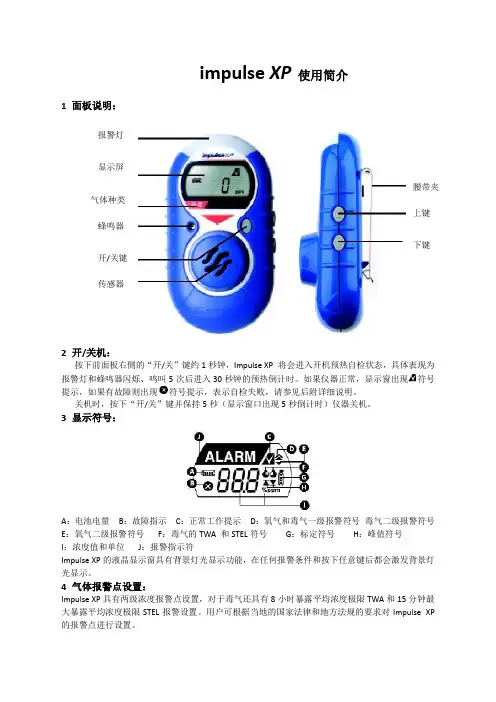

impulse XP使用简介1 面板说明：报警灯显示屏腰带夹气体种类上键蜂鸣器下键开/关键传感器2 开/关机：按下前面板右侧的“开/关”键约1秒钟，Impulse XP 将会进入开机预热自检状态，具体表现为报警灯和蜂鸣器闪烁、鸣叫5次后进入30秒钟的预热倒计时。

如果仪器正常，显示窗出现符号提示，如果有故障则出现符号提示，表示自检失败，请参见后附详细说明。

关机时，按下“开/关”键并保持5秒（显示窗口出现5秒倒计时）仪器关机。

3 显示符号：A：电池电量B：故障指示C：正常工作提示D：氧气和毒气一级报警符号毒气二级报警符号E：氧气二级报警符号F：毒气的TWA 和STEL符号G：标定符号H：峰值符号I：浓度值和单位J：报警指示符Impulse XP的液晶显示窗具有背景灯光显示功能，在任何报警条件和按下任意键后都会激发背景灯光显示。

4 气体报警点设置：Impulse XP具有两级浓度报警点设置，对于毒气还具有8小时暴露平均浓度极限TWA和15分钟最大暴露平均浓度极限STEL报警设置。

用户可根据当地的国家法律和地方法规的要求对Impulse XP 的报警点进行设置。

出厂设置如下：（英国标准）气体类型量程一级报警点二级报警点TWA报警点STEL报警点氧气0-30%vol %vol %vol ------- ------一氧化碳0-1000ppm 35ppm 100ppm 35ppm 400ppm硫化氢0-250ppm 10ppm 15ppm 10ppm 15ppm氢气0-1000ppm 100ppm 500ppm ------- ------二氧化氮0-150ppm 3ppm 5ppm 3ppm 5ppm氯气0-50ppm 1ppm 1ppm二氧化硫0-150ppm 2ppm 5ppm 2ppm 5ppm氢氰酸0-100ppm 5ppm 10ppm 5ppm 10ppm氨气0-100ppm 25ppm 50ppm 25ppm 35ppm报警描述：报警类型显示声音报警灯光报警振动报警一级报警每秒3声每秒闪烁3次每秒两次二级报警每秒5声每秒闪烁5次每秒两次STEL报警每秒5声每秒闪烁5次每秒两次TWA报警每秒5声每秒闪烁5次每秒两次5 峰值，TWA和STEL显示模式：a. 正常显示b. TWA/STEL显示模式c. 峰值显示STEL模式TWA 模式如果想清除峰值，则在屏幕显示峰值时，按下“开/关”键一次，清除当前峰值并返回到正常的检测状态。

® U.S. Registered TrademarkCopyright © 2020 Honeywell Inc. • All Rights Reserved31-00263-02PRODUCT DEFINITIONThe WEBs-N4 Supervisor is part of the portfolio of Java-based controller/ server products, software applications and tools powered by the Niagara Framework®. Itprovides server-level functions for a network of WEBs, CIPer and other field device clients. The WEBs-N4 Supervisor serves real-time graphical information to standard web-browser clients and performs other functions like centralized data logging/trending, archiving to external databases, alarming,dashboarding, system navigation, master scheduling, database management and integration with other enterprise software applications through an XML interface (oBIX standard). It also provides acomprehensive graphical engineering toolset for application development.KEY FEATURES• Centralized system management• Utilize tags to quickly navigate to buildings, systems and equipment when diagnosing operational problems or emergencies • Compare data between buildings• Export system data to external databases • Integrate BAS to other enterprise applications • Integrate to other applications, such as work order management, analytics, etc. • Single tool used to program WEB and Edge controllers and Supervisor • Remotely back up WEB and Edge applications to Supervisor • Batch provisioning of WEB-8000 and CIPer Model 10 firmware upgrades, security credentials, applications, and commissioning options from Supervisor • Robust built-in analytic capabilities supported by standard Niagara components and visualizations • Includes Niagara Analytics, which features data source, functional and mathematical programming blocks that enable sophisticated analytic algorithms • Compatibility with WEBs Enterprise Security access control and security application. Allows integration of BAS and access control to save energy and optimize operations • Eligible for accreditation under the Federal Risk Management Framework (RMF) • FIPS 140-2 Level 1 conformance availableThe WEBs Niagara Supervisor allows the networking of multiple Niagara- based controllers like WEB-8000 and CIPer Model 10, CIPer Model 30 and CIPer Model 50. It enables the design, configuration and maintenance of a unified, real-time controls network.SPECIFICATIONSHTML5 and Java-enabled user interface (UI); JavaScript data interface library included (BajaScript)Supports an unlimited number of users over theinternet/intranet with a standard web browser (depending on the host PC resources)Optional enterprise-level data archival using SQL,MySQL or Oracle databases, and HTTP/HTML/ XML, CSV or text formats“Audit Trail” of database changes, database storage and backup, global time functions, calendar, centralscheduling, control and energy management routines Sophisticated alarm processing and routing, including email alarm acknowledgingAccess to alarms, logs, graphics, schedules and configuration data with a standard web browserNiagara follows industry best practices for cyber security, with support for features such as strong, hashed passwords, TLS for secure communications and certificate management tools for authentication. A built-in Security Dashboard provides a comprehensive and actionable view of the security posture of your Niagara deploymentHTML-based help system that includes comprehensive online system documentationSupports multiple Niagara-based stations connected to a local Ethernet network or the internetProvides online/offline use of the Niagara Framework® Workbench graphical configuration tool and a comprehensive Java Object LibraryOptional direct Ethernet-based driver support for most Open IP field bus protocols (see supported drivers document )WEBs-N4 SUPERVISOR – PRODUCT DATA31-00263-02 2SOFTWARE & DRIVERSEvery WEBs-N4 Supervisor comes with a Niagara 4 software license, along with multiple open-protocol IP drivers that are compatible with standard control networks. If required, other drivers can be purchase separately. For an up-to-date list of supported drivers, contact customer support.SOFTWARE MAINTENANCEPurchase of a Software Maintenance Agreement (SMA) is required with initial WEBs-N4 Supervisor licensing. The initial SMA is for 18 months, with extended agreements of 3 years and 5 years available for discounted rates. If a Software Maintenance Agreement is not in effect for any period, the price of maintenance for the next period for which it is purchased will be priced at a cost equal to the maintenance fee for the period(s) for whichmaintenance was not purchased, up to a maximum of 5 years, plus the maintenance fee for the next year.ORDERING INFORMATIONPart numberDescriptionWEB-S-0-N4 No Niagara network connections – Devices only. (18mo SMA required)SUP-0-SMA-INIT 18mo initial SMA required (3YR or 5YR can be substituted) WEB-S -1-N4 1 Niagara network connection* (18mo SMA required)SUP-1-SMA-INIT 18mo initial SMA required (3YR or 5YR can be substituted) WEB-S-2-N4 2 Niagara network connections* (18mo SMA required) SUP-2-SMA-INIT 18mo initial SMA required (3YR or 5YR can be substituted) WEB-S-3-N4 3 Niagara network connections* (18mo SMA required) SUP-3-SMA-INIT 18mo initial SMA required (3YR or 5YR can be substituted) WEB-S-10-N4 10 Niagara network connections* (18mo SMA required) SUP-10-SMA-INIT 18mo initial SMA required (3YR or 5YR can be substituted) WEB-S-100-N4 100 Niagara network connections* (18mo SMA required) SUP-100-SMA-INIT 18mo initial SMA required (3YR or 5YR can be substituted) WEB-S-UNL-N4 Unlimited Niagara network connections* (18mo SMA required) SUP-UNL-SMA-INIT 18mo initial SMA required (3YR or 5YR can be substituted) WEB-S-DEMO-N4 Niagara 4 Supervisor demoSUP-UP-1 Adds one additional Niagara connection to Supervisor SUP-UP-100Upgrades small Supervisor to 100 Niagara connectionsWEBs-N4 SUPERVISOR – PRODUCT DATA3 31-00263-02Part numberDescriptionSUP-UP-UNL Upgrades Supervisor 100 to unlimited Niagara connections SUP-DEVICE-10 10 device upgrade (standard drivers included) SUP-DEVICE-25 25 device upgrade (standard drivers included) SUP-DEVICE-50 50 device upgrade (standard drivers included) SUP-DEVICE-100 100 device upgrade (standard drivers included) SUP-DEVICE-200 200 device upgrade (standard drivers included) SUP-DEVICE-500 500 device upgrade (standard drivers included) SUP-DEVICE-1000 1000 device upgrade (standard drivers included)SUP-STATION-5UP Allows running multiple stations with 1 Niagara licenseEach instance of the part purchased increases the limit by 5 stations SP-S-FIPSProvides FIPS 140-2 Level 1 conformance for 4.6 and later SUP-[0-UNL]-SMA-[1,3,5]YRSupervisor [0-UNL] Maintenance – [1,3,5] YR extensions*CIPer Model 10 and the CIPer Model 30 with a 150 points or less based capacity license now count as a 1/10 of a standard Niagara Network connectionCOMPATIBILITYIn any given WEBs Niagara system, the WEBs-N4 Supervisor must be running the highest version of any WEBs-N4 instance in the architecture.When connecting to WEBs controllers that are running older versions of WEBs-N4, these compatibility guidelines apply:• WEBs-AX: WEBs-N4 Supervisors can connect to WEBs JACE running WEBs-AX versions 3.8 and higher.• R2: WEBs-N4 Supervisors can connect to WEBs JACE running R2 through the oBIX XML interface only.PLATFORM REQUIREMENTS FOR NIAGARA SUPERVISORWEBs-N4 Supervisors may run acceptably on lower-rated platforms, or may even require more powerful platforms,depending on the application, number of data points integrated, data poll rate, number of concurrent users, performance expectations, etc.• Processor: Intel® Xeon® CPU E5-2640 x64 (or better), compatible with dual- and quad-core processors• Operating System:o Windows 10 (64-bit) o Windows Server 2016 o Windows Server 2019o Red Hat Enterprise Linux 7.7/8.1 (64-bit)• Mobile operating system: iOS 12, iOS 13, Android 8 Oreo, Android 9 Pie, Android 10.0WEBs-N4 SUPERVISOR – PRODUCT DATAThe material in this document is for information purposes only. The content and the product described are subject to change without notice. Honeywell makes no representations or warranties with respect to this document. In no event shall Honeywell be liable for technical or editorial omissions or mistakes in this document, nor shall it be liable for any damages, direct or incidental, arising out of or related to the use of this document. No part of this document may be reproduced in any form or by any means without prior written permission from Honeywell.Honeywell Building Technologies1985 Douglas DriveGolden Valley MWFor more information:Honeywell Building Controls© 2020 Honeywell, Inc. 31-00263-02 |Rev. 07-21•Browser: Chrome, Firefox, Microsoft Edge•Mobile Browser: Safari on iOS, Chrome on Android•Database: MySQL 5.7, 8.0, 9.0; Oracle Express 11g; Oracle 12, 18, 19c; MSSQL 2012, 2016, 2017, 2019•Memory: 6 GB minimum, 8 GB or more recommended for larger systems•Hard Drive: 4 GB minimum, 10 GB recommended for any Supervisor•Display: Video card and monitor capable of displaying 1024 x 768-pixel resolution, 1080p (1920 x 1080) minimum resolution recommended•Network Support: Ethernet adapter (10/100 Mb with RJ-45 connector), 100 Mbit or 1 Gbit NIC(network interface card) with TCP/IP•Connectivity: Full-time high-speed ISP connection recommended for remote site access (i.e., T1, ADSL, cable modem) and IPv6 compliantPlatform requirements for older versions of WEBs Supervisors are included in the release notes for each particular version.。
