Video Controller VX2URev1.0.2 NS160100226OverviewVX2U is a professional LED display controller of NovaStar. Besideshaving all the functions of an LED display controller, it also features powerful front end video processing. With high image quality and flexible image control, VX2U is able to meet the demands of mediaFeatures1) The inputs of VX2U include CVBS ×2, VGA ×2, DVI ×1, HDMI ×1, DP ×1 and USB ×1. The supported input resolution is up to 1920 ×1200@60 H z. The input images of VX2U can be zoomedpoint-to-point a c cording to the resolution of LED display.2) With seamless quick switch and fade-in/ fade-out effects to enhanceand present pictures of professional quality.3) The location and size of PIP (Picture in Picture) can be adjusted,which can be controlled at will.industry.scanning lines. Images are exquisite and have a good sense of depth.5)Able to implement white balance calibration and color gamutmapping based on different features of LEDs used by screens toensure restoration of true colors.6)HDMI/external independent audio input.7)Supports high-bit video input, 10bit/8bit.8)Loading capacity of video output: 1.3 million pixels.9)Supports multiple controller montage for loading huge screen;10) S upports Nova's new-generation pixel-by-pixel calibrationtechnology and the calibration is fast and efficient.11) C omputer software for system configuration is not necessary. Thesystem can be configured by one knob and one button. All can be done just by fingers. That's what we called T ouch Track.12) A dopts an innovative design to implement smart configuration.Screen settings can be completed within 30 seconds, which has greatly shorten the preparation time.13) W ith an intuitive LCD interface and clear button indicator lights tosimplify the control of the system.DimensionsAppearance(mm)Rear PanelTip: Type A USB interfaces on both the front and rear panel are not allowed to connect PC directly.Speci ficatiAppendixConflict list of PIP signal sources Page 10。
视频控制器VX系列产品用户手册声明欢迎您选用西安诺瓦电子科技有限公司（以下简称诺瓦科技）的产品，如果本文档为您了解和使用产品带来帮助和便利，我们深感欣慰。
我们在编写文档时力求精确可靠，随时可能对内容进行修改或变更，恕不另行通知。
如果您在使用中遇到任何问题，或者有好的建议，请按照文档提供的联系方式联系我们。
对您在使用中遇到的问题，我们会尽力给予支持，对您提出的建议，我们衷心感谢并会尽快评估采纳。
版权本文档版权归诺瓦科技所有，未经本公司书面许可，任何单位或个人不得以任何形式对文本内容进行复制、摘录等，违者必究。
商标是诺瓦科技的注册商标。
安全声明为避免可能的危险，请按规定使用此设备。
如出现损坏，非专业人士请勿擅自打开维修，请及时与本公司售后联系。
高压危险：本产品的工作电压为100～240V AC。
接地：本产品通过电源的地线与大地相连，请确保接地导体的良好接地。
电磁干扰：设备应远离磁铁、马达及变压器。
防潮：请将设备置于干燥、干净的环境中。
如有液体浸入，请立即拔掉电源插头。
远离易燃易爆危险物品。
禁止液体、金属碎片浸入机器内部，以免引起安全事故。
目录1型号说明 12外观说明 1前面板 1后面板 2 3信号连接 54安装尺寸 55操作动作说明 66主界面 67菜单操作 7第一步输入设置 7 第二步快捷点屏 8 第三步亮度调节 9 第四步输出设置 9 拼接带载 11 高级设置 12 U 盘播放设置 17 工厂复位 17 通讯设置 17语言设置 18 8技术规格 189常见问题 191 型号说明型号描述VX2输入接口：1 路 DVI，3 路 VGA，2 路 CVBS，1 路 HDMI，1 路 DPVX2U输入接口：1 路 DVI，2 路 VGA，2 路 CVBS，1 路 HDMI，1 路 DP，1 路 USB VX4输入接口：2 路 DVI，3 路 VGA，3 路 CVBS，1 路 HDMI，1 路 DPVX4S输入接口：1 路 DVI，2 路 VGA，2 路 CVBS，1 路 HDMI，1 路 DP，1 路 SDIVX4U输入接口：1 路 DVI，2 路 VGA，2 路 CVBS，1 路 HDMI，1 路 DP，1 路 USB 提示：VX 系列产品的接口类型及接口个数不同、功能和技术参数基本相同，本手册以 VX4U 为例进行描述。
LED Display Video Controller VX4SRev1.0.3 NS160110155GeneralThe VX4S is a professional LED display controller. Besides the function ofdisplay control, it also features in powerful front end processing, so anexternal scalar is no longer needed. With professional interfaces integrated,VX4S with excellent image quality and flexible image control greatly meet theneeds of the broadcast industry, Its friendly in user-interface. so that thedisplay to work has never been as easier and more enjoyable as with VX4S. Feature1) The inputs of the VX4S include CVBS×2, VGA×2, DVI×1, HDMI×1 , DP×1 and SDI×1. They support input resolution up to 1920×1200@60Hz;the input images of VX4S can be zoomed point-to-point according to thescreen resolution;2) Provide seamless high-speed switch and fade-in/ fade-out effect so as tostrengthen and display picture demonstration of professional quality;3) The location and size of PIP can both be adjusted, which can becontrolledat will;4) Adopt the Nova G4 engine; the screen is stable and flicker free withoutscanning lines; the images are exquisite and have a good sense of depth;5) Can implement white balance calibration and color gamut mapping basedon different features of LEDs used by screens to ensure reproduction oftrue colors;6) HDMI/external audio input;7) 10bit/8bit HD video source;8) The loading capacity: 2.3 million pixel;9) Support multiple controller montage for loading huge screen;10) Support Nova's new-generation point-by-point correction technology; thecorrection is fast and efficient;11) Computer software for system configuration is not necessary. The systemcan be configured using one knob and one button. All can be done justby fingers. That's what we called Touch Track!12) Adopt an innovative architecture to implement smart configuration; thescreen debugging can be completed within 30 seconds; greatly shortenthe preparation time on the stage;13) A intuitive LCD display interface and clear button light hint simplify theAppearance descriptionFront panelcontrol of the system.Type A, female USB USB Cascade OUTTips：The two USB ( typeA) on front panel and rear panel are both forbiddento connect with PC directly.Specification ParametersAttachment。
VS7视频拼接处理器V2.2.0 NS160000528诺瓦多画面拼接处理器嵌入式软件V3.0规格书简介VS7是由诺瓦科技自主研发的一款集视频处理，画面拼接，特效切换和多画面显示的高性能拼接处理器。
VS7具备强大的视频信号接收和处理能力，最大支持4K×2K@30Hz视频输入，并最大可同时支持7路输入和5个独立窗口。
最大支持4路DVI拼接输出，单机最大带载可达8KK。
基于强大的FPGA处理平台，支持输入输出EDID管理和画质调整，多种输入源的无缝切换和淡入淡出等切换特效，可以为您带来更加灵活的画面构造体验。
另外，VS7配套全新的智能管理软件V-Can，用户可以通过V-Can或VS7前面板完成丰富的画面拼接效果。
VS7凭借其优异的画质和超大分辨率带载，以及灵活多样的操控方式，可被广泛应用于会议报告，展览展示中心等场景中。
特性●支持市面常见的视频输入接口−DVI接口，支持1920×1080@60Hz输入−HDMI 1.3接口，支持1920×1080@60Hz输入−3G-SDI接口，支持1920×1080@60Hz输入−DP 1.1接口，支持3840×2160@30Hz输入−HDMI 1.4接口，支持3840×2160@30Hz输入−VGA接口，支持1920×1080@60Hz源输入●单机4个DVI接口拼接输出最大支持4接口拼接输出，支持水平拼接、垂直拼接和田字拼接，且最大带载高达920万像素，单个DVI输出最宽或最高可支持3840像素，四路拼接最宽或最高可支持到15360像素。
●多窗口显示支持添加5个窗口任意布局，且每个窗口支持跨接口输出●HDMI预监输出−支持单一输入源预监或输出画面预监−支持所有输入源和输出画面预监−支持叠加显示输入分辨率和帧频等信息●画面控制功能支持画面一键黑屏，冻结●EDID管理支持DVI、HDMI和DP接口的输入分辨率管理●画面特效切换支持窗口切源特效，并支持特效切换持续时长设置●BKG抓取支持输入源画面抓取，并将抓取的图片用于BKG ●BKG配置支持选择图片或者配置纯色作为BKG，最大支持保存6张BKG图片●支持输入源画质，窗口画质和输出画质调整●多场景管理支持创建32个用户自定义场景，可一键调用●窗口模板管理内置7个窗口模板，直接调用窗口模板进行快速窗口布局●多种操控方式支持使用智能控制软件V-Can或VS7前面板操控设备●直观的前面板彩色LCD显示界面，清晰的按键灯提示，简化了系统的控制操作外观前面板开关键窗口键输入源LCD旋钮返回键FREEZE功能键后面板应用场景VS7支持最大4路输出拼接，其场景连接如下所示。
诺瓦科技LED屏视频处理器VX4U规格书SpecificationsVideo Controller VX4URev1.0.3 NS160100233 OverviewVX4U is a professional LED display controller of NovaStar.Besides having all the functions of an LED display controller,it also features powerful front end video processing. Withhigh image quality and flexible image control, VX4U is ableFeatures×2 , ×2 , ×1 , ×11T he inputs of the VX4U include1 ×DP ×1 and ×. The supported input resolution1921200@60Hz. The input images of VX4U can beccording to the resolution of LED point-to-poi2W ith seamless quick switch and fade-in/out effects t present pictures of professional3T he location and size of PIP (Picture in Picture) ar can be controlled at4A dopts Nova G4 engine. The screen is stable and flicke scanning lines. Images are exquisite and have a depth.5A ble to perform white balance calibration and coloto meet the demands of media industry.7)S upports high-bit video input, 10bit/8bit.8)L oading capacity of video output:2.3 million pixels.9)S upports multiple controller montage for loading huge screen;10)Supports Nova's new-generation pixel-by-pixel calibrationtechnology and the calibration is fast and efficient.11)Adopts an innovative design to enable smart configuration. Screensettings can be completed within several minutes, which has greatly shorten the preparation time.12)With an intuitive LCD interface and clear button indicator lights to Dimensionssimplify the control of the system.(mm) Appearancee lRear PanelSpecificationsAppendix。
V1260LED视频控制服务器诺瓦二合一控制器嵌入式软件V1.0规格书更新记录简介V1260是诺瓦科技自主研发的一款All-in-One产品，集视频处理、视频控制以及LED屏体配置等功能于一体，具备多种类的视频信号接收能力、超高清全4K×2K@60Hz的图像处理能力和发送能力。
V1260可通过网口和光纤口将处理后的视频发送到LED显示屏上。
V1260采用工业级外壳，拥有强大的视频处理和发送能力，可适应复杂的操作环境，被广泛应用于政府、企事业单位及军队指挥中心等多种大型固装场合。
认证CCC。
若该产品无所销往国家或地区的相关认证，请第一时间联系诺瓦星云确认或处理，否则，如造成相关法律风险，客户需自行承担或诺瓦星云有权进行追偿。
特性●拥有完备的视频输入接口1路HDMI 2.0，4路DVI，1路3G-SDI。
●多输出，大带载支持16路网口和4路光纤输出，带载高达1040万像素。
●支持3D功能。
配合3D发射器EMT200和配套3D眼镜，实现3D显示效果。
启用3D后，设备输出带载减半。
●支持HDR输出能够极大地增强显示屏的画质，使画面色彩更加真实生动，细节更加清晰。
●支持个性化的画质缩放支持三种画面缩放模式，包括点对点模式、全屏缩放、自定义缩放。
●多窗口显示支持5窗口任意布局。
●支持OSD−每个场景支持1路OSD画面−最大支持导入存储8张OSD图片−每张OSD图片，最宽16384像素，最高16384像素，并且宽度×高度≤1040W像素−OSD画面支持置顶和置底调节●支持监视输出画面将监视内容通过HDMI发送到显示器显示。
●支持智能控制软件NovaLCT进行操作控制。
●支持场景预设最多可创建10个用户场景作为模板保存，可直接调用，方便使用。
●逐点亮色度校正。
配合NovaLCT和校正平台，对每个灯点的亮度和色度进行校正，有效消除色差，使整屏的亮度和色度达到高度均匀一致，提高显示屏的画质。
同时支持硬件打屏功能。
产品规格书视频处理器VS1 Rev1.1.1 NS160000075VS1 是针对 LED 大屏幕显示系统开发的视频处理器，采用业界顶尖的视频处理芯片，内部 12 位数字处理，图像更清晰、色彩更丰富。
采用Faroudja® DCDI 去隔行视频处理、Faroudja® Real Color® 真彩图像处理、Faroudja® TureLife™ 视频图像增强等技术，完美呈现视频图像。
单机最大输出分辨率 2304x1152，支持自定义分辨率输出；淡入淡出切换效果；PIP，大小位置任意显示；AIAO(Any In Any Out)功能，任意截取任意输出。
功能特性1)VS1 具有完备的视频输入接口，包括 2 路 AV，1 路 VGA，1 路 DVI，1 路HDMI，1 路选配 SDI;2)VS1 是Nova 新一代视频处理器的系列产品，强大的图像处理、专业的图像控制、以及友好的人机界面;3)提供淡入淡出的切换效果，以增强并呈现专业品质的演示画面；4)画中画的位置、大小等均可调节，可以随心所欲的控制；5)一个直观的 LCD 显示界面，清晰的按键灯提示，简化了系统的控制；6)支持高位阶视频输入，10bit/8bit；7)支持自定义分辨率输出，视频最大输出分辨率 2304x1152@60Hz。
图 1 VS1 尺寸图（单位:mm）外观说明前面板双画面功能关闭；双画面开，通道 1 画面置于顶层；双画面开，通道 2 画面置于顶层；部分功能开启，输出图像尺寸为窗口大小；全屏功能开启，输出图像尺寸与输入源大小一致；通道 1 图像截取关，输出为完整图像；通道 1 图像截取开，输出为截取图像；通道 2 图像截取关，输出为完整图像；通道 2 图像截取开，输出为截取图像；图像冻结打开标志，冻结当前输出画面；提示：部分数字菜单可以通过点按数字对应快捷键输入（如，输出设置窗口大小，偏移量等）。
Thunderview_V1SpecificationsVideo ProcessorDocument Version: V1.0.0Document Number: NS160110172Copyright © 2017 Xi’an NovaStar Tech Co., Ltd. All Rights Reserved.No part of this document may be copied, reproduced, extracted or transmitted in any form or by any means without the prior written consent of Xi’an NovaStar Tech Co., Ltd.Trademarkis a registered trademark of Xi’an NovaStar Tech Co., Ltd.Statement You are welcome to use the product of Xi’a n NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This document is intended to help you understand and use the product. For accuracy and reliability, NovaStar may m ake improvements and/or changes to this document at any time and without notice. Any problem in use or any good suggestion, please contact us through ways provided in the document. We will do our utmost to solve the problems and adopt the suggestions afte r evaluation as soon as possible.http://www.novastar.tech iThunderview_V1Specifications ContentsContents1 Overview (1)2 Features (2)3 Hardware (3)4 Dimensions (5)5 Specifications (6)http://www.novastar.tech iiThunderview_V1Specifications 1 Overview1Overview The Thunderview_V1 is a video processor developed by NovaStar based on thepowerful FPGA processing platform. It is designed with various signal inputs, including 2SDI, 1 DP, 1 CVBS, 1 VGA, 3 HDMI, 1 DVI, and 1 HDBT. It supports input resolutionsup to 4096x2160@60Hz and UHD input and output displays. With low latency and a fastsignal source switching within 0.25 second, it can give you a faster operationexperience.http://www.novastar.techThunderview_V1Specifications 2 FeaturesXI'ANNOVASTARTECH 2 Features ●The Thunderview_V1 has a wide variety of video input ports, including 2 SDI, 1 DP1.2, 1 CVBS, 1 VGA, 2 HDMI2.0, 1 HDMI1.3, 1 DVI, and 1 HDBT. ●Supports input and output resolutions up to 4096x2160@60Hz. ●Thunderview_V1 can scale the input image according to the screen resolution. ●The position and dimension of Picture in Picture (PIP) can be adjusted and controlled as you like. ●Supports 1 S/PDIF, an external independent audio output. ●Multiple Thunderview_V1 units can be cascaded to load a larger screen. ●The Thunderview_V1 system configuration can be done without using computer software. Currently, the configuration can be completed by only rotating one knob and pressing one button. ●The intuitive LCD display interface and clear button light indication simplify the system control. ● Users can control and operate the Thunderview_V1, load the logo file and switchinput sources through web page.http://www.novastar.tech3 HardwareThunderview_V1Specifications3 HardwareFront PanelFigure 3-1 Front panel①Power button②LCD panel③Press the knob to display the m ain m enu or confirm an o ption or o peration.④Shortcut keys of i nput source s election:C orresponds to the input source portson the rear panel.⑤To load the *.p n g file; a f ter the Thunderview_V1is connected to the uppercomputer through the Ethernet cable, it is required to visit to192.168.0.111 configure the IP.⑥To display the PIP menu screen⑦Custom button: Users can set it to be the b lackout,f reeze o r test f unction.⑧To display the scaling menu s creen⑨USB: For MCU upgrade3 Hardware Rear PanelFigure 3-2 Rear panelInput Quantity Function4 Dimensions 4 DimensionsUnit: mm5 Specifications 5 SpecificationsThunderview_V1Specifications5 Specificationshttp://www.novastar.tech 7。

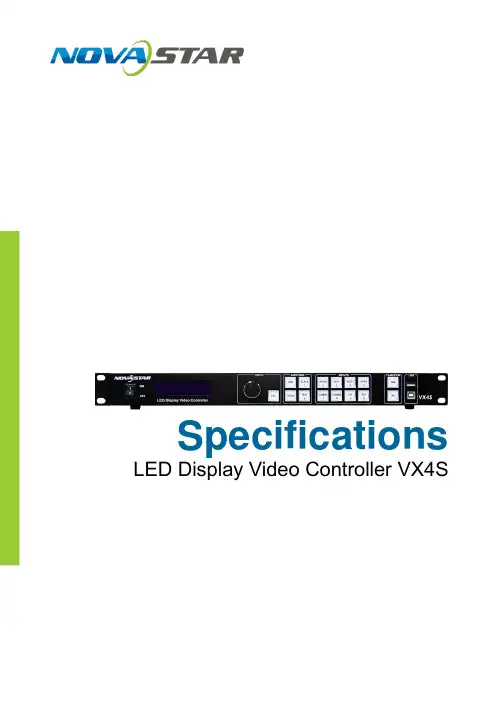

Specifications LED Video Controller VX4SRev1.0. NS160100070GeneralThe VX4S is a professional LED display controller. Besides the function ofdisplay control, it also features in powerful front end processing, so an externalscalar is no longer needed. With professional interfaces integrated, VX4S withexcellent image quality and flexible image control greatly meet the needs ofthe broadcast industry, Its friendly in user-interface. so that the display to workhas never been as easier and more enjoyable as with VX4S. Feature1) The inputs of the VX4S include CVBS×2, VGA×2, DVI×1, HDMI×1 , DP×1 and SDI×1. They support input resolution up to 1920×1200@60Hz;the input images of VX4S can be zoomed point-to-point according to thescreen resolution;2) Provide seamless high-speed switch and fade-in/ fade-out effect so as tostrengthen and display picture demonstration of professional quality;3) The location and size of PIP can both be adjusted, which can becontrolled at will;4) Adopt the Nova G4 engine; the screen is stable and flicker free withoutscanning lines; the images are exquisite and have a good sense of depth;5) Can implement white balance calibration and color gamut mapping basedon different features of LEDs used by screens to ensure reproduction oftrue colors;6) HDMI/external audio input;7) 10bit/8bit HD video source;8) The loading capacity: 2.3 million pixel;9) Support multiple controller montage for loading huge screen;10) Support Nova's new-generation point-by-point correction technology; thecorrection is fast and efficient;11) Computer software for system configuration is not necessary. The systemcan be configured using one knob and one button. All can be done just byfingers. That's what we called Touch Track!12) Adopt an innovative architecture to implement smart configuration; thescreen debugging can be completed within 30 seconds; greatly shortenthe preparation time on the stage;13) A intuitive LCD display interface and clear button light hint simplify thecontrol of the system.Appearance descriptionFront panelRear PanelTips: In order to improve the user’s experience, the layout of interface may be adjusted a little, The picture is only for reference.Tips：The two USB ( typeA) on front panel and rear panel are both forbidden to connect with PC directly.Specification ParametersAttachment。
